AEG-Electrolux FDB641RJ-0 User Manual

FACTORY PARTS CATALOG
DISHWASHER
PRODUCT NO. BASE MODEL NO. COLOR
FDB641RJB0 FDB641RJ black
FDB641RJS0 FDB641RJ white
MARKET
North America
SERVICE DATA SHEET # - 154374101 OWNER’S GUIDE # - 154374201 WIRING DIAGRAM # - 154374101
101 Masters Blvd. Anderson, SC 29624
Publication No.
5995337390
24" BUILT IN
DISHWASHER
Model No.
FDB641RJ
000504
821
©2000 White Consolidated Industries, Inc. All rights reserved
Publication No. FDB641RJ 5995337390
CONTROL PANEL
05/00 2
A = FDB641RJ (FDB641RJB0) B = FDB641RJ (FDB641RJS0)
POS. NO PART NO DESCRIPTION
1 154368203 A - Panel-control,black 1 154368201 - B Panel-control,white 2 154372103 A - Insert-control pnl,black 2 154372101 - B Insert-control pnl,white 3 # 154351102 A B Timer 8 # 154373701 A B Switch-selector,6 button 8* 154248601 A B Shield-switch 8* 5303318719 A B Screw,mtg. 13 154239503 A - Knob-timer 13 154239501 - B Knob-timer,white 20 154283701 A B Vapor Weldment Assy 25 154229201 A B Seal-chamber 26 154303901 A B Gasket-vent 27 154226701 A B Actuator-wax 28 154226901 A B Valve-vent 29 154226403 A B Gasket-valve
* 154283901 A B Screw,#8-10 ,3/8 phillips * # 154373901 A B Wiring Harness,main
FDB641RJ Publication No.
5995337390
CONTROL PANEL
# = Fast Moving Part 3 05/00 * = Non-Illustrated Part
Publication No. FDB641RJ 5995337390
DOOR
05/00 4
A = FDB641RJ (FDB641RJB0) B = FDB641RJ (FDB641RJS0)
POS. NO PART NO DESCRIPTION
1 154345902 A B Spring-door,(2) 1A 154325201 A B Spring linkage,(2) 2 154093301 A B Screw-arm assy,(4) 3 154325304 A B Arm Assy,LH 3A 154325303 A B Arm Assy,RH * 154211501 A B Pin-arm 5 154079601 A B Nut-arm assy,(4) 7 154299002 A B Door-inner assy 7A 154226601 A B Liner grate 9 154230101 A B Dispenser-det/rinse aid 9* 154294701 A B Screw,#7 plas .375 ,(6) ,disp. assy. 10 154304301 A B Screw-latch mtg,(2) 12 # 154308103 A - Latch assy,black 12 # 154308101 - B Latch assy,white 20 154359107 A - Door,black 20 154359105 - B Door,white 49 154297602 A B Gasket-door,bottom 50 154211401 A B Support-door hinge
* 154227808 A B Thermostat-temp boost * 154320301 A B Clamp-wire,drip loop
FDB641RJ Publication No.
5995337390
DOOR
# = Fast Moving Part 5 05/00 * = Non-Illustrated Part
Publication No. FDB641RJ 5995337390
TUB
05/00 6
A = FDB641RJ (FDB641RJB0) B = FDB641RJ (FDB641RJS0)
POS. NO PART NO DESCRIPTION
1 # 154209301 A B Tub assy,w/frame parts 2 154211601 A B Strike-door 3 # 154211801 A B Gasket-tub 4 154200602 A B Screw,10-16 x 3/8 ,hex 5 154333901 A B Roller-tub 6 5303943103 A B Screw w/washer,(8) 22 154239801 A B Tubing-water inlet 23 5303318539 A B Clamp-tubing,(2) 24 # 154225602 A B Hose-drain 25 # 154209701 A B Float 28 # 154225501 A B Switch-float 28A 154209801 A B Bracket-float switch 28A* 154333301 A B Screw,bracket mtg ,ph truss head 29 # 154290204 A B Thermostat,re-settable 30 154241101 A B Retainer-thermostat 30* 154297701 A B Screw,retainer-thermo
* 154041001 A B Screw,plask #1 ,10-10 x 9/16 * 154238304 A B Insulation,tub
FDB641RJ Publication No.
5995337390
TUB
# = Fast Moving Part 7 05/00 * = Non-Illustrated Part
Publication No. FDB641RJ 5995337390
MOTOR & PUMP
05/00 8
A = FDB641RJ (FDB641RJB0) B = FDB641RJ (FDB641RJS0)
POS. NO PART NO DESCRIPTION
1 # 154247601 A B Heater 1* 154106201 A B Nut-heater,(2) 1* 154289801 A B Shield-heater terminal 2 154359701 A B Bracket-heater,(2) 10 154245501 A B Cover-volute 13 154246801 A B Gasket-sump 14 154365902 A B Housing-sump 16 154246502 A B Retainer,sump 24 154250801 A B Spray arm-lower 24A 154313601 A B Spray arm-center 24A* 154252001 A B Nut-spray arm 32 154251701 A B Tube-delivery 32A 154358901 A B Gasket-delivery tube 34 154064901 A B Washer-insulating 40 154348401 A B Clamp,red ,pump 40 154348501 A B Clamp,silver ,pump 40* 154106801 A B Clamp-hose,(2) 54 154234401 A B Hose-connector 55 154362301 A B Bracket-motor 55* 5303316032 A B Screw,truss ss ,8 .625 58 154246402 A B Check ball 59 154246901 A B O-ring,rear 59A 154247001 A B O-ring,front 60 154247502 A B Drain Pump Assy 60* 154234501 A B Bracket-motor,drain 61 154359501 A B Nozzle,2nd level ,spray arm 62 154294101 A B Support-spray arm 63 154252201 A B Base-soil director 64 154252301 A B Filter-soil director 65 154252401 A B Filter-polypro 66 154252701 A B Trap-glass 70 # 154369501 A B Motor assembly,circulation ,w/o o’rings
FDB641RJ Publication No.
5995337390
MOTOR & PUMP
* 154338601 A B Clamp-P,nylon
# = Fast Moving Part 9 05/00 * = Non-Illustrated Part
Publication No. FDB641RJ 5995337390
FRAME
05/00 10
A = FDB641RJ (FDB641RJB0) B = FDB641RJ (FDB641RJS0)
POS. NO PART NO DESCRIPTION
3 # 154359801 A B Valve-water 4 154208701 A B Brace-front 8 154322903 A B Toeplate-adjustable 9 154370703 A B Kickplate/Baffle Assy,black 10 5300808658 A B Screw,#8A x .375" 11 154200601 A B Screw-#10-16 x 3/8 15 154210901 A B Screw-leveling 20 154209601 A B Cover-junction box
* 154041001 A B Screw,plask #1 ,10-10 x 9/16 * 154200602 A B Screw,10-16 x 3/8 ,hex
FDB641RJ Publication No.
5995337390
FRAME
# = Fast Moving Part 11 05/00 * = Non-Illustrated Part
Publication No. FDB641RJ 5995337390

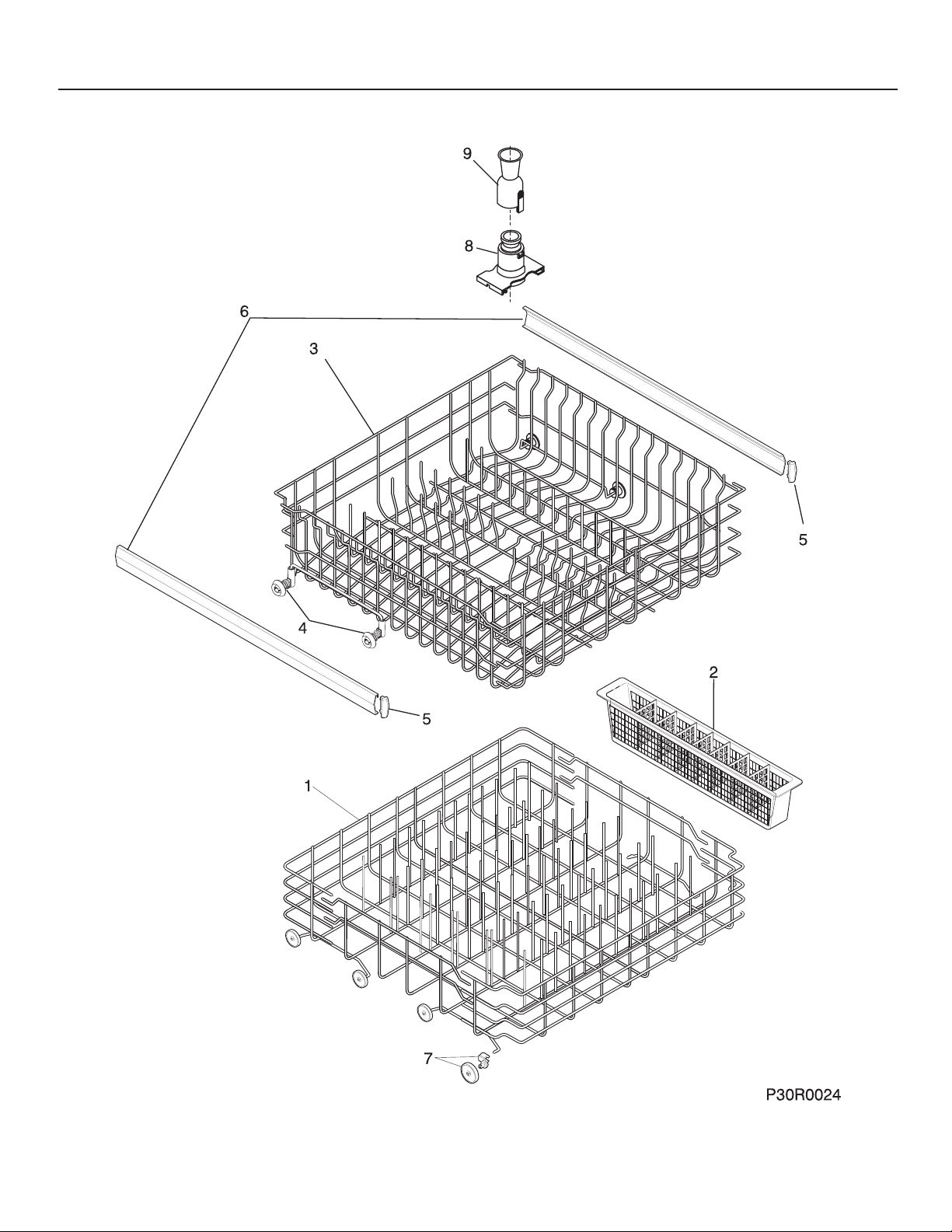

RACKS
05/00 12
A = FDB641RJ (FDB641RJB0) B = FDB641RJ (FDB641RJS0)
POS. NO PART NO DESCRIPTION
1 154320903 A B Rack assy-lower 2 154295201 A B Basket-Silverware 3 154321107 A B Rack assy-upper 4 5300809974 A B Wheel & bracket assy,upper rack 5 5300809927 A B Cap-slide,(4) 6 154232701 A B Slide-rack,(2) 7 154174501 A B Wheel & bracket assy,lower rack 8 154304001 A B Base-funnel 9 154251801 A B Funnel
FDB641RJ Publication No.
5995337390
RACKS
# = Fast Moving Part 13 05/00 * = Non-Illustrated Part
