AEG-Electrolux FAV85060VI User Manual

FAVORIT 85060 Vi

The fully integratable dishwasher

User information

Dear customer,

Please read this User Information carefully and keep it to refer to at a
later date.
Pass this User Information on to any subsequent owner of the appli­ance.

The following symbols are used in the text:

1 Safety instructions

Warning: Notes that concern your personal safety.
Attention: Notes that show how to avoid damage to the appliance.

3 Useful tips and hints

2 Environmental information

2

Contents

Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Diagram of appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Prior to using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Setting the water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Adding special salt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Filling up with rinse aid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Activating/deactivating the acoustic signal . . . . . . . . . . . . . . . . . . . . . . . . . . 13

In daily use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Loading cutlery and dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Adjusting the height of the upper basket. . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Using 3in1 detergents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Selecting the dishwashing cycle (Cycle Table) . . . . . . . . . . . . . . . . . . . . . . . . 21

Starting a dishwashing cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Setting the Delay Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Switching off the dishwasher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Care and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

What to do if.... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Remedying small malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

If the dishwashing results are not satisfactory. . . . . . . . . . . . . . . . . . . . . . . . 31

Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Notes for Test Institutes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Installation and connection instructions. . . . . . . . . . . . . . . . . 36

Safety information for the installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Installing the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Connecting the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Guarantee/Customer Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

3

Operating Instructions

1 Safety

Prior to using for the first time

• Follow the ”Instructions for installation and connection”.

Correct use

• The dishwasher is only intended for washing domestic dishes.

• Additions or modifications to the dishwasher are not permitted.

• Use only special salt, detergent and rinse aid suitable for domestic

dishwashers.

• Do not put any solvents in the dishwasher. This could cause an explo­sion.

Child safety

• Keep packaging away from children. There is a risk of suffocation.

• Children often do not recognise the hazards associated with electrical

appliances. Don’t allow children to use the dishwasher unsupervised.

• Make sure that children and pets don’t climb into the dishwasher.
Could endanger life!

• Dishwasher detergents can cause chemical burns to the eyes, mouth
and throat. Could endanger life! Comply with the safety instructions
of the dishwasher detergent manufacturer.

• The water in the dishwasher is not for drinking. Risk of chemical
burns.

4

General safety

• Repairs to the dishwasher are only to be carried out by qualified serv­ice engineers.

• When the dishwasher is not being used, switch it off and shut off the
water tap.

• Never unplug the appliance by pulling on the cable. Always pull the
plug.

• Ensure that the door of the dishwasher is always closed when it is not
being loaded or unloaded. In this way you will avoid anybody tripping
over the open door and hurting themselves.

• Never sit or stand on the open door.

• If the dishwasher is located in a room where there may be a frost, re-

move the connection hose from the tap after each use of the dish­washer.

5

Diagram of appliance

Ceiling spray arm

Upper basket spray arm
and floor spray arm

Water hardness
dial

Dispenser
for special salt

Dispenser
for detergent

Dispenser
for rinse aid

Control panel

Rating plate

Control panel

To use the appliance, always open the dishwasher door first.

The ON/OFF button is used to turn the dishwasher on and off.

6

Filters

Interior lighting

ON/OFF button

Set delay

timer

12 3

Programme buttons

Multi-display

Function buttons

The Programme buttons are used to select the desired dishwashing cy­cle.

Function buttons: In addition to the pre-set dishwashing cycle, the
following functions can also be set using these buttons:

Function button 1 Sets the water softener

Function button 2 - not programmed -

Function button 3 Activates/deactivates the acoustic signal

The multi-display can indicate:

– the level of hardness to which the water softener is set.
– whether the acoustic signal has been activated/deactivated.
– the start delay that has been set.
– the estimated time remaining for the current dishwashing cycle.
– what type of error has occurred with the dishwasher.

The control indicators have the following meanings:

1)

SALT

RINSE AID

1)

Refill with special salt

Refill with rinse aid

Control
indicators

WATER Turn on the tap

1) These control indicators are never illuminated while a dishwashing cycle is running.

7

Prior to using for the first time

If you wish to use 3 in 1 detergent:

3

– First read the section “Using 3in1 detergents”.
– Do not fill up with special salt or rinse aid.

If you do not use 3in1 detergent, before using for the first time

1. Set the water softener

2. Fill up with special salt for water softeners

3. Fill up with rinse aid

Setting the water softener

The water softener must be set manually and electronically:

3 To avoid scale deposits on the dishes and in the dishwasher, the dishes

must be washed with soft water, i.e. water with a low lime content. The
water softener must be set according to the table to the water hard­ness in the area where you live. Your local water company will be able
to give you information about the water hardness in your area.

The dishwasher must be switched
off.

Setting manually:

1. Open the dishwasher door.

2. Remove the lower basket from the

dishwasher.

3. Turn water hardness dial on the left
wall of the dishwasher interior to O
or 1 (see table).

Setting electronically:

1. Press the ON/OFF button.

3 If the only LED indicator illuminated is one that belongs to a pro-

gramme button, this means that this dishwashing cycle has been acti­vated. The dishwashing cycle must be deselected:
Press function buttons 2 and 3 simultaneously for approx. 2 seconds.
The LED indicators of all the programme buttons that can be selected
light up.

8

2. Press function buttons 2 and 3 simultaneously and keep them pressed.
The LED indicators for function buttons 1 to 3 will flash.

3. Press function button 1.
The LED indicator for function button 1 will flash.
The multi-display will indicate the hardness setting.

4. Pressing function button 1 increases the hardness setting by 1.
(Exception: hardness setting 1 follows hardness setting 10).

5. When the hardness setting is correct, press the ON/OFF button.
The hardness setting is now saved.

If the water softener is set electronically to “1”, this switches off the
control indicator for special salt.

Water hardness

in

2)

°d

51 - 70
43

- 50

37

- 42

- 36

29
23

- 28

19 - 22

- 18

15

11 - 14 1.9 - 2.5 II 3 3L 3

4 - 10 0.7 - 1.8 I/II 2 2L 2

below 4 below 0.7 I

1) The water hardness will only be indicated acoustically if the acoustic signal has been

activated.

2) (°d) German degree, measure of the hardness of water

3) [mmol/l] millimol per litre, international unit for water hardness

4) On this setting the length of the dishwashing cycle may be slightly longer.
*) factory setting

in

mmol/l

9.0 - 12.5

7.6

- 8.9

6.5

- 7.5

- 6.4

5.1

4.0

- 5.0

3.3 - 3.9

- 3.2

2.6

Range Manual Electronic

3)

IV 1

III

Setting for

water hardness

10

4*

0*

no salt

required

Indicator

on the multi-

display

4)

9
8
7
6

5

10L

9L
8L
7L
6L

5L
4L

1

1L 1

Number

of

acoustic

signals

10

9
8
7
6

5
4

1)

9

Adding special salt

To decalcify the water softener, it must be filled up with special salt.
Use only special salt suitable for domestic dishwashers.

If you do not use 3 in1 detergent, fill up with special salt:

– Before using the dishwasher for the first time.
– When the control indicator for special salt is illuminated on the con-

trol panel.

1. Open the door and remove the low­er basket.

2. Screw open the lid on the salt dis­penser by turning it anti-clockwise.

3. Only when using the dishwasher
for the first time:

Fill the salt dispenser with water.

4. Place the funnel (supplied) over the
dispenser opening.
Fill the dispenser with special salt;
the capacity of the dispenser is ap­prox. 1.0-1.5 kg, depending on the
size of the grains. Do not overfill the
dispenser.

3 If water overflows when filling up with special salt, this is completely

harmless.

5. Clean away any salt remnants from the dispenser opening.

6. Screw the lid back on in a clockwise direction.

7. Run a dishwashing cycle after filling the salt dispenser with special
salt. This will wash away salt water and salt crystals that have been

spilt.

3 Depending on the size of the salt grains, it can take several hours for

the salt to dissolve in the water and for the control indicator for special
salt to go out.

10

Filling up with rinse aid

With rinse aid the rinsing water drains away better and so you get
smear-free, gleaming dishes and clear glasses.

If you do not use 3in1 detergent, fill up with rinse aid:

– Before using the dishwasher for the first time.
– When the control indicator for rinse aid is illuminated on the control

panel.

Use only special rinse aid for dish­washers and no other liquid deter­gents.

1. Open the door.
The rinse aid compartment is locat­ed on the inside of the dishwasher
door.

2. Press the release button on the rinse
aid compartment.

3. Open the cover.

4. Pour rinse aid in slowly right up to

the broken “max” line;
this corresponds to a volume of ap­prox. 140 ml when full.

5. Press the lid shut until it clicks into
place.

6. Wipe up any spilt rinse aid with a
cloth. Otherwise there will be too
much foam when rinsing.

11

Setting the amount of rinse aid required

3 Only change the amount dispensed, if smears, milky spots (reduce the

amount) or dried on water spots (increase the amount) can be seen on
glasses and dishes. (See section “If dishwashing results are not satisfac­tory”.) The dosage can be set from 1-6. The dosage is pre-set to “4” in
the factory.

1. Open the dishwasher door.

2. Press the release button on the rinse

aid compartment.

3. Open the cover.

4. Set the dosage level.

5. Press the lid shut until it clicks into

place.

6. If rinse aid has leaked out, wipe it
away with a cloth.

12

Activating/deactivating the acoustic signal

In addition to the optical display (e.g. indicating the end of the cycle,
errors) you can also choose to set an acoustic signal.

1. Press the ON/OFF button.

3 If the only LED indicator illuminated is one that belongs to a pro-

gramme button, this means that this dishwashing cycle has been acti­vated. The dishwashing cycle must be deselected:
Press function buttons 2 and 3 simultaneously for approx. 2 seconds.
The LED indicators of all the programme buttons that can be selected
light up.

2. Press function buttons 2 and 3 simultaneously and keep them pressed.
The LED indicators for function buttons 1 to 3 will flash.

3. Press function button 3.
The LED indicator for function button 3 will flash.
The multi-display will indicate the current setting:

0b Acoustic signal deactivated

1b Acoustic signal activated (ex-factory setting)

4. Pressing function button 3 will change the setting.

5. Once the multi-display is indicating the required setting, press the ON/

OFF button. The setting is now saved.

13

In daily use

Loading cutlery and dishes

1 Sponges, cleaning cloths and any other objects that can absorb water

must not be washed in the dishwasher. Plastic and Teflon-coated dishes
and pans tend to retain water droplets. These dishes and pans therefore
do not dry as well as those made of china and stainless steel.

For washing in the dishwasher, the following cutlery/dishes/pots and pans

are not suitable: are of limited suitability:

• Cutlery with wooden, horn,
china or mother of pearl han­dles

• Plastic items that are not heat
resistant

• Older cutlery with cement
that is sensitive to temperature

• Dishes or cutlery with glued
parts

• Pewter or copper items

• Lead crystal glass

• Steel items that rust

• Wooden boards/platters

• Items made from synthetic ma-

terials

• Only wash stoneware in the dishwasher if it is
specifically marked by the manufacturer as
being dishwasher-safe.

• Glazed patterns may fade if washed very fre­quently in the dishwasher.

• Silver and aluminium parts have a tendency to
discolour during washing. Food remains, e.g.
egg white, egg yolk and mustard often cause
discoloration and staining on silver. Therefore
always clean food residues from silver immedi­ately, if it is not to be washed straight after
use.

• Glass can become dull after a large number of
washes.

• Before loading the dishes, you should:
– Remove the worst of the food residues.

– Soak pans with burnt-on food residues.

• When loading the dishes and cutlery, please note:
– Dishes and cutlery must not impede the rotation of the spray arms.

– Load bowls, cups, glasses, pans, etc. with the opening downwards so

that water cannot collect in them

– Dishes and items of cutlery must not lie inside one another or cover

one another

– To avoid damage to glasses, they must not touch one another
– Don’t put small items (e.g. lids) in the baskets for the dishes, but in

the cutlery basket, so that they can’t fall through the holes.

14

Loading cutlery

1 Warning: Sharp knives and other items of cutlery with sharp edges

must be laid in the cutlery rack or in the upper basket because of the
risk of injury.

Place knives, small spoons and small
forks in the cutlery tray which is in
the upper basket.

Place forks and spoons that do not fit
in the cutlery tray in the cutlery bas­ket.

To ensure that all items of cutlery in the cutlery basket can be reached
by the water, you should:

1.Place the grid insert on the cut­lery basket

2.Place forks and spoons in the
cutlery basket's grid insert with
their handles pointing down­wards.

For larger utensils, such as whisks, leave off one half of the cutlery grid.

15

The cutlery basket can be opened
out.

Always make sure that you put your
hand around both parts of the two­part handle when removing it from
the dishwasher.

1. Place the cutlery basket on a table
or work surface.

2. Open out the two-part handle.

3. Remove cutlery.

Pots, Pans, Large Plates

Load larger and heavily soiled dishes
and pans in the lower basket.
(Max. diameter for plates 29 cm).

16

To make it easier to load larger dish­es, all rear plate rests in the lower
basket can be folded down.

Cups, Glasses, Coffee Service

Load smaller, fragile crockery and
long, sharp cutlery in the upper bas­ket.

• Arrange items of crockery on and

under the folding cup racks so
that they are offset from each
other and water can reach all
items.

• The cup racks can be folded up

out of the way for tall crockery
items.

• Lay or hang wine and brandy

glasses in the slots in the cup
racks.

• For glasses with long stems, fold

the glass rack to the right, other­wise fold it away to the left.

17

• The row of spikes on the left of

the upper basket is also in two
parts and can be folded away.
Spikes not folded away: place
glasses, mugs etc. in the upper
basket.
Spikes folded away: More room
for serving dishes.

Adjusting the height of the upper basket

Maximum height of dishes in the

Upper basket Lower basket

with upper basket raised 22 cm 30 cm

with upper basket lowered 24 cm 29 cm

3 The height of the baskets can also be adjusted when they are loaded.

Raising/lowering the upper basket

1. Pull out the upper basket complete-

ly.

2. Raise the upper basket as far as it
will go and then lower it vertically.
The upper basket will latch into the
lower or the upper position.

18

Adding detergent

Detergents remove the dirt from
dishes and cutlery.
The detergent must be added before
the cycle starts.

1 Only use detergent intended for do-

mestic dishwashers.
The detergent compartment is lo-

cated on the inside of the door.

1. If the lid is closed:
Press the release button.
The lid will spring open.

2. Place the detergent in the detergent
dispenser. The markings indicate the
dosing levels for powder detergents:
“20/30” corresponds to approx.
20/30 ml of detergent.
Follow the manufacturer’s instruc­tions with regard to dosing and
storage.

3. Close the lid and press until it locks
into place.

3 In the case of very heavily soiled

dishes, fill the adjoining compart­ment (1) with additional detergent.
This detergent comes into use during the pre-wash cycle.

19

Concentrated detergents

Today’s detergents for dishwashers are almost exclusively low-alkaline
concentrated detergents with natural enzymes in tablet or powder
form.

2 Using 50°C dishwashing cycles in conjunction with these concentrated

detergents reduces pollution and is good for your dishes, as these dish­washing cycles are specially matched to the dirt-dissolving properties
of the enzymes in concentrated detergents. It is for this reason that us­ing 50 °C dishwashing cycles in conjunction with concentrated deter­gents can achieve the same cleaning results that can otherwise only be
achieved using 65 °C cycles.

Detergent tablets

3 Detergent tablets from different manufacturers dissolve at different

rates. For this reason, some detergent tablets do not attain their full
cleaning power during short cycles. Therefore please use dishwashing
cycles with pre-wash when using detergent tablets.

Using 3in1 detergents

These products are detergents with a combined cleaning, rinsing and
salt function.

If you want to use 3in1 products

1. There is no need to fill up with special salt or rinse aid.

2. Set the water softener to water hardness range “I”.

3. Set the rinse aid dosage to “1”.

Before the start of the dishwashing cycle put 3in1 detergent in the de­tergent dispenser.

20

If you do not want to use 3in1 products any more

If you want to stop using 3in1 products, please do the following:

• Fill up the dispensers for salt and rinse aid again.

• Switch the water softener to the highest setting and perform up to

three normal cycles without loading any dishes.

• Then set the water softener to the water hardness in your area.

Selecting the dishwashing cycle (Cycle Table)

Dishwashing-

cycle

INTENSIVE 70°

AUTO

(50° - 65°)

30 MIN

(60°)

2)

3)

Suitable

for:

Dinner serv­ice and
cookware

Dinner serv­ice and
cookware

Dishes, ex­cluding
saucepans

Type of

soiling

heavily soiled,
dried-on food re­mains, in particular
protein and starch

normally soiled,
dried-on food remains

just used, lightly to
normally soiled

Programme

sequence

Pre-wash

Main wash

Intermediate rinse

• •

2x

• •

1 to 2x

- • - • -

Final rinse

• •

• •

Consumption

values

Drying

Length (minutes)

Energy (kWh)

110 - 1 2 0

1,75 - 1,95

90 - 110

1,0 - 1,5

30

0,8

1)

Dinner serv­ice and
cookware,

ECO 50°

4)

temperature­sensitive

normally soiled • • • • •

130 - 160

0,95 - 1,05

crockery

Dessert dish­es and coffee

GLASS 45°

service, deli-

lightly soiled - •

2x

• •

73

0,9

cate glass­ware

1) The consumption values were obtained under standardised conditions. They depend on how
full the baskets for the dishes are. Variations are therefore possible in practice.

2) When using this cycle the degree of water clouding determines the amount of soiling on the
dishes. The length of the cycle and water and energy consumption can vary greatly – de­pending upon the load and how dirty the dishes are. Depending upon the soiling, the tem­perature of the water will be automatically adjusted to between 50°C and 65°C.

3) When using this cycle, only load the dishwasher half full.

4) Test programme for Test Institutes

Water (litres)

23 - 25

13 - 25

9

12 - 14

15

21

Selecting a programme

When your dishes look like this, select:
an intensive programme.

a normal or energy-saving pro­gramme.

22

a short programme (e.g. 30 minute
programme).

Starting a dishwashing cycle

1. Check that the spray arms can turn freely.

2. Turn the water tap on fully.

3. Press the ON/OFF button.

4. Select the desired cycle.

The programme indicator comes on. The remaining time expected for
the cycle will be shown in the multi-display.

3 During the dishwashing cycle, the remaining time shown in the multi-

display may be adjusted according to the size of the load, degree of
soiling, etc.

5. Close the door. The dishwashing cycle will begin.
A light signal in the form of a dot appears at floor level.

3 If the dishwasher is built in at high level with flush fitting cupboard

doors, the light signal cannot be seen.
The dot shaped light signal is not dangerous. (It is not a laser.) It lights
up while a dishwasher cycle is running and goes out when the cycle
ends.

Interrupting or aborting a dishwashing cycle

Only interrupt a dishwashing cycle that is in progress if it is absolutely
necessary.

Interrupting the dishwashing programme by opening the dishwash­er door

1 Hot steam may escape when the door is opened. There is a risk of scald-

ing.

1. Open the door carefully. The dishwashing cycle will stop.

2. Close the door. The cycle will continue.

Aborting the dishwashing cycle

1. Press function buttons 2 and 3 and keep them pressed.

The LED indicators of all the programme buttons that can be selected
light up.

2. Release the function buttons. The dishwashing cycle has been can­celled.

3. If you want to start a new cycle, check whether there is any detergent
in the dispenser.

4. Switch off using the ON/OFF button.

23

Setting the Delay Timer

3 With the delay timer you can delay the start of a dishwashing cycle for

between 1 and 19 hours.

1. Press the Delay Timer button repeatedly until the multi-display shows
the desired time delay, for example 12h, if the cycle is to start in
12 hours. The Delay Timer indicator is illuminated.

2. Select dishwashing cycle.

3. The time remaining to the start of the cycle is continuously displayed

(e. g. 12h, 11h, 10h, … 1h etc.).

To change the time delay:

As long as the cycle has not yet started, you can still change the setting
by pressing the DELAY TIMER button.

Cancelling the time delay:

Press the Delay Timer button repeatedly until the length of the selected
cycle appears in the multi-display. The selected dishwashing cycle will
begin immediately.

To change a dishwashing cycle

As long as the cycle has not yet started, you can still change the dish­washing cycle. First abort the dishwashing cycle, then re-set the time
delay, lastly select the new dishwashing cycle.

24

Switching off the dishwasher

When the dishwasher cycle has ended, the dot shaped light signal
below the door of the appliance goes out.
If the acoustic signal has been enabled, a continuous tone will sound
for approx. 15 seconds at the end of the dishwashing cycle.
If the dishwasher door is not opened, the acoustic signal will repeat af­ter 3 minutes and again after 6 minutes.
With some dishwashing cycles, the drying fan continues to run even af­ter the end of the cycle.

1 Carefully open the door. Hot steam may escape.

Hot dishes are sensitive to knocks. Therefore leave the dishes to cool for
about 15 minutes before removing them. You also get a better drying
result.

1. Press the ON/OFF button. All display indicators will go out.

2. Turn off the water tap.

Removing the dishes

3 It is normal for the inner door and the dispensers to be damp.

• Empty the lower basket first, then the upper basket. This way you

avoid dripping water from the upper basket onto dishes in the lower
basket.

• The dishwasher's interior light will always be on when the door of the

appliance is open. Therefore, in order to save energy, you should al­ways close the door of the dishwasher after having loaded or re­moved dishes.

Care and cleaning

Do not use furniture care products or aggressive cleaners.

1

• When necessary, clean the dishwasher’s controls with a soft cloth and

clean warm water.

• Occasionally check the internal dispensers, door seal and water inlet

filter (if fitted) for dirt and clean them, if necessary.

25

Cleaning the filters

3 The filters must be regularly checked

and cleaned. Dirty filters will spoil the
wash results.

1. Open the door and remove the lower
basket.

2. Turn the handle about ¼ of a turn
anticlockwise (A) and remove the fil­ter system (B).

3. Grasp the grip hole on the fine filter
(1) and remove it from the micro-fil­ter (2).

4. Clean all filters thoroughly under
running water.

5. Remove the flat filter (3) from the
base of the washing compartment
and clean both surfaces thoroughly.

6. Re-insert the flat filter.

7. Place the fine filter in the micro-fil-

ter and fit the two together.

8. Insert the filter system in place and
lock it by turning the handle clock­wise as far as it will go. Ensure that
the flat filter does not protrude
above the base of the washing com­partment.

1 Under no circumstances may the dishwasher be used without its filters.

26

Cleaning the spray arm jets

Regularly check the jets in the spray
arms for blockages. When cleaning is
necessary, remove spray arm from the
fixture and clean jets with a pointed
object (wire or needle). Then rinse out
the spray arm using a strong jet of
water.

3 Do not damage the jet opening.

Upper basket spray arm

1. To remove upper basket spray arm,

tilt it down hard.

2. Clean spray arms jets.

3. Place cleaned upper basket spray arm

back in position against the connect­ing piece: press the two together
firmly, until you feel them snap into
place.

27

Bottom spray arm

1. To remove bottom spray arm, pull it

upwards out of its catch.

2. Clean spray arm jets.

3. Place bottom spray arm back in posi-

tion against connecting piece and
press down firmly, until you feel it
snap into place.

28

What to do if...

Remedying small malfunctions

In the event of a fault, the light signal at floor level flashes.
If the acoustic signal is activated, warning tones sound if there are
faults.
If one of the following fault codes is displayed in the multi-display dur­ing operation:

– Fault codeÅ10 (Problems with water inlet),
– Fault codeÅ20 (Problems with water drainage),

please have a look at the following table.
When the fault is remedied, press the button for the cycle that has

started. The cycle will continue.
With other fault codes (“Å ” followed by a number):

– Abort the dishwashing cycle.
– Switch the appliance off and on again.
– Re-set the dishwashing cycle.

If the fault is displayed again, please contact the Customer Care De­partment and inform them of the fault code.

Malfunction Possible cause Remedy

1 short warning tone

continuously repeated can
be heard,
the cycle indicator for the
selected dishwashing cycle
is flashing:
the control indicator
WATER lights up:
fault code
played in the multi-dis­play:
(Problems with water in­let)

Å10 is dis-

Water tap is blocked with
limescale or faulty.

The tap is turned off. Turn the tap on.

The filter (where present) in
the threaded hose fitting
on the tap is blocked.

Filters in the base of the
dishwasher compartment
are blocked.

Water inlet hose
has not been correctly posi­tioned.

Check the water tap and
have it repaired if necessary.

Clean the filter in the
threaded hose fitting.

Cancel the dishwashing cy­cle (see chapter: Starting a
dishwashing cycle),
clean filters (see chapter:
Cleaning the filters),
then start the dishwashing
cycle again.

Check the position of the
hose.

29

Malfunction Possible cause Remedy

2 short warning tones

The sink outlet is blocked. Clean out sink outlet.
continuously repeated can
be heard.
The cycle indicator for the
selected dishwashing cycle
is flashing,
fault code

Å20 is dis-

played in the multi-dis-

Water drain hose

has not been correctly posi-

tioned.

Check the position of the
hose.

play. (Problems with water
outflow)

3 short warning tones
continuously repeated can
be heard,
Fault code

Å30 is dis-

played in the multi-dis-

The anti-flood system has

been triggered.

First shut off the water tap,
then switch off the appli­ance and contact the Cus­tomer Care Department.

play.

The cycle is not starting.

The mains plug is not

plugged in.

A fuse in the house’s wiring

system is defective.

For dishwasher models with

a delay start timer:

A start time has been se-

lected.

Plug in mains plug.

Replace fuse.

If the dishes are to be
washed immediately, cancel
the delay start.

The dishwashing compart-

ment is made from rust-

free stainless steel. Rust

spots in the dishwashing

Rust spots are visible in
the dishwashing compart­ment.

compartment are due to

rust particles from external

sources (rust particles from

water pipes, pans, cutlery,

Only wash cutlery, dishes
and pans that are suitable
for dishwasher use.

etc.). Remove such spots

with a commercially-avail-

able cleaning product for

stainless steel.

Decalcify appliance with
commercially available

agents for cleaning dish­A whistling noise can be
heard when washing dish­es.

The whistling is not a cause
for concern.

washers.

If the noises can still be

heard after decalcifying the

machine, use a different

brand of detergent for

washing cutlery and dishes.

30

If the dishwashing results are not satisfactory

The dishes are still dirty.

• The wrong dishwashing cycle was selected.

• The dishes were loaded is such a way that the dishwashing water did

not reach all items. The baskets for the dishes must not be overload­ed.

• The filters in the base of the washing compartment are dirty or incor­rectly positioned.

• Good quality detergent was not used, or too little was used.

• In the case of scale deposits on the dishes: The special salt dispenser is

empty or the water softening system has been incorrectly set.

• The drain hose is incorrectly positioned.

• Pollutants from the water in the dishwasher can block the jets in the

spray arms. You have the option of removing the spray arms from
their fixture for cleaning (see section “Care and Cleaning”).

The dishes do not dry and are not shining.

• Poor quality rinse aid was used.

• The rinse aid dispenser is empty.

There are smears, streaks, milky spots or a shiny bluish coating on
glasses and dishes.

• Lower rinse aid dosage.

There are dried water drops on the glasses and dishes.

• Increase rinse aid dosage.

• The detergent may be the cause. Contact the detergent manufactur-

er's customer advice centre.

Glass corrosion

• Contact the detergent manufacturer's customer advice centre.

31

Disposal

Packaging material

2

The packaging materials are environmentally friendly and can be recy­cled. The plastic components are identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging materials in the appropriate
container at the community waste disposal facilities.

2 Old appliance

The symbol
product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of elec­trical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed infor­mation about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you
purchased the product.

W on the product or on its packaging indicates that this

1 Warning! When your appliance has finished its working life, remove

the plug from the socket. Cut off the cable and plug and dispose of
them.
Break the door lock so that the door no longer shuts. This prevents chil­dren from trapping themselves inside and endangering their lives.

32

Technical data

Capacity: 12 place settings including serving dishes

Permitted water pres­sure:

Electrical connection: 230 V, 10 A, also see the rating plate on the right-hand side

Dishwashers that can be fully integrated

Dimensions: 820 - 880 x 596 x 546 (H x W x D in mm)

Max. weight: 50 kg

1-10 bar (=10-100 N/cm2 = 0.1-1.0 MPa)

of the dishwasher’s interior door .

5 This appliance conforms with the following EU Directives:

– 73/23/EEC dated 19.02.1973 Low Voltage Directive
– 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending

Directive 92/31/EEC

– 93/68/EEC dated 22.07.1993 CE Marking Directive

33

Notes for Test Institutes

Testing in accordance with EN 60704 must be carried out with the

appliance fully loaded and using the test cycle (see “Cycle Table”).
Tests in accordance with EN 50242 must be carried out when the salt
dispenser in the water softener and the rinse aid dispenser have been
filled with salt and rinse aid respectively, and using the test cycle (see
“Cycle Table”).

Full load:

12 place settings
including serving dishes

Amount of detergent
required:

Rinse aid setting: 4 (Type III) 4 (Type III)

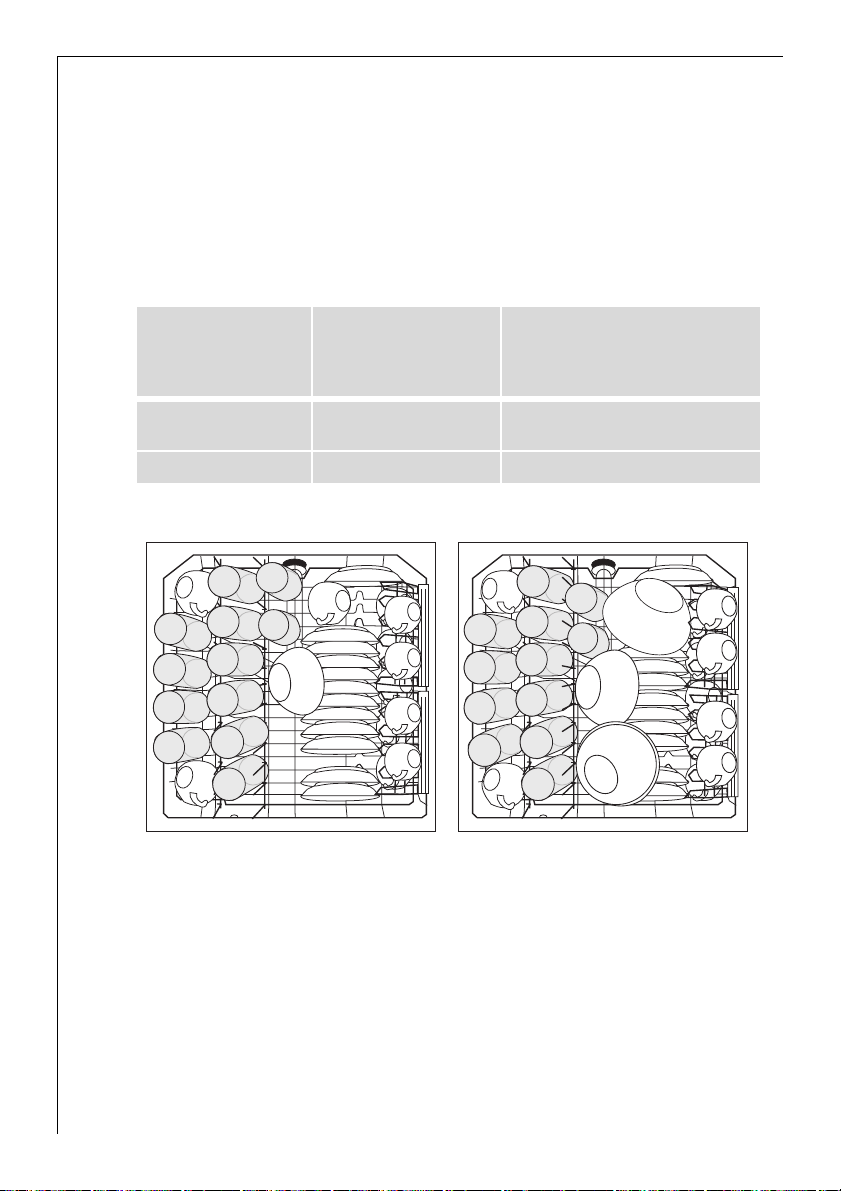

Example loading arrangements:

Upper basket

*) If there are cup racks in place on the lefthand side or the cutlery tray is in place, re-

move them.

*)

5g + 25g (Type B) 20g (Type B)

Half load:

6 place settings including serving
dishes, leaving alternate positions
in the rack free

34

Lower basket with cutlery basket

*)

Cutlery basket

*) If there are cup racks in place on the lefthand side or if beer glass holders are in

place, remove them.

35

Installation and connection instructions

1 Safety information for the installation

• Only transport the dishwasher in an upright position, otherwise salt
water may run out.

• Before using the dishwasher for the first time, check for any damage
caused in transport. Do not under any circumstances connect an ap­pliance that is damaged. In the case of damage, please contact your
supplier.

• Never use the dishwasher if the mains cable, water inlet or drain hose
are damaged; or if the control panel, work top or plinth area are
damaged such that the inside of the appliance is freely accessible.

• Always plug the mains plug into a correctly installed shockproof
socket.

• Permanent connection: a permanent connection must only be in­stalled by a trained electrician.

• Prior to using the appliance for the first time, ensure that the rated
voltage and type of supply on the rating plate match that of the sup­ply where the appliance is to be installed. The fuse rating is also to be
found on the rating plate.

• Multi-way plugs / connectors and extension cables must not be used.
This could constitute a fire hazard through overheating.

• The dishwasher’s cable must only be replaced by the Customer Care
Department or a registered electrician.

• A water inlet hose with safety valve must only be replaced by the
Customer Care Department.

36

Installing the dishwasher

• The dishwasher must be installed on a firm floor and adjusted to en­sure that it is stable and level in all directions.

• To compensate for unevenness in
the floor and to match the height
of the appliance to that of sur­rounding units, extend the thread­ed feet using a screwdriver.

• The drain hose, inlet hose and
mains cable must be laid so that
they are able to move freely within
the plinth area, and so that they
are not kinked or crushed when the
dishwasher is in position.

• The dishwasher must also be
screwed tightly to the work surface
or to the adjoining units. This is essential to ensure the dishwasher
does not tip up.

Dishwashers that can be fully integrated

(see installation template supplied)

3 The door of the appliance can be fitted with a wooden door/cupboard

door with the following dimensions:

Width: 591 mm – 594 mm

Depth: 16 mm – 24 mm

Height: max. 715 mm

Weight: max. 10 kg

Using the installation template supplied split cupboard doors can be
easily installed and firmly fitted.

37

Connecting the dishwasher

Connecting to the water supply

• The dishwasher can be connected to cold and hot water supplies up
to max. 60°C.

• The dishwasher must not be connected to open hot water appliances
or instantaneous water heaters.

Permitted water pressure

Lowest permitted water pressure:
1 bar (=10 N/cm2 =100 kPa)

Highest permitted water pressure:
10 bar (=100 N/cm2 =1 MPa)

Consult your plumber if the water pres­sure is less than 1 bar.

If the water pressure is greater than 10
bar, a pressure reduction valve must be
used (available from your dealer).

Connecting the inlet hose

1 The water inlet hose must not be kinked, crushed or entangled when it

is being connected.
Connect the threaded hose fitting (ISO 228-1:2000) on the water inlet
hose to a tap with an external thread (¾ inch). The inlet hose is fitted
with either a plastic or a metal nut:
– Only tighten the nut hand tight.
Then do a visual check for water tightness. (Make sure that the tap is
not dripping.)

3 So that access to the tap in the kitchen is not restricted by the use of

the dishwasher, we recommend installing an additional tap, or fitting a
T-branch to the existing tap.

If you need a longer water inlet hose than that supplied, the following
VDE-approved complete hose sets are to be used. These are available
from your local dealer.

– Hose kit “WRflex 100” (Code: 911 239 034)
– Hose kit “WRflex 200” (Code: 911 239 035)

38

Water drainage

Drain hose

1 The drain hose must not be kinked, crushed or entangled.

Connecting the drain hose:

– Maximum permitted height: 1 metre.
– Minimum required height: 40 cm above the bottom edge of the ap-

pliance.

Extension hoses

• Extension hoses are available from
your dealer or from our Customer
Care Department. To ensure that
the function of the appliance is not
impeded, the internal diameter of
extension hoses must be 19 mm.

• Extension hoses must not be laid
more than a maximum distance of
3 metres horizontally; the maxi­mum permitted height for the con­nection for the drain hose is then
85 cm.

Sink outlet connection

• The outlet of the drain hose (ø 19 mm) fits all commonly available
sink outlet types. The outer diameter of the sink outlet connection
must be at least 15 mm.

• The drain hose must be fixed to the sink outlet connection using the
hose clamp supplied.

Water drainage if the dishwasher is built-in at high level

If the dishwasher is installed at a high level, and the drain hose connec­tion is less than 30 cm from the lower edge of the appliance, adapter
kit ET 111099520 must be fitted by the Customer Care Department.

39

Anti-flood system

For protection from water damage, the dishwasher is equipped with a
anti-flood system.
In the event of a fault, the safety valve in the water inlet hose immedi­ately interrupts the supply of water to the appliance and the drain
pump is activated. In this way water can neither escape nor overflow.
The remaining water in the appliance is automatically pumped out.

Should a fault occur when the appliance is switched on, a buzzing tone
can also be heard.

Electrical connection

Details about the voltage, type of supply and the fuses required are to
be found on the rating plate. The rating plate is located on the right­hand inner edge of the dishwasher door.

To isolate the dishwasher from the mains, pull out the mains plug.

Important:

– The plug must be accessible after the appliance has been installed.
– Following installation, live parts and insulated wiring must not be ac-

cessible to a test finger in accordance with DIN EN 60335-1.

40

Connecting systems

The water inlet hose, drain hose and the mains cable must all be con­nected to the side of the dishwasher as there is no space for them be­hind the appliance.

2 connection pieces 45° or

straight, outer ø 19 mm,

water-

inlet

length 30 mm

mains

cable

water­drainage

doublevalve water-

drainage

mains socket mains cable

waterinlet

41

Guarantee/Customer Service

Weitere Kundendienststellen im Ausland

In diesen Ländern gelten die Garantiebedingungen der örtlichen Part­ner. Diese können dort eingesehen werden.

Further after-sales service agencies overseas

In these countries our AEG agents’ own guarantee conditions are appli­cable. Please obtain further details direct.

Autres agences étrangères assurant le service après-vente

Dans ces pays, les conditions de garantie des concessionnaires de la ré­gion sont valables. Vous pouvez les consulter sur place.

Otros puntos de Postventa en el extranjero

En estos países rigen las condiciones de nuestros representantes locales.
las cuales pueden ser consultadas allí mismo.

Ulteriori uffici del servizio tecnico assistenza clienti all’estero

In questi paesi sono valide le condizioni di garanzia dei partner locali.
Queste condizioni possono essere esaminante sul luogo.

Serviços de assistência técnica no estrangeiro

Nestes países são válidas as condições de garantia dos concessionários
locais, podendo aí ser consultadas.

További vevöszolgálati irodák külföldön

Ezekben az országokban a mi AEG vevöszolgálatainknál saját
jótállási feltételek alkalmazhatók. A további adatokat kérjük közvet­lenül szerezzék be.

42

Servisne službe

Na garancijskem listu boste našli seznam pooblašèenih servisnih
služb AEG.

U.A.E. Abu Dhabi

Universal Trading Company
P.O. Box 43 99
Tel.: [phone]
Service Center 6733974

Egypt

Middle East Commercial
Center
4 Salah El Dein St. - 2nd floor
Heliopolis, Kairo
Egypt
Tel.: [phone]

Australia

The Andi-Co Group
1 Stamford Road
Oakleigh VIC 3166
Tel.: [phone]
Fax: [phone]
www.andico.com.au

Bahrain/Arabian Gulf

A.A. Zayani & Sons
P.O. Box 9 3 2
Bahrain
Tel . : [phone]

Bulgaria

Electrolux Bulgaria E.O.O.D.
91 Levski Blvd.
1000 Sofia
Tel.: [phone]
Fax. [phone]

Cyprus

Hadjikyrlakos & Sons Ltd.
Prodromou 121
P.O. Box 21587
Nicosia 1511
Service Telephones:
Nicosia 02 481226
Limassol 05 562182
Larnaca 04 633929
Paphos 06 932 699

Estonia

Electrolux Estonia Ltd.
Mustamäe tee 24
EE0006 Tallinn
Tel.: [phone]
Fax: [phone]

Hong Kong

Dah Chong Hong Ltd.
20 Kai Cheung Road
Kowloon Bay
Kowloon - Hong Kong
Tel.: [phone]
Fax: [phone]

Jordan

Jordan Household
Supply Co. Ltd.
P.O. Box 3/68
Amman/Tel.: 69 70 50

Canada

EURO-LINE Appliances
2150 Winston PARK Drive 20
Oakville, Ontario L6H 5V1
Tel.: [phone]
Fax: [phone]

Korea (South)

Core Incorp.
3/F Chewoo Bldg.
200 Nonhyun-Dong
Kangnam-Ku 135-010
Seoul
Telefon [phone]

Croatia

Electrolux D.O.O.
Suplova 7
10000 Zagreb
Tel.: [phone]
Fax: [phone]

Kuwait/Arabian Gulf

Ali Al-Ghanim Est.
P.O. Box 21540 - Safat
Tel.: [phone]
Fax: [phone]

Lebanon

Adib & Assaferi
P.O. Box 539
Tripoli

Latvia

Electrolux Latvija Ltd.
Kr.Barona iela 130/2
Riga, LV-1012
Tel.: [phone]
Fax: [phone]

Lithuania

Electrolux Lithuania
Verkui 29
2600 Vilnus
Tel.: [phone]
Fax: [phone]

Malta

ITC
International Trading Company
White House Building
Mountbatte Street
Blata L-Bajda/Tel.: 220644

Mauritius

Happy World Centre Ltd.
P.O. 7 54
1 Chausee Street
Port Louis
Tel.: 25355

Namibia

AEG NAMIBIA (PTY)
LIMITED-Jeppe Street
Northern Industrial Area
Windhoek
Tel.: [phone]
Fax: [phone]

New Zealand

Monaco Corporation Ltd.
10 Rothwell Avenue
Albany - Auckland
4399 Auckland 1
New Zealand
Tel.: [phone]
Fax: [phone]

Syria

WATTAR CO.
P.O. B ox 3 6109
Mazzeh - Damascus
Direct Phone: [phone]
Fax: [phone]

Iran

ARIAN International Develop­ment Co.
AEG Showroom
Shariati, Balatar as Safar
Teheran / Iran
Phone No. Showroom:
021 / 285 513 / 4
Phone No. Service:
021 / 312 27 67 / 8

Poland

Electrolux Poland Sp. zo.o.
ul. Domaniewska 41
02-034 Warszawa
tel.: [phone]
fax: [phone]

Russia

Electrolux Russia Ltd.
16 Olympiysky prospekt
129090 Moscow
Tel.: [phone]
Fax: [phone]

43

Israel

Evis Ltd.
Tadiran-Ampa Service
10 Gibonay Israel Street
New Industrial Zone
Netanya, 42504
Israel

Japan

Electrolux Japan Ltd.
Domestic Appliances
Department
Maruzen Showa Warehouse
Building
Tookai 4-5-12, Ota-ku
143-006 Tokyo
Tel.: [phone]
Fax: [phone]

Thailand

Olympia Thai Tower, 444
Rachadapiser Road
Samsennok- Huaykwang
10320 Bangkok
Thailand
Tel.: [phone]
Fax: [phone]

Hungary

Electrolux Lehel KFT
Erzsébet Királyné útja 87.
1142 Budapest
Tel.: [phone]

Malaysia

Arzbergh Engineering
No. 49A/B, Jalan Petaling
Utama 7
4600 Petaling Jaya
Tel.: [phone]
Fax: [phone]

Singapore

Group Pte Ltd.
833 Bukit Timah Road
Unit no. 01-11 Royalville
279887 Singapore
Tel.: [phone]
Fax: [phone]

Slovakia Rep.

Electrolux Slovakia S.R.O.
Seberiniho 1
821 03 Bratislava
Tel.: [phone], 4355
Fax: [phone]

Saudi Arabia

Awad Badi Nahas Est
Shara Siteen
Jeddah 21463
Phone: [phone]
Alia Trading Co
Mecca Road
Riyadh 11491
Phone [phone]

Slovenia

Electrolux Slovenia D.O.O.
Traska Ul. 132
1000 Ljubljana
Tel.: [phone]
Fax: [phone]

South Africa

AEG (Pty) Ltd.
55, 12th Road
P.O. Box 1 02 64
Kew/Johannesburg 2000
Tel.: [phone]

44

454647

Service

In the event of technical faults, please first check whether you can
remedy the problem yourself with the help of the operating instruc­tions (section “What to do if…”).

If you were not able to remedy the problem yourself, please contact the
Customer Care Department or one of our service partners.

In order to be able to assist you
quickly, we require the following
information:

– Model description
– Product number (PNC)
– Serial number (S No.)

(for numbers see rating plate)

– Type of fault
– Any error messages displayed by

the appliance

So that you have the necessary reference numbers from your appliance
at hand, we recommend that you write them in here:

Model description: .....................................

PNC: .....................................

S No: .....................................

From the Electrolux Group. The world´s No.1 choice.

The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor
use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,
vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more
than 150 countries around the world.

AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg

http://www.aeg.hausgeraete.de

© Copyright by AEG

822 961 799-00-290305-03

Subject to change without notice
