ÖKO_FAVORIT 3430
Dishwasher
Operating Instructions
AUS
ERFAHRUNG
GUT
2
SYSTEM
–
ÖKO
MADE IN GERMANY
Ecological in practice, not just theory
Printed on recycled paper-
Contents
Safety instructions 4
Disposing of packaging and old machine 6
Disposing of the packaging 6
Disposing of your old machine 6
Important hints 7
Operating your dishwasher economically
and with regard for the environment 7
Description of the appliance 8
The inside of the appliance 8
Use 9
Control panel 9
Dish-washing programmes 10
Before using your dishwasher for the first time 12
Setting the water hardness range 12
Filling with special salt 14
Salt refill indicator 15
The rinse-aid 15
Setting the rinse-aid quantity to be added 16
Adding dishwashing detergent 16
Phosphate detergent with enzymes 18
Loading your machine 19

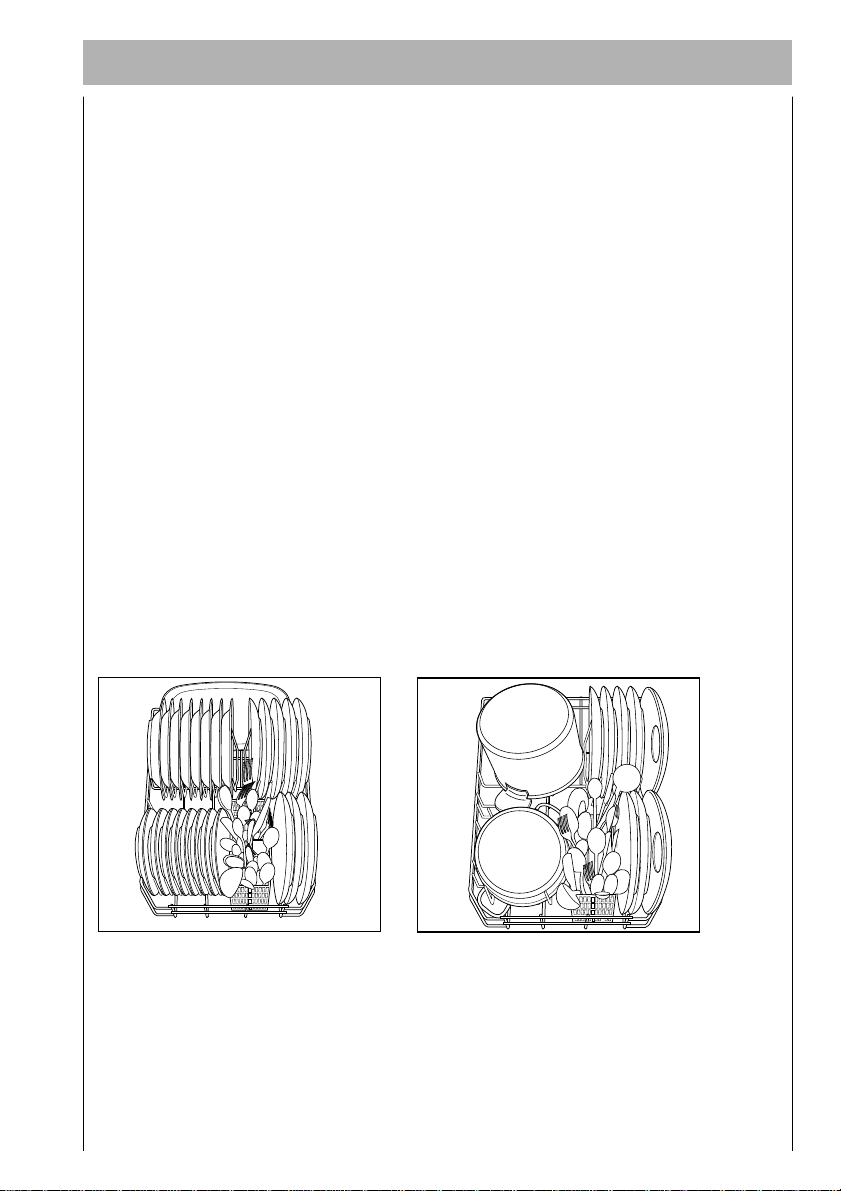

The lower basket 19
Cutlery basket 20
The upper basket 21
Operating instructions 22
Care instructions 24

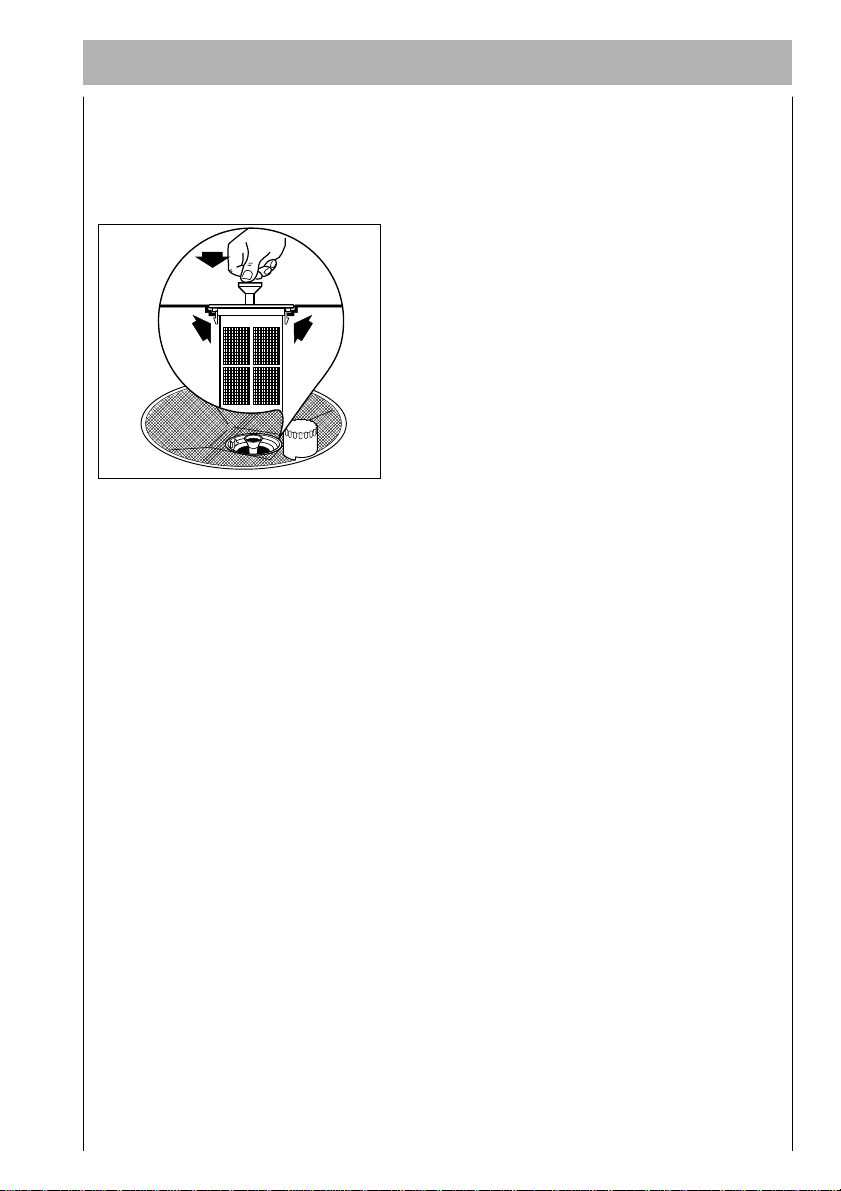

Cleaning the filter group 24
Servicing 26
Customer service 28
Technical data 29
Installing 30
Positioning 30
Connecting the water supply 31
Water Outlet Connection 32
Water protection system 33
Electrical connection 33
3
Safety instructions
The safety of AEG electrical appliances conforms to accepted rules of technology and the Appliance Safety Act. We as manufacturers, however, see
ourselves as being obliged to familiarize you with the following safety instructions.
Using your dishwasher for its intended purpose
■ Only use your dishwasher for machine washing of household crockery.If
your machine is misused or used for any purposes other than that forwhich
it is intended, the manufacturer cannot be held liable for any damage
caused.
■ For safety reasons, you should not convert or modify your dishwasher in
any way.
Before using your dishwasher for the first time
■ Check your dishwasher for any transport damage. Never connect a damaged
machine. If your dishwasher is damaged, you should contact your supplier.
■ Your dishwasher must be correctly installed and connected. Please read
the section on "Installation" to make sure you know all about this.
■ Before using your dishwasher for the first time, do not forget that the nomi-
nal voltage and current type indicated on the rating plate of your machine
must be the same as the nominal voltage and current type at the installation site. The necessary electrical fusing is also given on the rating plate.
Child safety
■ Packaging parts (e.g. foils, styrene foam) may be dangerous for children,
who could even be suffocated! You should therefore keep all packaging well
away from children.
■ Children may not recognize the dangers of improper use of electrical appli-
ances. You should therefore ensure proper supervision during operation
and not allow your children to play with your dishwasher.
■ Detergents may have a caustic effect on eyes, mouth and throat and
may even cause suffocation! Keep all detergents in a safe place out of
children’s reach.
■ The water in your dishwasher should not be used for drinking. Detergent
residues may still be present in your machine. Make sure you do not splash
these caustic residues onto your skin or suffocate yourself! Keep children
well away from your dishwasher when its door is open.
4
Your dishwasher in day-to-day use
■ Never operate your dishwasher if the electrical supply lead, supply or drain
hose, control panel, worktop or plinth are damaged.
■ If there is a fault, first turn the water tap off. Then switch off your machine
and pull the plug out of the socket. If there is a fixed connection, switch off
or unscrew the fuse(s).
■ Never pull the plug out of the socket by the cable - always hold the plug.
■ Dishwasher repairs should only be performed by trained personnel.
Improper repairs may seriously endanger the user. If your dishwasher
needs to be repaired, you should contact our service centre or your retailer.
■ Never place any solvents in your dishwasher or you may cause an explosion!
■ Do not rest or sit on the open door or the machine could tilt.
■ Before using special dishwasher salt, detergent or rinse-aid, make sure that
the manufacturer of these products expressly specifies their use in domestic
dishwashers.
■ Always turn off the water tap when your dishwasher is left unattended for
any length of time, e.g. when you are away on holiday.
■ Only transport the dishwasher in an upright position. Tipping it upside down
during transport could cause salty water to leak into the internal compartment
and lead to the formation of rust.
5
Disposing of packaging and old machine
Disposing of the packaging
Our dishwashers require effective protective packaging in transit, though we
always confine ourselves to what is absolutely necessary.
Warning! Packaging parts (e.g. foils, styrene foam) may be dangerous for children, who could even be suffocated! You should
therefore keep all packaging well away from children.
All packaging materials used are environmentally compatible and reusable.
The cardboard parts are produced from recycled paper, and the wood is
untreated.
The plastics are marked as follows:
>PE< for polyethylene. e.g. packaging foils
>PS< for polystyrene. e.g. padding (essentially CFC-Free)
>POM< for polyoxymethylene, e.g. plastic clamps.
By recycling and reuse of the packaging, raw materials can be saved and the
volume of refuse reduced.
Give the packaging for reuse to your local recycling centre. Your municipal or
local authority will give you its address.
Disposing of your old machine
When your machine finally reaches the end of its life and you withdraw it from
service, you should render it unserviceable before having it disposed of.
Warning! Children at play could lock themselves in your machine
(and suffocate) or otherwise endanger their lives. Therefore pull
out the mains plug and detach and discard the electrical supply
lead.
Disable the door lock so that the door no longer closes.
Marking of plastic parts for graded recycling: All plastic parts in your machine
are marked with internationally standardised abbreviations (e.g. >PS< for
polystyrene). When your machine is disposed of, this enables plastic waste to
be sorted into individual types for environmentally conscious recycling.
Take your decommissioned machine to your local recycling centre or dealer,
who will take it back from you for a small handling charge.
6
Important hints
Operating your dishwasher economically and with regard
for the environment
Collect your dirty dishes, stack them in the dishwasher, and only wash them
when both baskets are full, making sure that the latter are never overloaded.
Only then can you be sure that you are machine-washing economically and
with regard for the environment.
Always select the programme corresponding to the type of crockery and
degree of soiling (see "Programme chart").
Never overdose detergents, special salt or rinse-aid. Follow the dosage recommendations in these operating instructions as well as the instructions
given by manufacturers of these products.
Make sure that the water softener is correctly set.
Unsuitable crockery
The following are unsuitable for machine washing:
- wooden boards or platters
- non-heat-resistant plastic parts
- lead crystal glass
- tin or copper items
- glued crockery or cutlery
- older types of cutlery with temperature-sensitive adhesive
- steel knives that are liable to rust
- cutlery with wood, horn, porcelain or mother-of-pearl handles.
Suitable crockery
The following items have certain machine washing limitations:
- Only wash earthenware crockery in your dishwasher if the manufacturer
has expressly indicated it as being suitable for that purpose.
- Some types of decoration which have been painted over the glaze may
fade after frequent machine washing.
- Silver and aluminium parts tend to discolour during machine washing.
- Many food residues, such as egg white, egg yolk and mustard often cause
discolouration or staining on silver. Silver crockery and cutlery should therefore always be cleaned of food residues if they are not washed immediately after a meal.
- Some types of glass may become cloudy after many washing cycles. You
should therefore continue to hand-wash especially valuable glassware.
When buying new crockery and cutlery, confirm that they are dishwasher-safe.
7
Description of the appliance
The inside of the appliance
Water hardness
adjustment
Upper basket
stop
Lower spray arm
Large filter
Salt container
Rinse aid
dispenser
Detergent dispenser
Lower basket
Upper basket
Water inlet funnel
Upper spray arm
Central filters
Cutlery basket
Rating plate
8
Drain hose
Supply cable
Inlet hose
Use
Control panel
C
A
B
1
1. Pilot light
This comes on when the ON/OFF
button (2) is depressed, indicating
that the machine is on.
2. ON/OFF Pushbutton
ON: By depressing this pushbutton
the machine starts operating and,
at the same time, the pilot light (1)
comes on.
OFF: When the washing programme has finished, the machine
stops automatically and the pilot
light (1) remains on.
To switch the pilot light off or to stop
the machine at any time, press the
button again.
3. Hand grip
To close the door, simply press on
it firmly . To open the door , press the
grip in, press the grip lightly
upwards, and pull it outwards at the
same time.
4. Indicator mark for starting the
programmes
2
3
5. Programme Selector Dial
To select a programme, turn the
Programme Selector Dial clockwise, making sure that the programme letter you wish to select is
opposite the Indicator mark (4) on
the control panel.
The programme starts when the
selector opposite the positions
(A,B,C) clicks audibly.
6. Programme sequence indicator
This continuously indicates what
phase in the washing programme
the appliance has reached.Each
phase is represented by a symbol:
At the end of the programme the
dishwasher automatically stops.
4
5
Prewash - Hold
Wash
Cold rinse
Hot rinse
Hot air drying
6
9
Dish-washing programmes
Programmes
NORMAL
65°C
ECONOMY
65°C
RINSE
AND
HOLD
Quantity of food scraps
Type of soil
Normally or heavily soiled food
residues adhering to it, mainly
containing starch (e.g. noodles,
rice, potato, egg, sauces,
gravy).
Normally or heavily soiled food
residues adhering to it, mainly
containing starch (e.g. noodles,
rice, potato, egg, sauces,
gravy).
Partial load to be completed
later. This programme does not
require any detergent.
Type
of load
Pots and
various
different
kinds of
crockery
Pots and
various
different
kinds of
crockery
Any
Testing programme according to IEC 436/DIN 44990:
- NORMAL 65°C programme with standard detergent type Aor B;
- Standard place settings: 8 (see Figs. 9 and 12);
- Recommended quantity of detergent: 20 g in the dispenser
5 g on the dispenser lid.
Programme
selector
position
B
C
A
Buttons
to be
pressed
10
Recommended
quantity
of detergent
inside the
dispenser
*
on the
dispenser
lid
Cycle description
Approximate consumption values
**
Programme
duration
in minutes
***
1
2
Energy
consumption
in kWh
consumption
Water
in litres
2 level
dessert
spoonfuls
(20 g)
2 heaped
dessert
spoonful
(15 g)
Half
dessert
spoonful
(5 g)
/
As some products can be more efficient than others, please also pay attention to the
*
dosage instructions from the manufacturer of your brand.
These specifications are indicative values and depend on the pressure and
**
temperature of the water, and also on voltage modifications.
The duration of the programme depends on the total power absorbed. This value
***
can be found on the rating plate on the right hand side of the door. In this way you will
easiliy discover the column of the programme duration relating to your appliance.
Column 1 = 230V / 2100W / 10A
Column 2 = 230V / 3000W / 16A
220-240V / 2770W / 13A
Cold prewash
Main wash up to 65°C
1 cold rinse
1 hot rinse up to 65°C
Hot air drying
Main wash up to 65°C
1 cold rinse
/
1 hot rinse up to 65°C
1 cold rinse
(to avoid food scraps
from sticking to the
/
dishes.
76 64
42
54
10
10
1.1
17
1.0 16
0.1
11
11
Before using your dishwasher for the first time
When your new dishwasher is correctly set up and installed, you must first
make it ready for use.
Before using your dishwasher for the first time, proceed as follows:
- set the water softener;
- fill the special salt container with special salt;
- fill the rinse-aid dispenser with rinse-aid.
The following sections give you more detailed information about the individual
points.
Setting the water hardness range
Soft (low-lime) water is necessary for machine washing to avoid lime deposits
on crockery and in your dishwasher. Tap water with a hardness above 4°d
(German degree) must therefore be softened for machine washing.
For this purpose, your dishwasher is fitted with a water softener. The water
softener is treated (regenerated) automatically and at regular intervals with
salt solution. The salt consumption needed for regeneration thus depends on
the local water hardness. Your local water company will provide you with information about water hardness in your area.
To ensure optimum regeneration of the water softener:
- the water softening system must be set to the local water hardness;
- the dishwasher salt container must always be filled with special salt.
Y our local Water Company will provide you with information about water hardness in your area.
Level
German degrees
1 0-7 0-14
2 8-21 15-39 YES - 1
*
3 22-28 40-50 YES + 1
4 29-39 51-70 YES - 2
5 40-50 71-90 YES + 2
The water softener is factory set at level 2 as this suits most users.
*
If you use phosphate free detergents containing enzymes, add salt starting from 4°dH (7°TH).
**
Water hardness
°dH
°TH
French degrees
Use of
salt
**
Water
softener
adjustment
NO - 1
For economic operation and as a contribution to environmental protection, no
more salt should be used than is necessary. For this reason, set the level of
water hardness which is correct for the water in your area.
Adjustment
on the
machine
12
Level 1
If your water is Level 1 it is already soft and therefore there is no need to use
salt. In this case do not take into account the salt light on the control panel,
which illuminates when there is no salt inside the salt container.
Level 2
If your water hardness is Level 2, only regenerating salt will be necessary. It
is not necessary to set the water hardness level on the machine.
Levels 3 and 5 (water softener adjustment)
If your water is Level 3 or 5, proceed as follows: slide out the lower basket
and unscrew the cap of the salt container; turn the two-position selector anticlockwise from position - to position + with the aid of a knife or a screwdriver.
AA01
Fig. 1
Levels 4 and 5 (adjustment on the machine)
If your water is Level 4 or 5, open the door and turn the selector on the upper
left-hand corner of the machine from position 1 to position 2.
1
2
AA03
Fig. 2
13
With a water hardness of level 5 both adjustments must be made.
Note: From Level 2 upwards, regenerating salt is to be used regularly . The rel-
evant instructions are contained in the next section.
Filling with special salt
Only use salt designed specifically for use in dishwashers. Other types of salt
i.e. table/cooking salt contain high percentages of other substances which
may reduce the efficiency of the softener.
Caution! The packaging of dishwasher salt and detergents are often very
similar. The accidental filling of the salt compartment with detergent would
ruin the water softener. Each time you add salt, make sure the carton you
have in your hand really is salt.
To fill with salt, unscrew the cap of the salt container. Pour about half a litre of
water into the container, or until it is full (this is only necessary before filling
with salt for the first time).
Pour inside the container about 1 kg of regenerating salt.
SALE
SALT
SALZ
SEL
SR09
Fig. 3
Clean any excess salt from the screw thread and the washer and carefully
close the cap.
Caution: Only fill with salt just before starting one of the complete washing
programmes (not the PREWASH programme). This will prevent any grains of
salt or salty water, which may have been spilled, remaining on the bottom of
the machine for any period of time, which could cause corrosion.
14
Salt refill indicator
In the cap of the salt container there is a green float (fig.3) which is clearly
visible on the small window of the cap when the salt is inside the container,
and almost disappears when the salt is finished (i.e. every 20÷40 washes
depending on the setting of the water softener).
The rinse-aid
The rinse-aid ensures brilliant crockery and also helps it to dry. It is automatically dosed in during the hot rinsing cycle. The storage compartment built in
to the in side of the door can hold about 110 ml of rinse-aid, which will be sufficient for between 16 and 40 dish-washing programmes, according to the
dosage setting.
Filling up the rinse-aid
Open the container by turning the lid (A) anticlockwise (Fig. 4). Pour the rinseaid into the filler opening until the indicator (B) on the side of the cover turns
completely dark (i.e. until the container is full)
B
5
4
6
x
3
a
2
m
1
A
BR01
Fig 4 Fig. 5
Tighten firmly the cover.
Clean up any rinse aid spilt during filling with an absorbent cloth to avoid
excess foaming during the next wash.
Rinse-aid replenishment indicator
You must top up again with rinse-aid when the display window on the rinseaid dispenser (Fig. 5) shows a dark spot surrounded by a bright ring. When
the rinse-aid dispenser is full, the indicator (B) on the rinse aid dispenser (Fig.
5) appears uniformly dark (after about 70-80 ml).
BR03
15
Setting the rinse-aid quantity to be added
The correct dosage of the rinse-aid should be regulated on the basis of the
shine and drying results. For this purpose, set the quantity of liquid by means
of the six-position selector (C) located on the inside of the filler opening (minimum quantity is position 1, maximum quantity is position 6). Use the tip of a
knife or a screwdriver to rotate the selector. If drops of water or white marks
remain on the crockery after it has been washed, gradually increase the
dosage. If the crockery comes out with whitish, sticky streaks, reduce the
dosage.
C
5
4
6
x
3
a
2
m
1
BR02
Fig. 6
Adding dishwashing detergent
Use only tablets, powder or liquid detergents specifically designed for
domestic dishwashers.
Before starting any of the dishwashing programmes, except for the rinse and
hold programme, load the detergent in the dispenser. To open the dispenser
lid, pull the catch (D). This will open it. To help you to correctly dose the right
amount of detergent, inside the container there are two reference marks:
- MIN = 15 ml - MAX = 30 ml
D
DE12
Fig. 7
16
MIN
MAX
The amount of detergent to be used varies depending on how soiled the dishes are and the type of dishes being washed. We recommend the amounts
shown in the programme chart.
After filling the dispenser with detergent, close the lid.
All the programmes with prewash require a small extra amount of detergent
of approximately 5 g = a coffee spoon to be poured over the lid of the dispenser, as shown on the picture.
DE11
Fig. 8
At the end of any washing programme the lid is always open, ready for the
next wash.
Since not all detergents are the same, you should also consult the instructions
on the packet.
Remember that insufficient quantities of detergent will produce poor washing
results whereas an excessive amount of detergent does not improve washing
results and is also wasteful.
Using no more than correct amount of detergent also contributes to
reducing pollution.
17
Phosphate detergent with enzymes
These new detergents, although welcome from an ecological point of view,
react far more susceptibly to water hardness than the conventional products.
Therefore, in order to avoid white lime deposits on crockery and the inner tub,
you should add salt in the water softener even if the hardness of your water
is as low as 4° dH, when using these new detergents.
18
Loading your machine
Before placing dishes in the machine, remove any large scraps of food from
the plates (small bones, toothpicks, fish bones, scraps of meat and vegetables, fruit skins etc.) to avoid clogging the filters and consequently reducing
performance.
Open the door and slide out the baskets to load the dishes.
Before loading, remove all scraps of food and soak very heavily soiled pots
and pans.
Always arrange saucepans, cups and glasses etc. upside-down.
Tilt items with convex or concave surfaces so that the water drains off easily.
Long items of cutlery such as ladles, carving knives etc. should be positioned
horizontally in the upper basket.
Avoid contact between the dishes as far as possible; correct arrangement of
the items will give better washing results.
Light items (plastic bowls etc.) should be loaded in the upper basket and
arranged so that they do not move during washing.
The lower basket
The lower basket is designed to take saucepans, lids, plates (up to 27 cm in
diameter), salad bowls, cutlery etc.
UI31
Fig.9 Fig.10
IEC 436 / DIN 44990
UI32
Serving dishes and large lids should be arranged around the edge of the basket,
ensuring that the upper spray arm can turn freely.
19
Cutlery basket
Cutlery should be placed in the removable cutlery basket with the handles
facing downwards. If the handles protrude from the bottom of the basket,
obstructing the lower spray arm, load the cutlery with the handles facing
upward.
For better cleaning results, we recommend that spoons should be intermingled with other cutlery items so that they do not nestle into one another.
Arrange the spoons, dessert spoons, knives and other small items of cutlery
in the rack on one side of the cutlery basket.
UI08
Fig. 11
20
The upper basket
The upper basket is designed for plates (dessert plates, saucers, dinner
plates up to 24 cm in diameter), salad bowls, cups and glasses; these should
be arranged as shown in the pictures.
Glasses with long stems can be placed upside-down in the raised cup-racks
US21
IEC 436 / DIN 44990
US20
Fig. 12 Fig. 13
Caution
When loading the dishes, ensure that you do not cover the water inlet funnel
in the middle of the upper basket.
US16
US16
Fig. 14
Before closing the door, ensure that the spray arms can rotate
freely.
21
Operating instructions
Set the programme
Turn the programme selector dial clockwise until the letter of the required programme is opposite the Indicator mark on the control panel, as shown in
Fig.15
B
A
DAEG06
Fig.15
The programme starts when the selector on the positions (A,B,C) clicks audibly.
Start the programme
Push the plug into the socket.
Open the water supply.
Press the ON/OFF Pushbutton; the pilot light comes on and the programme
starts.
At the end of the washing programme
The dishwasher stops automatically in one of the STOP positions (Fig.16).
Depress the ON/OFF Button to switch the dishwasher off.
Turn off the water tap and switch the machine off at the plug.
C
DAEG05
Fig.16
22
Wait a few minutes before removing the dishes; in this way they will
be cooler and drying will be improved.
Empty the lower basket first and then the upper one; this will avoid water dripping from the upper basket onto the dishes in the lower one.
Changing the programme
If a programme that is already running has to be changed, or if a new programme has to be set instead of another one, proceed as follows:
Switch the machine off by pressing the ON/OFF Pushbutton. Turn the programme selector dial clockwise until the required programme is set, and turn
the machine on again.
Caution
In general it is not advisable to open the door while the machine is working; if
the door is opened however, a safety device ensures that the machine stops.
Interrupting a programme
Caution! Opening the door could let very hot steam escape: you risk being
scalded! Open the door with great care.
- A programme underway is interrupted when you open the door.
- Close the door again. The programme will start again at the point it was
interrupted.
23
Care instructions
Internal and external cleaning
Clean the screen and controls of your dishwasher where necessary with a
soft cloth and lukewarm water.
Important note! Never use commercially available furniture cleaners or
aggressive detergents.
Cleaning the filter group
Regularly check the cleanliness of the filters which are located at the bottom
of the internal compartment and, if necessary, clean them.
Blocked filters will compromise the washing results.
The filter system is composed of three parts (an outer filter (B - fig. 17), a
smaller filter (C - fig. 17) and a large filter (A - fig. 18).
D
C
B
MA02
Fig. 17
Lift and remove the outer filter and the smaller filter.
Pressing the two tabs (D - fig. 17) allows the smaller filter (C - fig. 17) to be
removed from the outer one (B - fig. 17).
To remove the large filter, first remove the lower rotating arm by pressing the
two tabs (E - fig. 18), then turn the locking nut (F - fig. 18) anticlockwise and
remove the entire system.
E
A
F
MA03
Fig. 18
24
After cleaning the filters, reassemble the components by proceeding in the
reverse order.
Clean the filters under running tap water.
After cleaning them, insert the filters in the dishwasher by pressing them in
until they click (Fig. 19).
MA08
Fig. 19
Caution:
The dishwasher must not be used without filters.
Incorrect repositioning of the filters will produce poor washing results.
Cleaning of the filters is vital to ensure correct operation of the machine.
25
Servicing
Before calling our service centre, please check whether you can rectify the fault
yourself by following the instructions given below. Should this information be of
no assistance to you in a specific case, please contact our service centre.
■ The programme will not start
- Are the fuses in the fixed wiring in order? Is your machine connected to the
electricity supply?
- Have you closed the door properly? Press the door shut.
■ No water flows in.
- Have you turned on the water tap?
- Is the strainer in the hose screw connection on the water tap choked?
Check hose running. Clean the strainer if necessary.
- Is the water supply hose kinked? Check hose running (see the section on
"Water drainage"). Is the minimum water pressure of 0,5 bar available? (see
the section on "Water supply").
■ The crockery is not clean.
- Have you selected a programme that is suitable for the type and degree of
soiling of your crockery? (see the "Programme chart" section).
- Have you arranged the crockery so that the sprayed water has access to all
surfaces, both internal and external? The crockery baskets must not be
overfilled.
- Have the spray arms been obstructed by crockery or cutlery? Please note
that, for better drainage of residual water at the programme end, the upper
spray arm obliquely tilts when it comes to rest. When operational, it automatically runs in the horizontal position.
- Are all strainers at the bottom of your dishwasher clean? Are the strainers
inserted properly (see the section on "Cleaning the strainers").
- Have you used sufficient detergent? (see the section on "Filling with detergent"). Is the drain hose correctly run? (see the section on "Water
drainage").
- Is there still salt in the salt container? Without special salt, the water will not
be softened. At water hardnesses above 4°d, lime deposits will form on your
dishes (see the section on "Filling with special dishwasher salt").
- Have you set the water softener to the local water hardness? (see the section on "Setting the water softening system").
26
■ The dishes do not dry and have no sparkle.
- Have you used a brand-named rinse-aid?
- Is there sufficient rinse-aid in the dispenser? (see the section on "Filling with
rinse-aid).
■ Glasses and dishes have streaks, stripes, milky blotches, or blue-coloured
blooms.
- The rinse-aid is being overdosed. Set a lower rinse-aid dosage (see the
section on "Setting the rinse-aid quantity to be dosed").
■ Glasses and dishes have dried-on water drops.
- The rinse-aid is being underdosed. Set a higher rinse-aid dosage (see the
section on "Setting the rinse-aid quantity to be dosed").
■ Rust marks can be seen inside your machine.
- The dishwasher interior is made of stainless steel. If rust is found inside your
dishwasher, this must be from another source (rust in water, from
saucepans, cutlery, etc.). Remove such marks with a commercially available
stainless steel cleaner.
- Have you dosed the detergent correctly? (see the section on "Filling with
detergent").
- Is there sufficient salt in the salt container? (see the section on "Filling with
special dishwasher salt").
- Have you set the water softener correctly? (see the section on "Setting the
water softening system").
■ The machine is noisy
- The dishes are settling against each other.
- The spray arms are knocking against the dishes.
■ The door is difficult to close
- The dishwasher is not level or is not properly built-in .
27
Customer service
In the section on “If you think your dishwasher is not working properly", we
have listed the most important faults which you can rectify yourself. Should
you still wish to call our service centre for any of the specified faults or
because the appliance is being wrongly operated, the service engineer's visit
cannot be made free of charge even during the guarantee period.
Should you find no reference to a fault in the operating instructions, you
should call our service centre.
When making your call, quote the E-No. (product number) and F-No. (serial
number) indicated on the rating plate. It is located on the RH inside edge of
the door.
Mod.
........
Prod.No.
........
Ser. No.
.........
E- NR
......
Fig. 20
F-NR
......
To keep these numbers handy, we recommend you enter them here.
E-No .................................
F-No .................................
Y our specifying these details enables the service centre to make precise identification of the spare part required so that the appliance can be repaired at
the service engineer's first visit without your having to pay extra costs for
repeated journeys by the service engineer.
28
Technical data
Capacity
8 standard place settings including serving utensils.
Allowable water pressure
5-80 N/cm2 (0,5-8 Bar = 0,05-0,8 MPa).
Electrical connection
Details of the electrical connection are given on the rating plate. It is located
on the RH inside edge of the door.
This appliance complies with the following E.E.C. Directives:
- 73/23 of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 of 3.5.89 (Electromagnetic Compatibility Directive) and
subsequent modifications.
29
Installing
Positioning
Set the machine up as close as possible to a water tap and a connection for
waste water.
In order to ensure the door closes and seals properly, it is necessary for the
machine to stand firmly and horizontally on the floor.
Adjust the screw feet upwards and downwards until the machine stands level.
If you wish to push your appliance under a kitchen work-top, you can remove
its built-in work-top (the cover of the dishwasher). The procedure is as follows:
Loosen the two screws at the front. Then lift the work-top upwards, release it
from the rear stops, and pull it out.
Make sure, before you push the appliance into place, thAt the kitchen worktop is protected with aluminium foil (available from the service centre) on the
underside and along its front edge.
Installation instruction are to be found on the rear side of this foil. This is the
only way of ensuring that your kitchen work-top is protected form damage
caused by the water vapour which escapes when the door is opened.
Caution
(applies only to free-standing appliances with work-top)If because of lack of
space there is no alternative to setting up the dishwasher directly next to a
gas or a coal-fired oven, as heat-insulation panel (measuring 85 x 57.5 cm)
must be fitted between the oven and the dishwasher. It must be covered with
aluminium foil on the side towards the oven.
Adapting the work-top
You can move the work-top 25 mm towards the front or the back so that it fits
exactly up against the kitchen cabinet. To do this, loosen the two fixing screws
at the front, bring the work-top into the required position, and tighten the
screws again (Fig. 21)
IN02
Fig 21
30
Connecting the water supply
Your dishwasher has been built in accordance with the valid regulations
governing water-consuming appliances and is equipped with safety devices
which prevent used water from flowing back into the drinking water mains.
Your dishwasher can be connected to either a cold or hot water supply of
max. 60°C.
Never connect your dishwasher to open hot water appliances and continuous
flow heaters!
The supply hose is fitted with a screwed hose connection (to DIN 259) and
can be connected to an outlet valve (water tap) with male thread (3/4").
Suitable washers are supplied with the machine. Do not use any washers
other than these!
The nut of the screwed hose connection can be tightened by and. If you require a supply hose which is longer than the one supplied, use only the VDEapproved complete hose kit (obtainable from our service centre) continuously and to adequate length.
Never lengthen existing hoses.
Important note! The supply hose must not be kinked, squashed, or twisted.
Please ensure careful running.
To avoid reductions in water supply to the kitchen, we recommend you to
install a separate tap. Failing this, fit a branch piece to the existing water tap.
Additional installation expenditure (on the building side) can be reduced by
use of conventional sink mixers with connection and shutoff valve.
Minimum water pressure:
0,5 bar (5 N/cm2, 50 kPa).
If your water pressure is under 0,5 bar, please ask our service centre for
advice.
Maximum allowable water pressure:
8 bar (80 N/cm2, 0,8 MPa).
For a water pressure over 8 bar, a pressure-reducing valve (obtainable from
your specialist retailer) must be fitted upstream.
31
Water Outlet Connection
The end of the drain hose can be connected as follows:
to the sink outlet siphon, securing it if necessary with a clip;
to a wall outlet provided with vent-hole, minimum internal diameter 4 cm.
The waste connection must be at a height of between 30 cm (minimum) and
100 cm (maximum) from the floor.
It makes no difference which way the drain hose faces, either to the right or
left of the dishwasher.
Avoid bending or kinking the hose as this could prevent or slow down the dis-
charge of water.
CS12
Ø 21
Ø 18
Ø 18
Ø 21
+ 2 m max
max 100 cm
min 4 cm
min 30 cm
max 100 cm
Fig. 22
Extension hoses
The necessary extension hoses can be obtained from specialist shops or
from our technical assistance centres.
The extension hose must be no longer than 2 metres and its internal diameter must be no smaller than the diameter of the hose provided.
Likewise the internal diameter of the couplings used for connection to the
waste outlet must be no smaller than the diameter of the drain hose.
Arrange the extension hose horizontally along the floor and allow it to rise
only where it is to be connected to the drain (Fig. 22).
32
Water protection system
To protect your dishwasher from water damage, it is equipped with a water
protection systyem.
Apart from an overflow protection, which prevents uncontrolled rising of water
in the appliance, it also features an outlet protection (float switch in the floor
tray). This responds in the event of any untightness in the machine.
In all cases of malfunction, the water supply is immediately interrupted and
the drain pump switched on. This prevents water from either flowing out or
overflowing. Any residual water in the appliance is automatically pumped
away . The pump also operates even if the machine is switched of f and should
not be disconnected from the electricity supply.
A fault is recognized by the fact that a pump noise can be heard - even when
the machine is switched off.
If a fault occurs, first turn off the water tap. Then pull the plug out of the plug
socket. If there is a fixed connection, switch off or unscrew the fuse(s).
Electrical connection
Before plugging the appliance into the wall socket, make sure that:
1. the voltage and current indicated in the rating plate agrees with the
voltage of your electricity supply.
2. the meter, fuses, mains power supply and wall socket can take the maximum load required. Make sure that the socket and plug are compatible
without having to use any type of adapter. If necessary, have the domestic
wiring system socket replaced.
WARNING - THIS APPLIANCE MUST BE EARTHED
33
AEG Hausgeräte GmbH
Postfach 1036
D-90429 Nürnberg
AUS
ERFAHRUNG
GUT
© Copyright by AEG
152996 87/0
0/0597
Loading...
