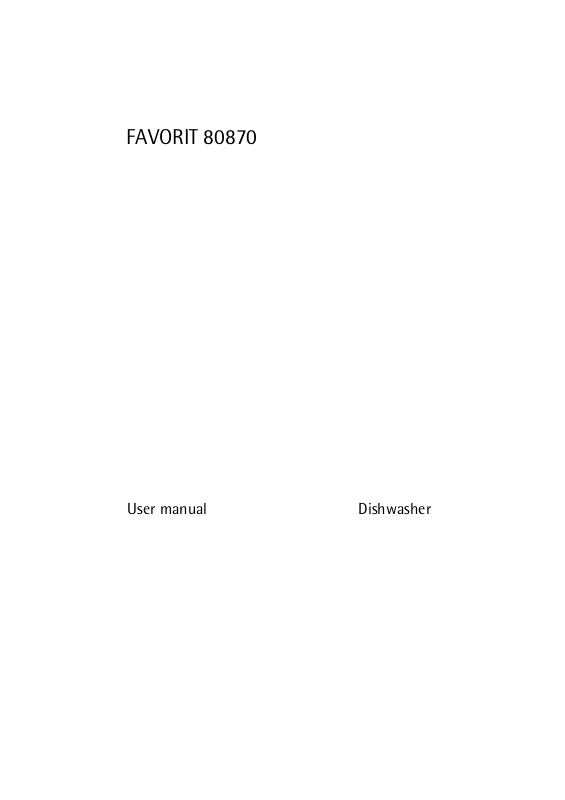

AEG-Electrolux F80870M, F80870 User Manual

FAVORIT 80870
User manual Dishwasher
2
1
Dear Customer
Thank you for choosing one of our highquality products. With this appliance you will experience the perfect combination of functional design and cutting edge technology. Convince yourself that our appliances are engineered to deliver the best per formance and control  indeed we are setting the highest standards of excel lence. In addition to this you find environmental and energy saving aspects as an inte gral part of our products. To ensure optimal and regular performance of your appliance please read this instruction manual carefully. It will enable you to navigate all processes perfect ly and most efficiently. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. We wish you much joy with your new appliance.
The following symbols are used in this user manual: Important information concerning your personal safety and information on
3 General information and tips
how to avoid damaging the appliance.
2 Environmental information
Contents
Operating Instructions 5
Safety 5
Diagram of appliance 6
Control panel 7
Switching on for the first time – setting the language 8
Display 9
Basic operation 10
An overview of the menus 10 Adjusting an option/setting 11
Prior to using for the first time 12
Setting the water softener 12 Adding special salt 14 Filling up with rinse aid 15 Setting the acoustic signal 17
In daily use 18
Loading cutlery and dishes 18 Adjusting the height of the upper basket 25 Adding detergent 26 Using 3in1 detergents 27 Selecting the dishwashing cycle (Cycle Table) 29 Starting a dishwashing cycle 32 Setting the delay start 33 Switching off the dishwasher 34
Care and cleaning 35
3Contents
What to do if … 37
Resetting the language 37 Remedying small malfunctions 37 If the dishwashing results are not satisfactory 40
Disposal 41
Technical data 41
Notes for Test Institutes 42
Contents4
Installation and connection instructions 43
Safety information for the installation 43
Installing the dishwasher 44
Connecting the dishwasher 45
Guarantee/Customer Service 48
Guarantee/Customer Service 51
Service 55
Operating Instructions
1 Safety
Prior to using for the first time
Follow the ”Instructions for installation and connection”.
Correct use
The dishwasher is only intended for washing domestic dishes.
Additions or modifications to the dishwasher are not permitted.
Use only special salt, detergent and rinse aid suitable for domestic dishwash
ers.
Do not put any solvents in the dishwasher. This could cause an explosion.
Child safety
Keep packaging away from children. There is a risk of suffocation.
Children often do not recognise the hazards associated with electrical appli
ances. Don’t allow children to use the dishwasher unsupervised.
Make sure that children and pets don’t climb into the dishwasher. Could en danger life!
Dishwasher detergents can cause chemical burns to the eyes, mouth and throat. Could endanger life! Comply with the safety instructions of the dish washer detergent manufacturer.
The water in the dishwasher is not for drinking. Risk of chemical burns.
5Operating Instructions
General safety
Repairs to the dishwasher are only to be carried out by qualified service engi neers.
When the dishwasher is not being used, switch it off and shut off the water tap.
Never unplug the appliance by pulling on the cable. Always pull the plug.
Ensure that the door of the dishwasher is always closed when it is not being
loaded or unloaded. In this way you will avoid anybody tripping over the open door and hurting themselves.
Never sit or stand on the open door.
If the dishwasher is located in a room where there may be a frost, remove the
connection hose from the tap after each use of the dishwasher.
Diagram of appliance6
Diagram of appliance
Ceiling spray arm
Upper basket spray arm and floor spray arm
Water hardness dial
Dispenser for special salt
Dispenser for detergent
Dispenser for rinse aid
Rating plate
Filters
Interior lighting
1 This dishwasher has an internal light that turns on and off when the opening
and closing of the dishwasher’s door occurs. Internal light equipped with led lamp CLASS 1 in accordance with EN 608251: 1994 + A1:2002 + A2:2001 In case that this light has to be replaced, please contact your local Service Force Centre.
Control panel
7Control panel
Display
Direction buttons
ON/OFF button
Button functions
ON/OFF – Switching the appliance on and off
Direction but
tons
OPTION – Changing between Programmes menu and Options menu
RESET – cancelling the cycle that is running
OK/START – in the Programmes menu: starting a selected programme
OPTION button
RESET button
Selecting within the menuSelecting a value when adjusting options or settings
while a dishwashing cycle is running: briefly changing the display’s text line
from displaying the cycle stage to displaying the dishwashing cycle
with options and settings: cancelling the setting procedurechanging from Options menu to Programmes menuchanging from Settings submenu to Options menu
changing from SETTINGS… (Options menu) to Settings submenuin the Options menu: starting and finishing the setting procedure
Button OK/START
Switching on for the first time – setting the language8
Switching on for the first time – setting the language
1. Press the ON/OFF button. First of all HELLO appears in the display.
As soon as the dishwasher is ready for use, this is replaced by LANGUAGE ENGLISH; the word ENGLISH is flashing.
2. Using the direction buttons ( or ) select the desired language.
3. Press the OK/START button. This will have changed the display to the
desired language. CHOOSE PROGRAMME is shown in the display.
3 If you want to change the language at a later time, please see the section “Re
setting the language”.
3 You can adjust the display lighting, by changing the settings BRIGHTNESS and
CONTRAST
1
; see section “Basic operation”.
1. not available with all models
Display
The info status bar consists of a row of individual lamps that is divided into two sections: the left section refers to the Programmes menu, the right section to the Options menu.
In the Programmes and Options menus you can see at what stage within a cy
cle you currently are (the relevant lamp flashes).
While a dishwashing cycle is running, the info status bar functions as a pro
gramme progress display. You can then see at any time how many programme stages are still to take place (including the current programme stage).
The text line indicates in the Programmes menu the name of the programme selected and the estimated length of the cycle in minutes.
In the Options menu the name of the selected option or setting is displayed
and the current value set.
While a dishwashing cycle is running, in the text line you can see the name of
the current programme stage and the estimated time remaining for the whole dishwashing cycle. Using the OPTION button you can briefly display the name of the dishwashing cycle.
If there is a fault, a message is displayed. The symbols in the symbol line have the following meanings:
9Display
Info status bar
Text line
Symbol line
Option DELAY START active
Programme selected for the hygienic cleaning of e.g. babies’ bottles
Option 3 IN 1 active
Loudspeaker is switched off; no acoustic signals (SOUND VOLUME setting)
Basic operation10
Basic operation
This section contains basic information regarding the use of your dishwasher. Please read this section very carefully.
An overview of the menus
Programmes menu
Options menu
AUTOMATIC
30 MINUTES
70° INTENSIVE
65° NORMAL
ENERGY
50° NORMAL
45° GLASS
PREWASH
OPTION
button
DELAY START
3IN1
SETTINGS…
OK/START
button
LANGUAGE
WATER HARDNESS
RINSE AID
SOUND VOLUME
BRIGHTNESS
CONTRAST
1. not available with all models
1
The Programmes menu
After switching on the dishwasher you will find yourself in the Programmes
menu.
Select your dishwashing cycle here using the direction buttons ( or ). In
the info status bar your position within the menu is always shown.
Change to the Options menu using the OPTION button.
The Options menu
Here go to the desired setting using the direction buttons ( or ). In the
info status bar your position within the menu is always shown.
For the option DELAY START see the section “Setting a delay start” for the op
tion 3 IN 1 see the section “Before using for the first time”
Use the OK/START button to switch from the menu item SETTINGS… to the
Settings submenu.
11Basic operation
The Settings submenu
Here go to the desired setting using the direction buttons ( or ). In the info status bar your position within the submenu is always shown.
LANGUAGE
To set the language of the text line in the display; also see the section “Reset ting the language”.
WATER HARDNESS
To set the value for water hardness electronically (value range 1 to 10).
RINSE AID
When option 3 IN 1 is activated: Switch rinseaid addition function on or off. When option 3 IN 1 is not activated: The rinseaid addition function is always switched on, even if OFF is selected for RINSEAID.
SOUND VOLUME
To set the sound volume of the acoustic signals (value range 0 to 5); at 0 the acoustic signals are switched off.
BRIGHTNESS
To set the brightness of the display (value range 1 to 10).
CONTRAST
To set the contrast of the display (value range 1 to 10).
1
Adjusting an option/setting
1. Go to the option or setting that you wish to adjust.
2. Press the OK/START button. The value that is currently set will flash.
3. Using the direction buttons ( or ) select the desired value.
4. Press the OK/START button. The newly set value is lit without flashing.
5. Using the direction buttons ( or ) you can select another option or setting.
3 A selected value is accepted using the OPTION button. In the display the first en
try in either the Options or Settings menu is displayed.
3 You can abort the setting procedure using the RESET button.
1. not available with all models
Prior to using for the first time12
Prior to using for the first time
3
If you wish to use 3 in 1 detergent: – First read the section “Using 3in1 detergents”. – Do not fill up with special salt or rinse aid.
If you do not use 3in1 detergent, before using for the first time
1. Set the water softener
2. Fill up with special salt for water softeners
3. Fill up with rinse aid
Setting the water softener
The water softener must be set manually and electronically:
3 To avoid scale deposits on the dishes and in the dishwasher, the dishes must be
washed with soft water, i.e. water with a low lime content. The water softener must be set according to the table to the water hardness in the area where you live. Your local water company will be able to give you information about the water hardness in your area.
The dishwasher must be switched off.
Setting manually:
1. Open the dishwasher door.
2. Remove the lower basket from the
dishwasher.
3. Turn water hardness dial on the left wall of the dishwasher interior to 1 or 2 (see table).
13Prior to using for the first time
Setting electronically:
1. Press the ON/OFF button.
3 If the name of a programme stage is displayed in the display, a dishwashing cy
cle is active. First of all you must abort the dishwashing cycle:
Press the RESET button. CONFIRM CANCEL? appears in the display. Press the OK/START button. This cancels the dishwashing cycle.
2. Go to the WATER HARDNESS setting; see section “Adapting an option/setting”.
3. Set WATER HARDNESS to the right setting.
If the water softener is set electronically to “1” this switches off the display of the REFILL SALT message.
Water hardness Adjusting the hardness setting
1)
in °d
51  70 43  50 37  42 29  36 23  28
19  22 15  18
11  1 4 1,9  2,5 II 3
4  10 0,7  1,8 I/II 2
below 4 below 0.7 I
1) (°d) German degree, measure of the hardness of water
2) [mmol/l] millimol per litre, international unit for water hardness
3) On this setting the length of the dishwashing cycle may be slightly longer. *) factory setting
in mmol/l
9,0  12,5
7,6  8,9 6,5  7,5 5,1  6,4 4,0  5,0
3,3  3,9 2,6  3,2
2)
Range Manual Electronic
3)
10
9
IV
2*
III
1
8 7 6
5*
4
1
no salt necessary
Prior to using for the first time14
Adding special salt
To decalcify the water softener, it must be filled up with special salt. Use only special salt suitable for domestic dishwashers.
If you do not use 3 in1 detergent, fill up with special salt:
Before using the dishwasher for the first time.If when starting a cycle the message REFILL SALT is displayed.
1. Open the door and remove the lower basket.
2. Screw open the lid on the salt dispenser by turning it anticlockwise.
3. Only when using the dishwasher for the first time:
Fill the salt dispenser with water.
4. Place the funnel (supplied) over the dis penser opening. Fill the dispenser with special salt; the ca pacity of the dispenser is approx. 1.01.5 kg, depending on the size of the grains. Do not overfill the dispenser.
3 If water overflows when filling up with special salt, this is completely harmless.
5. Clean away any salt remnants from the dispenser opening.
6. Screw the lid back on in a clockwise direction.
7. Run a dishwashing cycle after filling the salt dispenser with special salt.
This will wash away salt water and salt crystals that have been spilt.
3 Depending on the size of the grains, it can take several hours for the salt to dis
solve in the water and for the message REFILL SALT not to be displayed when starting a dishwashing cycle.
Filling up with rinse aid
With rinse aid the rinsing water drains away better and so you get smearfree, gleaming dishes and clear glasses.
If you do not use 3in1 detergent, fill up with rinse aid:
Before using the dishwasher for the first time.If when starting a dishwashing cycle the message REFILL RINSE AID is dis
played.
Use only special rinse aid for dishwashers and no other liquid detergents.
1. Open the door. The rinse aid compartment is located on the inside of the dishwasher door.
2. Press the release button on the rinse aid compartment.
3. Open the cover.
15Prior to using for the first time
4. Pour rinse aid in slowly right up to the bro ken “max” line; this corresponds to a volume of approx. 140 ml when full.
5. Press the lid shut until it clicks into place.
6. Wipe up any spilt rinse aid with a cloth.
Otherwise there will be too much foam when rinsing.
Prior to using for the first time16
Setting the amount of rinse aid required
3 Only change the amount dispensed, if smears, milky spots (reduce the amount)
or dried on water spots (increase the amount) can be seen on glasses and dishes. (See section “If dishwashing results are not satisfactory”.) The dosage can be set from 16. The dosage is preset to “4” in the factory.
1. Open the dishwasher door.
2. Press the release button on the rinse aid
compartment.
3. Open the cover.
4. Set the dosage level.
5. Press the lid shut until it clicks into place.
6. If rinse aid has leaked out, wipe it away
with a cloth.
17Prior to using for the first time
Setting the acoustic signal
In addition to the optical display (e.g. indicating the end of the cycle, errors) you can also choose to set an acoustic signal.
1. Press the ON/OFF button.
3 If the name of a programme stage is displayed in the display, a dishwashing cy
cle is active. First of all you must abort the dishwashing cycle:
Press the RESET button. CONFIRM CANCEL? appears in the display. Press the OK/START button. This cancels the dishwashing cycle.
2. Go to the SOUND VOLUME setting; see the section “Adapting an option/setting”.
3. Set the value for the sound volume.
You can set a value from 0 to 5. At 5 the acoustic signals are very loud, at 0 no acoustic signals are emitted; in addition the symbol is lit in the display.
Loading...
+ 39 hidden pages
