FAVORIT 45001
User manual Dishwasher
Contents
2
Thank you for choosing one of our high-quality products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfectly
and most efficiently. To refer to this manual any time you need to, we recommend
you to keep it in a safe plac e. An d p le as e pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
Contents
Operating instructions 3
Safety information 3
Correct use 3
General safety 3
Child safety 3
Installation 4
Product description 4
Control panel 5
Programme knob 6
Multitab button 6
Delay start button 6
Start button 6
Digital display 6
Function buttons 7
Setting mode 7
Use of the appliance 7
Setting the water softener 7
Manual adjustment 8
Electronic adjustment 8
Use of dishwasher salt 9
Use of rinse aid 9
Adjusting the rinse aid dosage 10
Loading cutlery and dishes 11
Helpful hints and tips 11
Lower basket 11
Cutlery basket 12
Upper basket 13
Adjustment of the height of the upper
basket 13
Use of detergent 14
Multitab function 15
Washing programmes 16
Select and start a washing programme 17
Interrupting a washing programme 18
Cancelling a washing programme 18
Setting and starting a washing programme
with delay start 18
Cancelling a delay start 18
End of the washing programme 19
Standby mode 19
Removing the load 19
Care and cleaning 19
Cleaning the filters 19
External cleaning 20
Frost precautions 21
What to do if… 21
Technical data 22
Installation instructions 23
Installation 23
Fitting under a counter 23
Adjusting the height of the appliance
Adhesive steam protection foil 24
Fixing to the adjacent units 24
Water connection 25
Water inlet hose 25
Water drain hose 26
Electrical connection 27
Environment concerns 27
Subject to change without notice
23
Safety information
Operating instructions
Safety information
For your safety and correct operation of the appliance, read this manual carefully before
installation and use. Always keep these instructions with the appliance even if you move
or sell it. Users must fully know the operation and safety features of the appliance.
Correct use
• The appliance is designed exclusively for domestic use.
• Only use the appliance to clean household utensils that are applicable for dishwashers.
• Do not put solvents in the appliance. Risk of explosion.
• Put the knives and all items with sharp points in the cutlery basket with their points
down. If not, put in a horizontal position in the upper basket.
• Use only branded products for dishwashers (detergent, salt, rinse aid).
• If you open the door while the appliance is in operation, hot steam can escape. Risk of
skin burns.
• Do not remove dishes from the dishwasher before the end of the washing programme.
• When the washing programme is completed, disconnect the mains plug from the mains
socket and close the water tap.
• Only an authorised service engineer can repair this appliance. Use only original spare
parts.
• Do not do repairs yourself to prevent injury and damage to the appliance. Always contact
your local Service Force Centre.
3
General safety
• Persons (including children) with reduced physical sensory, mental capabilities or lack
of experience and knowledge must not use the appliance. They must have supervision
or instruction for the operation of the appliance by a person responsible for their safety.
• Obey the safety instructions from the manufacturer of the dishwasher detergent to
prevent burns to eyes, mouth and throat.
• Do not drink the water from the dishwasher. Detergent residues can stay in your appliance.
• Always close the door when you do not use the appliance to prevent injury and not to
stumble over the open door.
• Do not sit or stand on the open door.
Child safety
• Only adults can use this appliance. Children must get supervision to make sure that they
do not play with the appliance.
• Keep all the packaging away from children. There is a risk of suffocation.
• Keep all detergents in a safe area. Do not let children touch the detergents.
• Keep children away from the appliance when the door is open.
Product description
4
Installation
• Make sure that the appliance is not damaged because of transport. Do not connect a
damaged appliance. If necessary, contact the supplier.
• Remove all packaging before first use.
• A qualified and competent person must do the electrical installation.
• A qualified and competent person must do the plumbing installation.
• Do not change the specifications or modify this product. Risk of injury and damage to
the appliance.
• Do not use the appliance:
– if the mains cable or water hoses are damaged,
– if the control panel, worktop or plinth area are damaged, that you can get access to
the inner side of the appliance.
Contact your local Service Force Centre.
• Do not drill into the sides of the appliance to prevent damage to hydraulic and electrical
components.
WARNING!
Carefully obey the instructions for electrical and water connections.
Product description
1 Upper basket
2 Water hardness dial
3 Salt container
4 Detergent dispenser
5 Rinse aid dispenser
6 Rating plate
7 Filters
8 Lower spray arm
9 Upper spray arm
Control panel
Control panel
5
6
7
8
2
1
3
4
A
B
5
9
1 Programme knob
2 Multitab button (MULTITAB)
3 Delay start button (DELAY)
4 Start button (START)
5 Digital display
6 Indicator lights
7 Programme marker
8 Off position
9 Function buttons
Indicator lights
Wash phase Comes on when the washing phase or the rinsing phase operates.
Dry phase Comes on when the drying phase operates.
Control panel
6
Indicator lights
Multitab Comes on when you activate the multitab function Refer to 'Multitab
1)
Salt
Rinse aid
1) When the salt and/or rinse aid containers are empty, the related indicator lights do not come on while a washing
1)
programme operates.
function'.
Comes on when it is necessary to fill the salt container. Refer to 'Use of
dishwasher salt'.
After you fill the container, the salt indicator light can continue to stay
on for some hours. This does not have an unwanted effect on the operation
of the appliance.
Comes on when it is necessary to fill the rinse aid container. Refer to 'Use
of rinse aid'.
Programme knob
• To switch on the appliance or to set a washing programme, turn the programme knob
clockwise or counterclockwise. The programme marker on the programme knob must
agree with one of the washing programmes on the control panel. If the programme
marker agrees with a washing programme, the digital display shows the time duration
of the programme. If the programme marker does not agree with a washing programme,
the digital display shows two horizontal bars.
• To switch off the appliance, turn the programme knob until the programme marker
agrees with the off indicator.
Use the programme knob for these operations:
– To set the water softener. Refer to 'Setting the water softener'.
– To deactivate/activate the rinse aid dispenser. Refer to 'Multitab function'.
Multitab button
Press this button to activate/deactivate the multitab function. Refer to the chapter 'Multitab
function'.
Delay start button
Use the delay start button to delay the start of the washing programme with an interval
between 1 and 19 hours. Refer to the chapter 'Setting and starting a washing programme'.
Start button
Use this button to start the washing programme. Refer to the chapter 'Setting and starting
a washing programme'.
Digital display
The display shows:
• Adjusted level of the water softener.
• Activation/deactivation of the rinse aid dispenser (only with multitab function on).
• Programme duration.
• Remaining time to the end of the programme.
• End of a washing programme, the digital display shows a zero.
• Number of hours in delay start.
•Fault codes.
Use of the appliance
Function buttons
Use the function buttons for these operations:
• To set the water softener. Refer to the chapter 'Setting the water softener'.
• To cancel the washing programme in progress or a delay start in progress. Refer to the
chapter 'Setting and starting a washing programme'.
• To deactivate/activate the rinse aid dispenser, when multitab function is active. Refer to
the chapter 'Multitab function'.
Setting mode
The appliance is in setting mode when:
• One or more phase indicator lights are on.
• The time duration of the programme flashes in the digital display.
The appliance must be in setting mode for these operations:
– To set a washing programme.
– To set the water softener level.
– To deactivate/activate the rinse aid dispenser.
The appliance is not in setting mode when:
• One or more phase indicator lights are on.
• The time duration of the programme does not flash.
In this condition cancel the programme to go back to the setting mode. Refer to the chapter
'Setting and starting a washing programme'.
Use of the appliance
7
Refer to the following instructions for each step of procedure:
1. Make a check if the water softener level is correct for the water hardness in your area.
If necessary set the water softener.
2. Fill the salt container with dishwasher salt.
3. Fill the rinse aid dispenser with rinse aid.
4. Load cutlery and dishes into the dishwasher.
5. Set the correct washing programme for the type of load and soil.
6. Fill the detergent dispenser with the correct quantity of detergent.
7. Start the washing programme.
If you use combi detergent tablets ('3 in 1', '4 in 1', '5 in 1', etc.), refer to the chapter 'Multitab
function'.
Setting the water softener
The water softener removes minerals and salts from the water supply. Minerals and salts
can have bad effect on the operation of the appliance.
Water hardness is measured in equivalent scales:
• German degrees (dH°).
• French degrees (°TH).
• mmol/l (millimol per litre - international unit for the hardness of water).
•Clarke.
Setting the water softener
8
Adjust the water softener to the water hardness in your area. If necessary, contact your
local water authority.
Water hardness Water hardness setting
°dH °TH mmol/l Clarke manually electronically
51 - 70 91 - 125 9,1 - 12,5 64 - 88 2 10
43 - 50 76 - 90 7,6 - 9,0 53 - 63 2 9
37 - 42 65 - 75 6,5 - 7,5 46 - 52 2 8
29 - 36 51 - 64 5,1 - 6,4 36 - 45 2 7
23 - 28 40 - 50 4,0 - 5,0 28 - 35 2 6
19 - 22 33 - 39 3,3 - 3,9 23 - 27 2 5
15 - 18 26 - 32 2,6 - 3,2 18 - 22 1 4
11 - 14 19 - 25 1,9 - 2,5 13 - 17 1 3
4 - 10 7 - 18 0,7 - 1,8 5 - 12 1 2
< 4 < 7 < 0,7 < 5
1) No use of salt required.
1)
1
You must set the water softener manually and electronically.
Manual adjustment
The appliance is set at the factory at position 2.
1)
1
1. Open the door.
2. Remove the lower basket.
3. Turn the water hardness dial to position 1
or 2 (refer to the chart).
4. Install the lower basket.
5. Close the door.
Electronic adjustment
The water softener is set at the factory at level 5.
The appliance must be switched off.
1. Press and hold function button A. Turn the programme knob counterclockwise until
the programme marker agrees with the first washing programme on the control panel.
2. Release the function button A when the digital display shows the current setting.
Examples:
– level 5 =
– level 10 =
Use of dishwasher salt
3. Press function button A to change the water softener level. Every time you press the
button, the level increases.
4. Turn the programme knob to the off position to save the operation.
Use of dishwasher salt
CAUTION!
Only use dishwashers salt. Types of salt that are not applicable for dishwashers cause damage to the water softener.
CAUTION!
Grains of salt and salty water on the bottom of the appliance can cause corrosion. Fill the
appliance with salt before you start a washing programme to prevent corrosion.
Do these steps to fill the salt container:
1. Turn the cap anticlockwise to open the salt container.
2. Fill the salt container with 1 litre of water (only the first operation).
3. Use the funnel to fill the salt container
with salt.
4. Remove the salt around the opening of
the salt container.
5. Turn the cap clockwise to close the salt
container.
It is normal that water overflows from the salt
container when you fill it with salt.
When you set electronically the water softener to level 1, the salt indicator light does not
stay on.
9
Use of rinse aid
CAUTION!
Only use branded rinse aid for dishwashers.
Do not fill the rinse aid dispenser with other products (e.g. dishwasher cleaning agent, liquid
detergent). This can cause damage to the appliance.
Rinse aid makes it possible to dry the dishes without streaks and stains.
Rinse aid is automatically added during the last rinsing phase.
Do these steps to fill the rinse aid dispenser:
Use of rinse aid
10
1. Press the release button (A) to open the
rinse aid dispenser.
2. Fill the rinse aid dispenser with rinse aid.
The mark 'max.' shows the maximum level.
3. Remove the spilled rinse aid with an ab-
sorbent cloth to prevent too much foam
during the subsequent washing programme.
4. Close the rinse aid dispenser.
Adjusting the rinse aid dosage
The rinse aid is set at the factory at position 4.
You can set the rinse aid dosage between position 1 (lowest dosage) and position 6 (highest
dosage).
Turn the rinse aid dial to increase or decrease the
dosage.
– Increase the dosage if there are water droplets
or limescale on the dishes.
– Decrease the dosage if there are streaks, whitish
stains or bluish layers on the dishes.
Loading cutlery and dishes
Loading cutlery and dishes
Helpful hints and tips
CAUTION!
Only use the appliance for household utensils that are applicable for dishwashers.
Do not use the appliance to clean objects that can absorb water (sponges, household cloths,
etc.).
• Before you load cutlery and dishes, do these steps:
– Remove all food remainings and debris.
– Make burnt, remaining food in pans soft.
• While you load cutlery and dishes, do these steps:
– Load hollow items (e.g. cups, glasses and pans) with the opening down.
– Make sure that water does not collect in the container or in a deep base.
– Make sure that cutlery and dishes do not lie inside one another.
– Make sure that cutlery and dishes do not cover other cutlery and dishes.
– Make sure that glasses do not touch other glasses.
– Put small objects in the cutlery basket.
• Plastic items and pans with non-stick coatings can keep water droplets. Plastic items do
not dry as well as porcelain and steel items.
• Put light items in the upper basket. Make sure that the items do not move.
CAUTION!
Make sure that the spray arms can move freely before you start a washing programme.
11
WARNING!
Always close the door after you load or unload the appliance. An open door can be dangerous.

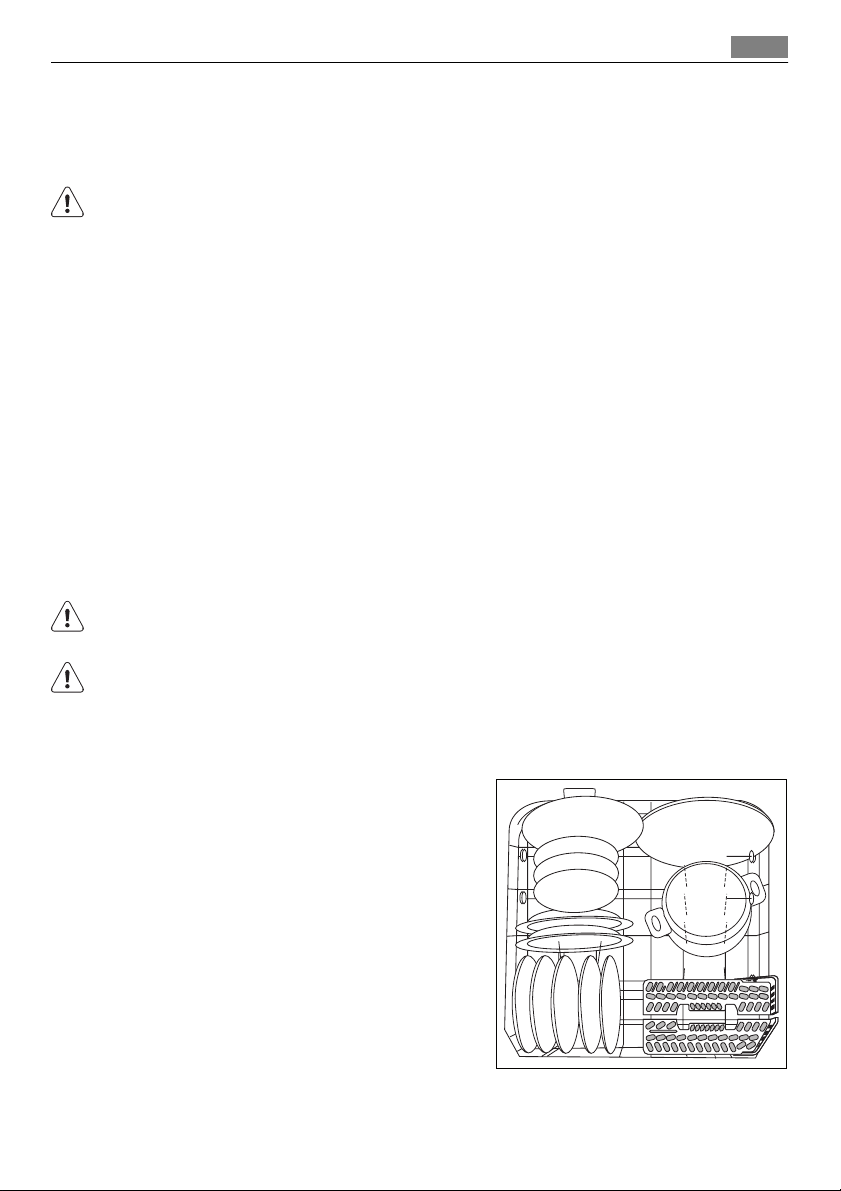

Lower basket
Put large and heavily soiled dishes and pans in the
lower basket.
Loading cutlery and dishes
12
The rows of prongs in the lower basket can be flat
to load large dishes, pots, pans and bowls.
Cutlery basket
WARNING!
Do not put long-bladed knives in a vertical position. Arrange long and sharp cutlery horizontally in the upper basket. Be careful with sharp items.
Use the cutlery grids.
• Put the grids on the cutlery basket.
• For larger items use only one of the cutlery grids.
• Put forks and spoons with the handles down.
• Put knives with the handles up.
• Mix spoons with other cutlery to prevent
them to bond together.
Upper basket
The upper basket is for saucers, salad bowls, cups,
glasses, pots and lids. Arrange the items to let water touch all surfaces.
• For longer items fold the cup racks up.
• Put glasses with long stems in the cup racks
with the stems up.
Loading cutlery and dishes
13
Adjustment of the height of the upper basket
You can put the upper basket in two positions to increase load flexibility.
Maximum height of the dishes in:
the upper basket the lower basket
Upper position 22 cm 30 cm
Lower position 24 cm 29 cm
Do these steps to move to the upper basket to the lower/upper position:
Use of detergent
14
1. Pull out the upper basket until it stops.
2. Hold the upper basket by the handle, lift it
as far as possible and lower it vertically.
The upper basket latches into the lower or
the upper position.
Use of detergent
Only use detergents (powder, liquid or tablet) that are applicable for dishwashers.
Follow the data on the packaging:
• Dosage recommended by the manufacturer.
• Storage recommendations.
Do not use more than the correct quantity of detergent to save an environment.

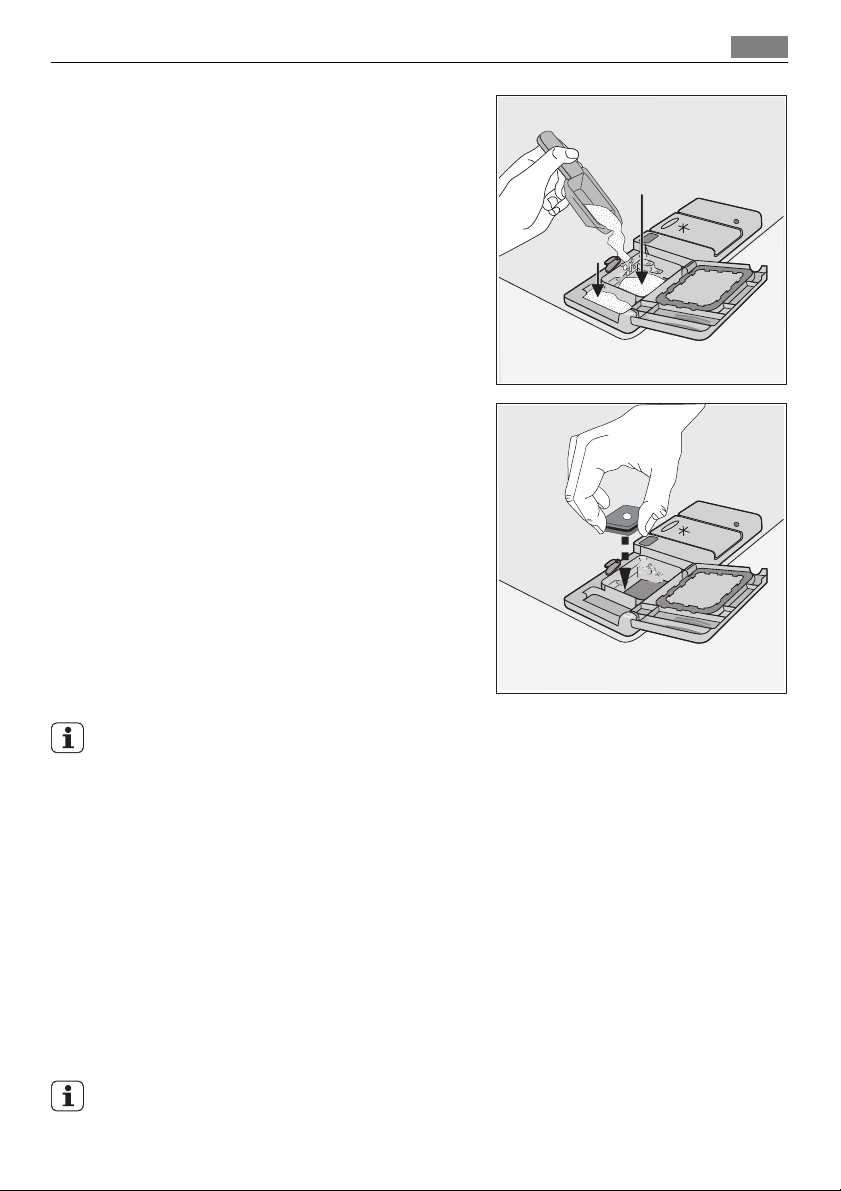

Do these steps to fill the detergent dispenser:
1. Open the lid of the detergent dispenser.
2. Fill the detergent dispenser (A) with de-
tergent. The marking shows the dosage:
20 = approximately 20 g of detergent
30 = approximately 30 g of detergent.
3. If you use a washing programme with pre-
wash phase, put more detergent in the
prewash detergent compartment (B).
4. If you use detergent tablets, put the de-
tergent tablet in the detergent dispenser
(A).
5. Close the lid of the detergent dispenser.
Press the lid until it locks into position.
Multitab function
A
B
15
Different brands of detergent dissolve in different times. Some detergent tablets do not
have the best cleaning results during short washing programmes. Use long washing programmes when you use detergent tablets to fully remove the detergent.
Multitab function
The multitab function is for combi detergent tablets.
These tablets contain agents such as detergent, rinse aid and dishwasher salt. Some types
of tablets can contain other agents.
Do a check if these tablets are applicable for the local water hardness. Refer to the instructions from the manufacturer.
When you set the multitab function, it stays on until you deactivate it.
The multitab function stops automatically the flow of rinse aid and salt. The rinse aid
indicator light and salt indicator light are deactivated.
The programme duration can increase if you use the multitab function.
Activate or deactivate the multitab function before the start of a washing programme.
You cannot activate or deactivate the multitab function when the programme operates.
Cancel the washing programme, then set the programme again.
Washing programmes
16
To activate the multitab function:
• Press the multitab button. The multitab indicator light comes on.
To deactivate the multitab function:
• Press the multitab button. The multitab indicator light goes off.
Do these steps if the drying results are not satisfactory:
1. Fill the rinse aid dispenser with rinse aid.
2. Activate the rinse aid dispenser.
3. Set the rinse aid dosage to position 2.
• You can only activate or deactivate the rinse aid dispenser when the multitab function
is activated.
To activate/deactivate the rinse aid dispenser:
The appliance must be switched off.
1. Press and hold function button A. Turn the programme knob counterclockwise until
the programme marker agrees with the first washing programme on the control panel.
2. Release function button A when the display shows the water hardness level.
3. Turn the programme knob counterclockwise until the programme marker agrees with
the second washing programme on the control panel.
4. The digital display shows the current setting for the rinse aid dispenser.
Rinse aid dispenser deactivated
Rinse aid dispenser activated
5. Press function button A to change the setting. The digital display shows the new setting.
6. Turn the programme knob to the off position to save the operation.
To use normal detergent again:
1. Deactivate the multitab function.
2. Fill the salt container and rinse aid dispenser.
3. Adjust the water hardness setting to the highest level.
4. Do a washing programme without dishes.
5. Adjust the water softener to the water hardness in your area.
6. Adjust the rinse aid dosage.
Washing programmes
Washing programmes
Programme and pro-
gramme knob posi-
tion
NORMAL 65° Normal soil Crockery and cut-
Degree of soil Type of load Programme description
lery
Prewash
Main wash up to 65°C
1 intermediate rinse
Final rinse
Drying
Select and start a washing programme
17
Programme and pro-
gramme knob posi-
tion
30 MIN 60°
INTENSIV CARE 70° Heavy soil Crockery, cutlery,
ECO 50°
PREWASH Any Partial load (to be
1) This is the perfect daily programme to clean a not fully load. Ideal for a family of 4 persons who only want to
load breakfast and dinner crockery and cutlery.
2) Test programme for test institutes. Please refer to separate leaflet supplied, for test data.
1)
2)
Degree of soil Type of load Programme description
Normal or light soil Crockery and cut-
lery
pots and pans
Normal soil Crockery and cut-
lery
completed later in
the day).
Main wash up to 60°C
Final rinse
Prewash
Main wash up to 70°C
1 intermediate rinse
Final rinse
Drying
Prewash
Main wash up to 50°C
1 intermediate rinse
Final rinse
Drying
1 cold rinse (to prevent food
scraps to bond).
Detergent is not necessary
with this programme.
Consumption values
Programme
NORMAL 65° 1,4 - 1,6 17 - 19
30 MIN 60° 0,9 9
INTENSIV CARE 70° 1,5 - 1,7 15 - 17
ECO 50° 1,0 - 1,1 12 - 13
PREWASH 0,1 4
1)
Energy (in kWh) Water (in litres)
1) The digital display shows the programme duration.
The pressure and temperature of the water, the variations of power supply and the quantity
of dishes can change these values.
Select and start a washing programme
Do these steps to set and start a washing programme:
1. Close the door.
2. Turn the programme knob to set the washing programme. Refer to the chapter 'Washing
programmes'.
– The phase indicator light or lights for the washing programme come on.
– The programme duration in the digital display flashes.
3. Press the start button.
Select and start a washing programme
18
– The washing programme starts automatically.
– When the programme starts, only the indicator light of the phase in progress stays
on. Programme duration is on with a static light.
When the washing programme operates, you cannot change the programme. Cancel the
washing programme.
WARNING!
Only interrupt or cancel a washing programme if necessary.
CAUTION!
Open the door carefully. Hot steam can come free.
Interrupting a washing programme
Open the door.
• The programme stops.
Close the door.
• The programme continues from the point of interruption.
Cancelling a washing programme
• Press and hold function buttons A and B.
– In the digital display the time duration of the programme flashes.
– One or more phase indicator lights are on.
The washing programme is cancelled.
At this time you can do these steps:
1. Switch off the appliance.
2. Set a new washing programme.
Fill the detergent dispenser with detergent before you set a new washing programme.
Setting and starting a washing programme with delay start
1. Set a washing programme.
2. Press the delay start button until the display shows the necessary delay start time for
the washing programme. Delay start time flashes in the digital display.
3. Press the start button.
– The countdown of the delay start starts.
– The phase indicator lights of the washing programme go off.
– In the digital display the delay start time is on with a static light.
When the countdown is completed, the washing programme automatically starts The phase
indicator light of the phase in progress comes on.
Do not open the door during the countdown to prevent interruption of the countdown.
When you close the door again, the countdown continues from the point of interruption.
Cancelling a delay start
1. Press and hold function buttons A and B.
– The phase indicator lights or light come on.
– In the digital display, the time duration of the washing programme comes on.
2. Press the start button to start the washing programme.
Care and cleaning
End of the washing programme
Switch off the appliance in these conditions:
• The appliance stops automatically.
• The digital display shows a zero.
• The phase indicator lights are off.
For better drying results, keep the door ajar for some minutes before you remove the dishes.
Let the dishes cool down before you remove them from the appliance. Hot dishes are easily
damaged.
Standby mode
If you do not switch off the appliance at the end of the washing programme, the appliance
automatically goes into standby mode. The standby mode decreases energy consumption.
Three minutes after the end of the programme, all indicator lights go off and the digital
display shows one horizontal bar.
Press a button to go back to the end-of-programme mode.
Removing the load
• First remove items from the lower basket, then from the upper basket.
• There can be water on the sides and door of the appliance. Stainless steel becomes cool
more quickly than the dishes.
Care and cleaning
19
WARNING!
Switch the appliance off before you clean the filters.
Cleaning the filters
CAUTION!
Do not use the appliance without the filters. Make sure that the installation of the filters
is correct. Incorrect installation will cause unsatisfactory washing results and damage to
the appliance.
If necessary, clean the filters. Dirty filters decrease the washing results.
The dishwasher has three filters:
1. coarse filter (A)
2. microfilter (B)
Care and cleaning
20
3. flat filter (C)

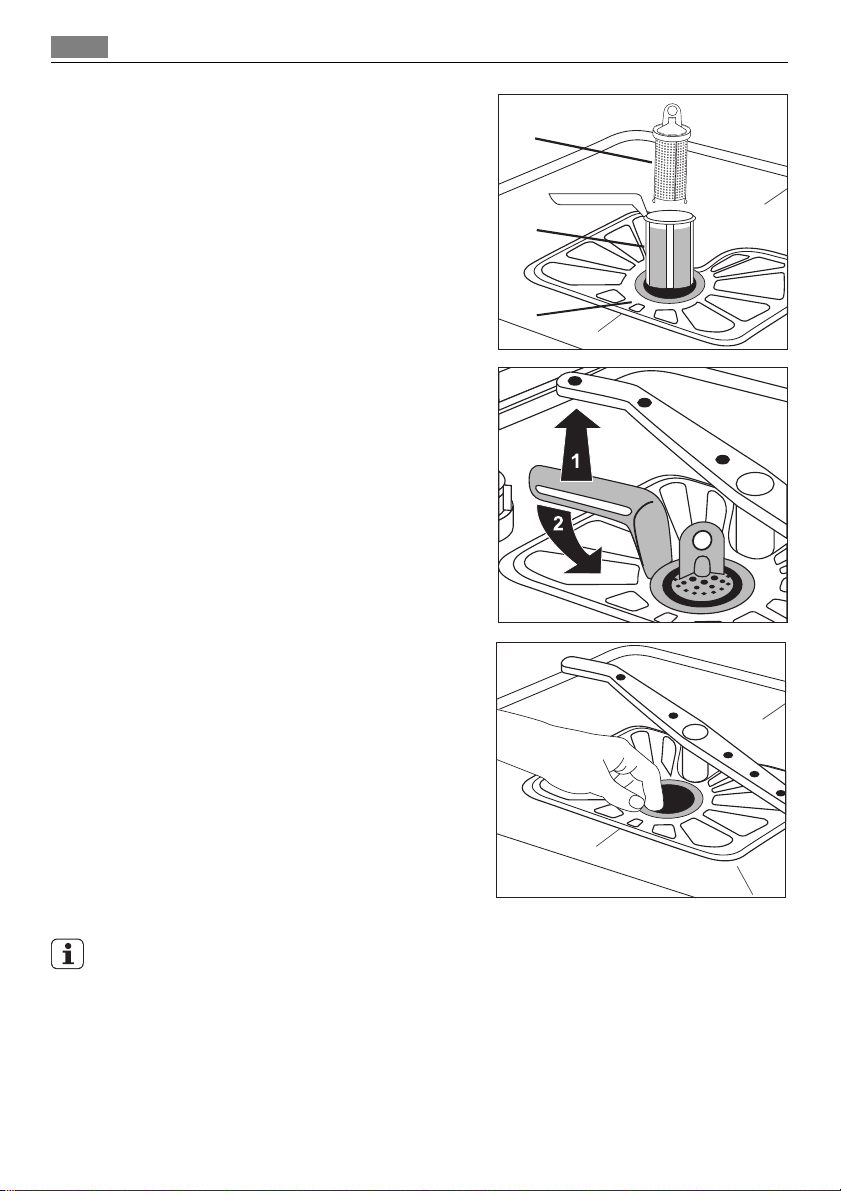

Do these steps to clean the filters:
1. Open the door.
2. Remove the lower basket.
3. To unlock the filter system, turn the han-
dle on the microfilter (B) approximately
1/4 anticlockwise.
4. Remove the filter system.
5. Hold the coarse filter (A) by the handle
with the hole.
6. Remove the coarse filter (A) from the
microfilter (B).
A
B
C
7. Remove the flat filter (C) from the bot-
tom of the appliance.
8. Clean the filters below running water.
9. Put the flat filter (C) in the bottom of the
appliance.
10. Put the coarse filter (A) in the microfilter
(B) and push the filters together.
11. Put the filter system in position.
12. To lock the filter system, turn the handle
on the microfilter (B) clockwise until it
lock in position.
13. Install the lower basket.
14. Close the door.
Do not remove the spray arms.
If the holes in the spray arms become clogged, remove remaining parts of soil with a cocktail
stick.
External cleaning
Clean the external surfaces of the appliance and control panel with a damp soft cloth. Only
use neutral detergents. Do not use abrasive products, scouring pads or solvents (acetone,
trichloroethylene etc...).
What to do if…
Frost precautions
CAUTION!
Do not install the appliance where the temperature is below 0 °C. The manufacturer is not
responsible for damage because of frost.
If not possible, empty the appliance and close the door. Disconnect the water inlet hose
and remove water from the water inlet hose.
What to do if…
The appliance does not start or stops during operation.
If there is a fault, first try to find a solution to the problem yourself. If you cannot find a
solution to the problem yourself, contact the Service Force Centre.
CAUTION!
Switch off the appliance before you do the below suggested corrective actions.
Fault code and malfunction Possible cause and solution
•
the digital display shows
The dishwasher does not fill with
water
•
the digital display shows
The dishwasher will not drain
•
the digital display shows
The anti-flood device operates
The programme does not start • The appliance door is not closed.
• The water tap is blocked or furred with limescale.
Clean the water tap.
• The water tap is closed.
Open the water tap.
• The filter in the water inlet hose is blocked.
Clean the filter.
• The connection of the water inlet hose is not correct. The
hose can be kinked or squashed.
Make sure that the connection is correct.
• There is a blockage in the sink spigot.
Clean the sink spigot.
• The connection of the water drain hose is not correct. The
hose can be kinked or squashed.
Make sure that the connection is correct.
• Close the water tap and contact your local Service Force
Centre.
Close the door.
• Mains plug is not connected in.
Put in the mains.
• The fuse has blown out in the household fuse box.
Replace the fuse.
• Delay start is set.
Cancel the delay start to start the programme immedi-
ately.
21
Technical data
22
After the check, switch on the appliance. Set the knob on the same washing programme
as before the malfunction.
The programme continues from the point of interruption. If the malfunction shows again,
contact your Service Force Centre.
If the display shows a fault code, not described in the chart, contact your Service Force
Centre.
These data are necessary to help you quickly and correctly:
• Model (Mod.)
• Product number (PNC)
• Serial number (S.N.)
For these data, refer to the rating plate.
Write the necessary data here:
Model description : ..........
Product number : ..........
Serial number : ..........
The cleaning results are not satisfactory
The dishes are not clean • The selected washing programme is not applicable for the type
Limescales particles on the
dishes
The dishes are wet and dull • No rinse aid has been used.
There are streaks, milky spots
or a bluish coating on glasses
and dishes
Dry water drop signs on
glasses and dishes
of load and soil.
• The baskets are loaded incorrectly so that water cannot reach all
surfaces.
• Spray arms do not turn freely because of incorrect arrangement
of the load.
• The filters are dirty or not correctly installed.
• The quantity of detergent is too little or missing.
• The salt container is empty.
• The water softener is adjusted on a wrong level.
• The salt container cap is not closed correctly.
• The rinse aid dispenser is empty.
• Decrease the rinse aid dosage.
• Increase rinse aid dosage.
• The detergent can be the cause.
Technical data
Dimensions Width cm 59,6
Height cm 81,8 - 87,8
Depth cm 59,5
Electrical connection - Voltage
- Overall power - Fuse
Water supply pressure Minimum 0,5 bar (0,05 MPa)
Maximum 8 bar (0,8 MPa)
Information on the electrical connection is given on the rating
plate on the inner edge of the dishwasher door.
Installation
Capacity Place settings 12
Installation instructions
Installation
Fitting under a counter
WARNING!
Make sure that the mains plug is disconnected from the mains socket during installation.
Put the appliance adjacent to a water tap and a water drain.
Install the appliance under a kitchen counter or work surface.
Make sure that the dimensions of the recess
agree with the given dimensions.
No further openings for the venting of the dishwasher are necessary, but only to let the water
fill, the drain hose and the power supply cable
pass through.
Make sure that there are no kinks in the water
hoses and that the water hoses are not squashed.
23
Adjusting the height of the appliance
Do these steps to adjust the height of the appliance:
1. Loosen or tighten the two front feet.
2. Loosen and remove the adjustable plinth.
3. Adjust the rear foot. Turn the screw in the middle of the front kick plate to the left or
to the right.
Make sure that the appliance is level to close and seal the door correctly. If the level of the
appliance is correct, the door does not catch on the sides of the cabinet. If the door does
not close correctly, loosen or tighten the adjustable feet until the appliance is level.
Adjusting the height of the plinth
Installation
24
If there is a space at the bottom of the machine,
you can lower the plinth to cover it.
Adhesive steam protection foil
Fit the steam protection on the front part of the
worktop along the entire width.
600 mm
Fixing to the adjacent units
WARNING!
Use the supplied brackets to attach the appliance under the worktop or to the adjacent
units, to prevent injury or damage.
1. Fit the supplied angular brackets in the slots on the top of the appliance.
Water connection
2. Use the supplied screws to secure the
appliance in position (upwards or sideways). Make sure the screws are tightened.
Water connection
Water inlet hose
Connected the appliance to a hot (max. 60°) or cold water supply.
If the hot water comes from alternative sources of energy that are more environmentally
friendly (e.g. solar or photovoltaic panels and aeolian), use a hot water supply to decrease
energy consumption.
Connect the inlet hose to a water tap with an external thread of 3/4”.
CAUTION!
Do not use connection hoses from an old appliance.
25
The water pressure must be in the limits (refer to 'Technical data'). Make sure that the local
water authority gives you the average mains pressure in your area.
Make sure that there are no kinks in the water inlet hose and that the water inlet hose is
not squashed or entangled.
Fit the locknut correctly to prevent water leaks.
CAUTION!
Do not connect the appliance to new pipes or pipes that are not used for a long time. Let
the water run for some minutes, then connect the inlet hose.
The water inlet hose is double-walled and has an inner mains cable and a safety valve. The
water inlet hose is under pressure only while the water is running. If there is a leak in the
water inlet hose, , the safety valve interrupts the running water.
Be careful when you connect the water inlet hose:
• Do not put the water inlet hose or the safety valve in water.
• If the water inlet hose or the safety valve is damaged, immediately disconnect the mains
plug from the mains socket.
• Only let the Service Force Centre replace the water inlet hose with safety valve.
Water connection
26
WARNING!
Dangerous voltage
Water drain hose
1. Connect the water drain hose to the sink spigot and attach it under the work surface.
This prevents that the waste water from the sink goes back into the appliance.
2. Connect the water drain hose to a stand pipe with vent-hole (minimum internal diameter 4 cm).
Make sure that the drain hose is not bent or
squashed to prevent that the water drains does
not drain correctly.
Remove the sink plug when the appliance drains
the water to prevent that the water goes back into
the appliance.
A drain hose extension must not be longer than 2
m. The internal diameter must not be smaller than
the diameter of the hose.
max 85 cm
min 40 cm
max 400 cm
If you connect the water drain hose to a trap spigot under the sink, remove the plastic membrane
(A). If you do not remove the membrane, remaining food can cause a blockage in the drain hose
spigot
The appliance has a security feature to prevent
that dirty water goes back into the appliance. If,
the spigot of the sink has a 'non-return valve', this
valve can cause the appliance to drain incorrectly.
Remove the non-return valve.
CAUTION!
Make sure that the water couplings are tight to prevent water leakage.
Electrical connection
Electrical connection
WARNING!
The manufacturer is not responsible if you do not follow these safety precautions.
This appliance needs to be earthed according to safety precautions.
Make sure that the rated voltage and type of power on the rating plate agree with the
voltage and the power of the local power supply.
Always use a correctly installed shockproof socket.
Do not use multi-way plugs, connectors and extension cables. There is a risk of fire.
Do not replace the mains cable yourself. Contact the Service Force Centre.
Make sure that the mains plug is accessible after installation.
Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
Environment concerns
The symbol on the product or on its packaging indicates that this product may not be
treated as household waste. Instead it should be taken to the appropriate collection point
for the recycling of electrical and electronic equipment. By ensuring this product is disposed
of correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product, please contact
your local council, your household waste disposal service or the shop where you purchased
the product.
The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Discard the packaging materials
in the applicable container at the community waste disposal facilities.
WARNING!
To discard the appliance, follow the procedure:
• Pull the mains plug out of the socket.
• Cut off the mains cable and mains plug and discard them.
• Discard the door catch. This prevents the children to close themselves inside the appliance
and endanger their lives.
27
www.electrolux.com
117942370 - 00 - 032010
Loading...
