AEG-Electrolux EWF168544W User Manual

user manual

benutzerinformation

Washing Machine

Waschmaschine

EWF 168544 W

2 electrolux

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

CONTENTS

Safety information 2 Product description 4 Control panel 5 First use 7 Personalisation 7 Daily use 8 Helpful hints and tips 11 Washing programmes 12

SAFETY INFORMATION

Important! Read carefully & keep for future reference.

• The safety of Your appliance complies with the industry standards and with legal requirements on the safety of appliances. However, as manufacturers, we feel it is our duty to provide the following safety notes.

• It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings.

• You MUST read them carefully before installing or using the appliance.

• Before first starting up, check the appliance for any damage incurred during transport. Never connect up a damaged appliance . If parts are damaged, contact your supplier.

• If the appliance is delivered in the winter months when there are minus temperatures. Store it at room temperature for 24 hours before using for the first time.

GENERAL SAFETY

• It is dangerous to alter the specifications or attempt to modify this product in any way.

Care and cleaning 15 What to do if… 19 Technical data 21 Consumption values 21 Installation 22 Electrical connection 24 Environment concerns 25

Subject to change without notice.

• During high temperature wash programmes the door glass may get hot. Do not touch it!

• Make sure that small pets and children do not climb into the drum. To avoid this, please check into the drum before using.

• Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material can cause extensive damage and must not be placed into the machine.

• Only use the advised quantities of fabric softener and detergent. Damage to the fabric can ensue if you over-fill. Refer to the manufacturer’s recommendations of quantities.

• Wash small items such as socks, laces, washable belts etc in a washing bag or pillow case as it is possible for such items to slip down between the tub and the inner drum.

• Do not use your washing machine to wash articles with whalebones, material without hems or torn material.

• Always unplug the appliance and turn off the water supply after use, cleaning and maintenance.

• Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced people may cause injury or serious malfunctioning. Contact your local Service Centre. Always insist on genuine spare parts.

electrolux 3

INSTALLATION

• This appliance is heavy. Care should be taken when moving it.

• When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre.

• All packing and transit bolts must be removed before use. Serious damage can occur to the product and to property if this is not adhered to. See relevant section in the user manual.

• After having installed the appliance, check that it is not standing on the inlet and drain hose and the worktop is not pressing the electrical supply cable against the wall.

• If the machine is situated on a carpeted floor, please adjust the feet in order to allow air to circulate freely under the appliance.

• Always be sure, that there is no water leakage from hoses and their connections after the installation.

• If the appliance is installed in a location subject to frost, please read the “dangers of freezing” chapter.

• Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person.

• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

USE

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.

• Only wash fabrics which are designed to be machine washed. Follow the instructions on each garment label.

• Do not overload the appliance. See the Washing Programme Table.

• Before washing, ensure that all pockets are empty and buttons and zips are fastened. Avoid washing frayed or torn articles and treat stains such as paint, ink, rust, and grass before washing. Underwired bras must NOT be machine washed.

• Garments which have been in contact with volatile petroleum products should not be machine washed. If volatile clean-

ing fluids are used, care should be taken to ensure that the fluid is removed from the garment before placing in the machine.

• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.

• Never use the appliance if the power supply cable, the control panel, the working surface or the base are damaged so that the inside of the washing machine is accessible.

CHILD SAFETY

• This appliance is not intended for use by person (including children) with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children’s reach.

• Keep all detergents in a safe place out of children’s reach.

• Make sure that children or pets do not climb into the drum. To prevent children and pets becoming trapped inside the drum the machine incorporates a special feature. To activate this device, rotate the button (without pressing it) inside the door clockwise until the groove is horizontal. If necessary use a coin.

To disable this device and restore the possibility of closing the door, rotate the button counterclockwise until the groove is vertical.

4 electrolux

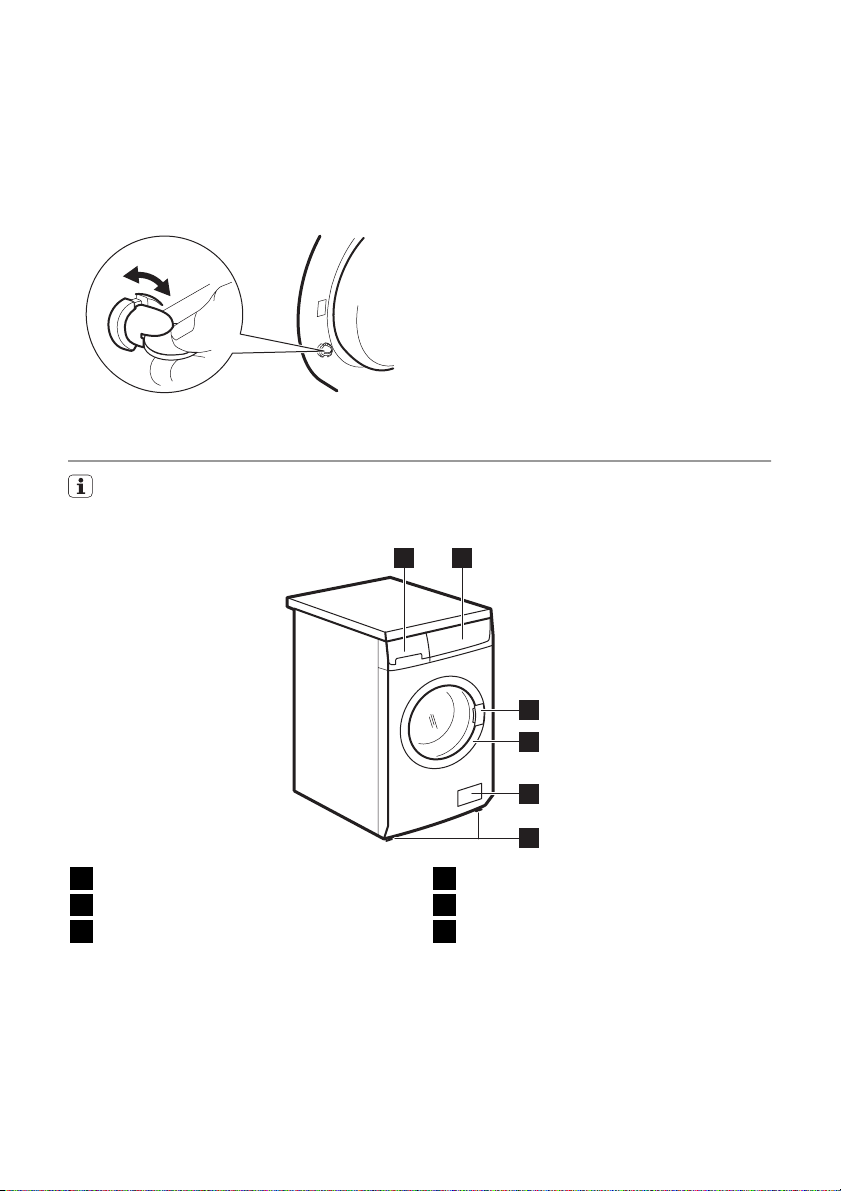

PRODUCT DESCRIPTION

Your new appliance meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. Its new washing system allows total use of detergent and reduces water consumption so saving energy.

Detergent dispenser drawer

Control panel

Door opening handle

DETERGENT DISPENSER DRAWER

Compartment for detergent used for prewash and soak phase or for stain remover used during the stain action phase (if available). The prewash and soak detergent is added at the beginning of the wash programme. The stain remover is added during the stain action phase.

Compartment for powder or liquid detergent used for main wash. If using liquid detergent pour it just before starting the programme.

Compartment for liquid additives (fabric softener, starch). Follow the product manufacturer’s recommendations on quantities to use and do not exceed the «MAX» mark in the detergent dispenser drawer. Any fabric softener or starching additives must be poured into the compartment before starting the wash programme.

Rating Plate

Drain pump

Adjustable feet

CONTROL PANEL

Below is a picture of the control panel. It shows the programme selector dial as well as the buttons, pilot lights and the display. These are presented by relevant numbers on the following pages.

1 2 3 4 5 6 7 8 9

electrolux 5

Programme selector dial

Display

TEMPERATURE button

SPIN button

PREWASH button

EXTRA RINSE button

DELAY START button

START/PAUSE button

TIME MANAGER buttons

PROGRAMME SELECTOR DIAL

It allows you to switch the appliance on/off and/or to select a programme.

TEMPERATURE

This button allows you to increase or decrease the washing temperature.

SPIN SPEED REDUCTION

By pressing this button you can reduce the maximum spin speed allowed for the selected programme or to select the available option(s).

PREWASH

By selecting this option the machine performs a prewash cycle before the main

wash phase. The washing time will be prolonged. This option is recommended for heavily soiled laundry.

EXTRA RINSE

This appliance is designed to save energy. If it necessary to rinse the laundry using an extra quantity of water (extra rinse), select this option. Some additional rinses will be performed. This option is recommended for people who are allergic to detergents, and in areas where the water is very soft.

DELAY START

The programme can be delayed from 30 min - 60 min - 90 min, 2 hours and then by 1 hour up to a maximum of 20 hours by means of this button.

START PAUSE

This button allows you to start or to interrupt the selected programme.

TIME MANAGER

These buttons allows you to modify the programme duration automatically proposed by the appliance.

6 electrolux

DISPLAY

2.12 2.11 2.10

2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9

The display shows the following information:

2.1:Temperature value

2.2: Temperature icons

, Cold . During the washing cycle the display shows the temperature icon animated to indicate that the appliance has started the heating phase of the water in the tub.

2.3: Spin value

2.4: Spin speed icons.

•

No spin

•

Rinse Hold

•

Night Cycle During the spinning phase the spiral is animated. No spin option eliminates all the spin phases and increases the number of rinses for some programmes. Rinse Hold: by selecting this option the water of the last rinse is not emptied out to prevent the fabrics from creasing. When the programme has finished the display shows flashing

, the icon 2.8 is still visual-

ized, the light of button 8 is off and the door is locked to indicate that the water must be emptied out. To empty out the water, please read the paragraph «At the end of the programme». Night Cycle: by selecting this option, the machine will not drain the water of the last rinse, so as not to wrinkle the laundry. As all spinning phases are suppressed, this washing cycle is very noiseless and it can be selected at night or in times with a more economical power rate. On some programmes the rinses will be performed with more water. When the programme has fin-

ished, the display shows flashing

the icon 2.8 is still visualized, the light of button 8 is off and the door is locked to indicate that the water must be emptied out. To empty out the water, please read the paragraph «At the end of the programme».

2.5: Option icons: Extra Rinse Iron

or Easy

2.6: Delay icon The selected delay set by pressing the relevant button appears on the display for a few seconds, then the duration of the previously selected programme is displayed. The relevant icon is lighted on. The delay time value decreases by one unit every hour and then, when 1 hour remains, the time decreases every minute.

2.7: Child safety lock

(see «Personali-

sation» chapter).

2.8: Door locked icon After you have pressed button 8 and the machine has started, this icon is lighted on and only the phase running icon stays on. When the programme has finished, three flashing zeros (

) are displayed and

this icon disappears.

2.9:

• Duration of the selected programme

After selecting a programme, the duration is displayed in hours and minutes (for example

). The duration is calculated automatically on the basis of the maximum recommended load for each type of fabric. After the programme has started, the time remaining is updated every minute.

End of programme

• When the programme has finished three

flashing zeros (

) are displayed, the

icon 2.8 disappears and the door can be opened.

Incorrect option selection

• If an option which is not compatible with the set wash programme is selected, the message Err is displayed at the bottom of the display for a few seconds and the integrated red light of button 8 start flashing.

Alarm codes

•

electrolux 7

In the event of operating problems, some alarm codes can be displayed, for exam-

ple if...»).

Delay Time value

•

2.10: Soil degree icons

•

Intensive

•

Normal

•

Daily

•

Light

•

Quick

•

Super Quick

•

Refresh

•

Super Refresh (see paragraph «Select Time Manager option»).

2.11: Clock icon

TABLE OF SYMBOLS Programme selector dial

Options buttons and lights

+ / -

(see paragraph «What to do

= Time Manager Programmes

= Child Lock

= Time Manager buttons

FIRST USE

• Ensure that the electrical and water connections comply with the installation instructions.

• Remove the polystyrene block and any material from the drum.

• Before the first wash, run a cotton cycle at the highest temperature

After the programme has started, the duration is displayed and the clock icon is animated.

2.12: Washing programme phase icons By selecting the wash programme, the washing programme phase icons corresponding to the various phases making up the programme are shown in the upper part of the display. After having pressed button 8 only the icon of the running phase stays on:

•

Prewash relevant option button is selected as well)

•

Wash

•

Rinses

•

Drain

•

Spin

(this icon lights on when the

without any laundry in the machine, to remove any manufacturing residue from the drum and tub. Pour 1/2 a measure of detergent into the main wash compartment and start the machine.

PERSONALISATION

ACOUSTIC SIGNALS

The machine is provided with an acoustic device, which sounds in the following cases:

• at the end of the cycle

• if there is a fault. By pressing the 5 and 6 buttons simultaneously for about 6 seconds, the acoustic signal is deactivated (except if there is a fault). By pressing these 2 buttons again, the acoustic signal is reactivated.

CHILD SAFETY LOCK

This device permits you to leave the appliance unattended and not to worry that children might be injured by or cause damage to the appliance. This function remains enabled also when the washing machine is not working. There are two different ways to set this option:

1. Before pressing button 8: it will be im-

possible to start the machine.

8 electrolux

2. After pressing button 8: it will be im-

possible to change any other pro-

gramme or option. To enable or disable this option press simultaneously for about 6 seconds buttons

DAILY USE

Load the laundry

Open the door by carefully pulling the door handle outwards. Place the laundry in the drum, one item at a time, shaking them out as much as possible. Close the door. Make sure that no laundry stays between the seal and the door. There is a risk of water leakage or damage to the laundry.

Measure out the detergent and the fabric softener

Pull out the dispenser drawer until it stops. Measure out the amount of detergent required, pour it into the main wash compart-

ment if the selected programme/option it requires (see more details in «Detergent dispenser drawer»).

If required, pour fabric softener into the compartment marked must not exceed the «MAX» mark in the drawer). Close the drawer gently.

or in the appropriate compartment

(the amount used

6 and 7 until on the display, the icon pears or disappears.

SELECT THE REQUIRED PROGRAMME BY TURNING THE PROGRAMME SELECTOR DIAL (1)

Turn the programme selector dial to the required programme. The washing machine will propose a temperature and automatically select the maximum spin value provided for the programme you have chosen. You can change these values by operating the corresponding buttons. The green pilot light of the button 8 starts to flash. The selector dial can be turned either clockwise or counterclockwise. Turn to position

to reset programme/Switching the ma-

chine off.

At the end of the programme the selector dial must be turned to position

to switch the machine off.

Caution! If you turn the programme

selector dial to another programme when the machine is working, the red pilot light of button 8 will blink 3 times and the message Err is displayed to indicate a wrong selection. The machine will not perform the new selected programme.

SELECT THE TEMPERATURE BY PRESSING BUTTON 3

By selecting a programme, the appliance proposes automatically a default temperature.

ap-

electrolux 9

Press this button repeatedly to increase or decrease the temperature, if you want your laundry to be washed at a different temperature.

REDUCE THE SPIN SPEED BY PRESSING BUTTON 4

By selecting a programme, the appliance proposes automatically the maximum spin speed provided for that programme. Press button 4 repeatedly to change the spin speed, if you want your laundry to be spun at a different speed.

SELECT THE AVAILABLE OPTIONS BY PRESSING BUTTONS 4, 5 AND 6

Depending on the programme, different functions can be combined. These must be selected after choosing the desired programme and before pressing button 8. When these buttons are pressed, the corresponding icons appear on the display. When they are pressed again, the icons disappear. If an incorrect option is selected, the integrated red pilot light of the button 8 flashes for 3 times and the Err message appears on the display for a few seconds.

For the compatibility among the wash-

ing programmes and the options see

chapter «Washing Programmes».

SELECT THE DELAY START BY PRESSING BUTTON 7

Before you start the programme, if you wish to delay the start, press the button 7 repeatedly, to select the desired delay. The corresponding icon 2.6 will appear on the display in the upper part of the display. The selected delay time value (up to 20 hours) will appear on the display a few seconds, then the duration of the programme will appear again. You must select this option after you have set the programme and before you press button 8. You can cancel or modify the delay time at any moment, before you press button 8. Selecting the delayed start:

1. Select the programme and the required

options.

2. Select the delay start by pressing the

button 7.

3. Press button 8:

– the machine starts its hourly count-

down.

– The programme will start after the

selected delay has expired.

Cancelling the delayed start after having pressed button 8:

1. Set the washing machine to PAUSE by

pressing button 8.

Press button 7 once until the symbol ’ is displayed

3. Press button 8 again to start the pro-

gramme.

Important! The selected delay can be changed only after selecting the washing programme again. The Delay Start can not be selected with

DRAIN programme.

START THE PROGRAMME BY PRESSING BUTTON 8

To start the selected programme, press the button 8, the green pilot light of the button 8 stops blinking. The icon 2.8 appears on the display to indicate that the appliance starts operating and the door is locked. To interrupt a programme which is running, press the button 8: the green pilot light starts to blink. To restart the programme from the point at which it was interrupted, press the button 8 again. If you have chosen a delayed start, the machine will begin the countdown. If an incorrect option is selected, the red pilot light of the button 8 blinks for 3 times the message Err is displayed for few seconds.

SELECT THE TIME MANAGER OPTION BY PRESSING BUTTONS 9

By pressing these buttons repeatedly, the duration of the washing cycle can be increased or decreased. The icon 2.10 will appear on the display to indicate the chosen degree of soil. This option is available only with Cotton, Synthetic and Delicate programmes.

Soil Level Icon Type of fabric

Intensive For heavy soiled

items

10 electrolux

Soil Level Icon Type of fabric

Normal For normal soiled

Daily For daily soiled

Light For slightly soiled

Quick For very slightly

Super Quick

Refresh

Super Re-

fresh

1) We recommend you to reduce the load sizes (see

Washing programmes table).

2) When you select this option the relevant icon appears

just for a while and then it disappears immediately.

items

soiled items For items used or

worn for a short time

For refreshing items only

For refreshing a very few items only

ALTERING AN OPTION OR A RUNNING PROGRAMME

It is possible to change some options before the programme carries them out . Before you make any change, you must PAUSE the appliance by pressing the button 8 (if you wish to change the Time Manager option, you must cancel the running programme and make your selection again). Changing a running programme is possible only by resetting it. Turn the programme selector dial to

and then to the new pro-

gramme position. Start the new programme by pressing the button 8 again. The washing water in the tub will be not emptied out.

INTERRUPTING A PROGRAMME

Press the button 8 to interrupt a programme which is running, the corresponding green pilot light starts blinking. Press the button again to restart the programme.

CANCELLING A PROGRAMME

Turn the selector dial to

to cancel a programme which is running. You can select now a new programme.

OPENING THE DOOR

After the programme has started (or during the delay time) the door is locked, if you

need to open it, set first the machine to PAUSE by pressing the button 8. If the icon 2.8 disappears after some minutes, the door can be opened. If the icon 2.8 does not go off, this means that the machine is already heating or that the water level is too high. Do not try to force the door! If you cannot open the door but you need to open it you have to switch the machine

off by turning the selector dial to

. After a

few minutes the door can be opened (pay

attention to the water level and temperature!).

After closing the door, it is necessary to select the programme and options again and to press button 8.

AT THE END OF THE PROGRAMME

The machine stops automatically. Three blinking zeros (

) appear on the dis-

play. The pilot light of button 8 goes off. Some acoustic signals sound for a few minutes. If a programme or an option that ends with water left in the tub has been set, the icon

2.8 remains displayed to indicate that the water must be emptied out before opening the door. The drum continues to run at regular intervals until the water draining. Follow the below instructions to empty out the water:

Turn the programme selector dial to .

2. Select the draining or spinning programme.

3. Reduce the spin speed if needed, by pressing the relevant button.

4. Press button 8.

At the end of the programme, the icon 2.8 disappears and the door can be opened.

Turn the programme selector dial to

to switch the machine off. Remove the laundry from the drum and carefully check that the drum is empty. If you do not intend to carry out another wash, close the water tap. Leave the door open to prevent the formation of mildew and unpleasant smells.

electrolux 11

Stand by : once the programme has finished after a few minutes the energy saving system will be enabled. The brightness of

HELPFUL HINTS AND TIPS

SORTING OUT THE LAUNDRY

Follow the wash code symbols on each garment label and the manufacturer’s washing instructions. Sort the laundry as follows: whites, coloureds, synthetics, delicates, woollens.

BEFORE LOADING THE LAUNDRY

Never wash whites and coloureds together. Whites may lose their «whiteness» in the wash. New coloured items may run in the first wash; they should therefore be washed separately the first time. Button up pillowcases, close zip fasteners, hooks and poppers. Tie any belts or long tapes. Remove persistent stains before washing. Rub particularly soiled areas with a special detergent or detergent paste. Treat curtains with special care. Remove hooks or tie them up in a bag or net.

REMOVING STAINS

Stubborn stains may not be removed by just water and detergent. It is therefore advisable to treat them prior to washing. Blood: treat fresh stains with cold water. For dried stains, soak overnight in water with a special detergent then rub in the soap and water. Oil based paint: moisten with benzine stain remover, lay the garment on a soft cloth and dab the stain; treat several times. Dried grease stains: moisten with turpentine, lay the garment on a soft surface and dab the stain with the fingertips and a cotton cloth. Rust: oxalic acid dissolved in hot water or a rust removing product used cold. Be careful with rust stains which are not recent since the cellulose structure will already have been damaged and the fabric tends to hole. Mould stains: treat with bleach, rinse well (whites and fast coloureds only).

1) do not use acetone on artificial silk

the display is reduced. By pressing any button the appliance will come out of the energy saving status.

Grass: soap lightly and treat with bleach (whites and fast coloureds only). Ball point pen and glue: moisten with

acetone

, lay the garment on a soft cloth

and dab the stain. Lipstick: moisten with acetone as above, then treat stains with methylated spirits. Treat any residual marks with bleach. Red wine: soak in water and detergent, rinse and treat with acetic or citric acid, then rinse. Treat any residual marks with bleach. Ink: depending on the type of ink, moisten

the fabric first with acetone

, then with acetic acid; treat any residual marks on white fabrics with bleach and then rinse thoroughly. Tar stains: first treat with stain remover, methylated spirits or benzine, then rub with detergent paste.

DETERGENTS AND ADDITIVES

Good washing results also depend on the choice of detergent and use of the correct quantities to avoid waste and protect the environment. Although biodegradable, detergents contain substances which, in large quantities, can upset the delicate balance of nature. The choice of detergent will depend on the type of fabric (delicates, woollens, cottons, etc.), the colour, washing temperature and degree of soiling. All commonly available washing machine detergents may be used in this appliance:

• powder detergents for all types of fabric

• powder detergents for delicate fabrics

(60°C max) and woollens

• liquid detergents, preferably for low tem-

perature wash programmes (60°C max) for all types of fabric, or special for wool-

lens only. The detergent and any additives must be placed in the appropriate compartments of the dispenser drawer before starting the wash programme.

12 electrolux

If using liquid detergents, a programme without prewash must be selected. Your appliance incorporates a recirculation system which allows an optimal use of the concentrated detergent. Follow the product manufacturer’s recommendations on quantities to use and do

not exceed the «MAX» mark in the detergent dispenser drawer.

QUANTITY OF DETERGENT TO BE USED

The type and quantity of detergent will depend on the type of fabric, load size, degree of soiling and hardness of the water used. Follow the product manufacturers’ instructions on quantities to use.

WASHING PROGRAMMES

Programme - Maximum and Minimum Temperature - Cycle Description - Maximum Spin Speed Maximum Fabrics Load - Type of Laundry

Katoen — Coton

90° - Cold Main wash - Rinses Spin at the maximum speed Max. load 8 kg - Reduced load 4 kg

White and coloured cotton (normally soiled items).

Synthetica — Synthétiques

60° - Cold Main wash - Rinses Maximum spin speed at 900 rpm Max. load 4 kg - Reduced load 2 kg Synthetic or mixed fabrics: underwear, coloured garments, non-shrink shirts, blouses.

Fijne was — Délicats

40° - Cold Main wash - Rinses Maximum spin speed at 700 rpm Max. load kg 4 - Reduced load kg 2 Delicate fabrics: acrylics, viscose, polyester.

Use less detergent if:

• you are washing a small load

• the laundry is lightly soiled

• large amounts of foam form during wash-

ing.

DEGREES OF WATER HARDNESS

Water hardness is classified in so-called “degrees” of hardness. Information on hardness of the water in your area can be obtained from the relevant water supply company, or from your local authority. If the water hardness degree is medium or high we suggest you to add a water softener following always the manufacturer’s instructions. When the degree of hardness is soft, readjust the quantity of the detergent.

Options

SPIN REDUCTION

NIGHT CYCLE

RINSE HOLD

NO SPIN

PREWASH

EXTRA RINSE

TIME MANAGER SPIN REDUCTION

NIGHT CYCLE

RINSE HOLD

NO SPIN

PREWASH

EXTRA RINSE

TIME MANAGER SPIN REDUCTION

NIGHT CYCLE

RINSE HOLD

NO SPIN

PREWASH

EXTRA RINSE

TIME MANAGER

Detergent Com-

partment

electrolux 13

Programme - Maximum and Minimum Temperature - Cycle Description - Maximum Spin Speed Maximum Fabrics Load - Type of Laundry

Wol/Laine — Laine/Lavage à la main

40° - Cold Main wash - Rinses Maximum spin speed at 1000 rpm Max. load 2 kg Washing programme for machine washable wool as well as for hand washable woollens and delicate fabrics with «hand washing» care symbol. Note: A single or bulky item may cause imbalance. If the appliance doesn’t perform the final spin phase, add more items, redistribute the load manually and then select the spinning programme.

Lingerie

40° - Cold Main wash - Rinses Maximum spin speed at 1000 rpm Max. load 1 kg This programme is suitable for very delicate items such a lingerie, bras and underwear. The maximum spin speed is automatically reduced.

Rinse

Rinse - Long spin Spin at the maximum speed Max. load 8 kg With this programme it is possible to rinse and spin cotton garments which have been washed by hand. To intensify the rinsing action, select the option EXTRA RINSE. The appliance will add some additional rinses.

Drain

Draining of water Max. load 8 kg For emptying out the water of the last rinse in programmes with the option selected, which ends with water left in the tub.

Spin

Drain and long spin Spin at the maximum speed Max. load 8 kg Separate spin for hand washed garments and after programmes with the option selected, which ends with water left in the tub. You can choose the spin speed by pressing the relevant button to adapt it to the fabrics to be spun.

Options

Detergent Com-

partment

SPIN REDUCTION

NIGHT CYCLE

RINSE HOLD

NO SPIN

SPIN REDUCTION

NIGHT CYCLE

RINSE HOLD

NO SPIN

SPIN REDUCTION

NIGHT CYCLE

RINSE HOLD

NO SPIN

EXTRA RINSE

SPIN REDUCTION

14 electrolux

Programme - Maximum and Minimum Temperature - Cycle Description - Maximum Spin Speed Maximum Fabrics Load - Type of Laundry

Katoen Eco — Coton Eco

90° - 40° Main wash - Rinses Spin at the maximum speed Max. load 8 kg White and fast coloured cotton. This programme can be selected for slightly or normally soiled cotton items. The temperature will decrease and the washing time will be extended. This allows to obtain a good washing efficiency so saving energy.

Dekens — Couette

40° - 30° Main wash - Rinses Maximum spin speed at 700 rpm Max. load 2.5 kg For a single washable synthetic blanket or duvet.

Antikreuk — Repassage facile

60° - Cold Main wash - Rinses Maximum spin speed at 900 rpm Max. load 1.5 kg Selecting this programme the laundry is gently washed and spun to avoid any creasing. In this way ironing is easier. Furthermore the machine will perform additional rinses.

— 14 Min.

30° Main wash - Rinses Maximum spin speed 900 rpm Max. load 2 kg Short washing cycle ideal for laundry which only needs freshening up.

5 overhemden — Chemises

30° Main wash - Rinses Maximum spin speed at 900 rpm Max. load 1 kg Washing cycle for slightly soiled shirts.

Options

SPIN REDUCTION

NIGHT CYCLE

RINSE HOLD

NO SPIN

PREWASH

EXTRA RINSE

SPIN REDUCTION

RINSE HOLD

NO SPIN

PREWASH

EXTRA RINSE

SPIN REDUCTION

RINSE HOLD

NO SPIN

SPIN REDUCTION

NO SPIN

Detergent Com-

partment

electrolux 15

Programme - Maximum and Minimum Temperature - Cycle Description - Maximum Spin Speed Maximum Fabrics Load - Type of Laundry

Cool clean

Cold Main wash - Rinses Maximum spin speed at 1200 rpm Max. load 3 kg Highly energy efficient cold wash programme for lightly soiled laundry made of cottons, synthetic or mixed fabrics. This programme requires the use of detergent which is already active in cold water. Hint: In case of water inlet temperatures lower than 6°C the machine will execute a short heating phase. The detergent must be used with the supplied or a suitable detergent dosing cap (use the amount of the detergent recommended by detergent's manufacturer).

O = OFF

For cancelling the programme which is running or to switch the machine off .

1) If using liquid detergents, a programme without PREWASH must be selected.

2) If you select the Super Quick option by pressing the buttons 10, we recommend that you reduce the maximum load as indicated in this chart. Full loading is possible however with somewhat reduced cleaning results. If you select the Refresh or Super Refresh option, we recommend that you reduce the load even more.

Options

SPIN REDUCTION

NO SPIN

RINSE HOLD

EXTRA RINSE

Detergent Com-

partment

CARE AND CLEANING

Warning! You must disconnect the appliance from the electricity supply, before you can carry out any cleaning or maintenance work.

DESCALING

The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine. Do this separately from any laundry washing, and according to the softening powder manufacturer's instructions. This will help to prevent the formation of lime deposits.

AFTER EACH WASH

Leave the door open for a while. This helps to prevent mould and stagnant smells forming inside the appliance. Keeping the door open after a wash will also help to preserve the door seal.

MAINTENANCE WASH

With the use of low temperature washes it is possible to get a build up of residues inside the drum. We recommend that a maintenance wash be performed on a regular basis.

To run a maintenance wash:

• The drum should be empty of laundry.

• Select the hottest cotton wash programme.

• Use a normal measure of detergent, must be a powder with biological properties.

EXTERNAL CLEANING

Clean the exterior cabinet of the appliance with soap and water only, and then dry thoroughly.

Important! Do not use methylated spirits, solvents or similar products to clean the cabinet.

CLEANING THE DISPENSER DRAWER

The detergent dispenser drawer should be cleaned regularly. The washing powder and additive dispenser drawer should be cleaned regularly. Remove the drawer by pressing the catch downwards and by pulling it out.

16 electrolux

Flush it out under a tap, to remove any traces of accumulated powder. To aid cleaning, the top part of the additive compartment should be removed. Clean all parts with water.

WASHING DRUM

Rust deposits in the drum may occur due to rusting foreign bodies in the washing or tap water containing iron.

Important! Do not clean the drum with acidic descaling agents, scouring agents containing chlorine or iron or steel wool.

1. Remove any rust deposits on the drum

with a cleaning agent for stainless steel.

2. Run a washing cycle without any wash-

ing to clean off any cleaning agent residues. Programme: Short Cotton Programme at maximum temperature and add approx. 1/4 measuring cup of detergent.

DOOR SEAL

Check from time to time the door seal and eliminate eventual possible objects that could be trapped in the fold.

Clean the chamber of dispenser drawer with a brush.

DRAIN PUMP

Regularly examine the drain pump and make sure that it is clean. Clean the pump regularly and/or if:

• The appliance does not drain the water.

• The drum cannot turn.

• The appliance makes an unusual noise because of the blockage of the drain pump.

• A problem with water draining is detected (see chapter “What to do if...” for more details).

Warning!

1. Disconnect the mains plug from the mains socket.

2. Do not remove the filter while the appliance operates. Do not clean the drain pump if the water in the appliance is hot. The water must be cold before you clean the drain pump.

To clean the drain pump:

+ 36 hidden pages
