YOUR NEW WASHING MACHINE
This new washing machine, which is fitted with
the Direct Spray system, patented Electrolux,
meets all modern needs for effective treatment
of laundry with low water, energy and detergent
consumption.
Further savings are achieved by washing small
loads of laundry, since water and electricity
consumption is proportional to the quantity and
type of laundry being washed.
■
Programme selector dial combines the
function of programme and temperature
selection, making it easier to set the
programme.
■
Programme phase indicators keep you
informed on progress of the programme.
■
Fuzzy Logic technology enables the
washing time in the White cotton and
Coloured cotton programmes to be
calculated automatically according to the
weight of the laundry.
■
The special wool programme with its new
delicate wash system treats your woollen
with extreme gentleness.
■
The anti-unbalance device ensures that the
washing machine remains stable when
spinning.
■
The automatic cooling of the washing
water from 95° to 60°C before draining will
prevent old drain pipes from being deformed.
Hints on how to save energy
By following these hints you will obtain
economical washing without damaging the
environment:
■
Whenever possible, wash the maximum load
for the selected programme, without
overloading the drum.
■
Use the prewash programme only for very
soiled laundry.
■
Measure out detergent according to the
water hardness, the degree of soiling and the
quantity of laundry being washed.
■
Use an economy programme for normally
soiled laundry and a short programme when
washing lightly soiled laundry.
Environment protection
■
Packaging recycling
Materials marked with the symbol are
recyclable. To enable them to be recycled, they
must be placed in the appropriate collection
areas (or containers). Check with your local
authorities.
>PE<= polyethylene
>PS<= polystyrene
>PP<= polypropylene
ENGLISH
■
Washing machine scrapping
When the appliance is to be scrapped, cut off
the power supply cable and make the door
closing device inoperative to avoid it becoming
a death trap for a child.
For correct disposal of the machine, contact
your local authority department which provides
for collection of urban solid refuse.
The symbols you will see on some paragraphs of this booklet have the following meaning:
Important information concerning the
safety in the use of your machine.
Disregarding this information might
lead to damages.
Information for correct use of your
i
machine and to obtain the best
performance.
Important information concerning
environment protection.
Our contribution to the protection of the
environment: we use recycled paper.
79
CONTENTS
Warnings 81
Description of the appliance 82
■
Detergent dispenser drawer 82
Installation 83
■
Transit devices 83
■
Positioning 83
■
Water inlet 84
■
Water drainage 84
■
Electrical connection 84
Technical specification 85
Use 86
■
Control panel 86
■
Controls 87-90
■
Washing hints 91
Sorting the laundry 91
Temperatures 91
Before loading the laundry 91
Maximum loads 91
Removing stains 91
Detergents and additives 92
■
International wash code symbols 93
■
Operating sequence 94-95
■
Washing programmes 96-97
Maintenance 98
■
Bodywork 98
■
Detergent dispenser drawer 98
■
Drain filter 98
■
Water inlet filter 99
■
Emergency emptying out 99
■
Frost precautions 99
Something not working? 100-101
80
WARNINGS
It is important that this instruction book be kept with the appliance for future reference. If you sell or
give the appliance away, make sure that the book is passed to the new owners so that they can
familiarise themselves with its operation and relevant warnings.
The following warnings are provided in the interests of overall safety. You must read them carefully
before installing or using the appliance.
■
General warnings
■
When unpacking the appliance, check that it
is not damaged. If in doubt, do not use it and
contact the Service Centre.
■
This appliance is designed to be used by
adults. Children must not be allowed to touch
the controls or play with the product.
■
During high temperature wash cycles the
glass door becomes very hot. Do not touch it.
■
Pets sometimes climb into washing
machines. Check the drum before each use.
Installation
■
All internal packing must be removed before
using the appliance. Serious damage may be
caused to the machine or adjacent furniture if
the protective transit devices are not removed
or are not completely removed. Refer to the
relevant paragraph in the instruction book.
■
Any electrical work required to install this
appliance must be carried out by a qualified
electrician.
■
Any plumbing work required to install this
appliance must be carried out by a qualified
plumber.
■
After having installed the machine, check that
it is not standing on its electrical supply cable.
■
If the appliance is placed on a carpeted floor,
ensure that air can circulate freely between
the adjustable feet and the floor.
Use
■
This appliance is designed for domestic use.
It must not be used for purposes other than
those for which it was designed.
■
Only wash fabrics which are designed to be
machine washed. Follow the instructions on
each garment label.
■
Do not overload the appliance. Follow the
instructions in the instruction book.
■
Make sure that all pockets are empty. Objects
such as coins, safety pins, pins and screws
can cause extensive damage.
Do not machine wash garments saturated
with petroleum, methylated spirits,
trichlorethylene, etc. If such fluids have been
used to remove stains prior to washing, wait
until they have completely evaporated from
the fabric before placing garments in the
appliance.
■
Place small items such as socks, belts, etc. in
a cloth bag or pillowcase to prevent them
getting trapped between the drum and the
tub.
■
Use only the recommended quantities of
fabric softener. An excessive amount could
damage the laundry.
■
Leave the porthole door slightly ajar when the
appliance is not in use. This preserves the
door seal and prevents the formation of
musty smells.
■
Always check that water has emptied out
before opening the door. If not, drain the
water following the instructions in the
instruction book.
■
Always unplug the appliance and shut the
water tap after use.
Service/repair
■
In the event of a fault, do not attempt to repair
the appliance yourself. Repairs carried out by
inexperienced persons may cause damage.
■
If repairs are needed, contact an authorised
service centre and ask for genuine spare
parts.
ENGLISH
81
DESCRIPTION OF THE APPLIANCE
01 Detergent dispenser drawer
02 Programme card
03 Spin speed selector dial
04 Option buttons
05 “Door locked” pilot light
06 Door open button
07 Programme selector dial
08 Operating pilot light
09 Programme phase indicators
10 Filter
11 Adjustable feet
1345789
26
10
11
Detergent dispenser drawer
Prewash
Main wash
Fabric softener
P0875
82
INSTALLATION
Transit devices
All transit bolts and packing must be
removed before using the appliance.
You are advised to keep all transit devices so
that they can be refitted if the machine ever has
to be transported again.
1. Using a spanner, unscrew and remove the
rear right-hand bolt.
2. Lay the machine on its back, taking care not
to squash the hoses. This can be avoided by
placing one of the corner packing pieces
between the machine and the floor.
3. Remove the polystyrene block from the
underside of the machine.
4. Release the two plastic bags by removing the
adhesive strip.
Carefully remove the right-hand bag (1) then
the left-hand bag (2) by pulling them towards
the centre of the machine.
P0255
2
ENGLISH
1
5. Set the machine upright and remove the two
remaining bolts from the back.
6. Pull out the three plastic pegs from the holes
into which the bolts were fitted.
7. Plug the open holes with the plugs which you
will find on the back of the machine.
Positioning
Install the machine on a flat hard floor.
Make sure that air circulation around the
machine is not impeded by carpets, rugs etc.
Check that the machine does not touch the wall
or other kitchen units.
Carefully level by screwing the adjustable feet in
or out. Never place cardboard, wood or similar
materials under the machine to compensate for
any unevenness in the floor.
After having levelled the machine, tighten the
lock nuts.
P0234
P0256
P0254
P0233
P0020
P0509
83
Water inlet
Connect the water inlet hose to a tap with a 3/4"
thread.
The other end of the inlet hose which connects
to the machine can be turned in any direction.
Simply loosen the fitting, rotate the hose and
retighten the fitting, making sure there are no
water leaks.
The inlet hose must not be lengthened. If it is
too short and you do not wish to move the tap,
you will have to purchase a new, longer hose
specially designed for this type of use.
Water stop device
The inlet hose is provided with a water stop
device, which protects against damage caused
by water leaks in the fill hose which could
develop due to natural ageing of the hose. This
fault is shown by a red sector in the window
«A».
Should this occur, turn the water tap off and
refer to your Service Agent to replace the hose.
P0351
P0352
P0021
A
Water drainage
The end of the drain hose can be positioned in
three ways:
Hooked over the edge of a sink using the
plastic hose guide supplied with the
machine. In this case, make sure the end
cannot come unhooked when the machine is
emptying.
This could be done by tying it to the tap with a
piece of string or attaching it to the wall.
In a sink drain pipe branch. This branch must
be above the trap so that the bend is at least 60
cm above the ground.
Directly into a drain pipe at a height of not
less than 60 cm and not more than 90 cm.
The end of the drain hose must always be
ventilated, i.e. the inside diameter of the drain
pipe must be larger than the outside diameter of
the drain hose.
The drain hose must not be kinked. Run it along
the floor; only the part near the drainage point
must be raised.
P0022
P0023
84
Electrical connection
This machine is designed to operate on a 220230 V, single-phase, 50 Hz supply.
Check that your domestic electrical installation
can take the maximum load required (2.2 kW),
also taking into account any other appliances in
use.
Connect the machine to an earthed socket, in
accordance with current wiring regulations.
The manufacturer declines any
responsibility for damage or injury
through failure to comply with the above
safety precaution.
ENGLISH
TECHNICAL SPECIFICATIONS
DIMENSIONS Height 85 cm
Width 60 cm
Depth 61 cm
MAXIMUM LOAD Cotton 5 kg
Synthetics, delicate fabrics 2 kg
Woollens 1 kg
SPIN SPEED 1400 rpm max.(EW1454F)
1500 rpm max.(EW1552F)
POWER SUPPLY VOLTAGE/FREQUENCY 220-230V/50 Hz
TOTAL POWER ABSORBED 2200 W
MINIMUM FUSE PROTECTION 10 A
WATER PRESSURE Minimum 5 N/cm
Maximum 80 N/cm
2
2
This appliance complies with the following EEC Directives:
73/23/EEC of 19/02/73 relating to low voltage
89/336/EEC of 03/05/89 relating to electromagnetic compatibility
85
Control panel
12 34567 8 9 10
01 Programme card
02 Spin speed selector dial
03 “Extra rinse” button
04 “Prewash” button
05 “Quick wash” button
06 Door open button
07 “Door locked” pilot light
08 Programme selector dial/on-off switch
09 Operating pilot light
10 Programme phase indicators
USE
86
1 Programme card
You have a programme card in English in the
instruction booklet and can be inserted in the
detergent dispenser drawer.
2 Spin speed selector dial and
“stop with water in drum” option
C0057
This dial has these symbols:
No spin
On this position you have no spin.
This option can be chosen for cotton, synthetics
and delicates.
The washing machine will perform an extra
rinse.
MAX: In this position the appliance spins at
these speeds:
- 1400 or 1500 rpm for cotton,
programme C and F
- 900 rpm for synthetics
- 700 rpm for delicates, programme B
and G
- 1000 rpm for wool
500: 500 rpm for all programmes
Between 500 and MAX other spin speeds can
be chosen for cotton (see picture).
1100
1000
900
M0039S
1500
1400
800
700
550
600
650
ENGLISH
Stop with water in drum
For all programmes except wool. The last rinse
water is not emptied out, to prevent the fabrics
from creasing.
The door is locked.
The programme can be finished by selecting the
spin speed or by choosing programme D (drain).
Switch the appliance off by turning the
programme selector dial to “O” and then select
programme D.
If the water is not emptied out, the machine
automatically empties itself after 18 hours.
87
3 “Extra rinse” button
With programmes for cotton, synthetics,
delicates and progr. B, an extra rinse can be
selected by pressing this button.
To be used in areas where the water is very soft
or for people allergic to detergents or who have
very delicate skin.
4 Prewash button
Only for very soiled laundry: a prewash at 40°C
max. comes before the washing.
This option cannot be used for wool items and
with the “quick wash” button on.
With programmes for cotton, linen and
synthetics, the prewash ends with a 650 rpm
spin.
With delicates the water is emptied out.
5 “Quick wash” button
With this option there is a reduction of the
washing time.
Ideal for lightly soiled laundry.
Maximum recommended temperature 60°C.
Use with cotton, linen, synthetics and delicates.
It is not compatible with the prewash option
and economy programmes.
6 Door open button
Press this button to open the door.
7 “Door locked” pilot light
At the start of the programme, this light flashes
for a few seconds, during which it is still possible
to open the door; then, it stays on (indicating that
the door is locked).
To open the door during operation, the
programme must first be interrupted (see:
“Interrupting a wash programme”).
When the light goes out, the door can be
opened. If it does not go out, this indicates that
the level of water in the machine is too high or
that the machine is in the heating phase.
At the end of the programme, an acoustic signal
sounds and the pilot light comes on to
indicate that the door is unlocked.
88
8 Programme selector dial/On-off
switch
There are 5 washing sectors:
Cotton (red)
Synthetics (blue)
Delicates (yellow)
Wool (yellow)
Special programmes A…G.
Turn this dial to the left or to the right to select
the sector, the washing temperature and the
programmes A…G.
A programme has been selected correctly,
when, in the required washing sector, the
temperature, letter or symbol correspond to
the reference mark on the control panel.
Selecting the programme switches the machine
on: the programme starts after about 20
seconds.
At the end of the programme, the selector
dial must be turned to the “O” position: this
switches the machine off.
P0880
G
95°
F
60°
60°
40°
40°
30°
60°
40°
40°
D
C
B
A
30°
40°
30°
40°
30°
95°
ENGLISH
Symbols on the dial:
■
temperatures marked in green indicate
“economy” programmes.
■
the symbol means “cold”: the water is not
heated.
Cancelling a wash programme
To cancel a programme that has already started,
turn the dial to position “O”.
Now another programme can be chosen.
Interrupting a wash programme
To interrupt a programme that has already
started, turn the programme selector dial
forwards or back to another position: an acoustic
signal will be heard and the indicator light for the
programme phase in progress will flash. To
restart the programme, turn the selector dial to
the original position: the indicator light will stay
on.
9 Operating pilot light
The light comes on by selecting the programme
and goes out when the programme selector dial
is turned to position “O”.
89
10 Programme phase indicators
On selection of the programme, indicator lights
corresponding to the various phases which
make up the selected programme, come on.
After 10 seconds the lights go out; only the
indicator light for the programme phase in
progress at any time remains on.
If the additional function “Stop with water in
drum” is selected, the corresponding indicator
light stays on throughout the wash
programme: it goes out when the water has
emptied.
At the end of the programme, the indicator
light comes on.
The meaning of the symbols is as follows:
Prewash
Main wash
Rinsing
Stop with water in drum
Drain
Long spin
Short spin
End of the programme
Fuzzy function: this light remains alight for
20 minutes after starting the programme
(during this time the machine calculates the
weight of the laundry). Only when a cotton
programme (red sector) has been selected.
90
i
Washing hints
Sorting the laundry
Follow the wash code symbols on each garment
label and the manufacturer’s washing instructions.
Sort the laundry as follows:
whites, coloureds, synthetics, delicates , w oollens .
Temperatures
90°-95° for normally soiled white cottons
and linen (e.g. tea cloths, towels,
tablecloths, sheets...)
60° for normally soiled, colour fast
garments (e.g. shirts, night dresses,
pyjamas....) in linen, cotton or
synthetic fibres and for lightly soiled
white cotton (e.g. underwear).
(cold)
30°-40°
for delicate items (e.g. net curtains),
mixed laundry including synthetic
fibres and woollens bearing the
label «pure new wool, machine
washable, non-shrink».
Before loading the laundry
Never wash whites and coloureds together.
Whites may lose their “whiteness” in the wash.
New coloured items may run in the first wash;
they should therefore be washed separately the
first time.
Make sure that no metal objects are left in
the laundry (e.g. hair clips, safety pins, pins).
Button up pillowcases, close zip fasteners,
hooks and poppers. Tie any belts or long tapes.
Remove persistent stains before washing. Rub
particularly soiled areas with a special detergent
or detergent paste.
Treat curtains with special care. Remove hooks
or tie them up in a bag or net.
Maximum loads
Recommended loads are indicated in the
programme charts.
General rules:
Cotton, linen: drum full but not too tightly
packed;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum no more
than one third full.
Washing a maximum load makes the most
efficient use of water and energy.
For heavily soiled laundry, reduce the load size.
Laundry weights
The following weights are indicative:
bathrobe 1200 g
napkin 100 g
quilt cover 700 g
sheet 500 g
pillow case 200 g
tablecloth 250 g
towelling towel 200 g
tea cloth 100 g
night dress 200 g
ladies’ briefs 100 g
man’s work shirt 600 g
man’s shirt 200 g
man’s pyjamas 500 g
blouse 100 g
men’s underpants 100 g
Removing stains
Stubborn stains may not be removed by just
water and detergent. It is therefore advisable to
treat them prior to washing.
Blood: treat fresh stains with cold water. For
dried stains, soak overnight in water with a
special detergent then rub in the soap and
water.
Oil based paint: moisten with benzine stain
remover, lay the garment on a soft cloth and dab
the stain; treat several times.
Dried grease stains: moisten with turpentine,
lay the garment on a soft surface and dab the
stain with the fingertips and a cotton cloth.
Rust: oxalic acid dissolved in hot water or a rust
removing product used cold. Be careful with rust
stains which are not recent since the cellulose
structure will already have been damaged and
the fabric tends to hole.
Mould stains: treat with bleach, rinse well
(whites and fast coloureds only).
Grass: soap lightly and treat with bleach (whites
and fast coloureds only).
Ball point pen and glue: moisten with acetone
(*), lay the garment on a soft cloth and dab the
stain.
Lipstick: moisten with acetone as above, then
treat stains with methylated spirits. Remove any
residual marks from white fabrics with bleach.
ENGLISH
91
Red wine: soak in water and detergent, rinse
and treat with acetic or citric acid, then rinse.
Treat any residual marks with bleach.
Ink: depending on the type of ink, moisten the
fabric first with acetone (*), then with acetic acid;
treat any residual marks on white fabrics with
bleach and then rinse thoroughly.
Tar stains: first treat with stain remover,
methylated spirits or benzine, then rub with
detergent paste.
(*) do not use acetone on artificial silk
Detergents and additives
Good washing results also depend on the
choice of detergent and use of the correct
quantities to avoid waste and protect the
environment. Although biodegradable,
detergents contain substances which, in large
quantities, can upset the delicate balance of
nature.
The choice of detergent will depend on the type
of fabric (delicates, woollens, cottons, etc.), the
colour, washing temperature and degree of
soiling.
All commonly available washing machine
detergents may be used in this appliance:
– powder detergents for all types of fabric,
– powder detergents for delicate fabrics (60°C
max) and woollens,
– liquid detergents, preferably for low
temperature wash programmes (60°C max)
for all types of fabric, or special for woollens
only.
The detergent and any additives must be placed
in the appropriate compartments of the
dispenser drawer before starting the wash
programme.
If using concentrated powder or liquid
detergents, a programme without prewash must
be selected.
The washing machine incorporates a
recirculation system which allows an optimal use
of the concentrated detergent.
Pour liquid detergent into the dispenser drawer
compartment marked just before starting
the programme.
Any fabric softener or starching additives must
be poured into the compartment marked
before starting the wash programme.
Follow the product manufacturer’s
recommendations on quantities to use and do
not exceed the «MAX» mark in the detergent
dispenser drawer.
Quantity of detergent to be used
The type and quantity of detergent will depend
on the type of fabric, load size, degree of soiling
and hardness of the water used.
Water hardness is classified in so-called
“degrees” of hardness. Information on hardness
of the water in your area can be obtained from
the relevant water supply company, or from your
local authority.
Follow the product manufacturers’ instructions
on quantities to use.
Use less detergent if:
– you are washing a small load
– the laundry is lightly soiled
– large amounts of foam form during washing.
Degrees of water hardness
Degrees
Level
1
2
3
4
Characteristic
soft
medium
hard
very hard
German
°dH
00-07
08-14
15-21
more than 21
French
°T.H.
0,0-15
16-25
26-37
more than 37
92
i
Wash code symbols
These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.
Energetic wash
95
60
40
30
Max. wash
temperature
95°C
Delicate wash
Bleaching Bleach in cold water Do not bleach
Ironing Hot iron
max 200°C
Max. wash
temperature
60°C
60
Max. wash
temperature
40°C
40
Warm iron
max 150°C
40
Max. wash
temperature
30°C
Hand wash Do not
30
Lukewarm iron
max 110°C
wash
at all
ENGLISH
Do not iron
A
Dry cleaning Dry cleaning
in all solvents
petrol, pure alcohol,
Drying Flat On the line On clothes
P
Dry cleaning in
perchlorethylene,
R 111 & R 113
hanger
F
Dry cleaning
in petrol,
pure alcohol
and R 113
Tumble dry
Do not
dry clean
high
temperature
low
temperature
Do not
tumble dry
93
i
Operating sequence
Before washing your first load of laundry, we
recommend that you run a cotton cycle at 60°C,
with the machine empty, in order to remove any
manufacturing residue from the drum and tub.
Pour half a measure of detergent into the main
wash compartment and start up the machine.
1.Place the laundry in the drum
Open the door.
Place the laundry in the drum, one item at a
time, shaking them out as much as possible.
Close the door.
2.Measure out the detergent
Pull out the dispenser drawer until it stops.
Measure out the amount of detergent
recommended by the manufacturer in a
graduated cup and pour it into the main wash
compartment .
If you wish to carry out the prewash, pour
detergent into the appropriate compartment
marked .
P0004
P0876
3.Measure out the additives
If required, pour fabric softener into the
compartment marked , without exceeding
the «MAX» mark.
4.Select the required option and
the spin speed
P0877
1100
1000
900
M0039S
1500
1400
800
700
550
600
650
94
5.Select the programme and start
the machine
Turn the programme selector dial to the required
programme: an acoustic signal sounds and the
operating pilot light illuminates.
If the programme does not start after 20-30
seconds, turn the selector dial to position “O”:
after the programme has been cancelled,
reselect it.
The indicator lights corresponding to the various
phases which make up the selected programme
come on.
The “door locked” indicator light flashes.
After about 10 seconds, only the indicator light
which indicates the phase of the programme in
progress remains on; the door indicator light
stops flashing and stays on steady.
If you have selected a cotton programme, the
light will illuminate.
If the additional function “Stop with water in
drum” is selected, the corresponding indicator
light stays on.
95°
P0880
ENGLISH
6.At the end of the programme
The machine stops automatically.
If you have selected a programme that stops
with the last rinse water in the drum, this water
must be drained before opening the door.
Wait one or two minutes before opening the
door to give the electric locking mechanism time
to release it.
The door can be opened when the “Door
locked’” light is off. The acoustic signal
sounds and the pilot light on means that
the door can be opened.
Turn the programme selector dial to “O” to
switch the machine off. The operating pilot light
and that of the end of the programme go
out.
Remove the laundry.
Turn the drum by hand to make sure it is
completely empty, so as to avoid any forgotten
items being damaged in a subsequent wash
(e.g. shrinking) or their colour running into a
load of whites.
Release any buttons which have been pressed.
Turn the water tap off and unplug the machine.
Leave the door ajar to air the machine.
95
Washing programmes
Sector
colour
Red
Red
Red
Red
Red
Programme
selector position
95°
@@@@@@@@e?
@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?
@@@@@@@@
@@@@@@@@e?
@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?
@@@@@@@@
@@h?
@@
@@h?
@@
@@h?
@@
@@h?
@@
@@h?
@@
@@h?
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
60°
@@g
?@@
@@g
?@@
@@g
?@@
@@g
?@@
@@g
?@@
@@g
?@@
@@@@@@@@
?@@@@@@@@
?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@
@@@@@@@@
?@@@@@@@@
?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@
green
60°
(*)
@@@@@@@@e?
@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?
@@@@@@@@
@@@@@@@@e?
@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?
@@@@@@@@
@@h?
@@
@@h?
@@
@@h?
@@
@@h?
@@
@@h?
@@
@@h?
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
40°
@@g
?@@
@@g
?@@
@@g
?@@
@@g
?@@
@@g
?@@
@@g
?@@
@@@@@@@@
?@@@@@@@@
?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@
@@@@@@@@
?@@@@@@@@
?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@
green
-30°-40°
Programme
Whites
Whites economy
Fast coloureds
Coloureds
economy
Non fast
coloureds
Cycle
description
Wash at 95°C
Rinses
Long spin
Wash at 67°C
Rinses
Long spin
Wash at 60°C
Rinses
Long spin
Wash at 45°C
Rinses
Long spin
Wash at 30-40°C
or cold wash
Rinses
Long spin
Possible
options
Maximum
recommended load
5 kg
5 kg
5 kg
5 kg
5 kg
Wash at 60°C
Blue
60°
Fast synthetics
Rinses
2 kg
Short spin
@@@@@@@@e?
@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?
@@@@@@@@
@@@@@@@@e?
@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?
@@@@@@@@
@@h?
@@
@@h?
@@
@@h?
@@
@@h?
@@
@@h?
@@
@@h?
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
Blue
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
40°
@@g
@@g
@@g
@@g
@@g
@@g
@@@@@@@@
?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@
@@@@@@@@
?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@
green
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
?@@
?@@
?@@
?@@
?@@
?@@
?@@@@@@@@
?@@@@@@@@
Synthetics
economy
Wash at 40°C
Rinses
Short spin
2 kg
Wash at 30-40°C
Blue
-30°-40°
Delicate
synthetics
or cold wash
Rinses
2 kg
Short spin
Wash at 30-40°C
Yellow
30°-40°
Delicates
Rinses
2 kg
Short spin
Wash at 30-40°C
Yellow
-30°-40°
Woollens
or cold wash
Rinses
1 kg
Gentle spin
(*) Consumptions with 5 Kg cotton items and wash at 60°C:
Water (litres) 49
Energy (kWh) 1.15
Time (mins) 128
This information appears on the Energy label according to EEC Directive 92/75.
ENERGY SAVING (ECONOMY)
Use the “economy” programmes at 60°C and 40°C for normally soiled synthetics and cotton items
(white or coloureds): a considerable saving in power consumption will be obtained. Equally good
results will be achieved because the reduced temperature cycle maintains the full washing time.
96
Special programmes
Sector
colour
Grey
Grey
Grey
Programme
selector position
A
B
C
Programme
Soaking
Delicate rinses
Rinse with
softener
Cycle
description
Soaking at 40°C
Stop with water in
drum
For draining:
programme F, G or
D (it depends on the
type of fabric).
The water is emptied
out automatically
after a18 hours’
soaking.
Rinses with
additives
Short spin
1 rinse with additive
Long spin
Possible
options
Maximum
recommended load
5 kg
2 kg
5 kg
ENGLISH
Grey
Grey
Grey
D
F
G
O
Drain /
Long spin 5 kg
Short spin
Reset
To cancel a
programme in
progress
2 kg
97
MAINTENANCE
1.Bodywork
Clean the outside of the machine with warm
water and a neutral, non-abrasive household
detergent. Rinse with clean water and dry with a
soft cloth.
Important: do not use methylated spirits,
solvents or similar products to clean the
bodywork.
2.Detergent dispenser drawer
After a while, detergents and fabric softeners
leave deposits in the drawer.
Clean the drawer from time to time by rinsing it
under a running tap. To remove the drawer from
the machine, press the button in the rear lefthand corner.
To facilitate cleaning, the top part of the additive
compartments can be removed.
P0879
P0878
Detergent can also accumulate inside the
drawer recess: clean it with an old toothbrush.
Refit the drawer after cleaning.
3.Drain filter
The drain filter collects threads and small
objects inadvertently left in the laundry. Check
regularly that the filter is clean.
Open the filter door.
Place a container under the filter and unscrew it.
Pull out the filter.
Clean the filter under a running tap, then refit it,
screwing it fully in.
P0038
P0861
P0860
98
P0859
P0040
4.Water inlet filter
If you notice that the machine is taking longer to
fill, check that the filter in the water inlet hose is
not blocked.
Turn off the water tap.
Unscrew the hose from the tap.
Clean the filter with a stiff brush.
Screw the hose back onto the tap.
5.Emergency emptying out
If the water is not discharged (outlet pump is
blocked, filter or outlet hose are clogged),
proceed as follows to empty out the machine:
■
pull out the plug from the power socket;
■
close the water tap;
■
if necessary, wait until the water has cooled
down;
■
place a bowl on the floor;
■
put the outlet hose end into the bowl and let
the water come out.
Should it not be possible to have access to the
outlet hose because, for example, the appliance
is built in the kitchen furniture, slightly loosen the
outlet filter after placing a bowl on the floor, to let
the water come out slowly.
At the end screw the filter again.
ENGLISH
6.Frost precautions
If the machine is installed in a place where the
temperature could drop below 0°C, proceed as
follows:
■
Close the water tap and unscrew the water
inlet hose from the tap.
■
Place the end of the outlet hose and that of
the inlet hose in a bowl placed on the floor.
■
Select programme D and run it until the
machine stops.
■
Turn the programme selector dial to “O”.
■
Remove the plug from the socket.
■
Screw the water inlet hose back on and put
the outlet hose back in its place.
By doing this, any water remaining in the
machine is removed, avoiding the formation of
ice and, consequently, breakage of the affected
parts.
When you use the machine again, make sure
that the ambient temperature is above 0°C.
99
SOMETHING NOT WORKING?
Problems which you can resolve yourself
Problem Possible cause
■ The machine does not start up:
■ The machine does not fill:
■ The machine fills then empties
immediately:
■ The machine does not empty
and/or does not spin:
■ There is water on the floor:
■ Check that the door is firmly closed.
■ Check that the machine is plugged in and
that there is power at the socket.
■ Check that the main fuse has not blown.
■ Check that the programme selector dial is
positioned correctly.
■ Check that the water tap is open.
■ Check that water is coming out of the tap.
■ Check that the inlet hose is not squashed or
kinked.
■ Check that the filter in the inlet hose is not
blocked.
■ Check that the door is closed.
■ The end of the drain hose is too low. Refer to
relevant paragraph in “water drainage”
section.
■ Check that the drain hose is not squashed or
kinked.
■ A programme with the “Stop with water in
drum” or “No spin” option has been
selected .
■ Too much detergent or unsuitable detergent
(creates too much foam) has been used.
■ Check whether there are any leaks from one
of the inlet hose fittings. It is not always easy
to see this as the water runs down the hose;
check to see if it is damp.
■ Check that the drain hose is not damaged.
■ Unsatisfactory washing results:
■ The machine vibrates or is noisy:
100
■ Too little detergent or unsuitable detergent
has been used.
■ Stubborn stains have not been treated prior
to washing.
■ The correct temperature was not selected.
■ Excessive laundry load.
■ Check that all the transit bolts and packing
have been removed.
■ Check that the machine is not resting against
anything.
■ Check that the support feet are resting firmly
on the ground and that the lock nuts are
securely tightened.
■ Check that the laundry is evenly distributed in
the drum.
■ Maybe there is very little laundry in the drum.
■ The door will not open:
■ Spinning starts late or the
machine does not spin:
■ The programme is still running.
■ The door lock has not been released.
■ The water level in the appliance is too high or
the appliance is in the heating phase.
■
The electronic unbalance detection device
has cut in because the laundry is not evenly
distributed in the drum. The laundry is
redistributed by reverse rotation of the drum.
This may happen several times before the
unbalance disappears and normal spinning
can resume eventually at a lower speed, if
the wash load is not perfectly distributed in
the drum. If, after 15 minutes, the laundry is
still not evenly distributed in the drum, the
machine will not spin. In this case,
redistribute the load manually and reselect
the spin programme.
■ The machine makes an unusual
noise:
■ Water is not visible in the
machine:

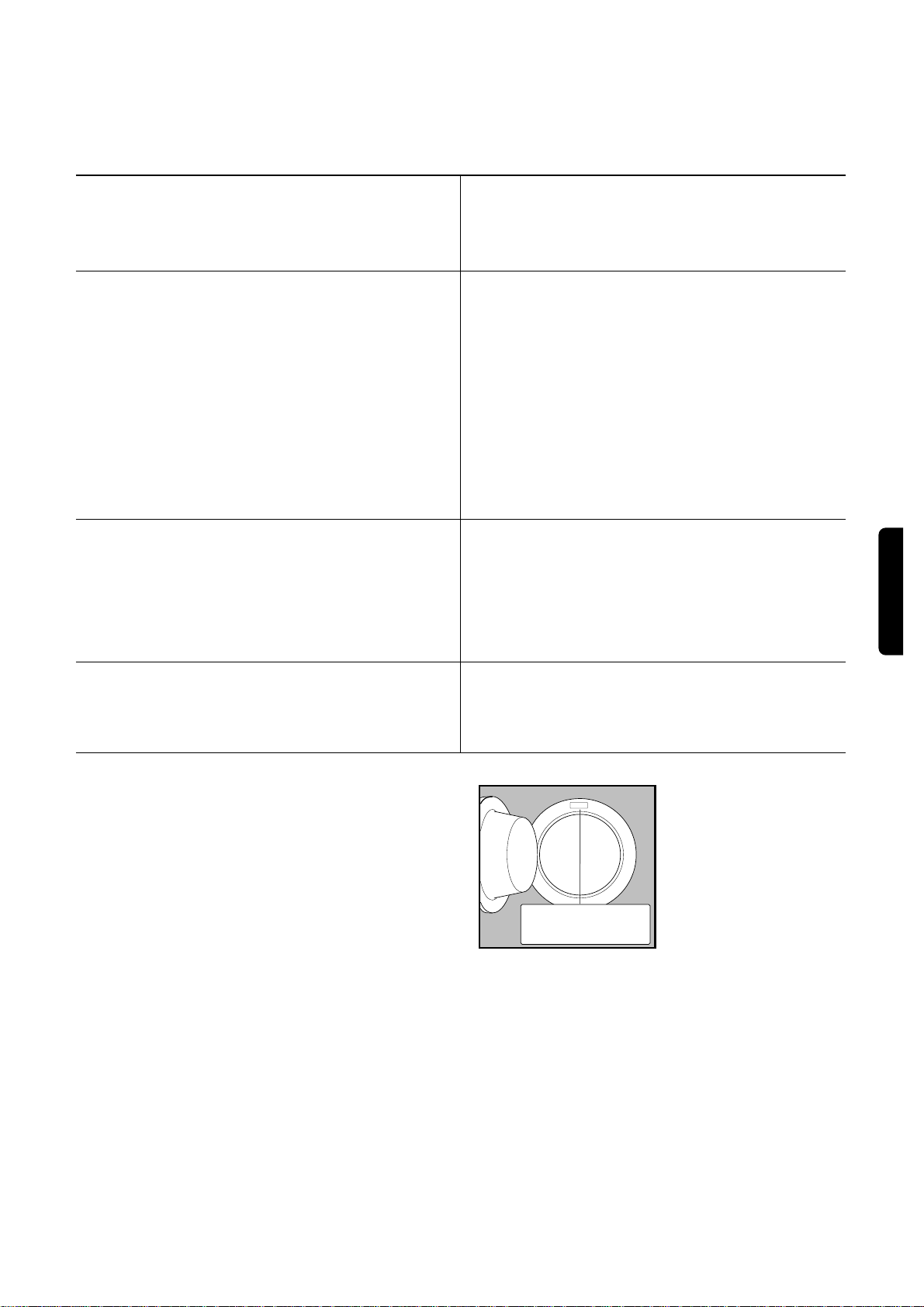

If you are unable to identify or solve the
problem, contact our service centre. Before
telephoning, make a note of the model, serial
number and purchase date of your machine: the
Service Centre will require this information.
■ The machine is fitted with a commutator
motor which makes an unusual noise
compared with other traditional machines.
This motor enables a softer start to the spin
and controls the increase in spin speed
better. In this way, machine performance is
improved.
■ The machine, which is the result of modern
technology, runs in a very economical way
with low water consumption. Performance is
nevertheless excellent.
Mod.
..........
Ser.
Mod. ..........
Prod. No. ...........
P0042
Ser. No. .........
ENGLISH
101
Loading...
