Dishwasher
Instruction book
Model ESF 6120
GB
2
For the user
Important safety information 3
Description of the appliance 4
The control panel 5
Before use 6
Setting the water softener 6
Rinse aid 9
Using your appliance 10
Loading your appliance 10
Adjusting the height of the upper basket 11
Use of detergent 12
Hints and tips 13
Washing programmes 14
Operating sequence 15
Maintenance and cleaning 17
Something not working 19
Protection against flooding 20
Security system 20
Technical specifications 20
For the installer
Installation instructions 21
Water supply connections 21
Water outlet hose connection 22
Electrical connection 22
Fitting under a counter 23
Levelling 23
Hints for test centres 23
Contents
Guide to use the instruction book
The following symbols will be found in the text to guide you throughout the instructions:
Safety instructions
1. 2. 3. Step by step
Hints and tips
Environmental information
3
Installation
● This appliance is heavy. Care should be taken
when moving it.
● It is dangerous to alter the specifications or
attempt to modify this product in any way.
● Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
● Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
● Any plumbing work required to install this
appliance should be carried out by a qualified
plumber or competent person.
Child Safety
● This appliance is designed to be operated by
adults.
Children should not be allowed to tamper with the
controls or play with the product.
● Keep all packaging well away from children.
● Keep all detergents in a safe place out of
children's reach.
During Use
● Items that are contaminated by petrol, paint, steel
or iron debris, corrosive, acidic or alkaline
chemicals must not be washed in this dishwasher.
● Under no circumstances should you open the
door whilst the appliance is in operation.Always
turn off the appliance before opening the door.
● Only use detergent specifically designed for use in
dishwashers.
● Long bladed knives stored in an upright position
are a potential hazard.
● Long and/or sharp items of cutlery such as
carving knives must be positioned horizontally in
the upper basket.
● When finishing loading or unloading close the
door, as an open door can be a hazard.
● Do not sit or stand on the open door.
● Isolate the appliance from the power supply and
turn off the water supply after use.
● Care should be taken when cleaning the bottom
door seal and hinge area as any exposed metal
edges may cut if care is not taken.
● This product should be serviced by an authorised
Service engineer, and only genuine spare parts
should be used.
● Under no circumstances should you attempt to
repair the machine yourself.Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Contact your local Service
Force Centre.Always insist on genuine spare
parts.
Conservation
In the interest of the environment:
● Materials marked with the symbol are
recyclable.
● Check with your local Council or Environmental
Health Office to see if there are facilities in your
area for re-cycling this appliance.
● When the appliance is to be scrapped, cut off the
power supply cable and make the door closing
device unusable to prevent young children from
being trapped inside.
● Help to keep your country tidy - use authorised
disposal sites for your old appliance.
Important safety information
It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move house
and leave the appliance, always ensure that the book is left with the appliance in order that the new
owner can get to know the functioning of the appliance and the relevant safety information.
This information has been provided in the interest of your safety.You MUST read it carefully before
installing or using the appliance.
4
1. Upper basket stop
2. Salt container
3. Large filter
4. Detergent dispenser
5. Control panel
6. Rating plate
7. Rinse aid dispenser
8. Central filter
9. Lower spray arm
10. Upper spray arm
11. Upper basket
12. Worktop
Description of the appliance
IN125
5
1. Programme selection push
buttons
2. DELAY START push button
This option allows the start of the programme to
be delayed by 3, 6 or 9 hours.
3. Indicator lights
Phase indicator lights
WASHING phase
illuminates when the washing phase is
running
DRYING phase
illuminates when the drying phase is
running
END OF PROGRAMME
illuminates when the washing programme
has ended
Salt and rinse aid indicator lights
SALT refilling indicator light
illuminates when the salt has run out and
the salt container requires refilling.
RINSE AID refilling indicator light
illuminates when the rinse aid has run
out and the rinse aid container requires
refilling.
4. Door handle
5. ON-OFF push button
6. ON-OFF indicator light
The control panel
3h
6h
9h
1 2 3 4 5 6
6
Before using your dishwasher for the
first time:
1. Ensure that the electrical and water connections
comply with the installation instructions
2. Remove all packaging from inside the appliance
3. Set the water softener
4. Pour 1 litre of water inside the salt container and
then fill with salt
5. Fill the rinse aid dispenser.
Setting the water softener
The dishwasher is equipped with a water softener
designed to remove minerals and salts from the
water supply, which would have a detrimental or
adverse effect on the operation of the appliance.
The higher the content of these salts, the harder
your water is.
Water hardness is measured in equivalent scales,
German degrees, French degrees and PPM (parts
per Million).
The softener should be adjusted according to the
hardness of the water in your area.Your local Water
Authority can advise you on the hardness of the
water in your area.
The dishwasher is factory set at level 3.
If this level is not suitable for your area the softener
should be adjusted.
To select a different level be sure that
the dishwasher is off and then proceed
as follows:
1. Press 70° 80’ and 65°
programme push buttons simultaneously.
2. Always keeping pressed the programme push
buttons 70° 80’ and 65° switch on the
dishwasher by pressing the ON-OFF push
button.
The ON-OFF indicator light comes on.
At the same time, also the indicator light of the
70° 80’ comes on and remains fixed for about 5
seconds, after this it starts flashing indicating the
current level of the water softener.
Before use
Level
Use of
salt
French
degrees
(°TH)
PPM
(Parts per
Million)
German
degrees
(°dH)
1
2
3
4
5
NO
YES
YES
YES
YES
< 4
4 - 18
19 - 29
30 - 40
41 - 50
< 8
8 - 30
31 - 50
51 - 70
71 - 90
< 80
81 - 300
301 - 500
501 - 700
701 - 900
Water hardness
3h
6h
9h
7
The current level is indicated by the number of
flashes made by the 70° 80’ indicator
light, that alternates 5 seconds off with a number of
flashes, this for about 60 seconds.
Example:
1 flash = level 1
2 flashes = level 2
3 flashes = level 3
4 flashes = level 4
5 flashes = level 5
3. To change the level, press the 70° 80’
programme push button.Each time the push
button is pressed the level changes.
Example:
if the current level is 3, pressing only one time the
70° 80’ programme push button, level
4 is selected.
The 70° 80’ indicator light remains off
for about 5 seconds after which starts flashing
indicating the new level selected.
4. To memorise the new level, switch off the
dishwasher by pressing the ON-OFF push button.
If your water is level 1 it is already soft
and therefore there is no need to use salt.
With the setting of the water softener at
level 1 the salt indicator light on the
control panel will always remain off.
Use salt from level 2 upwards.
From level 2 upwards,if salt refilling is
necessary, the salt indicator light will
illuminate only in setting mode and at the
end of the washing programme.
During the run of the programme it will
remain off.
8
Filling with salt
Only use salt specifically designed for use
in dishwashers.
All other types of salt not specifically
designed for use in a dishwasher,
especially table salt, will damage the water
softener.
Only fill with salt just before starting one
of the complete washing programmes.
This will prevent any grains of salt or salty
water,which may have been spilled,
remaining on the bottom of the machine
for any period of time, which may cause
corrosion.
To fill:
1. To fill with salt, unscrew the cap of the salt
container.
2. Pour 1 litre of water inside the container (this
is necessary only before filling with salt for
the first time).
3. Using the funnel provided, pour in the salt until
the container is full.
Do not worry if water over flows from the unit
when filling with salt, this is quite normal.
4. Replace the cap making sure that there is no
trace of salt on the screw thread or on the gasket.
5. Screw on the cap tightly.
The salt container will require topping up
periodically.
You are reminded of this by the salt indicator light on
the control panel which comes on when the salt has
finished.
The salt indicator light on the control
panel can remain illuminated for 2-6 hours
after the salt has been replenished,
assuming the dishwasher remains
switched on. If you are using salts that
take longer to dissolve then this can take
longer.The function of the machine is not
affected.
SALE
SALT
SALZ
SEL
SR06
9
Rinse aid
Rinse aid is automatically added during the last
rinse, ensuring thorough rinsing, and spot and
streak free drying.The dispenser, which is
positioned inside the door, holds about 110 ml of
rinse aid, which is sufficient for 16 - 40 dishwashing
programmes, depending upon the dosage setting.
Filling with rinse aid
1. Open the container by turning the lid (A)
anticlockwise.
2. Add the rinse aid until the container is completely
full.The indicator (B) will be completely dark.
3. Top up the rinse aid when the rinse aid indicator
light on the control panel illuminates.
If rinse aid refilling is necessary, the rinse
aid indicator light will illuminate only in
setting mode and at the end of the
washing programme.
During the run of the programme it will
remain off.
Ensure that the lid is closed after every refill.
Do not put liquid detergent in the rinse aid
compartment. Clean up any rinse aid spilt during
filling with an absorbent cloth to avoid excess
foaming during the next wash.
Adjusting the dose
According to the finish and drying results obtained,
adjust the dose of rinse aid by means of the 6
position selector (C) (position 1 minimum dosage,
position 6 maximum dosage).
Increase the dose if there are drops of water or lime
spots on the dishes after washing.
Reduce it if there are sticky whitish streaks on the
dishes.
BR01
A
m
a
x
6
5
4
3
2
1
B
BR03
BR02
C
m
a
x
6
5
4
3
2
1
10
Loading your appliance
Before placing dishes in the machine, remove any
scraps of food, to avoid clogging the filters and
consequently reducing the performance.
Do not load very small items which can fall
through the baskets.
Open the door and slide out the baskets to load the
dishes.
The lower basket
The lower basket is designed to take saucepans, lids,
plates, salad bowls, cutlery etc.
Large dishes and lids should be arranged around the
edge of the basket, ensuring that the upper spray arm
can turn freely.
The two rear rows of prongs on the lower basket can
be easily lowered to allow you to load pots, pans and
bowls.
To lower the prongs:
- Slightly pull them upward and let them drop down
(see picture).
- To bring them back to the standing position, just pull
them up again.
The cutlery basket
Long bladed knives stored in an upright
position are a potential hazard.
Long and/or sharp items of cutlery such as
carving knives must be positioned
horizontally in the upper basket.
Take care when loading or unloading sharp
items such as knives.
Cutlery should be placed in the removable cutlery
basket with the handles facing downwards. If the
handles protrude from the bottom of the basket,
obstructing the lower spray arm, load the cutlery with
the handles facing upwards.
Mix spoons with other cutlery to prevent them from
sticking together.
The cutlery basket can be placed either to the left or to
the right of the lower basket.
For best results we recommend to use the cutlery
grid/s provided (if the size and dimensions of the
cutlery allow it).
Using your appliance
UI50
UI47
UI43
UI44
UI42
US64
11
The upper basket
The upper basket is designed for plates (dessert
plates, saucers, dinner plates of up to 24 cm in
diameter), salad bowls, cups and glasses.
Arrange items on and underneath the cup racks so
that water can reach all surfaces.
Glasses with long stems can be placed upside down
in the cup racks.
Light items (plastic bowls etc.) should be loaded in
the upper basket and arranged so they do not move.
In case that plates are loaded in the upper
basket:
load them starting from the rear positions of
the basket, tilting them slightly forwards and
avoiding the front positions near the door.
Before closing the door, ensure that the
spray arms can rotate freely.
Adjusting the height of the upper
basket
If washing very large plates (over 27 cm and up to
32 cm in diameter) you can load them in the lower
basket after moving the upper basket to the higher
position.
To move to the higher position proceed as
follows:
1. Move the front runner stop (A) of the upper basket
outwards and slide the basket out.
2. Refit the basket in the higher position and replace
the stops (A) in their original position.
When the top basket is in the higher
position it will only take plates up to 20 cm
in diameter and you will not be able to use
the raised cup racks.
After loading your machine always close
the door,as an open door can be a hazard.
A
RC01
US71
12
Use of detergent
Only use detergents specifically designed
for use in dishwashers.
If using powder detergents proceed as follows:
1. Open the dispenser lid by pulling the catch (D).
2. Add the detergent according to the instructions
given in the Washing programmes chart.
As all detergents are not the same, you should
also consult the instructions on the packet.
3. Always close the lid.
4. If the programme has a prewash add the required
detergent over the lid of the dispenser.
Follow the recommended quantity of detergent
given in the Washing programmes chart.
If using detergent in tablets proceed as follows:
1. For all programmes;place 1 tablet inside the
detergent dispenser.
2. Always close the lid.
3. For all programmes with prewash; place a portion
of a further tablet on the lid of the detergent
dispenser.
Insufficient quantities of detergent will
produce poor washing results, whereas an
excessive amount of detergent will not
improve washing results and is also
wasteful.
Using no more than the correct amount
also contributes to reducing pollution.
D
M
IN
M
A
X
DE17
Min = 15 g
Max = 30 g
DE02
Compact detergents with enzymes
In these compact powders the environmentally unfriendly components have been replaced by natural enzymes
and other more biodegradable substances.
The enzymes deploy their full dirt dissolving power at a temperature as low as 50°C.
By choosing the BIO programmes you can therefore achieve the same cleaning results that would otherwise be
achievable only with 65°C programmes and conventional detergents.
13
To save energy
Place dishes in the machine immediately after every
meal and wait until the dishwasher is full before
washing.
Do not prewash dishes under running water.
Select the 65° programme when dishes are not
very soiled, following the instructions given in the
"Washing programmes" chart.
For best washing results
Before loading, remove all scraps of food and soak
very heavily soiled pots and pans.
Arrange saucepans, cups and glasses etc.upsidedown.
Tilt items with convex or concave surfaces so that
the water drains off easily.
Avoid contact between the dishes as far as possible.
Items not suitable for dishwashers
The following items should not be washed in the
dishwasher (unless they are sold as dishwasher
proof):
- Cutlery with wooden or horn handles or
glued parts
- bronze cutlery
- saucepans with wooden handles
- aluminium ware
- crystal ware
- leaded glass
- plastic items
- antique or fine decorated china
Certain types of decoration can discolour when
washed in a dishwasher.
Crystal-ware and plastic objects, if not guaranteed
dishwasher proof should be washed by hand.
Certain types of glass can also become opaque
after being washed several times in a dishwasher.
A chemical reaction can occur between silver cutlery
and stainless steel cutlery. As a precaution, do not
wash together.
Iron and cast iron objects can rust and stain other
items.
Aluminium tends to go black, copper, pewter and
brass tend to stain.
If in doubt check with manufacturer of the
item.
When buying new dishes, ensure that they
are dishwasher proof.
Hints and tips

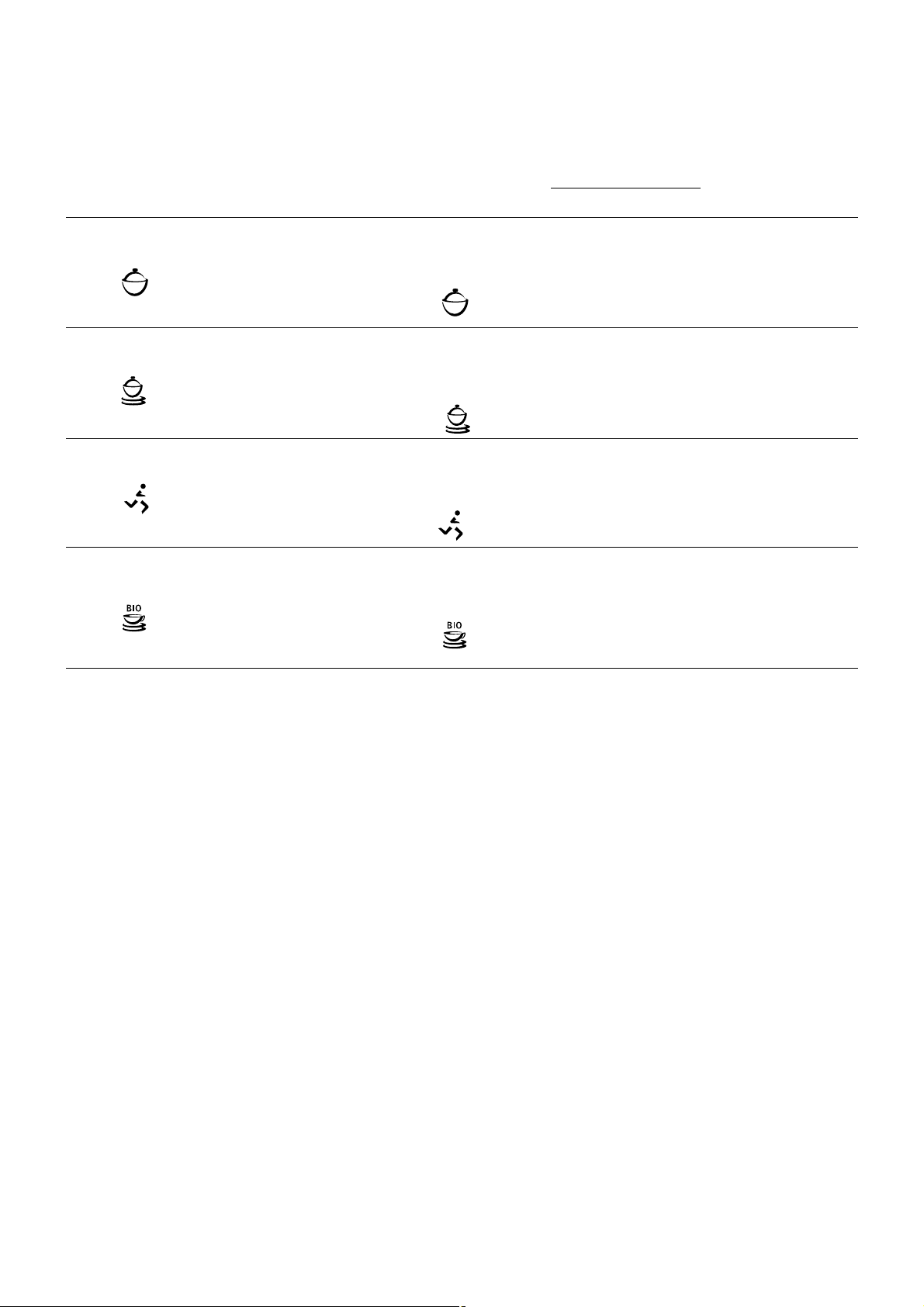

Washing programmes
14
Programme
Degree of soil
and type of load
Heavy soil.
Crockery, cutlery,
pots and pans
Normal soil.
Crockery and
cutlery
Fresh soil.
Crockery and
cutlery
Normal soil.
Crockery and
cutlery
Required
push buttons
Cycle
description
Recommended
quantity of detergent
wash prewash
***
50°
**
65°
65°
*
70° 80’
25 g 5 g
20 g 10 g
30 g /
25 g 5 g
Hot prewash
Main wash up to 70°C
1 cold rinse
1 hot rinse
Active dry
Main wash up to 65°C
1 hot rinse
Cold prewash
Main wash up to 65°C
1 cold rinse
1 hot rinse
Active dry
Cold prewash
Main wash up to 50°C
2 cold rinses
1 hot rinse
Active dry
*
Ideal for washing a complete load of 12 place settings with normal soil.
Characterised by a duration of about 80 minutes and a washing temperature of 70°C.
The time value is approximated and depends on the pressure and the temperature of the water and also by the variations
of the power supply.
This is the daily programme for excellence.
**
Ideal for washing crockery and cutlery of breakfast and dinner (fresh soil).
Characterised by a duration of about 30 minutes and a washing temperature of 65°C.
The time value is approximated and depends on the pressure and the temperature of the water and also by the variations
of the power supply.
This is the perfect daily programme, made to meet the needs of a family of 4 persons who load crockery and cutlery of
breakfast and dinner.
***
Testing programme for EN 50242 (see "Hints for Test Centres).
ON-OFF
+
70° 80’
ON-OFF
+
65°
ON-OFF
+
65°
ON-OFF
+
50°
15
1. Check the filters
Ensure they are clean and properly positioned
(see "Maintenance and cleaning").
2. Press the ON-OFF push
button
The ON-OFF indicator light will come on.
3. Check that there is rinse aid
and salt
The corresponding indicator lights will
illuminate if refilling is necessary.
4. Load the dishes
Remove any scraps of food.
Pull the lower basket out and arrange the
saucepans, plates and cutlery in it.
Pull the upper basket out and arrange the
plates, saucers, glasses and cups etc.in it.
Slide the baskets back into the machine.
5. Ensure that the spray arms
can rotate freely.
6. Measure out detergent
Add the required amount of detergent into the
dispenser according to the recommended
quantity given in the Washing programmes
chart.
Close the detergent dispenser lid.
7. Close the dishwasher door
8a. Setting and starting the
programme without DELAY
START
Press the push button corresponding to the
wanted programme:the indicator light
corresponding to the programme illuminates
and the phase indicator lights foreseen for that
programme start flashing.
The start of the programme will occur after
about 6 seconds from the last pressure of a
push button, in this time it is possible to change
programme simply pressing the push button of
another programme.
Once the programme has started the phase
indicator lights will turn off except for the phase
under way.
It is possible to interrupt the programme:
● opening the door
● pressing the ON-OFF (in this case all the
indicator lights turn off)
Close the door again o press the ON-OFF, the
programme will start from the point in which it
was interrupted.
8b.Setting and starting the
programme with DELAY
START
The setting of the delay start occurs before
selecting the programme.
Press the DELAY START push button and
selected the desired time (3, 6 or 9 hours) until
the indicator light corresponding to the chosen
hours flashes.
Press the push button corresponding to the
wanted programme:the indicator light
corresponding to the programme illuminates
and the phase indicator lights foreseen for that
programme start flashing.
The start of the countdown will occur after
about 6 seconds from the last pressure of a
push button.
The countdown will decrease with step of 3
hours and you are informed of this by the
indicator lights of the hours.
Operating sequence
16
During the countdown the only indicator lights
illuminate are the programme light and the light
of the number of hours to the start of the
programme.
Once the delayed time has elapsed the
programme will start automatically.
It is possible to stop a countdown in
progress or before it starts, simply pressing
the DELAY START push button until the
indicator lights of the hours are off:
9. To cancel a programme in
progress
A programme in progress can be cancelled at
any time.
Press for about 3 seconds the push button of
the running programme until all indicator lights
are off.
Only the ON-OFF indicator light will remain on
once the programme has been cancelled.
It is now possible to select a new washing
programme.
10. At the end of the washing
programme
The dishwasher will automatically stop and the
phase indicator light end of programme will
come on.
The indicator light of the programme just ended
will remain on.
The dishwasher has finished the
programme only when the phase indicator
light end of programme is illuminated.
If you do not wait for the end of the
programme it will not be possible to start a
new programme if first you do not cancel
the previous.
(For the formalities how to cancel a
programme see point 9)
Switch off the dishwasher by pressing the ONOFF push button.
Wait 15/20 minutes before opening the
dishwasher’s door;in this way you will avoid
burning yourself when removing the dishes and
avoid also the damage of the nearby furniture
caused by the escape of steam.
Empty the lower basket first and then the upper
one; this will avoid water dripping from the
upper basket onto the dishes in the lower one.
Important!
In general it is not advisable to open the
door while the machine is working; if the
door is opened however, a safety device
ensures that the machine stops.
Care must be taken if the door is opened
during the hot phase or immediately after
a programme has finished, as steam may
escape.
When the washing programme has
finished, it is recommended that the
dishwasher is unplugged and the water
tap turned off.
17
Internal cleaning
Ensure that the seals around the door, the detergent
and rinse aid dispensers are cleaned regularly with a
damp cloth.
We recommend every 3 months to run a 65°C wash
programme without dishes using detergent.
Cleaning the central filter
(After each wash)
Scraps of food may accumulate in the drain filter (A)
and should be removed by rinsing the filter under
running water.
To remove the drain filter
- simply pull it out by the handle.
Once cleaned, refit the filter by pushing it back to its
original position until it engages.
Cleaning the large filter
(Every week)
If necessary clean the large filter (B) on both sides
under running water, using a brush.
To remove the large filter
1. Remove the spray arm by pulling it upwards on one
side.
2. Turn the column (C) anticlockwise by 90° and then
slide out the filter.
3. Once cleaned refit it following the above instructions
in reverse order.
4. Ensure the filter is in its original position, the handle
of the drain filter should be pointing towards the
front of the appliance.
The dishwasher must not be used without
filters.
Incorrect repositioning and fitting of the
filters will produce poor washing results.
Cleaning the filters is vital to ensure correct
operation of the machine.
MAN01en
Maintenance and cleaning
A
MA04
MA19
C
90°
B
MA05
MA20
MA21
MA18
18
External cleaning
Clean the external surfaces of the machine and
control panel with a damp soft cloth. If necessary
use only neutral detergents.Never use abrasive
products, scouring pads or solvent (acetone,
trichloroethylene etc....).
Prolonged periods of nonoperation
If you are not using the machine for any period
of time you are advised to:
1. Unplug the appliance and then turn off the water.
2. Fill the rinse aid dispenser.
3. Leave the door ajar to prevent the formation of
any unpleasant smells.
4. Leave the inside of the machine clean.
Frost precautions
Avoid placing the machine in a location where the
temperature is below 0°C.If this is unavoidable,
empty the machine, close the appliance door,
disconnect the water inlet pipe and empty it.
Moving the machine
If you have to move the machine (moving house
etc....):
1. Unplug it.
2. Turn the water tap off.
3. Remove the water inlet and discharge hoses.
4. Pull the machine out together with the hoses.
Avoid over tilting the machine during transportation.
19
Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out
an engineer.
The dishwasher is fitted with a number of alarm systems which can help you to quickly determine the cause of any
problems.
The dishwasher will not start or stops during operation. All push buttons are inoperative except for the ON-OFF push
button.The indicator light of the programme under and one or more of the phase indicator lights (WASHING,
DRYING, END OF PROGRAMME) are flashing.
Press the ON-OFF push button to switch off the dishwasher and carry out the following suggested corrective actions
listed below.
Once the checks have been carried out switch on the dishwasher and start a washing programme, if the fault code
reappears in the digital display, contact your local Service Force Centre.
Something not working
Symptom Fault code Solution
The machine will not start ● The door has not been properly closed.
● The plug is not properly inserted in the power socket.
● There is a power failure.
The machine does not fill WASHING phase
● Ensure the water tap is open.
with water indicator ● Ensure the mains water supply has not been cut off.
light flashing ● The inlet hose may be squashed or bent. Reposition the hose.
● The inlet hose may be blocked.Switch off the water supply and
clean the filter.
The dishwasher will not drain DRYING phase
● The drain hose may be squashed or bent. Reposition the hose.
indicator light ● The sink may be blocked.Clear any blockages.
flashes ● The drain hose extension is not correct. Follow the instructions for
connecting to the waste.
● There is no vent in the end of the drain hose.
Protection against flooding WASHING and DRYING
● Close the water tap and contact the Service Force Centre.
is active phase indicator lights
are flashing
General One or more phase
● Switch off the dishwasher. Switch it back on and start the
indicator lights are programme.
flashing If the alarm reappears, call the local Service Force Centre.
The machine is noisy
● Dishes are rattling against each other, refer to “Loading your
machine”.
● The spray arms are knocking against the dishes. Refer to "Loading
your machine".
The door is difficult to close
● The dishwasher is not level, or not properly built-in.
Visible lime deposits or
● Check that there is salt and that the salt cap is tight.
white film on the dishes ● Check that the right level of the water softener is set.
The dishes are not quite dry
● The rinse aid has run out or too little is being used.
The dishes are not clean
● The baskets are too full.
(poor wash) ● The dishes have not been arranged properly.
● The spray arms do not rotate
● The spray arms are clogged.
● The filters are clogged.
● The filters are not in the correct position.
● Not enough detergent has been used or it is unsuitable.
● The detergent is old or has gone hard.
● The salt container cap is not properly closed.
● The washing programme selected is too gentle.
DIMENSIONS Width 60 cm
Height with worktop 85 cm
Height without worktop 82 cm
Max depth 63,5 cm
Max depth with open door 115.9 cm
ELECTRICAL CONNECTION Voltage 230 V - 50 Hz
MOTOR RATING DURING WASH 200 W
POWER OF HEATING ELEMENT 2100 W
OVERALL POWER 2300 W
WATER SUPPLY PRESSURE Minimum 50 kPa (0.5 bar)
Maximum 800 kPa (8 bar)
CAPACITY 12 place settings
Technical specifications
20
If after all these checks, the problem persists,
contact your local Service Force Centre, quoting the
model and serial number.
This information can be found on the rating plate
located on the right hand side of the dishwasher
door (see picture).
Protection against flooding
In order to prevent water floods, the machine has
been provided with two additional devices, having
the following characteristics:
1. In the water inlet hose (see "Water supply
connections").The device comes into operation
as a result of any damage to the water inlet hose
and stops the water inflow. It functions even with
the machine off.
To repair the machine call the Service Centre.
2. In the bottom of the machine: the device comes
into operation as a result of any water leaks in
the machine and it functions only with the
machine on.
In case of malfunction, the WASHING and
DRYING phase indicator lights start flashing.
In this case turn off the water tap and call the
Service Centre.
Prod.No.
........
Ser. No.
.........
Mod.
........
RA01
21
Remove all packaging before positioning the
machine.
If possible, position the machine next to a water tap
and a drain.
Water supply connections
This dishwasher may be fed with either hot (max.
60°) or cold water.
Nevertheless we advise you a cold water supply.
A hot water supply is not always efficient with very
soiled crockery as it shortens the washing
programmes a lot.
The water pressure must be within the limits given in
the technical specifications.
Your local Water Authority will advise you on the
average mains pressure in your area.
The dishwasher features fill and drain hoses which
can be turned either to the left or the right to suit the
installation.
The locknut must be correctly fitted to avoid water
leaks.
Avoid bends or kinks in the hose which could
prevent or slow down the water supply.
If the machine is connected to new pipes or pipes
which have not been used for a long time, you
should run the water for a few minutes before
connecting the inlet hose.This will prevent deposits
of sand or rust clogging the inlet hose filter.
For making the connection itself, the coupling nut
fitted to the machine’s supply hose is designed to
screw onto either a 3/4 inch gas thread spout, or to a
purpose made quick-coupling tap such as the Pressblock.
The water supply hose is fitted with a safety device,
which prevents water from entering the machine
should the inner hose split, due to wear.
The problem is signalled by a red indicator which
appears in the window (B - ➀ ➁).
If this happens, close the water tap and have the
hose replaced.
The retaining ring (A - ➀➁) must be properly fitted
so as to avoid water leaks.
Note:
Only for water supply hoses with Lock-fast safety
device to prevent inadvertent loosening.
To detach the hose press yellow lever (C - ➁) and
turn the retaining ring anticlockwise ➁.
Installation instructions
Any electrical work required to install
this appliance should be carried out by a
qualified electrician or competent
person.
Any plumbing work required to install
this appliance should be carried out by a
qualified plumber or competent person.
B
A
B
A
C
CA13
1
2
22
Water outlet hose connection
The end of the drain hose can be connected in the
following ways:
1. To the sink outlet siphon, securing it if necessary
with a clip.
2. Hooked over the edge of the sink using the special
curved plastic guide provided.
3. To a stand pipe provided with vent-hole, minimum
internal diameter 4 cm.
The waste connection must be at a height of between
30 cm (minimum) and 100 cm (maximum) from the
bottom of the dishwasher.
The drain hose can face either to the right or left of the
dishwasher
Ensure the hose is not bent or squashed as this could
prevent or slow down the discharge of water.
If you use a drain hose extension it must be no longer
than 2 metres and its internal diameter must be no
smaller than the diameter of the hose provided.
Likewise the internal diameter of the couplings used
for connections to the waste outlet must be no smaller
than the diameter of the hose provided.
The sink plug must not be in place when the
machine is draining as this could cause the water
to siphon back into the machine.
Electrical connection
Before plugging the appliance into the wall socket,
make sure that:
1. The mains voltage corresponds to the voltage given
in the "Technical specifications".
2. The meter, fuses, mains power supply and wall
socket can all take the maximum load required.
Make sure that the socket and plug are compatible
without having to use any type of adaptor. If
necessary, have the domestic wiring system socket
replaced.
Safety standards require the appliance to be
earthed.
The manufacture accepts no liability for
failure to observe the above safety
precautions.
min 30 cm
max 100 cm
min 4 cm
Ø 21
Ø 18
CS09
2
31
max 100 cm
min 30 cm
max 100 cm
max 100 cm
+ 2 m max
CS10
Ø 18
Ø 21
This appliance complies with the following E.E.C. Directives:
- 73/23 of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
Attention!
Our appliances are supplied with a
security device to protect against the
return of dirty water back into the
machine.
If the spigot of your sink has a “no return
valve”incorporated this can prevent the
correct draining of your dishwasher.
We advise you therefore to remove it.
23
Fitting under a counter
(kitchen worktop or sink)
By removing the machine’s worktop, you can install it
under a close fitting sink unit or a pre-existing top,
providing the dimensions of the recess correspond to
those shown in the picture.
Proceed as follows:
- Remove the machine’s worktop by unscrewing the
two rear retaining screws, pull from the front and
slide out the rear slots, lifting the worktop.
Insert the machine after adjusting height and levelling
with the adjustable feet.When inserting the machine,
ensure that the water inlet and drain hoses are not
kinked or squashed.
Levelling
Good levelling is essential for correct closure and
sealing of the door.
When the appliance is correctly levelled, the door will
not catch on the levelling spacers on either side of the
cabinet.
If the door does not close correctly, loosen or tighten
the adjustable feet until the machine is perfectly level.
IN26
820
570 - 600
600
IN05
Hints for test centres
Before starting any test it is necessary to fill completely with salt the salt container and with rinse aid the rinse
aid dispenser.
Test standard EN 50242
Reference programme: BIO 50°
Load: 12 standard place settings
Rinse aid selector: position 5
Detergent dosage : 25 g in the dispenser
5 g on the dispenser lid
Arrangement upper basket
Arrangement lower basket
Arrangement cutlery basket
The Electrolux Group. The world’s No.1 choice.
The Electrolux Group is the world’s largest producer of powered appliances for kitchen,
cleaning and outdoor use. More than 55 million Electrolux Group products (such as
refrigerators, cookers, vacuum cleaners, chain saws and lawn mowers) are sold each year
to a value of approx. 14 billion USD in more than 150 countries around the world.
152976 52/0
Loading...
