INFO
2222 263-15
ISTRUZIONI PER L’INSTALLAZIONE E L’USO
INSTALLATION AND INSTRUCTION MANUAL
INSTALLATIONS- UND GEBRAUCHSANWEISUNG
FRIGORIFERO ER 6730 U - ER 6430 U
REFRIGERA TOR ER 6730 U - ER 6430 U
KÜHLSCHRANK ER 6730 U - ER 6430 U
WARNINGS
It is most important that this instruction book should be retained with the appliance for future reference.
Should the appliance be sold or transferred to another owner, or should you move house and leave the
appliance, always ensure that the book is supplied with the appliance in order that the new owner can be
acquainted with the functioning of the appliance and the relevant warnings.
These warnings are provided in the interest of safety. You must read them carefully before installing or
using the appliance.
GB
General Safety
ª This appliance is designed to be operated by
adults. Children should not be allowed to tamper
with the controls or play with the product.
ª It is dangerous to alter the specifications or modify
this product in any way.
ª Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
ª Before any cleaning or maintenance work is
carried out, be sure to switch off and unplug the
appliance.
ª This appliance is heavy. Care should be taken
when moving it.
ª Ice lollies can cause frost burns if consumed
straight from the appliance.
ª Take utmost care when handling your
appliance so as not to cause any damages to the
cooling unit with consequent possible fluid
leakages.
ª The appliance must not be located close to
radiators or gas cookers.
ª Avoid prolonged exposure of the appliance to
direct sunlight.
ª There must be adequate ventilation round the
back of the appliance and any damage to the
refrigerant circuit must be avoided.
ª For freezers only (except built-in models): an
ideal location is the cellar or basement.
ª Do not use other electrical appliances (such as
ice cream makers) inside of refrigerating
appliances, unless they are approved for this
purpose by the manufacturer.
Service / Repair
ª Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
ª This appliance should be serviced by an
authorized Service Centre, and only genuine spare
parts should be used.
ª Under no circumstances should you attempt to
repair the appliance yourself.
Repairs carried out by inexperienced persons may
cause injury or more serious malfunctioning. Refer
to your local Service Centre, and always insist on
genuine spare parts.
ª This appliance contains hydrocarbons in its
cooling unit; maintenance and recharging must
therefore only be carried out by authorized
technicians.
Use
ª The domestic refrigerators and freezers are
designed to be used specifically for the storage of
edible foodstuffs only.
ª Frozen food must not be re-frozen once it has been
thawed out.
ª Manufacturers’ storage recommendations should
be strictly adhered to. Refer to relevant
instructions.
ª The inner lining of the appliance consists of
channels through which the refrigerant passes. If
these should be punctured this would damage the
appliance beyond repair and cause food loss.
DO NOT USE SHARP INSTRUMENTS to scrape
off frost or ice. Frost may be removed by using the
scraper provided. Under no circumstances should
solid ice be forced off the liner . Solid ice should be
allowed to thaw when defrosting the appliance.
See defrost instructions.
ª Do not place carbonated or fizzy drinks in the
freezer as it creates pressure on the container,
which may cause it to explode, resulting in
damage to the appliance.
ª Do not use a mechanical device or any artificial
means to speed up the thawing process other than
those recommended by the manufacturer.
ª Never use metal objects for cleaning your
appliance as it may get damaged.
Printed on recycled paper
15
Installation
ª During normal operation, the condenser and
compressor at the back of the appliance heat up
considerably. For safety reasons, minimum
ventilation must be as shown in the relevant
Figure.
Attention: keep ventilation openings clear of
obstruction.
ª If the appliance is transported horizontally, it is
possible that the oil contained in the compressor
flows in the refrigerant circuit. It is advisable to
wait at least two hours before connecting the
appliance to allow the oil to flow back in the
compressor.
ª There are working parts in this product which heat
up. Always ensure that there is adequate
ventilation as a failure to do this will result in
component failure and possible food loss. See
installation instructions.
ª Parts which heat up should not be exposed.
Wherever possible the back of the product should
be against a wall.
ª If the appliance has been transported horizontally,
it is possible that the oil contained in the
compressor flows in the refrigerant circuit. It is
advisable to wait at least two hours before
connecting the appliance to allow the oil to flow
back in the compressor.
Environment Protection
ª This appliance does not contain gasses which
could damage the ozone layer, in either its
refrigerant circuit or insulation materials. The
appliance shall not be discarded together with
the urban refuse and rubbish. Avoid damaging
the cooling unit, especially at the rear near the
heat exchanger. Information on your local
disposal sites may be obtained from your
municipal authorities.
The materials used on this appliance marked
with the symbol are recyclable.
16
CONTENTS
Installation 18
ª Positioning 18
ª Cleaning the interior 18
ª Location 19
ª Door reversibility 19
ª Fitting a decorative door panel 20
ª Changing the opening direction of the door
(freezer compartment) 23
ª Electrical connection 23
Technical specification 23
GB
Use 24
ª Operation 24
ª Temperature regulation 24
ª Fresh food refrigeration 24
ª Movable shelves 25
ª Storage of frozen food 25
ª Thawing 25
ª Ice-cube production 25
ª Defrosting 26
Maintenance 27
ª Periodic cleaning 27
ª Periods of non-operation 27
ª Interior light 27
Customer service and spare parts
27
17
INSTALLATION
If this appliance featuring magnetic door seals is to
replace an older appliance having a spring lock
(latch) on the door or lid, be sure to make that
spring lock unusable before you discard the old
appliance.
This will prevent it from becoming a death-trap
for a child.
Positioning
GB
Important
It is essential that the appliance be connected to an
efficient earth tap. For this purpose the supply cable
plug incorporates a special earth contact. If the
sockets of your domestic wiring system are not
earthed, have the appliance connected to a separate
earth wire by a qualified electrician in accordance
with existing safety regulations.
The appliance should be installed well away from
sources of heat such as radiators, boilers, direct
sunlight etc.
Best performance is obtained with ambient
temperature between +18°C and +43°C (class T);
+18°C and +38°C (class ST); +16°C and +32°C (class
N); +10°C and +32°C (class SN).
The class of your appliance is shown on its rating
plate.
For safety reasons, minimum ventilation must be as
shown in Fig. 14.
Attention: keep ventilation openings clear of
obstruction.
The Manufacturer declines all responsibility if the
above safety precautions are not observed.
This appliance complies with EEC directive
number 87/308 of 2/6/87 relative to radio
interference suppression.
This appliance complies with the following
E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and
subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
Cleaning the interior
Before using the appliance for the first time, wash the
interior and all internal accessories with lukewarm
water and some neutral soap so as to remove the
typical smell of a brand-new product, then dry
thoroughly.
Do not use detergents or abrasive powders, as these
will damage the finish.
18
Location
This appliance is designed to be built-in to a space
having the dimensions given in Fig. 1.
547
820-870
550
600
820
Fig. 1
870
The height of the appliance can be altered if required
by means of adjustable feet situated at its base
(Fig. 2).
Door reversibility
Remove the two screws which fix the upper hinge to
the door.
Carefully lean the appliance on its back and remove
the plastic insert (Fig. 3).
Remove the two screws which fix the lower hinge to
the door.
Remove the four screws which fix the lower hinge to
the base of the appliance and remove the hinge itself;
be very careful to recover all the screws.
Remove the four screws that fix the upper hinge to the
appliance and remove the hinge itself.
D506
D507
596
100-170
Fig. 2
Fig. 3
Take the hinge removed from the upper part of the
appliance on the opposite side (see Fig. 4), and, using
the screws removed from the lower part, fix it to the
base of the appliance itself.
Remove and refit the other hinge on the upper part of
the appliance on the opposite side.
Fix the two front screws into the upper and lower
hinges (Fig. 4).
Finally, check the alignment of the door and make
sure it closes properly.
After having reversed the opening direction of the
door, discard the original plastic insert removed and
fit the insert supplied with the appliance on the
opposite side.
D447
Fig. 4
D510
19
Fitting a decorative door panel
Important: The components needed to fit the
decorative panel have been pre-fitted on the
appliance.
The brackets are secured to the panel by means of
the 7 Ø 3.5x13 screws supplied.
Before starting to fit the panel, remove the large
top bracket by unscrewing the screws and
adjusting pins pre-fitted on the appliance door.
The small bottom bracket need not be removed.
Place the appliance in the position where it is to be
built in (Fig. 5).
The appliance is fitted with adjustable feet; screw the
front and rear feet in or out to adjust the height of the
appliance to that of the recess.
Keeping the appliance central in the recess, slide it in
until its back touches the wall.
With a tape measure (or similar instrument), measure
distance (A) between the top edge of the door and the
top edge of the decorative panel, placing it next to the
recess.
Lay the panel face down (Fig. 6). Position the top
bracket on the panel, making sure that there is an
equal distance between it and the sides and that its
distance from the top edge is equal to distance (A)
less 1 cm.
Secure the bracket with the screws supplied.
Take care not to damage the front face of the panel
whilst working.
= =
D467
=
D468
Fig. 5
A
Fig. 6
=
A
-1cm
Fig. 7
B
Insert the adjusting pins (B-Fig. 7) into their locations
in the door and screw them in.
Hook the decorative panel onto the top part of the
door, inserting the pins (B) (on the door) into the
elongated holes (1) (in the top bracket fitted to the
panel) (Fig. 8).
Insert the securing screws (C) through elongated
holes (2) and fix the panel without tightening the
screws (Fig. 8).
20
D532
D533
Fig. 8
1
B
C
2
Once the top of the panel has been correctly
positioned, fix it through the holes in the bottom
bracket, without tightening the screws (Fig. 9).
Fig. 9
D471
Check the position again by slackening the screws
and pins then, once the best position has been
obtained, fully tighten all the fixings.
Cover the visible part of the top bracket on the panel
with plastic cover (D), inserting it in the locations
provided in the bracket.
Once the door has been correctly aligned, tighten the
holding nuts on the fixing brackets and attach the
appliance to the adjacent units and the bottom of the
work surface (Fig. 11).
Fig. 10
D
D472
Fig. 11
If the appliance has been fitted into a space 820 mm
high and the maximum height of the base plate is 100
mm, fit the front cover plate by pushing the two
vertical lugs into the rectangular holes on the bottom
side of the ventilation duct until they click. The plate
can be adjusted backwards or forwards in the holes
(Fig. 12).
D517
D518
170
220
600
820
870
135
185
Fig. 12
21
If the base plate is between 100 and 135 mm high, cut
it as shown in Fig. 14 and mount as described above.
If the base plate is between 135 and 170 mm high, cut
it as shown in Fig. 12.
D519
20÷80
820
870
100
150
Fig. 13
If the appliance has been fitted into a space 870 mm
high and the maximum height of the base plate is 150
mm, fit the front cover plate as described in Fig. 13.
If the base plate is between 150 and 185 mm high, cut
it as shown in Fig. 14.
If the base plate is between 185 and 220 mm high, cut
it as shown in Fig. 12.
D520
820
870
100÷135
150÷185
Fig. 14
22
Changing the opening direction of
the door (freezer compartment)
(Only for model ER 6430 U)
Having changed the opening direction of the
appliance door, it is advisable to also change the
opening direction of the freezer compartment door.
To do this, proceed as follows:
Unscrew the two fixing screws to remove the lower
hinge from the door (Fig. 15).
Fig. 15
D576
Remove the freezer compartment door and the upper
hinge. Once the freezer door has been removed,
remove the screws from the catch and refit it on the
opposite side (Fig. 16).
Refit the upper hinge and the door on the opposite
side, then refit the lower hinge (Fig. 17).
When changing the opening direction of the door,
make sure that the hinges fit properly against the
surface on which the door seal rests.
Electrical connection
Before plugging in, ensure that the voltage and
frequency shown on the serial number plate
correspond to your domestic power supply.
Voltage can vary by ±6% of the rated voltage.
For operation with different voltages, a suitably sized
auto-transformer must be used.
Fig. 16
D577
Fig. 17
D578
TECHNICAL SPECIFICATION
The technical data is indicated in the rating plate on the left side inside the appliance.
GB
23
USE
GB
Operation
Insert the plug into the wall socket.
Open the refrigerator door and turn the thermostat
knob, clockwise, beyond the «O» (STOP) position.
The appliance will start to operate.
Temperature regulation
The temperature is automatically regulated and can be
increased to achieve a higher temperature (warmer)
by rotating the thermostat knob toward lower settings
or reduced (colder) rotating the knob towards higher
settings.
However, the exact setting should be chosen keeping
in mind that the temperature inside the refrigerator
depends on:
room temperature;
how often the door is opened;
the quantity of food stored;
location of appliance.
A medium setting is generally the most suitable.
To stop operation, simply turn the thermostat knob to
position «O».
Fresh food refrigeration
To obtain the best performance:
do not store warm food or evaporating liquids in the
refrigerator;
do cover or wrap the food, particularly if it has a
strong flavour.
Position food so that air can circulate freely round it.
Useful hints:
Meat (all types): wrap in polythene bags and place on
the glass shelf above the vegetable drawer(s).
For safety , store in this way only one or tw o days at
the most.
Cooked foods, cold dishes, etc..: these should be
covered and may be placed on any shelf.
Fruit and vegetables: these should be thoroughly
cleaned and placed in the special drawer(s) provided.
Butter and cheese: these should be placed in special
airtight containers or wrapped in aluminium foil or
polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be
stored in the bottle rack on the door.
Bananas, potatoes, onions and garlic, if not
packed, must not be kept in the refrigerator.
Important
If the ambient temperature is high or the
appliance is fully loaded, and the appliance is set to
the lowest temperatures, it may run continuously
causing frost to form on the rear wall. In this case
the dial must be set to a higher temperature to
allow automatic defrosting and therefore reduced
energy consumption.
24
Movable shelves
The walls of the refrigerator are equipped with a
series of runners so that the shelves can be positioned
as desired.
Storage of frozen food
(Only for model ER 6430 U)
The compartment marked is suitable for longterm storage of frozen and deep-frozen food.
Fig. 18
When first starting-up or after a period out of use,
before putting the products in the compartment let the
appliance run for at least two hours on the coldest
setting, then turn the thermostat knob to the normal
operating position.
To obtain the best performance from this appliance,
you should:
make sure that the commercially frozen foodstuffs
were adequately stored by the retailer;
be sure that frozen foodstuffs are transferred from the
foodstore to the freezer in the shortest possible time;
not open the door frequently or leave it open longer
than absolutely necessary.
Once defrosted, food deteriorates rapidly and cannot
be refrozen.
Do not exceed the storage period indicated by the
producer of the food.
Important
D040
Thawing
(Only for model ER 6430 U)
Deep-frozen or frozen food, prior to being used, can
be thawed in the refrigerator compartment or at room
temperature, depending on the time available for this
operation.
Small pieces may even be cooked still frozen, directly
from the freezer: in this case, cooking will take
longer.
Ice-cube production
(Only for model ER 6430 U)
This appliance is equipped with one or more trays for
the production of ice-cubes.
Fill these trays with water, then put them in the
freezer compartment.
If there is a power failure when food is in the
freezer, do not open the door of the freezer
compartment. The frozen food will not be affected
if the power cut is of short duration (up to 6-8
hours) and the freezer compartment is full,
otherwise, it is recommended that the food should
be used within a short time (a temperature
increase of the frozen f ood shortens its safe storage
period).
Do not use metallic instruments to remove the trays
from the freezer.
25
Defrosting
Frost is automatically eliminated from the evaporator
of the refrigerator compartment every time the motor
compressor stops, during normal use.
The defrost water drains out through a trough into a
special container at the back of the appliance, over the
motor compressor, where it evaporates.
To prevent the water overflowing and dripping
onto the food inside, periodically clean the defrost
water drain hole in the middle of the refrigerator
compartment channel, using a small flexible rod.
(Only for model ER 6430 U)
The freezer compartment, however, will become
progressively covered with frost. This should be
removed with the special plastic scraper provided,
whenever the thickness of the frost exceeds 4 mm.
During this operation it is not necessary to switch off
the power supply or to remove the foodstuffs.
Never use sharp metal tools to scrape off frost
from the evaporator as you could damage it.
Do not use a mechanical device or any artificial
means to speed up the thawing process other than
those recommended by the manufacturer.
Important
A temperature rise of the frozen food packs, during
defrosting, may shorten their safe storage life.
Fig. 19
However, when the ice becomes very thick on the
inner liner, complete defrosting should be carried out
as follows:
pull out the plug from the wall socket or turn the
thermostat knob to the «O» setting;
remove any stored food, wrap it in several layers of
newspaper and put it in a cool place;
leave the door open, and remove the water which
forms during defrosting by means of a sponge of
cloth;
when defrosting is completed, dry the interior
thoroughly;
keep the scraper for future use;
turn the thermostat knob back to the required setting
or replace the plug in the power socket.
After two or three hours, reload the previously
removed food into the compartment.
26
MAINTENANCE
GB
Unplug the appliance before carrying out any
maintenance operation.
Warning
This appliance contains hydrocarbons in its cooling
unit; maintenance and recharging must therefore only
be carried out by authorized technicians.
Periodic cleaning
Never use metal objects for cleaning your appliance
as it may get damaged.
Clean the inside with warm water and bicarbonate of
soda.
Rinse and dry thoroughly.
Periods of non-operation
When the appliance is not in use for long periods, take
the following precautions:
remove the plug from the wall socket;

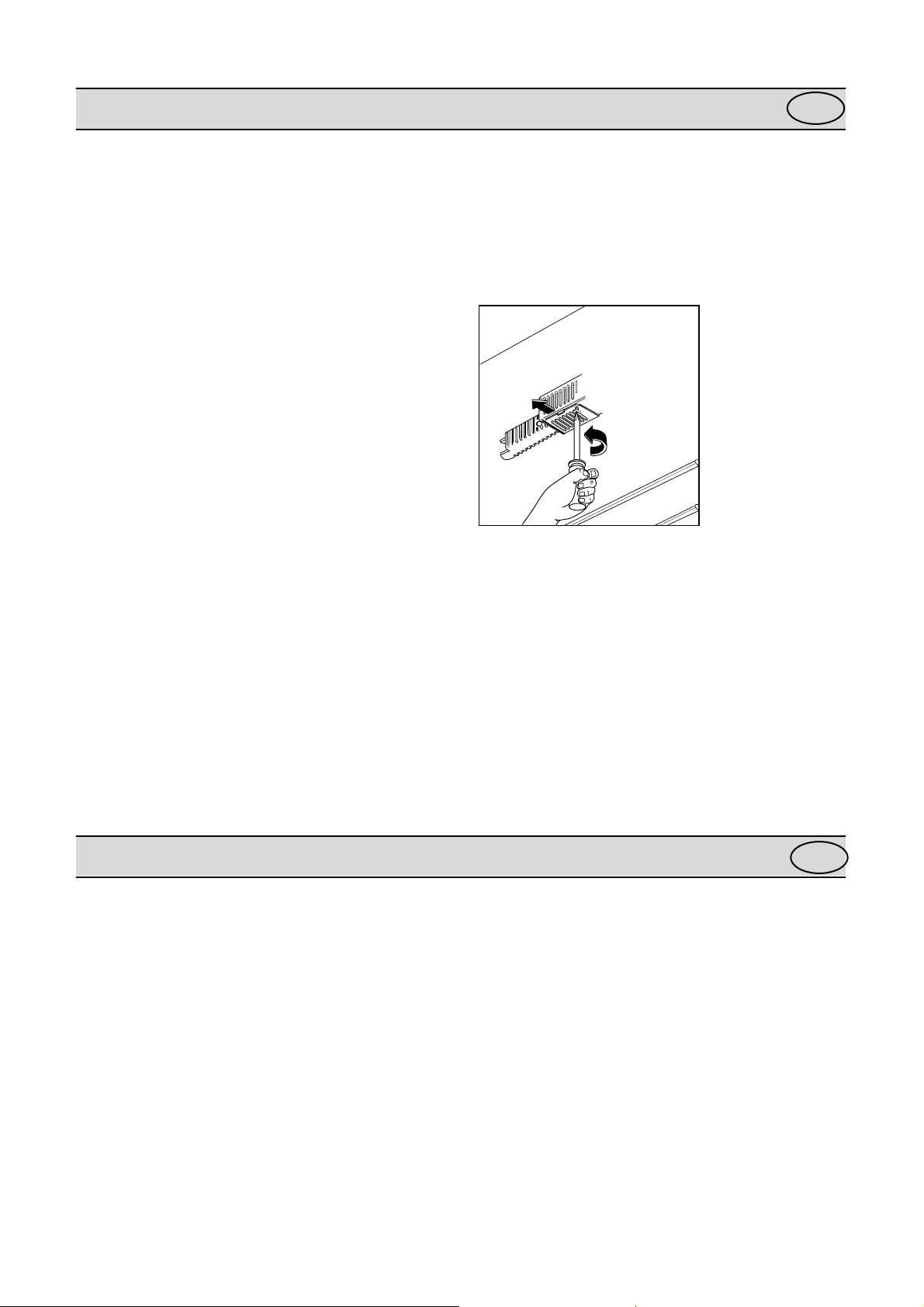

Interior light
The light bulb inside the refrigerator compartment can
be reached as follows:
- unscrew the light cover securing screw,
- unhook the moving part as shown in the figure.
Fig. 20
D731
remove all food;
defrost and clean the interior and all accessories;
leave the door ajar to allow air to circulate to prevent
unpleasant smells.
CUSTOMER SERVICE AND SPARE PARTS
If the appliance is not functioning properly, check
that:
the plug is firmly in the wall socket and the mains
power switch is on;
there is an electricity supply (find out by plugging in
another appliance);
the thermostat knob is in the correct position.
If there are water drops on the bottom of the cabinet,
check that the defrost water drain opening is not
obstructed (see “Defrosting” section).
GB
To obtain fast service, it is essential that when you
apply for it you specify the model and serial
number of your appliance which can be found on
the guarantee certificate or on the rating plate
located inside the appliance, on the bottom lefthand side.
If your appliance is still not working properly after
making the above checks, contact the nearest service
centre.
27
Loading...
