AEG-Electrolux EON6701X User Manual

English

Warnings - Built-under ovens

It is most important that the instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can be acquainted with the functioning of the appliance and the relevant warnings. These warnings are provided in the interest of safety. You must read them carefully before installing or using the appliance.

Installation

z Any installation work must be undertaken

by a qualified electrician or competent person.

z Installation and initial adjustment of your

oven MUST be carried out by qualified personnel in compliance with current regulations. Specific installation instructions for the installer are given in this booklet.

During use

z This appliance has been designed for

cooking edible foodstuffs only, and must not be used for any other purposes.

z Always stand back from the oven when

opening the oven door during cooking or at the end of it to allow any build up of steam or heat to release.

z It is dangerous to alter the specifications

or modify the product in any way.

z Appliances become very hot with use, and

retain their heat for a long period after use. Care should be taken to avoid touching heating elements inside the oven.

z Always ensure that the control knobs are

in the “off” position when not in use.

z For hygiene and safety reasons, this

appliance should be kept clean at all times. A build-up of fats or foodstuffs could result in a fire.

z Never line any part of the oven with

aluminium foil.

z Easy clean-liners (if provided) should never

be cleaned with any other than soapy water.

z Never use steam or steam machines to

clean the appliance.

z Before any maintenance or cleaning work

is carried out on the appliance, always turn off the isolator switch at the cooker point, and allow to cool.

z Ensure that the shelves are put in place in

the correct way.

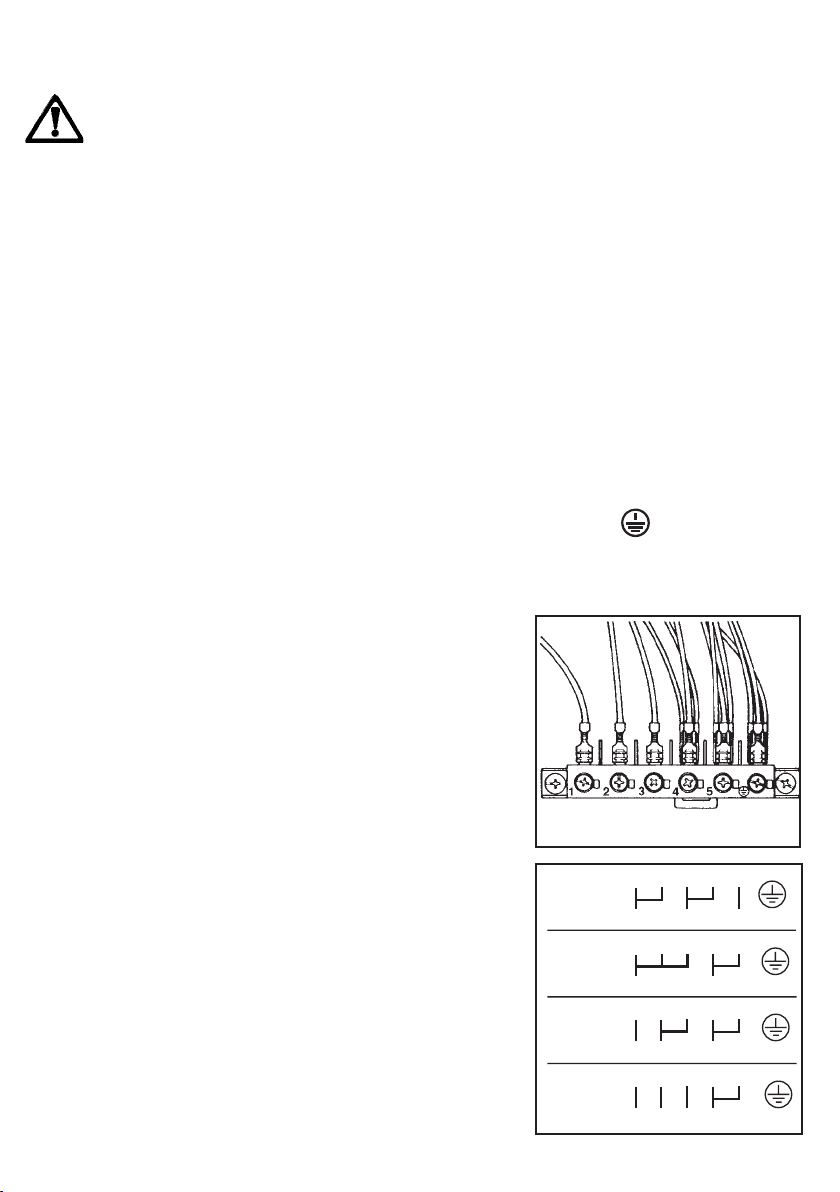

z This oven (even if it is linked to an electrical

cooking table) is made to function at 230 V mono, double or three-phase with neutral.

z A polyphase linking without neutral (400 V)

can induce the distruction of the oven and of the eventual cooking table.

Child safety

z This appliance is designed to be operated

by adults. Children should not be allowed to tamper with the controls or play with the product.

z Children should be supervised at all times

and should not be allowed to touch the hot surfaces or be in the vicinity when in use or until the appliance has cooled after use.

z During oven cooking and grilling, the

appliance door and the surrounding parts are warmed up to a very high temperature. Be careful and keep children away from the appliance while you are using it. When you connect other appliances to a plug near the oven, check carefully that the wire does not touch warm parts of the oven and does not get taken in the oven door.

Technical assistance

z This appliance should be serviced by an

authorized Network Service Centre, and only genuine spare parts should be used.

z Under no circumstances should you

attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Refer to your local Service Centre. Always insist on genuine spare parts.

Guide to Use the instructions

Safety Instructions

Step by step instructions for an

)

operation

Hints and Tips

The symbol

packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

MANUFACTURER:

ELECTROLUX HOME PRODUCTS ITALY S.p.A. Viale Bologna, 298 47100 FORLÌ (Italy)

on the product or on its

When the oven is first installed

The oven will work only if the time of day has been set (please read the relevant instructions).

Once the oven has been installed:

)

a) set the thermostat knob to “MAX”; b) switch the oven function control knob to

conventional cooking ( );

c) allow the oven to run empty for

approximately 45 minutes; d) open a window for ventilation. During this time, an unpleasant odour may be emitted. This is absolutely normal, and is caused by residues of manufacturing. Repeat this operation for the grill and fan cooking function. Once this operation is carried out, let the oven cool down, then clean the oven cavity with a soft cloth soaked in warm soapy water.

To open the oven door, always catch the handle in its central part.

Before cooking for the first time, carefully wash the oven accessories.

Description of the appliance

8910

2345

1. Control Panel

2. Front right hotplate/cooking zone control

knob

3. Rear right hotplate/cooking zone control knob

4. Rear left hotplate/cooking zone control knob

5. Front left hotplate/cooking zone control knob

6. Cooking function control knob

7. Thermostat control knob

8. Operating control light

9. Thermostat control light

10. Electronic programmer

11. Grill

12. Oven lamp

13. Rating plate

Electric oven

Oven Function (Fig. 1) and Thermostat (Fig. 2) control knobs

They enable to select the most appropriate type of heating for the different cooking requirements by appropriately connecting the heating elements and adjusting temperature to the required level.

0 OFF position

Oven Light - The oven light will be on

without any cooking function Conventional cooking - The heat

comes from both the top and bottom element, ensuring even heating inside the oven.

Top heating element - The heat comes from the top of the oven only.

Bottom heating element - The heat comes from the bottom of the oven only.

Inner grill element only - can be used for grilling small quantities.

Double Grill - The full grill element will be on.

Thermal Grilling - This function offers an alternative method of cooking food items, normally associated with conventional grilling. The grill element and the oven fan operate together, circulating hot air around the food.

When using this function, select a maximum temperature of 200 °C.

Fan cooking - This allows you to

roast or roast and bake simoultaneously using any shelf, without flavour transference.

Defrost Setting - This setting is intended to assist in thawing of frozen food.

Fig. 1

Fig. 2

Hotplate control knobs

The Control Knobs for the hotplates (Fig. 3) can be found on the oven control panel. The energy regulator of the hotplates can be set by means of a 7-position control knob:

0 = Off 1 = Minimum 3 = Maximum

The intermediate positions give an increasing heating power.

Double circuit cooking zone

If you wish to have the two electric circuits work simultaneously, turn the knob to Max position (3) and then turn it towards symbol “0”. You will hear a click. Now the 2 circuits work together. Then, you can regulate the power of the cooking zone by turning the control knob anticlockwise.

Carefully supervise cookings with oil or fats, since these types of food can result in a fire, when overheated.

Oven thermostat control light

This light goes off when the oven heats up to the temperature set and comes on again every time the thermostat cuts in to stabilize temperature.

Fig. 3

Safety thermostat

In order to avoid excessive overheating due to incorrect use of the appliance or else to a faulty component, the oven is equipped with a safety thermostat which cuts off the power supply if necessary. Operation is restored automatically when the oven temperature decreases to normal values. Therefore, if the thermostat cuts in because you have not been using the appliance correctly, the oven can be used again simply by waiting for the appliance to cool down. If, instead, the thermostat cuts in because of a faulty component, you should call the Service Department.

Operating control light

It indicates that one or more of the heating elements are turned on.

The Cooling Fan for the Controls

This oven is provided with a cooling fan, meant to keep the front panel, the knobs and the oven door handle cool. This fan may run on after the oven or grill is switched off, until a normal temperature is reached.

Electronic programmer

5 6

123

The oven will work only if the time of day has been set. Moreover, the oven can also be operated

without any programme.

1. Push button for selecting a function

2. Decreasing control button “ ”

3. Increasing control button “ ”

4. Display

5. “Cooking Duration” pilot lamp

6. “End of cooking” pilot lamp

7. “Minute minder” pilot lamp

8. “Time of day” pilot lamp

Setting the time of day

When the power supply is switched on, or after a power failure, the “Time of day” pilot lamp will flash on the display.

To set the correct time of day:

1. press button “ ” or “ ”.

2. After the setting is carried out, wait for 5 seconds: the

“Time of day” pilot lamp will go out and the display will show the set time. The appliance is ready for use.

To reset the correct time of day:

1. press button repeatedly to select the “Time of day”

function. The relevant pilot lamp will start flashing. Then proceed as described above. The time of day may be reset only if no automatic function (cook duration or end of cooking )

has been set.

“Cooking Duration” function

Thanks to this function, the oven will automatically switch off at the end of a programmed cooking duration time. Place food in the oven, select a cooking function and adjust the cooking temperature. Press button repeatedly to select the “Cooking Duration” function. The relevant pilot

lamp will start flashing. Then, proceed as follows:

To set the duration time:

1. press button “ ” or “ ”.

2. After the setting is carried out, wait for 5 seconds:

the "Cooking Duration" pilot lamp will come on and the display will revert to the time of day.

3. When cooking time is over, the oven will be switched off automatically and an acoustic alarm will be heard, while the pilot lamp will start flashing. Turn the oven function and the thermostat control knob to zero. To switch off the acoustic alarm, press any button. NOTE: when doing this operation, the oven will be operated again, therefore, remember to turn the oven function and the thermostat control knob to zero at the end of the cooking time.

To cancel the duration time:

1. Press button repeatedly to select the “Cooking

Duration” function. The relevant pilot lamp will flash and the display will show the remaining cooking time.

2. Press button “ ” until the display shows “0:00”. After 5 seconds the pilot lamp will go out and the display will revert to the time of day.

“End of cooking” function

Thanks to this function, you can set the oven to switch off automatically when a programmed end of cooking time is over. Place food in the oven, select a cooking function and adjust the cooking temperature. Press button

repeatedly to select the “End of cooking” function. The relevant pilot lamp will start flashing. Then, proceed as follows:

To set the End of cooking time:

1. press button “ ” or “ ”.

2. After the setting is carried out, wait for 5 seconds:

the “End of cooking” pilot lamp will come on and the display will revert to the time of day.
