Warnings - Built-in ovens
It is most important that the instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move
house and leave the appliance, always ensure that the book is supplied with the appliance in
order that the new owner can be acquainted with the functioning of the appliance and the
relevant warnings. These warnings are provided in the interest of safety. You must read
them carefully before installing or using the appliance.
Installation
z Any installation work must be undertaken
by a qualified electrician or competent
person.
z Installation and initial adjustment of your
oven MUST be carried out by qualified
personnel in compliance with current
regulations. Specific installation
instructions for the installer are given in this
booklet.
During use
z This appliance has been designed for
cooking edible foodstuffs only, and must
not be used for any other purposes.
z Always stand back from the oven when
opening the oven door during cooking or
at the end of it to allow any build up of
steam or heat to release.
z It is dangerous to alter the specifications
or modify the product in any way.
z Appliances become very hot with use, and
retain their heat for a long period after use.
Care should be taken to avoid touching
heating elements inside the oven.
z Always ensure that the control knobs are
in the “off” position when not in use.
z For hygiene and safety reasons, this
appliance should be kept clean at all times.
A build-up of fats or foodstuffs could result
in a fire.
z Never line any part of the oven with
aluminium foil.
z Easy clean-liners (if provided) should never
be cleaned with any other than soapy water.
z Never use steam or steam machines to
clean the appliance.
z Before any maintenance or cleaning work
is carried out on the appliance, always turn
off the isolator switch at the cooker point,
and allow to cool.
z Ensure that the shelves are put in place in
the correct way.
z This oven (even if it is linked to an electrical
cooking table) is made to function at 230 V
mono, double or three-phase with neutral.
z A polyphase linking without neutral (400 V)
can induce the distruction of the oven and
of the eventual cooking table.
Child safety
z This appliance is designed to be operated
by adults. Children should not be allowed
to tamper with the controls or play with the
product.
z Children should be supervised at all times
and should not be allowed to touch the hot
surfaces or be in the vicinity when in use
or until the appliance has cooled after use.
z During oven cooking and grilling, the
appliance door and the surrounding parts
are warmed up to a very high temperature.
Be careful and keep children away from
the appliance while you are using it. When
you connect other appliances to a plug near
the oven, check carefully that the wire does
not touch warm parts of the oven and does
not get taken in the oven door.
52
Technical assistance
z This appliance should be serviced by an
authorized Network Service Centre, and
only genuine spare parts should be used.
z Under no circumstances should you
attempt to repair the appliance yourself.
Repairs carried out by inexperienced
persons may cause injury or serious
malfunctioning. Refer to your local Service
Centre. Always insist on genuine spare
parts.
MANUFACTURER:
ELECTROLUX HOME PRODUCTS ITALY S.p.A.
Viale Bologna, 298
47100 FORLÌ (Italy)
Guide to Use the
instructions
Safety Instructions
Step by step instructions for an
)
operation
Hints and Tips
When the oven is first installed
The oven will work only if the time
of day has been set (please read
the relevant instructions).
Once the oven has been installed:
)
a) set the thermostat knob to “MAX”;
b) switch the oven function control knob to
conventional cooking ( );
c) allow the oven to run empty for
approximately 45 minutes;
d) open a window for ventilation.
During this time, an unpleasant odour may
be emitted. This is absolutely normal, and
is caused by residues of manufacturing.
Repeat this operation for the grill and fan
cooking function. Once this operation is
carried out, let the oven cool down, then
clean the oven cavity with a soft cloth soaked
in warm soapy water.
Before cooking for the first time,
carefully wash the oven
accessories.
To open the oven door, always
catch the handle in its central
part.
53
Description of the appliance
98
723456
1
12
10
11
1. Control Panel
2. Front right hotplate/cooking zone control
knob
3. Rear right hotplate/cooking zone control
knob
4. Rear left hotplate/cooking zone control
knob
5. Front left hotplate/cooking zone control
knob
54
6. Thermostat control knob
7. Thermostat control light
8. Cooking function control knob
9. Operating control light
10. Grill
11. Oven lamp
12. Rating plate
Electric oven
Oven Function (Fig. 1) and
Thermostat (Fig. 2) control
knobs
They enable to select the most appropriate
type of heating for the different cooking
requirements by appropriately connecting
the heating elements and adjusting
temperature to the required level.
Oven Light - The oven light will be on
without any cooking function
Conventional cooking - The heat
comes from both the top and bottom
element, ensuring even heating inside
the oven.
Top heating element - The heat comes
from the top of the oven only.
Bottom heating element - The heat
comes from the bottom of the oven
only.
Inner grill element only - can be used
for grilling small quantities.
Double Grill - The full grill element will
be on.
Thermal Grilling - This function offers
an alternative method of cooking food
items, normally associated with
conventional grilling. The grill element
and the oven fan operate together,
circulating hot air around the food.
When using this function, select a
maximum temperature of 200°C.
Fan cooking - This allows you to roast
or roast and bake simoultaneously
using any shelf, without flavour
transference.
Defrost Setting - This setting is
intended to assist in thawing of frozen
food.
Fig. 1
Fig. 2
55
Hotplate control knobs
The Control Knobs for the hotplates (Fig. 3)
can be found on the oven control panel. The
energy regulator of the hotplates can be set
by means of a 7-position control knob:
0 =Off
1 = Minimum
3 = Maximum
The intermediate positions give an increasing
heating power.
Carefully supervise cookings with
oil or fats, since these types of
food can result in a fire, when
over-heated.
Oven thermostat control
light
This light goes off when the oven heats up
to the temperature set and comes on again
every time the thermostat cuts in to stabilize
temperature.
Operating control light
It indicates that one or more of the heating
elements are turned on.
Fig. 3
Safety thermostat
In order to avoid excessive overheating due
to incorrect use of the appliance or else to a
faulty component, the oven is equipped with
a safety thermostat which cuts off the power
supply if necessary. Operation is restored
automatically when the oven temperature
decreases to normal values. Therefore, if the
thermostat cuts in because you have not
been using the appliance correctly, the oven
can be used again simply by waiting for the
appliance to cool down. If, instead, the
thermostat cuts in because of a faulty
component, you should call the Service
Department.
56
Hints and tips for using the oven
Always cook with the oven door
closed.
The oven is supplied with an exclusive
system which produces a natural
circulation of air and the constant
recycling of steam. This system makes
it possible to cook in a steamy
environment and keep the dishes soft
inside and crusty outside. Moreover, the
cooking time and energy consumption
are reduced to a minimum. During
cooking steam may be produced which
can be released when opening the oven
door. This is absolutely normal.
However, always stand back from the
oven when opening the oven door
during cooking or at the end of it to
allow any build up of steam or heat
to release.
Conventional cooking
Heat comes from the top and from the
bottom, therefore it is preferable to use the
central runners. If cooking requires more
heat from the top or from the bottom use
the top or the bottom runners.
Fan cooking
The food is cooked by means of preheated
air force blown evenly round the inside of
the oven by a fan set on the rear wall of the
oven itself. Heat thus reaches all parts of
the oven evenly and fast and this means that
you can simultaneously cook different types
of foods positioned on the various oven
shelves (Fig. 4). Fan cooking ensures rapid
elimination of moisture and the dryer oven
environment stops the different aromas and
flavours from being transmitted from one food
to another. The possibility of cooking on
several shelf heights means that you can
cook several different dishes at the same
time and up to three tins of biscuits and mini
pizzas to be eaten immediately or
subsequently deep frozen.
Naturally the oven can also be used for
cooking on just one shelf. In this case you
should use the lowest set of runners so that
you can keep an eye on progress more
easily. In addition, the oven is particularly
recommended for sterilizing preserves,
cooking home-made fruit in syrup, and for
drying mushrooms or fruit.
Grilling
When grilling meat or fish, spread a little oil
on them and always place them on the oven
grid. The shelf level depends on the
thinckness of the food. Always place the
dripping pan at the lowest level, with some
water in it, to avoid smoke and unpleasant
smells.
Thermal grilling
When using this function, select a
maximum temperature of 200°C.
The full grill element and the oven fan operate
alternately, circulating hot air around the
food. The need to check and turn food is
reduced. With the exception of toast and
rare steaks, you can thermal grill all the
foods you would normally cook under a
conventional grill.
Fan cooking
Fig. 4
FO 0351
57
Some hints
For baking cakes
Cakes require a moderate temperature
(normally between 150 and 200°C). In
addition, the oven must be heated up
beforehand - for about 10 minutes.
The oven door should not be opened before
at least 3/4 of the set cooking time is up.
Normal short pastry dough should be cooked
in a mould or tin for 2/3 of total cooking time
required and then garnished as desired
before being cooked completely.
Clearly, the remaining cooking time depends
on the type of garnish used (jam, fruit, etc.).
Care should be taken to ensure that any
dough and cake mixes are of the right
consistency since an unduly moist mix
lengthens cooking time unnecessarily. The
raw dough or mix should therefore be fairly
difficult to detach from the spoon or beater.
If three shelves are filled with cakes and tarts
simultaneously, it is advisable to slot in an
extra shelf between the two lower shelves
(Fig. 4).
For cooking meat and fish
Meat cooked in the oven should weigh at
least 1 kg to prevent it from becoming too
dry during cooking. Very tender red meat to
be cooked rare, i.e. well cooked on the
outside but extremely juicy inside, requires
high-temperature cooking (200-220°C).
White meat, poultry and fish instead require
low-temperature cooking (150-175°C).
The ingredients for the accompanying sauce
or gravy should be put in the baking pan at
the very beginning only when cooking times
are short.
Otherwise they should be added during the
last half hour. A simple way of checking
whether meat is done or not is to press it
with a spoon; if the meat does not yield
under this pressure it means that it is done
to a turn. In the case of roast beef and fillet
58
steaks, the inside of which should remain
fairly pink in color, cooking times must be
short.
The meat can be cooked in a baking pan or
else directly on the shelf - in this case a
dripping pan must obviously be placed
underneath the shelf to collect the juice.
Should you cook very fat food, place the
meat directly on the grill and the grill over
the dripping pan in order not to dirty the oven.
Once the meat is cooked, it is advisable to
let it rest for at least 15 minutes before
carving so that the juice does not seep out.
To prevent the formation of too much smoke
in the oven during roasting, it is a good idea
to pour a little water into the dripping pan
and—to prevent steam—to add a little bit
more during cooking if the original amount
dries up too much.
Before serving, the various courses can be
kept hot in the oven which should be turned
down to the minimum temperature.
Warning! - Do not attempt to place
objects on the bottom of the oven and
do not cover it with aluminium foil
while cooking, as you can damage
the enamelled surfaces and the food
you are cooking.
Always place pans, heat-resisting
pans and aluminium foils on the oven
shelves.
Cooking times
Cooking times vary according to the type of
food to be cooked, its consistency, and
volume.We suggest that you take particular
note of your first cooking experiments with
the oven, since operating in the same
conditions for the same dishes you will of
course obtain similar results.
Only experience will enable you to make
the appropriate changes to values given
on charts.
Cooking Tables
Traditional cooking and fan ducted cooking
Traditional
Cooking
TYPE OF DISH
Weight (gr.)
CAKES
Whipped up kneading
Shortbread dough
Butter-milk cheese cake
Apple cake 1 180 2 (1 and 3)* 170 40 ~ 60 In cake mould
Strudel 2 175 2 150 60 ~ 80
Jam-tart 2 175 2 (1 and 3)* 160 30 ~ 40
Fruit cake 1 175 1 160 45 ~ 60 In bread pan
Sponge cake 1 175 2 (1 and 3)* 160 30 ~ 40 In cake mould
Christmas cake 1 170 1 160 40 ~ 60 In cake mould
Plum cake 1 170 1 160 50 ~ 60 In bread pan
Small cakes 2 175 2 (1 and 3)* 160 25 ~ 35 In baking tray
Biscuits 2 160 2 (1 and 3)* 150 20 ~ 30 In baking tray
Meringues 2 100 2 (1 and 3)* 100 90 ~ 120 In baking tray
Buns 2 190 2 (1 and 3)* 180 12 ~ 20 In baking tray
Pastry: Choux 2 200 2 (1 and 3)* 190 15 ~ 25 In baking tray
BREAD AND PIZZA
1000 White bread 1 190 2 180 40 ~ 60 1-2 pieces
500 Rye bread 1 190 1 180 30 ~ 45 In bread pan
500 Bread rolls 2 200 2 (1 and 3)* 175 20 ~ 35 6-8 rolls
250 Pizza 1 210 2 (1 and 3)* 190 15 ~ 30 in baking pan
FLANS
Pasta flan 2 200 2 (1 and 3)* 175 40 ~ 50 in mould
Vegetable flan 2 200 2 (1 and 3)* 175 45 ~ 60 in mould
Quiches 1 200 2 (1 and 3)* 180 35 ~ 45 in mould
Lasagne 2 180 2 160 45 ~ 60 in mould
Cannelloni 2 200 2 175 40 ~ 55 in mould
MEAT
1000 Beef 2 190 2 175 50 ~ 70 On grid
1200 Pork 2 180 2 175 100 ~ 130 On grid
1000 Veal 2 190 2 175 90 ~ 120 On grid
1500
English roast beef
1500 underdone 2 210 2 200 50 ~ 60 On grid
1500 done 2 210 2 200 60 ~ 70 On grid
1500 well done 2 210 2 200 70 ~ 80 On grid
2000 Shoulder of pork 2 180 2 170 120 ~ 150 With rind
1200 Shin of pork 2 180 2 160 100 ~ 120 2 pieces
1200 Lamb 2 190 2 175 110 ~ 130 Leg
1000 Chicken 2 190 2 175 60 ~ 80 Whole
4000 Turkey 2 180 2 160 210 ~ 240 Whole
1500 Duck 2 175 2 160 120 ~ 150 Whole
3000 Goose 2 175 2 160 150 ~ 200 Whole
1200 Rabbit 2 190 2 175 60 ~ 80 Cut in pieces
1500 Hare 2 190 2 175 150 ~ 200 Cut in pieces
800 Pheasant 2 190 2 175 90 ~ 120 Whole
Meat loaf 2 180 2 160 40 ~ 60 in bread pan
FISH
1200 Trout/Sea bream 2 190 2 (1 and 3)* 175 30 ~ 40 3-4 fishes
1500 Tuna fish/Salmon 2 190 2 (1 and 3)* 175 25 ~ 35 4-6 fillets
(*) If you need to cook more than one dish at the same time, we recommend you to place them on the levels
quoted between brackets.
Level
temp.
4
3
°C
2
1
2 170 2 (1 and 3)* 160 45 ~ 60 In cake mould
2 170 2 (1 and 3)* 160 20 ~ 30 In cake mould
1 160 2 150 60 ~ 80 In cake mould
Fan Oven
Level
4
temp.
3
2
°C
1
Cooking
time
NOTES
minutes
59
Grilling (**) -
Quantity
TYPE OF DISH
Pieces Weight
Fillet steaks
Beef-steaks 4 600 3 max 10 ~ 12 6 ~ 8
Sausages 8 — 3 max 12 ~ 15 10 ~ 12
Pork chops 4 600 3 max 12 ~ 16 12 ~ 14
Chicken (cut in two) 2 1000 3 max 30 ~ 35 25 ~ 30
Kebabs 4 — 3 max 10 ~ 15 10 ~ 12
Chicken (breast) 4 400 3 max 12 ~ 15 12 ~ 14
Hamburger 6 600 3 max 10 ~ 15 8 ~ 10
Fish (fillets) 4 400 3 max 12 ~ 14 10 ~ 12
Sandwiches 4-6 — 3 max 5 ~ 7 —
Toast 4-6 — 3 max 2~4 2 ~ 3
4 800 3 max 12 ~ 15 12 ~ 14
Level
Grilling
4
3
2
1
temp.
Cooking time
°C
(minutes)
Upper
side
Lower
side
Thermal grilling (**)
TYPE OF DISH Quantity Shelf Temp. Time in minutes
(gr.) level °C lower upper
side side
Rolled joints
Chicken (cut in two) 1000 3 200 25 ~ 30 20 ~ 30
Chicken legs — 3 200 15 ~ 20 15 ~ 18
Quail
Vegetable gratin — 3 200 20 ~ 25 —
St. Jacques shells — 3 200 15 ~ 20 —
Mackerel — 3 200 15 ~ 20 10 ~ 15
Fish slices 800 3 200 12 ~ 15 8 ~ 10
The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatures
to suit individual preferences and requirements. Cooking times in the tables do not include pre-heating.
We recommend, especially when cooking cakes, pizza and bread, to pre-heat the oven for about 10 minutes
before cooking.
(**)Cooking times in the table do not include pre-heating. We recommend to pre-heat the oven for about 5 minutes
before cooking.
(turkey) 1000 3 200 30 ~ 40 20 ~ 30
500 3 200 25 ~ 30 20 ~ 25
When using the thermal grill function, select a maximum temperature of 200°C.
Grease Filter
When cooking meat, the grease filter must be
fitted over the oven fan by clipping it over the vents
in the back panel (Fig. 5). This will prevent a builtup of fat on the fan impellor. Do not use abrasive
materials to clean the seal. The grease filter is
dishwasher proof.When cooking is completed and
the oven has cooled down, remove the filter by
pushing the protruding tongue on the filter upward.
Wash the filter after use using warm soapy water.
Fit the grease filter only when roasting.
60
Fig. 5
Cleaning and Maintenance
Before any cleaning switch the
oven off and let it cool down.
Never use steam or steam
machines to clean the appliance.
Important! Before carrying out
maintenance and cleaning operations,
make sure that your oven is
disconnected from the mains power
supply.
Cleaning must be carried out after the oven
has cooled down. Wash the enamelled parts
with lukewarm water and detergent. Do not
use abrasive products, such as steel wool
pads, acids etc. since these could damage
the various surfaces. Rinse stainless steel
parts with water after use, and dry them with
a soft cloth or chamois leather.
In the case of persistent stains, you can
use normal non-abrasive detergents or
products specific for stainless steel readily
available on the market. Another alternative
is a drop of hot vinegar. When cleaning the
oven door with the glass top cover use just
hot water, taking care to avoid using coarse
cloths or abrasive products.
The hot acids of fruit (e.g. Iemons, stewed
prunes, etc.) leave difficult-to-remove stains
on the enamelled surfaces; this inconvenient
may remove enamel gloss, but, it does not
impair oven operation.
Clean the oven thoroughly after use; in this
way it will be possible to remove cooking
residuals more easily, thus avoiding these
from burning the next time the oven is used.
Models in stainless steel or aluminium:
We recommend to clean the oven door using
only a wet sponge and dry it up after cleaning
with a soft cloth. Never use steel wool, acids
or abrasive products as they can damage the
oven surface.
Clean the oven control panel following the
same precautions.
61

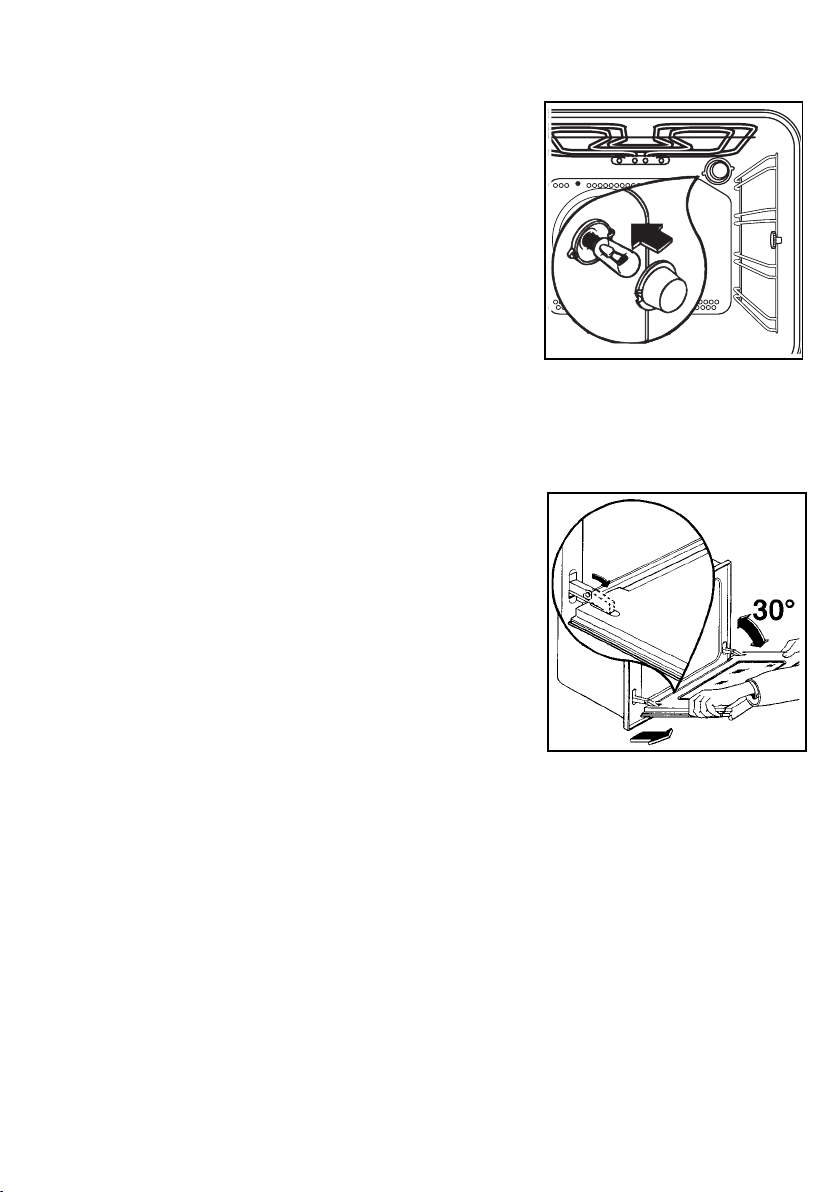

Replacing the oven light
Disconnect the appliance from its power
supply point. Push in and unscrew the glass
cap (Fig. 6). Unscrew the light bulb and
replace it with a new heat-proof bulb (300°C)
having the following features: - Operative
tension: 230 V (50 Hz); - Power: 25 W; Fitting: E 14. Reconnect the appliance.
Oven door cleaning
For a better cleansing of the oven door, you
are suggested to remove it from the appliance
with the following procedure:
- open tho door completely; lift the small
levers placed on the two hinges and turn
the levers towarde the inside (Fig. 7).
- Slowly close the oven door, until it
touches the two levers,
- then push it towards the oven and
remove it by pulling it towards the
outside.
- Place the door on a horizontal level.
After cleaning, assemble the door again
by carrying out the procedure described
above backwards. When the two small
levers are placed again on the hinges, the
door will have been accurately fit.
Fig. 6
Fig. 7
FO 0452
62
Technical Data
Dimension of the oven
recess
Height 600 mm
Width 560 mm
Depth 550 mm
Dimensions of the oven
cavity
Height 335 mm
Width 405 mm
Depth 400 mm
Capacity 53 l
Oven thermostat regulation: from 50°C up
to 230 °C
Heating elements ratings
Bottom heating element 1000 W
Top heating element 800 W
This appliance can be connected to
variuos cast iron or ceramic hobs
zz
z Traditional hobs
zz
Type: EHE 642
Maximum powerabsorbed 5,5 kW
Power supply voltage (50Hz) 230 V
zz
z Ceramic hobs
zz
Type: EHC 641
Maximum powerabsorbed 5,8 kW
Power supply voltage (50 Hz) 230 V
Type: EHC 650
Maximum powerabsorbed 6,2 kW
Power supply voltage (50 Hz) 230 V
Type: EHC 660
Maximum powerabsorbed 7,2 kW
Power supply voltage (50 Hz) 230 V
Nominal heating power
zz
z Oven with traditional hob 8,0 kW
zz
zz
z Oven with ceramic hob
zz
8,3 - 8,7 - 9,7 kW
Full Oven (Top+Bottom) 1800 W
Grill heating elements simple 1650 W
double 2450 W
Fan Oven heating element 2000 W
Oven lamp 25 W
Convection fan 30 W
Maximum power rating 2500 W
Voltage tension (50 Hz) 230 V - 400 V
This appliance complies with the
following E.E.C. Directives:
- 73/23 - 90/683 (Low Voltage Directive);
- 89/336 (Electromagnetical Compatibility
Directive);
- 93/68 (General Directives)
and subsequent modifications.
63
Instructions for the installer
The instructions given below are
designed specifically for a qualified
installer and should aid him or her to
perform all installation, adjustment,
and maintenance operations with
absolute precision and in compliance
with all current legislation and
regulations. We strongly recommend
that all operations for the installation
of your cooker be carryed out by
Qualified Personnel in accordance
with existing rules and regulations.
Electrical connection
Prior to making the electrical connection,
make sure that:
— the protection fuse and the domestic wiring
system are suitable to carry the total
electric load of the oven (see rating plate);
— your domestic wiring system has an
efficient earth connection in compliance
with rules and laws in force;
— the wall socket or the omnipole switch used
for the electrical connection can easily be
reached after the oven is built in.
This appliance is delivered without an
electric supply cable, therefore, you will
have to fit to it a supply cable with standard
plug, suitable for the total electric load
shown on the rating plate. The plug is to
be inserted into a suitable wall socket. If
you require a direct connection to the
electric network (mains), it will be
necessary to fit between the appliance and
the mains an omnipole switch, with a
minimum gap between contacts of 3 mm,
suitable for the required load and in
compliance with rules in force. The green &
yellow ground wire must not be interrupted
by the switch and it should be 2-3 cm longer
than the phase and neutral wires. The supply
cable must in all cases be laid out in such a
way as to ensure that it does not reach at
any given point a temperature 50°C higher
than the ambient temperature.
Suitable power supply cables are the
following types, considering the respective
necessary section of cable: H07 RN-F, H05
RN-F, H05 RR-F, H05 VV-F, H05 V2V2-F
(T90), H05 BB-F.
Connecting the terminal board
The appliance incorporates an easily
accessible 6-pole terminal board whose
jumpers (bridges) are already pre-set for
operation on 400V tri-phase with neutral
wire (Fig. 8). In case a different mains voltage
is present, the jumpers on the terminal board
must be rearranged as shown in the diagram
(Fig. 9). The ground cable must be
connected to terminal . After connecting
the supply cable to the terminal board,
secure it with a junction clamp.
Fig. 8
Fig. 9
FO 0330
230V 3~
230V 1~
400V 2N~
400V 3N~
FO 0584
1 2 3 4 5
L1 L2 L3 PE
1 2 3 4 5
L1 N PE
1 2 3 4 5
L1 L2 N PE
1 2 3 4 5
L1 L2 L3 N PE
64
Electrical connection with
the hob
This oven can be connected to hobs
indicated in the paragraph "Technical data".
The socket for connecting the hob is located
at the top of the oven cabinet. The hobs
come complete with connecting leads for
the hot plates/heat areas and ground cable;
these leads feature plug-in connectors.
Connection of the hob to the oven is carried
out by plugging-in these connectors to the
corresponding oven socket.
The plug-to-socket connection design is
such as to prevent possible wrong
plugging-ins.
The Manufacturer disclaims any liability
in case these accident-preventing rules
are not observed.
Fig. 10
FO 0205
540
550 MIN
5
6
0
0
6
0
-
5
7
0
80÷100
Building-in
To ensure correct operation of the built-in
assembly, the kitchen cabinet and the
recess for the built-in appliance must have
suitable dimensions. When the appliance
is fitted-in, there must be no open spaces
left and it must be closed on all sides by
the kitchen furniture to prevent the possibility
of inadvertently touching “live” (current
carrying) parts of the oven. All parts ensuring
such a protection, including any covering
panel (for instance, if the appliance is
installed at the end or at the beginning of a
kitchen counter) must be fastened in such
a way as to prevent removal of the same
without the aid of some tool. This appliance
can be placed with its back and with one
side close to appliances or walls of higher
height. The other side, instead, must be
placed close to furniture or appliances,
having the same height.
FO 2662
Fig. 11
Fig. 12

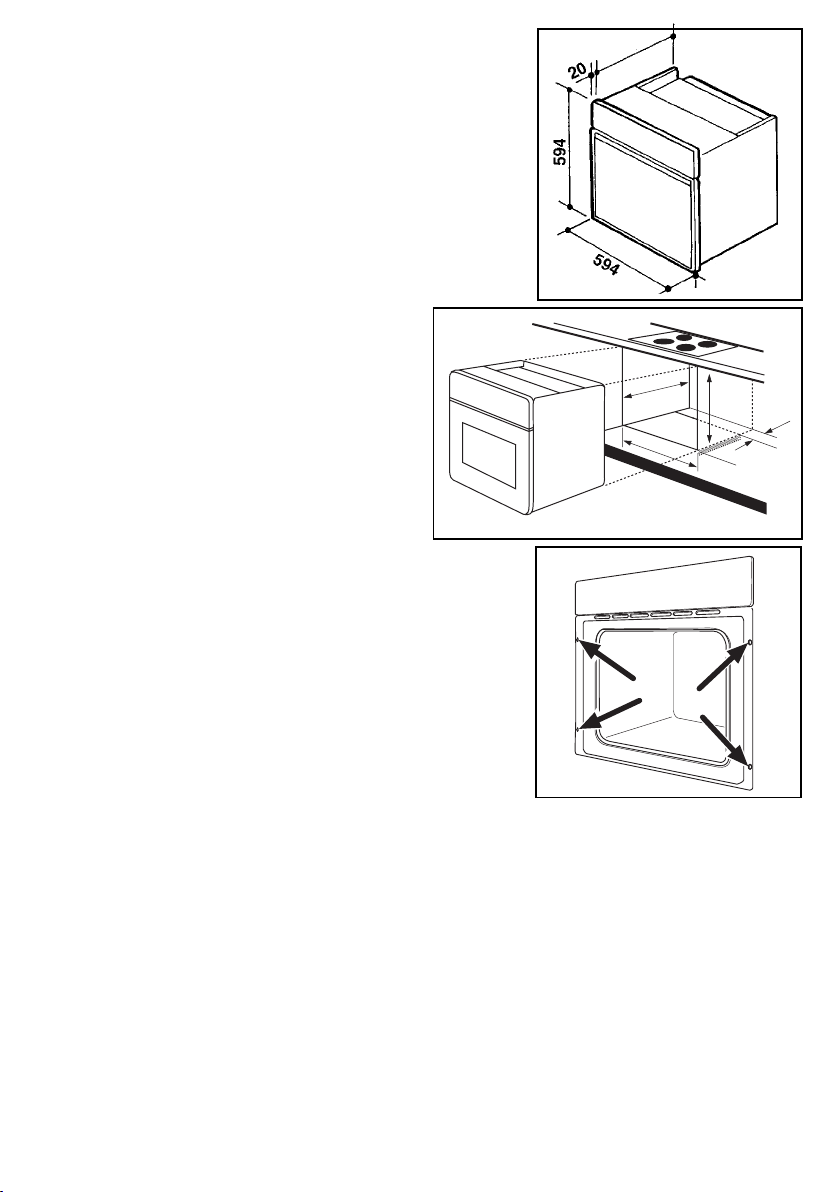

Oven dimensions (Fig. 10)
Building-in under a kitchen
counter
The recess must have the dimensions shown
in Fig. 11. Before carrying out the buildingin of the oven, connect it to the hob (see
corresponding chapter); then recess
completely the oven under the counter; open
the oven door and secure the oven to the
kitchen cabinet with four wood screws which
are to fit exactly into the holes provided for
the purpose on the oven frame (Fig.12).
65
GUARANTEE - SPARE PARTS (only for BENELUX)
When calling for repairs during the period of guarantee ofthe appliance, the original
invoice or receipt must be shown or sent together with the appliance to be
repaired.
DECLARATION OF GUARANTEE TERMS
Our appliances are produced with the greatest of care. However, a defect may stili
occur. Our consumer services department will repair this upon request, either during
or after the guarantee period. The service life of the appliance will not, however, be
reduced as a result.
This declaration of guarantee terms is based on European Union Directive 99/44/
EC and the provisions of the Civil Code. The statutory rights that the consumer has
under this legislation are not affected by this declaration of guarantee terms.
This declaration does not affect the vendor’s statutory warranty to the end user. The
appliance is guaranteed within the context of and in adherence with the following
terms:
1. In accordance with provisions laid down in paragraphs 2 to 15, we will remedy
free of charge any defect that occurs within 24 months from the date the appliance
is delivered to the first end user. These guarantee terms do not apply in the
event of use for professional or equivalent purposes.
2. Performing the guarantee means that the appliance is returned to the condition it
was in before the defect occurred. Defective parts are replaced or repaired. Parts
replaced free of charge become our property.
3. So as to avoid more severe damage, the defect must be brought to our attention
immediately.
4. Applying the guarantee is subject to the consumer providing proof of purchase
showing the purchase and/or delivery date.
5. The guarantee will not apply if damage caused to delicate parts, such as glass
(vitreous ceramic), synthetic materials and rubber, is the result of inappropriate
use.
6. The guarantee cannot be called on for minor faults that do not affect the value or
the overall reliability of the appliance.
7. The statutory warranty does not apply when defects are caused by:
• a chemical or electrochemical reaction caused by water,
• abnormal environmental conditions in generai,
• unsuitable operating conditions,
• contact with harsh substances.
8. The guarantee does not apply todefects due to transport which have occurred
outside of our responsibility. Nor will the guarantee cover those caused by
inadequate installation or assembly, lack of maintenance or failure to respect the
assembly instructions or directions for use.
66
9. Defects that result from repairs or measures carried out by people who are not
qualified or expert or defects that result from the addition of non-original
accessories or spare parts are not covered by the guarantee.
10.Appliances that are easy to transport may be delivered or sent to the consumer
services department. Home repairs are only anticipated for bulky appliances or
built-in appliances.
11.If the appliances are built-in, built-under, fixed or suspended in such a way that
removing and replacing them in the piace where they are fitted takes more than
half an hour, the costs that result therefrom will be charged for. Connected
damage caused by these removal and replacement operations will be the
responsibility of the user.
12.If, during the guarantee period, repairing the same defect repeatedly is not
conclusive, or if the repair costs are considered disproportionate, in agreement
with the consumer, the defective appliance may be replaced with another
appliance of the same value. In this event, we reserve the right to ask for a
financial contribution calculated according to the length of time it has been used.
13.A repair under guarantee does not mean that the normal guarantee period will
be extended nor that a new guarantee period begins.
14.We give a twelve month guarantee for repairs, limited to the same defect.
15.Except in the event where liability is legally imposed, this declaration of guarantee
terms excludes any compensation for damage outside the appliance for which
the consumer wishes to assert his rights. In the event of legally admitted liability,
compensation will not exceed the purchase price paid for the appliance.
These guarantee terms are only valid for appliances purchased and used in Belgium.
For exported appliances, the user must first make sure that they satisfy the technical
conditions (e.g. : voltage, frequency, installation instructions, type of gas, etc.) for
the country concerned and that they can withstand the local climatic and
environmental conditions. For appliances purchased abroad, the user must first
ensure that they meet the qualifications required in Belgium. Non-essential or
requested adjustments are not covered by the guarantee and are not possible in alI
cases.
Our consumer services department is always at your disposal, even after the
guarantee period has expired. Address for our consumer services department:
ELECTROLUX HOME PRODUCTS BELGIUM
Bergensesteenweg, 719 -1502 LEMBEEK
Tel. 02.3630444
67
Loading...
