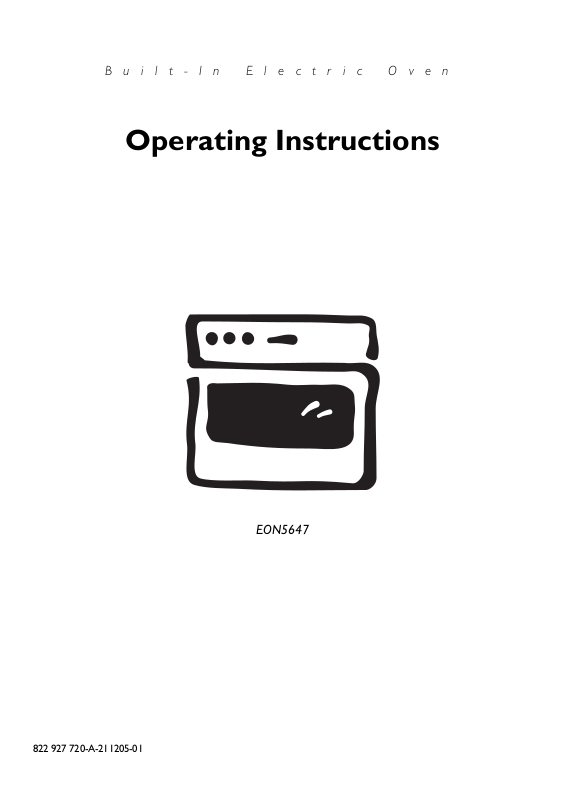

AEG-Electrolux EON5647W, EON5647K, EON5647X User Manual
Built-In Electric Oven
Operating Instructions
822 927 720-A-211205-01
EON5647
Dear Customer,
Please read these user instructions carefully and keep them to refer to later.
Please pass the user instructions on to any future owner of the appliance.
The following symbols are used in the text:
1 Safety instructions
Warning! Information that affects your personal safety.
Important! Information that prevents damage to the appliance.
3 Useful tips and hints
2 Environmental information
2
Contents
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Description of the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
General Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Oven Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Before Using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Setting and changing the time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Initial Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Using the Rings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Cooking with the Rings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Switching on the dual fry/cook area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Using the Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Switching the Oven On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Oven Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Inserting the Oven Shelf, Baking Tray and Roasting Pan . . . . . . . . . . . . . . . 18
Inserting/Removing the Grease Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Clock Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Mechanical Door Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Uses, Tables and Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Cooking table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Baking table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Table for Bakes and Gratins. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Frozen Ready Meals Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Roasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Roasting table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Meat probe Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Grill Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Grilling table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Turbo grilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Making Preserves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
3
Cleaning and Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Outside of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Oven interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Fat Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Shelf Support Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Oven Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Oven Ceiling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Oven door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Oven door glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
4
Operating Instructions
1 Safety instructions
5 This appliance conforms with the following EU Directives:
– 73/23/EEC dated 19.02.1973 Low Voltage Directive
– 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Di-
rective 92/31/EEC
– 93/68/EEC dated 22.07.1993 CE Marking Directive
Electrical safety
• This appliance must be only connected by a registered electrician.
• In the event of a fault or damage to the appliance: Take the fuses out or
switch off.
• Repairs to the appliance must only be carried out by qualified service
engineers. Considerable danger may result from improper repairs. If re-
pairs become necessary, please contact our Customer Services or your
dealer.
Child Safety
• Never leave children unsupervised when the appliance is in use.
Safety whilst Using
• This appliance is intended to be used for cooking, roasting and baking
food in the home.
• Take care when connecting electric appliances to sockets nearby. Do not
allow connecting leads to come into contact with or to catch beneath the
hot oven door.
• Warning: Risk of burns! The interior of the oven becomes hot during use.
• Using ingredients containing alcohol in the oven may create an alcohol-air
mixture that is easily ignited. In this case, open the door carefully. Do not
have embers, sparks or naked flames in the vicinity when opening the
door.
3 Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, especially in products containing starch, can constitute a health risk due to
acrylamides. Therefore we recommend cooking at the lowest possible temperatures and not browning foods too much.
5
How to avoid damage to the appliance
• Do not line the oven with aluminium foil and do not place baking trays,
pots, etc. on the oven floor, as the heat that builds up will damage the
oven enamel.
• Fruit juices dripping from the baking tray will leave stains, which you will
not be able to remove. For very moist cakes, use a deep tray.
• Do not put any strain on the oven door when open.
• Never pour water directly into the oven when it is hot. This could cause
damage to or discoloration of the enamel.
• Rough handling, especially around the edges of the front panel, can cause
the glass to break.
• Do not store any flammable materials inside the oven. These could ignite
when the oven is switched on.
• Do not store any moist foods inside the oven. This could damage the oven
enamel.
3 Note on enamel coating
Changes in the colour of the oven’s enamel coating as a result of use do not
affect the appliance’s suitability for normal and correct use. They therefore
do not constitute a defect in the sense of the warranty law.
6
Disposal
2 Packaging material
The packaging materials are environmentally friendly and can be recycled.
The plastic components are identified by markings, e.g. >PE<, >PS<, etc.
Please dispose of the packaging materials in the appropriate container at
the community waste disposal facilities.
2 Old appliance
The symbol
uct may not be treated as household waste. Instead it shall be handed over
to the applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service
or the shop where you purchased the product.
W on the product or on its packaging indicates that this prod-
1 Warning: So that the old appliance can no longer cause any danger, make it
unusable before disposing of it.
To do this, disconnect the appliance from the mains supply and remove
the mains cable from the appliance.
7
Description of the Appliance
General Overview
Control panel
Door
handle
Full glass door
8
Control Panel
Oven Functions
Temperature selector
Temperature / Time Display
Temperature Pilot Light
Oven Features
Shelf positions
Oven Power Indicator
Selection buttons
Hob Cooking Zone Control
Top heat and heating elements
Oven lighting
Meat probe socket
Fat Filter
Oven lighting
Fan heating element
Fan
Bottom Heat
Oven shelf runners,
removable
9
Oven shelf
For cookware, cake tins, roasts and
grilled foods.
Baking tray
For cakes and biscuits.
Roasting Pan
For baking and roasting or as a pan for
collecting fat.
Meat probe
For determining exactly how far joints of
meat are cooked.
10
Before Using for the first time
Setting and changing the time
3 The oven only operates when the clock has been set.
The clock display flashes when the appliance is first connected, or after a power
failure.
1. To change a time that has already been
set, press the Manual Operation buttons briefly.
2. Using the or button, set the cur-
rent time.
After approx. 5 seconds, the flashing
stops and the clock displays the time set.
The appliance is now ready to use.
3 The time can only be changed if no auto-
matic function (Cook time or End
time ) has been set.
11
Initial Cleaning
Before using the oven for the first time you should clean it thoroughly.
1 Caution: Do not use any caustic or abrasive cleaners. The surface could be
damaged.
3 To clean metal fronts use commercially available cleaning agents.
1. Set the oven functions dial to Light .
2. Remove all accessories and the shelf support rails and wash them with
warm water and washing up liquid.
3. Then wash out the oven with warm water and washing-up liquid, and dry.
4. Wipe the front of the appliance with a damp cloth.
12
Using the Rings
3 Also refer to the operating instructions for your built-in hob. It contains im-
portant information on ovenware, operation, cleaning and care.
3 The cooker has pop-up ring switches.
Press the ring switch to use it. The switch will then pop up.
Heat settings
• Heat settings can be set from 1-9.
• Intermediate positions are possible for settings 2-7.
1 = lowest output
9 = highest output
= double ring switching
2 Switch the cooking zone off approx. 5-10 minutes before cooking is finished
to make use of the residual heat. This saves electricity.
front left rear left rear right front right
Hob Cooking Zone Control Knobs
13
Cooking with the Rings
1. For heating up/browning, select a high
heat setting.
2. As soon as steam starts to form or the
oil is hot, turn back to the heat setting
necessary for further cooking.
3. To stop cooking, turn back to the zero
position.
3 The power indicator light is lit as long as a ring is on.
14
Switching on the dual fry/cook area
1 The control for the dual fry/cook area is switched on by turning to the right,
and cannot be turned past the stop!
1. Turn the dual fry/cook control to the
right. Continue turning to Position 9, and
onto the symbol (you will feel a slight
resistance). The stop position will then
be clearly detectable.
2. Finally, turn back to the desired setting.
3. After cooking, turn back to the OFF po-
sition.
3 To use the dual fry/cook area again afterwards, the larger ring must be
switched back on.
15
Using the Oven
Switching the Oven On and Off
Oven Functions
1. Turn the oven functions dial to the desired function.
2. Turn the temperature selector to the desired temperature.
The power indicator is lit as long as the oven is in operation.
The temperature pilot light is lit as long as the oven is heating up.
3. To turn the oven off, turn the oven functions dial and the temperature selector to the OFF position.
Temperature selector
Temperature Pilot Light
3 Cooling fan
The fan switches on automatically in order to keep the appliance’s surfaces
cool. When the oven is switched off, the fan continues to run to cool the appliance down, then switches itself off automatically.
16
Oven Functions
The oven has the following functions:
Oven function Application Heating element/fan
Light
Using this function you can
Hot air
For roasting and
Pizza setting
Thermal grill
Infrared grill
Infrared wide-area
grill
Top heat
Bottom heat
Conventional
For
the oven interior, e.g. for cleaning.
three levels
Set the oven temperatures
20-40 °C lower than when using upper/lower heat.
For baking on one oven level dishes
that require
ing and a crispy base
Set the oven temperatures 20-40 °C
lower than when using Conventional.
For
roasting
poultry on one level. This function is
also suitable for
browning dishes on top.
For
grilling
the
middle of the grill
toasting
grilling
For
quantities
browning
pastries and for bakes.
For
baking
crusty bases
For
baking
oven level
baking
at the same time.
more intensive brown-
larger joints of meat or
gratinées
flat foodstuffs placed in
.
flat foodstuffs in
and for
.
toasting
bread, cakes and
cakes with
.
and
roasting
light up
on
up to
.
and
and for
large
.
crispy or
on
one
---
Rear heating element, fan
Bottom heat, rear wall
heating element, fan
Grill, fan
Grill
Grill, top heat
Top h e a t
Bottom heat
Top heat, bottomheat
17
Loading...
