Built-In Electric Oven
Operating Instructions
822 927 299-A-020606-03
EON4630
g
Dear Customer,
Please read these user instructions carefully and keep them to refer to later.
Please pass the user instructions on to any future owner of the appliance.
The following symbols are used in the text:
1 Safety instructions
Warning! Information that affects your personal safety.
Important! Information that prevents damage to the appliance.
3 Useful tips and hints
2 Environmental information
2
Contents
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Description of the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
General Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Oven Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Oven accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Before Using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setting and changing the time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Initial Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Using the Rings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cooking with the Rings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Switching on the dual fry/cook area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Using the Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Switching the Oven On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Oven Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Inserting the Oven Shelf, Baking Tray and Roasting Pan . . . . . . . . . . . . . . . 16
Clock Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Switching Off the Time Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Mechanical Door Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Uses, Tables and Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cooking table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Baking table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Table for Bakes and Gratins. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Frozen Ready Meals Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Roasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Roasting table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Grill Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Grilling table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Turbo grilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Making Preserves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
3
Cleaning and Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Outside of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Oven interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Shelf Support Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Oven Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Oven Ceiling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Oven door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Oven door glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
4
Operating Instructions
1 Safety instructions
5 This appliance conforms with the following EU Directives:
– 73/23/EEC dated 19.02.1973 Low Voltage Directive
– 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Di-
rective 92/31/EEC
– 93/68/EEC dated 22.07.1993 CE Marking Directive
Electrical safety
• This appliance must be only connected by a registered electrician.
• In the event of a fault or damage to the appliance: Take the fuses out or
switch off.
• Repairs to the appliance must only be carried out by qualified service
engineers. Considerable danger may result from improper repairs. If re-
pairs become necessary, please contact our Customer Services or your
dealer.
Child Safety
• Never leave children unsupervised when the appliance is in use.
Safety whilst Using
• This appliance is intended to be used for cooking, roasting and baking
food in the home.
• Take care when connecting electric appliances to sockets nearby. Do not
allow connecting leads to come into contact with or to catch beneath the
hot oven door.
• Warning: Risk of burns! The interior of the oven becomes hot during use.
• Using ingredients containing alcohol in the oven may create an alcohol-air
mixture that is easily ignited. In this case, open the door carefully. Do not
have embers, sparks or naked flames in the vicinity when opening the
door.
3 Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, especially in products containing starch, can constitute a health risk due to
acrylamides. Therefore we recommend cooking at the lowest possible temperatures and not browning foods too much.
5
How to avoid damage to the appliance
• Do not line the oven with aluminium foil and do not place baking trays,
pots, etc. on the oven floor, as the heat that builds up will damage the
oven enamel.
• Fruit juices dripping from the baking tray will leave stains, which you will
not be able to remove. For very moist cakes, use a deep tray.
• Do not put any strain on the oven door when open.
• Never pour water directly into the oven when it is hot. This could cause
damage to or discoloration of the enamel.
• Rough handling, especially around the edges of the front panel, can cause
the glass to break.
• Do not store any flammable materials inside the oven. These could ignite
when the oven is switched on.
• Do not store any moist foods inside the oven. This could damage the oven
enamel.
3 Note on enamel coating
Changes in the colour of the oven’s enamel coating as a result of use do not
affect the appliance’s suitability for normal and correct use. They therefore
do not constitute a defect in the sense of the warranty law.
6
Disposal
2 Packaging material
The packaging materials are environmentally friendly and can be recycled.
The plastic components are identified by markings, e.g. >PE<, >PS<, etc.
Please dispose of the packaging materials in the appropriate container at
the community waste disposal facilities.
2 Old appliance
The symbol
uct may not be treated as household waste. Instead it shall be handed over
to the applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service
or the shop where you purchased the product.
W on the product or on its packaging indicates that this prod-
1 Warning: So that the old appliance can no longer cause any danger, make it
unusable before disposing of it.
To do this, disconnect the appliance from the mains supply and remove
the mains cable from the appliance.
7
Description of the Appliance
General Overview
Control panel
Door
handle
Full glass door

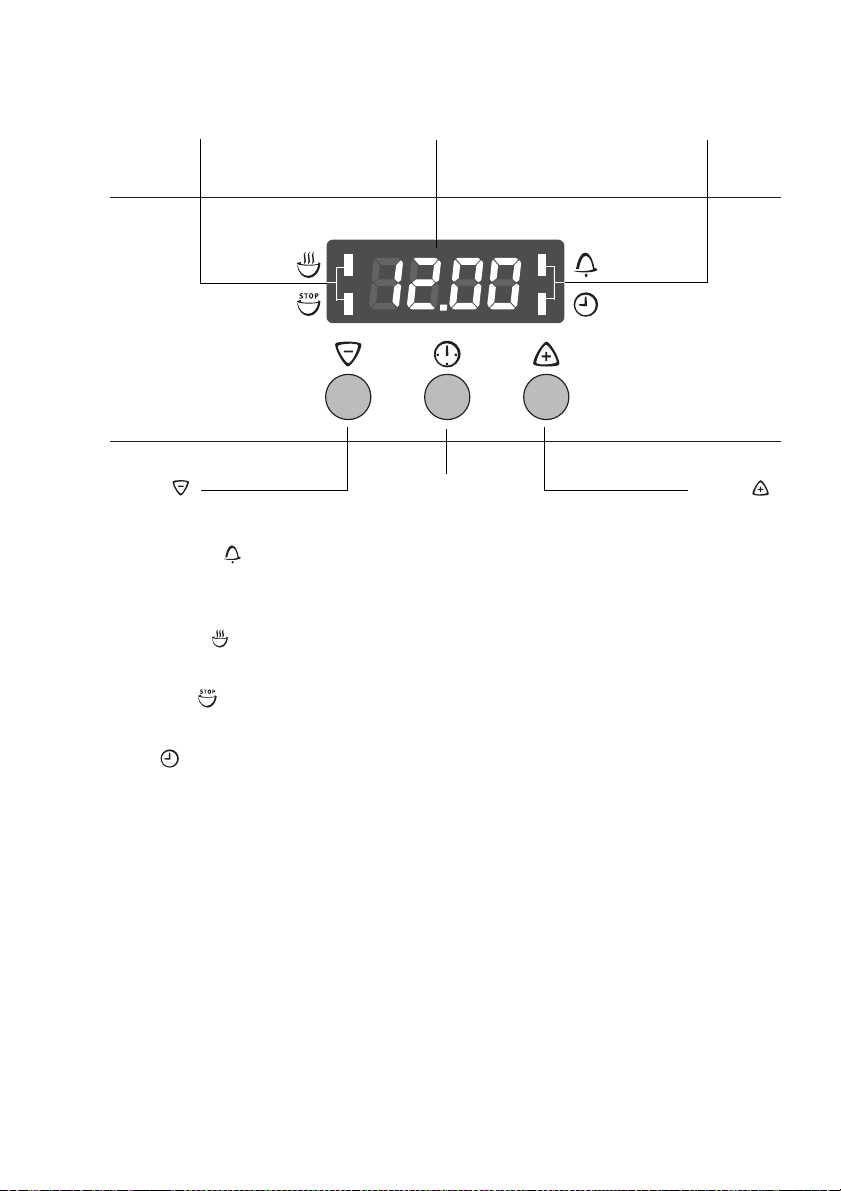

Control Panel
Oven Power Indicator Temperature Pilot Light
Oven Functions
Hob Cooking Zone Control Knobs
8
Temperature /
Time Display
Selection buttons
Temperature selector
Hob Cooking Zone Control
Oven Features
Top heat and heating elements
Shelf positions
Oven accessories
Oven shelf
For cookware, cake tins, roasts and
grilled foods.
Oven lighting
Oven lighting
Fan
Bottom Heat
Oven shelf runners,
removable
Baking tray
For cakes and biscuits.
Roasting Pan
For baking and roasting or as a pan for
collecting fat.
9
Before Using for the first time
Setting and changing the time
3 The oven only operates when the time has been set.
When the appliance has been connected
to the electrical supply or when there has
been a power cut, the function indicator
Time flashes automatically.
1. To change a time that has already been
set, press the Selection button repeatedly until the function indicator
Time flashes.
2. Using the or button, set the cur-
rent time.
After approx. 5 seconds, the flashing
stops and the clock displays the time set.
The appliance is now ready to use.
3 The time can only be changed if no auto-
matic function (Cook time or End
time ) has been set.
10
Initial Cleaning
Before using the oven for the first time you should clean it thoroughly.
1 Caution: Do not use any caustic or abrasive cleaners. The surface could be
damaged.
3 To clean metal fronts use commercially available cleaning agents.
1. Set the oven functions dial to Light .
2. Remove all accessories and the shelf support rails and wash them with
warm water and washing up liquid.
3. Then wash out the oven with warm water and washing-up liquid, and dry.
4. Wipe the front of the appliance with a damp cloth.
11
Using the Rings
3 Also refer to the operating instructions for your built-in hob. It contains im-
portant information on ovenware, operation, cleaning and care.
Heat settings
• Heat settings can be set from 1-9.
• Intermediate positions are possible for settings 2-7.
1 = lowest output
9 = highest output
= double ring switching
2 Switch the cooking zone off approx. 5-10 minutes before cooking is finished
to make use of the residual heat. This saves electricity.
front left rear left rear right front right
12
Hob Cooking Zone Control Knobs
Cooking with the Rings
1. For heating up/browning, select a high
heat setting.
2. As soon as steam starts to form or the
oil is hot, turn back to the heat setting
necessary for further cooking.
3. To stop cooking, turn back to the zero
position.
3 The power indicator light is lit as long as a ring is on.
Switching on the dual fry/cook area
1 The control for the dual fry/cook area is switched on by turning to the right,
and cannot be turned past the stop!
1. Turn the dual fry/cook control to the
right. Continue turning to Position 9, and
onto the symbol (you will feel a slight
resistance). The stop position will then
be clearly detectable.
2. Finally, turn back to the desired setting.
3. After cooking, turn back to the OFF po-
sition.
3 To use the dual fry/cook area again afterwards, the larger ring must be
switched back on.
13
Using the Oven
Switching the Oven On and Off
Oven Power Indicator
Oven Functions
1. Turn the oven functions dial to the desired function.
2. Turn the temperature selector to the desired temperature.
The power indicator is lit as long as the oven is in operation.
The temperature pilot light is lit as long as the oven is heating up.
3. To turn the oven off, turn the oven functions dial and the temperature selector to the Off position.
Temperature Pilot Light
Temperature selector
3 Cooling fan
The fan switches on automatically in order to keep the appliance’s surfaces
cool. When the oven is switched off, the fan continues to run to cool the appliance down, then switches itself off automatically.
14
Oven Functions
The oven has the following functions:
Oven function Application Heating element/fan
Light
Using this function you can
Fan-assisted
circulation
Thermal grill
Infrared grill
Infrared wide-area
grill
Top heat
Bottom heat
Conventional
For
the oven interior, e.g. for cleaning.
For
baking
els.
Set the oven temperatures 20-40 °C
lower than when using Conventional.
For
poultry on one level. This function is
also suitable for
browning dishes on top.
For
the
toasting
For
quantities
pastries and for bakes.
For
crusty bases
For
oven level
on up to
roasting
grilling
middle of the grill
grilling
browning
baking
baking
larger joints of meat or
gratinées
flat foodstuffs placed in
.
flat foodstuffs in
and for
.
toasting
bread, cakes and
cakes with
.
and
roasting
light up
two oven lev-
and
and for
large
.
crispy or
on
one
---
Top heat, bottomheat,
fan
Grill, fan
Grill
Grill, top heat
Top h e a t
Bottom heat
Top heat, bottomheat
15
Inserting the Oven Shelf, Baking Tray and Roasting
Pan
3 Shelf runner safety and anti-tip device
As a shelf runner safety device, all insertable components have a small
curved indentation at the bottom on the right and left-hand edge.
Always insert insertable components so that this indentation is at the back
of the oven interior. This indentation is also important for preventing the insertable components from tipping.
Inserting the baking tray or roasting
pan
Push the baking tray or roasting pan between the guide bars of the selected
oven level.
Inserting the oven shelf:
Insert the oven shelf so that the feet point
downwards.
Push the oven shelf between the guide
bars of the selected oven level.
3 The high rim around the oven shelf is an
additional device to prevent cookware
from slipping.
Inserting the oven shelf and roasting
pan together
Lay the oven shelf on the roasting pan.
Push the roasting pan between the
guide bars of the selected oven level.
16
Clock Functions
Time display Function IndicatorsFunction Indicators
Button
Selector Button
Countdown
To set a countdown. A signal sounds after the time has elapsed.
This function does not affect the functioning of the oven.
Cook time
To set how long the oven is to be in use.
End time
To set when the oven is to switch off again.
Time
To set, change or check the time
(See also section “Before Using for the First Time”).
Button
17
3 How to use the clock functions
• After a function has been selected, the corresponding function indicator
flashes for about 5 seconds. During this period, the desired times can be
set using the or button.
• When the desired time has been set, the function indicator continues to
flash for approx. 5 seconds. After that the function indicator is then lit. The
set time begins to run.
• Press any of the buttons to stop the audible signal.
• The desired oven function and temperature can be selected before or af-
ter the clock functions Cook time and End time are set.
• When the cooking process is completed, turn the oven function dial and
the temperature selector back to the OFF position.
2 Switching Off the Time Display
By switching off the time display you can save energy.
Switching off the time display
Press and hold down any two buttons until the display becomes dark.
Switching on the time display
Hold down any button until the time reappears in the display.
3 The display can only be switched off if none of the clock functions Cook
time , End time or Countdown is in use.
18
Countdown
1. Press the Selection button repeated-
ly until the function indicator
Countdown flashes.
2. Using the or button set the de-
sired Countdown (max. 2 hours
30 minutes).
After approx. 5 seconds the display
shows the time remaining.
The function indicator Countdown
lights up.
When the time has elapsed, the function
indicator flashes and an audible signal
sounds for 2 minutes.
The signal can be stopped by pressing
any button.
19
Cook time
1. Press the Selection button repeated-
ly until the function indicator Cook
time flashes.
2. Using the or button set the de-
sired cooking time.
After approx. 5 seconds the display returns to showing the current time. The
function indicator Cook time lights up.
When the time has elapsed, the function
indicator flashes, an audible signal
sounds for 2 minutes and the oven
switches itself off.
3. The signal and the programme can be
stopped by pressing any button.
20
End time
1. Press the Selection button repeated-
ly until the function indicator End
time flashes.
2. Using the or button set the de-
sired switch-off time.
After approx. 5 seconds the display returns to showing the current time.
The function indicator End time lights
up.
When the time has elapsed, the function
indicator flashes, an audible signal
sounds for 2 minutes and the oven
switches itself off.
3. The signal and the programme can be
stopped by pressing any button.
21
Cook time and End time combined
3 Cook time and End time can be used simultaneously, if the oven is to
be switched on and off automatically at a later time.
1. Using the Cook time function, set the
time required for cooking the dish.
In this example, 1 hour.
2. Using the End time function, set the
time at which the dish should be ready.
In this case 14:05:00.
The function indicators Cook time and
End time light up and the current time
is shown in the display.
In this case 12:05.
The oven switches on automatically at
the time calculated.
In this case, at 13:05:00.
And switches itself off again when the
cooking time entered has elapsed.
In this case, at 14:05.
22
Mechanical Door Lock
When the appliance is delivered, the door lock is deactivated.
Activate the door lock
Pull the safety catch forwards until it
locks in place.
Open the oven door:
1. Shut the door.
2. Press the safety catch and keep it de-
pressed.
3. Open the doors.
Close the oven door
Close the door without pressing the safety catch.
Deactivating the door lock
Press the safety catch back into the panel.
3 Switching off the appliance does not cancel the mechanical door lock.
23
Uses, Tables and Tips
Cooking table
The information given in the following table is for guidance only.
Heat
Cooking-
setting
1-2
2-3
3-4
4-5
6-7
7-8
process
0 Residual heat, Off position
Keeping
1
9
food
warm
Melting
Solidi-
fying
Simmer-
ing on
low heat
Steaming
Braising
Boiling
Gentle
Frying
Heavy
Frying
Boiling
Searing
Deep
frying
suitable for
Keeping cooked foods
warm
Hollandaise sauce,
melting butter, chocolate,
gelatine
Fluffy omelettes, baked
eggs
Simmering rice and milk-
based dishes
Heating up ready-cooked
meals
Steaming vegetables, fish
braising meat
Steaming potatoes 20-60 mins.
Cooking larger quantities of
food, stews and soups
Frying escalopes, veal cor-
don bleu, cutlets, rissoles,
sausages, liver, roux, eggs,
pancakes, doughnuts
Hash browns, loin steaks,
steaks, Flädle (pancakes for
garnishing soup)
Boiling large quantities of water, cooking pasta, searing meat (gou-
lash, pot roast), deep frying chips
Cooking
time
as required Cover
5-25 mins. Stir occasionally
10-40 mins. Cook with lid on
25-50 mins.
20-45 mins.
60-150 mins.
Steady frying
5-15 mins.
per pan
Tips/Hints
Add at least twice as
much liquid as rice, stir
milk dishes part way
through cooking
With vegetables add
only a little liquid (a few
tablespoons)
Use only a little liquid, e.
g.: max. ¼l water for
750 g potatoes
Up to 3 l liquid plus in-
gredients
Turn halfway through
cooking
Turn halfway through
cooking
24
3 We recommend when boiling or searing foods using the highest heat setting
at first and then letting foods requiring a longer cooking time finish cooking
on the desired heat setting.
1 Overheated fats and oils can ignite quickly. If you are cooking foods in fat or
oil (e.g. chips), remain nearby.
Baking
Oven function: Fan-assisted circulation or Conventional
Baking tins
• For Conventional , dark metal and non-stick tins are suitable.
• For Fan-assisted circulation bright metal tins are also suitable.
Oven levels
• Baking with Conventional is only possible on one level.
• With Fan-assisted circulation you can bake dry cakes and biscuits on
2 baking trays at the same time.
1 baking tray:
e.g. oven level 3
1 cake tin:
e.g. oven level 1
2 baking trays:
e. g. oven levels 1 and 3
25
General Instructions
• Insert the tray with the bevel at the front.
• With Conventional or Fan-assisted circulation you can also bake
with two tins next to one another on the oven shelf at the same time. This
does not significantly increase baking time.
3 When frozen foods are used the trays inserted may distort during cooking.
This is due to the large difference in temperature between the freezing temperature and the temperature in the oven. Once the trays have cooled the
distortion will disappear again.
How to use the Baking Tables
The tables give the required temperature settings, baking times and oven
shelf levels for a selection of typical dishes.
• Temperatures and baking times are for guidance only, as these will depend on the consistency of pastry or mixture, the number and the type of
cake tin.
• We recommend using the lower temperature the first time and then if necessary, for example, if a deeper browning is required, or baking time is too
long, selecting a higher temperature.
• If you cannot find the settings for a particular recipe, look for the one that
is most similar.
• If baking cakes on baking trays or in tins on more than one level, baking
time can be extended by 10-15 minutes.
• Moist recipes (for example, pizzas, fruit flans, etc.) are baked on one level.
• Cakes and pastries at different heights may brown at an uneven rate at
first. If this occurs, please do not change the temperature setting. Different rates of browning even out as baking progresses.
2 With longer baking times, you can switch the oven off about 10 minutes be-
fore the end of the baking time, in order to utilise the residual heat.
Unless otherwise stated, the values given in the tables assume that cooking
is started with the oven cold.
26
Baking table
Type of
baking
Baking in tins
Ovenfunction
Ring cake or brioche Fan-assisted
Shelf
position
Tempera-
ture °C
1 150-160 0:50-1:10
Time
Hours
mins.
circulation
Madeira cake/Fruitcakes Fan-assisted
1 140-160 1:10-1:30
circulation
Sponge cake Fan-assisted
1 140 0:25-0:40
circulation
Sponge cake Conventional 1 160 0:25-0:40
Flan base - short pastry Conventional 3 180-200 0:10-0:25
Flan base - sponge mixture Fan-assisted
3 150-170 0:20-0:25
circulation
Apple pie Conventional 1 170-190 0:50-1:00
Apple pie (2tins Ø20cm,
diagonally off set)
Apple pie (2tins Ø20cm,
Fan-assisted
1 160 1:10-1:30
circulation
Conventional 1 180 1:10-1:30
diagonally off set)
Savoury flan (e. g. quiche lor-
Conventional 1 180-200 0:30-1:10
raine)
Cheesecake Conventional 1 170-190 1:00-1:30
Cakes/pastries/breads on baking trays
Plaited bread/bread crown Conventional 3 170-190 0:30-0:40
1)
250
160-180
1)
1)
0:40-1:00
0:20
0:30-1:00
0:15-0:30
Christmas stollen Conventional 3 160-180
Bread (rye bread)
Conventional 1
-first of all
-then
Cream puffs/Eclairs Fan-assisted
3 160-170
circulation
Swiss roll Conventional 3 180-200
Cake with crumble
topping(dry)
Buttered almond cake/sugar
Fan-assisted
3 150-160 0:20-0:40
circulation
Conventional 3 190-210
1)
1)
0:10-0:20
0:15-0:30
cakes
Fruit flans (made with yeast
dough/sponge mixture)
2)
Fan-assisted
circulation
3 150 0:35-0:50
27
Type of
baking
Ovenfunction
Shelf
position
Tempera-
ture °C
Time
Hours
mins.
Fruit flans (made with yeast
Conventional 3 170 0:35-0:50
dough/sponge mixture)
Fruit flans made with short
Conventional 3 170-190 0:40-1:20
pastry
Yeast cakes with delicate top-
Conventional 3 160-180 0:40-1:20
pings (e.g.quark, cream,
vanilla cream)
Pizza (with a lot of topping)
Pizza (thin crust) Conventional 1 230-250
2
Conventional 1 190-2101)0:30-1:00
1)
0:10-0:25
Unleavened bread Conventional 1 250-270 0:08-0:15
Tarts (CH) Conventional 1 200-220 0:35-0:50
Biscuits
Short pastry biscuits Fan-assisted
3 150-160 0:06-0:20
circulation
Short pastry biscuits Fan-assisted
1 / 3 150-160 0:06-0:20
circulation
Viennese whirls Fan-assisted
3 140 0:20-0:30
circulation
Viennese whirls Fan-assisted
1 / 3 140 0:25-0:40
circulation
Viennese whirls Conventional 3 160
Biscuits made with sponge
mixture
Biscuits made with sponge
mixture
Pastries made with egg white,
meringues
Macaroons Fan-assisted
Fan-assisted
circulation
Fan-assisted
circulation
Fan-assisted
circulation
3 150-160 0:15-0:20
1 / 3 150-160 0:15-0:20
3 80-100 2:00-2:30
3 100-120 0:30-0:60
1)
0:20-0:30
circulation
Biscuits made with yeast
dough
Puff pastries Fan-assisted
Fan-assisted
circulation
3 150-160 0:20-0:40
3 170-180
1)
0:20-0:30
circulation
Rolls Fan-assisted
3160
1)
0:20-0:35
circulation
Rolls Conventional 3 180
1)
0:20-0:35
28
Type of
baking
Ovenfunction
Shelf
position
Tempera-
ture °C
Time
Hours
mins.
Small cakes (20per tray) Fan-assisted
31401)0:20-0:30
circulation
Small cakes (20per tray) Fan-assisted
1 / 4 140
1)
0:25-0:40
circulation
Small cakes (20per tray) Conventional 3 170
1) Pre-heat the oven
2) Use the drip tray or roasting tray
1)
0:20-0:30
Tips on baking
Baking results Possible cause Remedy
The cake is not
browned enough at the
bottom
The cake sinks (becomes soggy, lumpy,
streaky)
Cake is too dry Oven temperature too low Set oven temperature higher
Cake browns unevenly Oven temperature too high and
Cake is not done within
the baking time given
Wrong oven level Place cake lower in the oven
Oven temperature too high Use a slightly lower setting
Baking time too short Set a longer baking time
Baking times cannot be reduced by setting higher
temperatures
Too much liquid in the mixture Use less liquid
Pay attention to mixing times,
especially if using mixing machines
Baking time too long Set a shorter baking time
Set a lower oven temperature
baking time too short
and a longer baking time
Mixture is unevenly distributed Spread the mixture evenly on
the baking tray
Temperature too low Use a slightly higher oven set-
ting
29
Table for Bakes and Gratins
Dish Oven function
Shelf
position
Temperature°CTime
Hr: Mins.
Pasta bake Conventional 1 180-200 0:45-1:00
Lasagne Conventional 1 180-200 0:25-0:40
Vegetab le s au g rat i n
Baguettes topped with
melted cheese
1)
1)
Fan-assisted
circulation
Fan-assisted
circulation
1 160-170 0:15-0:30
1 160-170 0:15-0:30
Sweet bakes Conventional 1 180-200 0:40-0:60
Fish bakes Conventional 1 180-200 0:30-1:00
Stuffed vegetables
1) Pre-heat the oven
Fan-assisted
circulation
1 160-170 0:30-1:00
Frozen Ready Meals Table
Food to be
cooked
Oven function
Frozen pizza Conventional 3
1)
Chips
(300-600 g)
Fan-assisted
circulation
Baguettes Conventional 3
Fruit flans Conventional 3
1) Comments: Turn chips 2 or 3 times during cooking
Shelf
position
Temperature
°C
as per manufac-
turer’s instruc-
as per manufac-
turer’s instruc-
tions
3 200-220 15-25 mins.
as per manufac-
turer’s instruc-
as per manufac-
turer’s instruc-
tions
as per manufac-
turer’s instruc-
as per manufac-
turer’s instruc-
tions
Time
tions
tions
tions
30
Roasting
Oven function: Fan-assisted circulation
Roasting dishes
• Any heat-resistant ovenware is suitable to use for roasting (please read
the manufacturer's instructions).
• Large roasting joints can be roasted directly in the roasting tray or on
the oven shelf with the roasting tray placed below it.
• For all lean meats, we recommend roasting these in a roasting tin with a
lid. This will keep the meat more succulent.
• All types of meat, that can be browned or have crackling, can be roasted
in the roasting tin without the lid.
3 Tips on using the roasting chart
The information given in the following table is for guidance only.
• We recommend cooking meat and fish weighing 1 kg and above in the
oven.
• To prevent escaping meat juices or fat from burning on to the pan, we recommend placing some liquid in the roasting pan.
• If required, turn the roast (after 1/2 - 2/3 of the cooking time).
• Baste large roasts and poultry with their juices several times during roast-
ing. This will give better roasting results.
• You can switch the oven off about 10 minutes before the end of the roasting time, in order to utilise the residual heat.
Roasting table
Fan-assisted circulation
Food to be roasted
Pork
1 kg pork joint (shoulder, ham,
rolled roast), for each cm of
thickness
Smoked pork loin, for each cm
of thickness
Meat loaf 160-170 1 --- 60-70
Temperature
in °C
150-160 1 --- 14-20
150-160 1 --- 10-15
Oven level Roasting
One level Two levels
time in
minutes
31
Fan-assisted circulation
Food to be roasted
Temperature
in °C
Oven level Roasting
One level Two levels
time in
minutes
Beef
Beef joint, per cm of thickness 150-160 1 --- 18-20
Beef fillet, per cm of thickness 190-200
Roast beef, per cm of thickness 190-200
1)
1)
1--- 6-8
1 --- 8-10
Veal
Veal joint, for each cm of thickness
170-180 1 --- 14-17
Lamb
Leg of lamb (1800 g) 170-180 1 --- 90
Quick roast items cooked on a baking tray
Sausages “cordon bleu” 220-230
Small sausages 220-230
Schnitzel or chops, crumbed 220-230
Burgers 210-220
1)
1)
1)
1)
34 / 1 5-8
3 4 / 1 12-15
3 4 / 1 15-20
3 4 / 1 15-20
Fish
Trout of 200-250 g each 190-200 3 --- 20-25
4 trout fillets (weight of 200 g
each)
Perch fillets, crumbed (total
weight approx. 1 kg)
170-180 3 --- 20-25
190-200 3 --- 25-30
Poultry
Chicken 150-160 1 --- 55-60
1 kg rolled chicken roast, for
each cm of thickness
150-160 1 --- 11-15
Duck (2000-2500 g) 150-160 1 --- 90-120
Goose (4500 g) 150-160 1 --- 150-180
1) Preheat oven
32
Grill Sizes
Oven function: Infrared grill or Infrared wide-area grill with
maximum temperature setting
1 Important: Always grill with the oven door closed.
3 The empty oven should always be pre-heated with the grill functions for
5 minutes.
• For grilling, place the shelf in the recommended shelf position.
• Always insert the tray for collecting the fat into the first shelf position
from the bottom.
• The grilling times are guidelines.
• Grilling is particularly suitable for flat pieces of meat or fish.
Grilling table
Food to be grilled Oven level
Burgers 4 8-10 mins. 6-8 mins.
Pork fillet 4 10-12 mins. 6-10 mins.
Sausages 4 8-10 mins. 6-8 mins.
Fillet steaks, veal steaks 4 6-7 mins. 5-6 mins.
Fillet of beef, roast beef
(approx. 1 kg)
1)
To as t
Toast with topping 3 6-8 mins. ---
1) Do not pre-heat
3 10-12 mins. 10-12 mins.
3 4-6 mins. 3-5 mins.
Grilling time
1st side 2nd side
33
Turbo grilling
Function: Thermal grill
Dish
Chicken (900-1000 g) 160 3 50-60 25-30
Stuffed pork roasting joint
(2000 g)
Pasta bake 180 1 30 ---
Potato bake au gratin 200 3 20-23 ---
Gnocchi au gratin 180 3 20-23 ---
Cauliflower cheese 200 3 15 ---
Temperature
in °C
160 1 90-95 45
Shelf
positions
Grilling time
in minutes
Turn
after ...
minutes
34
Making Preserves
Oven function: Bottom heat
• For preserving, use only commercially available preserve jars of the same
size.
• Jars with twist-off or bayonet type lids and metal tins are not suitable.
• When making preserves, the first shelf position from the bottom is the
one most used.
• Use the shelf for making preserves. There is enough room on this for up to
six 1-litre preserving jars.
• The jars should all be filled to the same level and clamped shut.
• Place the jars on the baking tray in such a way that they are not touching
each other.
• Pour approx. 1/2 litre of water into the baking tray so that sufficient moisture is produced in the oven.
• As soon as the liquid starts to pearl in the first jars (after about 3560 minutes with 1 litre jars), switch the oven off or reduce the temperature
to 100°C (see table).
Preserves table
The times and temperatures for making preserves are for guidance only.
Preserve
Soft fruit
Strawberries, blueberries, raspberries, ripe gooseberries
Unripe gooseberries 160-170 35-45 10-15
Stone fruit
Pears, quinces, plums 160-170 35-45 10-15
Vegetab le s
Carrots
Mushrooms
Cucumbers 160-170 50-60 ---
Mixed pickles 160-170 50-60 15
Kohlrabi, peas, asparagus 160-170 50-60 15-20
Beans 160-170 50-60 ---
1) Leave standing in oven when switched off
1)
1)
Temperature
in°C
160-170 35-45 ---
160-170 50-60 5-10
160-170 40-60 10-15
Cooking time until
simmering
in mins.
Continue to cook
at 100°C
in mins.
35
Drying
Oven function: Fan-assisted circulation
• Use oven shelves covered with greaseproof paper or baking parchment.
• You get a better result if you switch the oven off halfway through the dry-
ing time, open the door and leave the oven to cool down overnight.
• After this finish drying the food to be dried.
Food to be dried
Vegetab le s
Beans 60-70 31 / 4 6-8
Peppers (strips) 60-
Vegetables for soup 60-
Mushrooms 50-
Herbs 40-50 3 1 / 4 2-3
Fruit
Plums 60-70 31 / 4 8-10
Apricots 60-
Apple slices 60-
Pears 60-
Temperature in
°C
70
31 / 4 5-6
70
31 / 4 5-6
60
31 / 4 6-8
70
31 / 4 8-10
70
31 / 4 6-8
70
31 / 4 6-9
Oven level
1 level 2 levels
Time in hours
(Guideline)
36
Cleaning and Care
1 Warning: For cleaning, the appliance must be switched off and cooled
down.
Warning: For safety reasons, do not clean the appliance with steam jet or
high-pressure cleaning equipment.
Attention: Do not use any scouring agents, sharp cleaning tools or
scourers.
Outside of the appliance
• Wipe the front of the appliance with a soft cloth and warm water and
washing up liquid.
• For metal fronts, use normal commercially available cleaning agents.
Oven interior
Clean the appliance after each use. In this way, dirt is easier to clean off and
is not allowed to burn on.
1. For cleaning, turn the oven light on.
2. After every use, wipe the oven with a solution of washing-up liquid and al-
low to dry.
3 Clean stubborn dirt with a special oven cleaner.
1 Important: If using an oven spray, please follow the manufacturer's instruc-
tions exactly.
Accessories
Wash all slide-in units (shelf unit, baking tray, shelf support rails etc.) after
each use and dry well. Soak briefly to make them easier to clean.
37
Shelf Support Rails
The shelf support rails on the left and right hand sides of the oven can be removed for cleaning the side walls.
Removing the shelf support rails
First pull the front of the rail away from
the oven wall (1) and then unhitch at the
back (2).
Fitting the shelf support rails
3 Important! The rounded ends of the
guide rails must be pointing forwards!
To re-insert, first hook the rail into place
at the back (1) and then insert the front
and press into place (2).
38
Oven Lighting
1 Warning: Risk of electric shock! Prior to changing the oven light bulb:
– Switch off the oven!
– Disconnect from the electricity supply.
3 Place a cloth on the oven floor to protect the oven light and glass cover.

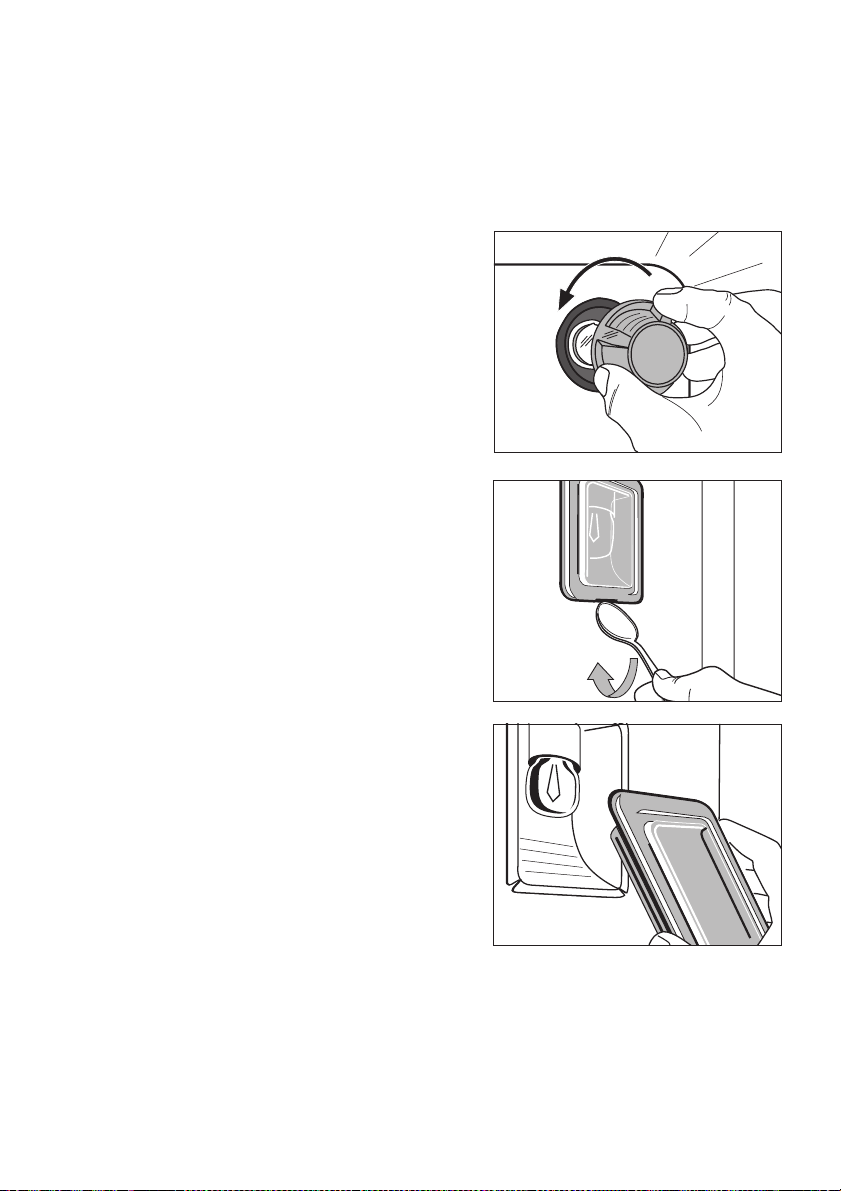

Changing the oven light bulb/cleaning
the glass cover
1. Remove the glass cover by turning it
anti-clockwise and then clean it.
2. If necessary: replace with
25 watt, 230 V, 300 °C heat-resistant
oven lighting.
3. Refit the glass cover.
Changing side oven light/Cleaning
glass cover
1. Remove the left shelf support rail.
2. Remove the glass cover with the aid of
a narrow, blunt implement (e.g., teaspoon) and clean it.
3. If necessary:
replace bulb with a 25 watt, 230 V,
300 °C heat-resistant, oven light bulb.
4. Refit the glass cover.
5. Insert the shelf support rail.
39
Oven Ceiling
The upper heating element can be folded down to make it easier to clean
the oven ceiling.
Folding down the heating element
1 Warning: Only fold down the heating ele-
ment when the oven is switched off and
there is no risk of being burnt!
1. Remove the side shelf support rails.
2. Grip the heating element at the front
and pull it forwards and out over the
support lug on the inner wall of the oven.
3. The heating element will now fold
down.
1 Caution: Do not use force to press the
heating element down! The heating element might break.
Cleaning the oven ceiling
Repositioning the heating element
1. Move the heating element back up towards the oven ceiling.
2. Pull the heating element forwards
against the spring pressure and guide it
over the oven support lug.
3. Settle it onto the support.
4. Insert shelf support rail.
1 Important: The heating element must be
positioned correctly and securely on both
sides above the support lug on the inner
wall of the oven.
40
Oven door
For easier cleaning of the oven interior the oven door of your appliance can
be taken off its hinges.

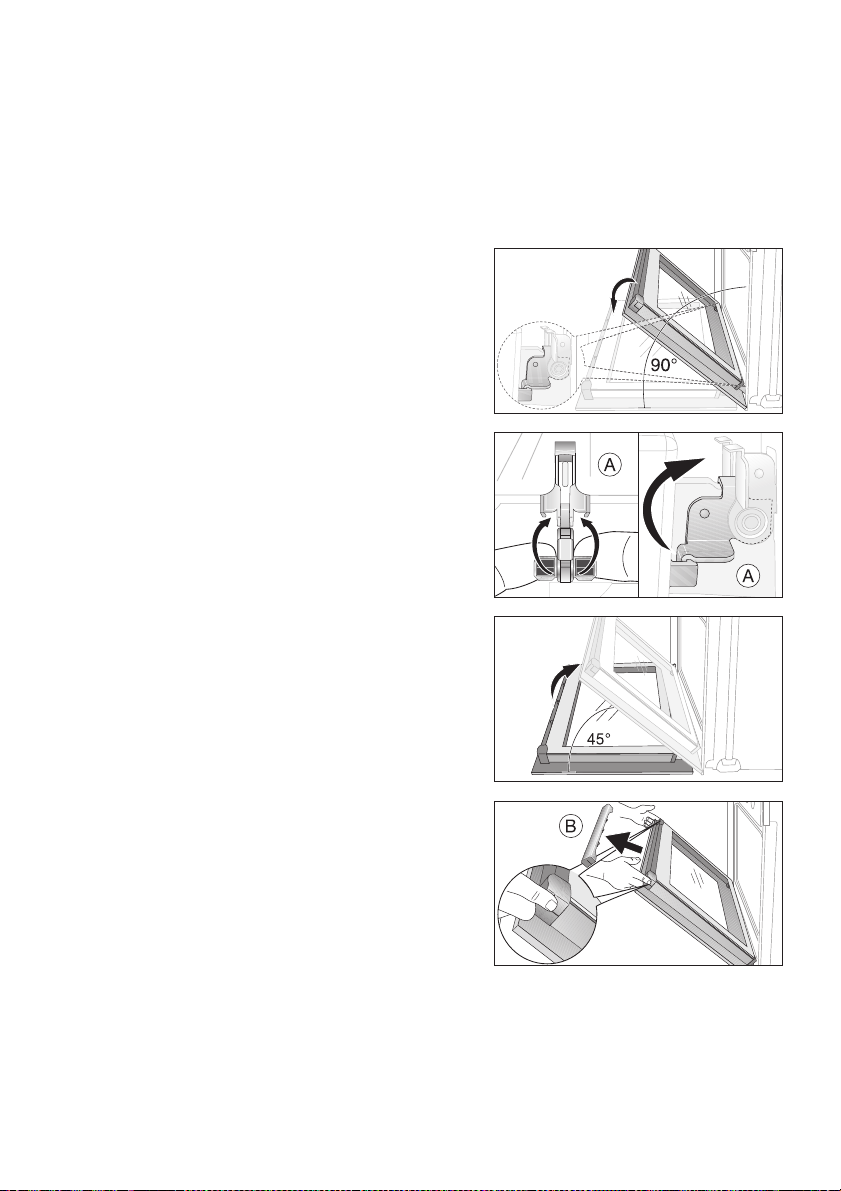

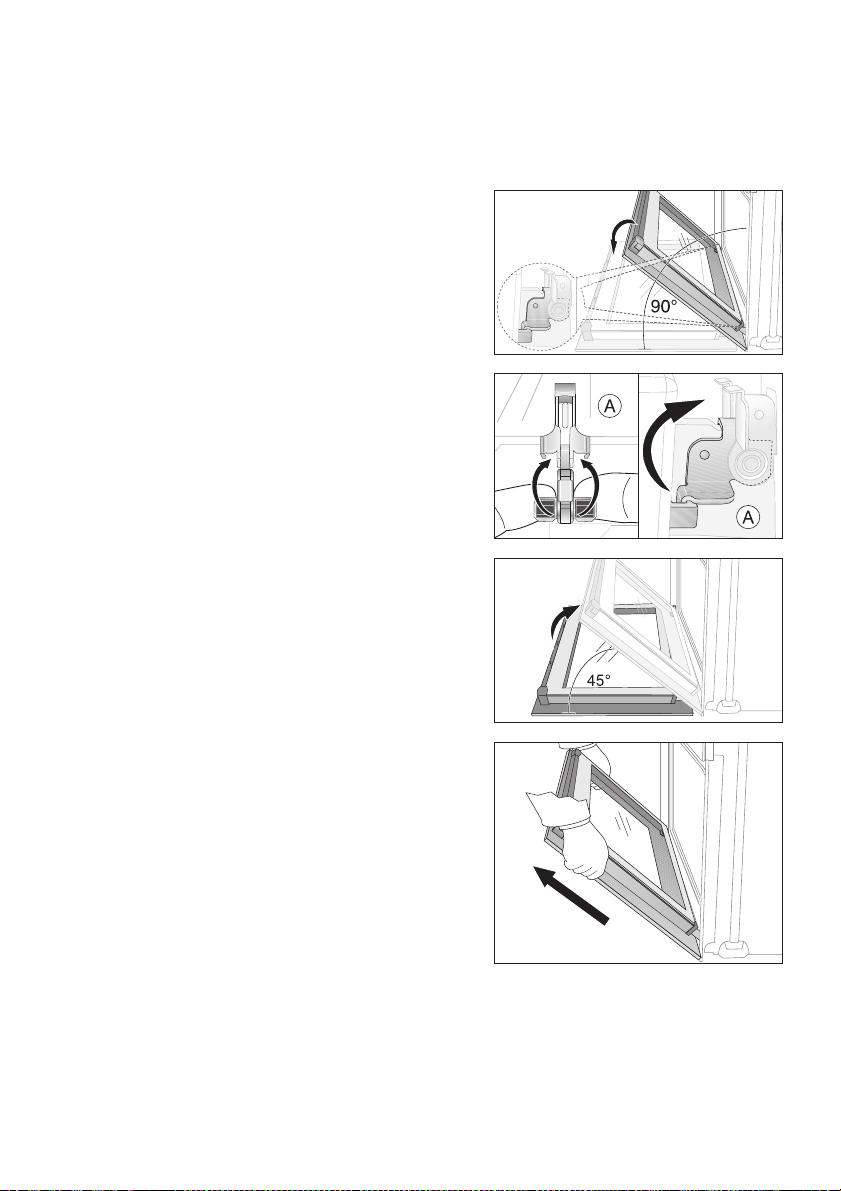

Removing the oven door from its hinges
1. Open the oven door as far as it will go.
2. Undo the clamping levers (A) on both
door hinges fully.
3. Close the oven door as far as the first
position (approx. 45°).
4. Take hold of the oven door with a hand
on each side and pull it away from the
oven at an upwards angle (Take care:
It is heavy).
3 Lay the oven door with the outer side
facing downwards on something soft and
level, for example, a blanket in order to
prevent scratches.
41
Hanging the oven door back on its hinges
1. From the handle side take hold of the
oven door with a hand on each side
and hold at an angle of approx. 45°.
Position the recesses on the bottom of
the oven door on the hinges on the oven.
Let the door slide down as far as it will
go.
2. Open the oven door as far as it will go.
3. Fold up the clamping levers (A) on both
door hinges back into their original
positions.
4. Close the oven door.
42
Oven door glass
The oven door is fitted with three panels of glass mounted one behind the
other.The inner panels can be removed for cleaning.
1 Important! Rough handling, especially around the edges of the front panel,
can cause the glass to break.
Removing the door glass panels
1. Open the oven door as far as it will go.
2. Undo the clamping levers (A) on both
door hinges fully
3. Close the oven door as far as the first
position (approx. 45°).
4. Take hold of the door trim(B) on the upper edge of the door at both sides and
press inwards to release the clip seal.
Then remove the door trim by pulling it
upwards.
43
5. Take hold of the door glass panels on
their upper edge one after the other
and take them out of the guide by pulling them upwards..
Cleaning the door glass panels
Clean the door glass panels thoroughly with a solution of water and washing
up liquid. Then dry them carefully
Putting the door glass panels back.
1. From above insert the door glass panels at an angle into the door profile at
the bottom edge of the door one after
the other and lower them.
3 Insert the smaller panel first, then the
larger panel.
2. Take hold of the door trim (B) at each
side, position it on the inside edge of
the door and plug the door trim (B) into
the upper edge of the door
44
3 On the open side of the door trim (B)
there is a guide bar (C). This must be
pushedThis must be pushed between
the outer door panel and the guide corner (D).
The clip seal (E) must be snapped in.
3. Open the oven door as far as it will go
4. Fold up theclamping levers (A) on both
door hinges back into their original positions
5. Close the oven door.
45
What to do if …
Problem Possible cause
The cooking zones are not
functioning
The oven does not heat up The oven is not switched on Switch the oven on
The oven lighting is not operating
If you are unable to remedy the problem by following the above sug-
Consult the operating instructions for the built-in cooking
surface
The clock is not set Set the current time on the
clock
The required settings have
not been set
The house wiring fuse (in the
fuse box) has tripped
The oven light bulb is faulty Replace the oven bulb
Check the settings
Check the fuse. If the fuses
trip a number of times,
please call an authorised
electrician.
gestions, please contact your dealer or the Customer Care Department.
1 Warning! Repairs to the appliance are only to be carried out by qualified
service engineers. Considerable danger to the user may result from improper repairs.
3 If the appliance has been wrongly operated, the visit from the customer
service technician or dealer may not take place free of charge, even during
the warranty period.
3 Advice on cookers with metal fronts:
Because of the cold surface at the front of the cooker, opening the oven
door during (or just after) baking or roasting may cause the glass to steam
up.
46
Service
In the event of technical faults, please first check whether you can remedy
the problem yourself with the help of the operating instructions (section
“What to do if…”).
If you were not able to remedy the problem yourself, please contact the
Customer Care Department or one of our service partners.
In order to be able to assist you quickly,
we require the following information:
– Model description
– Product number (PNC)
– Serial number (S No.)
(for numbers see rating plate)
– Typ e o f fa u l t
– Any error messages displayed by the
appliance
So that you have the necessary reference numbers from your appliance at
hand, we recommend that you write them in here:
Model description: .....................................
PNC: .....................................
S No: .....................................
47
www.electrolux.com
822 927 299-A-020606-03
Loading...
