AEG-Electrolux EOB68200X, EOB68200U User Manual

user manual

Built-In Electric Oven

EOB68200

We were thinking of you
when we made this product

Welcome to the world of Electrolux

Thank you for choosing a first class
product from Electrolux, which hopefully
will provide you with lots of pleasure in
the future. The Electrolux ambition is to
offer a wide variety of quality products
that make your life more comfortable.
You will find some examples on the cov­er in this manual. Please take a few min­utes to study this manual so that you
can take advantage of the benefits of
your new machine. We promise that it
will provide a superior User Experience
delivering Ease-of-Mind.
Good luck!

electrolux 3

4 electrolux contents

T

1

Contents

Safety instructions 5
Description of the Appliance 7
Before Using for the first time 13
Using the Oven 15
Cleaning and Care 48
What to do if … 59
Disposal 61
Installation Instructions 62
Guarantee/Customer Service 67
Index 69
Service 70

he following symbols are used in this user manual:

Important information concerning your personal safety and information on
how to avoid damaging the appliance.

3 General information and tips

2 Environmental information

Safety instructions

Electrical safety

• This appliance must be only con­nected by a registered electrician.

• In the event of a fault or damage to
the appliance: Take the fuses out or
switch off.

• Repairs to the appliance must only
be carried out by qualified service
engineers. Considerable danger
may result from improper repairs. If
repairs become necessary, please
contact our Customer Services or
your dealer.

Child Safety

• Never leave children unsupervised
when the appliance is in use.

Safety whilst Using

• People (including children) who, be­cause of their physical, sensory or
mental capabilities or their inexperi­ence or ignorance are not able to use
the device safely, should not use this
device without supervision or in­struction by a responsible person.

• This appliance is intended to be
used for cooking, roasting and bak­ing food in the home.

• Take care when connecting electric
appliances to sockets nearby. Do
not allow connecting leads to come
into contact with or to catch beneath
the hot oven door.

• Warning: Risk of burns! The interi-
or of the oven becomes hot during
use.

safety instructions electrolux 5

• Using ingredients containing alcohol
in the oven may create an alcohol-air
mixture that is easily ignited. In this
case, open the door carefully. Do not
have embers, sparks or naked
flames in the vicinity when opening
the door.

Information on acrylamides
According to the latest scientific

knowledge, intensive browning of
food, especially in products con­taining starch, can constitute a
health risk due to acrylamides.
Therefore we recommend cooking
at the lowest possible temperatures
and not browning foods too much.

6 electrolux safety instructions

How to avoid damage to the
appliance

• Do not line the oven with aluminium
foil and do not place baking trays,
pots, etc. on the oven floor, as the
heat that builds up will damage the
oven enamel.

• Fruit juices dripping from the baking
tray will leave stains, which you will
not be able to remove. For very moist
cakes, use a deep tray.

• Do not put any strain on the oven
door when open.

• Never pour water directly into the
oven when it is hot. This could cause
damage to or discoloration of the
enamel.

• Rough handling, especially around
the edges of the front panel, can
cause the glass to break.

• Do not store any flammable materi­als inside the oven. These could ig­nite when the oven is switched on.

• Do not store any moist foods inside
the oven. This could damage the
oven enamel.

• After switching off the cooling fan, do
not keep uncovered dishes in the ov­en. Moisture may condense in the
oven interior or on the glass doors
and may get into the units.

Note on enamel coating

Changes in the colour of the oven’s
enamel coating as a result of use do not
affect the appliance’s suitability for nor­mal and correct use. They therefore do
not constitute a defect in the sense of
the warranty law.

Description of the Appliance

General Overview

Oven displays

and Touch Control sensor fields

description of the appliance electrolux 7

Light bar

Door
handle

The oven switches off after 2 min­utes, if no function is selected and is
changed at the oven nothing, the
light remains however on.
In order to switch off the light bar,
oven switch on with

and switch

off again.

Oven door

8 electrolux description of the appliance

The electronic oven controls

Indicators

Menu option symbol

(with oven shelf level)

Clock

Time functions

Heat indicator

Temperature

Weight

Symbols

Various symbols will now be shown in
the display depending on the selected
function.

description of the appliance electrolux 9

Symbol

Short timer 4:30 The short timer is active.
Time 10:00 Shows the set time.

Duration

End Time

Start 0:45 Shows when the cooking cycle started.
Te mp e r a tu r e Shows the temperature the oven has reached.

Weight 1.5 kg Possibilities:

Meatprobe

Heat+Hold

Odour filter The odour filter is switched on.

Display

(examples)

1:00 Shows the time required for the cooking cycle.

14:05 Shows when the cooking cycle will finish.

End time calculated when

Quick heat is active (reduced heating-up time).

–

Automatic weight system is active.

–

Weight can be changed.

75°C Possibilities:

80°C

– Meatprobe
– Meatprobe Automatic
–

Core temperature can be changed.

Heat+Hold

Function

Meatprobe

is inserted.

is activated.

Touch Control sensor fields

The appliance is operated using Touch
Control sensor fields. You control the
functions by touching the sensor fields.

When you are using the controls
make sure that you only touch one
sensor field. If your finger is applied
too flat, a neighbouring sensor field
could be touched as well.

is inserted.

is active.

10 electrolux description of the appliance

On/Off Set values

Scroll

Main menu

Sensor

field

, To move down and up in the

menu.

To display main menu. Functions set switch off

To c o nf ir m.
To switch appliance on or off.
To select time functions, addi-

tional functions and

probe

, To set values (e.g. temperature,

time, weight, degree of cook­ing).

Function Comment

When a function is active:

•

Press once: Change to the higher menu
(function remains active), after 5 seconds
move again into the active menu option

•

Press twice: Up and down in the higher
menu (function switches off)

(except for countdown timer).

.

Meat-

•

To activate value:

–

Press once: Present symbol flashes

–

Press twice: Value can be set

•

To s e t v al u es :

–

Press once: To set value in single steps

–

Hold down key: To set value in fast steps

•

When setting a cook time or time the dis­play can be re-set to zero if
pressed at the same time.

Select

options

Confirm

and are

Oven Features

Smell Filter

Shelf positions

description of the appliance electrolux 11

Top heat and heating elements

Oven lighting
Meat probe socket

Fat Filter
Oven lighting

Fan heating element
Fan

Bottom Heat

Oven shelf runners,

removable

Inside of door

On the inside of the oven door you will
find the numbers of the different oven
shelves.

You will also find some brief information
about the oven's functions, recom­mended shelves and temperatures for
cooking the most popular dishes.

12 electrolux description of the appliance

Oven accessories

Oven shelf

For cookware, cake tins, roasts and
grilled foods.

Baking tray

For cakes and biscuits.

Roasting Pan

For baking and roasting or as a pan for
collecting fat.

Meat probe

For determining exactly how far joints of
meat are cooked.

Before Using for the first time

If you would like to change one of
these base settings at a later date,
please refer to the chapter Basic
Settings.

Setting the language

1. When the appliance has been con­nected to the electrical supply, the
following is shown in the display.

– the company logo
– the version of the software and the

period of operation

– the message ”Set language”

2. Using or , select the desired lan-

guage.

3. Confirm selected language with .

From now on the texts in the display
appear in the language set.

before using for the first time electrolux 13

Setting contrast and brightness

After you have set the language, the
messages “Set contrast” and “Set
brightness” are displayed.
The contrast and the brightness are
set according to the language set
(see section “Setting language”)

14 electrolux before using for the first time

Setting the clock

After you have set the contrast and the
brightness, the message ”Set Time of
Day” is displayed.

4. Using or set the hour of the cur-
rent time.

5. Confirm with .

6. Using or set the minutes of the

current time.

7. Confirm with .

The appliance is now ready to use.

The time only has to be set if the ap­pliance is disconnected from the
power supply for a long time.

Initial cleaning

Clean the oven before using it for the
first time.

Important: Do not use caustic or
abrasive cleaning agents! These
can damage the oven surfaces.

For the metal surfaces, use com­mercially available cleaning agents.

1. Open the oven door.
The oven light is lit.

2. Remove all oven accessories, and
clean them with warm water and a
scouring agent.

3. Wash the oven in the same way, and
wipe dry.

4. Wipe the front of the appliance with
a damp cloth.

Using the Oven

The menus in overview

Main menu Sub-menu

Assisted Cooking Pork/Veal

Heating Functions Fan Cooking

My Programmes 1- My Program

using the oven electrolux 15

Beef/Game/Lamb
Poultry
Fish
Cake
Pizza/Pie/Bread
Casseroles/Gratins
Convenience
Specials

Conventional Cooking
Pizza Setting
Turbo Grill
Economy Grill
Dual Grill
Bottom Heat
Slow Cook

2- My Program
...
Edit Programme Name

16 electrolux using the oven

Main menu Sub-menu

Basic Settings Set Time of Day

Time Indication
Set+Go
Heat+Hold
Time Extension
Display Contrast
Display Brightness
Set language
Buzzer Volume
Key Tones
Alarm/Error Tones
Smell Filter
Service
Factory Settings

Operation of the menus

Example

1. Switch the appliance on with .
You will find yourself in the main
menu.

2. With or select the desired main
menu.

3. Use to move to the appropriated
sub-menus.

The sub-menu selected is displayed.

At every point you can get back to
the the main menu with .

At the end of most menus there is
the menu option Back.
You use this to go back to the higher
menu.

using the oven electrolux 17

You can cancel a procedure by
pressing .
Then you will find yourself back in
the main menu.

Cooling fan
The fan switches on automatically

in order to keep the appliance’s sur­faces cool. When the oven is
switched off, the fan continues to
run to cool the appliance down, then
switches itself off automatically.

18 electrolux using the oven

Heat indicator

Heating up indicator

When an oven function has been
switched on the bar that keeps getting
longer indicates how far the oven has
heated up.

Fast heating indicator

With some oven functions the heating
up time is shortened by the automatic
function Fast heating.
Until the set temperature is reached, a
stiped bar goes from left to right in the
heat indicator.

Residual heat indicator

After switching off the oven, the resid­ual heat is displayed.

Displaying temperature to the de­gree

The temperature is displayed to the de­gree instead of the bar of the heating up
indicator for 5 seconds during the heat­ing up time.

1. Press and at the same time.

When the temperature set is
reached, an audible signal sounds.

Inserting the Oven Shelf, Baking
Tray and Roasting Pan

Shelf runner safety and anti-tip de­vice

As a shelf runner safety device, all
insertable components have a small
curved indentation at the bottom on
the right and left-hand edge.
Always insert insertable compo­nents so that this indentation is at
the back of the oven interior. This in­dentation is also important for pre­venting the insertable components
from tipping.

Inserting the baking tray or roasting
pan

Push the baking tray or roasting pan be­tween the guide bars of the selected
oven level.

using the oven electrolux 19

20 electrolux using the oven

Inserting the oven shelf:

Insert the oven shelf so that the feet
point downwards.

Push the oven shelf between the guide
bars of the selected oven level.

The high rim around the oven shelf
is an additional device to prevent
cookware from slipping.

Inserting the oven shelf and roast­ing pan together

Lay the oven shelf on the roasting pan.
Push the roasting pan between the

guide bars of the selected oven level.

Inserting/Removing the Fat Filter

Only use the fat filter when roasting
to protect the rear heating elements
from fat splashes.

Inserting the fat filter

Hold the fat filter by the grip and insert
the two mounts downwards into the
opening on the rear wall of the oven
(fan opening).

Taking out the fat filter

Hold the fat filter by the grip and un­hook it.

using the oven electrolux 21

22 electrolux using the oven

The menu Assisted Cooking

The Assisted Cooking in overview

The dishes in the Kitchen Assistant (ex­cept for Specials) are prepared with au­tomatic systems.
The automatic systems offer the opti­mum settings (oven functions, tempera­ture, cook time) for the respective dish.

Category Dish

Pork/Veal Roast pork Knuckle of veal

Pork loin Ossobuco
Pork hock Stuffed breast of veal
Pork shoulder Meatloaf
Roast veal

Beef/Game/Lamb Roast beef/sirloin Roast hare

Scandinavian beef Rabbit in mustard
Roast beef Wild boar
Marinated beef Roast lamb
Saddle of venison Loin of lamb (medium rare)

Roast venison Leg of lamb

Poultry Whole chicken Chicken drumsticks

Whole turkey Coq au vin
Whole duck Duck á l’orange
Whole goose Stuffed chicken
Turkey breast

Fish Whole fish Stuffed calamari

Fish fillet Steamed fish
Stockfish Fish casserole
Fish in salt crust

using the oven electrolux 23

Category Dish

Cake Lemon cake Ring cake

Swedish cake Savarin cake
Sponge base Brownies
Cheesecake Muffins
Fruit cake Tart (sweet)
Streusel cake Carrot cake
Butterzopf Almond cake
Yeast cake Fruit tart

Pizza/Pie/Bread Tray pizza Quark turnovers

Onion tart White bread
Quiche Lorraine German farmhouse bread
Goat’s cheese tart Pierogi cake
Cheese flan

Casseroles/Gratins Lasagne Pasta bake

Cannelloni Chicory au gratin
Potato gratin Casserole
Moussaka Cabbage casserole

Convenience Pizza, frozen Bread/rolls

American pizza, frozen Bread/rolls, frozen
Pizza, chilled Apple strudel, frozen
Pizza snacks, frozen Fish fillet, frozen
French fries Chicken wings
Croquettes Lasagne/cannelloni
Hash browns

Specials Defrost Preserving

Drying Plate Warming
Keep Warm

You will find practical information
on the various automatic systems,

recipes and oven functions in the
accompanying booklet.

24 electrolux using the oven

Operation of the Assisted Cooking

Assisted Cooking with Weight Auto­matic

The roasting time is automatically deter­mined by inputting the weight.

Example

1. Using or select the menu option
Assisted Cooking, the desired cate­gory and the dish.

2. Confirm each one with .

3. Using or select Weight Auto-

matic.

4. Confirm with

5. Using or set the weight of the

food.
The setting changes in 0.2 kg steps.

The automatic programme is started.
As soon as the automatic programme
has finished, an audible signal sounds.

6. Press any key to switch off the sig­nal.

If the suggested weight is not
changed within approx. 5 seconds,
the programme starts automatical­ly.

The weight can be altered at any time.

With all poultry programmes turn
the food after 30 minutes.
A reminder is displayed.

Assisted Cooking with Meatprobe
Automatic

The oven switches itself off automatical­ly when the pre-set core temperature
set is reached.

Important: Only the Meatprobe sup­plied may be used. If replacing,
please use only original replace­ment parts.

Example

1. Switch the appliance on using .

2. Using or select the menu option

Assisted Cooking, the desired cate­gory and the dish.

3. Confirm each one using .

4. Using or select Meatprobe Au-

tomatic.

5. Confirm with .

Message appears telling you to insert
the Meatprobe.

6. Insert Meatprobe (see section Meat­probe).

7. The automatic programme is start­ed.

As soon as the automatic programme
has finished, an audible signal sounds.

8. Press any key to switch off the sig­nal.

9. Remove Meatprobe.

using the oven electrolux 25

Within a few minutes a provisional
end time at which the set core tem­perature will be reached is calculat­ed. This time is constantly
recalculated and updated in the dis­play. The system requires that the
Meatprobe is pushed into the meat
and into the socket at the beginning
of the cooking process and that it is
not removed during the cooking
process.

26 electrolux using the oven

Warning: The Meatprobe is hot!
There is a risk of being burned when
removing the plug and the tip of the
meat probe.

Assisted Cooking with Recipe Automatic

All settings are fixed and cannot be changed.
Example

1. Using or select the menu option
Assisted Cooking, the desired category
and the dish.

2. Confirm each one with .

3. Using or select Recipe Automatic.

4. Confirm with .

The automatic programme is started.
As soon as the automatic programme has
finished, an audible signal sounds.

5. Press any key to switch off the signal.

Manual

With Manual the optimum settings (oven
function and temperature) for the respective
dish are taken, but you can change them.
This may be the case if you don’t want to use
the Meatprobe,you don’t know the weight of
your food or have your own recipe.

Example

1. Using or select the menu option
Assisted Cooking, the desired cate­gory and the dish.

2. Confirm each one with .

3. Using or select Manual.

4. Confirm with .

You are now in the corresponding oven
function and can carry out the setting
you want (see section “Operating the
oven functions”).

The Oven Functions menu

The oven functions in overview

Using the oven functions you can set
baking and roasting sessions to suit
your requirements.

Oven function Application

using the oven electrolux 27

Fan Cooking

Conventional
Cooking

Pizza Setting

Tur b o Gr i l l

Economy Grill

Dual Grill

Bottom Heat

Slow Cook

For

For preparing especially tender, succulent roasts.

For

baking

Set the oven temperatures
20-40 °C lower than when using Conventional.

For

baking

For baking on one oven level dishes that require

sive browning and a crispy base

Set the oven temperatures 20-40 °C lower than when using
Conventional.

For

roasting

The function is also suitable for
For

grilling

and for

toasting

grilling

ing

.

For

baking

Operating the oven functions

Example

1. Switch the appliance on with .

2. Using or select the menu option

oven function.

3. Confirm with .

4. Using or select oven function

Fan Cooking.

5. Confirm with .

on

up to three oven levels

and

roasting

larger joints of meat or poultry on one level.

flat foodstuffs placed in the

.

flat foodstuffs in

cakes with

on

one oven level

gratinating

large quantities

crispy or crusty bases

at the same time.

.

.

more inten-

and

browning

middle of the grill

and for

.

.

toast-

28 electrolux using the oven

6. Using or set the desired temper­ature.

7. Confirm with or wait 5 seconds.
The oven starts to heat up.

When the temperature set is reached,
an acoustic signal sounds.

The oven is starting to heat up if

• the symbol for the oven function is
animated.

• the oven light is switched on.

• the corresponding heating element

(e.g. fan) is switched on.

Besides the temperature other
functions can be set using
(see section Additional functions).

The menu My Programmes

My Programmes in overview

Sub menu Description

using the oven electrolux 29

1- My Program
2- My Program
...

Edit Programme Name To rename stored programmes.

To save optimum settings for your own recipes.

You can store 20 programmes.

Operation of My Programmes

Storing a programme

1. Select oven function or Assisted
Cooking with the desired settings.

2. During or after the oven function or
the Assisted Cookingpress key
repeatedly until the ”SAVE” window
appears.

3. Confirm using the key.
The next free memory position is dis­played.

4. Confirm using the key.

5. You can now write the name of your

programme.
The first letter flashes.

6. Using or select the desired letter
in alphabetical order.

7. Using or move the writing mark
to the right or left.

The next letter flashes and can be
changed, and so on.

30 electrolux using the oven

8. Confirm with when you have writ-
ten your programme name.

Your programme is stored.

Memory positions that are already
filled can be overwritten at any time.
Instead of the suggested free mem­ory position, with or select the
programme that you would like to
overwrite.

2Programmes can be renamed at
any time in the menu ”Edit Pro­gramme Name”.

Calling up a programme

1. Switch the appliance on with .

2. Using the arrow keys or select

the menu option My Programmes.

3. Confirm with .

4. Using the direction keys or se-

lect the stored programme.

5. Confirm with .

The stored programme with its settings
starts.

If no programmes have been stored,
a message appears to say how pro­grammes are stored.

The menu Basic Settings

The Basic Settings in overview

You can change certain basic set­tings regardless of the task the
oven is performing.
The settings can only be changed if
no oven function is selected.

Setting Display Description

Set Time of Day 12:15 Set the current time on the clock.
Time Indication

–

On Time is shown when appliance is switched off.

using the oven electrolux 31

–

Off

Set+Go

Heat+Hold

Time Extension

Display Contrast 1 ..... 10 Adjust display contrast by degrees.

Display Brightness 1 ..... 10 Adjust display brightness by degrees.

Set language

Buzzer Volume 1 ..... 10 Adjust volume of touch-tones and signals by de-

Key Tones

Alarm/Error Tones

Smell Filter

–

On Set+Go function is shown in the Select Options

–

Off Set+Go function is not shown in the Select Op-

–

On Heat+Hold function is shown in the Select Options

–

Off Heat+Hold function is not shown in the Select Op-

–

On

–

Off

–

English

–

....

–

On

–

Off

–

On

–

Off

–

On

–

Off

Time is not shown when appliance is switched off,
because display is switched off completely to save
energy.

window and can be activated.

tions window.

window and can be activated.

tions window.
Switch Time Extension function on/off.

Select and set language for display.

grees.
Touch-tones confirm each time a key is pressed by

emitting a sound. Switch touch-tones on/off.
Alarm tones sound if a step cannot be carried out.

Switch alarm tones on/off.
Smell Filter on/off.

32 electrolux using the oven

Setting Display Description

Service ECAIA207

V03IA003
24

Factory Settings Reset all settings to factory settings (including My

Shows the software version and configuration.

Programmes).

Between 22:00 and 6:00 the display re­duces its brightness when the appliance
is switched off to save energy.

Operation of the Basic Settings

Example

1. Using or select the menu option
Basic Settings.

2. Confirm with .

3. Using or go to the setting that

you want to adjust.

4. Confirm with .
The value currently set appears in
the display.

5. Using or select the desired val-
ue.

6. Confirm with .
The setting is changed.

Everyday use of Basic Settings

Set+Go

The function Set+Go means you can set
all settings for an oven function and then
start it later.
Example application:
You prepare a dish in the morning and
enter all necessary settings in the oven.
Your child comes home at lunchtime,
puts the dish in the oven, presses any
key and the oven starts with your set­tings.
Condition:

• Fixed switch-Duration

To switch on Set+Go

1. Select oven function with desired
settings.

2. Press key repeatedly until the
”Set+Go” window appears.

3. Confirm with .
The function Set+Go is now
switched on.

To start Set+Go

1. Press any key (except ).
Selected oven function starts.

As soon as the oven function is com­pleted, a signal sounds.

2. Press any key to switch off the sig­nal.

using the oven electrolux 33

While the selected oven function
with is operating Set+Go, the Key
Lock is active (see section Key
Lock).

Set+Go can be activated or deacti­vated in the Basic Settings menu.

34 electrolux using the oven

Heat+Hold

The function Heat+Hold keeps your pre­pared dish warm for 30 minutes, after
the baking or roasting has ended.
This is helpful, for example, when your
guests are late.

Condition for Heat+Hold:

• Fixed temperatur is above 80°C

• Fixed switch-Duration

To switch on Heat+Hold

1. Select oven function.

2. Press key repeatedly until the

”Heat+Hold” window appears.

3. Confirm with .
The function Heat+Hold is now
switched on.

4. As soon as the oven function is com­pleted, a signal sounds and
Heat+Hold starts.

The oven function runs at 80°C for 30
minutes.

As soon as the 30 minutes with
Heat+Hold are over, the oven switches
itself off.

Irrespective of the oven function set
Heat+Hold remains active. You can
move between the oven functions.

Heat+Hold can be activated or de­activated in the Basic Settings
menu.

Time Extension

Allows the last oven function to continue
after a certain time has elapsed.

Precondition:

• All oven functions with Duration or
Weight Automatic.

• No oven functions with Meatprobe.

The Time Extension can be switched on
and off in the Basic Settings menu.

To switch on Time Extension

Oven function is completed.
Signal sounds and message appears.

1. Press any key.

2. Message for Time Extension ap-

pears for approx. 5 minutes.

3. Activate with Time Extension.

4. Set period of the Time Extension us-

ing or.

5. Start Time Extension using or let it
start automatically after 5 seconds.

The settings of the oven funtion are dis­played with the new cook time.

using the oven electrolux 35

The rest of the procedure is the same as
a normal oven function. The Time Ex­tension can be set repeatedly.

36 electrolux using the oven

Smell Filter

The catalytic effect of the filter removes
odours as much as possible.
The Smell Filter switches on automati­cally when a baking or roasting cycle
(except Specials) is started.
It switches off as soon as the baking or
roasting cycle is finished.

The Smell Filter is deactivated in de­livery status. It is activated in the
Basic Settings menu.

Energy consumption is increased
when the Smell Filter is activated.

If Smell Filter is deactivated in the
Basic Settings menu, it will switch
on automatically after 100 operating
hours, during a baking or roasting
cycle, in order to self-clean.

Additional functions

Your oven is equipped with the following
additional functions:

• Minute Minder

• Duration

• End Time

• Key Lock

• Child Lock

• Safety shut-off

• Meatprobe

Minute Minder

To set a countdown. When it has count­ed down, an audible signal sounds.
This function has no effect on the oper­ation of the oven.

1. Press key repeatedly until the
”Minute Minder” window appears.

Using or key, set the desired count-
down (max. 2 hours 30 minutes).

2. Confirm with or wait 5 seconds.
The last menu option visited and the
remaining time are displayed.

When the time has counted down to
10%, a short signal sounds.
When the time has elapsed, an acoustic
signal sounds for 2 minutes and a mes­sage is displayed.

3. Press any key to stop the signal (ex­cept ).

using the oven electrolux 37

The Minute Minder remains active if
you change to another function or
the appliance is switched off.

38 electrolux using the oven

Duration or End Time

Duration

For setting how long the oven is to op­erate.

End Time

For setting when the oven is to switch it­self off again.

1. Select oven function.

2. Press key repeatedly until the

”Duration/End Time” window ap­pears.

3. Using or key, set the desired
cooking time or switch-off time
(max. 23 hours 59 minutes).

4. Confirm with or wait 5 seconds.
The settings of the selected oven
function are displayed with the cook­ing time or switch-off time set.

When the time has elapsed, an acoustic
signal sounds for 2 minutes and a mes­sage is displayed.
The oven switches itself off.

5. Press any key to stop the signal (ex­cept ).

Irrespective of the oven function set
the fixed cook time remains. You
can move between the oven func­tions.
Condition: The oven function to
which you move has no fixed cook
time.

If the Meatprobe is inserted, Dura­tion or End Time is not possi­ble.

Using residual heat with the
Duration and End Time clock
functions

When the Duration and End Time
clock functions are used, the oven
switches the heating elements off, when
90% of the time set or calculated has
elapsed. The residual heat present is
used to continue the cooking process
until the time set has elapsed
(3 to 20 mins.).

Duration and End Time com­bined

Duration and End Time can be
used simultaneously, if the oven is
to be switched on and off automati­cally at a later time.

using the oven electrolux 39

1. Select oven function.

2. Press key repeatedly until the

”Duration/End Time” window ap­pears.

3. Using the Duration function, set
the time required for cooking the
dish, e.g.: 1 hour.

4. Confirm with .

5. Using the End Time function, set

the time at which the dish is to be
ready, e.g.: 14:05.

6. Confirm with or wait 5 seconds.

7. The selected oven function is dis-

played with the cooking time and
switch-off time set for a few sec­onds..

40 electrolux using the oven

A message is displayed when the pro­gramme starts.

Key Lock

The key lock protects all functions set
from accidental changes.

To switch on Key Lock

1. Select oven function.

2. Press key repeatedly until the

”Key Lock” window appears.

3. Confirm with .

The Key Lock is now activated.

To s w it ch o ff K e y L o c k

1. Press the key.

2. Confirm with .

The Key Lock does not protect the
appliance from being accidentally
switched off.
After the appliance is switched off,
the Key Lock is automatically can­celled.

Child Lock for the oven

As soon as the Child Lock child safety
device is activated, the oven cannot be
operated.

Switching on the Child Lock

No Oven Function must be selected.

1. Press and keys at the same
time until a message appears in the
display.

The key lock Child Lock is in operation.

Switching off the Child Lock

1. Press and keys at the same
time until a message appears in the
display.

The Child Lock is now deactivated and
the oven is again ready for use.

Oven Automatic shut-off

If the oven is not switched off after a
certain time, or if the heat setting is
not modified, the oven switches off
automatically.

The oven switches off at an oven
temperature of:

30 - 120°C after 12.5 hours
120 - 200°C after 8.5 hours
200 - 250°C after 5.5 hours

250 – max °C after 3 hours

Switching on again after an auto­matic shut-off

Press the button.

Meatprobe

The oven switches itself off when the
core temperature set by you is reached.

using the oven electrolux 41

Important!: Only the Meatprobe
supplied may be used. If replacing,
please use only original replace­ment parts.

Setting Meatprobe core tempera­ture

1. Switch the appliance on with .

2. Push the tip of the Meatprobe right

into the meat so that the tip is in the
centre of the meat.

3. Insert the plug of the Meatprobe as
far as it will go into the socket on the
side wall of the oven.

42 electrolux using the oven

The window ”Meatprobe” is displayed.

4. Within 5 seconds using or set
the desired core temperature.

5. Confirm set core temperature with

.

6. Select oven function.

The menu for the oven function is dis­played.

7. If necessary, set oven temperature.

Within a few minutes a provisional
end time at which the set core tem­perature will be reached is calculat­ed. This time is constantly
recalculated and updated in the dis­play. The system requires that the
Meatprobe is pushed into the meat
and into the socket at the beginning
of the cooking process and that it is
not removed during the cooking
process.

As soon as the pre-set core temperature
is reached, a signal sounds.

8. Press any key to switch off the sig­nal.

The Meatprobe can also be set, if an
oven function has already been se­lected.
To subsequently change the core
temperature, press key.

The core temperature is displayed
from 30°C.

Removing the Meatprobe

Warning: The Meatprobe is very hot.
There is a risk of being burned when
removing the plug and the tip of the
meat probe.

1. Remove the Meatprobe´s plug from
the socket and take the meat out of
the oven.

2. Switch off the appliance.

using the oven electrolux 43

44 electrolux using the oven

Mechanical door lock

When the appliance is delivered the
door lock is deactivated.

Activating door lock

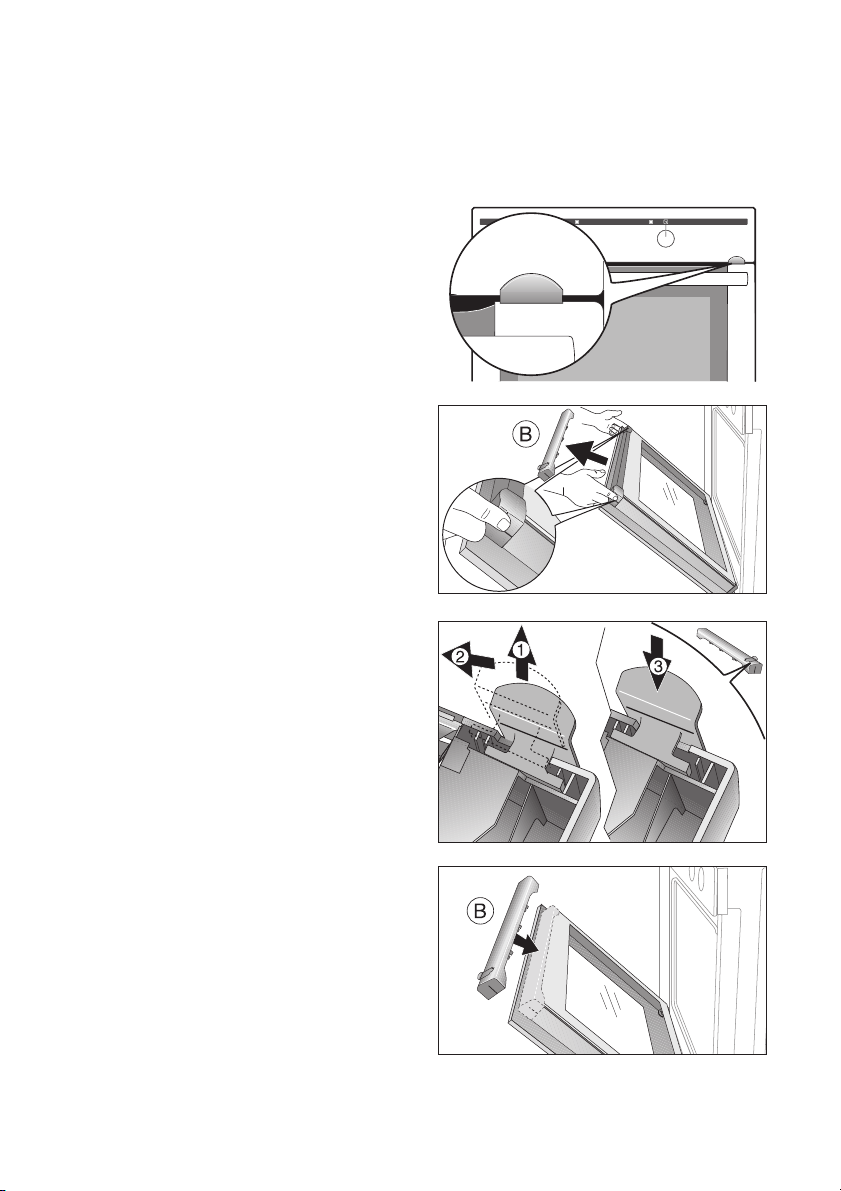

1. Take hold of the door trim(B) on the
upper edge of the door at both sides
and press inwards to release the clip
seal. Then remove the door trim by
pulling it upwards.

2. Activate lever:
Remove lever (1) and
move 4mm to the left (2)
and insert (3).

3. Take hold of the door trim (B) at each
side, position it on the inside edge of
the door and plug the door trim (B)
into the upper edge of the door

On the open side of the door trim (B)
there is a guide bar (C). This must be
pushed between the outer door
panel and the guide corner (D).
The clip seal (E) must be snapped in.

using the oven electrolux 45

To open the oven door.

1. Keep lever pressed.

2. Open the door.

To close the oven
Close door without pressing the le-

ver.

Deactivating door lock

To deactivate the door lock, the lever is
moved to the right again. Proceed as
described above.

Switching off the appliance does
not remove the mechanical door
lock.

46 electrolux using the oven

Removing door lock

1. Take hold of the door trim(B) on the
upper edge of the door at both sides
and press inwards to release the clip
seal. Then remove the door trim by
pulling it upwards.

2. Demount lever:
Remove lever (1).

3. Remove trim from the under side of
the door trim (B)(2) and push in (3).

4. Take hold of the door trim(B) at each
side, position it on the inside edge of
the door and push the door trim (B)
onto the upper edge of the door

On the open side of the door trim (B)
there is a guide bar (C). This must be
pushed between the outer door
panel and the guide corner(D).
The clip seal (E) must be snapped in.

using the oven electrolux 47

5. Close the oven door.

48 electrolux cleaning and care

Cleaning and Care

Warning: First switch off the appli­ance and let it cool down before
carrying out any cleaning.

Warning: For safety reasons, do not

clean the appliance with steam blasters
or high-pressure cleaners.

Attention: Do not use any corrosive
cleaning fluids, sharp objects or
stain removers.

Do not clean the glass oven door with
abrasive fluids or metal scrapers, which
could scratch the surface. The glass
could crack and shatter.

Outside of the appliance

• Wipe the front of the appliance with
a soft cloth and a solution of hot wa­ter and washing up liquid.

• For metal fronts, use normal com­mercially available cleaning agents.

• Please do not use scouring agents
and abrasive sponges.

Remove stubborn dirt with special
oven cleaners.

Important: if using an oven cleaner
spray, please follow the manufac­turer's instructions exactly.

Accessories

Wash all slide-in units (shelf unit, baking
tray, shelf support rails etc.) after each
use and dry well. Soak briefly to make
them easier to clean.

Fat Filter

1. Clean the fat filter in hot water and
washing up liquid or in the dishwash­er.

2. Badly burned on soiling can be re­moved by boiling the filter in a little
water to which 2-3 tablespoonsful of
dishwasher cleaner has been added.

Oven interior

Clean the appliance after each use. In
this way, dirt is easier to clean off and is
not allowed to burn on.

1. When the oven door is opened, the
oven light switches itself on automat­ically.

2. After every use, wipe the oven with a
solution of washing-up liquid and al­low to dry.

Shelf Support Rails

The shelf support rails on the left and
right hand sides of the oven can be re­moved for cleaning the side walls.

Removing the shelf support rails

First pull the front of the rail away from
the oven wall (1) and then unhitch at the
back (2).

cleaning and care electrolux 49

Fitting the shelf support rails

Important! The rounded ends of the
guide rails must be pointing for­wards!

To re-insert, first hook the rail into place
at the back (1) and then insert the front
and press into place (2).

50 electrolux cleaning and care

Oven Shelf Runner

The shelf support rails on the left and
right hand sides of the oven can be re­moved for cleaning the side walls.

Removing the shelf support rails

First pull the front of the rail away from
the oven wall and then unhitch at the
back.

Fitting the shelf support rails

When inserting the rails, make sure
that the retaining pins on the tele­scopic runners are pointing to the
front.

To install, first reattach the rails at the
back, then put them into position at the
front and press them into place.

Cleaning the Oven Shelf Runner

Clean oven shelf runners with hot water
and washing up liquid.

Important: The oven shelf runners
cannot be cleaned in the dishwash­er.

Important: On no account grease
telescopic runners.

Oven Lighting

Warning: There is a danger of elec­tric shock! Prior to changing the
oven light bulb:

– Switch off the oven!
– Remove the fuses in the fuse box or

switch off the circuit breaker.

cleaning and care electrolux 51

Place a cloth on the oven floor to
protect the oven light and glass cov­er.

Replacing the oven light bulb/clean­ing the glass cover

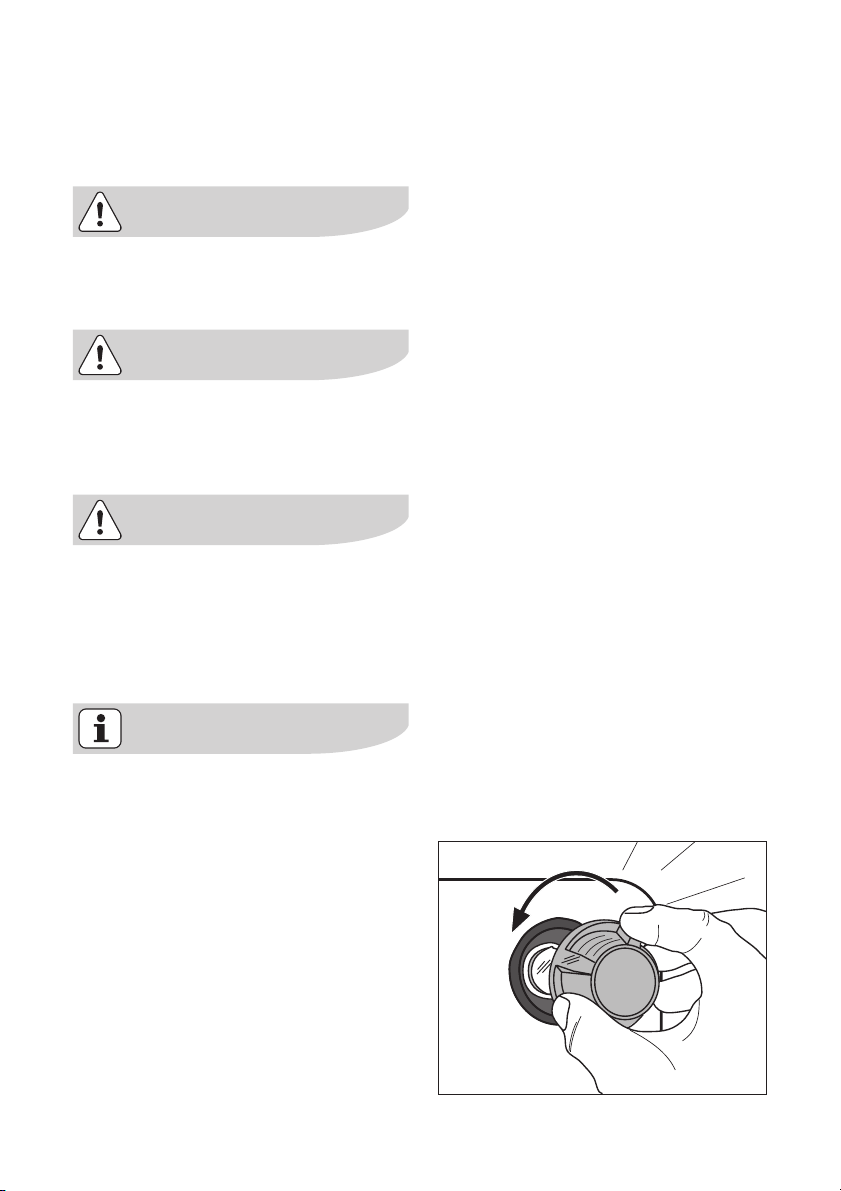

1. Remove the glass cover by turning it
anti-clockwise and then clean it.

2. If necessary:

Replace bulb with a 40 watt,
230 V, 300 °C heat-resistant
oven light bulb.

3. Refit the glass cover.

52 electrolux cleaning and care

Changing side oven light/Cleaning
glass cover

1. Remove the left shelf support rail.

2. Remove the glass cover with the aid

of a narrow, blunt implement (e.g.,
teaspoon) and clean it.

3. If necessary:

replace bulb with a 25 watt,
230 V, 300 °C heat-resistant, oven

light bulb.

4. Refit the glass cover.

5. Insert the shelf support rail.

Oven door

For easier cleaning of the oven interior
the oven door of your appliance can be
taken off its hinges.

Removing the oven door from its
hinges

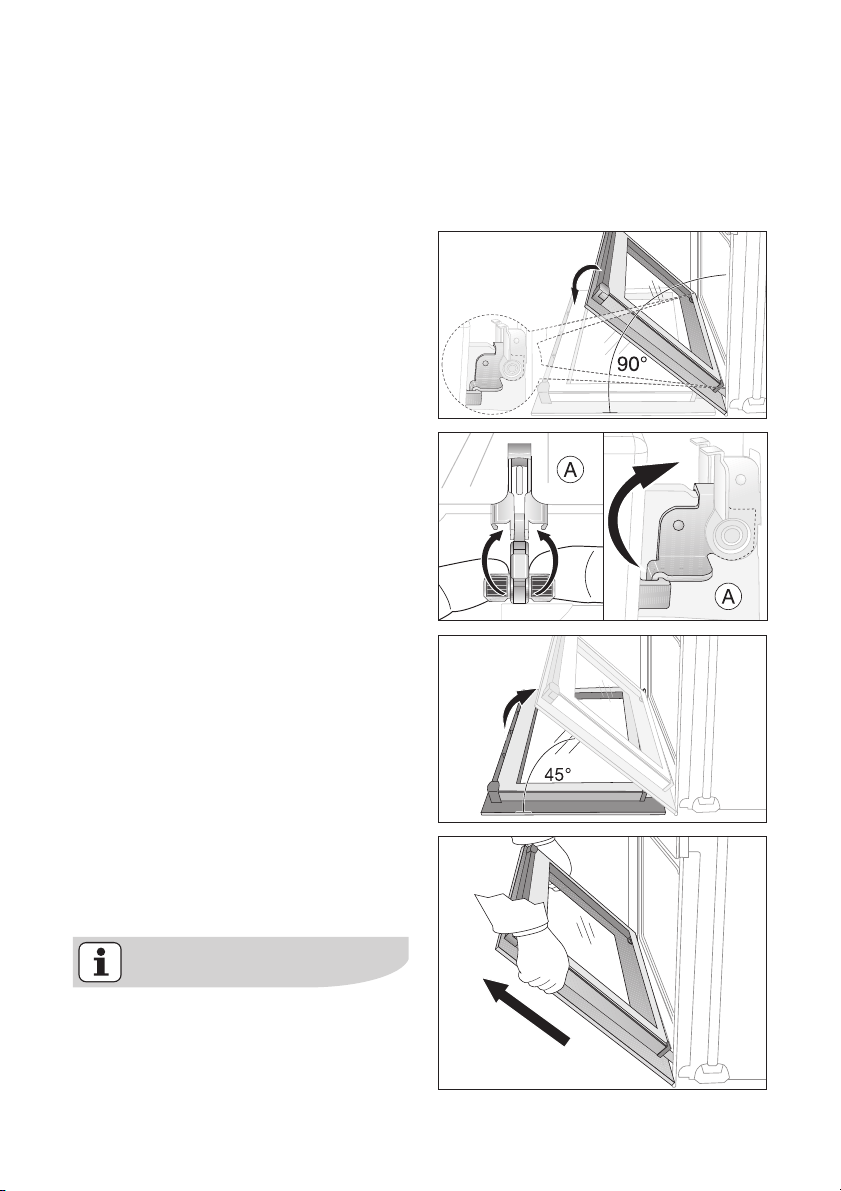

1. Open the oven door as far as it will go.

2. Undo the clamping levers (A) on

both door hinges fully.

cleaning and care electrolux 53

3. Close the oven door as far as the first
position (approx. 45°).

4. Take hold of the oven door with a
hand on each side and pull it away
from the oven at an upwards angle
(Take care: It is heavy).

Lay the oven door with the outer side
facing downwards on something soft
and level, for example, a blanket in or­der to prevent scratches.

54 electrolux cleaning and care

Hanging the oven door back on its
hinges

1. From the handle side take hold of the
oven door with a hand on each side
and hold at an angle of approx. 45°.
Position the recesses on the bottom
of the oven door on the hinges on
the oven.
Let the door slide down as far as it
will go.

2. Open the oven door as far as it will
go.

3. Fold up the clamping levers (A) on
both door hinges back into their orig­inal positions.

4. Close the oven door.

Oven door glass

The oven door is fitted with four panels
of glass mounted one behind the other.
The inner panels can be removed for
cleaning.

Important Rough handling, espe­cially around the edges of the front
panel, can cause the glass to break.

Removing door glass panels

1. Open the oven door as far as it will
go.

2. Undo the clamping levers (A) on
both door hinges fully.

cleaning and care electrolux 55

3. Close the oven door as far as the first
position (approx. 45°).

56 electrolux cleaning and care

4. Take hold of the door trim (B) on the
upper edge of the door at both sides
and press inwards to release the clip
seal. Then remove the door trim by
pulling it upwards.

5. Take hold of the door glass panels on
their upper edge one after the other
and take them out of the guide by
pulling them upwards.

Cleaning the door glass panels

Clean the door glass panels thoroughly
with a solution of water and washing up
liquid. Then dry them carefully.

Putting the door glass panels back.

1. From above insert the door glass
panels one after the other into the
door profile at the bottom edge of
the door at an angle and lower them.

The two smaller panels first, then
the larger panel.

2. Take hold of the door trim (B) at each
side, position it on the inside edge of
the door and plug the door trim (B)
into the upper edge of the door.

On the open side of the door trim (B)
there is a guide bar (C). This must be
pushed between the outer door
panel and the guide corner (D).
The clip seal (E) must be snapped in.

cleaning and care electrolux 57

58 electrolux cleaning and care

3. Open the oven door as far as it will
go.

4. Fold up the clamping levers (A) on
both door hinges back into their orig­inal positions.

5. Close the oven door.

what to do if … electrolux 59

What to do if …

Problem Possible cause Remedy

The oven is not heating up The oven has not been switched onSwitch oven on

The required settings have not
been set

The house wiring fuse (in the
fuse box) has tripped

The oven lighting is not op­erating

“F11” appears in the clock
display.

A fault code that is not list­ed above appears in the
clock display

The oven light bulb is faulty Replace oven light bulb

The meat probe has short
circuited or the plug of the meat
probe is not firmly in position in
the socket

Electronic fault Switch the appliance off and on

If you are unable to remedy the
problem by following the above
suggestions, please contact your
dealer or the Customer Care De­partment.

Check the settings

Check fuse. If the fuses trip sev­eral times, please call a qualified
electrician

Insert the meat probe plug into
the socket on the oven side wall
as far as it will go

again via the house fuse or the
safety switch in the fuse box.
If it is displayed again, please
contact the Customer Care De­partment

60 electrolux what to do if …

Warning! Repairs to the appliance
are only to be carried out by quali­fied service engineers. Considera­ble danger to the user may result
from improper repairs.

If the appliance has been wrongly
operated, the visit from the custom­er service technician or dealer may
not take place free of charge, even
during the warranty period.

Advice on cookers with metal
fronts:

Because of the cold surface at the
front of the cooker, opening the
oven door during (or just after) bak­ing or roasting may cause the glass
to steam up.

Disposal

Packaging material
The packaging materials are envi-

ronmentally friendly and can be re­cycled. The plastic components are
identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the
packaging materials in the appro­priate container at the community
waste disposal facilities.

Old appliance

disposal electrolux 61

Warning: So that the old appliance
can no longer cause any danger,
make it unusable before disposing
of it.
To do this, disconnect the appliance
from the mains supply and remove
the mains cable from the appliance.

The symbol
its packaging indicates that this
product may not be treated as
household waste. Instead it shall be
handed over to the applicable col­lection point for the recycling of
electrical and electronic equipment.
By ensuring this product is dis­posed of correctly, you will help pre­vent potential negative
consequences for the environment
and human health, which could oth­erwise be caused by inappropriate
waste handling of this product. For
more detailed information about re­cycling of this product, please con­tact your local city office, your
household waste disposal service
or the shop where you purchased
the product.

W on the product or on

62 electrolux installation instructions

Installation Instructions

Attention: The new appliance may
only be installed and connected by a
registered expert.
Please comply with this. If you do
not, any damage resulting is not
covered by the warranty.

Safety information for the installer

• The electrical installation is to be set
up so that the appliance can be iso­lated from the mains with a minimum
3mm all-pole contact separation.
Suitable separation devices include
e.g. cut-outs, fuses (screw fuses are
to be taken out of the holder), RCD’s
and contactors.

• Anti-shock protection must be pro­vided by the installation.

• The built-in unit must meet the stabil­ity requirements of DIN 68930.

• Built-in ovens and built-in cooking
surfaces are fitted with special con­nection systems. For safety reasons,
they must only be combined with ap­pliances from the same manufactur­er.

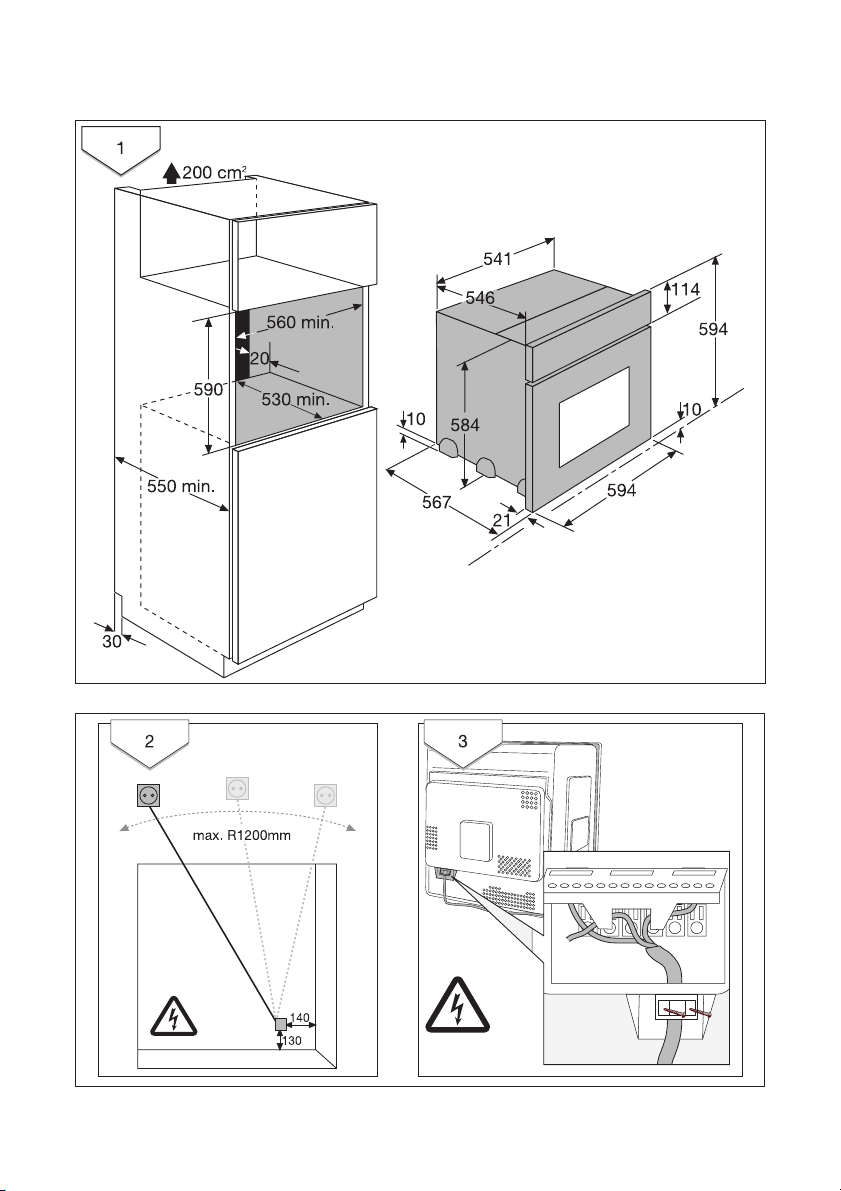

installation instructions electrolux 63

64 electrolux installation instructions

installation instructions electrolux 65

66 electrolux installation instructions

Guarantee/Customer Service

European Guarantee

This appliance is guaranteed by Electrolux in
each of the countries listed at the back of this
user manual, for the period specified in the appli­ance guarantee or otherwise by law. If you move
from one of these countries to another of the
countries listed below the appliance guarantee
will move with you subject to the following qual­ifications:

• The appliance guarantee starts from the date

• The appliance guarantee is for the same pe-

• The appliance guarantee is personal to the

• The appliance is installed and used in ac-

• The appliance is installed in accordance with

The provisions of this European Guarantee do
not affect any of the rights granted to you by law.

www.electrolux.com

you first purchased the appliance which will
be evidenced by production of a valid pur­chase document issued by the seller of the
appliance.

riod and to the same extent for labour and
parts as exists in your new country of resi­dence for this particular model or range of
appliances.

original purchaser of the appliance and can­not be transferred to another user.

cordance with instructions issued by Elec­trolux and is only used within the home, i.e. is
not used for commercial purposes.

all relevant regulations in force within your
new country of residence.

guarantee/customer service electrolux 67

p t b

Albania

Belgique/België/
Belgien

Èeská republika

Danmark

Deutschland

Eesti

España

[phone]

[phone]

[phone]

[phone]

[phone]

[phone]

[phone]

Rr. Pjeter Bogdani Nr. 7 Tirane

Bergensesteenweg 719, 1502 Lembeek

Budìjovická 3, Praha 4, 140 21

Sjællandsgade 2, 7000 Fredericia

Muggenhofer Str. 135, 90429 Nürnberg

Mustamäe tee 24, 10621 Tallinn

Carretera M-300, Km. 29,900
Alcalá de Henares Madrid

68 electrolux guarantee/customer service

p t b

France

Great Britain

Hellas

Hrvatska

Ireland

Italia

Latvija

Lithuania [phone]

Luxembourg

Magyarország

Nederland

Norge

Österreich

Polska

Portugal

Romania

Schweiz/Suisse/
Svizzera

Slovenija

Slovensko

Suomi

Sverige

Türkiye

Россия

Óêðà¿íà

www.electrolux.fr

[phone]

[phone]

[phone]

[phone]

[phone]

[phone]

[phone]

[phone]

[phone]

[phone]

[phone]

[phone]

[phone]

[phone]

[phone]

[phone]

[phone]

www.electrolux.fi

[phone]

[phone]

[phone]

[phone]

Addington Way, Luton, Bedfordshire
LU4 9QQ

4 Limnou Str., 54627 Thessaloniki

Slavonska avenija 3, 10000 Zagreb

Long Mile Road Dublin 12

C.so Lino Zanussi, 26 - 33080 Porcia (PN)

Kr. Barona iela 130/2, LV-1012, Riga

Žirmūnų 67, LT-09001 Vilnius

Rue de Bitbourg, 7, L-1273 Hamm

H-1142 Budapest XIV,
Erzsébet királyné útja 87

Vennootsweg 1, 2404 CG ­Alphen aan den Rijn

Risløkkvn. 2 , 0508 Oslo

Herziggasse 9, 1230 Wien

ul. Kolejowa 5/7, Warszawa

Quinta da Fonte - Edificio Gonçalves Zarco - Q
35
2774 - 518 Paço de Arcos

Str. Garii Progresului 2, S4, 040671 RO

Industriestrasse 10, CH-5506 Mägenwil

Electrolux Ljubljana d.o.o.
Gerbièeva 98, 1000 Ljubljana

Electrolux Slovakia s.r.o., Electrolux Domáce
spotrebièe SK, Seberíniho 1, 821 03 Bratislava

Electrolux Service, S:t Göransgatan 143,
S-105 45 Stockholm

Tarlabaþý caddesi no : 35 Taksim
Istanbul

129090 Москва, Олимпийский проспект, 16,
БЦ „Олимпик“

04074 Ки¿в, вул.Автозаводська,
2a, БЦ „Алкон“

Index

index electrolux 69

A

Accessories 12, 19
automatic meat probe 24
automatic recipes 26
Automatic shut-off 41
Automatic weight 24

B

Baking tray 12, 19

C

Child safety device 40
Cleaning

accessories 48
Oven interior 48
oven light bulb 51
Pre-cleaning 14
shelf support rails 49

Clock 8
Cook time 38
Countdown timer 37

D

Description of the appliance 7
Dishes 22
Display On/Off 31
Door lock 44

E

End time 38

F

Factory settings 31
Fast heating 18
Fat Filter 48
Fat filter 21
Fault code 59

H

Heat indicator 18
Heat+Hold 34
Heating up 18

I

Indicators 8

K

Key lock 40
Kitchen Assistant 22

Operation 24
Overview 22

L

Language

setting 13

M

Meat probe 41
Menu

My Programmes 29
Operation 17
Oven functions 27, 31
Overview 15
Settings 31

O

Odour filter 36
Oven

accessories 12

light 51
Oven functions 27
Oven shelf 12, 19

R

Recipes 22, 23
Repairs 5
Residual heat 18
Roasting Pan 12, 19

S

Safety 5
Set+Go 32
Setting the clock 14
Settings 31
Shelf 13
Shelf support rails 49
Sound settings 31
Storing 29
Symbols 9

T

Time extension 35

U

Using the oven 15

70 electrolux service

Service

In the event of technical faults, please
first check whether you can remedy the
problem yourself with the help of the op­erating instructions (section “What to do
if…”).

If you were not able to remedy the prob­lem yourself, please contact the Cus­tomer Care Department or one of our
service partners.

In order to be able to assist you quickly,
we require the following information:

– Model description
– Product number (PNC)
– Serial number (S No.)

(for numbers see rating plate)

– Typ e of fa ul t
– Any error messages displayed by the

appliance

So that you have the necessary refer­ence numbers from your appliance at
hand, we recommend that you write
them in here:

Model description: .....................................

PNC: .....................................

S No: .....................................

www.electrolux.com

822 720 520-M-270907-01
