AEG-Electrolux EOB6696W, EOB6696K, EOB6696X User Manual Elux Nordi
Built-In Electric Oven
Operating Instructions
822 947 966-B-160305-09
EOB 6696
g
Dear customer,
Please read these operating instructions carefully.
Pay particular attention to the section “Safety information” on the first few pages. Please retain these
operating instructions for later reference. Pass them
on to possible new owners of the appliance.
The following symbols are used in the
text:
1 Safety instructions
Warning: Information concerning your personal safety.
Important: Information on how to avoid damaging the appliance.
3 Information and practical tips
2 Environmental information
1. These numbers indicate step by step how to use
the appliance.
2. …
3. …
These operating instructions contain information on
steps you can take yourself to rectify a possible malfunction. Refer to the section “What to do if...”.
2
Contents
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Description of the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
General Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Oven Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Oven accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Before Using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Setting the time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Setting the language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setting the brightness of the displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Initial cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Using the Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
The Electronic Oven Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Oven Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Inserting the combination shelf, baking tray and general purpose tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Inserting/Removing the Fat Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Other functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Clock Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Switching off the time display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
The oven’s child security lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Blocking use of the buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
The oven's safety cut-out function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Mechanical Door Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Uses, Tables and Tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Baking Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Roasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Roasting Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Meat Probe Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Grilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Infrared grilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Turbo grilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Defrosting table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Preserving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Drying with Hot Air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Recipes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Exterior of the Appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Oven Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Fat Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

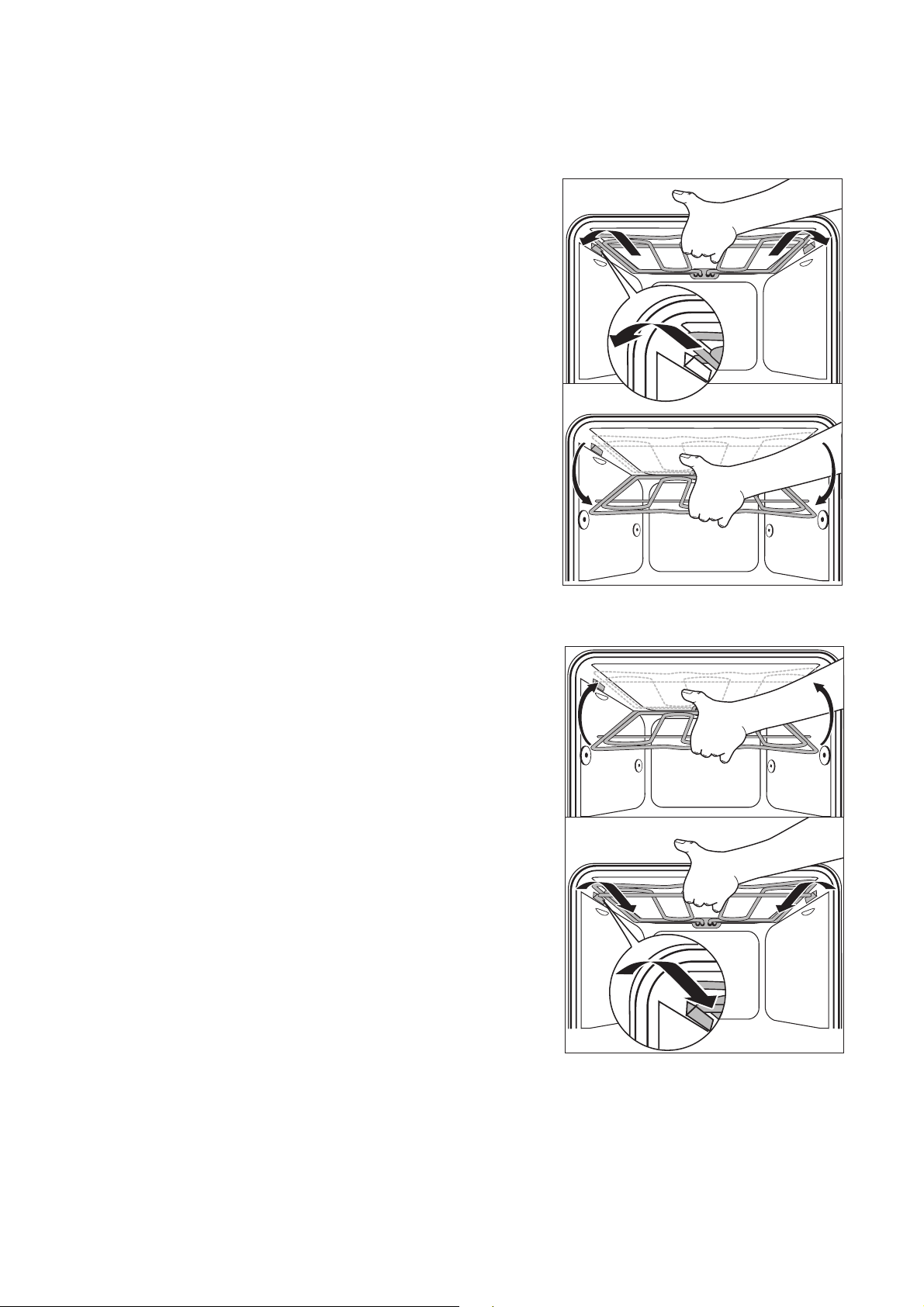

Shelf Support Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Oven Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Oven Ceiling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Oven Door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

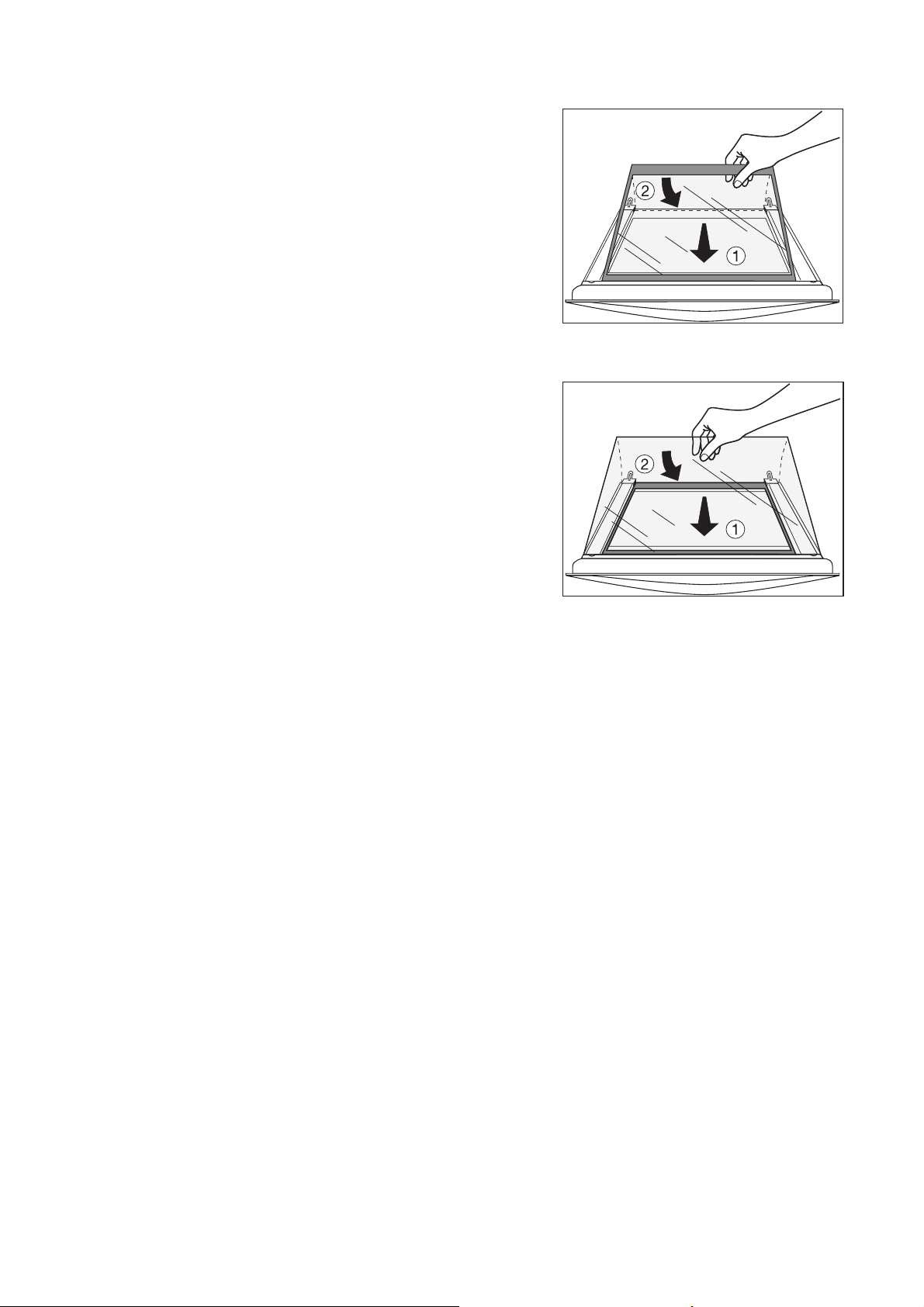

Oven Door Glass. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Oven Interior Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Regulations, Standards, Directives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
3
1 Safety
Electrical Safety
• The appliance may only be connected by a regis-
tered specialist.
• In the event of any faults or damage to the appli-
ance: remove fuses or switch off.
• It is not permissible to clean the appliance with a
steam or high pressure cleaner for safety reasons!
• Repairs to the appliance may only be carried out
by specialists. Repairs carried out by inexperi-
enced persons may cause injury or serious malfunctioning. If your appliance needs repairing,
please contact your local AEG Service Force Centre or your specialist dealer.
Child Safety
• Never leave children unsupervised when the appli-
ance is in use.
Safety whilst Using
• This appliance is intended to be used for cooking,
roasting and baking food in the home.
• Take care when connecting electric appliances to
sockets nearby. Do not allow connecting leads to
come into contact with or to catch beneath the hot
oven door.
• Warning: Risk of burns! The interior of the oven
becomes hot during use.
• Using ingredients containing alcohol in the oven
may create an alcohol-air mixture that is easily ignited. In this case, open the door carefully. Do not
have embers, sparks or naked flames in the vicinity
when opening the door.
To Avoid Damaging Your Appliance
• Do not line your oven with aluminium foil and do
not place a baking tray or dish on the oven floor,
otherwise the oven enamel will be damaged by the
resulting build up of heat.
• Juice from fruit that drips from baking trays will
leave marks that cannot be removed. For very
moist cakes, use the universal baking tray.
• Do not put any weight on the oven door when it is
open.
• Never pour water directly into the hot oven. The
enamel may be damaged.
• Using force, especially on the edges of the front
glass panel, may break the glass.
• Do not store inflammable objects in the oven. They
may ignite when the oven is switched on.
• Do not store moist food in the oven. The enamel
may be damaged.
4
Disposal
2
Packaging material
The packaging materials are environmentally
friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging
materials in the appropriate container at the
community waste disposal facilities.
2 Old appliance
The symbol W on the product or on its pack-
aging indicates that this product may not be
treated as household waste. Instead it shall be
handed over to the applicable collection point
for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. For more detailed information about recycling of this product,
please contact your local city office, your
household waste disposal service or the shop
where you purchased the product.
5
Description of the Appliance
General Overview
Control panel
Door handle
Full glass door
6
Control Panel
Oven Functions
Oven Features
Oven / Time Display
Mains Button Clock Functions
Oven Functions
Temperature selector/
Time setting
Top heat and heating elements
Oven lighting
Shelf positions
Meat probe socket
Fat Filter
Oven lighting
Rear wall heating
element
Bottom Heat
Oven shelf runners, removable
7
Oven accessories
Combination shelf
For dishes, cake tins, items for roasting and grilling.
Baking tray
For cakes and biscuits.
General purpose pan
For roasting, or as a receptacle for grease.

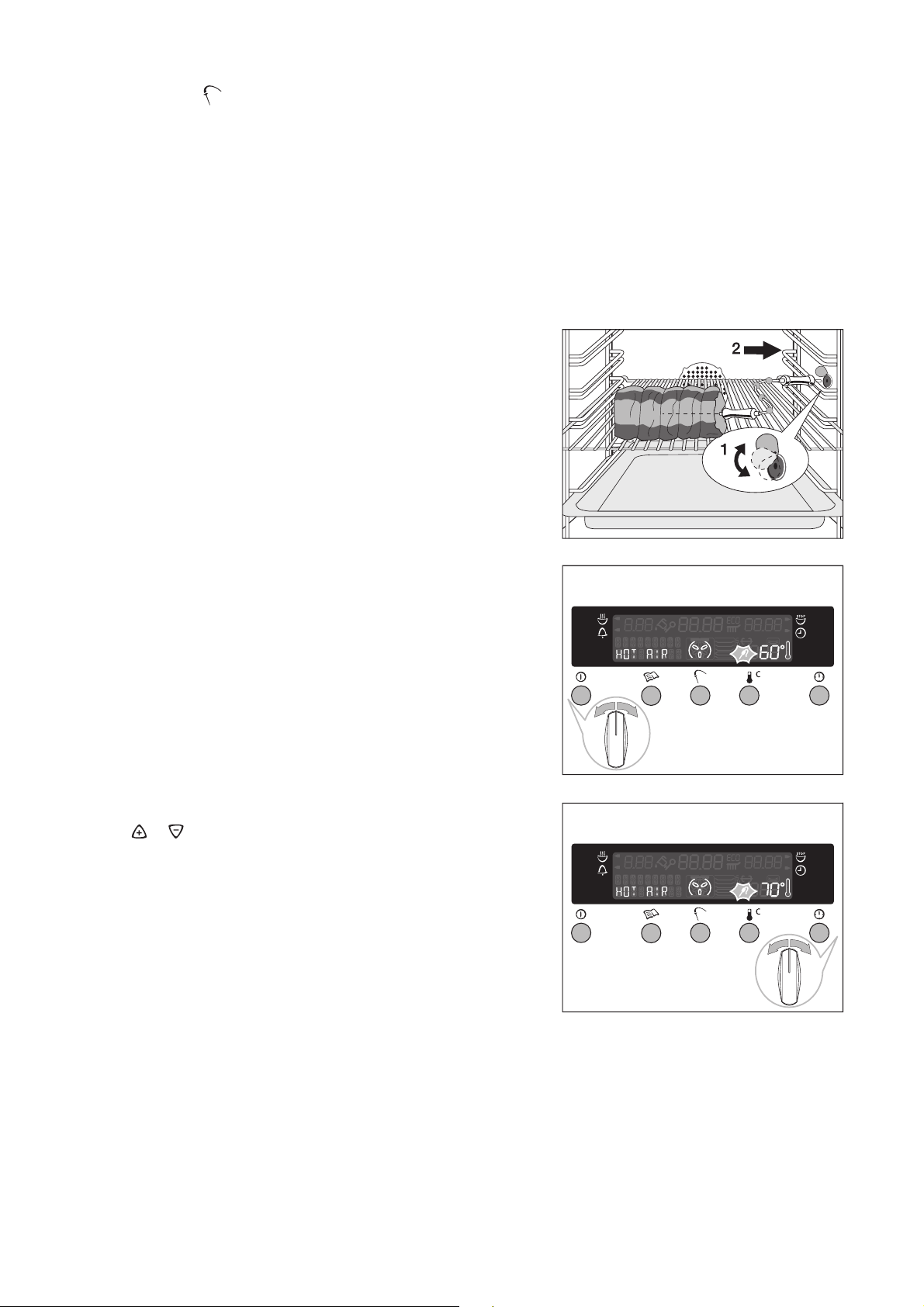

Meat probe
For determining exactly how far joints of meat are
cooked.
8
Before Using for the first time

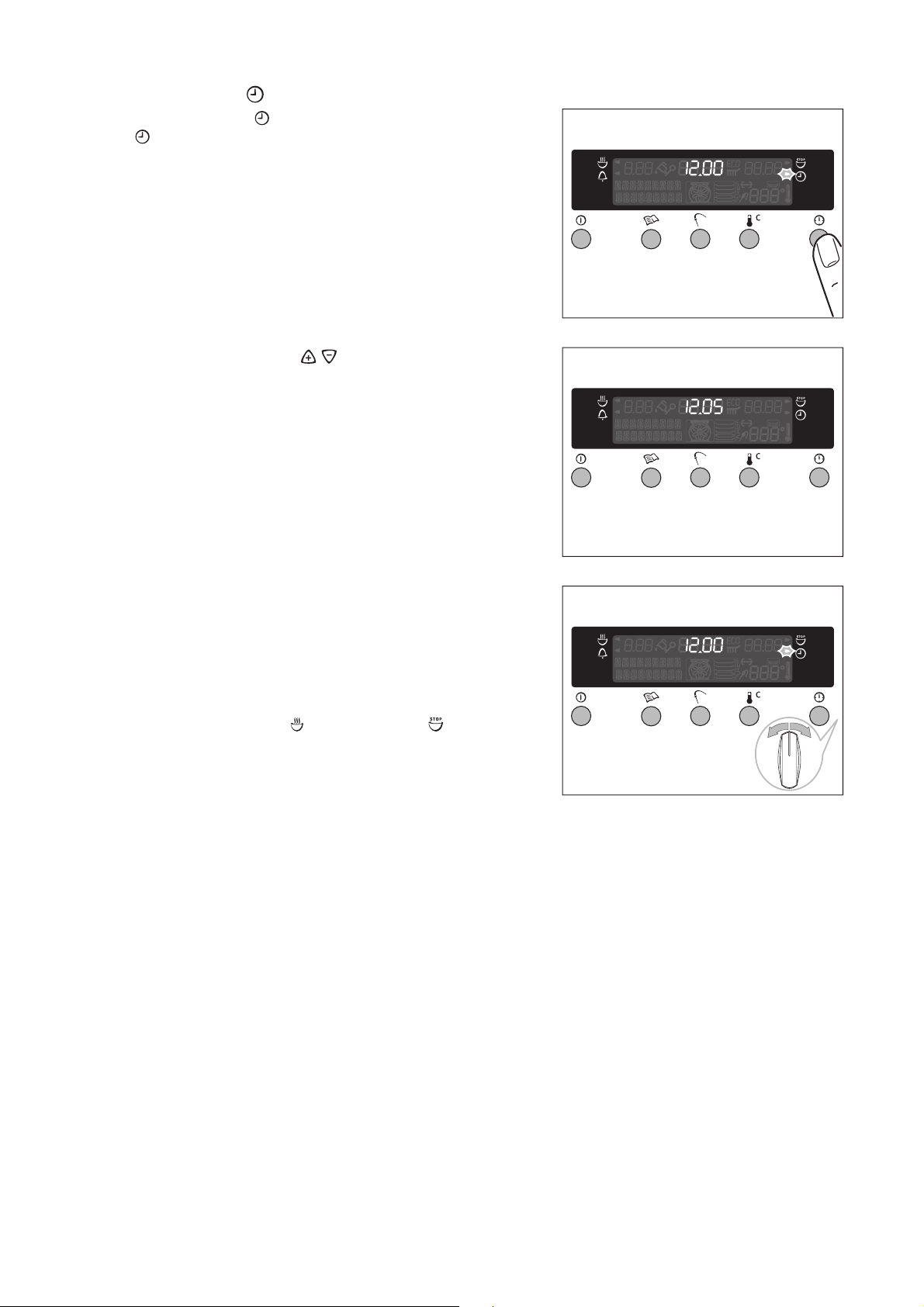

Setting the time
3 The oven operates only when the time has
been set.
After the oven has been connected to the electricity
supply and following a power failure the “set time”
arrow flashes.
Set the current time using the / switch.
Wait for 5 seconds.
The flashing will stop and the clock will display the
set time.
The appliance is ready for use.
9
Setting the language
1. Switch on the appliance by pressing the main
Power button.
2. Press the main Power and the Clock
Functions buttons at the same time.
3. Using the / switch, select one of the languages
displayed.
4. Press the main Power and the Clock
Functions buttons at the same time, to store the
selected language.
10
Setting the brightness of the displays
The brightness of the oven display can be set so that
it is easier to read if the oven has been installed in a
high position.
1. Switch the appliance on by pressing the main pow-
er switch .
2. Press the main Power and the Clock
Functions buttons at the same time.
3. Turn the oven function switch once.
4. Set the brightness using the / switch.
5. Press the main Power and the Clock
Functions buttons at the same time, to store the
brightness setting.
11
Initial cleaning
Clean the oven before using it for the first time.
1 Important: Do not use caustic or abrasive
cleaning agents! These can damage the oven
surfaces.
3 For the metal surfaces, use commercially
available cleaning agents.
1. Open the oven door.
The oven light is lit.
2. Remove all oven accessories, and clean them with
warm water and a scouring agent.
3. Wash the oven in the same way, and wipe dry.
4. Wipe the front of the appliance with a damp cloth.
12
Using the Oven
The Electronic Oven Control
Oven Functions
Cook Time indicator End indicator
Time displays
Temperature selector/
Time setting
Oven function
indicator
Mains Button Clock Functions
Time functions
Recipes
Clock/Countdown
Temperature gauge
Meat cooking rod
Time functions
Temperature
Display
3 General hints
• Always switch on the appliance first by pressing
the Power button .
• When the selected function is lit, the oven begins
to heat, or the set period of time begins to run.
• An signal sounds when the set temperature has
been reached.
• The oven light comes on when an oven function
has been selected.
• Switch off the appliance by pressing the main
Power button .
3 Operating the switch
Turn the switch to the right or to the left within
the marked area in order to set a time, temperature or function.
1 Important: Do not turn the switch past the
point of resistance.
13
Oven Functions
The oven has the following functions:
3 The Pizza setting, Top Heat/Bottom Heat
and Tur b o A l l - R o u n d G r i l l functions include
an automatic Fast Warm Up function. This
garantees that the temperature selected will
be reached as quickly as possible.
Hot air (Fan oven)
Suggested temperature: 180°C
For roasting and baking on up to three shelf posi-
tions at the same time.
Set the oven temperature 20-40°C lower than for
To p / Bot t o m He a t .
The rear wall heating element is on, and the fan is
also on.
Top/Bottom Heat (Conventional)
Suggested temperature: 200°C.
For baking and frying/roasting on one shelf posi-
tion.
The Top and Bottom Heat heating elements are on.
Pizza setting
Suggested temperature: 200°C
For baking pizzas, pies, quiches and tarts.
The rear wall heating element and Bottom Heat are
on, and the fan is also on.
14
Turbo grill
Suggested temperature: 180°C
For roasting larger pieces of meat or poultry on one
shelf position. This function is suitable for au gratin
dishes and soufflés.
The grill heating element and the fan are on.
Infrared grill
Suggested temperature: 250°C
For grilling flat foods placed in the middle of the
grid, for example steaks, escalopes, fish, or for
toasting.
The grill heating element is on.
Large grill
Suggested temperature: 250°C
For grilling flat foods in large quantities, for exam-
ple steaks, escalopes, fish, or for toasting.
The Top Heat and Grill heating elements are on.
Top Heat
Suggested temperature: 120°C
For browning/topping bread, cakes, and pastries,
and for soufflés.
The Top Heat heating element is on.
Bottom Heat
Suggested temperature: 120°C
For baking cakes with crusty bases.
Bottom Heat is on.
Keep warm
Suggested temperature: 80°C
For keeping dishes warm.
The Top and Bottom Heat heating elements are on.
Defrost
Suggested temperature: 30°C
For defrosting and thawing, for example gateau,
butter, bread, pies, and other frozen foods.
With this function, the fan is on without heating.
15
Switching on the oven function
1. Switch the appliance on by pressing the main pow-
er switch .
2. Turn the oven functions switch until the desired
oven function appears.
– The temperature display indicates a recommend-
ed temperature.
– If this recommended temperature is not altered
within approx. 5 seconds, the oven begins to
heat up.
Changing the oven temperature
Turn the / switch to raise or lower the temperature.
The temperature adjustment takes place in steps
of 5 °C.
Thermometer symbol
• The slowly rising thermometer symbol indicates
the temperature to which the oven has already
heated.
• The three segments of the thermometer that flash
one after the other indicate that the rapid heating
function is in operation.
Ascertaining the temperature
Press check temperature switch .
The current oven temperature will appear in the tem-
perature display.
16
Changing the oven function
Turn the oven functions switch until the desired oven
function appears.
Switching off the oven function
To switch off the ove, turn the oven functions switch
until no oven functions are displayed.
Switching off the oven
Switch the appliance off by pressing the main power
switch .
3 Cooling fan
The fan switches on automatically in order to
keep the appliance’s surfaces cool. When the
oven is switched off, the fan continues to run
to cool the appliance down, then switches itself off automatically.
17
Inserting the combination shelf, baking tray and general
purpose tray
Inserting the baking tray and general
purpose tray:
The trays have a little bulge on the left and right edges. These act as an anti-tip device and must always
be located towards the rear when inserting the tray.
Insert trays in the desired shelf positions.
Inserting oven shelves:
Insert the shelf at the desired position.
3 To make it easier to insert a tray at a different
shelf position, set the tray in the rails at the desired position, push in as far as it will go, then
let it down.
Inserting/Removing the Fat Filter
The fat filter protects the rear wall heating element
against splashes of fat when roasting.
Inserting the fat filter
Holding the fat filter by the tab, insert the two retainers into the opening on the rear wall of the oven
(fan opening) from the top downwards.
Removing the fat filter
Take hold of the tab on the fat filter and remove by
pulling upwards.
18
Loading...
