Aeg-electrolux EHD60100P 77P User Manual
user manual
Induction hob
EHD60100P
We were thinking of you
when we made this product
Welcome to the world of Electrolux
Thank you for choosing a first class
product from Electrolux, which hopefully
will provide you with lots of pleasure in
the future. The Electrolux ambition is to
offer a wide variety of quality products
that make your life more comfortable.
You will find some examples on the cover in this manual. Please take a few minutes to study this manual so that you
can take advantage of the benefits of
your new machine. We promise that it
will provide a superior User Experience
delivering Ease-of-Mind. Good luck!
electrolux 3
4 electrolux contents
T
1
Contents
Safety instructions 5
Description of the Appliance 7
Operating the appliance 10
Tips on Cooking and Frying 20
Cleaning and Care 25
What to do if … 27
Disposal 29
Installation Instructions 30
Assembly 31
Guarantee/Customer Service 36
Service 38
he following symbols are used in this user information:
Warning! This must be read! Important advice for the safety of persons and
information on avoiding damage to the appliance
3 General information and advice
2 Information on environmental protection
z Dangerous voltage
Safety instructions
Please comply with these instructions. If
you do not, any damage resulting is not
covered by the warranty.
Correct use
• This appliance is not intended for
use by children or other persons
whose physical, sensory or mental
capabilities or lack of experience and
knowledge prevents them from using the appliance safely without supervision or instruction by a
responsible person to ensure that
they can use the appliance safely.
• Do not leave the appliance unattended during operation.
• This appliance should be used only
for normal domestic cooking and frying of food.
• The appliance must not be used as a
work surface or as a storage surface.
• Additions or modifications to the appliance are not permitted.
• Do not place or store flammable liquids, highly inflammable materials or
fusible objects (e.g. plastic film, plastic, aluminium) on or near the appliance.
safety instructions electrolux 5
Children’s safety
• Small children must be kept away
from the appliance.
• Only let bigger children work on the
appliance under supervision.
• To avoid small children and pets unintentionally switching the appliance
on, we recommend activation of the
child safety device.
General safety
• The appliance may only be installed
and connected by trained, registered
service engineers.
• Built-in appliances may only be used
after they have built in to suitable
built-in units and work surfaces that
meet standards.
• In the event of faults with the appliance or damage to the glass ceramic
(cracks, scratches or splits), the appliance must be switched off and
disconnected from the electrical
supply, to prevent the possibility of
an electric shock.
• Repairs to the appliance must only
be carried out by trained registered
service engineers.
6 electrolux safety instructions
Safety during use
• Remove stickers and film from the
glass ceramic.
• There is the risk of burns from the
appliance if used carelessly.
• Cables from electrical appliances
must not touch the hot surface of the
appliance or hot cookware.
• Overheated fats and oils can ignite
very quickly. Warning! Fire hazard!
• Switch the cooking zones off after
each use.
• Users with implanted pacemakers
should keep their upper body at least
30 cm from induction cooking zones
that are switched on.
• Risk of burns! Do not place objects
made of metal, such as knives, forks,
spoons and saucepan lids on the
cooking surface, as they can get hot.
Safety when cleaning
• For cleaning, the appliance must be
switched off and cooled down.
• For safety reasons, the cleaning of
the appliance with steam jet or highpressure cleaning equipment is not
permitted.
How to avoid damage to the appliance
• The glass ceramic can be damaged
by objects falling onto it.
• The edge of the glass ceramic can
be damaged by being knocked by
the cookware.
• Cookware made of cast iron, cast
aluminium or with damaged bottoms
can scratch the glass ceramic if
pushed across the surface.
• Objects that melt and things that boil
over can burn onto the glass ceramic
and should be removed straightaway.
• Do not use the cooking zones with
empty cookware or without cookware.
• To avoid damaging cookware and
glass ceramics, do not allow saucepans or frying pans to boil dry.

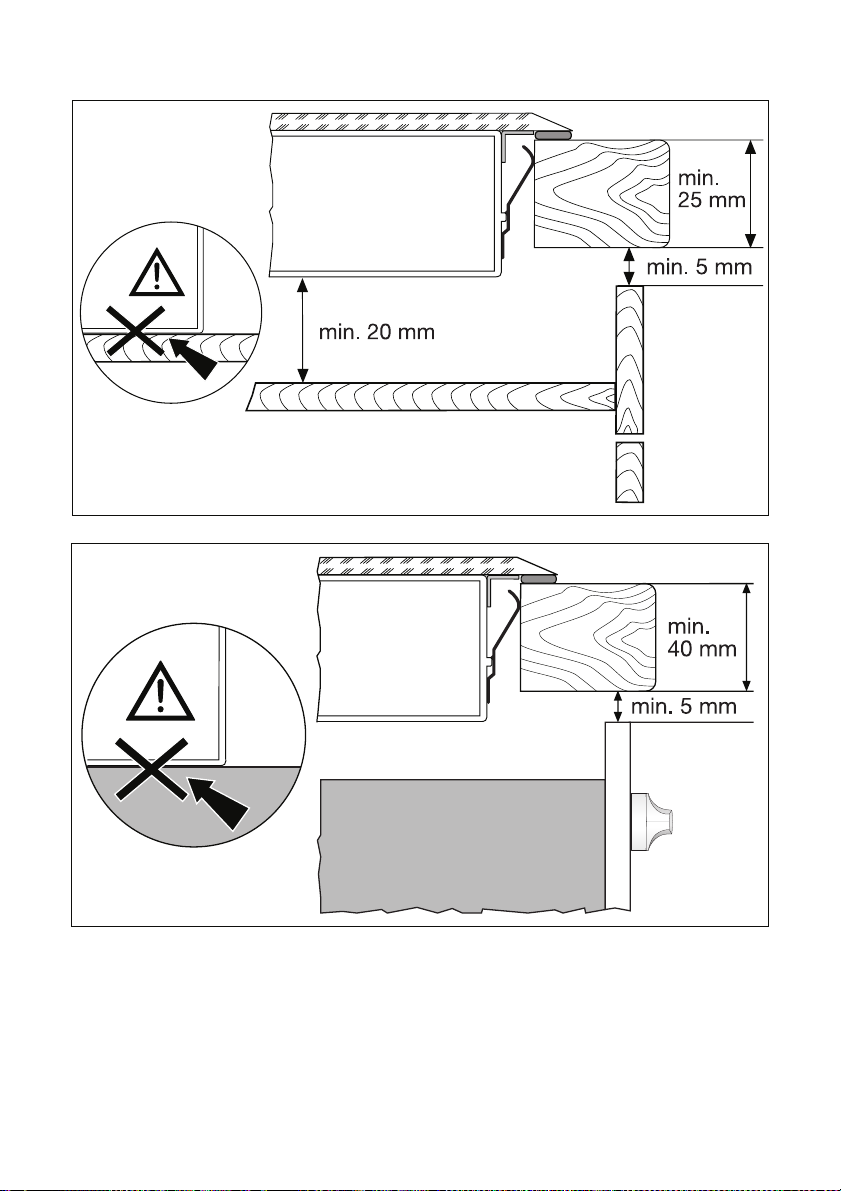

• The ventilation gap of 5mm between
the worktop and front of the unit underneath it must not be covered.
Description of the Appliance
Cooking surface layout
description of the appliance electrolux 7
Double ring cooking zone 700/1700 WSingle cooking zone 1200 W
Induction cooking zone 2300 W
with power function 3700 W
Control panel layout
Heat setting selection
Power function
On/Off
with power indicator
Control panel
Cooking zone indicators
Timer function
Timer display
Timer
Induction cooking zone 1400 W
with power function 1800 W
Display
Lock
Outside ring
On/Off
Double ring pilot light
8 electrolux description of the appliance
Touch Control sensor fields
The appliance is operated using Touch
Control sensor fields. Functions are
controlled by touching sensor fields and
confirmed by displays and acoustic signals.
Touch the sensor fields from above,
without covering other sensor fields.
Sensor field Function
On / Off To switch the appliance on and off
Increase settings Increasing heat setting/time
Decrease settings Decreasing heat setting/time
Timer Timer selection
Lock Locking/unlocking the control panel
Power Switching the power function on and off
Double ring switch Switches outside ring
on and off
Warning! Risk of burns from heat
emitted. Lengthy cooking on higher
settings with larger cookware on
the front cooking zones can heat
the sensor fields. Take care when
touching sensor fields.
description of the appliance electrolux 9
Displays
Display Description
Cooking zone is switched off
Keep warm setting Keep warm setting is set
- Heat settings Heat setting is set
Automatic warm up function Automatic warm-up function is activat-
ed
Fault Malfunction has occurred
Pan detection Cookware is unsuitable or too small or
no cookware has been placed on the
cooking zone
Residual heat Cooking zone is still hot
Child safety device Lock/child safety device is engaged
Power Power function is switched on
Automatic switch off Switch off is active.
Residual heat indicator
Warning! Risk of burns from residual heat. After being switched off, the
cooking zones need some time to
cool down. Look at the residual heat
indicator
.
Residual heat can be used for melting and keeping food warm.
The induction cooking zones create
the heat required for cooking directly in
the base of the cookware. The glass ceramic is merely heated by the residual
heat of the cookware.
The cooling fan switches itself on and
off depending upon the temperature of
the electronics.
10 electrolux operating the appliance
Operating the appliance
Use the induction cooking zones
with suitable cookware.
Switching the appliance on and off
Control panel Display Pilot light
Switch on Touch for 2 seconds / lights up
Switch off Touch for 1 second / none goes out
After switching on, within approx.
10 seconds a heat setting or a function must be set, otherwise the appliance automatically switches
itself off.
Setting the heat setting
Control panel Display
Increase Touch to /
Decrease Touch to
Switch off Touch and at the same time
The keep warm setting lies between and . It is used to keep
food warm.
Switching the double ring cooking zone on and off
With the double ring cooking zone the
heating surface can be matched to the
size of the cookware.
Control panel Pilot light
Switch on Touch for 1-2 seconds lights up
Switch off Touch for 1-2 seconds goes out
operating the appliance electrolux 11
Using the automatic warm-up function
All cooking zones are equipped with an
automatic warm-up function. The automatic warm-up function sets the cooking zone to the highest setting for a
certain period of time and then automatically switches back to the cooking setting that was originally set.
Step Control panel Display
1. Setting the maximum setting /
2. Place to one side for a moment /
3. touch
4. touch in order to set the desired
cooking setting
If during the automatic warm up
a higher heat setting is selected,
e.g. from to , the automatic
warm up is adjusted.
The length of time that the automatic
warm up function operates depends on
the heat setting selected.
until /
after 3 seconds
Heat
setting
v
1
2
3
4
5
6
7
8
9
Length of the automatic
warm up
Radiation element
[min:sec]
0:30 0:10
1:00 0:10
1:40 0:10
4:50 3:10
6:30 5:50
10:10 10:10
2:30 2:00
3:30 2:30
4:30 2:50
--- ---
Length of the automatic
warm up
Induction
[min:sec]
12 electrolux operating the appliance
Locking/unlocking the control panel
The control panel, with the exception of
the “On/Off” sensor field, can be locked
at any time in order to prevent the settings being changed e.g. by wiping over
the panel with a cloth.
Control panel Display
Switch on Touch (for 3 seconds)
Switch off Touch previously set heat setting
When you switch the appliance off,
the locking function is automatically
switched off.
