AEG-Electrolux 66030K-MN 52S User Manual
66030K-MN
User Manual
Notice d’utilisation
Gebruiksaanwijzing
Ceramic glass hob
Table de cuisson
vitrocéramique
Glaskeramische
kookplaat
2
The followi
1
Dear Customer
Thank you for choosing one of our high-quality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best performance and control - indeed we are setting the highest standards of excellence.
In addition to this you find environmental and energy saving aspects as an integral part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently.
To refer to this manual any time you need to, we recommend you to keep it in a
safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
ng symbols are used in this user information:
Warning! This must be read! Important advice for the safety of persons and
information on avoiding damage to the appliance
3 General information and advice
2 Information on environmental protection
z Dangerous voltage
Contents
Operating Instructions 4
Safety instructions 4
Description of the Appliance 6
Cooking surface layout 6
Control panel layout 6
Touch Control sensor fields 7
Displays 7
Residual heat indicator 7
Operating the appliance 8
Switching the appliance on and off 8
Setting the heat setting 8
Locking/unlocking the control panel 8
Using the automatic warm-up function 9
Using the child safety device 10
Using the timer 11
Automatic switch off 14
Tips on Cooking and Frying 15
Cookware 15
Energy saving 15
Examples of cooking applications 16
Cleaning and Care 17
3
What to do if … 18
Disposal 20
Installation Instructions 21
Safety instructions 21
Guarantee/Customer Service 22
Service 23
Assembly 74
Rating Plate 77
Operating Instructions4
Operating Instructions
1 Safety instructions
Please comply with these instructions. If you do not, any damage resulting is not
covered by the warranty.
Correct use
• This appliance is not intended for use by children or other persons whose
physical, sensory or mental capabilities or lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction by a responsible person to ensure that they can use the appliance safely.
• Do not leave the appliance unattended during operation.
• This appliance should be used only for normal domestic cooking and frying of
food.
• The appliance must not be used as a work surface or as a storage surface.
• Additions or modifications to the appliance are not permitted.
• Do not place or store flammable liquids, highly inflammable materials or fusi-
ble objects (e.g. plastic film, plastic, aluminium) on or near the appliance.
Children’s safety
• Small children must be kept away from the appliance.
• Only let bigger children work on the appliance under supervision.
• To avoid small children and pets unintentionally switching the appliance on,
we recommend activation of the child safety device.
General safety
• The appliance may only be installed and connected by trained, registered
service engineers.
• Built-in appliances may only be used after they have built in to suitable builtin units and work surfaces that meet standards.
• In the event of faults with the appliance or damage to the glass ceramic
(cracks, scratches or splits), the appliance must be switched off and disconnected from the electrical supply, to prevent the possibility of an electric
shock.
• Repairs to the appliance must only be carried out by trained registered service
engineers.
5Safety instructions
Safety during use
• Overheated fats and oils can ignite very quickly. Warning! Fire hazard!
• There is the risk of burns from the appliance if used carelessly.
• Remove stickers and film from the glass ceramic.
• Cables from electrical appliances must not touch the hot surface of the appli-
ance or hot cookware.
• Switch the cooking zones off after each use.
Safety when cleaning
• For cleaning, the appliance must be switched off and cooled down.
• For safety reasons, the cleaning of the appliance with steam jet or high-pres-
sure cleaning equipment is not permitted.
How to avoid damage to the appliance
• The glass ceramic can be damaged by objects falling onto it.
• The edge of the glass ceramic can be damaged by being knocked by the cook-
ware.
• Cookware made of cast iron, cast aluminium or with damaged bottoms can
scratch the glass ceramic if pushed across the surface.
• Objects that melt and things that boil over can burn onto the glass ceramic
and should be removed straightaway.
• To avoid damaging cookware and glass ceramics, do not allow saucepans or
frying pans to boil dry.
• Do not use the cooking zones with empty cookware or without cookware.
Description of the Appliance6
Description of the Appliance

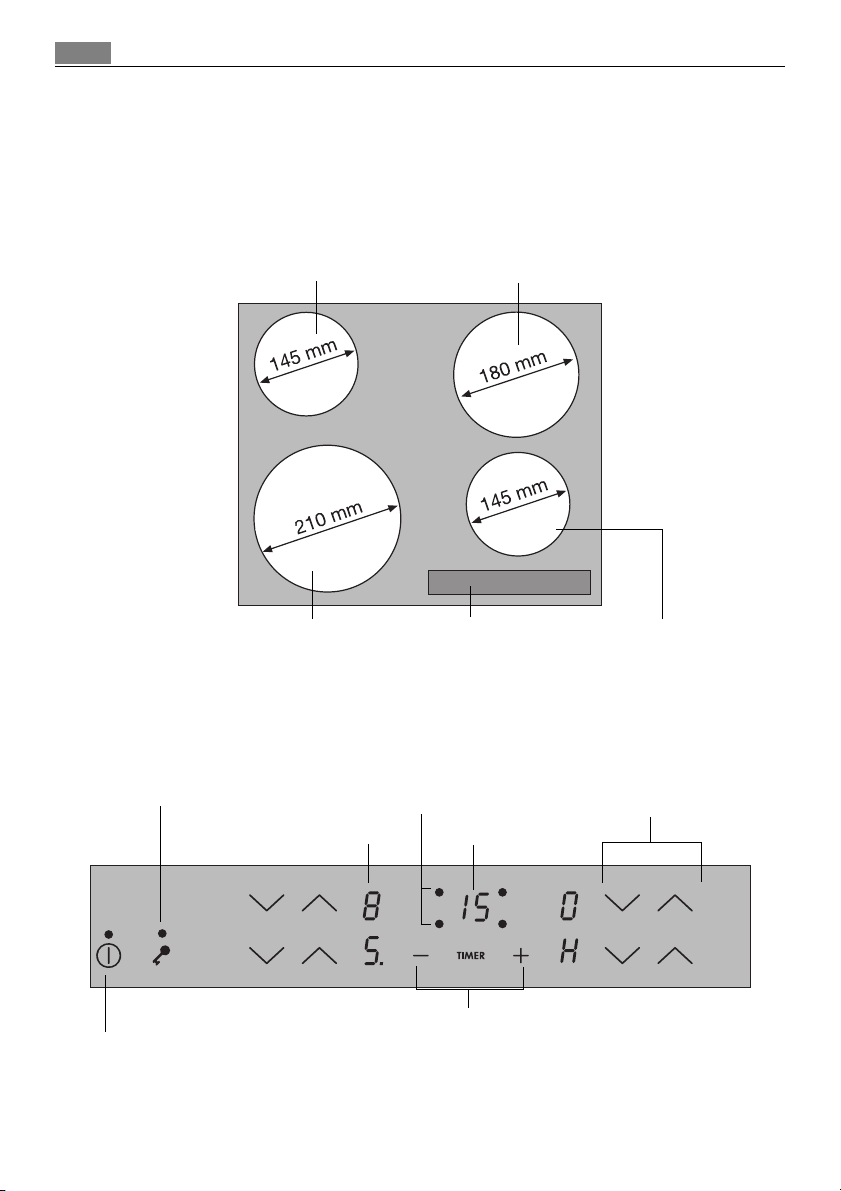

Cooking surface layout
Single cooking zone
1200W
Single cooking zone
1800W
Single cooking zone
Control panel layout
Lock
with pilot light
On/Off
with power indicator
2300W
Cooking zone indicators
Timer function
Display
Control panel Single cooking zone
1200W
Heat setting selection
Timer display
Timer
7Description of the Appliance
Touch Control sensor fields
The appliance is operated using Touch Control sensor fields. Functions are controlled by touching sensor fields and confirmed by displays and acoustic signals.
Touch the sensor fields from above, without covering other sensor fields.
Sensor field Function
On / Off To switch the appliance on and off
Increase settings To increase heat settings
Reduce settings To reduce heat settings
Timer Timer selection
Increase settings To increase Timer time
Reduce settings To reduce Timer time
Lock Locking/unlocking the control panel
Displays
Display Description
Cooking zone is switched off
Keep warm setting Keep warm setting is set
- Heat settings Heat setting is set
- Heating setting plus
decimal point
Automatic warm up
function
Fault Malfunction has occurred
Residual heat Cooking zone is still hot
Child safety device Lock/child safety device is engaged
Automatic switch off Switch off is active.
Intermediate heat setting is set
Automatic warm-up function is
activated
Residual heat indicator
1 Warning! Risk of burns from residual heat. After being switched off, the cook-
ing zones need some time to cool down. Look at the residual heat indicator .
3 Residual heat can be used for melting and keeping food warm.
Operating the appliance8
Operating the appliance
Switching the appliance on and off
Control panel Display Pilot light
Switch on Touch for 2 seconds / lights up
Switch off Touch for 1 second / none goes out
3 After switching on, within approx. 10 seconds a heat setting or a function must
be set, otherwise the appliance automatically switches itself off.
Setting the heat setting
Control panel Indicator
To increase Touch to
To decrease Touch to
To switch off Touch and at the same time
3 The keep warm setting lies between and . It is used to keep food warm.
Locking/unlocking the control panel
The control panel, with the exception of the “On/Off” sensor field, can be locked
at any time in order to prevent the settings being changed e.g. by wiping over
the panel with a cloth.
Control panel Display
Switch on Touch (for 5 seconds)
Switch off Touch previously set heat setting
3 When you switch the appliance off, the locking function is automatically
switched off.
Using the automatic warm-up function
All cooking zones are equpped with an automatic warm up function When setting a heat setting using , when starting from , the cooking zone switches
to full power for a certain amount of time and then automatically switches back
to the heat setting set.
9Operating the appliance
Switch on
Control
panel
Touch to (after 5 seconds)
possible heat
settings
Display
(only when starting at
)
Switch off Touch to / to
Not used Touch to to
3 If during the automatic warm up a higher heat setting is selected, e.g. from
to , the automatic warm up is adjusted.
3 If there is still residual heat on the cooking zone (display ), the automatic
warm up is not performed.
The length of time that the automatic warm up function operates depends on
the heat setting selected.
Heat
setting
v 0:30
1 1:00
2 1:40 2. 2:40
3 4:50 3. 5:30
4 6:30 4. 8:10
5 10:10 5. 12:20
6 2:00 6. 2:30
7 3:30
8 4:30
9 ---
Length of the
automatic warm up
[min:sec]
Intermediate heat
setting
Length of the
automatic warm up
[min:sec]
Operating the appliance10
Using the child safety device
The child safety device prevents unintentional use of the appliance.
Switching on the child safety device
Step Control panel Display/Signal
1. Switch on appliance. (Do not set a
heat setting.)
2. Touch for 4 seconds
The child safety device is switched on.
Switching off the child safety device
Step Control panel Display/Signal
1. Switch on appliance. (Do not set a
heat setting.)
2. Touch for 4 seconds lights up
3. Switch appliance off.
The child safety device is switched off.
3 The child safety device can only be switched on and off, if no heat setting is set.
Overriding the child safety device
The child safety device can be switched off in this way for a single cooking session; it remains activated afterwards.
Step Control panel Display/Signal
1. Switch appliance on
2. Touch for 4 seconds lights up
Until the appliance is next switched off, it can used as normal. After switching
off the appliance, the child safety device is active again.
3 After overriding the child safety device, a heat setting or a function must be set
within approx. 10 seconds, otherwise the appliance automatically switches itself
off.
11Operating the appliance
Using the timer
Function Condition Outcome after the
time has elapsed
Automatic cut-out a heat setting is set acoustic signal
00 flashes
Cooking zone switches
off
Countdown timer cooking zones not in use acoustic signal
00 flashes
3 If a heat setting is set on this cooking zone in addition to a countdown timer,
the cooking zone is switched off after the time set has elapsed.
3 If a cooking zone is switched off, the timer function set is also switched off.
Selecting a cooking zone
Step Control panel Display
1. Touch once Pilot light of the first
cooking zone flashes
2. Touch once Pilot light of the second
cooking zone flashes
3. Touch once Pilot light of the third
cooking zone flashes
4. Touch once Pilot light of the fourth
cooking zone flashes
3 If the pilot light is flashing more slowly, the heat setting can be set or modified.
3 If other timer functions are set, after a few seconds the shortest remaining time
of all the timer functions is displayed and the corresponding pilot light flashes.
Operating the appliance12
Setting the time
Step Control panel Indicator
1. Select cooking
zone
2. Touch or 00 to 99 minutes
After a few seconds the pilot light flashes more slowly.
The time is set.
The time counts down.
Pilot light for the cooking zone selected
flashes
Switching off the timer function
Step Control panel Indicator
1. Select cooking
zone
2. Touch The time remaining counts backwards to
The pilot light goes out.
The Timer function for the selected cooking zone is switched off.
Pilot light of cooking zone selected flashes faster
Time remaining is displayed
00.
Changing the time
Step Control panel Indicator
1. Select cooking
zone
2. Touch or 01 to 99 minutes
After a few seconds, the pilot light flashes more slowly.
The time is set.
The time counts down.
Pilot light of the selected cooking zone
flashes faster
Time remaining is displayed
Displaying the time remaining for a cooking zone
Step Control panel field Display
1. Select cooking
zone
Pilot light of the cooking zone selected
flashes faster
The time remaining is displayed
After a few seconds the pilot light flashes more slowly.
Switching off the acoustic signal
Step Control panel field Acoustic signal
1. Touch Acoustic signal to acknowledge.
Acoustic signal stops.
13Operating the appliance
Operating the appliance14
Automatic switch off
Cooking surface
• If after switching on the cooking surface, a heat setting is not set for a cooking zone within approx. 10 seconds, the cooking surface automatically switches itself off.
• If one or more sensor fields are covered by objects (a pan, cloths, etc.) for
longer than approx. 10 seconds, a signal sounds and the cooking surface
switches off automatically.
• If all cooking zones are switched off, the cooking surface automatically
switches itself off after approx. 10 seconds.
Cooking zones
• If one of the cooking zones is not switched off after a certain time, or if the
heat setting is not modified, the relevant cooking zone switches off automatically. is displayed. Before being used again, the cooking zone must be set to
.
Heat setting Switches off after
v, 1 - 2 6 hours
3 - 4 5 hours
5 4 hours
6 - 9 1.5 hours
Tips on Cooking and Frying
15Tips on Cooking and Frying
3
Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, especially in products containing starch, can constitute a health risk due to acrylamides. Therefore we recommend cooking at the lowest possible temperatures
and not browning foods too much.
Cookware
• You can recognise good cookware from the bottoms of the pans. The bottom
should be as thick and flat as possible.
• Cookware made of enamelled steel or with aluminium or copper bottoms can
leave discolorations on the glass ceramic surface which are difficult or impossible to remove.
Energy saving
2 Always place cookware on the cooking
zone before it is switched on.
2 If possible, always place lids on the pans.
2 Switch cooking zones off before the end of
the cooking time, to take advantage of residual heat.
2 Bottom of pans and cooking zones should
be the same size.
Tips on Cooking and Frying16
Examples of cooking applications
The information given in the following table is for guidance only.
Heat
setting
Cooking-
process
0 Residual heat, Off position
Keeping
V
food warm
1-2
2-3
3-4
4-5 Boiling
6-7
7-8
Melting
Solidifying Fluffy omelettes, baked eggs 10-40 mins. Cook with lid on
Simmer-
ing on low
heat
Steaming
Braising
Gentle
Frying
Heavy
Frying
Boiling
Searing
9
Deep
frying
suitable for
Keeping cooked foods warm as required Cover
Hollandaise sauce,
melting butter, chocolate,
gelatine
Simmering rice and milk-
based dishes
Heating up ready-cooked
meals
Steaming vegetables, fish
braising meat
Steaming potatoes 20-60 mins.
Cooking larger quantities of
food, stews and soups
Frying escalopes, veal cor-
don bleu, cutlets, rissoles,
sausages, liver, roux, eggs,
pancakes, doughnuts
Hash browns, loin steaks,
steaks, Flädle (pancakes for
garnishing soup)
Boiling large quantities of water, cooking pasta, searing meat (goulash,
Cooking
time
5-25 mins. Stir occasionally
25-50 mins.
With vegetables add only
20-45 mins.
60-150 mins.
Steady frying
5-15 mins.
per pan
pot roast), deep frying chips
a little liquid (a few table-
Use only a little liquid, e.
Tips/Hints
Add at least twice as
much liquid as rice, stir
milk dishes part way
through cooking
spoons)
g.: max.
¼ l water for
750 g potatoes
Up to 3 l liquid plus in-
gredients
Turn halfway through
cooking
Turn halfway through
cooking
Cleaning and Care
17Cleaning and Care
1
Take care! Risk of burns from residual heat.
1 Warning! Sharp objects and abrasive cleaning materials will damage the appli-
ance. Clean with water and washing up liquid.
1 Warning! Residues from cleaning agents will damage the appliance. Remove
residues with water and washing up liquid.
Cleaning the appliance after each use
1. Wipe the appliance with a damp cloth and a little washing up liquid.
2. Rub the appliance dry using a clean cloth.
Removing deposits
1. Place a scraper on the glass ceramic surface at an angle.
2. Remove residues by sliding the blade over the surface.
3. Wipe the appliance with a damp cloth and a little washing up liquid.
4. Rub the appliance dry using a clean cloth.
Remove
Type of dirt
sugar, food containing sugar yes ---
plastics, tin foil yes --limescale and water rings --- yes
fat splashes --- yes
shiny metallic discolouration --- yes
immedi-
ately
when the appliance has
cooled down
using
a scraper*
cleaner for glass ceram-
ic or stainless steel*
*Scrapers and cleaners for glass ceramic and stainless steel can be purchased in specialized shops
3 Remove stubborn residues with a cleaner for glass ceramic or stainless steel.
3 Scratches or dark stains on the glass ceramic that cannot be removed do not
however affect the functioning of the appliance.
What to do if …18
What to do if …
Problem Possible cause Remedy
The cooking zones will not
switch on or are not functioning
Acoustic signal sounds when
appliance is switched off
The residual heat indicator is
not displaying anything
The automatic warm up function is not switching itself on
Acoustic signal sounds and
appliance switches itself on
and then off again; after 5
seconds another acoustic signal sounds
is lit Overheating protection for the
More than 10 seconds have
passed since the appliance was
switched on
The child safety device is
switched on
Several sensor fields were
touched at the same time
Automatic switch off has been
triggered
The lock is switched on Switch off the lock (See the
The control panel is wholly or
partly covered by objects.
The cooking zone was only on
for a short time and is therefore not hot
There is still residual heat on
the cooking zone
The highest heat setting is set The highest heat setting has
The heat setting was set using
the sensor field
The On/Off sensor field has
been covered up, e.g. by a
cloth
cooking zone has been triggered
Automatic switch off has been
triggered
Switch the appliance on again.
Deactivate the child safety device (See the section “Child
safety device”)
Only touch one sensor field
Remove any objects (pan,
cloths, etc.) that are lying on
the control panel. Switch the
appliance on again
section “Locking/unlocking the
control panel”)
Remove objects.
If the cooking zone is supposed to be hot, call the Customer Service Department.
Let the cooking zone cool
down
the same power as the automatic warm up function
1. Switching off the cooking
zone
1. Set the cooking zone using
the sensor field
Do not place any objects on
the control panel
Switch off the cooking zone.
Switch the cooking zone on
again
Switch off the cooking zone.
Switch the cooking zone on
again
19What to do if …
Problem Possible cause Remedy
and number are displayed Electronics fault Disconnect the appliance from
the electrical supply for a few
minutes (Take the fuse out of
the house’s wiring system)
If after switching on again,
is displayed again, call the customer service department
If you are unable to remedy the problem by following the above suggestions, please contact your local Service Force Centre.
1 Warning! Repairs to the appliance are only to be carried out by qualified service
engineers. Considerable danger to the user may result from improper repairs.
3 If the appliance has been operated incorrectly, the engineer's visit will be
chargeable, even during the warranty period.
Disposal20
Disposal
2
Packaging material
The packaging materials are environmentally friendly and can be recycled. The
plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community
waste disposal facilities.
2 Old appliance
The symbol W on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which
could otherwise be caused by inappropriate waste handling of this product. For
more detailed information about recycling of this product, please contact your
local city office, your household waste disposal service or the shop where you
purchased the product.
Installation Instructions
21Installation Instructions
1
Safety instructions
Warning! This must be read!
The laws, ordinances, directives and standards in force in the country of use are
to be followed (safety regulations, proper recycling in accordance with the regulations, etc.)
Installation may only be carried out by a qualified electrician.

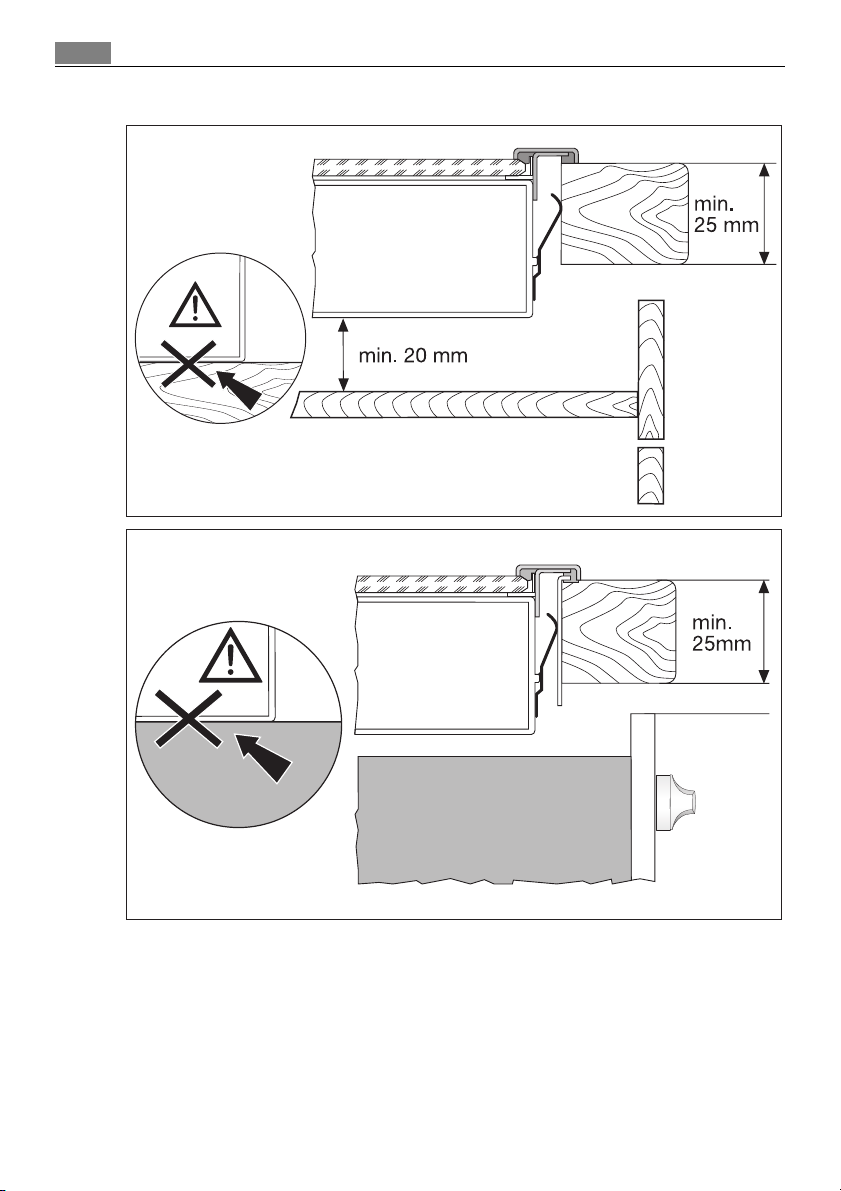

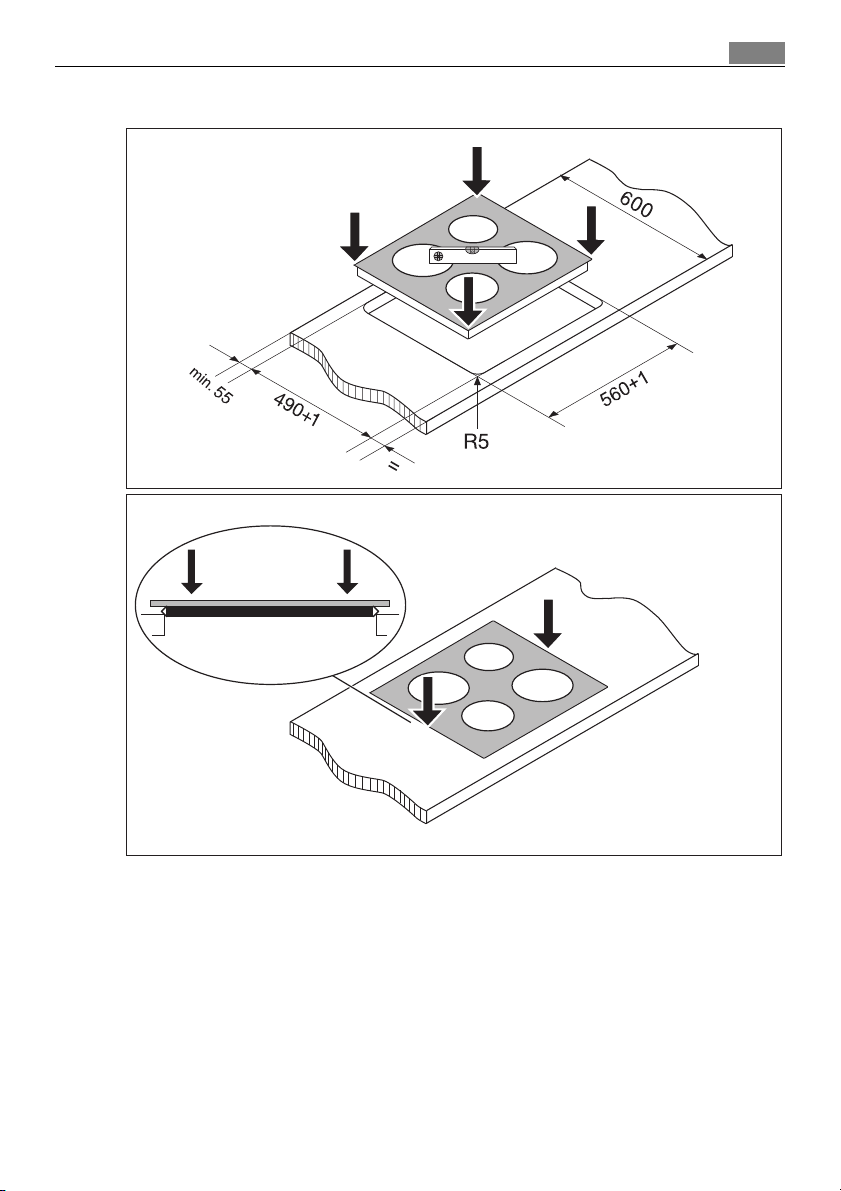

The minimum distances to other appliances and units are to be observed.
Anti-shock protection must be provided by the installation, for example drawers
may only be installed with a protective floor directly underneath the appliance.
The cut surfaces of the worktop are to be protected against moisture using a
suitable sealant.
The sealant seals the appliance to the work top with no gap.
Do not use silicon sealant between the appliance and the work top.
Avoid installing the appliance next to doors and under windows. Otherwise hot
cookware may be knocked off the rings when doors and windows are opened.
z Risk of injury from electrical current.
• The electrical mains terminal is live.
• Make electrical mains terminal free of voltage.
• Follow connection schematic.
• Observe electrical safety rules.
• Ensure anti-shock protection by installing correctly.
• The appliance must be connected to the electrical supply by a qualified elec-
trician.
z Risk of injury from electrical current.
• Loose and inappropriate plug and socket connections can make the terminal
overheat.
• Have the clamping connections correctly installed by a qualified electrician.
• Use strain relief clamp on cable.
• In the event of single-phase or two-phase connection, the appropriate mains
cable of type H05BB-F Tmax 90°C(or higher) must be used.
• If this appliance’s mains cable is damaged, it must be replaced by a special cable (type H05BB-F Tmax 90°C; or higher). The latter is available from the Customer Care Department.
A device must be provided in the electrical installation which allows the appliance to be disconnected from the mains at all poles with a contact opening
width of at least 3 mm.
Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contactors.
Guarantee/Customer Service22
Guarantee/Customer Service
European Guarantee
This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user manual, for
the period specified in the appliance guarantee or otherwise by law. If you move from one of these countries to another of the countries listed below the appliance guarantee will move with you subject to the following qualifications:
•
The appliance guarantee starts from the date you first purchased the appliance which will be evidenced
by production of a valid purchase document issued by the seller of the appliance.
•
The appliance guarantee is for the same period and to the same extent for labour and parts as exists in
your new country of residence for this particular model or range of appliances.
•
The appliance guarantee is personal to the original purchaser of the appliance and cannot be transferred
to another user.
•
The appliance is installed and used in accordance with instructions issued by Electrolux and is only used
within the home, i.e. is not used for commercial purposes.
•
The appliance is installed in accordance with all relevant regulations in force within your new country of
residence.
The provisions of this European Guarantee do not affect any of the rights granted to you by law.
Service
In the event of technical faults, please first check whether you can remedy the
problem yourself with the help of the operating instructions (section “What to
do if…”).
If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners.
In order to be able to assist you quickly, we
require the following information:
– Model description
– Product number (PNC)
– Serial number (S No.)
(for numbers see rating plate)
– Type of fault
– Any error messages displayed by the ap-
pliance
– three digit letter-number combination for glass ceramic
So that you have the necessary reference numbers from your appliance at hand,
we recommend that you write them in here:
23Service
Model description: .....................................
PNC: .....................................
S No: .....................................
24
L
ilisés d
ili
1
Chère cliente, cher client
Nous vous remercions d'avoir choisi un de nos produits.
Tout au long de son utilisation, vous ferez l'expérience d'une combinaison parfaite entre design fonctionnel et technologie d'avant-garde.
Sa fabrication est basée sur les standards les plus élevés de l'excellence. Votre
appareil a été ainsi conçu pour vous fournir les meilleures performances tout en
respectant les aspects environnementaux et d'économie d'énergie.
Nous vous conseillons de lire attentivement cette notice d'utilisation et de la
conserver à proximité pour une utilisation optimale.
Pensez également à la transmettre au prochain utilisateur.
Nous vous souhaitons beaucoup de plaisir avec votre appareil A.E.G. Electrolux.
es symboles suivants sont ut
Attention ! A lire impérativement ! Remarques importantes relatives à la sécurité des personnes et informations destinées à prévenir les dommages
causés à l'appareil
ans ce guide d'ut
3 Remarques générales et recommandations
2 Remarques relatives à la protection de l'environnement
z Risque dû à l'alimentation électrique
sateur :
Loading...
