AEG-Electrolux 200E-WN User Manual

Specifications and Main Features

  • Type: Built-in Electric Cooker
  • Cooking Area: Glass-ceramic hob or cast iron hob
  • Number of hobs: 4
  • Oven Functions: Heat from top and bottom of the oven, grilling, and boiling.
  • Oven Pilot Lamp: Indicates whether the oven is in heating mode
  • Operational Pilot Lamp: illuminates once any of the hob switches have been turned on.
  • Fume Extraction: Push-button operated

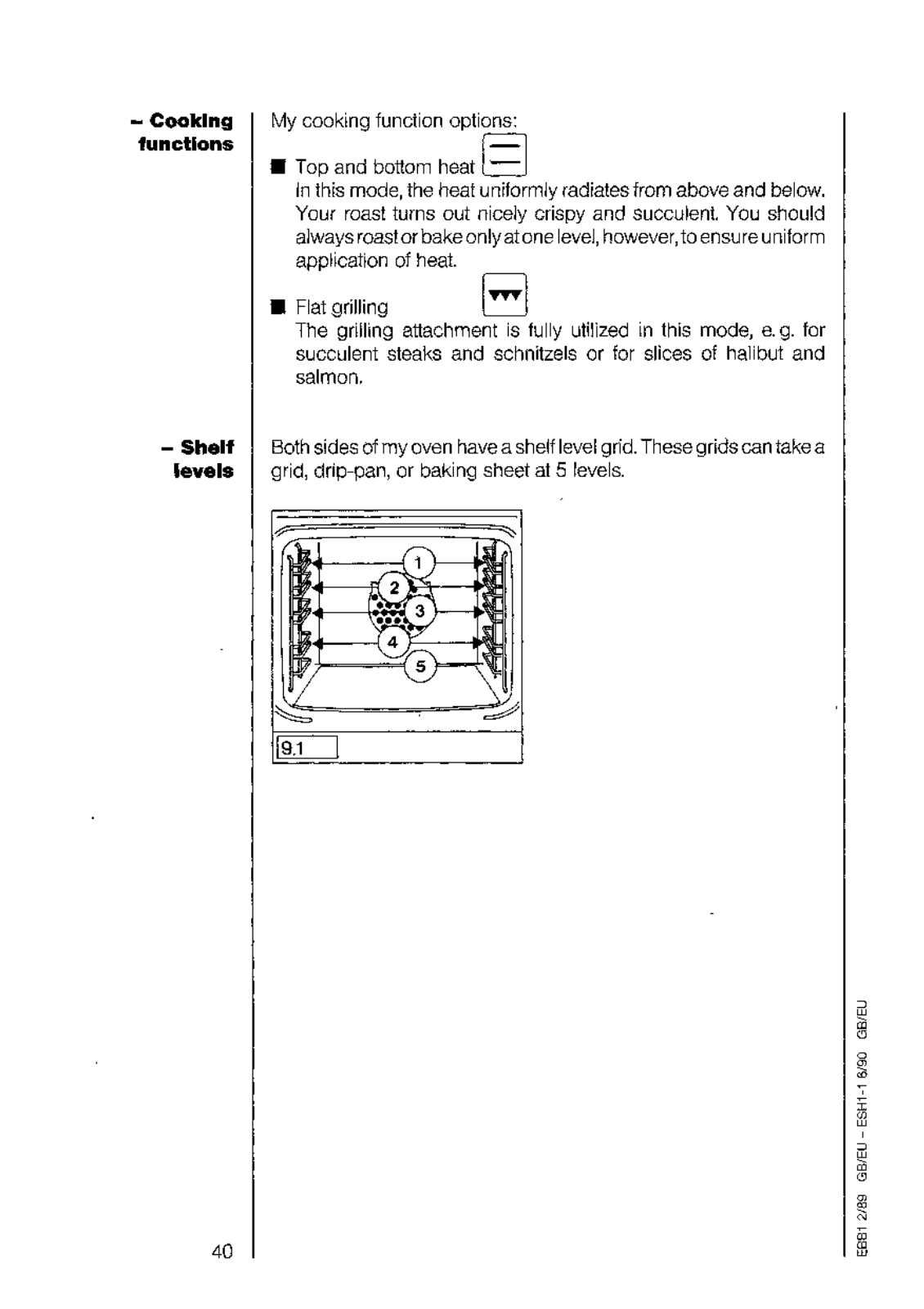

  • Shelf Levels: 5 adjustable positions within single oven accessories
  • Heating Temperature Range: Up to 250 Degrees Celsius for the oven
  • Residual Heat Indicator: Shows if a hob is hot and not ready for use
  • Storage: Hobs are not designed for use as a storage area
  • Cleaning: The glass ceramic surface is cleaned with ease and is also compatible with some cleaning products.
  • Appliance Compliance: EN 55014 and EN 60555 specifications for suppression of radio interference are met.

Frequently Asked Questions

Q: What do I do if I notice no signs of the pilot lamps lighting up?

A: Make sure that all of the mentioned switches have been turned on or inspect the fuse on the fixed wiring side.

Q: Why do I find that the oven is not heating?

A: You may not have turned on previously mentioned switches or the fuse is blown. Make sure the oven door has been shut entirely.

Q: What should I do if the fuses keep blowing?

A: It is recommended that you seek the help of an approved electrical installer for assistance.

Q: How do I replace the oven light bulb?

A: This can be found in the cleaning and care page 51 z which talks of cleaning and replacing the bulb.

Q: Can I use aluminum foil in the oven?

A: No, do not cover over with aluminum foil the oven floor because it may damage the enamel of the oven.

Q: How do I clean the glass-ceramic cooking area?

A: Once the cooking area has been heated up first time after every use just wipe it with a damp cloth and some washing up liquid and not rough cleaners.

Q: What is the maximum number of jars I can use for bottling in the oven?

A: The oven accommodates to a maximum of 6 bottling jars of 1 – 1¾ litres capacity each.
