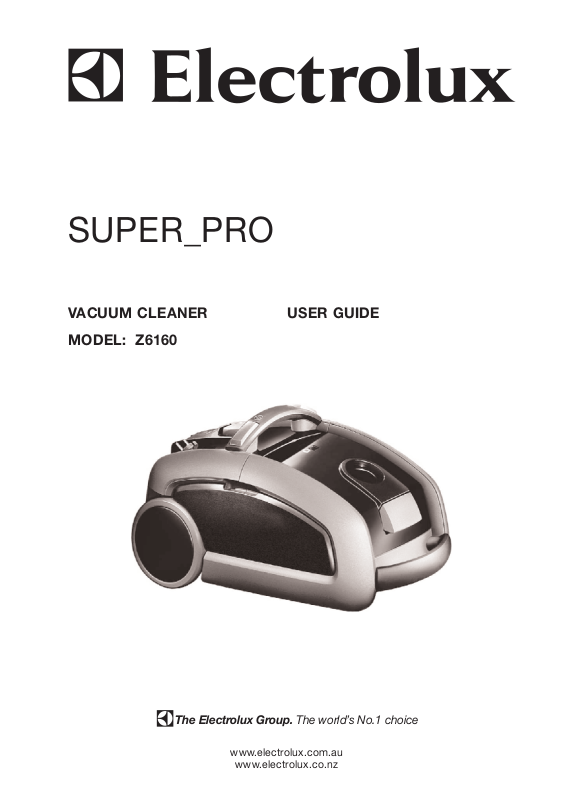

VACUUM CLEANER USER GUIDE

MODEL: Z6160

www.electrolux.com.au

www.electrolux.co.nz

SUPER_PRO

The Electrolux Group. The worlds No.1 choice

2

Safety information 3
Exploded view and assembly 4
Vacuuming 5
Nozzles 6
Special accessories 7
Changing dustbag 8
Changing the filters 9
Carrying and storage 10
Maintenance and cleaning 11
What to do, if... 11
Protecting the environment 11

3

Dear Customer,

Please read these operating instructions carefully. Above all, observe the safety
instructions! Please keep these operating instructions for future reference. Pass
them on to any subsequent owner of the appliance.

Safety information

Connection: 220/230/240 volt alternating current only, 10 A time-lag fuse.
Do not use the appliance if:

-

the cable is damaged,

-

the appliance shows visible signs of damage.
For domestic use and dry vacuuming only.
People and animals must not be vacuumed using the appliance.
Keep children away from electrical appliances. The appliance is not intended for

use by young children and infirm persons without supervision.

Do not vacuum the following:

-

Fluids. Allow steam-cleaned carpets to dry out thoroughly.

-

Matches, glowing ashes or cigarette ends.

-

Hard, sharp items.

-

Toner dust (from laser printers and copiers).
We recommend you do not use your vacuum on carpet cleaning foams or to clean

up buliding materials including gib or plaster dust. They could damage
consumable items or key parts in your vacuum and render your warranty invalid.

Never remove the plug from the socket using the cable. Do not run the appliance
or suction brushes over the cable.

Do not use water to clean the appliance.

Do not expose the appliance to the impact of weather, moisture or heat.
Dustbag and all filters must always be in place. Unless the dustbag has been

inserted it is not possible to close the lid to the dust chamber. Please do not
use force!

Please insert only an original S-bag dustbag: E54AB Standard S-bag, E202B
Clinic S-bag, E203B Anti Odour S-bag, S-bag Long Performace .

Repairs to electrical appliances may only be carried out by qualified specialists.
Repairs carried out by inexperienced persons may cause serious injury to the
user.

Should the cable be defective, the complete cable must be replaced by an
Electrolux Service Centre or by an authorised repair centre in order to avoid
hazard.

The manufacturer accepts no responsibility for possible damages caused by non­regulation use or incorrect operation of the appliance.

If your appliance needs repairing, please contact your retailer or Electrolux Service
Centre.

This appliance complies with the following EU Directives:

73/23/EEC dated 19.02.1973 - Low Voltage Directive.
89/336/EEC dated 03.05.89 (including Directive Amendment 92/31/EEC) - EMC

Directive.

4

Exploded view and assembly

A Cable retraction button J Suction hose
B Cable K Accessories retainer
C Display Change exhaust air filter L Power regulator on handle
D Suction power regulator M Telescopic tube with furniture
E ON/OFF button protection ring
F Display: Change dustbag N Floor nozzle
G Dust chamber release catch O Appliance handle
H right/left: Retainer lid for

SUPER_PRO accessories

M

N

5

Vacuuming

Pull out cable B and insert plug into mains.
(to retract cable, pull out mains plug, hold plug firmly, and press button A.)

Switch on/off by pressing button E (there is the possibility of a delay in starting of
up to 4 seconds at the lowest power level due to electronic starting current
limitation).

Set suction power using suction power regulator D. This can also be reduced by
opening the power regulator on handle L in order to vary the amount of strength
required to push the vacuum cleaner.

6

Nozzles

N Floor nozzle, setting may be changed for carpets and hard floors. If you have a

carpet/hardfloor nozzle with two pedals-press the pedal on the right to vacuum up
animal hair, etc. more effectively.

P Combination nozzle: furniture brush and upholstery nozzle in one
R Crevice nozzle (extendable)
Q Handle with removable suction hose

7

Special accessories

Easy clean kit

The easy clean kit efficiently cleans fragile objects, such as
plants, lamps and porcelain. The airflow created in the
container continually cleans the duster and maintains a
static charge.

Hardfloor nozzle

The special nozzle is for use on parquet, tiled and hard
floor.

Mini set

4 special nozzles and brushes plus a flexible mini hose for
cleaning technical appliances and delicate parts.

Turbo nozzle

The turbo nozzle makes the care of carpets easier. The
rotary motion of its brush gently loosens short-pile carpets
where the dirt has been trodden in. It removes stubborn
fluff and pet hairs.

8

Changing dustbag

Change dustbag S when display F is filled with colour (can be checked with the appliance
operating at maximum suction and with the nozzle raised from the floor).
A change may be necessary even if the bag does not appear to be full.
Fine dust can block the pores and reduce the suction power of the appliance.

Switch off the appliance and open the dust chamber lid by pulling release catch G.
Remove dustbag S by pulling on the sealing tab.
Push new dustbag into the retainer until it clicks into place. Take care when closing the dust
chamber lid that the dustbag is completely inside the dustchamber border. The dust
chamber lid will not close unless a dustbag has been inserted. Please do not use force!

E54AB Standard S-bag, E202B Clinic S-bag, E203B Anti Odour S-bag, S-bag Long Performance

S

9

Changing the Filters

Change motor protection filter T if display F is still filled with colour after the dustbag has been
changed or if the suction power is significantly reduced although the dustbag has little in it.

Switch off the appliance and open the dust chamber lid by pulling release catch G.
Change motor protection filter T.

Replace microfilter V if display C is filled with colour or after every fifth dustbag change or if the
suction power is significantly reduced / Clean HEPA filter X if display C is illuminated:

Switch off the appliance. Press filter grille button U and open filter grille W.
Replace microfilter V / Rinse HEPA filter X under luke warm running water. Leave to dry

thoroughly before reinserting. Replace filter if necessary.

ET-Nr. 900 195 149/1

V ET-Nr. 900 195 150/9

X ET-Nr. 900 084 491/1

EF26A: O

2

HEPA H12 washable filter

T U C

10

Carrying and storage

11

Maintenance and cleaning

For maintenance or cleaning, switch off the appliance and unplug it from the mains.
As required, wipe the housing and the dustbag chamber with a cloth and then dry.

Do not use any scourers or any solvents. Occasionally vacuum the floor nozzle and
the brushheads with the crevice nozzle.

What to do, if...

... it is difficult to push the nozzle:

Reduce suction power (depending on the type of carpet). This will not conspicuously
reduce the cleaning efficiency.

the motor thermal cut-out has tripped: e. g. as the result of overloading the
motor if the dust-bag is full or if an accessory is blocked.

Switch off the appliance, unplug from the mains, and leave the motor to cool down.
Check dustbag, suction tube and suction hose; remove any blockage. The appliance
can be switched on again after approximately 30 minutes.

... the fuse has blown: The fuse can be blown if other electric appliances with a
high power con-sumption are used at the same time and on the same circuit as the
vacuum cleaner.

If this is the case, set the suction power regulator to the lowest setting before
switching on and only select a higher suction level after switching on.

 the cable does not retract fully:

The cable is caught up on the cable drum.
Pull the cable out again a little and press button A again.

.the dust chamber lid will not close:

Check that the dustbag has been inserted.
If it has, check that the dustbag has clicked into position.

Protecting the environment

Appliance packaging: We recommend keeping the packaging for the duration of

the guarantee so that the appliance can be transported safely.
Recycling the appliance at the end of its life: The plastic components all carry a

material identi-fication marking so that, like the other materials, they can be recycled
at the end of the life of the appliance.
