Before you start 2
Safety information 3
Exploded view and assembly 4
Vacuum Cleaning 5
Nozzles 6
Emptying dust collector/cleaning filters 7
Transport and storage 8
Maintenance and cleaning 9
What do if... 9
For the sake of the environment 9
Spares 9
Service 9
Guarantee 9
Dear Customer
Please read these operating instructions carefully. Pay particular attention to the safety
information! Please keep the operating
instructions for future reference.
Pass them on to any future owner of the appliance.
Before you start
Check the voltage
First check the voltage shown on the data
plate (see rear view) to make sure that the
cleaner is of the correct voltage for your electricity supply. If it is not, do not use the cleaner
but refer back to your dealer.
Connecting to your electricity supply
Permanently connected to the cleaner is a
mains supply (2-core) cable fitted with a
non-rewirable plug incorporating a 13A fuse.
In the event of a fuse requiring replacement
the fuse cover should be removed using a
small screwdriver. The old fuse MUST be
replaced by a 13A ASTA approved BS1362
fuse or a BSI approved fuse. The cover must
be replaced before the plug is used again. In
the event of loss of the fuse cover, replacements can be obtained from your Electrolux
Retailers and must be of the same colour as
indicated by the coloured insert on the base of
the plug.
If difficulty is experienced in obtaining a
replacement, contact Electrolux on 08706
055055.
In no circumstances must the plug be used
without a correct fuse cover fitted.
If the plug that is fitted to your appliance is not
suitable for your socket outlet, it must be cut
off and the appropriate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to
prevent the hazard of shocks in case it should
be plugged into a 13 amp socket in another
part of your home.
The wires in the mains cable of this appliance
are coloured in accordance with the following
code: Blue: Neutral. Brown: Live.
As the colours of the wires in the mains cable
of this appliance may not correspond with the
coloured markings identifying the terminals in
your plug, proceed as follows:
The wire which is
coloured blue must be
connected to the terminal which is marked with
the letter N or coloured
black.
The wire which is
coloured brown must be
connected to the terminal which is marked with
the letter L or coloured
red.
If using a three-pin plug, do not make any
connection to the terminal marked with the
letter E or by the earth symbol or coloured
green or green-and-yellow. This cleaner is
double insulated and no earth connection is
necessary.
It is in your interest to ensure that the plug is
correctly attached to the mains cable. In case
of doubt, have it done by a qualified electrician, as Electrolux cannot regard the repair of
faults on the plug connection as a service that
can be given free of charge under the terms of
the guarantee.
2
English
2
English
Safety information
• Power supply: AC only 220/230 V, fuse 13A
(see also „Before you start“, page 2).
• Do not put the unit into service if:
– the connecting lead is damaged,
– the unit is visibly damaged.
• Use only in the home for cleaning dry material. People and animals must not be treated
with the unit. Keep children away from electrical appliances.
• If you vacuum building or plaster dust,
please remove and clean, or replace the filters before reusing
• Do not vacuum:
– Liquids. Allow damp cleaned fitted carpet
to dry out completely.
– Matchsticks, glowing ash or cigarette
ends.
– Hard, pointed objects.
– Toner dust (from laser printers, photocopiers).
• Never pull the mains plug from the socket
with the cord. Do not run over the mains
cable with the unit and suction brush.
• Do not clean unit with water (except fil-
ters and dust collector as per the instructions).
• Do not expose the unit to the effects of
weather, moisture or sources of heat.
• Dust collector or a paper dust bag and all filters must always be fitted. If no dust col-
lector or paper dust bag is fitted, the
dust-collector compartment cover cannot
be closed. Please do not use force!
• Repairs to electrical appliances must be carried out by qualified service engineers.
Improperly performed repairs can result in
considerable danger for the user.
• If the power cable is defective the entire
cable roller must be exchanged by the AEG
customer service or an authorised workshop.
• The manufacturer accepts no liability for any
damage caused by improper use or incorrect
operation.
In the event of a fault please contact your specialist dealer or the Electrolux customer
service directly.
This vacuum cleaner complies with the following EU Directives
• 73/23/EEC of 19.02.1973 – Low Voltage
Directive.
• 89/336/EEC of 03.05.1989 (including
revised Directive 92/31/EEC) – EMC
Directive.

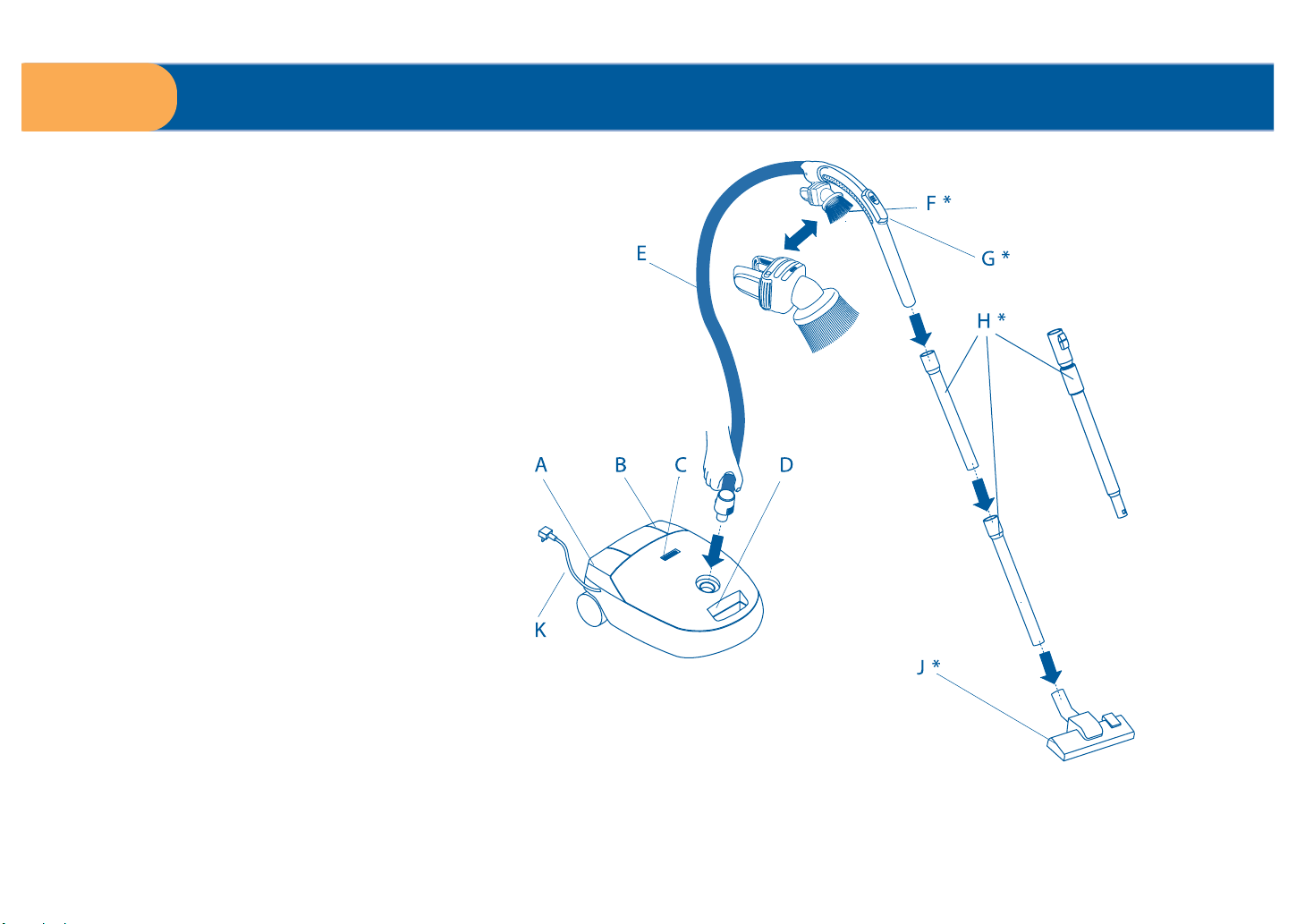

Exploded view and assembly
A Cable rewind foot switch
B Foot switch ON/OFF
C Empty dust collector/Clean filter indicator
D Opener for dust-collector
E Suction hose
F Tool storage *
G Suction control *
H Metal tubes (2)* / Telescopic tube*
J Floor nozzle * compartment
K Power cable
* depending on model
4
English
Vacuum cleaning
• Withdraw cable, insert mains plug.
(To roll the cable up press foot switch A.
Please hold the plug.)
• Switch on/off with foot switch B (on the lowest power setting, there may be a
start delay up to 4 seconds due to the electronic starting current limiter *).
• Suction capacity can be reduced by opening
the suction control G *.
If you open the suction control G on the bent
end, you can reduce the force required to push
the nozzle across the carpet, and enable you
to clean lightweight rugs, curtains and upholstery.
* depending on model

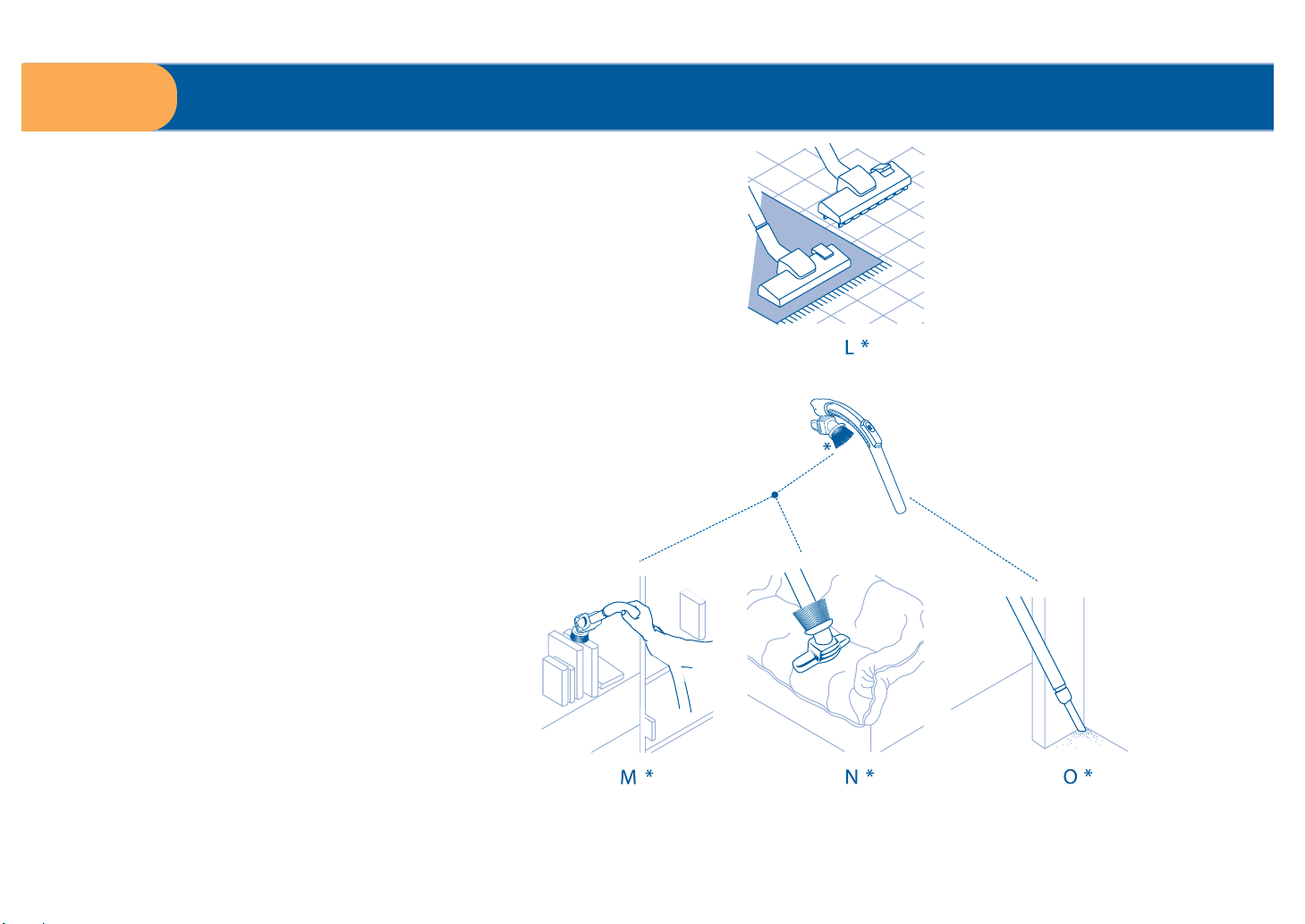

Nozzles
L Floor nozzle *, dual purpose for carpets and
hard floors
M Furniture brush *
N Upholstery nozzle*
(threads and fluff are effetively removed)
O Crevice nozzle
* depending on model
6
English

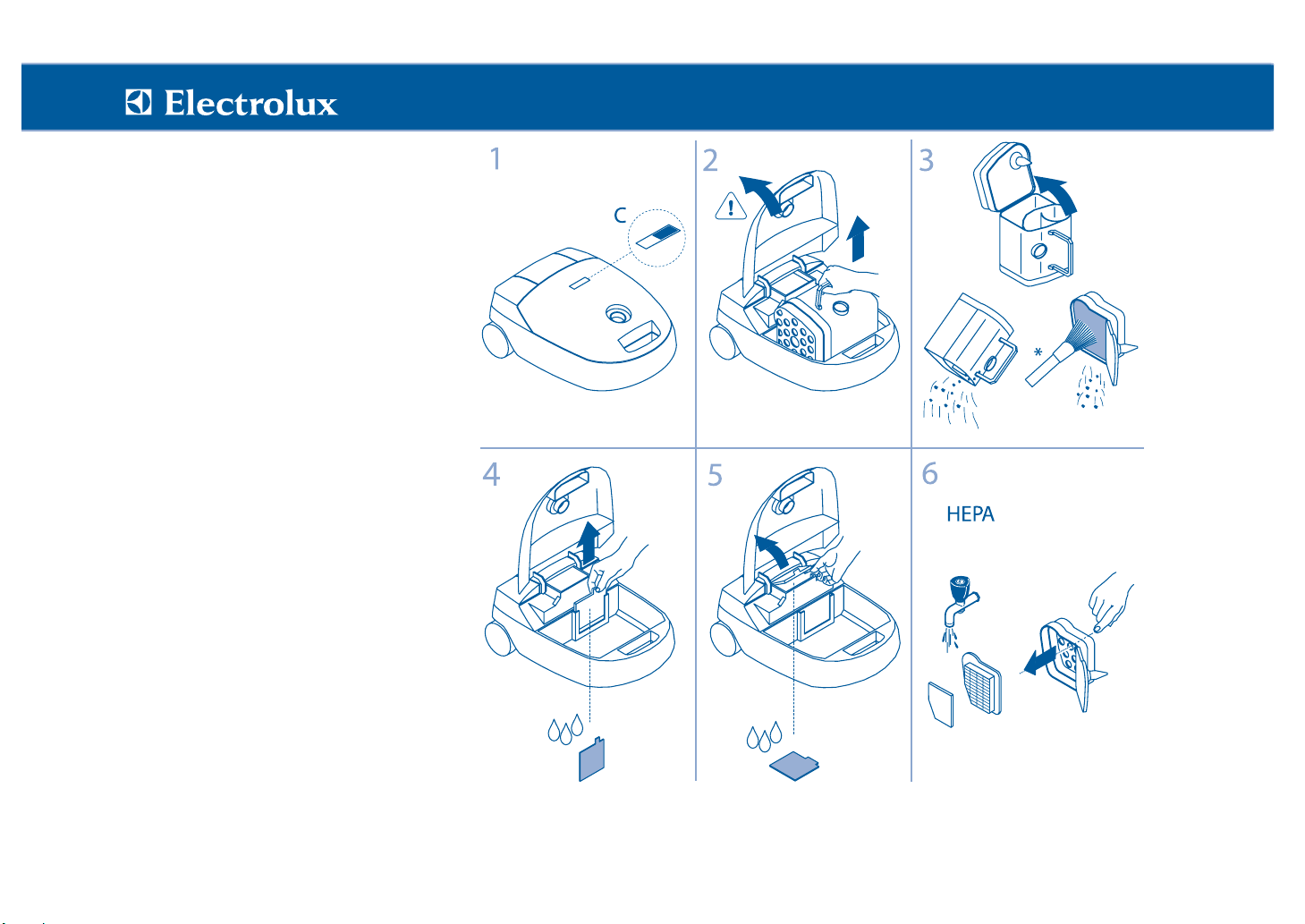

Emptying dust collector/
cleaning filters
• We recommend emptying the dust collector
after each use, but no later than when indicator C shows red all over (with the unit
switched to maximum suction capacity and
the nozzle raised from the floor). If necessary, also brush dust from the collector filter. Figs. 1-3.
Caution: open dust-collector compartment cover fully until it locks in place!
After washing the dust collector, please
allow to dry thoroughly before refitting.
• If the suction power falls off noticeably
even after the dust collector has been
emptied (or if indicator C is red), rinse
out all filters under hot running water.
Allow to fully dry before refitting. Figs. 4-6.
Replace filters if necessary.
* depending on model
Transport and storage
8
English
Maintenance and cleaning
Before starting maintenance or cleaning,
switch off the unit and withdraw the
mains plug.
Wipe over unit and dust-collector compartment if necessary with a damp cloth
and allow to dry. Do not use abrasive materials or solvents. Clean floor nozzle and
brush webs occasionally with the crevice nozzle.
Do not wash the dust collector in a dishwasher
or clean with aggressive detergents.
(This could damage or dull the dust collector).
What to do if...
...it is difficult to move the nozzle: reduce
the suction capacity. This does not reduce the
cleaning effect.
...the motor overheating protection has
switched off the unit: e.g. owing to overload
of the motor, by full dust collector or blocked
tools.
Check dust collector, filters, suction tube and
suction hose, remove any blockage. The unit
can be switched on again after approx 30 to
60 minutes.
...the fuse has blown: the fuse can blow if
other electrical units with high consumption
are used at the same time as the vacuum
cleaner from the same circuit.
In this case before switching on set the suction capacity control to the lowest level and
only select a higher level after switching on.
For the sake of the environment
Do not simply discard packing material and
used units!
Unit packing: we recommend preserving the
packing material for the term of the warranty
to permit reliable transport.
Take the polyethylene (PE) bag to a PE recycling bank.
Recycling the vacuum cleaner at the end of
its service life: the plastic parts are identified
by a material code, so that they can be recycled at the end of the service life of the vacuum cleaner in the same way as other materials.
Your local authority environment office will
provide information on the location of the
nearest recycling facility.
Spares
New filters, dust bags, brush rollers and drive
belts can be obtained from Authorised
Electrolux Dealers and electrical retailers. If
difficulty is experienced in obtaining spares
please call us on 08706 055055.
Service
Should you require service on your Electrolux
cleaner, please telephone Electrolux on 08706
055055. Before requesting service, please
check whether your problem is covered under
Service Checklist (see below).
Guarantee
This guarantee is in addition to your statutory and other legal rights.
This product is for household use only.
Electrolux products are carefully designed,
manufactured, tested and inspected and, in
consequence, we undertake to replace or
repair any part found to be defective in material or workmanship, within one year of delivery
to the original purchaser, free of charge. You
may be required to take the product to your
nearest service provider if the product requires
attention during the first year.
There are certain conditions which may invalidate this guarantee:
a. It is dependent upon the appliance being
correctly installed and used in accordance
with the Company's instructions under normal domestic conditions within the United
Kingdom or the Republic of Ireland.
b. Service at all times must be carried out by
an Electrolux Service Representative or
authorised agent.
c. The guarantee may be invalidated by unau-
thorised repair or modification of the appliance.
d. You may be charged by Electrolux if you
call for an engineer to resolve a problem
that we believe is covered in the instruction
booklet (example: blocked/dirty filters).
The Company does not accept liability for
defects arising from neglect, misuse or accident. This guarantee excludes such normal
wearing parts as drive belts, brushes, filters
and dust bags as the life of these depends
upon the amount and nature of use.
Proof of the date of purchase (ie till receipt)
will be required before service under guarantee is provided. Please call 08706 055055 for
assistance.
Important:
For future reference we suggest you record
the following details here, and keep the
receipt with the handbook as proof of purchase.
Purchased from
Date purchased Model no
________________________________________________________________
_________________ ___________________________________
10
English
12
English
ELECTROLUX FLOORCARE (UK)
101 OAKLEY ROAD
LUTON LU4 9QQ
Customer Helpline 08706 055055
htpp://www.electrolux.com
