English
Please, read all the instructions related to your product
and keep this manual for future reference.
Follow all the warnings and instructions described in
this manual to better use your product and to achieve
better results.
Photos and illustrative drawings
69500337 REV 01
Design : : www.id-art.com.br : :
: : EXCLUSIVELY FOR DOMESTIC USE : :

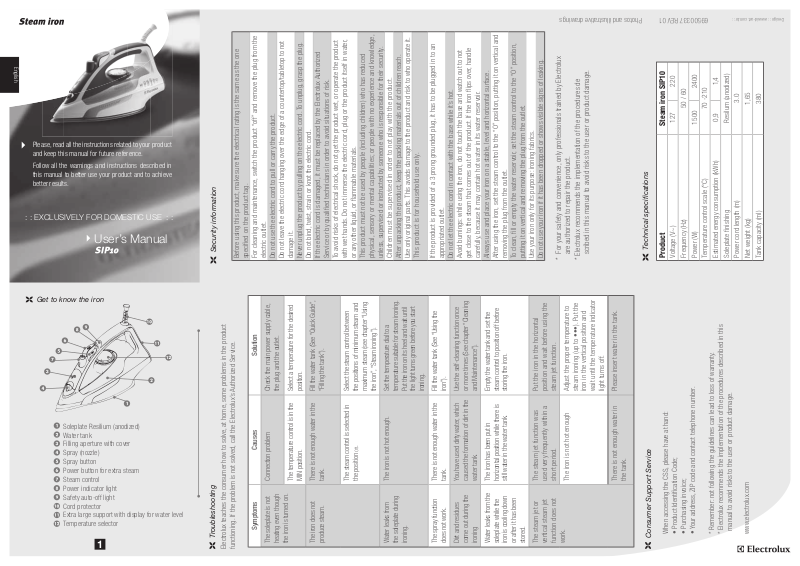

User’s Manual
Get to know the iron
Security information
Before using this product, make sure the electrical rating is the same as the one
speci ed on the product tag.
For cleaning and maintenance, switch the product “off” and remove the plug from the
electric outlet.
Do not use the electric cord to pull or carry the product.
Do not leave the electric cord hanging over the edge of a countertop/tabletop to not
damage it.
Never unplug the product by pulling on the electric cord. To unplug, grasp the plug.
Do not bind, twist, strain or knot the electric cord.
If the electric cord is damaged, it must be replaced by the Electrolux Authorized
Service or by quali ed technicians in order to avoid situations of risk.
To avoid risks of electrical shock, do not get the product wet, or operate the product
with wet hands. Do not immerse the electric cord, plug or the product itself in water,
or any other liquid, or fl ammable materials.
This product must not be used by people (including children) who has reduced
physical, sensory or mental capabilities; or people with no experience and knowledge,
the plug and the outlet.
Select a temperature for the desired
position.
Fill the water tank (See “Quick Guide”,
“Filling the tank”).
Select the steam control between
the positions of minimum steam and
maximum steam (see chapter “Using
the iron”, “Steam ironing”).
unless, supervised or instructed by someone who is responsible for their security.
Children must be supervised in order to not play with the product.
After unpacking the product, keep the packing materials out of children reach.
Use only original parts. This avoids damage to the product and risk to who operate it.
This product is for household use only.
If the product is provided of a 3 prong grounded plug, it has to be plugged in to an
appropriated outlet.
Do not let the electric cord in contact with the base while it’s hot.
Avoid burnings: while using the iron, do not touch the base and watch out to not
get close to the steam that comes out of the product. If the iron fl ips over, handle
carefully, because it may contain hot water in its water reservoir.
Always use and place your iron on a stable, level and horizontal surface.
temperature suitable for steam ironing.
Put the iron on its heel and wait until
the light turns green before you start
ironing.
Fill the water tank (See “Using the
iron”).
Use the self-cleaning function once
or more times (See chapter “Cleaning
and Maintenance”).
After using the iron, set the steam control to the “O” position, putting it on vertical and
removing the plug from the outlet.
To clean, ll or empty the water reservoir, set the steam control to the “O” position,
putting it on vertical and removing the plug from the outlet.
Use your iron only for its purpose: ironing fabrics.
Do not use your iron if it has been dropped or shows visible signs of leaking.
Empty the water tank and set the
steam control to position off before
storing the iron.
Put the iron in the horizontal
position and wait before using the
steam jet function.
Technical specifi cations
Product Steam iron SIP10
Voltage (V~) 127 220
Frequency (Hz) 50 / 60
Power (W) 1500 2400
Temperature control scale (°C) 70 -210
* For your safety and convenience, only professionals trained by Electrolux
are authorized to repair the product.
* Electrolux recommends the implementation of the procedures de
scribed in this manual to avoid risks to the user or product damage.
steam ironing (up to •••). Put the
iron in the vertical position and
wait until the temperature indicator
light turns off.
Please insert water in the tank.
Estimated energy consumption (kWh) 0,9 1,4
Soleplate nishing Resilum (anodized)
Power cord length (m) 3.0
Net weight (kg) 1,65
Tank capacity (ml) 380
Soleplate Resilium (anodized)
Water tank
Filling aperture with cover
Spray (nozzle)
Spray button
Power button for extra steam
Steam control
Power indicator light
Safety auto-off light
Cord protector
Extra large support with display for water level
Temperature selector
1
Connection problem Check the main power supply cable,
Symptoms Causes Solution
Troubleshooting
Electrolux teaches the consumer how to solve, at home, some problems in the product
functioning. If the problem is not solved, call the Electrolux’s Authorized Service.
The soleplate is not
heating even though
The temperature control is in the
MIN position.
There is not enough water in the
tank.
the iron is turned on.
The iron does not
produce steam.
.
The steam control is selected in
the position
The iron is not hot enough. Set the temperature dial to a
Water leaks from
the soleplate during
ironing.
There is not enough water in the
tank.
The spray function
does not work.
You have used dirty water, which
Dirt and residues
caused the formation of dirt in the
water tank.
come out during the
ironing
The iron has been put in
horizontal position while there is
still water in the water tank.
Water leaks from the
soleplate while the
iron is cooling down
or after it has been
stored.
The steam jet function was
used very frequently within a
short period.
The iron is not hot enough Adjust the proper temperature to
The steam jet or
vertical steam jet
function does not
work.
There is not enough water in
the tank.
When accessing the CSS, please have at hand:
• Product Identi cation Code;
Consumer Support Service
• Purchasing invoice;
• Your address, ZIP code and contact telephone number.
* Remember: not following the guidelines can lead to loss of warranty.
* Electrolux recommends the implementation of the procedures described in this
manual to avoid risks to the user or product damage.
www.electrolux.com
2 3 4
5
Spray button:
Temperature switch:
Dry (without steam)
Minimum Steam
Maximum Steam
auto clean
Self-Cleaning
Fig.1
Fabric type Temperature Dry Steam Wrong side
Nylon
Acrylic
Acetate
Polyester
Rayon
Viscose
Silk
Cotton blends
Wool
Cotton
Corduroy
Denim
Linen
•
•
•
•
•
•
• •
• •
• •
• • •
• • •
• • • or max
• • • or max
√ √
√ √
√ √
√ √
√
max
l
i
n
l
i
l
e
n
i
n
n
o
h
o
a
a
c
l
l
g
g
o
o
o
t
d
t
d
o
ó
ã
n
n
o
l
ã
l
a
n
w
a
o
o
l
√ √
√ √
√
√ √
√
√ √
√
√ √
n
o
l
y
n
a
d
e
s
a
d
e
s
k
l
i
s
Table 1
Precautions before using the product
temperature is stabilized, otherwise, there is a risk of damage to the fabric
• Never point the steam to people.
1. Fill the tank with water, heat the iron adjusting ••• and pass the
iron on a humid piece of cloth for some minutes. This will remove
all the residues from the Resilum (anodized) soleplate.
n
n
o
o
l
l
y
y
n
n
Important: It is normal that the iron exhales a strange odor at the
first time it is used. This will stop after a short period of time.
Dry ironing
1. Adjust the steam control for the position Off (without steam).
2. Select the desired temperature (See table 1).
Power indicator light: When the iron is connected to an electric outlet,
Using steam in the vertical position
1. The steam jet function can also be used when you have the iron in
the vertical position. This is useful to remove pleats in the clothes,
curtains, etc.
the power indicator light turns yellow indicating that the iron is being
Using the iron
Steam ironing
warmed. When the selected temperature is reached, the power indicator
light turns green. During the use, the power indicator light will change
the color several times keeping constant the temperature of the Resilum
(anodized) soleplate.
Automatic turn-off
This function automatically turns off the iron when left unattended.
1. A red indicator light will blink and a beep will sound, indicating
that the iron is being turned off through the Safety auto-off
1. Make sure that the iron is disconnected from the outlet
2. Fill the tank with water up to the maximum level.
• If the tap water in your area is very dirty, we recommend mixing it with
the same amount of distilled water (50% tap water and 50% distilled
water) or use only distilled water.
3. Connect the plug in the outlet
4. Select the recommended temperature for the type of fabric
(See table 1)
5. Adjust the steam control for the desired position.
Minimum steam (temperature control between •• and •••)
Maximum Steam (temperature control up to •••)
6. Wait approximately 3 minutes before using the iron until the
Using the function spray
You can use the spray function to remove tough creases in any temperature.
1. Make sure you have water in the reservoir.
2. Press the button several times to moisten the crease to be eliminated.
Using the extra steam jet button
• Press the button to have a stronger steam jet to eliminate pleats hard to be
removed.
• The extra steam jet button can be used only in temperatures up to •••.
1. Press and release the steam jet.
Wait approximately 2 seconds before pressing the button again.
system.
• In the horizontal position, after 30 seconds.
• In the side position, after 30 seconds.
• In the vertical position, after 8 minutes.
2. To turn on the iron, just move it.
Anti-leak function
Your iron is equipped with an anti-dripping device that avoids the water
to come out through the Resilum (anodized) soleplate when it is under
lower temperatures, in case the steam control is activated.
Cleaning and maintenance
After using the iron
1. Disconnect the plug from the outlet and let the iron cool down.
2. Clean the product using a humid piece of cloth. Do not use alcohol,
abrasive agents, saponaceous, hot water or solvents to clean it.
3. Rinse regularly the water tank. Empty the tank after each time it is
cleaned.
• Never touch the soleplate before it has cooled down!
• To preserve the soleplate smooth, avoid contact with metallic
objects.
• Never use vinegar or other chemical products to clean the
soleplate.
Calcium Double-activation system
The anti-calcium sachet prevents the obstruction of the steam path,
absorbing insoluble calcium ions in order that the water becomes softer.
The calcium deposit process occurs more slowly.
Self-Cleaning
The self-cleaning function removes all the dirty particles from the holes
of the soleplate.
• Use the self-cleaning function once a week. If in your region
the water is too dirty, the self-cleaning function must be used
more frequently.
1. With the plug disconnected from the outlet, select the position
OFF.
2. Fill the tank with water up to the MAX level.
3. Connect the plug in the outlet.
Never put any kind of liquid or cleaning product into the
tank. Always use clean water.
4. Rotate the temperature control until the ••• position.
5. Turn off the iron when the power indicator light turns off and
disconnect it from the outlet.
6. Hold the iron on a basin and adjust the steam control to the position
of self cleaning approximately 40 seconds. Steam and water
bubbles will come out from the Resilum (anodized) soleplate.
7. Shake the iron slightly until the water in the tank is totally drained.
8. After using the self-cleaning function, put the steam control in the
position OFF.
Repeat the self-cleaning process if the steam outlet still
contains dirty particles.
Precautions after the self-cleaning
1. Connect the iron to the outlet to dry the Resilum (anodized) soleplate.
2. Turn-off the iron when the power indicator light turns off.
3. Pass the iron slightly on a soft piece of cloth to remove all the
water stains which could have remained on the Resilum (anodized)
soleplate.
4. Let the iron cool down completely before storing it.
Storage
1. Make sure that the product is turned off and the steam control is in the
position OFF.
2. Empty the tank.
3. Roll the cable around the iron to make easy the storage.
4. Store the iron in the vertical position and in a dry and safe place.
Tip for ironing the clothes
• First, check the clothes label for instructions. Follow all the
instructions. If there is no label, but you know the fabric type, observe
the temperature list.
• In doubt about the fabric type, put the steam iron in a low temperature
and test it on a non visible surface of the clothes, such as sewing
points, for example.
• The table above is not applicable for special fabrics. Use the
temperature specied by the clothes manufacturer.
• The iron heats up more rapidly than it cools down; therefore, start
ironing the clothes that require lower temperatures, such as those
made of synthetic bers. Afterwards, do ironing on those that require
higher temperature (wool, cotton, linen)
• If the clothes are made of a mixture of fabrics, always select a lower
temperature among the temperatures indicated for these fabrics.
• Silk and other fabrics that can become bright must be ironed from
inside or by using a cotton tissue. To avoid stains, do not spray water
directly.
• Velvet and other textures that rapidly become bright must be ironed
in a single direction.
• Wool fabrics (100%) can be ironed with the iron adjusted in a steam
position. Preferably, adjust the steam control to the maximum position
and use a dry cloth on the clothes.
• Never do ironing on zippers, or rivets of the clothes in order to avoid
damages in the non-stick soleplate.
Environment
Electrolux is committed to offering products that cause
less impact to the environment, thus contributing
to sustainable development. The electronics and
batteries must be disposed of separately from
ordinary trash. If your equipment has batteries or
batteries, these, to be replaced or discarded, should
be directed to an Authorized Service Electrolux to
have an appropriate destination. For more information
about how to proceed to the environmentally sound
disposal of our products at the end of its useful life,
can use our customer service.
6 7
8
9
