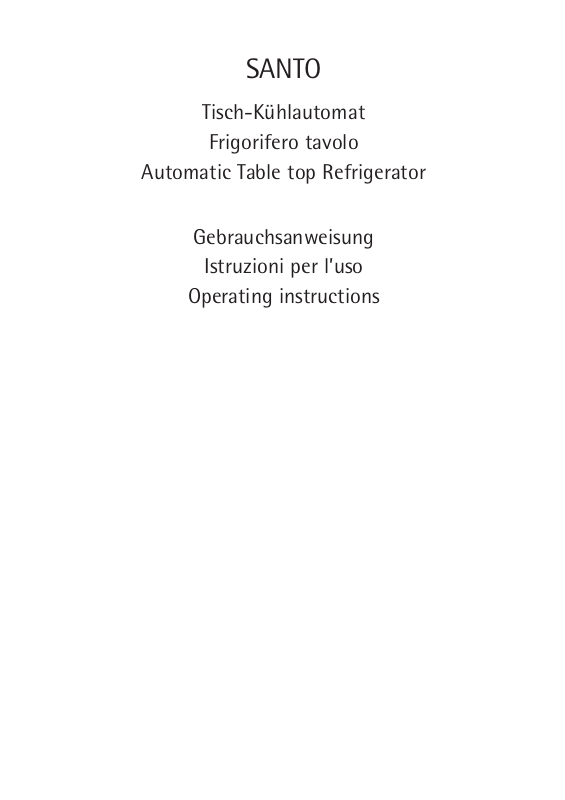

SANTO
Tisch-Kühlautomat
Frigorifero tavolo
Automatic Table top Refrigerator
Gebrauchsanweisung
Istruzioni per l’uso
Operating instructions
Page 2
47
Dear customer,
Before placing your new refrigerator/freezer into operation please read
these operating instructions carefully. They contain important
information for safe use, for installation and for care of the appliance.
Please keep these operating instructions for future reference. Pass
them on to possible new owners of the appliance.
These operating instructions are for use with several technically comparable models with varying accessories. Please observe the notes
which apply to your model.
Notes which are important for your safety or for the proper functioning of the appliance are stressed with a warning triangle and/ or with
signal words (Warning!, Caution!, Important!). Please observe the following carefully.
☞
1. This symbol guides you step by step in the operation of the appliance.
2. ....
Supplementary information regarding operation and practical applications of the appliance appear after this symbol.
Tips and notes concerning economical and environmentally sound use
of the appliance are marked with the cloverleaf.
Explanations of the technical terminology used in the operating
instructions can be found at the end in the section "Technical
Terminology".
The operating instructions contain instructions for the correction of
possible malfunctions by the user in the section "What to do if ...". If
these instructions should not be sufficient, please contact your local
Customer Care Department.
Printed on paper manufactured with environmentally sound processes
he who thinks ecologically acts accordingly...
Page 3
48
Contents
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Appliance Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Disposal of old Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Remove transport safeguard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Installation Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Appliance alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Your refrigerator needs air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Detaching the worktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Mounting under a continuos worktop . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Rehingeing the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
View of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Prior to Initial Start–Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Starting up and temperature regulation . . . . . . . . . . . . . . . . . . . . . . . . .58
Switching off the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Interior Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Storage shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Variable door interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Variable storage box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Correct storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
The fridge defrosts automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
What to do if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Correcting Malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Noises during Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Regulations, Standards, Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Technical Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Page 4
49
Safety
The safety of our refrigerators/freezers is in accordance with recognised technological standards and appliance safety legislation. We
nevertheless feel that it is important to acquaint you with the following safety guidelines:
Intended use
• The refrigerator is intended for use in the home. It is suitable for the
cooling food. If the appliance is used for purposes other than those
intended or used incorrectly, no liability can be accepted by the
manufacturer for any damage that may be caused.
• Alterations or changes to the refrigerator are not permitted for reasons of safety.
• If you use the refrigerator in a commercial application or for purposes other than the cooling of foods, the manufacturer accepts no liability for any damages which may occur.
Prior to initial start–up
• Check the appliance for transport damage. Under no circumstance
should a damaged appliance be plugged in. In the event of damage,
please contact your supplier.
• Ensure that the appliance does not stand on the electrical supply
cable.
Important: if the supply cable is damaged, it must be replaced
by authorised service or qualified personnel using a special cable of
the same type.
Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant
circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
•
Warning - During transportation and installation of the appliance,
be certain that none of the components of the refrigerant circuit
become damaged.
• If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition;
– thoroughly ventilate the room in which the appliance is situated.
Safety of children
• Packaging (e.g. wraps, polystyrene) can be dangerous for children.
There is a risk of suffocation! Keep packaging material away from
children!
• Please make old appliances unusable prior to disposal. Pull out the
mains plug, cut off the mains cable, break or remove spring or bolt
Page 5
50
Safety
catches, if fitted. By doing this you ensure that children cannot lock
themselves in the appliance when playing (there is risk of suffocation!) or get themselves into other dangerous situations.
• Often children cannot recognise the hazards present in household
appliances. It is therefore important that you ensure adequate supervision and never let children play with the appliance!
Daily Operation
• Containers with flammable gases or liquids can leak at low temperatures. There is a risk of an explosion! Do not store any containers
with flammable materials such as spray cans, fire extinguisher refill
cartridges etc in the refrigerator/freezer.
•
Warning - Do not operate any electrical appliances in the refrigerator/freezer (e.g. electric ice cream makers, mixers etc.).
•
Warning - In order not to impair the function of the appliance,
never cover or obstruct the ventilation openings.
•
Warning - Do not damage the cooling circuit.
• Before cleaning the appliance, always switch off the appliance and
unplug it, or disconnect from the electricity supply.
• When unplugging always pull the plug from the mains socket, do not
pull on the cable.
In case of malfunction
• If a malfunction occurs on the appliance, please look first in the
"What to do if ..." section of these instructions. If the information
given there does not help, please do not perform any further repairs
yourself.
• Refrigerators/freezers may only be repaired by qualified service engineers. Improper repairs can give rise to significant hazards. If your
appliance needs repairing, please contact your specialist dealer or
our Customer Service.
Page 6
51
Disposal
Appliance Packaging Information
All materials are environmentally sound! They can be disposed of or
burned at an incinerating plant without danger.
About the materials: The plastics can be recycled and are identified as
follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the
interior.
>PS< for polystyrene foam, e.g. the pads, which are all free of chlorofluorocarbon.
The carton parts are made from recycled paper and should be disposed
of at a waste-paper recycling collection location.
Disposal of old Appliances
For environmental reasons, refrigeration appliances must be disposed
of properly. This applies to your old appliance, and - at the end of its
service life - for your new appliance as well.
Warning! Before disposing of old appliances make them inoperable.
Remove plug from mains, sever the power cable, remove or destroy any
snap or latch closures. This ensures that playing children do not lock
themselves inside the appliance (danger of suffocation!) or place
themselves into other life-endangering situations.
Disposal:
• The appliance may not be disposed of with domestic waste or bulky
refuse.
• The refrigerant circuit, especially the heat exchanger at the back of
the appliance, must not be damaged.
• The symbol on the product or on its packaging indicates that
this product may not be treated as household waste. Instead it shall
be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For
more detailed information about recycling of this product, please
contact your local city office, your household waste disposal service
or the shop where you purchased the product.
Page 7
52
Installation
Installation Location
The appliance should be set up in a well ventilated, dry room.
Energy use and efficient performance of the appliance is affected by
the ambient temperature.
The appliance should therefore
– not be exposed to direct sunlight;
– not be installed next to radiators, cookers or other sources of heat;
– only be installed at a location whose ambient temperature
corresponds to the climate classification, for which the appliance is
designed.
The climate classification can be found on the rating plate, which is
located at the left on the inside of the appliance.
The following table shows which ambient temperature is correct for
each climate classification:
If installation next to a source of heat is unavoidable, the following
minimum clearances must be maintained at the sides of the appliance:
– for electric cookers 3 cm;
– for oil and coal fired ranges 30 cm.
If these clearances cannot be maintained a heat insulating pad is
required between the cooker and the refrigeration appliance.
Climate classification for an ambient temperature of
SN +10 to +32 °C
N +16 to +32 °C
ST +18 to +38 °C
T +18 to +43 °C
Remove transport packaging
The appliance and the interior fittings are protected for transport.
☞
1. Pull off the adhesive tape on the left and right side of the door.
2. Remove all adhesive tape and packing pieces from the interior of the
appliance.
Page 8
53
Installation
Appliance Alignment
The appliance must have a solid, level footing. Please compensate for
unevenness in the floor by turning the two adjustable feet at the front
in or out.
If the refrigeration appliance is installed next to another refrigerator
or freezer a clearance of 5 cm at the sides is required, in order to prevent the formation of condensation on the outside of the appliance.
Your refrigerator needs air
The refrigerating unit of your appliance is
designed for maintenance-free operation.

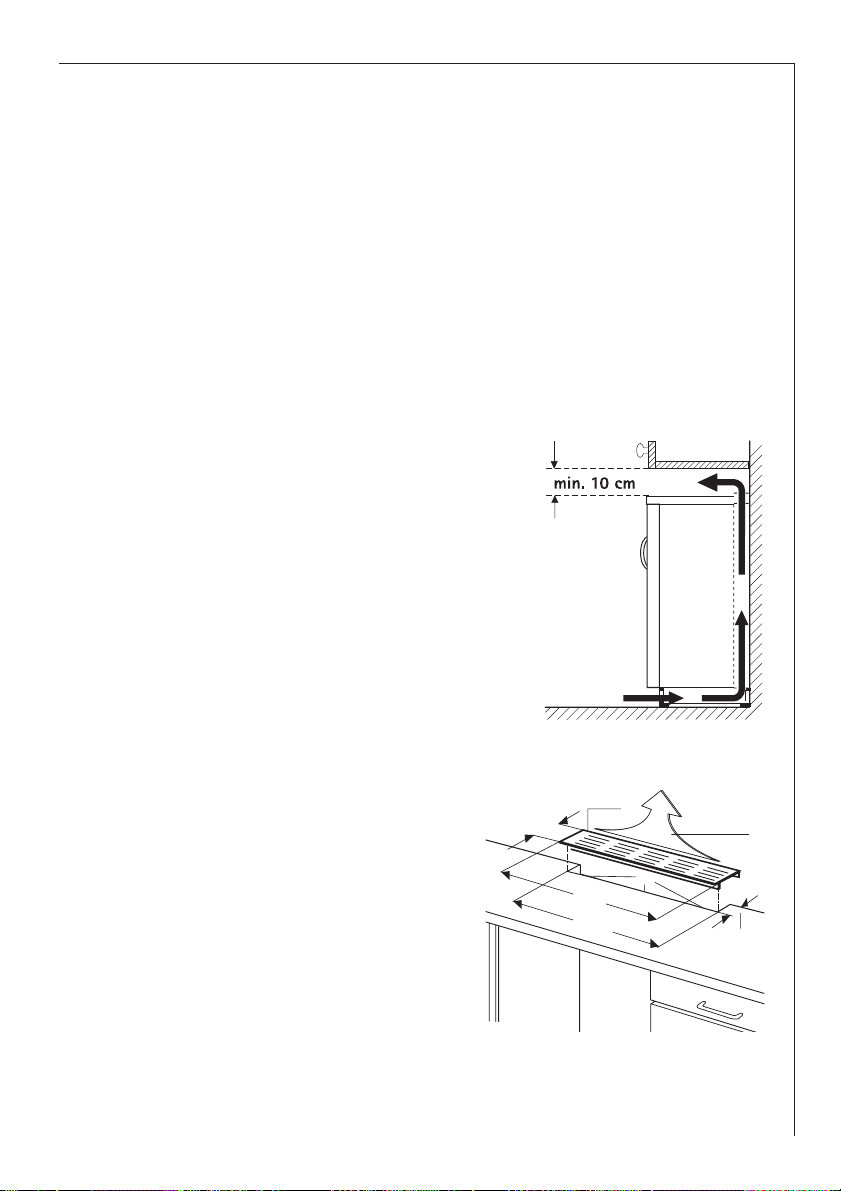

What it should never lack is good ventilation. Air is supplied under the door through
the ventilation slot in the base between the
appliance and storage surface. Air is
extracted upwards along the back wall.
Never obstruct these openings by plinth
screens or crockery.
Attention! If the appliance is installed
under, for example, a hanging cabinet, a
clearance of at least 10 cm between the
top of the appliance and the cabinet above
it must be maintained.
If your refrigerator is installed under
a continuous worktop, an air outlet
opening of at least 200 cm
2
and a
ventilation grille (A/B) matching the
worktop design should be provided at
the rear of the worktop.
The cut surfaces of the worktop (C)
should be varnished to avoid swelling
due to penetration of moisture.
The appliance wall distance must be
at least 30 mm and should be checked
before the ventilation grille is inserted.
Special accessories:
A Ventilation grille, brown B Ventilation grille, white
105
EG36
A/B
570
550
C
200 cm
93-103
2
Page 9
Installation
54
Mounting under a continuous worktop
If installed under a continuous worktop, the appliance is fastened with a
mounting screw (A) under the panel.
A

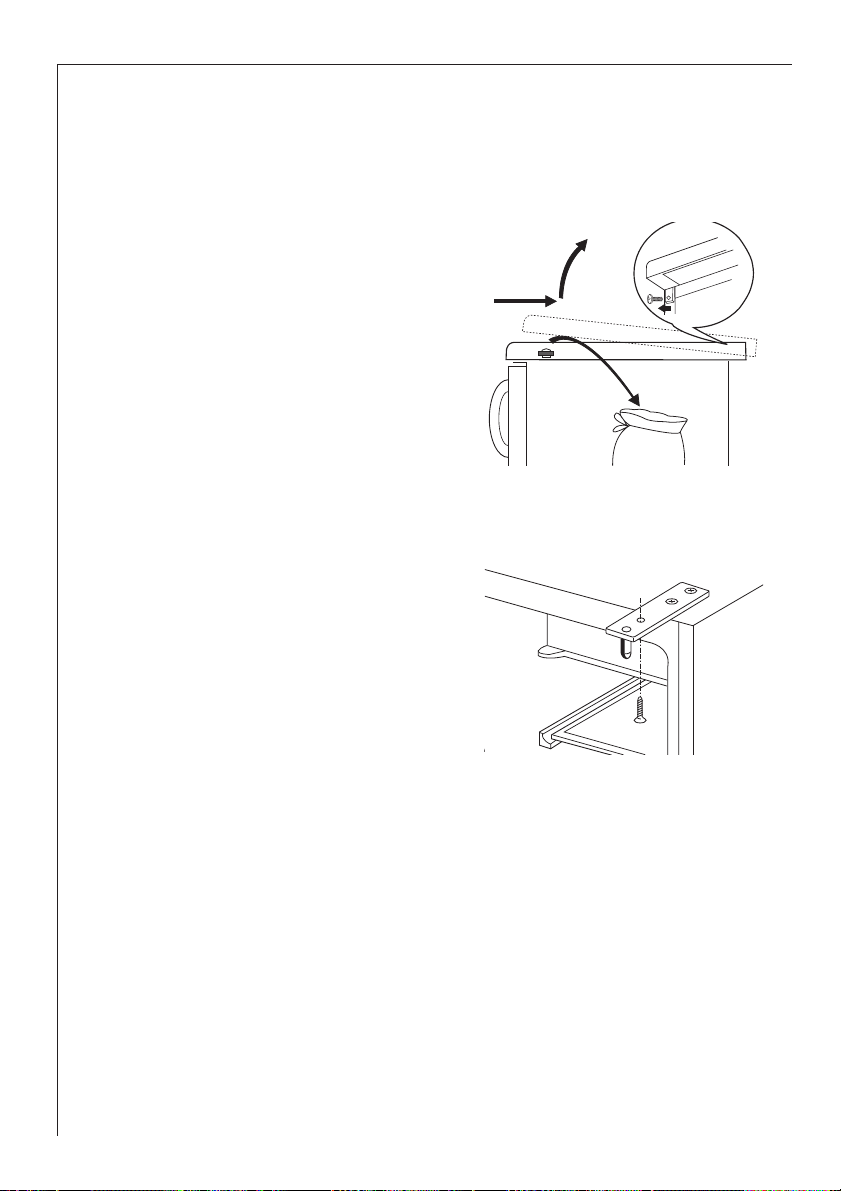

Detaching the worktop
After the worktop has been removed the appliance can be installed
underneath a continuous worktop.
The procedure is as follows:
☞
1. Unscrew the Philips screws (F) on the
right and the left.
2. Lift the worktop slightly, push it
about 20 mm towards the rear, and
lift it off upwards (G).
Unscrew the holding bracket (H) and
keep it in a safe place.
G
F
H
Page 10
Installation
55

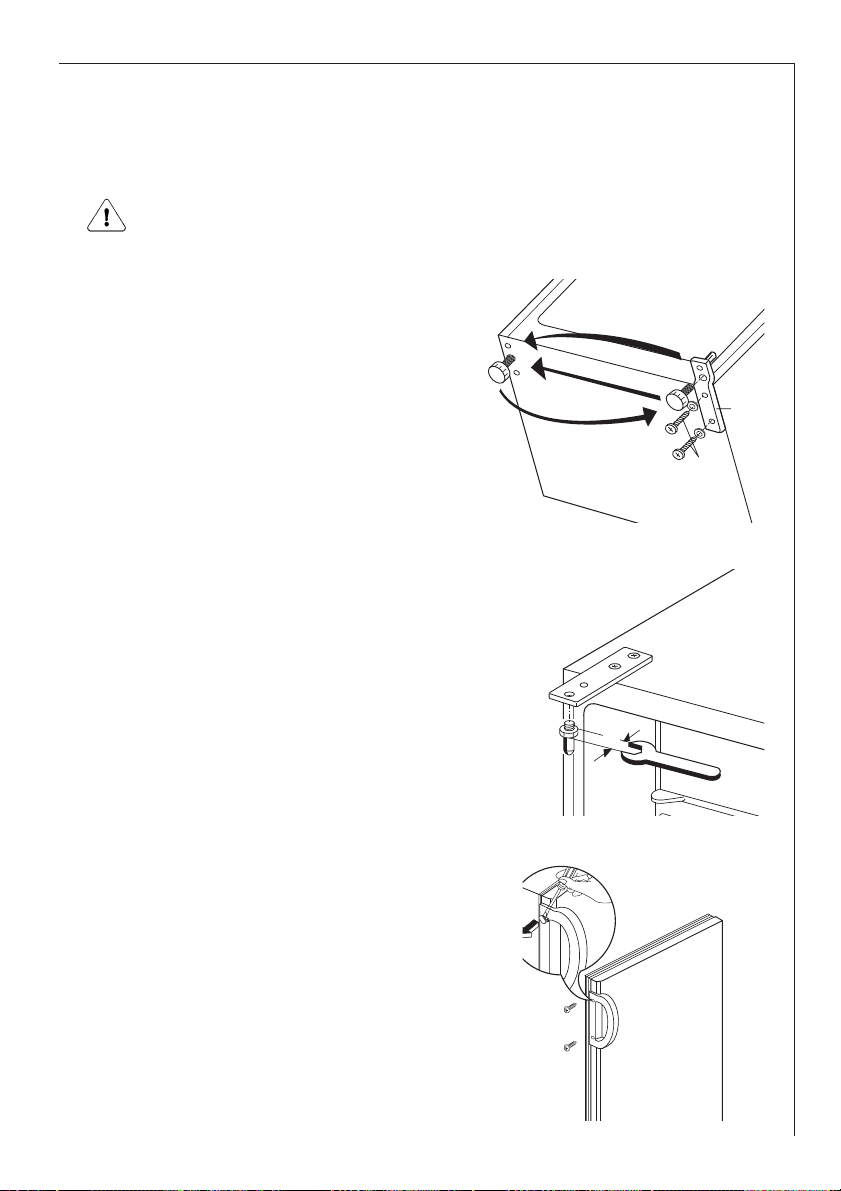

Reversing the door
The side at which the door opens can be changed from the right side
(as supplied) to the left side, if the installation site requires.
Warning! When changing the side at which the door opens, the appliance must not be connected to the mains. Remove plug from the
mains beforehand.
☞
1. Tilt the appliance slightly towards the
rear and prop it securely.
2. Unscrew the door hinge screws (K)
and remove the hinge pin bracket (1).
3. Open the door a little way and take it
out downwards.
4. Unscrew the upper pin (A) and screw
it into place on the opposite side.
5. Fit the door into the upper pin (A)
and close it.
6. Screw the hinge pin bracket (1)
securely into place on the opposite
side using the screws (K).
7. Unscrew the handle and refit it on the
opposite side. The holes that are not
used are to be masked with the plastic
plugs removed.
EG97
12
A
1
K
EG98
EG75
Page 11
Installation
56
Electrical Connection
The plug socket necessary for connection of your appliance to the
electricity supply should be positioned so that it is possible to pull out
the appliance plug.

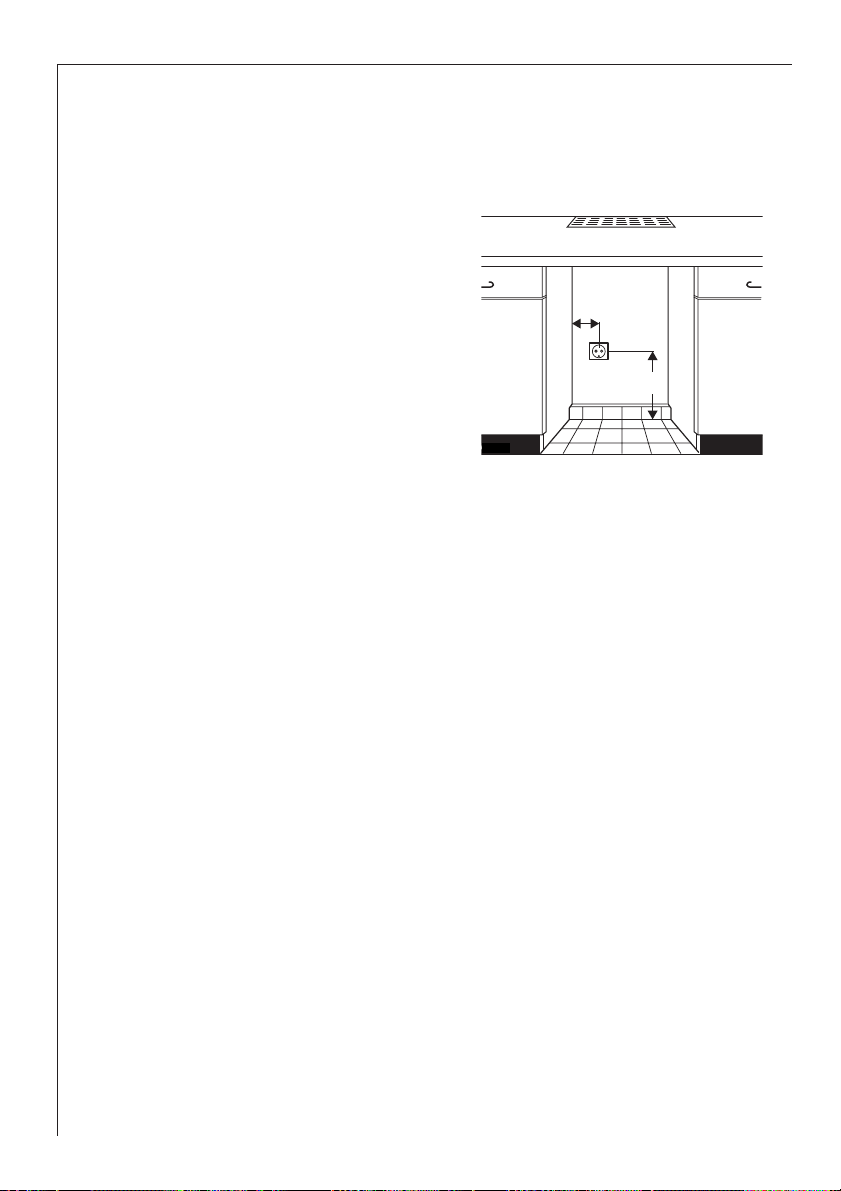

If your appliance is installed under a
continuous worktop, the plug socket
should be provided as shown.
Alternatively a concealed spur socket
fitted with a 13 A fuse may be fitted.
If the socket is no longer accessible
after installation of the appliance, the
electrical installation must include
suitable means of isolating the appliance from the mains (e.g. fuse, cutout, current trip or similar with a
minimum contact separation of 3 mm).
☞ Before initial start-up, refer to the appliance serial plate to ascertain if
supply voltage and current values correspond with those of the mains
at the installation location.
e.g.: AC 220 ... 240 V 50 Hz or
220 ... 240 V ~50 Hz
(i.e. 220 to 240 volts alternating current, 50 Hertz).
The rating plate is inside the appliance on the left.
130
300
Page 12
57
Description of the appliance

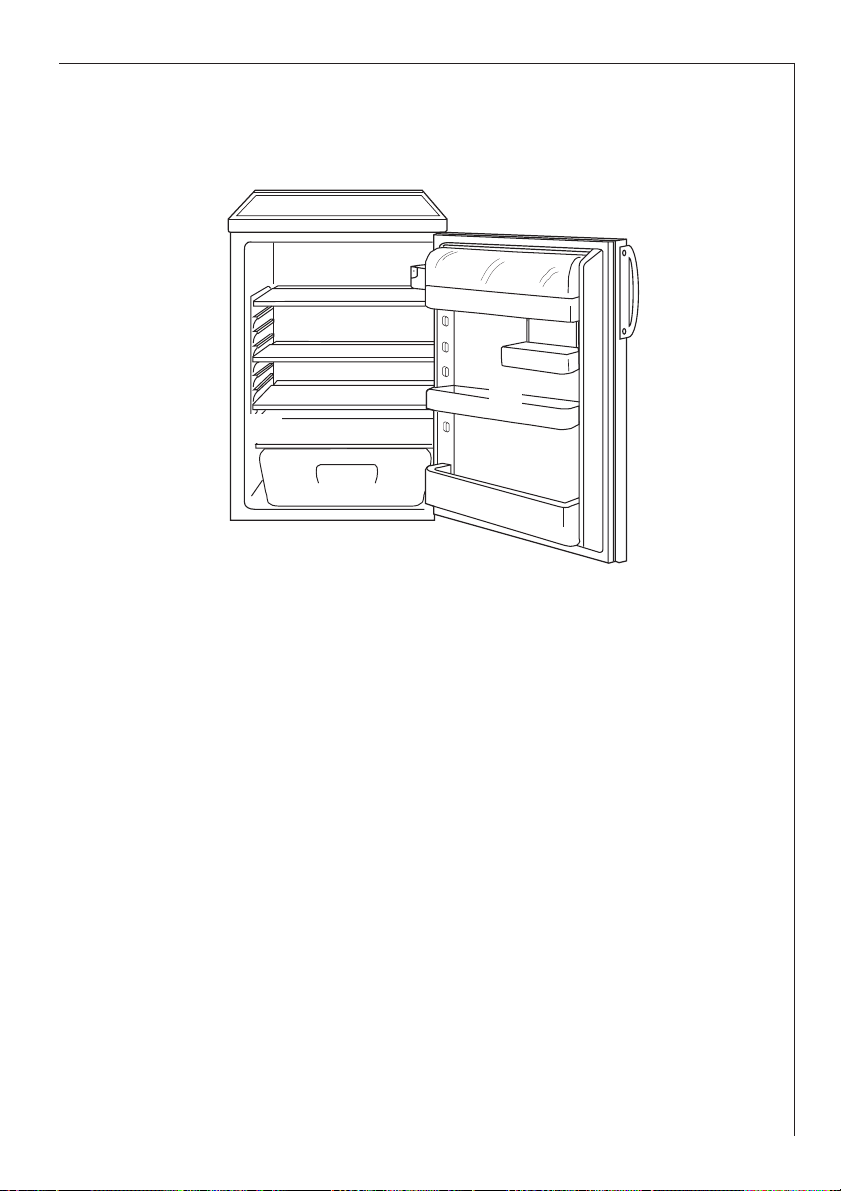

View of the appliance
1 = Butter and cheese compartment with lid
2 = Variable storage box (not included with all models, design differs
depending on the model)
3 = Door storage compartment
4 = Bottle compartment
Bottle holder (not on all models)
5 = Fruit and vegetable bin
6 = Storage shelves
7 = Temperature regulator and interior lighting
8 = Rating plate
➀
➁
➃
➂
➄
➅
➇
➆
Prior to Initial Start–Up
Please clean the appliance interior and all accessories prior to initial
start-up (see section: “Cleaning and Care”).
☞
Page 13
58
Starting up and temperature regulation

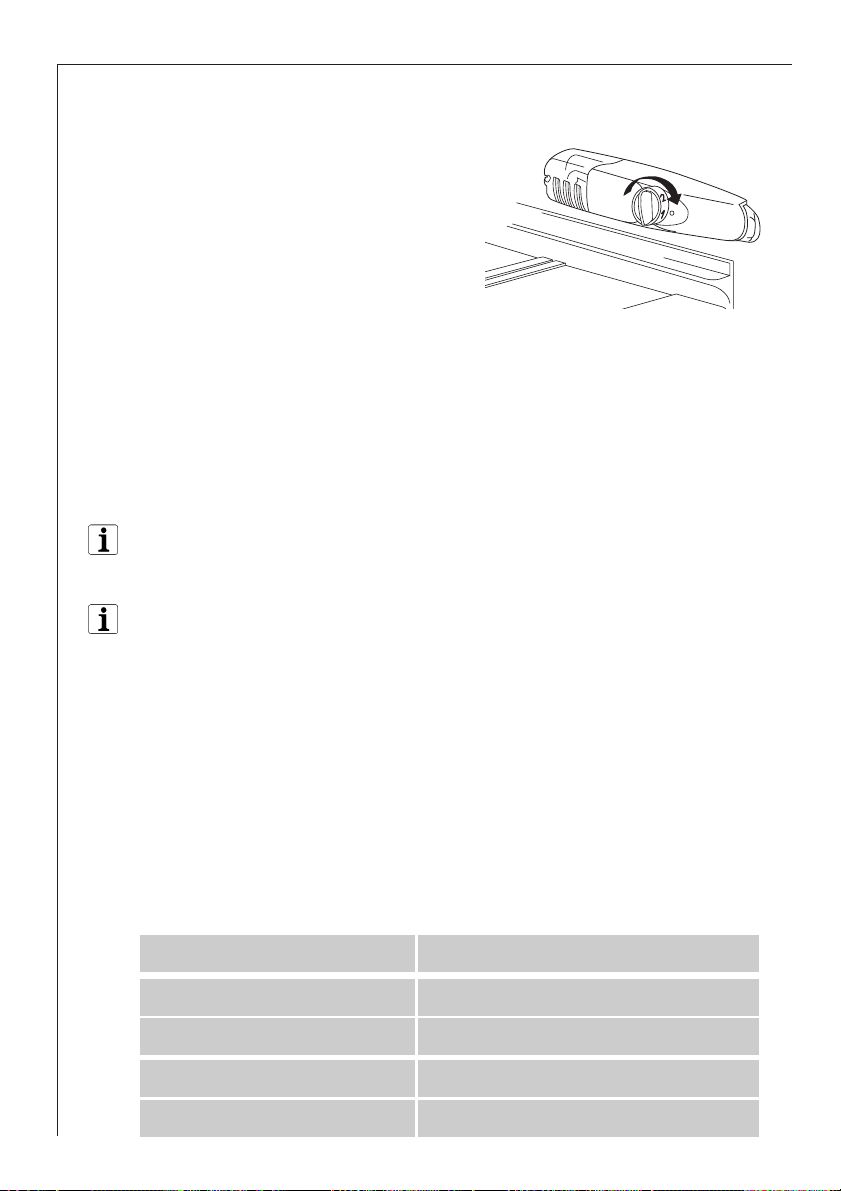

The temperature regulator is in the
refrigerator compartment on the
upper right. It is also the ON/OFFswitch.
Position „0“ = Refrigeration off
Position „1“ = Warmest interior tem-
perature
Position „6“ = Coldest interior temperature
☞
1. Plug the mains plug into the mains socket.
2. Set the required temperature by turning the temperature regulator.
The inside light goes on. The compressor starts and then runs automatically.
Note: When the setting is changed, the compressor does not start
immediately if automatic defrosting is currently taking place.
Goods to be refrigerated can be loaded immediately after switching
on, because the storage temperature in the refrigerator is quickly
reached.
Note: From a food science point of view, +5 °C should be considered
cold enough as a storage temperature.
The following effects are of significance in respect of the interior temperature:
– Ambient temperature;
– Quantity and temperature of the food stored;
– Frequency with which the door is opened and how long it is left
open.
– A defect in the appliance.
The temperature regulator setting may therefore need to be adjusted
to suit the specific conditions.
Recommended settings:
Examples:
Ambient temperature Temperature controller position
Approx. 10°C Range up to 1
Approx. 16°C Range about 2
Approx. 25°C Range about 2
Approx. 32°C 2 to 3
EG62
Page 14
59
3. If you want a higher or lower temperature, turn the temperature regulator to a warmer or cooler setting respectively.
Important!
High ambient temperatures (e.g. on hot summer days) and a cold setting on the temperature regulator (position"5" to "6") can cause the
compressor to run continuously.
Reason: when the ambient temperature is high, the compressor must
run continuously to maintain the low temperature in the appliance.
The fridge will not be able to defrost since automatic defrosting of the
fridge is only possible when the compressor is not running (see also
"Defrosting" section). The result is the build up of a thick layer of frost
on the fridge rear wall.
If this happens, turn the temperature regulator back to a warmer setting (position “4” to “5”). At this setting the compressor will be
switched on and off as usual and automatic defrosting recommenced.
Approx. 38°C 1 to 2
Ambient temperature Temperature controller position
Switching off the appliance
☞
1. To switch off the appliance, turn the temperature regulator to position
"0". The inside light goes out.
If the appliance is not going to be used for an extended period:
☞
1. Switch off the appliance by turning the temperature regulator to position "0". The inside light goes out.
2. Remove the mains plug or switch off or disconnect from the electricity
supply.
3. Clean thoroughly (see section: “Cleaning and Maintenance”).
4. Leave the door open to avoid the build up of odours.
Page 15
60
Interior Accessories
Storage shelves
Various glass storage shelves are included with your appliance.

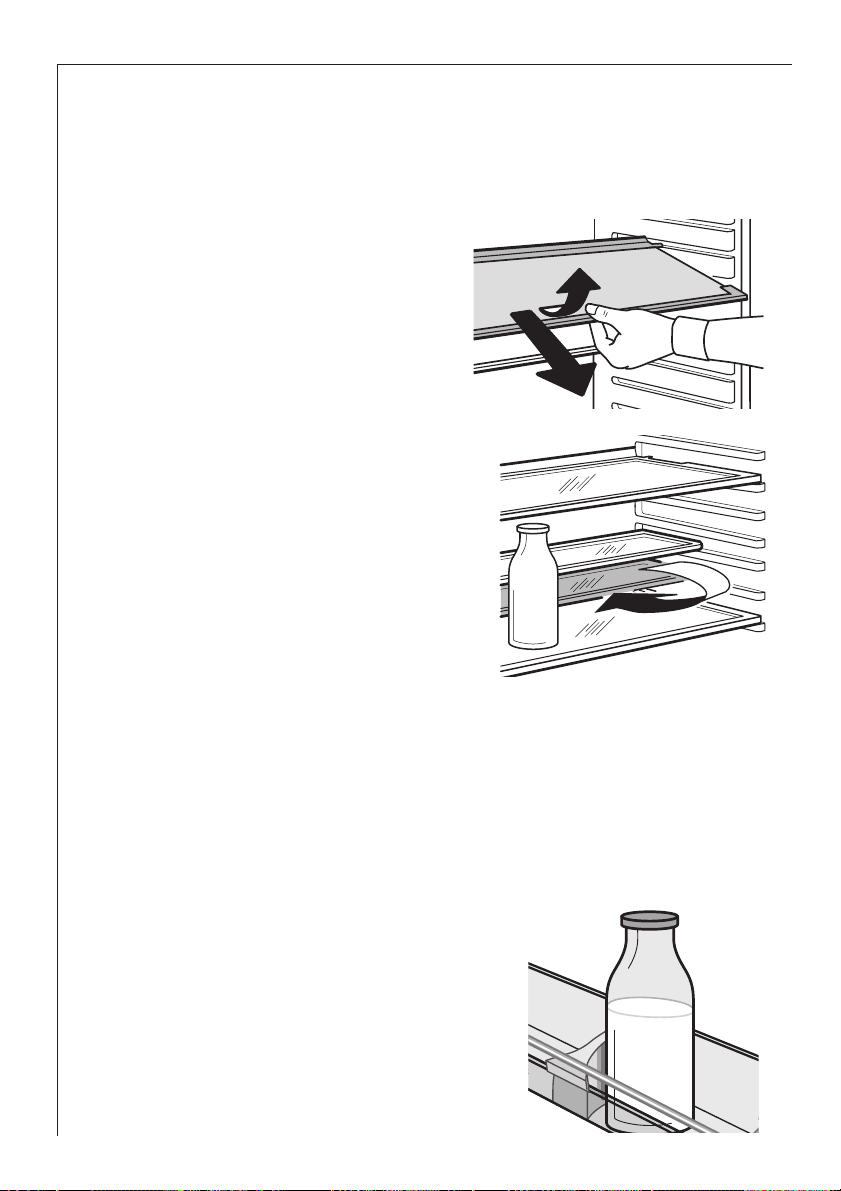

The height of the storage shelves can
be adjusted:
☞
1. To do this pull the storage shelf forward until it can be swivelled
upwards or downwards and removed.
2. Please do the same in reverse to
insert the shelf at a different height.
Adjustment for tall goods (not for all
models):
☞
Slide the front half of the Vario storage shelf in another level to the rear.
By this means you will gain space to
place tall items on the storage shelf
below.

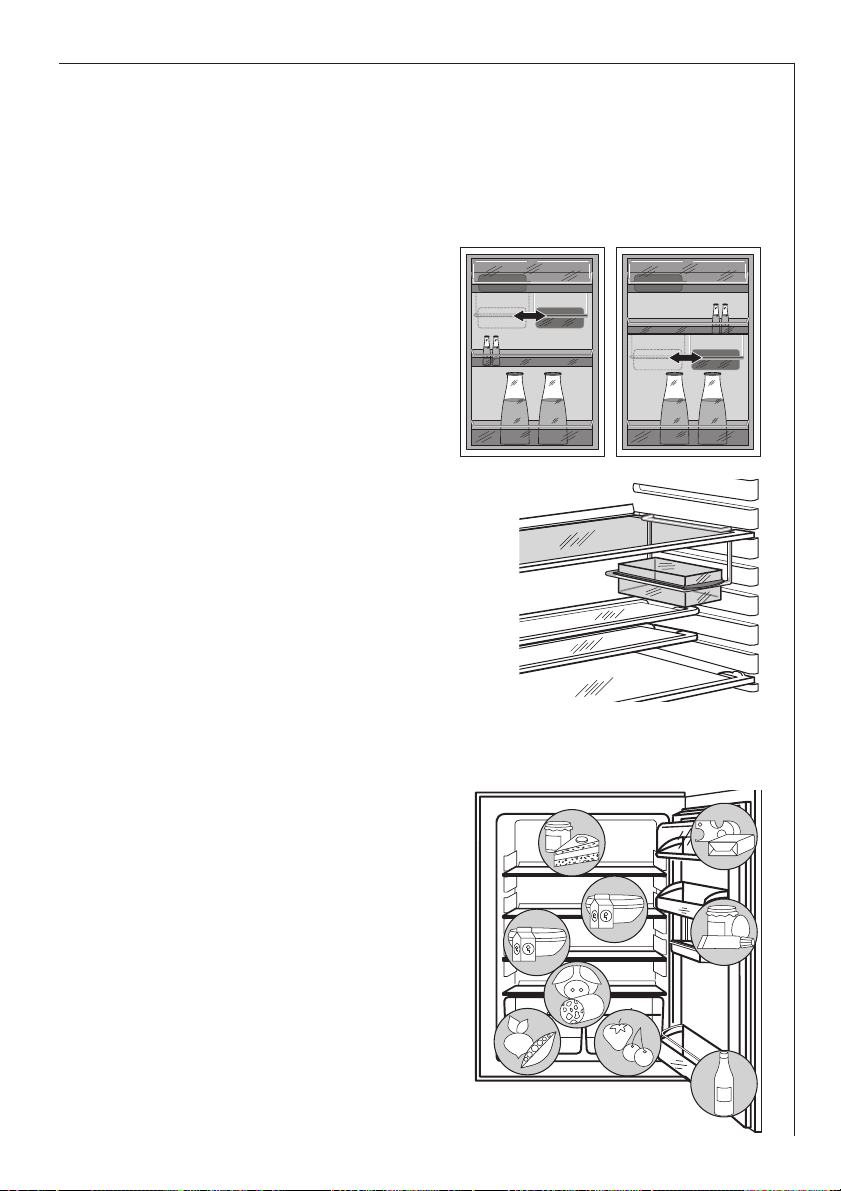

Variable Inner Door
The door compartments can be pulled up and removed, and inserted at
other positions as needed.
Bottle Holder (not for all models)
Some models are equipped with a bottle
holder in the bottle compartment. This is
used to prevent individual bottles from
falling over and can be slid sideways.
Page 16
61
Correct storage
For physical reasons, there are different temperature regions in the
fridge. The coldest region is on the
lowest storage shelf. Warmer
regions are the top storage shelf,
the vegetable drawer and the storage compartments on the door.
The arrangement example shows at
which places in the refrigerator
suitable temperatures for various
types of foods exist.
Variable Storage Box
(not on all models, design differs depending on the model)
Some models are equipped with a variable storage box which is fitted
under a door shelf compartment and can be slid sideways.
The box can be inserted under every door shelf compartment.
☞
1. To change, lift the shelf compartment with the box upwards and
out of the holders in the door and
remove the retaining bracket out
of the guide under the shelf compartment.
2. Please do the same in reverse to
insert the shelf at a different
height.
The variable box can be hung from a
storage shelf in the refrigerator compartment:
☞
1. Pull the storage shelf forward until it
can be tipped up or down and removed.
2. Hang the retaining bracket on the taper
on the storage shelf and slide the storage shelf back into the guides.
Page 17
62
Tip: Food in the fridge should always be covered or packaged, to prevent drying and tainting of other food.
The following are suited for packaging:
– Polyethylene airtight bags and wraps;
– Plastic containers with lids;
– Special plastic covers with elastic;
– aluminium foil.
Defrosting
The fridge defrosts automatically
The rear wall of the fridge covers with frost when the compressor is
running, and defrosts when the compressor is off.
The water from the thawing frost is collected in the drain channel on
the rear of the fridge, feed through the drain hole into the collector
on the compressor, and then evaporated.
The water drainage hole must be cleaned regularly (see the section
"Cleaning and Maintenance").
Cleaning and Care
For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.
Warning!
• The appliance must not be connected to the mains during cleaning.
Danger of electrical shock. Before cleaning switch the appliance off
and remove the plug from the mains, or switch off or disconnect
from the electricity supply.
• Never clean the appliance with a steam cleaner. Moisture could
accumulate in electrical components and there is a danger of an
electrical shock. Hot vapours can lead to the damage of plastic parts.
• The appliance must be dry before it is placed back into service.
Important!
• Ethereal oils and organic solvents can attack plastic parts, e.g.
– lemon juice or the juice from orange peals;
– butyric acid;
– cleansers which contain acetic acid.
Page 18
63
Do not allow such substances to come into contact with appliance
parts.
• Do not use any abrasive cleansers.
☞
1. Remove the food from the refrigerator. Store it in a cool place, well
covered.
2. Remove the mains plug or switch off or disconnect from the electricity
supply.
3. Remove frost from time to time with a soft plastic scraper, e.g. a pastry
scraper. Under no circumstances use hard or pointed objects to remove
frost.
4. Clean the appliance and the interior accessories with a cloth and lukewarm water. Commercially available dish washing detergents may also
be used.
5. After cleaning wipe with fresh water and rub dry.

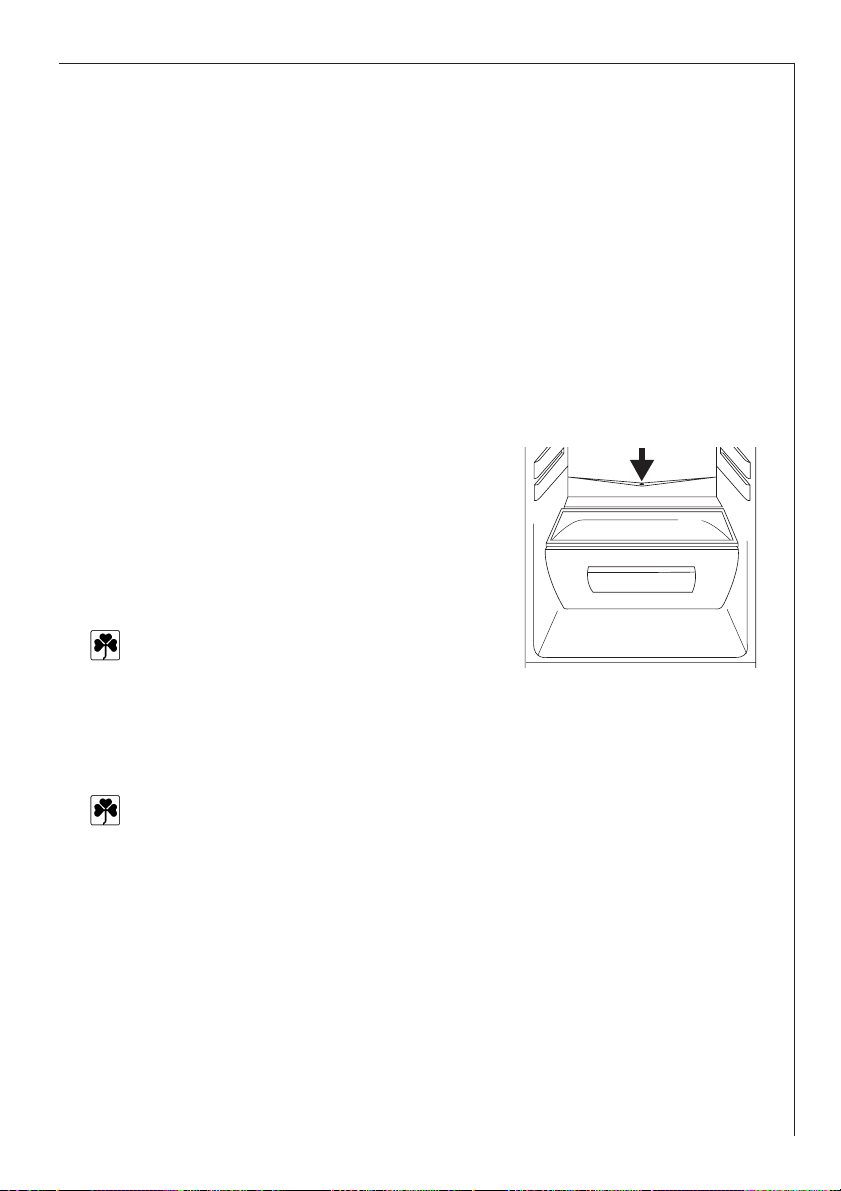

6. Regularly unblock the condensation
water drainage hole in the rear wall of
the refrigeration chamber with the aid
of the green strip inserted into the
drainage hole.
7. After everything is dry reconnect the
appliance to the electricity supply.
Accumulation of dust at the condenser
increases energy consumption. For this
reason carefully clean the condenser at the back of the appliance once
a year with a soft brush or a vacuum cleaner.
Energy Saving Tips
• Do not install the appliance near cookers, radiators or other sources
of warmth. High ambient temperatures cause longer, more frequent
operation of the compressor.
• Ensure sufficient air circulation and exhaust at the appliance base
and at the back wall of the appliance. Never cover air vent openings.
• Do not place warm foods into the appliance. Allow warm foods to
cool first.
• Only leave door open as long as necessary.
• Do not set temperature any colder than necessary.
• Always keep the heat emitting condenser, the metal grille on the rear
wall of your appliance clean.
Page 19
64
Light bulb is defective.
Interior lighting does not
work.
Please look in the “Changing
the light bulb” section.
What to do if ...
Correcting Malfunctions
A malfunction may be caused by only a minor fault that you can rectify yourself using the following instructions. Do not perform any other
work on the appliance if the following information does not provide
assistance in your specific case.
Important! Repairs to refrigerators/freezers may only be performed by
competent service engineers. Improper repairs can give rise to significant hazards for the user. If your appliance needs repairing, please
contact your specialist dealer or our local Customer service.
Symptom Possible Cause Remedy
Appliance does not work.
Appliance is not switched
on.
Mains plug is not plugged
in or is loose.
Fuse has blown or is defective
Socket is defective.
Mains malfunctions are to
be corrected by an electrician.
Switch on the appliance.
Insert mains plug.
Check fuse, replace if necessary.
Temperature is set too
cold.
Turn the temperature
regulator to a warmer setting temporarily.
Appliance cools too much.
The food is too warm.
Temperature is not properly adjusted.
Please look in the “Initial
Start Up” section.
Door was open for an
extended period.
A large quantity of warm
food was placed in the
appliance within the last
24 hours.
The appliance is near a
heat source.
Do not leave the door open
any longer than necessary.
Turn the thermostat knob
to a colder setting tem-
porarily.
Please look in the
“Installation location” section.
Page 20
What to do if...
65
Symptom Possible Cause Remedy
Heavy build up of frost,
possibly also on the door
seal.
Door seal is not airtight
(possibly after reversing
the door).
Carefully warm the leaking
sections of the door seal
with a hair dryer (on a
cool setting). At the same
time shape the warmed
door seal by hand such
that it sits correctly.
Unusual noises.
Appliance is not level.
The appliance is touching
the wall or other objects.
A component, e.g. a pipe,
on the rear of the appliance
is touching another part of
the appliance or the wall.
Readjust the feet.
Move the appliance
slightly.
If necessary, carefully bend
the component out of the
way.
The compressor does not
start immediately after
changing the temperature
setting.
This is normal, no error has
occurred.
Water in the bottom of
the cabinet.
Water drain hole is
blocked.
See the “Cleaning and
Care” section.
The compressor starts after
a period of time.

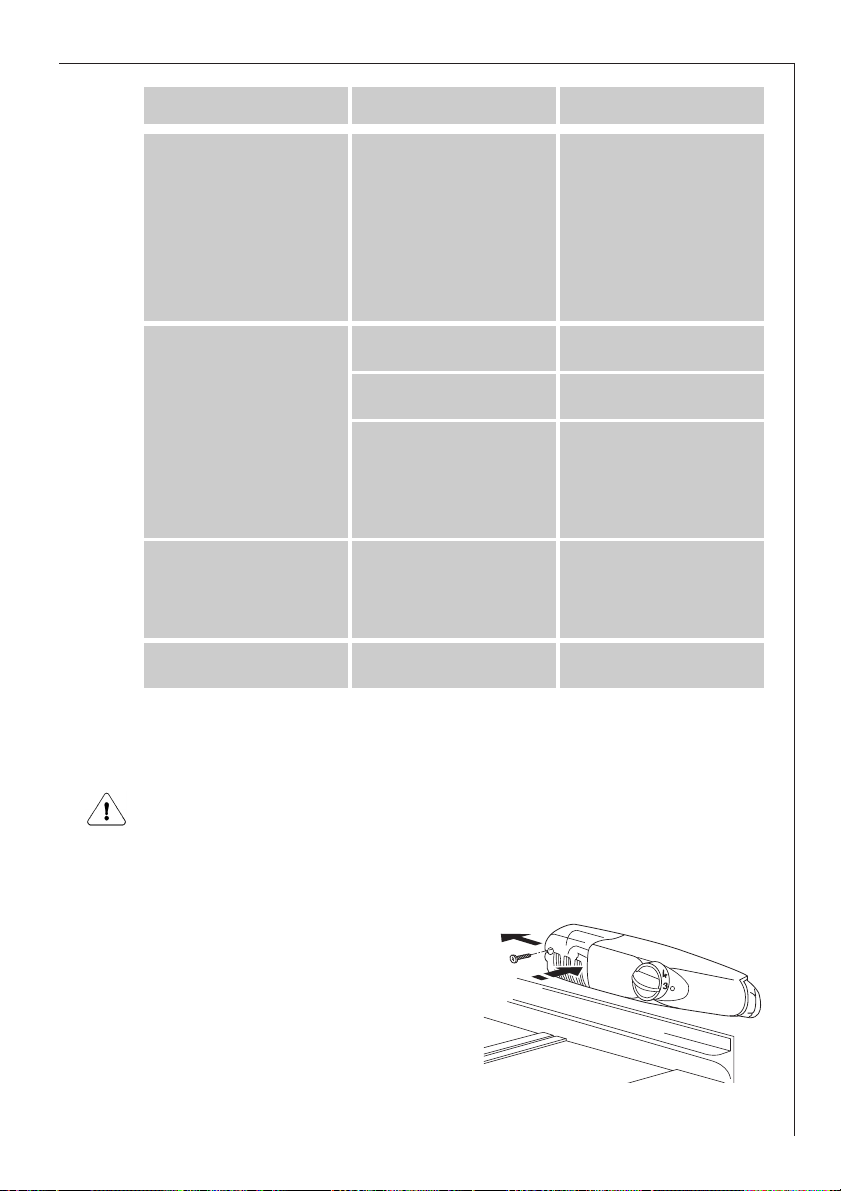

Changing the light bulb
Warning! There is a risk of electric shocks! Before changing the light
bulb, switch off the appliance and unplug it, or disconnect from the
power supply. Light bulb data: 220-240 V, max. 15 W
☞
1. To switch off the appliance, turn the thermostat knob to position "0".
2. Unplug the mains plug.
3. To change the light bulb, undo the
screw.
4. Press the light bulb cover as shown
and slide it backwards.
5. Change the defective light bulb.
6. Refit the light bulb cover and the
screw.
7. Put the refrigerator back into operation.
EG65
Page 21
66
Noises during Operation
The following noises are characteristic of refrigeration appliances:
•
Clicks
Whenever the compressor switches on or off, a click can be heard.
•
Humming
As soon as the compressor is in operation, you can hear it humming.
•
Bubbling/Splashing
When refrigerant flows into thin tubes, you can hear bubbling or
splashing noises. Even after the compressor has been switched off,
this noise can be heard for a short time.
Regulations, Standards, Guidelines
This appliance was designed for household use and was manufactured
in accordance with the appropriate standards. The necessary measures
in accordance with appliance safety legislation regulations (GSG), accident prevention regulations for refrigeration appliances (VBG 20) and
the regulations of the German Society of Electrical Engineers (VDE)
Customer Service
If you cannot find the remedy for a malfunction in these operating
instructions, please contact your dealer or our customer service
department. Addresses and telephone numbers are listed in the accompanying booklet "Guarantee Conditions/Customer Service Locations".
Selective ordering of replacement parts can save unnecessary travel
and costs. For this reason always provide the following appliance
information:
• Model Name
• Model Number (PNC)
• Serial Number (S-No.)
This information can be found on the serial plate in the interior at the
left of the appliance. We recommend that you enter this information
here, so that it is handy if needed.
Note: The customer bears the costs of unjustified customer service
calls even during the guarantee period.
Page 22
67
were observed in the manufacture of this appliance.
The refrigerant circuit has been checked for leaks.
This appliance is in accordance with the following EU
guidelines:
– 73/23/EWG dated 19 February 1973 - low voltage guidelines.
– 89/336/EWG dated 3 May 1989
(including guideline change notice 92/31/EWG) - EMV guideline
Technical terminology
• Refrigerant
Liquids that can be used to a generate a cooling effect are known as
refrigerants. They have a relatively low boiling-point, indeed so low,
that the warmth from the food stored in the fridge or freezer can
cause the refrigerant to boil and vaporise.
•
Refrigerant Circuit
Closed circulation system that contains the refrigerant. The refrigerant circuit comprises primarily of an evaporator, a compressor, a condenser and pipe work.
•
Evaporator
The refrigerant is evaporated in the evaporator. Similar to all other
liquids, refrigerant requires heat to evaporate. This heat is removed
from the interior of the appliance, as a result the interior is cooled.
The evaporator is therefore located inside the appliance or placed in
foam immediately behind the inner wall and thus not visible.
•
Compressor
The compressor looks like a small drum. It is driven by a built-in
electric motor and is mounted on the base of the appliance at the
rear. The task of the compressor is to draw in vaporised refrigerant
from the evaporator, to compress it, and to pass it on to the condenser.
•
Condenser
The condenser normally has the form of a grid. The refrigerant compressed in the compressor is liquefied in the condenser. During this
process, heat is released to the surrounding air at the surface of the
condenser. The condenser is mounted on the base of the appliance.
Page 23
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
Änderungen vorbehalten
Con riserva di modifiche
2222 661-65 -00- 0105 Subject to change without notice
Loading...
