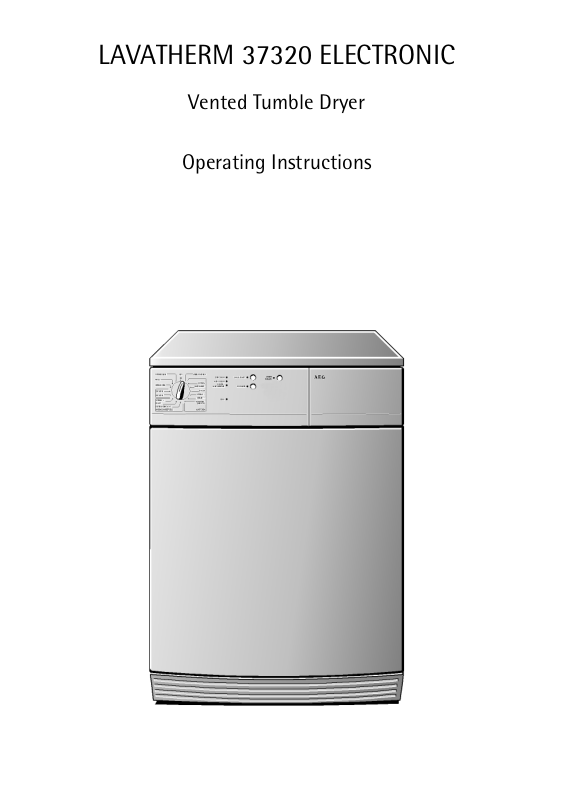

AEG LAVATHERM 37320 User Manual
LAVATHERM 37320 ELECTRONIC
Vented Tumble Dryer
Operating Instructions
Dear customer,
Pri
Please read these operating instructions through carefully, before using
the appliance.
Please ensure you fully understand the safety instructions on the first
pages of these operating instructions! Retain this instruction book for
future reference, and pass on to any future owners.
The warning triangle and/or the key words (Warning!, Caution!,
1
Important!), emphasize information which is important for your safety
or the correct functioning of the appliance. It is essential that this
information is observed.
0 This symbol guides you step by step when operating the appliance.
This symbol gives additional information and practical tips on using the
3
appliance.
Tips and information about the economical and environmentally
2
friendly use of the machine are marked with the clover symbol.
• These operating instructions contain information about how to
independently solve any problems which may arise. See "What to do
if ...".
nted on environmentally friendly paper ...
Whoever thinks ecologically also acts ecologically.
2
Content
Important Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
General Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Child Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Environmental protection tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

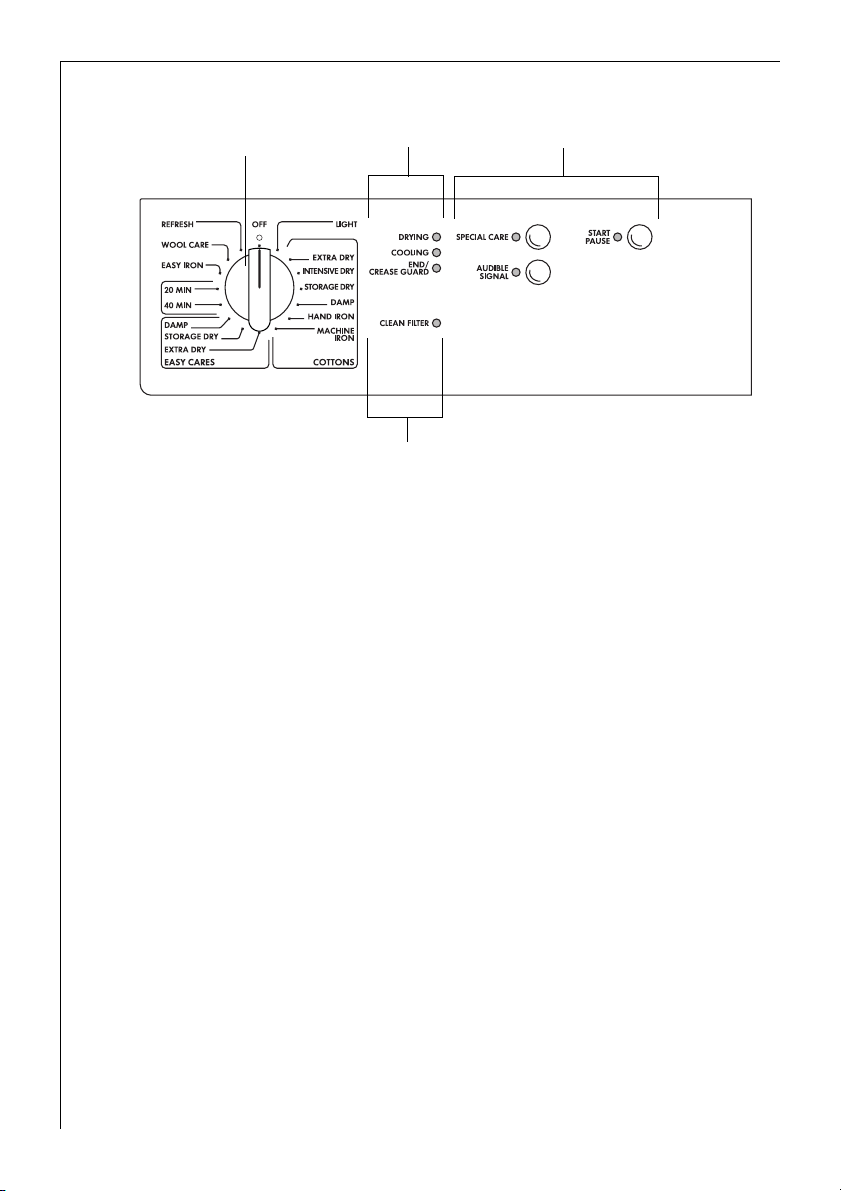

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

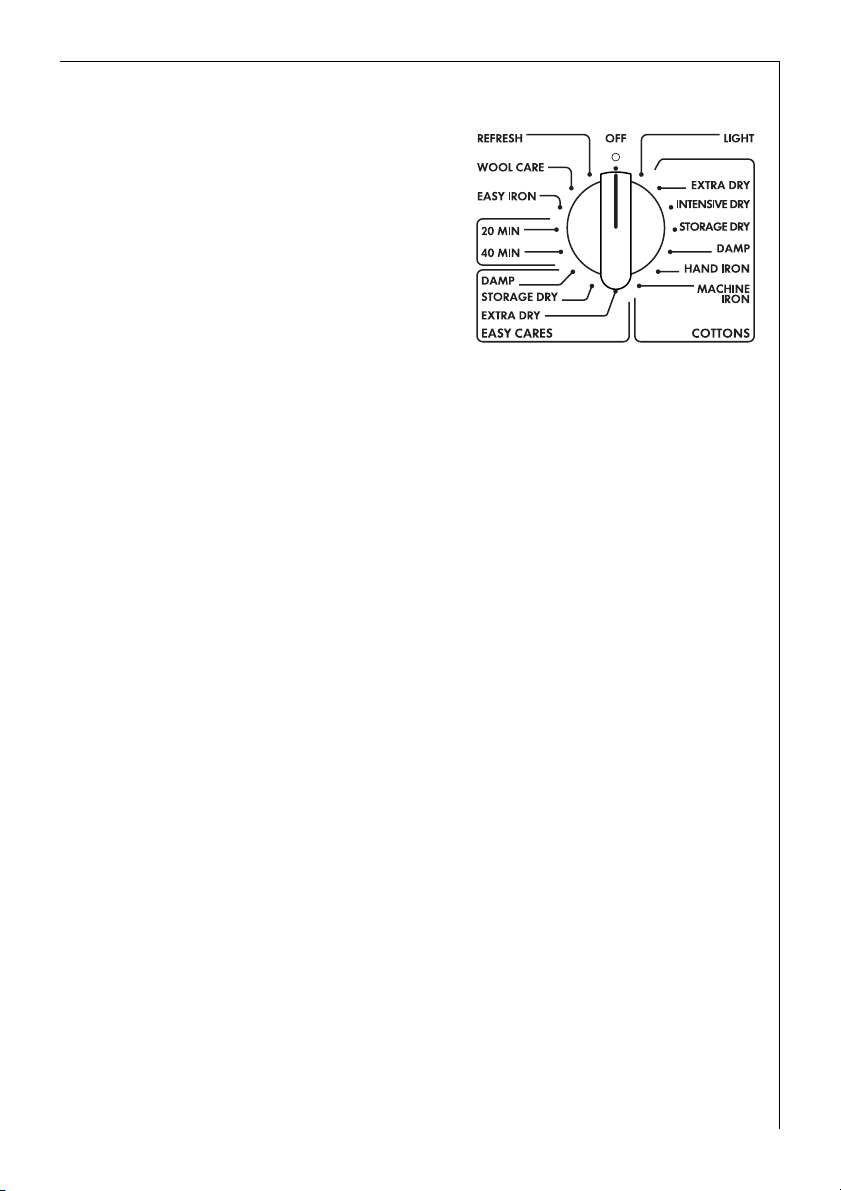

The programme selector positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Before using the appliance for the first time . . . . . . . . . . . . . . . . . . . . . . 13
Brief operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Prepare the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Load the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Closing the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Select the drying programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Start the drying programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Removing laundry or loading laundry when necessary . . . . . . . . . . . . . . . . . 17
End of the drying process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Removing the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cleaning the door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Clean the fluff filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Switch-off the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Programme tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
A small glossary of textile information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Care symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3
Content
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Cleaning the filter area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Cleaning the drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Cleaning the panel and operating parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Cleaning the door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
What to do if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Replacing the interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Door Reversal Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Installation and electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Information for the electrician . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Special accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Vent hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Stacking kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Venting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Venting through a Vent Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Venting without a Vent Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4
1 Important Safety Information
Your safety is of paramount importance, please ensure you read these
warnings before installing or using the appliance. If you are unsure
about any of the meanings of these warnings, contact the Customer
Care Department.
General Safety
• Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
• Please follow the safety information in the installation section of this
instruction book.
• This appliance is designed to dry normal domestic laundry. If the
appliance is used for any other purpose or is incorrectly used, the
manufacturer accepts no liability for any damages which may result.
• Switch off the appliance and isolate from the mains supply before
carrying out any maintenance or cleaning work.
• If the appliance will be out of operation for an extended period of
time, unplug it from the mains.
• Never operate the appliance if the mains cable is damaged or if the
control panel, work top or base area are damaged allowing internal
components to be accessible.
• Do not spray the tumble dryer with water.
• Do not dry textiles which have been treated with flammable cleaning
agents and solvents.
• Clothes or articles of laundry which are dripping wet should not be
placed in the dryer. Only load well-spun laundry.
• Laundry items containing sponge rubber or rubber-like materials
must be not be dried in the tumble dryer.
• If the drying cycle is interrupted, the laundry or drum may be hot.
• Do not use the tumble dryer without the bulb cover in position.
• Do not operate the appliance with a damaged filter or with no filter
at all.
• Do not overload the appliance.
• When closing the door, please check that the washing is not caught
in it.
• It is dangerous to alter the specifications or attempt to modify this
product in any way.
5
Important Safety Information
• Adaptors and extension cables must not be used. There is risk of fire
because of overheating!
• Do not use the mains cable to pull the plug out of the socket.
• Repairs to the appliance should only be carried out by qualified
personnel. Repairs carried out by inexperienced persons may cause
injury or serious malfunction. Contact your local AEG Service Force
Centre for repair.
• Washing that is in poor condition (heavily worn) and items with loose
fillings (cushions) that could break open must not be dried or
refreshed. There is a risk of fire!
• Washing with rigid components (foot mats) will cover the air slots;
the slots will also be covered if the drum is overfilled. Observe the
maximum load of 5 kg. There is a risk of overheating which could
cause a fire!
• Only dry washing that does not contain any explosive objects (fire
lighters, spray cans). There is a risk of fire or an explosion!
• Clean the fluff filter after each drying procedure.
• In the case of washer / dryer tower combinations, do not place any
objects on the dryer during use as they could drop down.
Child Safety
• The appliance is designed to be operated by adults. Children should
not be allowed to tamper with the controls or play with the
appliance.
• Pets and children have been known to climb into tumble dryers.
Please check the drum before use.
• Keep all packaging away from children.
• When disposing of the appliance, cut off the mains cable and destroy
the plug. Disable the door catch to prevent young children being
trapped inside.
6
Important Safety Information
Installation
• Check the appliance for transportation damage before installation.
• Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
• If the tumble dryer has to be carried, first remove the plinth!
• Do not install the appliance on deep pile carpet.
• This tumble dryer is designed to be vented through to the open air. It
should have its own ventilation system which should not be joined
with any other ventilation system connected to any other appliance.
• The dryer must not be vented into a chimney, or flue pipe designed to
carry the exhaust from a fuel burning heating appliance.
• If the tumble dryer is installed next to a fuel burning stove, a heat
insulation non-flammable pad must be inserted between the fuel
burning stove and the tumble dryer; (dimensions 85 x 57.5 cm).
• If the dryer is installed in a room with a fuel burning heating
appliance, consult your local Corgi registered installer.
• The tumble dryer should not be installed in situations which may be
subject to freezing temperatures.
• The installation site must be well ventilated.
• Ensure the appliance does not stand on the electrical supply cable.
• If the machine is situated on carpeted floor, please adjust the feet in
order to allow air to circulate freely.
• Ensure the appliance is level.
• Observe the safety precautions in the operating instructions for your
dryer.
• Air is drawn in through vents at the rear and front of this appliance.
Therefore, keep the area around the appliance clear.
7
3 General Information
• Starched washing leaves traces of starch on the drum and therefore
should not be placed in the tumble dryer.
• If you exceed the maximum load stipulated in the programme table
your washing is more likely to get creased! For very delicate fabrics you
should only fill in 1.5kg washing at the most.
• For your information: 70 per cent of fabric wear is caused by being
worn, 20 per cent by washing and only 10 per cent by being dried in a
tumble dryer. As the fabric is worn down, fluff gathers in the fluff filter. When using a tumble dryer, only approx. 0.03g fluff per kilogramme washing is produced.
2 Disposal
Packaging
Dispose of the packaging material!
Dispose of the packaging material of your tumble dryer correctly. All
the packaging materials used are harmless to the environment and can
be recycled.
• Plastic parts are marked with standard international abbreviations:
– >PE< for polyethylene, e.g. sheet wrapping material
– >PS< for polystyrene, e.g. padding material (always CFC-free)
– >POM< for polyoxymethylene, e.g. plastic clips
Cardboard packaging is manufactured from recycled paper and should
be deposited in the waste paper collection for recycling.
8
Disposal of the old appliance!
When you eventually stop using your tumble dryer please bring it to
the nearest recycling centre or to your dealer who will take it back for a
small fee.
Warning! When disposing of the tumble dryer, pull out the plug, cut
1
off the flex, dispose of the plug and remaining flex and destroy the
door lock. This hinders children from locking themselves in and endangering their lives.
The materials can be recycled in accordance with their markings. Standard tools (crosshead screwdriver, hammer) are sufficient to dismantle
the old appliance.
2 Environmental protection tips
• Your laundry will become light and soft in the laundry dryer even
without a soft rinsing agent.
• Loosen your laundry before loading it into the dryer. This helps to
prevent lengthy running times and creasing.
• Ensure your laundry is well spun.
In the following table we give an overview of specific electric consumption data depending on the spinning speed. This information is
valid for 5kg laundry dried with the programme COTTONS STORAGE
DRY:
Pre-drying: Drying process:
Revolutions per
minute
800 3.5 70 80 3.3
1000 3.0 59 70 2.9
1200 2.7 53 65 2.6
1400 2.5 50 60 2.4
1600 2.2 44 55 2.2
Residual moisture
in Litres in %
Required time in
minutes
Power consumption
in kWh
• Ensure that the room is well ventilated!
• Observe the maximum load instructions. Whenever possible, dry full
loads.
9
Environmental protection tips
• Choose the right drying programme for the type and quantity of laundry. The dryer will then operate as economically as possible. Some typical consumption values:
Power
consumption
in kWh
Drying programme
COTTONS STORAGE DRY
COTTONS HAND IRON
EASY CARES STORAGE DRY
1) spun at 800 revolutions per minute
2) spun at 1000 revolutions per minute
1
1
2
Fill weight
in kg
5 80 3.3
5 65 2.5
2.5 35 1.3
Duration in
Minutes
If the amount of laundry is not enough for a particular degree of drying (e.g. HAND IRON), you should dry it in stages for best economy: Fill
the dryer and select the programme HAND IRON; after the end of this
programme take out your laundry for ironing. Finally dry the remaining
laundry with the programme STORAGE DRY.
• Only use the SPECIAL CARE button for loads up to 2.5kg!
• Clean the fluff filter after every drying programme!
10
Description of the appliance
Front view
Interior Light
Rating Plate
Control Panel
Fluff Filter
Feet
(all height-adjustable)
Removable Plinth
Reversible Door
11
Loading...
