AEG LAV86720, LAV 86720-W User Manual

ÖKO-LAVAMAT 86720 update

The environmentally friendly washing machine

Instruction book

Dear customer,

f

Please read these user instructions carefully.
Above all, observe the "Safety" section in the first pages. Keep these
user instructions in a safe place for future reference. Please pass them
along to future owners of the appliance.

Important information concerning your safety and proper functioning

1

of the appliance is highlighted with the warning triangle or the signal
words (Warning!, Caution!, Attention!). Please observe carefully.

0 1. This symbol guides you step by step when operating the appliance.

2. ...

Next to this symbol you receive additional information and practical

3

tips on using the appliance.

Tips and information about the economical and environmentally

2

friendly use of the machine are marked with the clover.

These user instructions include tips for the correction of possible mal­functions by the user. See the section "What to do when...".

Our customer service department is at your disposal should technical
problems occur. See also the "Service" section.

Printed on paper manu
He who thinks ecologically acts accordingly ...

2

actured with environmentally sound processes.

Contents

CONTENTS

Operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Environmental protection tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Drawer for detergent and conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Program selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Additional Program Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Consumption data and required time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

What does "update" mean? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Before washing the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Prepare washing cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Sort washing and prepare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Washing types and care symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Detergent and conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Which detergent and conditioner? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

How much detergent and conditioner? . . . . . . . . . . . . . . . . . . . . . . . . . 17

Using Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Performing A Washing Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Brief Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Set the washing program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Changing Spin Speed/Selecting Rinse Hold . . . . . . . . . . . . . . . . . . . . . . . . . 19

Setting the Delay Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Open and close fill-in door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Fill-in the washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Add detergent/conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Starting the Washing Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Washing Program Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Washing Cycle Complete/Removing the Washing . . . . . . . . . . . . . . . . . . . . 24

3

Contents

Program Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Separate Rinsing/Starching/Conditioning . . . . . . . . . . . . . . . . . . . . . . . . . 27

Separate Gentle Rinsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Separate Spinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Cleaning and Caring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Detergent drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Washing drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Fill-in door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

What to do when… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

If the washing results are not satisfactory . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Perform emergency drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Clean the circulating pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Emergency release for fill-in door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Additional Rinse and/or Wash Water Cooling . . . . . . . . . . . . . . . . . . . . . . . 36

Program protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Installation and Connection Instructions . . . . . . . . . . . . . . . . 40

Installation Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Dimensions of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Front and Side Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Installation of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Transporting the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Remove transportation protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Prepare the installation place . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Installation on a concrete base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Installation on vibrating floors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Levelling on uneven floors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

4

Contents

Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Water connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Permissible water pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Water feed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Water drain-off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Delivery heights above 1m . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Guarantee/Service Departments . . . . . . . . . . . . . . . . . . . . . . . . . 51

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

5

Operating instructions

OPERATING INSTRUCTIONS

1 Safety

The safety standards of AEG electric appliances are in keeping with the
recognised rules of technology and the law governing the safety of
appliances. Nevertheless as a manufacturer we are committed to famil­iarise you with the following safety instructions:

Prior to initial start-up

• Observe the "Installation and Connection Instructions" below in
these user instructions.

• If the appliance is delivered during the winter and temperatures are
below freezing, allow the appliance to stand at room temperature for
24 hours before operation

Intended use

• The washing machine is intended exclusively for the washing of nor­mal household washing in the home. If the appliance is used for pur­poses other than those intended, or if it is improperly operated, the
manufacturer can assume no liability for damages which may occur.

• Additions or modifications to the washing machine are strictly for­bidden due to safety reasons.

• Use only those detergents which are suitable for the washing
machine. Observe instructions provided by the detergent manufac­turer.

• Laundry to be washed may not contain any flammable solvents. This
must also be taken into consideration when washing pre-washed
laundry.

• Do not use the washing machine for dry-cleaning.

• Dyes and bleaches may only be used in the washing machine if such

use has been expressly endorsed by the manufacturer of these prod­ucts. We can assume no liability for damages which may occur.

6

Operating instructions

• Use tap water only. Rain water and industrial water may only be used
if they fulfil requirements in accordance with DIN1986 and DIN1988.

• Damage due to frost is not covered by the guarantee! If the washing
machine is located in a room in which below freezing temperatures
might occur, emergency draining must be carried out if danger of
freezing occurs (see "Emergency Draining"). Furthermore, the inlet
hose must be disconnected from the tap and laid on the floor.

Safety of children

• Packaging materials (e.g. sheet and Styrofoam) can be dangerous for
children. Danger of asphyxiation! Keep packaging materials at a safe
distance from children.

• Children are often unable to recognise the dangers involved with
electrical appliances. Provide for proper supervision during operation,
and do not allow children to play with the washing machine – the
danger exists that a child might lock itself into the appliance.

• Make certain that children or small animals do not climb into the
drum of the washing machine.

• If the washing machine needs to be disposed of, remove the mains
plug, destroy the door lock, cut off the electrical cable and dispose of
the plug and remaining cable separately. In this way children are pre­vented from locking themselves in and are not exposed life threaten­ing danger.

General safety

• Repairs to the washing machine may only be carried out by trained
personnel. Improper repairs can lead to extreme danger. If repairs are
required, contact our customer service department or your author­ised dealer.

• Never place the washing machine into operation if the power cable is
damaged or the control panel, the countertop or the base are dam­aged to such an extent that the inside of the machine is accessible.

• Switch off the washing machine before cleaning, maintenance and
servicing. In addition, pull out the mains plug or – in the case of per­manent connection – pull the circuit breaker, or completely remove
screw type fuses.

7

Operating instructions

• Never remove the mains plug by pulling on the cable. Always grip the
plug.

• Octopus plugs, couplings and extension cables may not be used. Dan­ger of overheating!

• Do not clean the washing machine with a jet stream of water. Danger
of electrical shock!

• When high temperature washing programs are selected, the glass in
the fill-in door becomes hot. Do not touch!

• Allow the wash-water to cool before emergency draining of the
appliance, cleaning of the circulation pump or emergency opening of
the door.

• Small animals may gnaw at electrical power cables and water hoses.
Danger of electrical shock and water damage! Keep small animals
away from the washing machine.

2 Disposal

Dispose of the packaging!

Dispose of washing machine packaging materials properly. All packag­ing materials are environmentally sound and can be safely disposed of,
or burned in a refuse incineration plant.
The plastic parts can be reused:

• The external plastic cover and the bags inside are made of polyethyl­ene (marking >PE<).

• The padding is made of CFC free expanded polystyrene
(marking >PS<).

Corrugated components are made from recycled paper and should be
disposed of at a paper recycling station.

Dispose of your old appliance!

If, at some point in time, the service life of the appliance has expired,
please take it to your nearest recycling centre, or to your appliance
dealer, who will accept the old appliance for a minimal fee.

8

Operating instructions

2 Environmental protection tips

• No pre-wash is required for normally soiled washing. This saves you
detergent, water and time (and is good for the environment!).

• If the indicated load capacities are taken full advantage of, the wash­ing machine is especially efficient.

• For small loads, use only one half to one third of the recommended
detergent quantity.

• Stains and soiling confined to given areas can be removed by means
of appropriate pre-treatment. You can then wash at lower tempera­tures.

• Wash lightly to medium soiled cottons with the energy saving pro­gram.

• Softeners are often not required. Try it! If you use a dryer, your wash­ing will be soft and fluffy, even without softeners.

• A water softener should be used for water within a hardness range of
mid to high (as of hardness level II, see "Detergents and Condition­ers"). Detergent can then always be dosed for water hardness level I
(= soft).

9

Operating instructions

Description of the appliance

Front view

Control panel

Fill-in door

Flap in front of
circulation pump

Drawer for
detergent and
conditioner

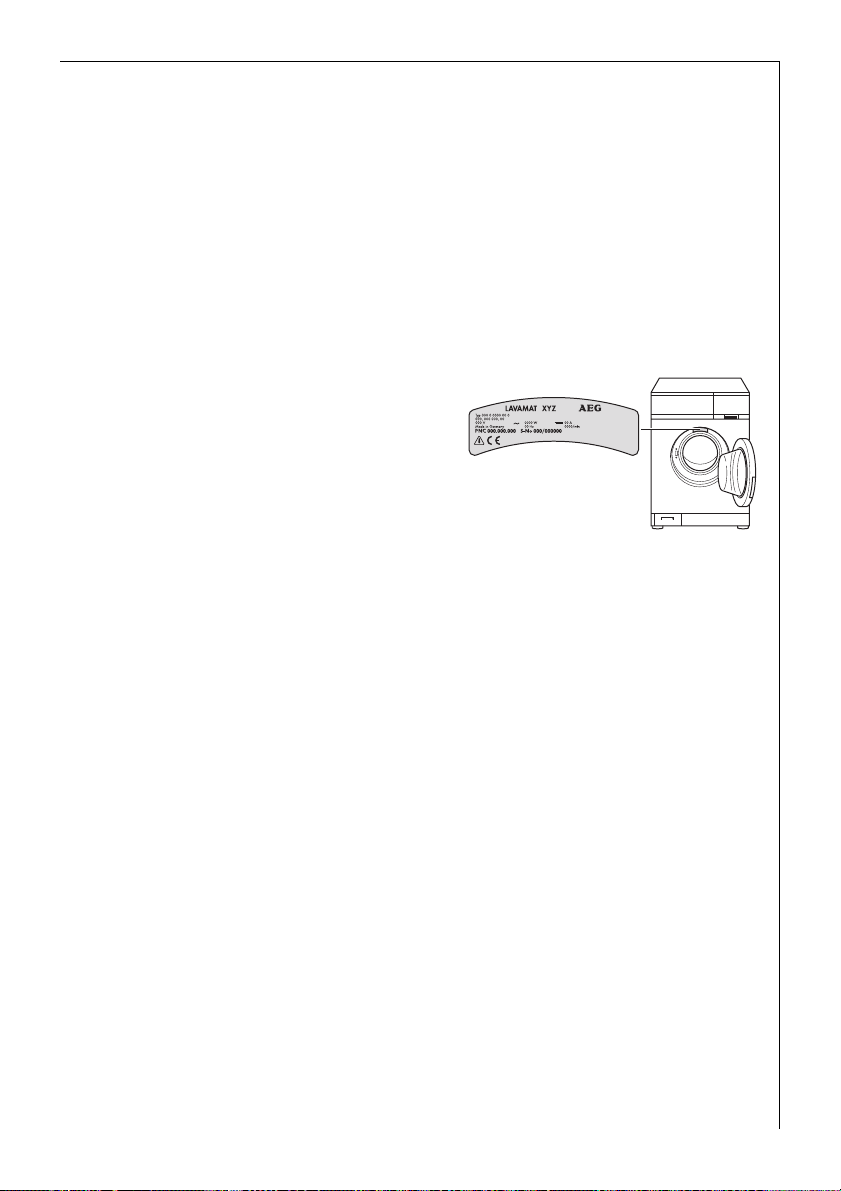

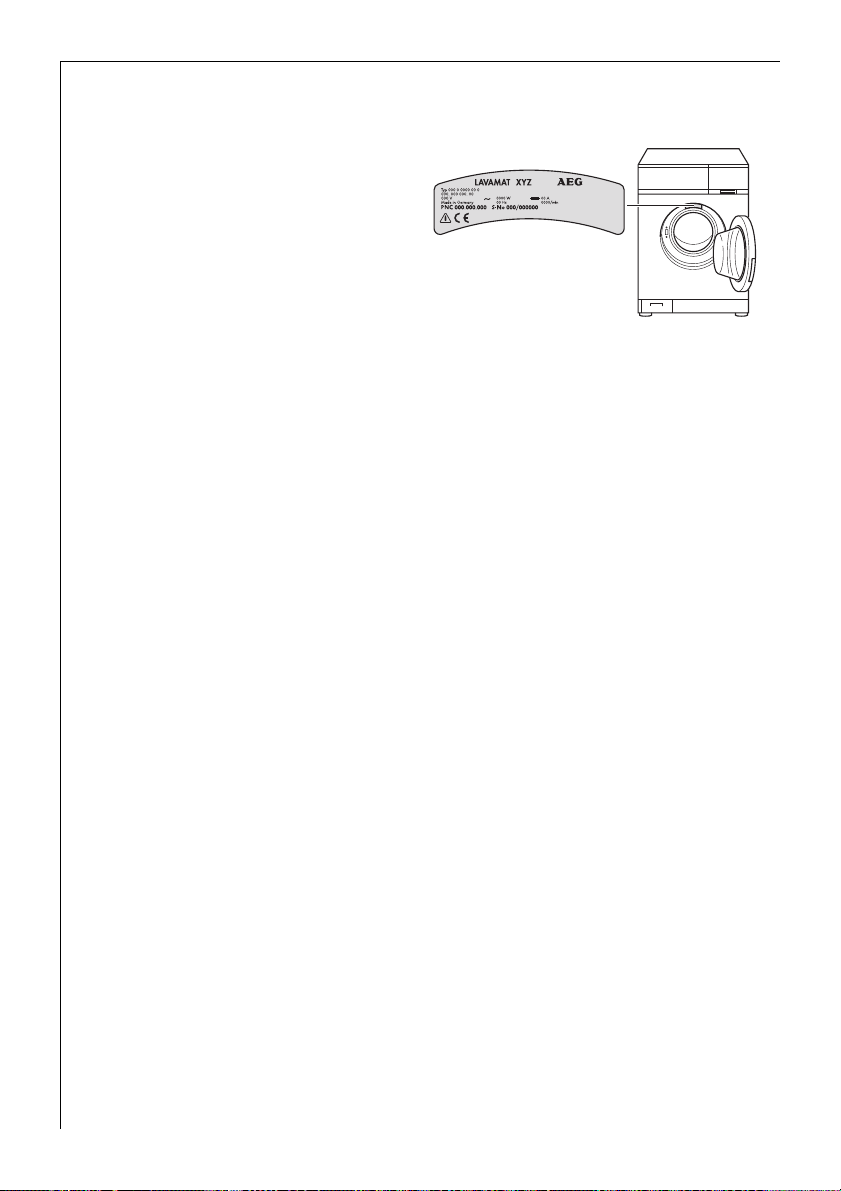

Rating plate
(behind door)

Threaded feet
(height adjustable);
right rear:
automatically
adjusting foot

Drawer for detergent and conditioner

k Pre-wash detergent/

detergent for soaking

or water softener

l Main wash detergent

(powder) and water
softener if required

m Stain remover

w Liquid conditioner

(softener, finisher,
starch)

10

Suction cap
(must be
securely in
place)

Control Panel

Operating instructions

Program Progress Display

Program Selector

Additional Program Buttons

Program selector

The program selector defines the
nature of the washing cycle (e.g.
water level, drum movement,
number of rinses, spin speed) to
suit the type of washing, as well as
the wash temperature.

DOOR/LIGHT Button

Spin Speed/RINSE HOLD

Button

Multi-Display

START/PAUSE

Button

DELAY TIMER

button

OVERDOSING

Indicator

(OFF)

Switches the washing machine off,
the machine is switched on in all
other positions.

(COTTONS/ LINEN)

Main washing cycle for cottons/linen at 30 °C to 95°C.

Position (ENERGY SAVING): Energy saving program at approx.

2

67 °C for lightly to normally soiled cotton washing, extended washing
time. Cannot be combined with (QUICK WASH) and
(STAIN).

(EASY-CARES)

Main washing cycle for easy-care textiles at 30 °C to 60 °C.

11

Operating instructions

(DELICATES)

Main washing cycle for delicates at 30 °C or 40 °C.

/P (WOOLLENS/Hand Washing)

Main washing cycle ( /cold to 40 °C) for machine washable wool as
well as for hand washable woollen fabrics and silk with the care symbol
ï (Hand Washables).

(GENTLE RINSE)

Separate gentle rinse, e.g. for rinsing hand washed textiles (2 rinse
cycles and short spin).

(STARCHING)

Separate starching, separate softening, separate conditioning of wet
washing (1 rinse, liquid conditioner is washed in from the compartment
w, and spinning).

(PUMP OUT)

Pumping out the water after a rinse hold (without spinning).

(SPIN)

Pump out the water at the end of a rinse or a spin, or a separate spin of
hand washed cotton/linen.

(SHORT SPIN)

Pump out the water at the end of a rinse and short spin, (easy-care
washing, delicates, wool).

12

Additional Program Buttons

The additional program buttons are used to adapt
the washing program to suit the degree of soiling of
the washing. Additional programs are not required
for normally soiled washing.
The different functions can be combined together
depending on the program.

(PRE WASH)

Cold pre wash prior to the subsequent main wash­ing cycle that follows automatically.

(SOAKING)

Approx. 1 hour at 40 °C. Can be lengthened to a maximum of 19 hours
using the (DELAY TIMER) button. The main washing pro­gram then follows automatically.

(QUICK WASH)

Shortened main washing cycle for lightly soiled washing.

Operating instructions

(STAIN)

For treating heavily soiled or stained washing. (Stain remover is washed
in from the m compartment at the optimal point in the program
cycle.)

When the / P (WOOLLENS/Hand washing) setting is chosen, the

3

additional programs cannot be selected (any buttons pressed do not
have any effect).

Consumption data and required time

The values for the selected programs in the following table have been
determined under standard conditions. They provide a helpful orienta­tion for operation in the home.

Program Selector/Temperature

(COTTONS/LINEN) 95

(COTTONS/LINEN) 60

1)

(COTTONS/LINEN) 40

(EASY-CARES) 40

(DELICATES) 30

/P

(WOOLLENS/Hand Washing) 30

1) Note: program selection for testing per EN 60 456

Max. Load

in kg

5 39 1.65 133

5390.89119

5390.55113

2.5 42 0.42 84

2.5 49 0.40 64

2390.2036

Water

in litre

Energy

in kWh

Time

in minutes

13

Operating instructions

What does "update" mean?

New fabrics or new detergents could, in the future, require a new
washing technique (e. g. an additional rinse, more water to wash in the
detergent, ...).
Your washing machine is prepared for this eventuality. The controller is
fully electronic. The software in which the controller is defined can be
re-programmed.
If a new state of the art is achieved in washing technology, you can
bring your washing machine up to the latest standard with an update.
For more information concerning updates, please contact customer
service. Customer service can also inform you of the costs involved in
an update..

Before washing the first time

0 1. Pull the detergent drawer a short distance out of the control panel.

2. Pour about 1 litre of water through the detergent drawer and into the
washing machine. This is required in order to seal the wash-water con­tainer so that the ECO valve can function properly.

3. Run a washing cycle without any washing, (COTTONS/LINEN)
95, with detergent quantity cut in half.
This serves to remove residues resulting from production of the
appliance from the drum and the wash-water container.

14

Operating instructions

Prepare washing cycle

Sort washing and prepare

• Sort washing according to care symbol and type (see "Washing types

and care symbols").

• Empty all pockets.

• Remove metal objects (paper clips, safety pins etc.).

• In order to prevent bunching up of washing and damage to washing,

close zippers, button up duvets and pillow cases, and tie up loose
ends from, for example, aprons.

• Turn articles with double layered textiles inside out (sleeping bags,

anoraks etc.).

• Coloured, knitted fabrics, as well as wool and textiles with appliqués

should be turned inside out.

• Place small and delicate articles (baby booties, stockings, bras etc.)

into a washing net, a pillow case with zipper, or in large socks before
washing.

• Treat net curtains particularly carefully. Remove metal curtain rail

rollers or burred plastic rollers, or wrap these in a net or bag.
We cannot accept any liability for damage.

• Do not wash coloured and white washing together. White washing

will otherwise turn grey.

• New, coloured washing often contains excessive dye. Wash these

items separately the first time.

• Mix small and large articles of washing! This improves washing effi-

ciency, and the washing is more favourably distributed during the
spin cycle.

• Fluff washing before placing into the washing machine.

• Do not place folded washing into the drum.

• Observe tips for proper care such as "wash separately" and "wash sep-

arately several times"!.

15

Operating instructions

Washing types and care symbols

Care symbols assist in the selection of the correct washing program.
Washing should be sorted according to type and care symbol. The tem­peratures indicated in the care symbols are maximum temperatures.

Cottons ç

Textiles made from cotton and linen which bear this care symbol are
insensitive to mechanical stress and high temperatures.
The (COTTONS/LINEN) program is appropriate for this type of
washing.

Linen èë

Textiles made from cotton and linen which bear these care symbols are
insensitive to mechanical stress.
The (COTTONS/LINEN) program is appropriate for this type of
washing.

Easy-care washing êíî

Fabrics such as treated cottons, cotton mixtures and synthetics with
this care symbol need to be handled carefully in machines.
The (EASY-CARES) program is suitable for this type of
washing.

Delicates ì

Fabrics such as those with layered fibres, micro-fibres, as well as synthet­ics and net curtains with this care symbol require particularly careful
handling. The (DELICATES) program is suitable for this type of
washing.

16

Wool and particularly delicate washing 9 ìï

Textiles such as wool, wool mixtures and silk which bear these care
symbols are especially sensitive to mechanical stress.
The /P (WOOLLENS/Hand washing) program is appropriate for
this type of washing.

Important! Fabrics with this care symbol ñ (Do Not Wash!) must not
be washed in the washing machine!

Operating instructions

Detergent and conditioner

Which detergent and conditioner?

Use only detergents and conditioners which are suitable for use in
washing machines. Always observe the manufacturer’s instructions.

How much detergent and conditioner?

The required quantity depends upon:

• the amount of washing
If the detergent manufacturer does not include dosing instructions for

2

reduced loads, use one third less for half loads and only half of the full
load detergent quantity for very small loads.

• extent of soiling of the washing

• hardness of tap water

Observe instructions for use and dosing provided by the detergent and
conditioner manufacturer.

Using Water Softener

In the case of medium to very hard water (from hardness band II) water
softener should be used. Observe the manufacturer’s instructions! Then
always use detergent dosing for hardness band I (= soft). Information
on the hardness of the water in your area is provided by your local
water board.

Due to the fact that the water softener is added before the main wash

2

detergent (pre-softening of the water), only eighty percent of the
quantity of water softener indicated on the package is required.

Information on Water Hardness

Hardness Band

I – soft 0 – 7 to 1.3

II – medium-hard 7 – 14 1.3 – 2.5

III – hard 14 – 21 2.5 – 3.8

IV – very hard greater than 21 greater than 3.8

Water hardness in °dH

(German hardness scale)

Water hardness in mmol/ l

(millimol per litre)

17

Operating instructions

Performing A Washing Cycle

Brief Instructions

A washing cycle is performed in the following steps:

0 1. Set the correct washing program:

– select the program and the temperature with the program selector
– select additional program(s) if required

2. If required, change the spin speed/select (RINSE HOLD).

3. Set the (DELAY TIMER) if necessary.

4. Open the door, load the washing.

5. Close the door.

6. Add detergent/conditioner.

7. Start the washing program.

At the end of the washing program:
Important! If the washing cycle ends with a rinse hold, perform either

(PUMP OUT), (SPIN) or (SHORT SPIN) before opening

the door.

8. Open the door, remove the washing.

9. Switch off the washing machine: set the program selector

to (OFF).

18

Operating instructions

Set the washing program

See "Program Tables" for suitable program, correct temperature and

3

possible additional programs for various types of washing.

0 1. Set program selector to the

desired program with the desired
temperature.

The anticipated duration of the
selected program appears in the
multi-display in minutes.

2. If necessary select additional program(s):
The indicators for the additional programs selected
illuminate.

– To change the selection press another button.
– To cancel a selection, press the button again.

Changing Spin Speed/Selecting Rinse Hold

0 If necessary change the spin speed for the final spin/

select rinse hold:
press the spin speed/ (RINSE HOLD) button
repeatedly until the indicator of the required spin
speed or (RINSE HOLD) illuminates.

With (RINSE HOLD) the washing stays in
the final rinse water, it is not spun.

If you do not change the spin speed, the final spin

3

will be automatically adjusted to suit the washing
program:

– (COTTONS/LINEN) 1600 revolutions per minute
– (EASY-CARES) 1200 revolutions per minute
– (DELICATES) 1200 revolutions per minute
– /P (WOOLLENS/Hand Washing) 1200 revolutions per minute

The speed for the intermediate spin is dependent on the program
selected and cannot be changed.

19

Operating instructions

Setting the Delay Timer

0 If necessary set the delay timer:

press the (DELAY TIMER) button
repeatedly until the desired time delay is displayed
in the multi-display, for example 12h for a 12 hour
delay start of the program.

If 19h is displayed and you press the button again, the duration of the

3

washing program set appears (displayed in minutes, e.g. 119). In this
condition the start delay timer is not set.

If the (SOAKING) option is selected the delay timer determines
the soaking time. (Without delay timer the soaking time is approx.
1hour.)

Open and close fill-in door

0 Opening: press the (DOOR/LIGHT)

button. The door springs open.

0 Closing: press the door firmly.

When the appliance is switched on, the (DOOR/LIGHT)
indicator indicates whether the door can be opened:

– green light = door can be opened (unless program protection is

activated, see also "Program Protection").

– light off = door cannot be opened at the moment
– red light = door is open

When the door is open the drum is illuminated. The lighting is auto-

3

matically extinguished after approx. 3 minutes.

Fill-in the washing

See "Program Tables" for maximum loads.

3

For instructions concerning proper preparation of washing see
"Washing Types and Care Symbols".

0 1. Sort and prepare washing according to type.

2. Open door: Press the (DOOR/LIGHT) button.
The door pops open.

3. Fill the washing.
Attention! Do not trap any washing when closing the door! The fabrics

and the machine could be damaged!

4. Close the door tightly.

20

Add detergent/conditioner

For instructions concerning detergents and conditioners see

3

"Detergents and Conditioners".

0 1. Open drawer: press in the flap on the

drawer so as to be able to grasp the handle
(1), pull out the drawer (2).

2. Add detergent/conditioner.

Operating instructions

k

l

m

w

Pre wash detergent/detergent for soaking

- only for additional programs

(PRE WASH)/ (SOAKING)

- or water softener.

Main wash detergent (powder)

(if you use a water softener and need com­partment k for the pre wash/soaking
detergent, add the water softener to the
detergent in compartment l.)

Stain remover

- only with additional program (STAIN)

Liquid conditioner (softener, finisher, starch)

Attention! Fill the compartment at the most up to the MAX mark.
Thick liquid detergents are eventually diluted up to the MAX mark,
powdered starch is dissolved.

3. Push in the drawer all the way.

When using liquid detergents:

Add liquid detergent with dosing containers provided by the detergent
manufacturer. Observe instructions on detergent package.

21

Operating instructions

Starting the Washing Program

0 1. Check whether the water tap is open.

2. Start the washing program:
press the (START/PAUSE) button.

The washing program is started, or starts at the end of
the time delay set.

If the (DOOR/LIGHT) indicator flashes red when the

3

START/PAUSE button is pressed, the door is not properly closed. Close
the door firmly and press the (START/PAUSE) button again.

If the delay timer has been set:

The start time delay set on the delay timer counts down; the time
remaining until the program starts is displayed on the multi-display (in
whole hours remaining). During this time you can add washing, change
or stop the delay timer.

• Adding washing: press the (START/PAUSE) button, the

door can be opened. Then close the door and press the
(START/PAUSE) button again.

• Changing or stopping delay timer: press the (DELAY

TIMER) button repeatedly until the desired time is displayed; when
the program duration is displayed (display in minutes, e.g.119), the
washing program starts without delay.

22

Operating instructions

Washing Program Sequence

Program Progress Display

Prior to the start, the program steps chosen
are displayed on the program progress display.
During the washing program, the current pro­gram step is displayed.

Multi-Display

The expected time remaining (in minutes) to
the end of the program is displayed on the
multi-display.

Counting down of the remaining time may be stopped or corrected by

3

the washing machine controller as a result of automatic adjustments to
the program (amount of washing, washing type, imbalance detection,
special rinse cycle, etc.).

Changing the Spin Speed

The spin speed can be changed or (RINSE HOLD) set during
the washing program. Other settings cannot be altered.

Stopping the Program

0 To stop the washing program early, turn the program selector

to (OFF).

The washing program can be interrupted at any time using the

3

the button again. It is not possible to change the washing program
during a pause.

(START/PAUSE) button and then continued by pressing

23

Operating instructions

Washing Cycle Complete/Removing the Washing

Once the washing program has come to an end, (END) illuminates
on the program progress display.

If (RINSE HOLD) was selected, the indicator beside the
START/PAUSE button flashes.

0 1. After a (RINSE HOLD), the water must first be pumped out:

– Press either the (START/PAUSE) button

(the washing will be spun in accordance with the program which
has just been completed; the spin speed can also be changed during
spinning using the spin speed/ (RINSE HOLD) button),
or

– turn the program selector to (PUMP OUT), and press the

(START/PAUSE) button (the water is pumped out
without spinning),
or

– turn the program selector to (SPIN) or (SHORT SPIN),

and press the (START/PAUSE) button
(the washing will be spun or short spun).

At the end of this program step, the (END) indicator will
illuminate.

2. Open the door.
As soon as the indicator beside the (DOOR/LIGHT)
button is green, the door can be opened (not if program protection is
activated, see "Program Protection").

3. Turn the program selector to (OFF).

4. Remove the washing.

5. Pull the detergent drawer out a little after washing so that it can dry

out. Leave the door ajar so that air can circulate in the washing
machine.

24

If the (OVERDOSING) indicator illuminates, then too much

3

detergent was used in the washing program just completed, and as a
result an additional rinse performed. Next time you use the machine,
observe the detergent manufacturer’s dosing instructions for the load
to be washed!

Important! If the washing machine is not to be used for a long period:
close the water tap and isolate the washing machine from the mains.
(The Aqua Control with Aqua Alarm leak prevention system does not
work when the machine is disconnected from the mains.)

Operating instructions

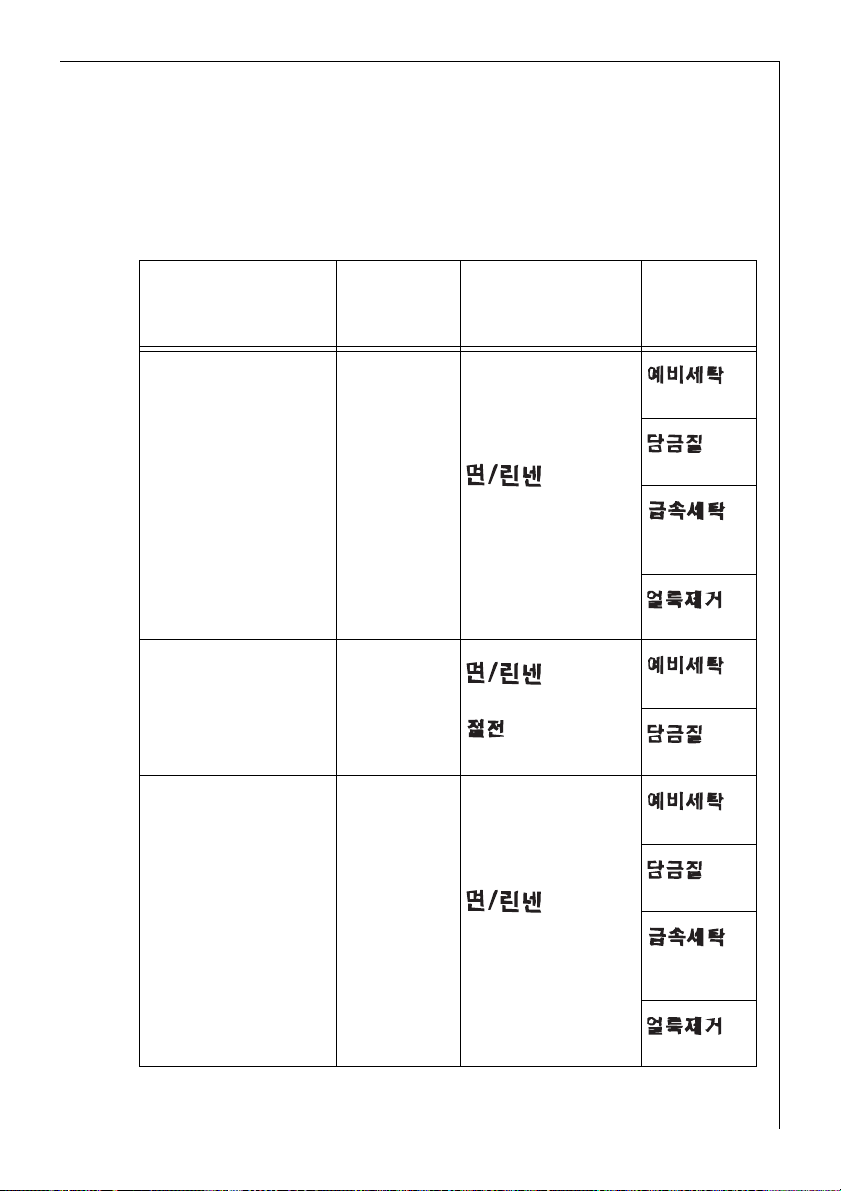

Program Tables

Washing

Not all possible settings are given in the following, but only those that
are useful and meaningful in everyday use.

Type of Washing,

Care Symbol

Cottons

ç

Energy Saving Program

Cottons ç

Max. Load

(Weight Dry)

5kg

5kg

Program Selector

1

Temperature

)

(COTTONS/LINEN)
95

(COTTONS/LINEN)

(ENERGY SAVING)

Possible

Additional

Programs

(PRE WASH)

(SOAKING)

(QUICK
WASH)

(STAIN)

(PRE WASH)

(SOAKING)

(PRE WASH)

Linen

èë

5kg

(COTTONS/LINEN)
30 to 60

(SOAKING)

(QUICK
WASH)

(STAIN)

25

Operating instructions

Type of Washing,

Care Symbol

Easy-Cares

êíî

Delicates

ì

Max. Load

(Weight Dry)

2.5kg

2.5kg

(or 15-20m

Net Curtains)

Program Selector

1

)

(EASY-CARES)
30 to 60

2

(DELICATES)
30, 40

Temperature

Possible

Additional

Programs

(PRE WASH)

(SOAKING)

(QUICK
WASH)

(STAIN)

(PRE WASH)

(SOAKING)

(QUICK
WASH)

26

/P

Woollens/Hand Washing

9 ìï

2kg

(WOOLLENS/Hand
Washing)

(COLD) to 40

1) A 10-litre bucket contains about 2.5 kg of dry washing (cotton).

(STAIN)

Separate Rinsing/Starching/Conditioning

Operating instructions

Type of Washing

Cottons/ Linen 5 kg

Easy-Cares 2.5kg

Delicates 2.5kg

Separate Gentle Rinsing

Type of Washing

Cottons/ Linen 5 kg

Easy-Cares 2.5kg

Delicates 2.5kg

Woollens/Hand Washing 2 kg

Separate Spinning

Type of Washing

Max. Load

(Weight Dry)

Max. Load

(Weight Dry)

Max. Load

(Weight Dry)

Program Selector

(STARCHING)

Program Selector

(GENTLE RINSE)

Program Selector

Cottons/ Linen 5 kg

Easy-Cares 2.5kg

Delicates 2.5kg

Woollens/Hand Washing 2 kg

(SPIN)

(SHORT SPIN)

27

Operating instructions

Cleaning and Caring

Control panel

Attention! Do not use furniture care products or aggressive cleansers

for cleaning control panels and control elements.

0 Wipe control panels with a moist cloth. Use warm water.

Detergent drawer

The detergent drawer should be cleaned from time to time.

0 1. Pull the detergent drawer out as far as it will go.

2. Remove the detergent drawer by pulling sharply.

3. Remove siphon cap.

4. Clean the siphon cap under running

water.

5. Clean compartments with warm water
from the rear. For best results use a
bottle brush.

6. Push the siphon cap all the way on so
that it is securely seated.

7. Clean the entire compartment area of
the washing machine with a brush.

8. Set the detergent drawer into the guide tracks and push in.

28

Operating instructions

Washing drum

The washing drum is made of rust-free stainless steel. Rusty objects in
the washing drum may lead to rust deposits on the drum.

Attention! Do not clean the stainless steel drum with acid containing
decalcifying agents, abrasives containing chlorine or iron, or steel wool.
Appropriate cleansers are available from our customer service depart­ment.

0 Remove rust deposits at the drum with a stainless steel cleanser.

Fill-in door

0 Check on a regular basis to see if deposits or foreign objects are present

in or at the rubber sleeve behind the door, and remove.

29

Operating instructions

What to do when…

The somewhat different, in comparison to older wash-

3

ing machines, whistling noise during spinning is due to
the modern drive system.
A rattling sound on startup – in particular when using
for the first time – is caused by the circulation pump
and is due to the design.

Trouble Shooting

In the event of a malfunction, try to eliminate the problem yourself
with the help of the instructions listed here. If you request customer
service assistance for one of the malfunctions listed here, or for an
operator error, a charge will be billed for the customer service techni­cian’s visit, even during the guarantee period.

• If error code (1 or (2 appears at the multi-display, you may

be able to eliminate the error yourself (see the following table of
malfunctions).
After the error has been eliminated, press the (START/

PAUSE) button. If the error code is again displayed, contact customer

service.

• Please contact customer service for all other error displays and

inform them of the error code.

30

Malfunction Possible Cause Remedy

Mains plug is not plugged in. Insert mains plug.

House fuse in defective. Replace fuse.

Washing machine does
not work.

The machine does not
take in water.

Error code
is displayed.

(1

Door is not closed properly.

(START/

PAUSE) button not pressed

for long enough.

Tap is closed. Open tap.

Sieve in the threaded fitting
on the water inlet hose is
blocked.

Close door; lock must engage
audibly.

Press (START/
PAUSE) button until the pro­gram starts.

Unscrew the hose from the
tap, remove the sieve and
clean under running water

Operating instructions

Malfunction Possible Cause Remedy

Washing machine
vibrates during opera­tion or is unstable.

Excessive foaming
during the main wash

Water runs out from
under the washing
machine.

The height adjustable
threaded feet are not cor­rectly adjusted.

There is only very little wash­ing in the drum (e.g. only a
toweling dressing gown).

Water could not be com­pletely pumped out prior to
spinning because
the drain hose is kinked
or
the circulation pump is
blocked.

Probably too much detergent
was used.

Threaded fitting on the
water inlet hose is leaking.

Drain hose is leaking.

Circulation pump cover is
not closed properly.

Adjust the feet as per the
installation and connection
instructions.

Function is not impaired.

Check the drain hose and if
necessary remove any kink or
clean the circulation pump
and remove any foreign
bodies from the pump
housing.

Dose detergent exactly in
accordance with the manu­facturer’s instructions.

Screw the inlet hose tight.

Check drain hose and if
necessary replace.

Close cover properly.

Washing is creased.

Conditioner is not
washed in, the À
compartment for con­ditioner is full with
water.

Washing is trapped in the
door.

Too much washing was
placed in the appliance.

Suction cap in the compart­ment for conditioner is not
correctly positioned or is
blocked.

Stop the program, remove
washing from the door, start
a new program.

Put less washing in the appli­ance.

Clean detergent drawer,
place suction cap firmly in
position.

31

Operating instructions

Malfunction Possible Cause Remedy

Drain hose is kinked. Remove kink.

Washing is not spun
properly, water is still
visible in the drum.

Error code
is displayed.

Door cannot be opened
when the machine is
switched on.

Remnants of detergent
are building up in the
detergent drawer.

(2

Maximum pumping height
(drain height 1m above the
floor on which the machine
is standing) exceeded.

Circulation pump is blocked.

In the case of siphon con­nection: siphon is blocked.

The door is locked for safety

reasons.
(DOOR/LIGHT) indicator is
off).

Program protection is set.

Tap is not fully open. Open tap fully.

The sieve in the threaded fit­ting on the water inlet hose
at the tap is blocked.

Sieve on threaded fitting for
the water inlet hose on the
machine is blocked.

Please contact customer
service who have a retrofit
kit for pumping to heights of
greater than 1m.

Switch off the machine and
unplug from the mains, clean
the circulation pump.

Clean siphon.

Wait until
(DOOR/LIGHT) indicator is
green.

Deactivate program protec­tion (see "Program Protec­tion").

Clean sieve.

Clean sieve.

32

Rinse water is cloudy.

When an additional
program button is
pressed, the corre­sponding indicator
does not illuminate.

Program progress
display flashes con­stantly.

The cause is probably a
detergent with a high silicate
content.

The additional program
selected cannot be combined
with the program set.

Program protection is set;
the program selector has
been moved during the
washing cycle.

No negative impact on the
rinsing results, possibly use
liquid detergent.

Make another choice.

Turn program selector back
to original position
(see “Program Protection”).

Operating instructions

If the washing results are not satisfactory

If the washing is grey and there are calcium deposits in the drum

• Too little detergent was used.

• The wrong detergent was used.

• Special soiling was not pre-treated.

• Program or temperature not set correctly.

• When using component detergents, the individual components were

not used in the correct proportions.

If there are still gray stains on the washing

• Washing soiled with ointments, grease or oils was washed with too

little detergent.

• Too lower temperature was used for washing.

• A common cause is that softener – particularly that in concentrated

form – has got onto the washing. Wash out any such spots as quickly
as possible and use that particular softener carefully.

If at the end of the last rinse foam is still visible

• Modern detergents can cause foam also in the last rinse. The washing

is however sufficiently rinsed.

If there are white remnants on the washing

• This is an insoluble material contained in modern detergents.

This is not the result of unsatisfactory rinsing.
Shake or brush the washing. Perhaps you should turn the washing
inside out before washing in future. Reconsider choice of detergent,
possibly use liquid detergent.

33

Operating instructions

Perform emergency drain

• If the washing machine no longer pumps out the water then an

emergency drain must be performed.

• If the washing machine is located in a room in which below freezing

temperatures might occur, emergency draining must be carried out if
danger of freezing occurs.
Furthermore, the inlet hose must be disconnected from the tap and
laid on the floor.

Warning! Switch the washing machine off and pull the mains plug

1

prior to emergency draining.
Attention! The water which runs out of the emergency draining hose

can be hot. There is a danger of scolding! Before an emergency drain
first allow the water to cool down!

0 1. Have a flat container on hand to catch the water running out.

2. Open the flap on the left of the pedestal
cover downwards and remove.

3. Remove the emergency drain hose from
the bracket.

4. Pull the emergency drain hose out a little.

5. Place the container under the hose.

6. Undo and remove the plug in the end of

the emergency drain hose by turning it in
an anti-clockwise direction.
The wash-water runs out. Depending
upon the amount of water, it may be
necessary to empty the container several
times. Temporarily close the emergency
drain hose with the plug to this end.

34

Operating instructions

When the water is completely drained:

7. Press the end stop firmly back into the emergency drain hose.

8. Push the emergency drain hose back in a little and allow it to snap into

the mounting.

9. Put on the flap and close.

The ECO valve does not function when the machine has been fully

3

emptied. Therefore add approx. 1liter of water before the next wash
(pour in through the detergent drawer).

Clean the circulating pump

Warning! Switch off the washing machine and pull the mains plug

1

before cleaning the circulation pump!

0 1. First perform emergency draining (see above: "Perform Emergency

Drain").

2. Lay a cloth on the floor in front of the circulation pump cover. Some
water may run out.

3. Unscrew the circulation pump cover in an
anti-clockwise direction and remove.

4. Remove foreign body from the pump
housing.

5. Check whether it is possible to turn the
pump impeller. (Jerky pump movement is
normal.) If it is not possible to turn the
impeller, contact customer service.

6. Replace cover (insert stud on the cover
into the guide slot) and tighten in a
clockwise direction.

7. Close emergency drain hose, push in and
fix in place.

8. Close the flap.

35

Operating instructions

Emergency release for fill-in door

If the fill-in door can no longer be opened (e.g. due to a defective door
release or power failure during the washing program), it can be opened
with the help of the emergency release.

0 1. If water can be seen at the window in the fill-in door, perform emer-

gency draining first (see "Perform Emergency Drain").

2. Turn the rotating knob anticlockwise with
the help of a coin or a screwdriver.
Fill-in door pops open.

Rotating knob

Additional Rinse and/or Wash Water Cooling

The washing machine is set up for extremely low water consumption.

• For people who suffer from an allergy to detergents, it can be useful

to rinse with more water (additional rinse).

• It can be necessary to cool down the water prior to pumping out in

order to avoid thermal damage to plastic waste pipes (wash water
cooling).

36

The program duration and water consumption are increased by wash

3

water cooling and/or the additional rinse.

Additional Rinse (RINSE+)

If this function is enabled, an additional rinse in performed for the

3

programs (COTTONS/LINEN), (EASY-CARES) and

(DELICATES).

As supplied from the factory, the additional rinse function is not ena­bled.

Operating instructions

Enabling the additional rinse function:

0 1. Turn the program selector to (SHORT SPIN).

2. Press the (SOAKING) button for at least 5 seconds.
After the button has been kept pressed for 5 seconds, (RINSE+)
flashes on the program progress indicator for 5 seconds.

3. Release the (SOAKING) button while (RINSE+) is
flashing.
The additional rinse function is enabled once the flashing has ceased. It
continues to be enabled until specifically disabled.
When the additional rinse function is enabled, the (RINSE+)
indicator on the program progress display illuminates prior to program
start and during the additional rinse.

4. If you wish to check whether the additional rinse function is enabled:

– Turn the program selector to (SHORT SPIN).
– Press the (SOAKING) button briefly.

If (RINSE+) flashes on the program progress display, the addi­tional rinse function is enabled.

Disabling the additional rinse function:

0 1. Turn the program selector to (SHORT SPIN).

2. Press the (SOAKING) button for at least 5 seconds.
As soon as the button is pressed (RINSE+) flashes on the pro­gram progress display. After 5 seconds (RINSE+) ceases to flash
and illuminates continuously for a further 5 seconds.

3. Release the (SOAKING) button whilst (RINSE+) is
continuously illuminated.
Once (RINSE+) has ceased to be illuminated, the additional
rinse function is disabled.

37

Operating instructions

Wash Water Cooling

The wash water is cooled prior to pumping out at the end of the main

3

washing cycle (by adding cold water). (This setting is only effective for

(COTTONS/LINEN) at a temperature of over 40 °C.)

As supplied from the factory, the wash water cooling function is not
enabled.

Enabling the wash water cooling function:

0 1. Turn the program selector to (SHORT SPIN).

2. Press the (PRE WASH) button for at least 5 seconds.
After the button has been kept pressed for 5 seconds, (MAIN­WASH) flashes on the program progress indicator for 5 seconds.

3. Release the (PRE WASH) button while (MAINWASH) is
flashing.
Once the indicator has stopped flashing, the wash water cooling func­tion is enabled. It continues to be enables until specifically disabled.

4. If you wish to check whether the wash water cooling function is
enabled:

– Turn the program selector to (SHORT SPIN).
– Press the (PRE WASH) button briefly.

If the (MAINWASH) indicator on the program progress display
flashes, the wash water cooling function is enabled.

Disabling the wash water cooling function:

0 1. Turn the program selector to (SHORT SPIN).

2. Press the (PRE WASH) button for at least 5 seconds.
As soon as the button is pressed, (MAINWASH) flashes on the
program progress display. After 5 seconds (MAINWASH) ceases
to flash and illuminates continuously for 5 seconds.

3. Release the (PRE WASH) button while (MAINWASH) is
continuously illuminated.
Once (MAINWASH) has ceased to be illuminated, the wash
water cooling function is disabled.

Additional Rinse and Wash Water Cooling

The additional rinse and wash water cooling functions can be com­bined. Enable as under “Additional Rinse” and “Wash Water Cooling”.

38

Operating instructions

Program protection

In order to secure a program setting against inadvertent change (e.g.
accidental turning of the program selector or activation of buttons),
program protection can be selected. This prevents damage to your
washing caused by, for example, playing children.

Program protection can be selected or deleted even during a washing

3

program.

Select program protection:

0 1. Select the desired program settings.

2. Press the (START/PAUSE) button to start the program.

3. Press and hold the (PRE WASH) button and the

(SOAKING) button simultaneously for 5 seconds. The program sequence
display blinks for 5 seconds and program protection is selected.

As long as program protection is selected, no further settings can be

3

made. The door cannot be opened with the (DOOR/

LIGHT) button. Even after the washing cycle has been completed,

program protection must be deleted before the door can be opened.
If an attempt is made to change the selected settings during the wash-

ing cycle by activating a button, the program sequence display blinks
for 5 seconds.

If an attempt is made to change selected settings by turning the pro­gram selector, the program sequence display blinks until the program
selector is returned to its original position. The washing cycle remains
unaffected in either case.

The program selector must be in its original position in order to delete

3

program protection.

Delete program protection:

0 Press and hold the (PRE WASH) button and the

(SOAKING) button simultaneously for 5 seconds. The program sequence
display blinks for 5 seconds and then remains continuously lit for
5 seconds. Program protection is deleted.

39

Installation and Connection Instructions

INSTALLATION AND CONNECTION
INSTRUCTIONS

Installation Safety Precautions

• Do not tip the washing machine over the front or the left side (seen

from the front). Electrical components could become wet!

• Check the washing machine for transport damages. You should never

connect a damaged appliance. In the event of a damage consult your
dealer.

• Make certain that all shipping braces have been removed and that

the splash guard is attached to the appliance, see "Shipping Brace
Removal". Otherwise damage may occur to the machine or close by
furniture during the spin cycle.

• The plug may only be inserted into a properly installed earthing con-

tact safety socket. Extension cables, octopus plugs or adapters may
not be used.

• For permanent connection a current interruption device must be pro-

vided for in the electrical circuit (fuse, circuit breaker, ground fault
circuit interrupter or the like) with a contact opening of at least
3 mm which allows for disconnection of the appliance at all poles.
Permanent connection may only be carried out by an authorised
electrician.

• Before starting your appliance please ensure that the nominal volt-

age and type of current specified on the rating plate are the same as
those used at the place of installation. Please also refer to the rating
plate for the type of fuse to be used.

• Prior to carrying out modifications on the appliance (on the worktop

or front door) pull out the mains plug.

• The mains feed-line may only be replaced by the customer service or

by an authorised electrician.

40

Installation and Connection Instructions

Dimensions of the appliance

Front and Side Views

Rear View

41

Installation and Connection Instructions

Installation of the appliance

Washing machines with arched covers are not suited for installation

3

beneath countertops.

Transporting the appliance

• Do not lay the washing machine on the front or on the left side (seen

from the front); otherwise the electrical components could become
wet!

• Never transport the appliance without transportation protection.

Remove the protection only at the place of installation! Transporta­tion without protection can lead to damages to the appliance.

• Neither lift the appliance by an open door nor by the base.

• The appliance weighs approx. 85kg.

By transportation with a trolley:

Place the trolley only sidewise. The tip of the trolley should not be
longer than 24 cm, otherwise the float-switch can get damaged.

42

Installation and Connection Instructions

Remove transportation protection

Attention! Be absolutely certain that all shipping braces have been

removed before installing the appliance.
Store all shipping braces in a safe place in case they are required for

future transport (moving).

Special spanner H and cover caps E (2 off) and G (1 off) are supplied

3

with the appliance.

0 1. Remove flexible tubing holder A.

2. Remove the two screws B with special spanner H.

3. Remove the four screws C.

4. Detach transportation rail D.

5. Close the two large openings with the cover caps E.
Attention! Press cover caps forcefully in, so that they snap into the

rear wall (protecting the interior of the appliance against sprayed
water).

6. Drive in the screws C into the four small holes again.

7. Remove the screw and compression spring F with special spanner H,

cover the hole with caps G.
Attention! Press cover caps forcefully in, so that they snap into the
rear wall (protecting the interior of the appliance against sprayed
water).

43

Installation and Connection Instructions

Prepare the installation place

• The installation surface must be clean and dry, free of floor wax and

other smearing substances, so that the appliance does not slip off. Do
not use any lubricant as sliding aid.

• Installation on a high-veil carpet or floor tiles with soft sponge backs

is not recommended because the standing safety of the appliance is
then no longer ensured.

• By installation surfaces with small-format tiles, lay a conventional

rubber mat underneath.

• Small unevenness of the floor surface should never be levelled out by

laying pieces of wood, carton or similar elements, but rather basically
compensated by adjusting the screw feet.

• When it is unavoidable to install the appliance besides a gas or a

coal-fuelled cooker, due to spatial reasons: insert a piece of heat­insulating board (85 x 57 cm) between the cooker and the washing
machine; the board side facing the cooker must be provided with an
aluminium foil.

• The washing machine may not be installed in a frost-endangered

room. Frost-caused damages!

• Flexible feed and drain tubings may not be crinkled or squeezed.

44

Installation on a concrete base

When installing on a concrete base,
for safety reasons it is imperative
that steel plates are installed, the
washing machine is then installed in
these plates. The steel plates are
available from customer service
under ET-No. 645 425 058.

Installation on vibrating floors

In the case of floors that vibrate, especially wooden floors with floor­boards that flex, a water-proof wooden panel of at least 15 mm thick­ness must be firmly screwed to at least 2 floor beams. If possible, install
the appliance in a corner of the room: the wooden floor is more firmly
supported in the corners and thus has less tendency to resonant vibra­tion.

Installation and Connection Instructions

Levelling on uneven floors

Automatically adjusting foot: The back right foot of your washing

3

machine is designed like a telescopic strut with a spring. It ensures that
your appliance remains stable even at high spin speeds.

If, nevertheless, the washing machine is unstable during spinning,
please proceed as follows:

0 1. Set the three adjustable feet to an initial height of 10 mm. To adjust

the feet, use the special spanner supplied with the appliance for the
removal of transport braces.

If the automatically adjusting foot does not reach the floor:

2. Manually adjust the automatically adjusting foot (back right) by the
necessary amount.

3. If necessary, check positioning with a spirit level.

Important! Never compensate for small areas of unevenness in the

floor through the use of wooden wedges, cardboard or the like. Level­ling should only ever be performed by adjusting the feet.

45

Installation and Connection Instructions

Power supply

Details on the mains voltage,
type of current and the neces­sary fuse protection are to be
found on the rating plate. The
rating plate is above and
behind the door.

For permanent electrical con­nection within the electrical
circuit, provisions must be made which allow for electrical disconnec­tion of the appliance from the mains with a contact opening of at least
3 mm at all poles. Suitable devices include circuit breakers, fuses
(threaded fuses must be entirely removed from the socket), ground
fault circuit interrupters and contactors. Permanent connection may
only be carried out by an authorised electrician.

;

This appliance conforms to the following EC directives

– "Low-Voltage Directive" 73/23/EWG dated 19 February 1973

and Directive amendment 93/68/EWG

– "EMC Directive" 89/336/EWG dated 3 May 1989

and Directive amendment 93/68/EWG

46

Installation and Connection Instructions

Water connection

The washing machine is provided with safety devices which prevent

3

reverse pollution of drinking water and conform to the State regula­tions issued by water supply authorities (e.g. in Germany: DVGW Direc­tives). Further protective measures in the installation are hence
unnecessary.
Attention! Appliances for cold water connection may not be con­nected to warm water!

Permissible water pressure

Water pressure must be equal to a least 1 bar (= 10N/cm2 = 0.1 MPa),
and no more than 10 bar (= 100N/cm

• By more than 10 bar: connect a pressure reduction valve upstream.

• By less than 1 bar: Unscrew the flexible inlet tubing on the magnetic

inlet valve on one side of the appliance and remove the flow meter
(thereby remove the sieve by means of a pair of pointed pliers and
then remove the rubber washer behind it). Remount the sieve.

2

= 1 MPa).

Water feed

A flexible pressure tubing of 1.5m length is supplied.
If a longer feed tubing is needed, a complete VDE-approved tubing set

with mounted screw connections, supplied by our customer service,
should be used exclusively.

– For washing machines without Aqua-Control, tubing sets are

available in lengths of 2.2m, 3.5m and 5m.

– For washing machines with Aqua-Control, tubing sets are available

in lengths of 2.0m, 2.9m and 3.9m.

Attention! Under no circumstances may tubing be pieced together for
the purpose of lengthening!

Sealing rings are either inserted in plastic nuts of the tubing screw con-

3

nection or contained in an accompanying packet. Do not use other
seals.

47

Installation and Connection Instructions

0 1. Connect the angled hose connector to the

machine.

Attention! Plastic nut at the tube coupling
may only be hand tightened.

2. Connect the straight hose connector to a water tap
with an R 3/4 (inch) thread.

Attention! Only tighten the plastic nuts on the
hose connectors by hand.

3. By opening the water tap slowly prior to the initial
operation, check whether the connection is tight.

48

Installation and Connection Instructions

Water drain-off

The drain-off tubing can be connected either to a siphon or be hanged
in a washing or sink basin or in a bathtub.

For extension (max. 3 m floor length and up to 80 cm high) only origi­nal tubing may be used. The customer service supplies drain-off tubing
of 2.7 and 4m lengths.

Water drain-off inside a siphon

The spout at the end of the tubing fits all common siphon types.

0 Make the connection spout/siphon secure with a tubing clip.

Water drain-off inside a basin

For hanging in a wash basin, sink or bath,
the drain hose must be prevented from
moving using the detachable elbow sup­plied.
The tube could otherwise be pushed out of
the basin by the reactive force imparted by
draining water.
Small sink basins are not suitable!

0 Fasten the elbow on the water tap or on

the wall by means of the hole.

Delivery heights above 1m

Every washing machine is provided with a suds pump for draining the
washing/rinsing suds, which can deliver liquids via the drain-off tubing
up to a height of 1m, measured from the standing level of the machine.

For delivery heights above 1m please establish contact with the AEG
customer service.

49

Installation and Connection Instructions

Technical data

Height x Width x Depth 85x60x60cm
Depth with open door 95cm
Height adjustment approx. +10/-5mm
Weight when empty approx. 85kg
Load (depending on the program) max. 5kg
Area of use Household
Wash cycle drum speed max. 53min
Spin cycle drum speed see rating plate
Water pressure 1-10bar

(=10–100N/cm

2

= 0.1 – 1.0MPa)

-1

r.p.m.

50

Guarantee/Service Departments

GUARANTEE/SERVICE DEPARTMENTS

Weitere Kundendienststellen im Ausland

In diesen Ländern gelten die Garantiebedingungen der örtlichen Partner. Diese können
dort eingesehen werden.

Further after-sales service agencies overseas

In these countries our AEG agents’ own guarantee conditions are applicable. Please
obtain further details direct.

Autres agences étrangères assurant le service après-vente

Dans ces pays, les conditions de garantie des concessionnaires de la région sont vala-
bles. Vous pouvez les consulter sur place.

Otros puntos de Postventa en el extranjero

En estos países rigen las condiciones de nuestros representantes locales. las cuales
pueden ser consultadas allí mismo.

Ulteriori uffici del servizio tecnico assistenza clienti all’estero

In questi paesi sono valide le condizioni di garanzia dei partner locali. Queste condizioni
possono essere esaminante sul luogo.

Serviços de assistência técnica no estrangeiro

Nestes países são válidas as condições de garantia dos concessionários locais, podendo
aí ser consultadas.

U.A.E. Abu Dhabi

Universal Trading Company
P.O. Box 43 99
Tel.: 335331

Egypt

Middle East Commercial
Center
P.O. Box 19
Kairo-Heliopolis
Tel.: [phone]

Australia

ANDI-Co Pty. Ltd
9 Kingston Town Close
Oakleigh VIC 3166
Tel.: [phone]
Fax: [phone]

Jordan

Jordan Household
Supply Co. Ltd.
P.O. Box 3/68
Amman/Tel.: 69 70 50

Kanada

EURO-LINE Appliances
2150 Winston PARK Drive 20
Oakville, Ontario L6H 5V1
Tel.: [phone]
Fax: [phone]

Korea (South)

Core Incorp.
3/F Chewoo Bldg.
200 Nonhyun-Dong
Kangnam-Ku
Seoul
Telefon [phone]

Malta

ITC
International Trading Company
White House Building
Mountbatte Street
Blata L-Bajda/Tel.: 220644

Mauritius

Happy World Centre Ltd.
P.O. 7 54
1 Chausee Street
Port Louis
Tel.: 25355

Namibia

AEG NAMIBIA (PTY) LIMITED­Jeppe Street
Northern Industrial Area
Windhoek
Tel.: [phone]
Fax: [phone]

51

Guarantee/Service Departments

Bahrain/Arabian Gulf
A.A. Zayani & Sons
P.O. Box 9 32
Bahrain
Tel.: 261060

Bulgaria

Electrolux Bulgaria E.O.O.D.
91 Levski Blvd.
1000 Sofia
Tel.: [phone]
Fax. [phone]

Cyprus

Servilan Co. Ltd.
P.O. Box 36 05
77, Kennedy Ave.
Nicosia
Tel.: 311 477

Estonia

Electrolux Estonia Ltd.
Mustamäe tee 24
EE0006 Tallinn
Tel.: [phone]
Fax: [phone]

Hongkong

Wo Kee Services Ltd.
585-609 Castle Peak Road
Kwai Chung N.T.
Hongkong
Tel.: [phone]

Israel

Evis Ltd.
P.O. Box 70 39
Tel-Aviv – 67013
Tel.: [phone]

Croatia

Electrolux D.O.O.
Suplova 7
10000 Zagreb
Tel.: [phone]
Fax: [phone]

Kuwait/Arabian Gulf

Ali Al-Ghanim Est.
P.O. Box 10 83
Tel.: [phone]
Fax: [phone]

Lebanon

Adib & Assaferi
P.O. Box 539
Tripoli

Latavia

Electrolux Latavia Ltd.
Terlaton Street 42/44
1011 Riga
Tel.: [phone]
Fax: [phone]

Lthuania

Electrolux Lthuania
Verkui 29
2600 Vilnus
Tel.: [phone]
Fax: [phone]

Malaysia

Arzbergh Engineering
No. 49A/B, Jalan Petaling
Utama 7
4600 Petaling Jaya
Tel.: [phone]
Fax: [phone]

New Zealand

Euro-Life New Zealand Ltd.
Privat Bag
58 Symonds Street
Auckland
Tel.: [phone]

Nouvelle Caledonie

Socometra N.C.
B.P. 483
Nouman
Tel.: 275444

Oman

Moshin Haider Darwish
P.O. Box 1 35
Muscat
Tel.: 703743

Poland

Electrolux Poland Spolka Z.O.O.
Ul. Kolejowa 57
01 2100 Warzawa
Tel.: [phone]
Fax: [phone]

Russia

Sovinservice – Electrolux –
Nokia
109028, Moskow,
Pevcheskiy Per., 1/2
Tel.: [phone]
Fax: [phone]
(SA, white products, TV – radio­electronics)

Saudi Arabia

Alia Trading Corporation
P.O. Box 4101
King Abdul Aziz Street
Riyadh
Tel.: [phone]
Al Nahas Est.
Musaidia Market I
P.O. Box 1 15 29
Jeddah
Tel.: [phone]

52

Guarantee/Service Departments

Japan

Electrolux Japan Ltd.
Yasuda Warehouse 4F 3-3-12
Heiwajima Ota-Ku
Tokyo
Tel.: [phone]
Fax: [phone]

Thailand

OLYMPIA Thai Ltd.
44 Ratchadapisek Road
10320 Bangkok
Tel.: [phone]
Fax: [phone]

Hungary

Lehel Hutogepyar KFT
(AEG Div)
Erzsebet’Kiralyne Utja 87
1142 Budapest
Tel.: [phone]

Singapore

Arzbergh Engineering
19 Tanglin Road 06-07
Singapore 247909
Tel.: [phone]
Fax: [phone]

Slovakia Rep.

Electrolux Slovakia S.R.O.
Seberiniho 1
821 03 Bratislava
Tel.: [phone]
Fax: [phone]

USA

ANDI Co. Appl. Inc. East
65 Campus Plaza
Edison, New Jersey 0837
USA/Tel.: [phone]

Slovenia

Electrolux Slovenia D.O.O.
Traska Ul. 132
1000 Ljubljana
Tel.: [phone]
Fax: [phone]

South Africa

AEG (Pty) Ltd.
55, 12th Road
P.O. Box 1 02 64
Kew/Johannesburg 2000
Tel.: [phone]

Syria

Masri & Shami
P.O. Box 24 96
Damascus
Tel.: 214080

53

Index

INDEX

A

Additional Rinse . . . . . . . . . . . . . . . . . . . . . 36

Automatically adjusting foot . . . . . . . .10

, 45

C

Calcium . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Conditioner . . . . . . . . . . .10

Cotton mixtures . . . . . . . . . . . . . . . . . . . . . 16

Cottons . . . . . . . . . . . . . . . . . . 11

Customer Service . . . . . . . . . 29

, 17, 18, 21, 27

, 16, 25, 27
, 30, 51, 55

D

Danger of freezing . . . . . . . . . . . . . . . . .7, 34

Delay Timer . . . . . . . . . . . . . . . . . . 11

Delicates . . . . . . . . . . . . . . . . . 12

Detergent . . . . . . . . . . . . . . . . 10

liquid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Detergent for Soaking . . . . . . . . . . . . .10

, 20, 22
, 16, 26, 27
, 17, 18, 21

, 21

E

Easy-Cares . . . . . . . . . . . . . . . 11, 16, 26, 27

ECO Valve . . . . . . . . . . . . . . . . . . . . . . . .14

Emergency release . . . . . . . . . . . . . . . . . . . 36

Energy Saving . . . . . . . . . . . . . . . . . . . .11

, 35
, 25

G

Gentle Rinse . . . . . . . . . . . . . . . . . . . . . . . . . 27

Guarantee . . . . . . . . . . . . . . . . . . . . 7

, 30, 51

H

Hand Washing . . . . . . . . . . . . . . . . 12, 26, 27

L

Linen . . . . . . . . . . . . . . . . . . . . 11, 16, 25, 27

Liquid detergent . . . . . . . . . . . . . . . . . . . . . 21

M

Multi-Display . . . . . . 11, 20, 22, 23, 30, 55

N

Net Curtains . . . . . . . . . . . . . . . . . . 15, 16, 26

O

Open door . . . . . . . . . . . . 20, 24, 32, 36, 39

Overdosing . . . . . . . . . . . . . . . . . . . . . . .11

, 24

P

Pre Wash . . . . . . . . . . . . .12, 19, 21, 25, 26

Pre-wash detergent . . . . . . . . . . . . . . .10

Program Progress Display . . . . . . . . . . . . . . 23

Program protection . . . . . . . 20

, 24, 32, 39

, 21

Q

Quick Wash . . . . . . . . . . . . . . . 12, 19, 25, 26

R

Rating Plate . . . . . . . . . . . . . . . . . 10, 46, 55

Rinse + . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Rinse Hold . . . . . . . . . . . . . . . . . . . 11

, 19, 24

S

Silk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 16

Soaking . . . . . . . . . . . . . . . . . . . . . 12

Softener . . . . . . . . . . . . . . . . . . . . . .9

Spin . . . . . . . . . . . . . .11

Stain . . . . . . . . . . . . . . . . . . . . . . . 13

Stain Remover . . . . . . . . . . . . . . . . . . . 10

Stains . . . . . . . . . . . . . . . . . . . . . 9

Starching . . . . . . . . . . . . . . . . . . . . . . . . 12

Stopping the Program . . . . . . . . . . . . . . . . .23

, 12, 18, 19, 23, 27

, 19, 20
, 10, 21

, 25, 26

, 21

, 19, 21, 33

, 27

U

Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

W

Washing

coloured . . . . . . . . . . . . . . . . . . . . . . . . . .15

delicate . . . . . . . . . . . . . . . . . . . 12

easy-care . . . . . . . . . . . . . . . . . . . . . . 11

gentle rinse . . . . . . . . . . . . . . . . . . . . 12

lightly soiled . . . . . . . . . . . . . . . . . . . . 9

normally soiled . . . . . . . . . . . . . . . . . . . . . .9

soaking . . . . . . . . . . . . . . . . . . . 21

starching . . . . . . . . . . . . . . . . . . . . . . 12

Water

circulation pump . . . . . . . . . . . . . . . 10

emergency drain . . . . . . . . . . . . . . . . . . .34

hardness . . . . . . . . . . . . . . . . . . . . . . . 9

pump out . . . . . . . . . . . . . . . . . . . . . 12

softener . . . . . . . . . . . . . . . . . 9

wash water cooling . . . . . . . . . . . . . 36

Woollens . . . . . . . . . . . . . . . . . 12

hand washable . . . . . . . . . . . . . . . . . 12

, 15, 16

, 16
, 27
, 12

, 25, 26

, 21
, 35
, 17

, 24

, 10, 17, 21

, 38

, 16, 26, 27

, 26

54

SERVICE

If a malfunction should occur at the appliance, refer first to the section
"What to do when ..." in these user instructions. If you do not find any
applicable instructions there, contact your customer service centre.
(Addresses and telephone number can be found in the "Service Depart­ments" section.)

Be well prepared before you phone. This facilitates the diagnosis and
the decision as to whether a customer service visit is necessary. With
our checklist you can gather important information before making
your call:

Make a note of the PNC number and
the S-number.
Both of these number can be found
on the rating plate on the inside of
the door of your washing machine.

......................................................

PNC

......................................................

S-No.
In addition to this please establish if possible:

• How is the malfunction noticeable ?

• Under what circumstances does the malfunction occur?

• Do an error message (( and a number) appear in the multi-display?

Service

You will be charged even during the warranty period

– if you could have corrected the malfunction yourself with the help of

the malfunctions table (see "What to do when ..." section),

– if the customer service technician is required to make several trips

because he had not received all relevant information before his visit,
and must return, for example, to pick up replacement parts. This
additional driving can be avoided if your telephone call is well prepa­red, as described above.

55

AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg

http://www.aeg.hausgeraete.de

© Copyright by AEG

H 243 294 494 - 01 - 0200
