AEG LAV84610 User Manual
LAVAMAT 84610
Washing machine
User information
Dear customer,
Please read this User Information carefully and keep it to refer to at a
later date.
Pass this User Information on to any subsequent owner of the appliance.
The following symbols are used in the text:
1 Safety instructions
Warning: Notes that concern your personal safety.
Attention: Notes that show how to avoid damage to the appliance.
3 Useful tips and hints
2 Environmental information
2
Contents
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
What is shown in the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Program overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Prior to using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Switching on the appliance for the first time - setting the language. . . . . 10
Setting the time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Carrying out a wash program prior to first use . . . . . . . . . . . . . . . . . . . . . . . 11
Preparing and sorting washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Running a washing cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Opening the door/loading washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Adding detergent/ additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Switching on the appliance/selecting a program. . . . . . . . . . . . . . . . . . . . . . 13
Changing the temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Changing spin speed/selecting rinse hold. . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Prewash, Sensitive, Stain, Night Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Setting times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Time Saving: SHORT or VERY SHORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Delay Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Starting a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Program progress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Interrupting a program/adding washing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Washing cycle complete/Removing the washing. . . . . . . . . . . . . . . . . . . . . . 19
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Memory 1, 2, 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Extra Rinse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Contrast and brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Child safety device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3
What to do if.... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Remedying small malfunctions yourself . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
If the wash results are not satisfactory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Carrying out an emergency drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

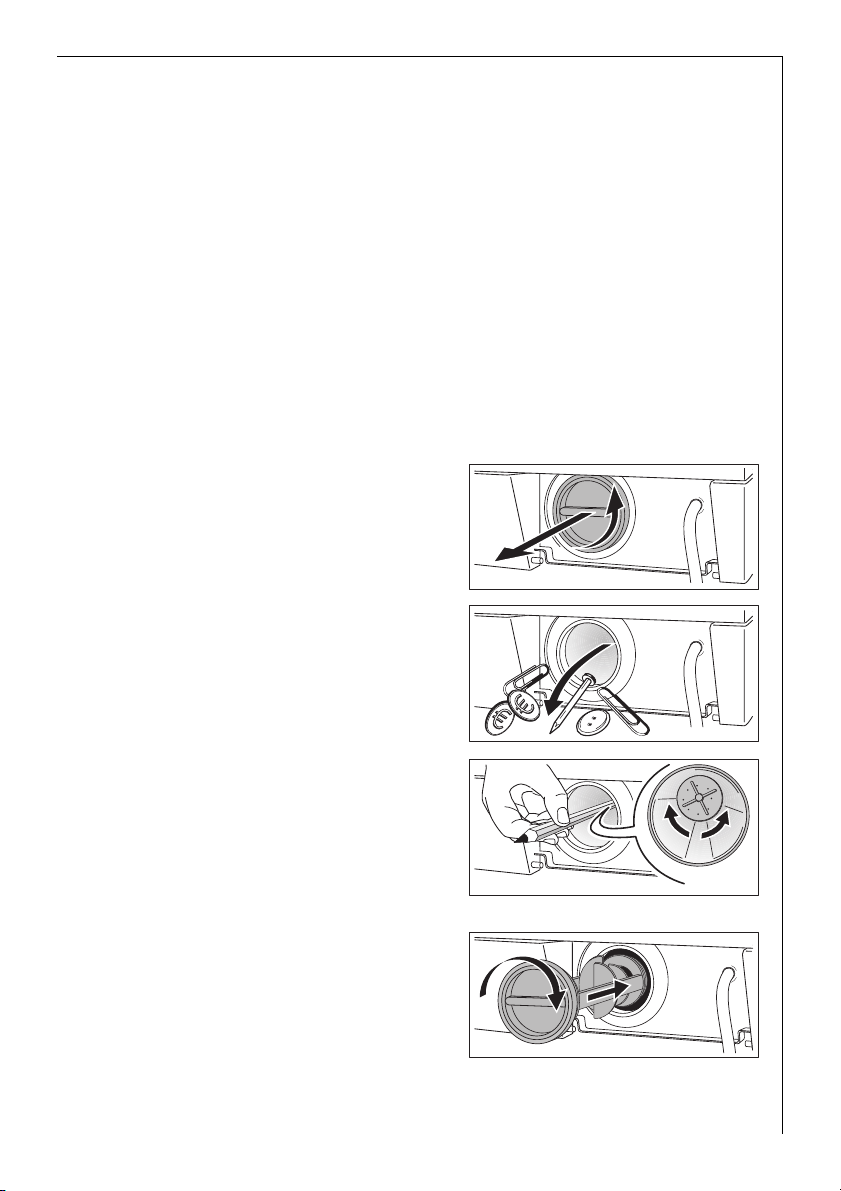

Drain pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Consumption values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Installation and connection instructions. . . . . . . . . . . . . . . . . 34
Safety information for the installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Installing the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Transporting the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Removing the transport lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Where to install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Making the appliance level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Connecting to the water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Water inflow. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Water drainage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Guarantee/Customer Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
4
Operating Instructions
1 Safety
Prior to using for the first time
• Follow the ”Instructions for installation and connection”.
• If the appliance is delivered in the winter months when there are mi-
nus temperatures: Store the washing machine at room temperature
for 24 hours before using for the first time.
Correct use
• The washing machine is only designed for the washing of normal domestic laundry at home.
• Additions or modifications to the washing machine are not permitted.
• Use only detergents and additives that are suitable for use in domestic washing machines.
• The washing must not contain any inflammable solutions. Danger of
explosion!
• Do not use the washing machine for dry cleaning.
• Dyes/colour removers may only be used in the washing machine, if
the manufacturer of these products expressly permits this. We cannot
be held responsible for any damage arising.
Child safety
• Keep packaging away from children. There is a risk of suffocation.
• Children often do not recognise the hazards associated with electrical
appliances. Don’t allow children to use the washing machine unsupervised.
• Make sure that children and pets don’t climb into the drum of the
washing machine. Could endanger life!
5
General safety
• Repairs to the washing machine must only be carried out by qualified
service engineers.
• Never use the washing machine if the mains cable is damaged; or if
the control panel, work top or plinth area is damaged such that the
inside of the appliance is freely accessible.
• Switch off the washing machine before cleaning, maintenance and
servicing. In addition, pull the mains plug out of the socket or – in
the case of a permanent connection – switch off the cut-out in the
fuse box or remove the screw fuse completely.
• If operation is stopped, disconnect the appliance from the mains supply and shut off the water tap.
• Never unplug the appliance by pulling on the cable. Always pull the
plug.
• Multi-way plugs, connectors and extension cables must not be used.
This could constitute a fire hazard through overheating.
• Never wash the washing machine down with a water jet. Danger of
electric shock!
• In washing programmes with high temperatures the glass in the door
gets hot. Do not touch it.
• Before emergency emptying of the appliance, before cleaning the
drain pump or opening the door in an emergency, let the water cool
down.
• Small animals can nibble at the cables and water hoses. Danger of
electric shock and danger of water damage! Keep small animals away
from the washing machine.
6
Description of the appliance
Detergent dispenser
drawer
Rating plate
(behind door)
Three screw feet
(height adjustable);
rear left:
Automatic foot
Control panel
Display
Control panel
Plinth flap/
Drain pump
Programme knob and
On/Off dial
Function keys START/PAUSE key
What is shown in the display
Information field, shows the current settings
COTTON
Cycle end at
Temperature
95C1000 NэээээVэSэFэLэBэaэaэKэT
Spin speed/
Rinse hold
Options
12.45
15.05
Times
Current time
End of cycle
7
Program overview
Program
Options Times Spin speed
PREWASH
max. load1)(dry washing)
SENSITIVE
ENERGY SAVING
2)
6 kg • • • • • • • • • •
COTTON 6 kg • • • • •
LINEN/EASY-CARES
60°, 50°, 40°, 30°, Cold cycle
6 kg
or
3kg
• • •
4)
STAIN
SHORT
NIGHT CYCLE
VERY SHORT
DELAY START
1400
1200
1000/800/600/
400
3)
•3)• • • • • •
0
• •3)•3)• • • • • •
40 - 60 MIX 6 kg • • • • • • • • • •
DELICATE
40°, 30°, Cold cycle
WOOL/ (HANDWASH)
40°, 30°, Cold cycle
3 kg • •4)• • • • • • •
2 kg • • • • •
SILK/ (HANDWASH) 1 kg • • • • •
SPIN 6 kg • • •
RINSE HOLD
RINSE 3 kg • • • • •
DRAIN
REFRESH 3 kg • • • • •
EASY IRON 40 1 kg • • • • • • • • • •
1) A 10 litre bucket holds around 2.5 kg of dry washing (cotton)
2) Program settings for testing in accordance with or in support of EN 60 456 and IEC 60 456 are
described in the Chapter “Consumption Values”.
3) Recommended load for short progammes is 3kg; full loading is possible however with somewhat reduced cleaning results.
4) STAIN can only be selected with wash temperatures of 40°C and above, as stain treatment products are only
effective at higher temperatures.
8
Use/Features
Care
symbols
1)
Energy-saving program at 60 °C for lightly to normally soiled whites/coloureds made
of cotton/linen.
Program at 95 °C for normally to heavily soiled whites/coloureds made of cotton/linen.
General program for whites/coloureds made of cotton/linen as well as for easy-care
mixed fibres and synthetics. The program is automatically adjusted to the different
fabric types and load sizes. If loading only with easy-care washing, do not load more
than 3 kg.
Program for whites/coloureds which are labelled for different wash temperatures.
Items, which according to the care symbols are normally to be washed separately at
40 °C or at 60 °C, can be washed together in this program. Achieves the washing results of a normal 60° programme.
Gentle program for delicate fabrics such as bonded fabrics, microfibres, synthetics,
net curtains (max. net curtain load 20 to 25 m
suitable for items with a climatic membrane, e.g. outdoor clothing.
Particularly delicate program for machine washable and hand washable wool or wool
mixtures.
Particularly delicate program at 30 °C, for machine washable and hand washable silk.
Wash very delicate items individually.
Draining and spinning, e.g. after a RINSE HOLD/ NIGHT CYCLE, or separate spin
for hand-washed cottons/linens and easy-cares.
Separate gentle rinse (3 rinses, liquid conditioner is washed in from compartment ,
gentle spin).
Pumps water away after a RINSE HOLD.
Special cycle at 30 °C, about 20 minutes long, for quickly washing through e. g. once
worn, slightly dirty sports clothing or new clothes.
Special cycle at 40 °C for easy-care fabrics, which afterwards are to be ironed only
lightly or not at all.
1) The numbers in the care symbols show the maximum temperatures.
2
). If used with RINSE HOLD also
M O
O
J M
I K N
J M
I K
Q L H
Q L H
J M O
I K N
J M O
J M O
I K N
K N
9
Prior to using for the first time
Switching on the appliance for the first time - setting
the language
The display is set to English as standard in the factory.
3 Important: If the display does not show the menu for setting the lan-
guage when the appliance is switched on, the appliance has been
switched on before. If this happens, please see the section “Setup/Language”.
To switch on the appliance, turn the program knob to any program,
e. g. COTTON.
The display lights up and
should look like the illustration opposite.
In addition the display
shows:
– “To confirm push OK key”
– “To change push OPTION
key”
If you want to keep the language:
Press the OK key.
If you want to change the
language:
1. Press the OPTIONS key
repeatedly, until the desired
language appears in the display, e. g. DEUTSCH.
2. Press the OK key.
In the display DEUTSCH
flashes several times and the
display should then look like
e.g. the illustration opposite.
3. To switch the appliance off,
turn the programme knob to
OFF.
Language:
ENGLISH
aэээээaэaэaэaэBэaэaэaэa
tuoOz
Sprache
DEUTSCH
aэээээaэaэaэaэBэaэaэaэa
tuoOz
KOCHWÄSCHE
Programmende um
95C1400 aэээээaэaэaэaэaэaэaэaэa
tuoOz
12.45
15.05
10
Setting the time
So that the time and the end of the program are correctly displayed,
please check the display and set the current time if necessary. To do
this, please see the section “Setup/Clock”.
Carrying out a wash program prior to first use
In order to remove any residues from the drum and water container
which may have been left during manufacturing, perform the first
wash cycle without any washing in the machine. Program: LINEN/EASYCARES 60 °C, option TIME SAVING: VERY SHORT, use approx. 1/4 measuring cup of detergent.
Preparing and sorting washing
Preparing washing
• Empty pockets. Remove foreign bodies (e. g. coins, paper clips, nails,
etc.).
• Do up zips, button up covers to prevent damage to washing.
• Remove the runners from net curtains or cover them with a net or a
bag.
• Wash sensitive and small items in a net or a pillow case, e.g. net cur-
tains, tights, socks, handkerchiefs, bras.
Important! Bras and other items containing wires should only be
washed in a net bag. The wires can work loose and damage the appliance.
Sorting washing
• By colour: Wash white and coloured washing separately. Washing can
run.
• By temperature, type of washing and care symbol.
Important! Do not wash fabrics with care symbol G (= do not wash!)
in the washing machine.
11
Running a washing cycle
Opening the door/loading washing
1. To open the door: pull the door by the handle.
2. Unfold washing and load it loosely
into the machine. Mix large and
small items.
Important: Do not get any washing
caught between the door and the
rubber seal.
3. Push the door shut firmly. Door
catch must audibly click shut.
Adding detergent/additives
Important: Use only detergents and additives that are suitable for use
in domestic washing machines.
1 For USA and Canada only!
Important! Only LOW-SUDSING detergent suitable for a front-loading
washing machine can be used in this machine. This machine can heat
the water up to 95 degrees celsius, or 200 degrees fahrenheit, and care
should be taken to ensure that the correct washing powder is used. If
you have any doubt, check with your dealer or the distributor.
WARRANTY AND CONSEQUENTIAL DAMAGES ARE VOIDED IF A LOW
SUDSING DETERGENT IS NOT USED.
Dose detergent and additives according to the instructions of the detergent and additive manufacturers. Follow the instructions on the
packaging.
Dosing depends upon:
– the washing’s degree of soiling,
– the size of the load
– the degree of hardness of the water supply.
• If the manufacturer does not give instructions for small loads: for a
half load, use a third less, for a very small load, use only half of the
detergent that is recommended for a full load.
• From water hardness 2 (= medium) upwards, water softener should
be used. Detergent can then always be dosed for water hardness 1
(= soft). Your local water company will be able to give you information about the water hardness in your area.
12
1. Pull the detergent dispenser drawer out as far as the stop.
2. Add the detergent/additives.
3. Push the drawer in fully.
Washing powder/tablets
for the main wash
Softeners/
wash-care products
to preserve the shape
of garments/
starch
In-wash stain treatment/
tablets
Washing powder/tablets
for the pre-wash
or for water softener
Washing powder/tablets for the main wash
If you are using water softener and need the right-hand compartment
for the pre-wash detergent, add the water softener to the main wash
detergent in the left-hand compartment.
Softeners, wash-care products to preserve the shape of garments,
starch
Do not fill the compartment beyond the MAX mark. Dilute thick liquid
concentrates according to the manufacturer’s instructions before
putting them into the drawer. Dissolve powder starches.
If you use liquid detergents:
Add liquid detergent using the dosage container provided by the detergent manufacturer.
Switching on the appliance/selecting a program
Select the program using the
program knob, e.g.,
LINEN/EASY-CARES.
3 By selecting a program, you
switch the appliance on at
the same time.
– The display lights up and
shows the program set, the
current time and the estimated end of the cycle.
– Depending on the program, the washing machine suggests a temper-
ature and a spin speed. You can change these suggestions.
13
– The lighting for the display switches itself off at the end of the cycle
or, if the appliance is not started after the program is set, after
10 minutes. To switch the light on again, press any key or turn the
program knob.
Changing the temperature
Press the TEMPERATURE
key repeatedly until the desired temperature is displayed.
LINEN/EASY CARE
Cycle end at
50C1400 aэээээaэaэaэaэaэaэaэaэa
tuoOz
Changing spin speed/selecting rinse hold
Press the RPM key repeatedly, until the desired
spin speed or RINSE
HOLD is displayed.
3 With spin speed “0” the last
rinse water is drained off at
the end of the cycle, but the
washing is not spun.
• With RINSE HOLD the washing is left to soak in the last rinse wa-
ter. There is no final spin after the intermediate spin(s). Intermediate
spins are programme-dependent and cannot be altered.
LINEN/EASY CARE
Cycle end at
50C 800 aэээээaэaэaэaэaэaэaэaэa
tuoOz
12.45
14.37
12.45
14.37
Setting options
Options can be added to a wash cycle that has already been selected.
Press the OPTIONS key. The display shows the symbols for the op-
tions.
PREWASH
Pre-washes at about 30 °C before the main wash cycle, which
follows automatically.
14
SENSITIVE
Enhanced rinse action through an additional rinse cycle together with decreased drum movement (improved fabric care). This
is ideal when frequent washes are necessary, for example, in
cases of highly sensitive skin. An additional rinse cycle can also
be permanently set (see section “Setup”).
STAIN
For heavily soiled and stained washing. In-wash stain treatment
products are washed in at the optimum time as the program
progresses.
NIGHT CYCLE
The washing is left to soak in the final rinse water. There is no final spin and no intermediate spin. Because of this the program
runs very quietly. NIGHT CYCLE is therefore particularly suitable
if you want to wash at night.
SETUP
The special functions that can be set under Setup remain permanently stored in the appliance, e. g., time, language, etc. (see
section “Setup”) until they are changed or deactivated.
3 Only the options that can be combined with the cycle that has already
been set are shown in the display.
Prewash, Sensitive, Stain, Night Cycle
1. Press the OPTIONS key
repeatedly until the desired
symbol flashes, e. g.,
PREWASH (With each
press of the key, the next
symbol flashes, from left to
right.)
2. Press the OK key. The symbol
stops flashing. A black bar
appears under the symbol.
The option is set. The display
changes to the next option.
LINEN/EASY CARE
Prewashing
tuoOz
LINEN/EASY CARE
Sensitive
tuoOz
12.45
14.37
aэээээVэSэFэLэBэaэaэaэa
12.45
14.56
aэээээV_эSэFэLэBэaэaэaэa
15
Loading...
