LAVAMAT 72810
Washing machine
User information
Dear customer,
Please read this User Information carefully and keep it to refer to at a
later date.
Pass this User Information on to any subsequent owner of the appliance.
The following symbols are used in the text:
1 Safety instructions
Warning: Notes that concern your personal safety.
Attention: Notes that show how to avoid damage to the appliance.
3 Useful tips and hints
2 Environmental information
2
Contents
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Programme overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Before the first wash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Preparing and sorting washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Running a washing cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Opening the door/Loading the washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Adding detergent/ additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Switching on the appliance/selecting a programme . . . . . . . . . . . . . . . . . . . 12
Changing the spin speed/Selecting rinse hold . . . . . . . . . . . . . . . . . . . . . . . . 13
Selecting the programme options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
EXTRA RINSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
QUICK WASH. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
PRE-WASH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
STAIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
SENSITIVE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting the delay timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Starting a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Programme progress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Interrupting a programme/Adding washing . . . . . . . . . . . . . . . . . . . . . . . . . . 15
End of the wash cycle/Removing the washing . . . . . . . . . . . . . . . . . . . . . . . 16
Overdosing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Child safety device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
What to do if.... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Remedying small malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
If the wash results are not satisfactory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Carrying out an emergency drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Drain pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Consumption values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3
Installation and connection instructions. . . . . . . . . . . . . . . . . 27
Safety information for the installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Installing the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Transporting the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Removing the transit packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Where to install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Making the appliance level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Connecting to the water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Water inflow. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Water drainage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Guarantee/Customer Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
4
Operating Instructions
1 Safety
Prior to using for the first time
• Follow the ”Instructions for installation and connection”.
• If the appliance is delivered in the winter months when there are mi-
nus temperatures: Store the washing machine at room temperature
for 24 hours before using for the first time.
Correct use
• The washing machine is only designed for the washing of normal domestic laundry at home.
• Additions or modifications to the washing machine are not permitted.
• Use only detergents and additives that are suitable for use in domestic washing machines.
• The washing must not contain any inflammable solutions. Danger of
explosion!
• Do not use the washing machine for dry cleaning.
• Dyes/colour removers may only be used in the washing machine, if
the manufacturer of these products expressly permits this. We cannot
be held responsible for any damage arising.
Child safety
• Keep packaging away from children. There is a risk of suffocation.
• Children often do not recognise the hazards associated with electrical
appliances. Don’t allow children to use the washing machine unsupervised.
• Make sure that children and pets don’t climb into the drum of the
washing machine. Could endanger life!
5
General safety
• Repairs to the washing machine must only be carried out by qualified
service engineers.
• Never use the washing machine if the mains cable is damaged; or if
the control panel, work top or plinth area is damaged such that the
inside of the appliance is freely accessible.
• Switch off the washing machine before cleaning, maintenance and
servicing. In addition, pull the mains plug out of the socket or – in
the case of a permanent connection – switch off the cut-out in the
fuse box or remove the screw fuse completely.
• If operation is stopped, disconnect the appliance from the mains supply and shut off the water tap.
• Never unplug the appliance by pulling on the cable. Always pull the
plug.
• Multi-way plugs, connectors and extension cables must not be used.
This could constitute a fire hazard through overheating.
• Never wash the washing machine down with a water jet. Danger of
electric shock!
• In washing programmes with high temperatures the glass in the door
gets hot. Do not touch it.
• Before emergency emptying of the appliance, before cleaning the
drain pump or opening the door in an emergency, let the water cool
down.
• Small animals can nibble at the cables and water hoses. Danger of
electric shock and danger of water damage! Keep small animals away
from the washing machine.
6
Description of the appliance
Detergent dispenser
drawer
Rating plate
(behind door)
Screw feet
(height adjustable)
Control panel
Spin/RINSE HOLD button
DELAY TIMER button
Control panel
Plinth flap/
Drain pump
Multi-display
Programme progress display
Additional programme
buttons
START/PAUSE button
DOOR indicator
OVERDOSING indicator
Programme selector
7
Programme overview
Programme
Programme options Spin speed
(EXTRA RINSE)
max. load size 1)(dry washing)
ECO (ENERGY SAVING)
(COTTONS/LINEN)
95, 60, 40, 30
40-60 MIX 7kg • • • • • • • • •
(EASY-CARES)
60, 50, 40, 30
l (EASY IRON) 40 1kg • • • • • • • •
(DELICATES)
40, 30
/ / (WOOL/SILK/HANDWASH)
40, 30, (COLD)
(DELICATE RINSE) 3,5kg • • • •
(DRAIN)
2)
7kg • • • • • • • • •
7kg • •
3,5kg • • • •4)• • • • •
3,5kg • • • • • • •
2kg • • • •
3)
(QUICK WASH)
(PRE-WASH)
• •
(SENSITIVE)
(STAIN)
4)
1200
1000
• • • • • •
700
500
n (RINSE HOLD)
(SPIN) 7kg • • • •
a (REFRESH) 3,5kg • • • •
1) A 10 litre bucket holds approximately 2.5kg dry washing (cotton).
2) Programme settings for tests in accordance with or in the style of EN 60 456 and IEC 60 456 are described in the
section “Consumption values”.
3) Recommended load for short progammes is 3,5 kg; full loading is possible however with somewhat reduced
cleaning results.
4) (STAIN) can be set at 40° and upwards only, as stain treatments are effective only at higher temperatures.
8
Application/features
Care
symbols
1)
Energy saving programme at 60 °C for lightly to normally soiled cottons/linen.
Programme for normally to heavily soiled cottons/linen.
Programme for cottons/linen for which are labelled for different wash temperatures.
Items which according to their care symbols are normally to be washed separately at
40 °C or at 60 °C, can be washed together in this programme. Achieves the washing
results of a normal 60° programme.
Programme for easy-care mixed fibres and synthetics.
Special programme at 40 °C for easy-care textiles which after being washed using
this programme need be only lightly ironed or not ironed at all.
Gentle programme for delicate items such as layered fibres, micro-fibres, synthetics,
curtains (load max. 20 to 25 m
for items with a climatic membrane, e.g. outdoor clothing.
Specially gentle programme for machine and handwashable wool/silk.
Separate gentle rinse (3 rinse cycles, liquid conditioner from the compartment is
rinsed in, gentle spin).
Drains water away after a rinse hold.
Draining and spinning, e.g. following a rinse hold, or separate spinning of handwashed cottons/linen.
2
curtains). If used with n (RINSE HOLD) also suitable
M O
J M O
J M
I K N
K N
I K
Q L H
I K N
Q L
H
J M O
Special programme at 30 °C, approx. 30 minutes, for short washing out of e. g. lightly soiled sports clothing that was worn once or new items.
1) The figures within the care symbols indicate maximum temperatures.
J M O
I K N
9
Before the first wash
1. Open the detergent drawer.
2. Pour approx. 1 litre of water through the detergent drawer into the
washing machine.
This closes the water container when the next programme is started
and the economy valve can function properly.
3. In order to remove any residues from the drum and water container
which may have been left during manufacturing, perform the first
wash cycle without any washing in the machine. Programme:
(COTTONS/LINEN) 60, press (QUICK WASH), add approx. 1/4
measuring cup of washing powder.
Preparing and sorting washing
Preparing washing
• Empty pockets. Remove foreign bodies (e. g. coins, paper clips, nails,
etc.).
• Do up zips, button up covers to prevent damage to washing.
• Remove the runners from net curtains or cover them with a net or a
bag.
• Wash sensitive and small items in a net or a pillow case, e.g. net cur-
tains, tights, socks, handkerchiefs, bras.
Important! Bras and other items containing wires should only be
washed in a net bag. The wires can work loose and damage the appliance.
10
Sorting washing
• By colour: Wash white and coloured washing separately. Washing can
run.
• By temperature, type of washing and care symbol.
Important! Do not wash fabrics with care symbol G (= do not wash!)
in the washing machine.
Running a washing cycle
Opening the door/Loading the washing
1. To open the door: gently pull the handle on the door.
When the machine is switched on, the lights (DOOR) and
(START/PAUSE) indicate whether the door can be opened:
light (DOOR) light (START/PAUSE) Can the door be opened?
lit green flashes red or is off yes
lit green lit red
lit red
or is off
flashes red
or lit red
2. Unfold washing and load it loosely
into the machine. Mix large and
small items.
Important: Do not get any washing
caught between the door and the
rubber seal.
3. Press the door firmly shut. Door
catch must audibly latch.
yes, after pressing the
(START/PAUSE) button
no, water level too high or
temperature too high
Adding detergent/additives
Important: Use only detergents and additives that are suitable for use
in domestic washing machines.
Dose detergent and additives according to the instructions of the de-
tergent and additive manufacturers. Follow the instructions on the
packaging.
Dosing depends upon:
– the washing’s degree of soiling,
– the size of the load
– the degree of hardness of the water supply.
• If the manufacturer does not give instructions for small loads: for a
half load, use a third less, for a very small load, use only half of the
detergent that is recommended for a full load.
• From water hardness 2 (= medium) upwards, water softener should
be used. Detergent can then always be dosed for water hardness 1
(= soft). Your local water company will be able to give you information about the water hardness in your area.
11
1. Pull the detergent dispenser drawer out as far as the stop.
2. Add the detergent/additives.
3. Push the drawer in fully.
Washing powder/tablets
for the main wash
Softeners/
wash-care products
to preserve the shape
of garments/
starch
In-wash stain treatment/
tablets
Washing powder/tablets
for the pre-wash
or for water softener
Washing powder/tablets for the main wash
If you are using water softener and need the right-hand compartment
for the pre-wash detergent, add the water softener to the main wash
detergent in the left-hand compartment.
Softeners, wash-care products to preserve the shape of garments,
starch
Do not fill the compartment beyond the MAX mark. Dilute thick liquid
concentrates according to the manufacturer’s instructions before
putting them into the drawer. Dissolve powder starches.
If you use liquid detergents:
Add liquid detergent using the dosage container provided by the detergent manufacturer.
Switching on the appliance/selecting a programme
Set the programme and temperature using the programme knob.
3 By selecting a programme, you
switch the appliance on at the
same time.
– The programme progress display
indicates the programme steps
that the selected programme will
perform.
– In the multi-display the
estimated length of the programme (in minutes) appears.
12
Changing the spin speed/Selecting rinse hold
The washing machine suggests the
maximum permitted speed that is
suitable for the selected programme. You can reduce this speed:
Press the spin/ (RINSE HOLD)
button a number of times until the
desired indicator lights up.
3 The speed for the final spin can still be altered during the programme.
To do this:
1. Press the (START/PAUSE) button.
2. Change the spin speed.
3. Press the (START/PAUSE) button again.
(RINSE HOLD)
With (RINSE HOLD) the washing remains submerged in the final
rinse water. No final spin takes place, but an intermediate spin does.
The intermediate spin cycle is independent of the programme used and
cannot be changed.
Selecting the programme options
If desired, press the programme option button(s). The corresponding
indicator lights up.
3 If ”Err” flashes in the multi-dis-
play, the programme option selected cannot be combined with the
wash programme set.
EXTRA RINSE
Two additional rinse cycles will be carried out (e.g. in the case of sensitive skin) for the programmes ECO (ENERGY SAVING), (COTTONS/
LINEN), (DELICATES), (EASY-CARES) and l (EASY IRON).
QUICK WASH
Shortened wash programme for less soiled items.
13
PRE-WASH
Warm pre-wash before the main wash cycle which follows automatically; with intermediate spinning for (COTTONS/LINEN) and
(EASY-CARES), without intermediate spinning for (DELICATES).
STAIN
For heavily soiled or stained items. Stain treatment is rinsed in at an
optimal time in the programme.
Only for wash temperatures of 40° and upwards, as stain treatments are
effective only at higher temperatures.
SENSITIVE
Increased rinse effectiveness due to an additional rinse cycle with a
parallel decrease in drum movement (fabric care). Ideal if items must be
washed frequently e.g. due to extra sensitive skin.
Setting the delay timer
3 Using the button (DELAY TIMER) you can delay the start of a pro-
gramme by 30 minutes (30') to a maximum of 23 hours (23h).
1. Select the programme.
2. Press the button (DELAY TIMER) repeatedly until the multi-display
shows the desired time delay, e. g., 12h, if the programme is to start in
12 hours. The indicator (DELAY TIMER) will light up.
3 If the display is showing 23h and you press the button again, the time
delay will be cancelled. 0' will appear followed by the length of the
wash programme that has been set.
3. To activate the delay timer, press the
time remaining to the start of the programme is continuously displayed
(e. g., 12h, 11h, 10h,... 30
14
' etc.).
button (START/PAUSE). The
Starting a programme
1. Check that the tap is turned on.
2. Press the
starts after the time delay set has elapsed.
button (START/PAUSE). The programme is started or it
3 If after pressing the button (START/PAUSE) E40 flashes in the
multi-display, the (END) indicator flashes 4x and at the same time an
acoustic signal sounds 4x, the door has not been correctly shut. Push
the door firmly closed and press the
button (START/PAUSE) again.
Programme progress
• The programme progress display shows the programme step that is
currently being carried out.
– (Prewash)
– (Main wash)
– (Rinse)
– (Extra Rinse)
– (Spin)
– (End)
• The multi-display shows the estimated time remaining (in hours and
minutes) until the end of the programme.
3 The remaining programme time may increase or briefly remain constant
during the wash programme as the programme adjusts to various conditions while washing (e. g. type of washing, amount of washing, recognising out-of-balance when spinning, special rinse cycle, etc.).
Interrupting a programme/Adding washing
Interrupting a programme
• A washing programme can be interrupted at any time by pressing the
button (START/PAUSE) and then re-started by pressing the
button (START/PAUSE) again.
• To stop the washing machine before the programme has ended, turn
the programme knob to (OFF). Important: Be careful if there is
water in the appliance!
Adding washing
It is possible to add washing, as long as the (DOOR) light is lit green.
1. Press the
2. Close the door and press the
programme will continue.
button (START/PAUSE). The door can be opened.
button (START/PAUSE) again. The
15
End of the wash cycle/Removing the washing
When the programme has finished, (END) will illuminate on the programme progress display. The door can be opened as soon as the indicator (DOOR) is lit green.
1. Open the door and remove the washing.
2. Turn the programme knob to (OFF).
3. When you have finished washing, pull out the detergent drawer a little
to let it to dry out. Keep the door very slightly open so that the washing
machine can air.
(RINSE HOLD) has been selected:
If
Following a rinse hold (END) will be lit on the programme progress
display.
The water must first be drained off:
– Either turn the programme knob to (OFF), then to (DRAIN) and
press the button (START/ PAUSE) (the water will be drained
without spinning),
– turn the programme knob to (OFF) and then to (SPIN). Change
the spin speed, if necessary, and press the button (START/
PAUSE) (the water will be drained and the washing spun).
Overdosing
3 If the (OVERDOSING) indicator lights up, too much detergent was
used in the previous programme. The next time you wash, follow the
manufacturer's instructions when measuring out detergent and ensure
the load size is not too large.
16
Child safety device
When the child safety device is set, the door can no longer be closed.
Setting the child safety device:

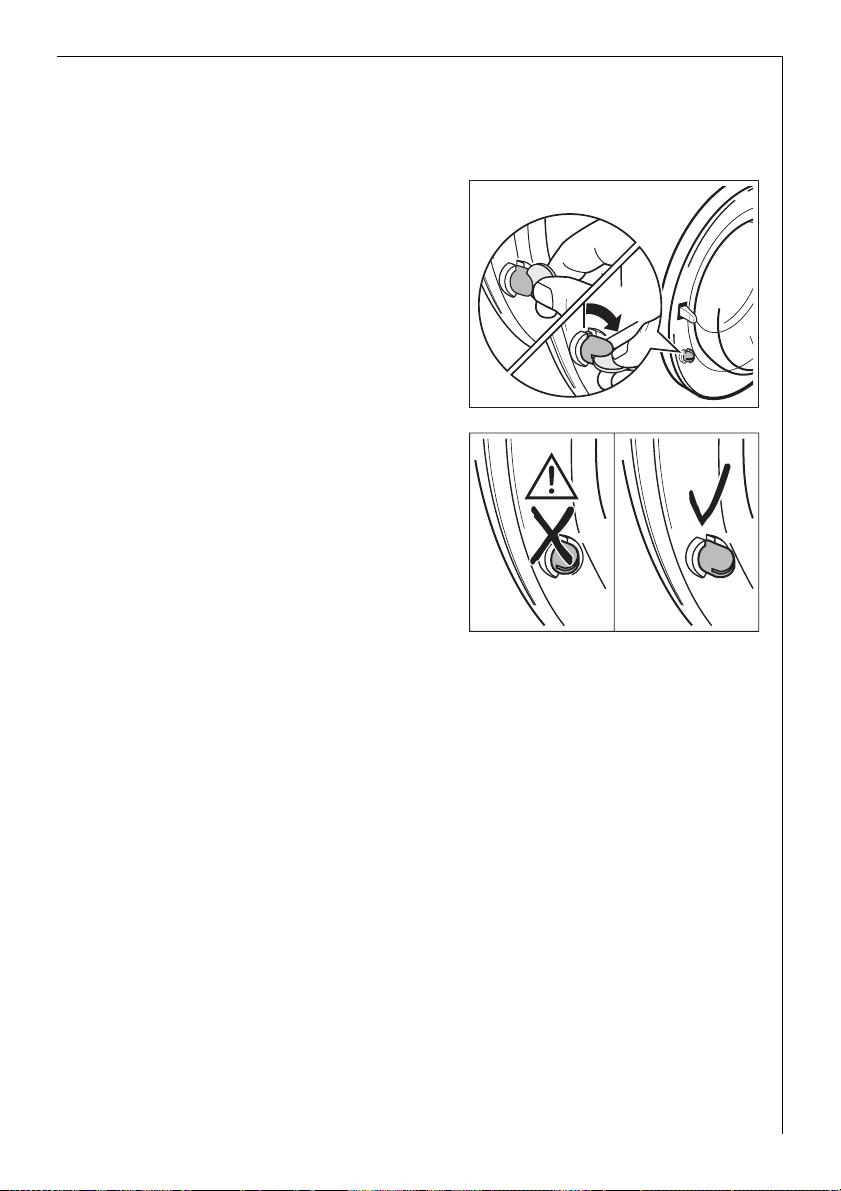

Use a coin to turn the knob (on the
inside of the door) in a clockwise direction as far as it will go.
1 Warning! The knob must not be
sunk-in after being set, otherwise
the child safety device is not active.
The knob must stand proud as
shown in the illustration.
Releasing the child safety device:
Turn the knob anti-clockwise as far
as it will go.
17
Cleaning and maintenance
Important! Do not use furniture care products or aggressive cleaners to
clean the appliance.
Wipe control panel and body with a damp cloth.
Detergent dispenser drawer
The detergent dispenser drawer should be cleaned regularly.
1. Remove the detergent dispenser drawer by pulling it firmly.
2. Remove the conditioner insert from
the middle compartment.
3. Clean all parts with water.
4. Put the conditioner insert in as far as
it will go, so that it is firmly in place.
5. Clean all parts of the washing machine, especially the nozzles in the
top of the washing-in chamber, with
a brush.
6. Insert the detergent dispenser drawer in the guide rails and push it in.
Washing drum
Rust deposits in the drum may occur due to rusting foreign bodies in
the washing or tap water containing iron.
Important! Do not clean the drum with acidic descaling agents, scouring agents containing chlorine or iron or steel wool.
1. Remove any rust deposits on the drum with a cleaning agent for stainless steel.
2. Run a washing cycle without any washing to clean off any cleaning
agent residues. Programme: (COTTONS/LINEN) 60, press the button
(QUICK WASH), add approx. 1/4 measuring cup of washing powder.
Door and rubber collar
Regularly check whether deposits or foreign bodies are present in the
folds of the rubber collar or on the inside of the glass door.
Clean the glass in the door and the rubber collar regularly.
18
What to do if...
Remedying small malfunctions
If during use of the appliance one of the following error codes is shown
in the multi-display:
– E10 (Problems with water inflow),
– E20 (Problems with water outflow),
– E40 (door open),
please have a look at the following table.
When the fault is remedied, press the button (START/PAUSE).
In the event of other errors (E and a number or letter): Switch the appliance off and then on again. Re-set the programme. Press the
button (START/PAUSE).
If the error appears again, please contact the Customer Care Department, stating the error code.
Problem Possible cause Remedy
Washing machine is not
working.
The door cannot be
closed.
When a button is
pressed, Err appears in
the multi-display.
E40 appears.
The (END) indicator
flashes 4x, and an
acoustic signal sounds
4x.
E10 appears.
The (END) indicator
flashes 1x, and an
acoustic signal sounds
1x.
(Problems with water
inflow.)
Mains plug not plugged in
or fuse not working.
Loading door not closed
properly.
The (START/ PAUSE)
button has not been pressed
for long enough.
The child safety device has
been activated.
The selected function cannot be combined with the
programme set.
The door is not closed properly.
Tap turned off. Turn on the tap.
The filter in the threaded inlet hose fitting is blocked.
Water tap is furred with
lime scale or is faulty.
Connect the plug to a mains
socket. Check fuse.
Close loading door - there
should be an audible click.
Press the (START/
PAUSE) for a longer period of
time.
Deactivate the child safety
device.
Select another function.
Close the door properly. Restart the programme.
Turn off the tap. Unscrew the
hose, take out the filter and
clean it.
Check the tap and have it repaired, if necessary.
19
Problem Possible cause Remedy
The washing machine
vibrates when operating
or is not stable.
Water is running out
from under the washing
machine.
EF0 appears. The
(END) indicator flashes
15x, and an acoustic
signal sounds 15x.
The drain pump is running continuously, even
when the appliance is
switched off.
Wash water is foaming
excessively. At the end
of the washing cycle,
the spin stops. The
(OVERDOSING) indicator lights up.
E20 appears.
The (END) indicator
flashes 2x, and an
acoustic signal sounds
2x.
(Problems with water
inflow.)
The transit bar has not been
removed.
The screw feet have not
been adjusted properly.
There is very little washing
in the drum (e.g. just one
bathrobe).
Screw connection on the inlet hose is leaking.
Drain hose is leaking. Replace drain hose.
Drain pump cover is not
closed properly.
Washing was caught in the
door.
Emergency drain hose is
leaking.
The Aqua Control antiflooding system has been
activated.
Too much detergent has
probably been used.
Kink in drain hose. Straighten the hose.
Do not exceed the maximum pump height of 1m.
Drain pump is blocked.
For sink spigot connections:
The sink spigot is blocked.
Remove the transit bar.
Adjust the feet in accordance
with the installation and
connection instructions.
Operation is not affected by
this.
Screw the inlet hose on
tightly.
Close the cover properly.
Load washing carefully for
the next wash.
Close off emergency drain
hose properly.
Turn off the tap, remove the
power plug from the mains
socket and contact customer
service.
Follow the manufacturer's
instructions exactly when
measuring out detergent.
Please contact customer
service.
Switch off the appliance.
Disconnect the power plug.
Clean the drain pump. Remove foreign bodies from
the pump housing.
Clean the sink spigot.
20
Problem Possible cause Remedy
Fabric softener was not
rinsed in, the compartment w for conditioners is full of water.
The door cannot be
opened when the washing machine is switched
on.
Washing is heavily
creased.
Fabric softener insert in the
compartment for conditioners is not correctly attached
or is blocked.
Door locked.
There has been a power cut.
(All the indicator are off).
The door remains blocked
for approx. 4 to 10 minutes.
Possibly too much washing
was loaded.
Clean the detergent drawer,
insert the fabric softener
insert firmly.
Wait until the (DOOR) indicator is illuminated green.
The programme will continue
when the power cut is over.
To remove washing:
If water can be seen in the
appliance, first drain off the
water before opening the
loading door (see section
“Carrying out an emergency
drain”).
Observe maximum loads.
21
If the wash results are not satisfactory
Washing is grey and scale is being deposited in the drum
• Too little detergent is being used.
• The right detergent was not used.
• Special soiling was not pre-treated.
• Programme or temperature was not correctly set.
There are grey stains on the washing.
• Washing soiled with ointment, grease or oil was washed with too lit-
tle detergent.
• It was washed at too low a temperature.
• A common cause is that fabric conditioner – especially a concentrate
– has got onto the washing. Such stains should be washed out as
quickly as possible and make sure that you are careful when using
fabric conditioner.
After the last rinse foam can still be seen.
• Modern detergents may create foam even in the last rinse cycle. The
washing is however sufficiently rinsed.
There are white residues on the washing.
• This is due to the insoluble ingredients in modern detergents.
They are not caused by insufficient rinsing.
Shake or brush the washing. If possible turn the washing inside out
before washing. Check your choice of detergent. Especially with dark
colours it is advisable to use liquid detergents.
22
Carrying out an emergency drain
1 Warning! Before emergency draining, switch off the washing machine
and remove the mains plug from the socket.
Warning! The water that comes out of the emergency drain hose may
be hot. There is a risk of scalding. Let the water cool before performing
an emergency drain.
1. Open the plinth flap and remove it.
2. Take out the emergency drain hose.
3. Place a shallow container under-
neath it. Then loosen the drain plug
by turning it in an anti-clockwise
direction and pull it out.
4. The water runs out. If it is necessary
to empty the container more than
once, seal up the emergency drain
hose with the drain plug while you
are doing so.
When the water has all drained away:
5. Push the drain plug firmly into the emergency drain hose and screw it
tight in a clockwise direction.
6. Place the emergency drain hose back in the support.
7. Insert the plinth flap and close it.
23
Drain pump
The drain pump is maintenance-free. It is only necessary to open the
pump cover if there is a malfunction and water is no longer being
pumped out, e. g. if the pump wheel is blocked.
Please make sure before loading the washing that there are no foreign
bodies in the pockets or caught between the washing. Paperclips, nails,
etc. that may have got into the washing machine with the washing remain in the pump housing (foreign body trap that protects the pump
wheel).
1 Warning! Before opening the pump cover, switch off the washing ma-
chine and remove the mains plug from the socket.
1. First carry out an emergency drain.
2. Place a cloth on the floor in front of the drain pump cover.
Residual water runs out.
3. Unscrew the pump cover in an anticlockwise direction and remove it.
4. Remove foreign bodies and fluff
from the pump housing and from
the pump wheel.
5. Check whether the pump wheel
right at the back of the pump housing can turn. (It is normal for the
pumping wheel to turn jerkily.) If
the pumping wheel cannot be
turned, please contact the Customer
Care Department.
6. Insert the pump cover. Insert the
guides at the sides of the cover into
the guide slots and tighten the cover by turning in a clockwise
direction.
7. Close off the emergency drain hose
and place it in the support.
8. Close plinth flap.
24
Disposal
Packaging material
2
The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging materials in the appropriate
container at the community waste disposal facilities.
2 Old appliance
The symbol
product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you
purchased the product.
W on the product or on its packaging indicates that this
1 Warning! When an appliance is finished with, remove the plug from
the mains socket. Cut off the cable and plug and dispose of them.
Destroy the door lock. This prevents children from trapping themselves
inside and endangering their lives.
25
Technical data
This appliance conforms with the following EU Directives:
5
– 73/23/EEC dated 19.02.1973 Low Voltage Directive
– 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending
Directive 92/31/EEC
– 93/68/EEC dated 22.07.1993 CE Marking Directive
Height x Width x Depth 850 x 598 x 640 mm
Depth when door is open 1017 mm
Height adjustment approx. +10/-5mm
Load (depending on programme) Max. 7kg
Area of use Domestic
Drum spin speed see Rating Plate
Water pressure 1-10bar (=10–100N/cm2=0.1–1.0MPa)
Consumption values
The consumption values were obtained under standardised conditions.
They may vary when operating in domestic conditions.
26
Programme selector
Temperature
(COTTONS/LINEN) 95 7 68 2,40
ECO (ENERGY SAVING)
(COTTONS/LINEN) 40 7 62 0,80
(EASY-CARES) 40 3,5 62 0,55
(DELICATES) 30 3,5 60 0,45
/ / (WOOL/SILK/HANDWASH) 30 2 54 0,35
1) The load size is determined in accordance with the EN 60456 standard load.
2) Note: Programme setting for testing in accordance with or in support of Standard
EN 60 456 and IEC 60 456.
Consumption values will vary from those quoted depending on the pressure and
hardness of the water and its initial temperature, the room temperature, type and
quantity of washing, detergent used, fluctuations in mains voltage and options selected.
2)
Load size
1)
in kg
7 52 1,19
Water
in litres
Energy
in kWh
Installation and connection instructions
1 Safety information for the installation
• This washing machine cannot be built-in.
• Before using for the first time, check the appliance for damage sus-
tained while it was being transported. Do not under any circumstances connect an appliance that is damaged. In the case of damage,
please contact your supplier.
• Before using for the first time, all parts of the transit packaging must
be removed. Otherwise when spinning damage may be caused to the
appliance or to neighbouring units or furniture.
• Before using the appliance for the first time, splash protection must
be completed. (See “Removing the transit packaging”.)
• Always plug the mains plug into a correctly installed shockproof
socket.
• Permanent connection: a permanent connection must only be in-
stalled by a trained electrician.
• Prior to using the appliance for the first time, ensure that the rated
voltage and type of supply on the rating plate match that of the supply where the appliance is to be installed. The fuse rating is also to be
found on the rating plate.
• If work on the plumbing is required for the proper connection of the
washing machine to the water supply, this must be undertaken by a
registered plumber.
• If work on the electricity supply system is required for the proper
connection of the washing machine to the electricity supply, this
must be undertaken by a registered electrician.
• The washing machine’s cable must only be replaced by the Customer
Care Department or a registered electrician.
27
Installing the appliance
Transporting the appliance
1 Warning! The washing machine is very heavy. Risk of injury. Be careful
when lifting.
• Do not lay the appliance on its front nor on its right side (as seen
from the front). Electrical components may get wet.
• Never transport the appliance without its transit packaging. Only re-
move the transit packaging when the appliance is in its place of installation. Transporting the appliance without its transit packaging
can lead to damage to the appliance.
• Never lift the appliance by the door when it is open nor by the plinth.
When moving using a sack trolley:
• Only use the sack trolley on the side of the appliance. The sack trol-
ley’s base plate must not be longer than 24 cm, otherwise parts of the
anti-flood system may be damaged.
Removing the transit packaging
Important! Before using the appli-
ance for the first time, all parts of
the transit packaging must be removed! Keep the transit packaging
in a safe place, in case it is needed at
a later date when the appliance is to
be moved (e.g. moving house).
1. At the back of the appliance, open
both hose clips and remove both
hoses and mains cable.
2. Remove both hose clips from the appliance by jerking them hard.
28
3. Remove both plastic caps sideways.
3 Special spanner A and sealing caps B
(2 off) and C (1 off) are supplied
with the appliance.
4. Remove screw D with its compression spring using special spanner A.
5. Turn sealing cap C upside down as
shown in the illustration.
6. Seal hole using sealing cap C.
7. Unscrew and remove two screws E
using special spanner A.
8. Unscrew and remove four screws F
using special spanner A.
9. Remove transit bar G.
10. Screw in the four screws F again.
11. Seal the two big holes using sealing
caps B.
Important! Press all sealing caps B
(2 off) and C (1 off) in firmly, so that
they snap into place. (Splash protection).
Where to install
Important! The appliance must not be used in a room where there is a
danger of frost. Frost damage or impaired operation! Frost damage is
not covered by the warranty.
• The surface on which the appliance is to be installed must be firm
and level. Do not install the appliance on carpets or on soft floor coverings.
29
• The surface on which the appliance is to be installed must be clean
and dry and free from coverings that move, so that the appliance
does not slide.
• If the location in which the appliance is to be installed is fitted with
small-format tiles, put a rubber mat (available in the shops) under
the appliance.
If the appliance is to stand on a
plinth:
In order for the appliance to be secure on the plinth, fixing plates*)
must be mounted, into which the
appliance is inserted.
If the appliance is to stand on floors that vibrate, e. g. floors of
wooden joists with deal boards:
If possible, install the appliance in one corner of the room.
1. Screw a water-resistant wooden board (at least 15 mm thick) onto at
least 2 of the floor joists.
2. Affix fixing plates *) onto the wooden board, into which the appliance
is inserted.
*) The fixing plates can be obtained from the Customer Care Department.
Making the appliance level
The four feet of the appliance are
pre-adjusted.
Large degrees of unevenness can be
compensated for by individually adjusting the height adjustable screw
feet.
Use the special spanner supplied to
do this.
Important! Do not use pieces of
wood, cardboard or such like to level out unevenness in the floor, but
adjust the height adjustable screw
feet instead.
30
Electrical connection
Details about the voltage, type of supply and the fuses required are to
be found on the rating plate. The rating plate is next to the doorway.
Connecting to the water supply
Important!
• This appliance must not be connected to the hot water system.
• When connecting it, use only new hose kits.
• Only connect the appliance to the drinking water supply. Rain water
or water for industrial use may only be used if it fulfils the requirements of DIN1986 and DIN1988.
• Do not kink or crush the water inlet hose or drain hose.
Permitted water pressure
The water pressure must be at least 1 bar (= 10N/cm2=0.1MPa) and may
be a maximum of 10bar (= 100N/cm
– If more than 10 bar: Connect a pressure reduction valve.
– If less than 1bar: Disconnect the appliance end of the inlet hose from
the solenoid inlet valve and remove the flow meter. (In addition remove the filter using pointed pliers and take out the rubber gasket
behind it.) Re-insert the filter.
2
=1MPa).
31
Water inflow
A 1.50 m long pressure hose is supplied with the appliance.
If a longer water inlet hose is required, only original hoses are to be
used. The Customer Care Department stocks hose kits of different
lengths.
3 Sealing rings are either inserted in the plastic nuts of the threaded hose
fitting or are included as spare parts . Do not use any other seals.
Important! All threaded hose fit-
tings must only be tightened by
hand.
1. Connect the hose with the right-angle connector to the machine.
Important! Do not position the inlet
hose vertically downwards. Position
it to the right or the left as shown in
the illustration.
2. Connect the hose with the straight
connector to a water tap with an R
¾ (inch) screw thread.
3. Open the water tap slowly and check
all connections for water tightness.
32
Water drainage
The maximum permitted difference between the height of the surface
on which the appliance is installed and the water outlet is 1 metre.
Only original hoses may be used to extend hoses. (A maximum of 3 m
laid on the floor and then 80 cm vertically). The Customer Care Department stocks outlet hoses of different lengths.
Draining water into a sink outlet
Secure the outlet/sink outlet joint
with a hose band clip (available from
your dealer).
Draining water into a wash basin/bath
1 Important!
– Small basins are not suitable. Wa-
ter may overflow.
– The end of the drain hose must
not be in the water that has been
pumped out. Otherwise water
could be sucked back into the appliance.
– When draining into a wash basin
or a bath, secure the drain hose
with the supplied elbow to stop it
slipping. Otherwise the water running out can force the hose out of
the basin.
– When pumping the water out,
check that the water is running
away fast enough.
Pumping heights over 1 m
The washing machine’s drain pump is able to pump water to a height of
1meter, calculated from the surface on which the appliance is installed.
Warning! If pumping height is over 1 metre, malfunctions and damage
to the appliance may arise.
For pumping heights over 1metre a conversion kit can be obtained.
Please contact the Customer Care Department.
33
Guarantee/Customer Service
Weitere Kundendienststellen im Ausland
In diesen Ländern gelten die Garantiebedingungen der örtlichen Partner. Diese können dort eingesehen werden.
Further after-sales service agencies overseas
In these countries our AEG-Electrolux agents’ own guarantee conditions are applicable. Please obtain further details direct.
Autres agences étrangères assurant le service après-vente
Dans ces pays, les conditions de garantie des concessionnaires de la région sont valables. Vous pouvez les consulter sur place.
Otros puntos de Postventa en el extranjero
En estos países rigen las condiciones de nuestros representantes locales.
las cuales pueden ser consultadas allí mismo.
Ulteriori uffici del servizio tecnico assistenza clienti all’estero
In questi paesi sono valide le condizioni di garanzia dei partner locali.
Queste condizioni possono essere esaminante sul luogo.
Serviços de assistência técnica no estrangeiro
Nestes países são válidas as condições de garantia dos concessionários
locais, podendo aí ser consultadas.
További vevöszolgálati irodák külföldön
Ezekben az országokban a mi AEG-Electrolux vevöszolgálatainknál
saját jótállási feltételek alkalmazhatók. A további adatokat kérjük
közvetlenül szerezzék be.
34
Servisne službe
Na garancijskem listu boste našli seznam pooblašèenih servisnih
služb AEG-Electrolux.
U.A.E. Abu Dhabi
Universal Trading Company
P.O. Box 43 99
Tel.: 6335331
Service Center 6733974
Egypt
Middle East Commercial
Center
4 Salah El Dein St. - 2nd floor
Heliopolis, Kairo
Egypt
Tel.: 2024181719
Jordan
Jordan Household
Supply Co. Ltd.
P.O. Bo x 3/68
Amman/Tel.: 69 70 50
Canada
EURO-LINE Appliances
2150 Winston PARK Drive 20
Oakville, Ontario L6H 5V1
Tel.: 905 829 3980
Fax: 905 829 3985
Malta
ITC
International Trading Company
White House Building
Mountbatte Street
Blata L-Bajda/Tel.: 220644
Mauritius
Happy World Centre Ltd.
P.O. 7 54
1 Chausee Street
Port Louis
Tel.: 25355
Australia
The Andi-Co Group
1 Stamford Road
Oakleigh VIC 3166
Tel.: (03) 9569 1255
Fax: (03) 9569 1450
www.andico.com.au
Bahrain/Arabian Gulf
A.A. Zayani & Sons
P.O. Bo x 9 32
Bahrain
Tel. : 1 7 311124
Bulgaria
Electrolux Bulgaria E.O.O.D.
91 Levski Blvd.
1000 Sofia
Tel.: 2 806676
Fax. 2 980 5276
Cyprus
Hadjikyrlakos & Sons Ltd.
Prodromou 121
P.O. Bo x 21587
Nicosia 1511
Service Telephones:
Nicosia 02 481226
Limassol 05 562182
Larnaca 04 633929
Paphos 06 932 699
Estonia
Electrolux Estonia Ltd.
Mustamäe tee 24
EE0006 Tallinn
Tel.: (372) 6 650 090
Fax: (372) 6 650 092
Hong Kong
Dah Chong Hong Ltd.
20 Kai Cheung Road
Kowloon Bay
Kowloon - Hong Kong
Tel.: 0085222621620
Fax: 0085227550333
Israel
Evis Ltd.
Tadiran-Ampa Service
10 Gibonay Israel Street
New Industrial Zone
Netanya, 42504
Israel
Korea (South)
Core Incorp.
3/F Chewoo Bldg.
200 Nonhyun-Dong
Kangnam-Ku 135-010
Seoul
Telefon 82 2 549 89 61
Croatia
Electrolux D.O.O.
Suplova 7
10000 Zagreb
Tel.: 1 61 19512
Fax: 1 61 19513
Kuwait/Arabian Gulf
Ali Al-Ghanim Est.
P.O. Box 21540 - Safat
Tel.: 4822190
Fax: 4820116
Lebanon
Adib & Assaferi
P.O. Bo x 539
Tripoli
Latvia
Electrolux Latvija Ltd.
Kr.Barona iela 130/2
Riga, LV-1012
Tel.: 371 7313626
Fax: 371 7845954
Lithuania
Electrolux Lithuania
Verkui 29
2600 Vilnus
Tel.: 372 272 3326
Fax: 372 272 3366
Malaysia
Arzbergh Engineering
No. 49A/B, Jalan Petaling
Utama 7
4600 Petaling Jaya
Tel.: 3 795 1084
Fax: 3 795 1082
Namibia
AEG NAMIBIA (PTY)
LIMITED-Jeppe Street
Northern Industrial Area
Windhoek
Tel.: (061) 21-6082/4
Fax: (061) 217838
New Zealand
Monaco Corporation Ltd.
10 Rothwell Avenue
Albany - Auckland
4399 Auckland 1
New Zealand
Tel.: 00 64-92 59 11 11
Fax: 00 64-92 59 11 12
Syria
WATTAR CO.
P.O. Box 3610 9
Mazzeh - Damascus
Direct Phone: 00963116132649
Fax: 00963116119537
Iran
ARIAN International Development Co.
AEG Showroom
Shariati, Balatar as Safar
Teheran / Iran
Phone No. Showroom:
021 / 285 513 / 4
Phone No. Service:
021 / 312 27 67 / 8
Poland
Electrolux Poland Sp. zo.o.
ul. Domaniewska 41
02-034 Warszawa
tel.: 022 874 33 33
fax: 022 874 33 00
Russia
Electrolux Russia Ltd.
16 Olympiysky prospekt
129090 Moscow
Tel.: (095) 937 7837
Fax: (095) 926 5513
Saudi Arabia
Awad Badi Nahas Est
Shara Siteen
Jeddah 21463
Phone: 6646583
Alia Trading Co
Mecca Road
Riyadh 11491
Phone 4645977
35
Japan
Electrolux Japan Ltd.
Domestic Appliances
Department
Maruzen Showa Warehouse
Building
Tookai 4-5-12, Ota-ku
143-006 Tokyo
Tel.: 0120-13-7117
Fax: 03-3790-5257
Thailand
Olympia Thai Tower, 444
Rachadapiser Road
Samsennok- Huaykwang
10320 Bangkok
Thailand
Tel.: 006625136111
Fax: 006625136334
Hungary
Electrolux Lehel KFT
Erzsébet Királyné útja 87.
1142 Budapest
Tel.: 00361/467-3200
Singapore
Group Pte Ltd.
833 Bukit Timah Road
Unit no. 01-11 Royalville
279887 Singapore
Tel.: 0065 64638484
Fax: 0065 64638488
Slovakia Rep.
Electrolux Slovakia S.R.O.
Seberiniho 1
821 03 Bratislava
Tel.: 02 4333 4322, 4355
Fax: 02 4333 6976
Slovenia
Electrolux Slovenia D.O.O.
Traska Ul. 132
1000 Ljubljana
Tel.: 61 1234 137
Fax: 61 1234 238
South Africa
AEG (Pty) Ltd.
55, 12th Road
P.O. Box 1 02 64
Kew/Johannesburg 2000
Tel.: 8069111
36
373839
Service
In the event of technical faults, please first check whether you can
remedy the problem yourself with the help of the operating instructions (section “What to do if…”).
If you were not able to remedy the problem yourself, please contact the
Customer Care Department or one of our service partners.
In order to be able to assist you
quickly, we require the following
information:
– Model description
– Product number (PNC)
– Serial number (S No.)
(for numbers see rating plate)
– Type of fault
– Any error messages displayed by
the appliance
So that you have the necessary reference numbers from your appliance
at hand, we recommend that you write them in here:
Model description: .....................................
PNC: .....................................
S No: .....................................
From the Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor
use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,
vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more
than 150 countries around the world.
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg-electrolux.de
© Copyright by AEG
105 176 851-00-190505-01
Subject to change without notice
Loading...
