LAVAMAT 66810
Washing machine
User information
Dear customer,
Please read this User Information carefully and keep it to refer to at a
later date.
Pass this User Information on to any subsequent owner of the appliance.
The following symbols are used in the text:
1 Safety instructions
Warning: Notes that concern your personal safety.
Attention: Notes that show how to avoid damage to the appliance.
3 Useful tips and hints
2 Environmental information
2
Contents
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Programme overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Overview of terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Before the first wash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Preparing and sorting washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Running a washing cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Opening the door/loading washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Adding detergent/ additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Switching on the appliance/selecting a programme . . . . . . . . . . . . . . . . . . . 13
Changing spin speed/selecting rinse hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Selecting the programme options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
RINSE+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
QUICK WASH. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
PRE WASH. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
STAIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Setting the delay timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Starting a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Programme progress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Interrupting a programme/adding washing . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Washing cycle complete/ Removing the washing. . . . . . . . . . . . . . . . . . . . . . 16
Child safety device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
What to do if.... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Remedying small malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
If the wash results are not satisfactory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Carrying out an emergency drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Drain pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Consumption values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3
Installation and connection instructions. . . . . . . . . . . . . . . . . 26
Safety information for the installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Installing the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Transporting the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Removing the transit packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Where to install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Making the appliance level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Connecting to the water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Water inflow. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Water drainage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Guarantee Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Customer Service Centres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4
Operating Instructions
1 Safety
Prior to using for the first time
• Follow the ”Instructions for installation and connection”.
• If the appliance is delivered in the winter months when there are mi-
nus temperatures: Store the washing machine at room temperature
for 24 hours before using for the first time.
Correct use
• The washing machine is only designed for the washing of normal domestic laundry at home.
• Additions or modifications to the washing machine are not permitted.
• Use only detergents and additives that are suitable for use in domestic washing machines.
• The washing must not contain any inflammable solutions. Danger of
explosion!
• Do not use the washing machine for dry cleaning.
• Dyes/colour removers may only be used in the washing machine, if
the manufacturer of these products expressly permits this. We cannot
be held responsible for any damage arising.
Child safety
• Keep packaging away from children. There is a risk of suffocation.
• Children often do not recognise the hazards associated with electrical
appliances. Don’t allow children to use the washing machine unsupervised.
• Make sure that children and pets don’t climb into the drum of the
washing machine. Could endanger life!
5
General safety
• Repairs to the washing machine must only be carried out by qualified
service engineers.
• Never use the washing machine if the mains cable is damaged; or if
the control panel, work top or plinth area is damaged such that the
inside of the appliance is freely accessible.
• Switch off the washing machine before cleaning, maintenance and
servicing. In addition, pull the mains plug out of the socket or – in
the case of a permanent connection – switch off the cut-out in the
fuse box or remove the screw fuse completely.
• If operation is stopped, disconnect the appliance from the mains supply and shut off the water tap.
• Never unplug the appliance by pulling on the cable. Always pull the
plug.
• Multi-way plugs, connectors and extension cables must not be used.
This could constitute a fire hazard through overheating.
• Never wash the washing machine down with a water jet. Danger of
electric shock!
• In washing programmes with high temperatures the glass in the door
gets hot. Do not touch it.
• Before emergency emptying of the appliance, before cleaning the
drain pump or opening the door in an emergency, let the water cool
down.
• Small animals can nibble at the cables and water hoses. Danger of
electric shock and danger of water damage! Keep small animals away
from the washing machine.
6
Description of the appliance
Detergent dispenser
drawer
Rating plate
(behind door)
Screw feet
(height adjustable)
Control panel
SPIN/RINSE HOLD button
DELAY TIMER button
Control panel
Plinth flap/
Drain pump
Multidisplay
Programme Progress display
Programme option
buttons
DOOR indicator
START/PAUSE button
Programme knob
7
Programme overview
Additional programmes Spin speed
Programme
ENERGY SAVING
COTTONS/LINEN
95, 60, 50, 40, 30
EASY-CARES
60, 50, 40, 30
2)
1)
max. load
RINSE +
QUICK WASH
PRE WASH
STAIN
1600
(dry washing)
1000/600
6kg • • • • • •
6kg • •
3)
3kg • • • •
• •
4)
• • •
4)
• •
EASY IRON 40 1kg • • • • • •
DELICATES
40, 30
WOOL H (Hand-washing)
40, 30, X (cold)
3kg • • • • •
2kg • •
RINSE 3kg • •
DRAIN
n (RINSE HOLD)
SPIN 6kg • •
REFRESH 3kg • •
1) A 10 litre bucket contains approx. 2.5 kg dry washing (cotton)
2) Programme settings for tests in accordance with or in the style of EN 60 456 and IEC 60 456 are described in
the chapter “Consumption values”.
3) Recommended load for short progammes is 3 kg; full loading is possible however with somewhat reduced
cleaning results.
4) STAIN can only be set from 40° upwards, as stain removal agent only becomes effective at higher temperatures.
8
Application/Features
Care
symbols
1)
Energy-saving programme which washes at 60 °C for lightly to normally soiled
whites or coloureds made of cotton/linen.
Programme for normally to heavily soiled whites/coloureds made of cotton/linen.
Programme for easy-care mixed fibres and synthetics.
Special programme which washes at 40 °C for easy-care fabrics which after being
washed using this programme need to be ironed only lightly or not at all.
Gentle programme for delicate textiles such as bonded fibres, micro-fibres, synthetics, net curtains (load max. 20 to 25 m
n (RINSE HOLD), also suitable for fabrics with climatic membranes, e.g. outdoor.
Specially gentle programme for machine and hand-washable wool.
Separate gentle rinse (3 rinse cycles, liquid conditioner is washed in from the
compartment
Draining following a rinse hold.
Draining and spinning, e.g. following a rinse hold, or separate spinning of handwashed cottons/linen.
Special programme which washes at 30 °C, approx. 30 minutes, for brief washing
of e.g. worn-once, lightly soiled sports clothing or new clothes.
1) The figures in the care symbols indicate the maximum temperatures.
, gentle spin).
&
2
curtains). If used together with
M O
J M O
I K N
K N
I K
Q L H
I K N
Q L
H
J M O
J M O
I K N
9
Overview of terms
The English terms used in this User Information booklet correspond to
the Dutch/French names below that are to be found on your appliance’s control panel.
Programme knob
OFF
COTTONS/
LINEN
EASY-CARES
EASY IRON
DELICATES
WOOL
GENTLE RINSE
DRAIN
SPIN
REFRESH
ENERGY
SAVING
UIT
ARRET
WITTE/BONTE WAS
BLANC/COULEURS
KREUKHERSTELLEND
SYNTHETIQUES
STRIJKVRIJ
SANS REPASSAGE
FIJNE WAS
LINGE DELICAT
WOL
LAINE
FIJNSPOELEN
RINC. DELICAT
POMPEN
VIDANGE
CENTRIFUG.
ESSORAGE
OPFRISSEN
RAFRAICHIR
ECO
Buttons
RINSE +
QUICK WASH
PRE-WASH
STAIN
START/PAUSE
DELAY TIMER
Display
PRE-WASH
MAIN WASH
RINSE
RINSE +
SPIN
END
DOOR
DURATION
SPOELEN +
RINCAGE +
KORT
COURT
VOORWAS
PRELAVAGE
VLEKKEN
TACHES
START/PAUZE
MARCHE/PAUSE
STARTTIJDKEUZE
DEPART DIFF.
VOORWAS
PRELAVAGE
HOOFDWAS
LAVAGE
SPOELEN
RINCAGE
SPOELEN +
RINCAGE +
CENTRIFUG.
ESSORAGE
EINDE
FIN
DEUR
PORTE
LOOPTIJD
TPS. REST.
10
Before the first wash
1. Open the detergent dispenser drawer.
2. Pour about 1 litre of water through the detergent dispenser drawer into
the washing machine.
This closes the water container when the next programme is started
and the economy valve can function properly.
3. In order to remove any residues from the drum and water container
which may have been left during manufacturing, perform the first
wash cycle without any washing in the machine. Programme: COTTONS/LINEN 60, press QUICK WASH, add 1/4 of a measuring cup of
washing powder.
Preparing and sorting washing
Preparing washing
• Empty pockets. Remove foreign bodies (e. g. coins, paper clips, nails,
etc.).
• Do up zips, button up covers to prevent damage to washing.
• Remove the runners from net curtains or cover them with a net or a
bag.
• Wash sensitive and small items in a net or a pillow case, e.g. net cur-
tains, tights, socks, handkerchiefs, bras.
Important! Bras and other items containing wires should only be
washed in a net bag. The wires can work loose and damage the appliance.
Sorting washing
• By colour: Wash white and coloured washing separately. Washing can
run.
• By temperature, type of washing and care symbol.
Important! Do not wash fabrics with care symbol G (= do not wash!)
in the washing machine.
11
Running a washing cycle
Opening the door/loading washing
1. To open the door: pull the door by the handle.
When the machine is switched on, the DOOR light and the START/
PAUSE light indicate whether the door can be opened:
DOOR indicator START/PAUSE indicator Can the door be opened?
lit green flashes red or is off yes
lit green lit red
lit red
or is off
flashes red
or lit red
2. Unfold washing and load it loosely
into the machine. Mix large and
small items.
Important! Do not get any washing
caught between the door and the
rubber seal.
3. Push the door shut firmly. Door
catch must audibly click shut.
yes, after the START/PAUSE
button has been pressed
no, water level and/or
temperature too high
Adding detergent/additives
Important: Use only detergents and additives that are suitable for use
in domestic washing machines.
Dose detergent and additives according to the instructions of the de-
tergent and additive manufacturers. Follow the instructions on the
packaging.
Dosing depends upon:
– the washing’s degree of soiling,
– the size of the load
– the degree of hardness of the water supply.
• If the manufacturer does not give instructions for small loads: for a
half load, use a third less, for a very small load, use only half of the
detergent that is recommended for a full load.
• From water hardness 2 (= medium) upwards, water softener should
be used. Detergent can then always be dosed for water hardness 1
(= soft). Your local water company will be able to give you information about the water hardness in your area.
12
1. Pull the detergent dispenser drawer out as far as the stop.
2. Add the detergent/additives.
3. Push the drawer in fully.
Washing powder/tablets
for the main wash
Softeners/
wash-care products
to preserve the shape
of garments/
starch
In-wash stain treatment/
tablets
Washing powder/tablets
for the pre-wash
or for water softener
Washing powder/tablets for the main wash
If you are using water softener and need the right-hand compartment
for the pre-wash detergent, add the water softener to the main wash
detergent in the left-hand compartment.
Softeners, wash-care products to preserve the shape of garments,
starch
Do not fill the compartment beyond the MAX mark. Dilute thick liquid
concentrates according to the manufacturer’s instructions before
putting them into the drawer. Dissolve powder starches.
If you use liquid detergents:
Add liquid detergent using the dosage container provided by the detergent manufacturer.
Switching on the appliance/selecting a programme
Set the programme and temperature using the programme knob.
3 By selecting a programme, you
switch the appliance on at the
same time.
– The programme progress display
indicates the programme steps
that the selected programme will
perform.
– In the multi-display the
estimated length of the programme (in minutes) appears.
13
Changing spin speed/selecting rinse hold
The washing machine suggests the
maximum permitted speed that is
suitable for the selected programme. You can reduce this
speed:
Press the SPIN/n
button repeatedly until the desired
display lights up.
(RINSE HOLD)
3 The speed for the final spin can still be altered during the programme.
To do this:
1. Press the START/PAUSE button.
2. Change speed.
3. Press the START/PAUSE button again.
RINSE HOLD
If n
(RINSE HOLD) is selected, the washing is left to soak in the last
rinse water. There is no final spin after the intermediate spin(s). Intermediate spins are programme-dependent and cannot be altered.
Selecting the programme options
If desired, press the programme option button(s). The corresponding
light lights up.
3 If “Err” flashes in the multi-display,
the programme option selected
cannot be combined with the wash
programme set.
14
RINSE+
There are two additional rinses in the ENERGY SAVING, COTTONS/LINEN,
DELICATES, EASY-CARE and EASY IRON programmes (e. g. in cases of
over-sensitive skin).
QUICK WASH
Shortened wash cycle for lightly soiled washing.
PRE WASH
Warm pre-wash before the main wash, which follows automatically; intermediate spin in the COTTONS/LINEN and EASY-CARE programmes;
no intermediate spin in the DELICATES programme.
STAIN
For heavily soiled and stained washing. In-wash stain treatment products are washed in at the optimum time as the programme progresses.
Can only be selected with wash temperatures of 40°C and above, as
stain treatment products are only effective at higher temperatures.
Setting the delay timer
3 With the DELAY TIMER button you can postpone the start of a pro-
gramme by 30 minutes (30') to a maximum of 23 hours (23h).
1. Select programme.
2. Continue pressing the DELAY TIMER button until the desired start delay
is displayed in the multi-display, for example12h, if the start of the
programme is to be delayed by 12 hours. DELAY TIMER light is lit.
3 If the display is showing 23h and you press the button again, the time
delay will be cancelled. 0' appears followed by the duration of the set
wash programme.
3. To activate the time delay, press the START/PAUSE button. The remaining time till the programme start is being shown (e. g. 12h, 11h, 10h, ...
30
' etc.).
Starting a programme
1. Check that the tap is turned on.
2. Press the START/PAUSE button. The programme is started or starts after
the time delay set has elapsed.
3 If after the START/PAUSE button has been pressed E40 flashes in the
multi-display, the END indicator flashes 4 times and at the same time
an acoustic signal sounds 4 times, the door is not closed properly. Push
the door firmly closed and press the START/PAUSE button again.
15
Programme progress
• The programme progress display shows the programme step that is
currently being performed.
• The multi-display indicates the estimated time remaining (in minutes)
until the end of the programme.
3 During the washing cycle the remaining time may be increased or stay
the same for a while as the programme adjusts itself to different conditions (e. g. type and quantity of laundry, out of balance spin detection,
special rinses, etc.).
Interrupting a programme/adding washing
Interrupting a programme
• A washing programme can be interrupted at any time by pressing the
START/PAUSE button. It is then re-started by pressing the START/
PAUSE button again.
• To stop the washing machine before the programme has ended, turn
the programme knob to OFF. Important! Be careful if there is water
in the appliance!
Adding washing
It is possible to add washing, as long as the DOOR light is lit green.
1. Press the START/PAUSE button. The door can be opened.
2. Shut the door and press the START/PAUSE button again. The pro-
gramme continues.
Washing cycle complete/Removing the washing
At the end of the programme, END lights up on the programme
progress display. The door can be opened as soon as the DOOR is lit
green.
1. Open the door and remove the washing.
2. Turn the programme knob to OFF.
3. Close the water tap.
4. After the wash, pull out the detergent dispenser drawer slightly to al-
low it to dry. Leave the door slightly open to air the inside of the washing machine.
16
If n (RINSE HOLD) was selected:
After the rinse hold, END lights up on the programme progress display.
The water must first be drained:
– Either turn the programme knob to OFF, then to DRAIN and press the
START/PAUSE button (the water is drained without spinning),
– or turn the programme knob to OFF and then to SPIN. Change the
spin speed if necessary and press the START/ PAUSE button (the water
is drained and the washing spun).
Child safety device
When the child safety device is set, the door can no longer be closed.
Setting the child safety device:
Use a coin to turn the knob (on the
inside of the door) in a clockwise direction as far as it will go.
1 Warning! The knob must not be
sunk-in after being set, otherwise
the child safety device is not active.
The knob must stand proud as
shown in the illustration.
Releasing the child safety device:
Turn the knob anti-clockwise as far
as it will go.
17
Cleaning and maintenance
Important! Do not use furniture care products or aggressive cleaners to
clean the appliance.
Wipe control panel and body with a damp cloth.
Cleaning procedure
If you plan to wash mainly at low temperature, you should run a hot
programme from time to time. This will reduce any deposits and clean
the appliance from the inside.
Detergent dispenser drawer
The detergent dispenser drawer should be cleaned regularly.

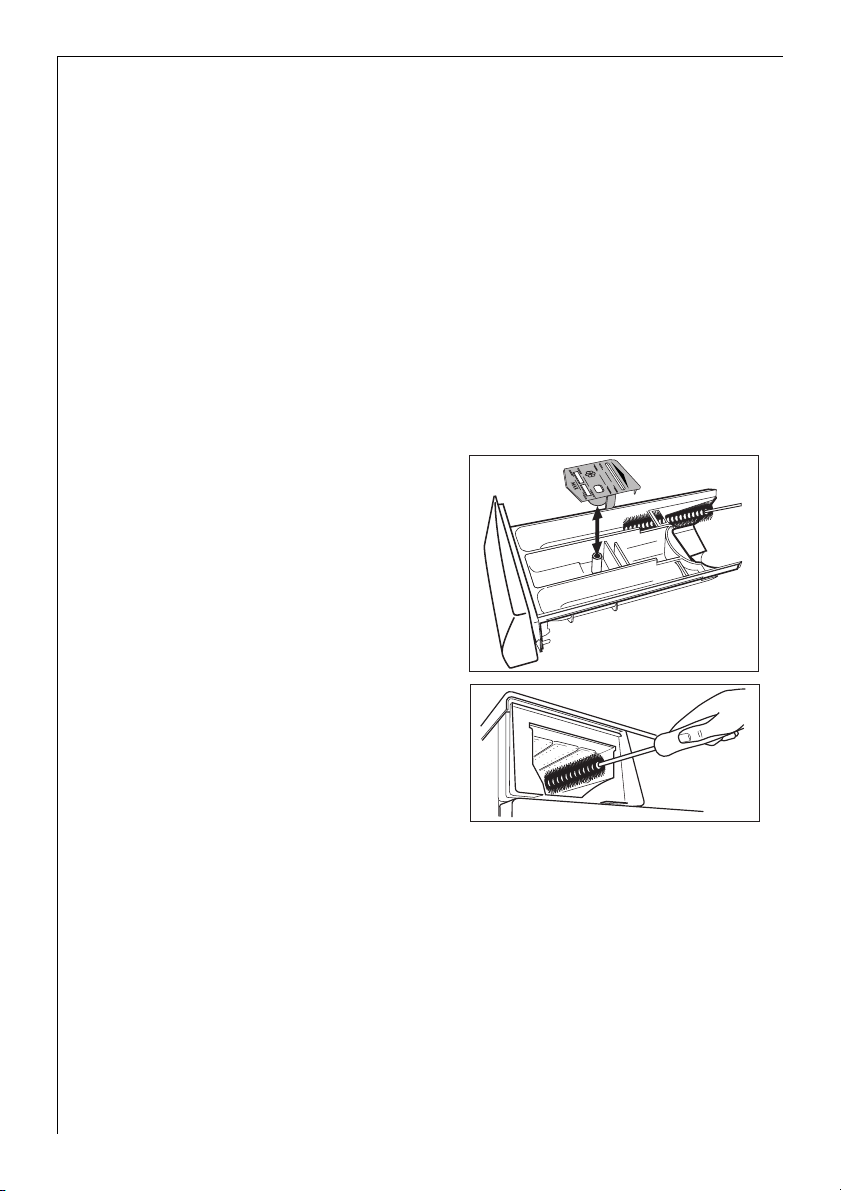

1. Remove the detergent dispenser drawer by pulling it firmly.
2. Remove the conditioner insert from
the middle compartment.
3. Clean all parts with water.
4. Put the conditioner insert in as far as
it will go, so that it is firmly in place.
5. Clean all parts of the washing machine, especially the nozzles in the
top of the washing-in chamber, with
a brush.
6. Insert the detergent dispenser drawer in the guide rails and push it in.
Washing drum
Rust deposits in the drum may occur due to rusting foreign bodies in
the washing or tap water containing iron.
Important! Do not clean the drum with acidic descaling agents, scouring agents containing chlorine or iron or steel wool.
1. Remove any rust deposits on the drum with a cleaning agent for stainless steel.
2. Run a washing cycle without any washing to clean off any cleaning
agent residues. Programme: COTTONS/LINEN 60, press QUICK WASH
button, add approx. 1/4 of a measuring cup of washing powder.
18
Door and rubber collar
Regularly check whether deposits or foreign bodies are present in the
folds of the rubber collar or on the inside of the glass door.
Clean the glass in the door and the rubber collar regularly.
What to do if...
Remedying small malfunctions
If one of the following fault codes is displayed in the multi-display during operation:
– E10 (Problems with water inlet),
– E20 (Problems with water drainage),
– E40 (door open),
please have a look at the following table.
When the fault is remedied, press the START/PAUSE button.
In the event of other faults (E plus a number or a letter): Switch the
appliance off and on again. Re-set the programme. Press the START/
PAUSE button.
If the fault is displayed again, please contact the Customer Care Department and inform them of the fault code.
Problem Possible cause Remedy
Mains plug not plugged in
or fuse not working.
Washing machine does
not work.
Door cannot be closed. Child safety device engaged. Release child safety device.
When a button is
pressed, Err appears in
the multi-display.
E40 appears.
END display flashes 4x,
at the same time an
acoustic signal sounds
4x.
Door not closed properly.
START/PAUSE button was
not pressed for long
enough.
The selected function cannot be combined with the
programme set.
Door is not closed properly.
Plug in mains plug. Check
fuse.
Close door – there should be
an audible click.
Press START/PAUSE button
for longer.
Make another selection.
Close door properly. Start
programme again.
19
Problem Possible cause Remedy
E10 appears.
END display flashes 1x,
at the same time an
acoustic signal sounds
1x.
(Problems with water
inflow)
The washing machine
vibrates when operating
or is not stable.
Washing has not been
spun.
Water is leaking out underneath the washing
machine.
Washing water is foaming excessively. At the
end of the washing cycle, spin stops.
E20 appears.
ENDdisplay flashes 2x,
at the same time an
acoustic signal sounds
2x.
(Problems with water
outflow)
Tap turned off. Turn the tap on.
Filter in the screw connection of the inlet hose is
blocked.
Water tap is blocked with
limescale or faulty.
The transit packaging has
not been removed.
The screw feet not correctly
adjusted.
Only a few large items of
washing in the drum.
Screw connection on the inlet hose is leaking.
Drain hose is leaking. Replace drain hose.
Drain pump cover is not
closed properly.
Washing was caught in the
door.
Emergency drain hose is
leaking.
Probably too much detergent has been used.
Kink in drain hose. Remove kink.
Maximum pumping height
of 1m exceeded.
Drain pump is blocked.
With connection to sink
outlet: sink outlet is
blocked.
Turn off the water tap. Unscrew hose, take out filter
and clean it.
Check the water tap and
have it repaired if necessary.
Removing the transit packaging.
Adjust the feet as described
in the installation and connection instructions.
Always load the drum as full
as possible. Mix large and
small items.
Tighten inlet hose.
Close cover properly.
Load washing carefully for
the next wash.
Close off emergency drain
hose properly.
Dose detergent exactly as instructed by manufacturer.
Please contact Customer
Care Department.
Switch off appliance. Pull out
mains plug.
Clean drain pump. Remove
foreign bodies from pump
housing.
Clean out sink outlet.
20
Problem Possible cause Remedy
Fabric softener not
rinsed in, w compartment for additives is
filled with water.
Door cannot be opened
when appliance is
switched on.
Washing is heavily
creased.
Conditioner insert in the
compartment for additives
is not correctly attached or
is blocked.
Door locked.
Power cut. (All display indicators are off.)
Door remains locked for 4 to
10 minutes.
Possibly too much washing
was loaded.
If the wash results are not satisfactory
Washing is grey and scale is being deposited in the drum
• Too little detergent is being used.
• The right detergent was not used.
• Special soiling was not pre-treated.
• Programme or temperature was not correctly set.
Clean detergent dispenser
drawer, insert conditioner insert firmly.
Wait until DOOR indicator is
lit green.
Programme continues, when
power cut is over.
To remove washing:
If water can be seen in the
appliance, before opening
the door, first drain off the
water. (See section “Carrying
out an emergency drain”.)
Observe maximum loads.
There are grey stains on the washing.
• Washing soiled with ointment, grease or oil was washed with too lit-
tle detergent.
• It was washed at too low a temperature.
• A common cause is that fabric conditioner – especially a concentrate
– has got onto the washing. Such stains should be washed out as
quickly as possible and make sure that you are careful when using
fabric conditioner.
After the last rinse foam can still be seen.
• Modern detergents may create foam even in the last rinse cycle. The
washing is however sufficiently rinsed.
21
There are white residues on the washing.
• This is due to the insoluble ingredients in modern detergents.
They are not caused by insufficient rinsing.
Shake or brush the washing. If possible turn the washing inside out
before washing. Check your choice of detergent. Especially with dark
colours it is advisable to use liquid detergents.
Carrying out an emergency drain
1 Warning! Before emergency draining, switch off the washing machine
and remove the mains plug from the socket.
Warning! The water that comes out of the emergency drain hose may
be hot. There is a risk of scalding. Let the water cool before performing
an emergency drain.
1. Open the plinth flap and remove it.
2. Take out the emergency drain hose.
3. Place a shallow container under-
neath it. Then loosen the drain plug
by turning it in an anti-clockwise
direction and pull it out.
4. The water runs out. If it is necessary
to empty the container more than
once, seal up the emergency drain
hose with the drain plug while you
are doing so.
When the water has all drained away:
5. Push the drain plug firmly into the emergency drain hose and screw it
tight in a clockwise direction.
6. Place the emergency drain hose back in the support.
7. Insert the plinth flap and close it.
22
Drain pump
The drain pump is maintenance-free. It is only necessary to open the
pump cover if there is a malfunction and water is no longer being
pumped out, e. g. if the pump wheel is blocked.
Please make sure before loading the washing that there are no foreign
bodies in the pockets or caught between the washing. Paperclips, nails,
etc. that may have got into the washing machine with the washing remain in the pump housing (foreign body trap that protects the pump
wheel).
1 Warning! Before opening the pump cover, switch off the washing ma-
chine and remove the mains plug from the socket.
1. First carry out an emergency drain.
2. Place a cloth on the floor in front of the drain pump cover.
Residual water runs out.
3. Unscrew the pump cover in an anticlockwise direction and remove it.
4. Remove foreign bodies and fluff
from the pump housing and from
the pump wheel.
5. Check whether the pump wheel
right at the back of the pump housing can turn. (It is normal for the
pumping wheel to turn jerkily.) If
the pumping wheel cannot be
turned, please contact the Customer
Care Department.
6. Insert the pump cover. Insert the
guides at the sides of the cover into
the guide slots and tighten the cover by turning in a clockwise
direction.
7. Close off the emergency drain hose
and place it in the support.
8. Close plinth flap.
23
Disposal
Packaging material
2
The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging materials in the appropriate
container at the community waste disposal facilities.
2 Old appliance
The symbol
product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you
purchased the product.
W on the product or on its packaging indicates that this
1 Warning! When an appliance is finished with, remove the plug from
the mains socket. Cut off the cable and plug and dispose of them.
Destroy the door lock. This prevents children from trapping themselves
inside and endangering their lives.
24
Technical data
This appliance conforms with the following EU Directives:
5
– 73/23/EEC dated 19.02.1973 Low Voltage Directive
– 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending
Directive 92/31/EEC
– 93/68/EEC dated 22.07.1993 CE Marking Directive
Height x Width x Depth 850 x 598 x 603 mm
Depth when door is open 980 mm
Height adjustment approx. +10/-5mm
Load (depending on programme) Max. 6kg
Area of use Domestic
Drum spin speed see Rating Plate
Water pressure 1-10bar (=10–100N/cm2=0.1–1.0MPa)
Consumption values
The consumption values were obtained under standardised conditions.
They may vary when operating in domestic conditions.
Programme knob
(Temperature)
COTTONS/LINEN 95 6 62 2,20
ENERGY SAVING
COTTONS/LINEN 40 6 58 0,70
EASY-CARES 40 3 58 0,52
DELICATES 30 3 58 0,42
WOOL H (Handwashing) 30 2 54 0,35
1) The load is determined in accordance with EN 60456 Standard Loads.
2) Note: Programme setting for tests in accordance with or supporting EN 60 456 and
IEC 60 456.
Actual consumption will vary from the indicated values depending on water pressure, water hardness, water temperature at filling, room temperature, type and
quantity of washing, detergent used, variations in mains voltage and any additional
programme functions selected.
2)
Load
1)
in kg
6 49 1,02
Water
in litres
Energy
in kWh
25
Installation and connection instructions
1 Safety information for the installation
• This washing machine cannot be built-in.
• Before using for the first time, check the appliance for damage sus-
tained while it was being transported. Do not under any circumstances connect an appliance that is damaged. In the case of damage,
please contact your supplier.
• Before using for the first time, all parts of the transit packaging must
be removed. Otherwise when spinning damage may be caused to the
appliance or to neighbouring units or furniture.
• Before using the appliance for the first time, splash protection must
be completed. (See “Removing the transit packaging”.)
• Always plug the mains plug into a correctly installed shockproof
socket.
• Permanent connection: a permanent connection must only be in-
stalled by a trained electrician.
• Prior to using the appliance for the first time, ensure that the rated
voltage and type of supply on the rating plate match that of the supply where the appliance is to be installed. The fuse rating is also to be
found on the rating plate.
• If work on the plumbing is required for the proper connection of the
washing machine to the water supply, this must be undertaken by a
registered plumber.
• If work on the electricity supply system is required for the proper
connection of the washing machine to the electricity supply, this
must be undertaken by a registered electrician.
• The washing machine’s cable must only be replaced by the Customer
Care Department or a registered electrician.
26
Installing the appliance
Transporting the appliance
1 Warning! The washing machine is very heavy. Risk of injury. Be careful
when lifting.
• Do not lay the appliance on its front nor on its right side (as seen
from the front). Electrical components may get wet.
• Never transport the appliance without its transit packaging. Only re-
move the transit packaging when the appliance is in its place of installation. Transporting the appliance without its transit packaging
can lead to damage to the appliance.
• Never lift the appliance by the door when it is open nor by the plinth.
When moving using a sack trolley:
• Only use the sack trolley on the side of the appliance.
Removing the transit packaging
Important! Before using the appli-
ance for the first time, all parts of
the transit packaging must be removed! Keep the transit packaging
in a safe place, in case it is needed at
a later date when the appliance is to
be moved (e.g. moving house).
1. At the back of the appliance, open
both hose clips and remove both
hoses and mains cable.
2. Remove both hose clips from the appliance by jerking them hard.
27
3. Remove both plastic caps sideways.
3 Special spanner A and sealing caps B
(2 off) and C (1 off) are supplied
with the appliance.
4. Remove screw D with its compression spring using special spanner A.
5. Turn sealing cap C upside down as
shown in the illustration.
6. Seal hole using sealing cap C.
7. Unscrew and remove two screws E
using special spanner A.
8. Unscrew and remove four screws F
using special spanner A.
9. Remove transit bar G.
10. Screw in the four screws F again.
11. Seal the two big holes using sealing
caps B.
Important! Press all sealing caps B
(2 off) and C (1 off) in firmly, so that
they snap into place. (Splash protection).
Where to install
Important! The appliance must not be used in a room where there is a
danger of frost. Frost damage or impaired operation! Frost damage is
not covered by the warranty.
• The surface on which the appliance is to be installed must be firm
and level. Do not install the appliance on carpets or on soft floor coverings.
28
• The surface on which the appliance is to be installed must be clean
and dry and free from coverings that move, so that the appliance
does not slide.
• If the location in which the appliance is to be installed is fitted with
small-format tiles, put a rubber mat (available in the shops) under
the appliance.
If the appliance is to stand on a
plinth:
In order for the appliance to be secure on the plinth, fixing plates*)
must be mounted, into which the
appliance is inserted.
If the appliance is to stand on floors that vibrate, e. g. floors of
wooden joists with deal boards:
If possible, install the appliance in one corner of the room.
1. Screw a water-resistant wooden board (at least 15 mm thick) onto at
least 2 of the floor joists.
2. Affix fixing plates *) onto the wooden board, into which the appliance
is inserted.
*) The fixing plates can be obtained from the Customer Care Department.
Making the appliance level
The four feet of the appliance are
pre-adjusted.
Large degrees of unevenness can be
compensated for by individually adjusting the height adjustable screw
feet.
Use the special spanner supplied to
do this.
Important! Do not use pieces of
wood, cardboard or such like to level out unevenness in the floor, but
adjust the height adjustable screw
feet instead.
29
Electrical connection
Details about the voltage, type of supply and the fuses required are to
be found on the rating plate. The rating plate is next to the doorway.
Connecting to the water supply
Important!
• This appliance must not be connected to the hot water system.
• When connecting it, use only new hose kits.
• Only connect the appliance to the drinking water supply. Rain water
or water for industrial use may only be used if it fulfils the requirements of DIN1986 and DIN1988.
• Do not kink or crush the water inlet hose or drain hose.
Permitted water pressure
The water pressure must be at least 1 bar (= 10N/cm2=0.1MPa) and may
be a maximum of 10bar (= 100N/cm
– If more than 10 bar: Connect a pressure reduction valve.
– If less than 1bar: Disconnect the appliance end of the inlet hose from
the solenoid inlet valve and remove the flow meter. (In addition remove the filter using pointed pliers and take out the rubber gasket
behind it.) Re-insert the filter.
2
=1MPa).
30
Water inflow
A 1.50 m long pressure hose is supplied with the appliance.
If a longer water inlet hose is required, only original hoses are to be
used. The Customer Care Department stocks hose kits of different
lengths.
3 Sealing rings are either inserted in the nuts of the threaded hose fitting
or are included as spare parts . Do not use any other type of sealing
rings.
Important! All threaded hose fittings must only be tightened by
hand.
1. Connect the hose with the right-angle connector to the machine.

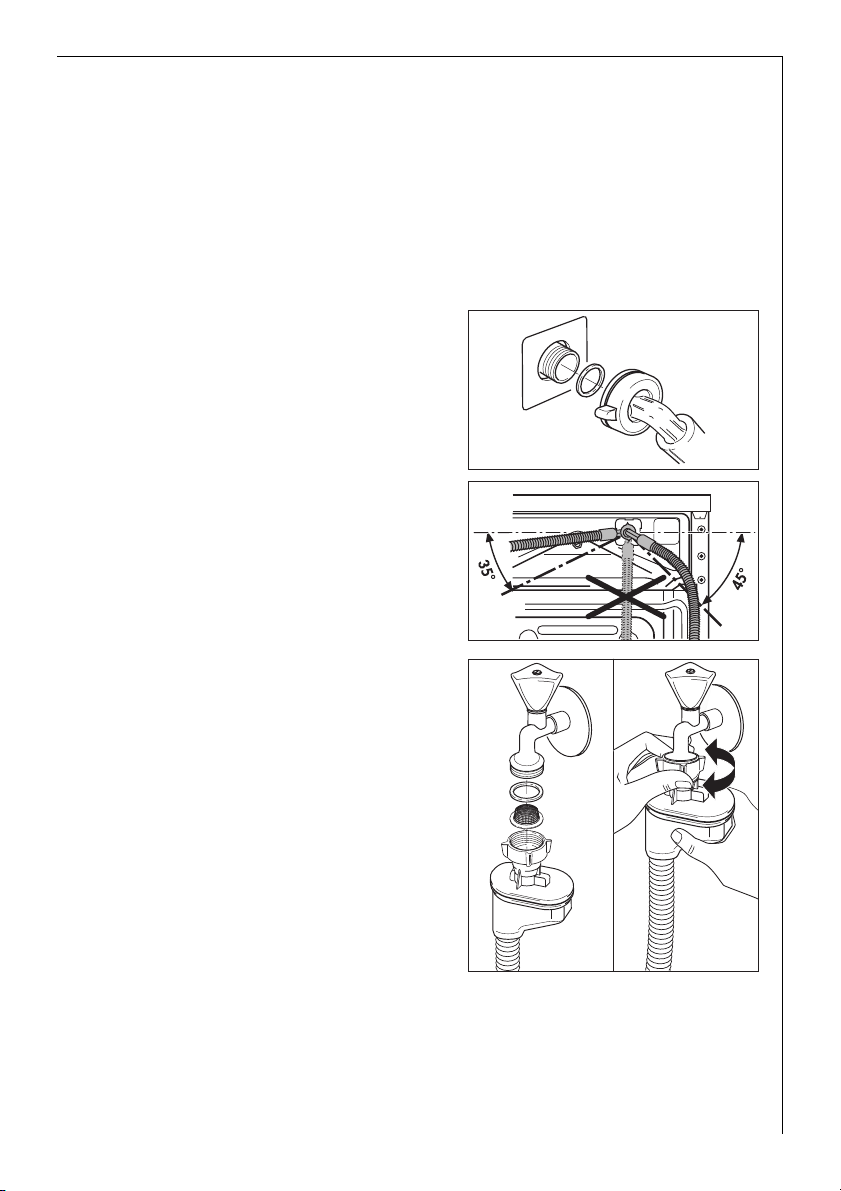

Important! Do not position the inlet
hose vertically downwards. Position
it to the right or the left as shown in
the illustration.
2. Connect the hose with the straight
connector to a water tap with an R
¾ (inch) screw thread.
3. To tighten or loosen the threaded
hose fitting, only the metal nuts
must be turned. When doing this,
keep a firm hold on the housing of
the safety valve with one hand, so
that it does not turn at the same
time.
Important! To tighten or loosen the
threaded hose fitting, never turn the
housing of the safety valve, as otherwise the inner hose will be damaged.
4. Open the water tap slowly and check all connections for water tightness.
31
Water drainage
The maximum permitted difference between the height of the surface
on which the appliance is installed and the water outlet is 1 metre.
Only original hoses may be used to extend hoses. (A maximum of 3 m
laid on the floor and then 80 cm vertically). The Customer Care Department stocks outlet hoses of different lengths.
Draining water into a sink outlet
Secure the outlet/sink outlet joint
with a hose band clip (available from
your dealer).
Draining water into a wash basin/bath
1 Important!
– Small basins are not suitable. Wa-
ter may overflow.
– The end of the drain hose must
not be in the water that has been
pumped out. Otherwise water
could be sucked back into the appliance.
– When draining into a wash basin
or a bath, secure the drain hose
with the supplied elbow to stop it
slipping. Otherwise the water running out can force the hose out of
the basin.
– When pumping the water out,
check that the water is running
away fast enough.
32
Pumping heights over 1 m
The washing machine’s drain pump is able to pump water to a height of
1meter, calculated from the surface on which the appliance is installed.
Warning! If pumping height is over 1 metre, malfunctions and damage
to the appliance may arise.
For pumping heights over 1metre a conversion kit can be obtained.
Please contact the Customer Care Department.
Guarantee Conditions
Belgium
DECLARATION OF GUARANTEE TERMS.
Our appliances are produced with the greatest of care. However, a defect may still occur. Our consumer services department will repair this upon request, either during or after the guarantee period. The service life of the appliance will not, however, be reduced as a result.
This declaration of guarantee terms is based on European Union Directive 99/44/EC and the provisions of the Civil Code. The statutory rights that the consumer has under this legislation are not
affected by this declaration of guarantee terms.
This declaration does not affect the vendor's statutory warranty to the end user. The appliance is
guaranteed within the context of and in adherence with the following terms:
1. In accordance with provisions laid down in paragraphs 2 to 15, we will remedy free of charge any
defect that occurs within 24 months from the date the appliance is delivered to the first end user.
These guarantee terms do not apply in the event of use for professional or equivalent purposes.
2. Performing the guarantee means that the appliance is returned to the condition it was in before
the defect occurred. Defective parts are replaced or repaired. Parts replaced free of charge become
our property.
3. So as to avoid more severe damage, the defect must be brought to our attention immediately.
4. Applying the guarantee is subject to the consumer providing proof of purchase showing the pur-
chase and/or delivery date.
5. The guarantee will not apply if damage caused to delicate parts, such as glass (vitreous ceramic),
synthetic materials and rubber, is the result of inappropriate use.
6. The guarantee cannot be called on for minor faults that do not affect the value or the overall reliability of the appliance.
7. The statutory warranty does not apply when defects are caused by:
• a chemical or electrochemical reaction caused by water,
• abnormal environmental conditions in general,
• unsuitable operating conditions,
• contact with harsh substances.
8. The guarantee does not apply to defects due to transport which have occurred outside of our responsibility. Nor will the guarantee cover those caused by inadequate installation or assembly, lack
of maintenance or failure to respect the assembly instructions or directions for use.
9. Defects that result from repairs or measures carried out by people who are not qualified or expert
or defects that result from the addition of non-original accessories or spare parts are not covered
by the guarantee.
10. Appliances that are easy to transport may be delivered or sent to the consumer services department. Home repairs are only anticipated for bulky appliances or built-in appliances.
11 . If the appliances are built-in, built-under, fixed or suspended in such a way that removing and re-
placing them in the place where they are fitted takes more than half an hour, the costs that result
therefrom will be charged for. Connected damage caused by these removal and replacement operations will be the responsibility of the user.
12. If, during the guarantee period, repairing the same defect repeatedly is not conclusive, or if the repair costs are considered disproportionate, in agreement with the consumer, the defective appliance may be replaced with another appliance of the same value.
In this event, we reserve the right to ask for a financial contribution calculated according to the
length of time it has been used.
13. A repair under guarantee does not mean that the normal guarantee period will be extended nor
that a new guarantee period begins.
14. We give a twelve month guarantee for repairs, limited to the same defect.
15. Except in the event where liability is legally imposed, this declaration of guarantee terms excludes
any compensation for damage outside the appliance for which the consumer wishes to assert his
rights. In the event of legally admitted liability, compensation will not exceed the purchase price
paid for the appliance.
33
These guarantee terms are only valid for appliances purchased and used in Belgium. For exported
appliances, the user must first make sure that they satisfy the technical conditions (e.g.: voltage,
frequency, installation instructions, type of gas, etc.) for the country concerned and that they can
withstand the local climatic and environmental conditions. For appliances purchased abroad, the
user must first ensure that they meet the qualifications required in Belgium. Non-essential or requested adjustments are not covered by the guarantee and are not possible in all cases.
Our consumer services department is always at your disposal, even after the guarantee period has
expired.
Address for our consumer services department:
ELECTROLUX HOME PRODUCTS BELGIUM
Bergensesteenweg, 719 - 1502 LEMBEEK
Tel.: 02.363.04.44
Customer Service Centres
Belgium
Tel.: Fax.:
Electrolux Home Products Belgium
ELECTROLUX SERVICE
Bergensesteenweg 719
1502 Lembeek
E-mail:
consumer.services@electrolux.be
Consumer services 02/363.04.44 02/363.04.00
02/363.04.60
34
Service
In the event of technical faults, please first check whether you can
remedy the problem yourself with the help of the operating instructions (section “What to do if…”).
If you were not able to remedy the problem yourself, please contact the
Customer Care Department or one of our service partners.
In order to be able to assist you
quickly, we require the following
information:
– Model description
– Product number (PNC)
– Serial number (S No.)
(for numbers see rating plate)
– Type of fault
– Any error messages displayed by
the appliance
So that you have the necessary reference numbers from your appliance
at hand, we recommend that you write them in here:
Model description: .....................................
PNC: .....................................
S No: .....................................
35
From the Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor
use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,
vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more
than 150 countries around the world.
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg-electrolux.de
© Copyright by AEG
105 176 991-01-080905-01
Subject to change without notice
Loading...
