AEG LAV1571TURBOS User Manual

ÖKO-LAVAMAT 1571 TURBO
SENSORTRONIC

The environmentally friendly washer-dryer
Instruction booklet

ADVANCED ENGINEERING FROM GERMANY

1500

900

QUICK

START
PAUSE

PREWASH

WASH

RINSE

RINSE HOLD

PUMP OUT

SPIN

DRY

ON
OFF

STAIN

700

DELAY
START

RINSE
HOLD

SPEED

END

DRYING
TIME

95

E

60

50

40

30

60

50

40

30

40

30

40

30

WOOLLENS

DELICATES

COLD

SOAK

GENTLE RINSES

SOFTENERS

PUMP OUT

SPIN

SHORT SPIN

RESET

COTTON

EASY-CARES

DRYING

DRYING

IRON
DRY

CUPBOARD
DRY

1200

EXTRA
RINSE

SPIN

PREWASH

Contents

Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Tips for environmental protection

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Main features of your washer-dryer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Programme selector dial. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

ON/OFF button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Mains-on light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

START/PAUSE button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

DELAYSTART button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

ELECTRONIC DRYING buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

DRYING TIME button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Programme Option buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

STAIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

QUICK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

PREWASH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

EXTRA RINSE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

RINSE HOLD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

SPIN SPEED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Programme progress display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Cancelling a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Altering a programme which is running . . . . . . . . . . . . . . . . . . . . . . . . . 17

Opening the door after the programme has started . . . . . . . . . . . . . . . . 17

Detergent dispenser drawer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Before the first wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Preparing the wash cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Sorting out and preparing the laundry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Weight of laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Types of fabric and care labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Detergents and additives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Which detergent?..... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

WHITES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

NON BIOLOGICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

COLOUREDS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

DELICATE ITEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

LAUNDRY BLEACH. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

STAIN REMOVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3

Dear customer,

Please read these operating instructions carefully and pay particular
attention to the safety notes indicated in the first pages. We recom­mend that you keep this instruction booklet for future reference and
pass it on to any future owners.

The warning triangle and/or the key words (Warning!, Caution!) empha­size information that is particularly important for your safety or correct
functioning of the appliance.

This symbol guides you, step by step, in the operation of the appliance.
The information marked with this symbol provides additional instruc-

tions and practical tips on the use of the appliance.
Tips and information about economical and ecological use of the

machine are marked with the clover symbol.
If you require assistance or advice on your appliance, please contact our

customer care department by letter or telephone:

Customer Care Department
AEG Domestic Appliances Limited
P.O. Box 47
Newbury
Berkshire RG14 5XL
Tel: [phone]
Fax: [phone]

Printed on recycled paper.

People who think ecologically, act accordingly....

2

Something not working?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Unsatisfactory washing results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Service

& Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Guarantee Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46-47

Instructions for installation and electrical connection. . . . . . . . . . . . . . 48

Safety instructions for the installer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Dimensions of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Front view and side view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Levelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Water inlet (cold water connection only). . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Water drainage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

In the interest of the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Permanent connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

5

Contents

And in which form?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

TRADITIONAL POWDERS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

TRADITIONAL LIQUIDS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

COMPACT POWDERS AND LIQUIDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

FABRIC CONDITIONERS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Preparing the drying cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Garments not suitable for drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Drying symbols on garment labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Duration of the drying cycle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Modification of the drying time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Fibre residue. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Additional drying. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Automatic washing and drying (NON-STOP programme). . . . . . . . . . . . . . . 26

How to wash

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Load the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Add detergent and additive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Switching the machine on. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Selection of the desired wash programme . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Selection of the spin speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Selection of the STAIN, PREWASH or QUICK WASH option . . . . . . . . . . . . . 28

Selection of the EXTRA RINSE and/or RINSE HOLD option. . . . . . . . . . . . . . 28

Selection of the DELAY START option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Starting the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

At the end of the programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

How to dry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Drying only. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Automatic washing and drying (NON-STOP programme) . . . . . . . . . . . . . . . 31

Programme charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-33

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Timed drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

After each wash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Periodical cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Detergent dispenser drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Drain filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Water inlet filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Emergency emptying out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Frost precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

4

Contents

Child safety

• This appliance is designed to be operated by adults. Children should not
be allowed to tamper with the controls or play with the appliance.

• Pets and children have been known to climb into washing machines.
Please check the drum before use.

• Keep all packaging well away from children.

• Keep all detergents in a safe place out of children’s reach.

• Make sure that children or pets do not climb into the drum.

• When disposing of the appliance, cut off the mains cable, and destroy
the plug. Disable the door catch to prevent young children being
trapped inside.

During use

• Always unplug the appliance and turn off the water tap after use.

• This appliance is designed for domestic use only. If the machine is
used for any other purposes or is not used correctly, the manufactur­er accepts no responsibility for any possible damage that might occur .

• For safety reasons, the appliance must not be modified.

• Use only detergents suitable for washing machines and follow the
manufacturer’s instructions.

• Garments which have been in contact with flammable solvents
should not be machine washed.

• Dyes and bleaching agents may only be used if specifically permitted
by the manufacturer of these products. We cannot be held liable for
any damage.

7

Safety instructions

Your safety is of paramount importance, please ensure you read this
instruction book before installing or using this appliance.

General safety

• Repairs to the machine must be carried out only by qualified person­nel. Repairs carried out by inexperienced persons could cause injury or
serious malfunctioning. Contact your local AEGService Force Centre.

• Never start the machine if the mains cable is damaged or the control
panel or worktop are damaged allowing inner components to be
accessible.

• Unplug the appliance before carrying out any cleaning or mainte­nance operations.

• Never pull the mains cable to remove the plug from the socket;
always take hold of the plug itself.

• During high temperature wash programmes and during the drying
cycle, the door glass may get hot.

• Let the water cool down before carrying out emergency emptying or
before opening the door in an emergency.

Installation

• Follow the installation instructions carefully.

• Carry out a first wash without laundry (COTTONS 60, with half the
amount of detergent) in order to remove any manufacturing residue
from the tub and the drum.

6

Safety instructions

Tips for environmental protection

To save water, energy and to help protect the environment, we recommend
that you follow these tips:

• Normally soiled laundry may be washed without prewashing in order
to save detergent, water and time (the environment is pr otected too!).

• Use the energy saving programme when washing normally soiled garments.

• The machine works more economically if it is fully loaded (for both
washing and drying cycles).

• When small loads are washed, use only half to two thirds of the rec­ommended amount of detergent.

• The machine will consume less energy if the laundry is adequately
spun before being dried.

• With adequate pre-treatment, stains and limited soiling can be
removed; the laundry can then be washed at a lower temperature.

9

Disposal

Packaging materials

The materials marked with the symbol are recyclable.

>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene

This means that they can be recycled by disposing of them properly in
appropriate collection containers.

Machine

Use authorised disposal sites for your old appliance. Help to keep your
country tidy!

8

Description of the appliance

Front view

11

Main features of your washer-dryer

• Programme and temperature setting using the programme selector.

• Stain programme for effectively treating stained washing.

• Energy saving programme for normally soiled cotton items.

• Speed for the final spin can be reduced to 1200, 900 or 700 rpm.

• RINSE HOLD: the laundry is left immersed in the final rinse water to
prevent creasing.

• Delay timer: programme start can be delayed by 1 to 19 hours (e.g.
to times with a more economical power rate).

• Programme progress display showing the programme steps selected
and the programme phase which is running.

• Because of its gentle washing action, the special wool cycle washes
your garments with extreme care.

• The drying programmes will enable you to have dry and soft laun­dry in a short time.

• 3-compartment drawer for detergent and fabric softener.

Important

Your machine is fitted with a balance contr ol device, which ensures the
machine is stable during the spin.

If the wash load appears not to have been spun sufficiently at the end
of the wash cycle, because it is not evenly distributed in the drum, the
balance control device may have operated. It will therefore be neces­sary to redistribute the wash load manually and select a spin pro­gramme. For more detailed information see the section headed “Some­thing Not Working”.

10

Detergent drawer

Control panel

Door

Drain filter

Adjustable feet

1500

900

QUICK

START
PAUSE

PREWASH

WASH

RINSE

RINSE HOLD

PUMP OUT

SPIN

DRY

ON

OFF

STAIN

700

DELAY
START

RINSE
HOLD

SPEED

END

DRYING

TIME

95

E

60

50

40

30

60

50

40

30

40

30

40

30

WOOLLENS

DELICATES

COLD

SOAK

GENTLE RINSES

SOFTENERS

PUMP OUT

SPIN

SHORT SPIN

RESET

COTTON

EASY-CARES

DRYING

DRYING

IRON
DRY

CUPBOARD
DRY

1200

EXTRA
RINSE

SPIN

PREWASH

1312

The selector dial can be turned either clockwise or anticlockwise.
Position E corresponds to the ENERGY SAVING programme at approx.

67°C for normally soiled laundry, extended washing time (cannot be
combined with STAIN and QUICK).

ON/OFF button

Press this button to switch the machine on. Press it again to switch the
machine off.

Mains-on light

This light comes on when the ON/OFF button is pressed, and goes out
when it is pressed again.

START/PAUSE button

This button has three functions:
a) Start
After having selected the required pr ogramme, pr ess this button to start

the machine; the corresponding pilot light stops flashing.
b) Pause
To interrupt a programme which is running, press the START/PAUSE

button: the corresponding pilot light and the light of the programme
phase which is running will start to flash.

To restart the programme from the point at which it was interrupted,
press the START/PAUSE button again.

c) Empty out water
At the end of a programme which ends with water in the drum (RINSE

HOLD option), or after the “soak” programme, press the START/PAUSE
button to empty out the water: after the soak programme, the machine
will empty only; after RINSE HOLD programmes, the machine will empty
and spin.

DELAY START button

The wash programme can be delayed from 1 hour up to a maximum of
19 hours.

The button must be pressed after selecting the programme and
before pressing the START/PAUSE button.

The figures indicating the delay appear for about 2 seconds in the dis­play next to the button. The duration of the selected wash programme
is then displayed. One minute after depressing the START/PAUSE but­ton, the machine starts its hourly countdown.

Description of the appliance

Control panel

A = Mains-on light
B = ON/OFF button
C = Delay start button
D = Display
E = Drying time button
F = Electronic drying buttons
G = Option buttons
H = START/PAUSE button
J = Spin speed button
K = Programme progress display
L = Programme selector dial

Programme selector dial

The programme selector determines
the type of washing cycle (e.g. water
level, drum movement, number of
rinses, spin speed), the washing tem­perature and enables the required dry­ing programme to be selected accord­ing to the type of laundry.

The selector is divided into 5 sections:

• Cotton

• Easy-cares

• Delicates

• Woollens (hand washing)

• Special programmes

1500

900

QUICK

START

PAUSE

PREWASH

WASH

RINSE

RINSE HOLD

PUMP OUT

SPIN

DRY

ON
OFF

STAIN

700

DELAY
START

RINSE
HOLD

SPEED

END

DRYING

TIME

95

E

60

50

40

30

60

50

40

30

40

30

40

30

WOOLLENS

DELICATES

COLD

SOAK

GENTLE RINSES

SOFTENERS

PUMP OUT

SPIN

SHORT SPIN

RESET

COTTON

EASY-CARES

DRYING

DRYING

IRON

DRY

CUPBOARD
DRY

1200

EXTRA
RINSE

SPIN

PREWASH

A B F J K LH

EC D

G

Description of the appliance

95

E

60

50

40

30

60

50

40

30

40

30

40

30

COLD

COTTON

EASY-CARES

DRYING

DRYING

WOOLLENS

DELICATES

SOAK

SOFTENERS

PUMP OUT

SPIN

SHORT SPIN

RESET

GENTLE RINSES

QUICK

By pressing this button the washing time is reduced. For use when
washing lightly soiled laundry.

This option is not available with the wool programme.

PREWASH

The machine performs a prewash cycle at 40°C max. The prewash cycle
ends with a short spin in programmes for Cotton and Easy-cares, and
with emptying of the water only for Delicates.

This option is not available with the wool programme.
For use when washing heavily soiled laundry.
Important: the STAIN, PREWASH and QUICK WASH options cannot be

selected together: one automatically disables the others.

EXTRA RINSE

Can be used with all programmes except the wool programme. The
machine performs 4 rinses instead of 3.

This option is recommended for people who are allergic to detergents
and in areas where the water is very soft.

RINSE HOLD

When this button is pressed, the last rinse water is not emptied out, to
prevent the fabrics from creasing. When the programme has finished,
the corresponding pilot light on the programme progress display flashes
to indicate that the water must be emptied out.

To empty out water:

• press the START/PAUSE button: after emptying, the machine performs
the spin cycle required for the type of wash selected;

• select the PUMP OUT programme to empty out the water without
spinning.

Warning! The programme selector dial must be turned first to RESET
and then to programme “PUMP OUT”.

This option can also be selected for the wool programme: the last
rinse water is emptied out but the machine does not spin.

If the water is not emptied out, the machine automatically empties
itself after 18 hours.

The RINSE HOLD option cannot be selected for the automatic WASHING

&

DRYING programme.

15

During the last hour, the remaining time is displayed every 5 minutes.
The delayed start function cannot be used with the SPIN or PUMP OUT

programmes.
To alter or cancel the preset delay, press the START/PAUSE button, then

press the DELAY START button until the required time is displayed or, if
you wish to cancel the delay, until the symbol 0h is displayed.

Then press the START/PAUSE button again.
When the delay is cancelled, the display shows the duration of the wash

programme previously selected.

ELECTRONIC DRYING buttons

By means of these buttons you can choose the required degree of dry­ing for cottons and synthetics:

- CUPBOARD DRY

- IRON DRY.
The drying time is automatically adjusted by the machine: the laundry

will be dried to the selected degree of dryness.

DRYING TIME button

If you wish to carry out a timed programme instead of an electr onic pr o­gramme push the button until the drying time you want appears in the
display according to the fabrics (cotton or synthetics) you have to dry.

For COTTON you can select a drying time from 10 minutes to 2 hours
and 10 minutes (2.10).

For EASY-CARES you can select a time from 10 minutes to 1 hour and
40 minutes (1.40).

Programme Option buttons

Depending on the programme, different functions can be combined.
These must be selected after choosing the desired programme and
before depressing the START/PAUSE button.

When these buttons are pressed, the corresponding pilot lights come on.
When they are pressed again, the pilot lights go out.

If an incorrect option is selected, the pilot lights flash for about 3 seconds
and the message Err is displayed.

STAIN

To treat heavily soiled washing or stained washing with stain remover
(extended main wash with time optimised stain action phase, not selec­table for wool or programmes with temperatures lower than 40°C).

14

Description of the applianceDescription of the appliance

Cancelling a programme

To cancel a programme which is running, turn the programme selector
dial to the RESET position: three flashing dashes will be displayed.

Warning! After a programme which ends with water in the drum
(RINSE HOLD option), turn the selector dial first to RESET and then to
the PUMP OUT programme.

Altering a programme which is running

To alter a programme, first set the machine to PAUSE by pressing the
START/PAUSE button.

Before the machine starts the heating phase, i.e. within the first 15
minutes for cotton programmes, 10 minutes for easy-cares and delicate
programmes and 5 minutes for the wool programme, the selected wash
cycle can be modified.

Warning!If the programme selector dial is turned first to RESET and then
to the new programme, the pr ogramme which is running is cancelled, the
water is emptied out and the machine re-starts from water filling. To
simply modify the programme which is running, turn the programme
selector dial to the desired position (avoiding the RESETposition): when the
START/PAUSE button is pressed again, the machine restarts with the newly
selected programme from the point at which it was interrupted.

Opening the door after the programme has started

The door can only be opened before the machine starts the heating
phase (within the first 15, 10 or 5 minutes, depending on the pro­gramme selected - see paragraph above) and during the rinse phase.

Set the machine to PAUSE (by pressing the START/PAUSE button).
If the door does not open, this means that the machine is already heat-

ing, or that the water level is above the bottom edge of the door.
This prevents water from spilling out when the door is opened.

17

SPIN SPEED

Press this button to reduce the maximum speed of the final speed proposed
by the machine for the selected programme.
The maximum spin speed for cotton is 1500 rpm, for easy-cares and
wool 900 rpm and for delicates 700 rpm.

Display

The display shows the following information:

• if the programme selector dial is on the RESET position, three flashing
dashes appear immediately after pressing the ON/OFF button to indicate
that the machine is ready to receive instructions for the required wash
programme;

• duration of the selected wash programme, calculated automatically
on the basis of the maximum recommended load for each type of fab­ric.

• Selected drying time (max. 2 hours and 10 minutes for cotton, 1 hour
and 40 minutes for easy-cares).

After the programme has started, the time remaining is updated every
10 minutes, and every 5 minutes during the last 20 minutes.

• When the programme has finished, three flashing zeros are dis-
played;

• delayed start, programmed using the special button (C).
The selected delay (19 hours max.) is indicated in the display. The

countdown is updated every hour , and every 5 minutes during the last
hour.

• Heating phase. A dot to the right of the figures in the display indi­cates that the machine is heating the water.

• Incorrect option selection. If an option which is not compatible with
the set wash programme is selected, the message Err is displayed.

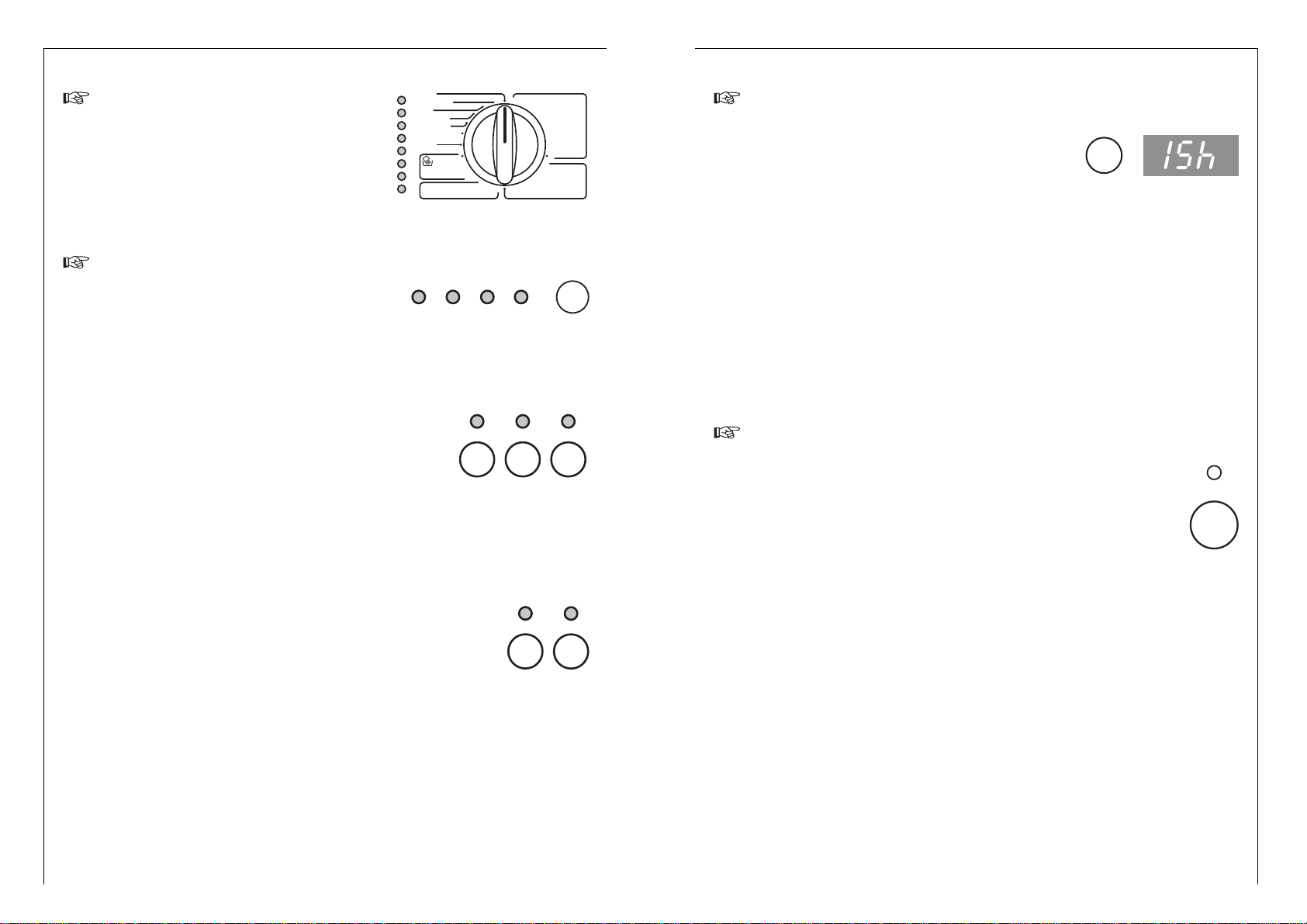

Programme progress display

By selecting the wash programme, the pilot lights cor­responding to the various phases making up the pro­gramme come on.

After the machine has started, only the running phase
pilot light stays on. When the programme has finished,
the END pilot light comes on.

16

Description of the applianceDescription of the appliance

PREWASH

WASH

RINSE

RINSE HOLD

SPIN

DRY

END

PUMP OUT

Preparing the wash cycle

Sorting out and preparing the laundry

• Sort out the laundry according to type of fabrics and care labels (see
“Types of fabric and care labels”).

• Empty pockets.

• Remove any metal parts (safety pins, clips, etc.).

• To prevent the laundry from getting damaged and forming bundles,
it is advisable to close zips, button up pillowcases and quilt covers and
tie up loose straps such as those of aprons.

• Turn double faced items inside out (sleeping bags, anoraks, etc.)

• Turn coloured knitted fabrics, woollens and fabrics with trim inside
out.

• Wash small and delicate items (baby socks, tights) inside a laundry net
or in a pillow case closed with a zip, or in larger socks.

• Treat curtains with special care. Remove all metal or plastic hooks or
put them in a net or a bag. We decline any responsibility in case of
damage.

• Whites and coloureds must be washed separately: white items can
loose their whiteness.

• New coloured fabrics often have excess dyes; it is advisable to wash
them separately for the first time.

• Wash small and large items together; this improves the washing r esult
and the laundry is better distributed during spinning.

• Shake out garments before putting them into the machine.

• Insert each garment separately.

19

Detergent dispenser drawer

Compartment for prewash or soak detergent and stain remover . The prewash
or soak detergent is added at the beginning of the wash programme. The
stain remover is added during the STAIN-Action phase in the main wash.

Compartment for powder or liquid detergent used for main wash.
It is emptied at the beginning of the wash cycle.

Compartment for liquid additives (fabric softener, starch).
It is emptied at the last rinse.

The quantity of additives must not exceed the “MAX” mark in the
drawer.

Before the first wash

Before your first wash, we recommend that you run a cotton cycle at
60°C, without any laundry in the machine, to remove any manufac­turing residue from the drum and tub.

Pour 1/2 a measure of deter gent into the dispenser dr awer and start the
machine.

Programme chart

18

Description of the appliance

Delicates

Microfibres, easy-cares or curtains marked with these symbols require a
very gentle treatment.
The DELICATES programme is suitable for this type of fabric.

Woollens and particularly delicate items

Fabrics such as wool, wool mix or silk marked with this symbol are par­ticularly sensitive to machine washing.
The WOOLLENS programme is suitable for this type of fabric.

Fabrics marked with the symbol (wool) can be machine washed only
if the label indicates “does not felt” or “machine washable”.

If the label has the symbol (do not wash), the garments must not be
machine washed!

40

30

40

21

Weight of laundry

Types of fabric and care labels

The labels on garments help you to select the most suitable wash pro­gramme. The laundry should be sorted out according to the type of fab­ric and the instructions indicated on care labels.

Temperatures indicated on labels are always maximum temperatures.

Cotton

Linen and cottons marked with this symbol can be washed at high tem­peratures.

Cotton

Linen and cottons marked with this symbol are colourfast and can be
washed at 60°C.

Cotton

Garments marked with these symbols have delicate colours, therefore
the washing temperature must not exceed these values.

Synthetics (Easy-cares)

Mixed and synthetic fabrics marked with these symbols require a gentle
wash programme and they must therefore be washed using the specific
programme.

60

40

30

40

60

95

20

Preparing the wash cycle

Sort of laundry

Preparing the wash cycle

Approximate

dry weights

1200 gBathrobes
300-600 gWork shirts
700 gQuilt covers
500 gSheets
100 gBlouses
200 gHand towels
100 gTea towels
200 gShirts
200 gPillowcases
200-250 gNight-gowns/Pyjamas
200-300 gTablecloths
250 gUnderwear

And in which form?

Not only are there different types of detergent, but they are also available
in different forms. Whether you chose a powder or liquid in traditional or
compact form is to own personal choice.

TRADITIONAL POWDERS

Pour the powder directly into the dispenser drawer. Do not sprinkle
powder onto clothes in the machine drum.

TRADITIONAL LIQUIDS

Liquid can be placed in the main wash compartment of the detergent
drawer marked with the symbol , start the machine immediately
upon placing the detergent in the dispenser drawer.
Alternatively the detergent is measured into the specially designed dosing
device* which should be placed on top of the laundry, and at the back of
the machine drum.

COMPACT POWDERS AND LIQUIDS

Compact detergents (or concentrates as they are also known) are available
in liquid or powder form, and generally require a smaller dosage. Follow the
manufacturer’s instructions to ensur e the most economical usage. P our the
detergent directly into the dispenser drawer, or alternatively measure the
detergent into the specially designed dosing device* which should be
placed on top of the laundry, and at the back of the machine drum.

* If you use a dosing device in a washer dryer, please ensure the dosing

device/ball is removed before carrying out a drying programme.

FABRIC CONDITIONERS

These are ideal for improving “softness”, and also reduce static cling on
easy-cares and make ironing easier. They are available in two types:

• For example Lenor liquid fabric softener, for use in the
washing machine/washer dryer. The liquid fabric soft­ener should be poured into the compartment marked
with the symbol . Follow the manufacturer’s dosage
instructions and never exceed the MAX level.

• Bounce conditioning sheets for use in a tumble dryer.
We recommend the conditioning sheets are pinned
(using a safety pin) to an article of laundry and placed
in the tumble dryer.

2322

Preparing the wash cycle

Detergents and additives

Which detergent?....

To ensure you obtain the best wash results from your appliance, it is
important to use the right detergent in your everyday wash, and only
detergents recommended for use in automatic machines.
To maintain the appearance of your clothes and household textiles and
to make them last longer you should use different types of detergent
for different washes, whether for whites, colours or delicates.

WHITES

We recommend the Ariel product range which is
biological and designed to provide excellent clean­ing and stain removal even at low temperatures.

NON BIOLOGICAL

If you prefer to use a non biological detergent, which
does not contain enzymes we recommend Fairy . Fairy
provides good cleaning and stain removal.

COLOUREDS

For coloured items you should use a detergent which is
designed to clean while maintaining the original colour .
Ariel Color does not contain bleach and therefore helps
to preserve colours.

DELICATE ITEMS

When washing delicates such as woollens, you
should use a product which is specially designed to
care for fine fabrics. Dreft Automatic is suitable for
woollens and other delicates.

LAUNDRY BLEACH

For additional stain removal you may wish to use a
product such as Ace Gentle Bleach which is used in
addition to your chosen detergent. Ace is suitable for all
washable fabrics including silks, woollens and coloureds.

STAIN REMOVER

For heavily soiled garments to be washed with STAIN­Action, you should use stain removers such as VANISH
In-Wash, Ecover Stain Salt and GloWhite Booster.

Preparing the wash cycle

IN-WASH

FOR WHITES AND COLOURS

JUST ADD TO DETERGENT

STAIN REMOVER

TOUGHER ON

STAINS

NEW

Drying symbols on garment labels

Always look at the garment label to check whether garments can be
machine dried.

The following symbols refer to drying:
Machine drying is usually possible

Normal drying (normal temperature)
Gentle drying (reduced temperature)
Do not machine dry

Garments marked with the symbol should not be machine dried.

Duration of the drying cycle

The drying time can vary according to

• the final spin speed;

• the required degree of drying (extra dry, only for cottons, cupboard
dry or iron dry);

• the type of laundry;

• the size of load.

The usual drying times are indicated in the programme chart. As you
become more familiar with the appliance, you will discover the drying
times that best suit your needs according to the various type of fabric.
It is a good idea to make a note of these times.

Modification of the drying time or degree of drying

If you wish to modify the drying time or the degree of drying when a dry­ing programme is running, first depress START/PAUSE button to set the
machine to PAUSE. After modifying the time or the degree, depress
START/PAUSE again to continue the programme.

Fibre residue

After drying fluffy fabrics, such as new towels, it is advisable to perform
a gentle rinse to be sure that any residue that may remain in the tub is
completely removed and does not stick to garments dried afterwards.

After each drying cycle the filter should be checked and cleaned.

25

Preparing the drying cycle

As a dryer, the machine works on the condensation principle.
Therefore, the water tap must be open and the drain hose must

drain water into a sink or into the drain pipe, even during the dry­ing cycle.

Load

Warning:
Loads of washed laundry exceeding these values must be divided

before being dried, otherwise poor results will be obtained.

Garments not suitable for drying

• Particularly delicate items such as synthetic curtains, woollen and silk,
garments with metal inserts, nylon stockings, bulky garments such as
anoraks, bedcovers, quilts, sleeping bags and duvets must not be
machine dried.

• Garments padded with foam-rubber or materials similar to foam­rubber must not be machine dried; they represent a fire hazard.

• Also, fabrics containing residues of setting lotions or hair sprays, nail
solvents or similar solutions must not be machine dried in order to
avoid the formation of harmful vapours.

24

Preparing the drying cycle

Sort of laundry

max. load

(dry weight)

2.5 kgLinen and cottons

1.75 kgEasy-cares

27

Additional drying

Should the laundry still be too wet at the end of the programme, set
another short drying cycle.

Warning! To prevent the formation of creases or shrinking of fab­rics, avoid excessive drying.

Automatic washing and drying (NON-STOP programme)

The NON-STOP programme can be used with

• cottons, linen

• easy-cares

It cannot be used for delicate fabrics and woollens.

Warning: the maximum load sizes for NON-STOP operation - washing
plus drying - are as follows:

- cottons and linen max 2.5 kg

- easy-cares max 1.75 kg

The drying time or degree of dryness has to be selected after choosing
the wash programme.

26

How to wash

Load the laundry

Open the door.
Place the laundry in the drum, one item at a time. Distribute laundry as

evenly as possible. Close the door.

Add detergent and additive

Pull the drawer
out till it stops.

Pour the main
wash detergent
into compart­ment .

If you wish to
perform a pre­wash, or a STAIN­Action programme, pour deter gent or stain remover into compartment .

Important!
Do not use normal detergent for the STAIN-Action programme,
always use a STAIN remover such as VANISH.

Pour the fabric softener into compartment without exceeding the
“MAX” mark.

Close the drawer, pushing it fully in.

Switching the machine on

To switch the
machine on, press
the ON/OFF but­ton: if the pro­gramme selector
dial is on the
RESET position,
three flashing
dashes will be
displayed. If the
programme selec­tor dial is positioned on a wash programme, the duration of that pro­gramme will be displayed.

ON

OFF

Preparing the drying cycle

Selection of the DELAY START option

To delay starting of a programme, press the
DELAY START button before starting the
machine. The figures corresponding to the
selected delay will be displayed for about 2
seconds, after which the duration of the
selected programme will appear on the display.

When the START/PAUSE button is pressed, the selected delay will
again appear on the display and the machine starts its countdown.

Starting the programme

To start the selected programme, press the START/PAUSE
button; the corresponding light stops flashing.

The pilot light corresponding to the wash phase which is
running comes on.

After about 30 seconds the programme starts.

2928

How to wash

STAR T

PAUSE

Selection of the desired wash programme

Turn the programme selector dial
to the desired position: the lights
corresponding to the different
phases making up the selected
programme light on.

Selection of the spin speed

To select the desired spin speed, press
the SPIN SPEED button: the correspond­ing light comes on.

Selection of the STAIN, PREW ASH or QUICK
WASH option

, depending on the degree of soil of the
laundry and on the type of fabric.
The corresponding light comes on.

Selection of the EXTRA RINSE and/or RINSEHOLD
option

The corresponding light(s) come on.

How to wash

PREWASH

WASH

RINSE

RINSE HOLD

SPIN

DRY

END

PUMP OUT

95

E

60

50

40

30

60

50

40

30

40

30

40

30

COLD

COTTON

EASY-CARES

DRYING

DRYING

WOOLLENS

DELICATES

SOAK

SOFTENERS

PUMP OUT

SPIN

SHORT SPIN

RESET

GENTLE RINSES

700 900 1500

SPIN

SPEED

1200

QUICKSTAIN PREWASH

EXTRA

RINSE

RINSE
HOLD

DELAY
START

How to dry

Drying only

Warning! Do not exceed the maximum laundry loads:

- 2.5 kg for linen and cottons

- 1.75 kg for easy-cares.
The water tap must be open and the drain hose must be positioned in

the sink or connected to the drain pipe.
Depress the ON/OFF button to switch the machine on.
Select the drying programme (for cotton or easy-cares).
Depress the DRYING TIME button until the

time you want appears in the display (for
timed drying).

If you wish to carry out the electronic drying, depress the
button corresponding to the degree of dryness required.

Press the START/PAUSE button to start the programme.
At the end of the cycle, turn the programme selector dial to RESET and

press the ON/OFF button again to switch the appliance off.
Remove the laundry.

Automatic washing and drying

(NON-STOP programme)

Warning! For NON-STOP programmes, it is also essential not to exceed

the maximum load sizes of 2.5 kg for cotton and 1.75 kg for easy-cares.
Load the laundry.
Add detergent and additive.
Switch the machine on by depressing the ON/OFF button.
Select the wash programme.
Select eventually the required options by means of the relevant buttons.

If possible, do not select a spin speed lower than that proposed by the
appliance to avoid a too long drying time so saving energy.

Select the drying time or degree of drying.
Start the programme by depressing the START/PAUSE button.
At the end of the programme, turn the selector dial to RESET and press

the ON/OFF button again to switch the machine off.
Remove the laundry.

31

DRYING

TIME

At the end of the programme

The machine stops automatically and three flashing zeros are displayed.
The END and spin speed pilot lights, as well as the pilot light(s) corre-

sponding to the selected option(s), stay on.
If the RINSE HOLD option has been selected, the corresponding pilot

light on the programme progress display flashes to indicate that the
water must be emptied out before opening the door.

The pilot light of the START button flashes and tree flashing zeros are
displayed.

Release of the lock is indicated by an audible signal.
Switch the machine off by pressing the ON/OFF button.
Turn the programme selector dial to RESET.
Remove the laundry from the drum.

Check that the drum is empty so as to avoid a subsequent wash being
damaged by any forgotten items.

Close the water tap.
Leave the door open to prevent the formation of mildew and unpleas-

ant smells.

30

How to wash

CUPBOARD

DRY

IRON

DRY

Programme chart

Special programmes

Programme chart

Wash programmes

ECONOMY

Select the economy programme “E” instead of the 95°C programme when wash­ing normally soiled whites; the wash is carried out at about 67°C, with conse­quent energy saving. The washing phase will be slightly longer.

In compliance with EC directive 92/75, the consumption figures indicated on the
energy label refer to the 60°C wash programme for cotton.

* The programme duration is intended as a guide only. The actual wash time will
vary depending on the temperature and pressure of incoming water and quan­tity of laundry.

3332

Programme

Soak

Type of laun-

dry

Heavily soiled
fabrics, except
wool.

Programme phases

Soak at 40°C.
Stop with water in drum.
To empty only: press the
START/PAUSE button.

To empty and spin:

select the desired spin
speed and press the
START/PAUSE button.
The machine automati­cally empties itself after
18 hours.

Additional

functions

Max.

load

5 kg

Gentle

rinses

This pro­gramme can
be used for
rinsing hand
washed
garments.

3 rinses with liquid
additive.
Short spin.
(700 rpm max)

EXTRA RINSE
RINSE HOLD
SPIN SPEED

5 kg

Softeners

Hand washed
garments to
be starched or
softened.

1 rinse with liquid
additive.
Spin.

RINSE HOLD
SPIN SPEED

5 kg

Pump out

For emptying
out the last
rinse water in
programmes
with the Rinse
Hold option.

The water is emptied
out.

/

Spin

Separate spin
for all fabrics.

Spin. SPIN SPEED 5 kg

Short spin

Separate spin
for synthetic
and delicate
fabrics.

Short spin.
(700 rpm max)

SPIN SPEED 2 kg

Duration

min.*

28

20

20

2.5

10

5

Reset

For cancelling the
wash programme
which is running.

Wash

programme

Whites

Temp.

95°-60°

Fabrics

Cotton and linen, for
example normally
soiled work garments,
sheets, household
linen, underwear, tow­els.

Additional

functions

STAIN
QUICK
PREWASH
EXTRA RINSE
RINSE HOLD
SPIN SPEED

Max.

load

5 kg

Whites

ECONOMY

E

67°

Cotton and linen, for
example normally to
lightly soiled sheets
and household linen.

PREWASH
EXTRA RINSE
RINSE HOLD
SPIN SPEED

5 kg

Coloured

cottons

60°-50°
40°-30°

Coloured cotton or
linen fabric, shirts,
underwear, towels.

STAIN
QUICK
PREWASH
EXTRA RINSE
RINSE HOLD
SPIN SPEED

5 kg

Easy-cares

60°-50°
40°-30°

Synthetic fabrics,
underwear, coloured
garments, non-shrink
shirts, blouses.

STAIN
QUICK
PREWASH
EXTRA RINSE
RINSE HOLD
SPIN SPEED

2 kg

Delicates 40°-30°

Delicate fabrics, for
example curtains.

STAIN
QUICK
PREWASH
EXTRA RINSE
RINSE HOLD
SPIN SPEED

2 kg

Woollens

40°-30

COLD

Wool, wool mix, silk.

RINSE HOLD
SPIN SPEED

1 kg

Duration

min.*

160

160

135

90

60

60

35

Cleaning and maintenance

After each wash

At the end of the wash programme, pull the dispenser drawer out a lit­tle to let it dry.

Leave the door ajar to allow air to circulate.

If the machine is not used for a prolonged period:

Close the water tap and unplug the appliance.

Periodical cleaning

Exterior

Clean the outside of the cabinet with soap and water only. Rinse with
clean water and dry.

Important: do not use methylated spirits, solvents or similar products
to clean the cabinet.

Detergent dispenser drawer

After a while,
detergents and
fabric softeners
leave deposits in
the drawer.

Clean the drawer,
from time to
time, by rinsing it
under a running
tap. To remove the drawer from the machine, press the button in the
rear left-hand corner.

To facilitate cleaning, the top part of the additive compartment can be
removed.

Detergent can also accumulate inside the
drawer recess: clean it with an old tooth­brush.

Refit the drawer after cleaning.

Programme chart

Timed Drying

(*) The CUPBOARD DRY drying programme for cotton is the reference pro­gramme for the Energy Label data, in compliance with standard EEC 92/75.

34

Degree of drying

Extra dry
Ideal for towelling
materials

Type of fabric

Cotton and
linen
(bathrobes,
bath towels,
etc.)

Max. load

2.5 kg

Spin speed

1200
1500

Drying time

mins

80-90
75-85

1 kg

1200
1500

50-60
45-55

Cupboard dry (*)
Suitable for items to
put away without
ironing

Iron dry
Suitable for ironing

Cotton and
linen (towels,
T-shirts,
bathrobes)

2.5 kg

1200
1500

70-80
65-75

1 kg

1200
1500

40-50
35-45

Easy-cares and
mixed fabrics
(jumpers,
blouses,
underwear,
household
linen)

1.75 kg 900 85-95

1 kg 900 55-65

Cotton and
linen (sheets,
tablecloths,
shirts, etc.)

2.5 kg

1200
1500

50-60
45-55

1 kg

1200
1500

30-40
25-35

Easy-cares and
mixed fabrics
(shirts, blouses,
household
linen)

1.75 kg 900 70-80

1 kg 900 40-50

Emergency emptying out

If the water is not discharged (pump is blocked, filter or drain hose are
clogged), proceed as follows to empty out the machine:

• pull out the plug from the power socket;

• close the water tap;

• if necessary, wait until the water has cooled;

• place a bowl on the floor;

• put the drain hose end into the bowl and let the water out.
Should it not be possible to have access to the drain hose because, for

example the appliance is built in the kitchen furniture, slightly loosen
the drain filter after placing a bowl on the floor to let the water come
out slowly.

At the end screw the filter again.

Frost precautions

If the machine is installed in a place where the temperature could drop
below 0°C, proceed as follows:

• Close the water tap and unscrew the water inlet hose from the tap.

• Place the end of the drain hose and the inlet hose in a bowl placed
on the floor.

• Select the “PUMP OUT” programme and run it until the machine
stops.

• Turn the programme selector dial to RESET.

• Press the ON/OFF button to switch the machine off.

• Remove the plug from the power socket.

• Screw the water inlet hose back on and put the drain hose back in its
place.

By doing this, any water remaining in the machine is removed, avoiding
the formation of ice and, consequently, damage to the appliance.

When you use the machine again, make sure that the ambient temper­ature is above 0°C.

37

Drain filter

The drain filter
collects threads
and small objects
inadvertently left
in the laundry.
Check regularly
that the filter is
clean.

Open the filter
door.

Place a container
under the filter
and unscrew it;
some water will
come out of the
filter.

Pull out the filter.
Clean the filter

under a running
tap, then refit it, screwing it fully in.

Water inlet filter

If you notice that the machine is taking
longer to fill, check that the filter in the
water inlet hose is not blocked.

Turn off the water tap.
Unscrew the hose from the tap and remove

the filter.
Clean it with a stiff brush.
Refit the filter and screw the hose back onto

the tap.

36

Cleaning and maintenanceCleaning and maintenance

Something not working?

If, during the spin cycle, the machine makes an unusual
whistling noise, different from the noise made by tradi­tional washing machines, this is due to a new type of
motor.

If water is not visible in the drum, this is due to
the modern technology of new washing
machines that use less water than traditional
machines.

Troubleshooting

If a problem arises, you can try to solve it yourself following the
instructions below.

If you call out an engineer when one of the following problems arises,
or to repair a fault due to incorrect use, the call-out will be charged
even if requested within the guarantee period.

During machine operation the following alarm codes may be displayed:

- E00: problem with the water supply

- E10: problem with water draining

- E20: door open
Once the problem has been eliminated, press the START/PAUSE button

to restart the programme. If after all checks, the problem persists, con­tact your local AEGService Force Centre.

3938

Something not working?

Problem

The machine does not
empty and/or does not spin

Possible cause

The drain hose is Check the whole length of
squashed or kinked (E10). the hose and remove the

kink.

The drain filter or the Clean the filter or check
drain hose are clogged (E10). the hose.

The RINSE HOLD option Empty out the water by
(stop with water in drum) pressing the START button
has been selected. or selecting the PUMP OUT

programme.

The laundry is not evenly Redistribute the laundry
distributed inside the drum. manually in the drum.

There is water on the floor

Too much detergent has Measure detergent
been used. according to the

manufacturer’s instructions.

An unsuitable detergent Use a suitable washing
has been used that machine detergent.
creates too much foam.

One of the connectors on Check that the hose is
the water inlet hose is firmly screwed on at both
leaking. ends.

The drain filter has not Fully screw the filter into
been properly screwed on place.
after cleaning.

Solution

The machine does not fill

The water tap is closed (E00). Open the water tap.
The water inlet hose is Check the whole length of the

squashed or kinked (E00). hose and remove the kink.
The small filter of the water Clean the filter.

inlet hose is clogged (E00).
The door is not properly Close the door.

closed (E20).

The machine fills then
empties immediately

The end of the drain hose Place the hose at the right
is too low. height (see Installation

section).

Problem

The machine does not work

Possible cause

The ON/OFF button Depress the button.
has not been depressed.

The main electrical fuse Replace the fuse.
has blown.

The door is not properly Close the door; the click
closed (E20). of the lock should be heard.

The plug is not connected. Insert the plug.
The START button has not Press the button.

been pressed.
The DELAY START Check the selected delay on

option has been selected. the display.

Solution

4140

Something not working?

Spinning starts late or the
machine does not spin

The unbalance detection If the laundry is not evenly
device that prevents distributed inside the drum
excessive vibration during at the beginning of the
spinning has cut in. spin cycle, the machine

detects this and tries to
redistribute it more evenly
by means of a few drum
rotations.
Only when the laundry is
more evenly distributed
will the spin cycle be
performed, at a lower speed,
if the laundry is not evenly
distributed.
If, after about 15 minutes,
the laundry is still tangled,
the machine will not spin.
Therefore, if the laundry is
still wet at the end of the
cycle, it is advisable to
redistribute it manually
inside the drum and to
select the spin programme
again.

Problem Possible cause Solution

The machine will not dry or
the laundry is not dry
enough

The water tap is not open Open the water tap.
(E00).

The drain filter is clogged. Clean the filter.
The drying time or degree Select the required func-

of drying has not been tion.
selected.

An appropriate drying time Select the appropriate
has not been chosen. drying time suitable for the

required degree of drying,
according to the type of
fabric (cottons or easy-cares).

There is too much laundry Reduce the load.
inside the appliance.

Something not working?

Problem

The door will not open

Possible cause

The programme is still Wait until the end of the
running. programme before opening

the door.

The door lock has not yet Wait about 2 minutes for
released. the door lock to release.

The water level is above the Before opening the door,
bottom edge of the door. the water must be emptied

out.

The machine is heating the Wait until the end of the
water. heating phase.

Solution

The machine vibrates or is
noisy

The transit bolts have Check that the machine
not been removed. has been unpacked as

described in the Installation
section.

The feet have not been Carefully level the machine.
adjusted.

There is little laundry in Correct operation of the
the drum. machine is not affected.

Technical data

Height x Width x Depth 84x60x57 cm
Depth with door opened 96.5 cm
Height adjustment ± 13 mm approx.
Net weight 83 kg approx.
Load (depending on programme) 5 kg max.
Use domestic
Drum speed during washing max. 55 rpm
Drum speed during spinning 1500/1200/900/700 rpm
Water pressure 1 - 10 bar

(=10-100N/cm

2

= 0.1-1.0Mpa)

This appliance complies with the following EC directives:

- 73/23/EEC of 19.2.1973 “Low voltage directive”, including directive

93 / 68 / EEC

- 89/336/EEC of 3.5.1989 “Electromagnetic Compatibility Directive”.

43

Unsatisfactory washing results

If the laundry looks grey and lime scale is found in the drum

• Too little detergent has been used.

• An unsuitable detergent has been used.

• Stubborn stains have not been treated prior to washing.

• The programme/temperature has not been correctly selected.

If grey stains remain on the laundry

• Laundry stained with ointments, grease or oil has been washed with
an insufficient amount of detergent.

• The temperature selected for the wash programme was too low.

• Fabric softener - especially the concentrated type - has come into
direct contact with the laundry. Wash these stains immediately and
pour fabric softener carefully.

Foam is still visible even after the last rinse

• Modern detergents often produce foam, even in the last rinse. How­ever the laundry has been completely rinsed.

White residue is left on the laundry

• This is due to insoluble components in modern detergents and is
therefore not the result of insufficient rinsing. Shake or brush the
laundry. In futur e, it may be better to turn garments inside out befor e
washing them. Check the choice of detergent; try using liquid deter­gents.

42

Something not working?

45

Service & Spare Parts

If after carrying out the necessary checks there is still a fault with your
appliance please contact your local AEG Service Force Centre.

In guarantee customers should ensure that the suggested checks in
the “Troubleshooting” section have been made as the engineer will
make a charge if the fault is not a mechanical or electrical break­down.

Please note that proof of purchase is r equired for in-guarantee service calls.

Service & Spare Parts

If you require a service engineer or wish to purchase spare parts, con­tact your local AEG Service Force Centre, by telephoning:

0990 929 929

Help us to help you

Please determine your type of enquiry before telephoning. When you
contact us we need to know:

1. Your name, address and post code.

2. Your telephone number.

3. Clear and concise details of the fault.

-What is the fault?

-When does the fault occur?

-Does the multi-display issue an error-message (E and a number)?

4. The model, production number and production identification number.

5.Date of purchase.

This information can be found on the rating plate, so you have these
numbers to hand we recommed you write them below.

Prod. No. . . . . . . . . . . . . . . . . . . . . .

F-No. . . . . . . . . . . . . . . . . . . . . . . .

44

Service & Spare Parts

Customer care

For general enquiries regarding your AEG appliance, or further infor­mation on AEG products please contact our Customer Care Depart­ment.

Customer Care Department
AEG Domestic Appliances Limited
P.O. Box 47
Newbury
Berkshire RG14 5XL
Tel: [phone]
Fax: [phone]

Mod. 1571 T. SENSORTRONIC

Type P6329650

Prod. No.

914656012

00

230-240V~

50Hz

2050

W

10 A

F-Nr.

European Guarantee

If you should move to another country within Europe then your guar­antee moves with you to your new home subject to the following qual­ifications:

- The guarantee starts from the date you fir st purchased your pr oduct.

- The guarantee is for the same period and to the same extent for
labour and parts as exist in the new country of use for this brand
or range of products.

- This guarantee relates to you and cannot be transferred to another
user.

- Your new home is within the European Community (EC) or European
Free Trade Area.

- The product is installed and used in accordance with our instructions
and is only used domestically, i.e. a normal household.

- The product is installed taking into account regulations in your new
country.

Before you move please contact your nearest Customer Care Centre,
listed below, to give them details of your new home. They will then
ensure that the local Service Organisation is aware of your move and
able to look after you and your appliance.

France Senlis [phone]
Germany Nürnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Newbury [phone]

47

Guarantee Conditions

AEG offer the following guarantee to the first purchaser of this appli­ance.

1. The guarantee is valid for 12 months commencing when the appliance
is handed over to the first retail purchaser, which must be verified by
purchase invoice or similar documentation.

The guarantee does not cover commercial use.

2. The guarantee covers all parts or components which fail due to faulty
workmanship or faulty materials. The guarantee does not cover appli­ances where defects or poor performance are due to misuse, accidental
damage, neglect, faulty installation, unauthorised modification or
attempted repair , commercial use or failure to observe requir ements and
recommendations set out in the instruction book.

This guarantee does not cover such parts as light bulbs, removable
glassware, dust bags or filters.

3. Should guarantee repairs be necessary the purchaser must inform the
nearest customer service office (AEG’s service or authorised agent).
AEG reserves the right to stipulate the place of the repair (i. e. the
customer’s home, place of installation or AEG workshop).

4.The guarantee or free replacement includes both labour and materials.

5. Repairs carried out under guarantee do not extend the guarantee
period for the appliance. Parts removed during guarantee repairs
become the property of AEG.

6. The purchaser’s statutory rights are not affected by this guarantee.

46

Guarantee Conditions

Dimensions of the appliance

Front view and side view

Rear view

49

Instructions for installation and electrical connection

Safety instructions for the installer

• This appliance is heavy, care should be taken when moving it.

• When unpacking the appliance, check that it is not damaged. If in
doubt, do not use it and contact the retailer.

• All internal packing must be removed before using the appliance.
Serious damage may be caused to the machine or adjacent furniture
if the protective transit devices ar e not removed or ar e not completely
removed. Refer to the relevant paragraph.

• Any electrical work required to install this appliance must be carried
out by a qualified electrician.

• Any plumbing work required to install this appliance must be carried
out by a qualified plumber.

• After having installed the machine, check that it is not standing on
its electrical supply cable.

• If the appliance is placed on a carpeted floor, ensure that air can cir­culate freely between the adjustable feet and the floor.

• The installation should comply with local water authority and build­ing regulations requirements.

• Should the appliance power supply cable need to be replaced, this
should be carried out by our Service Force Centre.

• This appliance should be connected to a cold water supply only.

48

600

840

10

85

1500

900

QUICK

START
PAUSE

PREWASH

WASH

RINSE

RINSE HOLD

PUMP OUT

SPIN

DRY

ON
OFF

STAIN

700

DELAY
START

RINSE
HOLD

SPEED

END

DRYING

TIME

95

E

60

50

40

30

60

50

40

30

40

30

40

30

WOOLLENS

DELICATES

COLD

SOAK

GENTLE RINSES

SOFTENERS

PUMP OUT

SPIN

SHORT SPIN

RESET

COTTON

EASY-CARES

DRYING

DRYING

IRON
DRY

CUPBOARD
DRY

1200

EXTRA
RINSE

SPIN

PREWASH

570

965

40

Cold water

340

170

50

40

45

85

Power cable

Drain

51

Installation

Unpacking

All transit bolts and packing must be removed before using the appli­ance.

Using a spanner, unscrew and remove the
rear right-hand bolt and lay the machine on
its back, taking care not to squash the hoses.
This can be avoided by placing one of the
corner packing pieces between the machine
and the floor.

Remove the poly­styrene block
from the bottom
of the machine
and release the
two plastic bags
by removing the
adhesive strip.

Carefully remove
the right-hand bag (1) then the left-hand bag (2) by pulling them towards
the centre of the machine.

Set the machine
upright and
remove the two
remaining bolts
from the back.

Pull out the three
plastic spacers
from the holes
into which the
bolts were fitted.

Plug the open holes with the plugs which you will find in the plastic bag
containing the instruction booklet.

You are advised to keep all transit devices so that they can be refitted if the
machine ever has to be transported again.

50

Positioning

Install the machine on a flat hard floor.
Make sure that air circulation around the machine is not impeded by

carpets, rugs etc.

• Before placing it on small tiles, apply a rubber coating.

• Never try to correct any unevenness in the floor by putting pieces of
wood, cardboard or similar materials under the machine.

• If it is impossible to avoid positioning the machine next to a gas
cooker or coal-burning stove, an insulating panel (85x57 cm) covered
with aluminium foil on the side facing the cooker or stove, must be
inserted between the two appliances;

• The machine must not be installed in rooms where the temperature
can drop below 0.

• The water inlet hose and the drain hose must not be kinked.

• Please ensure that when the appliance is installed, it is easily accessi­ble for the engineer in the event of a breakdown.

Levelling

Carefully level by screwing the adjustable
feet in or out. Never place cardboard, wood
or similar materials under the machine to
compensate for any unevenness in the
floor.

Installation

2

1

If you intend the drain hose from the machine
to empty into a sink, make sure that the sink
is empty and the plug hole is not blocked. Use
the plastic “U -Piece” supplied.

Important

Before connecting up the machine to new
pipework or to pipework that has not been used
for some time, run off a reasonable amount of
water to flush out any debris that may have collected in the pipes.

In the interest of the environment

Washing machines and dish­washers should be connected
to the FOUL drainage system,
the water will then be taken
to a sewage works for treat­ment before being discharged
safely into a river.

It is essential that these appli­ances are not connected to the
surface water drainage system
as this water is discharged
directly into a river or stream
and may cause pollution.

If you require any further
advice please contact your local
authority drainage department.

53

Water inlet (cold water connection only)

Before connect­ing the hose be
sure to fit the
mesh filter «A»
supplied as per
diagram.

Installation
should comply
with local water
authority and building regulations’ requirements.

Set the hose correctly by loosening the ring nut. After positioning the
inlet hose, be sure to tighten the ring nut again to prevent leaks.

Do not connect to a hot water supply.

Water drainage

The appliance drain hose should hook into a standpipe, the hook in the
drain hose is formed using the plastic “U-Piece” supplied. The standpipe
should have an internal diameter of approximately 38 mm (see dia­gram) thus ensuring there is an air break between the drain hose and
standpipe.

When discharging into a stand­pipe ensure that the top of the
curve in the hose end is no
more than 90 cm (35.4”) and
no less than 60 cm (23.6”)
above floor level.

The upright standpipe should have a mini­mum length of 30 cm (12”) from the bottom
of the elbow to the top of the pipe (see dia­gram). Make sure that it is designed in such a
way that the end of the drain hose cannot be
covered with water.

Longer drain hoses are available in lengths
of 2.7 and 4 metres from your AEG Service
Force Centre.

52

Installation

SHOWER

BATH

SINK

TOILET

BIDET

WASHING
MACHINE

DISHWASHER

RAINWATER

'RUN-OFF'

SURFACE WATER

DRAINS & SEWERS

UNTREATED
DISCHARGE

RIVER

FOUL DRAIN

FOUL SEWERS

SEWAGE

TREATMENT

WORKS

RIVER

TREATED

DISCHARGE

RAINWATER

'RUN-OFF'

SURFACE WATER

DRAINS & SEWERS

Installation

A

3 pin

Max. 90 cm.(35.4")

Min.60 cm.(23.6")

Min. 30 cm.(12")

38 mm.(1/ ") diameter
standpipe

1

2

Permanent connection

In the case of a permanent connection it is necessary that you install a
double pole switch between the appliance and the electricity supply
(mains), with a minimum gap of 3 mm between the switch contacts and
of a type suitable for the required load in compliance with the current
electrical regulations.

The switch must not break the yellow and green earth cable at any
point.

This operation has only to be performed by a qualified electrician.

55

Electrical connections

WARNING: THIS APPLIANCE MUST BE
EARTHED.

The manufacturer declines any liability
should this safety measure not be
observed.

If the plug that is fitted to your appliance is
not suitable for your socket outlet, it must be
cut off and the appropriate plug fitted.

Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to prevent the hazard of

shocks in case it should be plugged into a 13 Amp socket in another
part of your home.

Important

The wires in the mains lead are coloured in accordance with the fol­lowing code:

Green and Yellow - Earth
Blue - Neutral
Brown - Live
If you fit your own plug, the colours of the wires in the mains lead of

your appliance may not correspond with the markings identifying the
terminals in your plug, proceed as follows:

Connect the green and yellow (earth) wire to the terminal in the plug
which is marked with the letter «E» or the earth symbol or coloured
green and yellow.

Connect the blue (neutral) wire to the terminal in the plug which is
marked with the letter «N» or coloured black.

Connect the brown (live) wire to the terminal in the plug which is
marked with the letter «L» or coloured red.

The plug moulded on to the lead incorporates a fuse. For replacement, use
a 13 Amp BS1363A fuse. Only ASTA or BSI approved fuses should be used.

The plug must not be used if the fuse cover/carrier is lost. The
cover/carrier is indicated by the coloured insert at the base of the plug.

A replacement cover/carrier must be obtained from your local AEG Service
Centre.

54

Installation

GREEN & YELLOW

13 AMP FUSE

CORD CLAMP

BLUE

13 AMP

BROWN

AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg

http://www.aeg.hausgeraete.de
© Copyright by AEG

124.974.360-01-0798
