AEG L9FEB969C User Manual

Download

L9FEB969C

USER MANUAL

EN User Manual

Washing Machine

www.aeg.com2

1. SAFETY INFORMATION............................................................................................. 3

2. SAFETY INSTRUCTIONS.............................................................................................5

3. INSTALLATION............................................................................................................7

4. PRODUCT DESCRIPTION.........................................................................................11

5. THE WATER SOFTENER (SOFT WATER)................................................................ 13

6. BEFORE FIRST USE................................................................................................... 16

7. CONTROL PANEL..................................................................................................... 17

8. PROGRAMMES..........................................................................................................24

9. WI-FI - CONNECTIVITY SETUP...........................................................................28

10. DAILY USE................................................................................................................30

11. HINTS AND TIPS..................................................................................................... 35

12. CARE AND CLEANING.......................................................................................... 36

13. TROUBLESHOOTING.............................................................................................41

14. CONSUMPTION VALUES.......................................................................................46

15. TECHNICAL DATA..................................................................................................47

16. ACCESSORIES.........................................................................................................48

17. PRODUCT INFORMATION SHEET IN REFERENCE TO E.U. REGULATION

1369/2017........................................................................................................................49

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service and repair information:

www.aeg.com/support

www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate.

Warning / Caution-Safety information General information and tips Environmental information

ENGLISH 3

Subject to change without notice.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning the use of the appliance in a

safe way and understand the hazards involved.

www.aeg.com4

• Children between 3 and 8 years of age and persons

with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.

• Children of less than 3 years of age should be kept

away from the appliance unless continuously supervised.

• Do not let children play with the appliance.

• Keep all packaging away from children and dispose of

it appropriately.

• Keep detergents away from children.

• Keep children and pets away from the appliance when

the door is open.

• If the appliance has a child safety device, it should be

activated.

• Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

• Do not change the specification of this appliance.

• This appliance is intended to be used in household

and similar applications such as:

– staff kitchen areas in shops, offices and other

working environments;

– by clients in hotels, motels, bed & breakfast and

other residential type environments;

– areas for communal use in blocks of flats or in

launderettes.

• Do not exceed the maximum load of 9 kg (refer to the

"Programme chart" chapter).

• The operating water pressure at the water entry point

from the outlet connection must be between 0.5 bar (0.05 MPa) and 8 bar (0.8 MPa).

• The ventilation opening in the base must not be

covered by a carpet, mat, or any floor covering.

• The appliance must be connected to the water mains

using the new supplied hose sets, or other new hose sets supplied by the Authorised Service Centre.

• Old hose sets must not be reused.

• If the mains power supply cable is damaged, it must

be replaced by the manufacturer, its Authorised

Service Centre or similarly qualified persons to avoid

an electrical hazard.

• Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

• Do not use high pressure water sprays and/or steam

to clean the appliance.

• Clean the appliance with a moist cloth. Use only

neutral detergents. Do not use abrasive products,

abrasive cleaning pads, solvents or metal objects.

2. SAFETY INSTRUCTIONS

ENGLISH 5

2.1 Installation

The installation must comply with relevant national regulations.

• Remove all the packaging and the transit bolts including rubber bush with plastic spacer.

• Keep the transit bolts in a safe place. If the appliance is to be moved in the future they must be reattached to lock the drum to prevent an internal damage.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

• Follow the installation instructions supplied with the appliance.

• Do not install or use a damaged appliance.

• Do not install or use the appliance where the temperature can be less than 0°C or where it is exposed to the weather.

• The floor area on which the appliance is to be installed must be flat, stable, heat resistant and clean.

• Make sure that there is air circulation between the appliance and the floor.

• When the appliance is in its permanent position, check if it is levelled correctly with the aid of a

spirit level. If it is not, adjust the feet accordingly.

• Do not install the appliance directly above a floor drain.

• Do not spray water on the appliance and do not expose it to excessive humidity.

• Do not install the appliance where the appliance door cannot be fully opened.

• Do not put a closed container to collect possible water leakage under the appliance. Contact the Authorised Service Centre to ensure which accessories can be used.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• The appliance must be earthed.

• Always use a correctly installed shockproof socket.

• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

• Do not use multi-plug adapters and extension cables.

• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need

www.aeg.com6

to be replaced, this must be carried out by our Authorised Service Centre.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

• Do not touch the mains cable or the mains plug with wet hands.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• This appliance is fitted with a 13 A mains plug. If it is necessary to change the mains plug fuse, use only a 13 A ASTA (BS 1362) fuse (UK and Ireland only).

2.3 Water connection

• Do not cause damage to the water hoses.

• Before connection to new pipes, pipes not used for a long time, where repair work has been carried out or new devices fitted (water meters, etc.), let the water flow until it is clean and clear.

• Ensure that there are no visible water leaks during and after the first use of the appliance.

• Do not use an extension hose if the inlet hose is too short. Contact the Authorised Service Centre for the replacement of the inlet hose.

• When unpacking the appliance, It is possible to see water flowing from the drain hose. This is due to the testing of the appliance with the use of water in the factory.

• You can extend the drain hose to maximum 400 cm. Contact the Authorised Service Centre for the other drain hose and the extension.

• Make sure that there is access to the tap after the installation.

2.4 Use

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

• Follow the safety instructions on the detergent packaging.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

• Do not wash fabrics which are heavily soiled with oil, grease or other greasy substances. It can damage rubber parts of the washing machine. Prewash such fabrics by hand before loading them into the washing machine.

• Do not touch the glass door while a programme operates. The glass can get hot.

• Make sure that all metal objects are removed from the laundry.

2.5 Internal lighting

WARNING!

Risk of injury.

• Visible LED radiation, do not look directly into the beam.

• The LED lamp is dedicated to drum lighting. This lamp cannot be reused for other lighting purposes.

• To replace the internal lighting, contact the Authorised Service Centre.

2.6 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.

• Please note that self-repair or nonprofessional repair can have safety consequences and might void the guarantee.

2.7 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains electrical and water supplies.

• Cut off the mains electrical cable close to the appliance and dispose of it.

• Remove the door catch to prevent children or pets from becoming trapped in the drum.

• Dispose of the appliance in accordance with local requirements for the disposal of Waste Electrical and Electronic Equipment (WEEE).

3. INSTALLATION

ENGLISH 7

WARNING!

Refer to Safety chapters.

3.1 Unpacking

WARNING!

Remove all the packaging and the transit bolts before installing the appliance.

WARNING!

Use the gloves.

1. Remove the external film. If necessary, use a cutter.

2. Remove the cardboard top and the polystyrene packaging materials.

4. Open the door and remove the polystyrene piece from the door seal and all the items from the drum.

5. Carefully put the appliance down on its rear side.

6. Put the front polystyrene packaging element on the floor under the appliance.

Make sure not to damage the hoses.

7. Remove the polystyrene protection from the bottom.

3. Remove the internal film.

8. Fully clean and dry the bottom of the

appliance.

www.aeg.com8

CAUTION!

Do not use alcohol, solvents or chemical products.

9. Make sure to identify the different sizes and the positions of the sound barriers. Refer to the illustration:

Attach the sound barriers at a room temperature.

13. Pull up the appliance in vertical position.

14. Remove the power supply cable and the drain hose from the hose holders.

• A (FRONT) = Front of the appliance

• B (BACK) = Rear of the appliance

10. Remove the adhesive strip from the silent barriers.

11. Attach the four barriers to bottom of the appliance.

12. Refer to the illustration. Make sure that the barriers are securely attached.

It is possible to see water flowing from the drain hose. This is due to the testing with water of the appliance in factory.

15. Remove the three bolts by using the spanner supplied with the appliance.

16. Pull out the plastic spacers.

17. Put the plastic caps, that you find in

the user manual bag, in the holes.

We recommend that you

keep the packaging and the transit bolts for any movement of the appliance.

3.2 Installation on suspended flooring

Suspended wooden floors are particularly susceptible to vibration.

To limit vibration we recommend placing a waterproof wooden panel, at least 15 mm thick, under the appliance. It should be screwed to at least 2 floor beams and should extend beyond the front feet.

If possible, install the appliance where the floor is more stable.

3.3 Positioning and levelling

1. Install the appliance on a flat hard

floor.

Make sure that the appliance does not touch the wall or other units.

2. Loosen or tighten the feet to adjust the level.

WARNING!

Do not put cardboard, wood or equivalent materials below the appliance feet to adjust the level.

ENGLISH 9

The appliance must be level and stable.

A correct adjustment of the appliance level prevents the vibration, noise and the movement of the appliance when in operation.

When the machine is installed on a plinth or if a washer dryer is stacked on the washing machine, use the accessories described in chapter 'Accessories'. Read carefully the instructions supplied with the appliance and with the accessory.

3.4 The inlet hose

1. Connect the water inlet hose to the

back of the appliance.

2. Position it toward left or right depending on the position of the water tap.

20º20º

45º45º

www.aeg.com10

Make sure that the inlet hose is not in vertical position.

3. If necessary, loose the ring nut to set it in the correct position.

4. Connect the water inlet hose to the cold water tap with 3/4" thread.

You can extend the drain hose to maximum 400 cm. Contact the authorized service centre for the other drain hose and the extension.

It is possible to connect the drain hose in different ways:

1. Make a U shape with the drain hose and put it around the plastic hose guide.

2. On the edge of a sink - Fasten the guide to the water tap or to the wall.

Make sure that the plastic guide cannot move when the appliance drains.

CAUTION!

Make sure that there are no leaks from the couplings.

Do not use an extension hose if the inlet hose is too short. Contact the service centre for the replacement of the inlet hose.

3.5 Water drainage

The drain hose should be positioned at a height of not less than 60 cm and not more than 100 cm from the floor.

Make sure that the drain hose end is not immersed in the water. There may be a return of dirty water into the appliance.

3. To a stand pipe with vent-hole Insert the drain hose directly into a drain pipe. Refer to the illustration.

The end of the drain hose must always be ventilated , i.e. the inner diameter of the drain pipe (min. 38 mm min. 1.5") must be larger than the external diameter of the drain hose.

4. If the end of the drain hose looks like this (see the picture), you can push it directly into the stand pipe.

ENGLISH 11

5. Without the plastic hose guide, to a sink spigot - Put the drain hose in

the spigot and tighten it with a clamp. Refer to the illustration.

Make sure that the drain hose makes a loop to prevent particles going into the appliance from the sink.

6. Position the hose directly to a builtin drain pipe in the room wall and

tighten it with a clamp.

4. PRODUCT DESCRIPTION

4.1 Special features

Your new washing machine meets all modern requirements for an effective treatment of laundry with low water, energy and detergent consumption and proper care of fabric.

• The Wi-Fi connection and Remote Start enable you to start a cycle, to interact with your washing machine and to check the washing cycle status in remote control.

• The SoftWater Technology acts as water softener and removes harsh minerals from the inlet water and supplies soft water for the washing. Wash after wash, fabric stiffness,

shrinkage and colour fading are prevented.

• The MyWash 49min programme ensures a perfect care of fabrics and optimal washing results in maximum 49 minutes. It makes your clothes life longer reducing colour fading and pilling formation!

• The Oko-Mix technology has been designed to protect the fabric fibres thanks to different pre-mixing phases that dissolves first the detergent and then fabric softener in the water before they are distributed in the laundry. So every fibre is reached and cared for.

• The ProSense technology detects the laundry load size defining the programme duration in 30 seconds.

1 2 3

12 13

www.aeg.com12

The washing programme is tailored to the laundry load and the type of fabric without consuming more time, energy and water than necessary.

• The steam has a quick and easy way to refresh the clothes. The gentle steam programmes remove odours and reduce creases in dry fabrics so they need little ironing.

4.2 Appliance overview

The Plus Steam option, finishes every cycle with gentle steam that relaxes the fibres and reduces fabric creasing. Ironing will be easier!

• The Stains option pre-treats stubborn stains optimizing the effectiveness of the stain remover.

Worktop

Detergent dispenser and salt

compartment Control panel

Door handle

Rating plate

Internal light

Drain pump filter

Feet for levelling the appliance

Drain hose

Inlet hose connection

Mains cable

Transit bolts

Hose support

4.3 Detergent dispenser and

salt compartment

Always follow the instructions that you find on the packaging of the detergent products. Anyway, we recommend not to exceed the maximum indicated level in each

compartment (

▼

Max

▼

Salt

Compartment for liquid additives

Salt

(fabric conditioner, starch). Compartment for salt.

Read carefully 'The Water Softener technology (Soft Water)'.

Maximum level for detergent/ additives quantity.

When selecting a prewash

Compartment for washing phase: powder detergent, stain remover.

When using liquid

phase, put the detergent/ additive in a dosing ball inside the drum.

detergent, make sure that the special container for liquid detergent is inserted. Refer to 'Filling the detergent and

After a washing cycle, if necessary, remove any detergent residue from the detergent dispenser.

additives' in 'Daily Use' chapter.

5. THE WATER SOFTENER (SOFT WATER)

ENGLISH 13

5.1 Introduction

The water contains harsh minerals. The higher the content of these minerals the harder the water is.

Hard water can reduce the effectiveness of the detergent, reduce the softness of fabrics and contribute towards shrinkage and colour fading.

This appliance is equipped with a water softener able to provide the right degree of water softening to preserve the fabric integrity, colour brightness and ensuring good wash performances at low temperature.

The water softener should be adjusted according to the water hardness of your inlet water. A correct setting allows to achieve the best washing results and the maximum garments protection.

To set the water softener correctly, please refer to 'How to set the water hardness level'.

5.2 How to set the water hardness level

The appliance allows you to chose between 7 levels corresponding to 7 different ranges of water hardness.

Depending on the country, the water hardness is expressed in equivalent scales: e.g. French degrees (°f), German degrees (°d), English degrees (°e), mmol/l and ppm.

If necessary, please contact your local water authority to check the water hardness in your area.

Check in the "Water hardness levels" table which is the proper level.

To set the water hardness level:

1. Press the On/Off button for a few seconds to activate the appliance.

2. Wait about 10 seconds for appliance internal check.

3. Touch the Stains/Prewash and the Plus Steam buttons simultaneously (by touching the two buttons at the

www.aeg.com14

same instant, as shown in the next drawing) for some seconds until the display shows the default level C04

and the indicator

goes on. It means the water softener is active during washing only.

4. Touch repeatedly the Stains/Prewash button until the desired level appears (from C01 to C07).

5. Touch the Start/Pause button to confirm your choice and exit the menu.

How to set the water softener also during rinse phase

The factory setting allows to soften the water during washing phase only. This setting satisfies most of the use condition. However, if the inlet water is particularly hard (C06 and C07 levels),

we suggest to set the water softener also during rinsing phase to preserve the fabric softness.

Once you have entered the menu by pressing Stains/Prewash and the Plus Steam buttons:

1. Touch the Plus Steam button. The

goes on.

This setting increases the salt consumption.

2. Touch the Start/Pause button to confirm your choice and exit the menu.

How to deactivate the water softener

Once you have entered the menu by pressing Stains/Prewash and the Plus Steam buttons:

1. By touching the Plus Steam button twice, the water softener is excluded

completely. The indicator

go off and the appears in

the display.

2. Touch the Start/Pause button to confirm your choice and exit the menu.

and

Water hardness levels

Levels Water hardness range

°f

C01 ≤5 ≤3 ≤ 4 ≤0.5 ≤ 50

C02 6 - 13 4 - 7 5 - 9 0.6 - 1.3 60 - 130

C03 14 - 21 8 - 11 10 -15 1.4 - 2.1 140 - 210

C04

C05 30 - 37 17 - 20 21 - 26 3.0 - 3.7 300 - 370

C06 38 - 45 21 -25 27 - 32 3.8 - 4.5 380 - 450

C07 ≥46 ≥26 ≥33 ≥4.6 ≥460

Factory setting, able to satisfy most of the use conditions.

(French degrees)

22 - 29 12 - 16 16 - 20 2.2 - 2.9 220 - 290

°d (German degrees)

°e (English degrees)

mmol/l ppm

Salt

▼

Max

▼

Salt

Max

▼

Max

▼

Max

▼

Max

▼

Max

▼

SALT

Salt

ENGLISH 15

5.3 Pouring salt

The water softener function acts through special resins present in the appliance.

To regenerate the resins and make them ready to soften the water pour a special

salt in the compartment

1. Open the detergent dispenser.

2. Open the compartment

The compartment

can contain about 600 gr of salt that are sufficient for about two months if the default water hardness level (C04) is set and the water softener is activated during wash phase only. A different water hardness level or different setting may increase or decrease the salt consumption. Refer to 'How to set the water hardness level' and 'How to set the water softener also during rinse phase'.

The display shows the indicator

compartment

needs to be refilled

when

with salt, even if a little salt still remains.

WARNING!

Pour the salt in the

compartment

only.

WARNING!

Do not put anything but salt

in the compartment

. If any other detergent/additive is poured inadvertently in this compartment, please refer to 'Eliminating detergent or other additives from salt compartment' in 'Troubleshooting' chapter.

3. Pour the special salt.

4. Close the salt compartment and the

detergent dispenser.

Regularly check if there is enough salt.

Only use special salt for dishwasher and/or washing machine. The proper salt can be ordered from the web site! Other types of salts are less efficient and over time could damage the water softener technology permanently. Do

not use fine salt!

The appliance works normally even without salt, but without exploiting its full potential. If you use the appliance without salt for a long time, once the salt is finally refilled, the water softener function is completely restored after a few long washing cycles.

Salt

www.aeg.com16

5.4 Water softener

regeneration

After a few cycles, the appliance may need to regenerate the water softener.

The regeneration process is automatically ensured when running programmes such as Cottons and Synthetics routinely, even if the programme duration is reduced by taping the Time Save button once.

The regeneration process is automatically ensured when running programmes such as Cottons and Synthetics routinely.

Other programmes may perform the regeneration process automatically, when settings and conditions allow it.

6. BEFORE FIRST USE

During installation or before first use you may observe some water in the appliance. This is a residual water left in the appliance after a full functional test in the factory to ensure the appliance is delivered to customers in perfect working order and is no cause for concern.

1. Make sure that all transit bolts have been removed from the appliance.

2. Make sure that the electrical power is available and the water tap is open.

3. Make sure that there is salt in the

If you usually run very short cycles, the regeneration process may not occur: you could see that salt has not been used, since it is consumed during regeneration phase only. To ensure the regeneration process run a Cottons or a

Synthetics programme once a week or every two weeks at least.

the proper water hardness level. Refer to "How to set the water hardness level".

4. Pour 2 litres of water into the detergent compartment marked by

This action activates the drain system.

5. Pour a small quantity of detergent into the compartment marked by

6. Set and start a programme for cotton at the highest temperature without any laundry in the drum.

This removes all possible dirt from the drum and the tub.

compartment marked by

and set

7. CONTROL PANEL

On/O

us Steam

Time Sa ve

rog

ramme

tto

Cottons EC

MyWas

h 49min

Synthe

tic

Wool

Steam

in. - 3 kg

Spin/Dr ain

Down

Jac

kets

Del

icates

Temperature

Spi

Stains/

Prewash

Extra Rinse

Delay Start

Start/Paus e

51 10 9 7

6811

7.1 Control panel description

The options are not selectable with all washing programmes. Check the compatibility between options and washing programmes in the "Available options in each programmes" paragraph in the "Programmes" chapter. An option can exclude another one, in this case the appliance doesn't allow you to set the incompatible options together. Make sure the screen and touch buttons are always clean and dry.

ENGLISH 17

Pressing this button for a few seconds allows to activate or deactivate the appliance. Two different tunes sound while switching the appliance on or off.

As the Stand-by function automatically deacti-

On/Off push button

vates the appliance to decrease the energy consumption in a few cases, you may need to activate the appliance again. Refer to "Stand-by option" paragraph in "Daily Use" chapter for more details.

Programme dial

Display

For selecting the desired washing programme. Refer to "Programmes" chapter for more details.

It provides information about the setting programme. Refer to "Display" paragraph for more details.

www.aeg.com18

Press this button repeatedly to activate one of the two options or both. The relevant indicator comes on in the display.

• Remote Start Select this option to connect appliance with App.

Touch this button, the display shows the indicator blinking for a few seconds. After touching the Start/Pause button, the display shows the

indicator and the Remote Start is confirmed.

Remote Start/Delay Start touch button

Start/Pause touch button

Extra Rinse touch button

•

Touch this button to start, pause the appliance or interrupt a running programme.

With this option you can add up to 3 rinses accordingly to the selected washing programmes. Useful for people allergic to detergents and in areas where the water is soft.

The This option increases the programme duration.

When touching the Start/Pause button after

the indicator

stops blinking, the Remote Start is not activated, but the set programme starts.

Delay Start With this option you can delay the start of a programme in a more convenient time. Touch the button repeatedly to set the required delay. The time increases by steps of 30 minutes up to 90' and from 2 hours up to 20 h. After touching the Start/Pause button, the display shows the

indicator and the selected delay time and the appliance begins the countdown.

indicator shows the selected number of rinses.

If the Extra Rinse is set as a default option and you select a compatible washing programme, the

display shows

. In this case, by pressing the Extra Rinse button , it is possible to add just one rinse.

Time Save

touch button

ENGLISH 19

With this option you can decrease the programme duration:

• If your laundry is normally or lightly soiled, it may be advisable to shorten the washing programme. Touch this button once to decrease the duration.

• In case of smaller load, touch this button twice to set an extra quick programme.

The display shows the indicator

This option can also be used to shorten the Steam programme duration.

This option adds a steam phase followed by a short anti-crease phase at the end of the washing programme. The steam phase reduces fabric creasing and facilitates the fabric ironing.

The indicator

flashes on the display during steam phase.

This option can increase the programme duration.

Plus Steam touch button

When the programme stops the display shows a zero

cator drum performs smooth movements for about 30 minutes to keep the steam benefit. By touching any button the anti-crease movements stop and the door unlocks.

is steady on and the indicator starts flashing. The

, the indi-

A small laundry load helps to reach better results.

www.aeg.com20

Press this button repeatedly to activate one of the two options. The relevant indicator goes on in the display.

• Stains Select this option to pre-treat heavily soiled or stained laundry using stain remover.

Pour the stain remover into compartment . The stain remover is pre-mixed and heated with detergent in order to improve its effectiveness.

This option can increase the programme duration.

This option is not available with a temperature

Stains/ Prewash touch button

• Prewash

lower than 40 °C.

Use this option to add a prewash phase at 30 °C before the washing phase. This option is recommended for heavily soiled laundry, especially if containing sand, dust , mud and other solid particles.

Put the detergent for prewash in a dosing ball inside the drum.

This option can increase the programme duration.

These two options cannot be set together.

Spin button

ENGLISH 21

When you set a programme, the appliance automatically selects the default spin speed. Touch this button repeatedly to:

• Change the spin speed.

The display shows only the spin speeds available for the set programme.

•

Set No spin option. This option set with Spin/Drain option (if present) performs the drain phase only.

Activate the Rinse Hold option . The water of the last rinse is not drained out to prevent the fabrics from creasing. The washing programme ends with water in the drum and the final spin phase is not performed.

The display shows the indicator . The door stays locked. The drum turns regularly to reduce creasing. You must drain the water to unlock the door. Touch Start/Pause button: the appliance performs the spinning phase and drains the water.

Activate the Quiet option. All spinning phases (intermediate spin and final spin) are suppressed and the programme ends with water in the drum. This helps to reduce creasing. As the programme is very quiet, it is suitable for use at night time when cheaper electricity tariffs are available. In some programmes the rinses are performed with more water.

The display shows the indicator . The door stays locked. The drum turns regularly to reduce creasing. You must drain the water to unlock the door. Touch the Start/Pause button button: the appliance performs only the draining phase.

The appliance empties the water out automatically after approximately 18 hours.

Temp. touch button

Button combination:

Connectivity

When you select a washing programme, the appliance automatically proposes a default temperature. Touch this button repeatedly until the desired temperature value appears on the display.

When the display shows the indicators does not heat the water.

To activate/deactivate this option, touch the Temperature and Spin buttons simultaneously for about 6 seconds.

and , the appliance

www.aeg.com22

With this option you can prevent that the children play with the control panel. To activate/deactivate this option, touch the Stains/Prewash and

the Extra Rinse buttons simultaneously until the indicator comes on/goes off on the display. You can activate this option:

Child Lock

Soft Water Carefully read the "The Water Softener (Soft Water)" chapter.

Permanent Extra Rinse

Acoustic signals

• After you touch the Start/Pause button: all the buttons and the programme dial are deactivated (except On/Off button).

• Before you touch the Start/Pause button: the appliance cannot start.

The appliance keeps the selection of this option after you switch it off.

With this option you can permanently have an extra rinse when you set a programme where it is selectable. To activate/deactivate this option touch the Extra Rinse button and the Dealy Start button simultaneously the relevant indicator comes on/goes off.

This option adds two rinses and the display shows

This appliance is provided with different acoustic signals, that operate when:

• You activate the appliance (special short tune).

• You deactivate the appliance (special short tune).

• You touch the buttons (click sound).

• You make a wrong selection (3 short sounds).

• The programme is completed (sequence of sounds for about 2 minutes).

• The appliance has a malfunction (sequence of short sounds for about 5 minutes).

To deactivate/activate the acoustic signals when the programme is completed, touch the Extra Rinse and the Time Save buttons simultaneously for about 6 seconds.

If you deactivate the acoustic signals, they continue operate when the appliance has a malfunction.

7.2 Display

Salt

MIX

ENGLISH 23

Maximum load indicator. The icon flashes during laundry load estimation (refer to "ProSense load detection" paragraph).

Maximum laundry indicator. It flashes when the laundry load exceeds the maximum declared load of the selected programme.

Salt refilling indicator. The compartment

needs salt refilling: the com-

partment is empty or the salt is not enough.

Remote connection indicator.

Wi-Fi connection indicator.

Delay start indicator.

Door locked indicator.

The digital indicator can show:

• Programme duration (e. g.

• Delay time (e. g.

or ).

• Cycle end ( ).

• Warning code (e.g. ).

Energy saving indicators. The indicator appears by selecting the Eco programme.

Washing phase indicator: it flashes during prewash and wash phase.

Rinsing phase indicator: it flashes during rinse phase.

The indicator appears when the Extra Rinse option is activated.

Spin and drain phase indicator. It flashes during spin and drain phase.

OKO MIX indicator.

www.aeg.com24

Steam phase indicator.

Anti-crease phase indicator.

Child safety lock indicator.

Time saving indicator.

Temperature indicator. The indicator appears when a cold wash is set.

Spin speed indicator.

Rinse hold indicator.

No spin indicator. Available with Spin/Drain programme only, if present.

Quiet indicator.

Pre-wash indicator.

Stain indicator.

Extra rinse indicator.

8. PROGRAMMES

8.1 Programme Chart

Washing programmes

Programme Programme description

MyWash 49min

Cottons

Cottons Eco

Synthetics

Cottons and mixed fabrics. Normal soiled. Ideal for your ev-

eryday laundry. This programme washes with extreme care cotton and synthetic fabrics and - thanks to Soft Water technology

- ensures optimal washing results already at 30° C and in maximum 49 minutes, protecting garments from colour fading and pilling formation. If you wash a small laundry load (up to 2 kg) the programme lasts 39 minutes only and water and energy consumption decreases proportionally.

White cotton and coloured cotton. Normally, heavily and lightly soiled items.

Synthetic items or mixed fabric items. Normally soiled items.

ENGLISH 25

Programme Programme description

Delicate fabrics such as acrylics, viscose and mixed fabrics

Delicates

requiring gentler washing. Normally and lightly soiled items.

Machine washable wool, hand washable wool and other

Wool

fabrics with «hand washing» care symbol2).

Special programme for a single feather/down jacket or du-

Down Jackets

vet, also with synthetic filling. If the garment care label allows it, run a complete wash and dry cycle to preserve appearance and thermal functionality.

Cotton and synthetic items lightly soiled or once worn.

20 Min. - 3 kg

Steam programme for cotton and synthetic items. Steam

Steam

can be used for dried3), washed or worn once laundry. This

programme reduce creases and odours4) and relaxes the fibres. When the programme is completed, quickly remove the laundry from the drum. After a steam programme, ironing becomes effortless. Do not use any detergent. If necessary, remove stains by washing or using localized stain removal. Steam programmes do not perform any hygienic cycle. Do not set a Steam programme with these types of items:

• Items that are not suitable for tumble drying.

• Items with label "Dry clean only".

All fabrics, except woollens and very delicate fabrics. Pro-

Spin/Drain

gramme for spinning the laundry and draining the water left in the drum. The default spin speed is the one used for cotton programmes. Reduce the spin speed accordingly to the type of laundry.

Standard programmes for the Energy Label consumption values. According to regulation

1061/2010, these programmes are respectively the «Standard 60°C cotton programme» and the «Standard 40°C cotton programme». They are the most efficient programmes in terms of combined energy and water consumption for washing normally soiled cotton laundry.

The water temperature of the washing phase may differ from the temperature declared for the selected programme.

During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't

rotate or doesn't rotate properly, but this is normal for this programme.

If you set a Steam programme with dried laundry, at the end of the cycle the laundry can be humid.

Line dry the items for about 10 minutes.

Steam programme doesn't remove particularly intense odour.

www.aeg.com26

Programme temperature, reference spin speed and maximum load

Programme Default tempera-

ture Temperature range

Reference spin speed Spin speed range

Maximum load

MyWash 49min

Cottons

Cottons Eco

Synthetics

Delicates

Wool

Down Jackets

20 Min. - 3 kg

Steam

Spin/Drain

30 °C 60 °C - 30 °C

40 °C 95 °C - Cold

40 °C 60 °C - 40 °C

40 °C 60 °C - Cold

30 °C 40 °C - Cold

40 °C 40 °C - Cold

30 °C 40 °C - Cold

30 °C 40 °C - 30 °C

- - 1.5 kg

1600 rpm 1600 rpm - 400 rpm

1200 rpm 1200 rpm - 400 rpm

1600 rpm 1600 rpm - 400 rpm

5 kg

9 kg

4 kg

2 kg

2.5 kg

3 kg

9 kg

8.2 Options compatibility with programmes

Additional programmes and settings are available downloading the APP.

ENGLISH 27

Spin

Rinse Hold

Quiet

Stains

Prewash

Extra Rinse

Delay Start

Cottons

Cottons Eco

Synthetics

MyWash 49min

Wool

Delicates

Down Jackets

20 Min. - 3 kg

Steam

Spin/Drain

■ ■ ■ ■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■ ■

■ ■ ■ ■

■

■ ■ ■

■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■ ■ ■ ■ ■

Time Save

Plus Steam

This setting performs drain phase only.

This option is not available with temperature lower than 40 °C.

If you set the shortest duration, we recommend that you decrease the load size. It is possible to fully

load the appliance, however the washing results can be less satisfactory.

This option is not available with temperature lower than 40 °C.

■ ■ ■ ■

www.aeg.com28

8.3 Woolmark Apparel Care - Green

The wool wash cycle of this machine has been approved by The Woolmark Company for the washing of wool garments labelled as «hand wash» provided that the garments are washed according to the instructions issued by the manufacturer of this washing machine. Follow the garment care label for drying and other laundry instructions. M1361 The Woolmark symbol is a Certification mark in many countries.

9. WI-FI - CONNECTIVITY SETUP

This chapter describes how to connect the smart appliance to the Wi-Fi network and to link it to mobile devices.

By this functionality you can receive notifications, control and monitor your appliance from your mobile devices.

To connect the appliance to enjoy the full range of features and services you need:

• Wireless network at home with internet connection enabled.

• Mobile device connected to wireless network.

Frequency 2.412 - 2.472 GHz

for European market

Protocol IEEE 802.11b/g/n

two stream radio

Max Power <20 dBm

9.1 Installing and configuring

"My AEG"

When connecting the appliance to the application, stand near it with your smart device.

Make sure that your smart device is connected to the wireless network.

1. Go to the App Store on your smart

device.

2. Download and install the App "My

AEG" .

3. Make sure you started a Wi-fi connection in the appliance. If not, read the next paragraph 'Configuring the appliance wireless connection'.

4. Start the application. Select the country and language and login with Your email and password. If you do not have an account, create a new one following the instructions in "My AEG" .

5. Follow the instructions on the App for the appliance registration and configuration.

9.2 Configuring the appliance

wireless connection

1. Press the On/Off button for a few seconds to activate the appliance. Wait about 10 seconds before proceeding with wireless configuration.

2. Select a programme by turning the programme dial.

3. Press and hold the Temperature and the Spin buttons simultaneously for a few seconds until a 'click' sounds.

Release the buttons. the display for 5 seconds and the indicator starts blinking.

The wireless module begins starting up.

appears on

Make sure that you APP is ready for connection.

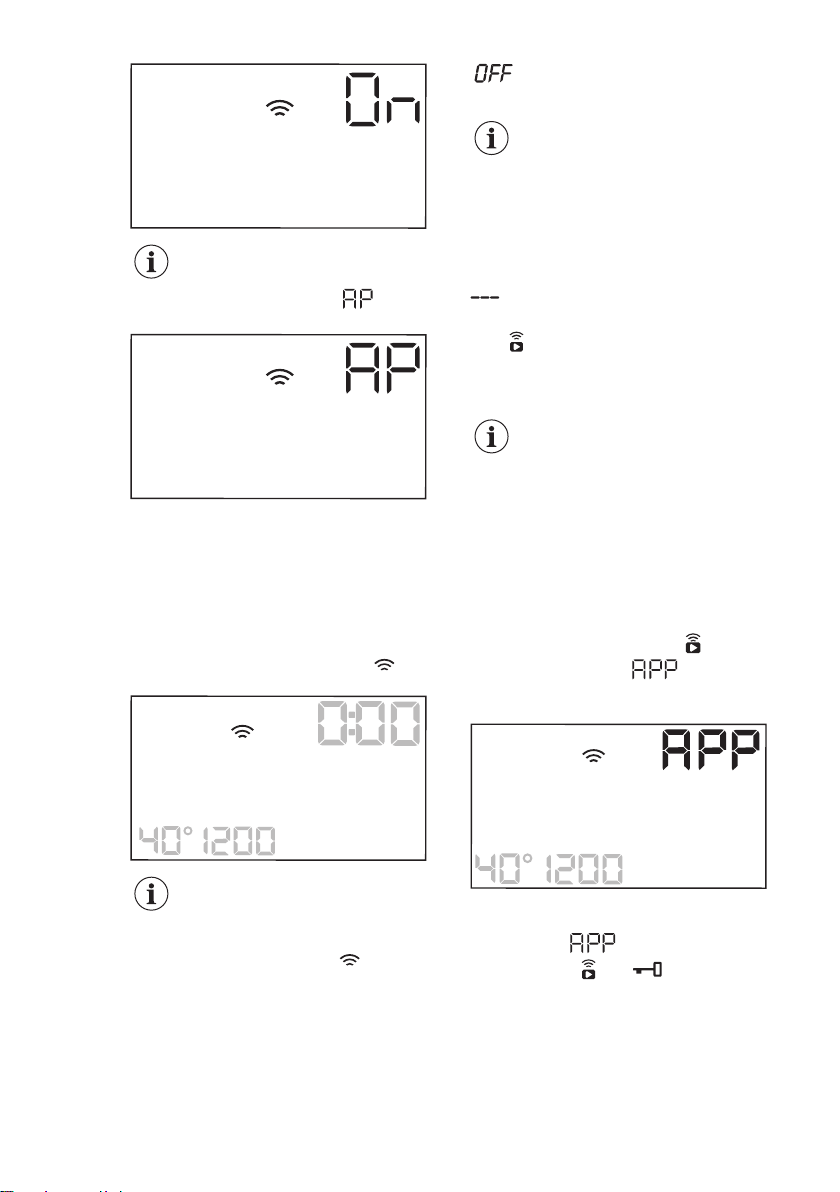

4. After about 45 seconds, Point) appears on the display.

The access point will be open for about 3 minutes.

5. Configure the "My AEG" app on your smart device and follow the instructions to connect the appliance to your Wi-Fi network.

6. If the connectivity is configured, when the programme information screen returns, the indicator is on the display.

(Access

ENGLISH 29

appears on the display for 5

seconds.

If you switch the appliance off and on again, the wireless connection is automatically off.

To remove the wireless credentials, press and hold the Temperature and the Spin buttons simultaneously for 10 seconds until the second acoustic signal:

appears on the display.

Remote Start

9.3

The Remote Start enables you to start a cycle in remote control.

The Remote Control activates automatically when you press the Start/Pause button to start the programme, but it is also possible to start a washing programme remotely.

When the App is installed and the wireless connection is complete, you can activate the Remote Start:

1. Touch the Remote Start

and the indicator display for a few seconds.

Rivedere immagine

button

blinks on the

Every time you switch the appliance on, the appliance takes 45 seconds to connect to the network automatically. When the indicator stops blinking the connection is ready.

To switch the wireless connection off, press and hold the Temperature and the Spin buttons simultaneously for a few seconds until the first acoustic signal:

2. Touch the Start/Pause button to activate the Remote Start before the

indicator

The indicators programme summary screen and the door is locked. Now it is possible to start the programme remotely.

stops blinking.

and appear on the

www.aeg.com30

When touching the Start/ Pause button after the

indicator blinking, the Remote Start is not activated, but the set programme starts.

To remove the Remote Start, tap on

the Remote Start by pressing the Start/Pause button.

9.4 Over-the-air update

The App may propose an update for downloading new features.

The update is accepted via App only.

10. DAILY USE

WARNING!

Refer to Safety chapters.

10.1 Activating the appliance

1. Connect the mains plug to the mains

socket.

2. Open the water tap.

3. Press the On/Off button for a few

seconds to activate the appliance. A short tune sounds (if activated). The appliance automatically proposes a default programme. The relevant indicator illuminates.

The display shows the maximum load, the default temperature, the default spin speed, the indicators of the phases making up the programme and the cycle duration.

stops

button and confirm

If a programme is running, the App notifies that the update will start at the end of the programme.

During the update, the appliance shows

in the display.

The appliance will usable again at the end of the update, without any notification about successful update.

If an error occurs, the appliance shows

in the display: just press any buttons or turn the knob to return to normal use.

CAUTION!

Make sure that no laundry stays between the seal and the door. There is a risk of water leakage or damage to the laundry.

10.2 Loading the laundry

1. Open the appliance door.

2. Shake the items before you put them

in the appliance.

3. Put the laundry in the drum, one item at a time.

Make sure not to put too much laundry in the drum.

4. Close the door firmly.

10.3 Filling the detergent and

additives

We recommend that you do not exceed the maximum

indicated level ( ).

1. Open the detergent dispenser.

▼

Max

▼

Salt

▼

Salt

Max

▼

Max

▼

Max

▼

Salt

▼

Salt

Max

▼

Max

▼

Salt

▼

Max

▼

Salt

Liquid

Max

▼

ENGLISH 31

2. Put the powder detergent in the

compartment

. If using liquid detergent, refer to 'Filling the liquid detergent'.

3. If desired, pour the fabric softener in

the compartment

Filling the liquid detergent

1. Insert the proper container for liquid detergent.

2. Pour the liquid detergent in the

compartment

4. Close the detergent dispenser.

3. Close the detergent dispenser.

10.4 Setting a programme

1. Turn the programme dial to select

the desired washing programme. The related programme indicator comes on.

The indicator of the Start/Pause button flashes. The display shows the maximum declared load for the programme, the

www.aeg.com32

default temperature, the default spin speed, the washing phase indicators (when available) and an indicative programme duration.

2. To change the temperature and/or the spin speed, touch the related buttons.

3. If desired, set one or more options by touching the related buttons. The related indicators come on in the display and the given information changes accordingly.

In case a selection is not possible, no indicator comes on and an acoustic signal sounds.

10.5 Starting a programme

Touch the Start/Pause button to start the programme. The related indicator stops flashing and stays on. In the display, the indicator of the operating phase starts flashing. The programme starts, the door is locked. The display shows the indicator

The drain pump can operate shortly before the appliance fills water.

10.6 Starting a programme

with the delay start

1. Touch this repeatedly until the display shows the desired delay time.

The indicator

2. Touch the Start/Pause button.

The appliance starts the countdown of the delay start. When the countdown is completed, the programme starts.

The ProSense estimation starts at the end of the countdown.

comes on.

Cancelling the delay start after the countdown has started

To cancel the delay start:

1. Touch the Start/Pause button to pause the appliance. The related indicator flashes.

2. Touch the Delay Start button repeatedly until the display shows

3. Touch the Start/Pause button again to start the programme immediately.

Changing the delay start after the countdown has started

To change the delay start:

1. Touch the Start/Pause button to pause the appliance. The related indicator flashes.

2. Touch the Delay Start button repeatedly until the display shows the desired delay time.

3. Touch the Start/Pause button again to start the new countdown.

10.7 The ProSense load

detection

The programme duration in the display is referred to a medium/high load.

After touching the Start/Pause button, the maximum declared load indicator

goes off, the indicator ProSense starts the laundry load detection:

1. The appliance detects the load in the

first 30 seconds: the indicator and the time dots flash, the drum

rotates shortly.

2. At the end of the load detection, the

indicator goes off and the time

stop flashing. The programme

dots duration will be adjusted accordingly and could increase or decrease. After further 30 seconds, the water filling starts.

At the end of the load detection, in case

of drum overload, the indicator flashing in the display:

In this case, for 30 seconds, it is possible to pause the appliance and remove the exceeding garments.

flashes, the

MIX

ENGLISH 33

Once removed the exceeding garments, touch the Start/Pause button to start the programme again. The ProSense phase can be repeated up to three times (see point 1).

Important! If the laundry amount will not be reduced, the washing programme starts anyway, despite the overload. In this case, it will be not possible to guarantee the best washing results.

About 20 minutes after the programme start, the programme duration could be adjusted again depending on the capacity of water absorption of the fabrics.

The ProSense detection is carried out with complete washing programmes only (no skipping phase selected).

10.8 Programme phase indicators

When the programme starts the indicator of the running phase flashes and the other phase indicators are steady on.

E.g. the washing or pre wash phase is

running: .

When the phase ends the relevant indicator stops flashing and is steady on. The next phase indicator starts flashing.

E.g. the rinse phase is running:

During the washing cycle, the appliance mixes the detergent, the stain removal for fabric treatment and/or the fabric softener with water before introducing

them into the drum; the indicator appears and disappears on the display according to the different programme phases (the arrows flash alternatively).

If you select the Plus Steam the steam phase indicators come on.

The anti-crease phase is running:

10.9 Interrupting a programme and changing the options

When the programme is running, you can change only some options:

1. Touch the Start/Pause button. The related indicator flashes.

2. Change the options. The given information in the display changes accordingly.

3. Touch the Start/Pause button again.

The washing programme continues.

10.10 Cancelling a running

programme

1. Press the On/Off button to cancel the programme and to deactivate the appliance.

2. Press the On/Off button again to activate the appliance.

Now, you can set a new washing programme.

If the ProSense phase is already carried out and the water filling is already started, the new programme starts without repeating the ProSense phase. The water and the detergent are not drained out in order to avoid waste. The display shows the maximum duration of the programme, updating it about 20 minutes after the starting of the new programme.

10.11 Opening the door -

Adding garments

While a programme or the delay start operates, the appliance door is locked.

The steam phase is running: .

www.aeg.com34

If the temperature and level of the water in the drum are too high and/or the drum still rotates you cannot open the door.

1. Touch the Start/Pause button. In the display the related door lock indicator goes off.

2. Open the appliance door. If necessary, add or remove the items.

3. Close the door and touch the Start/ Pause button.

The programme or the delay start continues.

4. The door can be opened when the programme is complete. You may also set a spinning or draining programme/option and than press Start/Pause button. If the spin and drain programmes are not available in the programme dial, they can be set via App.

10.12 End of the programme

When the programme has finished, the appliance stops automatically. The acoustic signals operate (if they are active).

In the display all washing phase indicators become steady and the time

area shows

The indicator of the Start/Pause button goes off.

The door unlocks and the indicator goes off.

1. Press the On/Off button to deactivate the appliance.

After five minutes from the end of the programme, the energy saving function automatically deactivates the appliance.

2. Remove the laundry from the appliance.

3. Make sure that the drum is empty.

When you activate the appliance again, the display show the end of the last selected programme. Turn the programme dial to set a new cycle.

4. Keep the door and the detergent dispenser slightly ajar to prevent mildew and odours.

5. Close the water tap.

10.13 Draining water out after

end of cycle

If you have chosen a programme or an option that does not empty out the water of the last rinse, the programme is completed, but:

• The display shows the indicator

option indicator

door locked indicator

indicator of the running phase flashes.

• The drum still turns at regular intervals

to prevent the creases in the laundry.

• The door stays locked.

• You must drain the water to open the

door:

1. If necessary, touch the Spin button to decrease the spin speed proposed by the appliance.

2. Touch the Start/Pause button:

• If you have set

drains the water and spins.

• If you have set

only drains the water.

The option indicator

while the indicator goes off.

3. When the programme is completed

and the door locked indicator goes off, you can open the door.

4. Press the On/Off button a few seconds to deactivate the appliance.

In any case, the appliance empties the water out automatically after approximately 18 hours.

or and the

, the appliance

or goes off,

flashes and then

, the

. The

10.14 Stand-by option

The Stand-by function automatically deactivates the appliance to decrease the energy consumption when:

• You do not use the appliance for 5

minutes before you touch the Start/ Pause button.

ENGLISH 35

Press the On/Off button to activate the appliance again.

• After 5 minutes from the end of the washing programme Press the On/Off button to activate the appliance again. The display shows the end of the last set programme. Turn the programme dial to set a new cycle.

11. HINTS AND TIPS

WARNING!

Refer to Safety chapters.

11.1 The laundry load

• Divide the laundry into: white, coloured, synthetics, delicates and wool.

• Follow the washing instructions on the laundry care labels.

• Do not wash white and coloured items together.

• Some coloured items can discolour with the first wash. We recommend that you wash them separately for the first couple of times.

• Turn multilayered fabrics, wool and items with printed illustrations inside out.

• Pre-treat tough stains.

• Wash stubborn stains with a special detergent.

• Be careful with curtains. Remove the hooks and put the curtains in a washing bag or pillowcase.

• Do not wash laundry without hems or with cuts. Use a washing bag to wash small and/or delicate items (e.g. underwired bras, belts, tights, shoelaces, ribbons, etc. ).

• A very small load can cause balance problems with the spin phase leading to excessive vibration. If this occurs:

a. interrupt the programme and

open the door (refer to "Daily Use" chapter);

b. manually redistribute the load so

that the items are spaced evenly around the tub;

c. press the Start/Pause button. The

spin phase continues.

If you set a programme or an option that ends with water in the drum, the Stand-by function doesn't deactivate the appliance to remind you to drain the water.

• Button up pillowcases, close zippers, hooks and poppers. Tie up belts, cords, shoelaces, ribbons and any other loose elements.

• Empty pockets and unfold the items.

11.2 Stubborn stains

For some stains, water and detergent is not sufficient.

We recommend that you pre-treat these stains before you put the items in the appliance.

Special stain removers are available. Use the special stain remover that is applicable to the type of stain and fabric.

11.3 Detergents and other

treatments

• Only use detergents and other treatments specially made for washing machines:

– powder detergents for all types of

fabric, excluding delicate. Prefer powder detergents containing bleach for whites and laundry sanitization

– liquid detergents, preferably for

low temperature wash programmes (60 °C max) for all types of fabric, or special ones for woollens only.

www.aeg.com36

• Do not mix different types of detergents.

• To help the environment, do not use more than the recommended quantity of detergent.

• Follow the instructions that you find on packaging of the detergents or other treatments without exceeding

the indicated maximum level (

• Use the recommended detergents for the type and colour of the fabric, the programme temperature and the level of soil.

11.4 Ecological hints

• Set a programme without the prewash phase to wash laundry with normal soil.

12. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

12.1 External cleaning

Clean the appliance with mild soap and warm water only. Fully dry all the surfaces.

CAUTION!

Do not use alcohol, solvents or chemical products.

• Always start a washing programme with the maximum load of laundry allowed.

• If you pre-treat the stains, you can use a stain remover when you set a programme with a low temperature.

• To use the correct quantity of detergent, refer to the quantity

suggested by the detergent producer.

Regularly examine the drum to check for limescale.

The regular detergents already contain water softening agents, but we recommend to run a cycle with empty drum and a descaling product occasionally.

Always follow the instructions that you find on the packaging of the product.

CAUTION!

Do not clean the metal surfaces with chlorine-based detergent.

12.2 Descaling

If you use the salt regularly to activate the SoftWater Technology, the descaling procedure described in this paragraph is not necessary.

If the water hardness in your area is high or moderate, we recommend that you use a water descaling product for washing machines.

12.3 Maintenance wash

The repeated and prolonged use of low temperature and short programmes can cause detergent deposits, fluff residues, bacterial growth and biofilm formation inside the drum and the tub. This could generate bad odours and mildew.

To eliminate these deposits and hygienize the inner part of the appliance, run a maintenance wash at least once a month:

1. Remove all laundry from the drum.

2. Run a cotton programme with the

highest temperature with a small quantity of powder detergent.

Max

▼

Max

▼

Salt

Max

▼

Max

▼

Max

▼

Salt

Max

▼

Max

▼

Salt

Max

▼

ENGLISH 37

12.4 Door seal

Regularly examine the seal and remove all objects from the inner part.

12.5 Cleaning the drum

Regularly examine the drum to prevent unwanted deposits. Rust deposits in the drum may occur due to rusting foreign body in the washing or tap water containing iron.

Clean the drum with special products for stainless steel.

Always follow the instructions that you find on the packaging of the product. Do not clean the drum with acidic descaling products, scouring products containing chlorine or iron or steel.

12.6 Cleaning the detergent dispenser and the salt compartment

Before cleaning, make sure that the all compartments are empty.

To prevent possible deposits of dried detergent, clotted fabric softener, formation of mould in the dispenser drawer and/or salt fouling in the salt compartment, once in a while carry out the following cleaning procedure:

1. Open the drawer. Press the catch as indicated in the picture and pull the drawer out.

2. Remove the insert for the softener and, if inserted, the container for liquid detergent.

For a thorough clean:

1. Clean the drum with special products for stainless steel.

Always follow the instructions that you find on the packaging of the product.

2. Run a short cotton programme at high temperature with empty drum and with a small quantity of powder detergent or, if available, run the Machine Clean programme.

▼

Max

▼

Salt

Max

▼

Max

▼

Max

▼

Salt

www.aeg.com38

3. Wash the drawer and all inserts

under running water.

4. Make sure that all detergent residue is removed from the detergent conveyor. Use a cloth.

5. Make sure that all detergent residue is removed from the upper and lower part of the recess. Use a small brush to clean the recess.

6. Insert the detergent drawer into the guide rails and close it. Run the rinsing programme without any clothes in the drum.

12.7 Cleaning the drain pump

WARNING!

Disconnect the mains plug from the mains socket.

Regularly check the drain pump filter and make sure that it is clean.

Clean the drain pump if:

• The appliance does not drain the

water.

• The drum does not turn.

• The appliance makes an unusual

noise because of the blockage of the drain pump.

• The display shows the alarm code

WARNING!

• Do not remove the filter while the appliance operates.

• Do not clean the pump if the water in the appliance is hot. Wait until the water cools down

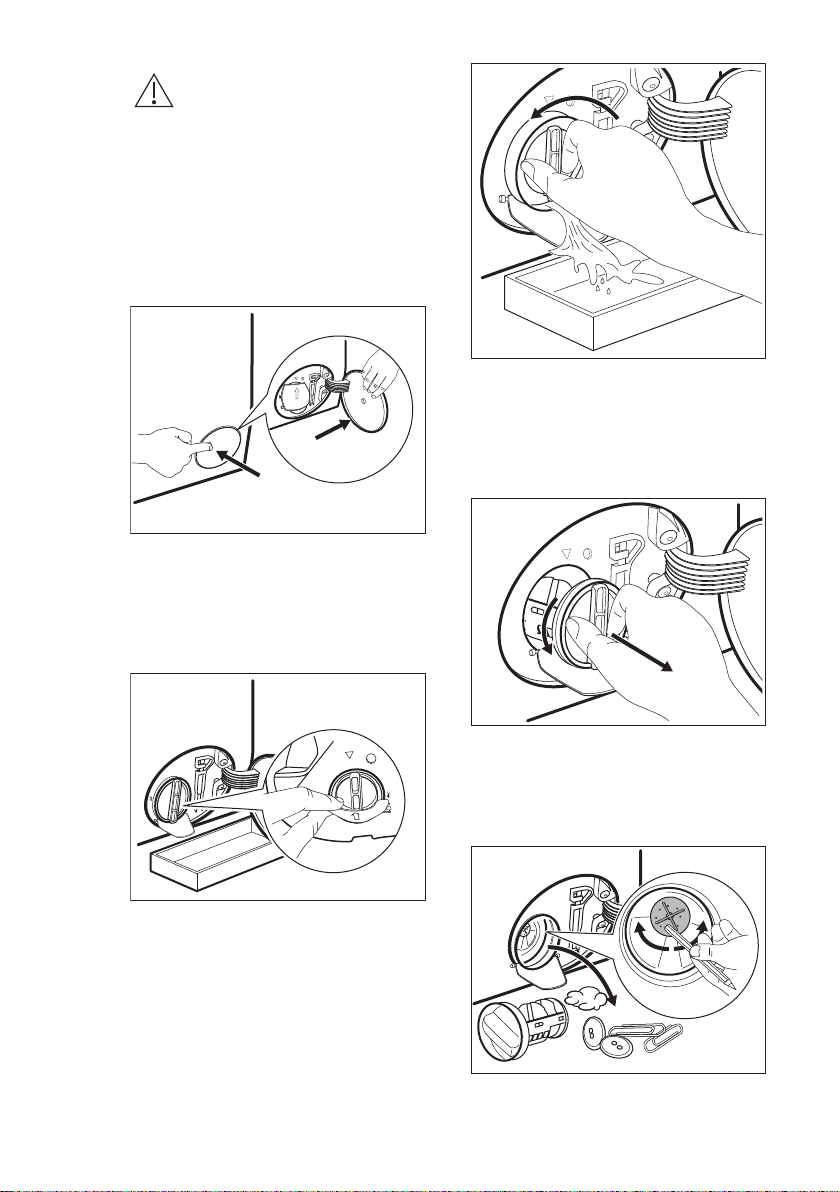

Proceed as follows to clean the pump:

1. Open the pump cover.

2. Place a suitable bowl below the drain

pump access to collect the water that flows out.

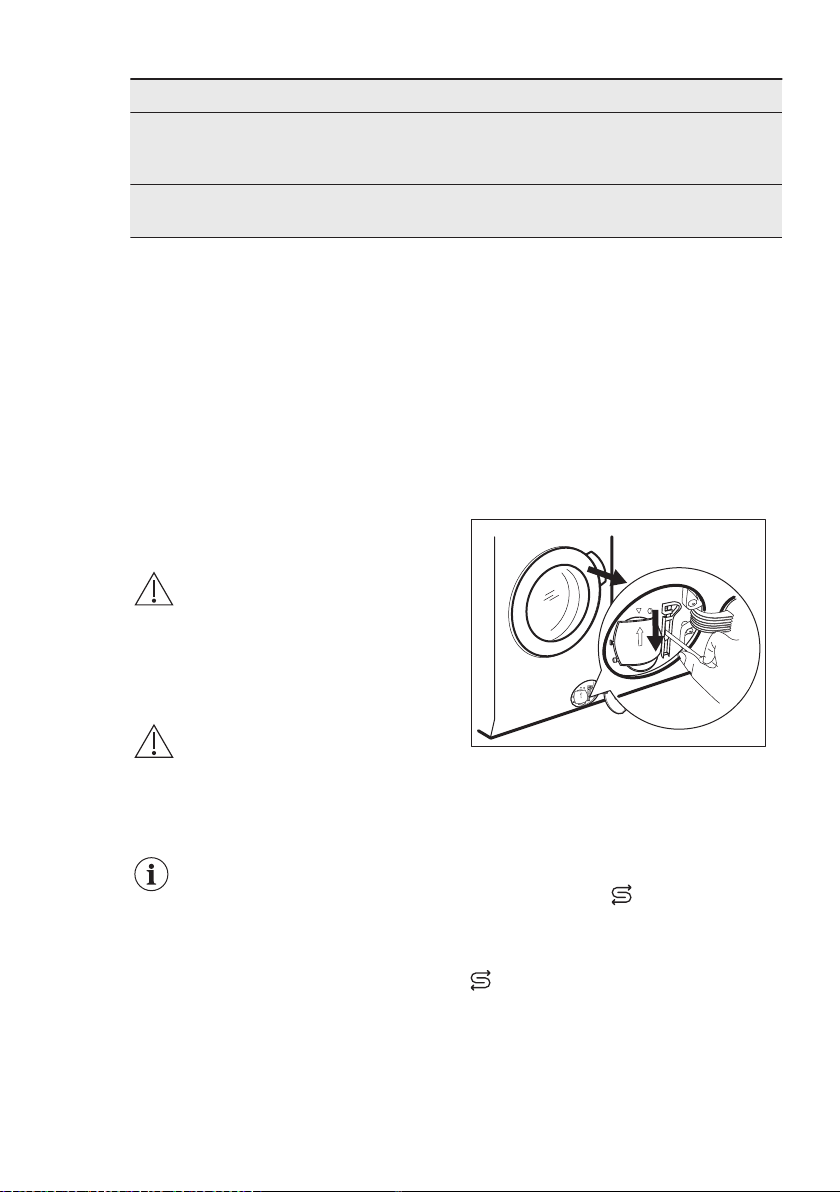

3. Open the chute downwards. Always keep a rag nearby to dry up any water spillages when removing the filter.

ENGLISH 39

5. When the bowl is full of water, turn

the filter back and empty the container.

6. Repeat the steps 4 and 5 until the water stops to flow out.

7. Turn the filter anti-clockwise to remove it.

8. If it is necessary, remove fluff and objects from the filter recess.

9. Make sure that the impeller of the pump can rotate. If it does not rotate, contact the Authorised Service Centre.

4. Turn the filter 180 degrees in anticlockwise direction to open it, without removing. Let the water flow out.

10. Clean the filter under the water tap.

www.aeg.com40

11. Put the filter back into the special

guides by turning it clockwise. Make sure that you tighten the filter correctly to prevent leakages.

12.8 Cleaning the inlet hose and the valve filter

It is recommended to clean both the filters of the inlet hose and valve occasionally to remove any deposit, collected over the time:

1. Remove the inlet hose from the tap and clean the filter.

2. Remove the inlet hose from the appliance by loosening the ring nut.

12. Close the pump cover.

3. Clean the valve filter on the back of

the appliance with a toothbrush.

When you drain the water with the emergency drain procedure, you must activate the drain system again:

a. Put 2 litres of water in the main

wash compartment of the detergent dispenser.

b. Start the programme to drain the

water.

4. When you reconnect the hose to the back of the appliance, turn it left or right (not in vertical position) depending on the position of your water tap.

45°

20°

12.9 Emergency drain

If the appliance cannot drain the water, carry out the same procedure, described in 'Cleaning the drain pump' paragraph. If necessary, clean the pump.

When you drain the water with the emergency drain procedure, you must activate the drain system again:

1. Put 2 litres of water in the main wash compartment of the detergent dispenser.

2. Start the programme to drain the water.

ENGLISH 41

12.10 Frost precautions

If the appliance is installed in an area where the temperature can reach the values around 0° C or drop below, remove the remaining water from the inlet hose and the drain pump.

1. Disconnect the mains plug from the mains socket.

2. Close the water tap.

3. Put the two ends of the inlet hose in

a container and let the water flow out of the hose.

4. Empty the drain pump. Refer to the emergency drain procedure.

5. When the drain pump is empty, install the inlet hose again.

WARNING!

Make sure that the temperature is higher than 0 °C before you use the appliance again. The manufacturer is not responsible for damages caused by low temperatures.

13. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

13.1 Introduction

The appliance does not start or it stops during operation.

First try to find a solution to the problem (refer to the table). If the problem persists, contact the Authorised Service Centre.

In case of major problems, the acoustic signals operate, the display shows an alarm code and the Start/Pause button may flash continuously:

• - The appliance does not fill with water properly. Start the appliance again by pressing Start/Pause button. After 5 seconds the door will be unlocked.

• - The appliance does not drain the water.

• - The appliance door is open or not closed correctly. Please check the door!

If the appliance is overloaded, remove some items from the drum and/or keep pressed the door while touching the Start/Pause button until the indicator

stops flashing (see

the picture below).

www.aeg.com42

• - The mains supply is unstable. Wait until the mains supply is stable.

•

- No communication between electronic elements of the appliance. Switch it off and switch on again.

13.2 Possible failures

Problem Possible solution

• Make sure that the mains plug is connected to the mains socket.

• Make sure that the appliance door is closed.

The programme does

not start.

The appliance does not

fill with water properly.

The appliance fills with water and drains immediately

• Make sure that there is no damaged fuse in the fuse box.

• Make sure that the Start/Pause has been touched.

• If the delay start is set, cancel the setting or wait for the end of countdown.

• Deactivate the Child Lock function if it is on.

• Make sure that the water tap is open.

• Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority.

• Make sure that the water tap is not clogged.

• Make sure that the inlet hose has no kinks, damages or bends.

• Make sure that the connection of the water inlet hose is correct.

• Make sure that the filter of the inlet hose and the filter of the valve are not clogged. Refer to "Care and cleaning".

• Make sure that the drain hose is in the correct position. The hose may be positioned too low. Refer to "Installation instruction".

The programme was not finished properly or the appliance stopped too early. If the alarm code appears again, contact the Authorised Service Centre.

•

- The anti-flood device is on. Disconnect the appliance and close the water tap. Contact the Authorised Service Centre.

WARNING!

Deactivate the appliance before carrying out any check.

Problem Possible solution

• Make sure that the sink spigot is not clogged.

• Make sure that the drain hose has no kinks or bends.

• Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to "Care and cleaning".

The appliance does not drain the water.

• Make sure that the connection of the drain hose is correct.

• Set the drain programme if you set a programme without drain phase. If the drain programme is not available in the programme dial, it can be set via App’.

• Set the drain programme if you set an option which ends with water in the tub.

• Set the spin programme. If the drain programme is not

The spin phase does not operate or the washing cycle lasts longer than usual.

available in the programme dial, it can be set via App’.

• Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to "Care and cleaning".

• Adjust manually the items in the tub and start the spin phase again. This problem may be caused by balance problems.

• Make sure that the couplings of the water hoses are tight and there is not water leakages.

There is water on the floor.

• Make sure that the water inlet hose and the drain hose have no damages.

• Make sure you use the correct detergent and the correct quantity of it.

• Make sure that a washing programme that ends with water in tub, has been selected.

• Make sure that the washing programme is finished.

• Set the drain or the spin programme if there is water in the drum. If the spin and drain programmes are not available in

You cannot open the appliance door.

the programme dial, they can be set via App.

• Make sure that the appliance receives electrical power.

• This problem may be caused by a failure of the appliance. Contact the Authorised Service Centre. If you need to open the door, please read carefully "Emergency door opening".

• Make sure that the Remote Start is not activated. Deactivate it.

• Check the wireless signal.

The display does not show the wireless indicator

• Make sure that the wireless connection is on.

• Check your home network and router.

• Restart the router.

• Contact your wireless service provider if there are further problems with the wireless network.

ENGLISH 43

Salt

www.aeg.com44

Problem Possible solution

• Check the wireless signal.

• Check if your smart device is connected to the wireless network.

• Check your home network and router.

The App cannot connect to the appliance.

• Restart the router.

• Contact your wireless service provider if there are problems with the wireless network.

• The appliance, the smart device, or both, need to be configured again because a new router has been installed or the router configuration has been changed.

• Make sure that the wireless signal reaches the appliance.

The App cannot frequently connect to the appliance.

Try to move the home router as near the appliance as possible or consider purchasing a wireless range extender.

• Make sure the wireless signal is not disrupted by microwave. Turn the microwave off. Avoid using the microwave and the remote control at the same time.

• Make sure the levelling of the appliance is correct. Refer to

The appliance makes an unusual noise and vibrates.

"Installation instruction".

• Make sure that the packaging and/or the transit bolts are removed. Refer to "Installation instruction".

• Add more laundry in the drum. The load may be too small.

The programme duration increases or decreases during programme execution.

• The ProSense function is able to adjust the programme duration according to the type and the laundry load size. Refer to "The ProSense load detection" in "Daily Use" chapter.

• Increase the detergent quantity or use a different detergent.

• Use special products to remove the stubborn stains before you wash the laundry.

• Make sure that you set the correct temperature.

The washing results are not satisfactory.

• Decrease the laundry load.

• Make sure that no other type of detergent has been poured

the compartment tergent or other additives from salt compartment'.

• Make sure that no salt has been poured in the compart-

ment cycle again.

Too much foam in the

• Reduce the quantity of detergent.

drum during the washing cycle.

Excessive consumption of salt.

• Check if the water softener has been set to act also during rinse phase. Refer to "How to set the water hardness level" in "The Water Softener (Soft Water)" chapter.

. In this case, refer to "Eliminating de-

. If it happens, run a rinse cycle or run the washing

Salt

ENGLISH 45

Problem Possible solution

• The appliance may need a water softener regeneration: run

Salt is not consumed.

The drum light does not go on.

After the check, activate the appliance. The programme continues from the point of interruption. If the problem occurs again, contact the Authorised Service Centre. If the display shows other alarm codes. Deactivate and activate the appliance. If the problem continues, contact the Authorised Service Centre.

a Cottons or a Synthetics cycle. Refer to "Water softener regeneration" in "The Water Softener (Soft Water)" chapter.

• Make sure that the LED lamp is not burned. To replace it, contact the Authorised Service Centre.

13.3 Emergency door opening

In case of power failure or functioning failure the appliance door remains locked. The washing programme continues when the power is restored. If the door remains locked in case of failure, it is possible to open it using the emergency unlock function.

Before opening the door:

CAUTION! Risk of burns! Make sure that the water temperature is not too high and the laundry is not hot. If necessary, wait until they cool down.

CAUTION! Risk of injury! Make sure that the drum is not rotating. If necessary, wait until the drum stops rotating.

Make sure that the water level inside the drum is not too high. If necessary, proceed with an emergency drain (refer to «Emergency drain» in «Care and cleaning» chapter).

To open the door, proceed as follows:

1. Press the On/Off button to switch the appliance off.

2. Disconnect the mains plug from the mains socket.

3. Open the filter flap.

4. Pull the emergency unlock trigger

downward once. Pull it downward once again, keep it tensed and, in the meanwhile, open the appliance door.

5. Take out the laundry and then close the appliance door.

6. Close the filter flap.

13.4 Eliminating detergent or

other additives from salt

compartment

Any type of detergent and additives inadvertently poured in the compartment

must be eliminated completely.

If this happens, please proceed as follows:

1. Pull the drawer out.

Max

▼

Max

▼

Salt

Max

Salt

www.aeg.com46

2. Eliminate any trace of detergent or

additive and clean the compartment thoroughly.

3. Insert the drawer back and pour salt

14. CONSUMPTION VALUES

Stated values are obtained in laboratory conditions with relevant standards. Different causes can change the data: the quantity and type of laundry and ambient temperature. Water pressure, the supply voltage and the temperature of inlet water may also affect the washing programme duration.

Technical specifications may be changed without prior notice to improve the quality of product.

During the washing programme, the Prosense technology can vary the wash duration and the consumption values. For more details see 'The Prosense load detection' paragraph in 'Daily Use' chapter.

Programmes Load

(kg)

Cottons 60°C 9 1.65 90 220 44

Cottons 40°C 9 1.20 90 210 44

Synthetics 40°C 4 0.72 55 160 35

Delicates 40°C 4 0.60 60 120 35

Wool 30°C 2 0.35 58 60 30

in the compartment

4. Close the drawer.

5. Run a cotton or synthetic cycle,

without reducing time, to restore the water softener function.

Energy consumption (kWh)

Water consumption (litre)

Approximate programme duration (minutes)

Remaining mois-

ture (%)

Standard cotton programmes2)

Standard 60°C cotton

9 0.33 54 268 44

4.5 0.30 40 247 44

ENGLISH 47

Programmes Load

Standard 40°C cotton

At the end of spin phase.

The performance results and low energy consumption are guaranteed by the use of softened water. To maintain this achievement over time, it is essential to set the right water hardness level by following the user manual instructions and use salt regularly for regenerating the resins .

Off Mode (W) 0.30

Left On Mode (W) 0.30

Power consumption in networked standby (W)

Time to networked standby (min.) 15

The information given in the chart above is compliant with the EU Commission regulation 1015/2010 implementing directive 2009/125/EC and EU commission regulation No. 1275/2008.

15. TECHNICAL DATA

Dimension Width/ Height/ Depth/

Total depth

Electrical connection Voltage

Overall power Fuse Frequency

Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture

Water supply pressure1)Minimum

Maximum

(kg)

Energy consumption (kWh)

Water consumption (litre)

Approximate programme duration (minutes)

4.5 0.31 40 234 44

2.00

600 mm/ 850 mm/ 630 mm/ 660 mm

230-240 V 2200 W 13 A 50 Hz

IPX4

0.5 bar (0.05 MPa) 8 bar (0.8 MPa)

Remaining mois-

ture (%)

Water supply

Cold water

Maximum Load Cotton 9 kg

Energy Efficiency Class A+++

www.aeg.com48

Spin Speed Maximum spin speed 1551 rpm

The appliance works correctly if the water pressure is not lower than 0.05 MPa (0.5 bar). If you cannot connect the water inlet hose to the cold water tap of the primary hydraulic system, connect it to your domestic cold water storage system. Make sure not to exceed a distance of 5.02 m (16.5 ft) between the appliance inlet hose and the bottom of the water storage tank.

Connect the water inlet hose to a water tap with a 3/4'' thread.

16. ACCESSORIES

16.1 Available in www.aeg.com/shop or from authorised dealer

Read carefully the instructions supplied with the accessory.

Only appropriate accessories approved by AEG ensure the safety standards of the appliance. If unapproved parts are used, any claims will be invalidated.

16.2 Fixing plate kit

If you install the appliance on a plinth, secure the appliance with the fixing plates.

Read carefully the instructions supplied with the accessory.

16.3 Stacking kit

using the correct stacking kit manufactured and approved by AEG.

Verify the compatible stacking kit by checking the depth of your appliances.

The stacking kit can be used only with the appliances specified in the leaflet provided with the accessory.

Read carefully the instructions supplied with the appliance and with the accessory.

WARNING!

Do not put the tumble dryer under the washing machine.

16.4 Pedestal with the drawer

The tumble dryer can be stacked on the top of the washing machine only by

To raise your appliance and make loading and unloading laundry easier.

The drawer can be used for laundry storage e.g.: towels, cleaning products and more.

Read carefully the instructions supplied with the accessory.

ENGLISH 49

17. PRODUCT INFORMATION SHEET IN REFERENCE

TO E.U. REGULATION 1369/2017

Product Information Sheet

Trade Mark AEG

Model L9FEB969C, PNC914550958

Rated capacity in kg 9

Energy efficiency class A+++

Energy consumption in kWh per year, based on 220 standard washing cycles for cotton programmes at 60 °C and 40 °C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.

Energy consumption of the standard 60°C cotton programme at full load in kWh

Energy consumption of the standard 60°C cotton programme at partial load in kWh

Energy consumption of the standard 40°C cotton programme at partial load kWh

Power consumption of the off-mode in W 0.30

Power consumption in left-on mode in W 0.30

Water consumption in litres per year, based on 220 standard washing cycles for cotton programmes at 60 °C and 40 °C at full and partial load. Actual water consumption will depend on how the appliance is used.

Spin-drying efficiency class on a scale from G (least efficient) to A (most efficient)

Maximum spin speed in rpm 1551

Remaining moisture content in % 44

The 'standard 60 °C cotton programme' and the 'standard 40 °C cotton programme' are the standard washing programmes to which the information in the label and the fiche relates, these programmes are suitable to clean normally soiled cotton laundry and they are the most efficient in terms of combined energy and water consumption.

Programme time of the standard 60°C cotton programme at full load in minutes

Programme time of the standard 60°C cotton programme at partial load in minutes

76.0

0.33

0.30

0.31

10499

268

247

www.aeg.com50

Programme time of the "standard 40°C cotton programme at partial load in minutes

Duration of the left on mode in minutes 5

Airborne acoustical noise emission in db(A) washing 47

Airborne acoustical noise emission in db(A) spinning 75

Built in appliance Y/N No

The information given in the chart above is compliant with the EU Commission regulation 1015/2010 implementing directive 2009/125/EC .

18. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol

. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

234

ENGLISH 51

www.aeg.com/shop

157031970-A-032020

The software included in this product contains copyrighted software that is licensed under the BSD, GPL-2.0, LGPL-2.0, LGPL-2.1, zLib, MIT, ISC, Apache 2.0 and others. It is possible to display the complete copy of the licenses in the AEG App that can be downloaded from the corresponding App store from the License menu section. It is possible to download the source code of the open source software used in the product by searching for Wi-Fi Module Software version in NIUX subfolder at the following website: http://aeg.opensoftwarerepository.com.

AEG L9FEB969C User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

CONTENTS

SAFETY INFORMATION

1.1 Children and vulnerable people safety

1.2 General Safety

2. SAFETY INSTRUCTIONS

2.1 Installation

2.2 Electrical connection

2.3 Water connection

2.4 Use

2.5 Internal lighting

2.6 Service

2.7 Disposal

3. INSTALLATION

3.1 Unpacking

3.2 Installation on suspended flooring

3.3 Positioning and levelling

3.4 The inlet hose

3.5 Water drainage

4. PRODUCT DESCRIPTION

4.1 Special features

4.2 Appliance overview

5. THE WATER SOFTENER (SOFT WATER)

5.1 Introduction

5.2 How to set the water hardness level

How to set the water softener also during rinse phase

How to deactivate the water softener

5.3 Pouring salt

6. BEFORE FIRST USE

7. CONTROL PANEL

7.1 Control panel description

7.2 Display

8. PROGRAMMES

8.1 Programme Chart

8.2 Options compatibility with programmes

8.3 Woolmark Apparel Care - Green

9. WI-FI - CONNECTIVITY SETUP

Remote Start

9.4 Over-the-air update

10. DAILY USE

10.1 Activating the appliance

10.2 Loading the laundry

Filling the liquid detergent

10.4 Setting a programme

10.5 Starting a programme

Cancelling the delay start after the countdown has started

Changing the delay start after the countdown has started

10.8 Programme phase indicators

10.9 Interrupting a programme and changing the options

10.12 End of the programme

10.14 Stand-by option

11. HINTS AND TIPS

11.1 The laundry load

11.2 Stubborn stains

11.4 Ecological hints

12. CARE AND CLEANING

12.1 External cleaning

12.2 Descaling

12.3 Maintenance wash

12.4 Door seal

12.5 Cleaning the drum

12.6 Cleaning the detergent dispenser and the salt compartment

12.7 Cleaning the drain pump

12.8 Cleaning the inlet hose and the valve filter

12.9 Emergency drain

12.10 Frost precautions

13. TROUBLESHOOTING

13.1 Introduction

13.2 Possible failures

13.3 Emergency door opening

14. CONSUMPTION VALUES

15. TECHNICAL DATA

16. ACCESSORIES

16.1 Available in www.aeg.com/shop or from authorised dealer

16.2 Fixing plate kit

16.3 Stacking kit

16.4 Pedestal with the drawer
