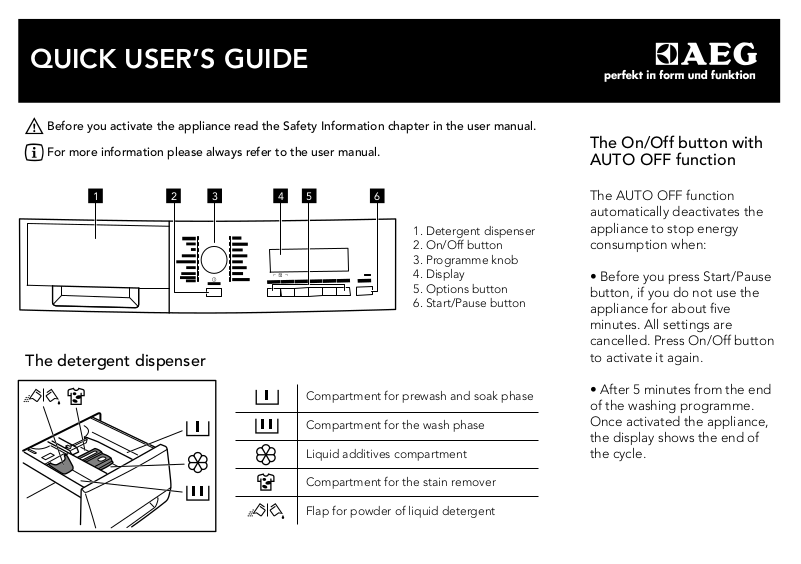

QUICK USER’S GUIDE
Before you activate the appliance read the Safety Information chapter in the user manual.
For more information please always refer to the user manual.
The On/Off button with
AUTO OFF function
1 2 3 4 5 6
The detergent dispenser
1. Detergent dispenser
2. On/Off button
3. Programme knob
4. Display
5. Options button
6. Start/Pause button
Compartment for prewash and soak phase
Compartment for the wash phase
Liquid additives compartment
Compartment for the stain remover
Flap for powder of liquid detergent
The AUTO OFF function
automatically deactivates the
appliance to stop energy
consumption when:
• Before you press Start/Pause
button, if you do not use the
appliance for about five
minutes. All settings are
cancelled. Press On/Off button
to activate it again.
• After 5 minutes from the end
of the washing programme.
Once activated the appliance,
the display shows the end of
the cycle.
INTERACTIVE DISPLAY
The simple and logic display gives immediately all the information about the washing programme
AB C D E
F The weight sensor area
With the door opened:
The maximum load for each programme ( )
The weight of the laundry that you put in the drum ( )
With the door closed:
F
The symbol of detergent
The percentage of the detergent quantity
GHI
A The temperature value
B The spin speed value, No Spin and Rinse Hold function
C The washing phase symbols
D The function symbols
STEAM
DOOR LOCK
E The digit area:
The Washing programme duration
The Delay/Start set
The Alarm codes (refer to the “Troubleshooting” chapter)
The Err message when you make a wrong selection
The End of the programme ( )
DETERGENT OVERDOSERING
DELAY START
Indicator bars:
The empty indicator bars come on when the related fuctions are available
with the set programme. In setting mode they fill accordingly to the
function availability.
G TIME SAVE
The symbol comes on when you set one of these functions:
Shortened duration
Extra quick
H The EXTRA RINSE symbol comes on when this function is activated.
I The PREWASH/STAIN symbols. The indicator bar fills accordingly
to the set function.
The OPTISENSE wash The Weight Sensor
The appliance adjusts automatically the cycle time to the laundry load
to have PERFECT washing results in the minimum necessary time.
After about 15 minutes from the start of the programme, the display
shows the new time value.
With this special device, already during loading, the appliance shows
the real cycle duration and the correct quantity of detergent to put for
each type and amount of laundry.
Since a small load may need less than half time of a full load, every
time you use the appliance you will appreciate the usefulness of the
weight sensor and its instant time calculation.
Before First Use
START THE APPLIANCE
1 Activate the drain system:
put 2 litre of water in the main wash compartment of the detergent
dispenser.
Daily Use
1 Open the water tap.
2 Connect the mains plug to the mains socket.
3 Press On/Off button to activate the appliance.
ALWAYS ACTIVATE THE APPLIANCE BEFORE LOADING
THE LAUNDRY INTO THE DRUM.
4 Turn the programme knob to set a programme. The programme
indicator goes on.
5 The display shows the default temeprature, maximum spin speed
and the empty indicator bar of the available functions. To change
the default values or to set functions press the corresponding
buttons.
6 If necessary, set the delay start function.
7 Put the laundry in the drum, one item at a time.
The maximum programme load ( ) and the laundry
weight ( ) that you put in the drum appear on the display.
The weight of the laundry updates by step of 0.5 kg.
2 Set and start a programme for cotton at the highest temperature
without laundry to remove all possible dirt from the drum and the
tub. Put a small quantity of detergent in the main wash compart-
ment of the detergent dispenser.
1 If you put more laundry than the maximum load, the symbol
flashes. You can wash your laundry anyway but the energy and water
consumption increase.
In any case the overload indication is available only for programmes
with a maximum load lower than the appliance maximum load.
8 Close the door.
The display shows the detergent symbol and the
percentage of the detergent to use ( ). To have
PERFECT washing results with MINIMUM energy and
water consumption follow this suggestion.
9 Put the detergent and additives in the correct compartment of the
dispenser.
10 Press Start/Pause button to start the washing programme.
11 At the end of the programme the display shows a zero , the
indicator of the Start/Pause button and the door lock symbol go off.
If you set the Rinse Hold function refer to “At the end of the
programme” chapter in the user manual.
PROGRAMMES
Programme Temperature Type of load Functions
Cottons
Extra Silent
Synthetics
Easy Iron + Steam
Delicates
Wool/Silk
Duvet
Anti-Allergy
Spin/Drain (all fabrics)
Rinse
Outdoor
20 Min - 3 kg
Super Eco
Cottons Eco
95º - Cold
95º - Cold
60º - Cold
60º - 30º
40º - Cold
40º - Cold
60º - 30º
60º
/
/
40º - Cold
40º - 30º
Cold
60º - 40º
White and coloured cotton items
White and coloured cotton items
Synthetic or mixed fabric items
Synthetic items
Delicate fabrics as acrylics, viscose, polyester items
Machine washable wool and delicate fabrics with “hand washing”
care symbol
One synthetic blanket, duvet, bedspread and so on
White cotton items
The maximum load of the laundry is related to the type of laundry
All fabrics
Waterproof, sports and outdoor clothing. Do not use any fabric softener!
Quick wash of sport items or cotton and synthetic items
Mixed fabrics (cotton and synthetic items)
White and fast coloured cotton items
Steam - Refresh
Steam - Anticrease
/
/
Cotton and synthetic items that need to remove odour
Cotton and synthetic items that need to dewrinkle
For each programmes the display shows all the available functions.
In case of incorrect selection, the display tells that the selection is not possible.
132912270-A-112013
