Page 1
USER
MANUAL
L6SEF74479
EN User Manual
Washing Machine
Page 2
www.aeg.com2
CONTENTS
1. SAFETY INFORMATION......................................................................................3
2. SAFETY INSTRUCTIONS.................................................................................... 5
3. PRODUCT DESCRIPTION...................................................................................6
4. TECHNICAL DATA............................................................................................... 7
5. INSTALLATION.....................................................................................................8
6. ACCESSORIES.................................................................................................. 12
7. CONTROL PANEL..............................................................................................13
8. DIAL AND BUTTONS......................................................................................... 14
9. PROGRAMMES..................................................................................................17
10. SETTINGS........................................................................................................ 21
11. BEFORE FIRST USE........................................................................................23
12. DAILY USE....................................................................................................... 23
13. HINTS AND TIPS..............................................................................................28
14. CARE AND CLEANING.................................................................................... 30
15. TROUBLESHOOTING......................................................................................35
16. CONSUMPTION VALUES................................................................................38
17. QUICK GUIDE.................................................................................................. 39
18. ENVIRONMENTAL CONCERNS......................................................................41
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler – features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information:
www.aeg.com/support
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
Page 3
1. SAFETY INFORMATION
Before beginning the installation and use of this
appliance, carefully read the supplied instructions.
The manufacturer is not responsible for any injuries or
damage that are the result of incorrect installation or
usage. Always keep the instructions in a safe and
accessible location for future reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.
• Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
• Children should be supervised to ensure that they do
not play with the appliance.
• Keep all packaging away from children and dispose of
it appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when
the door is open.
• If the appliance has a child safety device, it should be
activated.
• Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
ENGLISH 3
Page 4
www.aeg.com4
1.2 General Safety
• This appliance is for washing domestic-type, machine-
washable laundry only.
• This appliance is designed for single household
domestic use in an indoor environment.
• This appliance may be used in, offices, hotel guest
rooms, bed & breakfast guest rooms, farm guest
houses and other similar accommodation where such
use does not exceed (average) domestic usage levels.
• Do not change the specification of this appliance.
• The appliance maximum load is 7.0 kg. Do not exceed
the maximum load of each programme (refer to the
“Programmes” chapter).
• The operating water pressure at the water entry point
from the outlet connection must be between 0.5 bar
(0.05 MPa) and 10 bar (1.0 MPa).
• The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
• The appliance must be connected to the water mains
using the new supplied hose sets, or other new hose
sets supplied by the Authorised Service Centre.
• Old hose sets must not be reused.
• If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
• Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
• Do not use high pressure water sprays and/or steam
to clean the appliance.
• Clean the appliance with a moist cloth. Use only
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
Page 5
2. SAFETY INSTRUCTIONS
ENGLISH 5
2.1 Installation
The installation must comply
with relevant national
regulations.

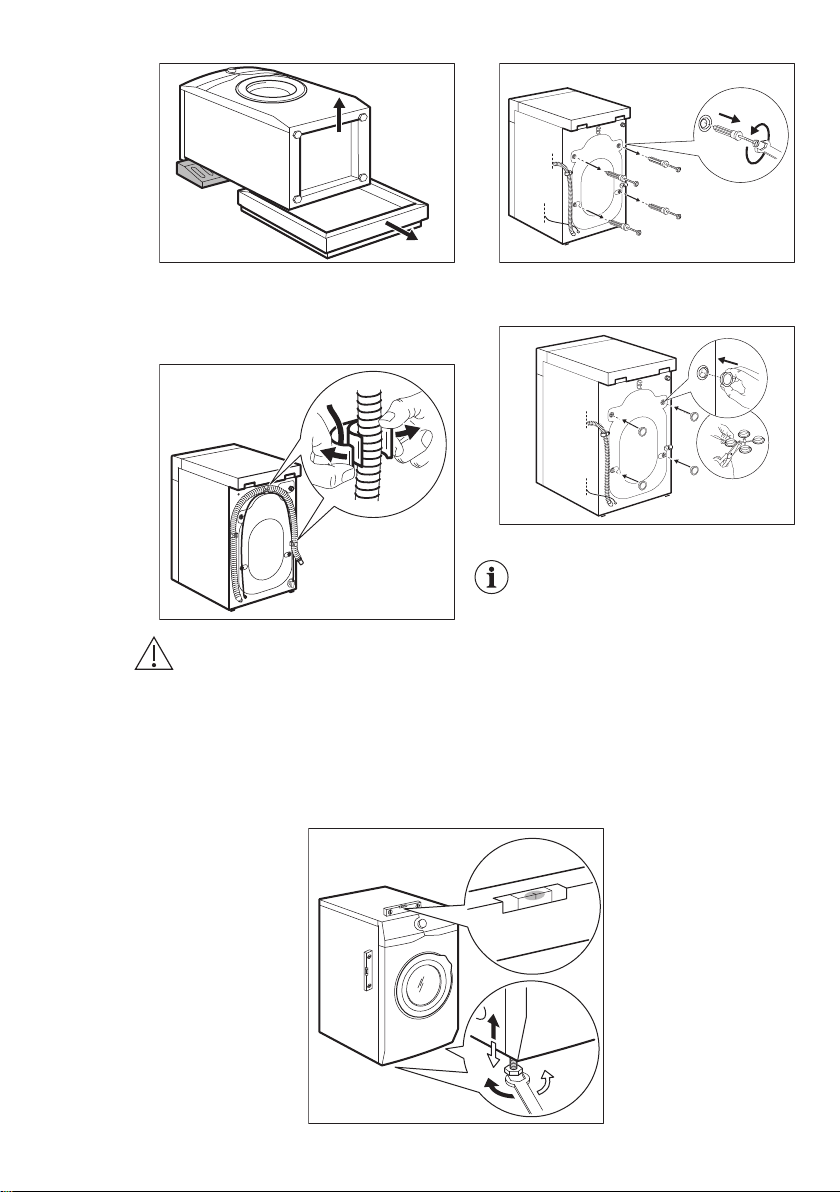

• Remove all the packaging and the
transit bolts including rubber bush
with plastic spacer.
• Keep the transit bolts in a safe place.
If the appliance is to be moved in the
future they must be reattached to lock
the drum to prevent an internal
damage.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Follow the installation instructions
supplied with the appliance.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance
where the temperature can be less
than 0°C or where it is exposed to the
weather.
• The floor area on which the appliance
is to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• When the appliance is in its
permanent position, check if it is
levelled correctly with the aid of a
spirit level. If it is not, adjust the feet
accordingly.
• Do not install the appliance directly
above a floor drain.
• Do not spray water on the appliance
and do not expose it to excessive
humidity.
• Do not install the appliance where the
appliance door cannot be fully
opened.
• Do not put a closed container to
collect possible water leakage under
the appliance. Contact the Authorised
Service Centre to ensure which
accessories can be used.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.

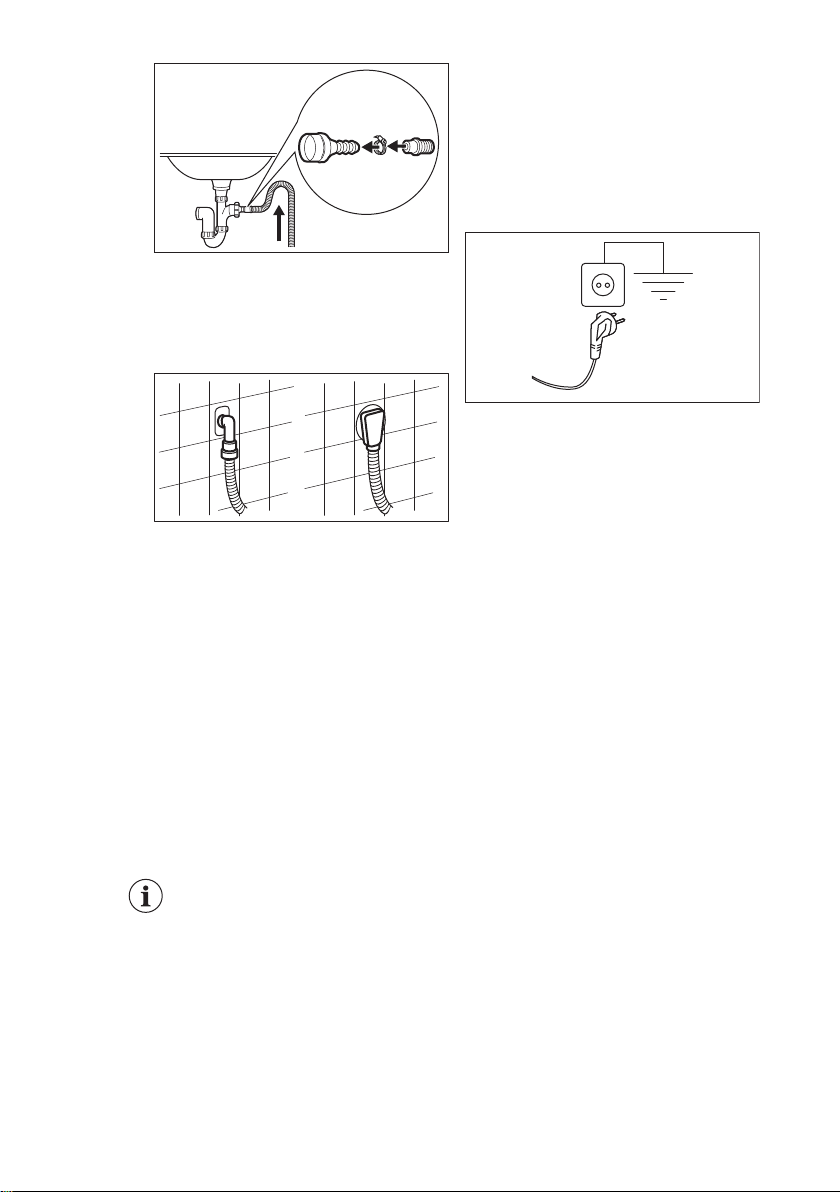

• WARNING: This appliance is
designed to be installed / connected
to a grounding connection in the
building.
• Always use a correctly installed
shockproof socket.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not touch the mains cable or the
mains plug with wet hands.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.

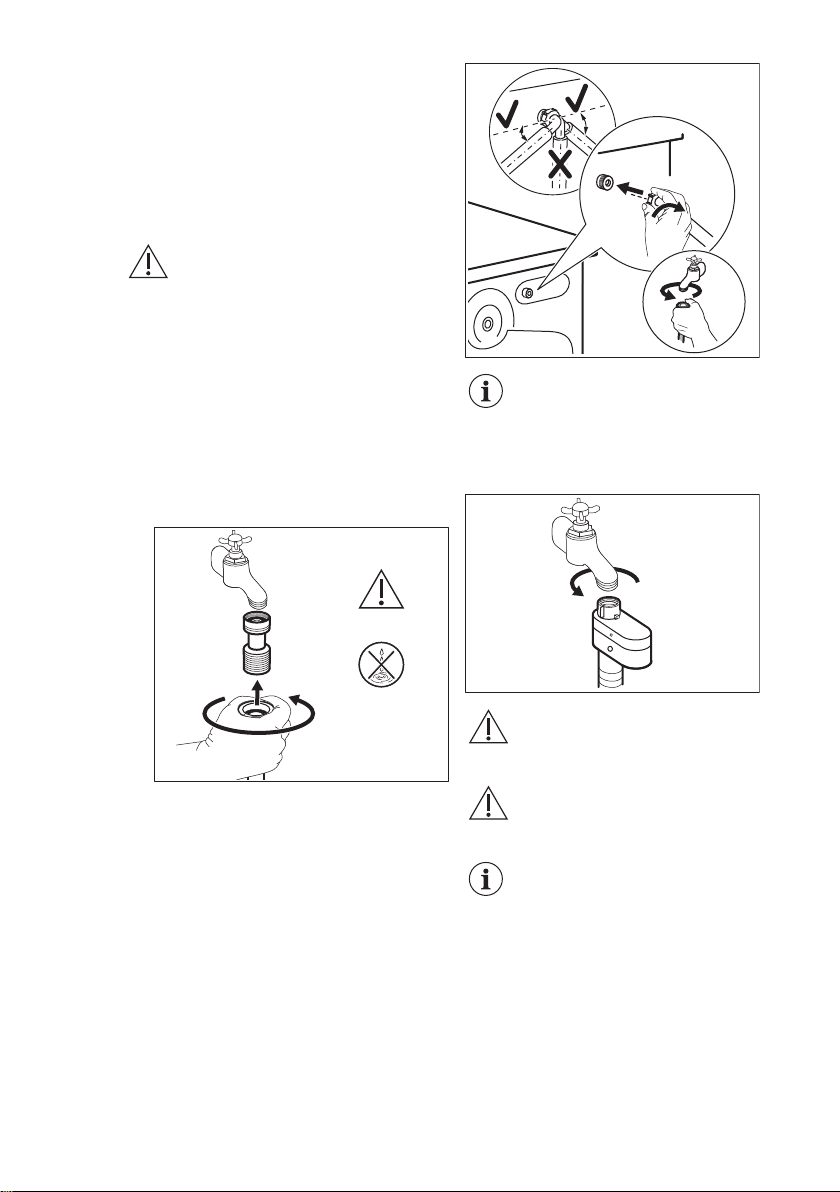

2.3 Water connection
• The inlet water shall not exceed 25
°C.
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
• Do not use an extension hose if the
inlet hose is too short. Contact the
Authorised Service Centre for the
replacement of the inlet hose.
Page 6
www.aeg.com6
• When unpacking the appliance, It is
possible to see water flowing from the
drain hose. This is due to the testing
of the appliance with the use of water
in the factory.

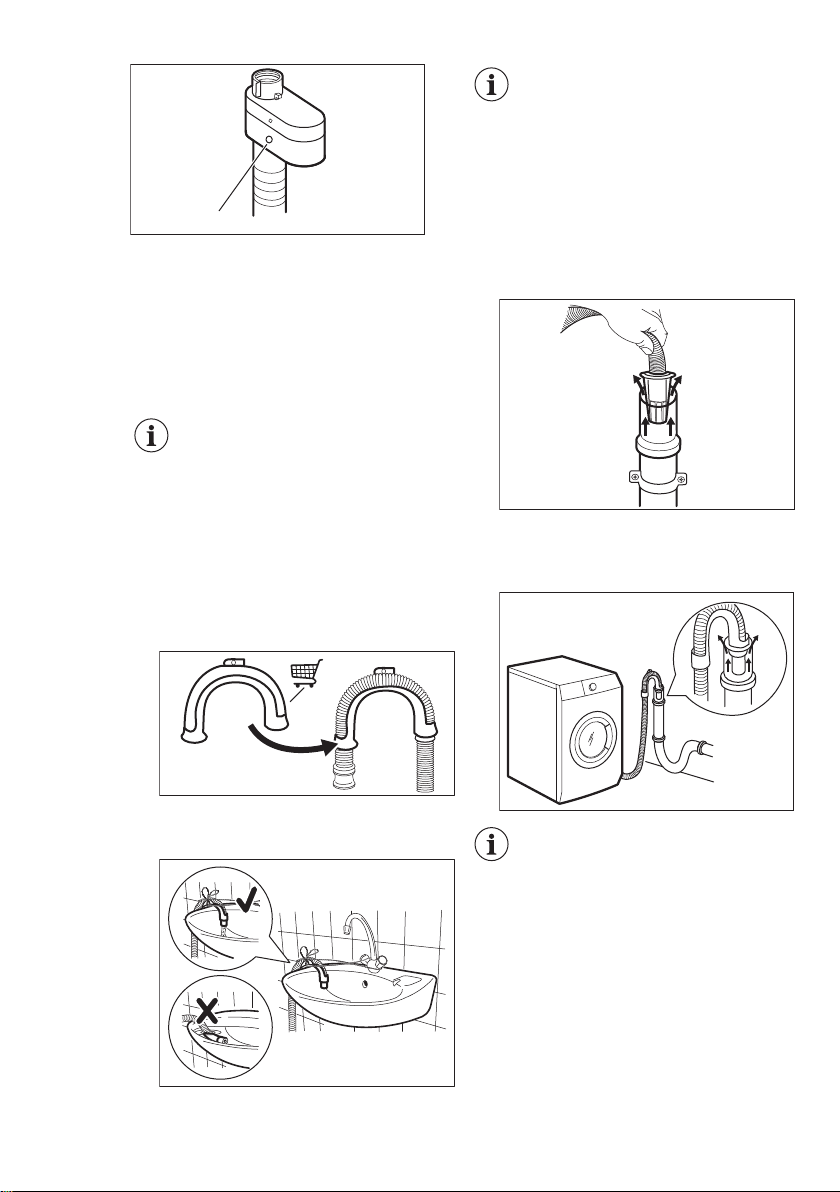

• You can extend the drain hose to
maximum 400 cm. Contact the
Authorised Service Centre for the
other drain hose and the extension.
• Make sure that there is access to the
tap after the installation.
2.4 Use
WARNING!
Risk of injury, electric shock,
fire, burns or damage to the
appliance.
• Follow the safety instructions on the
detergent packaging.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not wash fabrics which are heavily
soiled with oil, grease or other greasy
substances. It can damage rubber
parts of the washing machine.
Prewash such fabrics by hand before
loading them into the washing
machine.
• Do not touch the glass door while a
programme operates. The glass can
get hot.
• Make sure that all metal objects are
removed from the laundry.
2.5 Service
• To repair the appliance contact the
Authorised Service Centre. Use
original spare parts only.
• Please note that self-repair or nonprofessional repair can have safety
consequences and might void the
guarantee.
• The following spare parts will be
available for 10 years after the model
has been discontinued: motor and
motor brushes, transmission between
motor and drum, pumps, shock
absorbers and springs, washing drum,
drum spider and related ball bearings,
heaters and heating elements,
including heat pumps, piping and
related equipment including hoses,
valves, filters and aquastops, printed
circuit boards, electronic displays,
pressure switches, thermostats and
sensors, software and firmware
including reset software, door, door
hinge and seals, other seals, door
locking assembly, plastic peripherals
such as detergent dispensers. Please
note that some of these spare parts
are only available to professional
repairers, and that not all spare parts
are relevant for all models.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
3. PRODUCT DESCRIPTION
3.1 Special features
Your new washing machine meets all
modern requirements for an effective
treatment of laundry with low water,
energy and detergent consumption and
proper care of fabric.
• The ProSense technology detects
the laundry load size defining the
programme duration in 30 seconds.
The washing programme is tailored to
the laundry load and the type of fabric
without consuming more time, energy
and water than necessary.
• Thanks to the Soft Plus option, the
fabric softener is uniformly spread out
in the laundry and deeply penetrates
Page 7
the fabric fibres favouring a perfect
1 2 3
9
5
6
7
4
10
8
11
12
00000000
00A
Mod.
xxxxxxxxx
000V ~ 00Hz 0000 W
910000000
00
A
B
C
Prod.No.
D
softness.
3.2 Appliance overview
ENGLISH 7
Worktop
1
Detergent dispenser
2
Control panel
3
Door handle
4
Rating plate
5
Drain pump filter
6
Feet for levelling the appliance
7
4. TECHNICAL DATA
Dimension Width/ Height/ Total
Electrical connection Voltage
depth
Overall power
Fuse
Frequency
Drain hose
8
Inlet hose connection
9
Mains cable
10
Transit bolts
11
Hose support
12
The rating plate reports the model name (A) ,
product number (B), electrical ratings (C) and
serial number (D).
59.5 cm / 84.3 cm / 48.7 cm
230 V
2100 W
10 A
50 Hz
Page 8
M
ontageanweisung
Achtung! Lesen Sie vor Beginn der Installation
die
Sicherheitshinweise in der Gebrauchsanweisung.
Installation Instruction
Warning!
the safety information in t
he User Manual.
Montageanweisung
Achtung!
Lesen Sie vor Beginn
der Installation die
Sicherheitshinweise in der Gebrauchsanweisung.
Instal
lation Instruction
Warning!
the safety inform
ation in the User Manual.
Montageanweisung
Achtung!
Lesen Sie vor
Beginn der I
nstallation die
Sicherheitshinweise in der Gebrauchsanweisung.
Instal
lation Instruction
Warning!
the safety information in the User Manual.
Montageanweisung
Achtung!
Lesen Sie vor B
eginn der Inst
allation die
Sicherheitshinweise in der Gebrauchsanweisung.
Installation Instruction
Warning!
the saf
ety inform
ation in the User Manual.
www.aeg.com8
Level of protection against ingress of solid particles
and moisture ensured by the protective cover, ex‐
cept where the low voltage equipment has no pro‐
tection against moisture
Water supply pressure Minimum
Water supply
1)
Maximum Load Cotton 7.0 kg
Spin Speed Maximum spin speed 1351 rpm
1)
Connect the water inlet hose to a water tap with a 3/4'' thread.
5. INSTALLATION
WARNING!
Refer to Safety chapters.
5.1 Unpacking
1. Remove the external film. If
necessary, use a cutter.
Maximum
IPX4
0.5 bar (0.05 MPa)
10 bar (1.0 MPa)
Cold water
4. Put the front polystyrene packaging
element on the floor behind the
appliance. Carefully put down the
appliance onto its rear side.
2. Remove the cardboard top and the
polystyrene packaging materials.
3. Open the door. Remove all the items
from the drum.
5. Remove the polystyrene protection
from the bottom.
Page 9
1
2
1
2
x4
ENGLISH 9
6. Put the appliance back into an
upright position. Remove the power
supply cable and the drain hose from
the hose holder.
WARNING!
It is possible to see
water flowing from the
drain hose. This is
because the washing
machine has been
tested at the factory.
7. Remove the four transit bolts and pull
out the plastic spacers.
8. Put the plastic caps, that you find in
the user manual bag, in the holes.
We recommend that you
keep the packaging and
the transit bolts for any
transport of the appliance.
5.2 Positioning and levelling
Adjust the appliance correctly to prevent
vibration, noise and movement of the
appliance when it operates.
Page 10
20º20º
45º45º
www.aeg.com10
1. Install the appliance on a flat hard
floor. The appliance must be levelled
and stable. Make sure that the
appliance does not touch the wall or
other units and there is air circulation
below the appliance.
2. Loosen or tighten the feet to adjust
the level. All feet must rest firmly on
the floor.
WARNING!
Do not put cardboard,
wood or equivalent
materials below the
appliance feet to adjust
the level.
5.3 The inlet hose
1. Before connecting up the machine to
new pipework or to pipework that has
not been used for some time, run off
a reasonable amount of water to
flush out any debris that may have
collected in the pipes.
To protect drinking water enclosed
non-return valve must be installed
between the water tap and the
water supply hose. This valve must
not be assembled on appliance. Set
the hose correctly. Make sure to
tighten the ring nut to prevent leaks.
2. Connect the water inlet hose to the
back of the appliance.
3. Position it toward left or right
depending on the position of the
water tap.
Make sure that the inlet hose
is not in vertical position.
4. If necessary, loose the ring nut to set
it in the correct position.
5. Connect the water inlet hose to the
cold water tap with 3/4" thread.
WARNING!
The inlet water shall not
exceed 25 °C.
CAUTION!
Make sure that there are no
leaks from the couplings.
Do not use an extension
hose if the inlet hose is too
short. Contact the service
centre for the replacement of
the inlet hose.
5.4 Water-stop device
The inlet hose has a water stop device.
This device prevents water leaks in the
hose because of its natural ageing.
The red sector in the window «A» shows
this fault.
Page 11
A
If this occurs, close the water tap and
contact the authorized service centre to
replace the hose.
5.5 Water drainage
The drain hose should stay at a height of
no less than 600 mm and not more than
1000 mm.
You can extend the drain
hose to maximum 4000 mm.
Contact the authorised
service centre for the other
drain hose and the
extension.
It is possible to connect the drain hose in
different ways:
1. Make a U shape with the drain hose
and put it around the plastic hose
guide.
ENGLISH 11
Make sure that the
plastic guide cannot
move when the
appliance drains and the
drain hose end is not
immersed in the water.
There may be a return of
dirty water into the
appliance.
3. If the end of the drain hose looks like
this (see the picture), you can push it
directly into the stand pipe.
4. To a stand pipe with vent-hole Insert the drain hose directly into a
drain pipe. Refer to the illustration.
2. On the edge of a sink - Fasten the
guide to the water tap or to the wall.
The end of the drain
hose must always be
ventilated , i.e. the inner
diameter of the drain
pipe (min. 38 mm - min.
1.5") must be larger than
the external diameter of
the drain hose.
5. Without the plastic hose guide, to a
sink spigot- Put the drain hose in the
spigot and tighten it with a clamp.
Refer to the illustration.
Page 12
www.aeg.com12
Make sure that the drain hose makes
a loop to prevent particles going into
the appliance from the sink.
6. Position the hose directly to a built-in
drain pipe in the room wall and
tighten it with a clamp.
5.6 Electrical connection
At the end of installation you can connect
the mains plug to the mains socket.
The rating plate and the 'Technical Data'
chapter indicate the necessary electrical
ratings. Make sure that they are
compatible with the mains power supply.
Check that your domestic electrical
installation can take the maximum load
required, also taking into account any
other appliances in use.
Connect the appliance to an earthed
socket.
The power supply cable must be easily
accessible after installing the appliance.
For any electrical work required to install
this appliance, contact our Authorised
Service Centre.
The manufacturer does not accept any
responsibility for damage or injury
through failure to comply with the above
safety precaution.
6. ACCESSORIES
6.1 Available in
www.aeg.com/shop or from
authorised dealer
Read carefully the instructions supplied
with the accessory.
Only appropriate
accessories approved by
AEG ensure the safety
standards of the appliance. If
unapproved parts are used,
any claims will be
invalidated.
6.2 Fixing plate kit
If you install the appliance on a plinth
that is not an accessory supplied by
AEG, secure the appliance in the fixing
plates.
Read carefully the instructions supplied
with the accessory.
Page 13
7. CONTROL PANEL
2
3
6
12 11 10 8
1
4
5
7
9
7.1 Control panel description
ENGLISH 13
Programme dial
1
Display
2
3
Zeitvorwahl touch button
4
Zeit Sparen touch button
5
Spülen touch button
• Extra Spülen option
• Skipping wash phase - Nur
Spülen
6
Start/Pause touch button
7
Flecken/Vorw. touch button
• Flecken option
• Vorwäsche option
7.2 Display
Anti-Allergy touch button (Anti-
8
Allergie Dampf)
9
Soft Plus touch button
10
Schleudern touch button
• Skipping phases - Nur Abpumpen
• Skipping phases - Nur Schleudern
11
Temperatur touch button
12
Ein /Aus push button
Page 14
www.aeg.com14
Maximum load indicator. The icon flashes during programme time
estimation (refer to "PROSENSE load detection" paragraph).
Delay start indicator.
Door locked indicator.
The digital indicator can show:
• Programme duration (e. g. ).
• Delay time (e. g. or ).
• Cycle end (
• Alarm code (e.g. ).
• Indication of total operating hours of the appliance. Refer to the 'Op‐
erating hours counter' section in the 'Settings' paragraph for more de‐
tails.
Washing phase indicator: it flashes during prewash and wash phase.
Rinsing phase indicator: it flashes during rinse phase.
The indicator appears when the Soft Plus option is activated.
Spin and drain phase indicator. It flashes during spin and drain phase.
Child safety lock indicator.
).
Time saving indicator.
Temperature indicator. The indicator appears when a cold wash is
set.
Spin speed indicator.
Rinse hold indicator.
Extra Silent indicator.
8. DIAL AND BUTTONS
8.1 Ein /Aus
Pressing this button for a few seconds
allows to activate or deactivate the
appliance. Two different tunes sound
while switching the appliance on or off.
As the Stand-by function automatically
deactivates the appliance to decrease
the energy consumption in a few cases,
you may need to activate the appliance
again.
For more details, refer to Stand-by
paragraph in Daily Use chapter.
Page 15
ENGLISH 15
8.2 Introduction
The options/functions are
not selectable with all
washing programmes.
Check the compatibility
between options/functions
and washing programmes in
the "Programme Chart". An
option/function can exclude
another one, in this case the
appliance doesn't allow you
to set the incompatible
options/functions together.
Make sure the screen and
touch buttons are always
clean and dry.
8.3 Temperatur
When you select a washing programme,
the appliance automatically proposes a
default temperature.
Touch this button repeatedly until the
desired temperature value appears on
the display.
When the display shows the indicators
and , the appliance does not heat
the water.
8.4 Schleudern
When you set a programme, the
appliance automatically sets the default
spin speed allowed.
Touch repeatedly this button to:
• Change the spin speed.
The display shows only
the spin speeds available
for the set programme.
• Activate the Rinse Hold option.
The final spin is not performed. The
water of the last rinse is not drained
out to prevent the fabrics from
creasing. The washing programme
ends with water in the drum.
The display shows the indicator .
The door stays locked and the drum
turns regularly to reduce creasing.
You must drain the water to unlock
the door.
If you touch the Start/Pause button,
the appliance performs the spinning
phase and drains the water.
The appliance empties
the water out
automatically after 18
hours approximately.
• Activate the Extra Silent option.
The intermediate and the final
spinning phases are suppressed and
the programme ends with water in the
drum. This helps to reduce creasing.
The display shows the indicator .
The door stays locked. The drum
turns regularly to reduce creasing.
You must drain the water to unlock
the door.
As the programme is very quiet, it is
suitable for use at night time when
cheaper electricity tariffs are
available. In some programmes the
rinses are performed with more water.
If you touch the Start/Pause button,
the appliance performs the only
draining phase.
The appliance empties
the water out
automatically after 18
hours approximately.
• Activate the drain-only option
(Skipping the wash, rinse and spin
phases): Nur Abpumpen.
The appliance performs the only
draining phase of the selected
washing programme.
The display shows the indicator
(cold), and the indicator (no
spin) and the indicator
• Activate the spin-only option
(Skipping the wash and rinse
phases): Nur Schleudern.
.
Page 16
www.aeg.com16
Before setting this option,
select a suitable washing
programme for the
garments. The appliance
will performs the most
fitting spin cycle for your
garments care (e.g. For
synthetics items, first
select the Pflegeleicht
washing programme and
then the Nur Schleudern
option).
The appliance performs only the
spinning phase of the selected
washing programme.
The display shows the indicator
(cold), the phase indicator and the
spin speed.
8.5 Flecken/Vorw.
Press this button repeatedly to activate
one of the two options.
The relevant indicator goes on in the
display.
• Flecken
Select this option to add an anti-stain
phase to a programme in order to
treat heavily soiled or stained laundry
with stain remover.
Pour the stain remover into
compartment . The stain remover
will be added in the appropriate phase
of the washing programme.
This option is not
available with a
temperature lower than
40 °C.
• Vorwäsche
Use this option to add a pre-wash
phase at 30 °C before the washing
phase.
This option is recommended for
heavily soiled laundry, especially if
containing sand, dust , mud and other
solid particles.
The options can increase the
programme duration.
These two options cannot be
set together.
8.6 Soft Plus
Set the Soft Plus option to ensures
perfect distribution of the fabric softener
and improves the fabric softness.
This option increases slightly
the programme duration.
8.7 Zeitvorwahl
With this option you can delay the start of
a programme in a more convenient time.
Touch the button repeatedly to set the
required delay. The time increases by
steps of 30 minutes up to 90' and from 2
hours up to 20 h.
After touching the Start/Pause button,
the display shows the indicator and
the selected delay time and the
appliance begins the countdown.
8.8 Spülen
With this button you can select one of the
following options:
• Extra Spülen option
This option adds a few rinses
according to the selected washing
programme.
Use this option for persons allergic to
detergent residues and in areas
where the water is soft.
This option increases
slightly the programme
duration.
• Skipping wash phase - Nur Spülen
option
The appliance performs only the
rinsing phase, the spinning and the
draining phases of the selected
programme.
The corresponding indicator above the
touch button illuminates.
8.9 Zeit Sparen
With this option you can decrease the
programme duration.
• If your laundry is normally or lightly
soiled, it may be advisable to shorten
the washing programme. Touch this
button once to decrease the duration.
Page 17
ENGLISH 17
• In case of smaller load, touch this
button twice to set an extra quick
programme.
The display shows the indicator .
8.10 Anti-Allergie Dampf
Set this option with white Baumwolle
items programme. When the option is
selected, neither the temperature or the
cycle time can be changed. Option Zeit
Sparen and Extra silent are not
available.
The corresponding indicator above the
touch button illuminates.
This option, thanks to washing phase
combined with steam vapour , removes
more than 99,99% of bacteria and
viruses keeping the temperature above
60°C throughout the washing phase; with
9. PROGRAMMES
9.1 Programme Chart
Washing programmes
Programme Programme description
Washing programmes
Eco 40-60 White cotton and fast-coloured cotton. Normally soiled
Baumwolle
Pflegeleicht
Feinwäsche
Wolle/Seide
20 Min. - 3 kg
an additional action on the fibers thanks
to a vapour phase, an enhanced rinsing
phase ensures a proper removal of
detergent and micro-organism residues.
This option ensures also a proper
reduction of pollens/allergenic items.
Tested for Staphylococcus
aureus, Enterococcus
faecium, Candida albicans,
Pseudomonas aeruginosa
and MS2 Bacteriophage in
external test performed by
Swissatest Testmaterialien
AG in 2021 (Test Report No.
202120117).
8.11 Start/Pause
Touch the Start/Pause button to start,
pause the appliance or interrupt a
running programme.
items. The energy consumption decreases and the time of the
washing programme is extended, ensuring good washing re‐
sults.
White cotton and coloured cotton. Normally, heavily and
lightly soiled items.
Synthetic items or mixed fabric items. Normally soiled
items.
Delicate fabrics such as acrylics, viscose and mixed fab‐
rics requiring gentler washing. Normally and lightly soiled
items.
Machine washable wool, hand washable wool and other
fabrics with «hand washing» care symbol1).
Cotton and synthetic items lightly soiled or once worn.
Page 18
www.aeg.com18
Programme Programme description
Synthetic items requiring a gentle wash. Normally and light‐
Leichtbügeln
ly soiled items.
Special programme for one down jackets, synthetic blanket,
Daunenjacken
duvet, bedspread and so on.
2)
Outdoor
there is no softener residue in the detergent
dispenser.
Outdoor clothing, technical, sport fabrics, waterproof and
breathable jackets, shell jackets with a removable fleece
or inner insulation. The recommended laundry load is 2.0 kg.
This programme can also be used as water-repellent restoring
cycle, specifically tailored for treating clothes with a hydropho‐
bic coating. To perform the water-repellent restoring cycle, pro‐
ceed as follows:
• Pour the washing detergent in the compartment
• Pour a special water-repellent restorer for fabric in the
drawer compartment for fabric softener .
• Reduce the laundry load to 1.0 kg.
To further improve the water-repellent restor‐
ing action, dry the laundry in a tumble dryer by
setting the Outdoor drying programme (if avail‐
able and if the garment care label permits tum‐
ble drying).
Denim clothing and jersey items. Normal soil. This pro‐
Do not use fabric softener and make sure that
Denim
gramme performs a gentle rinsing phase, designed for denim,
that reduces fading and does not cause washing powder resi‐
dues on the fibres.
1)
During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't
rotate or doesn't rotate properly, but this is normal for this programme.
2)
To reduce creasing, this cycle regulates the water temperature and performs a soft wash and spin
phase. The appliance adds some rinses.
Programme temperature, maximum spin speed and maximum load
Programme Default tempera‐
ture
Temperature
Reference spin
speed
Spin speed range
Maximum load
range
Washing programmes
Eco 40-60
40 °C
1)
1400 rpm
1400 rpm - 400 rpm
7.0 kg
.
Page 19
ENGLISH 19
Programme Default tempera‐
ture
Temperature
Reference spin
speed
Spin speed range
Maximum load
range
40 °C
Baumwolle
95 °C - Cold
40 °C
Pflegeleicht
60 °C - Cold
30 °C
Feinwäsche
Wolle/Seide
40 °C - Cold
40 °C
40 °C - Cold
30 °C
20 Min. - 3 kg
40 °C - 30 °C
40 °C
Leichtbügeln
60 °C - Cold
40 °C
Daunenjacken
60 °C - Cold
30 °C
Outdoor
40 °C - Cold
30 °C
Denim
1)
According to Commission Regulation EU 2019/2023, this programme at 40 °C is able to clean normal‐
ly soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle.
For the reached temperature in the laundry, the programme duration and other data,
please refer to 'Consumption Values' chapter.
The most efficient programmes in terms of energy consumption are generally those that
perform at lower temperatures and longer duration.
40 °C - Cold
1400 rpm
1400 rpm - 400 rpm
1200 rpm
1200 rpm - 400 rpm
1200 rpm
1200 rpm - 400 rpm
1200 rpm
1200 rpm - 400 rpm
1200 rpm
1200 rpm - 400 rpm
800 rpm
800 rpm - 400 rpm
800 rpm
800 rpm - 400 rpm
1200 rpm
1200 rpm - 400 rpm
800 rpm
1200 rpm - 400 rpm
7.0 kg
3.0 kg
1.5 kg
1.5 kg
3.0 kg
3.0 kg
2.0 kg
2.0 kg
1.0 kg
2.0 kg
2)
3)
2)
Washing programme.
3)
Washing programme and waterproofing phase.
Page 20
www.aeg.com20
Programme options compatibility
Eco 40-60
Baumwolle
Pflegeleicht
Feinwäsche
Wolle/Seide
Leichtbügeln
20 Min. - 3 kg
Daunenjacken
Schleudern ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
Denim
Outdoor
Rinse Hold
Extra Silent
■ ■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■
Nur Abpumpen ■ ■ ■ ■ ■ ■ ■ ■ ■
1)
Nur Schleudern
Flecken
2)
■ ■ ■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■
Vorwäsche ■ ■ ■
Extra Spülen ■ ■ ■ ■ ■ ■
Nur Spülen ■ ■ ■ ■ ■ ■ ■ ■ ■
Anti-Allergie Dampf
Zeit Sparen
3)
■
■ ■ ■ ■
Zeitvorwahl ■ ■ ■ ■ ■ ■ ■ ■ ■ ■
Soft Plus ■ ■ ■ ■ ■
1)
Before setting this option, select a suitable washing programme for the garments. The appliance will
performs the most fitting spin cycle for your garments care (e.g. For synthetics items, first select the Pfle‐
geleicht washing programme and then the Nur Schleudern option).
2)
This option is not available with temperature lower than 40 °C.
3)
If you set the shortest duration, we recommend that you decrease the load size. It is possible to fully
load the appliance, however the washing results can be less satisfactory.
Suitable detergents for washing programmes
Programme Universal
powder
1)
Liquid Uni‐
versal
Liquid for
coloureds
Delicates
woollens
Special
Eco 40-60 ▲ ▲ ▲ -- --
Baumwolle ▲ ▲ ▲ -- --
Pflegeleicht ▲ ▲ ▲ -- --
Page 21
ENGLISH 21
Programme Universal
powder
Feinwäsche -- -- -- ▲ ▲
Wolle/Seide
20 Min. - 3 kg -- ▲ ▲ -- --
Leichtbügeln
Daunenjack‐
en
Outdoor -- -- -- ▲ ▲
Denim -- -- ▲ ▲ ▲
1)
At temperature higher than 60 °C the use of powder detergent is recommended.
-- -- -- ▲ ▲
▲ ▲ ▲ -- --
-- -- -- ▲ ▲
1)
Liquid Uni‐
versal
Liquid for
coloureds
Delicates
woollens
Special
▲ = Recommended -- = Not recommended
9.2 Woolmark Wool Care - Blue
The wool wash cycle of this machine has
been approved by The Woolmark Company
for the washing of wool garments labelled as
«hand wash» provided that the products are
washed according to the instructions on the
garment label and those issued by the manu‐
facturer of this washing machine. M1460
The Woolmark symbol is a Certification mark
in many countries.
10. SETTINGS
10.1 Introduction
When pressing a key
combination, do not tilt your
fingers downwards . The
sensors of the underneath
buttons are sensitive and
may interfere with Your
choice.
10.2 Child Lock
With this option you can prevent that the
children play with the control panel.
• To activate/deactivate this option,
touch the Flecken/Vorw. and the
Schleudern buttons simultaneously
until the indicator comes on/goes
off on the display.
You can activate this option:
• After you touch the Start/Pause
button: all the buttons and the
programme dial are deactivated
(except Ein /Aus button ).
• Before you touch the Start/Pause
button: the appliance cannot start.
Page 22
www.aeg.com22
The appliance keeps the selection of this
option after you switch it off.
10.3 Acoustic signals
This appliance is provided with different
acoustic signals, that operate when:
• You activate the appliance (special
short tune).
• You deactivate the appliance (special
short tune).
• You touch the buttons (click sound).
• You make a wrong selection (3 short
sounds).
• The programme is completed
(sequence of sounds for about 2
minutes).
• The appliance has a malfunction
(sequence of short sounds for about 5
minutes).
To deactivate/activate the acoustic
signals when the programme is
completed, touch the Flecken/Vorw. and
the Anti-Allergie Damf buttons
simultaneously for about 6 seconds.
If you deactivate the
acoustic signals, they
continue operate when the
appliance has a malfunction.
10.4 Permanent Extra Rinse
With this option you can permanently
have an extra rinse when you set a new
programme.
• To activate/deactivate this option
touch the Spülen button and the
Flecken/Vorw. button simultaneously
until the indicator of the Extra Spülen
button comes on/goes off.
10.5 Operating Hours
Counter
It is possible to visualise the total
operating time of the appliance in hours,
starting from the first switching on. This
value will count operating time of the
cycles (does not include pauses, delayed
start time). To visualise this value,
proceed as follows:
1. Switch the appliance on by pressing
Ein /Aus button.
2. Turn the programme knob to the Eco
40-60 programme (1st position
clockwise).
3. Press and hold the Flecken/Vorw.
and Anti-Allergie Damf buttons for
some seconds (within 10 seconds
after the switching on. After these 10
seconds, the key combination
activates and deactivates the
acoustic signals).
4. After 3 seconds the total hours
operated by the appliance are shown
in the display: e.g. 1276 hours, the
display shows the text Hr for 2
seconds, 12 (thousands and
hundreds) for 2 seconds and 76 (tens
and units).
If the procedure does not
work (due to timeout, wrong
programme dial position or
wrong keys combination),
switch the appliance off and
repeat sequence from the
beginning.
10.6 Factory Reset
This function allows to restore the factory
default options. To activate this option
follow steps below:
1. Switch the appliance on by pressing
Ein /Aus button.
2. Turn the programme knob to the
Pflegeleicht programme (3rd position
clockwise).
3. Press and hold the Flecken/Vorw.
and Anti-Allergie Damf buttons for
some seconds (within 10 seconds
after the switching on. After these 10
seconds, the key combination
activates and deactivates the
acoustic signals).
4. The display will show
about 5 seconds.
If the procedure does not
work (due to timeout, wrong
programme dial position or
wrong keys combination),
switch the appliance off and
repeat sequence from the
beginning.
for
Page 23
11. BEFORE FIRST USE
ENGLISH 23
1. Make sure that the electrical power is
available and the water tap is open.
2. Pour 2 litres of water into the
detergent compartment marked as 2.
This action activates the drain system.
3. Pour a small quantity of detergent
into the compartment marked as 2.
12. DAILY USE
WARNING!
Refer to Safety chapters.
12.1 Activating the appliance
1. Connect the mains plug to the mains
socket.
2. Open the water tap.
3. Press the Ein /Aus button for a few
seconds to activate the appliance.
A short tune sounds. The appliance
automatically proposes a default
programme. The relevant indicator
illuminates.
The display shows the maximum load,
the default temperature, the default spin
speed, the indicators of the phases
making up the programme and the cycle
duration.
4. Set and start a programme for cotton
at the highest temperature without
any laundry in the drum.
This removes all possible dirt from the
drum and the tub.
CAUTION!
Make sure that no laundry
stays between the seal and
the door. There is a risk of
water leakage or damage to
the laundry.
12.2 Loading the laundry
1. Open the appliance door.
2. Shake the items before you put them
in the appliance.
3. Put the laundry in the drum, one item
at a time.
Make sure not to put too much laundry in
the drum.
4. Close the door firmly.
CAUTION!
Washing heavily oiled,
greasy stains could cause
damage rubber parts of the
appliance.
12.3 Using detergent and additives
1. Measure out the detergent and the
fabric conditioner.
2. Put the detergent and the fabric
conditioner into the compartments.
3. Carefully close the detergent drawer
Page 24
2
1
2 1
MAX
A
B
2 1
MAX
C
2 1
MAX
www.aeg.com24
CAUTION!
Use only specified
detergents for washing
machine.
Always obey the instructions
that you find on the
packaging of the detergent
products.
1 Detergent compartment for pre‐
wash phase or soak programme
(if available). Add the detergent
for prewash and soak before
the start of the programme.
2 Detergent compartment for
washing phase. If you use a liq‐
uid detergent, put it immediately
before you start the programme.
Compartment for liquid addi‐
tives (fabric conditioner, starch).
Put the product in the compart‐
ment before you start the pro‐
gramme.
To use also liquid detergent/
2.
additive or bleach: Remove
detergent divider from the position A
and insert it in position B.
The position B of the detergent
divider is for powder detergent in the
rear compartment and for liquid
detergent/additive or bleach in the
front compartment.
3. To use only liquid detergent: Insert
the detergent divider in position C.
After a washing cycle, if necessary,
remove any detergent residue from the
detergent dispenser.
12.4 Changing position of detergent divider
1. Pull out the detergent dispenser. The
position A of the detergent divider is
for powder detergent (factory
setting).
• Do not use gelatinous or thick
liquid detergents.
• Do not exceed the maximum dose
of liquid detergent.
• Do not set the prewash phase.
• Do not set the delay start function.
Page 25
ENGLISH 25
4. Measure out the detergent and the
fabric conditioner and carefully close
the detergent dispenser.
Make sure that the detergent divider is
inserted properly and does not cause a
blockage when you close the drawer.
12.5 Setting a programme
1. Turn the programme dial to select the
desired washing programme. The
related programme indicator comes
on.
The indicator of the Start/Pause button
flashes.
The display shows the maximum
declared load for the programme, the
default temperature, the default spin
speed, the washing phase indicators
(when available) and an indicative
programme duration.
2. To change the temperature and/or
the spin speed, touch the related
buttons.
3. If desired, set one or more options by
touching the related buttons. The
related indicators come on in the
display and the given information
changes accordingly.
In case a selection is not
possible, no indicator
comes on and an acoustic
signal sounds.
12.6 Starting a programme
Touch the Start/Pause button to start the
programme.
The related indicator stops flashing and
stays on.
In the display, the indicator of the
operating phase starts flashing.
The programme starts, the door is
locked. The display shows the indicator
.
The drain pump can operate
shortly before the appliance
fills water.
12.7 Starting a programme with the delay start
1. Touch this repeatedly until the
display shows the desired delay time.
The indicator comes on.
2. Touch the Start/Pause button.
The appliance starts the countdown of
the delay start.
When the countdown is completed, the
programme starts.
The ProSense estimation
starts at the end of the
countdown.
Cancelling the delay start after the countdown has started
To cancel the delay start:
1. Touch the Start/Pause button to
pause the appliance. The related
indicator flashes.
2. Touch the Zeitvorwahl button
repeatedly until the display shows .
3. Touch the Start/Pause button again
to start the programme immediately.
Changing the delay start after the countdown has started
To change the delay start:
1. Touch the Start/Pause button to
pause the appliance. The related
indicator flashes.
2. Touch the Zeitvorwahl button
repeatedly until the display shows the
desired delay time.
3. Touch the Start/Pause button again
to start the new countdown.
Page 26
www.aeg.com26
12.8 The ProSense load detection
The programme duration in
the display is referred to a
medium/high load.
After touching the Start/Pause button,
the maximum declared load indicator
goes off, the indicator flashes, the
ProSense starts the laundry load
detection:
1. The appliance detects the load in the
first 30 seconds: the indicator
the time dots
shortly.
2. At the end of the load detection, the
indicator goes off and the time
dots stop flashing. The programme
duration will be adjusted accordingly
and could increase or decrease. After
further 30 seconds, the water filling
starts.
At the end of the load detection, in case
of drum overload, the indicator is
flashing in the display:
In this case, for 30 seconds, it is possible
to pause the appliance and remove the
exceeding garments.
Once removed the exceeding garments,
touch the Start/Pause button to start the
programme again. The ProSense phase
can be repeated up to three times (see
point 1).
Important! If the laundry amount will not
be reduced, the washing programme
starts anyway, despite the overload. In
this case, it will be not possible to
guarantee the best washing results.
About 20 minutes after the
programme start, the
programme duration could
be adjusted again depending
on the capacity of water
absorption of the fabrics.
flash, the drum rotates
and
The ProSense detection is
carried out with complete
washing programmes only
(no skipping phase
selected).
The ProSense is not
available with some
programmes, such as Wolle/
Seide, programmes with
short cycles and without
washing phase.
12.9 Programme phase indicators
When the programme starts the indicator
of the running phase flashes and the
other phase indicators are steady on.
E.g. the washing or pre wash phase is
running: .
When the phase ends the relevant
indicator stops flashing and is steady on.
The next phase indicator starts flashing.
E.g. the rinse phase is running: .
12.10 Interrupting a programme and changing the options
When the programme is running, you
can change only some options:
1. Touch the Start/Pause button.
The related indicator flashes.
2. Change the options. The given
information in the display changes
accordingly.
3. Touch the Start/Pause button again.
The washing programme continues.
12.11 Cancelling a running
programme
1. Press the Ein /Aus button to cancel
the programme and to deactivate the
appliance.
2. Press the Ein /Aus button again to
activate the appliance.
Now, you can set a new washing
programme.
Page 27
ENGLISH 27
If the ProSense phase is
already carried out and the
water filling is already
started, the new programme
starts without repeating the
ProSense phase. The water
and the detergent are not
drained out in order to avoid
waste. The display shows
the maximum duration of the
programme, updating it
about 20 minutes after the
starting of the new
programme.
12.12 Opening the door Adding garments
While a programme or the delay start
operates, the appliance door is locked.
If the temperature and level
of the water in the drum are
too high and/or the drum still
rotates you cannot open the
door.
1. Touch the Start/Pause button.
In the display the related door lock
indicator goes off.
2. Open the appliance door. If
necessary, add or remove the items.
3. Close the door and touch the Start/
Pause button.
The programme or the delay start
continues.
4. The door can be opened when the
programme is complete, or set
spinning or draining programme/
option and than press Start/Pause
button.
12.13 End of the programme
When the programme has finished, the
appliance stops automatically. The
acoustic signals operate (if they are
active).
In the display all washing phase
indicators become steady and the time
area shows .
The indicator of the Start/Pause button
goes off.
The door unlocks and the indicator
goes off.
1. Press the Ein /Aus button to
deactivate the appliance.
After five minutes from the end of the
programme, the energy saving function
automatically deactivates the appliance.
When you activate the
appliance again, the display
show the end of the last
selected programme. Turn
the programme dial to set a
new cycle.
2. Remove the laundry from the
appliance.
3. Make sure that the drum is empty.
4. Keep the door and the detergent
dispenser slightly ajar to prevent
mildew and odours.
5. Close the water tap.
12.14 Draining water out after
end of cycle
If you have chosen a programme or an
option that does not empty out the water
of the last rinse, the programme is
completed, but:
• The display shows the indicator , the
option indicator
door locked indicator . The
indicator of the running phase
flashes.
• The drum still turns at regular
intervals to prevent the creases in the
laundry.
• The door stays locked.
• You must drain the water to open the
door:
1. If necessary, touch the Schleudern
button to decrease the spin speed
proposed by the appliance.
2. Touch the Start/Pause button:
• If you have set , the appliance
drains the water and spins.
• If you have set , the appliance
only drains the water.
The option indicator or goes off,
while the indicator
goes off.
or and the
flashes and then
Page 28
www.aeg.com28
3. When the programme is completed
and the door locked indicator
goes off, you can open the door.
4. Press the Ein /Aus button a few
seconds to deactivate the appliance.
In any case, the appliance
empties the water out
automatically after
approximately 18 hours.
12.15 Stand-by option
The Stand-by function automatically
deactivates the appliance to decrease
the energy consumption when:
• You do not use the appliance for 5
minutes before you touch the Start/
Pause button.
13. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
13.1 The laundry load
• Divide the laundry into: white,
coloured, synthetics, delicates and
wool.
• Follow the washing instructions on the
laundry care labels.
• Do not wash white and coloured items
together.
• Some coloured items can discolour
with the first wash. We recommend
that you wash them separately for the
first couple of times.
• Turn multilayered fabrics, wool and
items with printed illustrations inside
out.
• Pre-treat stubborn stains.
• Wash stubborn stains with a special
detergent.
• Be careful with curtains. Remove the
hooks and put the curtains in a
washing bag or pillowcase.
• A very small load can cause balance
problems with the spin phase leading
to excessive vibration. If this occurs:
a. interrupt the programme and
open the door (refer to "Daily
Use" chapter);
Press the Ein /Aus button to activate
the appliance again.
• After 5 minutes from the end of the
washing programme
Press the Ein /Aus button to activate
the appliance again.
The display shows the end of the last
set programme.
Turn the programme dial to set a new
cycle.
If you set a programme or an
option that ends with water
in the drum, the Stand-by
function doesn't deactivate
the appliance to remind you
to drain the water.
b. manually redistribute the load so
that the items are spaced evenly
around the tub;
c. press the Start/Pause button.
The spin phase continues.
• Button up pillowcases, close zippers,
hooks and poppers. Tie up belts,
cords, shoelaces, ribbons and any
other loose elements.
• Do not wash laundry without hems or
with cuts. Use a washing bag to wash
small and/or delicate items (e.g.
underwired bras, belts, tights,
shoelaces, ribbons, etc. ).
• Empty pockets and unfold the items.
Page 29
ENGLISH 29
13.2 Stubborn stains
For some stains, water and detergent is
not sufficient.
We recommend that you pre-treat these
stains before you put the items in the
appliance.
Special stain removers are available.
Use the special stain remover that is
applicable to the type of stain and fabric.
13.3 Detergent type and quantity
The choice of detergent and use of
correct quantities not only affects your
wash performance, but also helps to
avoid waste and protect the environment:
• Use only detergents and other
treatments specially made for
washing machines. First, follow these
generic rules:
– powder detergents for all types of
fabric, excluding delicate. Prefer
powder detergents containing
bleach for whites and laundry
sanitization,
– liquid detergents, preferably for
low temperature wash
programmes (60 °C max) for all
types of fabric, or special ones for
woollens only.
• The choice and quantity of detergent
will depend on: type of fabric
(delicates, woollens, cottons, etc), the
colour of clothes, size of the load,
degree of soiling, wash temperature
and hardness of the water used.
• Follow the instructions that you find
on packaging of the detergents or
other treatments without exceeding
the indicated maximum level ( ).
• Do not mix different types of
detergents.
• Use less detergent if:
– you are washing a small load,
– the laundry is lightly soiled,
– there is large amounts of foam
during washing.
• When using detergent tabs or pods,
always put them inside the drum, not
in the detergent dispenser.
Insufficient detergent may cause:
• unsatisfactory washing results,
• the wash load to turn grey,
• greasy clothes,
• mould in the appliance.
Excessive detergent may cause:
• sudsing,
• reduced washing effect,
• inadequate rinsing,
• a greater impact for the environment.
13.4 Ecological hints
To save water, energy and to help
protect the environment, we recommend
that you follow these tips:
• Loading the appliance to the
maximum capacity indicated for
each programmes helps to reduce
energy and water consumption.
• With adequate pre-treatment, stains
and limited soiling can be removed;
the laundry can then be washed at a
lower temperature.
• To use the correct quantity of
detergent, refer to the quantity
suggested by the detergent producer
and check the water hardness of you
domestic system. Refer to 'Water
hardness'.
• Set the maximum possible spin
speed for the selected washing
programme before drying your
laundry in a tumble dryer. This will
save energy during drying!
13.5 Water hardness
If the water hardness in your area is high
or moderate, we recommend that you
use a water softener for washing
machines. In areas where the water
hardness is soft it is not necessary to use
a water softener.
To find out the water hardness in your
area, contact your local water authority.
Use the correct quantity of water
softener. Follow the instructions that you
find on the packaging of the product.
Page 30
www.aeg.com30
14. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
14.1 Periodic cleaning schedule
Periodic cleaning helps to extend the
life of your appliance.
After each cycle, keep the door and the
detergent dispenser slightly ajar to get air
circulation and dry the humidity inside
the appliance: this will prevent mildew
and odours.
If the appliance is not used for a long
time: close the water tap and unplug the
appliance.
Indicative periodic cleaning schedule:
Descaling Twice a year
Maintenance wash Once a month
Clean door seal Every two months
Clean drum Every two months
Clean detergent dis‐
penser
Clean the inlet hose
and the valve filter
The following paragraphs explain how
you should clean each part.
Every two months
Twice a year
14.2 Removing foreign objects
Make sure that pockets are
empty and all loose
elements are tied up before
running your cycle. Refer to
"The laundry load" in "Hints
and tips".
14.3 External cleaning
Clean the appliance with mild soap and
warm water only. Fully dry all the
surfaces.
Do not use a scouring pads or any
scratching material.
CAUTION!
Do not use alcohol, solvents
or chemical products.
CAUTION!
Do not clean the metal
surfaces with chlorine-based
detergent.
14.4 Descaling
If the water hardness in your
area is high or moderate, we
recommend that you use a
water descaling product for
washing machines.
Regularly examine the drum to check for
limescale.
The regular detergents already contain
water softening agents, but we
recommend to run a cycle with empty
drum and a descaling product
occasionally.
Always follow the
instructions that you find on
the packaging of the
product.
14.5 Maintenance wash
The repeated and prolonged use of low
temperature programmes can cause
detergent deposits, fluff residues,
bacterial growth inside the drum and the
tub. This could generate bad odours and
mildew.
To eliminate these deposits and
hygienize the inner part of the appliance,
run a maintenance wash regularly (at
least once a month):
1. Remove all laundry from the drum.
2. Run a cotton programme with the
highest temperature with a small
quantity of powder detergent or, if
available, run the
Maschinenreinigung programme.
Page 31
ENGLISH 31
14.6 Door seal
This appliance is designed with a self
cleaning draining system, allowing light
fluff fibers that fall off the clothes to be
drained out with the water. Regularly
examine the seal. Coins, buttons, other
small items can be recovered at the end
of the cycle.
Clean it when needed, using ammonia
cream cleanser agent without scratching
the seal surface.
Always obey the instructions
that you find on the
packaging of the product.
14.7 Cleaning the drum
Regularly examine the drum to prevent
rust forming.
For a complete cleaning:
1. Clean the drum with special products
for stainless steel.
Always follow the
instructions that you find on
the packaging of the
product.
2. Run a short cotton programme at
high temperature with empty drum
and with a small quantity of powder
detergent, in order to rinse out any
residues left .
1. Open the drawer. Press the catch
downwards as indicated in the
picture and pull it out.
2. Remove the top part of the additive
compartment to aid cleaning. Make
sure that all detergent residue is
removed from the upper and lower
part of the recess. Use a small brush
to clean the recess.
3. Flush the detergent drawer out under
running warm water to remove any
traces of accumulated detergent.
After cleaning, replace the top part in
its position.
14.8 Cleaning the detergent dispenser
To prevent possible deposits of dried
detergent or clotted fabric softener
and/or formation of mould in the
detergent dispenser drawer, once in a
while carry out the following cleaning
procedure:
4. Insert the detergent drawer into the
guide rails and close it. Run the
rinsing programme without any
clothes in the drum.
Page 32
www.aeg.com32
14.9 Cleaning the drain pump
Regularly check the drain pump filter and make sure that it is clean.
Clean the drain pump if:
• The appliance does not drain the water.
• The drum does not turn.
• The appliance makes an unusual noise because of the blockage of the drain pump.
• The display shows the alarm code
WARNING!
• Disconnect the mains plug from the mains socket.
• Do not remove the filter while the appliance operates.
• Do not clean the pump if the water in the appliance is hot. Wait until
the water cools down .
• Repeat Step 3 several times by closing and opening the valve until the
water stops flowing out.
Always keep a rag nearby to dry up any water spillages when removing the filter.
Proceed as follows to clean the pump:
1. 2.
Page 33
3. 4.
1
2
1
2
ENGLISH 33
5.
7. 8.
9.
WARNING!
6.
10.
Make sure that the impeller of the pump can rotate. If it does not rotate,
contact the Authorised Service Centre. Make sure also that you tighten
the filter correctly to prevent leakages.
Page 34
1
2
3
45°
20°
www.aeg.com34
When you drain the water with the emergency drain procedure, you must activate the
drain system again:
1. Put 2 litres of water in the main wash compartment of the detergent dispenser.
2. Start the programme to drain the water.
14.10 Cleaning the inlet hose and the valve filter
It is recommended to clean both the
filters of the inlet hose and valve
occasionally to remove any deposit,
collected over the time:
1. Remove the inlet hose from the tap
and clean the filter.
2. Remove the inlet hose from the
appliance by loosening the ring nut.
4. When you reconnect the hose to the
back of the appliance, turn it left or
right (not in vertical position)
depending on the position of your
water tap.
14.11 Emergency drain
If the appliance cannot drain the water,
carry out the same procedure, described
in 'Cleaning the drain pump' paragraph. If
necessary, clean the pump.
When you drain the water with the
emergency drain procedure, you must
activate the drain system again:
1. Put 2 litres of water in the main wash
compartment of the detergent
dispenser.
2. Start the programme to drain the
water.
14.12 Frost precautions
3. Clean the valve filter on the back of
the appliance with a toothbrush.
If the appliance is installed in an area
where the temperature can reach the
values around 0° C or drop below,
remove the remaining water from the
inlet hose and the drain pump.
1. Disconnect the mains plug from the
mains socket.
2. Close the water tap.
3. Put the two ends of the inlet hose in
a container and let the water flow out
of the hose.
4. Empty the drain pump. Refer to the
emergency drain procedure.
5. When the drain pump is empty,
install the inlet hose again.
Page 35
WARNING!
Make sure that the
temperature is higher than 0
°C before you use the
appliance again.
The manufacturer is not
responsible for damages
caused by low temperatures.
15. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
15.1 Alarm Codes and Possible failures
The appliance does not start or it stops during operation. First try to find a solution to the
problem (refer to the tables).
WARNING!
Deactivate the appliance before carrying out any check.
With some problems, the display shows an alarm code and the
Start/Pause button may flash continuously:
Problem Possible solution
• Make sure that the water tap is open.
The appliance does
not fill with water prop‐
erly.
The appliance does
not drain the water.
• Make sure that the pressure of the water supply is not too low.
For this information, contact your local water authority.
• Make sure that the water tap is not clogged.
• Make sure that the inlet hose has no kinks, damages or
bends.
• Make sure that the connection of the water inlet hose is cor‐
rect.
• Make sure that the filter of the inlet hose and the filter of the
valve are not clogged. Refer to 'Care and cleaning'.
• Make sure that the sink spigot is not clogged.
• Make sure that the drain hose has no kinks or bends.
• Make sure that the drain filter is not clogged. Clean the filter, if
necessary. Refer to "Care and cleaning".
• Make sure that the connection of the drain hose is correct.
• Set the drain programme if you set a programme without drain
phase.
• Set the drain programme if you set an option which ends with
water in the tub.
ENGLISH 35
Page 36
www.aeg.com36
• Make sure that the door is properly closed.
The appliance door is
open or not closed
correctly.
• The programme was not finished properly or the appliance
Internal fail. No com‐
munication between
electronic elements of
stopped too early. Switch the appliance off and on again.
• If the alarm code appears again, contact the Authorised Serv‐
ice Centre.
the appliance.
• Wait until mains supply is stable.
The mains supply is
unstable.
If the display shows other alarm codes, deactivate and activate the
appliance. If the problem continues, contact the Authorised Service
Centre.
In case of different problem with the washing machine check the
table below for possible solutions.
Problem Possible solution
• Make sure that the mains plug is connected to the mains
socket.
• Make sure that the appliance door is closed.
The programme does
not start.
• Make sure that there is no damaged fuse in the fuse box.
• Make sure that the Start/Pause has been touched.
• If the delay start is set, cancel the setting or wait for the end of
countdown.
• Deactivate the Child Lock function if it is on.
• Check the position of the knob on the selected programme.
The appliance fills with
water and drains im‐
mediately.
The spin phase does
not operate or the
washing cycle lasts
longer than usual.
• Make sure that the drain hose is in the correct position. The
hose may be positioned too low. Refer to "Installation instruc‐
tion".
• Set the spin programme.
• Make sure that the drain filter is not clogged. Clean the filter, if
necessary. Refer to "Care and cleaning".
• Adjust manually the items in the tub and start the spin phase
again. This problem may be caused by balance problems.
• Make sure that the couplings of the water hoses are tight and
there is not water leakages.
There is water on the
floor.
• Make sure that the water inlet hose and the drain hose have
no damages.
• Make sure you use the correct detergent and the correct
quantity of it.
Page 37
Problem Possible solution
• Make sure that a washing programme that ends with water in
tub, has not been selected.
• Make sure that the washing programme is finished.
You cannot open the
appliance door.
• Set the drain or the spin programme if there is water in the
drum.
• Make sure that the appliance receives electrical power.
• This problem may be caused by a failure of the appliance.
Contact the Authorised Service Centre.
• Make sure the levelling of the appliance is correct. Refer to
The appliance makes
an unusual noise and
vibrates.
"Installation instruction".
• Make sure that the packaging and/or the transit bolts are re‐
moved. Refer to "Installation instruction".
• Add more laundry in the drum. The load may be too small.
The programme dura‐
tion increases or de‐
creases during pro‐
gramme execution.
• The ProSense Technology is able to adjust the programme
duration according to the type and the laundry load size. Refer
to "The ProSense Technology load detection" in "Daily Use"
chapter.
• Increase the detergent quantity or use a different detergent.
The washing results
are not satisfactory.
• Use special products to remove the stubborn stains before
you wash the laundry.
• Make sure that you set the correct temperature.
• Decrease the laundry load.
Too much foam in the
• Reduce the quantity of detergent.
drum during the wash‐
ing cycle.
ENGLISH 37
After the check, activate the appliance. The programme continues
from the point of interruption.
If the problem occurs again, contact the Authorised Service Centre.
The necessary data for the service centre are on the rating plate.
Page 38
www.aeg.com38
16. CONSUMPTION VALUES
16.1 Introduction
See the web link www.theenergylabel.eu for detailed information about
Energy Label.
The QR code on the energy label supplied with the appliance provides a
web link to the information related to the performance of the appliance in
the EU EPREL database. Keep the energy label for reference together
with the user manual and all other documents provided with this
appliance.
It is also possible to find the same information in EPREL using the link
https://eprel.ec.europa.eu and the model name and product number that
you find on the rating plate of the appliance. Refer to 'Product description'
chapter for the position of the rating plate.
16.2 Legend
kg Laundry load. hh:mm Programme duration.
kWh Energy consumption. °C Temperature in the laundry.
Litres Water consumption. rpm Spin speed.
% Remaining moisture at the end of spinning phase. The higher is the spin speed,
the higher is the noise and the lower is the remaining moisture.
Values and programme duration may differ depending on different
conditions (e.g. room temperature, water temperature and pressure, load
size and type of laundry, supply voltage) and also if you change the
default setting of a programme.
16.3 According to Commission Regulation Eu 2019/2023
Eco 40-60 pro‐
gramme
Full load 7.0 0.875 58.0 03:25 53.00 46.0 1351
Half load 3.5 0.355 40.0 02:40 53.00 28.0 1351
Quarter load 2.0 0.165 31.0 02:25 54.00 23.0 1351
1)
Maximum spin speed.
kg kWh Litres hh:mm % °C
rpm
1)
Page 39
Power consumption in different modes
1
2
Off (W) Stand-by (W) Delay start (W)
0.50 0.50 4.00
Time to Off/Standby mode is 15 minutes maximum.
16.4 Common programmes
These values are indicative only.
ENGLISH 39
Programme
Baumwolle
2)
95°C
Baumwolle
60°C
Baumwolle
3)
20°C
Pflegeleicht
40°C
Feinwäsche
4)
30°C
Wolle/Seide
30°C
1)
Reference indicator of the spin speed.
2)
Suitable for washing heavily soiled textiles.
3)
Suitable for washing lightly soiled cottons, synthetic and mixed fabrics.
4)
It also performs as quick washing cycle for lightly soiled laundry.
17. QUICK GUIDE
17.1 Daily use
kg kWh Litres hh:mm % °C
rpm
7.0 2.100 80.0 04:10 52.00 85.0 1400
7.0 1.200 80.0 04:00 52.00 55.0 1400
7.0 0.300 80.0 02:45 52.00 20.0 1400
3.0 0.650 65.0 02:15 35.00 40.0 1200
1.5 0.400 50.0 01:10 35.00 30.0 1200
1.5 0.250 50.0 01:10 30.00 30.0 1200
1)
Page 40
1 32
1
2
www.aeg.com40
Connect the mains plug to the mains
2. Set the desired options by means of
socket.
Open the water tap.
Load the laundry.
Pour the detergent and other treatment
3. To start the programme, touch the
At the end of the programme, remove the
laundry.
in the proper compartment of the
detergent dispenser.
1. Push the Ein /Aus button to turn on
the appliance. Turn the programme
dial to set the desired programme.
17.2 Cleaning the drain pump filter
Clean the filter regularly and, especially,
if the alarm code appears on the
display.
17.3 Programmes
the corresponding touch buttons.
Start/Pause button.
Programmes Load Product description
Eco 40-60
Baumwolle
Pflegeleicht
Feinwäsche
Wolle/Seide
20 Min. - 3 kg
Leichtbügeln
Daunenjacken
7.0 kg
7.0 kg White cotton and coloured cotton.
3.0 kg Synthetic items or mixed fabric items.
1.5 kg
1.5 kg
3.0 kg
2.0 kg Synthetic items requiring a gentle wash.
2.0 kg
White and coloured cottons. Normally soiled
garments.
Delicate fabrics such as acrylics, viscose, poly‐
ester items.
Machine washable wool, hand washable wool
and delicates.
Synthetic and mixed fabric. Lightly soiled items
and garments to freshen up.
Single synthetic blanket, padded clothes, du‐
vets, down jackets.
Page 41
Programmes Load Product description
1)
Outdoor
2.0 kg
1.0 kg
Modern outdoor sporting garments.
2)
ENGLISH 41
Denim
1)
Washing programme.
2)
Washing programme and waterproofing phase.
2.0 kg Denim clothing and jersey items.
18. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
*
Page 42
Page 43
Page 44
www.aeg.com/shop
155293070-A-172023
Loading...
