Page 1

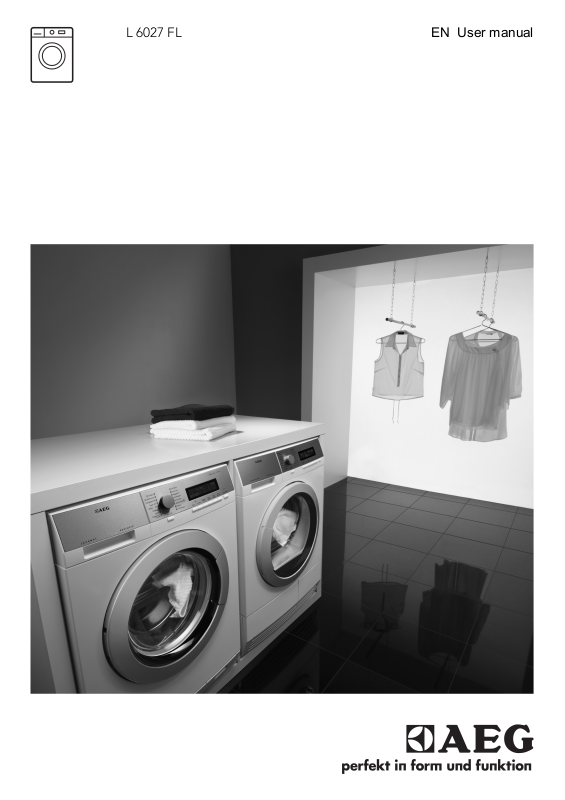

L 6027 FL EN User manual

Page 2

www.aeg.com

CONTENTS

1. SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3. TECHNICAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

5. CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

6. PROGRAMMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

7. CONSUMPTION VALUES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

8. BEFORE FIRST USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

9. USING THE APPLIANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

10. HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

11. CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

12. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

13. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

14. ENVIRONMENT CONCERNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.aeg.com

www.aeg.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

Page 3

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• Do not let persons, children included, with reduced physical sensory, reduced mental functions or lack of experience and knowledge use the appliance. They must have supervision or instruction for the operation of the appliance by a person who is responsible for their safety.

• Do not let children play with the appliance.

• Keep all packaging away from children.

• Keep all detergents away from children.

• Keep children and pets away from the appliance door when it is open.

• If the appliance has a child safety device, we recommend you activate it.

ENGLISH 3

1.2 General Safety

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

• Do not change the specification of this appliance.

• Obey the maximum load volume of 7 kg (refer to the “Programme chart” chapter).

SAFETY INSTRUCTIONS

Page 4

www.aeg.com

2.1 Installation

• Remove all the packaging and the

transit bolts.

• Keep the transit bolts. When you

move the appliance again you must block the drum.

• Do not install or use a damaged appli-

ance.

• Do not install or use the appliance

where the temperature is less than 0 °C or where it is exposed to the weather.

• Obey the installation instruction sup-

plied with the appliance.

• Make sure that the floor where you in-

stall the appliance is flat, stable, heat resistant and clean.

• Do not install the appliance where the

appliance door can not be fully opened.

• Always be careful when you move the

appliance because it is heavy. Always wear safety gloves.

• Make sure that there is air circulation

between the appliance and the floor.

• Adjust the feet to have the necessary

space between the appliance and the carpet.

Electrical connection

WARNING!

Risk of fire and electrical shock.

• The appliance must be earthed.

• Make sure that the electrical informa-

tion on the rating plate agrees with the power supply. If not, contact an electrician.

• Always use a correctly installed shock-

proof socket.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to the

mains plug and to the mains cable. Should the appliance power supply cable need to be replaced, this must be carried out by our Service Centre.

• Connect the mains plug to the mains

socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• Do not touch the mains cable or the mains plug with wet hands.

• Only for UK and Ireland. The appliance has a 13 amp mains plug. If it is necessary to change the fuse in the mains plug, use a 13 amp ASTA (BS

1362) fuse.

• This appliance complies with the E.E.C. Directives.

Water connection

• Make sure not to cause damage to the water hoses.

• The appliance is to be connected to the water mains using the new supplied hose-sets. Old hose sets must not be reused.

• Before you connect the appliance to new pipes or pipes not used for a long time, let the water flow until it is clean.

• The first time you use the appliance, make sure that there is no leakage.

2.2 Use

WARNING!

Risk of injury, electrical shock, fire, burns or damage to the appliance.

• Use this appliance in a household environment.

• Do not change the specification of this appliance.

• Obey the safety instructions on the detergent packaging.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

• Do not touch the glass of the door while a programme operates. The glass can be hot.

• Make sure that you remove all metal objects from the laundry.

• Do not put a container to collect possible water leakage under the appliance. Contact the Service to ensure which accessories can be used.

Page 5

2.3 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.

3. TECHNICAL INFORMATION

Dimensions Width / Height / Depth 600 / 850 / 522 mm

Total depth 540 mm

Electrical connection: Voltage

Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture

Water supply pressure Minimum 0,5 bar (0,05 MPa)

Water supply

Maximum load Cotton 7 kg

Spin speed Maximum 1200 rpm

Connect the water inlet hose to a water tap with a 3/4'' thread.

Overall power Fuse Frequency

Maximum 8 bar (0,8 MPa)

Cold water

ENGLISH 5

• Cut off the mains cable and discard it.

• Remove the door catch to prevent children and pets to get closed in the appliance.

230-240 V

2200 W

10 A

50 Hz

IPX4

Page 6

www.aeg.com

4. PRODUCT DESCRIPTION

1 2 3

Worktop

Detergent dispenser

Control panel

Door handle

Rating plate

Drain pump

4.1 Accessories

1 2

Feet for the appliance level

Water drain hose

Water inlet valve

Mains cable

Transit bolts

Feet for the appliance level

Plastic hose guide

To connect the drain hose on the edge of a sink.

Plastic caps

To close the holes on the rear side of the cabinet after the removal of the transit bolts.

Inlet hose

To connect the appliance to the cold water tap.

Page 7

5. CONTROL PANEL

1 2 3

ENGLISH 7

456789

On/Off button

Programme knob

Display

Start/Pause button

Delay Start button

Time Save button

Extra Rinse button

Spin button

Temperature button

5.1 On Off button

Press this button to activate or deactivate the appliance. A tune sounds when the appliance is activated. The AUTO Stand-by function automatically deactivates the appliance to decrease the energy consumption when:

5.3 Display

ABC

• You do not use the appliance for 5 mi-

nutes before you press button – All settings are cancelled.

–

Press button pliance again.

– Set again the washing programme

and all possible options.

• After 5 minutes from the end of the washing programme. Refer to 'At the end of programme'.

to activate the ap-

5.2 Programme knob

Turn this knob to set a programme.

Page 8

www.aeg.com

The display shows:

A • The programme time

When the programme starts, the time decreases with steps of 1 minute.

• The delay start When you press the delay start button, the display shows the delay

start time.

• Alarm codes If the appliance has a malfunction, the display shows alarm codes. Re-

fer to 'Troubleshooting' chapter.

•Err The display shows this message for some seconds if: – You set a function that is not applicable for the programme. – You change the programme while it operates.

The indicator of the Start/Pause button

•

When the programme is completed.

B Door lock

You cannot open the appliance door when the symbol is on. You can open the door only when the symbol goes off.

If the programme is completed but the symbol stays on:

• There is water in the drum.

• The 'Rinse Hold' function is on.

C The child lock symbol

The symbol comes on when you activate this device.

5.4 Start/Pause button

Press button 4 to start or interrupt a programme.

5.5 Delay start button

Press button 5 to delay the start of a programme from 30 minutes to 20 hours.

5.6 Time save button

Press the button 6 to decrease the programme duration.

• Press one time to set 'Shortened duration' for items with daily soil.

• Press two times to set 'Extra Quick' for items with almost no soil.

Some programmes accept only one of the two functions.

flashes.

5.7 Extra rinse button

Press button 7 to add rinsing phases to a programme. Use this function for persons allergic to detergents and in areas where the water is soft.

5.8 Spin button

Press this button to:

• Decrease the maximum speed of the spin phase of the programme.

• Activate the 'Rinse Hold' function. Set this function to prevent fabric creases. The appliance does not drain the water when the programme is completed.

'Rinse Hold' function is on.

Page 9

5.9 Temperature button

Press button 9 to change the default temperature.

= cold water

5.10 Acoustic signals function

You can hear the acoustic signals when:

• You activate the appliance.

• You deactivate the appliance.

• You press the buttons.

• The programme is completed.

• The appliance has a malfunction. To deactivate/activate the acoustic sig-

nals, press button the same time for 6 seconds.

If you deactivate the acoustic signals, they continue operate only when you press the buttons and when a malfunction occurs.

and button 9 at

5.11 Child lock function

This function prevents children to play with the control panel.

ENGLISH 9

• To activate the function, press button

and button 7 at the same time

until the display shows the symbol

• To deactivate the function, press but-

and button 7 at the same

ton time until the symbol

You can activate the function:

• Before you press the Start/Pause but-

: the appliance cannot start.

ton

• After you press the Start/Pause button

, all the buttons and the pro-

gramme knob are deactivated.

goes off.

5.12 Permanent extra rinse

function

With this function you can keep the extra rinse function permanently on when you set a new programme.

• To activate the function press button

and button 6 at the same time

until the indicator of button

• To deactivate the function press but-

ton

and button 6 at the same

time until the indicator of button off.

is on.

6. PROGRAMMES

Programme Temperature

Cottons

95° - Cold

Cottons + Prewash

95° - Cold

Cottons + Stains

95° - 40°

Type of load max. weight of load

White and coloured cotton with normal soil. max. 7 kg

White and coloured cotton with heavy soil. max. 7 kg

Cycle description

Wash Rinses Long spin

Prewash Wash Rinses Long spin

Wash Rinses Long spin

Functions

SPIN REDUCTION RINSE HOLD EXTRA RINSE

TIME SAVE

SPIN REDUCTION RINSE HOLD EXTRA RINSE

TIME SAVE

SPIN REDUCTION RINSE HOLD EXTRA RINSE

TIME SAVE

Page 10

www.aeg.com

Programme Temperature

Synthetics

60° - Cold

Type of load max. weight of load

Synthetic or mixed fabric items with normal level of soil.

Cycle description

Wash Rinses Short spin

max. 3.5 kg

Easy Iron

60° - Cold

Delicates

40° - Cold

Synthetic fabric items with normal soil. max. 3.5 kg

Delicate fabrics as acrylics, viscose, polyester items with nor-

Wash Rinses Short spin

Wash Rinses

Short spin mal soil. max. 3.5 kg

Wool/Silk 40° - Cold

Machine washable wool. Hand washable wool and delicate

Wash

Rinses

Short spin fabrics with «hand washing» care symbol. max. 2 kg

Spin

All fabrics The maximum load of the laundry is related to the type of

Drainage of the

water

Spin phase at the

maximum speed. laundry.

Drain All fabrics

The maximum load

Drainage of the

water of the laundry is related to the type of laundry.

Rinse All fabrics. One rinse with

additive spin

phase

Curtains

40° - Cold

Set this programme to wash curtains. It adds automatically the prewash phase to

Prewash

Wash

Rinses

Short spin clean the dust from the curtains. Do not put the detergent into the prewash compartment. max. 2 kg

Functions

SPIN REDUCTION RINSE HOLD EXTRA RINSE

TIME SAVE

SPIN REDUCTION RINSE HOLD EXTRA RINSE

TIME SAVE

SPIN REDUCTION RINSE HOLD EXTRA RINSE

TIME SAVE

SPIN REDUCTION RINSE HOLD

SPIN REDUCTION

SPIN REDUCTION RINSE HOLD

EXTRA RINSE

SPIN REDUCTION RINSE HOLD EXTRA RINSE

Page 11

ENGLISH 11

Programme Temperature

Jeans

60° - Cold

20 Min. - 3 kg

40° - 30°

Type of load max. weight of load

All items in jeans. Jersey made items with hi-tech materials. max. 7 kg

Cotton and synthetic items with light soil or worn only one

Cycle

description

Wash

Rinses

Short spin

Wash

Rinses

Short spin

Functions

SPIN REDUCTION RINSE HOLD EXTRA RINSE

TIME SAVE

SPIN REDUCTION

time.

Cottons Eco

White and fast coloured cotton with normal soil. For this programme you can set only the Extra Quick duration.

Wash

Rinses

Long spin

SPIN REDUCTION RINSE HOLD EXTRA RINSE

TIME SAVE

max. 7 kg

if you press the button 6 two times (Extra Quick duration), we recommend that you decrease the quantity of the load. It is possible to load fully the appliance, however the washing results are reduced.

The wash and spin phase is soft to prevent the creases of the laundry. The appliance adds some rinses.

The default phase of the spin speed is related to cotton items. Set the spin speed. Make sure that it agrees with the laundry.

Press Extra Rinse button to add rinses. With a low spin speed the appliance performs delicate rinses and a short spin.

5) Standard programmes for the Energy Label consumption values. According to

regulation 1061/2010, the “Cottons Eco 60° C” and “Cottons Eco 40° C” are respectively the “standard 60° C cotton programme” and the “standard 40° C cotton programme”. They are the most efficient programmes in terms of combined energy and water consumption for washing normally soiled cotton laundry. Set this programme to have a good washing results and decrease the energy consumption. The time of the washing programme is extended.

7. CONSUMPTION VALUES

The data of this table are approximate. Different causes can change the data: the quantity and type of laundry, the water and ambient temperature.

Programmes Load

Cottons 60 °C

Energy con-

(Kg)

sumption

(kWh)

7 1.3 62 1257 53

Water con-

sumption (li-

tre)

Approxi-

mate pro-

gramme duration

(minutes)

Remaining

moisture

(%)

Page 12

www.aeg.com

Programmes Load

(Kg)

Energy con-

sumption

(kWh)

Water con-

sumption (li-

tre)

Approxi-

mate pro-

gramme duration

(minutes)

Cottons 40 °C

Synthetics 40 °C

Delicates 40 °C

Wool/Hand wash 30 °C

7 0.80 62 154 53

3.5 0.53 45 127 35

3.5 0.57 53 100 35

2 0.25 45 56 30

Standard cotton programmes

Standard 60 °C cotton

Standard 40 °C cotton

At the end of spin phase.

7 1.05 52 240 53

3.5 0.74 41 2.15 53

3.5 0.52 41 210 53

Off Mode (W) Left On Mode (W)

0.75 0.75

Remaining

moisture

(%)

8. BEFORE FIRST USE

To activate the drain system, put 2 litre of water in the main wash compartment of the detergent dispenser.

Put a small quantity of detergent in the main wash compartment of the

9. USING THE APPLIANCE

Open the water tap.

Connect the mains plug to the mains socket.

Press button 1 to activate the appliance.

Put the laundry in the appliance.

detergent dispenser. Set and start a programme for cotton at the highest temperature without laundry. This removes all possible dirt from the drum and the tub.

Use the correct quantity of detergent and additives.

Set and start the correct programme for the type of laundry and soil.

9.1 Loading the laundry

Open the appliance door.

Page 13

Put the laundry in the drum, one item at a time. Shake the items before you put them in the appliance.

9.2 Filling the detergent and

additives

ENGLISH 13

Make sure not to put too much laundry in the drum.

Close the door.

Make sure that no laundry stays between the seal and the door. There is a risk of water leakage or damage to the laundry.

The detergent compartment for the prewash phase, the soak programme and for the stain function. Add the detergent for prewash, soak and stain remover before the start of the programme.

The detergent compartment for the washing phase. If you use a liquid detergent, put it immediately before you start the programme.

Liquid additives compartment (fabric conditioner, starch). Put the product in the compartment before you start the programme.

This is the maximum level for the quantity of liquid additives.

Flap for powder or liquid detergent Turn it (up or down) in the correct position to use powder or liquid detergent.

Always obey the instructions that you find on the packaging of the detergent products.

Page 14

www.aeg.com

Check the position of the flap

Measure out the detergent and the fabric conditioner.

Carefully close the detergent dispenser. Make sure that the flap does not cause a blockage when you close the drawer.

9.3 Starting a programme

Turn the programme knob.

The indicator of button 4 flashes with red colour.

The indicators of the default temperature and spin speed come on. To change the temperature and/or the

Pull out the detergent dispenser until it stops.

Press the lever down to remove the dispenser.

To use powder detergent, turn the flap up.

To use liquid detergent, turn the flap down.

With the flap in the position DOWN:

– Do not use gelatinous or thick

liquid detergents.

– Do not put more liquid deter-

gent than the limit showed in

the flap. – Do not set the prewash phase. – Do not set the delay start func-

tion.

spin speed, press the related buttons.

Set the available functions and the delay start. When you press the relevant button, the indicator of the set function comes on or the display shows the related symbol.

Page 15

Press button 4 to start the programme. The indicator of button

is on with red colour.

The drain pump can operate for a short time when the appliance fills water.

The appliance adjust automatically the cycle time to the laundry you have put in the drum to have perfect washing results in the minimum necessary time. After approximately 15 minutes from the start of the programme, the display shows the new time value.

9.4 Interrupt a programme

Press button 4 . The indicator flashes.

Press button 4 again. The washing programme continues.

9.5 Cancel a programme

Turn the programme knob to to cancel the programme.

Turn again the programme knob to a new washing programme. At this time you can also set the available functions.

The appliance does not drain the water.

9.6 Change a function

You can change only some functions before they operate.

Press button 4 . The indicator flashes.

Change the function set.

9.7 Set the delay start

Press button 5 again and again until the display shows the number of minutes or hours.

Press button 4 , the appliance starts the countdown of the delay start.

When the countdown is completed,

the programme starts automatically.

Before you press button 4 to start the appliance, you can cancel or change the set of the delay start. You cannot set the delay start with the Steam programme.

9.8 Cancel the delay start

Press button 4 . The related indicator flashes.

Press button 5 again and again until the display shows 0’.

Press button 4 . The programme starts.

9.9 Open the door

While a programme or the delay start operates, the appliance door is locked.

To open the appliance door:

Press button 4 . The door lock symbol in the display goes off.

Open the appliance door.

Close the appliance door and press

button delay start continues.

. The programme or the

If the temperature and level of the water in the drum are too high, the door lock symbol stays on and you cannot open the door. To open the door do the steps that follow:

Deactivate the appliance.

Wait for some minutes.

Make sure that no water is in the drum.

If you deactivate the appliance, it is necessary to set the programme again.

9.10 At the end of the programme

• The appliance stops automatically.

• The acoustic signals operate.

•

In the display

• The indicator of the Start/Pause but-

goes off.

ton

comes on.

ENGLISH 15

Page 16

www.aeg.com

• The door lock symbol goes off.

•

Press button pliance. After five minutes from the end of the programme, the energy saving function automatically deactivates the appliance.

When you activate the appliance again, the display show the end of the last set programme. Turn the programme knob to set a new cycle.

• Remove the laundry from the appliance. Make sure that the drum is empty.

• Keep the door ajar, to prevent mildew and odours.

• Close the water tap.

The washing programme is completed, but there is water in the drum:

– The drum turns regularly to prevent

the creases in the laundry.

to deactivate the ap-

10. HINTS AND TIPS

– The door stays locked. – You must drain the water to open the

door.

To drain the water:

If necessary, decrease the spin speed.

Press the Start/Pause button 4 . The appliance drain the water and spin.

When the programme is completed and the door lock symbol goes off, you can open the door

Deactivate the appliance.

The appliance drain and spin automatically after approximately 18 hours.

10.1 The laundry load

• Divide the laundry in: white, coloured, synthetics, delicates and wool.

• Obey the washing instructions that are on the laundry care labels.

• Do not wash together white and coloured items.

• Some coloured items can discolour with the first wash. We recommend that you wash them separately for the first times.

• Button up pillowcases, close zippers, hooks and poppers. Tie up belts.

• Empty the pockets and unfold the items.

• Turn inside out multilayered fabrics, wool and items with painted illustrations.

• Remove hard stains.

• Wash with a special detergent heavy soil stains.

• Be careful with the curtains. Remove the hooks or put the curtains in a washing bag or pillowcase.

• Do not wash in the appliance : – Laundry without hems or with cuts – Underwired bras. – Use a washing bag to wash small

items.

• A very small load can cause balance problems with the spin phase. If this occurs, adjust manually the items in the tub and start the spin phase again.

10.2 Stubborn stains

For some stains, water and detergent is not sufficient. We recommend that you remove these stains before you put the items in the appliance. Special stain removers are available. Use the special stain remover that is applicable to the type of stain and fabric.

10.3 Detergents and additives

• Only use detergents and additives specially made for washing machines.

Page 17

• Do not mix different types of detergents.

• To help the environment, do not use more than the correct quantity of detergent.

• Obey the instructions that you find on the on packaging of these products.

• Use the correct products for the type and colour of the fabric, the programme temperature and the level of soil.

• If you use liquid detergents, do not set the prewash phase.

• If your appliance has not the detergent dispenser with the flap device, add the liquid detergents with a dosing ball.

use a water softener for washing machines. In areas where the water hardness is soft it is not necessary to use a water softener. To know the water hardness in your area, contact your local water authority. Obey the instructions that you find on the packaging of the products. Equivalent scales measure the water hardness:

• German degrees (°dH).

• French degrees (°TH).

• mmol/l (millimol for each litre - international unit for the hardness of water).

• Clarke degrees.

10.4 Water hardness

If the water hardness in your area is high or moderate, we recommend that you

Water hardness table

Level Type

°dH °T.H. mmol/l Clarke

1 soft 0-7 0-15 0-1.5 0-9

2 medium 8-14 16-25 1.6-2.5 10-16

3 hard 15-21 26-37 2.6-3.7 17-25

4 very hard > 21 > 37 >3.7 >25

Water hardness

ENGLISH 17

11. CARE AND CLEANING

WARNING!

Disconnect the appliance from the mains supply before you clean it.

11.1 Descaling

The water we use contains limescale. If it becomes necessary, use a water softener to remove limescales. Use a special product made for washing machines. Obey the instructions that you find on the packaging of the manufacturer. Do this separately from the laundry wash.

11.2 External cleaning

Clean the appliance only with soap and warm water. Fully dry all the surfaces.

CAUTION!

Do not use alcohol, solvents or chemical products.

11.3 Maintenance wash

With the low temperature programmes it is possible that some detergent stays in the drum. Make regularly a maintenance wash. To do this:

• Empty the laundry from the drum.

Page 18

www.aeg.com

• Set the hottest cotton wash programme

• Use a correct quantity of powder detergent with biological properties.

11.4 Door seal

After each wash, keep the door open for a while to prevent mould and to let unpleasant smells go out.

Regularly examine the seal and remove all objects from the inner part.

11.5 Drum

Regularly examine the drum to prevent limescale and rust particles. Only use special products to remove rust particles from the drum. To do this:

11.6 Detergent dispenser

To clean the dispenser:

• Clean the drum with special product for stainless steel.

• Start a short programme for cotton at the maximum temperature with a small quantity of detergent.

Press the lever.

Pull the dispenser out.

Remove the top part of the liquid additive compartment.

Clean all the parts with water.

Page 19

ENGLISH 19

Clean the dispenser recess with a brush.

Put back the dispenser in the recess.

11.7 Drain pump

Regularly examine the drain pump and make sure that it is clean.

Clean the pump if:

• The appliance does not drain the water.

• The drum cannot turn.

• The appliance makes an unusual noise because of the blockage of the drain pump.

To clean the drain pump:

• The display shows an alarm code because of the problem with water drain.

WARNING!

Disconnect the mains plug from the mains socket.

Do not remove the filter while the appliance operates. Do not clean the drain pump if the water in the appliance is hot. The water must be cold before you clean the drain pump.

Open the drain pump door.

Put a container below the recess of the drain pump to collect the water that flows out.

Press the two levers and pull forward the drainage duct to let the water flow out.

When the container is full of water, put the drainage duct back again and empty the container. Do steps 3 and 4 again and again until no more water flows out from the drain pump.

Pull back the drainage duct and turn the filter to remove it.

Page 20

www.aeg.com

Remove fluff and objects from the pump.

Make sure that the impeller of the pump can turn. If this does not occur, contact the service centre.

Clean the filter under the water tap and put it back in the pump into the

special guides.

Make sure that you tighten correctly the filter to prevent leakages.

10.

Close the drain pump door.

11.8 The inlet hose filter and the valve filter

It could be necessary to clean the filters when:

• The appliance does not fill with water.

• The appliance fills with the water for a long time.

•

The indicator of button

flashes and the display shows the related alarm. Refer to 'Troubleshooting'.

WARNING!

Disconnect the mains plug from the mains socket.

Page 21

To clean the water inlet filters:

ENGLISH 21

Close the water tap.

Remove the water inlet hose from the water tap.

Clean the filter in the inlet hose with a stiff brush.

Remove the inlet hose behind the appliance.

Clean the filter in the valve with a stiff brush or a towel.

Install again the inlet hose. Make sure that the couplings are tight to prevent leakages.

Open the water tap.

45°

20°

11.9 Emergency drain

Because of a malfunction, the appliance cannot drain the water. If this occurs, do steps (1) through (6) of 'To clean the drain pump'. If necessary, clean the pump. Put the drainage duct back and close the drain pump flap. When you drain the water with the emergency drain procedure, you must activate again the drain system:

Put 2 litres of water in the main wash compartment of the detergent dispenser.

Start the programme to drain the water.

11.10 Frost precautions

If the appliance is installed in an area where the temperature can be less than

0 °C, remove the remaining water from the inlet hose and the drain pump.

Disconnect the mains plug from the mains socket.

Close the water tap.

Remove the water inlet hose

Put the two ends of the inlet hose in a container and let the water flow out of the hose.

Empty the drain pump. Refer to the emergency drain procedure

When the drain pump is empty, install the inlet hose again.

WARNING!

Make sure that the temperature is more than 0 °C before you use the appliance again. The manufacturer is not responsible for damages caused by low temperatures.

Page 22

www.aeg.com

12. TROUBLESHOOTING

The start of the appliance does not occur or it stops during operation. First try to find a solution to the problem (refer to the table). If not, contact the service centre.

With some problems, the acoustic signals operate and the display shows an alarm code:

•

- The appliance does not fill with

water.

•

- The appliance does not drain

the water.

•

- The appliance door is open or

not closed correctly.

WARNING!

Deactivate the appliance before you do the checks.

Problem Possible cause Possible solution

The appliance

The water tap is closed. Open the water tap. does not fill with water.

The water inlet hose is

damaged.

The filters in the water

inlet hose is blocked .

The water tap is blocked

Make sure that the water inlet hose has no damages.

Clean the filters. Refer to 'Care and cleaning'.

Clean the water tap. or is furred with limescale.

The connection of the

water inlet hose is not

Make sure that the connection

is correct. correct.

The water pressure is

too low.

The appliance does not drain the

The water drain hose is damaged.

Contact your local water author-

ity.

Make sure that the water drain

hose has no damages.

water.

The filter of the drain

pump is blocked.

Clean the filter of the drain

pump. Refer to 'Care and clean-

ing'.

The connection of the

water drain hose is not

Make sure that the connection

is correct. correct.

A washing programme

Set the drain programme. without the drain phase is set.

The function Rinse &

Set the drain programme. Hold is on.

The appliance

Close the door correctly.

door is open or not closed correctly.

Page 23

ENGLISH 23

Problem Possible cause Possible solution

The spin phase

The spin phase is off. Set the spin programme.

does not operate.

The filter of the drain

pump is blocked.

Clean the filter of the drain

pump. Refer to 'Care and clean-

ing'.

Balance problems with

the laundry load.

Adjust manually the items in the

tub and start the spin phase

again.

The programme does not start.

The mains plug is not connected in the mains

Put in the mains plug.

socket.

Blow out fuse in the

Replace the fuse. household fuse box.

You did not press but-

ton

Press button 4 .

The delay start is set. To start immediately the pro-

gramme, cancel the delay start.

The Child Lock function

is activated.

There is water on the floor.

Leakages from the couplings of the water ho-

Deactivate the Child Lock func-

tion.

Make sure that the couplings

are tight. ses.

Leakages from the drain

pump.

The water drain hose is

damaged.

You cannot open the appliance

The washing programme is in operation.

Make sure that the drain pump

filter is tight.

Make sure that the water inlet

hose has no damages.

Let the washing programme

end.

door.

There is water in the

drum.

The appliance makes an unusual

Incorrect level of the appliance.

Set the drain or the spin pro-

gramme.

Adjust the level of the appli-

ance. Refer to 'Installation'.

noise.

You did not remove the

packaging and/or the transit bolts.

Remove the packaging and/or

the transit bolts. Refer to 'Instal-

lation'.

The load is very small. Add more laundry in the drum.

The appliance fills with water and

The end of the drain hose is too low.

Make sure that the drain hose is

in the correct position.

drain immediately.

The washing results are not satisfactory.

The detergent you used was not sufficient or correct.

Increase the detergent quantity

or use a different one.

Page 24

www.aeg.com

Problem Possible cause Possible solution

You did not remove the

Incorrect temperature

Too much laundry load. Decrease the laundry load.

After the check, activate the appliance. The programme continues from the point of interruption. If the problem occurs again, contact the service centre.

13. INSTALLATION

stubborn stains before you wash the laundry.

was set.

Use special products to remove

the stubborn stains.

Make sure that you set the cor-

rect temperature.

If the display shows other alarm codes, contact the service centre.

13.1 Fixing plate kit (405517114)

Available from your authorized dealer.

13.2 Unpacking

If you install the appliance on a plinth, secure the appliance in the fixing plates. Follow the instructions supplied with the kit.

Use the gloves. Remove the external film. If necessary, use a cutter.

Remove the cardboard top.

Remove the polystyrene packaging materials.

Page 25

ENGLISH 25

Remove the internal film.

Open the door and remove all the items from the drum.

Put one of the polystyrene packaging elements on the floor behind the appliance. Carefully put down the appliance with the rear side on it. Make sure not to damage the hoses.

Remove the polystyrene protection from the bottom.

Pull up the appliance in vertical position.

Page 26

www.aeg.com

Remove the power supply cable and the drain hose from the hose holders.

10.

Remove the three bolts.

11.

Pull out the plastic spacers.

12.

Put the plastic caps in the holes. You can find these caps in the user manual bag.

– We recommend that you keep

the packaging and the transit bolts for when you move the appliance.

– If the appliance is delivered in

the winter months when there are minus temperatures. Store it at room temperature for 24 hours before using for the first time.

Page 27

13.3 Positioning and levelling

ENGLISH 27

• Install the appliance on a flat hard floor.

• Make sure that carpets do not stop the air circulation below the appliance.

• Make sure that the appliance does not touch the wall or other units

• Loosen or tighten the feet to adjust the level. A correct adjustment of the appliance level prevents the vibration, noise and the movement of the appliance when in operation.

• The appliance must be level and stable.

CAUTION!

Do not put cardboard, wood or equivalent materials below the appliance feet to adjust the level.

Make sure that there is sufficient access after the installation for possible repairs by a qualified person.

13.4 The inlet hose

Installation on suspended flooring

Suspended wooden floors are particularly susceptible to vibration. To help prevent vibration we recommend you place a waterproof wood panel, at least 15 mm thick under the appliance, secured to at least 2 floor beams with screws, the wood panel must extend beyond the front feet. If possible install the appliance in one of the corners of the room, where the floor is more stable

Connect this appliance to a cold water supply.

• Connect the appropriate end of the inlet hose to a tap with a 3/4" thread. Always use the hose supplied with the appliance.

Page 28

www.aeg.com

• Connect the other end of the inlet hose to the back of the appliance.

Turn the inlet hose only left or right. Loose the ring nut to set it in the correct position.

CAUTION!

Make sure that there are no leaks from the couplings.

Do not use an extension hose if the inlet hose is too short. Contact the service centre for the replacement of the inlet hose.

Water pressure

The appliance works correctly if the water pressure is not less than 0.05 MPa (0.5 bar). If you can not connect the water inlet hose to the cold water tap of the primary

With the plastic hose guide.

hydraulic system, connect it to your domestic cold water storage system. Make sure not to have more than a distance of 5.02 m (16.5 ft) between the appliance inlet hose and the bottom of the water storage tank.

13.5 Water drainage

There are different procedures to connect the drain hose:

• On the edge of a sink.

• Make sure that the plastic guide cannot move when the appliance drains. Attach the guide to the water tap or the wall.

Page 29

Without the plastic hose guide.

ENGLISH 29

• To a stand pipe with vent-hole. Refer to the illustration. Directly into a

drain pipe at a height of not less than 60 cm (23.6”) and not more than 100 cm (39.3”). The end of the drain hose must always be ventilated , i.e. the inner diameter of the drainpipe (min. 38 mm — min. 1.5”) must be larger than the external diameter of the drain hose.

• If the end of the drain hose is this (see the drawing), you can push it directly into the stand pipe.

• To a sink spigot. Refer to the illustration. Put the drain

hose in the spigot and tighten it with a clip. Make sure that the drain hose makes a loop to prevent that remaining particles go in the appliance from the sink.

You can extend the drain hose to maximum 400 cm. Contact the service centre for the other drain hose and the extension.

• Directly to a built-in drain pipe in the room wall and tighten it with a clip.

Page 30

www.aeg.com

13.6 In the interest of the environment

14. ENVIRONMENT CONCERNS

• Connect the appliance to the FOUL system for the drain water. The sewage works keeps the drain water for the treatment before to release safely it into a river. Do not connect this appliance to the surface drain system of the water because it releases the drain water directly into a river or stream without a treatment and this can cause of pollution. Contact your local water authority to have more information.

Recycle the materials with the symbol applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic

. Put the packaging in

appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

Page 31

ENGLISH 31

Page 32

www.aeg.com/shop

132929231-A-262012
