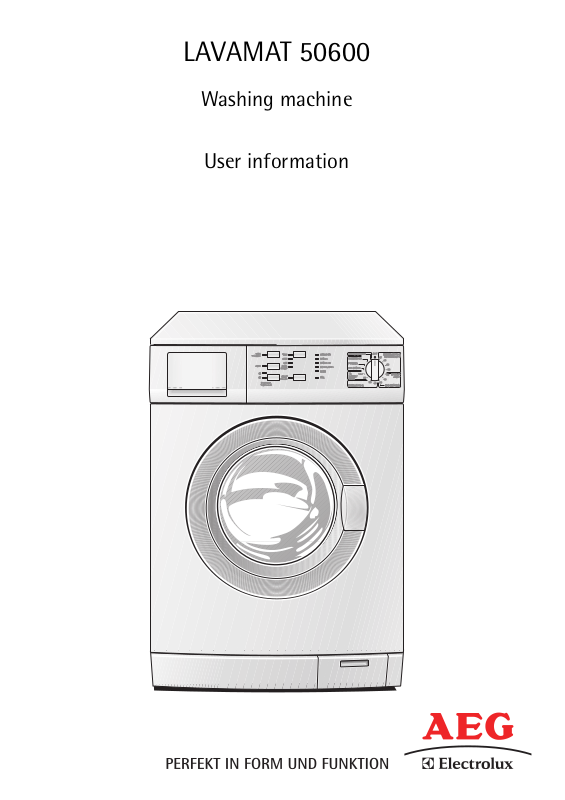

AEG L50600 User Manual

LAVAMAT 50600

Washing machine

User information

Dear customer,

Please read this User Information carefully and keep it to refer to at a
later date.
Pass this User Information on to any subsequent owner of the appli­ance.

The following symbols are used in the text:

1 Safety instructions

Warning: Notes that concern your personal safety.
Attention: Notes that show how to avoid damage to the appliance.

3 Useful tips and hints

2 Environmental information

2

Contents

Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Programme overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Before the first wash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Preparing and sorting washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Running a washing cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Opening the door/loading washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Adding detergent/ additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Switching on the appliance/selecting a programme . . . . . . . . . . . . . . . . . . . 13

Changing spin speed/selecting rinse hold. . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Selecting the programme options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

PRE-WASH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

TIME SAVER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Switching RINSE + on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Setting the delay timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Starting a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Interrupting a programme/adding washing . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Washing cycle complete/removing the washing . . . . . . . . . . . . . . . . . . . . . . 16

Child safety device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

What to do if.... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Remedying small malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

If the wash results are not satisfactory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Carrying out an emergency drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Drain pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Consumption values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

3

Installation and connection instructions. . . . . . . . . . . . . . . . . 26

Safety information for the installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Installing the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Transporting the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Unpacking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Where to install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Making the appliance level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Connecting to the water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Water drainage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Guarantee/Customer Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

4

Operating Instructions

1 Safety

Prior to using for the first time

• Follow the ”Instructions for installation and connection”.

• If the appliance is delivered in the winter months when there are mi-

nus temperatures: Store the washing machine at room temperature
for 24 hours before using for the first time.

Correct use

• The washing machine is only designed for the washing of normal do­mestic laundry at home.

• Additions or modifications to the washing machine are not permit­ted.

• Use only detergents and additives that are suitable for use in domes­tic washing machines.

• The washing must not contain any inflammable solutions. Danger of
explosion!

• Do not use the washing machine for dry cleaning.

• Dyes/colour removers may only be used in the washing machine, if

the manufacturer of these products expressly permits this. We cannot
be held responsible for any damage arising.

Safety of Children and Infirm Persons

• Keep packaging away from children. There is a risk of suffocation.

• The appliance ist not intented for use by young children or infirm

persons without supervision.

• Children often do not recognise the hazards associated with electrical
appliances. Don’t allow children to use the washing machine unsu­pervised.

• Make sure that children and pets don’t climb into the drum of the
washing machine. Could endanger life!

5

General safety

• Repairs to the washing machine must only be carried out by qualified
service engineers.

• Never use the washing machine if the mains cable is damaged; or if
the control panel, work top or plinth area is damaged such that the
inside of the appliance is freely accessible.

• Switch off the washing machine before cleaning, maintenance and
servicing. In addition, pull the mains plug out of the socket or – in
the case of a permanent connection – switch off the cut-out in the
fuse box or remove the screw fuse completely.

• If operation is stopped, disconnect the appliance from the mains sup­ply and shut off the water tap.

• Never unplug the appliance by pulling on the cable. Always pull the
plug.

• Multi-way plugs, connectors and extension cables must not be used.

This could constitute a fire hazard through overheating.

• Never wash the washing machine down with a water jet. Danger of
electric shock!

• In washing programmes with high temperatures the glass in the door
gets hot. Do not touch it.

• Before emergency emptying of the appliance, before cleaning the
drain pump or opening the door in an emergency, let the water cool
down.

• Small animals can nibble at the cables and water hoses. Danger of
electric shock and danger of water damage! Keep small animals away
from the washing machine.

6

Description of the appliance

Detergent dispenser
drawer

Screw feet
(height adjustable)

Control Panel

SPIN/RINSE HOLD button

Programme option buttons

Control panel

Rating plate
(behind door)

Plinth flap/
Drain pump

Programme Progress display

DELAY TIMER button

START/PAUSE button

DOOR indicator

Programme knob

7

Programme overview

Additional

programmes

Programme

ENERGY SAVING

COTTONS/LINEN
95, 60, 40, 30

EASY-CARES
60, 40

EASY IRON 40 1kg • • • • • •

DELICATES
40, 30

WOOL/SILK H (Hand-washing)
30, COLD

RINSE 3kg • • • •

2)

1)

max. load

(dry washing)

6kg • • • • •

6 kg • •

3kg • • • • • •

3kg • • • • • •

2kg • • • •

PRE WASH

TIME SAVER

3)

Spin speed

1000

800

600

• • • •

RINSE HOLD

DRAIN

SPIN 6kg • • •

1) A 10 litre bucket contains approx. 2.5 kg of dry washing (cotton)

2) Programme settings for tests in accordance with or in support of EN 60 456 and IEC 60 456 are de­scribed in the section “Consumption values”.

3) Recommended load for short progammes is 3kg; full loading is possible however with somewhat reduced
cleaning results.

8

Application/Features

Care

symbols

1)

Energy-saving programme at 60°C for lightly to normally soiled whites/
coloureds made of cotton/linen.

Programme for normally to heavily soiled coloureds/whites made of cotton/
linen.

Programme for easy-care mixed fibres and synthetics.

Special programme at 40°C for easy-care fabrics which after being washed
using this programme need to be ironed only lightly or not at all.

Gentle programme for delicate fabrics such as bonded fibres, micro-fibres,
synthetics, net curtains (load max. 20 to 25 m
HOLD also suitable for materials that have climatic membranes, e.g. outdoor
clothing.

Specially gentle programme for machine and hand-washable wool/silk.

Separate gentle rinse (3 rinse cycles, liquid conditioner is washed in from the
compartment
delicate items, reduce the spin speed.

Draining following a rinse hold.

Draining and spinning, e.g. following a rinse hold, or separate spinning of
hand-washed cottons/linen. Reduce the spin revolution speed if spinning
easy-care, delicate or woollen items.

1) The figures in the care symbols indicate the maximum temperatures.

, spin). Not suitable for wool. When loading easy-care or

w

2

net curtains). With RINSE

M O

J M O

I K N

K N

I K

Q L H

J M O

J M O

9

Before the first wash

1. Open the detergent drawer.

2. Pour approx. 2 litres of water through the detergent drawer into the

washing machine.
This closes the water container when the next programme is started

and the economy valve can function properly

3. To remove any production-related residues from the drum and water
tank, perform the first wash cycle without a load. Programme: COT­TONS/LINEN 95, press the TIME SAVER button, add approx. 1/4 measur­ing cup of detergent.

Preparing and sorting washing

Preparing washing

• Empty pockets. Remove foreign bodies (e. g. coins, paper clips, nails,

etc.).

• Do up zips, button up covers to prevent damage to washing.

• Remove the runners from net curtains or cover them with a net or a

bag.

• Wash sensitive and small items in a net or a pillow case, e.g. net cur-

tains, tights, socks, handkerchiefs, bras.

Important! Bras and other items containing wires should only be
washed in a net bag. The wires can work loose and damage the appli­ance.

10

Sorting washing

• By colour: Wash white and coloured washing separately. Washing can

run.

• By temperature, type of washing and care symbol.
Important! Do not wash fabrics with care symbol G (= do not wash!)

in the washing machine.

Running a washing cycle

Opening the door/loading washing

1. To open the door: pull the door by the handle.

When the machine is switched on, the DOOR light and the START/
PAUSE light indicate whether the door can be opened:

DOOR indicator START/PAUSE indicator Can the door be opened?

flashes flashes yes, after about 2 minutes

lit lit

is off flashes yes

2. Unfold washing and load it loosely
into the machine. Mix large and
small items.
Important! Do not get any washing
caught between the door and the
rubber seal.

3. Push the door shut firmly. Door
catch must audibly click shut.

no, water level and/or

temperature too high

Adding detergent/additives

Warning! Use only detergents and additives that are suitable for use in

domestic washing machines.

1 For USA and Canada only!

Important! Only LOW-SUDSING detergent suitable for a front-loading
washing machine can be used in this machine. This machine can heat
the water up to 95 degrees celsius, or 200 degrees fahrenheit, and care
should be taken to ensure that the correct washing powder is used. If
you have any doubt, check with your dealer or the distributor.
WARRANTY AND CONSEQUENTIAL DAMAGES ARE VOIDED IF A LOW
SUDSING DETERGENT IS NOT USED.

Dose detergent and additives according to the instructions of the de­tergent and additive manufacturers. Follow the advice on the packag­ing.

11

Dosing depends upon:

– the washing’s degree of soiling,
– the size of the load
– the degree of hardness of the water supply.

• If the manufacturer does not give instructions for small loads: for a

half load, use a third less, for a very small load, use only half of the
detergent that is recommended for a full load.

• From water hardness 2 (= medium) upwards, water softener should

be used. Detergent can then always be dosed for water hardness 1
(= soft). Your local water company will be able to give you informa­tion about the water hardness in your area.

1. Pull the detergent dispenser drawer out as far as the stop.

2. Add the detergent/additives.

3. Push the drawer in fully.

Washing powder/tablets
for the main wash

Softeners/
wash-care products
to preserve the shape
of garments/
starch

Washing powder/tablets
for the pre-wash or in­wash stain treatment

Washing powder/tablets for the main wash
If you are using water softener and need the right-hand compartment

for the pre-wash/stain treatment agent, add the water softener to the
main wash detergent in the left compartment.

Softeners, wash-care products to preserve the shape of garments,
starch

Do not fill the compartment beyond the MAX mark. Dilute thick liquid
concentrates according to the manufacturer’s instructions before
putting them into the drawer. Dissolve powder starches.

If you use liquid detergents:
Add liquid detergent using the dosage containers provided by the de­tergent manufacturer.

12

Switching on the appliance/selecting a programme

Set the programme and tempera­ture using the programme knob.

3 By selecting a programme, you

switch the appliance on at the
same time.

The programme progress display
indicates the programme steps
that the selected programme will
perform.

Changing spin speed/selecting rinse hold

The washing machine suggests the
maximum permitted speed that is
suitable for the selected pro­gramme. You can reduce this
speed:

Press the SPIN/RINSE HOLD button
repeatedly until the desired display
lights up.

3 The speed for the final spin can still be altered during the programme.

To do this:

1. Press the START/PAUSE button.

2. Change speed.

3. Press the START/PAUSE button again.

RINSE HOLD

If RINSE HOLD is selected, the washing is left to soak in the last rinse
water. There is no final spin after the intermediate spin(s). Intermediate
spins are programme-dependent and cannot be altered.

13

Selecting the programme options

If desired, press the programme op­tion button(s). The corresponding
light lights up.

PRE-WASH

Warm pre-wash before the main
wash, which follows automatically; intermediate spin in the COTTONS/
LINEN and EASY-CARES/EASY IRON programmes; no intermediate spin
in the DELICATES programme.

TIME SAVER

Short wash cycle for lightly soiled washing.

Switching RINSE + on and off

When RINSE + is switched on, there are two additional rinses in the
COTTONS/LINEN, EASY-CARES/EASY IRON, DELICATES and GENTLE
RINSE programmes. RINSE + remains permanently saved – even after
the appliance is switched off.

To switch on RINSE +:

1. Turn the programme knob to COTTONS/LINEN, EASY-CARES/EASY IRON

or DELICATES (at any temperature).

2. Hold down the buttons PRE-WASH and DELAY TIMER at the same time,
until RINSE and RINSE + light up on the programme progress display.
RINSE + is now permanently switched on.

RINSE + is lit on the programme progress display before the start of the
programme and during the additional rinses.

To switch off RINSE +:

1. Turn the programme knob to COTTONS/LINEN, EASY-CARES/EASY IRON

or DELICATES (at any temperature).

2. Hold down the buttons PRE-WASH and DELAY TIMER at the same time,
until RINSE + goes out on the programme progress display.
RINSE + is now permanently switched off.

14

Setting the delay timer

The DELAY TIMER button allows the start of a programme to be de­layed.

1. Select programme.

2. Press DELAY TIMER button once, if the wash programme is to start after

6 hours. The display 6h lights up.
Press DELAY TIMER button twice, if the wash programme is to start af­ter 3 hours. The display 3h lights up.

3 If you press the DELAY TIMER button again, the time delay is cancelled.

The display goes out.

3. To activate the time delay, press the START/PAUSE button.
Note: If a time delay of 6 hours is selected, the display 6h is lit. After

3 hours the display changes and 3h is lit. After a total of 6 hours the
wash programme then starts.

Starting a programme

1. Check that the water tap is open.

2. Press the START/PAUSE button. The programme is started or starts after

the time delay set has elapsed.
During the wash programme, the current programme step is displayed

on the programme progress display.

3 If the START/PAUSE button is pressed and the END indicator flashes 4

times, the door is not closed properly. Push the door firmly closed and
press the START/PAUSE button again.

Interrupting a programme/adding washing

Interrupting a programme

• A washing programme can be interrupted at any time by pressing the

START/PAUSE button. It is then re-started by pressing the START/
PAUSE button again.

• To stop the washing machine before the programme has ended, turn

the programme knob to OFF. Important! Be careful if there is water
in the appliance!

Adding washing

It is possible to add washing, as long as the DOOR light is not lit.

1. Press the START/PAUSE button. The door can be opened.

2. Shut door and press the START/PAUSE button again. The programme

continues.

15

Washing cycle complete/removing the washing

At the end of the programme, END lights up on the programme
progress display. The door can be opened as soon as the DOOR light
goes off and the END light has come on.

1. Open the door and remove the washing.

2. Turn the programme knob to OFF.

3. Close the water tap.

4. After the wash, pull out the detergent dispenser drawer slightly to al-

low it to dry. Leave the door slightly open to air the inside of the wash­ing machine.

If RINSE HOLD was selected:

After a rinse hold, DOOR and END light up on the programme progress
display.
The water must first be drained:
– Either turn the programme knob to OFF, then to DRAIN and press the

START/PAUSE button (the water is drained without spinning),

– or turn the programme knob to OFF and then to SPIN. Depending

upon the type of washing, reduce the spin speed if necessary and
press the START/PAUSE button (the water is drained and the washing
spun).

16

Child safety device

When the child safety device is set, the door can no longer be closed.

Setting the child safety device:

Use a coin to turn the knob (on the
inside of the door) in a clockwise di­rection as far as it will go.

1 Warning! The knob must not be

sunk-in after being set, otherwise
the child safety device is not active.
The knob must stand out as shown
in the illustration.

Releasing the child safety device:
Turn the knob anti-clockwise as far

as it will go.

Cleaning and maintenance

Important! Do not use furniture care products or aggressive cleaners to

clean the appliance.
Wipe control panel and body with a damp cloth.

Cleaning procedure

If you plan to wash mainly at low temperature, you should run a hot
programme from time to time. This will reduce any deposits and clean
the appliance from the inside.

17

Detergent dispenser drawer

The detergent dispenser drawer should be cleaned regularly.

1. Remove the detergent dispenser drawer by pulling it firmly.

2. Remove the conditioner insert from

the middle compartment.

3. Clean all parts with water.

4. Put the conditioner insert in as far as

it will go, so that it is firmly in place.

5. Clean all parts of the washing ma­chine, especially the nozzles in the
top of the washing-in chamber, with
a brush.

6. Insert the detergent dispenser draw­er in the guide rails and push it in.

Washing drum

Rust deposits in the drum may occur due to rusting foreign bodies in
the washing or tap water containing iron.

Important! Do not clean the drum with acidic descaling agents, scour­ing agents containing chlorine or iron or steel wool.

1. Remove any rust deposits on the drum with a cleaning agent for stain­less steel.

2. Run a washing cycle without any washing to clean off any cleaning
agent residues. Programme: COTTONS/LINEN 95, press the TIME SAVER
button, add approx. 1/4 measuring cup of detergent.

18

Door and rubber collar

Regularly check whether deposits or foreign bodies are present in the
folds of the rubber collar or on the inside of the glass door.
Clean the glass in the door and the rubber collar regularly.

What to do if...

Remedying small malfunctions

If the programme progress display indicates one of the following fault
codes during operation:

– END flashes 1x (problem with water intake),
– END flashes 2x (problem with water drainage),
– END flashes 4x (door open),

please look at the following table.
When the fault is remedied, press the START/PAUSE button.

If there are other fault codes (one or more flashing lights on the pro­gramme progress display):
Switch the appliance off and on again. Re-set the programme. Press the
START/PAUSE button.

If the fault is displayed again, please contact the Customer Care De­partment.

Problem Possible cause Remedy

Mains plug not plugged in
or fuse not working.

Washing machine does
not work.

Door cannot be closed. Child safety device engaged. Release child safety device.

END display flashes 4x. Door is not closed properly.

END display flashes 1x.
(Problems with water
inflow)

The washing machine
vibrates when operating
or is not stable.

Door not closed properly.

START/ PAUSE button was
not pressed for long
enough.

Tap turned off. Turn tap on.

Filter in the screw connec­tion of the inlet hose is
blocked.

Water tap is blocked with
limescale or faulty.

The transport lock has not
been removed.

The screw feet not correctly
adjusted.

Plug in mains plug. Check
fuse.

Close door – there should be
an audible click.

Press START/ PAUSE button
for longer.

Close door properly. Start
programme again.

Turn off the water tap. Un­screw hose, take out filter
and clean it.

Check the water tap and
have it repaired if necessary.

Removing the transport lock.

Adjust the feet as described
in the installation and con­nection instructions.

19

Problem Possible cause Remedy

Washing has not been
spun.

Water is leaking out un­derneath the washing
machine.

Washing water is foam­ing excessively.

END display flashes 2x.
(Problems with water
outflow.)

Fabric softener not
rinsed in, w compart­ment for additives is
filled with water.

Door cannot be opened
when appliance is
switched on.

Washing is heavily
creased.

Only a few large items of
washing in the drum.

Screw connection on the in­let hose is leaking.

Drain hose is leaking. Replace drain hose.

Drain pump cover is not
closed properly.

Washing was caught in the
door.

Emergency drain hose is
leaking.

Probably too much deter­gent has been used.

Kink in drain hose. Remove kink.

Maximum pumping height
of 1m exceeded.

Drain pump is blocked.

With connection to sink
outlet: sink outlet is
blocked.

Conditioner insert in the
compartment for additives
is not correctly attached or
is blocked.

Door locked.

Power cut. (All display indi­cators are off.)
Door remains locked for ap­prox. 2 minutes.

Possibly too much washing
was loaded.

Always load the drum as full
as possible. Mix large and
small items.

Tighten inlet hose.

Close cover properly.

Load washing carefully for
the next wash.

Close off emergency drain
hose properly.

Dose detergent exactly as in­structed by manufacturer.

Please contact Customer
Care Department.

Switch off appliance. Pull out
mains plug.
Clean drain pump. Remove
foreign bodies from pump
housing.

Clean sink outlet.

Clean detergent dispenser
drawer, insert conditioner in­sert firmly.

Wait until DOOR light goes
off and END light comes on.

Programme continues, when
power cut is over.

To remove washing:
If water can be seen in the
appliance, before opening
the door, first drain off the
water. (See section “Carrying
out an emergency drain”.)

Observe maximum loads.

20

If the wash results are not satisfactory

Washing is grey and scale is being deposited in the drum

• Too little detergent is being used.

• The right detergent was not used.

• Special soiling was not pre-treated.

• Programme or temperature was not correctly set.

There are grey stains on the washing.

• Washing soiled with ointment, grease or oil was washed with too lit-

tle detergent.

• It was washed at too low a temperature.

• A common cause is that fabric conditioner – especially a concentrate

– has got onto the washing. Such stains should be washed out as
quickly as possible and make sure that you are careful when using
fabric conditioner.

After the last rinse foam can still be seen.

• Modern detergents may create foam even in the last rinse cycle. The

washing is however sufficiently rinsed.

There are white residues on the washing.

• This is due to the insoluble ingredients in modern detergents.

They are not caused by insufficient rinsing.
Shake or brush the washing. If possible turn the washing inside out
before washing. Check your choice of detergent. Especially with dark
colours it is advisable to use liquid detergents.

21

Carrying out an emergency drain

1 Warning! Before emergency draining, switch off the washing machine

and remove the mains plug from the socket.
Warning! The water that comes out of the emergency drain hose may

be hot. There is a risk of scalding. Let the water cool before performing
an emergency drain.

1. Open the plinth flap and remove it.

2. Take out the emergency drain hose.

3. Place a shallow container under-

neath it. Then loosen the drain plug
by turning it in an anti-clockwise
direction and pull it out.

4. The water runs out. If it is necessary
to empty the container more than
once, seal up the emergency drain
hose with the drain plug while you
are doing so.

When the water has all drained away:

5. Push the drain plug firmly into the emergency drain hose and screw it

tight in a clockwise direction.

6. Place the emergency drain hose back in the support.

7. Insert the plinth flap and close it.

22

Drain pump

The drain pump is maintenance-free. It is only necessary to open the
pump cover if there is a malfunction and water is no longer being
pumped out, e. g. if the pump wheel is blocked.
Please make sure before loading the washing that there are no foreign
bodies in the pockets or caught between the washing. Paperclips, nails,
etc. that may have got into the washing machine with the washing re­main in the pump housing (foreign body trap that protects the pump
wheel).

1 Warning! Before opening the pump cover, switch off the washing ma-

chine and remove the mains plug from the socket.

1. First carry out an emergency drain.

2. Place a cloth on the floor in front of the drain pump cover.

Residual water runs out.

3. Unscrew the pump cover in an anti­clockwise direction and remove it.

4. Remove foreign bodies and fluff
from the pump housing and from
the pump wheel.

5. Check whether the pump wheel
right at the back of the pump hous­ing can turn. (It is normal for the
pumping wheel to turn jerkily.) If
the pumping wheel cannot be
turned, please contact the Customer
Care Department.

6. Insert the pump cover. Insert the
guides at the sides of the cover into
the guide slots and tighten the cov­er by turning in a clockwise
direction.

7. Close off the emergency drain hose
and place it in the support.

8. Close plinth flap.

23

Disposal

Packaging material

2

The packaging materials are environmentally friendly and can be recy­cled. The plastic components are identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging materials in the appropriate
container at the community waste disposal facilities.

2 Old appliance

The symbol
product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of elec­trical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed infor­mation about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you
purchased the product.

W on the product or on its packaging indicates that this

1 Warning! When an appliance is finished with, remove the plug from

the mains socket. Cut off the cable and plug and dispose of them.
Destroy the door lock. This prevents children from trapping themselves
inside and endangering their lives.

24

Technical data

This appliance conforms with the following EU Directives:

5

– 73/23/EEC dated 19.02.1973 Low Voltage Directive
– 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending

Directive 92/31/EEC

– 93/68/EEC dated 22.07.1993 CE Marking Directive

Height x Width x Depth 850 x 598 x 603 mm

Depth when door is open 980 mm

Height adjustment approx. +10/-5mm

Load (depending on programme) Max. 6kg

Area of use Domestic

Drum spin speed see programme overview

Water pressure 1-10bar (=10–100N/cm2=0.1–1.0MPa)

7

Consumption values

The consumption values were obtained under standardised conditions.
They may vary when operating in domestic conditions.

Programme knob

(Temperature)

COTTONS/LINEN 95 6 62 2,20 146

ENERGY SAVING

COTTONS/LINEN 40 6 58 0,70 129

EASY-CARES 40 3 58 0,52 80

DELICATES 30 3 58 0,42 66
WOOL/SILK H (Handwashing) 30 2 54 0,45 54

1) The load is determined in accordance with EN 60456 Standard Loads.

2) Note: Programme setting for tests in accordance with or supporting EN 60 456 and

IEC 60 456.
Actual consumption will vary from the indicated values depending on water pressure,
water hardness, water temperature at filling, room temperature, type and quantity of
washing, detergent used, variations in mains voltage and any additional programme
functions selected.

2)

Load

in kg

6 49 1,12 125

Water

1)

in litres

Energy

in kWh

Time in

minutes

25

Installation and connection instructions

1 Safety information for the installation

• This washing machine cannot be built-in.

• Before using for the first time, check the appliance for damage sus-

tained while it was being transported. Do not under any circumstanc­es connect an appliance that is damaged. In the case of damage,
please contact your supplier.

• Before using for the first time, all parts of the transport lock must be

removed. Otherwise when spinning damage may be caused to the ap­pliance or to neighbouring units or furniture.

• Before using the appliance for the first time, splash protection must

be completed. (See “Removing the transit packaging”.)

• Always plug the mains plug into a correctly installed shockproof

socket.

• Permanent connection: a permanent connection must only be in-

stalled by a trained electrician.

• Prior to using the appliance for the first time, ensure that the rated

voltage and type of supply on the rating plate match that of the sup­ply where the appliance is to be installed. The fuse rating is also to be
found on the rating plate.

• If work on the plumbing is required for the proper connection of the

washing machine to the water supply, this must be undertaken by a
registered plumber.

• If work on the electricity supply system is required for the proper

connection of the washing machine to the electricity supply, this
must be undertaken by a registered electrician.

• The washing machine’s cable must only be replaced by the Customer

Care Department or a registered electrician.

Installing the appliance

Transporting the appliance

1 Warning! The washing machine is very heavy. Risk of injury. Be careful

when lifting.

• Do not lay the appliance on its front nor on its right side (as seen

from the front). Electrical components may get wet.

26

• Never transport the appliance without its transport lock. Only remove

the transport lock when the appliance is in its place of installation.
Transporting the appliance without its transport lock can lead to
damage to the appliance.

• Never lift the appliance by the door when it is open nor by the plinth.

When moving using a sack trolley:

• Only use the sack trolley on the side of the appliance.

Unpacking

1 The transport safeguard must be removed before putting the appliance

into operation.

Important!
You are advised to keep all the packaging for re-use in case the

machine is to be transported again.

1. After removing all the packaging,

with assistance carefully lay ma­chine on it’s back to remove the pol­ystyrene base from the bottom.

2. Remove the power supply cable and
the draining hose from the hose
holders on the rear of the appliance.

27

3. With a suitable spanner unscrew and
remove the central rear bolt A. Slide
out the relevant plastic spacer.

4. Unscrew and remove the two large
rear bolts B and the six smaller bolts

C.

5. Remove the bracket D.

6. Tighten up the six smaller bolts C.

28

7. Open the porthole and remove the
polystyrene block fitted with the ad­hesive tape on the door seal.

8. Fill the smaller upper hole and the
two large ones with the correspond­ing plastic plug caps supplied in the
bag containing the instruction
booklet.

Important!

All the different plug caps are sup­plied with the appliance in the plas­tic bag containing the instruction
booklet.

Connect the water inlet hose as described under the paragraph “Water
inlet”.

Where to install

Important! The appliance must not be used in a room where there is a

danger of frost. Frost damage or impaired operation! Frost damage is
not covered by the warranty.

• The surface on which the appliance is to be installed must be firm

and level. Do not install the appliance on carpets or on soft floor cov­erings.

• The surface on which the appliance is to be installed must be clean

and dry and free from coverings that move, so that the appliance
does not slide.

• If the location in which the appliance is to be installed is fitted with

small-format tiles, put a rubber mat (available in the shops) under
the appliance.

29

Making the appliance level

The four feet of the appliance are
pre-adjusted.
Large degrees of unevenness can be
compensated for by individually ad­justing the height adjustable screw
feet.
Use the special spanner supplied to
do this.

Important! Do not use pieces of
wood, cardboard or such like to lev­el out unevenness in the floor, but
adjust the height adjustable screw
feet instead.

Electrical connection

Details about the voltage, type of supply and the fuses required are to
be found on the rating plate. The rating plate is next to the doorway.

Connecting to the water supply

30

Permitted water pressure

The water pressure must be at least 1 bar (= 10N/cm2=0.1MPa) and may
be a maximum of 10bar (=100N/cm

– If more than 10 bar: Connect a pressure reduction valve.
– If less than 1bar: Disconnect the appliance end of the inlet hose from

the solenoid inlet valve and remove the flow meter. (In addition re­move the filter using pointed pliers and take out the rubber gasket
behind it.) Re-insert the filter.

2

=1MPa).

Water inlet

Attention!

• An inlet hose is supplied and can been found inside the machine

drum.

• Do not use the hose from your previous machine to connect to

the water supply.

• This appliance must not be connected to the hot water system.

1. Open the porthole and extract the inlet hose.

2. Connect the hose with the angled

connection to the machine.

Important!
Do not place the inlet hose down­wards. Angle the hose to the left
or right depending on the position
of your water tap.

3. Set the hose correctly by loosening

the ring nut. After positioning the
inlet hose, be sure to tighten the
ring nut again to prevent leaks.

4. Connect the hose to a tap with a
3/4” thread.
Always use the hose supplied with
the appliance.

Installation should comply with local
water authority and building regula­tions’ requirements.
A minimum water pressure of 0.05
MPa (0.5 bar) is required for safe op­eration of the appliance.
If you cannot make the cold water
connection direct from the rising mains, you may be able to operate
the appliance from your cold water storage system.
There should be a minimum distance of 5.02m (16.5 ft) between the
appliance’s inlet and the bottom of the water storage tank.

31

Water drainage

The maximum permitted difference between the height of the surface
on which the appliance is installed and the water outlet is 1 metre.

Only original hoses may be used to extend hoses. (A maximum of 3 m
laid on the floor and then 80 cm vertically). The Customer Care Depart­ment stocks outlet hoses of different lengths.

Draining water into a sink outlet

Secure the outlet/sink outlet joint
with a hose band clip (available from
your dealer).

Draining water into a wash basin/bath

1 Important!

– Small basins are not suitable. Wa-

ter may overflow.

– The end of the drain hose must

not be in the water that has been
pumped out. Otherwise water
could be sucked back into the ap­pliance.

– When draining into a wash basin

or a bath, secure the drain hose
with the supplied elbow to stop it
slipping. Otherwise the water run­ning out can force the hose out of
the basin.

– When pumping the water out,

check that the water is running
away fast enough.

32

Pumping heights over 1 m

The washing machine’s drain pump is able to pump water to a height of
1meter, calculated from the surface on which the appliance is installed.

Warning! If pumping height is over 1 metre, malfunctions and damage
to the appliance may arise.

For pumping heights over 1metre a conversion kit can be obtained.
Please contact the Customer Care Department.

Guarantee/Customer Service

Weitere Kundendienststellen im Ausland

In diesen Ländern gelten die Garantiebedingungen der örtlichen Part­ner. Diese können dort eingesehen werden.

Further after-sales service agencies overseas

In these countries our AEG-Electrolux agents’ own guarantee conditi­ons are applicable. Please obtain further details direct.

Autres agences étrangères assurant le service après-vente

Dans ces pays, les conditions de garantie des concessionnaires de la ré­gion sont valables. Vous pouvez les consulter sur place.

Otros puntos de Postventa en el extranjero

En estos países rigen las condiciones de nuestros representantes locales.
las cuales pueden ser consultadas allí mismo.

Ulteriori uffici del servizio tecnico assistenza clienti all’estero

In questi paesi sono valide le condizioni di garanzia dei partner locali.
Queste condizioni possono essere esaminante sul luogo.

Serviços de assistência técnica no estrangeiro

Nestes países são válidas as condições de garantia dos concessionários
locais, podendo aí ser consultadas.

További vevöszolgálati irodák külföldön

Ezekben az országokban a mi AEG-Electrolux vevöszolgálatainknál
saját jótállási feltételek alkalmazhatók. A további adatokat kérjük
közvetlenül szerezzék be.

Servisne službe

Na garancijskem listu boste našli seznam pooblašèenih servisnih
služb AEG-Electrolux.

U.A.E. Abu Dhabi

Universal Trading Company
P.O. Box 43 99
Tel.: [phone]
Service Center 6733974

Egypt

Middle East Commercial
Center
4 Salah El Dein St. - 2nd floor
Heliopolis, Kairo
Egypt
Tel.: [phone]

Jordan

Jordan Household
Supply Co. Ltd.
P.O. Box 3/68
Amman/Tel.: 69 70 50

Canada

EURO-LINE Appliances
2150 Winston PARK Drive 20
Oakville, Ontario L6H 5V1
Tel.: [phone]
Fax: [phone]

Malta

ITC
International Trading Company
White House Building
Mountbatte Street
Blata L-Bajda/Tel.: 220644

Mauritius

Happy World Centre Ltd.
P.O. 7 54
1 Chausee Street
Port Louis
Tel.: 25355

33

Australia

The Andi-Co Group
1 Stamford Road
Oakleigh VIC 3166
Tel.: [phone]
Fax: [phone]
www.andico.com.au

Bahrain/Arabian Gulf

A.A. Zayani & Sons
P.O. Box 9 32
Bahrain
Tel . : [phone]

Bulgaria

Electrolux Bulgaria E.O.O.D.
91 Levski Blvd.
1000 Sofia
Tel.: [phone]
Fax. [phone]

Cyprus

Hadjikyrlakos & Sons Ltd.
Prodromou 121
P.O. Box 21587
Nicosia 1511
Service Telephones:
Nicosia 02 481226
Limassol 05 562182
Larnaca 04 633929
Paphos 06 932 699

Estonia

Electrolux Estonia Ltd.
Mustamäe tee 24
EE0006 Tallinn
Tel.: [phone]
Fax: [phone]

Hong Kong

Dah Chong Hong Ltd.
20 Kai Cheung Road
Kowloon Bay
Kowloon - Hong Kong
Tel.: [phone]
Fax: [phone]

Israel

Evis Ltd.
Tadiran-Ampa Service
10 Gibonay Israel Street
New Industrial Zone
Netanya, 42504
Israel

Korea (South)

Core Incorp.
3/F Chewoo Bldg.
200 Nonhyun-Dong
Kangnam-Ku 135-010
Seoul
Telefon [phone]

Croatia

Electrolux D.O.O.
Suplova 7
10000 Zagreb
Tel.: [phone]
Fax: [phone]

Kuwait/Arabian Gulf

Ali Al-Ghanim Est.
P.O. Box 21540 - Safat
Tel.: [phone]
Fax: [phone]

Lebanon

Adib & Assaferi
P.O. Box 539
Tripoli

Latvia

Electrolux Latvija Ltd.
Kr.Barona iela 130/2
Riga, LV-1012
Tel.: [phone]
Fax: [phone]

Lithuania

Electrolux Lithuania
Verkui 29
2600 Vilnus
Tel.: [phone]
Fax: [phone]

Malaysia

Arzbergh Engineering
No. 49A/B, Jalan Petaling
Utama 7
4600 Petaling Jaya
Tel.: [phone]
Fax: [phone]

Namibia

AEG NAMIBIA (PTY)
LIMITED-Jeppe Street
Northern Industrial Area
Windhoek
Tel.: [phone]
Fax: [phone]

New Zealand

Monaco Corporation Ltd.
10 Rothwell Avenue
Albany - Auckland
4399 Auckland 1
New Zealand
Tel.: [phone]
Fax: [phone]

Syria

WATTAR CO.
P.O. Box 36109
Mazzeh - Damascus
Direct Phone: [phone]
Fax: [phone]

Iran

ARIAN International Develop­ment Co.
AEG Showroom
Shariati, Balatar as Safar
Teheran / Iran
Phone No. Showroom:
021 / 285 513 / 4
Phone No. Service:
021 / 312 27 67 / 8

Poland

Electrolux Poland Sp. zo.o.
ul. Domaniewska 41
02-034 Warszawa
tel.: [phone]
fax: [phone]

Russia

Electrolux Russia Ltd.
16 Olympiysky prospekt
129090 Moscow
Tel.: [phone]
Fax: [phone]

Saudi Arabia

Awad Badi Nahas Est
Shara Siteen
Jeddah 21463
Phone: [phone]
Alia Trading Co
Mecca Road
Riyadh 11491
Phone [phone]

34

Japan

Electrolux Japan Ltd.
Domestic Appliances
Department
Maruzen Showa Warehouse
Building
Tookai 4-5-12, Ota-ku
143-006 Tokyo
Tel.: [phone]
Fax: [phone]

Thailand

Olympia Thai Tower, 444
Rachadapiser Road
Samsennok- Huaykwang
10320 Bangkok
Thailand
Tel.: [phone]
Fax: [phone]

Hungary

Electrolux Lehel KFT
Erzsébet Királyné útja 87.
1142 Budapest
Tel.: [phone]

Singapore

Group Pte Ltd.
833 Bukit Timah Road
Unit no. 01-11 Royalville
279887 Singapore
Tel.: [phone]
Fax: [phone]

Slovakia Rep.

Electrolux Slovakia S.R.O.
Seberiniho 1
821 03 Bratislava
Tel.: [phone], 4355
Fax: [phone]

Czech Rep.

ELECTROLUX DOMÁCå
SPOTØEBIÈE CZ
DIVIZE ELECTROLUX S.R.O.
Customer Centre
Hanusova ul.
140 21 Praha 4
Tel.: [phone]
Telefax: 2 6112 3504

Slovenia

Electrolux Slovenia D.O.O.
Traska Ul. 132
1000 Ljubljana
Tel.: [phone]
Fax: [phone]

South Africa

AEG (Pty) Ltd.
55, 12th Road
P.O. Box 1 02 64
Kew/Johannesburg 2000
Tel.: [phone]

35

European Guarantee

This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user
manual, for the period specified in the appliance guarantee or otherwise by law. If you move
from one of these countries to another of the countries listed below the appliance guarantee
will move with you subject to the following qualifications:

•

The appliance guarantee starts from the date you first purchased the appliance which will be
evidenced by production of a valid purchase document issued by the seller of the appliance.

•

The appliance guarantee is for the same period and to the same extent for labour and parts as
exists in your new country of residence for this particular model or range of appliances.

•

The appliance guarantee is personal to the original purchaser of the appliance and cannot be
transferred to another user.

•

The appliance is installed and used in accordance with instructions issued by Electrolux and is
only used within the home, i.e. is not used for commercial purposes.

•

The appliance is installed in accordance with all relevant regulations in force within your new
country of residence.

The provisions of this European Guarantee do not affect any of the rights granted to you by law.

www.electrolux.com

p t b

Albania [phone] Rr. Pjeter Bogdani Nr. 7 Tirane

Belgique/België/
Belgien

Èeská republika [phone] Budìjovická 3, Praha 4, 140 21

Danmark [phone] Sjællandsgade 2, 7000 Fredericia

Deutschland [phone] Muggenhofer Str. 135, 90429 Nürnberg

Eesti [phone] Mustamäe tee 24, 10621 Tallinn

España [phone]

France www.electrolux.fr

Great Britain [phone]

Hellas [phone] Limnou Str., 54627 Thessaloniki

Hrvatska [phone] Slavonska avenija 3, 10000 Zagreb

Ireland [phone] Long Mile Road Dublin 12

Italia [phone] C.so Lino Zanussi, 26 - 33080 Porcia (PN)

Latvija [phone] Kr. Barona iela 130/2, LV-1012, Riga

Lietuva [phone] Verkių 29, LT09108 Vilnius

Luxembourg [phone] Rue de Bitbourg, 7, L-1273 Hamm

[phone] Bergensesteenweg 719, 1502 Lembeek

Carretera M-300, Km. 29,900
Alcalá de Henares Madrid

Addington Way, Luton, Bedfordshire
LU4 9QQ

36

p t b

Magyarország [phone]

Nederland [phone]

Norge [phone] Risløkkvn. 2 , 0508 Oslo

Österreich [phone] Herziggasse 9, 1230 Wien

Polska [phone] ul. Kolejowa 5/7, Warsaw

Portugal [phone]

Romania [phone] Str. Garii Progresului 2, S4, 040671 RO

Schweiz/Suisse/
Svizzera

Slovenija [phone]

Slovensko [phone]

Suomi www.electrolux.fi

Sverige [phone]

Türkiye [phone]

Россия [phone]

[phone] Industriestrasse 10, CH-5506 Mägenwil

H-1142 Budapest XIV,
Erzsébet királyné útja 87

Vennootsweg 1, 2404 CG ­Alphen aan den Rijn

Quinta da Fonte - Edificio Gonçalves
Zarco - Q 35
2774 - 518 Paço de Arcos

Electrolux Ljubljana d.o.o.
Gerbiceva 98, 1000 Ljubljana

Electrolux Slovakia s.r.o., Electrolux
Domáce spotrebièe SK, Seberíniho 1,
821 03 Bratislava

Electrolux Service, S:t Göransgatan 143,
S-105 45 Stockholm

Tarlabaþý caddesi no : 35 Taksim
Istanbul

129090 Москва, Олимпийский
проспект, 16, БЦ „Олимпик“

37

38

Service

In the event of technical faults, please first check whether you can
remedy the problem yourself with the help of the operating instruc­tions (section “What to do if…”).

If you were not able to remedy the problem yourself, please contact the
Customer Care Department or one of our service partners.

In order to be able to assist you
quickly, we require the following
information:

– Model description
– Product number (PNC)
– Serial number (S No.)

(for numbers see rating plate)

– Type of fault
– Any error messages displayed by

the appliance

So that you have the necessary reference numbers from your appliance
at hand, we recommend that you write them in here:

Model description: .....................................

PNC: .....................................

S No: .....................................

39

www.electrolux.com

132 976 760-00-101106-01 Subject to change without notice
