AEG IK2905LI User Manual

user manual

notice d'utilisation

benutzerinformation

istruzioni per l’uso

Fridge-Freezer

Réfrigérateur/congélateur

Kühl-Gefrierschrank

Frigorifero-Congelatore

IK2905LI

IK2905RE

2 electrolux

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

CONTENTS

Safety information 2
Control panel 4
First use 6
Daily Use 6
Helpful hints and tips 7

SAFETY INFORMATION

In the interest of your safety and to ensure
the correct use, before installing and first us­ing the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and acci­dents, it is important to ensure that all peo­ple using the appliance are thoroughly famil­iar with its operation and safety features.
Save these instructions and make sure that
they remain with the appliance if it is moved
or sold, so that everyone using it through its
life will be properly informed on appliance
use and safety.
For the safety of life and property keep the
precautions of these user's instructions as
the manufacturer is not responsible for dam­ages caused by omission.

Children and vulnerable people safety

• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge, un­less they have been given supervision or
instruction concerning use of the appli­ance by a person responsible for their
safety.
Children should be supervised to ensure
that they do not play with the appliance.

• Keep all packaging well away from chil­dren. There is risk of suffocation.

• If you are discarding the appliance pull
the plug out of the socket, cut the con­nection cable (as close to the appliance
as you can) and remove the door to pre­vent playing children to suffer electric
shock or to close themselves into it.

• If this appliance featuring magnetic door
seals is to replace an older appliance hav­ing a spring lock (latch) on the door or lid,

Care and cleaning 8
What to do if… 10
Technical data 11
Installation 11
Environmental concerns 12

Subject to change without notice

be sure to make that spring lock unusa­ble before you discard the old appliance.
This will prevent it from becoming a
death trap for a child.

General safety

Caution! Keep ventilation openings

clear of obstruction.

• The appliance is intended for keeping
foodstuff and/or beverages in a normal
household as explained in this instruction
booklet.

• Do not use a mechanical device or any ar­tificial means to speed up the thawing
process.

• Do not use other electrical appliances
(such as ice cream makers) inside of re­frigerating appliances, unless they are ap­proved for this purpose by the manufac­turer.

• Do not damage the refrigerant circuit.

• The refrigerant isobutane (R600a) is con­tained within the refrigerant circuit of the
appliance, a natural gas with a high level
of environmental compatibility, which is
nevertheless flammable.
During transportation and installation of
the appliance, be certain that none of the
components of the refrigerant circuit be­come damaged.
If the refrigerant circuit should become
damaged:
– avoid open flames and sources of igni-

tion

– thoroughly ventilate the room in which

the appliance is situated

• It is dangerous to alter the specifications
or modify this product in any way. Any

electrolux 3

damage to the cord may cause a short­circuit, fire and/or electric shock.

Warning! Any electrical component
(power cord, plug, compressor) must
be replaced by a certified service agent
or qualified service personnel.

1. Power cord must not be lengthened.

2. Make sure that the power plug is not
squashed or damaged by the back of
the appliance. A squashed or dam­aged power plug may overheat and
cause a fire.

3. Make sure that you can come to the
mains plug of the appliance.

4. Do not pull the mains cable.

5. If the power plug socket is loose, do
not insert the power plug. There is a
risk of electric shock or fire.

6. You must not operate the appliance
without the lamp cover

1)

of interior

lighting.

• This appliance is heavy. Care should be
taken when moving it.

• Do not remove nor touch items from the
freezer compartment if your hands are
damp/wet, as this could cause skin abra­sions or frost/freezer burns.

• Avoid prolonged exposure of the appli­ance to direct sunlight.

•

Bulb lamps

2)

used in this appliance are
special purpose lamps selected for house­hold appliances use only. They are not
suitable for household room illumination.

Daily Use

• Do not put hot pot on the plastic parts in
the appliance.

• Do not store flammable gas and liquid in
the appliance, because they may explode.

• Do not place food products directly
against the air outlet on the rear wall.

3)

• Frozen food must not be re-frozen once
it has been thawed out.

• Store pre-packed frozen food in accord­ance with the frozen food manufacturer's
instructions.

• Appliance's manufacturers storage rec­ommendations should be strictly adhered
to. Refer to relevant instructions.

1) If the lamp cover is foreseen

2) If the lamp is foreseen

3) If the appliance is Frost Free

• Do not place carbonated or fizzy drinks in
the freezer compartment as it creates
pressure on the container, which may
cause it to explode, resulting in damage
to the appliance.

• Ice lollies can cause frost burns if con­sumed straight from the appliance.

Care and cleaning

• Before maintenance, switch off the appli­ance and disconnect the mains plug from
the mains socket.

• Do not clean the appliance with metal ob­jects.

• Do not use sharp objects to remove frost
from the appliance. Use a plastic scraper.

• Regularly examine the drain in the refriger­ator for defrosted water. If necessary,
clean the drain. If the drain is blocked, wa­ter will collect in the bottom of the appli­ance.

Installation
Important! For electrical connection

carefully follow the instructions given in
specific paragraphs.

• Unpack the appliance and check if there
are damages on it. Do not connect the ap­pliance if it is damaged. Report possible
damages immediately to the place you
bought it. In that case retain packing.

• It is advisable to wait at least four hours
before connecting the appliance to allow
the oil to flow back in the compressor.

• Adequate air circulation should be
around the appliance, lacking this leads
to overheating. To achieve sufficient ven­tilation follow the instructions relevant to
installation.

• Wherever possible the back of the prod­uct should be against a wall to avoid
touching or catching warm parts (com­pressor, condenser) to prevent possible
burn.

• The appliance must not be located close
to radiators or cookers.

• Make sure that the mains plug is accessi­ble after the installation of the appliance.

•

Connect to potable water supply only.

4)

4 electrolux

Service

• Any electrical work required to do the serv­icing of the appliance should be carried
out by a qualified electrician or compe­tent person.

• This product must be serviced by an au­thorized Service Centre, and only genu­ine spare parts must be used.

Environment Protection

This appliance does not contain gasses
which could damage the ozone layer,

CONTROL PANEL

Freezer Control panel

ON/OFF

1. Pilot light

2. ON/OFF switch

3. Temperature regulator (warmest)

4. Temperature indicator

5. Temperature regulator (coldest)

6. Action Freeze light

7. Action Freeze switch

8. Alarm light

9. Alarm reset switch

Switching on

Insert the plug into the wall socket.
Press the ON/OFF switch .
The Pilot Light will light up.

Switching off

The freezer is shut off by pressing the ON/
OFF switch until the Pilot light and the Tem­perature indicator switched off.

Temperature regulation

The temperature can be adjusted between

-15°C and -24°C.

By pressing the Temperature regulators ,
the current temperature setting flashes on
the Temperature indicator. It is possible to
modify the setting temperature only with
flashed indicator. To set a warmer tempera­ture, press warmest Temperature regula­tor . To set a colder temperature, press cold-

ACTION

COOL

in either its refrigerant circuit or insula­tion materials. The appliance shall not
be discarded together with the urban re­fuse and rubbish. The insulation foam
contains flammable gases: the appli­ance shall be disposed according to
the applicable regulations to obtain
from your local authorities. Avoid dam­aging the cooling unit, especially at the
rear near the heat exchanger. The ma­terials used on this appliance marked
by the symbol

1 2 3 4 5 6 7 8 9

are recyclable.

ACTION
FREEZE

est Temperature regulator. The Tempera­ture indicator displays the newly selected
temperature for a few seconds and then
shows again the inside compartment tem­perature.
The newly selected-temperature must be
reached after 24 hours.

Caution! During the stability period by
the first starting the temperature
displayed can not correspond to the
setting temperature.

Temperature indicator

During normal functioning the Temperature
indicator shows the temperature inside the
freezer.

Important! Difference between the
temperature displayed and temperature
setting is normal. Especially when:

• a new setting has recently been selected.

• the door has been left open for a long time.

• warm food has been placed in the com­partment.

Action Freeze function

You can activate the Action Freeze function
by pressing the Action Freeze switch.
The Action Freeze light will light up.

4) If a water connection is foreseen

electrolux 5

This function stops automatically after 52
hours.
It is possible to deactivate the function at
any time by pressingAction Freeze switch.
The Action Freeze light will switch off.

Excessive temperature alarm

In the event of an abnormal temperature
rise inside the freezer (e.g. power cut) Alarm
light will start to flash and a buzzer will sound.
After the temperature has returned to nor­mal, the Alarm light will continue to flash, al­though the buzzer has stopped.

Fridge Control panel

ON/OFF

1 2 3 4 5 6 7

ACTION

COOL

1. Pilot light

2. ON/OFF switch

3. Temperature regulator (warmest)

4. Temperature indicator

5. Temperature regulator (coldest)

6. Action Cool light

7. Action Cool switch

Switching on

Insert the plug into the wall socket.
Press the ON/OFF switch .
The Pilot Light will light up.

Switching off

The fridge is shut off by pressing the ON/
OFF switch until the Pilot light and the Tem­perature indicator switched off.

Temperature regulation

The temperature can be adjusted between
+2°C and +8°C.
By pressing the Temperature regulators,
the current temperature setting flashes on
the Temperature indicator. It is possible to
modify the setting temperature only with
flashed indicator. To set a warmer tempera­ture, press warmest Temperature regulator.
To set a colder temperature, press coldest
Temperature regulator. The Temperature in­dicator displays the newly selected temper­ature for a few seconds and then shows
again the inside compartment temperature.

When the Alarm reset switch is pressed,
the warmest temperature reached in the
compartment flashes on the Temperature in­dicator .
If the power has been off for a long time, fro­zen food should be consumed as quickly as
possible, or cooked and then re-frozen.

ACTION
FREEZE

The newly selected-temperature must be
reached after 24 hours.

Caution! During the stability period by
the first starting the temperature
displayed can not correspond to the
setting temperature. During this time it
is possible that the temperature
displayed is lower than the setting
temperature.

Temperature indicator

During normal functioning the Temperature
indicator shows the temperature inside the
fridge.

Important! Difference between the
temperature displayed and temperature
setting is normal. Especially when:

• a new setting has recently been selected.

• the door has been left open for a long time.

• warm food has been placed in the com­partment.

Action Cool function

The maximum performance is obtained by
setting the Action Coolfunction. It’s recom­mended when loading large quantities of
food.
You can activate the Action Cool function
by pressing the Action Cool switch.
The Action Cool light will light up.

6 electrolux

Important! The internal temperature goes

down to +2°C.

FIRST USE

Cleaning the interior

Before using the appliance for the first time,
wash the interior and all internal accesso­ries with lukewarm water and some neutral
soap so as to remove the typical smell of a
brand-new product, then dry thoroughly.

DAILY USE

Freezing fresh food

The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze fresh food activate the Action
Freeze function at least 24 hours before plac­ing the food to be frozen in the freezer com­partment.
Place the fresh food to be frozen in the in
the upper part of the freezer, as this is the
coldest point.
The maximum amount of food that can be
frozen in 24 hours is specified on the rating
plate , a label located on the inside of the
appliance.
The freezing process lasts 24 hours: during
this period do not add other food to be fro­zen.

Important! When use the Action Freeze
function:

about 6
hours be­fore

about 24
hours be­fore

not needed Introducing frozen food
not needed Introducing small quantities of

Storage of frozen food

When first starting-up or after a period out
of use, before putting the products in the
compartment let the appliance run at least
2 hours on the higher settings.

Important! In the event of accidental
defrosting, for example due to a power
failure, if the power has been off for longer

Introducing small quantities of
fresh food (about 5 kg)

Introducing the maximum quanti­ty of food (see rating plate)

fresh food daily 2 kg maximum

After about 6 hours the Action Cool func­tion switches off automatically.

Important! Do not use detergents or abra­sive powders, as these will damage the fin­ish.

than the value shown in the technical
characteristics chart under "rising time", the
defrosted food must be consumed quickly
or cooked immediately and then re-frozen
(after cooling).

Ice-cube production

This appliance is equipped with one or
more trays for the production of ice-cubes.
Fill these trays with water, then put them in
the freezer compartment.

Important! Do not use metallic instruments
to remove the trays from the freezer.

Cold accumulators

The freezer contains at least one cold accu­mulator which increases storage time in the
event of a power cut or breakdown.

Thawing

Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator com­partment or at room temperature, depend­ing on the time available for this operation.
Small pieces may even be cooked still fro­zen, directly from the freezer: in this case,
cooking will take longer.

Movable shelves

The walls of the refrigerator are equipped
with a series of runners so that the shelves
can be positioned as desired.
For better use of space, the front half­shelves can lie over the rear ones.

Positioning the door shelves

To permit storage of food packages of vari­ous sizes, the door shelves can be placed
at different heights.

HELPFUL HINTS AND TIPS

Hints for energy saving

• Do not open the door frequently or leave
it open longer than absolutely necessary.

• If the ambient temperature is high and
the Temperature Regulator is set to low
temperature and the appliance is fully loa­ded, the compressor may run continuous­ly, causing frost or ice on the evaporator.
If this happens, set the Temperature Reg­ulator toward warmer settings to allow au­tomatic defrosting and so a saving in elec­tricity consumption.

Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liq­uids in the refrigerator

• do cover or wrap the food, particularly if it
has a strong flavour

• position food so that air can circulate free­ly around it

Hints for refrigeration

Useful hints:
Meat (all types) : wrap in polythene bags
and place on the glass shelf above the veg­etable drawer.
For safety, store in this way only one or two
days at the most.

electrolux 7

To make these adjustments proceed as fol­lows:
gradually pull the shelf in the direction of the
arrows until it comes free, then reposition
as required.

Cooked foods, cold dishes, etc..: these
should be covered and may be placed on
any shelf.
Fruit and vegetables: these should be thor­oughly cleaned and placed in the special
drawer(s) provided.
Butter and cheese: these should be placed
in special airtight containers or wrapped in
aluminium foil or polythene bags to exclude
as much air as possible.
Milk bottles: these should have a cap and
should be stored in the bottle rack on the
door.
Bananas, potatoes, onions and garlic, if not
packed, must not be kept in the refrigerator.

Hints for freezing

To help you make the most of the freezing
process, here are some important hints:

• the maximum quantity of food which can
be frozen in 24 hrs. is shown on the rat­ing plate;

• the freezing process takes 24 hours. No
further food to be frozen should be add­ed during this period;

• only freeze top quality, fresh and thorough­ly cleaned, foodstuffs;

• prepare food in small portions to enable it
to be rapidly and completely frozen and

8 electrolux

to make it possible subsequently to thaw
only the quantity required;

• wrap up the food in aluminium foil or pol­ythene and make sure that the packages
are airtight;

• do not allow fresh, unfrozen food to
touch food which is already frozen, thus
avoiding a rise in temperature of the latter;

• lean foods store better and longer than
fatty ones; salt reduces the storage life of
food;

• water ices, if consumed immediately after
removal from the freezer compartment,
can possibly cause the skin to be freeze
burnt;

• it is advisable to show the freezing in date
on each individual pack to enable you to
keep tab of the storage time.

CARE AND CLEANING

Caution! Unplug the appliance before
carrying out any maintenance operation.

This appliance contains hydrocarbons
in its cooling unit; maintenance and re­charging must therefore only be carried
out by authorized technicians.

Periodic cleaning

The equipment has to be cleaned regularly:

• clean the inside and accessories with luke­warm water and some neutral soap.

• regularly check the door seals and wipe
clean to ensure they are clean and free
from debris.

• rinse and dry thoroughly.

Important! Do not pull, move or damage
any pipes and/or cables inside the cabinet.
Never use detergents, abrasive powders,
highly perfumed cleaning products or wax
polishes to clean the interior as this will dam­age the surface and leave a strong odour.

Clean the condenser (black grill) and the
compressor at the back of the appliance
with a brush or a vacuum cleaner. This op­eration will improve the performance of the
appliance and save electricity consumption.

Important! Take care of not to damage the
cooling system.

Many proprietary kitchen surface cleaners
contain chemicals that can attack/damage
the plastics used in this appliance. For this

Hints for storage of frozen food

To obtain the best performance from this ap­pliance, you should:

• make sure that the commercially frozen
foodstuffs were adequately stored by the
retailer;

• be sure that frozen foodstuffs are transfer­red from the foodstore to the freezer in
the shortest possible time;

• not open the door frequently or leave it
open longer than absolutely necessary.

• Once defrosted, food deteriorates rapidly
and cannot be refrozen.

• Do not exceed the storage period indica­ted by the food manufacturer.

reason it is recommended that the outer cas­ing of this appliance is only cleaned with
warm water with a little washing-up liquid
added.
After cleaning, reconnect the equipment to
the mains supply.

Defrosting of the refrigerator

Frost is automatically eliminated from the
evaporator of the refrigerator compartment
every time the motor compressor stops, dur­ing normal use. The defrost water drains
out through a trough into a special contain­er at the back of the appliance, over the mo­tor compressor, where it evaporates.
It is important to periodically clean the de­frost water drain hole in the middle of the re­frigerator compartment channel to prevent
the water overflowing and dripping onto the
food inside. Use the special cleaner provi­ded, which you will find already inserted in­to the drain hole.

Defrosting the freezer

A certain amount of frost will always form
on the freezer shelves and around the top
compartment.
Defrost the freezer when the frost layer rea­ches a thickness of about 3-5 mm.

Important! About 12 hours prior to
defrosting, set the Temperature regulator
toward higher settings , in order to build up
sufficient chill reserve for the interruption in
operation.

To remove the frost, follow the instructions
below:

1. Switch off the appliance.

2. Remove any stored food, wrap it in sev­eral layers of newspaper and put it in a
cool place.

Caution! Do not touch frozen goods
with wet hands. Hands can freeze to
the goods.

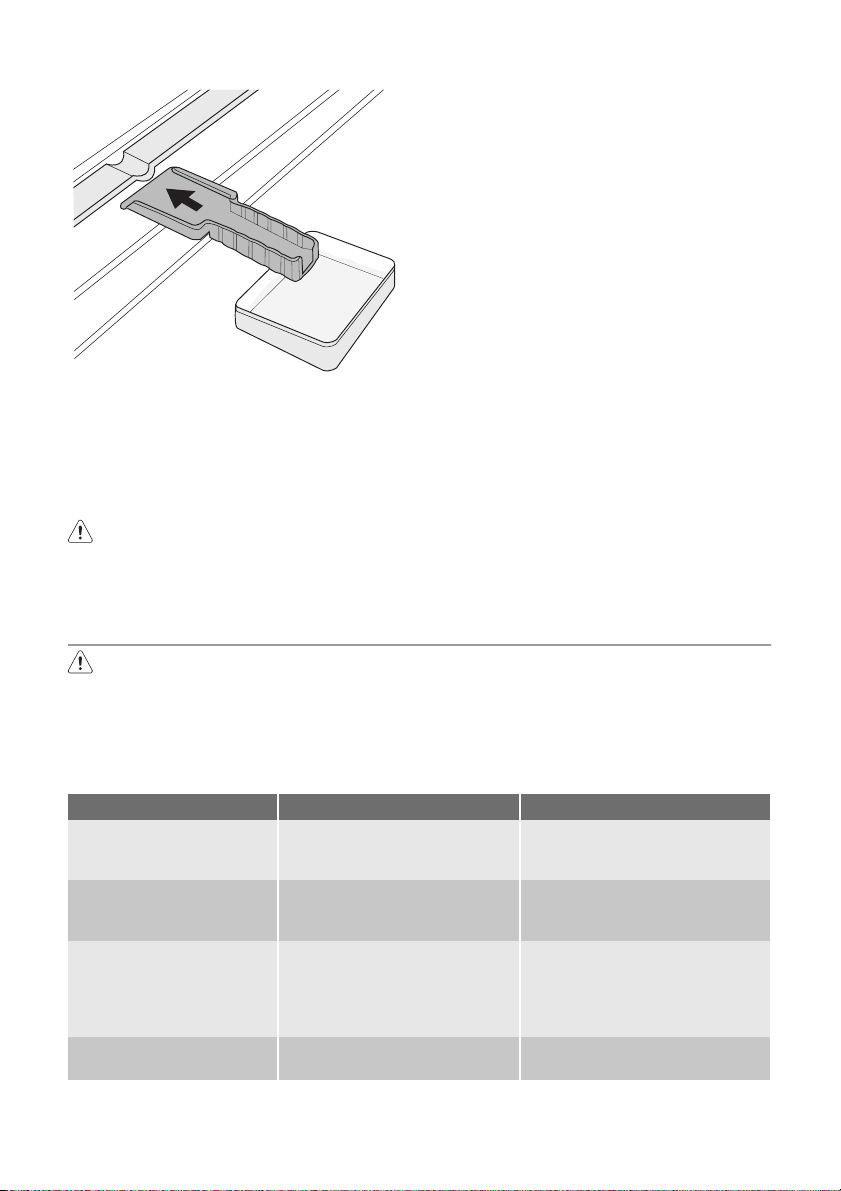

3. Leave the door open and insert the plas­tic scraper in the appropriate seating at
the bottom centre, placing a basin un­derneath to collect the defrost water

In order to speed up the defrosting proc­ess, place a pot of warm water in the
freezer compartment. In addition, re­move pieces of ice that break away be­fore defrosting is complete.

electrolux 9

4. When defrosting is completed, dry the in­terior thoroughly and keep the scraper
for future use.

5. Switch on the appliance.

6. After two or three hours, reload the pre­viously removed food into the compart­ment.

Warning! Never use sharp metal tools
to scrape off frost from the evaporator
as you could damage it.
Do not use a mechanical device or any
artificial means to speed up the thaw­ing process other than those recom­mended by the manufacturer.
A temperature rise of the frozen food
packs, during defrosting, may shorten
their safe storage life.

Periods of non-operation

When the appliance is not in use for long pe­riods, take the following precautions:

• disconnect the appliance from elec-

tricity supply

• remove all food

defrost

5)

and clean the appliance and all

•

accessories

• leave the door/doors ajar to prevent un-

pleasant smells.
If the cabinet will be kept on, ask some­body to check it once in a while to prevent
the food inside from spoiling in case of a
power failure.

5) If foreseen.

10 electrolux

WHAT TO DO IF…

Warning! Before troubleshooting,
disconnect the mains plug from the
mains socket.
Only a qualified electrician or compe­tent person must do the troubleshoot­ing that is not in this manual.

Problem Possible cause Solution

The appliance does not
operate. The lamp does
not operate.

The mains plug is not connected

The appliance has no power.

The buzzer sounds.

The lamp does not work.

The lamp is defective. Refer to "Replacing the lamp".

The compressor oper­ates continually.

The door is not closed correctly. Refer to "Closing the door".
The door has been opened too

The product temperature is too

The room temperature is too

Water flows on the rear
plate of the refrigerator.

Water flows into the re­frigerator.

Products prevent that water

Water flows on the
ground.

The temperature in the
appliance is too low.

The temperature in the
appliance is too high.

The door is not closed correctly. Refer to "Closing the door".
The product temperature is too

The appliance is switched off. Switch on the appliance.

to the mains socket correctly.

There is no voltage in the mains
socket.

The temperature in the freezer is
too high.

The lamp is in stand-by. Close and open the door.

The temperature is not set cor­rectly.

frequently.

high.

high.
During the automatic defrosting

process, frost defrosts on the
rear plate.

The water outlet is clogged. Clean the water outlet.

flows into the water collector.
The melting water outlet does

not flow in the evaporative tray
above the compressor.

The temperature regulator is not
set correctly.

The temperature regulator is not
set correctly.

high.

Important! There are some sounds during
normal use (compressor, refrigerant
circulation).

Connect the mains plug to the
mains socket correctly.

Connect a different electrical appli­ance to the mains socket.
Contact a qualified electrician.

Refer to "Excessive Temperature
Alarm"

Set a higher temperature.

Do not keep the door open longer
than necessary.

Let the product temperature de­crease to room temperature be­fore storage.

Decrease the room temperature.

This is correct.

Make sure that products do not
touch the rear plate.

Attach the melting water outlet to
the evaporative tray.

Set a higher temperature.

Set a lower temperature.

Let the product temperature de­crease to room temperature be­fore storage.

electrolux 11

Problem Possible cause Solution

Many products are stored at the

The temperature in the re­frigerator is too high.

The temperature in the
freezer is too high.

There is too much frost.

The door is not closed correctly. Refer to "Closing the door".

same time.
There is no cold air circulation in

the appliance.
Products are too near to each

other.
Food is not wrapped correctly. Wrap the food correctly.

Store less products at the same
time.

Make sure that there is cold air cir­culation in the appliance.

Store products so that there is
cold air circulation.

Replacing the bulb

If you want to replace the bulb, do these
steps:

1. Break the circuit of the appliance.

2. Press on the rear hook and at the same
time slide the cover in the direction of
the arrow.

3. Replace the bulb with one of the same
power and specifically designed for
household appliances. the maximum
power is shown on the light bulb cover)

4. Replace the light cover by sliding it into
its original position.

5. Reconnect the appliance.

6. Open the door and check if the light
comes on.

Closing the door

1. Clean the door gaskets.

2. If necessary, adjust the door. Refer to "In­stallation".

3. If necessary, replace the defective door
gaskets. Contact the Service Center.

TECHNICAL DATA

Dimension of the recess
Height 1780 mm
Width 560 mm
Depth 550 mm
Rising Time 24 h

The technical information are situated in the
rating plate on the internal left side of the ap­pliance and in the energy label.

INSTALLATION

Read the "Safety Information" carefully
for your safety and correct operation of

the appliance before installing the
appliance.

12 electrolux

Positioning

Install this appliance at a location where the
ambient temperature corresponds to the cli­mate class indicated on the rating plate of
the appliance:

Climate

class

SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C

Ambient temperature

Electrical connection

Before plugging in, ensure that the voltage
and frequency shown on the rating plate cor­respond to your domestic power supply.
The appliance must be earthed. The power
supply cable plug is provided with a contact
for this purpose. If the domestic power sup­ply socket is not earthed, connect the appli­ance to a separate earth in compliance with
current regulations, consulting a qualified
electrician.
The manufacturer declines all responsibility
if the above safety precautions are not ob­served.

ENVIRONMENTAL CONCERNS

The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent potential negative

This appliance complies with the E.E.C. Di­rectives.

Ventilation requirements

The airflow behind the appliance must be
sufficient.

min.

2

200 cm

min.

2

200 cm

consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
about recycling of this product, please
contact your local council, your household
waste disposal service or the shop where
you purchased the product.

Electrolux. Thinking of you.

Partagez notre imagination sur www.electrolux.com

SOMMAIRE

Consignes de sécurité 13
Bandeau de commande 15
Première utilisation 17
Utilisation quotidienne 17
Conseils utiles 19
Entretien et nettoyage 20

CONSIGNES DE SÉCURITÉ

Pour votre sécurité et garantir une utilisation
correcte de l'appareil, lisez attentivement
cette notice, y compris les conseils et aver­tissements, avant d'installer et d'utiliser l'ap­pareil pour la première fois. Pour éviter tou­te erreur ou accident, veillez à ce que toute
personne qui utilise l'appareil connaisse
bien son fonctionnement et ses fonctions
de sécurité. Conservez cette notice avec
l'appareil. Si l'appareil doit être vendu ou cé­dé à une autre personne, veillez à remettre
cette notice au nouveau propriétaire, afin
qu'il puisse se familiariser avec son fonction­nement et sa sécurité.
Pour la sécurité des personnes et des
biens, conservez et respectez les consi­gnes de sécurité figurant dans cette notice.
Le fabricant décline toute responsabilité en
cas de dommages dus au non-respect de
ces instructions.

Sécurité des enfants et des personnes
vulnérables

• Cet appareil n'est pas destiné à être utili­sé par des enfants ou des personnes
dont les capacités physiques, sensoriel­les ou mentales, ou le manque d'expérien­ce et de connaissance les empêchent
d'utiliser l'appareil sans risque lorsqu'ils
sont sans surveillance ou en l'absence
d'instruction d'une personne responsable
qui puisse leur assurer une utilisation de
l'appareil sans danger.
Empêchez les enfants de jouer avec l'ap­pareil.

electrolux 13

En cas d'anomalie de fonctionnement

22
Caractéristiques techniques 24
Installation 24
En matière de sauvegarde de
l'environnement 24

Sous réserve de modifications

• Ne laissez pas les différents emballages à

portée des enfants. Ils pourraient s'asphy­xier.

• Si l'appareil doit être mis au rebut, veillez

à couper le câble d'alimentation électri­que au ras de l'appareil pour éviter les ris­ques d'électrocution. Démontez la porte
pour éviter que des enfants ne restent en­fermés à l'intérieur.

• Cet appareil est muni de fermetures ma-

gnétiques. S'il remplace un appareil équi­pé d'une fermeture à ressort, nous vous
conseillons de rendre celle-ci inutilisable
avant de vous en débarrasser. Ceci afin
d'éviter aux enfants de s'enfermer dans
l'appareil et de mettre ainsi leur vie en dan­ger.

Mesures générales de sécurité

Attention Veillez à ce que les orifices

de ventilation ne soient pas obstrués.

• Cet appareil est destiné uniquement à la

conservation d’aliments et/ou de bois­sons dans le cadre d’un usage domesti­que normal, tel que celui décrit dans la
présente notice.

• N'utilisez pas d'appareils électriques,

d'agents chimiques ou tout autre systè­me artificiel pour accélérer le processus
de dégivrage.

• N’utilisez pas d'autres appareils électri-

ques (par exemple, sorbetières) à l'inté­rieur d’appareils réfrigérants sauf s’ils
sont homologués pour cet usage par leur
fabricant.

• Faites très attention lorsque vous dépla-

cez l'appareil afin de ne pas endomma-

14 electrolux

ger des parties du circuit de refroidisse­ment et ainsi d'éviter des risques de fuite.

• Le circuit de refroidissement de l’appareil
contient de l’isobutane (R600a), un gaz
naturel offrant un haut niveau de compati­bilité avec l’environnement mais qui est
néanmoins inflammable.
Pendant le transport et l'installation de
l’appareil, assurez-vous qu'aucune pièce
du circuit de refroidissement n'est endom­magée.
Si tel est le cas :
– Évitez les flammes vives (briquet) et

tout autre allumage (étincelles).

– Aérez soigneusement la pièce où se

trouve l'appareil.

• Ne modifiez pas les spécifications de l'ap­pareil. Un cordon d'alimentation endom­magé peut être la cause de courts-cir­cuits, d'incendies et/ou de décharges
électriques.

Avertissement Les composants élec­triques (cordon d'alimentation, prise,
compresseur) doivent être remplacés
par un technicien d’entretien agréé ou
par un électricien spécialisé.

1. L'appareil ne doit pas être raccordé à

l'aide d'un prolongateur, d'une prise
multiple ou d'un raccordement multi­ple (risque d'incendie).

2. Assurez-vous que la prise n'est pas

écrasée ou endommagée par l'arrière
de l'appareil. Une prise de courant en­dommagée peut surchauffer et provo­quer un incendie.

3. Vérifiez que la prise murale reste ac-

cessible une fois que l'installation est
terminée.

4. Ne débranchez pas l'appareil en tirant

sur le câble, particulièrement lorsque
l'appareil est tiré de son logement.

5. Si la fiche du cordon d'alimentation

est desserrée, ne la branchez pas
dans la prise murale. Risque d'électro­cution ou d'incendie !

6. N'utilisez pas l'appareil si le diffuseur

de l'ampoule d'éclairage n'est pas pré-

6)

sent

pour l'éclairage intérieur.

• Cet appareil est lourd. Faites attention en
le déplaçant.

6) Si le diffuseur est prévu

7) Si l'ampoule est prévue

8) Si l'appareil est sans givre

• Ne touchez pas avec les mains humides
les surfaces givrées et les produits conge­lés (risque de brûlure et d'arrachement
de la peau).

• Évitez une exposition prolongée de l'ap­pareil aux rayons solaires.

•

Ampoules

7)

utilisées dans cet appareil
sont des ampoules spéciales dédiées uni­quement à un usage avec des appareils
ménagers. Elles ne conviennent pas à
l'éclairage des pièces d'une habitation.

Utilisation quotidienne

• Ne posez pas d'éléments chauds sur les
parties en plastique de l'appareil.

• Ne stockez pas de gaz ou de liquides in­flammables dans l'appareil (risque d'ex­plosion).

• Ne placez pas d'aliments directement
contre la sortie d'air sur la paroi arrière de

l'appareil.

8)

• Un produit décongelé ne doit jamais être
recongelé.

• Conservez les aliments emballés confor­mément aux instructions de leur fabricant.

• Respectez scrupuleusement les conseils
de conservation donnés par le fabricant
de l'appareil. Consultez les instructions
respectives.

• Ne mettez pas de bouteilles ni de boîtes
de boissons gazeuses dans le comparti­ment congélateur, car la pression se for­mant à l'intérieur du contenant pourrait le
faire éclater et endommager ainsi l'appa­reil.

• Ne consommez pas certains produits tels
que les bâtonnets glacés dès leur sortie
de l'appareil, car ils peuvent provoquer
des brûlures.

Entretien et nettoyage

• Avant toute opération d'entretien, mettez
l'appareil hors tension et débranchez-le
de la prise de courant.

• N'utilisez pas d'objets métalliques pour
nettoyer l'appareil.

• N'utilisez pas d'objet tranchant pour grat­ter la couche de givre. Utilisez une spatu­le en plastique.

• Contrôlez régulièrement l'orifice d'évacua­tion de l'eau de dégivrage dans le com­partiment réfrigérateur. Nettoyez-le, si be-

electrolux 15

soin. Si l'orifice est bouché, l'eau s'écou­lera en bas de l'appareil.

Installation
Important Avant de procéder au

branchement électrique, respectez
scrupuleusement les instructions fournies
dans cette notice.

• Déballez l'appareil et vérifiez qu'il n'est
pas endommagé. Ne branchez pas l'ap­pareil s'il est endommagé. Signalez immé­diatement au revendeur de l'appareil les
dommages constatés. Dans ce cas, gar­dez l'emballage.

• Il est conseillé d'attendre au moins quatre
heures avant de brancher l'appareil pour
que le circuit frigorifique soit stabilisé.

• Veillez à ce que l'air circule librement au­tour de l'appareil pour éviter qu'il ne sur­chauffe. Pour assurer une ventilation suffi­sante, respectez les instructions de la no­tice (chapitre Installation).

• Placez l'appareil dos au mur pour éviter
tout contact avec le compresseur et le
condenseur (risque de brûlure).

• Placez de préférence votre appareil loin
d'une source de chaleur (chauffage, cuis­son ou rayons solaires trop intenses).

• Assurez-vous que la prise murale reste ac­cessible après l'installation de l'appareil.

• Branchez à l'alimentation en eau potable
uniquement.

9)

Maintenance

• Les branchements électriques nécessai­res à l'entretien de l'appareil doivent être
réalisés par un électricien qualifié ou une
personne compétente.

• Cet appareil ne doit être entretenu et ré­paré que par un Service après-vente au­torisé, exclusivement avec des pièces
d'origine.

Protection de l'environnement

Le système frigorifique et l'isolation de
votre appareil ne contiennent pas de
C.F.C. contribuant ainsi à préserver l'en­vironnement. L'appareil ne doit pas
être mis au rebut avec les ordures mé­nagères et les déchets urbains. La
mousse d'isolation contient des gaz in­flammables : l'appareil sera mis au re­but conformément aux règlements ap­plicables disponibles auprès des autori­tés locales. Veillez à ne pas détériorer
les circuits frigorifiques, notamment au
niveau du condenseur. Les matériaux
utilisés dans cet appareil identifiés par
le symbole

sont recyclables.

BANDEAU DE COMMANDE

Bandeau de commande du compartiment congélateur

ON/OFF

1. Voyant

2. Touche Marche/Arrêt

3. Réglage de la température (moins de
froid)

4. Indicateur de température (sur le ban­deau de commande)

5. Réglage de la température (plus de froid)

6. Voyant Action Freeze

7. Touche Action Freeze

8. Voyant Alarme

9) Si un branchement sur le réseau d'eau est prévu

ACTION

COOL

ACTION
FREEZE

1 2 3 4 5 6 7 8 9

9. Touche de réinitialisation d'alarme

Mise en marche

Branchez l'appareil à une prise murale.
Appuyez sur la touche Marche / Arrêt.
Le voyant s'allume.

Mise à l'arrêt

En appuyant sur la touche Marche / Arrêt,
le compartiment congélateur est mis à l'ar­rêt : le voyant et l'afficheur s'éteignent.

16 electrolux

Réglage de la température

La température peut être réglée de -15°C à

-24°C.

En appuyant sur les touches de réglage de
température, la température réglée clignote
sur l'afficheur. Il est possible de modifier la
température uniquement lorsque l'indica­teur clignote. Pour régler une température
plus élevée, appuyez sur la touche de régla­ge de température "moins de froid". Pour ré­gler une température plus basse, appuyez
sur la touche de réglage de température
"plus froid". L'afficheur indique pendant quel­ques secondes la température venant
d'être sélectionnée, puis de nouveau la tem­pérature à l'intérieur du compartiment.
La nouvelle température sélectionnée sera
atteinte après 24 heures.

Attention Pendant la période de
stabilisation de la première mise en
service, la température affichée peut ne
pas correspondre à la température
réglée.

Indicateur de la température

Pendant le fonctionnement normal, l'affi­cheur indique la température à l'intérieur du
compartiment congélateur.

Important Un écart entre la température
affichée et la température programmée est
normal. En particulier lorsque :

• la température programmée a été modi-

fiée depuis peu.

• La porte est restée ouverte pendant un

certain temps.

Bandeau de commande du compartiment réfrigérateur

• Des aliments chauds ont été placés dans
le compartiment.

Action Freezefonction

Pour activer la fonction Action Freeze, ap­puyez sur la touche Action Freeze.
Le voyant Action Freeze s'allume.
Cette fonction s'arrête automatiquement au
bout de 52 heures.
Il est possible de désactiver cette fonction à
n'importe quel moment en appuyant sur la
touche Action Freeze.
Le voyant Action Freeze s'éteint.

Alarme température excessive

En cas d'augmentation de température
anormale à l'intérieur du compartiment con­gélateur (par exemple, coupure de courant),
le voyant alarme clignote et un signal sono­re retentit.
Au rétablissement des conditions normales,
le voyant Alarme continue de clignoter et le
signal sonore s'arrête.
En appuyant sur la touche de réinitialisation
de l'alarme, la température la plus haute at­teinte dans le compartiment clignote sur l'af­ficheur pendant quelques secondes.
Si le voyant alarme reste allumé en perma­nence, tenez compte de l'autonomie de
fonctionnement de votre appareil indiquée
au paragraphe "Informations techniques" et
transférez les produits surgelés et congelés
dans un autre congélateur.

ON/OFF

1 2 3 4 5 6 7

ACTION

COOL

1. Voyant

2. Touche Marche/Arrêt

3. Réglage de la température (moins de
froid)

4. Indicateur de température (sur le ban­deau de commande)

5. Réglage de la température (plus de froid)

6. Voyant Action Cool

7. Touche Action Cool

ACTION
FREEZE

Mise en marche

Branchez l'appareil à une prise murale.
Appuyez sur la touche Marche / Arrêt .
Le voyant s'allumera.

Mise à l'arrêt

En appuyant sur la touche Marche/Arrêt, le
compartiment réfrigérateur est mis à l'arrêt :
le voyant et l'afficheur s'éteignent.
