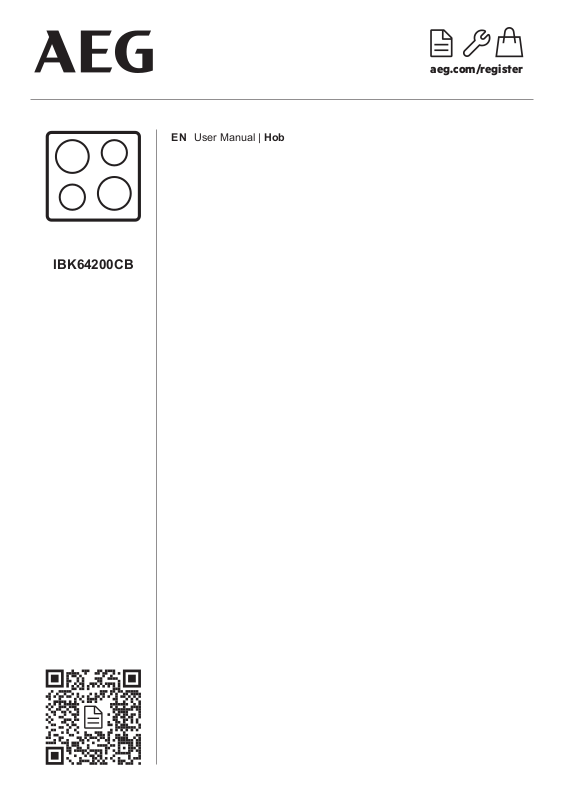

Page 1
aeg.com/register
IBK64200CB
aeg.com\register
EN User Manual | Hob
Page 2
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable
performance for many years, with innovative technologies that help make life simpler –
features you might not find on ordinary appliances. Please spend a few minutes reading
to get the very best from it.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information:
www.aeg.com/support
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following data
available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
CONTENTS
1. SAFETY INFORMATION................................................................................ 2
2. SAFETY INSTRUCTIONS.............................................................................. 5
3. INSTALLATION...............................................................................................7
4. PRODUCT DESCRIPTION............................................................................. 9
5. DAILY USE....................................................................................................10
6. HINTS AND TIPS.......................................................................................... 12
7. CARE AND CLEANING................................................................................ 13
8. TROUBLESHOOTING.................................................................................. 14
9. TECHNICAL DATA....................................................................................... 15
10. ENERGY EFFICIENCY...............................................................................16
11. ENVIRONMENTAL CONCERNS................................................................16
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damage that are the result of incorrect
2 ENGLISH
Page 3
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved. Children of less than 8 years of age and
persons with very extensive and complex disabilities shall
be kept away from the appliance unless continuously
supervised.
• Children should be supervised to ensure that they do not
play with the appliance.
• Keep all packaging away from children and dispose of it
appropriately.
• WARNING: The appliance and its accessible parts become
hot during use. Keep children and pets away from the
appliance when in use and when cooling down.
• If the appliance has a child safety device, it should be
activated.
• Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
1.2 General Safety
• This appliance is for cooking purposes only.
• This appliance is designed for single household domestic
use in an indoor environment.
• This appliance may be used in, offices, hotel guest rooms,
bed & breakfast guest rooms, farm guest houses and other
similar accommodation where such use does not exceed
(average) domestic usage levels.
• WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements.
ENGLISH 3
Page 4
• WARNING: Unattended cooking on a hob with fat or oil can
be dangerous and may result in fire.
• Never use water to extinguish the cooking fire. Switch off
the appliance and cover flames with e.g. a fire blanket or lid.
• WARNING: The appliance must not be supplied through an
external switching device, such as a timer, or connected to
a circuit that is regularly switched on and off by a utility.
• CAUTION: The cooking process has to be supervised. A
short term cooking process has to be supervised
continuously.
• WARNING: Danger of fire: Do not store items on the
cooking surfaces.
• Metallic objects such as knives, forks, spoons and lids
should not be placed on the hob surface since they can get
hot.
• Do not use the appliance before installing it in the built-in
structure.
• Do not use a steam cleaner to clean the appliance.
• After use, switch off the hob element by its control and do
not rely on the pan detector.
• If the glass ceramic surface / glass surface is cracked,
switch off the appliance and unplug it from the mains. In
case the appliance is connected to the mains directly using
junction box, remove the fuse to disconnect the appliance
from power supply. In either case contact the Authorised
Service Centre.
• If the supply cord is damaged, it must be replaced by the
manufacturer, an authorized Service or similarly qualified
persons in order to avoid a hazard.
• WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by the
manufacturer of the appliance in the instructions for use as
suitable or hob guards incorporated in the appliance. The
use of inappropriate guards can cause accidents.
4 ENGLISH
Page 5
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must install this
appliance.
WARNING!
Risk of injury or damage to the appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions supplied
with the appliance.
• Keep the minimum distance from other
appliances and units.
• Always take care when moving the
appliance as it is heavy. Always use safety
gloves and enclosed footwear.
• Seal the cut surfaces of the cabinet with a
sealant to prevent moisture from causing
swelling.
• Protect the bottom of the appliance from
steam and moisture.
• Do not install the appliance next to a door
or under a window. This prevents hot
cookware from falling from the appliance
when the door or the window is opened.
• Each appliance has cooling fans on the
bottom.
• If the appliance is installed above a
drawer:
– Do not store any small pieces or
sheets of paper that could be pulled in,
as they can damage the cooling fans
or impair the cooling system.
– Keep a distance of minimum 2 cm
between the bottom of the appliance
and parts stored in the drawer.
• Remove any separator panels installed in
the cabinet below the appliance.
2.2 Electrical Connection
WARNING!
Risk of fire and electric shock.
• All electrical connections should be made
by a qualified electrician.
• The appliance must be earthed if the
symbol ( ) is not printed on the rating
plate.
• Before carrying out any operation make
sure that the appliance is disconnected
from the power supply.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Make sure the appliance is installed
correctly. Loose and incorrect electricity
mains cable or plug (if applicable) can
make the terminal become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable
tangle.
• Make sure that a shock protection is
installed.
• Use the strain relief clamp on the cable.
• Make sure the mains cable or plug (if
applicable) does not touch the hot
appliance or hot cookware, when you
connect the appliance to a socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug (if applicable) or to the mains
cable. Contact our Authorised Service
Centre or an electrician to change a
damaged mains cable.
• The shock protection of live and insulated
parts must be fastened in such a way that
it cannot be removed without tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
ENGLISH 5
Page 6
The isolation device must have a contact
opening width of minimum 3 mm.
2.3 Use
WARNING!
Risk of injury, burns and electric shock.
• Do not change the specification of this
appliance.
• Remove all the packaging, labelling and
protective film (if applicable) before first
use.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Set the cooking zone to “off” after each
use.
• Do not put cutlery or saucepan lids on the
cooking zones. They can become hot.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not use the appliance as a work
surface or as a storage surface.
• If the surface of the appliance is cracked,
disconnect immediately the appliance from
the power supply. This to prevent an
electrical shock.
• Users with a pacemaker must keep a
distance of minimum 30 cm from the
induction cooking zones when the
appliance is in operation.
• When you place food into hot oil, it may
splash.
• Do not use aluminum foil or other
materials between the cooking surface
and the cookware, unless otherwise
specified by the manufacturer of this
appliance.
• Use only accessories recommended for
this appliance by the manufacturer.
WARNING!
Risk of fire and explosion.
• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and oils
when you cook with them.
• The vapours that very hot oil releases can
cause spontaneous combustion.
• Used oil, that can contain food remnants,
can cause fire at a lower temperature than
oil used for the first time.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
WARNING!
Risk of damage to the appliance.
• Do not keep hot cookware on the control
panel.
• Do not put a hot pan cover on the glass
surface of the hob.
• Do not let cookware boil dry.
• Be careful not to let objects or cookware
fall on the appliance. The surface can be
damaged.
• Do not activate the cooking zones with
empty cookware or without cookware.
• Cookware made of cast iron or with a
damaged bottom can cause scratches on
the glass / glass ceramic. Always lift these
objects up when you have to move them
on the cooking surface.
2.4 Care and cleaning
• Clean the appliance regularly to prevent
the deterioration of the surface material.
• Switch off the appliance and let it cool
down before cleaning.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do not
use abrasive products, abrasive cleaning
pads, solvents or metal objects, unless
otherwise specified.
2.5 Service
• To repair the appliance contact the
Authorised Service Centre. Use original
spare parts only.
• Concerning the lamp(s) inside this product
and spare part lamps sold separately:
These lamps are intended to withstand
extreme physical conditions in household
appliances, such as temperature,
vibration, humidity, or are intended to
signal information about the operational
status of the appliance. They are not
intended to be used in other applications
6 ENGLISH
Page 7
and are not suitable for household room
380 - 415V 2N ~
220 - 240V ~
220 - 240V ~
220 - 240V ~
220 - 240V ~ 220 - 240V 1N ~
220 - 240V ~
220 - 240V ~
NL
illumination.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
3. INSTALLATION
• Contact your local authority for information
on how to dispose of the appliance.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
WARNING!
Refer to Safety chapters.
3.1 Before the installation
Before you install the hob, write down the
information below from the rating plate. The
rating plate is on the bottom of the hob.
Serial number ...........................
3.2 Built-in hobs
Only use the built-in hobs after you assemble
the hob into correct built-in units and work
surfaces that align to the standards.
3.4 Connection diagram
3.3 Connection cable
• The hob is supplied with a connection
cable. The connection cable may only be
installed by a qualified electrician.
• To replace the damaged mains cable, use
the cable type: H05V2V2-F or equivalent,
which withstands a temperature of 90 °C
or higher. Contact an Authorised Service
Centre. The connection cable may only be
replaced by a qualified electrician.
• The appliance works either at 50 Hz or 60
Hz and does not require any additional
action from a qualified electrician in order
to switch between frequencies.
N2 N1 L2 L1
Blue Blue - Gray Brown Black
Wiring colours
ENGLISH 7
Page 8
3.5 Assembly
min.
50mm
min.
500mm
www.youtube.com/electrolux
www.youtube.com/aeg
How to install your AEG
Induction Hob - Worktop installation
If you install the hob under a hood, please
see the installation instructions of the hood
for the minimum distance between the
appliances.
If the appliance is installed above a drawer,
the hob ventilation can warm up the items
stored in the drawer during the cooking
process.
Combination with standard oven
Combination with double oven
A = min. 6 mm, for double ovens from AEG,
Electrolux and Zanussi.
A = min. 12 mm, for double ovens from other
brands.
Find the video tutorial "How to install your
AEG Induction Hob - Worktop installation" by
typing out the full name indicated in the
graphic below.
8 ENGLISH
Page 9
4. PRODUCT DESCRIPTION
210 mm
145 mm
180 mm
145 mm
1
1
1 1
2
1 32 4 5
4.1 Cooking surface layout
Induction cooking zone
1
Control panel
2
4.2 Control panel layout
Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which
functions operate.
Sensor
field
1
2
3
- Heat setting display To show the heat setting.
4
5
/
4.3 Heat setting displays
Display Description
-
Function Comment
On / Off To activate and deactivate the hob.
Lock / Child Safety Device To lock / unlock the control panel.
- To select the cooking zone.
- To set a heat setting.
The cooking zone is deactivated.
The cooking zone operates.
ENGLISH 9
Page 10
Display Description
Booster operates.
+ digit
There is a malfunction.
A cooking zone is still hot (residual heat).
Lock / Child Safety Device operates.
Incorrect or too small cookware or no cookware on the cooking zone.
Automatic Switch Off operates.
5. DAILY USE
WARNING!
Refer to Safety chapters.
5.1 Activating and deactivating
Touch for 1 second to activate or
deactivate the hob.
5.2 Automatic Switch Off
The function deactivates the hob
automatically if:
• all cooking zones are deactivated,
• you do not set the heat setting after you
activate the hob,
• you spill something or put something on
the control panel for more than 10
seconds (a pan, a cloth, etc.). An acoustic
signal sounds and the hob deactivates.
Remove the object or clean the control
panel.
• the hob gets too hot (e.g. when a
saucepan boils dry). Let the cooking zone
cool down before you use the hob again.
• you use incorrect cookware. The symbol
comes on and the cooking zone
deactivates automatically after 2 minutes.
• you do not deactivate a cooking zone or
change the heat setting. After some time
comes on and the hob deactivates.
The relation between the heat setting and
the time after which the hob deactivates:
Heat setting The hob deactivates
1 - 2 6 hours
3 - 4 5 hours
5 4 hours
6 - 9 1.5 hour
after
5.3 Selecting the cooking zone
To select a cooking zone touch the sensor
corresponding to this zone. The
field
display shows the heat setting ( ).
5.4 The heat setting
Set the cooking zone.
Touch to increase the heat setting. Touch
to decrease the heat setting. Touch
and at the same time to deactivate the
cooking zone.
5.5 Residual heat indicator
WARNING!
As long as the indicator is on, there is
a risk of burns from residual heat.
The induction cooking zones produce the
heat necessary for the cooking process
10 ENGLISH
Page 11
directly in the bottom of the cookware. The
glass ceramic is heated by the heat of the
cookware.
The indicator appears when a cooking
zone is hot.
The indicator may also appear:
• for the neighbouring cooking zones even if
you are not using them,
• when hot cookware is placed on cold
cooking zone,
• when the hob is deactivated but the
cooking zone is still hot.
The indicator disappears when the cooking
zone has cooled down.
5.6 Booster
This function makes more power available to
the induction cooking zones. The function can
be activated for the induction cooking zone
only for a limited period of time. After this time
the induction cooking zone automatically sets
back to the highest heat setting.
5.8 Child Safety Device
This function prevents an accidental
operation of the hob.
To activate the function: activate the hob
with . Do not set any heat setting. Touch
for 4 seconds. comes on. Deactivate
the hob with .
To deactivate the function: activate the hob
. Do not set any heat setting. Touch
with
for 4 seconds. comes on. Deactivate
the hob with .
To override the function for only one
cooking time: activate the hob with .
comes on. Touch for 4 seconds. Set the
heat setting in 10 seconds. You can
operate the hob. When you deactivate the
hob with
the function operates again.
5.9 OffSound Control (Deactivation and activation of the sounds)
Refer to “Technical data” chapter.
To activate the function for a cooking
zone: first set the cooking zone and than set
the maximum heat setting. Touch until
comes on.
To deactivate the function: touch .
5.7 Lock
You can lock the control panel while cooking
zones operate. It prevents an accidental
change of the heat setting.
Set the heat setting first.
To activate the function: touch
comes on for 4 seconds.
To deactivate the function: touch . The
previous heat setting comes on.
When you deactivate the hob, you also
deactivate this function.
.
Deactivate the hob. Press for 3 seconds.
Press for 3 seconds. appears on the
left front side of the display and or
appears on the right front side of the display.
Touch the sensor field for the right rear zone
to choose one of the following:
• - the sounds are off
- the sounds are on
•
When the function is set to
the sounds only when:
• you touch
• there is an error in the hob.
you can hear
5.10 Power management
If multiple zones are active and the
consumed power exceeds the limitation of the
power supply, this function divides the
available power between all cooking zones.
The hob controls heat settings to protect the
fuses of the house installation.
• If the hob reaches the limit of maximum
available power (refer to the rating plate),
ENGLISH 11
Page 12
the power of the cooking zones will be
automatically reduced.
• The heat setting of the cooking zone
selected last is always prioritised. The
remaining power will be divided between
the previously activated cooking zones in
reverse order of selection.
• The heat setting display of the reduced
zones changes between the initially
6. HINTS AND TIPS
selected heat setting and the reduced heat
setting.
• Wait until the display stops flashing or
reduce the heat setting of the cooking
zone selected last. The cooking zones will
continue operating with the reduced heat
setting. Change the heat settings of the
cooking zones manually, if necessary.
WARNING!
Refer to Safety chapters.
6.1 Cookware
For induction cooking zones a strong
electro-magnetic field creates the heat in
the cookware very quickly.
Use the induction cooking zones with suitable
cookware.
• The bottom of the cookware must be as
thick and flat as possible.
• Ensure pan bases are clean and dry
before placing on the hob surface.
• In order to avoid scratches, do not slide or
rub the pot across the ceramic glass.
Cookware material
• correct: cast iron, steel, enamelled steel,
stainless steel, multi-layer bottom (with a
correct marking from a manufacturer).
• not correct: aluminium, copper, brass,
glass, ceramic, porcelain.
Cookware is suitable for an induction hob
if:
• water boils very quickly on a zone set to
the highest heat setting.
• a magnet pulls on to the bottom of the
cookware.
Cookware dimensions
• Induction cooking zones adapt to the
dimension of the bottom of the cookware
automatically.
• The cooking zone efficiency is related to
the diameter of the cookware. The
cookware with a diameter smaller than the
minimum receives only a part of the power
generated by the cooking zone.
• For both safety reasons and optimal
cooking results, do not use cookware
larger than indicated in "Cooking zones
specification". Avoid keeping cookware
close to the control panel during the
cooking session. This might impact the
functioning of the control panel or
accidentally activate hob functions.
Refer to "Technical data".
6.2 The noises during operation
If you can hear:
• crack noise: cookware is made of different
materials (a sandwich construction).
• whistle sound: you use a cooking zone
with a high power level and the cookware
is made of different materials (a sandwich
construction).
• humming: you use a high power level.
• clicking: electric switching occurs.
• hissing, buzzing: the fan operates.
The noises are normal and do not indicate
any malfunction.
6.3 Examples of cooking
applications
The correlation between the heat setting of a
zone and its consumption of power is not
linear. When you increase the heat setting, it
is not proportional to the increase of the
consumption of power. It means that a
cooking zone with the medium heat setting
uses less than a half of its power.
12 ENGLISH
Page 13
The data in the table is for guidance only.
Heat setting Use to: Time
Hints
(min)
1 Keep cooked food warm. as neces‐
1 - 2 Hollandaise sauce, melt: butter, choco‐
late, gelatine.
2 Solidify: fluffy omelettes, baked eggs. 10 - 40 Cook with a lid on.
2 - 3 Simmer rice and milkbased dishes,
heat up ready-cooked meals.
3 - 4 Stew vegetables, fish, meat. 20 - 45 Add a few tablespoons of water.
4 - 5 Steam potatoes and other vegetables. 20 - 60 Cover the bottom of the pot with 1-2
4 - 5 Cook larger quantities of food, stews
and soups.
6 - 7 Gentle fry: escalope, veal cordon bleu,
cutlets, rissoles, sausages, liver, roux,
eggs, pancakes, doughnuts.
7 - 8 Heavy fry, hash browns, loin steaks,
steaks.
9 Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips.
Boil large quantities of water. Booster is activated.
sary
5 - 25 Mix from time to time.
25 - 50 Add at least twice as much liquid as
60 - 150 Up to 3 l of liquid plus ingredients.
as neces‐
sary
5 - 15 Turn over when needed.
Put a lid on the cookware.
rice, mix milk dishes halfway through
the procedure.
Check the water amount during the
process.
cm of water. Check the water level
during the process. Keep the lid on the
pot.
Turn over when needed.
7. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
7.1 General information
• Clean the hob after each use.
• Always use cookware with a clean base.
• Scratches or dark stains on the surface
have no effect on how the hob operates.
• Use a special cleaner suitable for the
surface of the hob.
• Use a special scraper for the glass.
7.2 Cleaning the hob
• Remove immediately: melted plastic,
plastic foil, salt, sugar and food with sugar,
otherwise, the dirt can cause damage to
the hob. Take care to avoid burns. Use a
special hob scraper on the glass surface
at an acute angle and move the blade on
the surface.
• Remove when the hob is sufficiently
cool: limescale rings, water rings, fat
stains, shiny metallic discoloration. Clean
the hob with a moist cloth and a nonabrasive detergent. After cleaning, wipe
the hob dry with a soft cloth.
ENGLISH 13
Page 14
• Remove shiny metallic discoloration:
use a solution of water with vinegar and
clean the glass surface with a cloth.
8. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
8.1 What to do if...
Problem Possible cause Remedy
You cannot activate or operate
the hob.
The fuse is blown. Make sure that the fuse is the cause of
You did not set the heat setting for
You touched 2 or more sensor fields
There is water or fat stains on the
You can hear a constant beep
noise.
An acoustic signal sounds and
the hob deactivates.
An acoustic signal sounds when
the hob is deactivated.
The hob deactivates. You put something on the sensor
Residual heat indicator does not
come on.
The heat setting changes be‐
tween two levels.
The control panel becomes hot to
the touch.
There is no sound when you
touch the panel sensor fields.
comes on.
The hob is not connected to an elec‐
trical supply or it is connected incor‐
rectly.
10 seconds.
at the same time.
control panel.
The electrical connection is incor‐
rect.
You put something on one or more
sensor fields.
field .
The zone is not hot because it oper‐
ated only for a short time or the sen‐
sor is damaged.
Power management operates. Refer to "Daily use".
The cookware is too large or you put
it too close to the control panel.
The sounds are deactivated. Activate the sounds. Refer to "Daily
Child Safety Device or Lock oper‐
ates.
Check if the hob is correctly connected
to the electrical supply.
the malfunction. If the fuse is blown
again and again, contact a qualified
electrician.
Activate the hob again and set the
heat setting in less than 10 seconds.
Touch only one sensor field.
Clean the control panel.
Disconnect the hob from the electrical
supply. Ask a qualified electrician to
check the installation.
Remove the object from the sensor
fields.
Remove the object from the sensor
field.
If the zone operated sufficiently long to
be hot, speak to an Authorised Service
Centre.
Put large cookware on the rear zones,
if possible.
use".
Refer to "Daily use".
14 ENGLISH
Page 15
Problem Possible cause Remedy
comes on.
The cookware is unsuitable. Use cookware suitable for induction
The diameter of the bottom of the
and a number come on.
There is no cookware on the zone. Put cookware on the zone.
hobs. Refer to "Hints and tips".
cookware is too small for the zone.
There is an error in the hob. Deactivate the hob and activate it
Use cookware with correct dimen‐
sions. Refer to "Technical data".
again after 30 seconds. If comes
on again, disconnect the hob from the
electrical supply. After 30 seconds,
connect the hob again. If the problem
continues, speak to an Authorised
Service Centre.
8.2 If you cannot find a solution...
If you cannot find a solution to the problem
yourself, contact your dealer or an Authorised
Service Centre. Give the data from the rating
plate. Give also three digit letter code for the
glass ceramic (it is in the corner of the glass
surface) and an error message that comes
on. Make sure, you operated the hob
correctly. If not the servicing by a service
technician or dealer will not be free of charge,
also during the warranty period. The
information about guarantee period and
Authorised Service Centres are in the
guarantee booklet.
9. TECHNICAL DATA
9.1 Rating plate
Model IBK64200CB PNC 949 492 518 00
Typ 64 B4A 00 AA 220 - 240 V / 400 V 2N, 50 / 60 Hz
Induction 6.9 kW Made in: Romania
Ser.Nr. ................. 6.9 kW
AEG
9.2 Cooking zones specification
Cooking zone Nominal power
(maximum heat
setting) [W]
Left front 2200 2400 4 125 - 210
Left rear 1400 1500 4 125 - 145
Right front 1400 1500 4 125 - 145
Right rear 1700 1800 4 150 - 180
Booster [W] Booster maxi‐
mum duration
[min]
Cookware diame‐
ter [mm]
The power of the cooking zones can be
different in some small range from the data in
the table. It changes with the material and
dimensions of the cookware.
ENGLISH 15
Page 16
For optimal cooking results use cookware no
larger than the diameter in the table.
10. ENERGY EFFICIENCY
10.1 Product Information according to EU and UK Ecodesign Regulations
Model identification IBK64200CB
Type of hob Built-In Hob
Number of cooking zones 4
Heating technology Induction
Diameter of circular cooking zones (Ø) Left front
Energy consumption per cooking zone (EC electric
cooking)
Energy consumption of the hob (EC electric hob) 176.4 Wh/kg
Left rear
Right front
Right rear
Left front
Left rear
Right front
Right rear
21.0 cm
14.5 cm
14.5 cm
18.0 cm
174.2 Wh/kg
177.2 Wh/kg
177.2 Wh/kg
177.2 Wh/kg
IEC / EN 60350-2, BS EN 60350-2 -
• When you heat up water, use only the
Household electric cooking appliances - Part
2: Hobs - Methods for measuring
• If it is possible, always put the lids on the
performance.
• Put the cookware directly in the centre of
10.2 Energy saving
You can save energy during everyday
cooking if you follow the hints below.
• Use the residual heat to keep the food
11. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol . Put the
packaging in relevant containers to recycle it.
Help protect the environment and human
health by recycling waste of electrical and
electronic appliances. Do not dispose of
appliances marked with the symbol with
the household waste. Return the product to
your local recycling facility or contact your
municipal office.
amount you need.
cookware.
the cooking zone.
warm or to melt it.
16 ENGLISH
*
Page 17
Page 18
Page 19
Page 20
867378870-C-312023
Loading...
