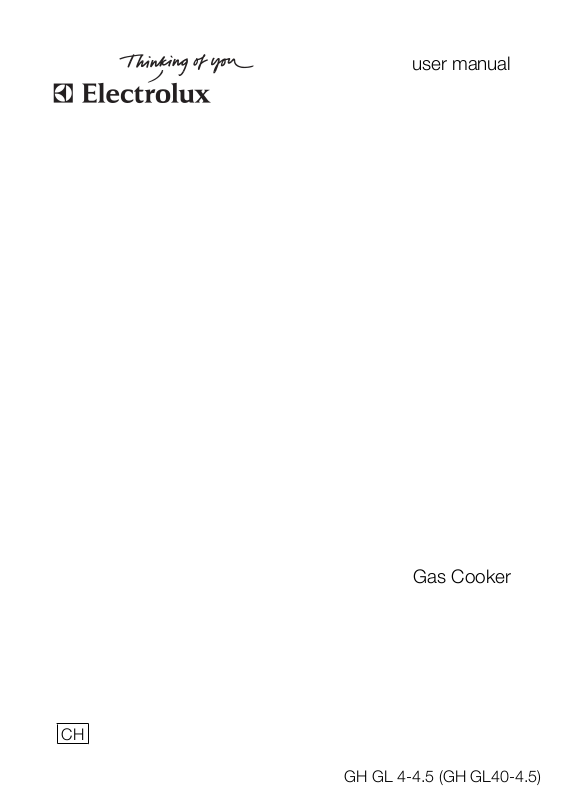

Page 1
user manual
Gas Cooker
CH
GH GL 4-4.5 (GH GL40-4.5)
Page 2
2 electrolux
Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com
Contents
Safety information 2
Product description 5
Before first use 6
Hob - Daily Use 6
Oven - Daily Use 7
Hob - Helpful hints and tips 9
Oven - Helpful hints and tips 9
Safety information
For your safety and correct operation of the
appliance, read this manual carefully before
installation and use. Always keep these instructions with the appliance even if you
move or sell it. Users must fully know the operation and safety features of the appliance.
The manufacturer is not responsible for damages caused by incorrect installation and
use.
Children and vulnerable people safety
• This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand
the hazards involved. Children shall not
play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• Keep children away from the appliance.
There is risk of injury or other permanent
disability.
• If the appliance has Switch On Lock or Key
Lock, use it. It prevents children and small
pets from accidental use of the appliance.
General safety
• Do not change the specifications or modify
this product. There is risk of injury and
damage to the appliance.
• Remove all packaging, stickers and layers
from the appliance before first use. Do not
remove the rating plate (refer to "Product
Description" chapter).
• Set the appliance to "off" after each use.
Cooking tables 10
Hob - Care and cleaning 15
Oven - Care and cleaning 16
What to do if… 18
Technical data 19
Disposal 19
Garantie, Garanzia, Guarantee 20
Subject to change without notice
Use
• The appliance is designed exclusively for
domestic cooking tasks.
• Do not use the appliance as a work surface
or storage surface.
• Do not leave the appliance unattended
during operation. In the event of fire, switch
off the appliance. Extinguish the fire
with a pot lid , never use water.
•
Risk of burns! Do not put metallic objects, for example cutlery or saucepan lids,
on the cooking surface, as they can become hot.
• If the objects or cookware fall on the hob
surface, the surface can be damaged.
• Cookware made of cast iron, cast aluminium or with damaged bottoms can
scratch the hob surface if you move them
on the surface.
• If there is a crack on the surface, disconnect power supply to prevent the electric
shock.
• Do not let cookware boil dry to prevent the
damage to cookware and hob surface.
• Do not use the cooking zones with empty
cookware or without cookware.
• Discoloration of the enamel does not affect
the performance of the appliance. The
guarantee does not become invalid.
• Do not apply pressure on the appliance
door.
• The interior of the appliance becomes hot
during use. There is risk of burns. Use
gloves when you insert or remove the accessories and pots.
• Always stand back from the appliance
when you open the appliance door during
Page 3
electrolux 3
operation. It allows any build up of steam
or heat to release.
• To prevent damage or discoloration to the
enamel:
– do not put any objects directly on the
appliance floor and do not cover it with
aluminium foil
– do not put hot water directly into the ap-
pliance
– do not keep moist dishes and food in the
appliance after you finish the cooking
• Do not use this appliance if it is in contact
with water. Do not operate the appliance
with wet hands.
• Do not keep moist dishes and food in the
appliance after you finish the cooking as
the moist can damage the enamel or get
into the units.
• Do not put or keep the flammable liquids
and materials or fusible objects (made of
plastic or aluminium), on or near the appliance.
• Always ensure that the oven vent is left unobstructed to ensure ventilation of the
oven cavity.
• Do not place heat conducting materials
(e.g. thin metal mesh or metal-plated heat
conductors) under the base of the cooking
dish or on the pan grid . Excessive heat
reflection could damage the glass cooking
surface.
Care and cleaning
• Before maintenance, switch off the appliance and disconnect the mains plug from
the mains socket. Make sure that the appliance is cold.
• Keep the appliance clean at all times. A
buid-up of fats or other foodstuff can result
in a fire.
• Regular cleaning prevents the surface material from deteriorating.
• Only clean the appliance with water and
soap. Sharp objects, abrasive cleaning
agents, abrasive sponges and stain removers can cause damage to the appliance.
• Do not clean the appliance with steam
cleaners or high-presure cleaners.
• Do not clean the glass door with abrasive
cleaning agents or metal scraper. Heat resistant surface of the inner glass can break
and shatter.
• Make sure that the glass panels are cold,
before you clean them. There is risk that
the glass breaks.
• Be careful when you remove the door from
the appliance. The door is heavy!
• When the door glass panels are damaged
they become weak and can break. You
must replace them. For more instructions,
contact the Service Centre.
• If you use an oven spray, follow the instructions from the manufacturer. Never
spray anything onto the fat filter (if present),
the heating elements and the thermostat
sensor.
• During pyrolytic cleaning (if present), stubborn dirt can damage the colour of the
surface.
• Do not clean catalytic enamel (if present).
• Be careful when you change the oven
lamp. There is risk of electrical shock!
In case of smell of gas:
1. Do not light fire, do not smoke.
Do not activate any electrical switches,
devices, etc.
Do not use any telephone in the same
house.
2. Close main gas tap and all burner regu-
lators, no other manipulations!
A) Press in lower flap (1) and open (2):
1
A
2
B) Inside press in main gas tap (1) and
close it by turning right until you feel
the resistant (2). Both indicators on
the tap will turn from green into red (3):
2
1
B
3
Page 4
4 electrolux
3. Open doors and windows, air the room.
Call gas supplying emergency service
from outside the house (possibly Electrolux Service Center).
Do not alarm occupants by telephone or
door bell.
Installation
• Only an authorized service technician can
install, connect or repair the appliance.
• Fully obey the laws, ordinances, directives
and standards in force in the country
where you use the appliance (safety regulations, recycling regulations, electrical
and/or gas safety rules etc.)!
•If you do not comply with Installation in-
structions, the guarantee becomes invalid
in case any damage.
• Make sure that the appliance is not dam-
aged because of transport. Do not connect a damaged appliance. If necessary,
contact the supplier.
• Avoid installation of the appliance near
easy inflammable material (e.g. curtains,
tea towels, etc.)
• Remove all packaging before first use.
• This appliance is heavy. Take care when
you move it. Always use safety gloves.
Never pull the appliance by the handle or
by the hob.
• Keep the minimum distances to other ap-
pliances and units!
• Important! Do not place the cooker on an
extra plinth or other height increasing unit.
This means more risk that the appliance
tips over!
Electrical connection
•
The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agree with your domestic power supply.
• Always use a correctly installed shock-
proof socket.
• Do not use multi-way plugs, connectors
and extension cables. There is a risk of fire.
• Do not replace or modify the mains cable
yourself. Contact the Service Centre.
• The appliance must have the electrical in-
stallation which lets you disconnect the
appliance from the mains at all poles with
a contact opening width of minimum 3
mm.
• Make sure that the mains plug and cable
is not squashed or damaged by the back
of the appliance (if present).
• Make sure that the mains plug is accessible after installation.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
•You must have correct isolation devices:
line protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• Information on the voltage is on the rating
plate.
Gas connection
• Make sure that ventilation around the appliance is good. A defective air supply
could cause lack of oxygen.
• Make sure that the gas supply is correct
with the gas type on the rating plate, refer
to "Product Description" chapter.
• This appliance is not connected to a combustion products evacuation device. It
must be installed and connected in accordance with current installation regulations. Particular attention shall be given to
the relevant requirements regarding ventilation.
• The use of a gas cooking appliance cause
heat and moisture in the room in which it
is installed. Make sure that the ventilation
in kitchen is good: keep natural ventilation
holes open or install a mechanical ventilation device (mechanical extractor hood).
• More ventilation (for example opening of a
window or increasing the level of mechanical ventilation where present) is necessary
when you intensive operate the appliance
for a long time .
Service
• Only an authorised service engineer can
repair this appliance. Use only original
spare parts. Contact an authorized Service
Centre.
Page 5
Product description
General overview
3
2
1
5
4
16
Cooking surface layout
3
2
1
1 Oven temperature control knob
4
2 Light/Fan/Grill
3 Warning light
5
4 Hob control knobs
6
5 Oven function control knob
7
6 Ventilation outlet
8
7 Heating element
9
8 Oven lamp
10
9 Fan
11
10 Turn spit drive mechanism
12
11 Oven lamp
13
12 Shelf runners, removable
13 Rating plate
14
14 Ignition hole for oven burner
15
15 Flap
16 Shelf positions
electrolux 5
2
Accessories
Oven shelf - for cookware, cake tins,
roasts.
3
1 Rapid burner
2 Semi-rapid burner
3 Rapid burner
4 Auxiliary burner
1
41
Flat baking tray - for cakes and biscuits.
Page 6
6 electrolux
Turn spit - for roasting larger joints of
meat and poultry.
Before first use
Remove all packaging, both inside and
outside the oven, before using the appliance. Do not remove the rating plate.
Rating plate
• You can find it on the front frame of the
oven cavity. Alternatively the rating plate
can be also found on the back or top of
some models.
• Do not remove the rating plate from the
appliance. It can invalidate the guarantee.
Initial Cleaning
• Remove all parts from the appliance.
• Clean the appliance before first use.
Caution! Do not use abrasive cleaning
agents! This can damage the surface.
Refer to chapter "Care and Cleaning".
Preheating
Set an oven to maximum temperature and
run an empty oven for 1 hour, to burn off any
residue from the cavity surface. Accessories
can become hotter than in normal use. During this period an odour can be emitted. This
is normal. Make sure the room is well ventilated.
Hob - Daily Use
Control knobs
Symbol Description
no gas supply / off position
ignition position / maximum
gas supply
minimum gas supply
Ignition of the burner
Warning! Be very careful when you use
open fire in kitchen environment.
Manufacturer decline any responsibility
in case misuse of the flame
Always light the burner before you put
cookware.
To light the burner:
1. Push the hob control knob down com-
pletely and turn it counterclockwise to the
maximum position
. Push of the hob
control knob causes automatically start
of the spark generator.
2. Keep the control knob pushed for approximately 10 seconds; this will let thermocouple to warm up. If not, the gas
supply will be interrupted.
3. Adjust the flame after it is regular.
If after some tries the burner does not
light, check if the crown and its cap are
in correct positions.
Page 7
1
2
3
4
1 Burner cap
2 Burner crown
3 Ignition candle
4 Thermocouple
Warning! Do not keep the control knob
pushed for more than 15 seconds.
If the burner does not light after 15 seconds, release the control knob, turn it
into off position and try to light the burner
again after minimum 1 minute.
Important! You can light the burner without
electrical device (e.g. when there is no
electrolux 7
electricity in the kitchen). To do so, put the
flame near the burner, push the related
control knob down for 10 seconds and turn
it counterclockwise to the maximum gas
release position.
If the burner accidentally goes out, turn
the control knob to the off position and
try to light the burner again after minimum 1 minute.
The spark generator can start automatically when you switch on the mains, after installation or a power cut. It is normal.
Warning! Always turn the flame down or
sw itch i t off befo re rem ovin g the p ans o ff
the burner.
Warning!
Cooking with "Durotherm"
cookware
The double-walled "Durotherm"
cookware is equipped with removable
warming bottom. Remove the bottom
before placing the cookware on the pan
support.
Oven - Daily Use
Gas oven cooking
Ignition of oven gas burner:
1. Open the oven door.
2. Push the oven temperature control knob
and turn it to the maximum position. Keep
it pushed for some seconds, but no more
than 15 seconds. Do not release it until
the flame comes on.
Push of the oven temperature control
knob causes automatically start of the
spark generator.
If the oven gas burner does not come on
or if it accidentally goes out:
1. Release the gas oven control knob
and turn it to the “ Off“ position.
2. Open the oven door.
3. After one minute, try to light the oven
gas burner again.
Manual ignition:
If there is no power supply, temporarily.
1. Open the oven door.
2. Hold a flame near the hole in the bottom
of the oven cavity.
3. At the same time push the gas oven control knob and turn it anticlockwise to the
maximum temperature.
4. When the flame comes on, keep the gas
oven control knob pushed for approximately 15 seconds.
After ignition:
1. Release the gas oven control knob.
2. Close the oven door.
3. Turn the gas oven control knob to the
necessary temperature setting.
Oven safety device:
The gas oven has a thermocouple. It stops
the gas flow, if the flame goes out.
You can not use the gas oven and the
electrical grill at the same time.
Page 8
8 electrolux
Oven functions
The oven function control knob (refer to
"Product Description") allows you to set the
To set an oven function, turn the oven function control knob clockwise to the symbol of
the function (refer to the table below).
oven to the required cooking function.
Oven function Description
OFF position The oven is OFF.
Oven fan Use to roast or to roast and bake simultaneously with any shelf.
Turn spit Use to spit roasting meat or for smaller pieces of meat.
Grill Use to grill flat food items placed in the middle of the grill and to
Light Use to light up the oven interior, e.g. for cleaning.
toast.
Turn spit
Inserting the food into the turn spit:
• Place a fork on the turn spit.
• Then position the food and a second fork.
Make sure that the food is in the middle
of the turn spit.
• Use the screws to tighten the forks.
Inserting the turn spit:
• Place the baking tray in the first shelf position from the bottom.
• Insert the turn spit support at the front on
the right-hand side in shelf position five
from the bottom.
The clip must be kept down to keep the
handle secure on the turn spit.
• Push the tip of the spit into the power unit
on the left-hand side of the back wall of the
oven until it locks into place.
• Place the groove in front of the handle on
the notch provided on the turn spit support.
• Remove the handle.
Page 9
5
3
1
Hob - Helpful hints and tips
Energy savings
• If possible, always put the lids on the pans.
• When the liquid starts to boil, turn down
the flame to barely simmer the liquid.
Use pots and pans with bottom applicable to the dimension of burner.
Burner Diameters of cookware
Rapid 140 mm - 200 mm
Oven - Helpful hints and tips
Warning! Always close the oven door
when you cook, even while grilling.
Tips for baking
Baking result Possible cause Remedy
Bread/yeasted doughs and
sponge cakes fall flat.
Bread/yeasted doughs and
sponge cakes fall flat.
Bread/yeasted doughs and
sponge cakes fall flat.
Bread/yeasted doughs and
sponge cakes fall flat.
Bread/yeasted doughs and
sponge cakes turn out dry.
If the oven temperature is too
low, the dough can rise and then
go down again and become flat.
Bread/yeasted doughs have not
risen properly. Excessively long
rising time after rolling out can
give a flat result. Bread/yeasted
doughs should rise at room temperature, out of draughts. The
dough should spring back after
light pressure on the surface.
Not enough yeast or baking
powder.
If the fat/liquid mixture is too hot,
it ruins the effect of the yeast.
Not enough liquid, too much
flour, or the wrong type of flour
can result in dry bread.
electrolux 9
• Choose the Turn spit oven function.
Cooling fan
When the appliance operates, the cooling fan
switches on automatically to keep the surfaces of the appliance cool. If you switch off the
appliance, the cooling fan stops.
Burner Diameters of cookware
Semi-rapid 100 mm - 180 mm
Auxiliary 100 mm - 160 mm
Use cookware with the bottom as thick and
flat as possible.
Check the set temperature
against recommendations in tables or recipes.
Check the rising times against
recommendations in recipes.
Check in the recipe that you
have taken the right amount.
The correct temperature of the
liquid for fresh yeast is 37°, concerning dry yeast see the recommendations on the packet.
Check in the recipe that you
have taken the right amounts of
flour and liquid.
Page 10
10 electrolux
Baking result Possible cause Remedy
Bread/yeasted doughs and
sponge cakes turn out dry.
Cakes/oven dishes are too
brown.
Cakes/oven dishes are too
brown.
Cakes/oven dishes are pale in
colour.
Cakes/oven dishes are pale in
colour.
If the oven temperature is too
low, the material being baked
must remain in the oven much
longer to be cooked, and it
therefore becomes dry.
If the oven temperature is too
high, the cakes/oven dishes become too brown before they are
completely cooked.
Food positioned too high in the
oven is receiving too much top
heating, when using top and
bottom heating, and the opposite effect when placed too low.
Aluminium foil, a tray or a roasting pan on the bottom of the
oven is blocking the bottom
heating.
Light-coloured baking tins produce paler cakes than dark-coloured tins.
Tips for roasting:
• Put baking tray as dripping tray on 1
level.
• Preheat oven for 10 minutes.
• Specifications are for 1 kg of food.
• Fry meat in pan before roasting.
Tips for grilling:
• Put baking tray as drip tray on top level.
Check that you have set the right
temperature.
Check that you have set the right
temperature.
Check in the table or recipe that
you have chosen the correct position.
Make sure that there is nothing
in the bottom of the oven.
Change to darker-coloured baking tins.
• Preheat oven for 3 minutes.
• Grilling times are given on each side:
Side 1 / Side 2
Tips for preserving:
• Tray must be on lowest level!
• There must be a gap between the
glassware.
Cooking tables
Meat, game (without grill)
Food with fan
Temperature [°C] Time [mi-
Roast pork – 1 kg 210 80-90 2
Roast veal – 1 kg 210 60-70 3
Roast beef – 1 kg 210 80-90 2
Meatloaf – 1 kg 210 55-70 2
Roast pork wrapped in bacon (with bacon) – 1.2 kg
Roast beef – 1 kg 240 18-25 2
Roast venison 210 70-80 2
210 55-65 2
nutes]
Level for 1 tray
Page 11
Poultry, fish (without grill)
Food with fan
Temperature [°C] Time [minutes] Level for 1 tray
Chicken nuggets (put aluminium foil on
the tray!)
Chicken, 1 – 1.2 kg 230 45-55 2
Duck, 1.5 – 2 kg 200 80-90 2
Goose, 3 kg (deep baking tray) 190 100-120 2
Turkey, 4.5 – 5.5 kg (deep baking tray) 180 190-220 2
Trout in aluminium foil, 300 g (strong foil) 210 20-25 3
Trout filets 200 g each 210 20-25 2
255 13-15 3
Roasting
Food with fan
Temperature [°C] Time [minutes] Level for 1
Lamb 150 90-110 1
Veal / pork chops 150 80-100 1
Roast beef 150 blue 45 – rare 50 –
medium 60
Cakes, cup cakes, tarts – biscuit, sponge or cream mixtures
Food with fan
Temperature [°C] Time [mi-
Sponge cake 200 25-30 3
Swiss roll 230 8-10 4
Ring cake 190 65-70 2
Apple cake (sponge) 200 50-60 2
Rum, orange or carrot cake 220 20-25 3
Marble cake 200 65-70 2
Traditional Tiroler cake 200 55-65 2
Coconut cake 190 60-70 3
Sweet courgette cake 200 50-60 3
Walnut cake 190 50-60 3
Cream tart / cheesecake (after 90 minutes, switch off the oven and leave the
cake in for another 10 minutes)
180 (without fan) 90 3
nutes]
Sweet goods from around the world
Food with fan
Temperature [°C] Time [mi-
American banana cake 190 70-75 2
Itaparica coconut cake (Brazil) 190 50-60 3
nutes]
electrolux 11
shelf
1
Level for 1 tray
Level for 1 tray
Page 12
12 electrolux
Food with fan
Temperature [°C] Time [mi-
Linzertorte (Austria) 190 40-45 3
Sachertorte (Austria) 190 70-75 3
Savarin (France) 190 25-30 3
nutes]
Christmas bakery
Food with fan
Temperature [°C] Time [mi-
Milano cookies and any light butter
cookie
Dried cookies 160 13-17 3
Gingerbread or honey cake mixture 200 12-18 3
Chräbeli or Springerli (Swiss anissed
cookies - dry out on the tray overnight)
200 10-15 3
170 15-20 3
nutes]
Small baked goods – choux pastry, shortcrust pastry, meringue
Food with fan
Temperature [°C] Time [mi-
Small baked cakes 220 30-40 3
Shortcrust pastry bases for tarts 200 20-25 3
Small shortcrust pastry tarts 200 15-20 3
Bird’s nests 190 20-25 3
Almond cookies 230 20-25 3
nutes]
Flans and pastries
Food with fan
Temperature [°C] Time [mi-
Crumbled dough, filo pastry with fresh
fruit + custard
Crumbled dough, filo pastry with frozen
fruit + custard
French flans (without custard) 230 30-35 3
Cheese flans 220 35-45 2
Mushroom flans 240 30-35 3
Broccoli / leek pastry 210 40-50 3
Surprise pastry 210 40-45 3
230 40-50 3
230 45-55 3
nutes]
Filo pastries
Food with fan
Temperature [°C] Time [mi-
Canapés 220 8-15 3
nutes]
Level for 1 tray
Level for 1
tray
Level for 1
tray
Level for 1 tray
Level for 1
tray
Page 13
Food with fan
Temperature [°C] Time [mi-
Ham pastries 230 20-25 3
Filo parcels 230 18-20 3
Pork filet in pastry 220 35-45 3
Small sausage rolls 230 22-25 3
nutes]
Raised pastries – cakes, breads and pizzas
Food with fan
Temperature [°C] Time [mi-
Savarin 200 34-40 3
Bee sting cake (deep cake tin) 190 20-25 4
Ring cake 190 45-50 2
Yeast plait 220 25-35 3
Swiss bread rolls 220 15-20 3
Loaves depending on size 220 40-50 3
Bread rolls 230 20-25 3
Swiss ham rolls 1 kg 190 90-100 2
Frischback rolls 250 4-6 3
Frischback cookies 250 3-5 3
Pizzas (original baking tray) 250 9-12 1
Pizzas (fire clay trivet – preheat for 20 minutes)
250 9-12 1
nutes]
Toast, bakes, gratins
Food with fan
Temperature [°C] Time [mi-
Hawaii toast 255 10-14 2
Mushroom toast 255 10-14 2
Noodle casserole 220 40-50 2
Cherry soufflé (2 l tin) 220 35-45 2
Potato gratin 220 50-60 1
Tomatoes with cheese topping 220 25-30 3
Baked alaska 255 2-3 3
nutes]
Vegetables, rice, corn – as side dishes
Food with fan
Temperature [°C] Time [mi-
Corn, covered 220 30-35 2
Rice, covered 220 25-30 2
nutes]
electrolux 13
Level for 1
tray
Level for 1
tray
Level for 1
tray
Level for 1
tray
Page 14
14 electrolux
Food with fan
Temperature [°C] Time [mi-
nutes]
Oven chips (par-boiled) 230 30-40 2
Oven chips (raw) 230 35-40 3
Oven potatoes / roast potatoes 230 30-40 3
Duchess potatoes 230 20-25 3
Level for 1
Swiss specialities
Food with fan
Temperature [°C] Time [mi-
nutes]
Prättigauer Pitte (Grisons) 190 30-35 3
Pear bread (eastern Switzerland) 210 45-50 3
Carrot cake (Aargau) 190 40-45 3
Pie (Glarn valley) 210 32-38 3
Spice bread 190 18-20 3
Level for 1
Spicy goods from around the world
Food with fan
Temperature [°C] Time [mi-
nutes]
Musaka (Greece) 200 40-50 2
Lasagne (Italy) 210 45-55 2
Stuffed pepper (Hungary) 210 65-75 2
Level for 1 tray
Grilling
Food Time [minutes] Level for 1
Side 1 Side 2
2 - 4 pork cutlets 9 8 4
Filet steak 6 5 5
1 chicken halves 17 16 2
Grilled sausages – up to 6 pieces 6 4 4
Sausages in spirals – up to 4 pieces 9 6 4
Preserving
Food Preserving
Berries e.g. strawberries,
blueberries, raspberries, ripe gooseberries
Berries Unripe gooseberries 180-190 35-45 15 - 1
tempera-
ture [°C]
with fan
180-190 35-45 - - 1
Preserving times Level for
Until
boiling
starts
Additional
preserving
time
Standing
time
(oven
OFF)
tray
tray
shelf
1 tray
Page 15
electrolux 15
Stone
fruits
Vegetables
Vegetables
Vegetables
Food Preserving
e.g. fruits with hard
peel pears, quinces,
plums
Carrots 180-190 50 15 60 1
Mixed pickles 180-190 50 15 - 1
Kohlrabi, peas, asparagus
tempera-
ture [°C]
with fan
180-190 35-45 15 - 1
180-190 50 80-120 45-60 1
Hob - Care and cleaning
Warning! Switch the appliance off and
let it cool down before you clean it.
Warning! For safety reasons, do not
clean the appliance with steam cleaners
or high-pressure cleaners.
Warning! Do not use abrasive cleaners,
steel wool pads or acids, they can cause
damage to the appliance.
• To clean the enamelled parts, cap and
crown, wash it with warm soapy water.
• Stainless steel parts wash with water, and
then dry with a soft cloth.
•
The pan supports are not dishwasher
proof; they must be washed by hand .
• Make sure you position the pan supports
correctly after cleaning.
• To make burners work correctly, make
sure that the arms of the pan supports are
in the centre of the burner.
• Be very careful when you replace the
pan supports to prevent the hob top
from damage.
You can remove the pan supports to easily
clean the hob. After cleaning the hob, make
sure the pan supports are correctly positioned. Pay attention when you replace the
pan supports to prevent the glass hob top
from scratching. When you wash the pan
supports by hand, take care when you dry
them as the enamelling process occasionally
leaves rough edges. If necessary, remove
stubborn stains using a paste cleaner.
Preserving times Level for
Until
boiling
starts
Additional
preserving
time
Standing
time
(oven
OFF)
1 tray
After cleaning, dry the appliance with a soft
cloth.
Scratches or dark stains on the glass
ceramic have no effect on how the appliance operates.
Removing the dirt:
1. – Remove immediately: melting plastic, plastic foil, and food containing
sugar. Use a special glass ceramic
scraper. Put the scraper on the glass
ceramic surface at an acute angle and
slide the blade on the surface.
– Stop the appliance and let it cool
down before you clean: limescale
rings, water rings, fat stains, shiny metallic discolorations. Use a special
cleaner for glass ceramic or stainless
steel.
2. Clean the appliance with a damp cloth
and some detergent. The pan supports
are not dishwasher proof; they must be
washed by hand . After cleaning, make
sure that the pan supports are correctly
positioned.
3. At the end rub the appliance dry with
a clean cloth.
Periodic maintenance
Periodically speak your local Service Force
Centre to check the conditions of the gas
supply pipe and the pressure adjuster, if fitted.
Page 16
16 electrolux
Oven - Care and cleaning
• Clean the front of the appliance with a soft
cloth with warm water and cleaning agent.
• To clean metal surfaces use a usual cleaning agent
• Clean the oven interior after each use.
Thus you can remove dirt more easily and
it does not burn on.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all oven accessories (with a soft
cloth with warm water and cleaning agent)
after each use and let them dry.
• If you have nonstick accessories, do not
clean them using an aggressive agents,
sharp edged objects or dishwasher. It can
destroy nonstick coating!
Catalytic walls and roof
The walls and the roof with a catalytic coating
are self-cleaning. They absorb fat which collects on walls while the oven operates.
To support this self-cleaning process heat
the oven without any food regularly:
• Turn the oven light on.
• Remove accessories from the oven.
• Select an oven function.
• Set the oven temperature to 250 °C and
let oven operate for 1 hour.
• Clean the oven cavity with a soft and damp
sponge.
Warning! Do not attempt to clean
catalytic surface with oven sprays,
abrasive cleaners, soap or other
cleaning agents. This will damage the
catalytic surface.
Discolouration of the catalytic surface
has no effect on catalytic properties.
Shelf Support Rails
Removing the shelf support rails
1. Pull the front of the shelf support rail away
from the side wall.
2. Pull the rear shelf support rail away from
the side wall and remove it.
Installing the shelf support rails
Install the shelf support rails in opposite sequence.
The rounded ends of the shelf support
rails must point to the front!
Removing the heating element
You can remove the heating element to clean
the oven cavity. In this case proceed as follows for possible cleaning actions:
Warning! Ensure that the oven has
cooled down sufficiently so that you can
touch heating elements safely! There is
a risk of burns!
1. Hold the heat element with two hands at
the front.
2. Pull the heating element out of the plug
connection to the front.
3. Reassembly in reverse order. Make sure
the heating element has a good fit in
the connecting socket when inserting.
Oven door
To clean the oven door remove it.
Page 17
Caution! Be careful when you remove
the door from the appliance. The door is
heavy!
Removing the oven door
1. Open the oven door as far as it goes.
2. Lift up clamping levers (A) on the two door
hinges fully.
A
A
3. Close the oven door until the first position
(angle approximately 45°).
electrolux 17
2. Open the oven door as far as it goes.
3. Fold down the clamping levers (A) on the
both door hinges back into their original
positions.
A
45°
4. Hold of the oven door with one hand on
each side and pull it away from the oven
at an upwards angle.
Put the oven door with the outer side
down on a soft and level surface to prevent scratches.
Hanging the oven door back on its hinges
1. Hold of the oven door with one hand on
each side and hold at an angle of approximately 45°.
Position the recesses on the bottom of
the oven door on the hinges on the oven.
Let the door slide down as far as it will go.
4. Close the oven door.
Stainless steel appliances:
Clean the oven door with a wet sponge
only. Dry it with a soft cloth.
Do not use steel wool, acids or abrasive
materials as they can damage the oven
surface. Clean the oven control panel
with the same precautions
Oven lamp
Warning! There is a danger of electrical
shock!
Page 18
18 electrolux
Before you change the oven lamp:
• Switch off the oven.
• Remove the fuses in the fuse box or switch
off the circuit breaker.
Put a cloth on the bottom of the oven for
protection of the oven light and glass
cover.
Replacing the oven light bulb/cleaning the
glass cover
1. Turn the glass cover anti-clockwise to remove it.
2. Clean the glass cover.
3. Replace the oven light bulb with applicable 300°C heat-resistant oven light bulb.
4. Install the glass cover.
Replacing the oven lamp (left side of the
appliance) Cleaning the glass cover
1. Remove the left shelf support rail.
2. Use a narrow, blunt object (e.g. a tea-
3. If necessary: Replace the oven lamp.
Technical data: 300°C, heat resistant.
4. Install the glass cover.
5. Install the left shelf support rail.
spoon) to take off the glass cover and
clean it.
What to do if…
Problem Possible cause Remedy
There is no spark when lighting
the gas
There is no spark when lighting
the gas
There is no spark when lighting
the gas
The flame is blow out immediately after ignition
The gas ring burns unevenly Burner crown is blocked with
The appliance does not operate The fuse in the fuse box is re-
The oven does not heat up The oven is not switched on Switch on the oven
The oven does not heat up The necessary settings are not
The oven lamp does not operate The oven lamp is defective Replace the oven lamp
Overheated oven cooling system (warning lamp operates)
There is no electrical supply Make sure that the unit is con-
There is no electrical supply Examine the house electrical in-
Burner cap and crown are
placed uneven
Thermocouple is not heated sufficient
food residues
leased
set
The internal ventilation is
blocked
nected and the electrical supply
is switched on.
stallation fuse.
Make sure that the burner cap
and crown are in correct positions.
After lightning the flame, keep
the knob pushed for approximately 5 seconds.
Make sure that the injector is not
blocked and the burner crown is
clear of food particles.
Control the fuse. If the fuse is released more than one time, refer
to a qualified electrician.
Control the settings
Switch off the appliance and refer to Service Centre
Page 19
Problem Possible cause Remedy
Steam and condensation settle
on the food and in the oven cavity
You left the dish in the oven for
too long
If you can not find a solution to the problem,
refer to your dealer or the Service Force Centre.
Warning! Let a qualified electrician or
competent person do repairs to the
appliance.
Important! If you do not operate the
appliance correctly, the visit from the Service
Force Centre or dealer will not be free of
charge, even during the warranty period.
These data are necessary to help you quickly
and correctly. These data are available on the
rating plate (refer to "Product description")
• Model description ............
Technical data
Dimensions
Height (oven cavity) 310 mm
Depth (oven cavity) 407 mm
Width (oven cavity) 400 mm
Oven capacity 50 l
Cooker weight (netto) 39 kg
Cooker rating
Rapid burner (72 mm) 2 400 W
Semi-rapid burner (72 mm) 1 800 W
Auxiliary burner (55 mm) 1 000 W
Conventional heating (Gas) 2 600 W
Infrared grill (Electric) 1 900 W
Cooling Fan (Electric) 47 W
Oven light (Electric) 2 x 25 W
Total electric rating 2 000 W
Electric supply AC 230V ~50 Hz
Total gas rating 10 200W / 741g/h
electrolux 19
Do not leave the dishes in the
oven for longer than 15-20 minutes after the cooking process
ends
• Product number (PNC) ............
• Serial number (S.N.) ............
Hints for appliances with metal
fronts:
If you open the door during or immediately after the baking or roasting procedure, steam can show on the glass.
Disposal
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
Page 20
20 electrolux
product is disposed of correctly, you will help
prevent potential negative consequences for
the environment and human health, which
could otherwise be caused by inappropriate
waste handling of this product. For more
detailed information about recycling of this
product, please contact your local council,
your household waste disposal service or the
shop where you purchased the product.
Packaging material
The packaging material is environmen-
are marked with international abbreviations such as PE, PS, etc. Dispose of the
packaging material in the containers
provided for this purpose at your local
waste management facility.
Warning! Your appliance should be
made inoperable before it is disposed of,
so that it does not constitute a danger.
To do this, take the mains plug from the
socket and remove the mains cable from
the appliance.
tally-friendly and recyclable. Plastic parts
CH
Garantie, Garanzia, Guarantee
Kundendienst, service-clientèle, Servizio clienti, Customer Service Centres
Servicestellen Points de Service Servizio dopo
5506 Mägenwil/Zürich Industriestrasse 10
9000 St. Gallen Zürcherstrasse
204e
4052 Basel St. Jakob-Turm
Birsstrasse 320B
6020 Emmenbrücke Seetalstrasse 11
7000 Chur Comercialstrasse 19
3018 Bern Morgenstrasse 131
Ersatzteilverkauf/Points de vente de rechange/Vendita pezzi di ricambio/spare
parts service:
5506 Mägenwil, Industriestrasse 10, Tel.
0848 848 023
Fachberatung/Verkauf/Demonstration/
Vente/Consulente (cucina)/Vendita
8048 Zürich, Badenerstrasse 587, Tel. 044
405 81 11
Garantie Für jedes Produkt gewähren wir ab
Verkauf bzw. Lieferdatum an den Endverbraucher eine Garantie von 2 Jahren. (Ausweis durch Garantieschein, Faktura oder
Verkaufsbeleg). Die Garantieleistung umfasst
die Kosten für Material, Arbeits- und Reisezeit. Die Garantieleistung entfällt bei Nichtbeachtung der Gebrauchsanweisung und
Betriebs-vorschriften, unsachgerechter Installation, sowie bei Beschädigung durch
äussere Einflüsse, höhere Gewalt, Eingriffe
Dritter und Verwendung von Nicht-Original
Teilen.
Garantie Nous octroyons sur chaque produit 2 ans de garantie à partir de la date de
vendita
1028 Préverenges
Le Trési 6
sommateur (documenté au moyen d’une
facture, d’un bon de garantie ou d’un justificatif d’achat). Notre garantie couvre les frais
de mains d’œuvres et de déplacement, ainsi
que les pièces de rechange. Les conditions
de garantie ne sont pas valables en cas d’intervention d’un tiers non autorisé, de l’emploi
de pièces de rechange non originales, d’erreurs de maniement ou d’installation dues à
l’inobser-vation du mode d’emploi, et pour
des dommages causés par des influences
extérieures ou de force majeure.
Garanzia Per ogni prodotto concediamo
una garanzia di 2 anni a partire dalla data di
consegna o dalla sua messa in funzione. (fa
stato la data della fattura, del certificato di
garanzia o dello scontrino d’acquisto) Nella
garanzia sono comprese le spese di manodopera, di viaggio e del materiale. Dalla copertura sono esclusi il logoramento ed i danni
causati da agenti esterni, intervento di terzi,
utilizzo di ricambi non originali o dalla inosservanza delle prescrizioni d’istallazione ed
istruzioni per l’uso.
Point of Service
6916 Grancia Zona Industriale E
livraison ou de la mise en service au con-
Page 21
electrolux 21
Warranty For each product we provide a
two-year guarantee from the date of purchase or delivery to the consumer (with a
guarantee certificate, invoice or sales receipt
serving as proof). The guarantee covers the
costs of materials, labour and travel. The
guarantee will lapse if the operating instruc-
tions and conditions of use are not adhered
to, if the product is incorrectly installed, or in
the event of damage caused by external influences, force majeure, intervention by third
parties or the use of non-genuine components.
Page 22
22 electrolux
Page 23
electrolux 23
Page 24
www.electrolux.com
315946203-B-022010
Loading...
