AEG GA60GLV401 User Manual

user manual

notice d'utilisation

benutzerinformation

istruzioni per l’uso

Dishwasher

Lave-vaisselle

Geschirrspüler

Lavastoviglie

GA60GLV401

2 electrolux

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

Contents

Safety information 2 Product description 3 Control panel 4 Use of the appliance 6 Setting the water softener 6 Use of dishwasher salt 7 Use of rinse aid 8 Loading cutlery and dishes 9 Use of detergent 11 Multitab function 12

Subject to change without notice

Setting and starting a washing programme

Washing programmes 14 Care and cleaning 16 What to do if… 17 Technical data 18 Installation 18 Water connection 19 Electrical connection 20 Environment concerns 20

Safety information

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

Correct use

• The appliance is designed exclusively for domestic use.

• Only use the appliance to clean household utensils that are applicable for dishwashers.

• Do not put solvents in the appliance. Risk of explosion.

• Put the knives and all items with sharp points in the cutlery basket with their points down. If not, put in a horizontal position in the upper basket.

• Use only branded products for dishwashers (detergent, salt, rinse aid).

• If you open the door while the appliance is in operation, hot steam can escape. Risk of skin burns.

•Do not remove dishes from the dishwasher before the end of the washing programme.

• When the washing programme is completed, disconnect the mains plug from the mains socket and close the water tap.

• Only an authorised service engineer can repair this appliance. Use only original spare parts.

• Do not do repairs yourself to prevent injury and damage to the appliance. Always contact your local Service Force Centre.

General safety

• Persons (including children) with reduced physical sensory, mental capabilities or lack of experience and knowledge must not use the appliance. They must have supervision or instruction for the operation of the appliance by a person responsible for their safety.

• Obey the safety instructions from the manufacturer of the dishwasher detergent to prevent burns to eyes, mouth and throat.

• Do not drink the water from the dishwasher. Detergent residues can stay in your appliance.

• Always close the door when you do not use the appliance to prevent injury and not to stumble over the open door.

• Do not sit or stand on the open door.

Child safety

• Only adults can use this appliance. Children must get supervision to make sure that they do not play with the appliance.

• Keep all the packaging away from children. There is a risk of suffocation.

• Keep all detergents in a safe area. Do not let children touch the detergents.

• Keep children away from the appliance when the door is open.

electrolux 3

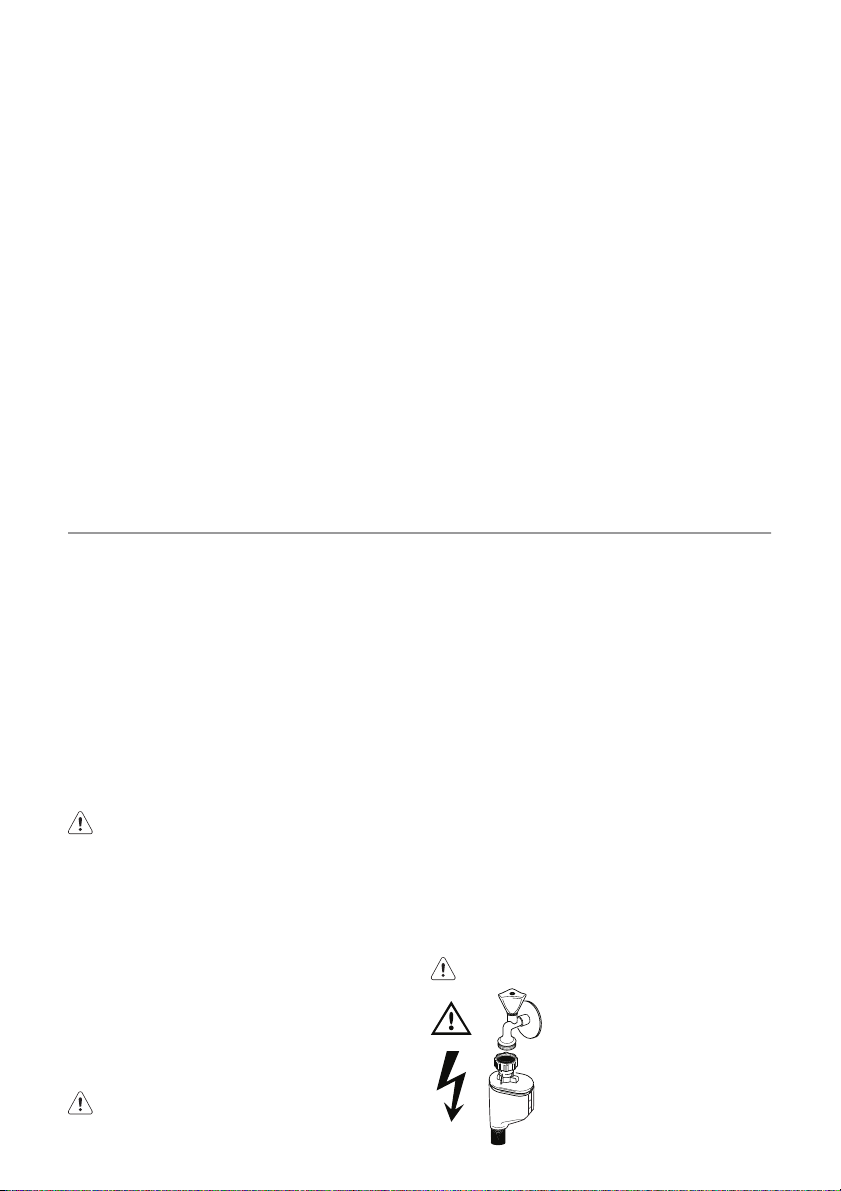

Installation

• Make sure that the appliance is not damaged because of transport. Do not connect a damaged appliance. If necessary, contact the supplier.

• Remove all packaging before first use.

• A qualified and competent person must do the electrical installation.

• A qualified and competent person must do the plumbing installation.

• Do not change the specifications or modify this product. Risk of injury and damage to the appliance.

• Do not use the appliance:

Product description

– if the mains cable or water hoses are

damaged,

– if the control panel, worktop or plinth

area are damaged, that you can get access to the inner side of the appliance.

Contact your local Service Force Centre.

• Do not drill into the sides of the appliance to prevent damage to hydraulic and electrical components.

Warning! Carefully obey the instructions for electrical and water connections.

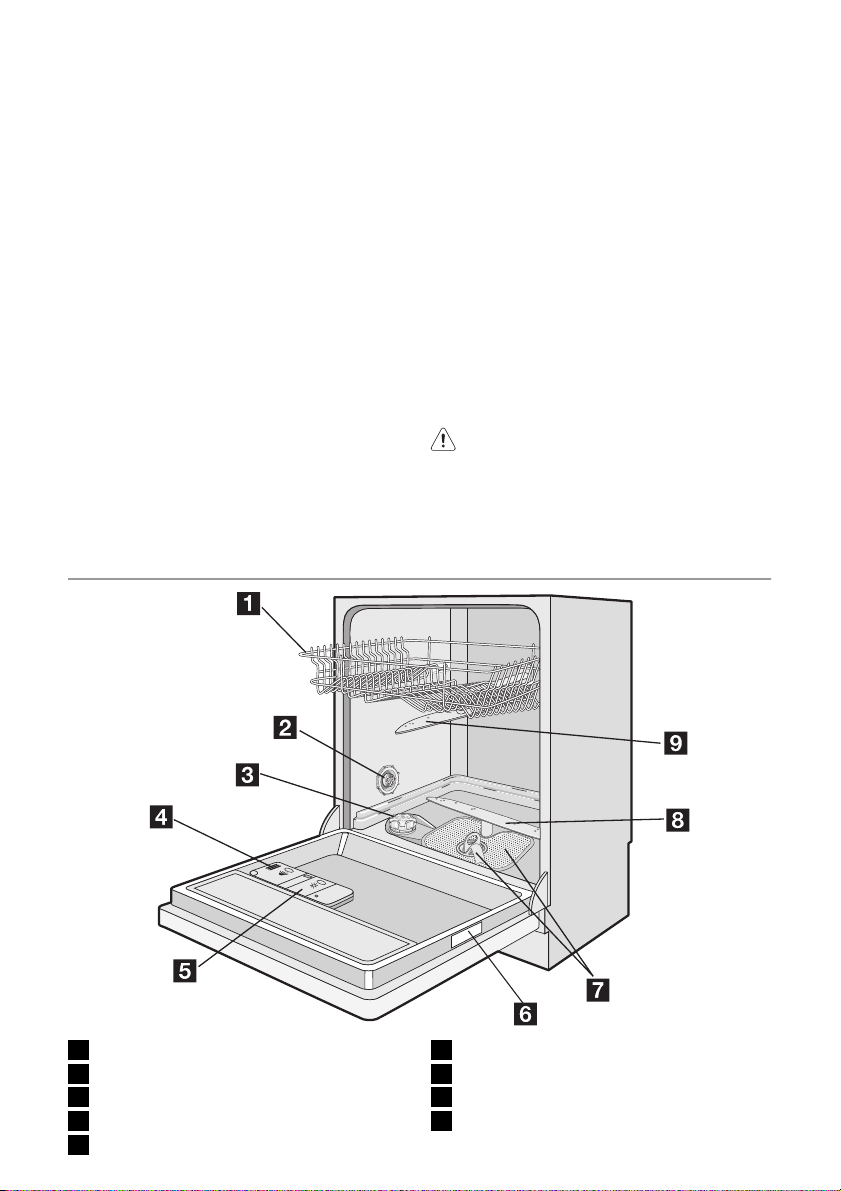

1 Upper basket 2 Water hardness dial 3 Salt container 4 Detergent dispenser 5 Rinse aid dispenser 6 Rating plate 7 Filters 8 Lower spray arm 9 Upper spray arm

Internal light

This appliance has an internal light that comes on when you open the door and goes off when the door is closed.

Warning! Visible led radiation, do not stare into the beam.

Internal light equipped with LED lamp CLASS 2 in accordance with IEC 60825-1: 1993 + A1:1997 + A2:2001. Emission wave length: 450 nm Maximum emitted power: 548 μW

4 electrolux

If it is necessary to replace the light, contact your local Service Force Centre.

Optical signal

If the appliance is installed higher with a flush kitchen furniture door, the optical signal will not be visible.

After the start of the washing programme, an optical signal shows on the floor below the appliance door.

Optical signal

The red light is on. Indication of the start of a washing programme. The red light stays on during

The red light flashes. Indication of a malfunction. The green light is on. Indication of the end of a washing programme.

the washing programme.

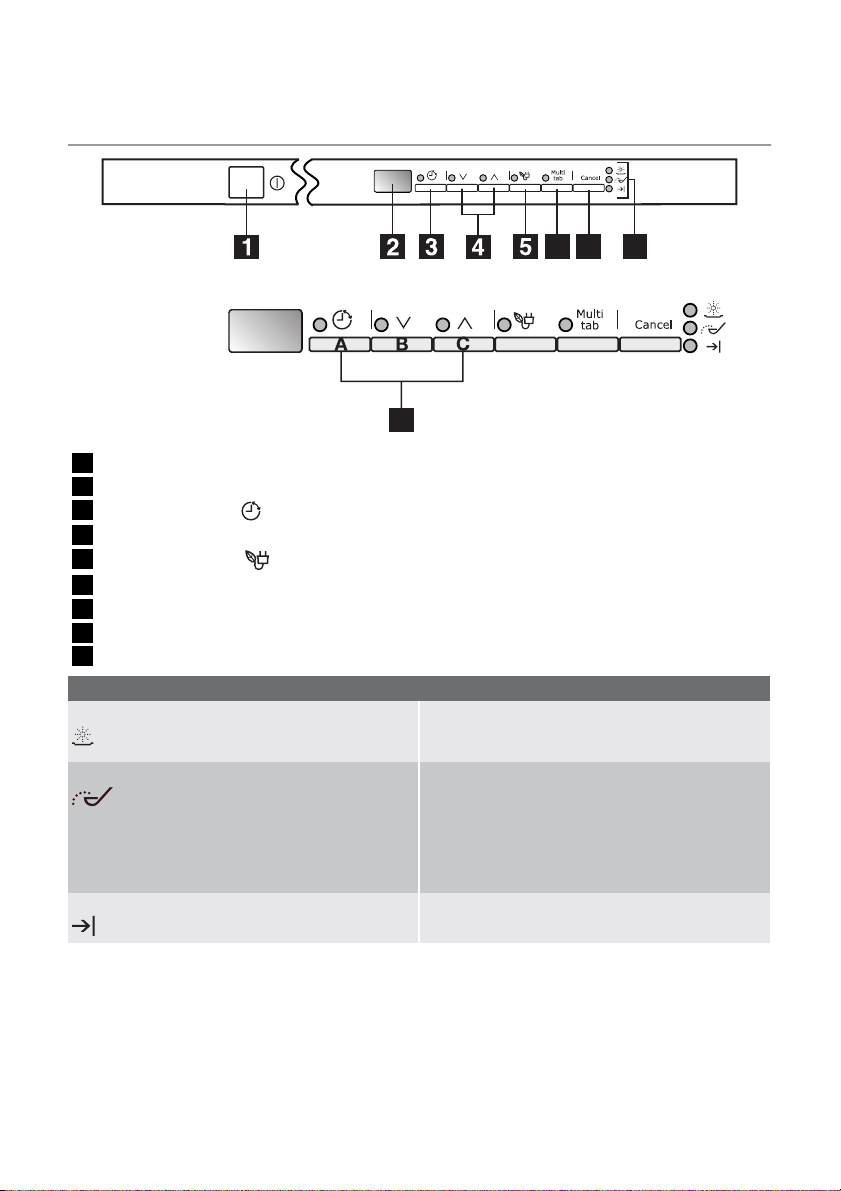

Control panel

1 On/off button 2 Digital display 3

Delay start button

4 Programme selection buttons 5

Save energy button

6 Multitab button (Multitab) 7 Cancel button (Cancel) 8 Indicator lights 9 Function buttons

Rinse aid

Salt

Indicator lights

Comes on when it is necessary to fill the rinse aid dispenser. Refer to 'Use of rinse aid'.

Comes on when it is necessary to fill the salt container. Refer to 'Use of dishwasher salt'. After you fill the container, the salt indicator light can continue to stay on for some hours. This does not have an unwanted effect on the operation of the appliance.

electrolux 5

Indicator lights

End-of-programme Comes on when the washing programme is com-

1) When the salt and/or rinse aid containers are empty, the related indicator light does not come on while a washing programme operates.

Delay start button

Use the delay start button to delay the start of the washing programme with an interval between 1 and 19 hours. Refer to the chapter 'Setting and starting a washing programme'.

Programme selection buttons

With these buttons you can select the washing programme. Press one of these buttons until the digital display shows the number of the programme. Refer to 'Washing programmes' chapter for more data about the washing programmes.

Save energy button

This function decreases the temperature in the drying phase. Saved energy is between 10% and 25%.

If dishes at the end of the programme are wet, keep the door ajar to let the dishes dry naturally.

This function is available with all washing programmes. The related indicator light comes on when you press the button. The save energy function has no effect on some programmes. Refer to the chapter 'Washing programmes' for the list of programmes where save energy has or not an effect.

Multitab button

Press this button to activate/deactivate the multitab function. Refer to the chapter 'Multitab function'.

Cancel button

With this button you can cancel a washing programme or a delay start. Refer to 'Setting and starting a washing programme'.

Function buttons

Use the function buttons for these operations:

• To set the water softener. Refer to the

chapter 'Setting the water softener'.

pleted.

• To deactivate/activate the rinse aid dispenser, when multitab function is active. Refer to the chapter 'Multitab function'.

Setting mode

The appliance must be in setting mode for these operations:

• To set a washing programme.

• To set the water softener level.

• To deactivate/activate the audible signals.

• To deactivate/activate the rinse aid dispenser.

Press the on/off button. The appliance is in setting mode when: – The digital display shows two horizontal

bars.

Press the on/off button. The appliance is not in setting mode when: – The digital display shows the minutes of

the programme duration.

– A washing programme is set. It is neces-

sary to cancel the programme to go back to the setting mode. Refer to the chapter 'Setting and starting a washing programme'.

Audible signals

You can hear an audible signal:

• At the end of the washing programme.

• During the setting of the level of the water softener.

• When the appliance has a malfunction.

The activation of the audible signals is set at the factory. Do these steps to deactivate the audible signals:

1. Switch on the appliance.

2. Make sure that the appliance is in setting

mode.

3. Press and hold function buttons B and C

until the indicator lights of function buttons A, B and C start to flash.

4. Release function buttons A and B.

5. Press the function button C.

– Indicator lights for function buttons A

and B go off.

6 electrolux

– Indicator light for function button C

flashes.

– The digital display shows the setting.

Audible signals deactivated

Audible signals activated

The audible signals are activated.

6. Press the function button C again.

– The digital display shows the new set-

ting.

The audible signals are deactivated.

7. Switch off the appliance to save the op-

eration. Do these steps to activate the audible signals:

1. Do the above procedure until the digital

display shows necessary setting.

Use of the appliance

Refer to the following instructions for each step of procedure:

1. Make a check if the water softener level is correct for the water hardness in your area. If necessary set the water softener.

2. Fill the salt container with dishwasher salt.

3. Fill the rinse aid dispenser with rinse aid.

4. Load cutlery and dishes into the dishwasher.

5. Set the correct washing programme for the type of load and soil.

6. Fill the detergent dispenser with the correct quantity of detergent.

7. Start the washing programme.

If you use combi detergent tablets ('3 in 1', '4 in 1', '5 in 1', etc.), refer to the chapter 'Multitab function'.

Setting the water softener

The water softener removes minerals and salts from the water supply. Minerals and salts can have bad effect on the operation of the appliance. Water hardness is measured in equivalent scales:

• German degrees (dH°).

Water hardness Water hardness setting

°dH °TH mmol/l Clarke manually electronically

51 - 70 91 - 125 9,1 - 12,5 64 - 88 2 10 43 - 50 76 - 90 7,6 - 9,0 53 - 63 2 9 37 - 42 65 - 75 6,5 - 7,5 46 - 52 2 8 29 - 36 51 - 64 5,1 - 6,4 36 - 45 2 7 23 - 28 40 - 50 4,0 - 5,0 28 - 35 2 6 19 - 22 33 - 39 3,3 - 3,9 23 - 27 2 5 15 - 18 26 - 32 2,6 - 3,2 18 - 22 1 4 11 - 14 19 - 25 1,9 - 2,5 13 - 17 1 3

4 - 10 7 - 18 0,7 - 1,8 5 - 12 1 2

< 4 < 7 < 0,7 < 5

1) No use of salt required.

You must set the water softener manually and electronically.

• French degrees (°TH).

• mmol/l (millimol per litre - international unit

for the hardness of water).

•Clarke.

Adjust the water softener to the water hardness in your area. If necessary, contact your local water authority.

Manual adjustment

The appliance is set at the factory at position 2.

electrolux 7

1. Open the door.

2. Remove the lower basket.

3. Turn the water hardness dial to position 1 or 2 (refer to the chart).

4. Install the lower basket.

5. Close the door.

Electronic adjustment

The dishwasher is factory set at level 5.

1. Switch on the appliance.

Use of dishwasher salt

Caution! Only use dishwashers salt. Types of salt that are not applicable for dishwashers cause damage to the water softener.

Caution! Grains of salt and salty water on the bottom of the appliance can cause corrosion. Fill the appliance with salt before you start a washing programme to prevent corrosion.

Do these steps to fill the salt container:

1. Turn the cap anticlockwise to open the salt container.

2. Fill the salt container with 1 litre of water (only the first operation).

3. Use the funnel to fill the salt container with salt.

2. Make sure that the appliance is in setting mode.

3. Press and hold function buttons B and C until the indicator lights of function buttons A, B and C start to flash.

4. Release function buttons B and C.

5. Press function button A. – The indicator lights for function buttons

B and C go off.

– The indicator light for function button A

continues to flash.

– The digital display shows the current

level. – You can hear an audible signal. Example: digital display shows termittent audible signals = level 5.

6. Press the function button A one time to increase the water softener level by one step.

7. Press the on/off button to save the operation.

4. Remove the salt around the opening of the salt container.

5. Turn the cap clockwise to close the salt container.

It is normal that water overflows from the salt container when you fill it with salt.

When you set electronically the water softener to level 1, the salt indicator light does not stay on.

/ 5 in-

8 electrolux

Use of rinse aid

Caution! Only use branded rinse aid for dishwashers. Do not fill the rinse aid dispenser with other products (e.g. dishwasher cleaning agent, liquid detergent). This can cause damage to the appliance.

Rinse aid makes it possible to dry the dishes without streaks and stains. Rinse aid is automatically added during the last rinsing phase.

Do these steps to fill the rinse aid dispenser:

1. Press the release button (A) to open the rinse aid dispenser.

3. Remove the spilled rinse aid with an absorbent cloth to prevent too much foam during the subsequent washing programme.

4. Close the rinse aid dispenser.

Adjusting the rinse aid dosage

The rinse aid is set at the factory at position

You can set the rinse aid dosage between position 1 (lowest dosage) and position 6 (highest dosage).

2. Fill the rinse aid dispenser with rinse aid. The mark 'max.' shows the maximum level.

1. Turn the rinse aid dial to increase or decrease the dosage. – Increase the dosage if there are water

droplets or limescale on the dishes.

– Decrease the dosage if there are

streaks, whitish stains or bluish layers on the dishes.

Loading cutlery and dishes

Helpful hints and tips

Caution! Only use the appliance for

household utensils that are applicable for dishwashers.

Do not use the appliance to clean objects that can absorb water (sponges, household cloths, etc.).

• Before you load cutlery and dishes, do these steps: – Remove all food remainings and debris. – Make burnt, remaining food in pans soft.

• While you load cutlery and dishes, do these steps: – Load hollow items (e.g. cups, glasses

and pans) with the opening down.

– Make sure that water does not collect in

the container or in a deep base.

– Make sure that cutlery and dishes do not

lie inside one another.

– Make sure that cutlery and dishes do not

cover other cutlery and dishes.

– Make sure that glasses do not touch

other glasses.

– Put small objects in the cutlery basket.

• Plastic items and pans with non-stick coatings can keep water droplets. Plastic items do not dry as well as porcelain and steel items.

• Put light items in the upper basket. Make sure that the items do not move.

Caution! Make sure that the spray arms can move freely before you start a washing programme.

Warning! Always close the door after you load or unload the appliance. An open door can be dangerous.

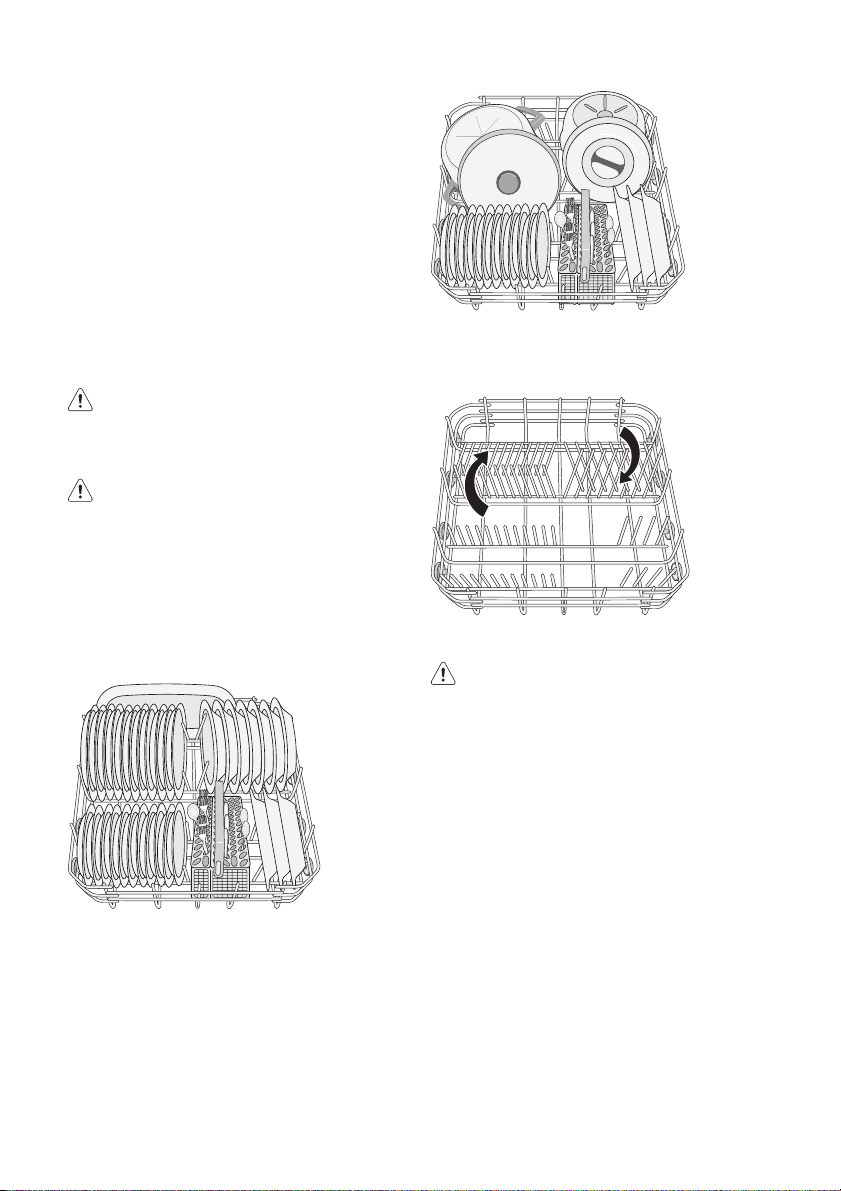

Lower basket

Put saucepans, lids, plates, salad bowls and cutlery in the lower basket. Arrange service dishes and large lids around the edge of the basket.

electrolux 9

The rows of prongs in the lower basket can be flat to load pots, pans and bowls.

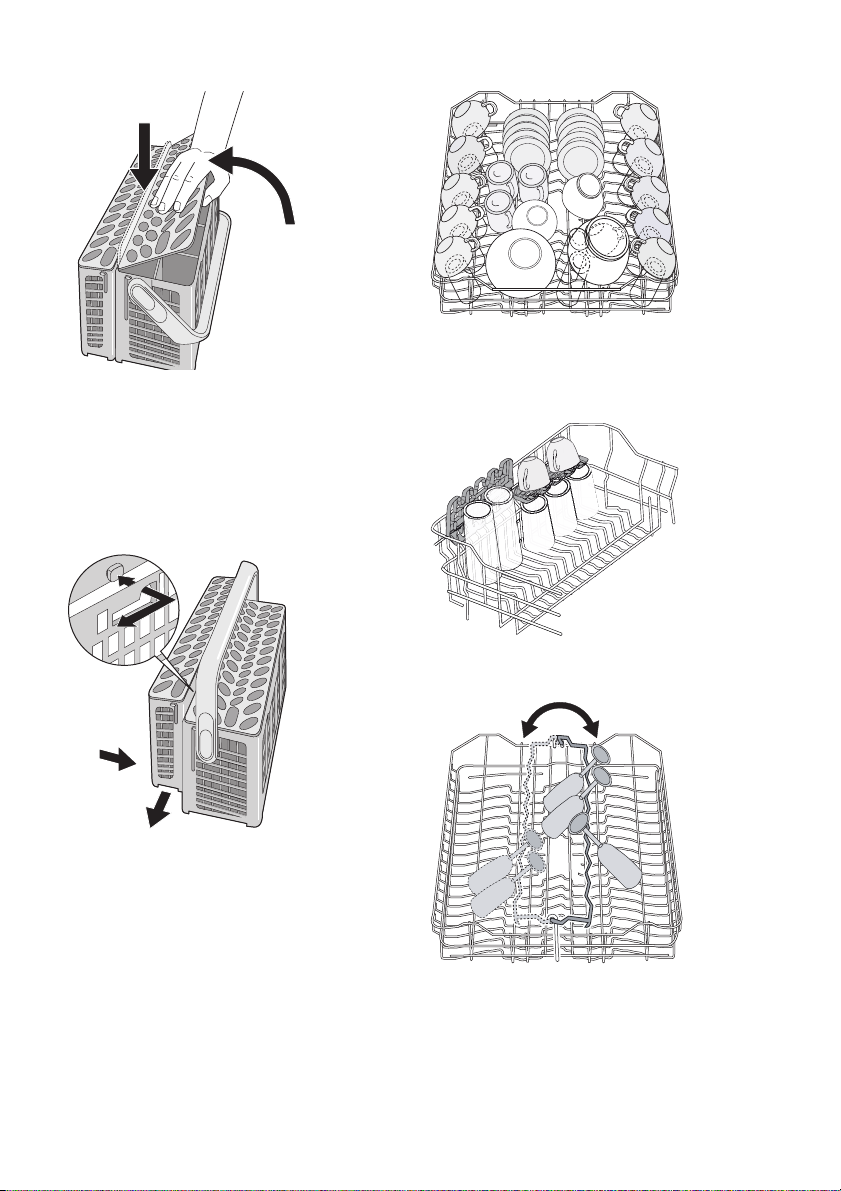

Cutlery basket

Warning! Do not put long-bladed knives

in a vertical position in the cutlery basket. Arrange long and sharp cutlery horizontally in the upper basket. Be careful with sharp items.

Put forks and spoons with the handles down. Put knives with the handles up.

10 electrolux

Mix spoons with other cutlery to prevent them to bond together. Lower the handle of the cutlery basket to put the cutlery in the basket.

The cutlery basket has two parts. You can use these parts separately for more loading flexibility. To disassemble the parts, move them horizontally in opposite directions and pull them apart. To assemble the parts, put them together and move horizontally to each other.

Upper basket

The upper basket is for saucers, salad bowls, cups, glasses, pots and lids. Arrange the items to let water touch all surfaces.

Use the cutlery grids. If the dimensions of the cutlery prevent use of the cutlery grids, you can easily hide them.

Put glasses with long stems in the cup racks with the stems up. For longer items, fold the cup racks up.

electrolux 11

For glasses with long stems, turn the glass holder to the left or to the right.

You can easily lower the central rows of prongs for more loading flexibility.

Adjustment of the height of the upper basket

If you put large plates in the lower basket, first move the upper basket to the upper position.

Maximum height of the dishes in the lower

basket

Upper position 31 cm Lower position 27 cm

Do these steps to move the upper basket to the upper position:

1. Pull the basket out until it stops.

2. Carefully lift the two sides until the mechanism is engaged and the basket is stable.

Do these steps to move the upper basket to the lower position:

1. Pull the basket out until it stops.

2. Carefully lift the two sides upwards.

3. Hold the mechanism and let it fall back down slowly.

Caution!

• Do not lift or lower the basket on one side only.

• If the basket is in the upper position, do not put cups on the cup racks.

Use of detergent

Only use detergents (powder, liquid or tablet) that are applicable for dishwashers. Follow the data on the packaging:

• Dosage recommended by the manufacturer.

• Storage recommendations.

Do not use more than the correct quantity of detergent to save an environment.

Do these steps to fill the detergent dispenser:

1. Open the lid of the detergent dispenser.

12 electrolux

2. Fill the detergent dispenser (A) with detergent. The marking shows the dosage: 20 = approximately 20 g of detergent 30 = approximately 30 g of detergent.

3. If you use a washing programme with prewash phase, put more detergent in the prewash detergent compartment (B).

4. If you use detergent tablets, put the detergent tablet in the detergent dispenser (A).

5. Close the lid of the detergent dispenser. Press the lid until it locks into position.

Different brands of detergent dissolve in different times. Some detergent tablets do not have the best cleaning results during short washing programmes. Use long washing programmes when you use detergent tablets to fully remove the detergent.

Multitab function

The multitab function is for combi detergent tablets. These tablets contain agents such as detergent, rinse aid and dishwasher salt. Some types of tablets can contain other agents. Do a check if these tablets are applicable for the local water hardness. Refer to the instructions from the manufacturer. When you set the multitab function, it stays on until you deactivate it. The multitab function stops automatically the flow of rinse aid and salt. The rinse aid indi-

cator light and salt indicator light are deactivated. The programme duration can increase if you use the multitab function.

Activate or deactivate the multitab function before the start of a washing programme. You cannot activate or deactivate the multitab function when the programme operates. Cancel the washing programme, then set the programme again.

To activate the multitab function:

electrolux 13

• Press the multitab button. The multitab indicator light comes on.

To deactivate the multitab function:

• Press the multitab button. The multitab indicator light goes off.

– The indicator lights for function buttons

A and C go off.

– The indicator light for function button B

continues to flash.

– The digital display shows the setting.

Do these steps if the drying results are not satisfactory:

1. Fill the rinse aid dispenser with rinse aid.

2. Activate the rinse aid dispenser.

3. Set the rinse aid dosage to position

• You can only activate or deactivate

the rinse aid dispenser when the multitab function is activated.

To activate/deactivate the rinse aid dispenser:

1. Switch on the appliance.

2. Make sure that the appliance is in setting mode.

3. Press and hold function buttons B and C. – The indicator lights for function buttons

A, B, and C start to flash.

4. Release function buttons B and C.

5. Press function button B.

6. Press function button B again. – The digital display shows the new set-

ting.

7. Switch off the appliance to save the operation.

To use normal detergent again:

1. Deactivate the multitab function.

2. Fill the salt container and rinse aid dispenser.

3. Adjust the water hardness setting to the highest level.

4. Do a washing programme without dishes.

5. Adjust the water softener to the water hardness in your area.

6. Adjust the rinse aid dosage.

Setting and starting a washing programme

Important! Set the options before the start of a washing programme. You cannot set an option when a washing programme operates. If it is necessary to set an option, cancel the washing programme.

Set the washing programme with the door ajar. The washing programme only starts after you close the door. Until then it is possible to modify the settings.

Do these steps to set and start a washing programme:

1. Switch on the appliance.

2. Make sure that the appliance is in setting mode.

3. Press one of the programme selection buttons. Refer to the chapter 'Washing programmes'. – The programme number shows in the

digital display.

4. Close the door. – The washing programme starts.

When the washing programme operates, you cannot change the programme. Cancel the washing programme.

Warning! Only interrupt or cancel a washing programme if necessary.

Caution! Open the door carefully. Hot steam can come free.

Interrupting a washing programme

Open the door.

• The programme stops. Close the door.

• The programme continues from the point of interruption.

Cancelling a washing programme

1. Press and hold the cancel button until the

digital display shows two horizontal bars.

After you cancel the programme, you can:

1. Switch off the appliance.

2. Set a new washing programme .

Rinse aid dispenser deactivated

Rinse aid dispenser activated

14 electrolux

Fill the detergent dispenser with detergent before you set a new washing programme.

Setting and starting a washing programme with delay start

1. Press the on/off button.

2. Set a washing programme.

3. Press the delay start button until the digital display shows the necessary delay start of the washing programme.

4. Close the door. – The countdown of the delay start

starts.

– When the countdown is completed,

the washing programme starts automatically.

Do not open the door during the countdown to prevent interruption of the countdown. When you close the door again, the countdown continues from the point of interruption.

Cancelling a delay start

1. Press and hold the cancel button until the digital display shows two horizontal bars. – When you cancel a delay start, you also

cancel the washing programme.

2. Set a new washing programme.

End of the washing programme

• The appliance stops automatically.

• The audible signal for the end of the pro-

gramme operates.

1. Open the door. – The digital display shows 0.

– The end-of-programme indicator light

comes on.

2. Press the on/off button.

3. For better drying results, keep the door ajar for some minutes before you remove the dishes.

Let the dishes cool down before you remove them from the appliance. Hot dishes are easily damaged.

If the save energy function is set, dishes can be wet once the programme finished. We recommend to leave the appliance door ajar so that dishes can dry naturally.

Standby mode

If you do not switch off the appliance at the end of the washing programme, the appliance automatically goes into standby mode. The standby mode decreases energy consumption. Three minutes after the end of the programme, all indicator lights go off and the digital display shows one horizontal bar. The optical signal goes off. Press one of the buttons (not the on/off button), to go back to end-of-programme mode.

Removing the load

• First remove items from the lower basket,

then from the upper basket.

• There can be water on the sides and door

of the appliance. Stainless steel becomes cool more quickly than the dishes.

Washing programmes

Programme Degree of

Automatic 45°-70°C

Intensive 70°C

soil

Any Crockery, cut-

Heavy soil Crockery, cut-

Type of load Programme descrip-

lery, pots and pans

Prewash Main wash up to 45°C or 70°C 1 or 2 intermediate rinses Final rinse Drying

Prewash Main wash up to 70°C 2 intermediate rinses Final rinse Drying

tion

Save energy

Selectable, impact on washing programme

electrolux 15

Programme Degree of

Quick 60°C

Economy 50°C

One hour 55°C

Glass 45°C

Prewash

1) For programmes where the option has an impact, the energy saving is between 10% and 25%.

2) During the Automatic programme, the soil level of the dishes is given by how cloudy the water is. The programme duration and consumptions can change. This depends if the appliance is fully or not and on the level of soil on the dishes. The appliance adjusts automatically the temperature of the water during the main wash.

3) This is the perfect daily programme to clean a not fully load. Ideal for a family of 4 persons who only want to load breakfast and dinner crockery and cutlery.

4) Test programme for test institutes. Please refer to separate leaflet supplied, for test data.

soil

Normal or light soil

Normal soil Crockery and

Light soil Crockery and

Normal or light soil

Any Partial load (to

Type of load Programme descrip-

Crockery and cutlery

cutlery

Delicate crockery and glassware

be completed later in the day).

Main wash up to 60°C Final rinse

Prewash Main wash up to 50°C 1 intermediate rinse Final rinse Drying

Main wash up to 55°C 1 intermediate rinse Final rinse

Main wash up to 45°C 1 intermediate rinse Final rinse Drying

1 cold rinse (to prevent food scraps to bond). Detergent is not necessary with this programme.

tion

Save energy

Selectable, no impact on washing programme

Selectable, impact on washing programme

Selectable, no impact on washing programme

Selectable, impact on washing programme

Selectable, no impact on washing programme

Consumption values

Programme Duration (in minutes) Energy (in kWh) Water (in litres)

Automatic 45°-70°C

Intensive 70°C

Quick 60°C

Economy 50°C

One hour 55°C

Glass 45°C

Prewash

The pressure and temperature of the water, the variations of power supply

90 - 130 1,1 - 1,7 12 - 23

110 - 120 1,8 - 2,0 23 - 25

30 0,9 9

150 - 160 1,0 - 1,1 12 - 13

45 - 55 1,0 - 1,2 11 - 12

60 - 70 0,8 - 0,9 14 - 15

12 0,1 4

and the quantity of dishes can change these values.

16 electrolux

Care and cleaning

Warning! Switch the appliance off before you clean the filters.

Cleaning the filters

Caution! Do not use the appliance

without the filters. Make sure that the installation of the filters is correct. Incorrect installation will cause unsatisfactory washing results and damage to the appliance.

If necessary, clean the filters. Dirty filters decrease the washing results. The dishwasher has three filters:

1. coarse filter (A)

2. microfilter (B)

3. flat filter (C)

5. Hold the coarse filter (A) by the handle with the hole.

6. Remove the coarse filter (A) from the microfilter (B).

7. Remove the flat filter (C) from the bottom of the appliance.

8. Clean the filters below running water.

9. Put the flat filter (C) in the bottom of the appliance.

10. Put the coarse filter (A) in the microfilter (B) and push the filters together.

11. Put the filter system in position.

12. To lock the filter system, turn the handle on the microfilter (B) clockwise until it lock in position.

13. Install the lower basket.

14. Close the door.

Do not remove the spray arms.

Do these steps to clean the filters:

1. Open the door.

2. Remove the lower basket.

3. To unlock the filter system, turn the handle on the microfilter (B) approximately 1/4 anticlockwise.

4. Remove the filter system.

If the holes in the spray arms become clogged, remove remaining parts of soil with a cocktail stick.

External cleaning

Clean the external surfaces of the appliance and control panel with a damp soft cloth. Only use neutral detergents. Do not use abrasive products, scouring pads or solvents (acetone, trichloroethylene etc...).

Frost precautions

Caution! Do not install the appliance

where the temperature is below 0 °C. The manufacturer is not responsible for damage because of frost.

If not possible, empty the appliance and close the door. Disconnect the water inlet hose and remove water from the water inlet hose.

electrolux 17

What to do if…

The appliance does not start or stops during operation. If there is a fault, first try to find a solution to the problem yourself. If you cannot find a solution to the problem yourself, contact the Service Force Centre.

Fault code and malfunction Possible cause and solution

• intermittent audible signal

•

digital display shows The dishwasher does not fill with water

• intermittent audible signal

•

digital display shows The dishwasher will not drain

• intermittent audible signal

•

digital display shows The anti-flood device operates

The programme does not start • The appliance door is not closed.

• The water tap is blocked or furred with limescale. Clean the water tap.

• The water tap is closed. Open the water tap.

• The filter in the water inlet hose is blocked. Clean the filter.

• The connection of the water inlet hose is not correct. The hose can be kinked or squashed. Make sure that the connection is correct.

• There is a blockage in the sink spigot. Clean the sink spigot.

• The connection of the water drain hose is not correct. The hose can be kinked or squashed. Make sure that the connection is correct.

• Close the water tap and contact your local Service Force Centre.

Close the door.

• Mains plug is not connected in. Put in the mains.

• The fuse has blown out in the household fuse box. Replace the fuse.

• Delay start is set. Cancel the delay start to start the programme immediately.

After the check, switch on the appliance. The programme continues from the point of interruption. If the malfunction shows again, contact your Service Force Centre. These data are necessary to help you quickly and correctly:

•Model (Mod.)

The cleaning results are not satisfactory

The dishes are not clean • The selected washing programme is not applicable for the type of

load and soil.

• The baskets are loaded incorrectly so that water cannot reach all surfaces.

• Spray arms do not turn freely because of incorrect arrangement of the load.

• The filters are dirty or not correctly installed.

• The quantity of detergent is too little or missing.

Caution! Switch off the appliance before you do the below suggested corrective actions.

• Product number (PNC)

• Serial number (S.N.) For these data, refer to the rating plate. Write the necessary data here:

Model description : ..........

Product number : ..........

Serial number : ..........

18 electrolux

The cleaning results are not satisfactory

Limescales particles on the dishes

The dishes are wet and dull • No rinse aid has been used.

There are streaks, milky spots or a bluish coating on glasses and dishes

Dry water drop signs on glasses and dishes

• The salt container is empty.

• The water softener is adjusted on a wrong level.

• The salt container cap is not closed correctly.

• The rinse aid dispenser is empty.

• Decrease the rinse aid dosage.

• Increase rinse aid dosage.

• The detergent can be the cause.

Technical data

Dimensions Width cm 59,6 Height cm 81,8 - 89,8 Depth cm 55 Electrical connection - Voltage -

Overall power - Fuse Water supply pressure Minimum 0,5 bar (0,05 MPa) Maximum 8 bar (0,8 MPa) Capacity Place settings 12

Information on the electrical connection is given on the rating plate on the inner edge of the dishwasher door.

Installation

Warning! Make sure that mains plug is disconnected from the mains socket during installation.

Important! Obey the instructions in the enclosed template to:

• Build-in the appliance.

• Install the furniture panel.

• Connect to the water supply and drain. Install the appliance under a counter (kitchen

worktop or sink). If a repair is necessary, the appliance must be easily accessible for the engineer. Put the appliance adjacent to a water tap and a drain. For the venting of the dishwasher only water fill, water drain and power supply cable openings are necessary. The dishwasher has adjustable feet to allow the adjustment of the height.

Make sure that the water inlet hose, the drain hose and the supply cable are not kinked or squashed, when you insert the machine.

Attaching the appliance to the adjacent units

Make sure that the counter below which you attach the appliance is a safe structure (adjacent kitchen units, cabinets, wall).

Adjusting the level of the appliance

Make sure that the appliance is level to close and seal the door correctly. If the level of the appliance is correct, the door does not catch on the sides of the cabinet. If the door does not close correctly, loosen or tighten the adjustable feet until the appliance is level.

Water connection

Water inlet hose

Connected the appliance to a hot (max. 60°) or cold water supply. If the hot water comes from alternative sources of energy that are more environmentally friendly (e.g. solar or photovoltaic panels and aeolian), use a hot water supply to decrease energy consumption. Connect the inlet hose to a water tap with an external thread of 3/4”.

Caution! Do not use connection hoses from an old appliance.

The water pressure must be in the limits (refer to 'Technical data'). Make sure that the local water authority gives you the average mains pressure in your area. Make sure that there are no kinks in the water inlet hose and that the water inlet hose is not squashed or entangled. Fit the locknut correctly to prevent water leaks.

Caution! Do not connect the appliance to new pipes or pipes that are not used for a long time. Let the water run for some minutes, then connect the inlet hose.

The water inlet hose is double-walled and has an inner mains cable and a safety valve. The water inlet hose is under pressure only while the water is running. If there is a leak in the water inlet hose, the safety valve interrupts the running water. Be careful when you connect the water inlet hose:

• Do not put the water inlet hose or the safety valve in water.

• If the water inlet hose or the safety valve is damaged, immediately disconnect the mains plug from the mains socket.

• Only let the Service Force Centre replace the water inlet hose with safety valve.

Warning! Dangerous voltage

electrolux 19

Water drain hose

1. Connect the water drain hose to the sink spigot and attach it under the work surface. This prevents that the waste water from the sink goes back into the appliance.

2. Connect the water drain hose to a stand pipe with vent-hole (minimum internal diameter 4 cm).

max 85 cm

min 40 cm

max 400 cm

Make sure that the drain hose is not bent or squashed to prevent that the water drains does not drain correctly. Remove the sink plug when the appliance drains the water to prevent that the water goes back into the appliance. A drain hose extension must not be longer than 2 m. The internal diameter must not be smaller than the diameter of the hose. If you connect the water drain hose to a trap spigot under the sink, remove the plastic membrane (A). If you do not remove the membrane, remaining food can cause a blockage in the drain hose spigot

20 electrolux

Electrical connection

Warning! The manufacturer is not responsible if you do not follow these safety precautions. Ground the appliance according to safety precautions. Make sure that the rated voltage and type of power on the rating plate agree with the voltage and the power of the local power supply. Always use a correctly installed shockproof socket.

Environment concerns

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Discard the packaging materials in the applicable container at the community waste disposal facilities.

Warning! To discard the appliance, follow the procedure:

• Pull the mains plug out of the socket.

The appliance has a security feature to prevent that dirty water goes back into the appliance. If, the spigot of the sink has a 'non-return valve', this valve can cause the appliance to drain incorrectly. Remove the non-return valve.

Caution! Make sure that the water couplings are tight to prevent water leakage.

Do not use multi-way plugs, connectors and extension cables. There is a risk of fire. Do not replace the mains cable yourself. Contact the Service Force Centre. Make sure that the mains plug is accessible after installation. Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• Cut off the mains cable and mains plug and discard them.

• Discard the door catch. This prevents the children to close themselves inside the appliance and endanger their lives.

Electrolux. Thinking of you.

Partagez notre imagination sur www.electrolux.com

Sommaire

Consignes de sécurité 21 Description de l'appareil 22 Bandeau de commande 23 Avant la première utilisation 25 Réglage de l'adoucisseur d'eau 26 Utilisation du sel régénérant 27 Utilisation du liquide de rinçage 27 Rangement des couverts et de la vaisselle

Utilisation du produit de lavage 31 Fonction "Tout en 1" 33 Sélection et départ d'un programme de lavage 34

Sous réserve de modifications

Programmes de lavage 35 Entretien et nettoyage 36 En cas d'anomalie de fonctionnement

Caractéristiques techniques 39 Installation 39 Raccordement à l'arrivée d'eau 40 Branchement électrique 41 En matière de protection de

l'environnement 41

Consignes de sécurité

Pour votre sécurité et le bon fonctionnement de l'appareil, lisez attentivement ce manuel avant l'installation et l'utilisation. Conservez ces instructions à proximité de l'appareil. Les utilisateurs doivent connaître parfaitement le fonctionnement et les fonctions de sécurité de l'appareil.

Utilisation réglementaire

• Cet appareil est exclusivement destiné à un usage domestique.

• Ce lave-vaisselle est conçu pour laver la vaisselle et les ustensiles de cuisine pouvant être lavés en machine.

• N'utilisez pas de solvants dans votre appareil. Ceux-ci pourraient provoquer une explosion !

• Les couteaux et autres ustensiles pointus ou tranchants doivent être placés dans le panier à couverts avec la pointe vers le bas. ou posez-les en position horizontale dans le panier supérieur.

• N'utilisez que des produits (sel, produit de lavage, liquide de rinçage) spécifiques pour lave-vaisselle.

• Evitez d'ouvrir la porte pendant que l'appareil fonctionne : une vapeur brûlante peut s'en échapper. Risque de brûlures !

• Ne sortez pas la vaisselle du lave-vaisselle avant la fin du cycle de lavage.

• Lorsque le programme est terminé, débranchez l'appareil et fermez le robinet d'arrivée d'eau.

• Cet appareil ne peut être entretenu et réparé que par un technicien autorisé, exclusivement avec des pièces d'origine.

• N'essayez en aucun cas de réparer le lavevaisselle vous-même. Les réparations effectuées par du personnel non qualifié peuvent provoquer des blessures ou le mauvais fonctionnement du lave-vaisselle. Contactez votre service après vente. Exigez des pièces d'origine.

Sécurité générale

• Les personnes (y compris les enfants) qui souffrent de capacités mentales, physiques et sensorielles réduites ou qui ne se sont pas familiarisées avec le mode de fonctionnement de l'appareil, ne doivent pas l'utiliser. Elles doivent être surveillées ou dirigées par une personne responsable de leur sécurité.

• Respectez les consignes de sécurité du fabricant du détergent pour éviter les brûlures aux yeux, à la bouche et la gorge.

electrolux 21

22 electrolux

• Ne buvez pas l'eau du lave-vaisselle. Des résidus de produit de lavage peuvent rester dans l'appareil.

• Fermez toujours la porte de l'appareil lorsqu'il n'est pas utilisé pour empêcher tout risque de blessure ou de chute accidentelle.

• Ne vous asseyez pas ou ne montez pas sur la porte ouverte.

Sécurité enfants

• Seuls les adultes doivent utiliser cet appareil. Veillez à ce que les enfants ne jouent pas avec l'appareil.

• Rangez les emballages hors de la portée des enfants. Ils présentent un risque de suffocation.

• Rangez les détergents dans un endroit sûr. Veillez à ce que les enfants ne touchent pas les produits de lavage.

• Ne laissez pas les enfants s'approcher de l'appareil quand la porte est ouverte.

Installation

• Vérifiez que l'appareil n'a pas été endommagé pendant le transport. Ne branchez pas un appareil endommagé. Si nécessaire, contactez le fournisseur.

• Déballez l'appareil avant de l'utiliser pour la première fois.

• Une personne compétente et qualifiée doit prendre en charge l'installation électrique.

• Une personne compétente et qualifiée doit prendre en charge le travail de plomberie.

• Ne modifiez ni les spécifications ni le produit. Risque de blessure ou d'endommagement de l'appareil.

• N'utilisez pas l'appareil : – si le câble secteur ou les tuyaux d'eau

sont endommagés,

– si le bandeau de commande, le plan de

travail ou la plinthe sont endommagés, si vous pouvez accéder à l'intérieur de

l'appareil. Contactez le service après-vente de votre magasin vendeur.

• Ne percez pas dans les côtés de l'appareil pour ne pas endommager les composants électriques et hydrauliques.

Avertissement Respectez scrupuleusement les consignes données pour les branchements électriques et le raccordement de l'eau.

Description de l'appareil

electrolux 23

1 Panier supérieur 2 Sélecteur de dureté de l'eau 3 Réservoir de sel régénérant 4 Distributeur de détergent 5 Distributeur de liquide de rinçage 6 Plaque signalétique 7 Filtres 8 Bras d'aspersion inférieur 9 Bras d'aspersion supérieur

Éclairage intérieur

Ce lave-vaisselle est doté d'un éclairage intérieur qui s'allume lors de l'ouverture de la porte et s'éteint lors de la fermeture de celleci.

Avertissement Rayonnement visible, ne fixez pas le faisceau.

Signal optique

Le voyant rouge est allumé.

Le voyant rouge clignote.

Le voyant vert est allumé.

Indication de démarrage du programme de lavage. Le voyant rouge reste allumé pendant le programme de lavage.

Indication d'une anomalie de fonctionnement.

Indication de la fin du programme de lavage.

L'éclairage intérieur de l'appareil intègre une ampoule LED de CLASSE 2, conformément à la norme CEI 60825-1: 1993 + A1:1997 + A2:2001. Longueur d'onde d'émission : 450 nm Puissance maximale émise : 548 μW

S'il est nécessaire de remplacer l'ampoule, contactez votre Service aprèsvente.

Signal optique

Dès que le programme de lavage démarre, un signal optique est projeté sur le sol sous la porte de l'appareil. Si vous installez l'appareil en hauteur dans le meuble pourvu d'une porte qui jouxte de très près, ce signal optique ne sera plus visible.

Bandeau de commande

24 electrolux

1 Touche Marche/Arrêt 2 Affichage numérique 3

Touche Départ différé

4 Touches de sélection des programmes 5

Touche Économie

6 Touche " Tout en 1 " (Multitab) 7 Touche Annulation (Cancel) 8 Voyants 9 Touches de fonction

Voyants

Liquide de rinçage

Sel

Fin du programme S'allume quand le programme de lavage est ter-

1) Même si les réservoirs à sel et liquide de rinçage sont vides, les voyants ne s'allument pas pendant qu'un programme est en cours de fonctionnement.

Touche Départ différé

Cette touche permet de différer le départ du programme de lavage de 1 à 19 heures. Consultez le chapitre "Réglage et démarrage d'un programme de lavage".

Touches de sélection des programmes

Avec ces touches vous pouvez sélectionner le programme de lavage. Appuyez sur l'une de ces touches jusqu'à ce que le chiffre correspondant au programme apparaisse sur l'affichage numérique. Pour plus de détails sur les programmes de lavage, reportezvous au chapitre "Programmes de lavage".

Touche Économie

Cette fonction diminue la température pendant la phase de séchage. L'économie d'énergie est comprise entre 10% et 25%.

Ouvrez la porte du lave-vaisselle, laissez-la entrouverte et attendez quelques minutes avant de décharger la vaisselle ; cela permet de la laisser refroidir et amé-

S'allume lorsque le distributeur de liquide de rinçage doit être rempli. Reportez-vous au chapitre " Utilisation du liquide de rinçage ".

S'allume lorsque le réservoir de sel régénérant doit être rempli. Reportez-vous au chapitre " Utilisation du sel régénérant ". Le voyant de réapprovisionnement en sel régénérant peut rester allumé plusieurs heures après le remplissage du réservoir à sel. Cela n'affecte pas le fonctionnement de l'appareil.

miné.

pondant s'allume lorsque vous appuyez sur la touche. Avec certains programmes, la fonction Économie n'apporte aucun avantage. Reportezvous au chapitre "Programmes de lavage" pour connaître la liste des programmes bénéficiant des avantages de cette fonction.

Touche "Tout en 1"

Appuyez sur cette touche pour activer/désactiver la fonction "Tout en 1". Reportezvous au chapitre "Fonction Tout en 1".

Touche Annulation

Avec cette touche vous pouvez annuler un programme en cours ou un départ différé. Reportez-vous au chapitre " Réglage et départ d'un programme de lavage ".

Touches de fonction

Appuyez sur les touches de fonction pour :

• Régler l'adoucisseur d'eau. Reportezvous au chapitre " Réglage de l'adoucisseur d'eau ".

liore le processus de séchage.

Cette fonction est disponible pour tous les programmes de lavage. Le voyant corres-

electrolux 25

• Activer/désactiver le distributeur de liquide de rinçage lorsque la fonction " Tout en 1 " est activée. Reportez-vous au chapitre " Fonction Tout en 1 ".

Mode Programmation

L'appareil doit être en mode Programmation pour effectuer les opérations suivantes :

• Sélectionner un programme de lavage.

• Régler le niveau de l'adoucisseur d'eau.

• Activer/désactiver les signaux sonores.

• Activer/désactiver le distributeur de liquide de rinçage.

Appuyez sur la touche Marche/Arrêt. L'appareil se trouve en mode Programmation lorsque : – Deux lignes horizontales apparaissent sur

l'affichage numérique.

Appuyez sur la touche Marche/Arrêt. L'appareil n'est pas en mode Programmation lorsque : – La durée du programme de lavage est in-

diquée en minutes sur l'affichage numérique.

– Un programme de lavage a été sélection-

né. Pour revenir au mode Programmation, annulez le programme. Reportez-vous au chapitre " Réglage et départ d'un programme de lavage ".

Signaux sonores

Un signal sonore retentit :

• À la fin d'un programme de lavage.

• Lors du réglage de l'adoucisseur d'eau.

• En cas d'anomalie de fonctionnement.

L'activation des signaux sonores est réglée en usine.

Pour désactiver les signaux sonores, procédez comme suit :

1. Mettez l'appareil en fonctionnement.

2. Contrôlez que l'appareil est en mode Programmation.

3. Appuyez sur les touches de fonction B et C et maintenez-les appuyées jusqu'à ce que les voyants des touches de fonction A, B et C clignotent.

4. Relâchez les touches de fonction A et B.

5. Appuyez sur la touche de fonction C. – Les voyants des touches de fonction A

et B s'éteignent.

– Le voyant de la touche de fonction C

clignote.

– L'affichage numérique indique le régla-

ge.

Signaux sonores désactivés

Signaux sonores activés

Les signaux sonores sont désactivés.

6. Appuyez à nouveau sur la touche de fonction C. – Le nouveau réglage apparaît sur l'affi-

chage numérique.

Les signaux sonores sont désactivés.

7. Mettez l'appareil à l'arrêt pour mémoriser l'opération.

Pour activer les signaux sonores, procédez comme suit :

1. Appliquez la procédure décrite ci-dessus jusqu'à ce que le réglage souhaité apparaisse sur l'affichage numérique.

Avant la première utilisation

Appliquez la procédure pas à pas en vous reportant aux instructions suivantes :

1. Réglez l'adoucisseur d'eau en fonction du degré de dureté de l'eau de votre région. Si nécessaire, ajustez le niveau de l'adoucisseur d'eau.

2. Remplissez le réservoir de sel régénérant avec du sel spécial pour lave-vaisselle.

3. Remplissez le distributeur de liquide de rinçage.

4. Rangez les couverts et la vaisselle dans le lave-vaisselle.

5. Sélectionnez le programme de lavage en fonction de la charge et du degré de salissure.

6. Versez le produit de lavage dans le compartiment correspondant.

7. Démarrez le programme de lavage.

Si vous utilisez des pastilles de détergent multifonctions ('3 en 1', '4 en 1', '5 en 1', etc.), reportez-vous au chapitre "Fonction Tout en 1".

26 electrolux

Réglage de l'adoucisseur d'eau

L'adoucisseur d'eau élimine les minéraux et les sels de l'alimentation en eau. Les sels et les minéraux peuvent affecter le fonctionnement de l'appareil. La dureté de l'eau est mesurée par échelles équivalentes :

• °dH allemand.

•°TH français.

Dureté de l'eau Réglage de la dureté de l'eau

°dH °TH mmol/l degrés

4 - 10 7 - 18 0,7 - 1,8 5 - 12 1 2

< 4 < 7 < 0,7 < 5

1) Ne pas approvisionner en sel régénérant.

Réglez manuellement et électroniquement l'adoucisseur d'eau.

Réglage manuel

L'adoucisseur est réglé à l'usine sur la position 2.

1. Ouvrez la porte.

2. Sortez le panier inférieur du lave-vaisselle.

3. Tournez le sélecteur de dureté de l'eau sur la position 1 ou 2 (reportez-vous au tableau).

4. Replacez le panier inférieur.

5. Fermez la porte.

• mmol/l (millimole par litre – unité internationale de la dureté de l'eau).

•Clarke.

Ajustez l'adoucisseur en fonction de la dureté de l'eau de votre région. Renseignez-vous auprès de la Compagnie locale de distribution des eaux pour connaître le degré de dureté de l'eau de votre zone d'habitation.

Clarke

manuel électronique

Réglage électronique

Le lave-vaisselle est réglé d'usine sur 5.

1. Mettez l'appareil en fonctionnement.

2. L'appareil doit se trouver en mode Pro-

grammation.

3. Appuyez sur les touches de fonction B et

C et maintenez-les appuyées jusqu'à ce que les voyants des touches de fonction A, B et C clignotent.

4. Relâchez les touches de fonction B et C.

5. Appuyez sur la touche de fonction A.

– Les voyants des touches de fonction B

et C s'éteignent.

– Le voyant de la touche de fonction A

continue de clignoter.

– L'affichage numérique indique le ni-

veau actuel. – Un signal sonore retentit. Exemple : l'affichage numérique indique

/ 5 signaux sonores intermittents re-

tentissent = niveau 5.

electrolux 27

6. Chaque pression de la touche de fonction A détermine le passage au niveau suivant.

Utilisation du sel régénérant

Attention Utilisez uniquement du sel régénérant pour lave-vaisselle. Les autres types de sel peuvent endommager l'adoucisseur.

Attention Les grains de sel et l'eau salée au fond de l'appareil peuvent favoriser une corrosion. Remplissez l'appareil de sel avant de démarrer un programme de lavage pour éviter la formation de corrosion.

Procédez de la manière suivante pour remplir le réservoir :

1. Tournez le bouchon vers la gauche pour ouvrir le réservoir à sel.

2. Remplissez le réservoir d'un litre d'eau (uniquement lors de la première opération).

3. Utilisez un entonnoir pour verser le sel.

7. Appuyez sur la touche Marche/Arrêt pour mémoriser l'opération.

4. Eliminez le sel qui se trouve autour de l'ouverture du réservoir.

5. Vissez le bouchon vers la droite pour refermer le réservoir à sel.

Il est normal que l'eau déborde du réservoir au moment où vous le remplissez de sel.

Quand vous réglez électroniquement l'adoucisseur sur le niveau 1, le voyant Sel ne reste pas allumé.

Utilisation du liquide de rinçage

Attention Utilisez uniquement un liquide de rinçage pour lave-vaisselle. N'utilisez aucun autre produit qui n'est pas adapté au lave-vaisselle (par ex, agent nettoyant pour lave-vaisselle, détergent liquide). Cela aurait pour effet d'endommager l'appareil.

Le liquide de rinçage permet de sécher la vaisselle sans laisser de traces. Le liquide de rinçage est automatiquement ajouté à la dernière phase du rinçage.

Procédez de la manière suivante pour remplir le distributeur :

1. Appuyez sur la touche (A) pour ouvrir le distributeur.

+ 61 hidden pages
