AEG-Electrolux ESL63010 User Manual

user manual

ESL 63010

Dishwasher

156997950en prov.qxp 1/22/2007 12:31 PM Page 1

We were thinking of you

when we made this product

156997950en prov.qxp 1/22/2007 12:31 PM Page 2

welcome to the world of Electrolux electrolux 3

You’ve chosen a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. Electrolux ambition is to offer a wide variety of quality products that would make your life even more comfortable. You can look at some examples on the cover in this manual. But now it’s time to study this manual and start using and enjoying the benefits from your new machine. We promise that it’ll make your life a little easier. Good luck!

Welcome to the world of Electrolux

156997950en prov.qxp 1/22/2007 12:31 PM Page 3

Safety information 5

Product description 7

Control panel 8

First use 11

Daily use 15

Washing programmes 24

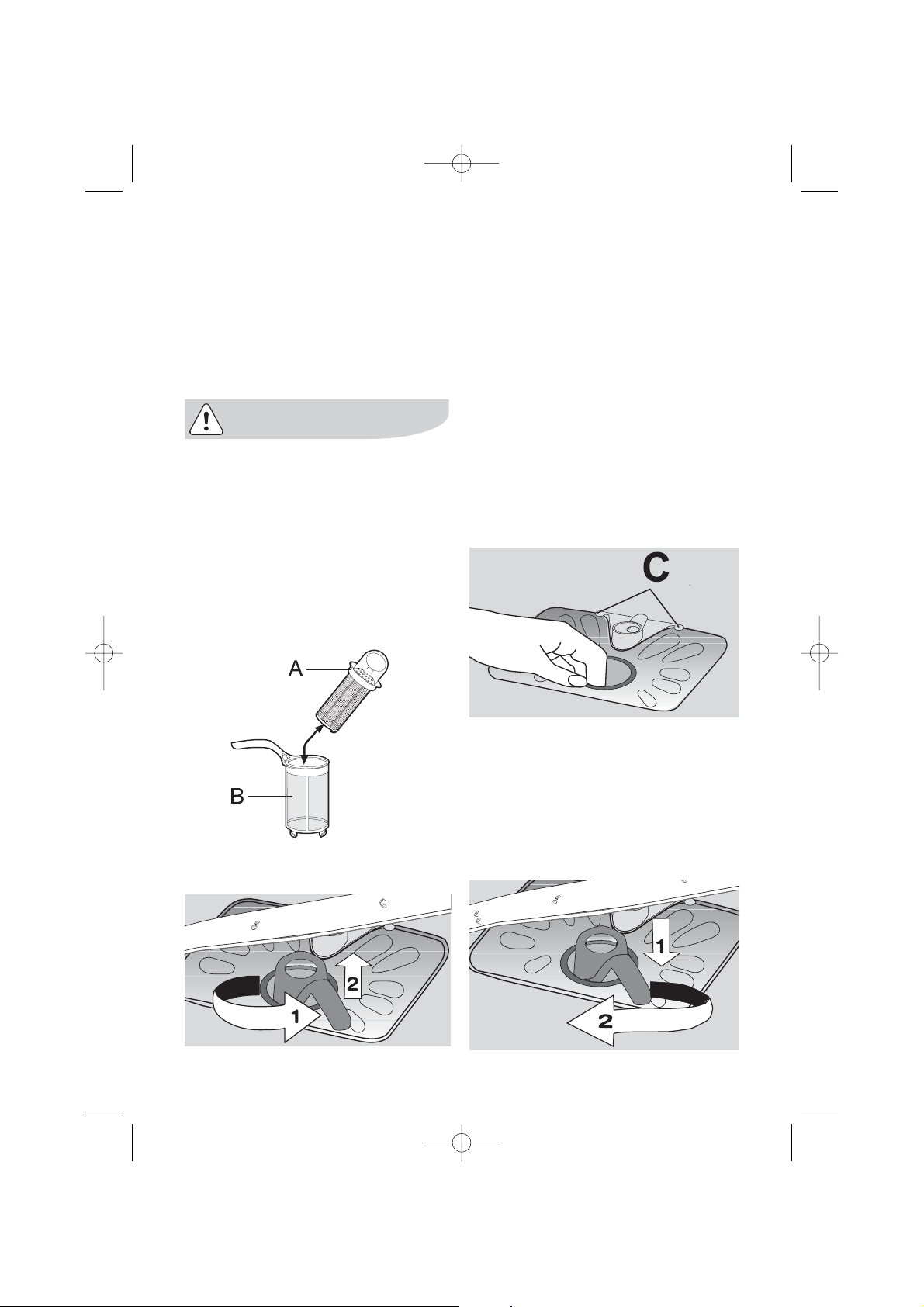

Care and cleaning 25

Something not working 27

Technical data 30

Hints for test institutes 32

Installation 33

Environment concerns 36

Guarantee/Customer Service 37

Contents

The following symbols are used in this manual:

Important information concerning your personal safety and information on how to avoid damaging the appliance.

General information and tips

Environmental information

4 electrolux contents

156997950en prov.qxp 1/22/2007 12:31 PM Page 4

safety information electrolux 5

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

Correct use

● This dishwasher is only intended

for washing household utensils suitable for machine washing.

● Do not put any solvents in the

dishwasher. This could cause an explosion.

● Knives and other items with sharp

points must be loaded in the cutlery basket with their points down or placed in a horizontal position in the upper basket.

● Only use products (detergent, salt

and rinse aid) suitable for dishwashers.

● Avoid opening the door whilst the

appliance is in operation, hot steam may escape.

● Do not take any dishes out of the

dishwasher before the end of the dishwashing cycle.

Safety information

● After use, isolate the appliance

from the power supply and turn off the water supply.

● This product should be serviced

only by an authorised service engineer, and only genuine spare parts should be used.

General safety

● Dishwasher detergents can cause

chemical burns to eyes, mouth and throat. Could endanger life! Comply with the safety instructions of the dishwasher detergent manufacturer.

● The water in your dishwasher is

not for drinking. Detergent residues may still be present in your machine.

● Ensure that the door of the

dishwasher is always closed when it is not being loaded or unloaded. In this way you will avoid anybody tripping over the open door and hurting themselves.

● Do not sit or stand on the open

door.

Child safety

● This appliance is designed to be

operated by adults. Don’t allow children to use the dishwasher unsupervised.

● Keep all packaging well away from

children. There is risk of suffocation.

● Keep all detergents in a safe place

out of children’s reach.

● Keep children well away from the

dishwasher when the door is open.

156997950en prov.qxp 1/22/2007 12:31 PM Page 5

6 electrolux safety information

Installation

● Check your dishwasher for any

transport damage. Never connect a damaged machine. If your dishwasher is damaged contact your supplier.

● All packaging must be removed

before use.

● Any electrical and plumbing work

required to install this appliance must be carried out by a qualified and competent person.

● For safety reasons it is dangerous

to alter the specifications or attempt to modify this product in any way.

● Never use the dishwasher if the

electrical supply cable and water hoses are damaged; or if the control panel, work top or plinth area are damaged such that the inside of the appliance is freely accessible. Contact your local Service Force centre, in order to avoid hazard.

● All sides of the dishwasher must

never be drilled to prevent damage to hydraulic and electric components.

For electrical and water connection carefully follow the instructions given in specific paragraphs.

156997950en prov.qxp 1/22/2007 12:31 PM Page 6

product description electrolux 7

Product description

Upper basket

Water hardness dial

Salt container

Detergent dispenser

Rinse aid dispenser

Rating plate

Filters

Lower spray arm

Upper spray arm

1

2

3

4

5

6

7

8

9

156997950en prov.qxp 1/22/2007 12:31 PM Page 7

8 electrolux control panel

Control panel

On/Off button

Delay start button

Programme selection / cancel button

Indicator lights

1

2

3

4

Indicator lights

End of programme

Illuminates when a washing programme has ended. It also has added functions of visual signalling as:

- the setting of the water softener,

- activation/deactivation of the audible signals,

- intervention of an alarm due to the malfunction of the machine.

Salt

Illuminates when the special salt has run out.

Rinse aid

Illuminates when the rinse aid has run out.

156997950en prov.qxp 1/22/2007 12:31 PM Page 8

control panel electrolux 9

The salt indicator light on the control panel can remain illuminated for 2-6 hours after the salt has been replenished, assuming the dishwasher remains switched on. If you are using salts that take longer to dissolve then this can take longer.The function of the machine is not affected.

Setting mode

The appliance is in setting mode when all programme indicator light are off and end of programme indicator light is flashing.

Always remember that when:

- setting the water softener,

- activating/deactivating the audible signals,

the appliance MUST be in setting mode. If a programme indicator light is illuminated and end of programme indicator light is illuminated with fixed light, the last performed or selected programme still set. In this case, to return to setting mode, the programme has to be cancelled.

1. Press and hold the programme selection/cancel button until the light of the set programme turns off and the end of programme indicator light is flashing.

2. Release the programme

selection/cancel button.

Factory setting: audible signals

activated. It is possible to deactivate the audible signals, using the programme

selection/cancel button.

Audible signals

Audible signals have been introduced to help indicate which operations the dishwasher is performing:

- end of programme

- intervention of an alarm due to

malfunction

Deactivation/activation of the audible signals

1. Press the On/Off button. The dishwasher must be in setting mode.

2. Press and hold the programme selection/cancel button until programme light 1 flashes and programme light 2 illuminates with a fixed light.

3. Press programme selection/cancel button again, programme light 1 illuminates with a fixed light and programme light 2 starts flashing.

156997950en prov.qxp 1/22/2007 12:31 PM Page 9

10 electrolux control pane

4. Wait until:

- programme light 1 turns off,

- programme light 2 goes on flashing

- the end of programme indicator

light illuminates with a fixed light, indicating that the audible signals

are activated.

5. To deactivate the audible signals, press the programme

selection/cancel button again: the end of programme indicator light

turns off indicating that the audible signals are deactivated.

6. To memorise the operation, switch off the dishwasher.

To activate again the audible signals simply follow the above operations until the end of programme indicator light illuminates.

156997950en prov.qxp 1/22/2007 12:31 PM Page 10

Before using your dishwasher for the first time:

● Ensure that the electrical and

water connections comply with the installation instructions

● Remove all packaging from inside

the appliance

● Set the water softener

● Pour 1 litre of water inside the salt

container and then fill with dishwasher salt

● Fill the rinse aid dispenser

When using combi detergents tablets («3 in 1», «4 in 1», «5 in 1», etc...) follow the instructions given in "Use of detergent".

First use

Set the water softener

The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance.

The higher the content of these minerals and salts, the harder your water is.

Water hardness is measured in equivalent scales, Clarke degrees (°dH), French degrees (°TH) and mmol/l (millimol per litre - international unit for the hardness of water).

The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

*

no salt is necessary

Water hardness

Clarke °TH mmol/l manually electronically

Adjusting the water

hardness setting

Use of

salt

64 - 88 91 - 125 9,0 - 12,5 2 level 10 yes

53 - 63 76 - 90 7,6 - 8,9 2 level 9 yes

46 - 52 65 - 75 6,5 - 7,5 2 level 8 yes

36 - 45 51 - 64 5,1 - 6,4 2 level 7 yes

28 - 35 40 - 50 4,0 - 5,0 2 level 6 yes

23 - 27 33 - 39 3,3 - 3,9 2 level 5 yes

18 - 22 26 - 32 2,6 - 3,2 1 level 4 yes

13 - 17 19 - 25 1,9 - 2,5 1 level 3 yes

5 - 12 7 - 18 0,7 - 1,8 1 level 2 yes

< 5 < 7 < 0,7 1 level 1 no

*

first use electrolux 11

156997950en prov.qxp 1/22/2007 12:31 PM Page 11

12 electrolux first use

The water softener must be set in both ways: manually, using the water hardness dial and electronically.

Setting manually

The dishwasher is factory set at position 2.

1. Open the dishwasher door.

2. Remove the lower basket from the dishwasher.

3. Turn the water hardness dial to position 1 or 2 (see table).

4. Replace the lower basket.

Setting electronically

The dishwasher is factory set at level 5.

1. Press the On/Off button. The dishwasher must be in setting mode.

2. Press and hold the programme selection/cancel button until programme light 1 flashes and programme light 2 illuminates with a fixed light.

3. Wait until:

- programme light 2 turns off,

- programme light 1 goes on flashing

- the end of programme indicator light starts flashing: the nimber of flashes corresponds to the current level set. The flashing is repeated with a pause of a few seconds. Examples: 5 flashes, pause, 5 flashes, pause, etc... =

level 5.

4. To change the level, press the

programme selection/cancel

button. Each time the button is pressed the level increase. (level 1 follows level10). The end of programme light indicates the new setting.

5. To memorise the operation, switch off the dishwasher by pressing the On/Off button.

156997950en prov.qxp 1/22/2007 12:31 PM Page 12

first use electrolux 13

Filling with dishwasher salt

Only use salt specifically designed for use in dishwashers. All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. Only fill with salt just before starting one of the complete washing programmes. This will prevent any grains of salt or salty water, which may have been spilt, remaining on the bottom of the machine for any period of time, which may cause corrosion.

To fill:

1. Open the door, remove the lower basket and unscrew the cap of the salt container by turning it anticlockwise.

2. Pour 1 litre of water inside the container (this is necessary only

before filling with salt for the first time).

3. Using the funnel provided, pour in the salt until the container is full.

4. Replace the cap making sure that there is no trace of salt on the screw thread or on the gasket.

5. Replace the cap tightly turning it clockwise until it stops with a click.

Do not worry if water overflows from the unit when filling with salt, this is quite normal.

156997950en prov.qxp 1/22/2007 12:31 PM Page 13

14 electrolux first use

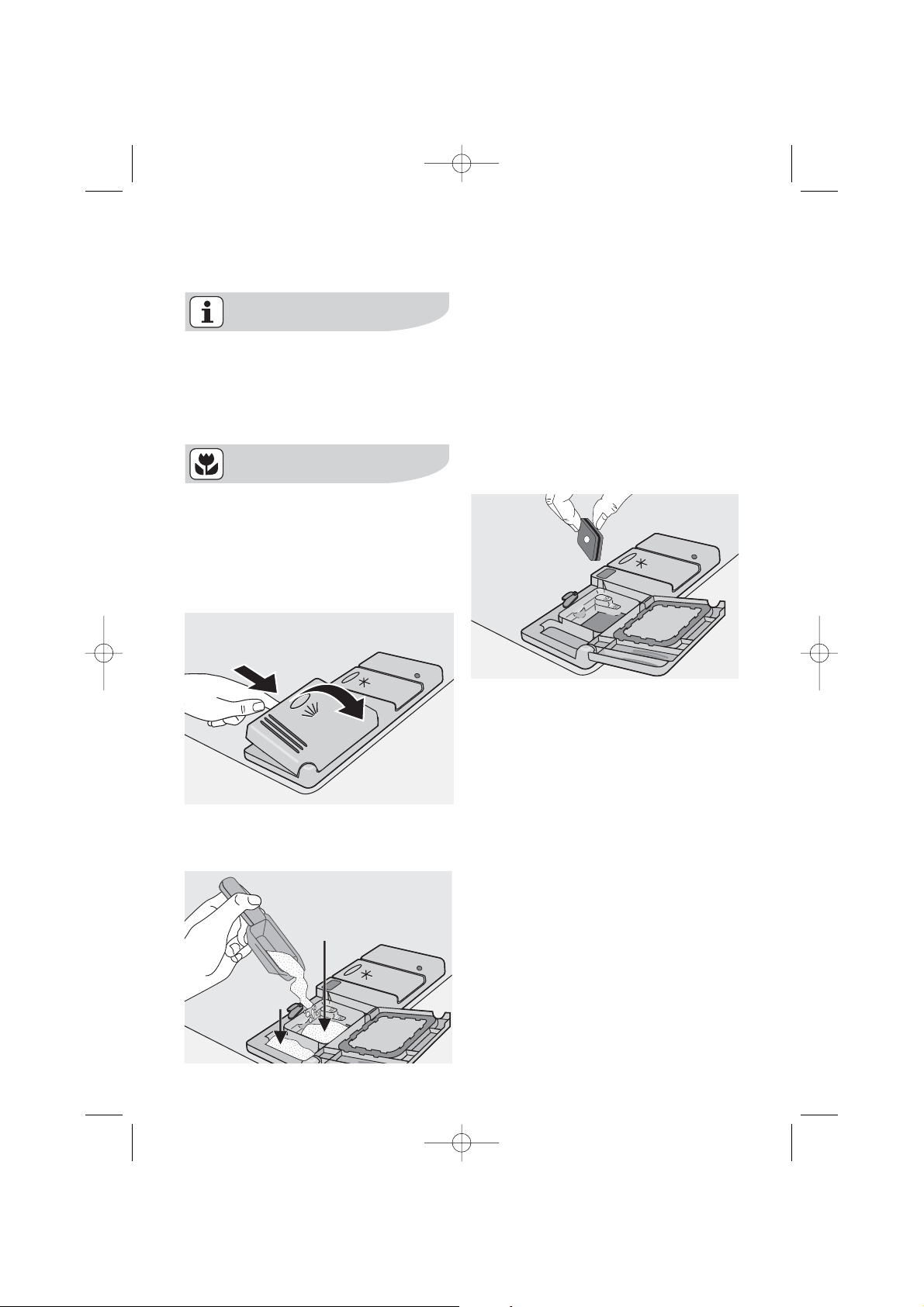

Filling with rinse aid

Rinse aid ensures thorough rinsing, and spot and streak free drying.

Rinse aid is automatically added during the last rinse.

1. Open the container by pressing the release button (A).

2. Add the rinse aid in the container. The maximum level for filling is indicated by "max".

The dispenser holds about 110 ml of rinse aid, which is sufficient for between 16 and 40 dishwashing cycles, depending upon the dosage setting.

According to the finish and drying results obtained, adjust the dose of rinse aid by means of the 6 position selector (position 1 minimum dosage, position 6 maximum dosage).

The dose is factory set in position 4.

Increase the dose if there are drops of water or lime spots on the dishes after washing.

Reduce it if there are sticky whitish streaks on the dishes or a bluish film on glassware or knife blades.

3. Ensure that the lid is closed after every refill.

Clean up any rinse aid spilt during filling with an absorbent cloth to avoid excess foaming during the next wash.

Only use branded rinse aid for dishwashers.

Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance.

156997950en prov.qxp 1/22/2007 12:31 PM Page 14

● Check if it’s necessary to refill with

dishwasher salt or rinse aid

● Load cutlery and dishes into the

dishwasher.

● Fill with dishwasher detergent .

● Select a wash programme suitable

for the cutlery and dishes.

● Start the wash programme.

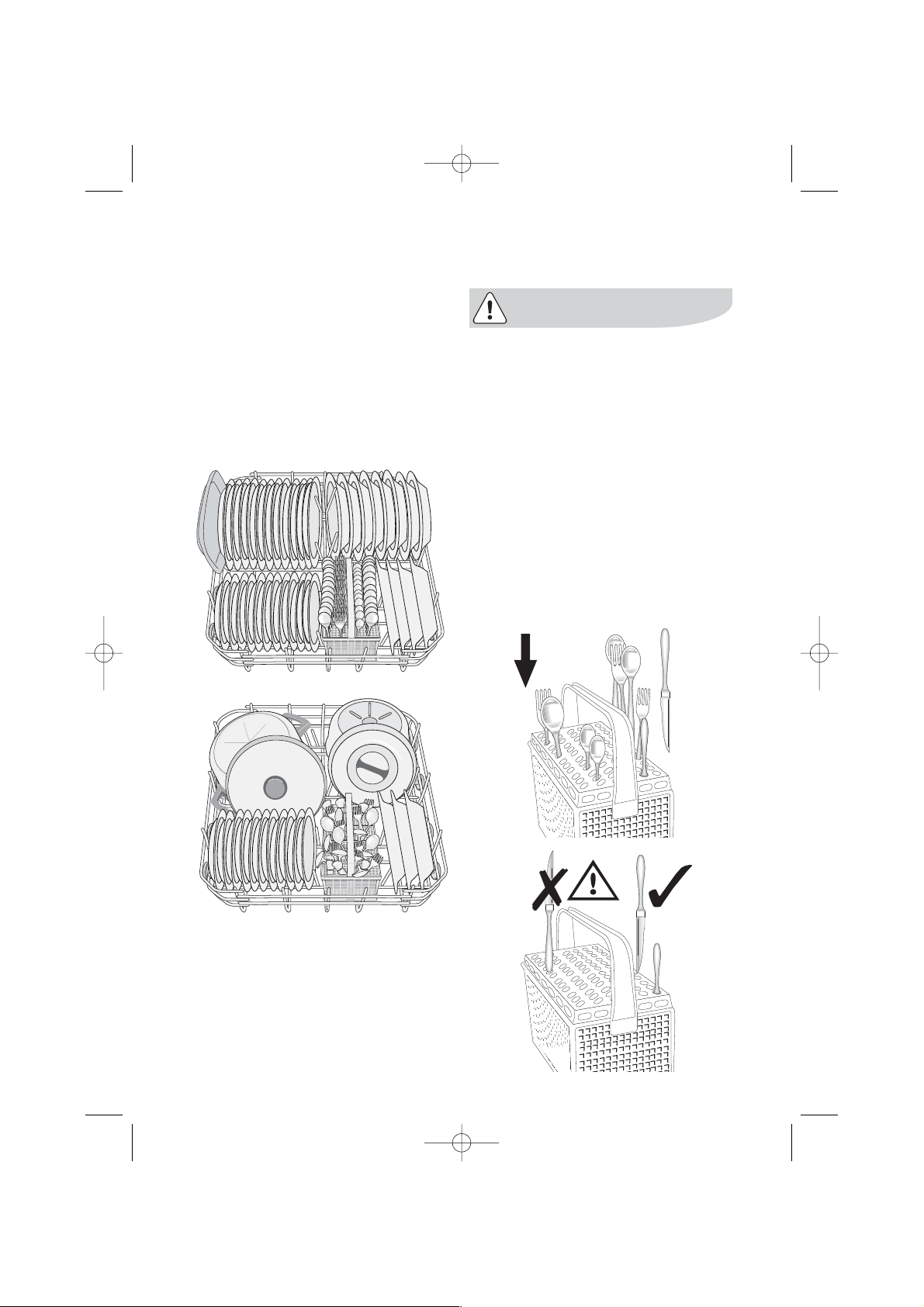

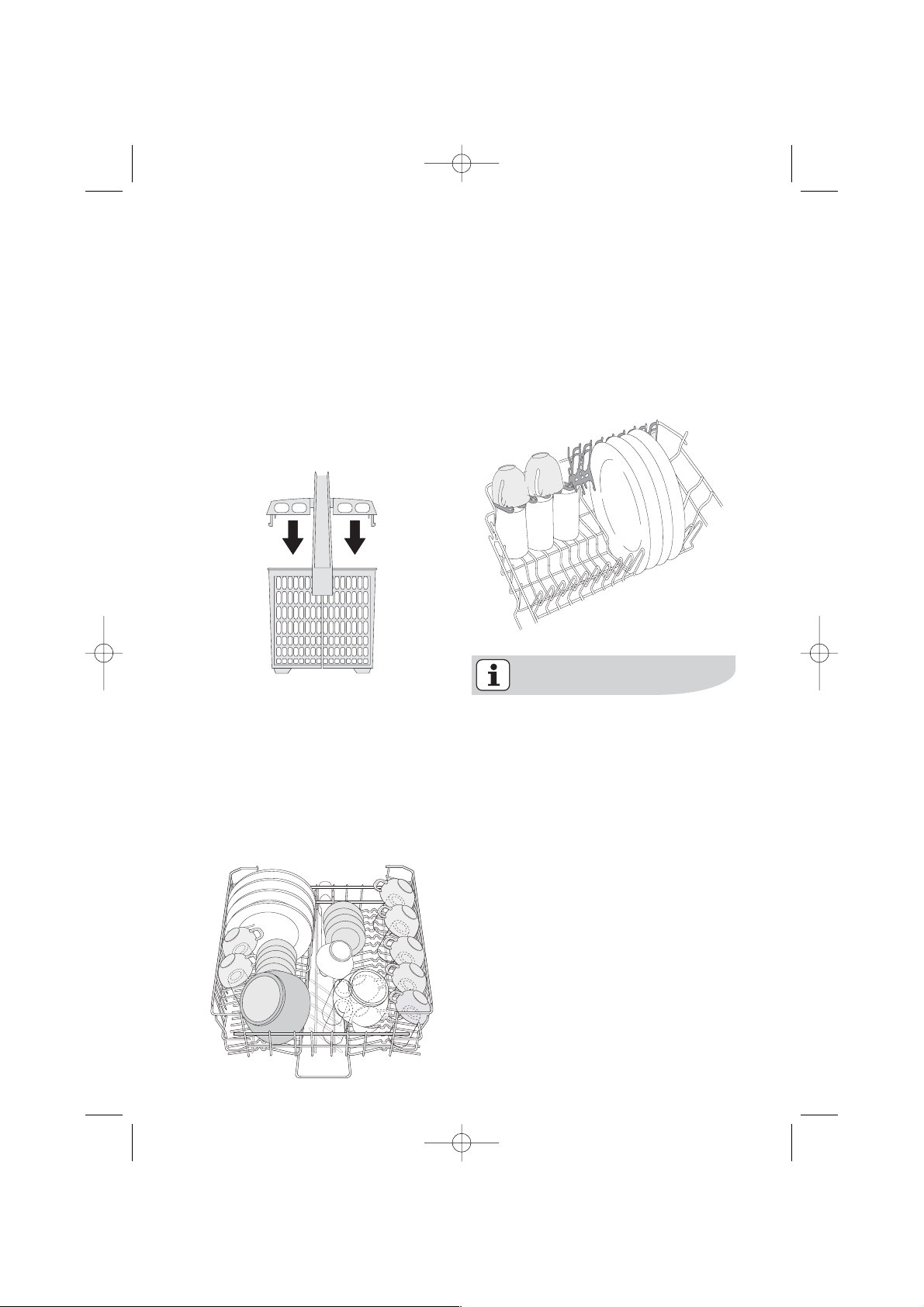

Loading cutlery and dishes

Sponges, household cloths and any object that can absorb water may not be washed in the dishwasher.

● Before loading the dishes, you

should:

- Remove all left over food and debris.

- Soften remnants of burnt food in pans

● When loading the dishes and

cutlery, please note:

- Dishes and cutlery must not impede the rotation of the spray arms .

- Load hollow items such as cups, glasses, pans, etc. with the opening downwards so that water cannot collect in the container or a deep base.

- Dishes and items of cutlery must not lie inside one another, or cover each other.

- To avoid damage to glasses, they must not touch.

Daily use

- Lay small objects in the cutlery basket.

● Plastic items and pans with teflon

have a tendency to retain water drops; these items will not dry as well as porcelain and steel items.

daily use electrolux 15

156997950en prov.qxp 1/22/2007 12:31 PM Page 15

16 electrolux daily use

For washing in the dishwasher the following cutlery and dishes

are not suitable: - Cutlery with wooden, horn, china or mother-of-

pearls handles.

- Plastic items that are not heat resistant.

- Older cutlery with glued parts that are not temperature resistant.

- Bonded cutlery items or dishes.

- Pewter or copper items.

- Lead crystal glass.

- Steel items prone to rusting.

- Wooden platters.

- Items made from synthetics fibres.

are of limited suitability:

- Only wash stoneware in the dishwasher if it is specially marked as being dishwasher-safe by the manufacturer.

- Glazed patterns may fade if machine washed frequently.

- Silver and aluminium parts have a tendency to discolour during washing: Residues, e.g. egg white, egg yolk and mustard often cause discolouring and staining on silver. Therefore always clean left-overs from silver immediately, if it is not to be washed straight after use.

156997950en prov.qxp 1/22/2007 12:31 PM Page 16

daily use electrolux 17

Open the door and slide out the baskets to load the dishes.

The lower basket

The lower basket is designed to take saucepans, lids, plates, salad bowls, cutlery etc.

Serving dishes and large lids should be arranged around the edge of the basket, ensuring that the spray arms can turn freely.

The cutlery basket

Long bladed knives stored in an upright position are a potential hazard.

Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.

Take care when loading or unloading sharp items such as knives.

Forks and spoons should be placed in the removable cutlery basket with the handles facing downwards and the knives with their handles facing upwards.

156997950en prov.qxp 1/22/2007 12:31 PM Page 17

18 electrolux daily use

If the handles protrude from the bottom of the basket, obstructing the lower spray arm, load the cutlery with the handles facing upwards.

Mix spoons with other cutlery to prevent them from sticking together.

For best results we recommend you to use the cutlery grid provided (if the size and dimensions of the cutlery allow it).

Glasses with long stems can be placed upside down in the cup racks.

For taller items, the cup racks can be folded upwards.

Light items (plastic bowls etc.) must be loaded in the upper basket and arranged so they do not move.

The upper basket

The upper basket is designed for plates (dessert plates, saucers, dinner plates of up to 24 cm in diameter), salad bowls, cups and glasses.

Arrange items on and underneath the cup racks so that water can reach all surfaces.

Before closing the door, ensure that the spray arms can rotate freely.

156997950en prov.qxp 1/22/2007 12:31 PM Page 18

daily use electrolux 19

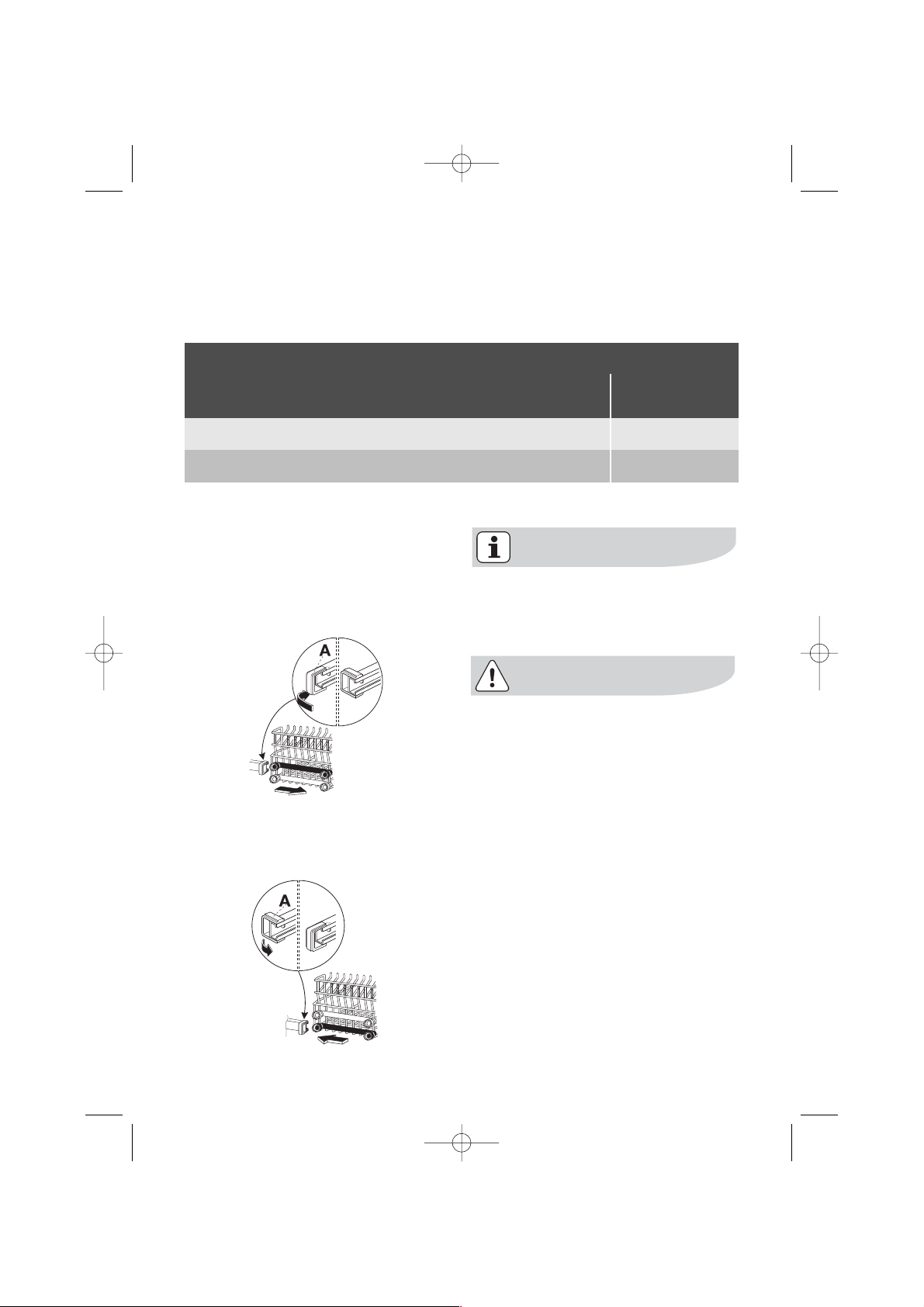

Adjusting the height of the upper basket

If washing very large plates you can load them in the lower basket after moving the upper basket to the higher position.

Maximum height of the dishes in:

the upper

basket

20 cm 31 cm

the lower

basket

With upper basket raised

24 cm 27 cm

With upper basket lowered

When the basket is in the higher position you will not be able to use the cup racks.

After loading your machine always close the door, as an open door can be a hazard.

To move to the higher position proceed as follows:

1. Move the front runner stops (A) of the upper basket outwards and slide the basket out.

2. Refit the basket in the higher position and replace the stops (A) in their original position.

156997950en prov.qxp 1/22/2007 12:31 PM Page 19

20 electrolux daily use

Use of detergent

Only use detergents specifically designed for use in dishwashers.

Please observe the manufacturer’s dosing and storage recommendations as stated on the detergent packaging.

Using no more than the correct amount of detergent contributes to reducing pollution.

Fill with detergent

1. Open the lid.

2. Fill the detergent dispenser (1) with detergent. The marking indicates the dosing levels:

20 = approximately 20 g of detergent

30 = approximately 30 g of detergent

3. All programmes with prewash need an additional detergent dose (5/10 g) that must be placed in the prewash detergent chamber (2). This detergent will take effect during the prewash phase.

When using detergent tablets; place the tablet in compartment (1)

4. Close the lid and press until it locks in place.

156997950en prov.qxp 1/22/2007 12:31 PM Page 20

1

2

daily use electrolux 21

Detergent tablets

Detergent tablets from different manufactures dissolve at different rates. For this reason, some detergent tablets do not attain their full cleaning power during short washing programmes. Therefore, please use long washing programmes when using detergent tablets, to ensure the complete removal of detergent residuals.

Use of combi detergent tablets

These products are detergents with a combined cleaning, rinsing and salt functions. They can also contain other different agents depending on which kind of tablets you choose («3 in 1», «4 in 1», «5 in 1» etc...).

1. Check whether these detergents are suitable for your water hardness. Follow the manufacturers instructions.

2. Select the lowest setting for water hardness and rinse aid dosage.

3. Before the start of the washing programme put the combi detergent tablet in the detergent dispenser.

The refilling of the salt container and the rinse aid dispenser are no longer necessary. In this case the rinse aid indicator light will always remain illuminated when the machine is switched on (not all dishwasher models are foreseen with rinse aid indicator light).

If the drying results are not satisfactory we recommend that you:

1. Fill up the rinse aid dispenser with rinse aid.

2. Set the rinse aid dosage to position 2.

If you decide to turn back to the use of the standard detergent system we advise that you:

1. Fill up the dispensers for salt and rinse aid again.

2. Adjust the water hardness setting to the highest setting and perform 1 normal washing programme without loading any dishes.

3. Adjust the water hardness setting according to the hardness of the water in your area.

4. Adjust the rinse aid dosage.

156997950en prov.qxp 1/22/2007 12:31 PM Page 21

22 electrolux daily use

Select and start a washing programme

Select the washing programme and delay start with the door slightly opened. The start of the programme or the countdown of the delay start will occur only after the closure of the door. Until that moment it is possible to modify the set made.

1. Check that the baskets have been loaded correctly and that the spray arms are free to rotate

2. Check that the water tap is opened

3. Press the On/Off button. The dishwasher must be in setting mode. The end of programme indicator light is flashing.

4. Press the programme selection/cancel button until the light corresponding to the required washing programme illuminates (see "Washing programmes" chart).

Close the dishwasher’s door, the programme starts automatically.

3. The opening of the door will interrupt the countdown. Close the door; the countdown will continue from the point at which it was interrupted.

4. Once the delay start has elapsed the programme will start automatically.

Setting and starting the programme with "delay start"

1. After having selected the washing programme, press the delay start button This option allows the start of the washing programme to be delayed by 3 hours. The corresponding light illuminates,

2. Close the dishwasher’s door, the countdown starts automatically.

Interrupt or cancel a washing programme in progress ONLY if it’s absolutely necessary. Attention! Hot steam may escape when the door is opened. Open the door carefully.

Interrupt a washing programme in progress:

● Open the dishwasher door; the

programme will stop. Close the door; the programme will start from the point at which it was interrupted.

Cancel a washing programme in progress

● Open the dishwasher door; press

the programme selection/cancel button for about 3 seconds, until the light of the running programme turns off and the end of programme indicator light flashes. The washing programme has been cancelled and the appliance is now in setting mode.

● If a new washing programme is to

be selected, check that there is detergent in the detergent dispenser.

156997950en prov.qxp 1/22/2007 12:31 PM Page 22

daily use electrolux 23

Cancelling the "delay start"

● To cancel a delay start in progress,

open the door and press the delay start button, the corresponding light turns off.

● Close the door, the set washing

programme will start automatically.

End of the washing programme

● The dishwasher will automatically

stop and an audible signal informs you of the end of the washing programme.

● Open the dishwasher door.

● The end of programme indicator

light is illuminated.

● The indicator light of the

programme just ended will remain on.

1. Switch off the dishwasher by pressing the On/Off button.

2. Leave the dishwasher door ajar and wait a few minutes before removing the dishes; in this way they will be cooler and the drying will be improved.

Unloading the dishwasher

● Hot dishes are sensitive to knocks.

The dishes should therefore be allowed to cool down before removing from the appliance.

● Empty the lower basket first and

then the upper one; this will avoid water dripping from the upper basket onto the dishes in the lower one.

● Water may appear on the sides

and the door of the dishwasher as the stainless steel will eventually become cooler than the dishes.

When the washing programme has finished, it is recommended that the dishwasher is unplugged and the water tap turned off.

156997950en prov.qxp 1/22/2007 12:31 PM Page 23

24 electrolux washing programmes

Washing programmes

Programme

Intensive

Heavy soil

Crockery, cutlery, pots and pans

Prewash Main wash up to 70°C 2 intermediate rinses Final rinse Drying

Rinse and

Hold

Any. Partial load (to be completed later in the day).

1 cold rinse (to avoid food scraps from sticking together). This programme does not require the use of detergent.

Normal soil

Crockery, cutlery, pots and pans

Prewash Main wash up to 65°C 2 intermediate rinses Final rinse Drying

Degree of

soil

Type of load Programme description

Normal soil

Crockery and cutlery

Prewash Main wash up to 50°C 1 intermediate rinse Final rinse Drying

Quick

Light soil

Crockery and cutlery

Main wash up to 60°C Final rinse

Normal

156997950en prov.qxp 1/22/2007 12:31 PM Page 24

Care and cleaning

Cleaning the filters

The filters must be checked and cleaned from time to time. Dirty filters will degrade the washing result.

Before cleaning the filters ensure that the machine is switched off.

1. Open the door, remove the lower basket.

2. The dishwasher filter system comprises a coarse filter (A), a microfilter (B) and a flat filter. Unlock the filter system using the handle on the microfilter, and remove.

3. Turn the handle about

1

/4a turn

anticlockwise and remove.

4. Take hold of the coarse filter (A) by the handle with the hole and remove from the microfilter (B).

5. Clean all filters thoroughly under running water.

6. Remove the flat filter from the base of the washing compartment and clean both faces thoroughly.

7. Put the flat filter back in the base of the washing compartment and ensure that it fits perfectly under the two guides (C).

8. Place the coarse filter (A) in the microfilter (B) and press together.

9. Put the filter combination in place and lock by turning the handle clockwise to the stop. During this process ensure that the flat filter does not protrude above the base of the washing compartment.

care and cleaning electrolux 25

156997950en prov.qxp 1/22/2007 12:31 PM Page 25

26 electrolux care and cleaning

Frost precautions

Avoid placing the machine in a location where the temperature is below 0°C. If this is unavoidable, empty the machine, close the appliance door, disconnect the water inlet pipe and empty it.

Moving the machine

If you have to move the machine

(moving house etc....):

1. Unplug it.

2. Turn the water tap off.

3. Remove the water inlet and discharge hoses.

4. Pull the machine out together with the hoses.

Avoid over tilting the machine during transportation.

NEVER try to remove the spray arms.

If residues of soil have clogged the holes in the spray arms, remove them with a cocktail stick.

External cleaning

Clean the external surfaces of the machine and control panel with a damp soft cloth. If necessary use only neutral detergents. Never use abrasive products, scouring pads or solvent (acetone, trichloroethylene

etc....).

Ensure that the seals around the door, the detergent and rinse aid dispensers are cleaned regularly with a damp cloth.

We recommend every 3 months to run a 65°C wash programme without dishes using detergent.

Prolonged periods of nonoperation

If you are not using the machine for any period of time you are advised to:

1. Unplug the appliance and then turn off the water.

2. Leave the door ajar to prevent the formation of any unpleasant smells.

3. Leave the inside of the machine clean.

156997950en prov.qxp 1/22/2007 12:31 PM Page 26

something not working electrolux 27

Something not working

The dishwasher will not start or stops during operation. Certain problems are due to the lack of simple maintenance or oversights, which can be solved with the help of the indications described in the chart, without calling out an engineer.

Open the door and carry out the following suggested corrective actions.

Fault code and malfunction Possible cause and solution

● continuous flashing of the light of the

running programme,

● intermittent audible signal,

● 1 flash of the end of programme

indicator light,

The dishwasher does not fill with water

● The water tap is blocked or furred with

limescale. Clean the water tap.

● The water inlet hose has not been

correctly laid or it is bent or squashed. Check the water drain hose connection.

● The filter (where present) in the threaded

hose fitting at the water inlet valve is blocked. Clean the filter in the threaded hose.

● The water tap is turned off.

Turn the water tap on.

● continuous flashing of the light of the

running programme,

● intermittent audible signal,

● 2 flashes of the end of programme

indicator light,

The dishwasher will not drain

● The sink spigot is blocked.

Clean out the sink spigot.

● The water drain hose has not been

correctly laid or it is bent or squashed. Check the water drain hose connection.

● continuous flashing of the light of the

running programme,

● intermittent audible signals,

● 3 flashes of the end of programme

indicator light,

Anti-flood device is activated

● Close the water tap and contact your

local Service Force Centre.

Remember to switch off the appliance before carrying out any corrective action.

27 electrolux something not working

156997950en prov.qxp 1/22/2007 12:31 PM Page 27

Malfunction Possible cause and solution

The programme does not start ● The dishwasher’s door has not been

properly closed. Close the door.

● The main plug is not plugged in.

Insert the main plug.

● Delay start has been set.

If dishes are to be washed immediately, cancel the delay start.

● The fuse has blown out in the household

fuse box. Replace the fuse.

Once these checks have been carried out; switch on the appliance, press the programme selection/cancel button and close the door.

The programme will continue from the point at which it was interrupted.

If the malfunction or fault code reappears contact the Service Force Centre.

For other fault codes not described in the above chart, please contact your Service Force Centre.

Contact your local Service Force Centre, quoting the model (Mod.), product number (PNC) and serial number (S.N.). This information can be found on the rating plate located on the side of the dishwasher door.

So that you always have these numbers at hand, we recommend you to make a note of them here:

Mod. :. . . . . . . . . . . . . . . . . . . . . . . . .

PNC : . . . . . . . . . . . . . . . . . . . . . . . . .

S.N. : . . . . . . . . . . . . . . . . . . . . . . . . .

28 electrolux something not working

156997950en prov.qxp 1/22/2007 12:31 PM Page 28

something not working electrolux 29

If after all these checks, the problem persists, contact your local Service Force Centre.

The wash results are not satisfactory

The dishes are not clean

● The wrong washing programme has been selected.

● The dishes are arranged in such a way as to stop water

reaching all parts of the surface. The baskets must not be overloaded.

● The spray arms do not rotate freely due to incorrect

arrangement of the load.

● The filters in the base of the washing compartment are

dirty or incorrectly positioned.

● Too little or no detergent has been used.

● Where there are limescales deposits on the dishes; the

salt container is empty or the incorrect level of the water softener has been set.

● The drain hose connection is not correct.

● The salt container cap is not properly closed.

The dishes are wet and dull

● Rinse aid was not used.

● The rinse aid dispenser is empty.

There are streaks, milky spots or a bluish coating on glasses and dishes

● Decrease rinse aid dosing.

Water drops have dries onto glasses and dishes

● Increase rinse aid dosing.

● The detergent may be the cause. Contact the detergent

manufacturer’s consumer care line.

156997950en prov.qxp 1/22/2007 12:31 PM Page 29

30 electrolux technical data

Technical data

Dimensions Width 59.6 cm

81.8 - 87.8 cm

55.5 cm

Height

Depth

Water supply pressure Minimum 0.05 MPa (0,5 bar)

0.8 MPa (8 bar)

Maximum

Capacity 12 place settings

Max. weight 37 kg

Noise level 49 dB (A)

Electrical connection Voltage - Overall power Fuse

Information on the electrical connection is given on the rating plate on the inner edge of the dishwasher’s door

Subject to change without notice

156997950en prov.qxp 1/22/2007 12:31 PM Page 30

technical data electrolux 31

The consumption values are intended as a guide and depends on the pressure and the temperature of the water and also by the variations of the power supply and the amount of dishes.

Consumption values

Programme

duration

(in minutes)

Programme Energy

consumption

(in kWh)

Water

consumption

(in litres)

85 - 95Intensive 1.8 - 2.0 22 - 25

105 - 115Normal 1.5 - 1.7 23 - 25

30Quick 0.90 9

140

Eco

(Test programme for test institutes)

1.05 16

12

Rinse and Hold

0.1 5

156997950en prov.qxp 1/22/2007 12:31 PM Page 31

32 electrolux hints for test institutes

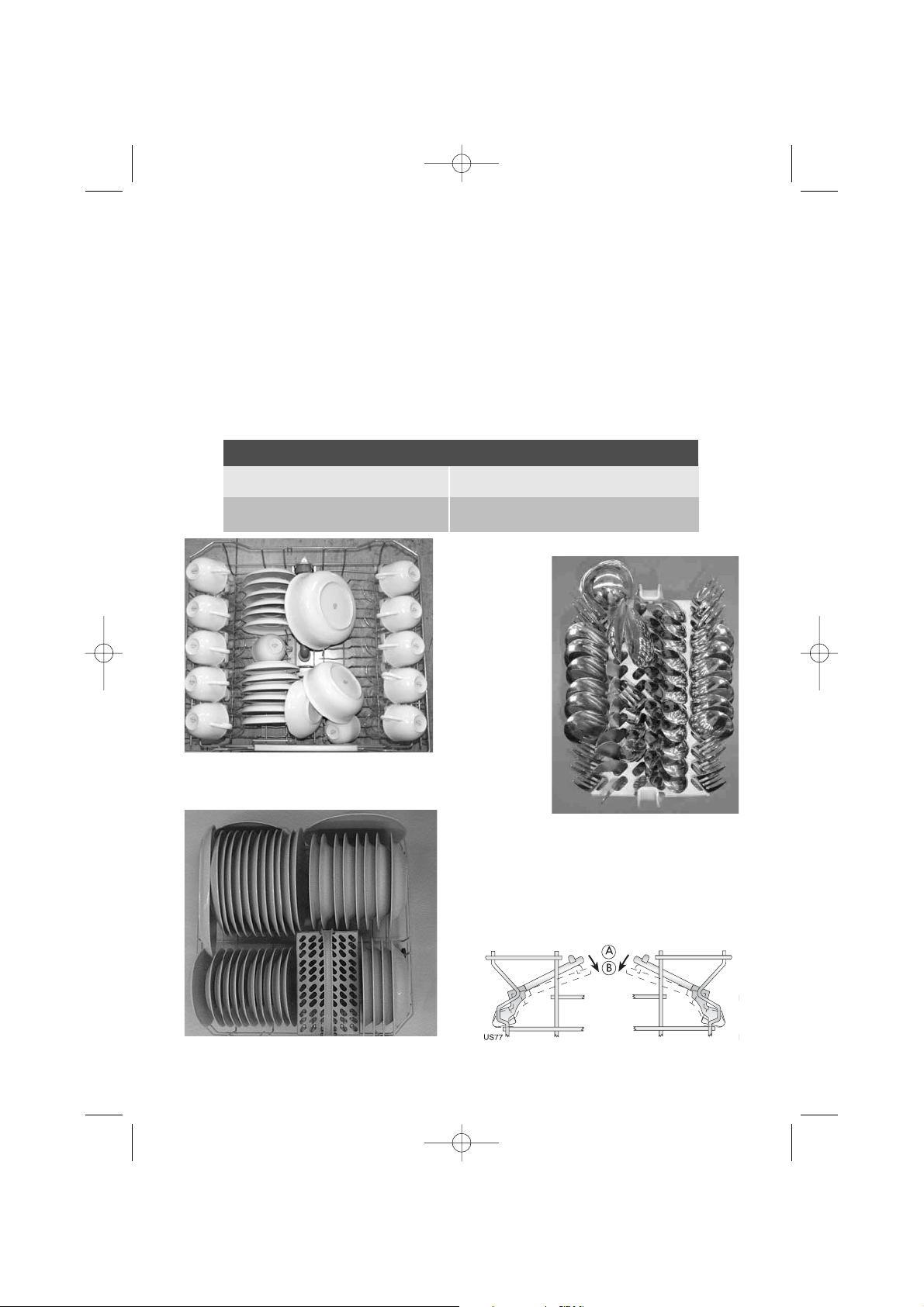

Hints for test institutes

Testing in accordance with EN 60704 must be carried out with appliance fully loaded and using the test programme (see "Consumption values").

Test in accordance with EN 50242 must be carried out when the salt container and rinse aid dispenser have been filled with salt and rinse aid respectively and using the test programme (see "Consumption values").

Full load: 12 standard place settings

Amount of detergent required: 5 g + 25 g (Type B)

Rinse aid setting: position 4 (Type III)

Arrangement upper basket

Arrangement lower basket

Arrangement cutlery

basket

Cup racks: position A

156997950en prov.qxp 1/22/2007 12:31 PM Page 32

Any electrical and/or plumbing work required to install this appliance should be carried out by a qualified electrician and/or plumber or competent person.

Remove all packaging before positioning the machine.

If possible, position the machine next to a water tap and a drain.

This dishwasher is designed to be fitted under a kitchen counter or worksurface.

Attention! Carefully follow the instructions on the enclosed template for building in the dishwasher and fitting the furniture panel.

No further openings for the venting of the dishwasher are required, but only to let the water fill and drain hose and power supply cable pass through.

The dishwasher incorporates adjustable feet to allow the adjustment of the height.

During all operations that involve accessibility to internal components the dishwasher has to be unplugged.

When inserting the machine, ensure that the water inlet hose, the drain hose and the supply cable are not kinked or squashed.

Installation

Water supply connections

This dishwasher may be fed with cold water. For making the connection itself, the coupling nut fitted to the machine’s supply hose is designed to screw onto a 3/4" gas thread spout or to a purpose made quick-coupling tap such as the Press-block.

The water pressure must be within the limits given in the "Technical specifications". Your local Water Authority will advise you on the average mains pressure in your area.

The water inlet hose must not be kinked, crushed, or entangled when it is being connected.

The dishwasher features fill and drain hoses which can be turned either to the left or the right to suit the installation by means of the locknut.

The locknut must be correctly fitted to avoid water leaks.

Levelling

Good levelling is essential for correct closure and sealing of the door. When the appliance is correctly levelled, the door will not catch on either side of the cabinet. If the door does not close correctly, loosen or tighten the adjustable feet until the machine is perfectly level.

Fixing to the adjacent units

The dishwasher must be secured against tilting. Therefore make sure that the counter it is fixed under, is suitably secured to a fixed structure (adjacent kitchen units cabinets, wall).

installation electrolux 33

156997950en prov.qxp 1/22/2007 12:31 PM Page 33

34 electrolux installation

This appliance has been fitted with safety features which will prevent the water used in the appliance from returning back into the drinking water system. This appliance complies with the applicable plumbing regulations.

(Attention! NOT all models of dishwashers have fill and drain hoses provided with locknut. In this case, this kind of facility is not possible).

If the machine is connected to new pipes or pipes which have not been used for a long time, you should run the water for a few minutes before connecting the inlet hose.

DO NOT use connection hoses which have previously been used for an old appliance.

Water outlet hose connection

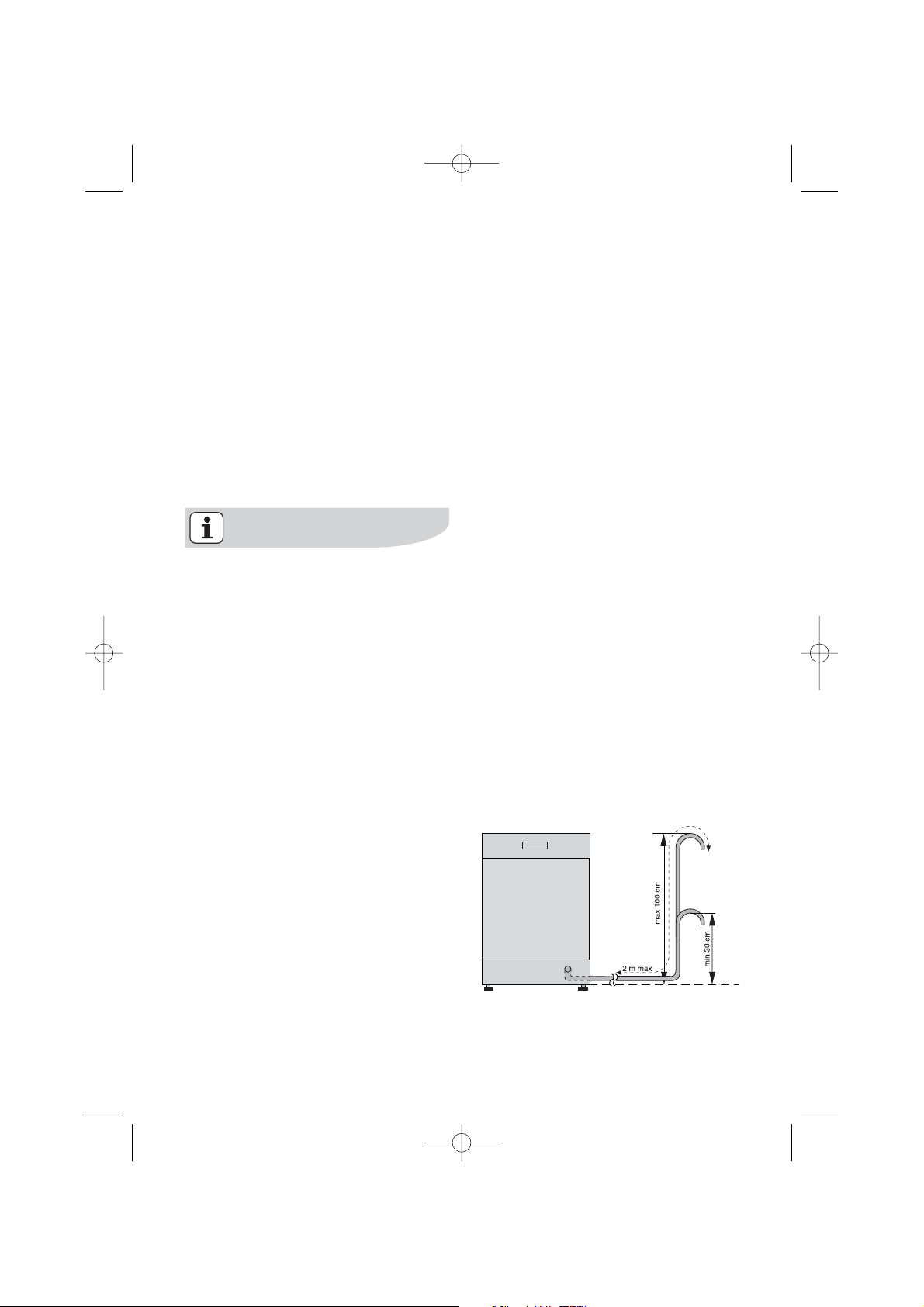

The end of the drain hose can be connected in the following ways:

1. To the sink outlet spigot, securing it to the underside of the work surface. This will prevent waste water from the sink running into the machine.

2. To a stand pipe provided with venthole, minimum internal diameter 4 cm.

The waste connection must be at a height of between 30 cm (minimum) and 100 cm (maximum) from the bottom of the dishwasher.

The drain hose can face either to the right or left of the dishwasher

Ensure the hose is not bent or squashed as this could prevent or slow down the discharge of water.

The sink plug must not be in place when the machine is draining as this could cause the water to syphon back into the machine.

If you use a drain hose extension it must be no longer than 2 metres and its internal diameter must be no smaller than the diameter of the hose provided.

Likewise the internal diameter of the couplings used for connections to the waste outlet must be no smaller than the diameter of the hose provided.

156997950en prov.qxp 1/22/2007 12:31 PM Page 34

installation electrolux 35

Our appliances are supplied with a security device to protect against the return of dirty water back into the machine. If the spigot of your sink has a "no return valve" incorporated this can prevent the correct draining of your dishwasher. We therefore advise you to remove it.

Electrical connection

Safety standards require the appliance to be earthed. The manufacturer accepts no liability for failure to observe the above safety precautions.

Prior to using the appliance for the first time, ensure that the rated voltage and type of supply on the rating plate match that of the supply where the appliance is to be installed. The fuse rating is also to be found on the rating plate.

Always plug the mains plug into a correctly installed shockproof socket.

Multi-way plugs, connectors and extension cables must not be used. This could constitute a fire hazard through overheating.

If necessary, have the domestic wiring system socket replaced. In case that the electrical cable has to be replaced, contact your local Service Force centre.

The plug must be accessible after the appliance has been installed.

Never unplug the appliance by pulling on the cable. Always pull the plug.

156997950en prov.qxp 1/22/2007 12:31 PM Page 35

36 electrolux environment concerns

Packaging material

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.

When a unit is no longer being used:

- Pull the plug out of the socket.

- Cut off the cable and plug and dispose of them.

- Dispose of the door catch. This prevents children from trapping themselves inside and endangering their lives.

Environment concerns

Old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

156997950en prov.qxp 1/22/2007 12:31 PM Page 36

guarantee/customer service electrolux 37

Guarantee/Customer Service

Standard guarantee conditions

We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

● The appliance has been correctly

installed and used only on the electricity supply stated on the rating plate.

● The appliance has been used for

normal domestic purposes only, and in accordance with the manufacturer's instructions.

● The appliance has not been

serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.

● Electrolux Service Force Centre

must undertake all service work under this guarantee.

● Any appliance or defective part

replaced shall become the Company's property.

● This guarantee is in addition to

your statutory and other legal rights.

Exclusions

● Damage or calls resulting from

transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.

● Costs incurred for calls to put right

an appliance which is improperly installed or calls to appliances outside the United Kingdom.

● Appliances found to be in use

within a commercial environment, plus those which are subject to rental agreements.

● Products of Electrolux

manufacturer that are not marketed by Electrolux

Service and Spare Parts

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Service Force Centre by telephoning

0870 5 929 929

Your telephone call will be automatically routed to the Service Force Centre covering your postcode area.

For the address of your local Service Force Centre and further information about Service Force, please visit the website at

www.serviceforce.co.uk

Before calling out an engineer, please ensure you have read the details under the heading "Something not working"

156997950en prov.qxp 1/22/2007 12:31 PM Page 37

38 electrolux guarantee/customer service

When you contact the Service Force Centre you will need to give the following details:

1. Your name, address and postcode.

2. Your telephone number.

3. Clear concise details of the fault.

4. The model and Serial number of the appliance (found on the rating plate).

5. The purchase date.

Please note a valid purchase receipt or guarantee documentation is required for in guarantee service calls.

Customer Care

For general enquiries concerning your Electrolux appliance, or for further information on Electrolux products please contact our Customer Care Department by letter or telephone at the address below or visit our website at www.electrolux.co.uk Customer Care Department Electrolux Major Appliances Addington Way Luton Bedfordshire, LU4 9QQ Tel: 08705 950 950 (*) (*) Calls may be recorded for training purposes.

European guarantee

This appliance is guaranteed by Electrolux, in each of the countries listed in the following page, for the period specified in the appliance guarantee or otherwise by law. If you move from one of these countries to another of these countries the appliance guarantee will move with you subject to the following qualifications:

● The appliance guarantee starts

from the date you first purchased the appliance which will be evidenced by production of a valid purchase document issued by seller of the appliance.

● The appliance guarantee is for the

same period and to the same extent for labour and parts as exists in your country of residence for this particular model or range of appliances.

● The appliance guarantee is

personal to the original purchaser of the appliance and cannot be transferred to another user.

● The appliance is installed and

used in accordance with instructions issued by Electrolux and is only used within the home, i.e. is not used for commercial purposes.

● The appliance is installed in

accordance with all relevant regulations in force within your new country of residence.

The provisions of this European Guarantee do not affect any of the rights granted to you by law.

156997950en prov.qxp 1/22/2007 12:31 PM Page 38

guarantee/customer service electrolux 39

www.electrolux.com

Albania +35 5 4 261 450 Rr. Pjeter Bogdani Nr. 7 Tirane Belgique/België/Belgien +32 2 363 04 44 Bergensesteenweg 719, 1502 Lembeek

Danmark +45 70 11 74 00 Sjællandsgade 2, 7000 Fredericia

Eesti +37 2 66 50 030 Mustamäe tee 24, 10621 Tallinn

France www.electrolux.fr

Hellas +30 23 10 56 19 70 4 Limnou Str., 54627 Thessaloniki

Ireland +353 1 40 90 753 Long Mile Road Dublin 12

Latvija +37 17 84 59 34 Kr. Barona iela 130/2, LV-1012, Riga

Luxembourg +35 2 42 43 13 01 Rue de Bitbourg, 7, L-1273 Hamm

Nederland +31 17 24 68 300 Vennootsweg 1, 2404 CG - Alphen aan den Rijn

Österreich +43 18 66 400 Herziggasse 9, 1230 Wien

Schweiz/Suisse/Svizzera +41 62 88 99 111 Industriestrasse 10, CH-5506 Mägenwil

Portugal +35 12 14 40 39 39 Quinta da Fonte - Edificio Gonçalves Zarco -

Q 35 - 2774 - 518 Paço de Arcos

Hrvatska +385 1 63 23 338 Slavonska avenija 3, 10000 Zagreb

Italia +39 (0) 434 558500 C.so Lino Zanussi, 26 - 33080 Porcia (PN)

Lietuva +370 5 27 80 609 Verkiu, 09108 Vilnius

Magyarország +36 1 252 1773 H-1142 Budapest XIV, Erzsébet királyné útja 87

Norge +47 81 5 30 222 Risløkkvn. 2, 0508 Oslo

Polska +48 22 43 47 300 ul. Kolejowa 5/7, Warsaw

Romania +40 21 451 20 30 Str. Garii Progresului 2, S4, 040671 RO

Slovenija +38 61 24 25 731

Electrolux Ljubljana, d.o.o. Trćaška 132, 1000 Ljubljana

Slovensko +421 2 43 33 43 22

Electrolux Slovakia s.r.o., Electrolux Domáce spotrebiče SK, Seberíniho

1,

821 03 Bratislava

Deutschland +49 180 32 26 622 Muggenhofer Str. 135, 90429 Nürnberg

España +34 902 11 63 88 Carretera M-300, Km. 29,900

Alcalá de Henares Madrid

Great Britain +44 8705 929 929 Addington Way, Luton, Bedfordshire

LU4 9QQ

Česká republika

+420 2 61 12 61 12

Budějovická 3, Praha 4, 140 21

Suomi +35 8 26 22 33 00 Konepajanranta 4, 28100 Pori Sverige +46 (0)771 76 76 76 Electrolux Service, S:t Göransgatan 143,

S-105 45 Stockholm

Россия +7 495 937 7837

129090 Москва, Олимпийский проспект, 16, БЦ „Олимпик“

Türkiye +90 21 22 93 10 25

Tarlabaþý caddesi no : 35 Taksim

Istanbul

156997950en prov.qxp 1/22/2007 12:31 PM Page 39

40 electrolux

Notes

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

156997950en prov.qxp 1/22/2007 12:31 PM Page 40

electrolux 41

Notes

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

156997950en prov.qxp 1/22/2007 12:31 PM Page 41

42 electrolux

Notes

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

156997950en prov.qxp 1/22/2007 12:31 PM Page 42

156997950en prov.qxp 1/22/2007 12:31 PM Page 43

156997950-00-17012007

www.electrolux.com

156997950en prov.qxp 1/22/2007 12:31 PM Page 44
