Model ESL 620
Page 2
2
For the user
Important safety information 3
Description of the appliance 4
The control panel 4
Before use 5
Setting the water hardness 5
Rinse aid 7
Using your appliance 8
Loading your appliance 8
Adjusting the height of the upper basket 9
Use of detergent 10
Hints and tips 11
Washing programmes 12
Operating sequence 13
Maintenance and cleaning 14
Internal cleaning 14
Cleaning the filters 14
External cleaning 15
Prolonged periods of non-operation 15
Frost precautions 15
Moving the machine 15
Something not working 16
Service and spare parts 17
Protection against flooding 17
Hints for test centres 18
Technical specifications 18
For the installer
Installation instructions 19
Water supply connections 19
Water outlet hose connection 20
Electrical connection 20
Contents
Guide to use the instruction book
The following symbols will be found in the text to guide you throughout the instructions:
Safety instructions
1. 2. 3. Step by step
Hints and tips
Environmental information
Page 3
3
Installation
● This appliance is heavy.Care should be taken when
moving it.
● It is dangerous to alter the specifications or attempt
to modify this product in any way.
● Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
● Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
● Any plumbing work required to install this appliance
should be carried out by a qualified plumber or
competent person.
Child Safety
● This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the
controls or play with the product.
● Keep all packaging well away from children.
● Keep all detergents in a safe place out of children's
reach.
During Use
● Items that are contaminated by petrol, paint, steel
or iron debris, corrosive, acidic or alkaline
chemicals must not be washed in this dishwasher.
● Under no circumstances should you open the door
whilst the appliance is in operation.Always turn off
the appliance before opening the door.
● Only use detergent specifically designed for use in
dishwashers.
● Long bladed knives stored in an upright position are
a potential hazard.
● Long and/or sharp items of cutlery such as carving
knives must be positioned horizontally in the upper
basket.
● When finishing loading or unloading close the
door, as an open door can be a hazard.
● Do not sit or stand on the open door.
● Isolate the appliance from the power supply and
turn off the water supply after use.
● Care should be taken when cleaning the bottom
door seal and hinge area as any exposed metal
edges may cut if care is not taken.
● This product should be serviced by an
authorised Service engineer, and only genuine
spare parts should be used.
● Under no circumstances should you attempt to
repair the machine yourself.Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Contact your local
Service Force Centre.Always insist on genuine
spare parts.
Conservation
In the interest of the environment:
● Materials marked with the symbol are
recyclable.
● Check with your local Council or Environmental
Health Office to see if there are facilities in your
area for re-cycling this appliance.
● When the appliance is to be scrapped, cut off
the power supply cable and make the door
closing device unusable to prevent young
children from being trapped inside.
● Help to keep your country tidy - use authorised
disposal sites for your old appliance.
Important safety information
It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move house
and leave the appliance, always ensure that the book is left with the appliance in order that the new
owner can get to know the functioning of the appliance and the relevant safety information.
This information has been provided in the interest of your safety.You MUST read it carefully before
installing or using the appliance.
Page 4
4
Description of the appliance
The control panel
IN75
1
2
3
4
5
6
12
11
10
7
8
9
1. Levelling spacers
2. Upper basket stop
3. Salt container
4. Lower spray arm
5. Detergent dispenser
6. Control panel
7. Rating plate
8. Rinse aid dispenser
9. Large filter
10. Central filter
11. Upper spray arm
12. Upper basket
1. On/Off push button
2. Salt indicator light
3. On/Off indicator light
4. Programme selector buttons
5. End of cycle indicator light
Audible signals have been introduced to help
indicate which operations the dishwasher is
performing.
Short signal "instruction accepted"
When any of the push buttons are pressed, a short
audible signal informs you that the machine has
accepted the instruction given.
Long signal "programme starting"
A continuous audible signal, heard only when you
close the dishwasher door, informs you that the
washing programme is starting.
Intermittent signal "end of programme"
An intermittent audible signal, informs you that the
wash programme has ended.
If you wish to deactivate these audible signals,
press both "Normal 65°" and "BIO 50°" programme
buttons simultaneously, after 3 seconds an
intermittent audible signal informs you that the
audible signals have been deactivated.
If you wish to reactivate the audible signals, press
both "Normal 65°" and "BIO 50°" programme buttons
simultaneously, after 3 seconds an intermittent
audible signal informs you that they have been
reactivated.
The setting will remain memorised after
switching off the dishwasher.
1 2 3 4 5
SO243
Page 5
5
Before using your dishwasher for the first time:
1. Ensure that the electrical and water connections
comply with the installation instructions
2. Remove all packaging from inside the appliance
3. Set the water softener
4. Pour 1 litre of water inside the salt container and
then fill with salt
5. Fill the rinse aid dispenser.
6. Run a "Rinse and Hold" programme.
Setting the water softener
The dishwasher is equipped with a water softener
designed to remove minerals and salts from the water
supply, which would have a detrimental or adverse
effect on the operation of the appliance.
The higher the content of these salts, the harder your
water is.
Water hardness is measured in equivalent scales,
German, French degrees and PPM (parts per Million).
The softener should be adjusted according to the
hardness of the water in your area.Your local Water
Authority can advise you on the hardness of the water
in your area.
The dishwasher is factory set at level 2.
If this level is not suitable for your area the softener
should be adjusted.
You may change the factory level setting by means of
the wash programme selector push buttons. each
push button corresponds to a different level.
The adjustment of the water softener is
possible only with the machine in setting
mode.
To select a different level proceed as
follows:
1. Press the "Normal 65°" and "Quick 55°"
programme push buttons simultaneously for about
5 seconds.The pilot light corresponding to the
current level flashes.
2. Press within 5 seconds the programme push button
corresponding to the required level.
3. 5 seconds after the last pressure of a push button,
the dishwasher will memorise the new level setting
and will return to programme setting mode.
The setting will remain memorised after switching
off the dishwasher.
Before use
Level
Use of
salt
French
degrees
(°TH)
PPM
(Parts per
Million)
German
degrees
(°dH)
*
1
2
3
4
5
NO
YES
YES
YES
YES
YES
0 - 4
5 - 11
12 - 22
23 - 33
34 - 45
46 - 67
0 - 8
9 - 20
21 - 40
41 - 60
61 - 80
81 - 120
0 - 80
81 - 200
201 - 400
401 - 600
601 - 800
801 - 1200
Water hardness
SO242
Level 1= "Rinse and hold" push button
Level 2= "Intensive 65°"push button
Level 3= "Normal 65°"push button
Level 4= "Bio 50°"push button
Level 5= "Quick 55°"push button
65°
65°
50°
55°
BIO
If your water hardness is below level 1 it
is already soft and therefore there is no
need to use salt.
In this case adjust the water softener on
level 1 without using salt.The salt
indicator light on the control panel will
always remain illuminated when the
machine is switched on.
Page 6
6
Filling with salt
Only use salt specifically designed for use
in dishwashers.
All other types of salt not specifically
designed for use in a dishwasher, especially
table salt, will damage the water softener.
Only fill with salt just before starting one of
the complete washing programmes.This will
prevent any grains of salt or salty water,
which may have been spilled,remaining on
the bottom of the machine for any period of
time, which may cause corrosion.
To fill:
1. To fill with salt, unscrew the cap of the salt
container.
2. Pour 1 litre of water inside the container (this is
necessary only before filling with salt for the
first time).
3. Using the funnel provided, pour in the salt until the
container is full.
Do not worry if water over flows from the unit when
filling with salt, this is quite normal.
4. Replace the cap making sure that there is no trace
of salt on the screw thread or on the gasket.
5. Screw on the cap tightly.
The salt container will require topping up periodically.
You are reminded of this by the salt indicator light on
the control panel which comes on when the salt has
finished.
The salt indicator light on the control panel
can remain illuminated for 2-6 hours after
the salt has been replenished, assuming the
dishwasher remains switched on. If you are
using salts that take longer to dissolve then
this can take longer.The function of the
machine is not affected.
SALE
SALT
SALZ
SEL
SR06
Page 7
7
Rinse aid
Rinse aid is automatically added during the last rinse,
ensuring thorough rinsing, and spot and streak free
drying.The dispenser, which is positioned inside the
door, holds about 110 ml of rinse aid, which is
sufficient for 16 - 40 dishwashing programmes,
depending upon the dosage setting.

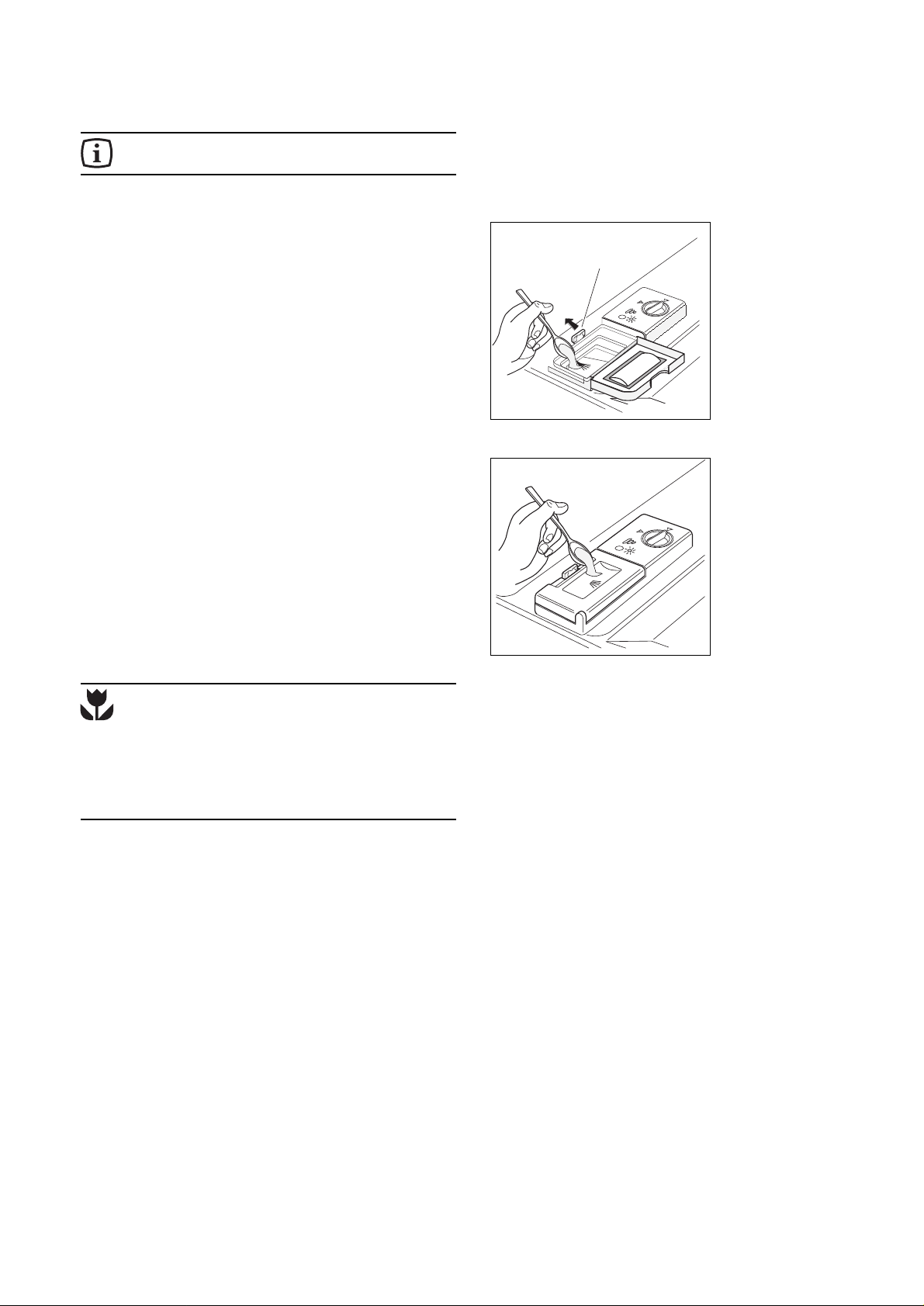

Filling with rinse aid
1. Open the container by turning the lid (A)
anticlockwise.
2. Add the rinse aid until the container is completely
full.The indicator (B) will be completely dark.
3. Top up the rinse aid when the indicator (B)
becomes clear.
Ensure that the lid is closed after every refill.
Do not put liquid detergent in the rinse aid
compartment. Clean up any rinse aid spilt during filling
with an absorbent cloth to avoid excess foaming
during the next wash.
Adjusting the dose
According to the finish and drying results obtained,
adjust the dose of rinse aid by means of the 6 position
selector (C) (position 1 minimum dosage, position 6
maximum dosage).
Start from position 3.
Gradually increase the dose if there are drops of water
or lime spots on the dishes after washing.Reduce it if
there are sticky whitish streaks on the dishes.
BR01
A
m
a
x
6
5
4
3
2
1
B
BR03
BR02
C
5
4
6
x
3
a
2
m
1
Page 8
8
Loading your appliance
Before placing dishes in the machine, remove any
scraps of food, to avoid clogging the filters and
consequently reducing the performance.
Do not load very small items which can fall
through the baskets.

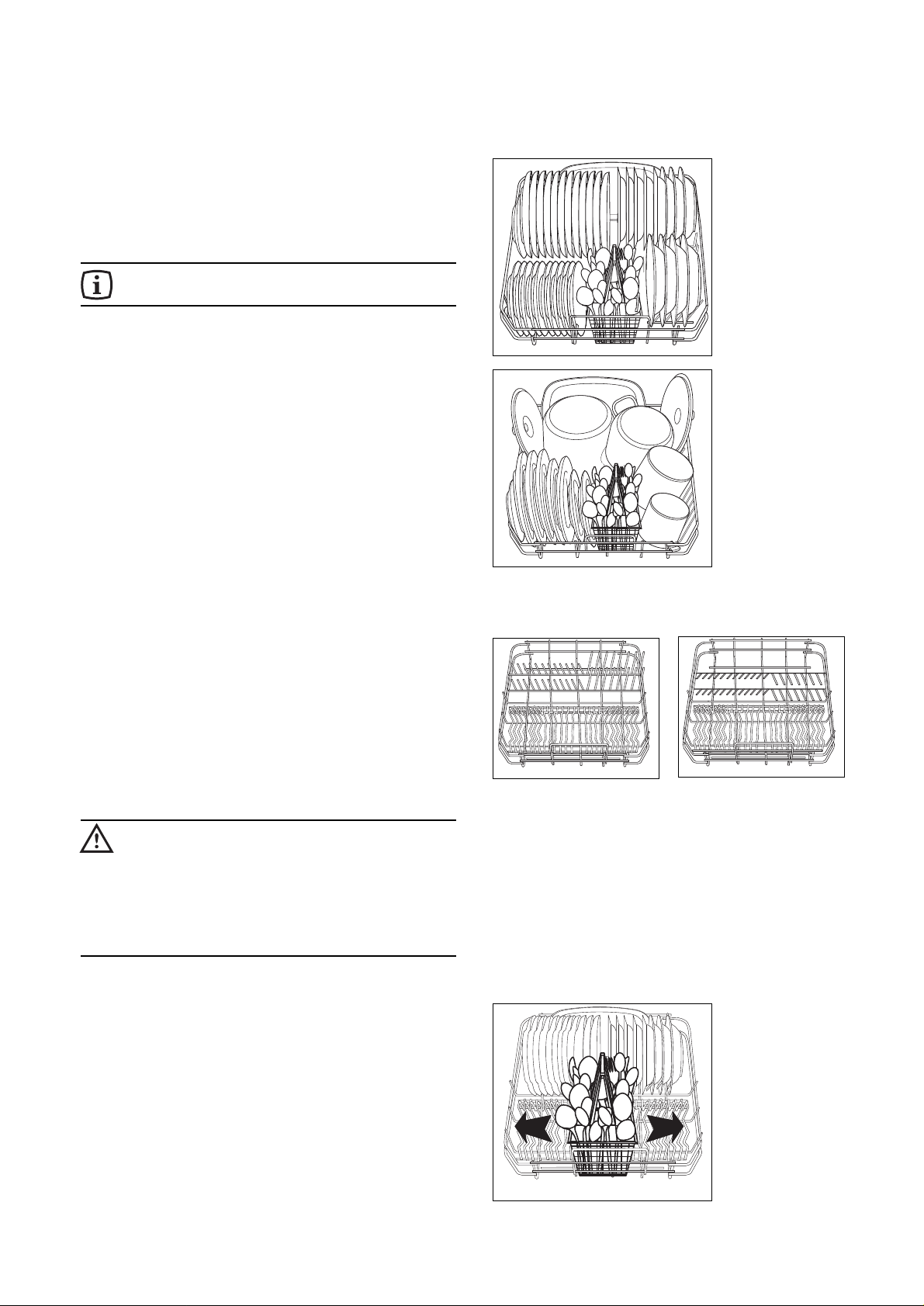

Open the door and slide out the baskets to load the
dishes.

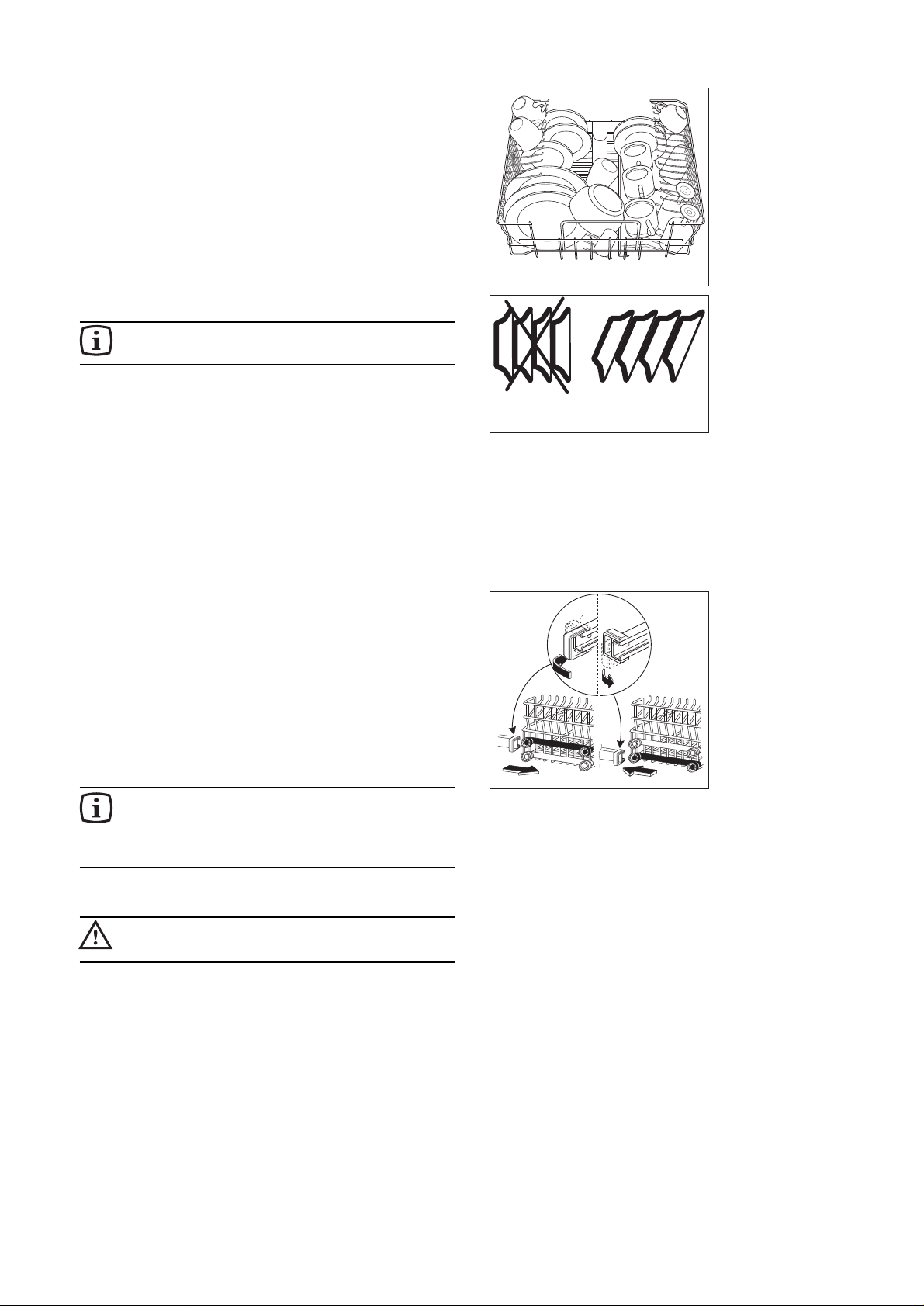

The lower basket
The lower basket is designed to take saucepans, lids,
plates, salad bowls, cutlery etc.
Serving dishes and large lids should be arranged
around the edge of the basket, ensuring that the upper
spray arm can turn freely.
The two rear rows of prongs on the lower basket can
be easily lowered to allow you to load pots, pans and
bowls.
To lower the prongs:
- Slightly pull them upward and let them drop down
(see picture).
- To bring them back to the standing position, just pull
them up again.
The cutlery basket
Long bladed knives stored in an upright
position are a potential hazard.
Long and/or sharp items of cutlery such as
carving knives must be positioned
horizontally in the upper basket.
Take care when loading or unloading sharp
items such as knives.
Cutlery should be placed in the removable cutlery
basket with the handles facing downwards. If the
handles protrude from the bottom of the basket,
obstructing the lower spray arm, load the cutlery with
the handles facing upwards.
Mix spoons with other cutlery to prevent them from
sticking together.
The cutlery basket can be placed either to the left or to
the right of the lower basket.
For best results we recommend to use the cutlery grid
provided (if size and dimensions of the cutlery allow
it).
Using your appliance
UI50
UI47
UI43
UI44
UI42
Page 9
9
The upper basket
The upper basket is designed for plates (dessert
plates, saucers, dinner plates of up to 24 cm in
diameter), salad bowls, cups and glasses.
if dishes are loaded in the upper basket, tilt them
forwards.
Arrange items on and underneath the fold-down cup
racks so that water can reach all surfaces.
Light items (plastic bowls etc.) should be loaded in the
upper basket and arranged so they do not move.
Before closing the door, ensure that the
spray arms can rotate freely.
Adjusting the height of the upper
basket
If washing very large plates (over 27 cm and up to 31
cm in diameter) you can load them in the lower basket
after moving the upper basket to the higher position.
To move to the higher position proceed as follows:
1. Move the front runner stops (A) of the upper basket
outward and slide the basket out.
2. Refit the basket in the higher position and replace
the stops (A) in their original position.
When the top basket is in the higher
position it will only take plates up to 20 cm
in diameter and you will not be able to use
the raised cup racks.
After loading your machine always close
the door,as an open door can be a hazard.
US29
US70
A
RC01
Page 10
10
Use of detergent
Only use detergents specifically designed
for use in dishwashers.
If using powder detergents proceed as follows:
1. Open the dispenser lid by pulling the catch (D).
2. Add the detergent according to the recommended
quantity given in the "Washing programmes" chart.
As all detergents are not the same, you should
consult the instructions on the packet.
3. Always close the lid.
4. If the programme has a prewash add the required
detergent over the lid of the dispenser.
Follow the recommended quantity of detergent
given in the "Washing programmes" chart.
If using detergent in tablets proceed as follows:
1. For all programmes; place 1 tablet inside the
detergent dispenser.
2. Always close the lid.
3. For all programmes with prewash;place a portion
of a further tablet on the lid of the detergent
dispenser.
Insufficient quantities of detergent will
produce poor washing results, whereas an
excessive amount of detergent will not
improve washing results and is also
wasteful.
Using no more than the correct amount also
contributes to reducing pollution.
Compact detergents with enzymes
In these compact powders the environmentally
unfriendly components have been replaced by natural
enzymes and other more biodegradable substances.
The enzymes deploy their full dirt dissolving power at
a temperature as low as 50°C.
By choosing the "Bio" programmes you can therefore
achieve the same cleaning results that would
otherwise be achievable only with 65°C programmes
and conventional detergents.
These new compact powders are generally
phosphate-free.
D
MIN
MAX
DE17
Min = 15 g
Max = 30 g
DE02
Page 11
11
To save energy
Place dishes in the machine immediately after every
meal and wait until the dishwasher is full before
washing.
If necessary run the Rinse and Hold programme (see
"Washing Programmes" chart) so that any food scraps
do not become caked on the dishes while you are
waiting to run the complete wash programme.
Do not prewash dishes under running water.
For best washing results
Before loading, remove all scraps of food and soak
very heavily soiled pots and pans.
Arrange saucepans, cups and glasses etc.upsidedown.
Tilt items with convex or concave surfaces so that the
water drains off easily.
Avoid contact between the dishes as far as possible.
Items not suitable for
dishwashers
The following items should not be washed in
the dishwasher (unless they are sold as
dishwasher proof):
- Cutlery with wooden or horn handles or
glued parts
- bronze cutlery
- saucepans with wooden handles
- aluminium ware
- crystal ware
- leaded glass
- plastic items
- antique or fine decorated china
Certain types of decoration can discolour when
washed in a dishwasher.
Crystal-ware and plastic objects, if not guaranteed
dishwasher proof should be washed by hand.
Certain types of glass can also become opaque
after being washed several times in a dishwasher.
A chemical reaction can occur between silver
cutlery and stainless steel cutlery.As a precaution,
do not wash together.
Iron and cast iron objects can rust and stain other
items.
Aluminium tends to go black, copper, pewter and
brass tend to stain.
If in doubt check with manufacturer of
the item.
When buying new dishes, ensure that
they are dishwasher proof.
Hints and tips
Page 12
12
Washing programmes
Programme
Degree of soil
and
type of load
Required
push buttons
Recommended
quantity of detergent
Normal soil.
Crockery and cutlery
Heavy soil.
Crockery, cutlery, pots
and pans
Light soil.
Crockery and
party crockery
Any.
Partial load (to be
completed later in the
day).
Cycle
description
Intensive
65°
*
BIO
50°
**
Quick wash
55°
Rinse and Hold
Hot prewash
Main wash up to 65°C
2 cold rinses
1 hot rinse
Drying
Cold prewash
Main wash up to 65°C
1 cold rinse
1 hot rinse
Drying
Cold prewash
Main wash up to 50°C
1 cold rinse
1 hot rinse
Drying
Main wash up to 55°C
1 cold rinse
1 hot rinse
1 cold rinse (to avoid
food scraps from sticking
together).
*
Testing programme for EN 50242 (see "Hints for Test Centres").
**
This is a special programme for quick washing a full load of lightly soiled dishes, glasses and crockery
(except pots) so that you may re-use them promptly.
On
Off
On
Off
On
Off
On
Off
On
Off
Normal soil.
Crockery and cutlery
Normal
65°
65°
65°
50°
55°
BIO
wash prewash
/ /
25 g 10 g
25 g 5 g
25 g 5 g
30 g /
Page 13
13
1. Check the filters
Ensure they are clean and properly positioned
(see "Maintenance and cleaning").
2. Press the On/Off push button
The On/Off indicator light comes on.
3. Check that there is salt and
rinse aid
4. Load the dishes
Remove any scraps of food.
Pull the lower basket out and arrange the
saucepans, plates and cutlery in it.
Pull the upper basket out and arrange the
plates, saucers, glasses and cups etc.in it.
Slide the baskets back into the machine.
5. Ensure that the spray arms can
rotate freely.
6. Measure out detergent
Add the required amount of detergent into the
dispenser according to the dosage quantity
given in the "Washing programmes" chart.
Close the detergent dispenser lid.
7. Set the programme
The selection of the programme occurs with the
door partially opened.
Depress the programme button which
corresponds to the washing programme you
wish to select, the corresponding indicator light
will flash.
8. Start the programme
Close the dishwasher door. An audible signal
advises you that the programme has started.
The indicator light which corresponds to the
programme under way is now permanently on.
9. At the end of the washing
programme
At the end of the programme the dishwasher
will stop automatically and an intermittent
audible signal informs you that the programme
has finished.
The indicator light of the programme will turn off
and the "End of Cycle" indicator light starts
flashing.
The On/Off indicator light remains on until the
"On/Off" push button is depressed.
10. Switch off the dishwasher
Open the door and switch off the dishwasher by
pressing the "On/Off" push button.
Wait a few minutes before removing the dishes;
in this way they will be cooler and the drying will
be improved.
Empty the lower basket first and then the upper
one; this will avoid water dripping from the
upper basket onto the dishes in the lower one.
When the washing programme has
finished, it is recommended that the
dishwasher is unplugged and the water tap
turned off.
In general it is not advisable to open the
door while the machine is working;if the
door is opened however, a safety device
ensures that the machine stops.
Important!
Care must be taken if the door is opened
during the hot phase or immediately after a
programme has finished, as steam may
escape.
How to cancel a wash programme
● If the door has not been closed and the
wash programme has not started, to cancel
the programme simply press the push button of
a different wash programme.
● To change a wash programme in progress,
open the door and press the push button
corresponding to the programme under way for
about 1 second, the relevant indicator light turns
off.
The dishwasher is now reset and you can select
a new programme.
Operating sequence
Page 14
14
Internal cleaning
Ensure that the seals around the door, the detergent
and rinse aid dispensers are cleaned regularly with a
damp cloth.
We recommend every 3 months to run a 65°C wash
programme without dishes using detergent.

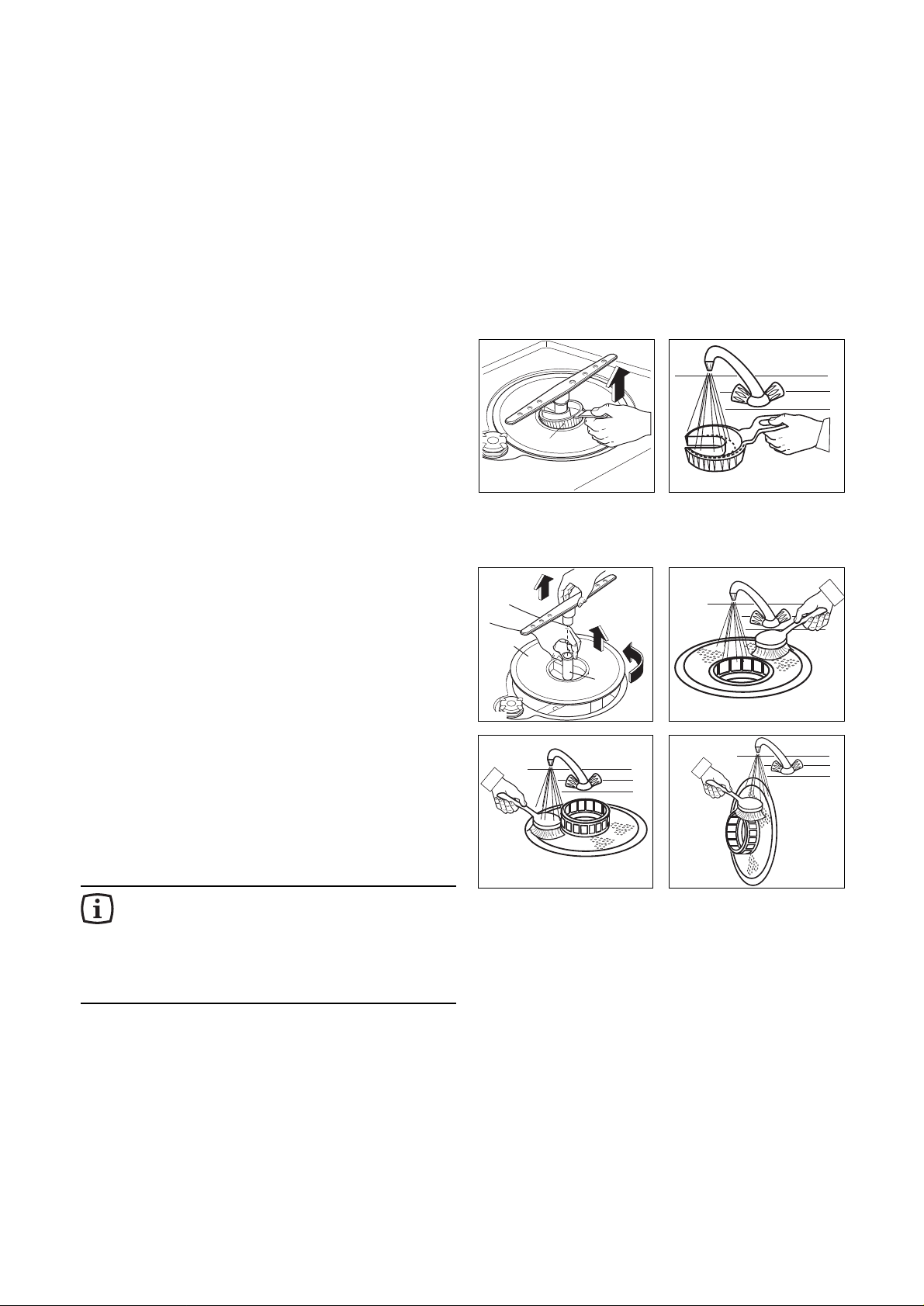

Cleaning the central filter
(After each wash)
Scraps of food may accumulate in the drain filter (A)
and should be removed by rinsing the filter under
running water.
To remove the drain filter
- simply pull it out by the handle.
Once cleaned, refit the filter by pushing it back to its
original position until it engages.
Cleaning the large filter
(Every month)
If necessary clean the large filter (B) on both sides
under running water, using a brush.
To remove the large filter
1. Remove the spray arm by pulling it upwards on one
side.
2. Turn the column (C) anticlockwise by 90° and then
slide out the filter.
3. Once cleaned refit it following the above instructions
in reverse order.
4. Ensure the filter is in its original position, the handle
of the drain filter should be pointing towards the
front of the appliance.
The dishwasher must not be used without
filters.
Incorrect repositioning and fitting of the
filters will produce poor washing results.
Cleaning the filters is vital to ensure correct
operation of the machine.
Maintenance and cleaning
A
MA04
MA19
MA21
MA05
B
90°
C
MA20
MA18
Page 15
15
External cleaning
Clean the external surfaces of the machine and
control panel with a damp soft cloth. If necessary use
only neutral detergents.Never use abrasive products,
scouring pads or solvent (acetone, trichloroethylene
etc....).
Prolonged periods of non-operation
If you are not using the machine for any period of
time you are advised to:
1. Unplug the appliance and then turn off the water.
2. Fill the rinse aid dispenser.
3. Leave the door ajar to prevent the formation of
any unpleasant smells.
4. Leave the inside of the machine clean.
Frost precautions
Avoid placing the machine in a location where the
temperature is below 0°C.If this is unavoidable, empty
the machine, close the appliance door, disconnect the
water inlet pipe and empty it.
Moving the machine
If you have to move the machine (moving house
etc....):
1. Unplug it.
2. Turn the water tap off.
3. Remove the water inlet and discharge hoses.
4. Pull the machine out together with the hoses.
Avoid over tilting the machine during transportation.
Page 16
16
Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without
calling out an engineer.
The dishwasher is fitted with a number of alarm systems which can help you to quickly determine the cause of
any problems.
The dishwasher will not start or stops during operation, all push buttons are inoperative except for the On/Off
push button.All lights are off except the On/Off indicator light and one of the programme indicator lights starts
flashing.
Press the On/Off push button to switch off the dishwasher and carry out the following suggested corrective
actions listed below.
Once the checks have been carried out switch on the dishwasher and start a washing programme, if the alarm
reappears, contact your local Service Force Centre.
Something not working
Symptom Fault code Solution
The machine will not start ● The door has not been properly closed.
● The plug is not properly inserted in the power socket.
● There is a power failure.
The machine does not fill "Rinse and Hold"
● Ensure the water tap is open.
with water programme
● Ensure the mains water supply has not been cut off.
indicator light
● The inlet hose may be squashed or bent. Reposition the
flashes hose.
● The inlet hose may be blocked.Switch off the water
supply and clean the filter.
The filters are blocked "Intensive 65°" Clean the filters (refer to "Maintenance and cleaning".
programme indicator
light flashes
The dishwasher will not drain "Quick wash 55°"
● The drain hose may be squashed or bent. Reposition
programme the hose.
indicator light
● The sink may be blocked.Clear any blockages.
flashes
● The drain hose extension is not correct. Follow the
instructions for connecting to the waste.
● There is no vent in the end of the drain hose.
General "Normal 65°" or
● Switch off the dishwasher. Switch it back on and start
"BIO 50°" indicator the programme.If the alarm reappears, call the local
light flashes Service Force Centre.
The machine is noisy
● Dishes are rattling against each other, refer to “Loading
your machine”.
● The spray arms are knocking against the dishes. Refer
to "Loading your machine".
The door is difficult to close
● The dishwasher is not level, or not properly built-in.
Visible lime deposits or white
● Check that there is salt and that the salt cap is tight.
film on the dishes
● Check that the right level of the water softener is setted.
The dishes are not quite dry
● The rinse aid has run out or too little is being used.
The dishes are not clean ● The baskets are too full.
(poor wash)
● The dishes have not been arranged properly.
● The spray arms do not rotate
● The spray arms are clogged.
● The filters are clogged.
● The filters are not in the correct position.
● Not enough detergent has been used or it is unsuitable.
● The detergent is old or has gone hard.
● The salt container cap is not properly closed.
● The washing programme selected is too gentle.
Page 17
17
If after all these checks, the problem persists, contact
your local Service Force Centre, quoting the model
and serial number.This information can be found on
the rating plate located on the right hand side of the
dishwasher door (see picture).
Service and spare parts
This product should be serviced by an
authorised Service engineer,and only
genuine spare parts should be used.
Under no circumstances should you
attempt to repair the machine yourself.
Repairs carried out by inexperienced
persons may cause injury or serious
malfunctioning. Contact your local Service
Force Centre.
Always insist on genuine spare parts.
Protection against flooding
The machine is fitted with a device in the bottom of
the machine to protect against flooding.The device
will operate if there are any water leaks in the
machine, however it will only operate if the machine
is on.
In case of intervention a fault code will appear on the
control panel.You are able to recognised by the fact
that the indicator light of the "Rinse and Hold"
programme will start flashing, in this case, turn off
the water tap and call the Service Force Centre.

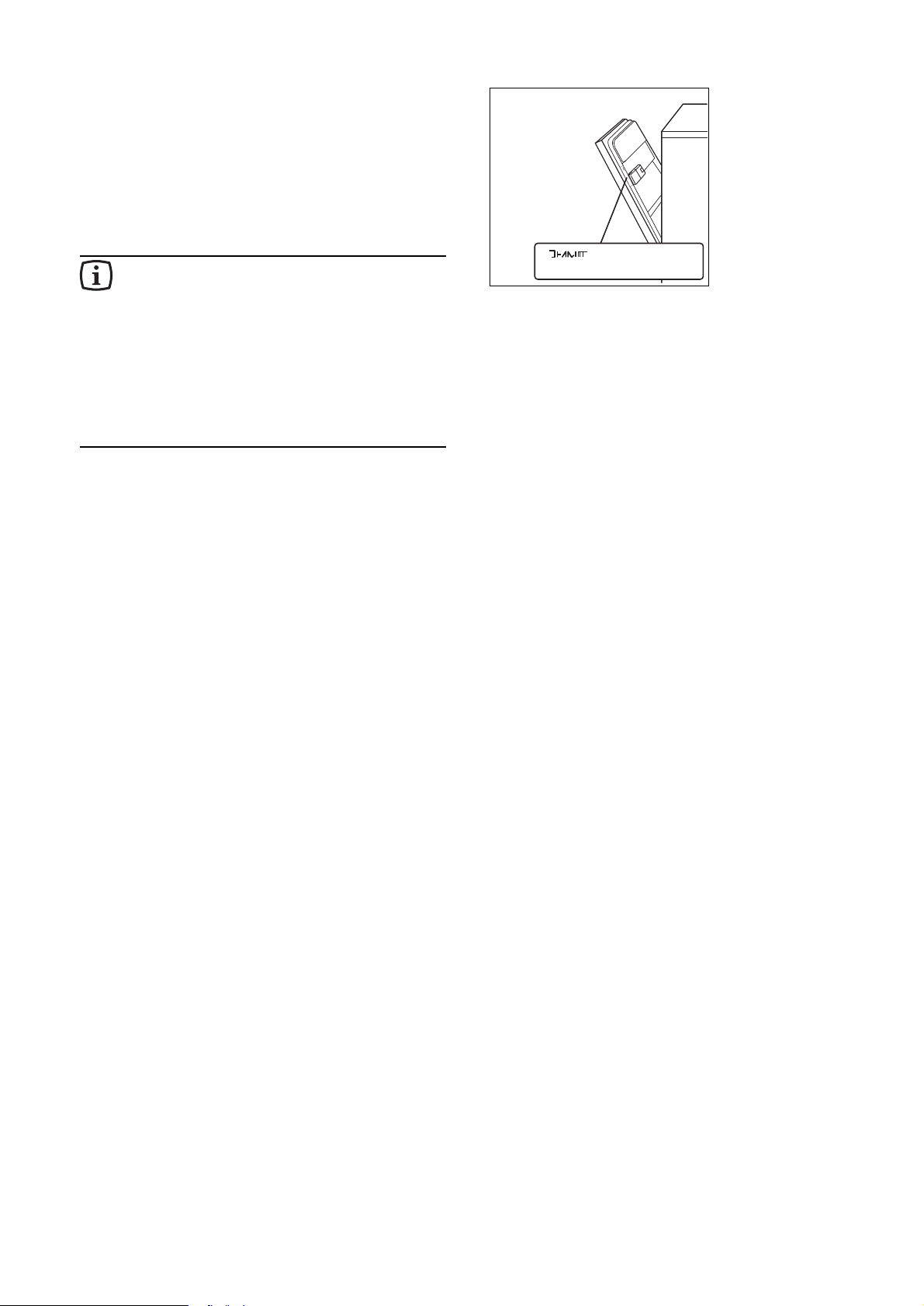

Prod.No.
........
Ser. No.
.........
Mod.
........
RA01
Page 18
18
AVV01en
Hints for test centres
Before starting any test it is necessary to fill completely with salt the salt container and with rinse aid the rinse
aid dispenser.
Test standard EN 50242
Reference programme: BIO 50°
Load: 12 standard place settings
Rinse aid selector: position 5
Detergent dosage : 25 g in the dispenser
5 g on the dispenser lid

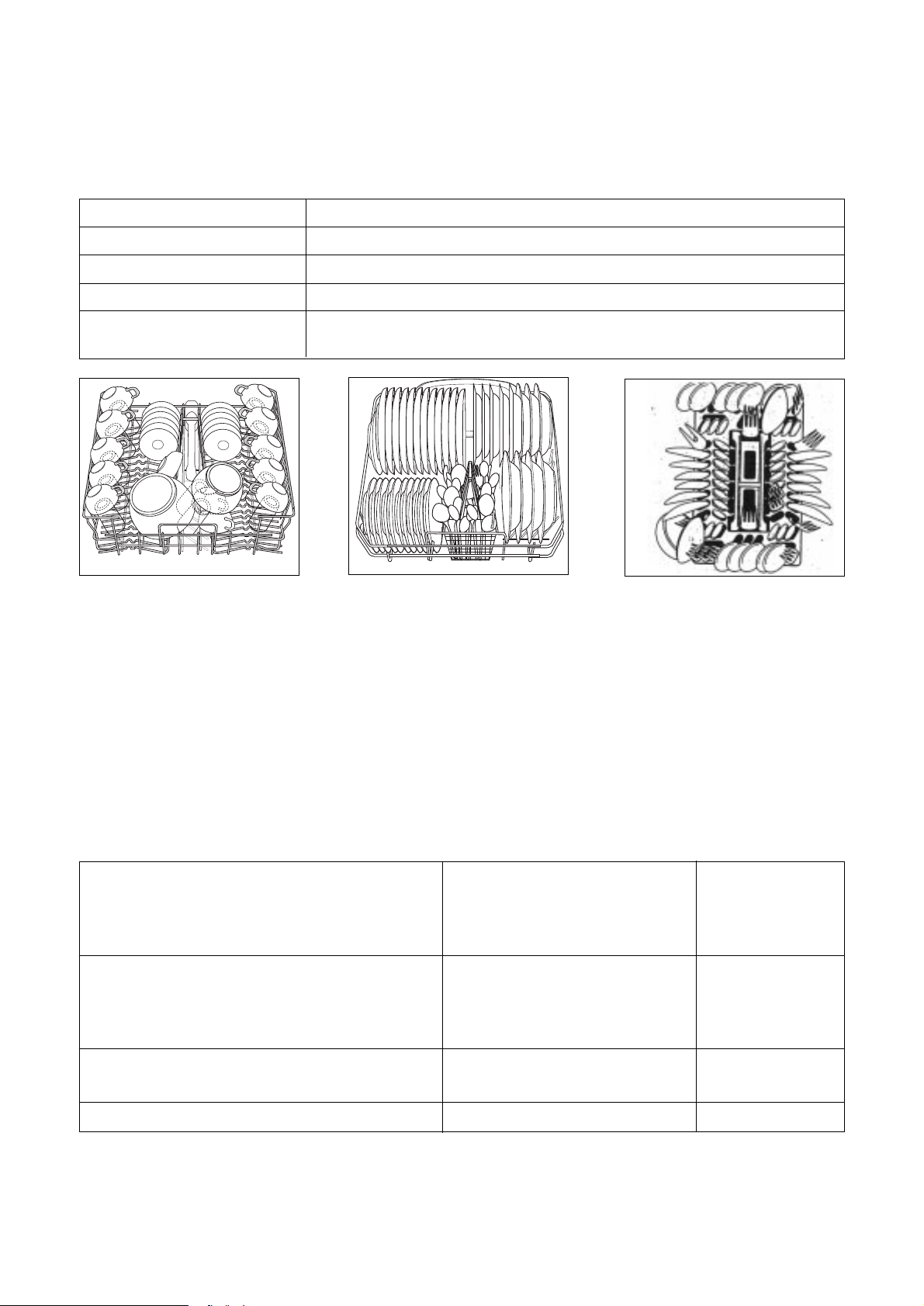

Arrangement
upper basket
Arrangement
lower basket
UI65
Arrangement
cutlery basket
DIMENSIONS Width 59.6 cm
Height 81.8 - 87.8 cm
Max depth 55.5 cm
Max depth with open door 111.4 cm
ELECTRICAL CONNECTION Voltage 230 V - 50 Hz
MOTOR RATING DURING WASH 200 W
POWER OF HEATING ELEMENT 2100 W
OVERALL POWER 2300 W
WATER SUPPLY PRESSURE Minimum 50 kPa (0.5 bar)
Maximum 800 kPa (8 bar)
CAPACITY 12 place settings
Technical specifications
US50
UI50
Page 19
19
Any electrical work required to install this
appliance should be carried out by a
qualified electrician or competent person.
Any plumbing work required to install this
appliance should be carried out by a
qualified plumber or competent person.
Remove all packaging before positioning the
machine.
If possible, position the machine next to a water tap
and a drain.
Water supply connections
This dishwasher may be fed with either hot (max.
60°C) or cold water.
Nevertheless we advise a cold water supply.
A hot water supply is not always efficient with very
soiled crockery as it shortens the washing
programmes.
Feeding the appliance with a hot water supply (max.
60°C) will allow you to obtain considerably shorter
programmes.
The water pressure must be within the limits given in
the technical specifications.
Your local Water Authority will advise you on the
average mains pressure in your area.
The dishwasher features fill and drain hoses which
can be turned either to the left or the right to suit the
installation.
The locknut must be correctly fitted to avoid water
leaks.
Avoid bends or kinks in the hose which could prevent
or slow down the water supply.
If the machine is connected to new pipes or pipes
which have not been used for a long time, you should
run the water for a few minutes before connecting the
inlet hose.This will prevent deposits of sand or rust
clogging the inlet hose filter.

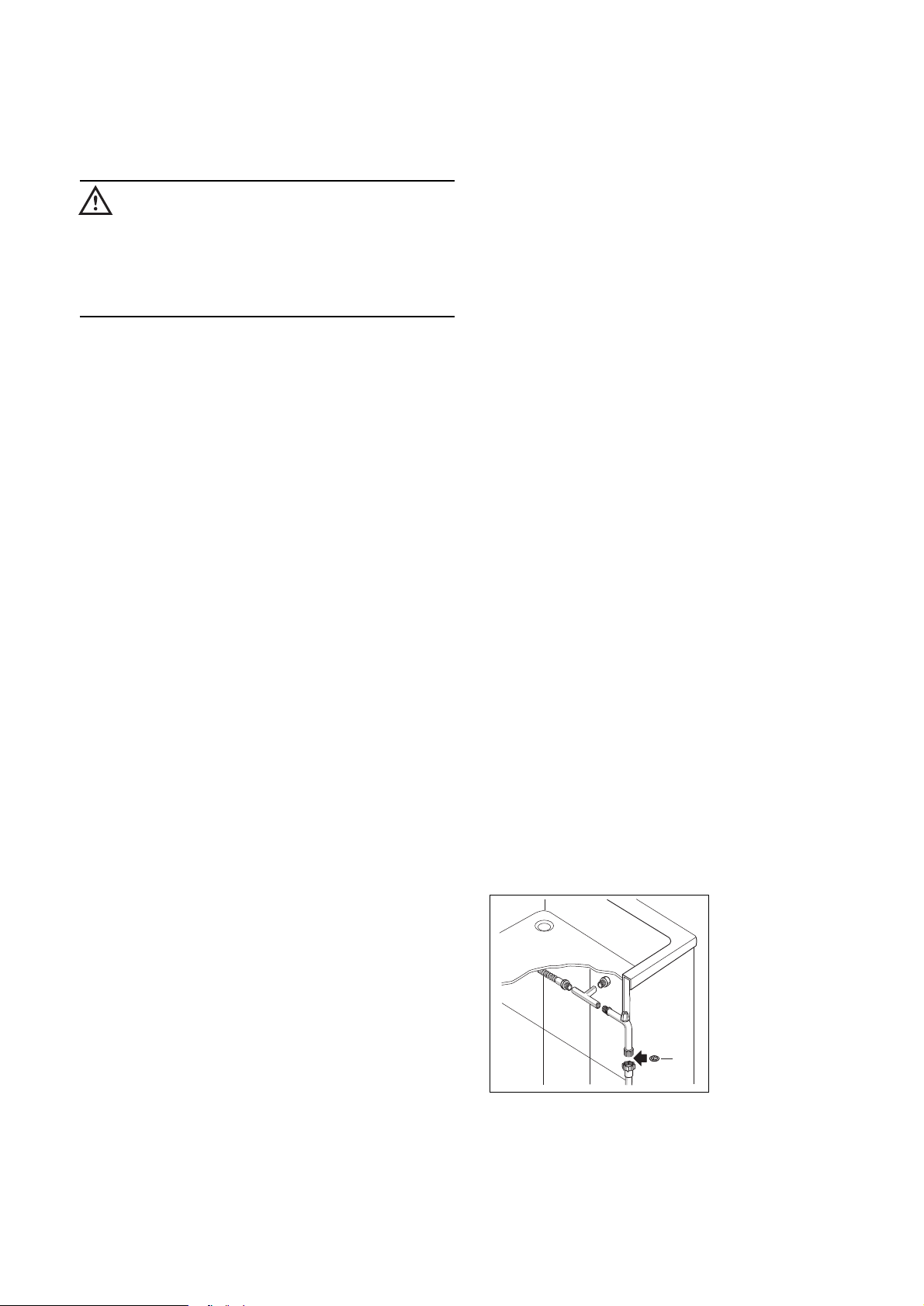

Be sure to incorporate the filter (A) supplied with
machine onto the joint.
For making the connection itself, the coupling nut fitted
to the machine’s supply hose is designed to screw
onto either a 3/4" inch gas thread spout, or to a
purpose made quick-coupling tap such as the Pressblock.
A
CA03
Installation instructions
Page 20
20
Water outlet hose connection

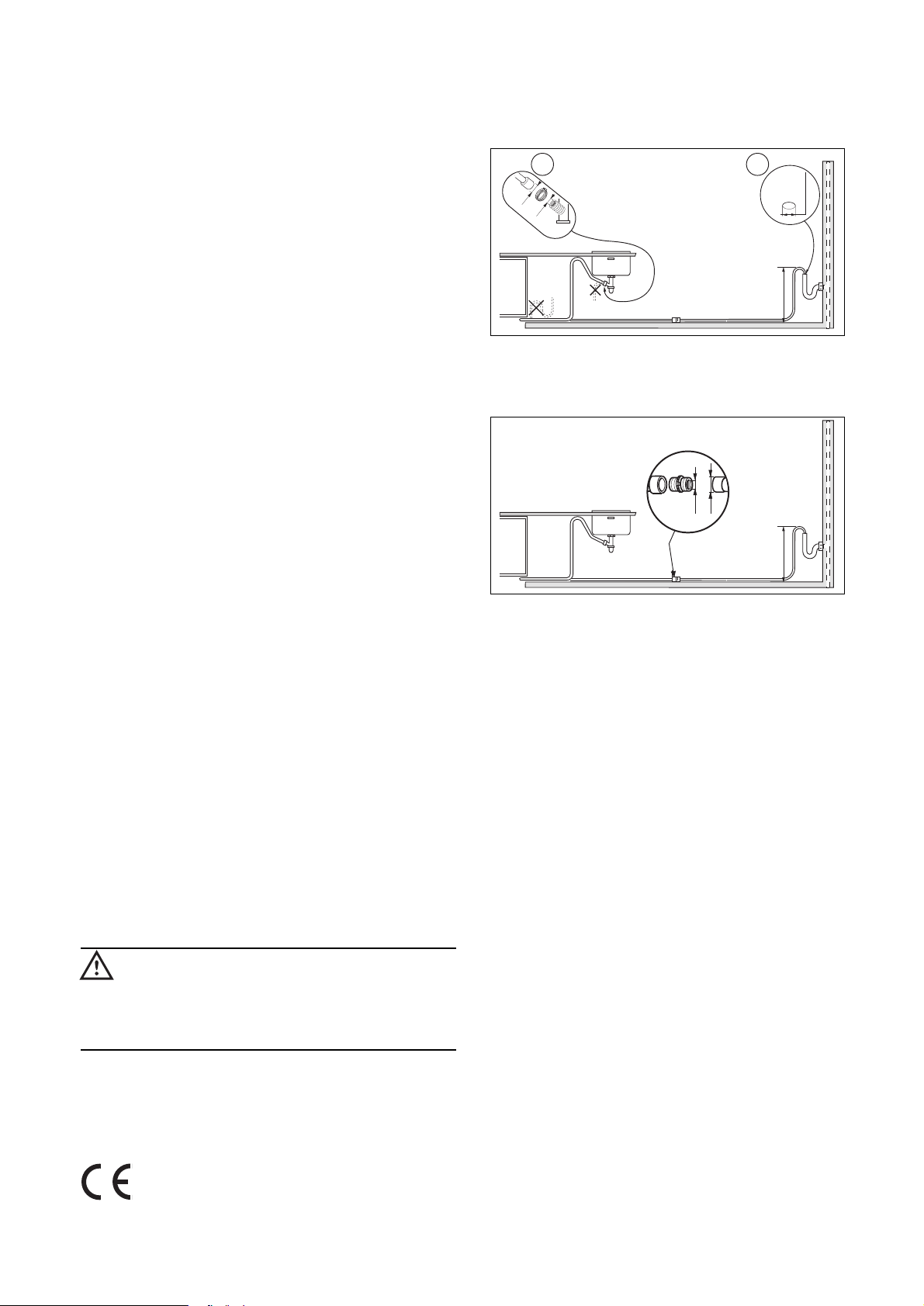

The end of the drain hose can be connected in the
following ways:
1. To the sink outlet siphon, securing it if necessary
with a clip.
2. To a stand pipe provided with vent-hole, minimum
internal diameter 4 cm.
The waste connection must be at a height of between
30 cm (minimum) and 100 cm (maximum) from the
bottom of the dishwasher.
The drain hose can face either to the right or left of the
dishwasher
Ensure the hose is not bent or squashed as this could
prevent or slow down the discharge of water.
If you use a drain hose extension it must be no longer
than 2 metres and its internal diameter must be no
smaller than the diameter of the hose provided.
Likewise the internal diameter of the couplings used
for connections to the waste outlet must be no smaller
than the diameter of the hose provided.
The sink plug must not be in place when the
machine is draining as this could cause the water
to siphon back into the machine.
Electrical connection
Before plugging the appliance into the wall socket,
make sure that:
1. The mains voltage corresponds to the voltage given
in the "Technical specifications".
2. The meter, fuses, mains power supply and wall
socket can all take the maximum load required.
Make sure that the socket and plug are compatible
without having to use any type of adaptor. If
necessary, have the domestic wiring system socket
replaced.
Safety standards require the appliance to be
earthed.
The manufacture accepts no liability for
failure to observe the above safety
precautions.
CS13
min 30 cm
max 100 cm
min 4 cm
Ø 21
Ø 18
1 2
This appliance complies with the following E.E.C.Directives:
- 73/23 of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
CS14
Ø 18
+ 2 m max
Ø 21
min 30 cm
max 100 cm
Page 21
Loading...
