Page 1
Dishwasher
Instruction book
Model ESL 6180
AUS
Page 2
Important safety information 3
Description of the appliance 4
The control panel 4
Before use 6
Setting the water softener 6
Filling with salt 6
Rinse aid 7
Use of detergent 7
Using your appliance 8
Loading your appliance 8
The lower basket 8
The cutlery basket 8
The upper basket 8
Adjusting the height of the upper basket 9
Hints and tips 10
Washing programmes 11
Operating sequence 12
Maintenance and cleaning 13
Internal cleaning 13
Cleaning the filters 13
External cleaning 13
Prolonged periods of non-operation 13
Frost precautions 13
Moving the machine 13
Something not working 14
Service and spare parts 15
Protection against flooding 15
Installation instructions 15
Water supply connections 15
Water outlet hose connection 16
Electrical connection 16
Hints for test centres 17
2
Contents
Dimensions Width 59.6 cm
Height 81.8 - 87.8 cm
Max depth 55.5 cm
Max depth with open door 111.4 cm
Electrical connection Voltage 220 - 240 V - 50 Hz
Motor rating during wash 200 W
Power of heating element 2100 W
Overall power 2300 W
Water supply pressure Minimum 50 kPa (0.5 bar)
Maximum 800 kPa (8 bar)
Capacity 12 place settings
Technical specifications
This appliance complies with the following E.E.C. Directives:
- 73/23 of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
Page 3
3
It is most important that this instruction book should be retained with the appliance for future reference. Should the
appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure
that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and
the relevant safety information.
This information has been provided in the interest of your safety. You MUST read it carefully before installing or using the
appliance.
Installation
● This appliance is heavy. Care should be taken when
moving it.
● It is dangerous to alter the specifications or attempt to
modify this product in any way.
● Care must be taken to ensure that the appliance does not
stand on the electrical supply cable.
● Any electrical work required to install this appliance should
be carried out by a qualified electrician.
● Any plumbing work required to install this appliance should
be carried out by a qualified plumber.
● It is the responsibility of the installer to ensure that the inlet
and outlet hoses are not to be bent or obstructed when the
machine is installed.
Child Safety
● This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the controls
or play with the product.
● Keep all packaging well away from children.
● Keep all detergents in a safe place out of children's reach.
During Use
● The appliance is not intended for use by infirm persons
without supervision.
● Items that are contaminated by petrol, paint, steel or iron
debris, corrosive, acidic or alkaline chemicals must not be
washed in this dishwasher.
● Under no circumstances should you open the door whilst
the appliance is in operation. Always turn off the appliance
before opening the door.
● Only use detergent specifically designed for use in
dishwashers.
● When finishing loading or unloading close the door, as an
open door can be a hazard.
● Do not sit or stand on the open door.
● Isolate the appliance from the power supply and turn off the
water supply after use.
● Care should be taken when cleaning the bottom door seal
and hinge area as any exposed metal edges may cut if
care is not taken.
● This product should be serviced by an authorised Service
engineer, and only genuine spare parts should be used.
● Under no circumstances should you attempt to repair the
machine yourself. Repairs carried out by inexperienced or
unauthorised persons may cause injury or serious
malfunction. Contact your local Service Agent.
Always insist on genuine spare parts.
Conservation
In the interest of the environment:
● Materials marked with the symbol are recyclable.
● Check with your local Council or Environmental Health
Office to see if there are facilities in your area for re-cycling
this appliance.
● When the appliance is to be scrapped, cut off the power
supply cable and make the door closing device unusable to
prevent young children from being trapped inside.
● Help to keep your country tidy - use authorised disposal
sites for your old appliance.
Warning!
Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed.
Avoid contact with skin and eyes and keep children
away from the dishwasher when the door is open.
Check that the detergent receptacle is empty after
completion of the wash cycle.
Check that the detergent receptacle is empty after
completion of the wash cycle.
Important safety information
Page 4
1. On/Off push button
2. Rinse aid indicator light
Illuminates when the rinse aid has run out, to remind you
to refill the rinse aid dispenser.
3. Salt indicator light
Illuminates when the salt has run out, to remind you to
refill the salt container.
4. Intensive programme indicator light
Illuminates when programme 2 (Intensive 70°C) is
selected.
5. Digital display
6. Programme selection push button
For the setting of the wash programme refer to the
"Washing programmes" chart.
7. Half load push button
This option is useful and economical when only a few
dishes need washing.
The prewash phase will be automatically excluded.
Remember to load all the dishes into both baskets.
When this option is selected the corresponding indicator
light comes on.
This option is not available with the following
programmes:
Programme 1 - RINSE AND HOLD
Programme 8 - QUICK
Programme 11 - QUICK (30 MINUTES)
Programme 12 - PLATE WARMER
4
The control panel
1. Levelling spacers
2. Upper basket stop
3. Salt container
4. Lower spray arm
5. Detergent dispenser
6. Control panel
7. Rating plate
8. Rinse aid dispenser
9. Large filter
10. Central filter
11. Upper spray arm
12. Upper basket
Description of the appliance
1
2
3
4
5
12
11
10
9
8
7
6
IN86
Page 5
8. Drying options push button
By pressing this push button you can opt to:
1. reduce the temperature of the water in the hot rinse
phase and the exclusion of the "Active Dry" system
(No Dry)
2. reduce the temperature of the water in the hot rinse
phase and the activation of the "Active Dry" system
(Eco Dry)
The indicator light corresponding to the selection will
come on.
Eco Dry
No Dry
If both indicator lights are off, the normal drying phase
will be carried out (standard temperature in the hot rinse
phase and "Active Dry" system automatically activated).
This option is not available with the following
programmes:
Programme 1 - RINSE AND HOLD
Programme 8 - QUICK
Programme 11 - QUICK (30 MINUTES)
Programme 12 - PLATE WARMER
9. Delay start push button
Allows the start of the programme to be delayed by a
minimum of 1 hour, up to 12 hours.
10. Cancel push button
(See "Operating sequence").
Audible signals
Audible signals have been introduced to help indicate which
operations the dishwasher is performing.
Short "instruction accepted" signal
When any of the push buttons are pressed (except the
On/Off push button), a short audible signal informs you that
the machine has accepted the instruction given.
Long "programme run" signal
A continuous audible signal informs you that the washing
programme is starting.
Intermittent "end of programme" signal
An intermittent audible signal informs you that the wash
programme has ended.
"Alarm" intermittent signal
The machine is fitted with a number of alarm systems to
help you determine the cause of any problems (see
"Something not working").
An intermittent audible signal for about 15 seconds informs
you that an alarm is activated.
To deactivate these audible signals, press simultaneously
and keep pressed both "programme selection" and "drying
options" push buttons for about 5 seconds, at the end of
which you will hear 3 short intermittent audible signals, this
means that the audible signals have been deactivated.
To reactivate these audible signals, press simultaneously
and keep pressed both "programme selection" and "drying
options" push buttons for about 5 seconds, at the end of
which you will hear 3 short intermittent audible signals, this
means that the audible signals have been reactivated.
Both operations (to deactivate or reactivate the audible
signals) must be carried out before starting a washing
programme; the setting will remain memorised after
switching off the dishwasher.
5
SO531
Page 6
Before using your dishwasher for the
first time:
1. Ensure that the electrical and water connections comply
with the installation instructions
2. Remove all packaging from inside the appliance
3. Set the water softener
4. Pour 1 litre of water inside the salt container and then fill
with salt
5. Fill the rinse aid dispenser.
6. Run a RINSE AND HOLD programme.
Setting the water softener
The dishwasher is equipped with a water softener designed to
remove minerals and salts from the water supply, which would
have a detrimental or adverse effect on the operation of the
appliance.
The higher the content of these salts, the harder your water is.
Water hardness is measured in PPM (parts per Million).
The softener should be adjusted according to the hardness of
the water in your area. Your local Water Authority can advise
you on the hardness of the water in your area.
The dishwasher is factory set at level 4.
If this level is not suitable for your area the softener should be
adjusted.
If your water is level 0 it is already soft and therefore
there is no need to use salt.
With the setting of the water softener at level 0 the salt
indicator light on the control panel will always remain off.
Use salt from level 1 upwards.
The adjustment of the water softener is possible only with
the machine in setting mode.
To select a different level proceed as
follows:
1. Press "half load" and "drying options" push buttons
simultaneously for about 5 seconds. In the display appears
an L followed by a number (e.g. L 4) which corresponds to
the current level.
2. Press the "drying options" push button within 5 seconds
(No Dry indicator light is flashing) until the required level
appears in the display. The level increases by 1 each time
the push button is pressed.
3. 5 seconds after the "drying options" push button has last
been pressed, the dishwasher memorises the level
selected and returns to the programme setting mode.
Filling with salt
Only use salt specifically designed for use in
dishwashers.
All other types of salt not specifically designed for use in
a dishwasher, especially table salt, will damage the water
softener.
Only fill with salt just before starting one of the complete
washing programmes. This will prevent any grains of salt
or salty water, which may have been spilled, remaining on
the bottom of the machine for any period of time, which
may cause corrosion.

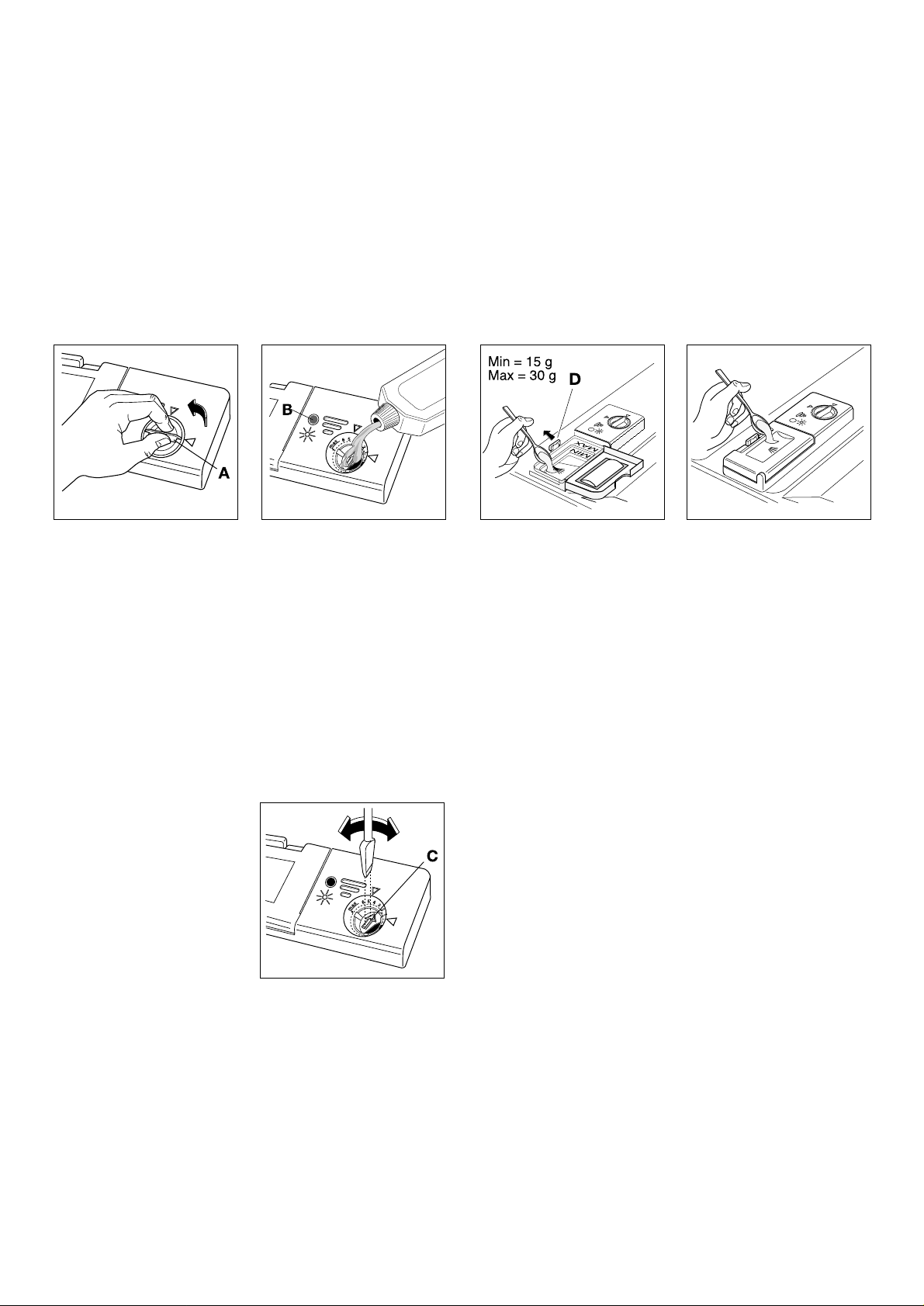

To fill:
1. To fill with salt, unscrew the cap of the salt container.
2. Pour 1 litre of water inside the container (this is necessary
only before filling with salt for the first time).
3. Using the funnel provided,
pour in the salt until the
container is full.
Do not worry if water over
flows from the unit when
filling with salt, this is quite
normal.
4. Replace the cap making
sure that there is no trace
of salt on the screw thread
or on the gasket.
5. Screw on the cap tightly.
The salt container will require topping up periodically.
You are reminded of this by the salt indicator light on the
control panel which comes on when the salt has finished.
The salt indicator light on the control panel can remain
illuminated for 2-6 hours after the salt has been
replenished, assuming the dishwasher remains switched
on. If you are using salts that take longer to dissolve then
this can take longer.
The operation of the machine is not affected.
6
Before use
Level
Use of
salt
PPM
(Parts per Million)
0
1
2
3
4
5
6
7
8
9
NO
YES
YES
YES
YES
YES
YES
YES
YES
YES
0 - 80
81 - 140
141 - 200
201 - 300
301 - 400
401 - 500
501 - 600
601 - 700
701 - 800
801 - 1200
Water hardness
SO532
SR06
SALE
SALT
SALZ
SEL
Page 7
Rinse aid
Rinse aid is automatically added during the last rinse,
ensuring thorough rinsing, and spot and streak free drying.
The dispenser, which is positioned inside the door, holds
about 110 ml of rinse aid, which is sufficient for 16 - 40
dishwashing programmes, depending upon the dosage
setting.
Filling with rinse aid
1. Open the container by turning the lid (A) anticlockwise.
2. Add the rinse aid until the container is completely full.
The indicator (B) will be completely dark.
3. Top up the rinse aid when the rinse aid indicator light on
the control panel illuminates.
Ensure that the lid is closed after every refill.
Do not put liquid detergent in the rinse aid compartment.
Clean up any rinse aid spilt during filling with an absorbent
cloth to avoid excess foaming during the next wash.
Adjusting the dose
According to the finish and drying results obtained, adjust the
dose of rinse aid by means of the 6 position selector (C)
(position 1 minimum dosage, position 6 maximum dosage).
Increase the dose if there are drops of water or lime spots on
the dishes after washing.
Reduce it if there are sticky whitish streaks on the dishes.
Use of detergent
Only use detergents specifically designed for use in
dishwashers.
If using powder detergents proceed as follows:
1. Open the dispenser lid by pulling the catch (D).
2. Add the detergent according to the instructions given in the
Washing programmes chart.
As all detergents are not the same, you should also consult
the instructions on the packet.
3. Always close the lid.
4. If the programme has a prewash add a little amount of
detergent over the lid of the dispenser. Follow the
recommended quantity of detergent given in the "Washing
programmes" chart.
If using detergent in tablets proceed as
follows:
1. For all programmes; place 1 tablet inside the detergent
dispenser.
2. Always close the lid.
3. For all programmes with prewash; place a portion of a
further tablet on the lid of the detergent dispenser.
If detergents in tablets form are used with the QUICK and
QUICK (30 MINUTES) programmes, it is advisable to put the
tablet directly in the dishwasher and not in the dispenser or in
special tablet containers. This ONLY applies to these
programmes.
Attention!
Check that the detergent receptacle is empty after
completion of the wash cycle.
Insufficient quantities of detergent will produce poor
washing results, whereas an excessive amount of
detergent will not improve washing results and is also
wasteful.
Using no more than the correct amount also contributes
to reducing pollution.
7
BR01
BR03
BR02
DE17
DE02
Page 8

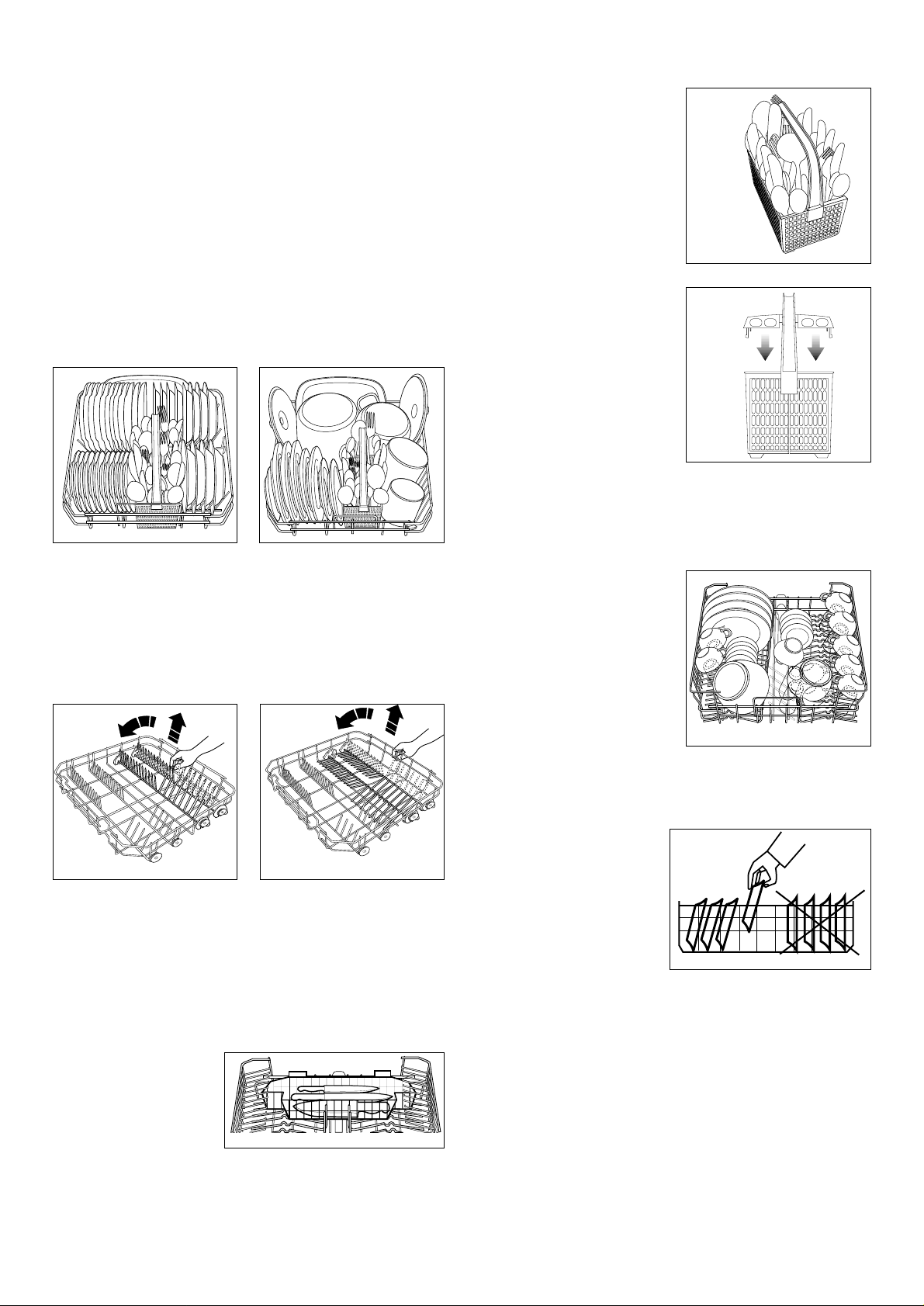

Loading your appliance
Before placing dishes in the machine, remove any scraps of
food, to avoid clogging the filters and consequently reducing
the performance.
Do not load very small items which can fall through the
baskets.
Open the door and slide out the baskets to load the dishes.
The lower basket
The lower basket is designed to take saucepans, lids, plates,
salad bowls, cutlery etc.
Serving dishes and large lids should be arranged around the
edge of the basket, ensuring that the upper spray arm can
turn freely.
The two rear rows of prongs on the lower basket can be easily
lowered to allow you to load pots, pans and bowls.
To lower the prongs:
- Slightly pull them upward and let them drop down (see
picture).
- To bring them back to the standing position, just pull
them up again.
The cutlery basket
Long bladed knives stored in an upright position are a
potential hazard.
These items should only be placed in the removable knife
basket.
Take care when loading or unloading sharp items such as
knives.
Removable knife basket
Long and/or sharp items of cutlery such as carving knives
must be placed horizontally in the removable knife basket,
which is positioned at the rear of the upper basket.
Cutlery should be placed in
the removable cutlery basket
with the handles facing
downwards.
If the handles protrude from
the bottom of the basket,
obstructing the lower spray
arm, load the cutlery with the
handles facing upwards.
Mix spoons with other cutlery
to prevent them from sticking
together.
Silver cutlery tends to go
black if mixed with steel
cutlery. Place it in the cutlery
basket separate from the
others.
For best results we
recommend to use the
cutlery grid provided (if the
size and the dimensions of
the cutlery allow it).
The upper basket
The upper basket is designed for plates (dessert plates,
saucers, dinner plates of up
to 25 cm in diameter), salad
bowls, cups and glasses.
Arrange items so that water
can reach all surfaces.
Glasses with long stems can
be placed upside down in the
cup racks.
Light items (plastic bowls
etc.) must be loaded in the
upper basket and arranged
so they do not move.
In case that plates are loaded in the upper
basket:
load them starting from
the rear positions of the
basket, tilting them
forwards and avoiding the
front positions near the
door.
Attention!
Before closing the door, ensure that the spray arms can
rotate freely.
8
Using your appliance
UI49
UI19
UI04
UI71
US47
UI85
UI18
UI53
US71
Page 9

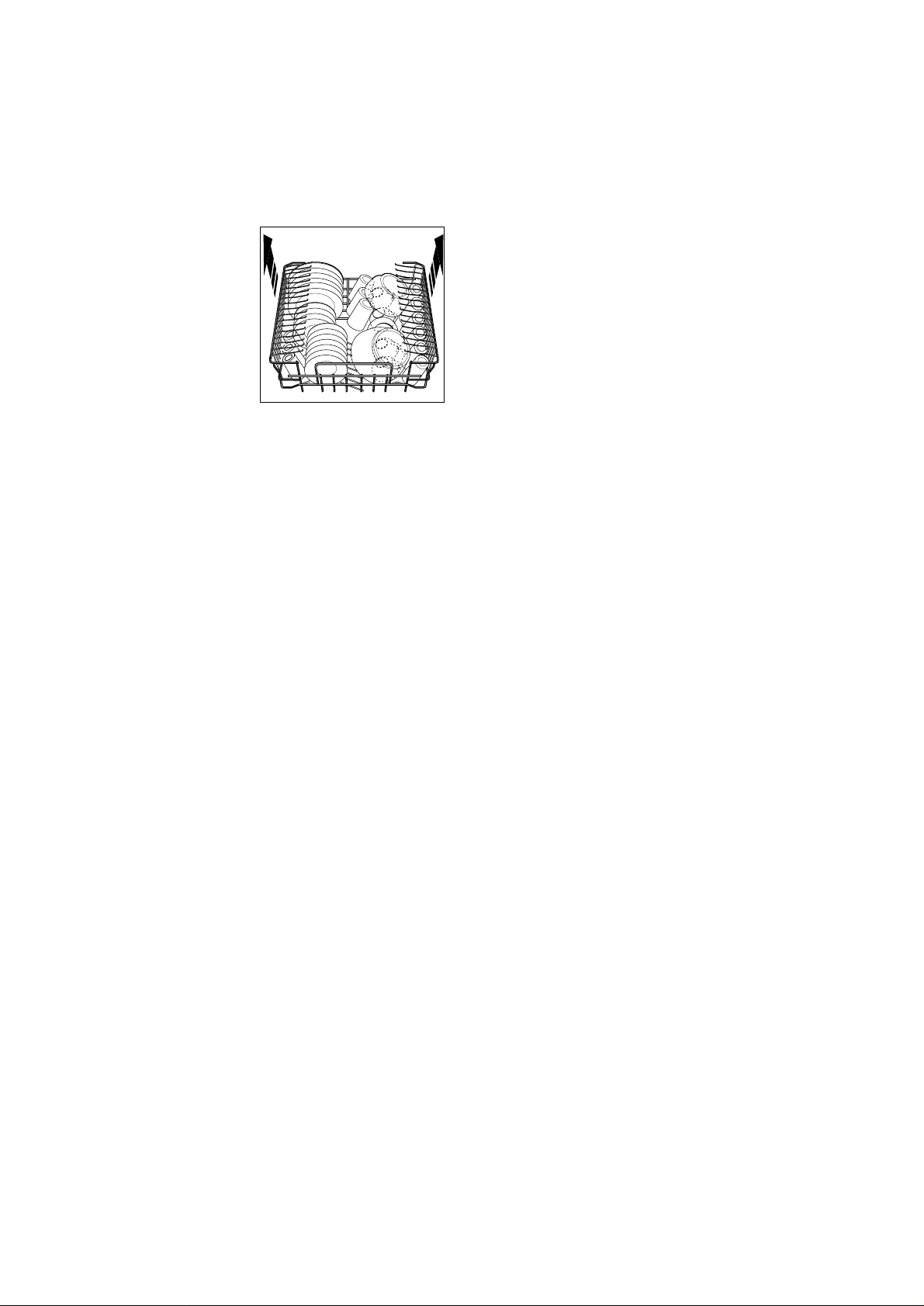

Adjusting the height of the upper
basket
If washing very large plates (over 27 cm and up to 32 cm in
diameter) you can load them in the lower basket after moving
the upper basket to the higher position.
Attention!
Never lift or lower the basket on one side only.
To move to the higher position proceed as follows:
1. Pull out the basket until it
stops.
2. Carefully lift both sides
upwards until the
mechanism is engaged
and the basket is stable.
When the top basket is in the higher position it will only take
plates up to 20 cm in diameter and you will not be able to use
the cup racks.
To lower the basket to the original position proceed as
follows:
1. Pull out the basket until it stops.
2. Carefully lift both sides upwards and the allow the
mechanism to drop back slowly, keeping hold of it.
Attention!
After loading your machine always close the door, as an
open door can be a hazard.
9
RC04
Page 10
To save energy
Place dishes in the machine immediately after every meal and
wait until the dishwasher is full before washing.
Do not prewash dishes under running water.
Select the washing programme according to the degree of soil
and the type of load. Follow the instructions given in the
"Washing programmes" chart.
Select the half load option if only a few dishes need washing.
Remember to load the dishes in both baskets.
For best washing results
Before loading, remove all scraps of food and soak very
heavily soiled pots and pans.
Arrange saucepans, cups and glasses etc. upside-down.
Tilt items with convex or concave surfaces so that the water
drains off easily.
Avoid contact between the dishes as far as possible.
Items not suitable for dishwashers
The following items should not be washed in the dishwasher
(unless they are sold as dishwasher proof):
- Cutlery with wooden or horn handles or glued parts
- bronze cutlery
- saucepans with wooden handles
- aluminium ware
- crystal ware
- leaded glass
- plastic items
- antique or fine decorated china
Certain types of decoration can discolour when washed in a
dishwasher.
Crystal-ware and plastic objects, if not guaranteed dishwasher
proof should be washed by hand.
Certain types of glass can also become opaque
after being washed several times in a dishwasher.
A chemical reaction can occur between silver cutlery and
stainless steel cutlery. As a precaution, do not wash together.
Iron and cast iron objects can rust and stain other items.
Aluminium tends to go black, copper, pewter and
brass tend to stain.
If in doubt check with manufacturer of the item.
When buying new dishes, ensure that they are
dishwasher proof.
10
Hints and tips
Page 11
11
*
Ideal for washing a complete load of 12 place settings with normal soil.
Characterised by a duration of about 80 minutes and a washing temperature of 65°C. The time value is approximated and depends on
the pressure and the temperature of the water and also by the variations of the power supply.
**

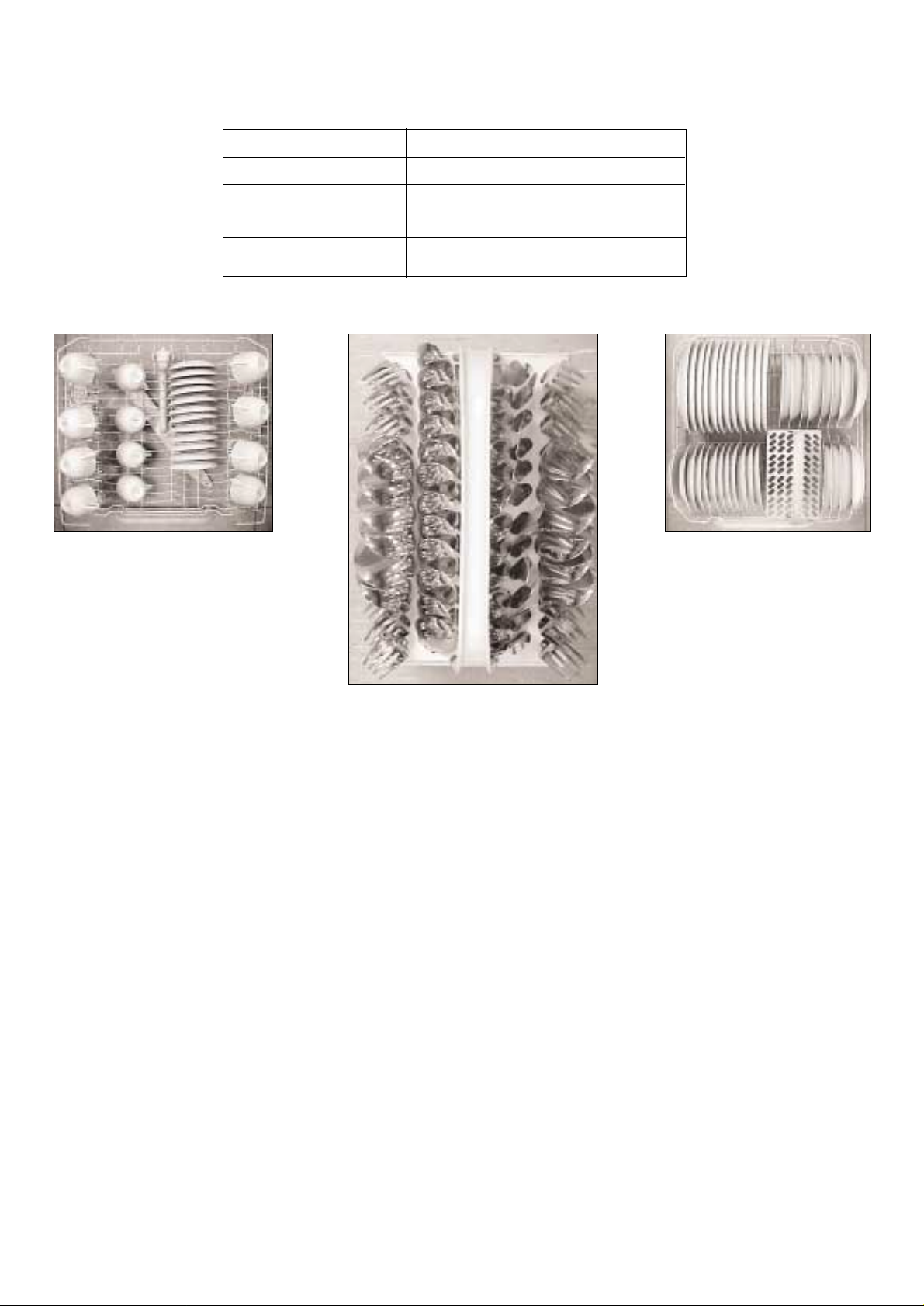

Testing programme for AS/NZS 2007 (see "Hints for Test Centres").
****
Ideal for washing crockery and cutlery of breakfast and dinner (fresh soil).
Characterised by a duration of about 30 minutes and a washing temperature of 60°C. The time value is approximated and depends on
the pressure and the temperature of the water and also by the variations of the power supply.
This is the a daily programme, made to meet the needs of a family of 4 persons who only wish to load breakfast and dinner crockery and
cutlery.
Washing programmes
Programme Type of load
and
degree of soil
Any. Partial load (to be completed later
in the day)
Heavy soil.
Crockery, cutlery, pots and pans
Normal soil.
Crockery, cutlery, pots and pans
Normal soil.
Crockery and cutlery
Normal soil.
Crockery and cutlery
Light soil.
Crockery and cutlery
Light soil.
Crockery and cutlery
Fresh soil.
Crockery and cutlery
This is a programme both designed to
heat plates before serving or remove
dust from dishes which have not been
used for a long time
Light soil.
Crockery, cutlery and party crockery
Normal soil.
Delicate china and crockery
Light soil.
Crystal glass and glassware
Cycle
description
Recommended
quantity of detergent
wash prewash
1.
RINSE AND HOLD
2.
INTENSIVE
3.
NORMAL PLUS
WITH PREWASH
9.
DELICATE
WITH PREWASH
10.
CRYSTAL
12.
PLATE WARMER
****
11.
QUICK (30 MINUTES)
5.
NORMAL
7.
BIO
*
4.
INTENSIVE (80 MINUTES)
**
6.
BIO
WITH PREWASH
***
8.
QUICK
20 g 10 g
20 g 10 g
20 g 10 g
20 g 10 g
25 g 5 g
25 g 5 g
//
//
30 g /
30 g /
30 g /
20 g /
1 cold rinse (to avoid food scraps
from sticking together)
Hot prewash
Main wash up to 70°C
3 cold rinses
1 hot rinse
Active dry
Hot prewash
Main wash up to 65°C
2 warm rinses
1 hot rinse
Active dry
Hot prewash
Main wash up to 65°C
1 cold rinse
1 hot rinse
Active dry
Warm prewash
Main wash up to 50°C
2 cold rinses
1 hot rinse
Active dry
Cold prewash
Main wash up to 45°C
2 cold rinses
1 hot rinse
Active dry
Cold prewash
Main wash up to 40°C
2 cold rinses
1 hot rinse
Active dry
Main wash up to 60°C
1 hot rinse
1 hot rinse
Main wash up to 50°C
2 cold rinses
1 hot rinse
Active dry
Main wash up to 50°C
1 cold rinse
1 hot rinse
Main wash up to 65°C
2 cold rinses
1 hot rinse
Active dry
Page 12
In this fully integrated appliance the controls are located on
the top of the door. When selecting a programme, the door
needs to be open.
1. Check the filters
Ensure they are clean and properly positioned (see
"Maintenance and cleaning").
2. Press the On/Off push button
The display will show the last selected programme and
the indicator lights options selected with the last
programme will illuminate.
3. Check that there is rinse aid and salt
The corresponding indicator lights will illuminate if
refilling is necessary.
4. Load the dishes
Remove any scraps of food.
Pull the lower basket out and arrange the saucepans,
plates and cutlery in it.
Pull the upper basket out and arrange the plates,
saucers, glasses and cups etc. in it.
Slide the baskets back into the machine.
5. Ensure that the spray arms can
rotate freely
6. Measure out detergent
Add the required amount of detergent into the dispenser.
Important!
If you select the "half load" option remember to reduce
the quantity of detergent.
Close the detergent dispenser lid.
7a. Setting and starting the programme
without "delay start"
Press the "programme selection" push button until the
required programme number appears in the digital
display (see "Washing programmes" chart).
If you wish to see the duration of the programme you
have just selected, ONLY with the door opened, press
the Cancel push button.
Select one of the following options (if desired):
- half load (in the digital display the programme running
time will be updated).
- drying options
Close the door, the programme will start automatically
and an audible signal advises you of that.
The display will show the running time (in minutes) of the
programme.
7b. Setting and starting the programme
with "delay start"
Once a programme and required options (see point 7a)
have been selected to use "delay start" proceed as
follows:
Press the "delay start" push button. The digital display
will show "h 0". Press the button again to select the
number of hours by which you wish to delay the
programme start (up to a maximum of 12 hours).
If previously half load and delay start have been
selected, the corresponding indicator lights will turn off
but don’t worry, the settings made remain memorised.
To set the time setting to zero press the "delay start"
push button until "h 0" appears in the digital display.
Close the door. The start of the countdown will be
confirmed by an audible signal and a flashing dot after
the number in the digital display.
The opening of the door will not stop the
countdown.
Once the delayed time has elapsed the programme will
start automatically and in the digital display will appear
the duration of the programme.
To cancel a delay start in progress, open the door and
press the Cancel push button. The delay start will be
cancelled without modifying the previous selection of the
washing programme with relative options. In the digital
display will appear the number of the programme.
8. To cancel a programme in progress
Open the door and press the Cancel push button.
An audible signal will inform you that the programme has
been cancelled and in the digital display 3 horizontal
lines --- will appear (for about 2 seconds), after will
appear the number of the programme just cancelled.
The dishwasher has now returned to setting mode and it
is possible to select a new washing programme.
9. At the end of the washing
programme
The dishwasher will automatically stop and an
intermittent audible signal will be heard when the
programme has ended (when the delay start has been
selected the audible signal of "end of programme" is
automatically excluded).
3 flashing horizontal lines (---) will appear in the digital
display and all the indicator lights will turn off.
Open the door and press the On/Off push button.
Wait a few minutes before removing the dishes; in this
way they will be cooler.
Empty the lower basket first and then the upper one; this
will avoid water dripping from the upper basket onto the
dishes in the lower one.
Important!
In general it is not advisable to open the door while the
machine is working; if the door is opened however, a
safety device ensures that the machine stops.
Care must be taken if the door is opened during the hot
phase or immediately after a programme has finished, as
steam may escape.
When the washing programme has finished, it is
recommended that the dishwasher is unplugged and the
water tap turned off.
12
Operating sequence
Page 13
Internal cleaning
Ensure that the seals around the door, the detergent and rinse
aid dispensers are cleaned regularly with a damp cloth.
We recommend every 3 months to run a 65°C wash
programme without dishes using detergent.

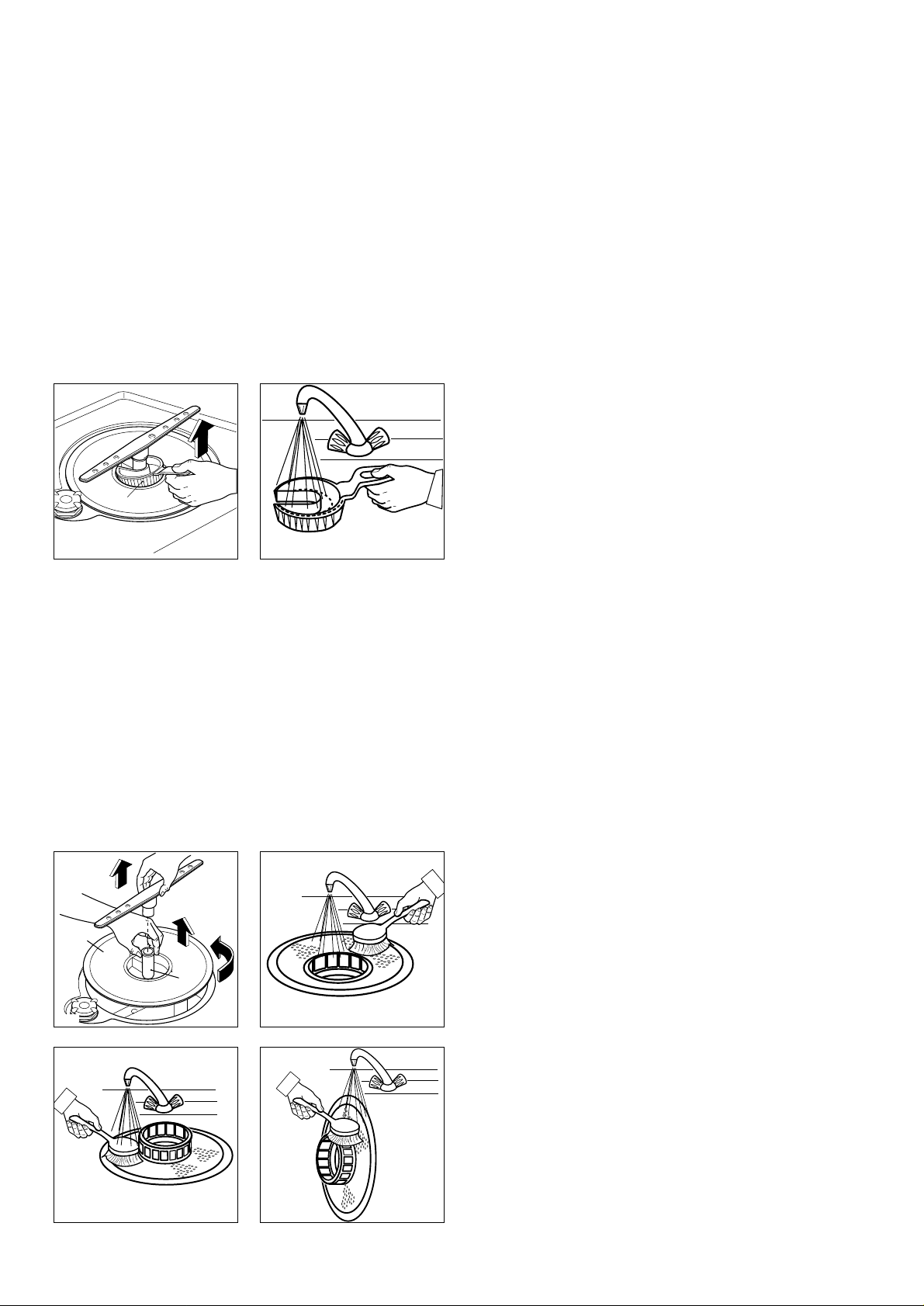

Cleaning the central filter
(After each wash)
Scraps of food may accumulate in the drain filter (A) and
should be removed by rinsing the filter under running water.
To remove the drain filter
- simply pull it out by the handle.
Once cleaned, refit the filter by pushing it back to its original
position until it engages.
Cleaning the large filter
(Every week)
If necessary clean the large filter (B) on both sides under
running water, using a brush.
To remove the large filter
1. Remove the spray arm by pulling it upwards on one side.
2. Turn the column (C) anticlockwise by 90° and then slide out
the filter.
3. Once cleaned refit it following the above instructions in
reverse order.
4. Ensure the filter is in its original position, the handle of the
drain filter should be pointing towards the front of the
appliance.
The dishwasher must not be used without filters.
Incorrect repositioning and fitting of the filters will
produce poor washing results.
Cleaning the filters is vital to ensure correct operation of
the machine.
External cleaning
Clean the external surfaces of the machine and control panel
with a damp soft cloth. If necessary use only neutral
detergents. Never use abrasive products, scouring pads or
solvent (acetone, trichloroethylene etc....).
Prolonged periods of non-operation
If you are not using the machine for any period of time you are
advised to:
1. Unplug the appliance and then turn off the water.
2. Fill the rinse aid dispenser.
3. Leave the door ajar to prevent the formation of any
unpleasant smells.
4. Leave the inside of the machine clean.
Frost precautions
Avoid placing the machine in a location where the temperature
is below 0°C. If this is unavoidable, empty the machine, close
the appliance door, disconnect the water inlet pipe and empty
it.
Moving the machine
If you have to move the machine (moving house etc....):
1. Unplug it.
2. Turn the water tap off.
3. Remove the water inlet and discharge hoses.
4. Pull the machine out together with the hoses.
Avoid over tilting the machine during transportation.
13
Maintenance and cleaning
A
MA04
MA19
90°
B
C
MA05
MA21
MA20
MA18
Page 14
14
Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer.
The dishwasher is fitted with a number of alarm systems which can help you to quickly determine the cause of any problems.
If the dishwasher will not start or stops during operation, all push buttons are inoperative except for the On/Off push button, all the
indicator lights turn off and in the digital display one of the following flashing fault codes will appear: AL1, AL2, AL3, AL4, AL5, AL6,
AL7, AL8.
Press the On/Off push button to switch off the dishwasher and carry out the following suggested corrective actions listed below.
Once the checks have been carried out switch on the dishwasher and start a washing programme, if the fault code reappears in
the digital display, contact your local Authorised Service Centre.
Something not working
Symptom Fault code Solution
The machine will not start ● The door has not been properly closed.
● The plug is not properly inserted in the power socket.
● There is a power failure.
The machine does not fill Alarm AL5
● Ensure the water tap is open.
with water ● Ensure the mains water supply has not been cut off.
● The inlet hose may be squashed or bent. Reposition the hose.
● The inlet hose may be blocked. Switch off the water supply
and clean the filter.
The dishwasher will not drain Alarm AL6
● The drain hose may be squashed or bent. Reposition the
hose.
● The sink may be blocked. Clear any blockages.
● The drain hose extension is not correct. Follow the instructions
for connecting to the waste.
● There is no vent in the end of the drain hose.
Protection against flooding Alarm AL4
● Close the water tap and contact the Authorised Service Centre.
is active
General Alarms AL1, AL2,
● Switch off the dishwasher. Switch it back on and start the
AL3, AL7, AL8 programme. If the alarm reappears, call the local Authorised
Service Centre.
The machine is noisy
● Dishes are rattling against each other, refer to “Loading
your machine”.
● The spray arms are knocking against the dishes. Refer
to "Loading your machine".
The door is difficult to close
● The dishwasher is not level, or not properly built-in.
Visible lime deposits or ● Check that there is salt and that the salt cap is tight.
white film on the dishes ● Check that the right level of the water softener is setted.
The dishes are not quite dry
● The rinse aid has run out or too little is being used.
The dishes are not clean ● The baskets are too full.
(poor wash)
● The dishes have not been arranged properly.
● The spray arms do not rotate
● The spray arms are clogged.
● The filters are clogged.
● The filters are not in the correct position.
● Not enough detergent has been used or it is unsuitable.
● The detergent is old or has gone hard.
● The salt container cap is not properly closed.
● The washing programme selected is too gentle.
Page 15
If after all these checks, the problem persists, contact your
local Authorised Service Centre, quoting the model (Mod.), the
PNC number and the serial number (S.N.).

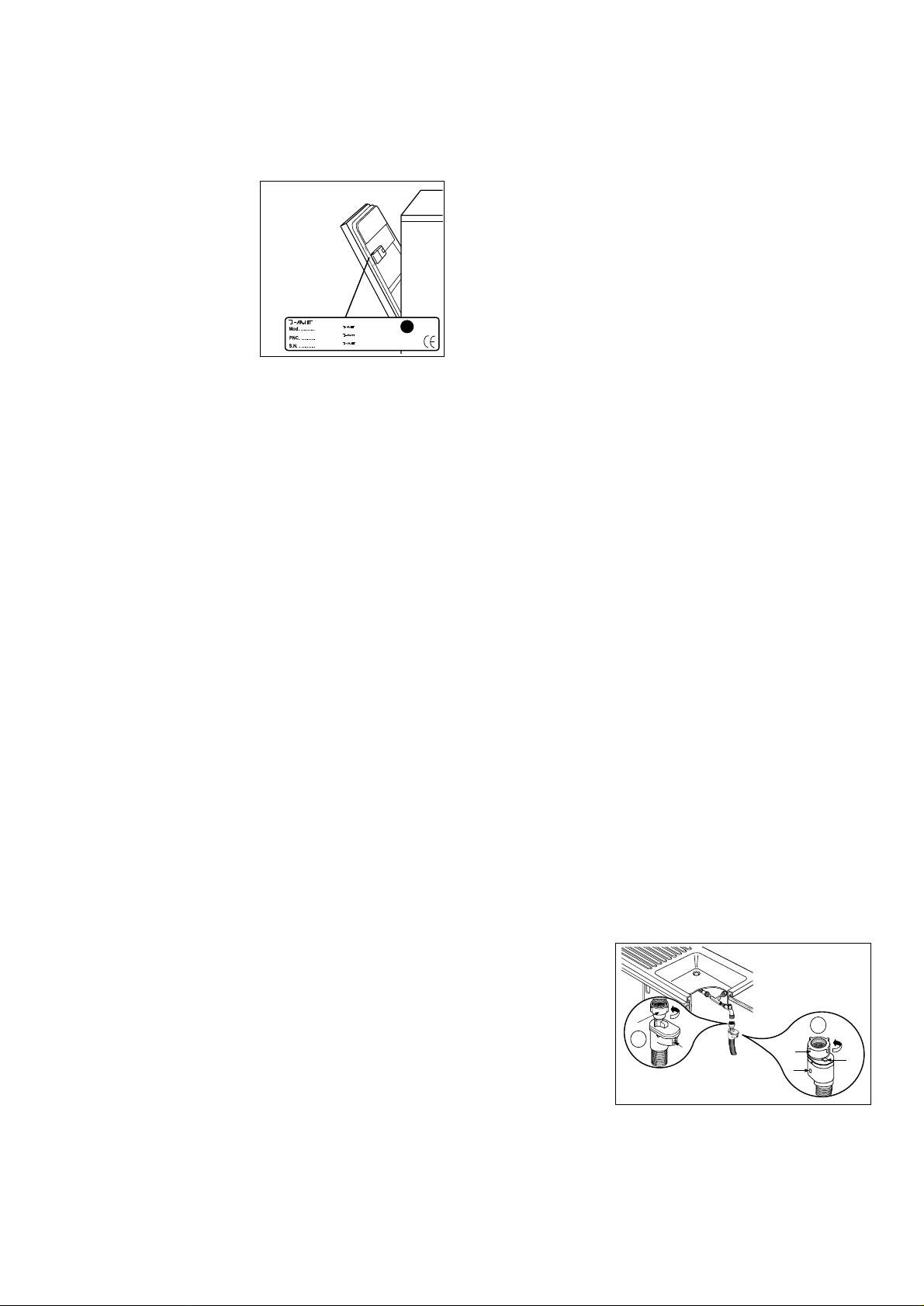

This information can be found on the rating plate located on
the right hand side of the dishwasher door (see picture).
So that you always have these numbers at hand, we
recommend you to make a note of them here:
Mod.:. . . . . . . . . . . . . . . . .
PNC: . . . . . . . . . . . . . . . . .
S.N.: . . . . . . . . . . . . . . . . .
Service and spare
parts
This product should be serviced by an authorised Service
engineer, and only genuine spare parts should be used.
Under no circumstances should you attempt to repair the
machine yourself.
Repairs carried out by inexperienced persons may cause
injury or serious malfunctioning. Contact your local
Authorised Service Centre.
Always insist on genuine spare parts.

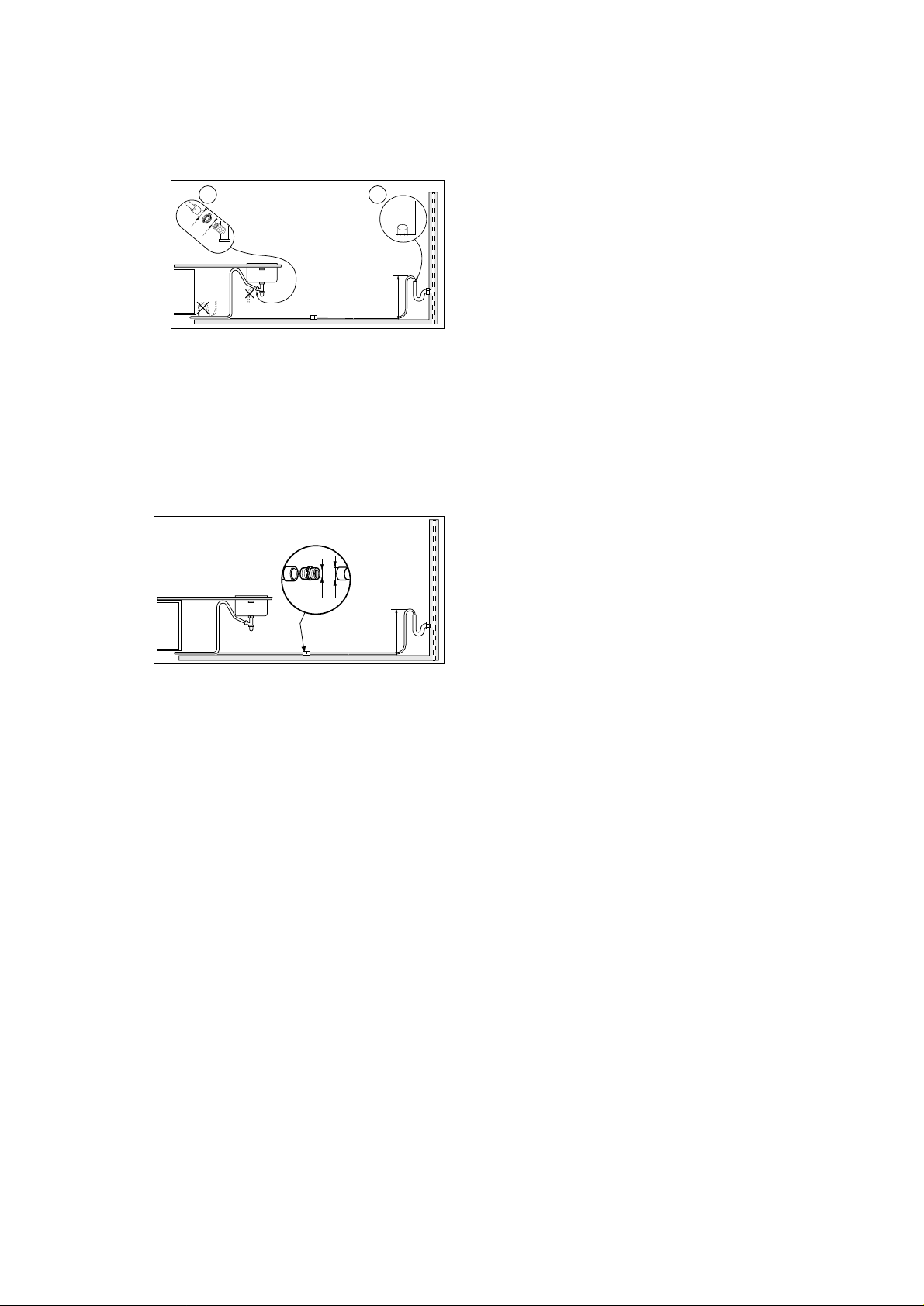

Protection against flooding
In order to prevent water floods, the machine has been
provided with two devices, having the following characteristics:
1. In the water inlet hose (see "Water supply connections").
The device comes into operation as a result of any damage
to the water inlet hose and stops the water inflow.
To repair the machine call the Authorised Service Centre.
2. In the bottom of the machine:
The device comes into operation as a result of any water
leaks in the machine.
In case of intervention in the digital display will appear AL4.
To repair the dishwasher, turn off the water tap and call the
Authorised Service Centre.
15
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Any plumbing work required to install this appliance
should be carried out by a qualified plumber or competent
person.
Remove all packaging before positioning the machine.
If possible, position the machine next to a water tap and a
drain.
Attention!
Carefully follow the instructions on the enclosed template for
building in the dishwasher and fitting the furniture panel.
Water supply connections
This dishwasher may be fed with either hot (max. 50°) or cold
water. Nevertheless we advise you a cold water supply.
A hot water supply is not always efficient with very soiled
crockery as it shortens the washing programmes a lot.
The water pressure must be within the limits given in the
technical specifications.
Your local Water Authority will advise you on the average
mains pressure in your area.
The dishwasher features fill and drain hoses which can be
turned either to the left or the right to suit the installation. The
locknut must be correctly fitted to avoid water leaks.
Avoid bends or kinks in the hose which could prevent or slow
down the water supply.
If the machine is connected to new pipes or pipes which have
not been used for a long time, you should run the water for a
few minutes before connecting the inlet hose. This will prevent
deposits of sand or rust clogging the inlet hose filter.
For making the connection itself, the coupling nut fitted to the
machine’s supply hose is designed to screw onto either a 3/4
inch gas thread spout, or to a purpose made quick-coupling
tap such as the Press-block.
Do not use, for connection, old hoses which have been
used in another appliance.
The water supply hose is fitted with a safety device, which
prevents water from entering the machine should the inner
hose split, due to wear.
The problem is signalled by a red indicator which appears in
the window (B - ➀ ➁).
The retaining ring (A - ➀ ➁) must be properly fitted so as to
avoid water leaks.
Note:
Only for water supply hoses fitted with Lock-fast safety device
to prevent inadvertent loosening.
To detach the hose press yellow lever (C - ➁) and turn the
retaining ring anticlockwise ➁.
Installation instructions
RA08
CA13
A
1
B
2
A
B
C
Page 16
Water outlet hose connection
The end of the drain hose can be connected in the following
ways:
1. To the sink outlet spigot, securing it if necessary with a clip.
2. To a stand pipe provided with vent-hole, minimum internal
diameter 4 cm.
The waste connection must be at a height of between 30 cm
(minimum) and 100 cm (maximum) from the bottom of the
dishwasher.
The drain hose can face either to the right or left of the
dishwasher
Ensure the hose is not bent or squashed as this could prevent
or slow down the discharge of water.
If you use a drain hose extension it must be no longer than 2
metres and its internal diameter must be no smaller than the
diameter of the hose provided.
Likewise the internal diameter of the couplings used for
connections to the waste outlet must be no smaller than the
diameter of the hose provided.
The sink plug must not be in place when the machine is
draining as this could cause the water to siphon back into the
machine.
Attention!
Our appliances are supplied with a security device to protect
against the return of dirty water back into the machine.
If the spigot of your sink has a "no return valve" incorporated
this can prevent the correct draining of your dishwasher.
We advise you therefore to remove it.
Electrical connection
Before plugging the appliance into the wall socket, make sure
that:
1. The mains voltage corresponds to the voltage given in the
"Technical specifications".
2. The meter, fuses, mains power supply and wall socket can
all take the maximum load required.
Make sure that the socket and plug are compatible without
having to use any type of adaptor. If necessary, have the
domestic wiring system socket replaced.
Important: The plug must still be accessible after the
appliance has been installed
Safety standards require the appliance to be
earthed.
The manufacture accepts no liability for failure to observe
the above safety precautions.
16
1 2
Ø 21
Ø 18
CS13
min 4 cm
min 30 cm
max 100 cm
Ø 18
Ø 21
min 30 cm
CS14
+ 2 m max
max 100 cm
Page 17
17
Hints for test centres
Before starting any test it is necessary to fill completely with salt the salt container and with rinse aid the rinse aid dispenser.
Test standard AS/NZS
Reference programme: Programme 6 - BIO WITH PREWASH
Load: 12 standard place settings
Rinse aid selector: position 5
Detergent dosage : 20 g in the dispenser
10 g on the dispenser lid
Arrangement lower basket
Arrangement upper basket
Arrangement cutlery basket
Page 18
Page 19
Page 20
The Electrolux Group. The world’s No.1 choice.
The Electrolux Group is the world’s largest producer of powered appliances for kitchen,
cleaning and outdoor use. More than 55 million Electrolux Group products (such as
refrigerators, cookers, vacuum cleaners, chain saws and lawn mowers) are sold each year
to a value of approx. 14 billion USD in more than 150 countries around the world.
152973 59/0
0 08/02
Subject to change without notice
Loading...
