Page 1

Dishwasher

Instruction book

Model ESL 424

Page 2

For the user

Important safety information 3 Description of the appliance 4 The control panel 4 Before use 5

Setting the water softener 5 Filling with salt 6 Rinse aid 7

Using your appliance 8 Loading your appliance 8 The lower basket 8 The cutlery basket 8 The upper basket 9 Adjusting the height of the upper basket 9 Use of detergent 10

Hints and tips 11 Washing programmes 12 Operating sequence 13 Maintenance and cleaning 14

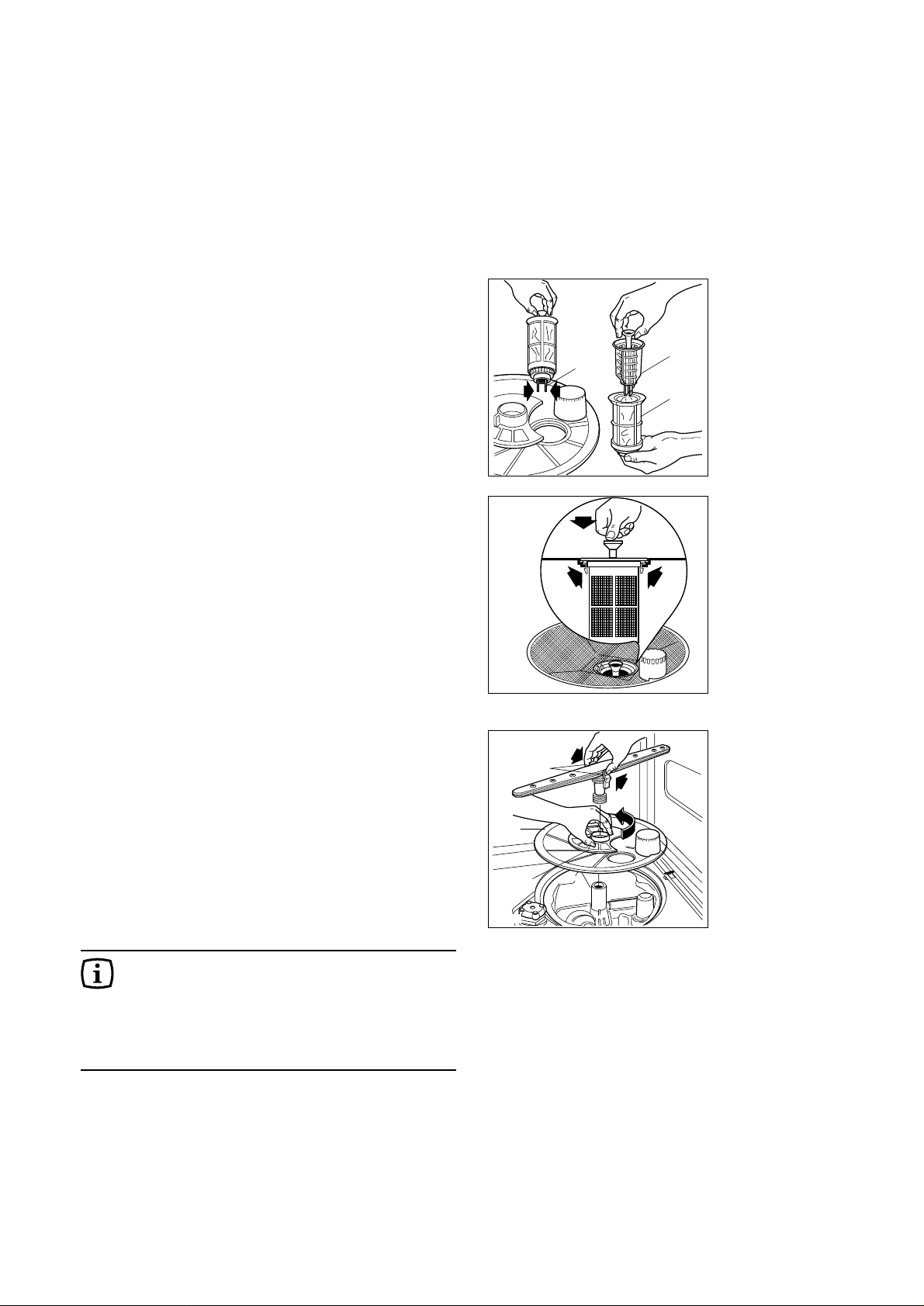

Internal cleaning 14 Cleaning the central filters 14 Cleaning the large filter 14 External cleaning 15 Prolonged periods of non-operation 15 Frost precautions 15 Moving the machine 15

Something not working 16 Service and spare parts 17

Customer Care Department 17

Guarantee conditions 18 Electrolux Service Force 19 Hints for test centres 21

Technical specifications 21

For the installer

Installation instructions 22

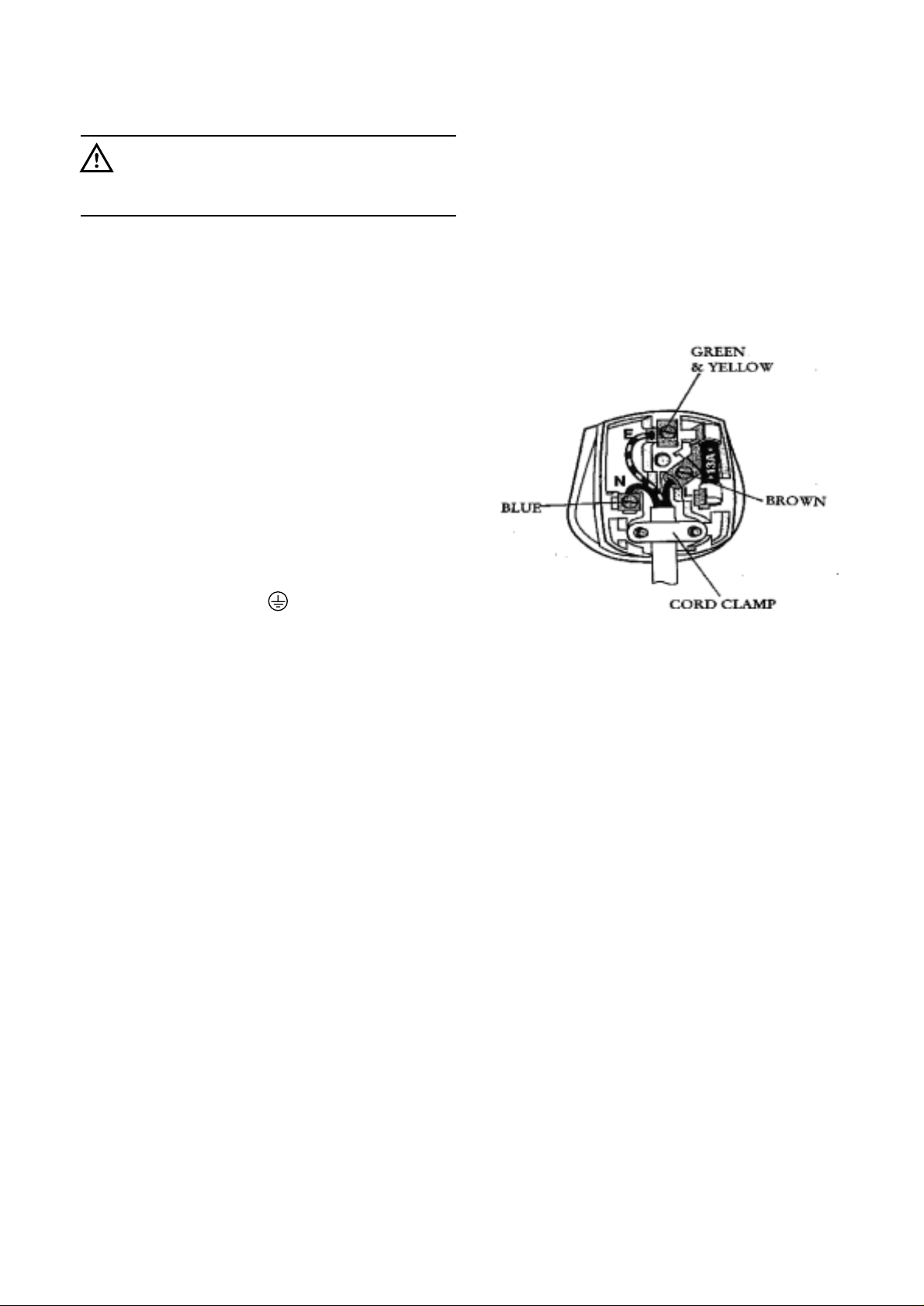

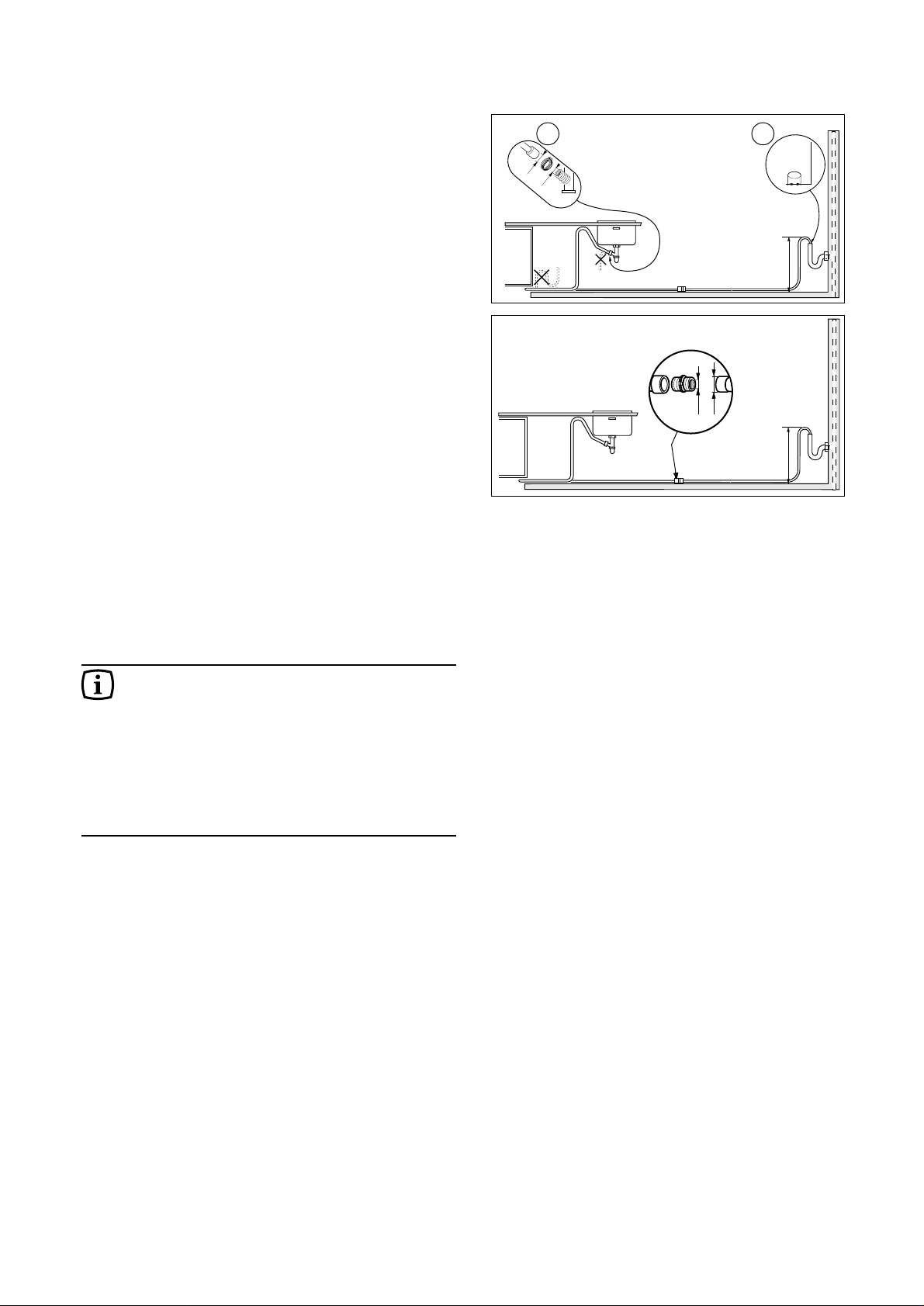

Water supply connections 22 Water outlet hose connection 23 Electrical connection 24

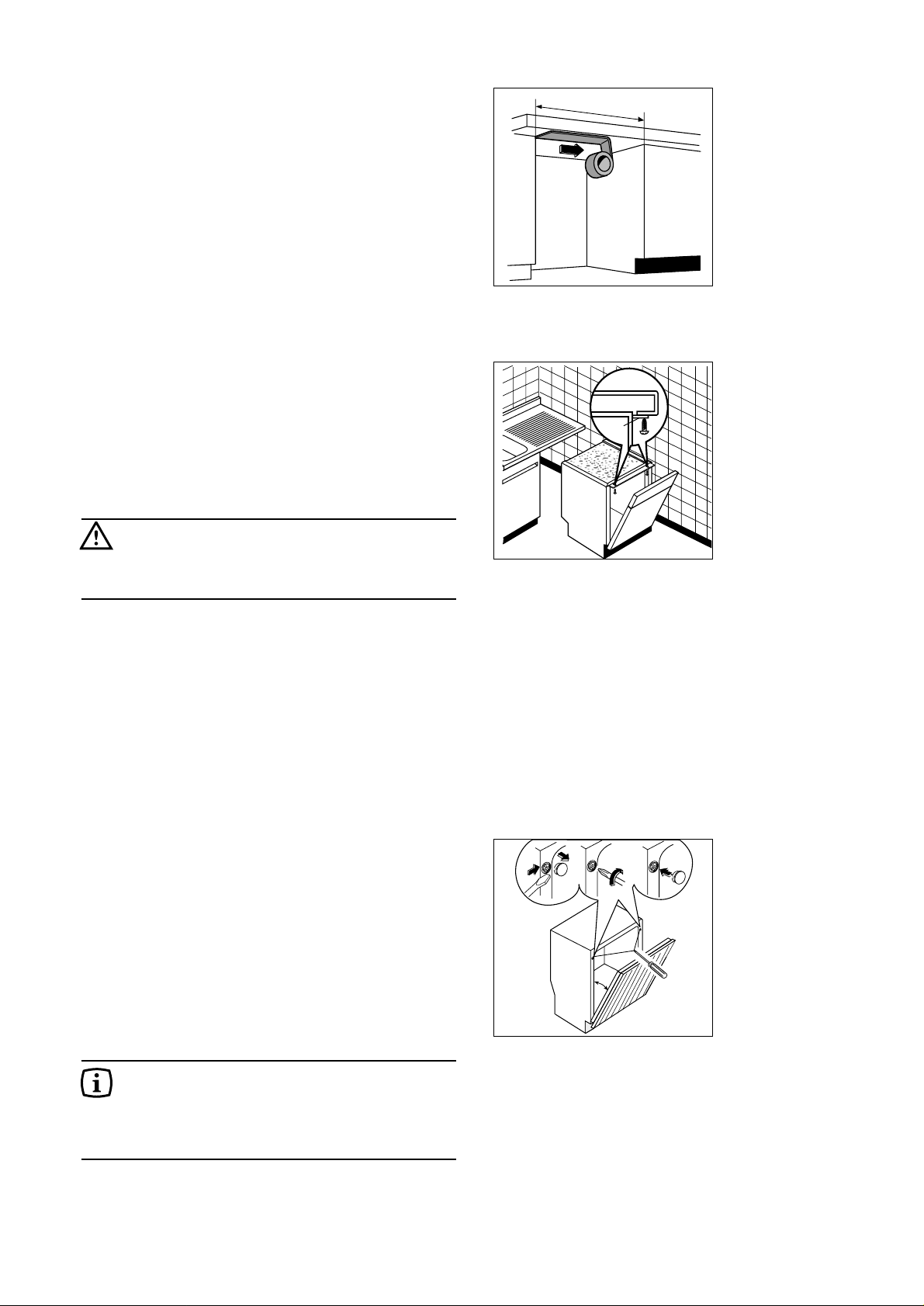

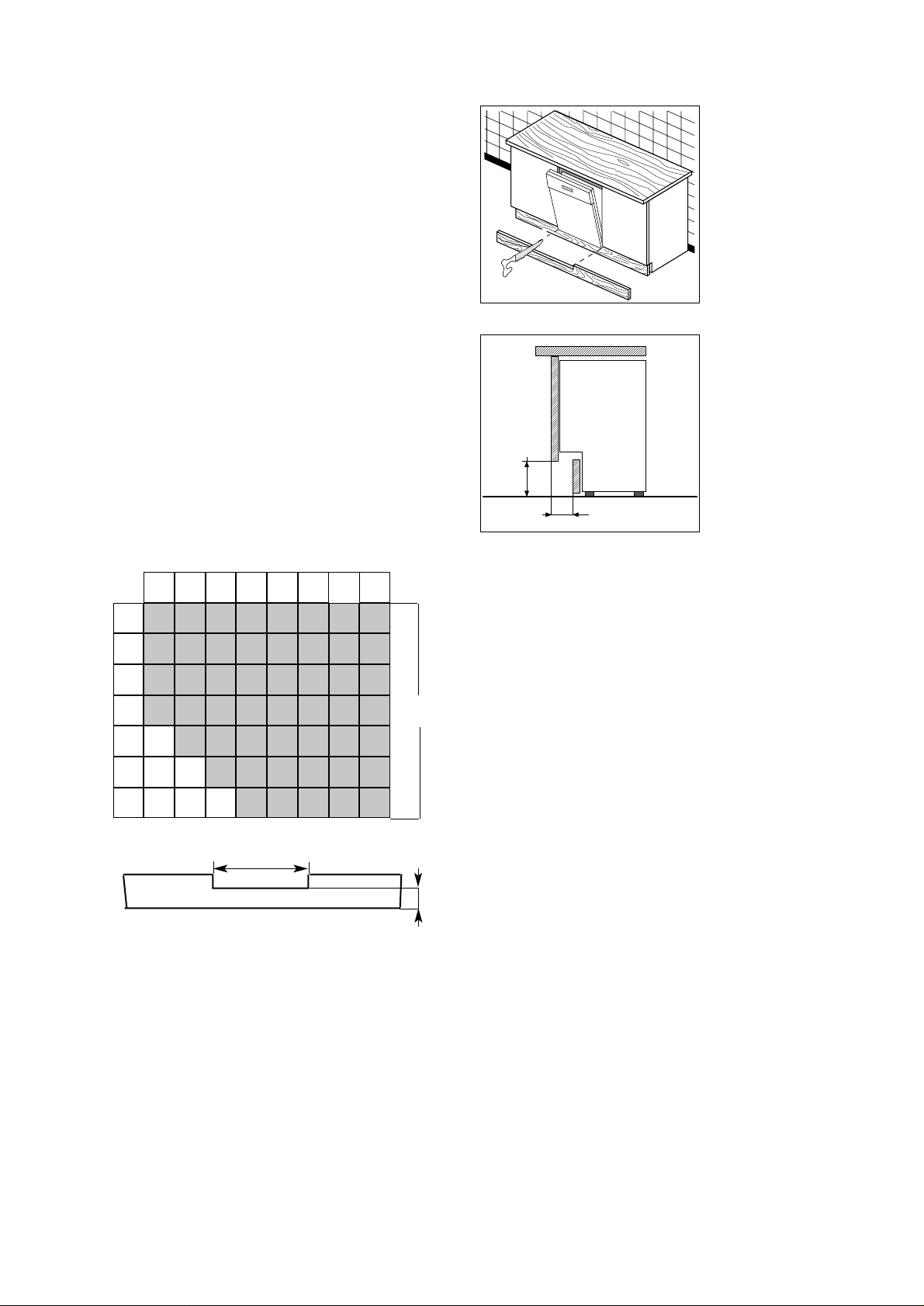

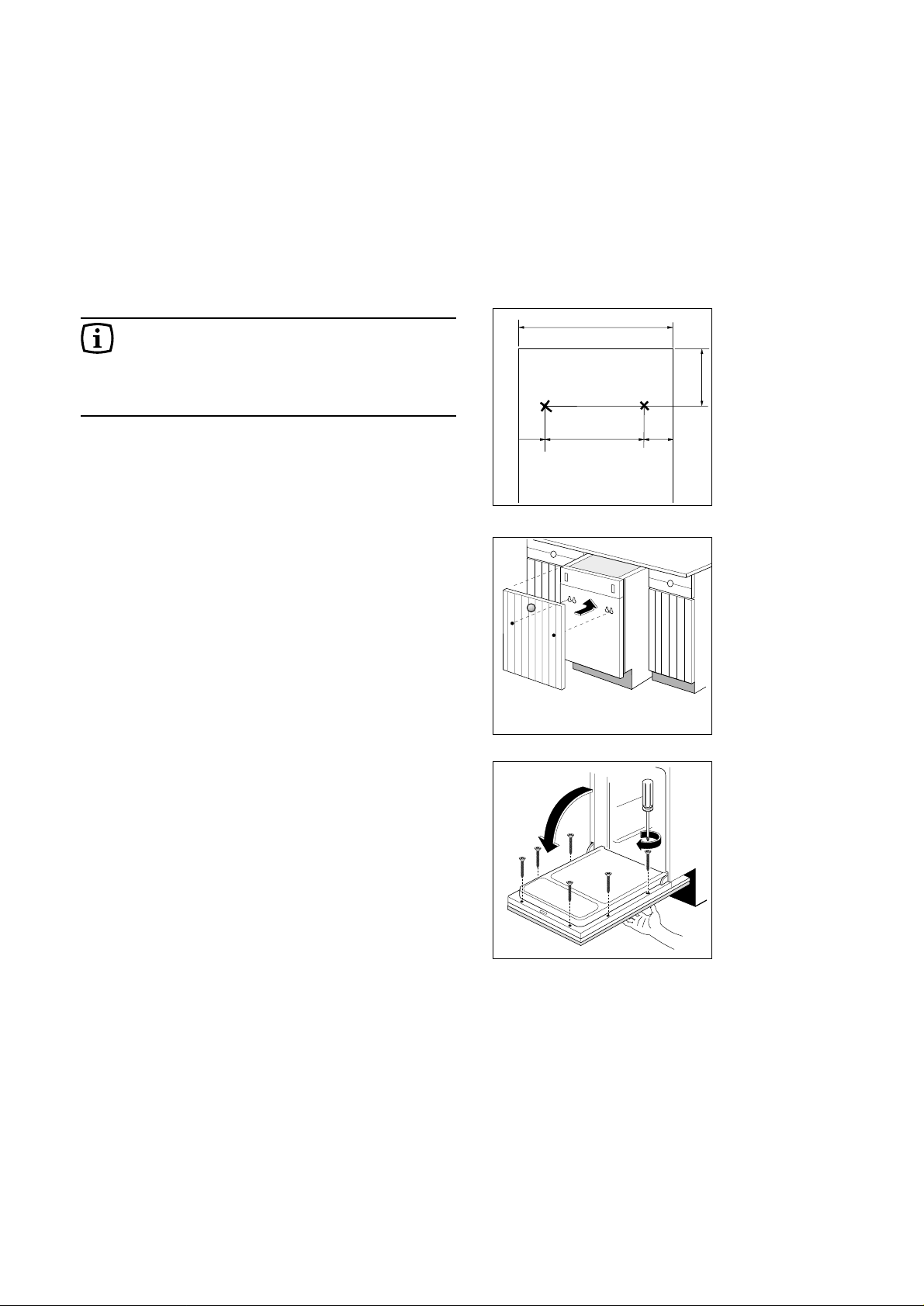

Building-in 25

Contents

Guide to use the instruction book

The following symbols will be found in the text to guide you throughout the instructions:

Safety instructions

1. 2. 3. Step by step

Hints and tips

Environmental information

Page 3

Installation

● This appliance is heavy. Care should be taken

when moving it.

● It is dangerous to alter the specifications or

attempt to modify this product in any way.

● Care must be taken to ensure that the appliance

does not stand on the electrical supply cable.

● Any electrical work required to install this

appliance should be carried out by a qualified electrician or competent person.

● Any plumbing work required to install this

appliance should be carried out by a qualified plumber or competent person.

Child Safety

● This appliance is designed to be operated by

adults. Children should not be allowed to tamper with the controls or play with the product.

● Keep all packaging well away from children.

● Keep all detergents in a safe place out of

children's reach.

During Use

● Items that are contaminated by petrol, paint, steel

or iron debris, corrosive, acidic or alkaline chemicals must not be washed in this dishwasher.

● Under no circumstances should you open the

door whilst the appliance is in operation. Always turn off the appliance before opening the door.

● Only use detergent specifically designed for use

in dishwashers.

● Long bladed knives stored in an upright position

are a potential hazard.

● Long and/or sharp items of cutlery such as

carving knives must be positioned horizontally in the upper basket.

● When finishing loading or unloading close the

door, as an open door can be a hazard.

● Do not sit or stand on the open door.

● Isolate the appliance from the power supply and

turn off the water supply after use.

● Care should be taken when cleaning the bottom

door seal and hinge area as any exposed metal edges may cut if care is not taken.

● This product should be serviced by an

authorised Service engineer, and only genuine spare parts should be used.

● Under no circumstances should you attempt to

repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine spare parts.

Conservation

In the interest of the environment:

● Materials marked with the symbol are

recyclable.

● Check with your local Council or Environmental

Health Office to see if there are facilities in your area for re-cycling this appliance.

● When the appliance is to be scrapped, cut off

the power supply cable and make the door closing device unusable to prevent young children from being trapped inside.

● Help to keep your country tidy - use authorised

disposal sites for your old appliance.

Important safety information

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information.

This information has been provided in the interest of your safety. You MUST read it carefully before installing or using the appliance.

Page 4

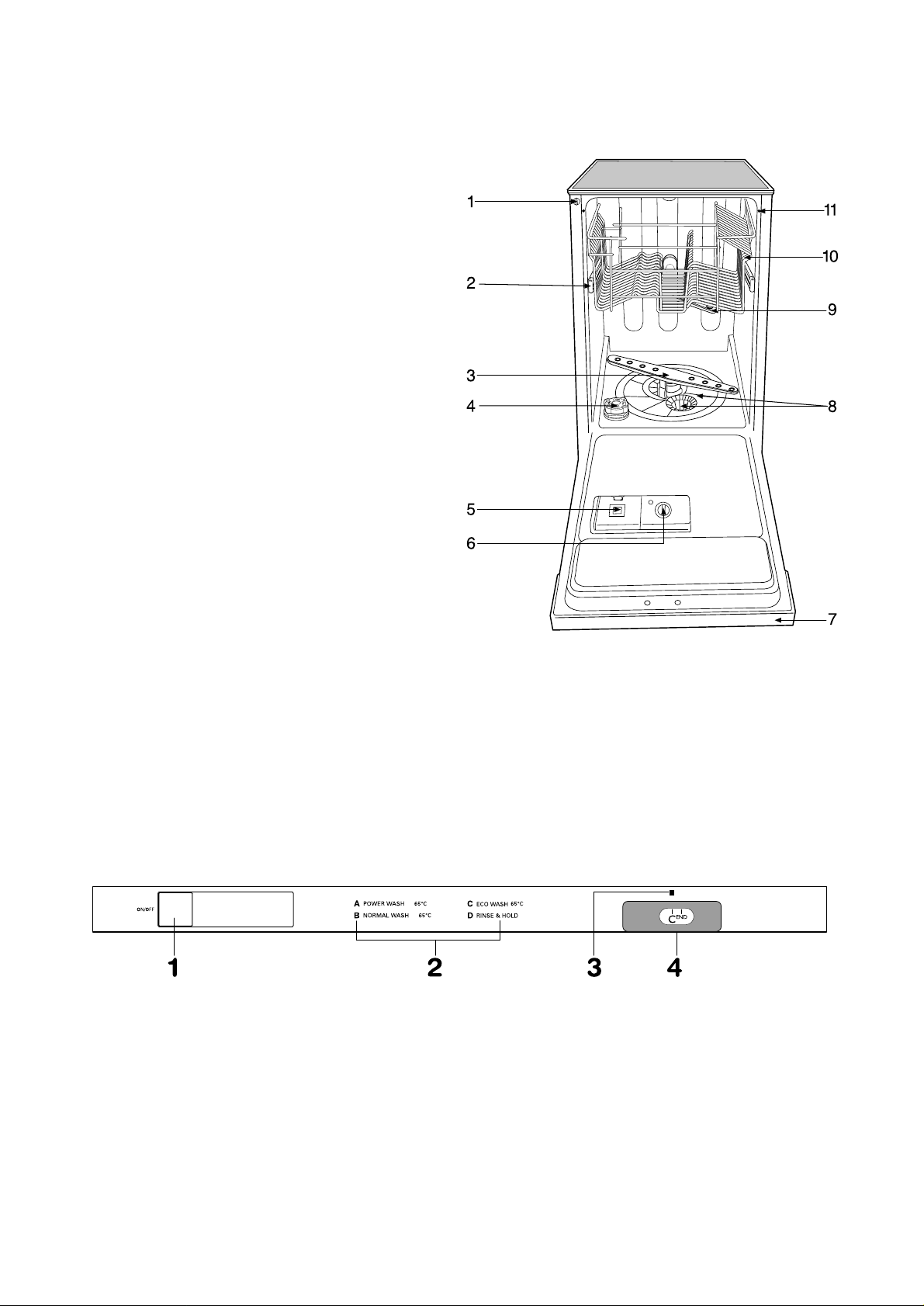

1. Water hardness adjustment

2. Upper basket stop

3. Lower spray arm

4. Salt container

5. Detergent dispenser

6. Rinse aid dispenser

7. Control panel

8. Filters

9. Upper spray arm

10. Upper basket

11. Levelling spacers

1. On/Off push button

2. Programme guide

3. Programme marker

4. Programme selector dial

Description of the appliance

The control panel

IN99

Page 5

Before using your dishwasher for the first time:

1. Ensure that the electrical and water connections comply with the installation instructions.

2. Remove all packaging from inside the appliance.

3. Set the water softener.

4. Pour a litre of water inside the salt container and

then fill with salt.

5. Fill the rinse aid dispenser.

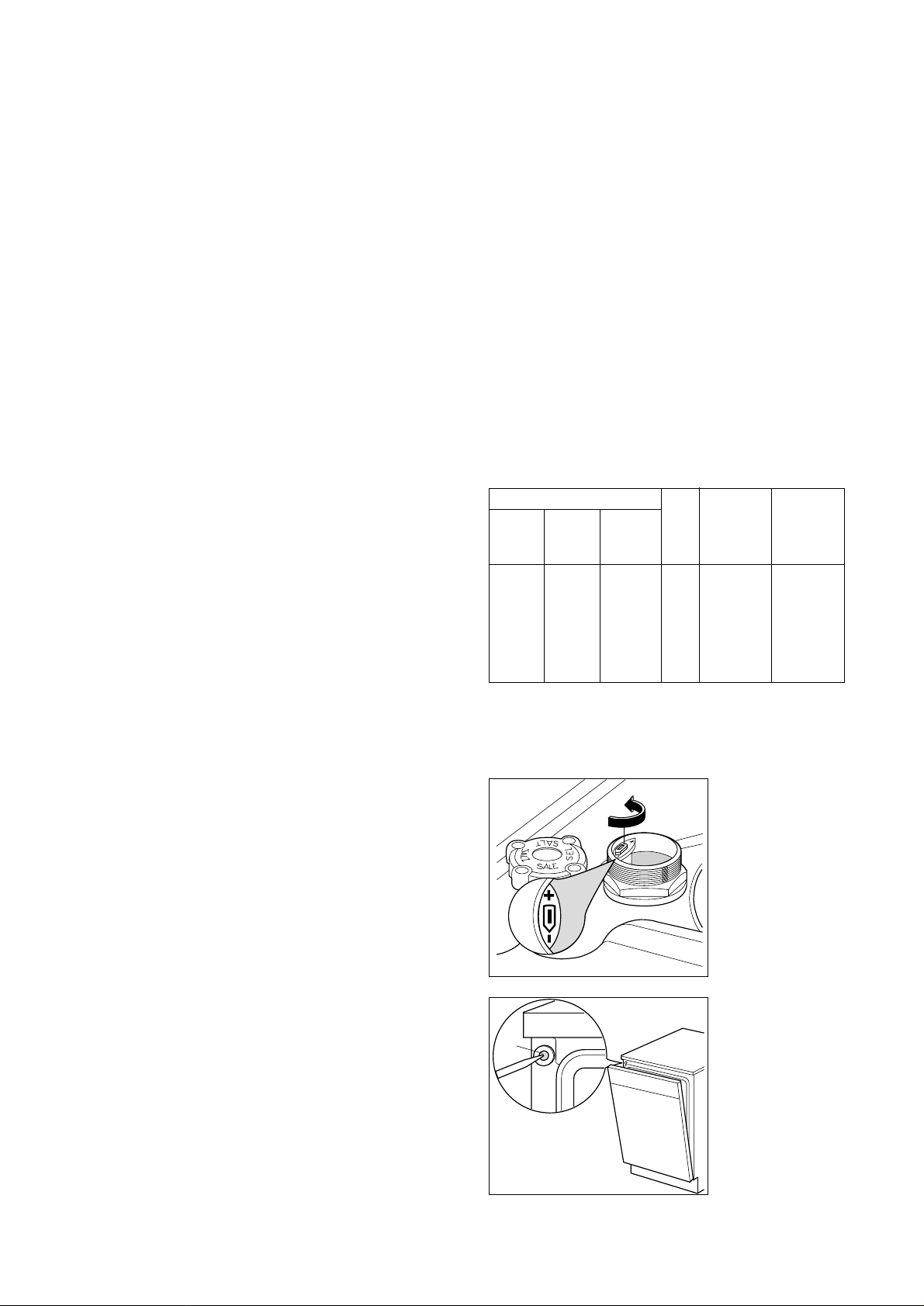

Setting the water softener

The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance.

The higher the content of these salts, the harder your water is.

Water hardness is measured in equivalent scales, Clarke, French degrees and PPM (parts per Million).

The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

The dishwasher is factory set at level 2. If this level is not suitable for your area the softener

should be adjusted.

To adjust the water softener Level 1

If your water is "level 1" it is already soft and therefore there is no need to use salt.

Levels 3 and 5 (water softener adjustment)

If your water is level 3 or 5, proceed as follows:

- slide out the lower basket and unscrew the cap of

the salt container;

- turn the two-position selector anticlockwise from

position - to position + with the aid of a blunt knife or screwdriver.

Levels 4 and 5 (adjustment on the machine)

If your water is level 4 or 5, open the door and drill membrane (A) on the upper left-hand corner of the machine.

With a water hardness of level 5 both adjustments must be made.

Before use

Level

Water

softener

adjustment

Adjustment

on the

machine

French

degrees

(°TH)

PPM

(Parts per

Million)

Clarke

degrees

1 2 3 4 5

NO NO

YES

NO NO

NO YES YES

0 - 10 11 - 27 28 - 35 36 - 49 50 - 63

0 - 14 15 - 39 40 - 50 51 - 70 71 - 90

0 - 140 141 - 390 400 - 500 501 - 700 701 - 900

Water hardness

AA01

AA04

Page 6

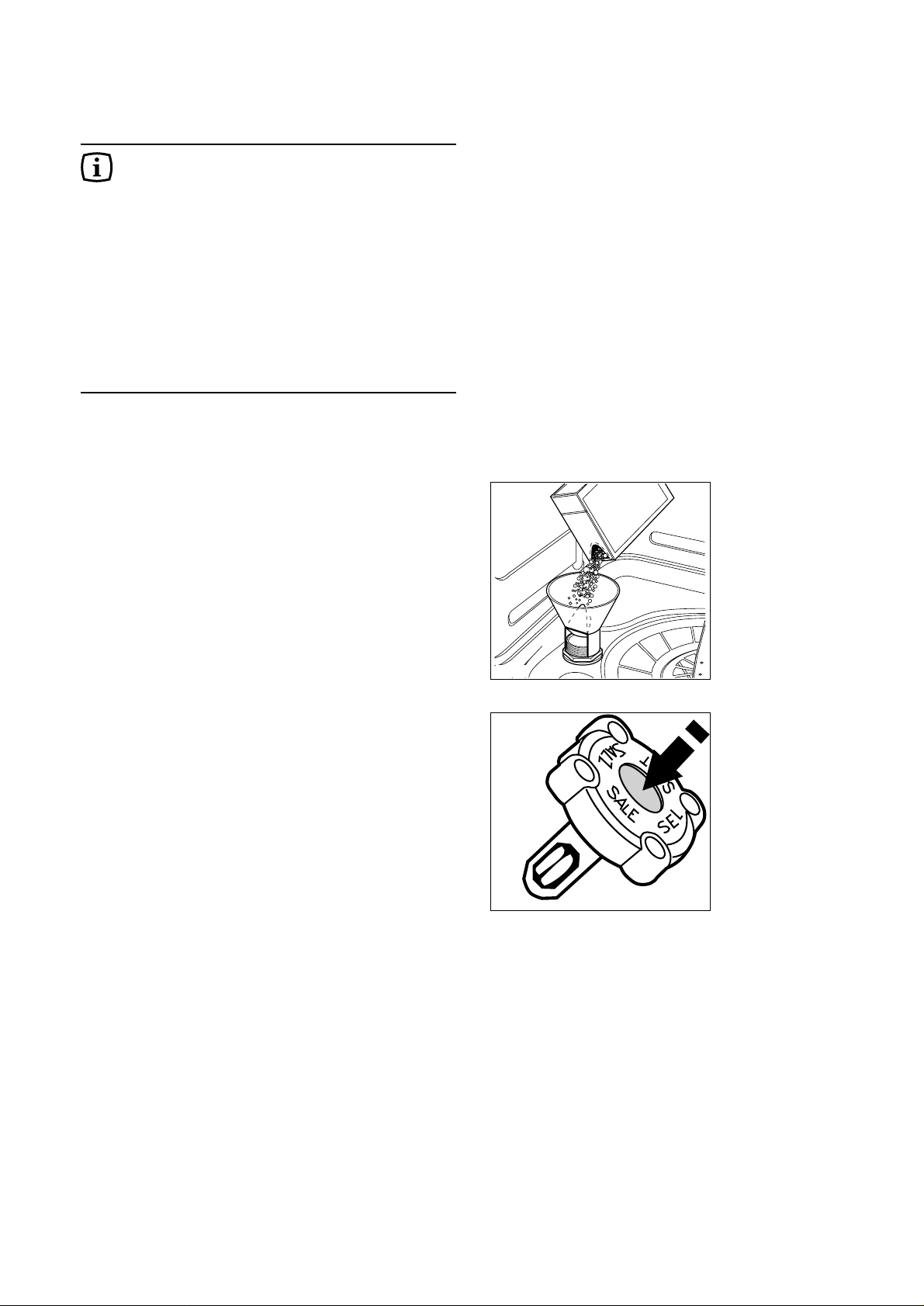

Filling with salt

Only use salt specifically designed for use in dishwashers. All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener.

Only fill with salt just before starting one of the complete washing programmes (not the Rinse and Hold programme). This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

To fill:

1. To fill with salt, unscrew the cap of the salt

container.

2. Pour a litre of water inside the container (this is necessary only before filling with salt for the first time).

3. Using the funnel provided, pour in the salt until the

container is full. Do not worry if water over flows from the unit when filling with salt, this is quite normal.

4. Replace the cap making sure that there is no trace of salt on the screw thread or on the gasket.

5. Screw on the cap tightly.

The salt container will require topping up periodically. The salt cap has a refill indicator window in the centre.

A green float is clearly visible when there is salt inside the container, and almost disappears when the salt has finished reminding you to add salt.

SALE

SALT

SALZ

SEL

SR02

SR11

Page 7

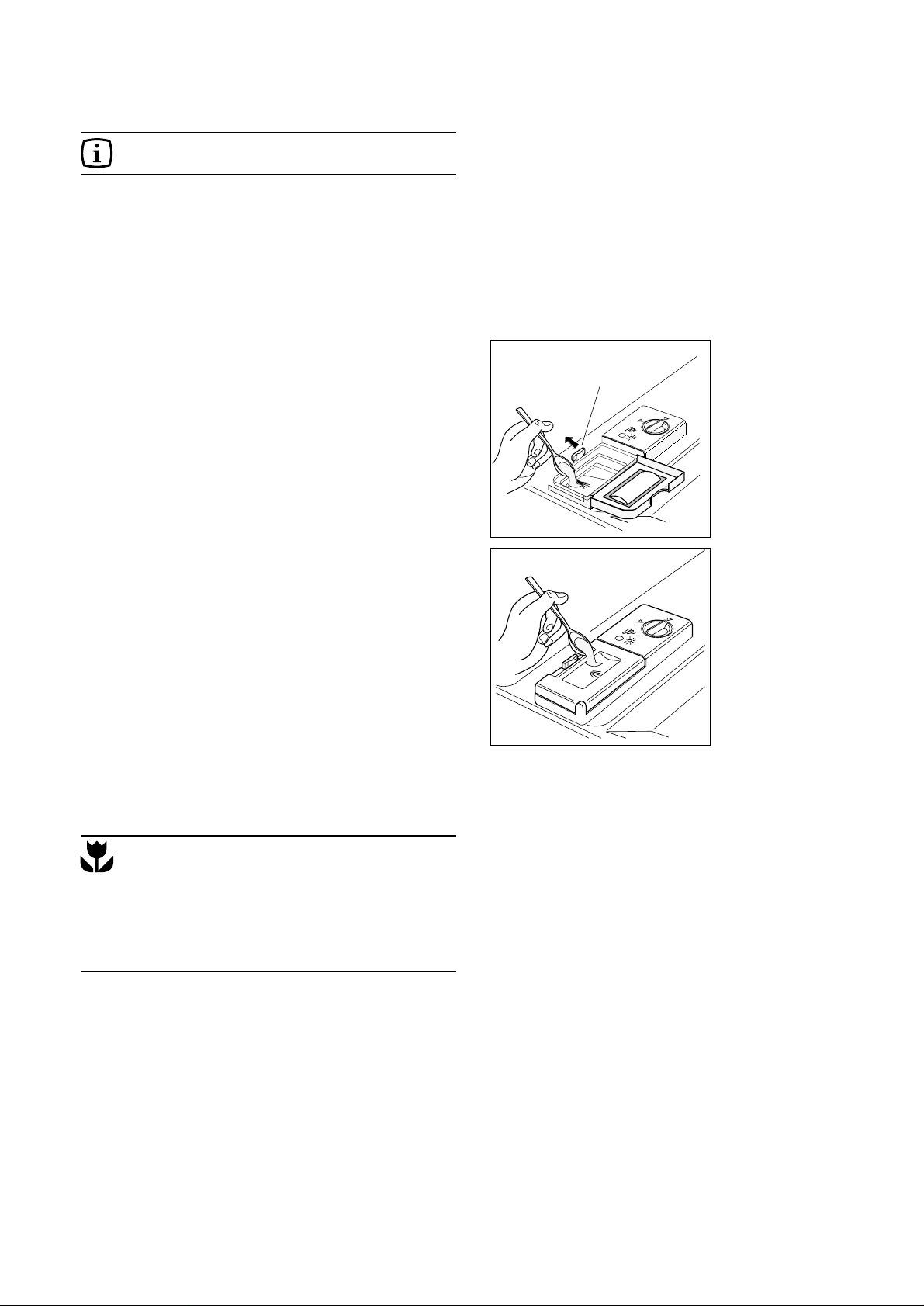

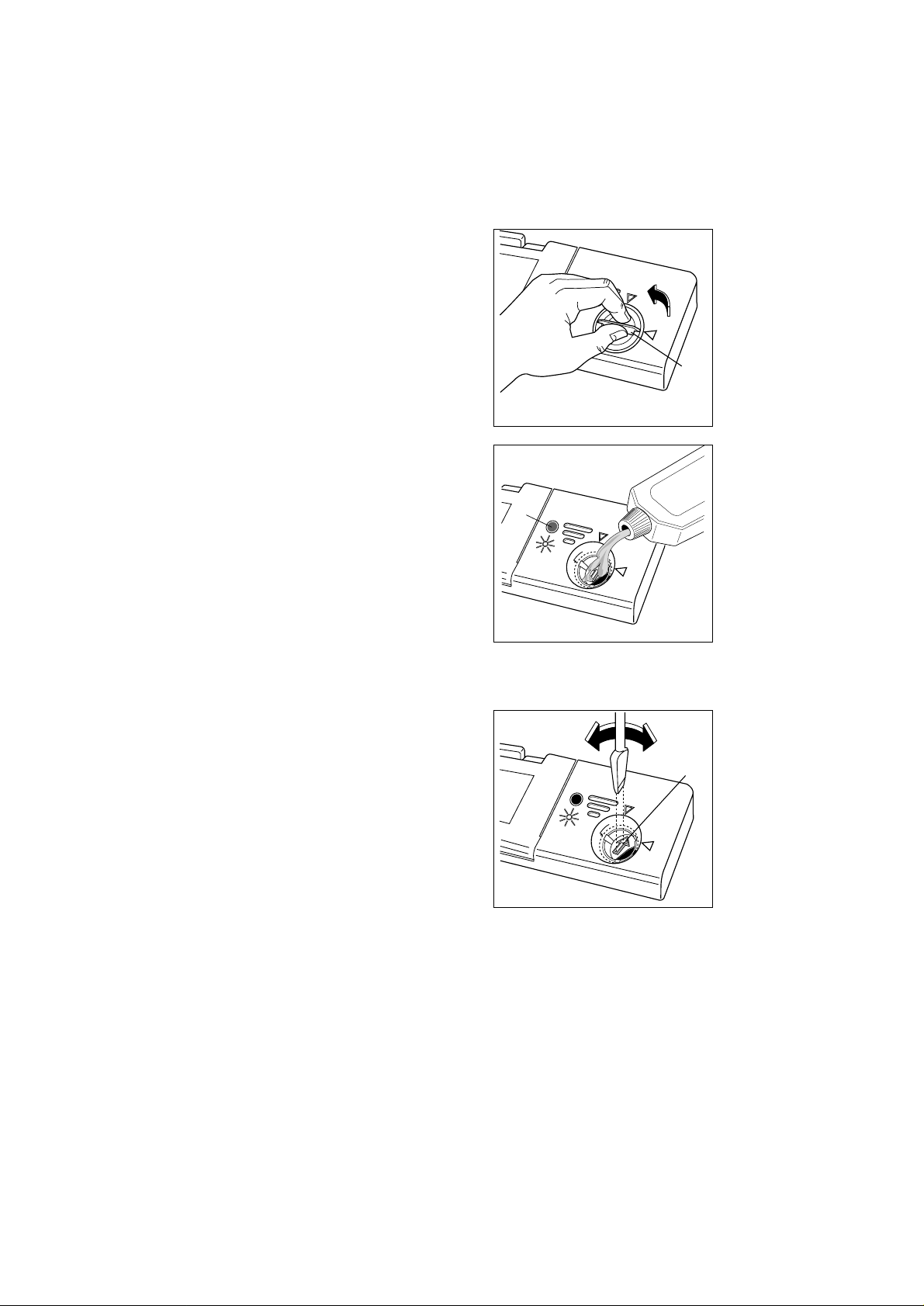

Rinse aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying. The dispenser, which is positioned inside the door, holds about 110 ml of rinse aid, which is sufficient for 16 - 40 dishwashing programmes, depending upon the dosage setting.

Filling with rinse aid

1. Open the container by turning the lid (A)

anticlockwise.

2. Add the rinse aid until the container is completely full. The indicator (B) will be completely dark.

3. Top up the rinse aid when the indicator (B) becomes clear.

Ensure that the lid is closed after every refill.

Do not put liquid detergent in the rinse aid compartment. Clean up any rinse aid spilt during filling with an absorbent cloth to avoid excess foaming during the next wash.

Adjusting the dose

According to the finish and drying results obtained, adjust the dose of rinse aid by means of the 6 position selector (C) (position 1 minimum dosage, position 6 maximum dosage).

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish streaks on the dishes.

BR01

BR03

BR02

Page 8

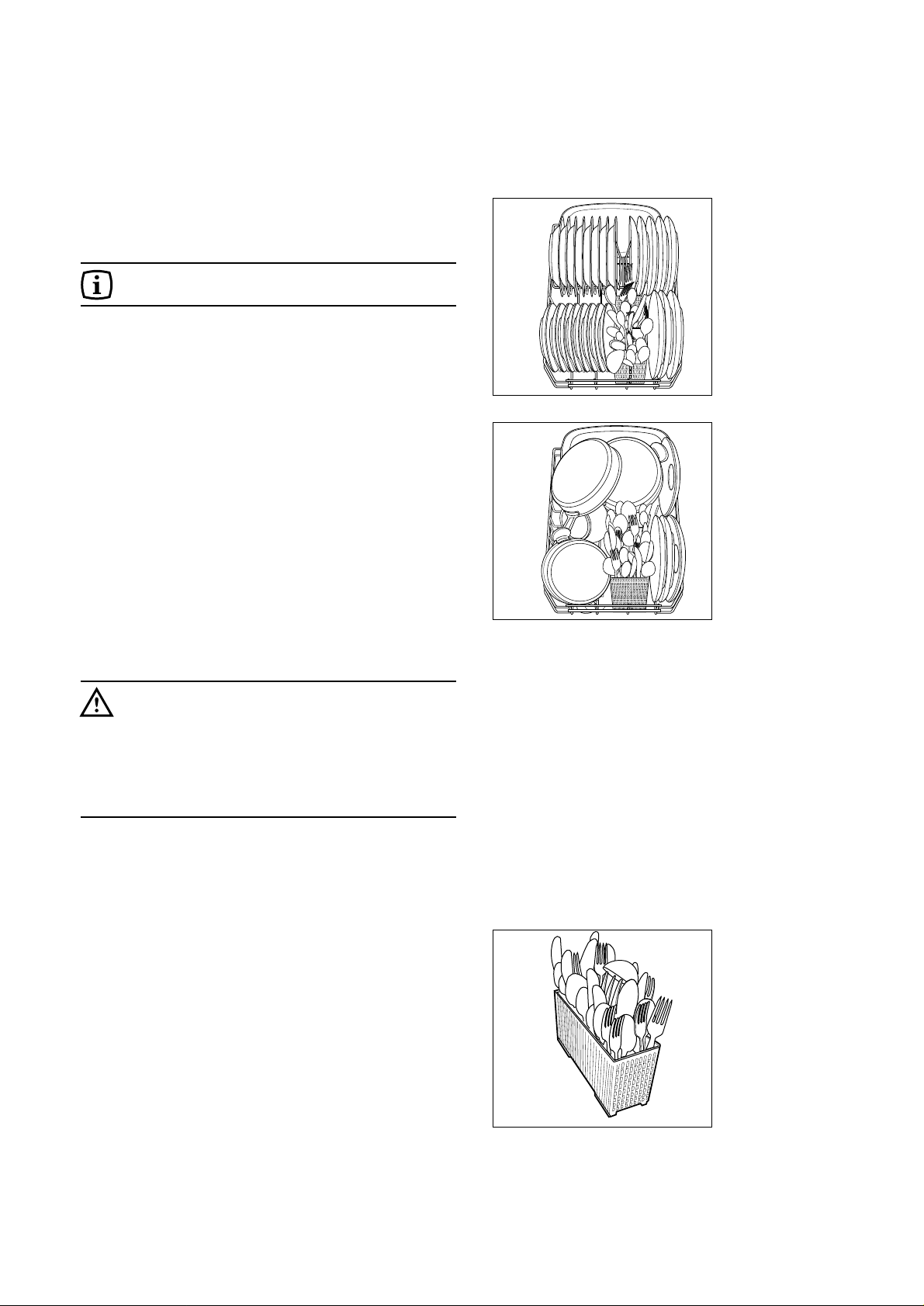

Loading your appliance

Before placing dishes in the machine, remove any scraps of food, to avoid clogging the filters and consequently reducing the performance.

Do not load very small items which can fall through the baskets.

Open the door and slide out the baskets to load the dishes.

The lower basket

The lower basket is designed to take saucepans, lids, plates, salad bowls, cutlery etc.

Serving dishes and large lids should be arranged around the edge of the basket, ensuring that the upper spray arm can turn freely.

The cutlery basket

Long bladed knives stored in an upright position are a potential hazard. Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Take care when loading or unloading sharp items such as knives.

Cutlery should be placed in the removable cutlery basket with the handles facing downwards.

If the handles protrude from the bottom of the basket, obstructing the lower spray arm, load the cutlery with the handles facing upwards.

Mix spoons with other cutlery to prevent them from sticking together.

Silver cutlery tends to go black if mixed with steel cutlery. Place it in the cutlery basket separate from the others.

Using your appliance

UI57

UI12

UI45

Page 9

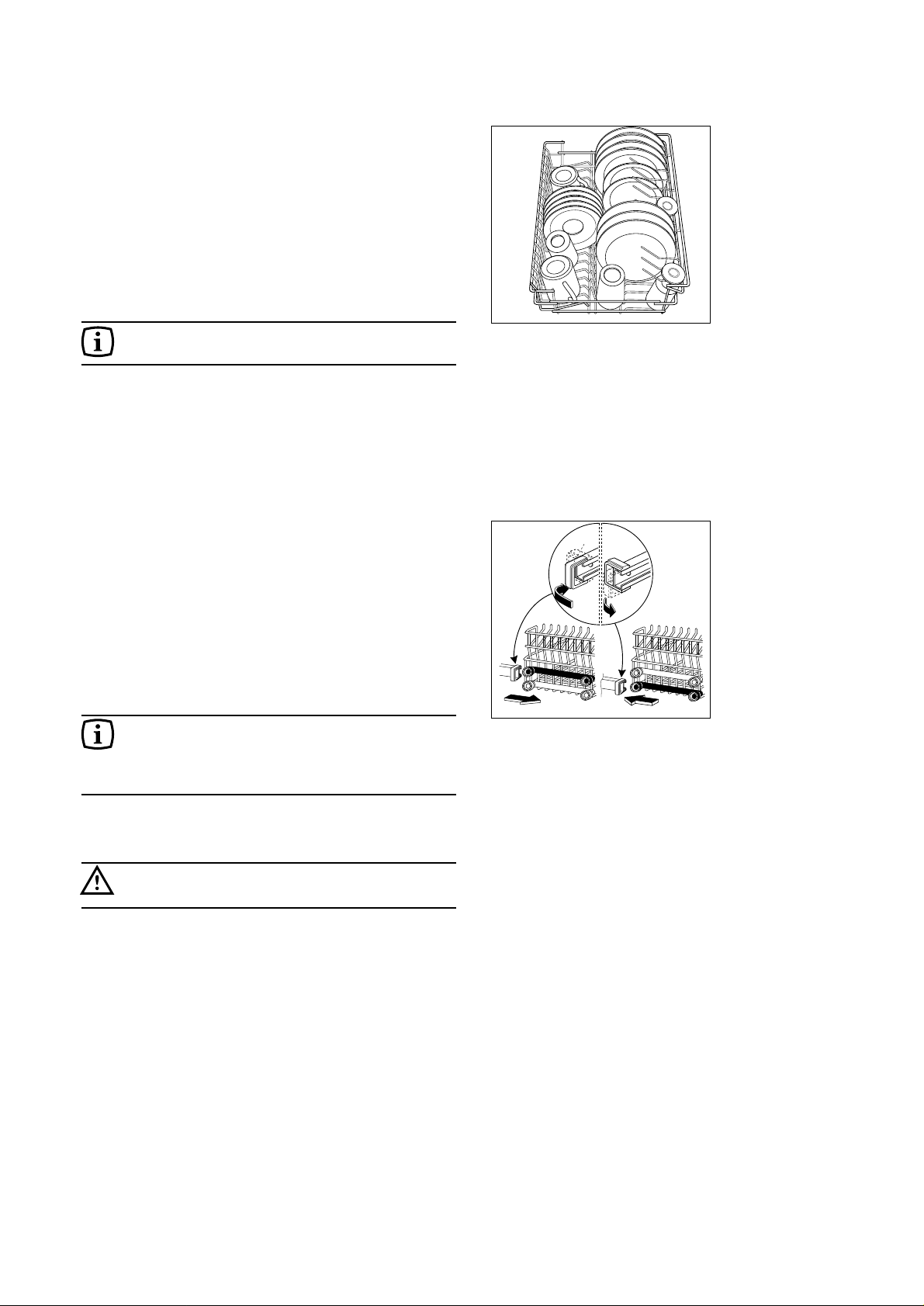

The upper basket

The upper basket is designed for plates (dessert plates, saucers, dinner plates of up to 24 cm in diameter), salad bowls, cups and glasses.

Arrange items on and underneath the cup rack so that water can reach all surfaces.

Glasses with long stems can be placed upside down in the raised cup racks.

Light items (plastic bowls etc.) should be loaded in the upper basket and arranged so they do not move.

Before closing the door, ensure that the spray arms can rotate freely.

Adjusting the height of the upper basket

If washing very large plates (over 27 cm and up to 31 cm in diameter) you can load them in the lower basket after moving the upper basket to the higher position.

To move to the higher position proceed as follows:

1. Move the front runner stops (A) of the upper basket

outward and slide the basket out.

2. Refit the basket in the higher position and replace the stops (A) in their original position.

When the top basket is in the higher position it will only take plates up to 20 cm in diameter and you will not be able to use the raised cup racks.

After loading your machine always close the door, as an open door can be a hazard.

US63

RC01

Page 10

Use of detergent

Only use detergents specifically designed for use in dishwashers.

We recommend the use of Finish detergents which are available in the following options:

Finish Double Action Tablets. Each tablet has the exact amount of detergent required, simply place in the dispenser.

Finish Powder recommended for every day use. Finish Liquid Gel ideal for every day use. As the gel

is extra gentle it is recommended for fine bone china.

If using powder detergents proceed as follows:

1. Open the dispenser lid by pulling the catch (D).

2. Add the detergent according to the recommended

quantity given in the "Washing programmes" chart. As all detergents are not the same, you should also consult the instructions on the packet.

3. Always close the lid.

4. If the programme has a prewash add a little amount

of detergent over the lid of the dispenser Follow the recommended quantity of detergent given in the "Washing programmes" chart.

If using detergent in tablets proceed as follows:

1. For all programmes; place 1 tablet inside the

detergent dispenser.

2. Always close the lid.

3. For all programmes with prewash; place a portion

of a further tablet on the lid of the detergent dispenser.

Insufficient quantities of detergent will produce poor washing results, whereas an excessive amount of detergent will not improve washing results and is also wasteful. Using no more than the correct amount also contributes to reducing pollution.

Compact detergents with enzymes

In these low-alkaline compact powders the environmentally unfriendly components have been replaced by natural enzymes and other more biodegradable substances.

These new compact powders are generally phosphate-free.

MIN

MAX

DE17

Min = 15 g Max = 30 g

DE02

Page 11

To save energy

Place dishes in the machine immediately after every meal and wait until the dishwasher is full before washing.

If necessary run the Rinse and Hold programme (see "Washing Programmes" chart) so that any food scraps do not become caked on the dishes while you are waiting to run the complete wash programme.

Do not prewash dishes under running water.

For best washing and drying results

Before loading, remove all scraps of food and soak very heavily soiled pots and pans.

Arrange saucepans, cups and glasses etc. upsidedown.

Tilt items with convex or concave surfaces so that the water drains off easily.

Avoid contact between the dishes as far as possible.

Items not suitable for dishwashers

The following items should not be washed in the dishwasher (unless they are sold as dishwasher proof):

- Cutlery with wooden or horn handles or glued parts

- bronze cutlery

- saucepans with wooden handles

- aluminium ware

- crystal ware

- leaded glass

- plastic items

- antique or fine decorated china

Certain types of decoration can discolour when washed in a dishwasher.

Crystal-ware and plastic objects, if not guaranteed dishwasher proof should be washed by hand.

Certain types of glass can also become opaque after being washed several times in a dishwasher.

A chemical reaction can occur between silver cutlery and stainless steel cutlery. As a precaution, do not wash together.

Iron and cast iron objects can rust and stain other items.

Aluminium tends to go black, copper, pewter and brass tend to stain.

If in doubt check with manufacturer of the item. When buying new dishes, ensure that they are dishwasher proof.

Hints and tips

FOR A

LIQUID GEL

POWDER

EASY

POURING

PACK

For best results we recommend the use of Finish detergents, rinse aid and salt.

NEW

ACTION

UBLE

DE15

CONCENTRATED DISHWASHER DETERGENT

FOR A

BRILLIANT

SHINE

RINSE

Page 12

Washing programmes

Programme Degree of soil

and

type of load

Required

push

button

Recommended

quantity of detergent

wash prewash

Starting position

of the programme

selector

Heavy soil. Crockery, cutlery, pots and pans

Normal soil. Crockery and cutlery

Light soil. Crockery and party crockery

Any. Partial load (to be completed later in the day).

Cycle description

POWER WASH

65°

NORMAL WASH

65°

ECO WASH

RINSE & HOLD

Cold prewash Main wash up to 65°C 1 cold rinse 1 hot rinse Drying

Main wash up to 65°C 1 cold rinse 1 hot rinse

Main wash up to 65°C 1 cold rinse 1 hot rinse Drying

1 cold rinse (to avoid food scraps from sticking together).

Testing programme for EN 50242 (see "Hints for Test Centres").

This is a special programme for quick washing a full load of lightly soiled dishes, glasses and crockery (except pots) so that you may re-use them promptly.

On/Off

20 g 5 g

25 g /

Page 13

1. Check the filters

Ensure they are clean and properly positioned (see "Maintenance and cleaning").

2. Check that there is rinse aid and salt

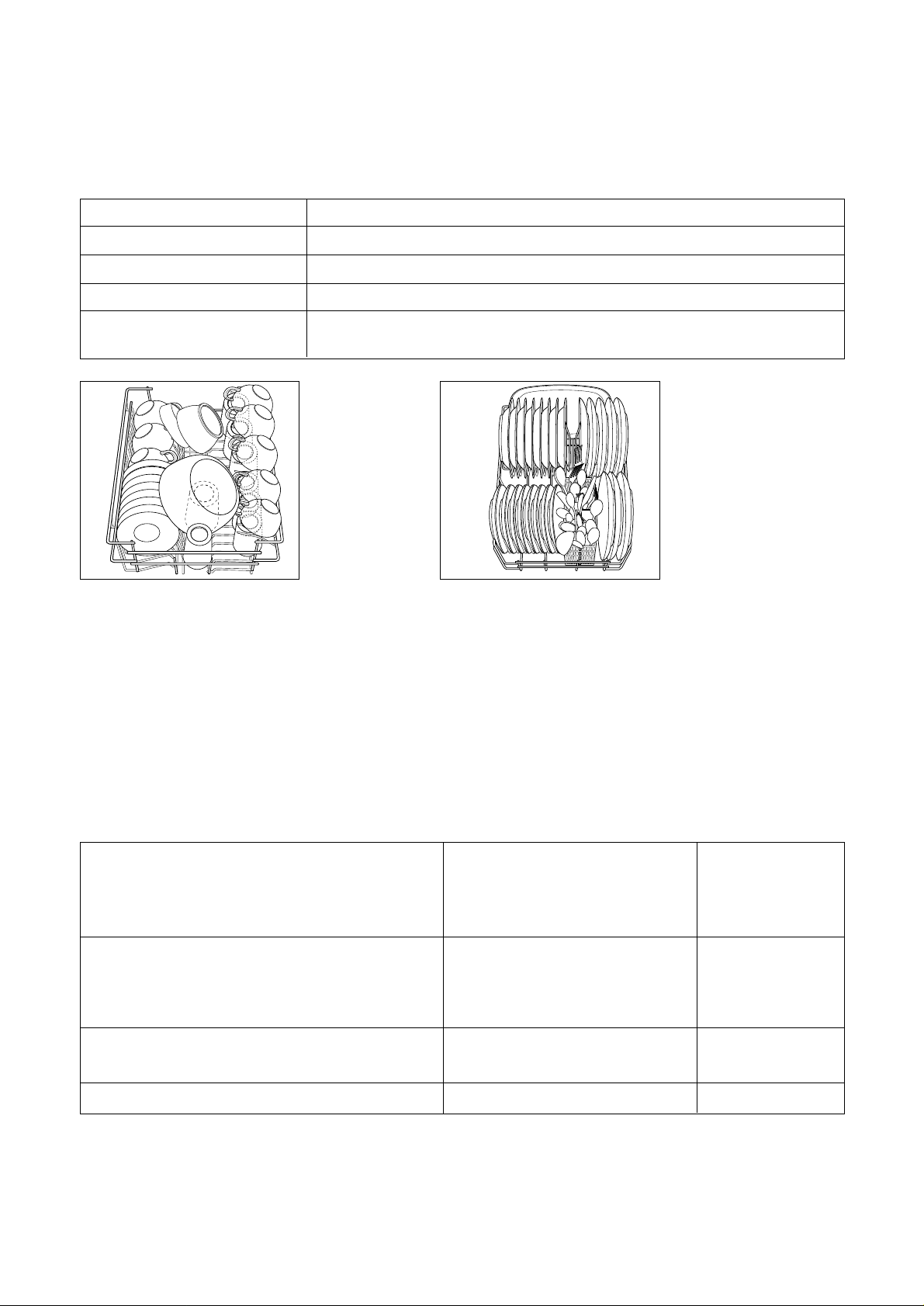

3. Load the dishes

Remove any scraps of food. Pull the lower basket out and arrange the

saucepans, plates and cutlery in it. Pull the upper basket out and arrange the

plates, saucers, glasses and cups etc. in it. Slide the baskets back into the machine.

4. Ensure that the spray arms can rotate freely.

5. Measure out detergent

Add the required amount of detergent into the dispenser according to the dosage quantity given in the "Washing programmes" chart.

Close the detergent dispenser lid.

6. Set the programme

The selection of a programme occurs with the door partially opened.

Turn the programme selector dial clockwise until the letter of the programme you wish to select corresponds with the programme marker on the control panel.

9. Start the programme

Depress the On/Off push button and close the door, the machine will start.

If you wish to interrupt the washing programme at any time open the door and press this button again.

10. At the end of the washing programme

At the end of the programme the dishwasher will automatically stop.

11. Switch off the dishwasher

Wait 15/20 minutes before opening the dishwasher’s door; in this way you will avoid burning yourself removing the dishes and avoid also the damage of the nearby furniture caused by the escape of steam.

Switch off the dishwasher by opening the door and pressing the On/Off push button.

Empty the lower basket first and then the upper one; this will avoid water dripping from the upper basket onto the dishes in the lower one.

When the washing programme has finished, it is recommended that the dishwasher is unplugged and the water tap turned off.

In general it is not advisable to open the door while the machine is working; if the door is opened however, a safety device ensures that the machine stops.

Important! Care must be taken if the door is opened during the hot phase or immediately after a programme has finished, as steam may escape.

Operating sequence

Page 14

Internal cleaning

Ensure that the seals around the door, the detergent and rinse aid dispensers are cleaned regularly with a damp cloth.

We recommend the use of Finish Dishwasher Cleaner every 3 months or run a 65°C wash without dishes using detergent. Regular use of Finish Dishwasher Cleaner cleans inaccessible parts, eliminates unpleasant food odours and helps prevent the build-up of limescale.

Cleaning the central filters

(After each wash)

Inspect the central filters (B) and (C) and remove any scraps of food with a brush, under running water.

Filters (B) and (C) are both removed by lifting up the outer one (B) (pulling the central funnel upwards); the smaller filter (C) can be removed by pressing the two tongues (D).

Once cleaned, refit the filters by pressing them down until they click into place.

Cleaning the large filter

(every week)

Clean the large filter (A) on both sides under running water, using a brush.

To take it out, remove the spray arm by pressing the two tongues (E), turn the ring (F) anticlockwise and then slide the whole part out. Refit the filter following the above instructions in reverse order.

The dishwasher must not be used without filters. Incorrect repositioning and fitting of the filters will produce poor washing results. Cleaning the filters is vital to ensure correct operation of the machine.

Maintenance and cleaning

MA02

MA03

MA08

Page 15

External cleaning

Clean the external surfaces of the machine and control panel with a damp soft cloth. If necessary use only neutral detergents. Never use abrasive products, scouring pads or solvent (acetone, trichloroethylene

etc....).

Prolonged periods of non-operation

If you are not using the machine for any period of time you are advised to:

1. Unplug the appliance and then turn off the water.

2. Fill the rinse aid dispenser.

3. Leave the door ajar to prevent the formation of

any unpleasant smells.

4. Leave the inside of the machine clean.

Frost precautions

Avoid placing the machine in a location where the temperature is below 0°C. If this is unavoidable, empty the machine, close the appliance door, disconnect the water inlet pipe and empty it.

Moving the machine

If you have to move the machine (moving house

etc....):

1. Unplug it.

2. Turn the water tap off.

3. Remove the water inlet and discharge hoses.

4. Pull the machine out together with the hoses.

Avoid over tilting the machine during transportation.

Page 16

Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below.

Important: If you call out an engineer to a fault listed below or to repair a fault caused by incorrect use or

installation a charge will be made even if the appliance is in guarantee.

Something not working

Symptom Solution

The machine will not start ● The door has not been properly closed.

● The plug is not properly inserted in the power socket.

● There is a power failure.

The machine does not fill

● Ensure the water tap is open.

with water ● Ensure the mains water supply has not been cut off.

● The inlet hose may be squashed or bent. Reposition the hose.

● The inlet hose may be blocked. Switch off the water supply

and clean the filter.

The filters are blocked

● Clean the filters (refer to "Maintenance and cleaning").

The spray arms are not rotating

● Ensure the crockery is loaded correctly.

The dishwasher will not drain

● The drain hose may be squashed or bent.

Reposition the hose.

● The sink may be blocked. Clear any blockages.

● The drain hose extension is not correct. Follow the

instructions for connecting to the waste.

● There is no vent in the end of the drain hose.

The machine is noisy

● Dishes are rattling against each other, refer to “Loading

your machine”.

● The spray arms are knocking against the dishes. Refer to

"Loading your machine".

The door is difficult to close

● The dishwasher is not level, or not properly built-in.

Visible lime deposits or white

● Check that there is salt and that the salt cap is tight.

film on the dishes

● Check that the right level of the water softener is set.

The dishes are not quite dry

● The rinse aid has run out or too little is being used.

The dishes are not clean

● The baskets are too full.

(poor wash)

● The dishes have not been arranged properly.

● The spray arms do not rotate

● The spray arms are clogged.

● The filters are clogged.

● The filters are not in the correct position.

● Not enough detergent has been used or it is unsuitable.

● The detergent is old or has gone hard.

● The salt container cap is not properly closed.

● The washing programme selected is too gentle.

Page 17

If after all these checks, the problem persists, contact your local Service Force Centre, quoting the model and serial number. This information can be found on the rating plate located on the right hand side of the dishwasher door (see picture).

This product should be serviced by an authorised Service engineer, and only genuine spare parts should be used. Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine spare parts.

Service and spare parts

In the event of your appliance requiring service, or if you wish to purchase spare parts please contact your local Electrolux Service Force Centre by telephoning:

08705 929 929

Your telephone call will be automatically routed to the Service Force Centre covering your post code area. The addresses are listed on the following pages.

Before calling out an engineer, please ensure you have read the details under the heading "Something Not Working".

When you contact the Service Force Centre you will need to give the following details:

1. Your name, address and post code

2. Your telephone number

3. Clear and concise details of the fault

4. The model and serial number of the appliance

(found on the rating plate)

5. The purchasing date

Customer Care Department

For general enquiries concerning your Electrolux appliance or for further information on Electrolux products please contact our Customer Care Department by letter or telephone at the address below or visit our website at www

.electrolux.se

Customer Care Department

Electrolux

55-77 High Street

Slough

Berkshire

SL1 1DZ

Tel: 08705 950 950 (*)

* calls to this number may be recorded for training purposes

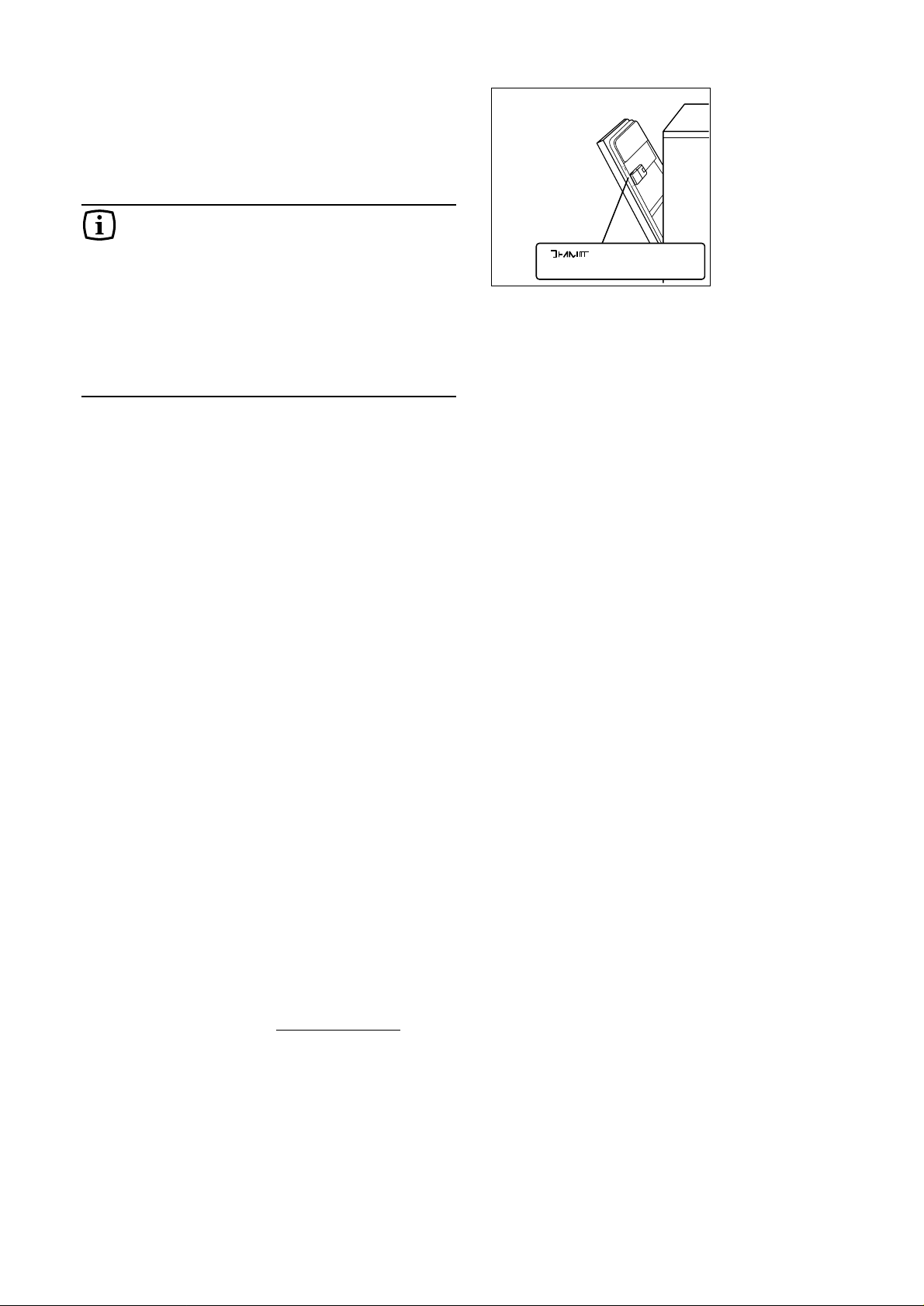

Prod.No.

........

Ser. No.

.........

Mod.

........

RA01

Page 18

Standard guarantee conditions

We, Electrolux, undertake that if within 12 months of the date of purchase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

● The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.

● The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s

instructions.

● The appliance has not been serviced, maintained repaired, taken apart or tampered with by any person not

authorised by us.

● All service work under this guarantee must be undertaken by a Electrolux Service Force Centre.

● Any appliance or defective part replaced shall become the Company’s property.

● This guarantee is in addition to your statutory and other legal rights.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.

Exclusions

This guarantee does not cover:

● Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or

removable parts of glass or plastic.

● Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside

the United Kingdom.

● Appliances found to be in use within a commercial environment, plus those which are subject to rental

agreements.

● Products of Electrolux manufacture which are not marketed by Electrolux.

European Guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

● The guarantee starts from the date you first purchased your product.

● The guarantee is for the same period and to the same extent for labour and parts as exists in the new

country of use for this brand or range of products.

● This guarantee relates to you and cannot be transferred to another user.

● Your new home is within European Community (EC) or European Free Trade Area.

● The product is installed and used in accordance with our instructions and is only used domestically, i.e. a

normal household.

● The product is installed taking in account regulations in your new country.

Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliance.

France Senlis +33 (0) 44 62 29 99 Germany Nurenberg +49 (0) 911 323 2600 Italy Pordenone +39 (0) 1678 47053 Sweden Stockholm +46 (0) 8 738 79 50 UK Slough +44 (0) 1753 219898 Ireland Dublin +353 (0) 14090753

Guarantee conditions

Page 19

CHANNEL ISLANDS

GUERNSEY Guernsey Electricity

PO Box 4 Vale, Guernsey Channel Islands GY1 3AD

JERSEY Jersey Electricity Company

Haut De L’orme Rue De Haut De L’orme Trinity Jersey Channel Islands JE3 5FG

SCOTLAND

ABERDEEN 54 Claremont Street

Aberdeen AB10 6RA

AUCHTERMUCHY 33a Burnside

Auchtermuchy Fife KY14 7AJ

BLANTYRE Unit 5

Block 2 Auchenraith Ind. Estate Rosendale Way Blantyre G72 0NJ

DUMFRIES 93 Irish Street

Dumfries DG1 2 PQ

DUNOON 7 Hill Street,

Dunoon Argyll PA23 7AL

EDINBURGH Unit 12

Dumbryden Ind. Estate 2 Dumbryden Road Edinburgh EH14 2AB

GLASGOW Unit 4

Wellington Road Bishopriggs Glasgow G64 2SA

INVERNESS Unit 3BI

Smithton Ind. Estate Smithton Inverness IV2 7WL

ISLE OF ARRAN Arran Domestics

The Douglas Centre Brodick Isle of Arran KA27 8AJ

ISLE OF BARRA J Zerfah

244 Bruernish Isle of Barra Western Islands HS9 5QY

ISLE OF BUTE Walker Engineering

Glenmhor Upper Serpentine Road Rothesay Isle of Bute PA20 9EH

NORTH EAST

GATESHEAD Unit 356a

Dukesway Court Dukesway Gateshead NE11 0BH

GRIMSBY 15 Hainton Avenue

Grimsby N. E. Lincs DN32 9AS

HULL Unit 1

Boulevard Industrial Estate Hull HU3 4AY

LEEDS 64-66 Cross Gates Road

Cross Gates Leeds LS15 7YS

NEWTON AYCLIFFE Unit 23

Northfield Way Aycliffe Industrial Park Newton Aycliffe DL5 6EJ

SHEFFIELD Pennine House

Roman Ridge Road Sheffield S9 1GB

NORTH WEST

BIRKENHEAD 1 Kelvin Park

Dock Road Birkenhead CH41 1LT

CARLISLE Unit 7

James Street Workshops James Street Carlisle Cumbria CA2 5AH

ISLE OFMAN South Quay Ind Estate

Douglas Isle of Man IM1 5AT

BOLTON Unit B

Central Industrial Estate St. Marks Street Bolton BL3 6NR

PRESTON Unit 250

Dawson Place Bamber Bridge Preston Lancashire PR5 8AL

STOCKPORT Unit 20 Haigh Park

Haigh Avenue Stockport SK4 1QR

ISLE OF LEWIS ND Macleod

16 James Street Stornoway Isle of Lewis PA87 2QW

KELSO 2, 6 & 8 Woodmarket

Kelso Borders TD5 7AX

ORKNEY 7 King Street

Kirkwall Orkney KW15 1JF

PERTH Scottish Hydro Electric

Central Warehouse Inveralmond

(OWN SALES) Perth PH1 3AF

SHETLAND 3-4 Carlton Place

Lerwick Shetland

(OWN SALES) ZE1 0PW

SHETLAND Bolts Shetland Ltd.

26 North Road Lerwick

(OWN SALES) Shetland ZE1 0PE

WHALSAY Leask Electrical

Harisdale Symbister, Whalsay

(OWN SALES) Shetland ZE2 9AA

NORTHERN IRELAND

BELFAST Owenmore House

Kilwee Buisness Park Dunmury Belfast BT17 0HD

WALES

CARDIFF Unit 4

Guardian Industrial Estate Clydesmuir Road Cardiff CF2 2QS

CLYWD Unit 6-7 Coed Parc

Abergele Road Rhuddlan Clwyd LL18 5UG

DYFED Unit 9

St. Clears Business Park Tenby Road St. Clears Carmarthen SA33 4JW

OSWESTRY Plas Ffynnon Warehouse

Middleton Road Oswestry SY11 2PP

Electrolux Service Force

To contact your local Electrolux Service Centre telephone

08705 929 929

Page 20

MIDLANDS

BIRMINGHAM 66 Birch Road East

Wyrley Trading Estate Witton Birmingham B6 7DB

BOURNE Pinfold Road

Bourne PE10 9HT

BRIDGNORTH 68 St. Mary’s Street

Bridgnorth Shropshire WV16 4DR

GLOUCESTER 101 Rycroft Street

Gloucester GL1 4NB

HEREFORD Unit 3 & 4

Bank Buildings Cattle market Hareford HE4 9HX

HIGHAM FERRERS 30 High Street

Higham Ferrers Northants NN10 8PL

ILKESTON Unit 2

Furnace Road Ilkeston DE7 5EP

LEICESTER Unit 7

Oaks Industrial Estate Coventry Road Narborough Leicestershire LE9 5GF

LINCOLN Unit 8

Clifton Street Stone Field Park Lincoln LN5 8LQ

NEWCASTLE 18-21 Croft Road UNDER LYME Brampton Ind. Estate

Newcastle under Lyme Staffordshire ST5 0TW

REDDITCH 13 Thornhill Road

North Moons Moat Redditch Worcestershire B98 9ND

TAMWORTH Unit 3

Sterling Park Claymore Tamworth B77 5DQ

WORCESTER Units 1 & 2

Northbrook Close Gregorys Mill Ind. Estate Worcester WR3 8BP

SOUTH EAST

ASHFORD Unit 2

Bridge Road Business Centre Bridge Road Ashford Kent TN2 1BB

FLEET Unit 1

Redsfield Ind. Estate Church Crookham Fleet Hampshire GU13 0RD

HAYWARDS 21-25 Bridge Road HEATH Haywards Heath

Sussex RH16 1UA

TONBRIDGE Unit 30

Deacon Trading Estate Morley Road Tonbridge TN9 1RA

SOUTH WEST

BARNSTAPLE Main Box

Fremington Barnstaple North Devon EX31 2NT

BOURNEMOUTH 63-65 Curzon Road

Bournemouth Dorset BH1 4PW

BRIDGEWATER 6 Herswell Business Park

Salmon Parade Bridgewater Somerset TA6 5PY

BRISTOL 11 Eldon Way

Eldonwall Trading Estate Bristol BS4 3QQ

EMSWORTH 266 Main Road

Southbourne Emsworth PO10 8JL

ISLE OF WIGHT Unit 8

Enterprise Court Ryde Business Park Ryde Isle of Wight PO33 1DB

NEWTON ABBOT Unit 2

Zealley Ind. Estate Kingsteignton Newton Abbot TQ12 3TD

REDRUTH Unit 7D

Pool Ind. Estate Druids Road Redruth, Cornwall TR15 3RH

LONDON & EAST ANGLIA

BECKENHAM 11a Gardener Ind. Estate

Kent House Lane Beckenham Kent BR3 1QZ

CHELMSFORD Hanbury Road

Widford Ind. Estate Chelmsford Essex CM12 3AE

COLINDALE Unit 14

Capitol Park Capitol Way Colindale London NW9 0EQ

ELTHAM 194 Court Road

Mottingham Eltham London SE9 4EW

ENFIELD 284 Alma Road

Enfield London EN3 7BB

GRAVESEND Unit B4

Imperial Business Estate West Mill Gravesend Kent DA11 0DL

IPSWICH Unit 6C

Elton Park Business Centre Hadleigh Road Ipswich IP2 0DD

LETCHWORTH 16-17 Woodside Ind. Park

Works Road Letchworth Herts SG6 1LA

LONDON 2 - 4 Royal Lane

Yiewsley West Drayton Middlesex UB7 8DL

MAIDENHEAD Reform Road

Maidenhead Berkshire SL6 8BY

MOLESEY 10 Island Farm Avenue

West Molesey Surrey KT8 2UZ

NEWBURY 9 Pipers Court

Berkshire Drive Thatcham Berkshire RG19 4ER

NORWICH 2b Trafalgar Street

Norwich NR1 3HN

SUNBURY Unit 1a

The Summit Hanworth Road Sunbury on Thames TW16 5DB

03/2001

Electrolux Service Force

To contact your local Electrolux Service Centre telephone

08705 929 929

Page 21

Hints for test centres

Before starting any test it is necessary to fill completely with salt the salt container and with rinse aid the rinse aid dispenser.

Test standard EN 50242 Reference programme: Power Wash 65°C Load: 8 standard place settings Rinse aid selector: position 4 Detergent dosage : 20 g in the dispenser

5 g on the dispenser lid

UI57

US62

Arrangement upper basket

Arrangement

lower basket

DIMENSIONS Width 44.6 cm

Height with worktop 81.8 - 87.8 cm Max depth 55.5 cm Max depth with open door 111.4 cm

ELECTRICAL CONNECTION Voltage 220/240 V - 50 Hz MOTOR RATING DURING WASH 200 W POWER OF HEATING ELEMENT 2570 W OVERALL POWER 2770 W

WATER SUPPLY PRESSURE Minimum 50 kPa (0.5 bar)

Maximum 800 kPa (8 bar)

CAPACITY 8 place settings

Technical specifications

Page 22

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person.

Remove all packaging before positioning the machine.

If possible, position the machine next to a water tap and a drain.

Water supply connections

This dishwasher must be plumbed into a cold water supply.

The water pressure must be within the limits given in the technical specifications.

Your local Water Authority will advise you on the average mains pressure in your area.

The dishwasher features fill and drain hoses which can be turned either to the left or the right to suit the installation.

The locknut must be correctly fitted to avoid water leaks.

Avoid bends or kinks in the hose which could prevent or slow down the water supply.

If the machine is connected to new pipes or pipes which have not been used for a long time, you should run the water for a few minutes before connecting the inlet hose. This will prevent deposits of sand or rust clogging the inlet hose filter.

Do not use, for the connection, old hoses which have been used in another appliance.

Installation instructions

Page 23

Water outlet hose connection

The end of the drain hose can be connected in the following ways:

1. To the sink outlet spigot, securing it if necessary with a clip.

2. To a stand pipe provided with vent-hole, minimum internal diameter 4 cm.

The waste connection must be at a height of between 30 cm (minimum) and 100 cm (maximum) from the bottom of the dishwasher.

The drain hose can face either to the right or left of the dishwasher

Ensure the hose is not bent or squashed as this could prevent or slow down the discharge of water.

If you use a drain hose extension it must be no longer than 2 metres and its internal diameter must be no smaller than the diameter of the hose provided.

Likewise the internal diameter of the couplings used for connections to the waste outlet must be no smaller than the diameter of the hose provided.

The sink plug must not be in place when the machine is draining as this could cause the water to siphon back into the machine.

Attention! Our appliances are supplied with a security device to protect against the return of dirty water back into the machine. If the spigot of your sink has a "no return valve" incorporated this can prevent the correct draining of your dishwasher. We advise you therefore to remove it.

CS13

min 30 cm

max 100 cm

min 4 cm

Ø 21

Ø 18

1 2

CS14

min 30 cm

max 100 cm

+ 2 m max

Ø 18

Ø 21

Page 24

Electrical connection

This appliance must be earthed. The manufacturer declines any responsibility should this safety measure not be observed.

If the plug that is fitted to your appliance is not suitable for the socket, it must be cut off and the appropriate plug fitted.

Important

The wires on the mains lead are coloured in accordance with the following code:

Green and Yellow -Earth Blue -Neutral Brown -Live

If you fit your own plug, the colours of the wires in the mains lead of your appliance may not correspond with the markings identifying the terminals in your plug.

Proceed as follows:

1. Connect the Green and Yellow (earth) wire to the

terminal in the plug which is marked with the letter "E" or the earth symbol or coloured green and yellow.

2. Connect the Blue (neutral) wire to the terminal in the plug which is marked with the letter "N" or coloured black.

3. Connect the Brown (live) wire to the terminal in the plug which is marked with the letter "L" or coloured red.

The plug moulded onto the lead incorporates a 13amp BSI362 fuse. Only ASTAor BSI fuses should be used.

The plug must not be used if the fuse cover/carrier is lost. The cover/carrier is indicated by the coloured insert at the base of the product.

A replacement cover/carrier must be obtained from your local Service Force Centre.

This appliance complies with the following E.E.C. Directives:

- 73/23 or 19.2.73 (Low Voltage Directive) and

subsequent modifications;

- 89/336 or 3.5.89 (Electromagnetic Compatibility

Directive) and subsequent modifications.

CE03

Page 25

This dishwasher is designed to be fitted under a kitchen counter or worksurface.

It is essential that the recess dimensions indicated in the diagram are followed.

No further openings for venting of the dishwasher are required, but only to let the water fill and drain hose and power supply cable pass through.

The recess height may be anywhere between 820 and 880 mm from the floor as the dishwasher incorporates adjustable feet (max 60 mm).

A distance of 2 mm should be allowed between the top of the dishwasher and the counter top.

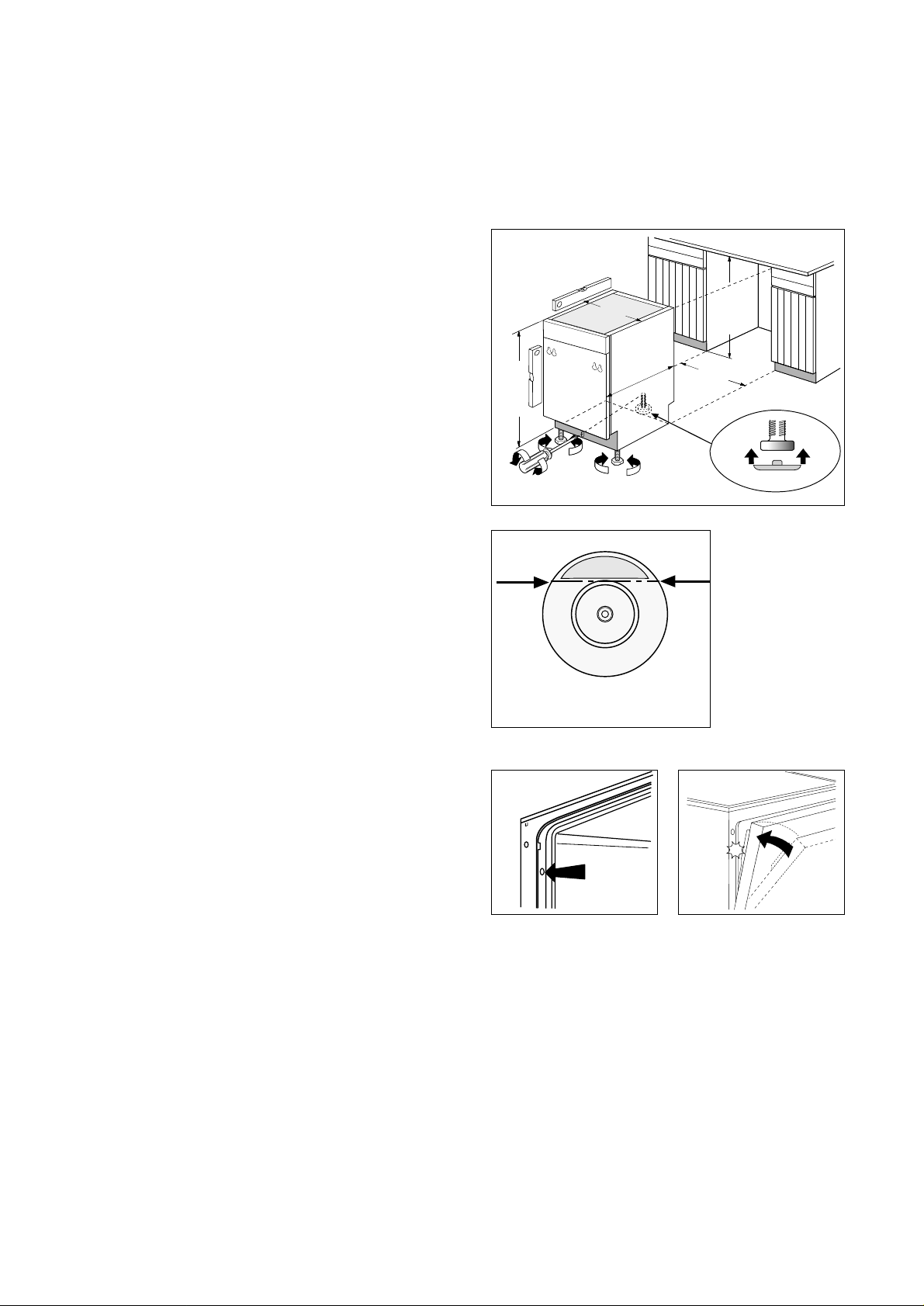

Adjusting the height of the appliance

To adjust the height proceed as follows:

1. Loosen or tighten the two front feet.

2. The rear foot is adjusted by turning the screw in the

middle of the front kick plate to the left or right.

A pad is supplied for the rear foot to make sliding the appliance in and out of the recess easier.

To fit the pad, press it onto the rear foot. If required, the dimensions of this pads can be

reduced by breaking it where marked.

Good levelling is essential for correct closure and sealing of the door. When the appliance is correctly levelled, the door will not catch on the levelling spacers, on either side of the cabinet.

If the door does not close correctly, loosen or tighten the adjustable feet until the machine is perfectly level.

555 max

450

max

820

880

−

818

878

−

II105

446

II52

IN11

IN12

Building-in

Page 26

The furniture door

The door on this appliance is designed for the overlay of a panel having the following dimensions:

Width 446 mm Height 644 - 714 mm max Thickness 20 mm max Weight 1.5 - 6 kg max

The height of the panel depends on the height of adjacent kitchen units (see kitchen plinth adjustment).

The panel height should be no more than indicated, otherwise complete opening of the door will not be possible as the furniture door panel will hit against the dishwasher plinth.

Mounting the furniture door onto the door

The panel must be fitted with a handle, as the dishwasher handle will be hidden by the panel.

1. Drill the panel with a Ø 2 x 14 bit according to the dimensions given in the picture.

2. Screw the two fastening pivots in the holes indicated in the picture.

3. Mount the decor panel by inserting the two fastening pivots into the slotted holes of the door. Lift the decor panel until perfect alignment with the fascia panel is obtained.

4. Once the correct position has been found, open the door and fasten the decor panel by means of the six 4 x 40 screws provided, using the holes through the inner door.

II103

II80

446 max

400

162

II97

II92

596 max

187

525

Page 27

Fitting the vapour protection

Fit the adhesive protection foil onto the front part of the worktop, along the entire width.

Securing under a counter

Secure the dishwasher to the counter on the front part by means of two 3.5 x 16 screws provided (see fig. point A).

The dishwasher must be secured against tilting. Therefore, make sure that the counter it is fitted under, is suitably secured to a fixed structure (adjacent kitchen cabinets, wall).

Attention! The sides of the dishwasher must never be drilled to prevent damage to hydraulic components.

Adjusting the door balance

After the door panel, the adjustment of the door balance may be necessary.

The door of the dishwasher is balanced when it is open in any position.

For this purpose use the two front screws.

- Open the door.

- Remove the caps and screw or unscrew the screws.

In this way the tension of the door balancing springs is increased or decreased respectively.

- Insert the caps again.

Important! The weight of the panel should be within the limits given in "The furniture door" otherwise balancing the door will not be possible

450 mm

II85

II100

45°

II104

Page 28

Kitchen plinth adjustment

To allow correct opening of the door it is sometimes necessary to cut the kitchen plinth. Refer to the cutting table.

According to dimensions (a) and (b) as shown on the figure, you will find on the following table the depth (x) of the cut to be made on the plinth.

The dimensions (a) and (b) of the table are those most frequently used in the kitchen furnitures.

II59

II15

170 160 150 140 130 120 110 100

136 131 125 118 110 100 93 85 135 131 125 118 110 102 92 85 137 132 125 118 110 102 94 85 138 134 128 120 110 104 95 85

139 130 124 115 105 98 88

138 129 120 110 100 90

135 125 115 105 95

/ / / /

40 50 60 70 80 90

100 / /

Height (a)*

Depth (b)*

450 mm

minimum

Dimensions of the cut on the plinth

(*) dimensions in mm

Page 29

The Electrolux Group. The world’s No.1 choice.

The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. 14 billion USD in more than 150 countries around the world.

152983 62/3

3 10/01

Electrolux Household Appliances Limited 2001
