Page 1
user manual
dishwasher
ESI 66010
Page 2
We were thinking of you
when we made this product
Page 3
Welcome to the world of Electrolux
You’ve chosen a first class product from Electrolux,
which hopefully will provide you with lots of pleasure in
the future. Electrolux ambition is to offer a wide variety of
quality products that would make your life even more
comfortable. You can look at some examples on the
cover in this manual. But now it’s time to study this
manual and start using and enjoying the benefits from
your new machine. We promise that it’ll make your life a
little easier. Good luck!
electrolux 3
The following symbols are used in this user manual:
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
General information and tips
Environmental information
117979510 - 092007
Page 4
4 electrolux
Contents
Safety information 5
Product description 7
Control panel 8
First use 10
Set the water softener 10
Use of dishwasher salt 12
Use of rinse aid 13
Daily use 14
Load cutlery and dishes 15
Use of detergent 19
Multi-tab function 20
Select and start a washing
programme 22
Unloading the dishwasher 24
Washing programmes 24
Care and cleaning 26
What to do if... 28
Technical data 31
Hints for test institutes 31
Installation 32
Water connection 33
Electrical connection 35
Environment concerns 36
Page 5
Safety information
In the interest of your safety and to
ensure the correct use, before installing and first using the appliance,
read this user manual carefully, including its hints and warnings. To
avoid unnecessary mistakes and accidents, it is important to ensure that
all people using the appliance are
thoroughly familiar with its operation and safety features. Save these
instructions and make sure that they
remain with the appliance if it is
moved or sold, so that everyone using it through its life will be properly
informed on appliance use and
safety.
Correct use
• This dishwasher is only intended for
washing household utensils suitable
for machine washing.
• Do not put any solvents in the
dishwasher. This could cause an explosion.
• Knives and other items with sharp
points must be loaded in the cutlery
basket with their points down or
placed in a horizontal position in the
upper basket.
• Only use products (detergent, salt and
rinse aid) suitable for dishwashers.
• Avoid opening the door whilst the appliance is in operation, hot steam may
escape.
safety information electrolux 5
• Do not take any dishes out of the
dishwasher before the end of the
washing cycle.
• After use, isolate the appliance from
the power supply and turn off the water supply.
• This product should be serviced only
by an authorized service engineer,
and only genuine spare parts should
be used.
• Under no circumstances should you
attempt to repair the machine yourself. Repairs carried out by inexperienced persons will cause injury or
serious malfunctioning. Contact your
local Service Force Centre. Always insist on genuine spare parts.
General safety
• Dishwasher detergents can cause
chemical burns to eyes, mouth and
throat. Could endanger life! Comply
with the safety instructions of the
dishwasher detergent manufacturer.
• The w at e r i n you r di shwasher is not for
drinking. Detergent residues may still
be present in your machine.
• Ensure that the door of the
dishwasher is always closed when it is
not being loaded or unloaded. In this
way you will avoid anybody tripping
over the open door and hurting themselves.
• Do not sit or stand on the open door.
Page 6
6 electrolux safety information
Child safety
• This appliance is designed to be
operated by adults. Do not allow children to use the dishwasher unsupervised.
• Keep all packaging well away from
children. There is risk of suffocation.
• Keep all detergents in a safe place out
of children’s reach.
• Keep children well away from the
dishwasher when the door is open.
Installation
• Check your dishwasher for any transport damage. Never connect a damaged machine. If your dishwasher is
damaged contact your supplier.
• All packaging must be removed before use.
• Any electrical and plumbing work required to install this appliance must be
carried out by a qualified and competent person.
• For safety reasons it is dangerous to
alter the specifications or attempt to
modify this product in any way.
• Never use the dishwasher if the electrical supply cable and water hoses
are damaged; or if the control panel,
work top or plinth area are damaged
such that the inside of the appliance is
freely accessible. Contact your local
Service Force centre, in order to avoid
hazard.
• All sides of the dishwasher must never
be drilled to prevent damage to
hydraulic and electric components.
For electrical and water connection
carefully follow the instructions
given in specific paragraphs.
Page 7
Product description
product description electrolux 7
1. Upper basket
2. Water hardness dial
3. Salt container
4. Detergent dispenser
5. Rinse aid dispenser
6. Rating plate
7. Filters
8. Lower spray arm
9. Upper spray arm
Page 8
8 electrolux control panel
Control panel
1. On/Off button
2. Programme selection buttons
3. Delay start button
4. Digital display
5. Indicator lights
6. Function buttons
The digital display
The digital display indicates:
• the level of hardness to which the water softener is set,
• the approximate remaining time of the
running programme,
• activation/deactivation of the rinse aid
dispenser (ONLY with "Multitab function active"),
• the end of a washing programme (a
zero will appear in the digital display),
• the countdown of the delay start,
• fault codes concerning malfunction of
the dishwasher.
Page 9
control panel electrolux 9
Function buttons
The following functions can be set with
the help of these buttons:
• setting of the water softener,
• cancel a washing programme or a de-
• activation/deactivation of the Multitab
function,
• activation/deactivation of the rinse aid
dispenser when Multitab function is
active.
lay start in progress,
Indicator lights
Programme in progress Illuminates when a washing programme
is set and remains illuminated for all the
duration of the washing programme.
Turns off when the washing programme
has ended.
End Illuminates when a washing programme
has ended.
Multitab function Indicates the activation/deactivation of
the "Multitab function" (see "Multitab
function").
Salt
1)
Rinse aid
1)
Illuminates when the special salt has run
out.
Illuminates when the rinse aid has run
out.
1) The salt and rinse aid indicator lights are never illuminated while a washing programme is running even
if filling with salt and/or rinse aid is necessary.
Setting mode
Press the On/Off button; if ALL programme button lights are illuminated the
appliance is in setting mode.
– setting the water softener,
– activating/deactivating the rinse
aid,
the appliance MUST be in setting
mode.
Press the On/Off button; if a programme
button light is illuminated the last per-
Always remember that when performing the following operations:
formed or selected programme is still
set. In this case, to return to setting
– selecting a washing programme,
Page 10
10 electrolux first use
mode, the programme has to be cancelled.
To cancel a set programme or a
programme in progress
Simultaneously press and hold the two
Cancel buttons (Cancel) (function but-
First use
Before using your dishwasher for the first
time:
• Ensure that the electrical and water
connections comply with the installation instructions
• Remove all packaging from inside the
appliance
• Set the water softener
• Pour 1 litre of water inside the salt
container and then fill with dishwasher
salt
tons B and C) until all the programme
button lights illuminate. The programme
has been cancelled and the machine is
now in setting mode.
• Fill the rinse aid dispenser
If you want to use combi detergent
tablets such as: ''3 in 1'', ''4 in 1'', ''5
in 1'' etc... set the Multitab function.
(See ''Multitab function'').
Set the water softener
The dishwasher is equipped with a water
softener designed to remove minerals
and salts from the water supply, which
would have a detrimental or adverse effect on the operation of the appliance.
The higher the content of these minerals
and salts, the harder your water is. Water
hardness is measured in equivalent
scales, German degrees (dH°), French
degrees (°TH) and mmol/l (millimol per
litre - international unit for the hardness
of water).
The softener should be adjusted according to the hardness of the water in your
area. Your local Water Authority can advise you on the hardness of the water in
your area.
The water softener must be set in
two ways: manually, using the water
hardness dial and electronically.
Page 11
set the water softener electrolux 11
Water hardness
°dH °TH mmol/l manually electronically
51 - 70 91 - 125 9,1 - 12,5 2 level 10 yes
43 - 50 76 - 90 7,6 - 9,0 2 level 9 yes
37 - 42 65 - 75 6,5 - 7,5 2 level 8 yes
29 - 36 51 - 64 5,1 - 6,4 2 level 7 yes
23 - 28 40 - 50 4,0 - 5,0 2 level 6 yes
19 - 22 33 - 39 3,3 - 3,9 2 level 5 yes
15 - 18 26 - 32 2,6 - 3,2 1 level 4 yes
11 - 14 19 - 25 1,9 - 2,5 1 level 3 yes
4 - 10 7 - 18 0,7 - 1,8 1 level 2 yes
< 4 < 7 < 0,7 1 level 1 no
Setting manually
The dishwasher is factory set at position 2.
Adjusting the water hardness
setting
Setting electronically
The dishwasher is factory set at
level 5.
Use
of
salt
1. Open the dishwasher door.
2. Remove the lower basket from the
dishwasher.

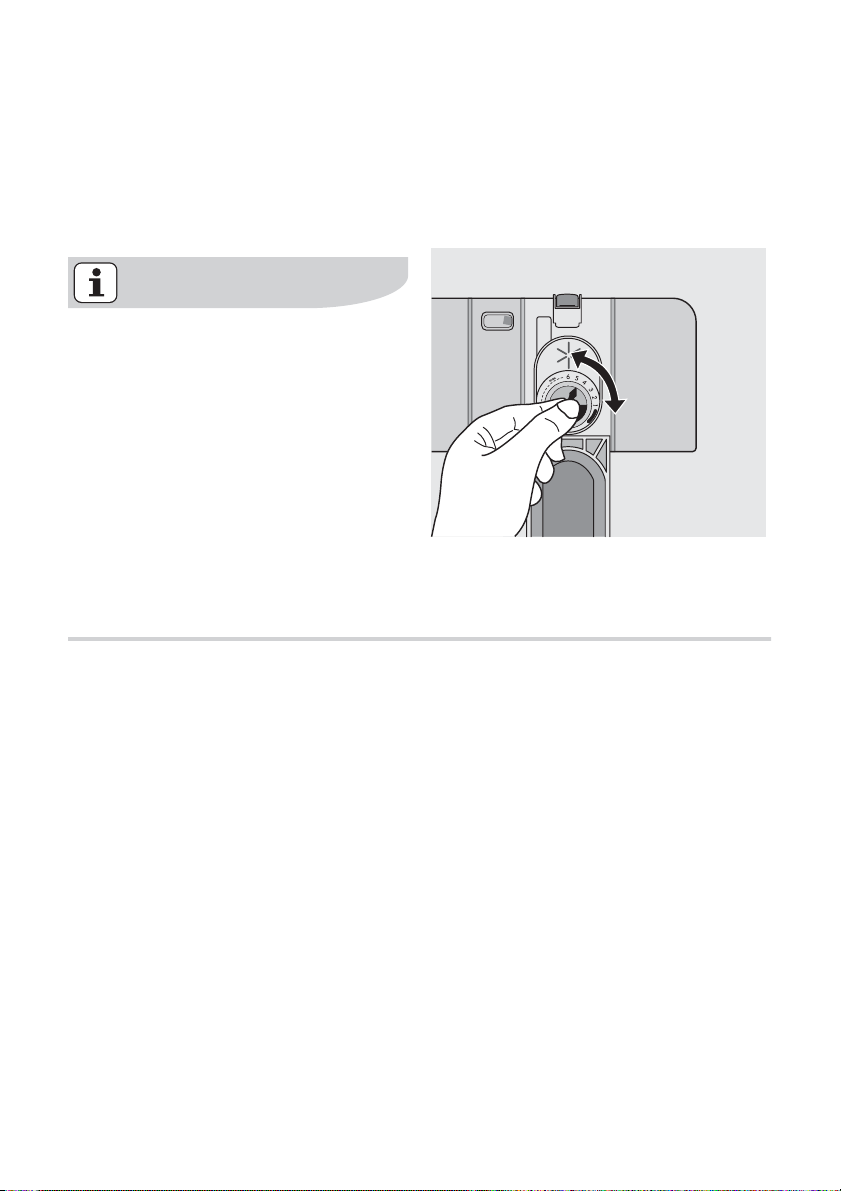

3. Turn the water hardness dial to po-
sition 1 or 2 (see chart).
4. Replace the lower basket.
1. Press the On/Off button. The
dishwasher must be in setting mode.
2. Simultaneously press and hold function buttons B and C, until the lights
of function buttons A, B and C start
flashing.
3.
Press function button A, the lights of
function buttons B and C turn off
while the light of function button A
goes on flashing. The digital display
will show the current level.
Examples:
displayed = level 5
displayed = level 10
Page 12
12 electrolux use of dishwasher salt
4. To change the level, press function
button A. Each time the button is
pressed the level changes. (For the
selection of the new level see the
chart)..
Examples: if the current level is 5, by
pressing function button A once,
Use of dishwasher salt
Only use salt specifically designed for
use in dishwashers. All other types of salt
not specifically designed for use in a
dishwasher, especially table salt, will
damage the water softener. Only fill with
salt just before starting one of the complete washing programmes. This will
prevent any grains of salt or salty water,
which may have been spilt, remaining on
the bottom of the machine for any period
of time, which may cause corrosion.
To fill:
1. Open the door, remove the lower
basket and unscrew the cap of the
salt container by turning it anticlockwise.
2. Pour 1 litre of water inside the
container (this is necessary only
before filling with salt for the first
time) .
3. Using the funnel provided, pour in
the salt until the container is full.
level 6 is selected. if the current level
is 10, by pressing function button A
once, level 1 is selected.
5. To memorise the operation, switch
off the dishwasher by pressing the
On/Off button.
4. Replace the cap making sure that
there is no trace of salt on the screw
thread or on the gasket.
5. Replace the cap tightly turning it
clockwise until it stops with a click.
Do not worry if water overflows from
the unit when filling with salt, this is
quite normal.
Page 13
The salt indicator light on the control
panel can remain illuminated for 2-6
hours after the salt has been
replenished, assuming the
Use of rinse aid
Only use branded rinse aid for dishwashers.
Never fill the rinse aid dispenser with
any other substances (e.g.
dishwasher cleaning agent, liquid
detergent). This would damage the
appliance.
use of rinse aid electrolux 13
dishwasher remains switched on. If
you are using salts that take longer
to dissolve then this can take longer.
The function of the machine is not
affected.
Rinse aid ensures thorough rinsing,
and spot and streak free drying.
Rinse aid is automatically added
during the last rinse.

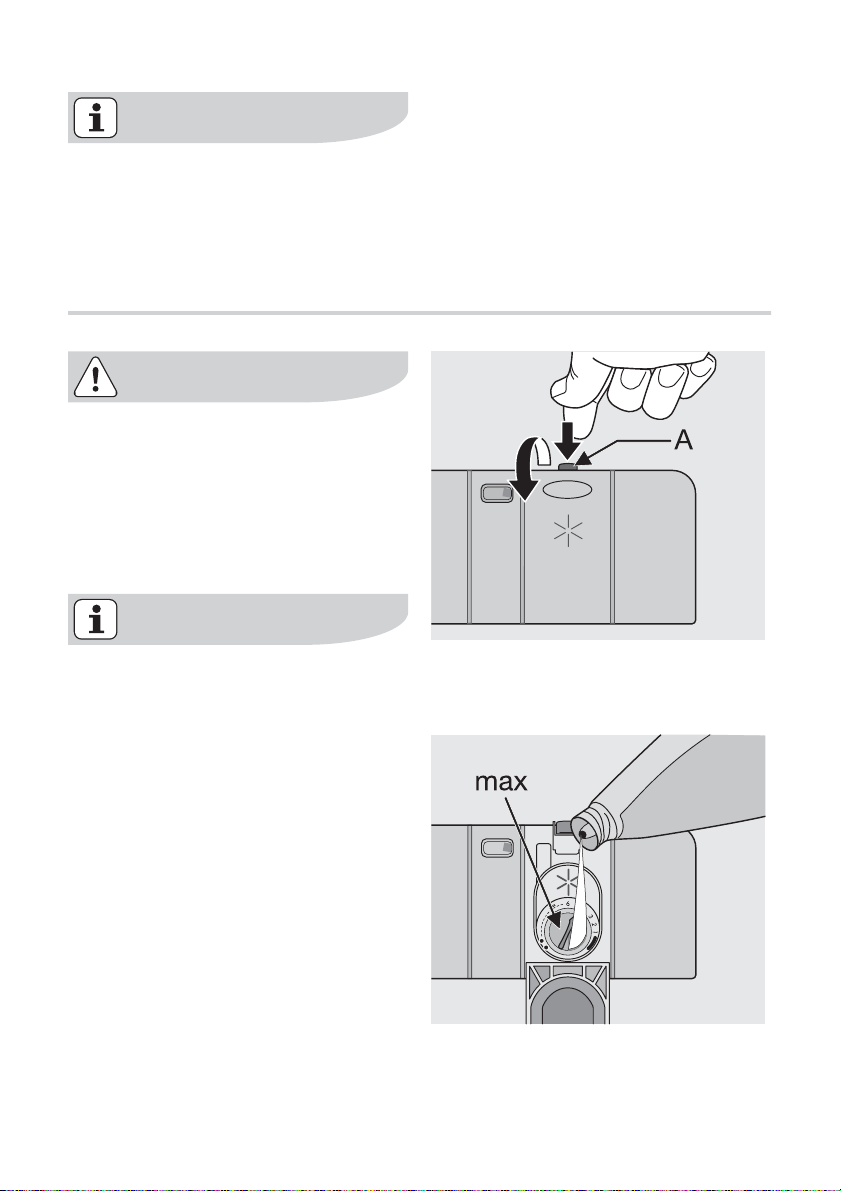

1. Open the container by pressing the
release button (A).
2. Add the rinse aid in the container.
The maximum level for filling is indicated by "max".
Page 14
14 electrolux daily use
The dispenser holds about 110 ml of
rinse aid, which is sufficient for between 16 and 40 washing cycles,
depending upon the dosage setting.
3. Ensure that the lid is closed after every refill.
Clean up any rinse aid spilt during
filling with an absorbent cloth to
avoid excess foaming during the
next wash.
According to the finish and drying results
obtained, adjust the dose of rinse aid by
means of the 6 position selector (position 1 minimum dosage, position 6 maximum dosage).
The dose is factory set in position 4.
Daily use
Increase the dose if there are drops of
water or lime spots on the dishes after
washing.
Reduce it if there are sticky whitish
streaks on the dishes or a bluish film on
glassware or knife blades.
• Check if it’s necessary to refill with
dishwasher salt or rinse aid.
• Load cutlery and dishes into the
dishwasher.
• Fill with dishwasher detergent.
• Select a wash programme suitable for
the cutlery and dishes.
• Start the wash programme.
Helpful hints and tips
Sponges, household cloths and any object that can absorb water may not be
washed in the dishwasher.
• Before loading the dishes, you should:
– Remove all left over food and deb-
ris.
– Soften remnants of burnt food in
pans
Page 15
load cutlery and dishes electrolux 15
• When loading the dishes and cutlery,
please note:
– Dishes and cutlery must not impede
the rotation of the spray arms.
– Load hollow items such as cups,
glasses, pans, etc. with the opening
downwards so that water cannot
collect in the container or a deep
base.
– Dishes and items of cutlery must
not lie inside one another, or cover
each other.
For washing in the dishwasher the following cutlery and dishes
are not suitable: are of limited suitability:
• Cutlery with wooden, horn, china or
mother-of-pearls handles.
• Plastic items that are not heat resistant.
• Older cutlery with glued parts that are
not temperature resistant.
• Bonded cutlery items or dishes.
• Pewter or copper items.
• Lead crystal glass.
• Steel items prone to rusting.
• Wooden platters.
• Items made from synthetics fibres.
– To avoid damage to glasses, they
must not touch.
– Lay small objects in the cutlery bas-
ket.
• Plastic items and pans with non stick
coatings have a tendency to retain
water drops; these items will not dry
as well as porcelain and steel items.
• Light items (plastic bowls etc.) must
be loaded in the upper basket and arranged so they do not move.
• Only wash stoneware in the
dishwasher if it is specially marked as
being dishwasher-safe by the
manufacturer.
• Glazed patterns may fade if machine
washed frequently.
• Silver and aluminium parts have a
tendency to discolour during washing: Residues, e.g. egg white, egg
yolk and mustard often cause discolouring and staining on silver. Therefore always clean left-overs from silver
immediately, if it is not to be washed
straight after use.

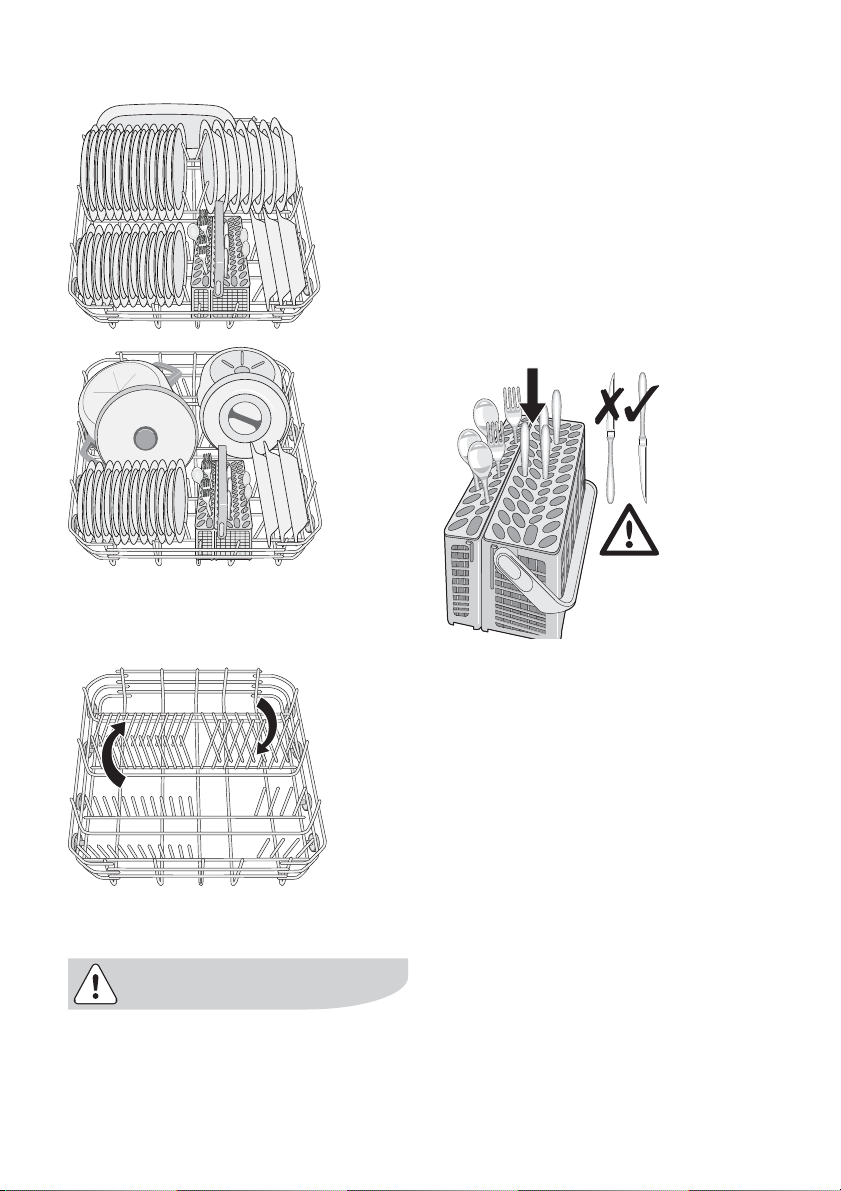

Load cutlery and dishes
The lower basket
The lower basket is designed to take
saucepan, lids, plates, salad bowls, cutlery etc.
Service dishes and large lids should be
arranged around the edge of the basket,
ensuring that the spray arms can turn
freely.
Page 16
16 electrolux load cutlery and dishes
The rows of prongs on the lower basket
can be easily lowered to allow you to
load pots, pans and bowls.
Long and/or sharp items of cutlery
such as carving knives must be
positioned horizontally in the upper
basket. Take care when loading or
unloading sharp items such as knives.
Forks and spoons should be placed in
the removable cutlery basket with the
handles facing downwards and the knives with their handles facing upwards.
If the handles protrude from the bottom
of the basket, obstructing the lower
spray arm, load the cutlery with the handles facing upwards.
Mix spoons with other cutlery to prevent
them from sticking together.
To make loading of the cutlery basket
easier, lower the cutlery basket handle.
The cutlery basket
Long bladed knives stored in an upright position are a potential hazard.
Page 17
load cutlery and dishes electrolux 17
For best results we recommend that you
use the cutlery grids.
If the size and dimensions of the cutlery
do not allow the use of the grids, they
can be easily hidden.

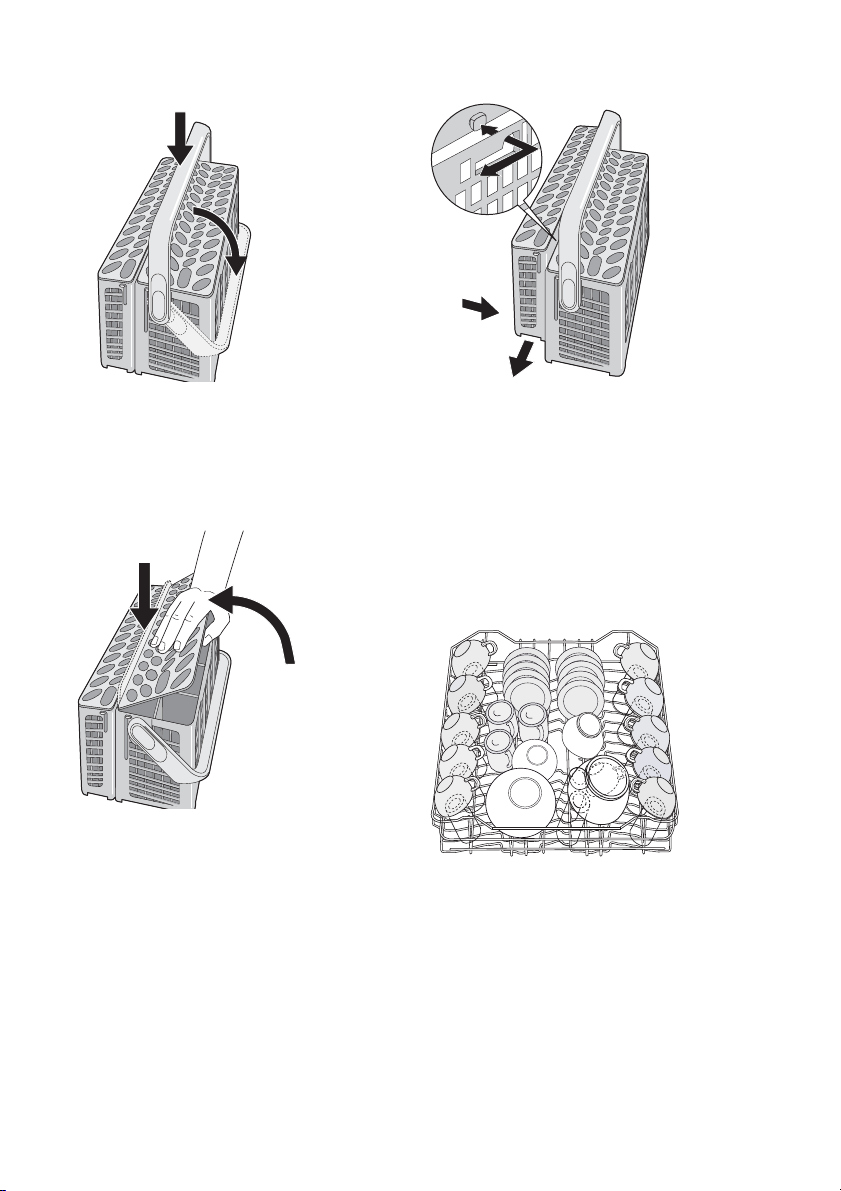

The cutlery basket is in two parts which
can be separated to give greater loading
flexibility. To separate the two parts,
slide them horizontally in opposite directions and pull them apart.
To reassemble, reverse the procedure.
The upper basket
The upper basket is designed for saucers, salad bowls, cups, glasses, pots
and lids.
Arrange items on and underneath the
cup racks so that water can reach all
surfaces.
Page 18
18 electrolux load cutlery and dishes
Glasses with long stems can be placed
upside down in the cup racks.
For taller items the cup racks can be folded upwards.
Before closing the door, ensured
that the spray arms can rotate
freely.

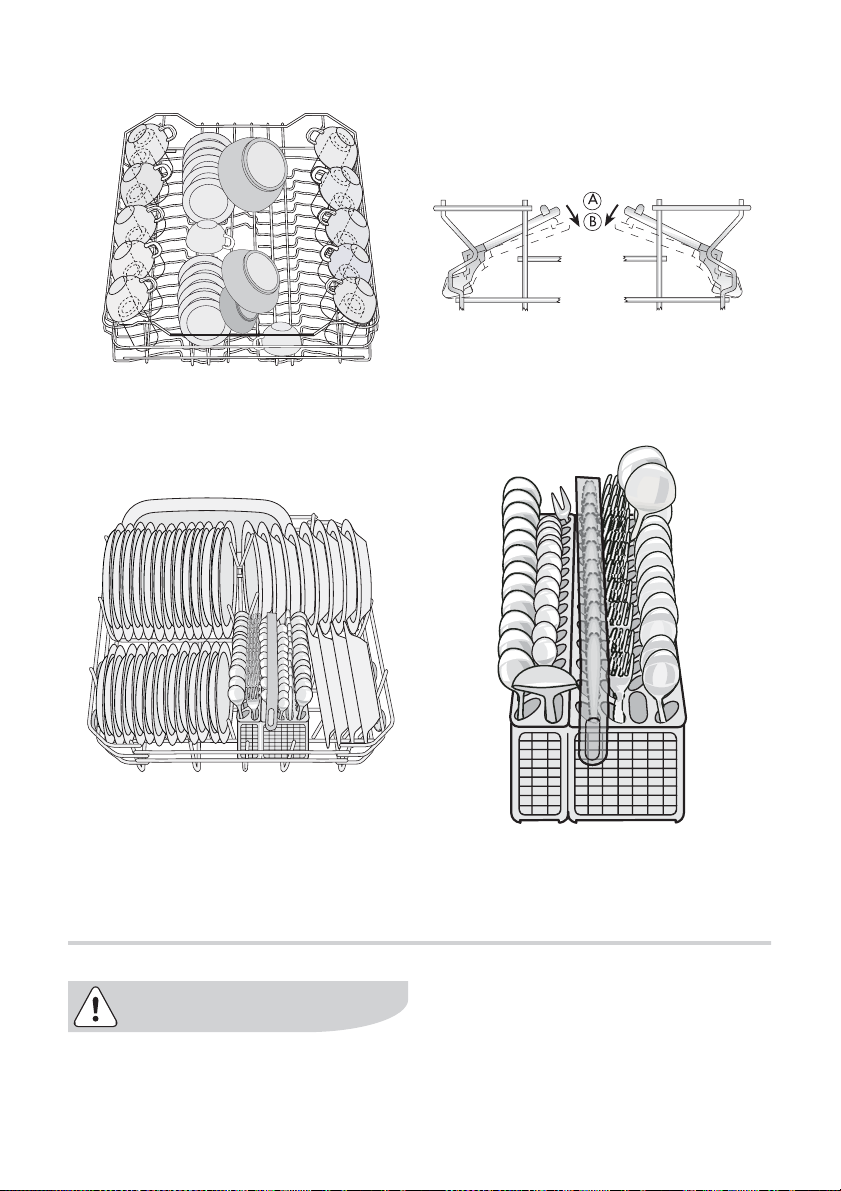

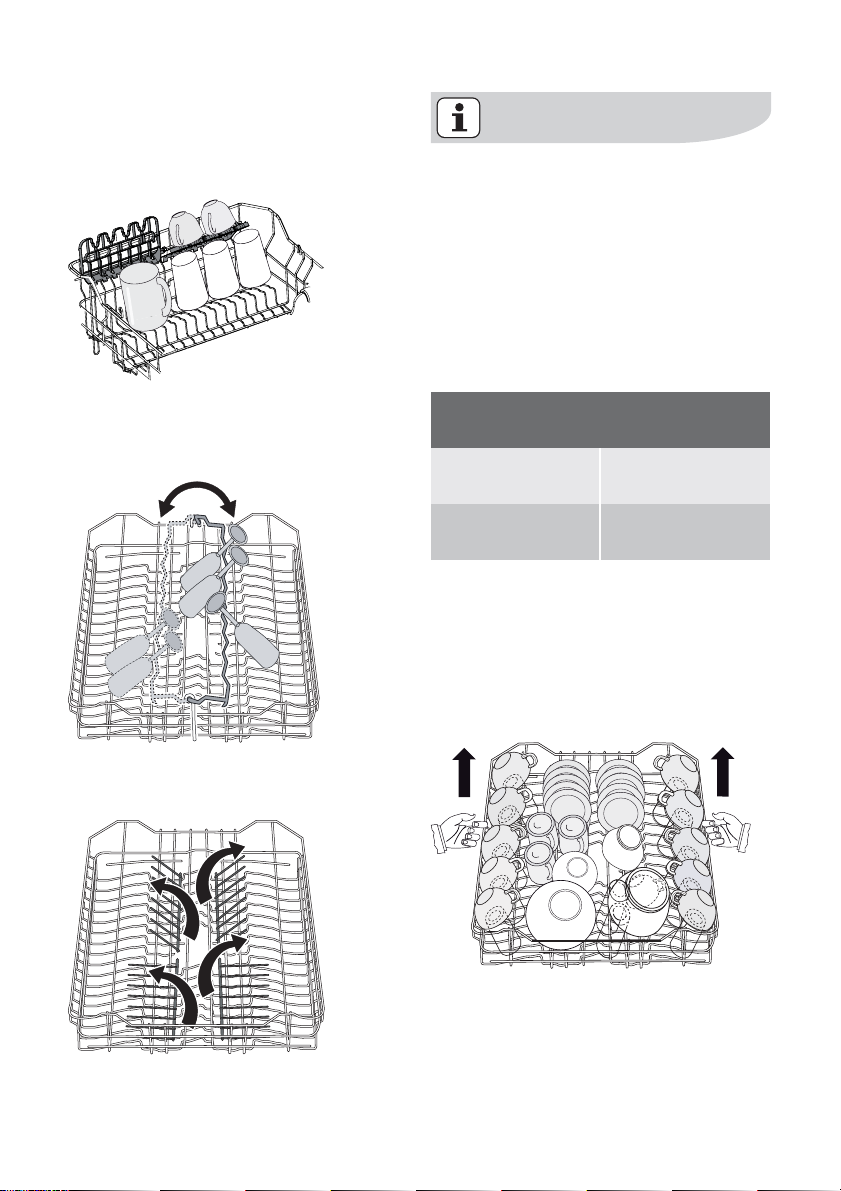

Adjusting the height of the upper
basket
If washing very large plates you can load
them in the lower basket after moving
the upper basket to the higher position.
For glasses with long stems (according
to the size and dimensions), set the glass
holder to the left or right position.
The central rows of prongs can be easily
lowered to improve loading flexibility.
Maximum height of the dishes in
the lower basket
With upper basket
raised
With upper basket
lowered
To move to the higher position proceed as follows:
1. Pull out the basket until it stops.
2. Carefully lift both sides upwards until
the mechanism is engaged and the
basket is stable.
31 cm
27 cm
To lower the basket to the original
position proceed as follows:
1. Pull out the basket until it stops.
Page 19
2. Carefully lift both sides upwards and
then allow the mechanism to drop
back down slowly, keeping hold of it.
Never lift or lower the basket on one
side only
When the basket is in the higher position you will not be able to use the
cup racks.
Use of detergent
Only use detergents specifically designed for use in dishwashers.
Please observe the manufacturer’s
dosing and storage recommendations as stated on the detergent
packaging.
use of detergent electrolux 19
After loading your machine always
close the door, as an open door can
be a hazard.
Using no more than the correct
amount of detergent contributes to
reducing pollution.

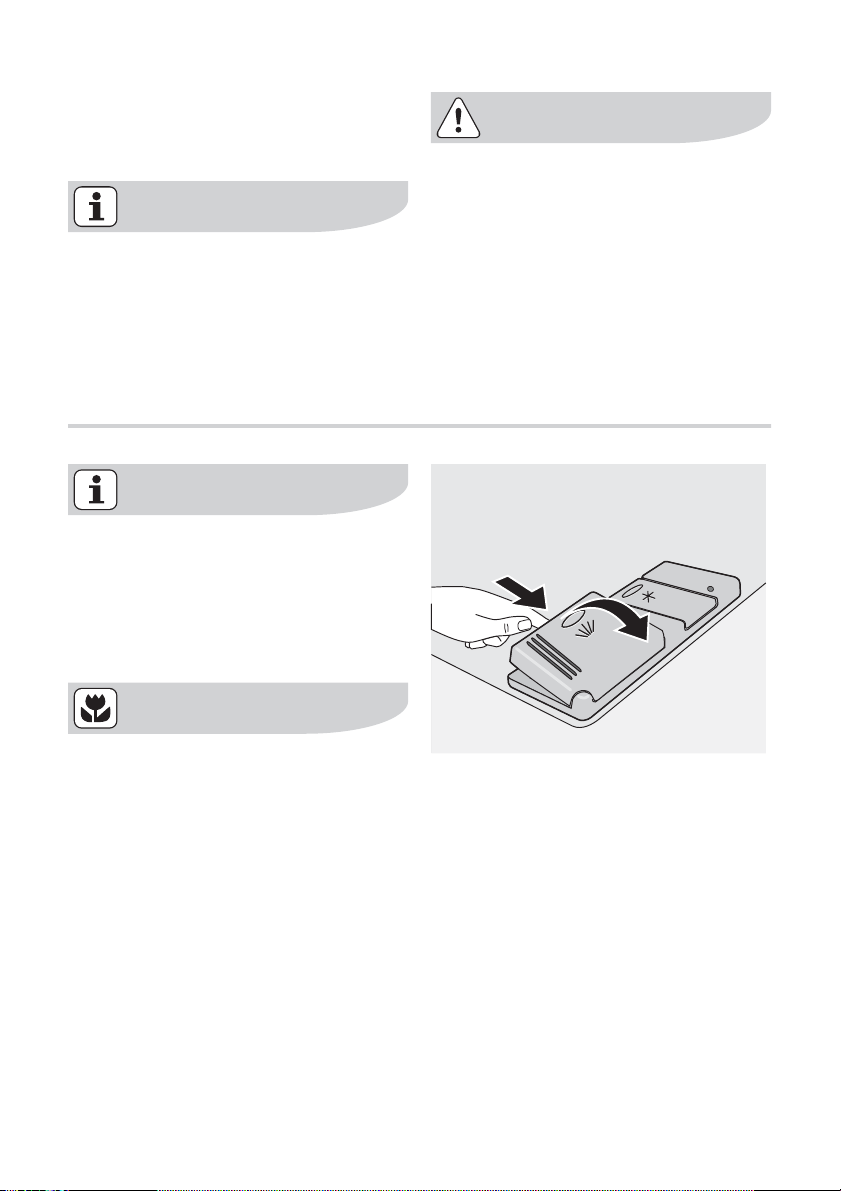

Fill with detergent
1. Open the lid.
2. Fill the detergent dispenser (1) with
detergent. The marking indicates the
dosing levels:
20 = approximately 20 g of detergent
30 = approximately 30 g of detergent.
Page 20
20 electrolux multi-tab function
1
2
3. All programmes with prewash need
an additional detergent dose (5/10 g)
that must be placed in the prewash
detergent chamber (2).
This detergent will be used during
the prewash phase.

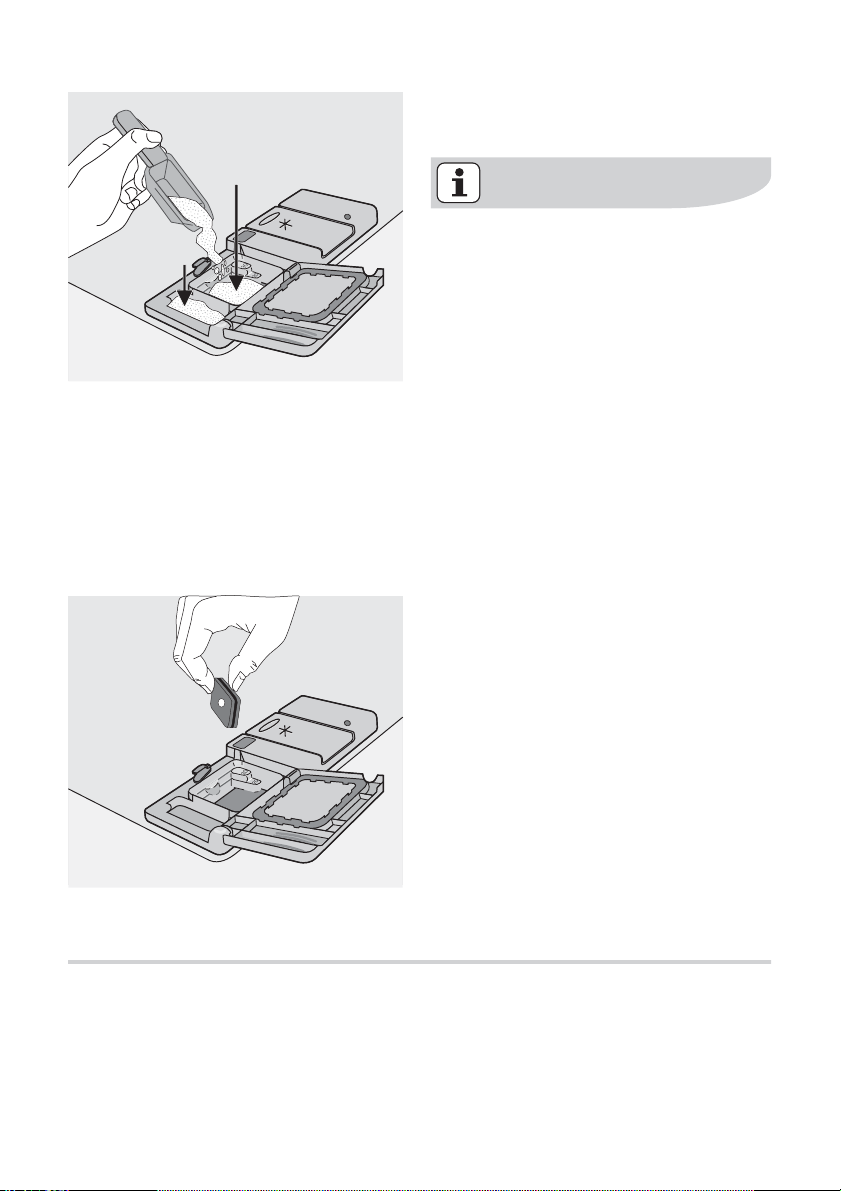

When using detergent tablets; place
the tablet in compartment (1)
4. Close the lid and press until it locks
in place.
Detergent tablets from different
manufacturers dissolve at different
rates. For this reason, some detergent tablets do not attain their full
cleaning power during short washing programmes. Therefore, please
use long washing programmes
when using detergent tablets, to ensure the complete removal of detergent residuals.
Multi-tab function
This appliance is equipped with the
"Multitab function", that allows the use
of the "Multitab" combi detergent tablets.
Page 21
multi-tab function electrolux 21
These products are detergents with a
combined cleaning, rinsing and salt
functions. They can also contain other
different agents depending on which
kind of tablets you choose ("3 in 1", "4 in
1", "5 in 1" etc...).
Check whether these detergents are
suitable for your water hardness. See
the manufacturers instructions.
Once this function is selected it will remain active for all following wash programmes.
With the selection of this function the inflow of rinse aid and salt from each respective supply container is
automatically deactivated and also the
indicator lights for salt and rinse aid are
deactivated.
With the use of the "Multitab function",
the cycle durations may change. In this
case, in the digital display, the indication
of the running time of the programme is
automatically updated.
Activation/deactivation of the
Multitab function
Simultaneously press and hold the two
Multitab buttons (function buttons D and
E) until the Multitab indicator light illuminates. This means that the function is
active.
To deactivate the function press the
same buttons again until the indicator
light corresponding to the Multitab function symbol turns off.
If the drying results are not
satisfactory we suggest that you:
1. Fill up the rinse aid dispenser
with rinse aid.
2. Activate the rinse aid dispenser.
3. Set the rinse aid dosage to position 2.
• The activation/deactivation of the
rinse aid can only be possible with
the Multitab function active.
Activate/deactivate the ''Multitab
function'' before the start of a washing programme.
Once the programme is running, the
"Multitab function " can NO longer
be changed. If you want to exclude
the "Multitab function " you have to
cancel the programme setting and
then deactivate the ''Multitab function''. In this case you have to set a
washing programme (and desired
options) again.
Activation/deactivation of the
rinse aid dispenser
1. Press the On/Off button. The
dishwasher must be in setting mode.
2. Simultaneously press and hold function buttons B and C, until the lights
of function buttons A , B, and C start
flashing.
3. Press function button B, the lights of
function buttons A and C turn off
while the light of function button B
goes on flashing. The digital display
indicates the current setting.
Page 22
22 electrolux select and start a washing programme

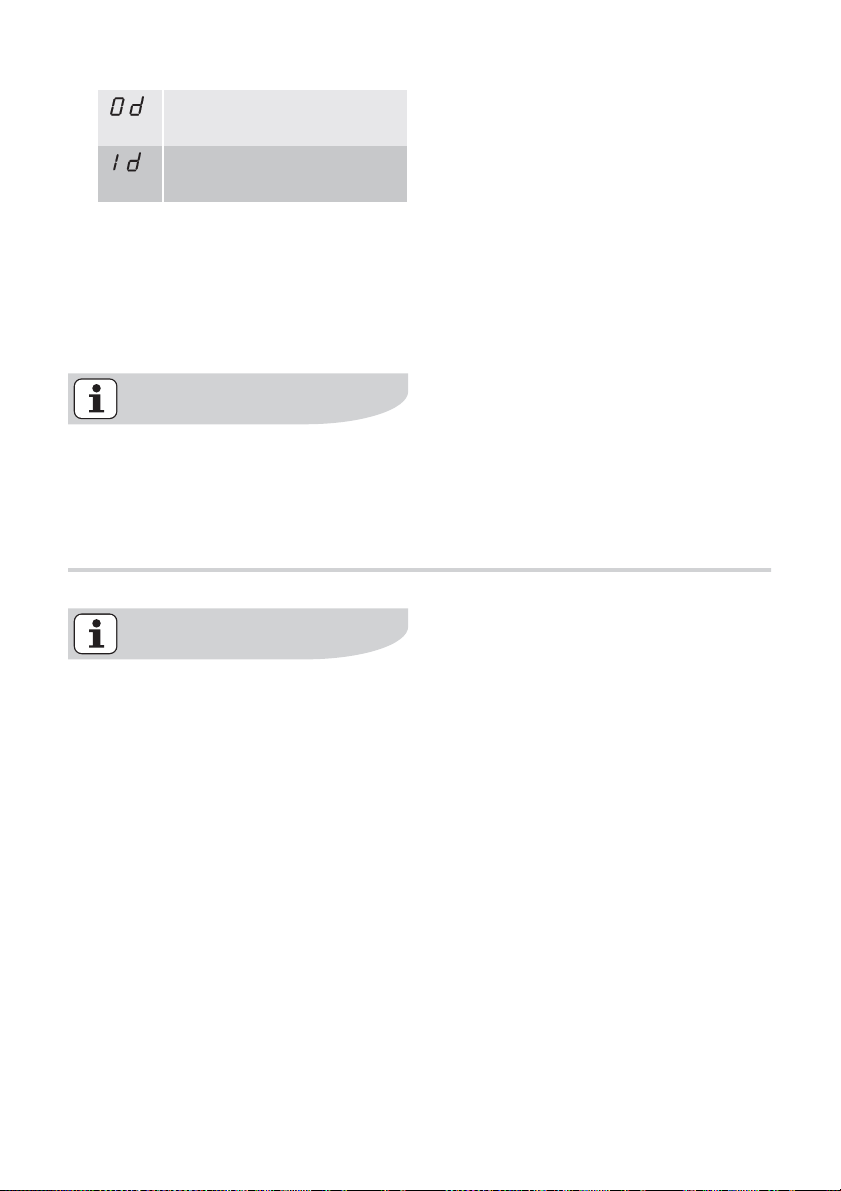

Rinse aid dispenser deactivated
Rinse aid dispenser activated
4. To change the setting, press button
B again, the digital display indicates
the new setting.
5. To memorise the operation, switch
off the dishwasher by pressing the
On/Off button.
If you decide to turn back to the use
of standard detergent system we
advise that you:
1. Deactivate the Multitab function.
2. Fill up the salt container and the
rinse aid dispenser again.
3. Adjust the water hardness setting to the highest setting and
perform 1 normal washing programme without loading any
dishes.
4. Adjust the water hardness setting according to the hardness of
the water in your area.
5. Adjust the rinse aid dosage.
Select and start a washing programme
4. Press the button corresponding to
the required programme (see
Select the washing programme and
delay start with the door slightly
opened. The start of the programme
or the countdown of the delay start
will occur only after the closure of
the door. Until then it is possible to
modify the settings
1. Check that the baskets have been
loaded correctly and that the spray
arms are free to rotate.
2. Check that the water tap is opened.
3. Press the On/Off button. The
dishwasher must be in setting mode.
''Washing programmes'' chart).
When a programme has been selected the corresponding light illuminates.
The programme in progress indicator light illuminates.
Close the dishwasher door, the programme starts automatically.
The programme in progress indicator light remains illuminated.
Setting and starting the
programme with delay start
1. After having selected the washing
programme, press the delay start
button until the flashing number of
Page 23
select and start a washing programme electrolux 23
hours for the delay start appear in the
digital display. The start of the selected washing programme can be delayed for between 1 and 19 hours.
2. Close the dishwasher door, the
countdown starts automatically. The
number in the display is no longer
flashing but fixed with static light.
3. The countdown will decrease with
steps of 1 hour.
4. The opening of the door will interrupt
the countdown. Close the door; the
countdown will continue from the
point at which it was interrupted.
5. Once the delay start has elapsed the
programme will start automatically.
With the delay start function set, the
programme in progress indicator
light is off. Once the countdown of
the delay start has elapsed, the
washing programme will start
automatically and the programme in
progress indicator light will illuminate.
The selection of the washing programme and delay start can also occur with the door closed. Keep in
mind that in this way, once a washing programme button is pressed
you have ONLY 3 seconds in which
you can choose another programme
or select a delay start, after which
the selected programme will start
automatically.
Interrupt or cancel a washing programme in progress ONLY if it's
absolutely necessary.
Attention! Hot steam may escape
when the door is opened. Open the
door carefully.
Cancel a delay start or a washing
programme in progress
• Simultaneously press and hold the
two Cancel buttons (function buttons
B and C) until all the programme lights
illuminate.
• Cancelling a delay start involves also
the cancelling of the washing programme set. In this case you have to
select the washing programme again.
• If a new washing programme is to be
selected, check that there is detergent
in the detergent dispenser.
End of the washing programme
• The dishwasher will automatically
stop and the programme in pro-
gress indicator light turns off.
•The End indicator light will illuminate.
• The light of the programme just ended
will remain on.
• Zero appears in the digital display.
1. Switch off the dishwasher by press-
ing the On/Off button.
2. Open the dishwasher door, leave it
ajar and wait a few minutes before
Page 24
24 electrolux unloading the dishwasher
removing the dishes; in this way they
will be cooler and the drying will be
improved.
Unloading the dishwasher
• Hot dishes are sensitive to knocks.
The dishes should therefore be allowed to cool down before removing
from the appliance.
• Empty the lower basket first and then
the upper one; this will avoid water
dripping from the upper basket onto
the dishes in the lower one.
• Water may appear on the sides and
the door of the dishwasher as the
Washing programmes
Programme
Intensive
1)
Degree of
soil
Heavy soil
Any
Type of load Programme description
Crockery,
cutlery, pots
and pans
Crockery,
cutlery, pots
and pans
stainless steel will eventually become
cooler than the dishes.
When the washing programme has
finished, it is recommended that the
dishwasher is unplugged and the
water tap turned off.
Prewash
Main wash up to 70°C
2 intermediate rinses
Final rinse
Drying
Prewash
Main wash up to 45°C or 70°C
1 or 2 intermediate rinses
Final rinse
Drying
Quick
2)
Normal or
light soil
Crockery and
cutlery
Main wash up to 60°C
Final rinse
Page 25
washing programmes electrolux 25
Programme
Degree of
soil
Type of load Programme description
Prewash
3)
Normal soil
Crockery and
cutlery
Main wash up to 50°C
1 intermediate rinse
Final rinse
Drying
Delicate
Glass
1) During the "Auto" washing programme the amount of soil on the dishes is determined by how cloudy
the water is. The programme duration, water and energy consumption levels can vary; this depends
upon if the appliance is fully or partially loaded and if the dishes are lightly or heavily soiled. The
temperature of the water is automatically adjusted between 50°C and 65°C.
2) Ideal for washing a partially loaded dishwasher. This is the perfect daily programme, made to meet
the needs of a family of 4 persons who only wish to load breakfast and dinner crockery and cutlery.
3) Test programme for test institutes
Normal soil
crockery and
glassware
Main wash up to 45°C
1 intermediate rinse
Final rinse
Drying
Consumption values
Programme Programme du-
ration
(in minutes)
Energy con-
sumption
(in kWh)
Water consump-
tion
(in litres)
Intensive 110 - 120 1,8 - 2,0 23 - 25
Auto 90 - 130 1,1 - 1,7 12 - 23
Quick 30 0,9 9
Eco
1)
150 - 160 1,0 - 1,2 14 - 16
Glass 60 - 70 0,8 - 0,9 14 - 15
1) Test programme for test institutes
The consumption values are intended as a guide and depends on the
pressure and the temperature of the
water and also by the variations of
the power supply and the amount of
dishes.
Page 26
26 electrolux care and cleaning
Care and cleaning
Cleaning the filters
The filters must be checked and cleaned
from time to time. Dirty filters will degrade the washing result.
Before cleaning the filters ensure
that the machine is switched off.

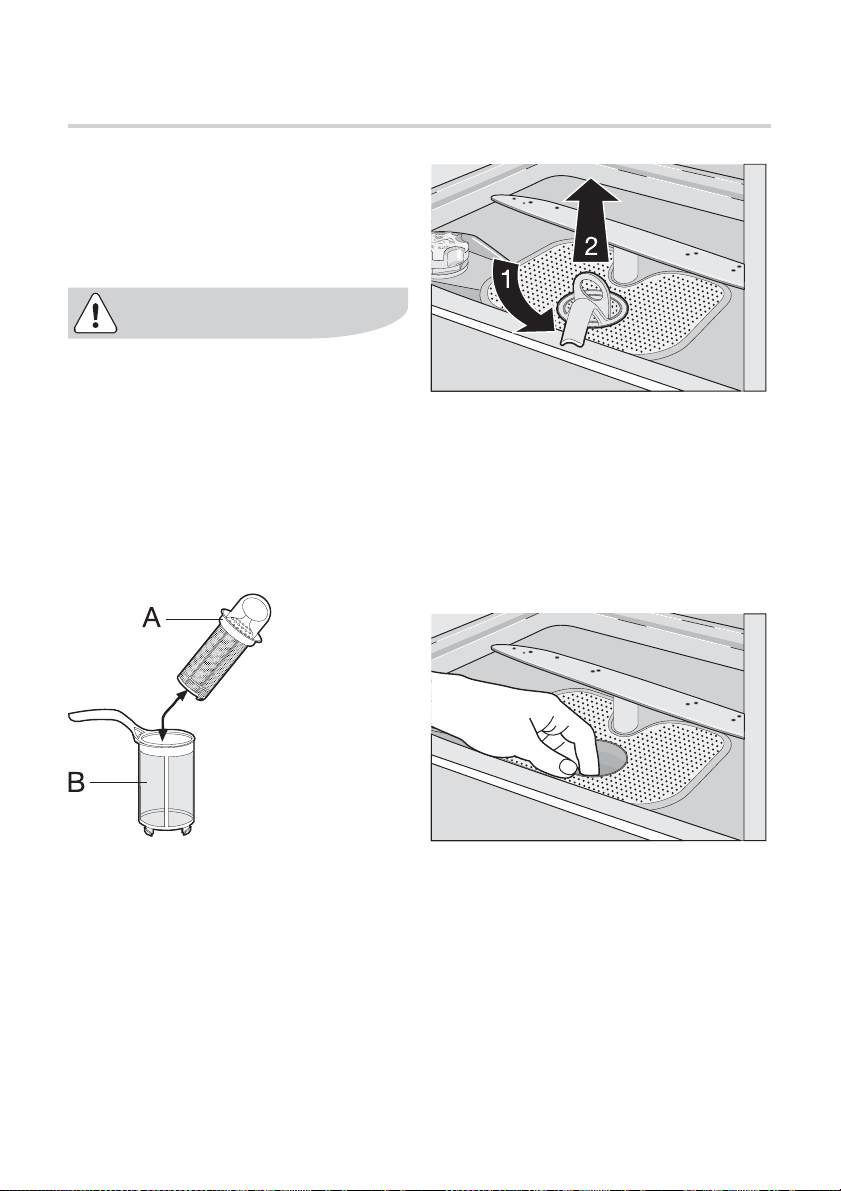

1. Open the door, remove the lower
basket.
2. The dishwasher filter system compri-
ses a coarse filter (A), a microfilter
(B) and a flat filter. Unlock the filter
system using the handle on the microfilter.
4.
Take hold of the coarse filter (A) by
the handle with the hole and remove
from the microfilter (B).
5. Clean all filters thoroughly under running water.
6. Remove the flat filter from the base
of the washing compartment and
clean both faces thoroughly.
3. Turn the handle about 1/4 a turn anticlockwise and remove the filter system
7. Put the flat filter back in the base of
the washing compartment and ensure that it fits perfectly.
8. Place the coarse filter (A) in the microfilter (B) and press together.
9. Put the filter combination in place
and lock by turning the handle clockwise to the stop. During this process
Page 27
care and cleaning electrolux 27
ensure that the flat filter does not
protrude above the base of the
washing compartment.
NEVER use the dishwasher without
filters. Incorrect repositioning and
fitting of the filters will produce poor
washing results and will result in
damage to the appliance
NEVER try to remove the spray
arms.
If residues of soil have clogged the
holes in the spray arms, remove the
debris with a cocktail stick.
External cleaning
Clean the external surfaces of the machine and control panel with a damp soft
cloth. If necessary use only neutral detergents. Never use abrasive products,
scouring pads or solvent (acetone, trichloroethylene etc...).
Internal cleaning
Ensure that the seals around the door,
the detergent and rinse aid dispensers
are cleaned regularly with a damp cloth.
We recommend every 3 months to run
the wash programme for heavy soiled
dishes using detergent but without
dishes.
Prolonged periods of nonoperation
If you are not using the machine for any
prolonged period of time you are advised to:
1. Unplug the appliance and then turn
off the water.
2. Leave the door ajar to prevent the
formation of any unpleasant smells.
3. Leave the inside of the machine
clean.
Frost precautions
Avoid placing the machine in a location
where the temperature is below 0°C. If
this is unavoidable, empty the machine,
close the appliance door, disconnect the
water inlet pipe and empty it.
Moving the machine
If you have to move the machine (moving
house etc...):
1. Unplug it.
2. Turn the water tap off.
3. Remove the water inlet and discharge hoses.
4. Pull the machine out together with
the hoses.
Avoid over tilting the machine during
transportation.
Page 28
28 electrolux what to do if...
What to do if...
The dishwasher will not start or stops
during operation.
Certain problems can be due to the lack
of simple maintenance or oversights,
which can be solved with the help of the
Fault codes and malfunction Possible cause and solution
• continuous flashing of the light of the
running programme
•
appears in the digital display
The dishwasher does not fill with
water
• continuous flashing of the light of the
running programme
•
appears in the digital display
The dishwasher will not drain
• continuous flashing of the light of the
running programme
•
appears in the digital display
Anti-flood device is activated
hints described in the chart, without calling out an engineer.
Switch off the dishwasher, open the
door and carry out the following suggested corrective actions.
• The water tap is blocked or furred
with limescale.
Clean the water tap.
• The water tap is turned off.
Turn the water tap on.
• The filter (where present) in the threaded hose fitting at the water inlet valve
is blocked.
Clean the filter in the threaded hose.
• The water inlet hose has not been
correctly laid or it is kinked or
squashed.
Check the water inlet hose connection.
• The sink spigot is blocked.
Clean out the sink spigot.
• The water drain hose has not been
correctly laid or it is kinked or
squashed.
Check the water drain hose connection.
• Close the water tap and contact your
local Service Force Centre.
Page 29
Malfunction Possible cause and solution
The programme does not start
what to do if... electrolux 29
• The dishwasher door has not been
properly closed.
Close the door.
• The main plug is not plugged in.
Insert the main plug
• The fuse has blown out in the household fuse box.
Replace the fuse.
• Delay start has been set.
If dishes are to be washed
immediately, cancel the delay start.
Once these checks have been carried
out switch on the appliance.
The programme will continue from the
point at which it was interrupted.
If the malfunction or fault code reappears contact your local Service Force
Centre.
For other fault codes not described in
the above chart, please contact your local Service Force Centre.
Contact your local Service Force Centre,
quoting the model (Mod.), product number (PNC) and serial number (S.N.).
This information can be found on the rating plate located on the side of the
dishwasher door.
So that you always have these numbers
at hand, we recommend you to make a
note of them here:
Mod. : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PNC : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
S.N. : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 30
30 electrolux what to do if...
The wash results are not satisfactory
The dishes are
not clean
• The wrong programme has been selected.
• The dishes are arranged in such a way as to stop water
reaching all parts of a surface. The baskets must not be
overloaded.
• The spray arms do not rotate freely due to incorrect arrangement of the load.
• The filters in the base of the washing compartment are dirty
or incorrectly positioned.
• Too little or no detergent has been used.
• Where there are limescales deposits on the dishes; the salt
container is empty or incorrect level of the water softener
has been set.
• The drain hose connection is not correct.
• The salt container cap is not properly closed.
The dishes are
wet and dull
There are
• Rinse aid was not used.
• The rinse aid dispenser is empty.
• Decrease rinse aid dosage.
streaks, milky
spots or a bluish coating on
glasses and
dishes
Water drops
have dried onto
glasses and
• Increase rinse aid dosage.
• The detergent may be the cause. Contact the detergent
manufacturer consumer care line.
dishes
If after all these checks, the problem persists, contact your local Service Force
Centre.
Page 31
Technical data
technical data electrolux 31
Dimensions Width
Height
Depth
Electrical connection Voltage - Overall power Fuse
Water supply pressure Minimum
Capacity 12 place settings
Weight 39,5 kg
Information on the electrical connection is given on the
rating plate on the inner edge of the dishwasher door.
0,5 bar (0,05 MPa)
Maximum
8 bar (0,8 MPa)
59,6 cm
81,8 - 89,8 cm
57,5 cm
Hints for test institutes
Testing in accordance with EN 60704
must be carried out with appliance fully
loaded and using the test programme
(see "Consumption values").
Test in accordance with EN 50242 must
be carried out when the salt container
Full load: 12 standard place settings
Amount of detergent required: 5 g + 25 g (Type B)
Rinse aid setting position 4 (Type III)
and rinse aid dispenser have been filled
with salt and rinse aid respectively and
using the test programme (see
"Consumption values").
Page 32
32 electrolux installation
Arrangement upper basket (take off the
glass holder)
Cup racks: position A
Arrangement lower basket
Installation
Any electrical and/or plumbing work
required to install this appliance
Arrangement cutlery basket
should be carried out by a qualified
electrician and/or plumber or competent person.
Page 33
water connection electrolux 33
Remove all packaging before positioning the machine.
If possible, position the machine next to
a water tap and a drain.
This dishwasher is designed to be fitted
under a kitchen counter or work surface.
Attention! Carefully follow the instructions on the enclosed template for building in the dishwasher and fitting the
furniture panel.
No further openings for the venting of the
dishwasher are required, but only to let
the water fill and drain hose and power
supply cable pass through.
The dishwasher incorporates adjustable
feet to allow the adjustment of the
height.
During all operations that involve
accessibility to internal components the
dishwasher has to be unplugged.
When inserting the machine, ensure that
the water inlet hose, the drain hose and
Water connection
the supply cable are not kinked or
squashed.
Fixing to the adjacent units
The dishwasher must be secured
against tilting.
Therefore make sure that the counter it
is fixed under, is suitably secured to a
fixed structure (adjacent kitchen units
cabinets, wall).
Levelling
Good levelling is essential for correct
closure and sealing of the door.
When the appliance is correctly levelled,
the door will not catch on either side of
the cabinet .
If the door does not close correctly,
loosen or tighten the adjustable feet until
the machine is perfectly level.
Water supply connection
This dishwasher may be fed with either
hot (max. 60°) or cold water. Nevertheless we advise you a cold water supply.
A hot water supply is not always efficient
with very soiled crockery as it shortens
the washing programmes a lot.
For making the connection itself, the
coupling nut fitted to the machine’s supply hose is designed to screw onto a
3/4" gas thread spout or to a purpose
made quick-coupling tap such as the
Press-block.
The water pressure must be within the
limits given in the "Technical data". Your
local Water Authority will advise you on
the average mains pressure in your area.
The water inlet hose must not be kinked,
crushed, or entangled when it is being
connected.
The dishwasher features fill and drain
hoses which can be turned either to the
left or the right to suit the installation by
means of the locknut. The locknut
must be correctly fitted to avoid water leaks.
Page 34
34 electrolux water connection
Attention! NOT all models of dishwashers have fill and drain hoses
provided with a locknut. In this case,
this facility is not available.
If the machine is connected to new pipes
or pipes which have not been used for a
long time, you should run the water for a
few minutes before connecting the inlet
hose.
DO NOT use connection hoses
which have previously been used for
an old appliance.
• If water inlet hose or the safety valve
is damaged, remove the mains plug
immediately.
• A water inlet hose with safety valve
must only be replaced by the Service
Force Centre.
Warning! Dangerous voltage
This appliance has been fitted with
safety features which will prevent
the water used in the appliance from
returning back into the drinking water system. This appliance complies
with the applicable plumbing regulations.
Water inlet hose with safety valve

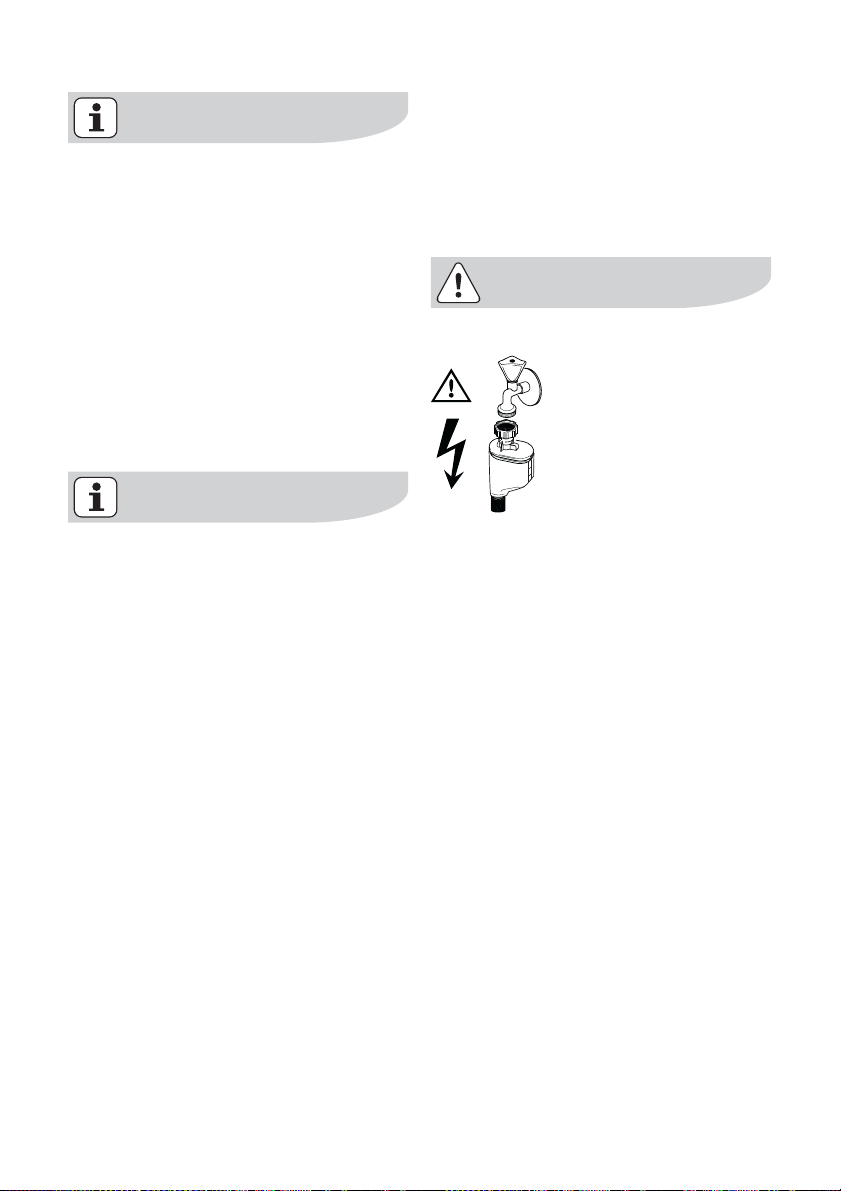

After connecting the double-walled water inlet hose, the safety valve is next to
the tap. Therefore the water inlet hose is
only under pressure while the water is
running. If the water inlet hose starts to
leak during this operation, the safety
valve cuts off the running water.
Please take care when installing the water inlet hose:
• The electrical cable for the safety valve
is in the double-walled water inlet
hose. Do not immerse the water inlet
hose or the safety valve in water.
Water outlet hose connection

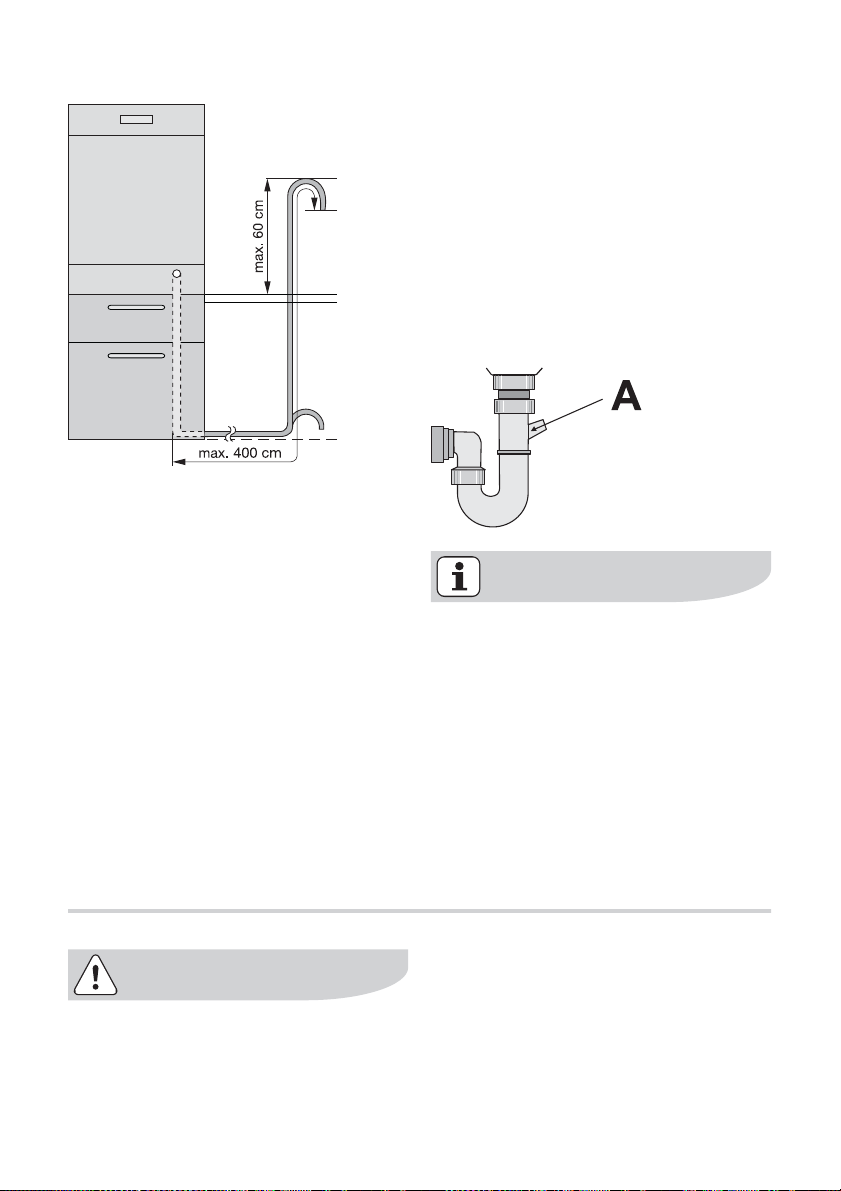

The end of the drain hose can be connected in the following ways:
1. To the sink outlet spigot, securing it
to the underside of the work surface.
This will prevent waste water from
the sink running into the machine.
2. To a stand pipe provided with venthole, minimum internal diameter 4
cm.
The waste connection must be at a
maximum height of 60 cm from the bottom of the dishwasher.
Page 35
The drain hose can face either to the
right or left of the dishwasher
Ensure the hose is not bent or squashed
as this could prevent or slow down the
discharge of water.
The sink plug must not be in place when
the machine is draining as this could
cause the water to syphon back into the
machine.
The total length of the drain hose, including any extension you might add,
must be no longer than 4 metres. The
internal diameter of the extension hose
must be no smaller than the diameter of
the hose provided.
electrical connection electrolux 35
Likewise the internal diameter of the
couplings used for connections to the
waste outlet must be no smaller than the
diameter of the hose provided.
When connecting the drain hose to an
under sink trap spigot, the entire plas-
tic membrane (A) must be removed. Failure to remove all the mem-
brane will result in food particles building
up over time eventually blocking the
dishwasher drain hose spigot
Our appliances are supplied with a
security device to protect against
the return of dirty water back into
the machine. If the spigot of your
sink has a "no return valve" incorporated this can prevent the correct
draining of your dishwasher. We
therefore advise you to remove it.
Electrical connection
Safety standards require the appliance to be earthed.
Page 36
36 electrolux environment concerns
Prior to using the appliance for the
first time, ensure that the rated voltage and type of supply on the rating
plate match that of the supply where
the appliance is to be installed. The
fuse rating is also to be found on the
rating plate
Always plug the mains plug into a
correctly installed shockproof
socket.
Multi-way plugs, connectors and extension cables must not be used.
This could constitute a fire hazard
through overheating.
Environment concerns
The symbol on the product or on its
packaging indicates that this product
may not be treated as household waste.
Instead it should be taken to the
appropriate collection point for the
recycling of electrical and electronic
equipment. By ensuring this product is
disposed of correctly, you will help
prevent potential negative
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling
of this product. For more detailed
information about recycling of this
product, please contact your local
council, your household waste disposal
service or the shop where you
purchased the product.
If necessary, have the domestic wiring system socket replaced. In case
that the electrical cable has to be
replaced, contact your local Service
Force centre.
The plug must be accessible after
the appliance has been installed.
Never unplug the appliance by pulling on the cable. Always pull the
plug.
The manufacturer accepts no
liability for failure to observe the
above safety precautions.
cycled. The plastic components are
identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging materials in the appropriate
container at the community waste
disposal facilities.
When a unit is no longer being used:
• Pull the plug out of the socket.
• Cut off the cable and plug and dis-
pose of them.
• Dispose of the door catch. This
prevents children from trapping
themselves inside and endangering their lives.
Packaging material
The packaging materials are
environmentally friendly and can be re-
Page 37
electrolux 37
Page 38
38 electrolux
Page 39
Page 40
www.electrolux.com
117979510 - 092007
Loading...
