Page 1
user manual
Dishwasher
ESF 68040
Page 2
2 electrolux
Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com
CONTENTS
Safety information 2
Product description 4
Control panel 5
Display 6
Use of the appliance 7
Use of rinse aid 7
Loading cutlery and dishes 8
Use of detergent 11
Multitab function 12
Select and start a washing program 13
SAFETY INFORMATION
For your safety and correct operation
of the appliance, read this manual
carefully before installation and use. Always keep these instructions with the
appliance even if you move or sell it.
Users must fully know the operation
and safety features of the appliance.
Correct use
• Only use the appliance to clean household utensils that are suitable for dishwashers.
• Do not put solvents in the appliance. Risk
of explosion.
• Put the knives and all items with sharp
points in the cutlery basket with their
points down. If not, put them in a horizontal position in the upper basket.
• Use only products specified for dishwashers (detergent, rinse aid, etc.).
• If you open the door while the appliance
is in operation, hot steam can escape.
Risk of skin burns.
• Do not remove dishes from the appliance
before the end of the washing program.
• When the washing program is completed, disconnect the mains plug from the
mains socket and close the water tap.
• Only an authorised service engineer can
repair this appliance. Use only original
spare parts.
• Do not do repairs yourself to prevent injury and damage to the appliance. Always contact the Customer Care Centre.
Washing programs 14
Care and cleaning 15
What to do if… 16
Technical data 17
Installation 18
Water connection 18
Electrical connection 20
Environment concerns 20
Warranty 21
Subject to change without notice
General safety
• Some dishwasher detergents are strongly
alkaline. They can be extremely dangerous if swallowed. Avoid contact with skin
and eyes. Keep the children away from
the appliance when the door is open.
Check that the detergent dispenser is
empty after completion of the washing
programme.
• Obey the safety instructions from the
manufacturer of the dishwasher detergent to prevent burns to eyes, mouth and
throat.
• Only put detergent in the dispenser before you start a washing program.
• Do not drink the water from the appliance. Detergent residues can stay in your
appliance.
• Always close the door when you do not
use the appliance to prevent injury and
not to stumble over the open door.
• Do not sit or stand on the open door.
Child safety
• This appliance is not intended for use by
young children or infirm persons unless
they have been adequately supervised by
a responsible person to ensure that they
can use the appliance safely. Young children should be supervised to ensure that
they do not play with the appliance.
• Keep all the packaging away from children. There is a risk of suffocation.
Page 3
electrolux 3
• Keep all detergents in a safe area. Do not
let children touch the detergents.
• Keep children and pets away from the
appliance when the door is open.
Installation
• Make sure that the appliance is not damaged because of transport. Do not connect a damaged appliance. If necessary,
contact the supplier.
• Remove all packaging before first use.
• A qualified and competent person must
do the electrical installation.
• A qualified and competent person must
do the plumbing installation.
• Do not change the specifications or modify this product. Risk of injury and damage to the appliance.
• Do not use the appliance:
– if the mains cable or the water hoses
are damaged,
– if the control panel, worktop or plinth
area are damaged so that you can get
access to the inner side of the appli-
ance.
Contact your local Customer Care Centre.
• Do not drill into the sides of the appliance
otherwise damage to hydraulic and electrical components may occur.
Warning! Carefully obey the
instructions for electrical and water
connections.
Page 4
4 electrolux
PRODUCT DESCRIPTION
10
7
1 Ceiling spray arm
2 Upper basket
3 Air vent and water hardness dial (the di-
al is only functional for dishwashers
with a water softener)
4 Detergent dispenser
5 Rinse aid dispenser
6 Rating plate
7 Filters
8 Lower spray arm
9 Upper spray arm
10 Worktop
Internal light
This appliance has an internal light that
comes on when you open the door and
goes off when the door is closed.
Warning! Visible led radiation, do not
stare into the beam.
Internal light equipped with LED lamp
CLASS 2 in accordance with IEC 60825-1:
1993 + A1:1997+ A2:2001.
Emission wave length: 450 nm
Maximum emitted power: 548 μW
If it is necessary to replace the light,
contact your local Customer Care Centre.
Page 5
electrolux 5
CONTROL PANEL
1 On/off button
2 Scroll buttons
3 Option button
4 Cancel button
5 OK//Start button
6 Display
To help you operate with the appliance,
the display shows messages and you
can hear audible signals.
Scroll buttons
These buttons have two functions:
• select in the program menu,
• select in the option menu and option
submenu.
OK/Start button
Use this button to:
• confirm or memorise a program setting,
• start a washing program.
Cancel button
Use this button to:
• cancel a washing program or delay start,
• cancel the set of an option.
Option button
Use the option button to enter a menu of
options. For options available, refer to option menu and submenu chart.
Option menu and submenu chart
Menu Submenu
DELAY START You can delay the start of the washing program with an inter-
val between 1 and 19 hours. Refer to 'Setting and starting a
washing program'.
Follow these steps to set an option:
1. Switch on the appliance.
2. Press the option button.
3. The display shows one of the these options:
– DELAY START
–MULTITAB
– SETTINGS
4. Press one of the scroll buttons to select
the required option.
5. Press OK/Start button to confirm and
go into submenu.
6. Press one of the scroll buttons until the
display shows required option. Refer to
option menu chart.
7. Press the OK/Start button to confirm.
8. Press the option button to exit from
menu.
Page 6
6 electrolux
Menu Submenu
MULTITAB The multitab function is for combi detergent tablets. Refer to
SETTINGS LANGUAGE
RINSE AID
SOUND VOLUME
BRIGHTNESS
CONTRAST
'Multitab function'.
– ON the multitab symbol shows in the display.
–OFF
You can set a different language for the messages that show
in the display.
You can activate or deactivate the rinse aid dispenser.
ON
OFF
You can adjust the volume of the audible signal from level 0 to
level 5.
Level 0 turns off the audible signal.
You can increase or decrease the background brightness of
the display. 10 levels available.
Factory set: level 10.
You can increase or decrease the contrast of the display. 10
levels available.
Factory set: level 6.
DISPLAY
Washing program and option row
1
– In this row of lights there are two sec-
tions. The left section refers to the
washing programs, the right section
to the options.
– The washing programs lights come
on gradually as the program progresses.
2 Text row
– This row shows: the name of the
washing program, the time duration
of the program, options set, the remaining time of the program in progress.
Symbol row
3
– This row shows option symbols. Refer
to chart for symbols.
Symbol row
DELAY START
This symbol comes on when
the option is set. It flashes
while the countdown is in progress.
MULTITAB
This symbol comes on when
the multitab function is set.
SOUND VOLUME
This symbol comes on when
the audible signal is off.
Page 7
USE OF THE APPLIANCE
Switch on for the first time - set the
display language
1. Switch on the appliance.
2. When the display shows LANGUAGE
ENGLISH and the word ENGLISH flashes, you can confirm or change the language.
3. Press the OK/Start button to confirm
english or follow these steps to change
the language:
– press the up-and-down scrolling but-
tons until the display shows the required language.
– Press the OK/Start button to confirm.
USE OF RINSE AID
Caution! Only use rinse aid specified
for dishwashers.
Do not fill the rinse aid dispenser with
other products (e.g. dishwasher cleaning agent, liquid detergent). This can
cause damage to the appliance.
Rinse aid makes it possible to dry the
dishes without streaks and stains.
Rinse aid is automatically added during
the last rinsing phase.

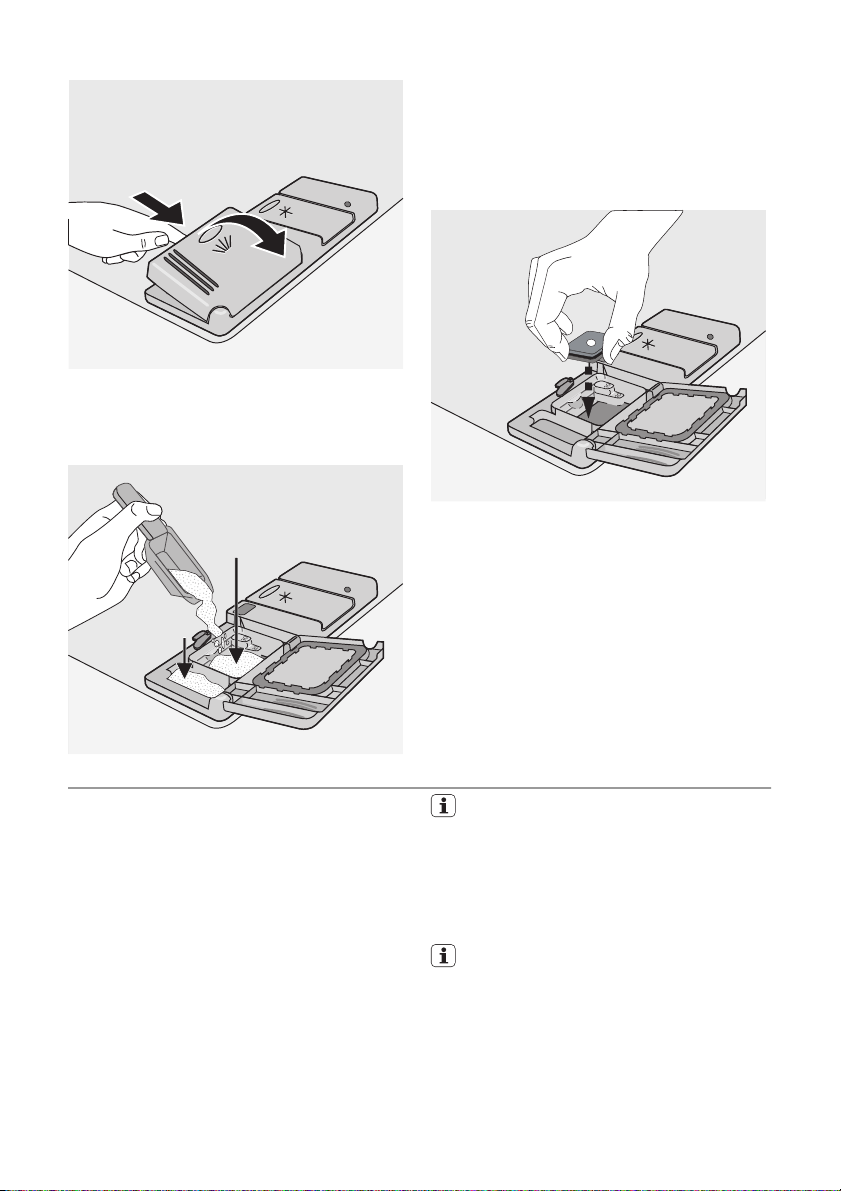

Follow these steps to fill the rinse aid dispenser:
1. Press the release button (A) to open the
rinse aid dispenser.
electrolux 7
Refer to specified instructions for each step
of the procedure.
1. Fill the rinse aid dispenser with rinse aid.
2. Load cutlery and dishes into the appliance.
3. Set the correct washing program for the
type of load and soil.
4. Fill the detergent dispenser with the correct quantity of detergent.
5. Start the washing program.
2. Fill the rinse aid dispenser with rinse aid.
The mark 'max.' shows the maximum
level.
3. Remove the spilled rinse aid with an absorbent cloth to prevent too much foam
during the subsequent washing program.
4. Close the rinse aid dispenser.
Adjusting the rinse aid dosage
The rinse aid is set at the factory at position
4.
You can set the rinse aid dosage between
position 1 (lowest dosage) and position 6
(highest dosage).
Page 8
8 electrolux
LOADING CUTLERY AND DISHES
Helpful hints and tips
Only use the appliance for household utensils that are suitable for dishwashers.
Do not use the appliance to clean objects
that can absorb water (e.g. sponges,
household cloths).
• Before you load cutlery and dishes, follow
these steps:
– Remove all food remainings and deb-
ris.
– Make burnt, remaining food in pans
soft.
• While you load cutlery and dishes, follow
these steps:
– Load hollow items (e.g. cups, glasses
and pans) with the opening down.
– Make sure that water does not collect
in the container or in a deep base.
– Make sure that cutlery and dishes do
not lie inside one another.
– Make sure that cutlery and dishes do
not cover other cutlery and dishes.
– Make sure that glasses do not touch
other glasses.
– Put small objects in the cutlery basket.
• Plastic items and pans with non-stick
coatings can retain water droplets. Plastic items do not dry as well as porcelain
and steel items.
• Put light items in the upper basket. Make
sure that the items do not move.
Caution! Make sure that the spray
arms can move freely before you start
a washing program.
Turn the rinse aid dial to increase or decrease the dosage.
– Increase the dosage if there are water
droplets or limescale on the dishes.
– Decrease the dosage if there are streaks,
whitish stains or bluish layers on the
dishes.
Wash hands to remove any residue of
rinse aid from skin.
When the rinse aid container is empty,
the display shows a message. This
message does not show in the display
while a washing program operates.
Warning! Always close the door after
you load or unload the appliance. An
open door can be dangerous.

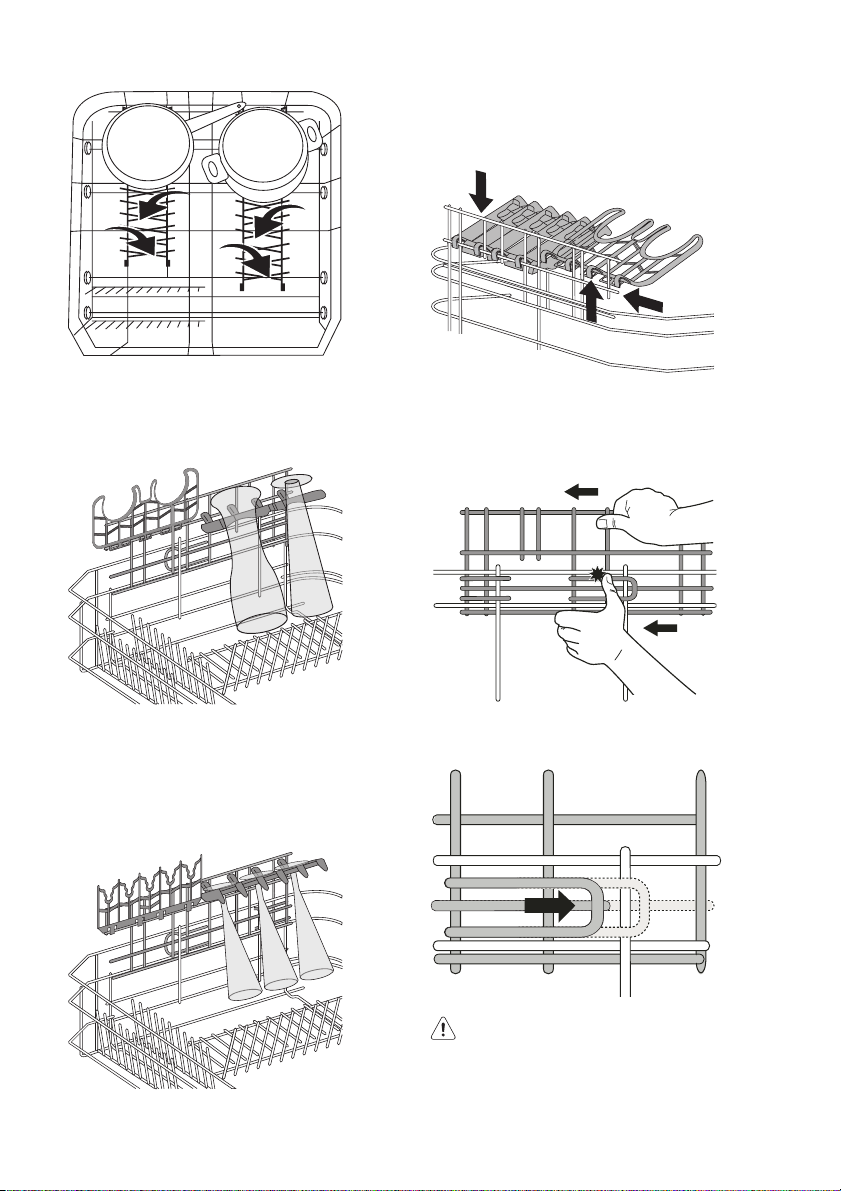

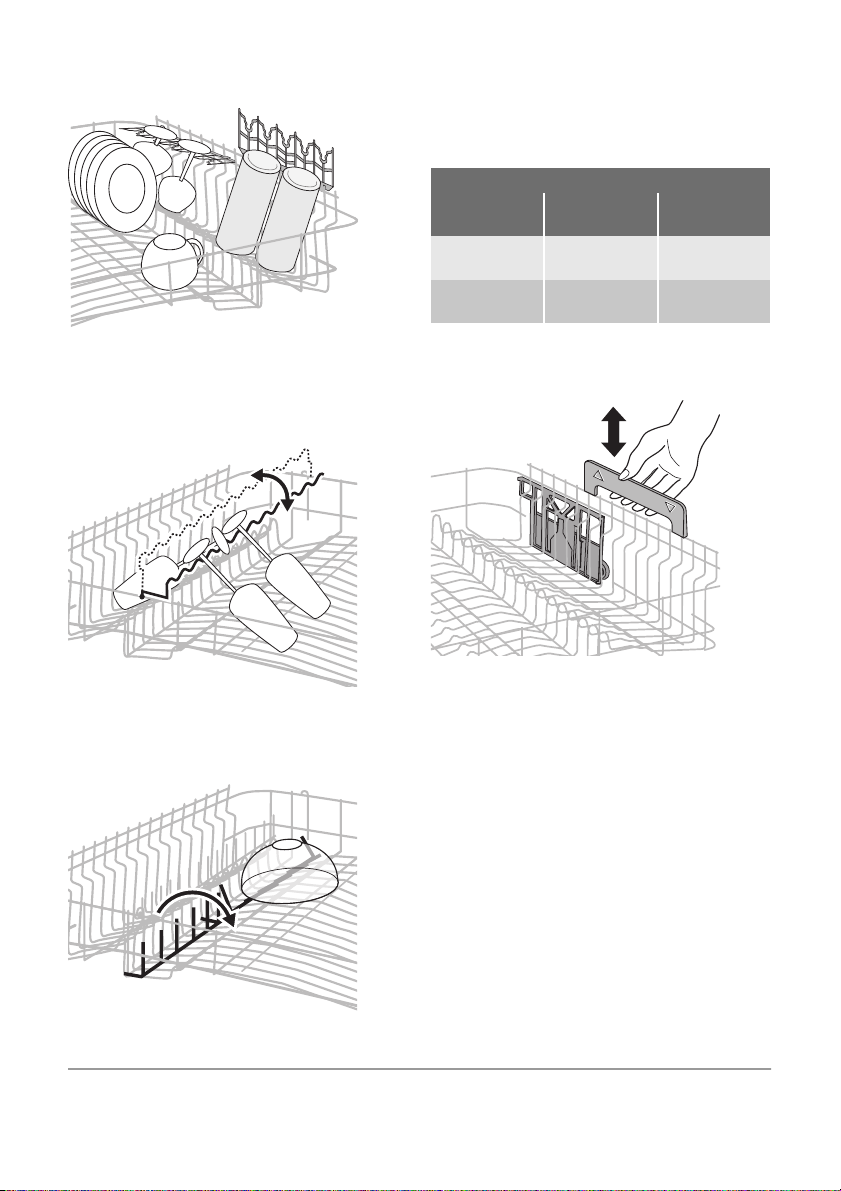

Lower basket
Put large and heavily soiled dishes and
pans in the lower basket.
The rows of prongs in the lower basket can
be adjusted flat to load large dishes, pots,
pans and bowls.
Page 9
electrolux 9
Do these steps to remove the beer glass
holders:
1. Pull up the hooks and push them lightly
from below.
Beer glass holders
The beer glass holders on the left side in
the lower basket can hold a maximum of
four beer glasses.
If you do not use the beer glass holders,
fold them up.
You can replace the beer glass holders with
the two cup racks. You can use the cup
racks for cups or for glasses with long
stems.
2. Use the hooks to put the cup racks on
the horizontal bar.
Push the support to the rear to remove the
support of the beer glass holders.
Push the support to the front to attach the
support of the beer glass holders.
Warning! Be careful when you remove
or attach the support.
Page 10
10 electrolux

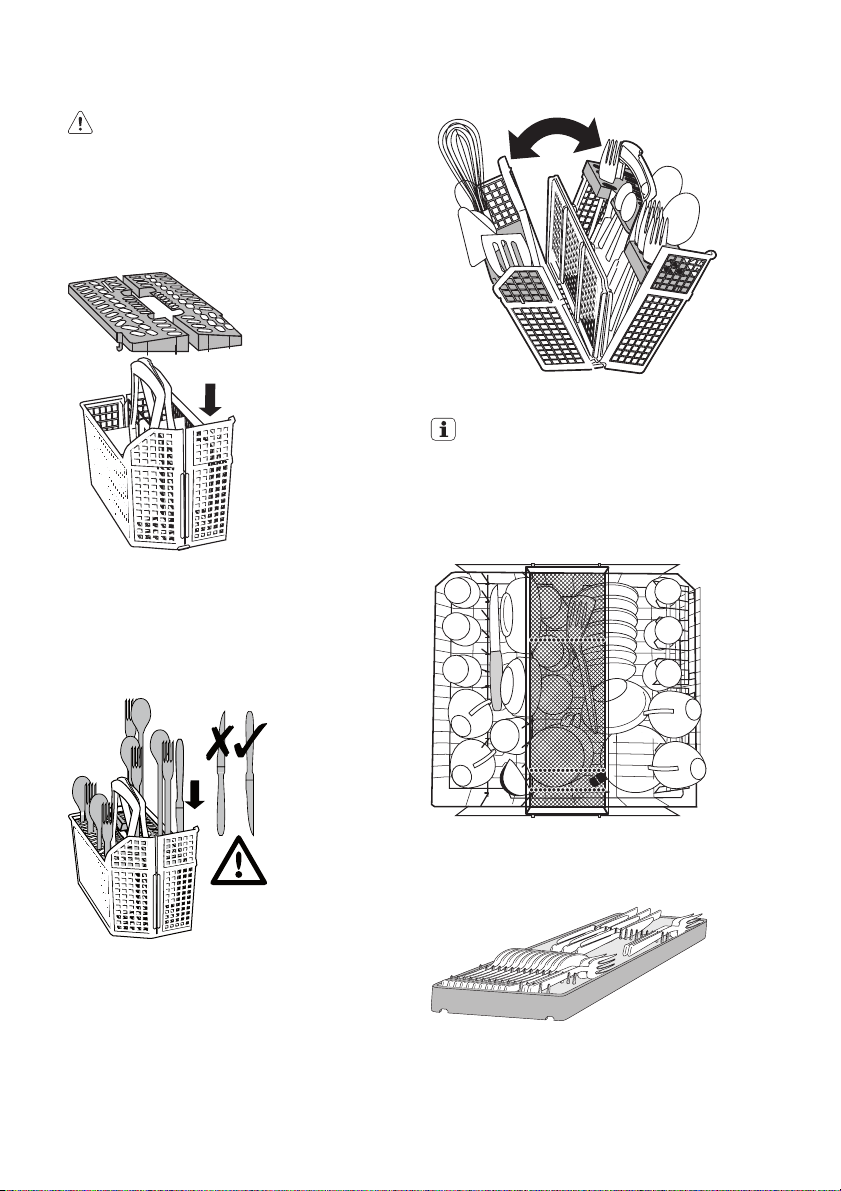

Cutlery basket
Warning! Do not put long-bladed
knives in a vertical position. Arrange
long and sharp cutlery horizontally in
the upper basket. Be careful with sharp
items.
Use the cutlery grids for best washing results.
• Put the grids on the cutlery basket.
• For larger items use only one of the cutlery grids
• Put forks and spoons with the handles
down.
• Put knives with the handles up.
2. Open the handle.
3. Remove the cutlery.
Hold the two parts of the handle tightly
when you move the cutlery basket.
The upper basket
The upper basket is for saucers, salad
bowls, cups, glasses and lids. Arrange the
items to let water touch all surfaces.
• Mix spoons with other cutlery to prevent
them nesting together.
You can open the cutlery basket to remove
the cutlery more easily. Follow these steps
to remove the cutlery:
1. Put the cutlery basket on a table or
work surface.
• Put knives and small cutlery in the cutlery
tray. Cutlery too large for the cutlery tray
must be put in the cutlery basket.
• For longer items fold the cup racks up.
Page 11
• Put glasses with long stems in the cup
racks with the stems up.
• For glasses with long stems, turn the
glass holder to the left or to the right.
electrolux 11
Adjustment of the height of the upper
basket
You can put the upper basket in two positions to increase load flexibility.
Maximum height of the dishes in:
the upper
Upper position
Lower position
basket
22 cm 30 cm
24 cm 29 cm
the lower
basket
Follow these steps to move to the upper basket to the lower/upper position:
1. Pull out the upper basket until it stops.
• You can fold up or down the row of
prongs on the left side of the upper basket to increase load flexibility.
USE OF DETERGENT
Follow these steps to fill the detergent dispenser:
2. Hold the upper basket by the handle, lift
it as far as possible and lower it vertically.
The upper basket latches into the lower
or the upper position.
1. Open the lid of the detergent dispenser.
Page 12
12 electrolux
2. Fill the detergent dispenser (A) with detergent. The marking shows the dosage:
20 = approximately 20 g of detergent
30 = approximately 30 g of detergent.
A
3. If you use a washing program with prewash, put more detergent in the prewash detergent compartment (B).
4. If you use detergent tablets, put the detergent tablet in the detergent dispenser
(A) .
5. Close the lid of the detergent dispenser.
Press the lid until it locks into position.
B
MULTITAB FUNCTION
The multitab function is for combi detergent
tablets.
These tablets contain agents such as detergent and rinse aid. Some types of tablets
can contain other agents.
For the use of these tablets, refer to the instructions from the manufacturer.
The multitab function can be set with any
program.
When you set the multitab function, it stays
on until you deactivate it.
The multitab function automatically stops
the rinse aid operation. The rinse aid message is deactivated.
The program duration can increase if you
use the multitab function.
Activate or deactivate the multitab
function before the start of a washing
program.
You cannot activate or deactivate the
multitab function when the program
operates. Cancel the washing program,
then set the program again.
Follow these steps if the drying results are not satisfactory:
1. Fill the rinse aid dispenser with rinse
aid.
2. Activate the rinse aid dispenser.
3. Set the rinse aid dosage to position
2.
• You can only activate or deactivate
the rinse aid dispenser when the
multitab function is activated.
Page 13
electrolux 13
To use normal detergent again:
1. Deactivate the multitab function.
2. Fill the rinse aid dispenser.
3. Adjust the rinse aid dosage.
SELECT AND START A WASHING PROGRAM
Follow these steps to set and start a washing program:
1. Switch on the appliance.
2. Set options (if required). Refer to 'Option
menu'.
3. Select the washing program by pressing
the scroll buttons until the desired program is shown, then press OK/Start.
Refer to the 'Washing programs' chart
for program details.
4. Set the delay start (if required). Refer to
'Option menu'.
To start a washing program the appliance must be in program selection
mode. If you are still in option set
mode, press OK/Start button to return
to program selection mode.
5. Press the OK/Start button. The washing
program or the delay start countdown
starts automatically.
If the rinse aid is required, the message
appears after pressing the OK/Start
button and the appliance will not start
automatically. Press the OK/Start button again.
When the washing program operates,
you cannot change the program. Cancel the washing program. Refer to
'Cancelling a washing program'.
If you open the door during the countdown, it will interrupt the countdown.
When you close the door again, the
countdown continues from the point of
interruption.
Warning! Only interrupt or cancel a
washing program if necessary. Open
the door carefully. Hot steam and
water can escape.
Interrupting a washing program
Open the door.
• The program stops. The display shows
the message PLEASE CLOSE DOOR .
Close the door.
• The program continues from the point of
interruption.
Cancelling a washing program
1. Press the cancel button.
2. Follow the messages that the display
shows to cancel the washing program.
At this point, you can follow these steps:
1. Switch off the appliance.
2. Set a new washing program.
Fill the detergent dispenser with detergent
before you set a new washing program.
Cancelling a delay start
1. Press the cancel button.
2. The display shows the message CONFIRM CANCEL? .
3. Press the OK/Start button to confirm.
The set program will automatically start.
End of the washing program
The washing program is complete when:
• The appliance stops automatically.
• The audible signal for the end of the pro-
gram operates.
• The display shows the messages PRO-
GRAMME END and PLEASE SWITCH
OFF .
It can occur that the rinse aid message
shows in the display as on alternative
to PLEASE SWITCH OFF . You can
switch off the appliance in any case.
1. Switch off the appliance.
2. Open the door.
– For better drying results, keep the
door ajar for some minutes before
you remove the dishes.
Let the dishes cool down before you remove them from the appliance. Hot dishes
are easily damaged.
Removing the load
• First remove items from the lower basket,
then from the upper basket.
• There can be water on the sides and
door of the appliance. Stainless steel becomes cool more quickly than the dishes.
Page 14
14 electrolux
WASHING PROGRAMS
Washing programs
Program Degree of soil Type of load Program description
AUTOMATIC
30 MINUTES
1)
2)
70° INTENSIVE Heavy soil Crockery, cutlery,
50° ECO
3)
55° 1 HOUR Light soil Crockery and cut-
45° GLASS Normal or light
PLATE WARMER This program heats dishes before
PREWASH Any Partial load (to be
1) During the AUTOMATIC program, the soil level of the dishes is given by how cloudy the water is. The program
duration and consumptions can change. This depends if the appliance is fully or not and on the level of soil on the
dishes. The appliance adjusts automatically the temperature of the water during the main wash.
2) This is the perfect daily program to clean a partial load. Ideal for a family of 4 persons who only want to load
breakfast and dinner crockery and cutlery.
3) Test program for test institutes. Please refer to separate leaflet supplied, for test data.
Consumption values
Program
AUTOMATIC 1,1 - 1,8 12 - 25
30 MINUTES 0,9 9
70° INTENSIVE 1,8 - 2,0 23 - 25
50° ECO 0,8 - 0,88 10 - 11
55° 1 HOUR 1,0 - 1,2 11 - 12
45° GLASS 0,8 - 0,9 14 - 15
PLATE WARMER 0,8 4
Any Crockery, cutlery,
pots and pans
Normal or light
soil
Crockery and cutlery
(Partial load)
pots and pans
Normal soil Crockery and cut-
lery
lery
Delicate crockery
soil
and cutlery
serving or removes dust from dishes
which have not been used for a long
time.
completed later in
the day).
1)
Energy (in kWh) Water (in litres)
Prewash
Main wash up to 50°C or 65°C
1 or 2 intermediate rinses
Final rinse
Drying
Main wash up to 60°C
Final rinse
Prewash
Main wash up to 70°C
2 intermediate rinses
Final rinse
Drying
Prewash
Main wash up to 50°C
1 intermediate rinse
Final rinse
Drying
Main wash up to 55°C
1 intermediate rinse
Final rinse
Main wash up to 45°C
1 intermediate rinse
Final rinse
Drying
1 hot rinse
1 cold rinse (to prevent food
scraps to bond).
Detergent is not necessary with
this program.
Page 15
A
electrolux 15
Program
PREWASH 0,1 4
1) The display shows the program duration.
The pressure and temperature of the
water, the variations of power supply
1)
Energy (in kWh) Water (in litres)
and the quantity of dishes can change
these values.
CARE AND CLEANING
Warning! Switch the appliance off
before you clean it.

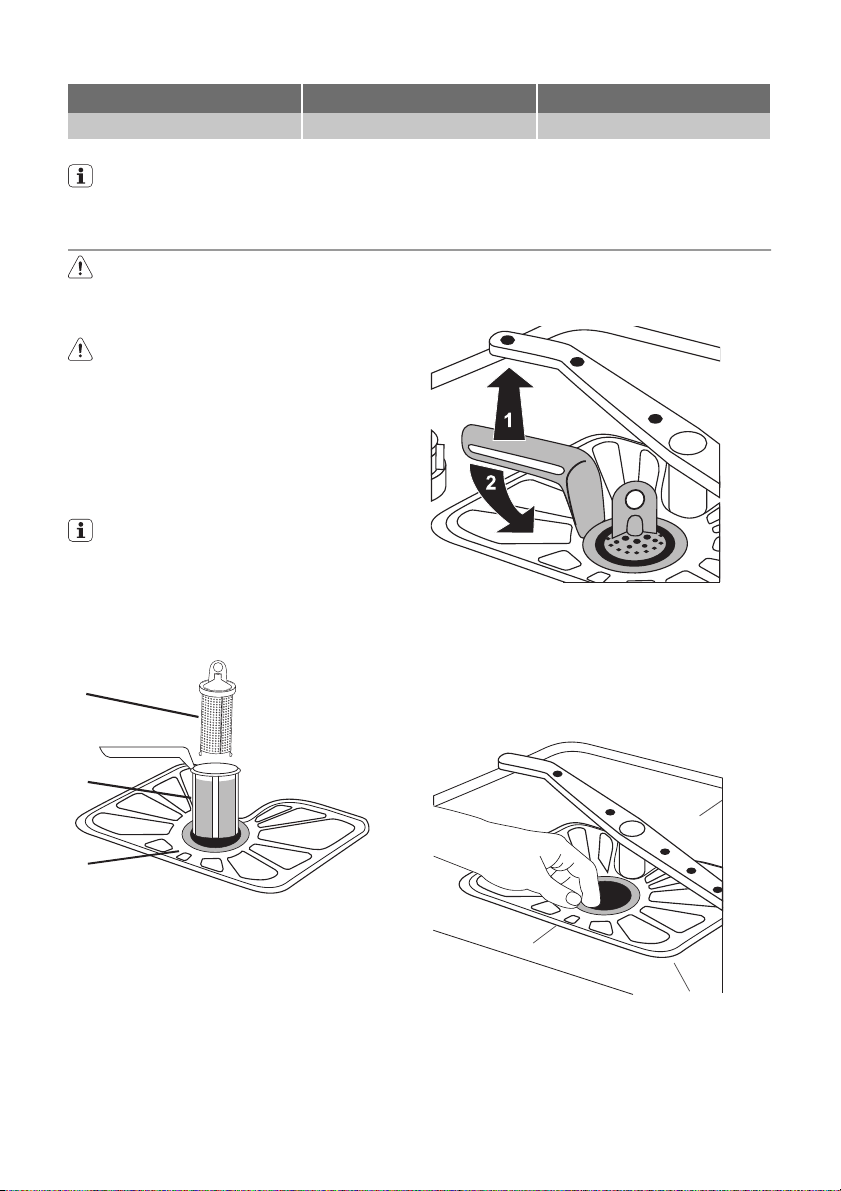

Cleaning the filters
Caution! Do not use the appliance
without the filters. Make sure that the
installation of the filters is correct.
Incorrect installation will cause
unsatisfactory washing results and
damage to the appliance.
If necessary, clean the filters. Dirty filters decrease the washing results.
At intervals, the display shows a message to remind you to clean the filters.
The dishwasher has three filters:
1. coarse filter (A)
2. microfilter (B)
3. flat filter (C)
3. To unlock the filter system, turn the
handle on the microfilter (B) approximately 1/4 anticlockwise.
4. Remove the filter system.
5. Hold the coarse filter (A) by the handle
with the hole.
6. Remove the coarse filter from the microfilter.
7. Remove the flat filter (C) from the bottom of the appliance.
B
C
Follow these steps to clean the filters:
1. Open the door.
2. Remove the lower basket.
8. Clean the filters below running water.
9. Put the flat filter (C) in the bottom of the
appliance.
10. Put the coarse filter (A) in the microfilter
(B) and push the filters together.
11. Put the filter system in position.
Page 16
16 electrolux
12. To lock the filter system, turn the handle on the microfilter (B) clockwise until
it locks in position.
13. Install the lower basket.
14. Close the door.
Do not remove the spray arms.
If the holes in the spray arms become clogged, remove remaining parts of soil with a
cocktail stick.
External cleaning
Clean the external surfaces of the appliance
and control panel with a damp soft cloth.
Only use neutral detergents. Do not use
abrasive products, scouring pads or solvents (acetone etc.).
Internal cleaning
Do an inspection at intervals of 3 months.
Set a washing program for heavily soiled
dishes. Use detergent, but do not put
dishes in the appliance.
Long periods of non-operation
Do these steps when you do not use the
appliance for a long period:
1. Disconnect the mains plug from the
mains socket.
2. Close the water tap.
3. Keep the door open to prevent unpleasant smells.
4. Keep the inner side of the appliance
clean.
Frost precautions
Caution! Do not install the appliance
where the temperature is below 0 °C.
The manufacturer is not responsible for
damage because of frost.
If not possible, empty the appliance and
close the door. Disconnect the water inlet
hose and remove water from the water inlet
hose.
Moving the machine
Do these steps to move the appliance:
1. Disconnect the mains plug from the
mains socket.
2. Close the water tap.
3. Remove the appliance and the hoses.
4. Do not tilt the appliance during transport.
WHAT TO DO IF…
The appliance does not start or stops during operation.
If there is a fault, first try to find a solution to
the problem yourself. Refer to following
charts. If you cannot find a solution to the
problem yourself, contact your dealer or the
Customer Care Centre.
Fault code and malfunction Possible cause and solution
• the display shows the message
OPEN THE TAP
The appliance does not fill with water
• the display shows the message
DRAIN BLOCKED
The appliance will not drain
• the digital display shows the
message SERVICE CODE
The anti-flood device operates
• The water tap is blocked or restricted with limescale.
Clean the water tap.
• The water tap is closed.
Open the water tap.
• The filter in the water inlet hose is blocked.
Clean the filter.
• The installation of the water inlet hose is not correct. The
hose can be kinked or squashed.
Make sure that the installation is correct.
• There is a blockage in the sink spigot.
Clean the sink spigot.
• The installation of the water drain hose is not correct. The
hose can be kinked or squashed.
Make sure that the installationis correct.
• Close the water tap and contact your Customer Care Centre.
Warning! Switch the appliance off
before you do the suggested corrective
actions.
Page 17
electrolux 17
Fault code and malfunction Possible cause and solution
The program does not start • The appliance door is not closed. The display shows the
After the check, switch on the appliance.
The program continues from the point of interruption. If the malfunction shows again,
contact your Customer Care Centre.
If the display shows a fault code, not described in the chart, contact your Customer
Care Centre.
These data are necessary to help you
message PLEASE CLOSE DOOR .
Close the door.
• Mains plug is not connected.
Plug-in appliance to the mains.
• The fuse has blown out in the household fuse box.
Replace the fuse.
• Delay start is set.
Cancel the delay start to start the program immediately.
• Model (Mod.)
• Product number (PNC)
• Serial number (S.N.)
For these data, refer to the rating plate.
Write the necessary data here:
Model description : ..........
Product number : ..........
Serial number : ..........
quickly and correctly:
The cleaning results are not satisfactory
The dishes are not clean • The selected washing program is not applicable for the type of
The dishes are wet and dull • No rinse aid has been used.
There are streaks, milky
spots or a bluish coating on
glasses and dishes
Dry water drop stains on
glasses and dishes
load and soil.
• The baskets are loaded incorrectly so that water cannot reach all
surfaces.
• Spray arms do not turn freely because of incorrect arrangement of
the load.
• The filters are dirty or not correctly installed.
• The quantity of detergent is too little or missing.
• The rinse aid dispenser is empty.
• Decrease the rinse aid dosage.
• Increase rinse aid dosage.
• The detergent can be the cause.
TECHNICAL DATA
Dimensions Width (mm) 596
Height (mm) 850
Depth (mm) 625
Electrical connection - Voltage Overall power - Fuse
Water supply pressure Minimum 50 kPa (7 psi)
Maximum 800 kPa (116 psi)
Capacity Place settings 12
Information on the electrical connection is given on the rating
plate on the inner edge of the dishwasher door.
Page 18
18 electrolux
INSTALLATION
Fitting under a counter
Warning! Make sure that mains plug is
disconnected from the mains socket
during installation.
Put the appliance adjacent to a water tap
and a water drain.
The plinth of a freestanding appliance is not
adjustable.
Do not remove the appliance's worktop if
you want to use it as a freestanding unit.
It is not necessary to remove the worktop
when installing under a standard kitchen
bench top.

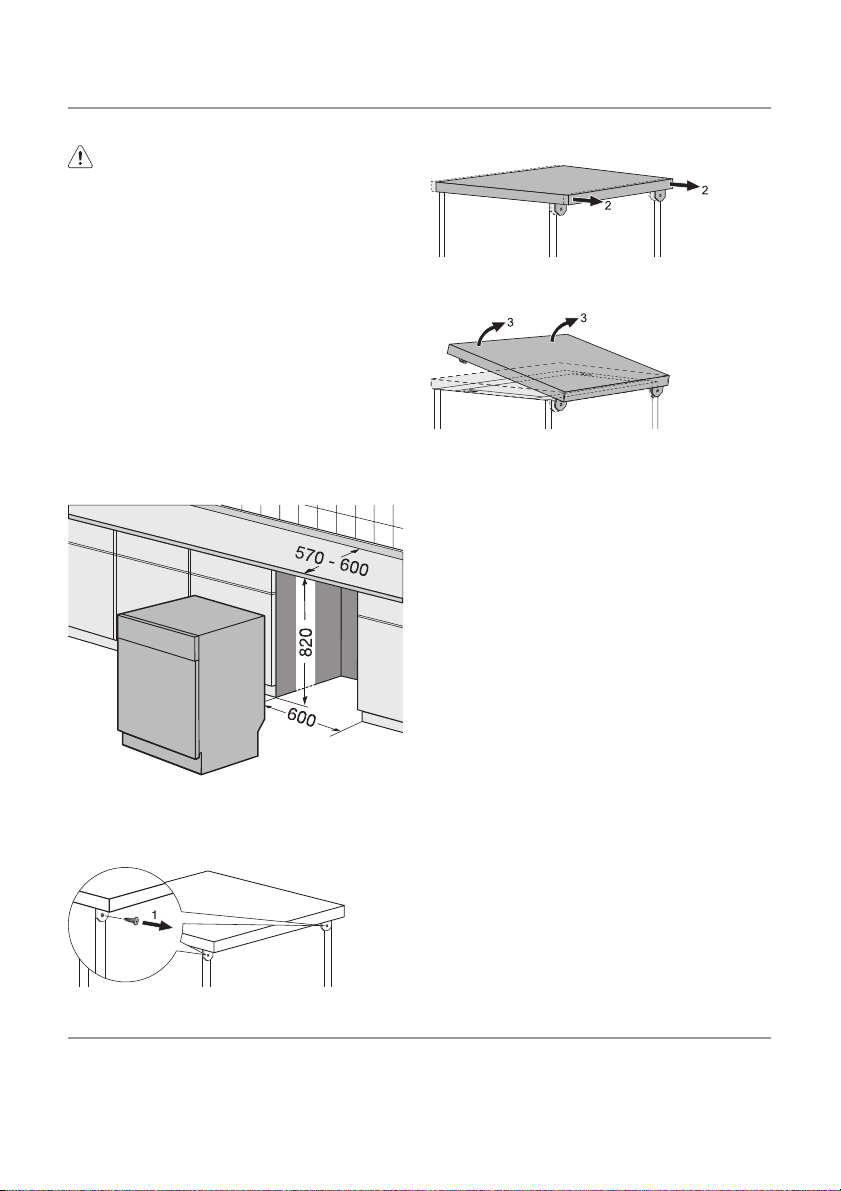

Only remove the appliance worktop to install it under a close fitting sink unit or kitchen worktop (820mm).
Make sure that the dimensions of the recess agree with the given dimensions.
2. Pull the worktop behind the appliance
(2).
3. Lift the worktop and move it from the
front slots (3).
4. Level the appliance using the adjustable
feet.
5. Install the appliance under the kitchen
worktop. Ensure that water hoses are
not kinked or squashed.
The appliance must be easily accessible to
the technician if a repair is necessary.
Adjusting the level of the appliance
Make sure that the appliance is level to
close and seal the door correctly. If the level
of the appliance is correct, the door does
not catch on the sides of the cabinet. If the
door does not close correctly, loosen or
tighten the adjustable feet until the appliance is level.
Follow steps listed below to remove
the appliance worktop
1. Remove the rear screws (1).
WATER CONNECTION
Water inlet hose
Connect the appliance to a cold water supply.
Connect the inlet hose to a water tap with
an external BSP thread spout of 3/4”.
Inlet water supply
• Cold water pressure: 800 kPa max - 50
kPa min.
• Water flow rate 10 L / minute min.
Page 19
electrolux 19
• If cold water pressure is in excess of 800
kPa, a pressure reducing valve should be
used. Check for leaks.
Caution! Always use new hoses when
you connect the appliance to the water
mains. Old hoses must not be used.
The water inlet hose must be examined
at an interval of twelve months for
deterioration and replaced if necessary.
The water pressure must be in the limits (refer to 'Technical data'). Make sure that the
local water authority gives you the average
mains pressure in your area.
Make sure that there are no kinks in the
water inlet hose and that the water inlet
hose is not squashed or entangled.
Fit the hose nut correctly to prevent water
leaks.
Caution! Do not connect the appliance
to new pipes or pipes that have been
not used for a long time. Let the water
run for some minutes, then connect the
inlet hose.

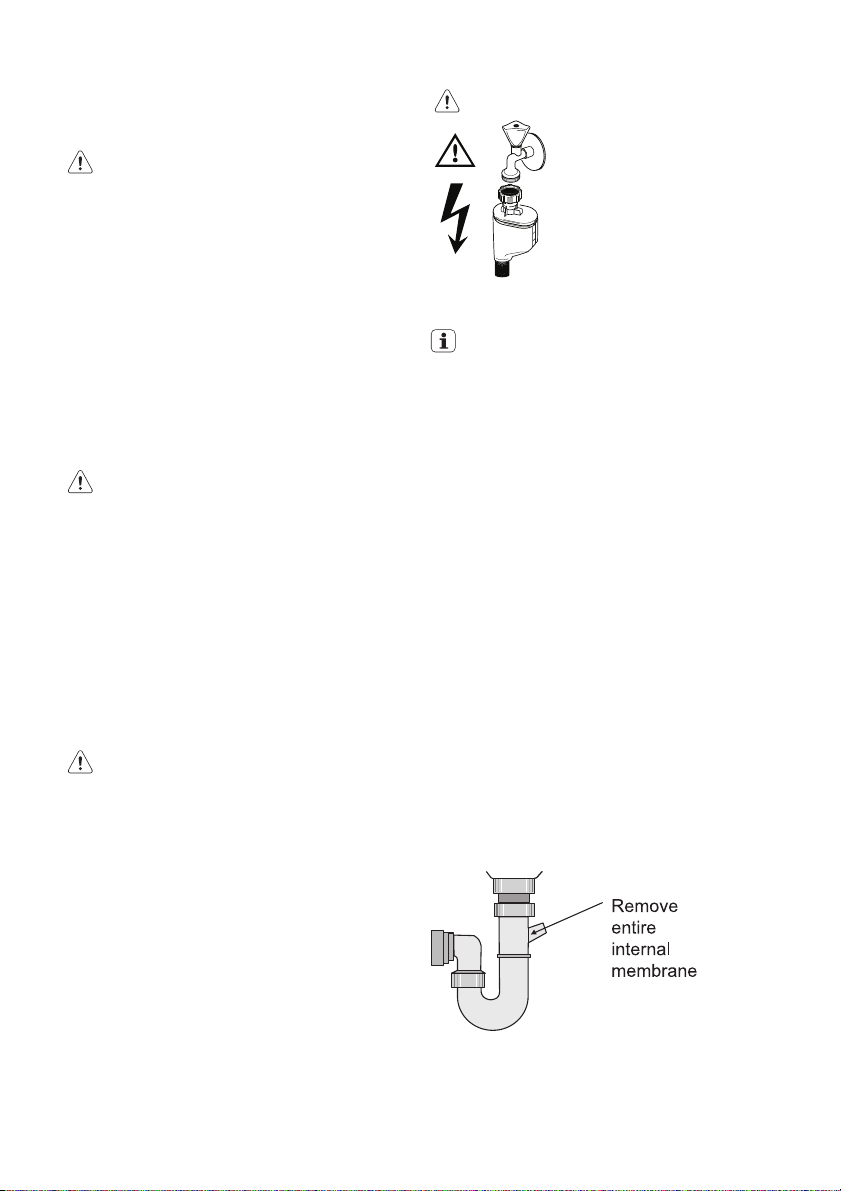

The water inlet hose is double-walled and
has an inner mains cable and a safety valve.
The water inlet hose is under pressure only
while the water is running. If there is a leak
in the water inlet hose, , the safety valve interrupts the running water.
Be careful when you install the water inlet
hose.
Warning!
• The mains cable is in the doublewalled inlet hose. Do not immerse
the water inlet hose or the safety
valve in water.
• Do not attempt to shorten the inlet
hose.
• If the water inlet hose or the safety
valve is damaged, immediately turn
off the power and remove the mains
plug from the mains socket.
• Only a qualified Service Engineer can
replace the water inlet hose with
safety valve.
Warning!
Dangerous voltage
In order to pass the safety valve
through the kitchen cabinets, an opening of at least 45mm x 90mm is needed.
Water drain hose
Use the supplied hose clamp to connect
the water drain hose to the sink.
The highest point of the drain hose must be
no more than 60 cm from the floor and
must have a continuous fall to the plumbing
connection.
The drain hose can be lengthened using
additional lengths and connectors. These
must be purchased from Electrolux Spare
Parts. The extension length must not exceed 2 metres.
The drain hose must be free of kinks and
obstructions.
Remove the sink plug when the appliance
drains the water to prevent that the water
goes back into the appliance.
If you connect the water drain hose to a
trap spigot under the sink, remove the plastic membrane. If you do not remove the
membrane, remaining food can cause a
blockage in the drain hose spigot
Page 20
20 electrolux
The appliance has a security feature to
prevent dirty water going back into the
appliance. If, the spigot of the sink has
a 'non-return valve', this valve can
cause the appliance to drain incorrectly. Remove the non-return valve.
Caution! Make sure that the water
couplings are tight to prevent water
leakage.

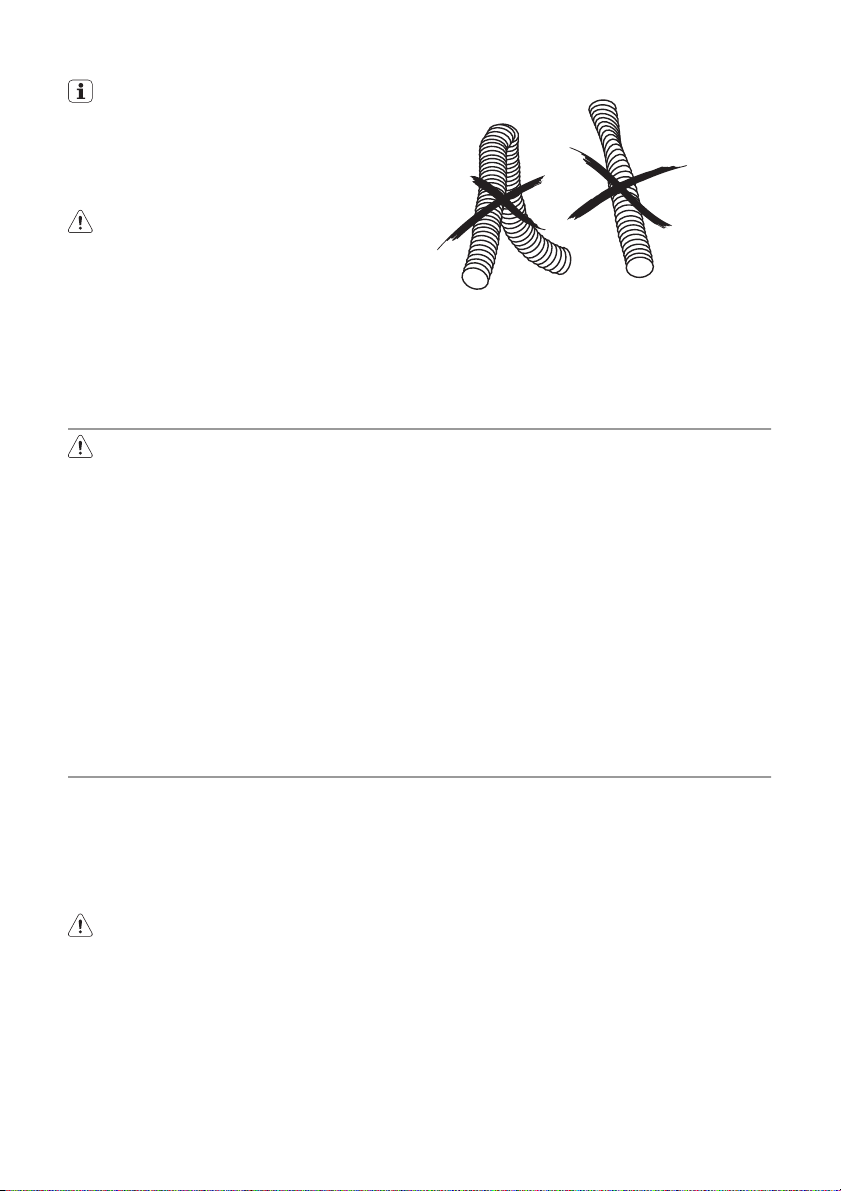

Ensure that hoses are not crushed or
kinked under or behind the appliance.
ELECTRICAL CONNECTION
Warning! Safety standards require the
appliance to be earthed.
Prior to using the appliance for the first
time, ensure that the rated voltage and
type of supply on the rating plate
match that of the supply where the appliance is to be installed.
The fuse rating is also to be found on
the rating plate.
Always plug the mains plug onto a correctly installed approved socket.
Do not use multi-ways plugs, connectors and extension cables. This can
constitute a fire hazard through overheating.
Once connected the inlet hose to the
water tap, turn the tap on and check
that there are no leaks.
If necessary, have the domestic wiring
system socket replaced. If the mains
cable has to be replaced, contact your
local Customer Care centre.
The mains plug must be accessible after the appliance has been installed.
Never unplug the appliance by pulling
on the cable. Always pull the plug.
Test the appliance. Run a quick washing program and ensure that the appliance fills with water, washes and drains
with no leaks.
The manufacturer accepts no liability
for failure to observe the above safety
precautions.
ENVIRONMENT CONCERNS
The packaging materials are environmentally friendly and can be recycled. The plastic
components are identified by markings, e.g.
>PE<, >PS<, etc. Discard the packaging
materials in the applicable container at the
community waste disposal facilities.
Warning! To discard the appliance,
follow the procedure:
• Pull the mains plug out of the socket.
• Cut off the mains cable and mains
plug and discard them.
• Discard the door catch. This prevents children closing themselves inside the appliance and endangering
their lives.
Old appliance
Make sure that the appliance goes to the
applicable collection point for recycling.
Make sure that this appliance is discarded
correctly. Inappropriate waste discard of
the appliance causes negative consequences for the environment and human health.
For more information about the recycling of
this appliance, contact your local city office,
your household waste disposal service or
the shop where you purchased the appliance.
Page 21
WARRANTY
FOR SALES IN AUSTRALIA AND NEW
ZEALAND
This document sets out the terms and
conditions of product warranties for
Electrolux branded appliances. It is an
important document. Please keep it
with your proof of purchase documents
in a safe place for future reference
should you require service for your
Electrolux appliance. General Terms
and Conditions
1. In this warranty
– Electrolux' means Electrolux Home
Products Pty Ltd ABN 51 004 762
341 in respect of Appliances purchased in Australia and Electrolux
(NZ) Limited in respect of Appliances
purchased in New Zealand;
– 'Appliance' means any Electrolux
product purchased by you accompanied by this document;
– 'Warranty Period' means
i) where you use the Appliance for
personal, domestic or household
purposes in Australia the period of 24
months and in New Zealand the period of 24 months;
ii) where you use the Appliance for
commercial purposes, in Australia
the period of 0 months and in New
Zealand the period of 0 months, (if
the period stated is 0 months you are
not covered by this product warranty)
following the date of original purchase of the Appliance;
– 'you' means the purchaser of the Ap-
pliance not having purchased the appliance for re-sale, and 'your' has a
corresponding meaning.
2. This warranty only applies to Appliances purchased and used in Australia or
New Zealand and is in addition to (and
does not exclude, restrict, or modify in
any way) any non-excludable statutory
warranties in Australia or New Zealand.
electrolux 21
3. Electrolux warrants that, when dispatched from an Electrolux warehouse,
the Appliance is free from defects in
materials and workmanship for the
Warranty Period.
4. During the Warranty Period Electrolux
or its Authorised Service Centre will, at
no extra charge if your appliance is
readily accessible without special
equipment, and subject to these terms
and conditions, repair or replace any
parts which it considers to be defective.
You agree that any replaced Appliances or parts become the property of
Electrolux. This warranty does not apply to light globes, batteries, filters or
similar perishable parts.
5. Parts and Appliances not supplied by
Electrolux are not covered by this warranty.
6. Where you are within an Electrolux
service area, this warranty covers the
cost of transport of the Appliance to
and from Authorised Service Centres of
Electrolux and travelling costs for representatives of the Authorised Service
Centre to and from your home or business. If you are outside an Electrolux
service area, you will bear these costs.
For information about whether you are
within an Electrolux service area, please
phone 13 13 49 in Australia, or 0800
10 66 10 in New Zealand.
7. Proof of purchase is required before
you can make a claim under this warranty.
Page 22
22 electrolux
8. You may not make a claim under this
warranty unless the defect claimed is
due to faulty or defective parts or workmanship. Electrolux is not liable in the
following situations (which are not exhaustive):
– The Appliance is damaged by
i) accident
ii) misuse or abuse, including failure
to properly maintain or service
iii) normal wear and tear
iv) power surges, electrical storm
damage or incorrect power supply
v) incomplete or improper installation
vi) incorrect, improper or inappropriate operation
vii) insect or vermin infestation.
– The Appliance is modified without
authority from Electrolux in writing.
– The Appliance's serial number or
warranty seal has been removed or
defaced.
– The Appliance was serviced or re-
paired by anyone other than Electrolux or its Authorised Service Centres.
9. This warranty, the contract to which it
relates and the relationship between
you and Electrolux are governed by the
law applicable in the Australian State
where the Appliance was purchased or
the law applicable in New Zealand if the
Appliance was purchased in New Zealand. Where the Appliance was purchased in New Zealand for business
purposes the Consumer Guarantee Act
does not apply.
Limitation of Liability
10. To the extent permitted by law:
– Electrolux excludes all warranties
other than as contained in this document;
– Electrolux shall not be liable for any
loss or damage whether direct or indirect or consequential arising from
your purchase, use or non-use of the
Appliance.
FOR SERVICE
OR TO FIND THE ADDRESS
OF YOUR NEAREST STATE
SERVICE CENTRE IN AUSTRALIA
Please call 13 13 4 9
For the cost of a local call (Australia on-
ly)
SERVICE AUSTRALIA
ELECTROLUX HOME
PRODUCTS
11. Provisions of the Trade Practices Act
and State consumer legislation in Australia, and the Consumer Guarantees
Act, the Sale of Goods Act and the Fair
Trading Act in New Zealand, imply warranties or conditions, or impose obligations, upon Electrolux which cannot be
excluded, restricted or modified. To the
extent permitted by law, the liability of
Electrolux (if any) arising out of or in relation to the Appliance or any services
supplied by Electrolux shall be limited
(where it is fair and reasonable to do
so),:
– in the case of Appliances, at its op-
tion, to the replacement or repair of
the Appliances or the supply of
equivalent products or the payment
of the cost of replacing the Appliances or having the Appliances repaired or of acquiring equivalent Appliances. Upon being replaced, parts
and Appliances become the property
of Electrolux; or
– in the case of services, at its option,
to the supply of the services again or
the payment of the cost of having the
services re-supplied;
and in the case of Appliances or services supplied in New Zealand, loss or
damage whether direct or indirect or
consequential that is reasonably foreseeable.
Privacy
You acknowledge that in the event that you
make a warranty claim it will be necessary
for Electrolux and its Authorised Service
Centres to exchange information in relation
to you to enable Electrolux to meet its obligations under this warranty.
Important Notice
Before Calling a Service Technician please
check carefully the operating instructions,
service booklet and the warranty terms and
conditions.
FOR SPARE PARTS
OR TO FIND THE ADDRESS
OF YOUR NEAREST STATE
SPARE PARTS CENTRE IN
AUSTRALIA
Please call 13 13 50
For the cost of a local call (Australia on-
ly)
Page 23
electrolux 23
FOR SERVICE
OR TO FIND THE ADDRESS
OF YOUR NEAREST AUTHORISED SERVICE CENTRE IN
NEW ZEALAND
Free call 0800 10 66 10
(New Zealand only)
SERVICE NEW ZEALAND
ELECTROLUX HOME
PRODUCTS
FOR SPARE PARTS
OR TO FIND THE ADDRESS
OF YOUR NEAREST SPARE
PARTS CENTRE IN NEW ZEALAND
Free call 0800 10 66 20
(New Zealand only)
Page 24
www.electrolux.com/shop
117960643-B-422010
Loading...
