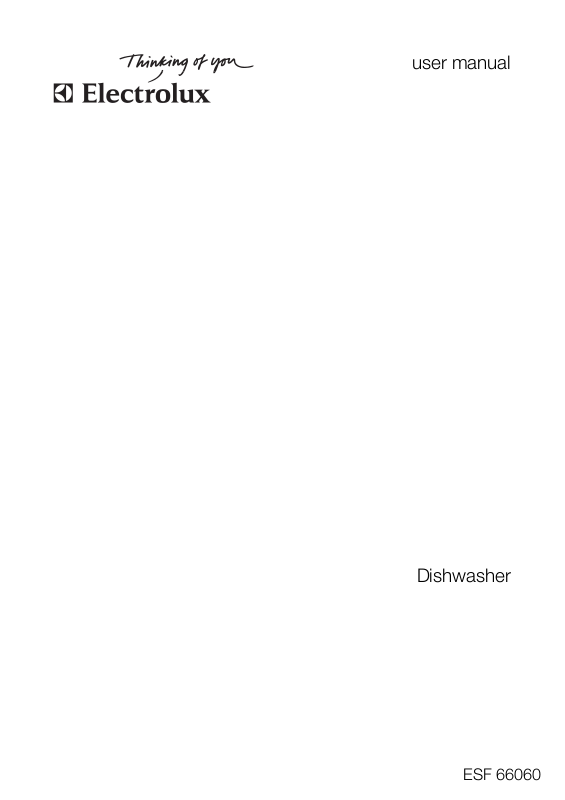

user manual

Dishwasher

ESF 66060

2 electrolux

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

CONTENTS

Safety information 2
Product description 4
Control panel 5
Use of the appliance 6
Setting the water softener 6
Use of dishwasher salt 7
Use of rinse aid 8
Loading cutlery and dishes 9
Use of detergent 11
Multitab function 12

SAFETY INFORMATION

For your safety and correct operation
of the appliance, read this manual
carefully before installation and use. Al­ways keep these instructions with the
appliance even if you move or sell it.
Users must fully know the operation
and safety features of the appliance.

Correct use

• Only use the appliance to clean house­hold utensils that are suitable for dish­washers.

• Do not put solvents in the appliance. Risk
of explosion.

• Put the knives and all items with sharp
points in the cutlery basket with their
points down. If not, put them in a hori­zontal position in the upper basket.

• Use only products specified for dish­washers (detergent, salt, rinse aid).

• If you open the door while the appliance
is in operation, hot steam can escape.
Risk of skin burns.

• Do not remove dishes from the appliance
before the end of the washing program.

• When the washing program is comple­ted, disconnect the mains plug from the
mains socket and close the water tap.

• Only an authorised service engineer can
repair this appliance. Use only original
spare parts.

• Do not do repairs yourself to prevent in­jury and damage to the appliance. Al­ways contact the Customer Care Centre.

Select and start a washing program 13
Washing programs 14
Care and cleaning 15
What to do if… 16
Technical data 18
Installation 18
Water connection 19
Electrical connection 20
Environment concerns 21
Warranty 21

Subject to change without notice

General safety

• Some dishwasher detergents are strongly
alkaline. They can be extremely danger­ous if swallowed. Avoid contact with skin
and eyes. Keep the children away from
the appliance when the door is open.
Check that the detergent dispenser is
empty after completion of the washing
programme.

• Obey the safety instructions from the
manufacturer of the dishwasher deter­gent to prevent burns to eyes, mouth and
throat.

• Only put detergent in the dispenser be­fore you start a washing program.

• Do not drink the water from the appli­ance. Detergent residues can stay in your
appliance.

• Always close the door when you do not
use the appliance to prevent injury and
not to stumble over the open door.

• Do not sit or stand on the open door.

Child safety

• This appliance is not intended for use by
young children or infirm persons unless
they have been adequately supervised by
a responsible person to ensure that they
can use the appliance safely. Young chil­dren should be supervised to ensure that
they do not play with the appliance.

• Keep all the packaging away from chil­dren. There is a risk of suffocation.

electrolux 3

• Keep all detergents in a safe area. Do not
let children touch the detergents.

• Keep children and pets away from the
appliance when the door is open.

Installation

• Make sure that the appliance is not dam­aged because of transport. Do not con­nect a damaged appliance. If necessary,
contact the supplier.

• Remove all packaging before first use.

• A qualified and competent person must
do the electrical installation.

• A qualified and competent person must
do the plumbing installation.

• Do not change the specifications or mod­ify this product. Risk of injury and dam­age to the appliance.

• Do not use the appliance:
– if the mains cable or the water hoses

are damaged,

– if the control panel, worktop or plinth

area are damaged so that you can get
access to the inner side of the appli-

ance.
Contact your local Customer Care Cen­tre.

• Do not drill into the sides of the appliance
otherwise damage to hydraulic and elec­trical components may occur.

Warning! Carefully obey the
instructions for electrical and water
connections.

4 electrolux

PRODUCT DESCRIPTION

11

10

9

1 Ceiling spray arm
2 Upper basket
3 Water hardness dial
4 Salt container
5 Detergent dispenser
6 Rinse aid dispenser

7 Rating plate
8 Filters

9 Lower spray arm
10 Upper spray arm
11 Worktop

CONTROL PANEL

electrolux 5

7

1 On/off button
2 Program selection buttons
3 Multitab button (Tablet)
4 Delay start button
5 Indicator lights
6 Digital display
7 Function buttons

Indicator lights

Washing Program in progress:

Salt Comes on when it is necessary to fill the salt container. Refer to 'Use of dish-

Rinse Aid Comes on when it is necessary to fill the rinse aid container. Refer to 'Use of

Multitab button

Press this button to activate/deactivate the
multitab function. Refer to 'Multitab func­tion'.

– comes on when you select a washing program,
– stays on for all the duration of the washing program,
– goes off at the end of the washing program.

washer salt'.
The salt indicator light can stay on for some hours, but it does not have an
unwanted effect on the operation of the appliance.

rinse aid'.

Delay start button

Use the delay start button to delay the start
of the washing program with an interval be­tween 1 and 19 hours. Refer to 'Select and
start a washing program'.

6 electrolux

Digital display

The display shows:

• adjusted level of the water softener,

• activation/deactivation of the rinse aid
dispenser (only with multitab function on),

• program duration,

• remaining time to the end of the pro­gram,

• end of a washing program,

• number of hours in delay start,

• fault codes.

Function buttons

Use the function buttons for these opera­tions:

• to set the water softener. Refer to 'Set­ting the water softener'.

• to deactivate/activate the rinse aid dis­penser when multitab function is active.
Refer to 'Multitab function'.

USE OF THE APPLIANCE

Refer to specified instructions for each step
of the procedure.

1. Check if the water softener level is cor-

rect for the water hardness in your area.
If necessary set the water softener.

2. Fill the salt container with dishwasher

salt.

3. Fill the rinse aid dispenser with rinse aid.

• to cancel the washing program in pro­gress or a delay start in progress. Refer
to 'Select and start a washing program'.

Setting mode

The appliance is in setting mode when all
program indicator lights are on.
The appliance must be in setting mode for
these operations:
– to set a washing program,
– to set the water softener level,
– to deactivate/activate the rinse aid dis-

penser.

If a program indicator light is on, cancel the
program to go back to the setting mode.
Refer to 'Select and start a washing pro­gram'.

4. Load cutlery and dishes into the dish-

washer.

5. Set the correct washing program for the

type of load and soil.

6. Fill the detergent dispenser with the cor-

rect quantity of detergent.

7. Start the washing program.

SETTING THE WATER SOFTENER

The water softener removes minerals and
salts from the water supply. Minerals and
salts can have bad effect on the operation
of the appliance.
Water hardness is measured in equivalent
scales:

• mg/I (millimol per litre)

Water hardness Water hardness setting

mg/l ppm mmol/l manually electronically

910 - 1250 910 - 1250 9,1 - 12,5 2 10

760 - 909 760 - 909 7,6 - 9,0 2 9

650 - 759 650 - 759 6,5 - 7,5 2 8

510 - 649 510 - 649 5,1 - 6,4 2 7

400 - 509 400 - 509 4,0 - 5,0 2 6

330 - 399 330 - 399 3,3 - 3,9 2 5

260 - 329 260 - 329 2,6 - 3,2 1 4

190 - 259 190 - 259 1,9 - 2,5 1 3

• ppm (parts per million),

• mmol/l (millimol per litre - international
unit for the hardness of water).

Adjust the water softener in to the water
hardness in your area. If necessary, contact
your local water authority.

Water hardness Water hardness setting

mg/l ppm mmol/l manually electronically

70 - 189 70 - 189 0,7 - 1,8 1 2

< 70 < 70 < 0,7 1

1) No use of salt required.

You must set the water softener man­ually and electronically.

Manual adjustment

The appliance is set at the factory at
position 2.

1. Open the door.

2. Remove the lower basket.

3. Turn the water hardness dial to position
1 or 2 (refer to the chart).

1. Switch on the appliance.

2. Make sure that the appliance is in set­ting mode.

3. Press and hold function buttons B and
C until the indicator lights of function
buttons A, B and C start to flash.

4. Release function buttons B and C.

5. Press function button A.
– The indicator lights for function but-

tons B and C go off.

– The indicator light for function button

A continues to flash.

– The digital display shows the current

level.
Example: digital display shows
level 5.

6. Press the function button A one time to
increase the water softener level by one
step.

7. Continue pressing function button A un­til the desired water softener level is

4. Install the lower basket.

5. Close the door.

Electronic adjustment

achieved.

8. Press the on/off button to save the op­eration.

The dishwasher is factory set at
level 5.

electrolux 7

1)

1

=

USE OF DISHWASHER SALT

Caution! Only use dishwasher salt.
Types of salt that are not suitable for
dishwashers cause damage to the
water softener.

Caution! Grains of salt and salty water
on the bottom of the appliance can
cause corrosion. Fill the appliance with
salt before you start a washing
program to prevent corrosion.

Do these steps to fill the salt container:

1. Turn the cap anticlockwise to open the
salt container.

2. Fill the salt container with 1 litre of water
(only the first operation).

3. Use the funnel to fill the salt container
with salt.

8 electrolux

USE OF RINSE AID

Caution! Only use rinse aid specified
for dishwashers.
Do not fill the rinse aid dispenser with
other products (e.g. dishwasher clean­ing agent, liquid detergent). This can
cause damage to the appliance.

Rinse aid makes it possible to dry the
dishes without streaks and stains.
Rinse aid is automatically added during
the last rinsing phase.

Follow these steps to fill the rinse aid dis­penser:

1. Press the release button (A) to open the
rinse aid dispenser.

4. Remove the salt around the opening of
the salt container.

5. Turn the cap clockwise to close the salt
container.

It is normal that water overflows from
the salt container when you fill it with
salt.

2. Fill the rinse aid dispenser with rinse aid.
The mark 'max.' shows the maximum
level.

3. Remove the spilled rinse aid with an ab­sorbent cloth to prevent too much foam
during the subsequent washing pro­gram.

4. Close the rinse aid dispenser.

Adjusting the rinse aid dosage

The rinse aid is set at the factory at position

4.

You can set the rinse aid dosage between
position 1 (lowest dosage) and position 6
(highest dosage).

LOADING CUTLERY AND DISHES

Helpful hints and tips

Only use the appliance for household uten­sils that are suitable for dishwashers.
Do not use the appliance to clean objects
that can absorb water (e.g. sponges,
household cloths).

• Before you load cutlery and dishes, follow
these steps:
– Remove all food remainings and deb-

ris.

– Make burnt, remaining food in pans

soft.

• While you load cutlery and dishes, follow
these steps:
– Load hollow items (e.g. cups, glasses

and pans) with the opening down.

– Make sure that water does not collect

in the container or in a deep base.

– Make sure that cutlery and dishes do

not lie inside one another.

– Make sure that cutlery and dishes do

not cover other cutlery and dishes.

– Make sure that glasses do not touch

other glasses.

– Put small objects in the cutlery basket.

• Plastic items and pans with non-stick
coatings can retain water droplets. Plas­tic items do not dry as well as porcelain
and steel items.

• Put light items in the upper basket. Make
sure that the items do not move.

electrolux 9

Turn the rinse aid dial to increase or de­crease the dosage.
– Increase the dosage if there are water

droplets or limescale on the dishes.

– Decrease the dosage if there are streaks,

whitish stains or bluish layers on the
dishes.

Wash hands to remove any residue of
rinse aid from skin.

Caution! Make sure that the spray
arms can move freely before you start
a washing program.

Warning! Always close the door after
you load or unload the appliance. An
open door can be dangerous.

Lower basket

Put large and heavily soiled dishes and
pans in the lower basket.

The rows of prongs in the lower basket can
be adjusted flat to load large dishes, pots,
pans and bowls.

10 electrolux

Cutlery basket

Warning! Do not put long-bladed

knives in a vertical position. Arrange
long and sharp cutlery horizontally in
the upper basket. Be careful with sharp
items.

Use the cutlery grids for best washing re­sults.

• Put knives with the handles up.

• Mix spoons with other cutlery to prevent
them nesting together.

Upper basket

The upper basket is for saucers, salad
bowls, cups, glasses and lids. Arrange the
items to let water touch all surfaces.

• Put the grids on the cutlery basket.

• For larger items use only one of the cut­lery grids.

• Put forks and spoons with the handles
down.

• For longer items fold the cup racks up.

• Put glasses with long stems in the cup
racks with the stems up.

• For glasses with long stems, turn the
glass holder to the left or to the right.

• You can fold up or down the row of
prongs on the left side of the upper bas­ket to increase load flexibility.

Adjustment of the height of the upper
basket

You can put the upper basket in two posi­tions to increase load flexibility.

electrolux 11

Maximum height of the dishes in:

the upper

Upper posi­tion

Lower posi­tion

basket

22 cm 30 cm

24 cm 29 cm

the lower

basket

Follow these steps to move to the up­per basket to the lower/upper position:

1. Pull out the upper basket until it stops.

2. Hold the upper basket by the handle, lift
it as far as possible and lower it vertical­ly.
The upper basket latches into the lower
or the upper position.

USE OF DETERGENT

Only use detergents (powder, liquid or
tablet) that are suitable for dishwash­ers.
Follow the data on the packaging:

• dosage recommended by the manu­facturer,

• storage recommendations.

Do not use more than the correct
quantity of detergent to decrease pollu­tion.

Follow these steps to fill the detergent dis­penser:

1. Open the lid of the detergent dispenser.

12 electrolux

2. Fill the detergent dispenser (A) with de­tergent. The marking shows the dosage:
20 = approximately 20 g of detergent
30 = approximately 30 g of detergent.

A

B

3. If you use a washing program with pre­wash, put more detergent in the pre­wash detergent compartment (B).

4. If you use detergent tablets, put the de­tergent tablet in the detergent dispenser
(A) .

5. Close the lid of the detergent dispenser.
Press the lid until it locks into position.

Different brands of detergent dissolve
in different times. Some detergent tab­lets do not have the best cleaning re­sults during short washing programs.
Use long washing programs when you
use detergent tablets to fully remove
the detergent.

MULTITAB FUNCTION

The multitab function is for combi detergent
tablets.
These tablets contain agents such as deter­gent, rinse aid and dishwasher salt. Some
types of tablets can contain other agents.
Do a check if these tablets are suitable for
the local water hardness. Refer to the in­structions from the manufacturer.
The multitab function can be set with any
program.
When you set the multitab function, it stays
on until you deactivate it.
The multitab function automatically stops
the rinse aid and water softener operation.
The rinse aid indicator light and salt indica­tor light are deactivated.

The program duration can increase if you
use the multitab function.

Activate or deactivate the multitab
function before the start of a washing
program.
You cannot activate or deactivate the
multitab function when the program
operates. Cancel the washing program,
then set the program again.

To activate the multitab function:

• Press the multitab button. The multitab

indicator light comes on.

To deactivate the multitab function:

• Press the multitab button. The multitab

indicator light goes off.

electrolux 13

Follow these steps if the drying re­sults are not satisfactory:

1. Fill the rinse aid dispenser with rinse
aid.

2. Activate the rinse aid dispenser.

3. Set the rinse aid dosage to position

2.

• You can only activate or deactivate

the rinse aid dispenser when the
multitab function is activated.

To activate/deactivate the rinse aid
dispenser:

1. Switch on the appliance.

2. Make sure that the appliance is in set­ting mode.

3. Press and hold function buttons B and
C.
– The indicator lights for function but-

tons A, B, and C start to flash.

4. Press function button B.
– The indicator lights for function but-

tons A and C go off.

– The indicator light for function button

B continues to flash.

– The digital display shows the setting.

Rinse aid dispenser
deactivated

Rinse aid dispenser
activated

5. Press function button B again.
– The digital display shows the new set-

ting.

6. Switch off the appliance to save the op­eration.

To use normal detergent again:

1. Deactivate the multitab function.

2. Fill the salt container and rinse aid
dispenser.

3. Adjust the water hardness setting
to the highest level.

4. Do a washing program without
dishes.

5. Adjust the water softener to the wa­ter hardness in your area.

6. Adjust the rinse aid dosage.

SELECT AND START A WASHING PROGRAM

Set the washing program with the door
ajar. The washing program only starts
after you close the door. Until then it is
possible to modify the settings.

1. Press the on/off button.

2. Make sure that the appliance is in set­ting mode.

3. Press one of the program buttons. Refer
to the 'Washing programs' chart for
program details.
– The program indicator light comes on.
– The Washing indicator light comes

on.

– The flashing digital display shows the

program duration.

4. Close the door.
– The washing program starts automat-

ically.

– The program indicator light and the

Washing indicator light stay on.

When the washing program operates,
you cannot change the program. Can­cel the washing program. Refer to
'Cancelling a washing program'.

Select and start a washing program
with delay start

1. Press the on/off button.

2. Set a washing program.

3. Press the delay start button until the dis­play shows the necessary delay start of
the washing program.

14 electrolux

4. Close the door.
– The countdown starts. The display

shows remaining time to the start of
the washing program.

– When the countdown is completed,

the washing program starts automati­cally.

With the delay start function set, the
Washing indicator light goes off. Once
the countdown of the delay start has
ended, the washing program will start
automatically and the Washing indica­tor light comes on.

If you open the door during the count­down, this will interrupt the countdown.
When you close the door again, the
countdown continues from the point of
interruption.

Cancelling delay start

1. Press and hold at the same time func­tion buttons B and C buttons until all the
program lights come on.
– When you cancel delay start, you also

cancel the washing program.

2. Set a new washing program.

Warning! Only interrupt or cancel a
washing program if necessary. Open
the door carefully. Hot steam and
water can escape.

Interrupting a washing program

1. Open the appliance door. The washing
program stops.

2. Close the appliance door. The washing
program continues from the point of in­terruption.

Cancelling a washing program

1. Press and hold at the same time func­tion buttons B and C buttons until all the
program lights come on.

2. Release the two buttons, the washing
program has been cancelled.

At this point, you can follow these steps:

1. Switch off the appliance.

2. set a new washing program.

Fill the detergent dispenser with detergent
before you set a new washing program.

End of the washing program

The washing program is complete when:

• The display shows 0.

1. Switch off the appliance.

2. Open the door.
– For better drying results, keep the

door ajar for some minutes before

you remove the dishes.
Let the dishes cool down before you re­move them from the appliance. Hot dishes
are easily damaged.

Standby mode

If you do not switch off the appliance at the
end of the washing program, the appliance
automatically goes into standby mode. The
standby mode decreases power consump­tion to less than 1 watt.
Three minutes after the end of the program,
all indicator lights go off and the digital dis­play shows one horizontal bar.
Press one of the buttons (not the on/off
button), to go back to end of program
mode.

Removing the load

• First remove items from the lower basket,

then from the upper basket.

• There can be water on the sides and

door of the appliance. Stainless steel be­comes cool more quickly than the dishes.

WASHING PROGRAMS

Washing programs

Program Degree of soil Type of load Program description

AUTO 50°-65°

1)

Any Crockery, cutlery,

pots and pans

Prewash
Main wash up to 50°C or
65°C
1 or 2 intermediate rinses
Final rinse
Drying

A

electrolux 15

Program Degree of soil Type of load Program description

Quick 60°

Intensive 70° Heavy soil Crockery, cutlery,

Eco 50°

1) During the AUTO program, the soil level of the dishes is given by how cloudy the water is. The program duration
and consumptions can change. This depends if the appliance is fully or not and on the level of soil on the dishes.
The appliance adjusts automatically the temperature of the water during the main wash.

2) This is the perfect daily program to clean a partial load. Ideal for a family of 4 persons who only want to load
breakfast and dinner crockery and cutlery.

3) Test program for test institutes. Please refer to separate leaflet supplied, for test data.

2)

3)

Normal or light soil Crockery and cut-

lery
(Partial load)

pots and pans

Normal soil Crockery and cut-

lery

Main wash up to 60°C
Final rinse

Prewash
Main wash up to 70°C
2 intermediate rinses
Final rinse
Drying

Prewash
Main wash up to 50°C
1 intermediate rinse
Final rinse
Drying

Consumption values

Program

AUTO 50°-65° 1,1 - 1,8 12 - 25

Quick 60° 0,9 9

Intensive 70° 1,8 - 2,0 23 - 25

Eco 50° 0,8 - 0,88 10 - 11

1) The display shows the program duration.

1)

The pressure and temperature of the
water, the variations of power supply

Energy (in kWh) Water (in litres)

and the quantity of dishes can change
these values.

CARE AND CLEANING

Warning! Switch the appliance off
before you clean it.

Cleaning the filters

Caution! Do not use the appliance

without the filters. Make sure that the
installation of the filters is correct.
Incorrect installation will cause
unsatisfactory washing results and
damage to the appliance.

If necessary, clean the filters. Dirty filters de­crease the washing results.
The dishwasher has three filters:

1. coarse filter (A)

2. microfilter (B)

3. flat filter (C)

B

C

Follow these steps to clean the filters:

1. Open the door.

2. Remove the lower basket.

16 electrolux

3. To unlock the filter system, turn the

handle on the microfilter (B) approxi­mately 1/4 anticlockwise.

4. Remove the filter system.

5. Hold the coarse filter (A) by the handle

with the hole.

6. Remove the coarse filter from the mi-

crofilter.

7. Remove the flat filter (C) from the bot-

tom of the appliance.

8. Clean the filters below running water.

9. Put the flat filter (C) in the bottom of the

appliance.

10. Put the coarse filter (A) in the microfilter

(B) and push the filters together.

11. Put the filter system in position.

12. To lock the filter system, turn the han-

dle on the microfilter (B) clockwise until
it locks in position.

13. Install the lower basket.

14. Close the door.

Do not remove the spray arms.

If the holes in the spray arms become clog­ged, remove remaining parts of soil with a
cocktail stick.

External cleaning

Clean the external surfaces of the appliance
and control panel with a damp soft cloth.
Only use neutral detergents. Do not use
abrasive products, scouring pads or sol­vents (acetone etc.).

Internal cleaning

Do an inspection at intervals of 3 months.
Set a washing program for heavily soiled
dishes. Use detergent, but do not put
dishes in the appliance.

Long periods of non-operation

Do these steps when you do not use the
appliance for a long period:

1. Disconnect the mains plug from the
mains socket.

2. Close the water tap.

3. Keep the door open to prevent unpleas­ant smells.

4. Keep the inner side of the appliance
clean.

Frost precautions

Caution! Do not install the appliance

where the temperature is below 0 °C.
The manufacturer is not responsible for
damage because of frost.

If not possible, empty the appliance and
close the door. Disconnect the water inlet
hose and remove water from the water inlet
hose.

Moving the machine

Do these steps to move the appliance:

1. Disconnect the mains plug from the
mains socket.

2. Close the water tap.

3. Remove the appliance and the hoses.

4. Do not tilt the appliance during trans­port.

WHAT TO DO IF…

The appliance does not start or stops dur­ing operation.

If there is a fault, first try to find a solution to
the problem yourself. Refer to following
charts. If you cannot find a solution to the

electrolux 17

problem yourself, contact your dealer or the
Customer Care Centre.

Warning! Switch the appliance off
before you do the suggested corrective
actions.

Malfunction Fault code Possible cause Possible solution

The appliance
does not fill
with water

The water pressure is too

The water tap is closed. Open the water tap.

The filter in the water inlet

The installation of the wa-

The appliance
does not drain
the water

The installation of the wa-

The anti-flood
device oper­ates

The program
does not start

Mains plug is not connec-

The fuse has blown out in

The delay start is set. If you want to cancel the

After the check, switch on the appliance.
The program continues from the point of in­terruption. If the malfunction shows again,
contact your Customer Care Centre.
If the display shows a fault code, not de­scribed in the chart, contact your Customer
Care Centre.

the digital display shows The water tap is blocked

or restricted with lime­scale.

low.

hose is blocked.

ter inlet hose is not cor­rect. The hose can be
kinked or squashed.

the digital display shows There is a blockage in the

sink spigot.

ter drain hose is not cor­rect. The hose can be
kinked or squashed.

the digital display shows Close the water tap and

The appliance door is not

closed.

ted.

the household fuse box

Clean the water tap.

Contact your local water
authority.

Clean the filter.

Make sure that the instal­lation is correct.

Clean the sink spigot.

Make sure that the instal­lation is correct.

contact your Customer
Care Centre.

Close the door.

Plug-in appliance to the
mains.

Replace the fuse.

delay start, refer to 'Se­lect and start a washing
program'.

For these data, refer to the rating plate.
Write the necessary data here:

Model (MOD.) ....................

Product number (PNC) ....................

Serial number (S.N.) ....................

These data are necessary to help you
quickly and correctly:

18 electrolux

The cleaning results are not satisfactory

The dishes are not clean • The selected washing program is not applicable for the type of

Limescales particles on the
dishes

The dishes are wet and dull • No rinse aid has been used.

There are streaks, milky
spots or a bluish coating on
glasses and dishes

Dry water drop stains on
glasses and dishes

load and soil.

• The baskets are loaded incorrectly so that water cannot reach all
surfaces.

• Spray arms do not turn freely because of incorrect arrangement of
the load.

• The filters are dirty or not correctly installed.

• The quantity of detergent is too little or missing.

• The salt container is empty.

• The water softener is adjusted on a wrong level.

• The salt container cap is not closed correctly.

• The rinse aid dispenser is empty.

• Decrease the rinse aid dosage.

• Increase rinse aid dosage.

• The detergent can be the cause.

TECHNICAL DATA

Dimensions Width (mm) 596

Height (mm) 850

Depth (mm) 625

Electrical connection - Voltage ­Overall power - Fuse

Water supply pressure Minimum 50 kPa (7 psi)

Maximum 800 kPa (116 psi)

Capacity Place settings 12

Information on the electrical connection is given on the rating
plate on the inner edge of the dishwasher door.

INSTALLATION

Fitting under a counter

Warning! Make sure that mains plug is

disconnected from the mains socket
during installation.

Put the appliance adjacent to a water tap
and a water drain.
The plinth of a freestanding appliance is not
adjustable.
Do not remove the appliance's worktop if
you want to use it as a freestanding unit.
It is not necessary to remove the worktop
when installing under a standard kitchen
bench top.
Only remove the appliance worktop to in­stall it under a close fitting sink unit or kitch­en worktop (820mm).

Make sure that the dimensions of the re­cess agree with the given dimensions.

electrolux 19

Follow steps listed below to remove
the appliance worktop

1. Remove the rear screws (1).

2. Pull the worktop behind the appliance
(2).

3. Lift the worktop and move it from the
front slots (3).

WATER CONNECTION

Water inlet hose

Connect the appliance to a cold water sup­ply.
Connect the inlet hose to a water tap with
an external BSP thread spout of 3/4”.

Inlet water supply

• Cold water pressure: 800 kPa max - 50

kPa min.

• Water flow rate 10 L / minute min.

• If cold water pressure is in excess of 800

kPa, a pressure reducing valve should be
used. Check for leaks.

Caution! Always use new hoses when
you connect the appliance to the water
mains. Old hoses must not be used.
The water inlet hose must be examined
at an interval of twelve months for
deterioration and replaced if necessary.

The water pressure must be in the limits (re­fer to 'Technical data'). Make sure that the
local water authority gives you the average
mains pressure in your area.

4. Level the appliance using the adjustable
feet.

5. Install the appliance under the kitchen
worktop. Ensure that water hoses are
not kinked or squashed.

The appliance must be easily accessible to
the technician if a repair is necessary.

Adjusting the level of the appliance

Make sure that the appliance is level to
close and seal the door correctly. If the level
of the appliance is correct, the door does
not catch on the sides of the cabinet. If the
door does not close correctly, loosen or
tighten the adjustable feet until the appli­ance is level.

Make sure that there are no kinks in the
water inlet hose and that the water inlet
hose is not squashed or entangled.
Fit the hose nut correctly to prevent water
leaks.

Caution! Do not connect the appliance
to new pipes or pipes that have been
not used for a long time. Let the water
run for some minutes, then connect the
inlet hose.

The water inlet hose is double-walled and
has an inner mains cable and a safety valve.
The water inlet hose is under pressure only
while the water is running. If there is a leak
in the water inlet hose, , the safety valve in­terrupts the running water.
Be careful when you install the water inlet
hose.

20 electrolux

Warning!

• The mains cable is in the double­walled inlet hose. Do not immerse
the water inlet hose or the safety
valve in water.

• Do not attempt to shorten the inlet
hose.

• If the water inlet hose or the safety
valve is damaged, immediately turn
off the power and remove the mains
plug from the mains socket.

• Only a qualified Service Engineer can
replace the water inlet hose with
safety valve.

Warning!

Dangerous voltage

In order to pass the safety valve
through the kitchen cabinets, an open­ing of at least 45mm x 90mm is nee­ded.

Water drain hose

The highest point of the drain hose must be
no more than 60 cm from the floor and
must have a continuous fall to the plumbing
connection.
The drain hose can be lengthened using
additional lengths and connectors. These
must be purchased from Electrolux Spare
Parts. The extension length must not ex­ceed 2 metres.
The drain hose must be free of kinks and
obstructions.
Remove the sink plug when the appliance
drains the water to prevent that the water
goes back into the appliance.

If you connect the water drain hose to a
trap spigot under the sink, remove the plas­tic membrane. If you do not remove the
membrane, remaining food can cause a
blockage in the drain hose spigot.

The appliance has a security feature to
prevent dirty water going back into the
appliance. If, the spigot of the sink has
a 'non-return valve', this valve can
cause the appliance to drain incorrect­ly. Remove the non-return valve.

Caution! Make sure that the water
couplings are tight to prevent water
leakage.
Ensure that hoses are not crushed or
kinked under or behind the appliance.

Once connected the inlet hose to the
water tap, turn the tap on and check
that there are no leaks.

ELECTRICAL CONNECTION

Warning! Safety standards require the
appliance to be earthed.
Prior to using the appliance for the first
time, ensure that the rated voltage and
type of supply on the rating plate

match that of the supply where the ap­pliance is to be installed.
The fuse rating is also to be found on
the rating plate.

electrolux 21

Always plug the mains plug onto a cor­rectly installed approved socket.
Do not use multi-ways plugs, connec­tors and extension cables. This can
constitute a fire hazard through over­heating.
If necessary, have the domestic wiring
system socket replaced. If the mains
cable has to be replaced, contact your
local Customer Care centre.
The mains plug must be accessible af­ter the appliance has been installed.

ENVIRONMENT CONCERNS

The packaging materials are environmental­ly friendly and can be recycled. The plastic
components are identified by markings, e.g.
>PE<, >PS<, etc. Discard the packaging
materials in the applicable container at the
community waste disposal facilities.

Warning! To discard the appliance,
follow the procedure:

• Pull the mains plug out of the socket.

• Cut off the mains cable and mains
plug and discard them.

• Discard the door catch. This pre­vents children closing themselves in­side the appliance and endangering
their lives.

Never unplug the appliance by pulling
on the cable. Always pull the plug.
Test the appliance. Run a quick wash­ing program and ensure that the appli­ance fills with water, washes and drains
with no leaks.
The manufacturer accepts no liability
for failure to observe the above safety
precautions.

Old appliance

Make sure that the appliance goes to the
applicable collection point for recycling.
Make sure that this appliance is discarded
correctly. Inappropriate waste discard of
the appliance causes negative consequen­ces for the environment and human health.
For more information about the recycling of
this appliance, contact your local city office,
your household waste disposal service or
the shop where you purchased the appli­ance.

WARRANTY

FOR SALES IN AUSTRALIA AND NEW
ZEALAND

This document sets out the terms and
conditions of product warranties for
Electrolux branded appliances. It is an
important document. Please keep it
with your proof of purchase documents
in a safe place for future reference
should you require service for your
Electrolux appliance. General Terms
and Conditions

1. In this warranty
– Electrolux' means Electrolux Home

Products Pty Ltd ABN 51 004 762
341 in respect of Appliances pur­chased in Australia and Electrolux
(NZ) Limited in respect of Appliances
purchased in New Zealand;

– 'Appliance' means any Electrolux

product purchased by you accompa­nied by this document;

– 'Warranty Period' means

i) where you use the Appliance for
personal, domestic or household
purposes in Australia the period of 24
months and in New Zealand the peri­od of 24 months;
ii) where you use the Appliance for
commercial purposes, in Australia
the period of 0 months and in New
Zealand the period of 0 months, (if

22 electrolux

the period stated is 0 months you are
not covered by this product warranty)
following the date of original pur­chase of the Appliance;

– 'you' means the purchaser of the Ap-

pliance not having purchased the ap­pliance for re-sale, and 'your' has a
corresponding meaning.

2. This warranty only applies to Applian­ces purchased and used in Australia or
New Zealand and is in addition to (and
does not exclude, restrict, or modify in
any way) any non-excludable statutory
warranties in Australia or New Zealand.

3. Electrolux warrants that, when dis­patched from an Electrolux warehouse,
the Appliance is free from defects in
materials and workmanship for the
Warranty Period.

4. During the Warranty Period Electrolux
or its Authorised Service Centre will, at
no extra charge if your appliance is
readily accessible without special
equipment, and subject to these terms
and conditions, repair or replace any
parts which it considers to be defective.
You agree that any replaced Applian­ces or parts become the property of
Electrolux. This warranty does not ap­ply to light globes, batteries, filters or
similar perishable parts.

5. Parts and Appliances not supplied by
Electrolux are not covered by this war­ranty.

6. Where you are within an Electrolux
service area, this warranty covers the
cost of transport of the Appliance to
and from Authorised Service Centres of
Electrolux and travelling costs for repre­sentatives of the Authorised Service
Centre to and from your home or busi­ness. If you are outside an Electrolux
service area, you will bear these costs.
For information about whether you are
within an Electrolux service area, please
phone 13 13 49 in Australia, or 0800
10 66 10 in New Zealand.

7. Proof of purchase is required before
you can make a claim under this war­ranty.

8. You may not make a claim under this
warranty unless the defect claimed is
due to faulty or defective parts or work­manship. Electrolux is not liable in the
following situations (which are not ex­haustive):
– The Appliance is damaged by

i) accident
ii) misuse or abuse, including failure
to properly maintain or service
iii) normal wear and tear
iv) power surges, electrical storm
damage or incorrect power supply
v) incomplete or improper installation
vi) incorrect, improper or inappropri­ate operation
vii) insect or vermin infestation.

– The Appliance is modified without

authority from Electrolux in writing.

– The Appliance's serial number or

warranty seal has been removed or
defaced.

– The Appliance was serviced or re-

paired by anyone other than Electro­lux or its Authorised Service Centres.

9. This warranty, the contract to which it
relates and the relationship between
you and Electrolux are governed by the
law applicable in the Australian State
where the Appliance was purchased or
the law applicable in New Zealand if the
Appliance was purchased in New Zea­land. Where the Appliance was pur­chased in New Zealand for business
purposes the Consumer Guarantee Act
does not apply.

Limitation of Liability

10. To the extent permitted by law:
– Electrolux excludes all warranties

other than as contained in this docu­ment;

– Electrolux shall not be liable for any

loss or damage whether direct or in­direct or consequential arising from
your purchase, use or non-use of the
Appliance.

electrolux 23

11. Provisions of the Trade Practices Act
and State consumer legislation in Aus­tralia, and the Consumer Guarantees
Act, the Sale of Goods Act and the Fair
Trading Act in New Zealand, imply war­ranties or conditions, or impose obliga­tions, upon Electrolux which cannot be
excluded, restricted or modified. To the
extent permitted by law, the liability of
Electrolux (if any) arising out of or in re­lation to the Appliance or any services
supplied by Electrolux shall be limited
(where it is fair and reasonable to do
so),:
– in the case of Appliances, at its op-

tion, to the replacement or repair of
the Appliances or the supply of
equivalent products or the payment
of the cost of replacing the Applian­ces or having the Appliances re­paired or of acquiring equivalent Ap­pliances. Upon being replaced, parts
and Appliances become the property
of Electrolux; or

FOR SERVICE

OR TO FIND THE ADDRESS
OF YOUR NEAREST STATE
SERVICE CENTRE IN AUS­TRALIA

Please call 13 13 4 9

For the cost of a local call (Australia on-

ly)

FOR SERVICE

OR TO FIND THE ADDRESS
OF YOUR NEAREST AUTHOR­ISED SERVICE CENTRE IN
NEW ZEALAND

Free call 0800 10 66 10

(New Zealand only)

SERVICE AUSTRALIA

ELECTROLUX HOME
PRODUCTS

SERVICE NEW ZEALAND

ELECTROLUX HOME
PRODUCTS

– in the case of services, at its option,

to the supply of the services again or
the payment of the cost of having the

services re-supplied;
and in the case of Appliances or serv­ices supplied in New Zealand, loss or
damage whether direct or indirect or
consequential that is reasonably fore­seeable.

Privacy

You acknowledge that in the event that you
make a warranty claim it will be necessary
for Electrolux and its Authorised Service
Centres to exchange information in relation
to you to enable Electrolux to meet its obli­gations under this warranty.

Important Notice

Before Calling a Service Technician please
check carefully the operating instructions,
service booklet and the warranty terms and
conditions.

FOR SPARE PARTS

OR TO FIND THE ADDRESS
OF YOUR NEAREST STATE
SPARE PARTS CENTRE IN
AUSTRALIA

Please call 13 13 50

For the cost of a local call (Australia on-

ly)

FOR SPARE PARTS

OR TO FIND THE ADDRESS
OF YOUR NEAREST SPARE
PARTS CENTRE IN NEW ZEA­LAND

Free call 0800 10 66 20

(New Zealand only)

www.electrolux.com/shop

117960632-B-422010
