Page 1
user manual
Dishwasher
ESF65010
Page 2
2 electrolux
Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com
Contents
Safety information ................................... 2
Product description ................................ 3
Control panel .......................................... 4
First use ................................................. 5
Set the water softener ............................ 5
Use of dishwasher salt ............................ 6
Use of rinse aid ....................................... 7
Daily use ................................................. 8

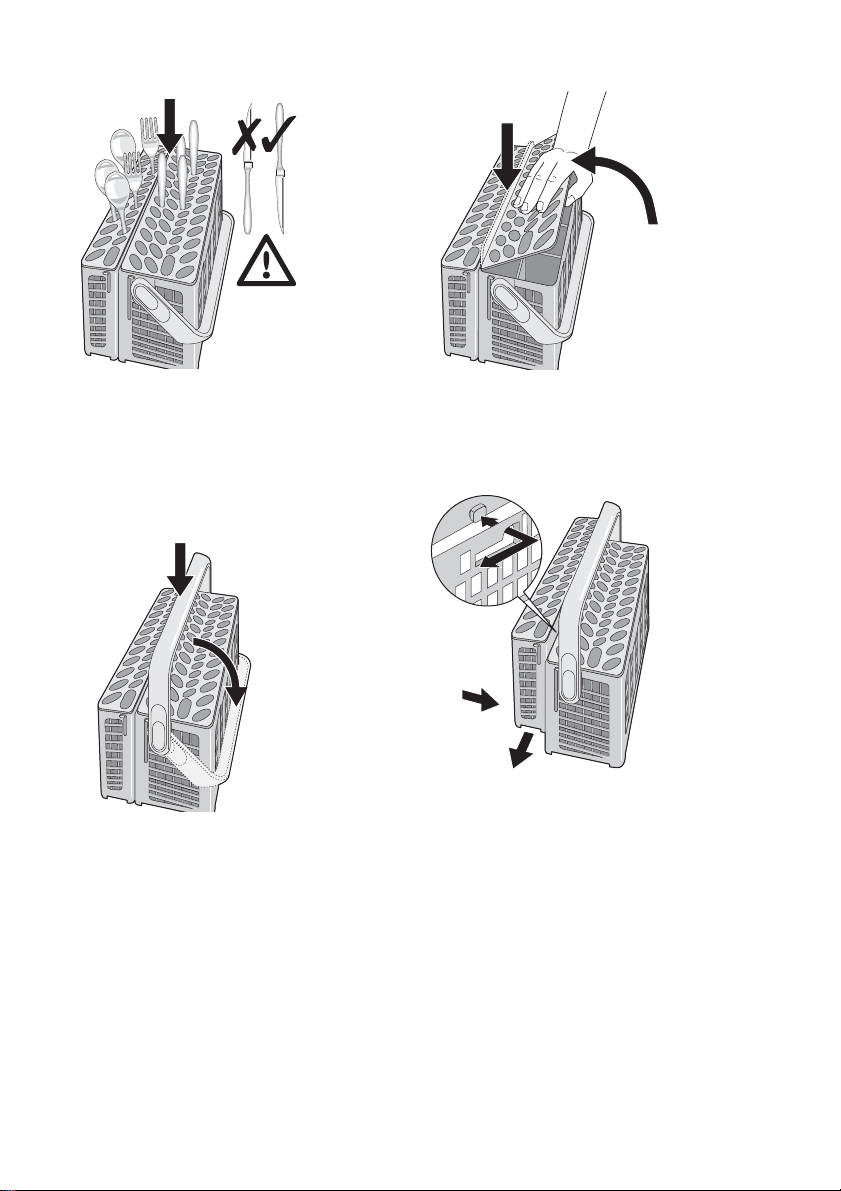

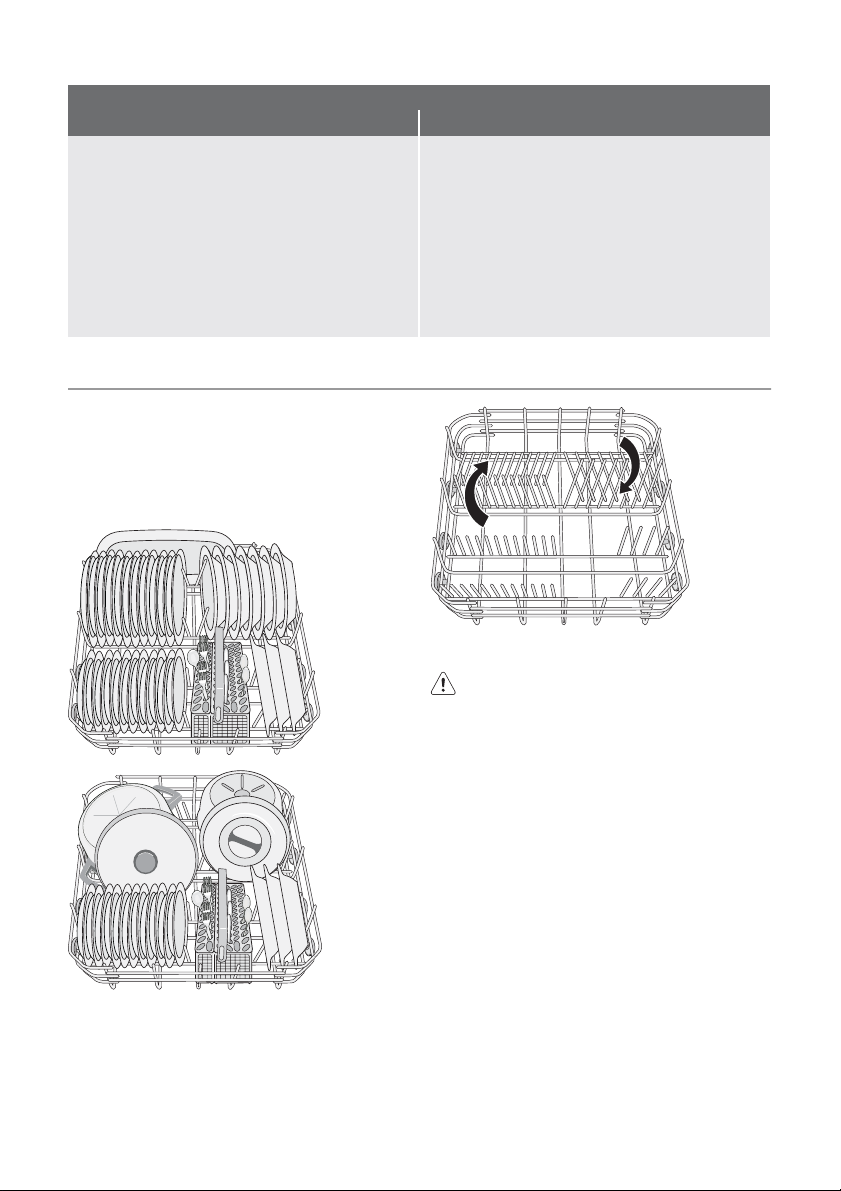

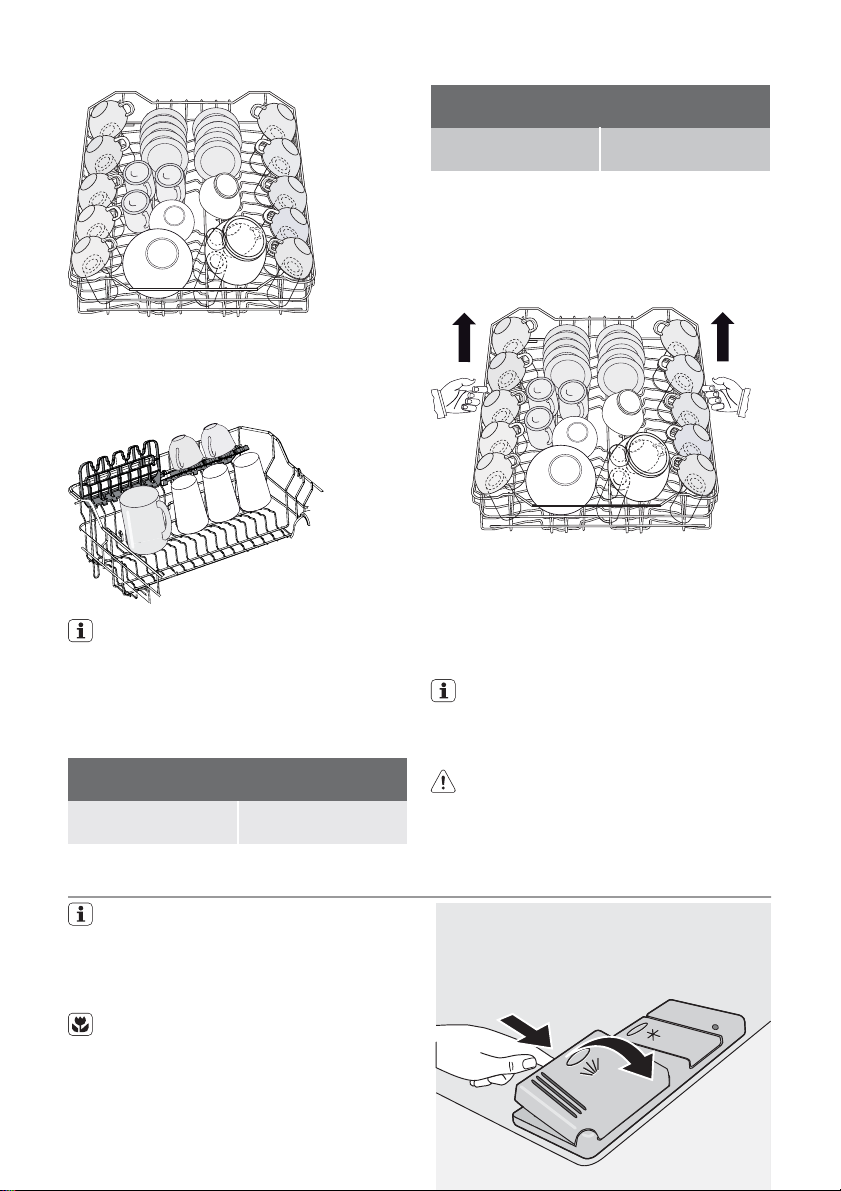

Load cutlery and dishes .......................... 9

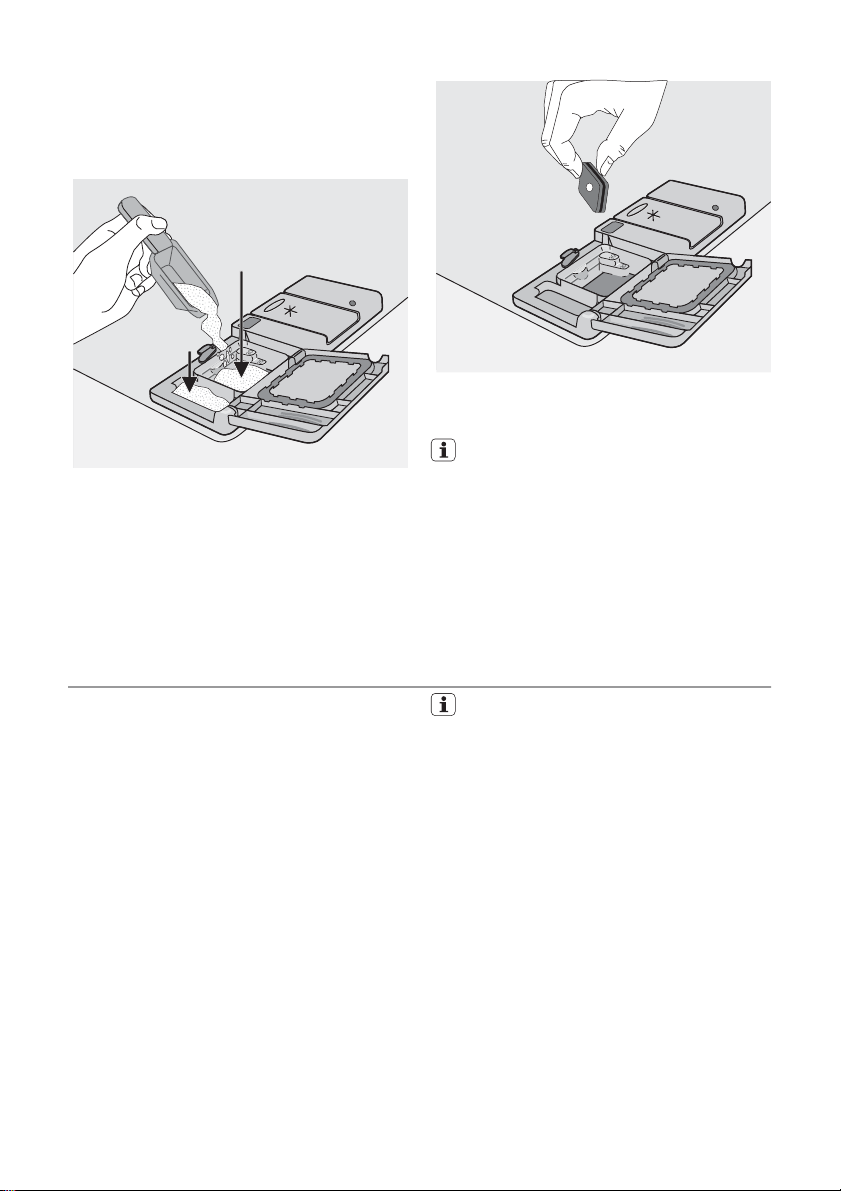

Use of detergent ................................... 11
Multi-tab function .................................. 12
Subject to change without notice
Select and start a washing programme 13
Unloading the dishwasher .................... 14
Washing programmes .......................... 14

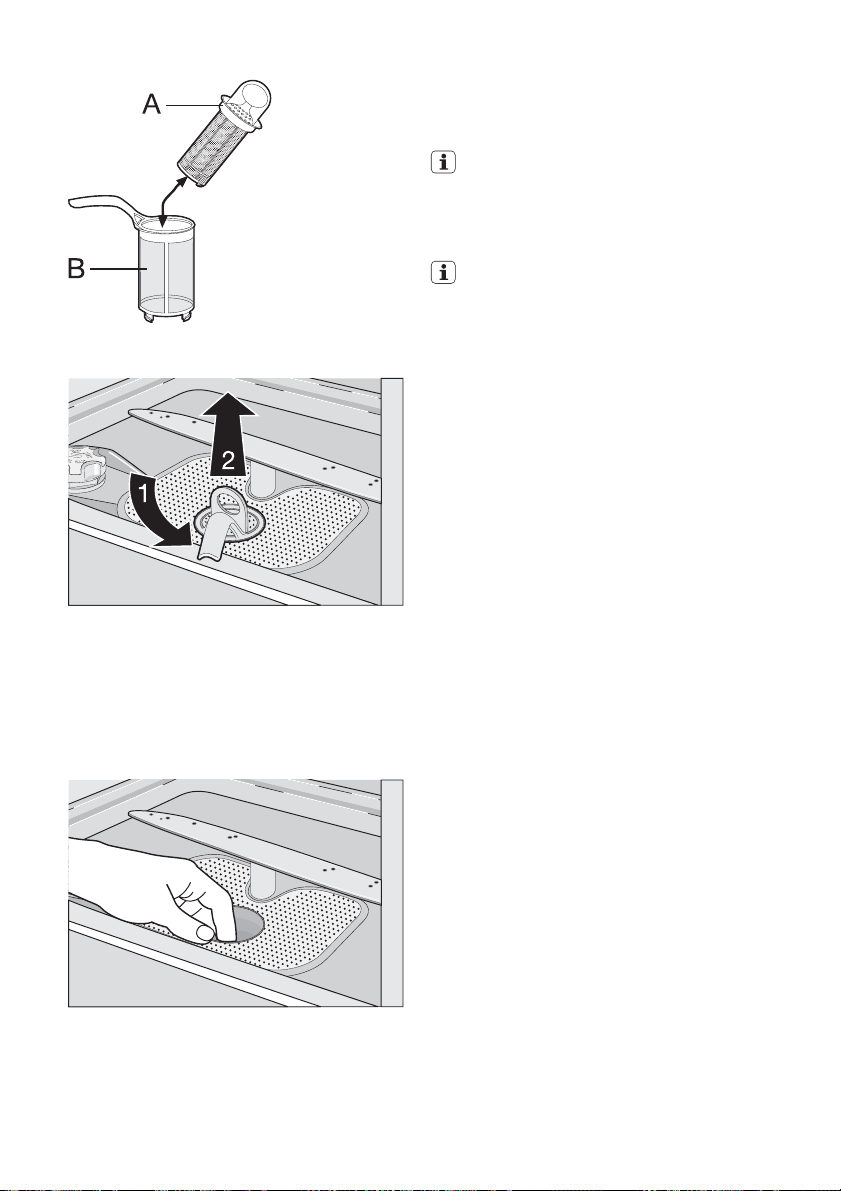

Care and cleaning ................................ 15
What to do if… ..................................... 17
Technical data ...................................... 18
Hints for test institutes .......................... 18

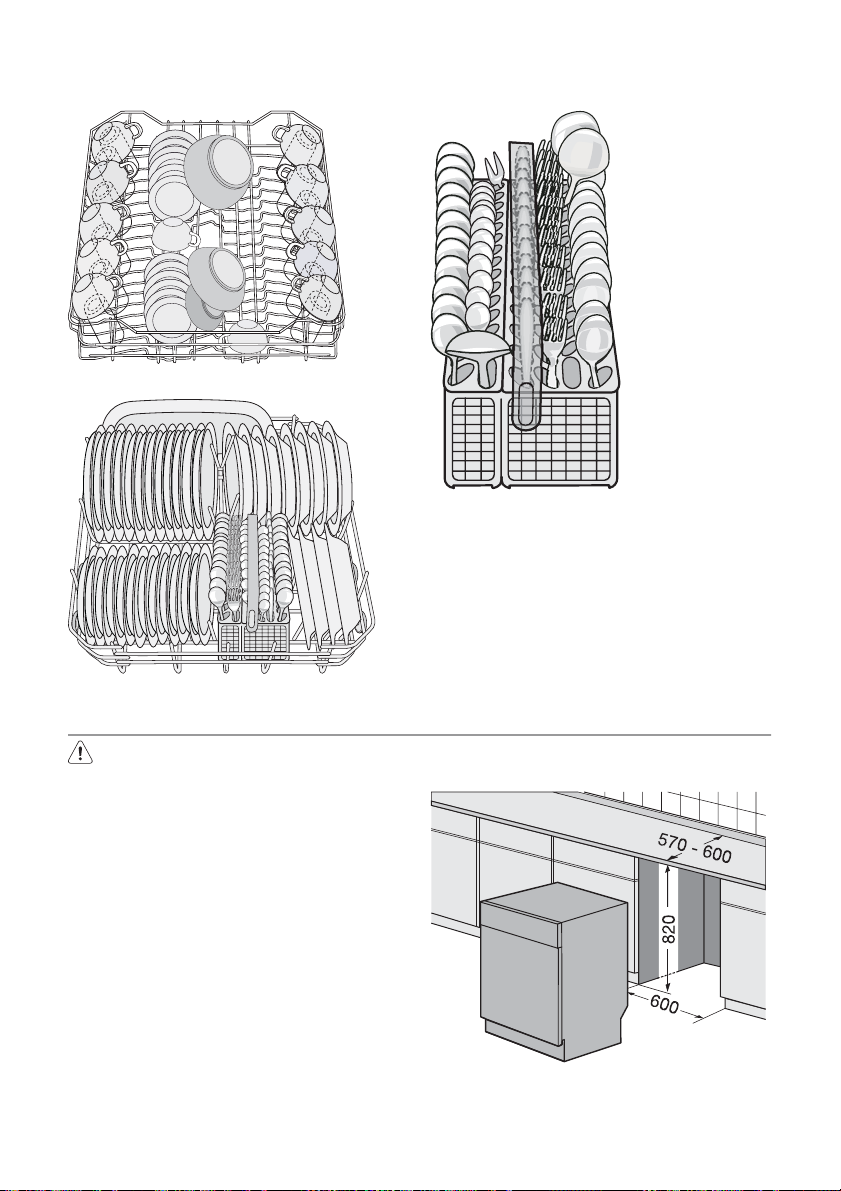

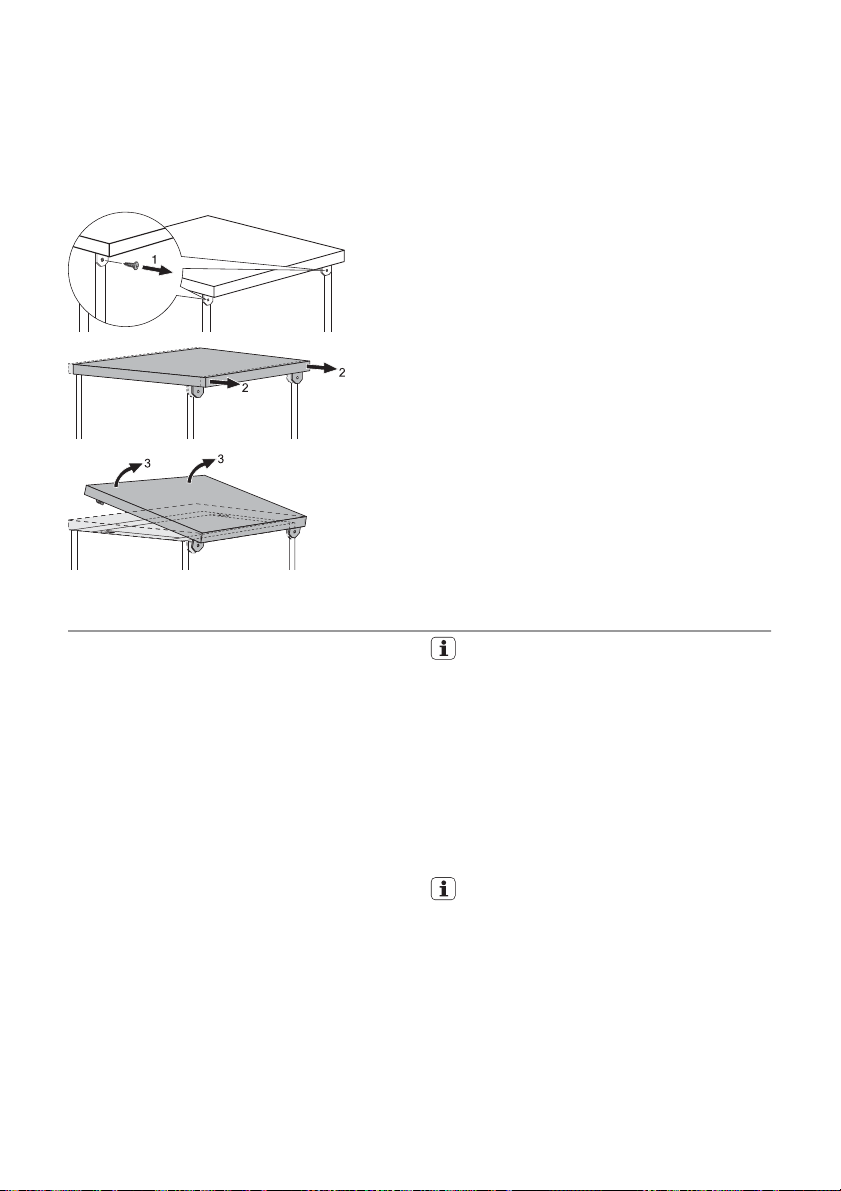

Installation ............................................ 19

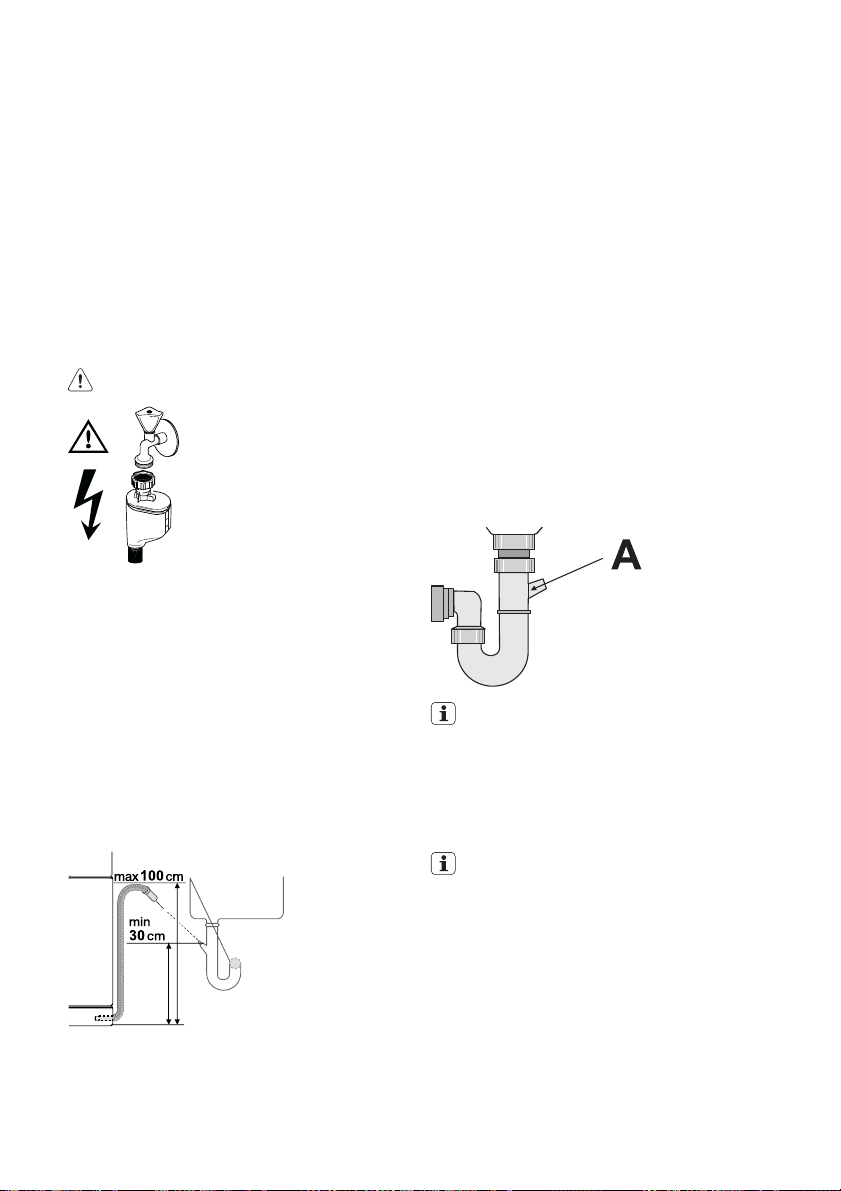

Water connection ................................. 20
Electrical connection ............................. 22
Environment concerns .......................... 22
Safety information
In the interest of your safety and to ensure the correct use, before installing
and first using the appliance, read this
user manual carefully, including its hints
and warnings. To avoid unnecessary
mistakes and accidents, it is important
to ensure that all people using the appliance are thoroughly familiar with its
operation and safety features. Save
these instructions and make sure that
they remain with the appliance if it is
moved or sold, so that everyone using it
through its life will be properly informed
on appliance use and safety.
Correct use
• This dishwasher is only intended for washing household utensils suitable for machine washing.
• Do not put any solvents in the dishwasher.
This could cause an explosion.
• Knives and other items with sharp points
must be loaded in the cutlery basket with
their points down or placed in a horizontal
position in the upper basket.
• Only use products (detergent, salt and
rinse aid) suitable for dishwashers.
• Avoid opening the door whilst the appliance is in operation, hot steam may escape.
• Do not take any dishes out of the
dishwasher before the end of the washing
cycle.
• After use, isolate the appliance from the
power supply and turn off the water supply.
• This product should be serviced only by an
authorized service engineer, and only
genuine spare parts should be used.
• Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons
could cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine spare parts.
General safety
• Dishwasher detergents can cause chemical burns to eyes, mouth and throat. Could
endanger life! Comply with the safety instructions of the dishwasher detergent
manufacturer.
• The water in your dishwasher is not for
drinking. Detergent residues may still be
present in your machine.
• Ensure that the door of the dishwasher is
always closed when it is not being loaded
or unloaded. In this way you will avoid anybody tripping over the open door and hurting themselves.
• Do not sit or stand on the open door.
Page 3
electrolux 3
Child safety
• This appliance is designed to be operated
by adults. Do not allow children to use the
dishwasher unsupervised.
• Keep all packaging well away from children. There is a risk of suffocation.
• Keep all detergents in a safe place out of
children’s reach.
• Keep children well away from the
dishwasher when the door is open.
Installation
• Check your dishwasher for any transport
damage. Never connect a damaged machine. If your dishwasher is damaged contact your supplier.
• All packaging must be removed before
use.
• Any electrical and plumbing work required
to install this appliance must be carried out
by a qualified and competent person.
Product description
• For safety reasons it is dangerous to alter
the specifications or attempt to modify this
product in any way.
• Never use the dishwasher if the electrical
supply cable and water hoses are damaged; or if the control panel, work top or
plinth area are damaged such that the inside of the appliance is freely accessible.
Contact your local Service Force centre, in
order to avoid hazard.
• All sides of the dishwasher must never be
drilled to prevent damage to hydraulic and
electric components.
Warning! For electrical and water
connection carefully follow the
instructions given in the specific
paragraphs.
1 Upper basket
2 Water hardness dial
3 Salt container
4 Detergent dispenser
5 Rinse aid dispenser
6 Rating plate
7 Filters
8 Lower spray arm
9 Upper spray arm
10 Worktop
Page 4
4 electrolux
Control panel
E
D
6
1. On/Off button
2. Programme selection buttons
3. Delay start button
4. Indicator lights
5. Digital display
6. Function buttons
Indicator lights
Programme in progress Comes on when a washing programme is set and
End Comes on when a washing programme has
Multitab function Indicates the activation/deactivation of the 'Multi-
Salt
1)
remains on for all the duration of the washing programme.
Goes off when the washing programme has
ended.
ended. It also has added functions of visual signalling as:
– the setting of the water softener,
– activation/deactivation of the rinse aid
dispenser,
– intervention of an alarm due to the malfunction
of the machine.
tab function' ( refer to 'Multitab function' ).
Comes on when the special salt has run out.
Page 5
electrolux 5
Indicator lights
Rinse aid
1)
1) The salt and rinse aid indicator lights are never on while a washing programme is running even if filling
with salt and/or rinse aid is necessary.
The digital display
The digital display indicates:
• the countdown for the delay start,
• if the appliance is in setting mode,
• if a washing programme is set.
Function buttons
The following functions can be set using
these buttons:
• setting the water softener level,
• cancelling a washing programme or a de-
lay start in progress,
• activation/deactivation of the Multitab
function,
• activation/deactivation of the rinse aid
dispenser when Multitab function is active.
Setting mode
Press the On/Off button. If ALL programme
button lights come on and the digital display
shows 3 horizontal bars, the appliance is in
setting mode.
Comes on when the rinse aid has run out.
Always remember that when performing
the following operations:
– selecting a washing programme,
– setting the water softener level,
– activating/deactivating the rinse aid,
the appliance MUST be in setting mode.
Press the On/Off button. If a programme button light comes on and the digital display
shows 1 horizontal bar, the last performed or
selected programme is still set. In this case,
to return to setting mode, the programme
has to be cancelled.
To cancel a set programme or a
programme in progress
Simultaneously press and hold the two function buttons B and C until all the programme
button lights come on and the digital display
shows 3 horizontal bars. The programme
has been cancelled and the machine is now
in setting mode.
First use
Before using your dishwasher for the first
time:
• Ensure that the electrical and water con-
nections comply with the installation instructions
• Remove all packaging from inside the ap-
pliance
• Set the water softener level
Set the water softener
The dishwasher is equipped with a water
softener designed to remove minerals and
salts from the water supply, which would
have a detrimental or adverse effect on the
operation of the appliance.
The higher the content of these minerals and
salts, the harder your water is. Water hardness is measured in equivalent scales, German degrees (dH°), French degrees (°TH)
and mmol/l (millimol per litre - international
unit for the hardness of water).
• Pour 1 litre of water into the salt container
and then fill with dishwasher salt
• Fill the rinse aid dispenser
If you want to use combi detergent
tablets such as: ''3 in 1'', ''4 in 1'', ''5
in 1'' etc... set the Multitab function.
(See ''Multitab function'').
The softener should be adjusted according
to the hardness of the water in your area.
Your local Water Authority can advise you on
the hardness of the water in your area.
The water softener must be set in two
ways: manually, using the water hardness dial and electronically.
Page 6
6 electrolux
Water hardness Adjusting the water hardness setting Use of
°dH °TH mmol/l manually electronically
51 - 70 91 - 125 9,1 - 12,5 2 level 10 yes
43 - 50 76 - 90 7,6 - 9,0 2 level 9 yes
37 - 42 65 - 75 6,5 - 7,5 2 level 8 yes
29 - 36 51 - 64 5,1 - 6,4 2 level 7 yes
23 - 28 40 - 50 4,0 - 5,0 2 level 6 yes
19 - 22 33 - 39 3,3 - 3,9 2 level 5 yes
15 - 18 26 - 32 2,6 - 3,2 1 level 4 yes
11 - 14 19 - 25 1,9 - 2,5 1 level 3 yes
4 - 10 7 - 18 0,7 - 1,8 1 level 2 yes
< 4 < 7 < 0,7 1 level 1 no
3.
Setting manually
The dishwasher is factory set at position
2.
1. Open the dishwasher door.
2. Remove the lower basket from the
dishwasher.
3. Turn the water hardness dial to position
1 or 2 (see chart).
4. Replace the lower basket.
Press function button A, the lights of
function buttons B and C go off while the
light of function button A continues to
flash, at the same the End indicator light
starts to flash.
The current level is indicated by the number of flashes of the End indicator light.
Examples:
5 flashes, pause, 5 flashes, pause, etc...
= level 5
6 flashes, pause, 6 flashes, pause, etc...
= level 6
4. To change the level, press function but-
ton A. Each time the button is pressed
the level changes. (For the selection of the
new level see the chart)..
Examples: If the current level is 5, by
pressing function button A once, level 6
is selected. if the current level is 10, by
pressing function button A once, level 1
Setting electronically
The dishwasher is factory set at level 5.
is selected.
5. To memorize the operation, switch off the
dishwasher by pressing the On/Off button.
1. Press the On/Off button. The dishwasher
must be in setting mode.
2. Simultaneously press and hold function
buttons B and C, until the lights of function buttons A, B and C start flashing.
salt
Use of dishwasher salt
Warning!
Only use salt specifically designed for use in
dishwashers. All other types of salt not
specifically designed for use in a dishwasher,
especially table salt, will damage the water
softener. Only fill with salt just before starting
one of the complete washing programmes.
This will prevent any grains of salt or salty
water, which may have been spilt, remaining
on the bottom of the machine for any period
of time, which may cause corrosion.
Page 7
electrolux 7
To fill:
1. Open the door, remove the lower basket
and unscrew the cap of the salt container
by turning it anticlockwise.
2. Pour 1 litre of water into the container
(this is necessary only before filling
with salt for the first time) .
3. Using the funnel provided, pour in the salt
until the container is full.
Use of rinse aid
Warning! Only use branded rinse aid for
dishwashers.
Never fill the rinse aid dispenser with any
other substances (e.g. dishwasher
cleaning agent, liquid detergent). This
would damage the appliance.
Rinse aid ensures thorough rinsing, and
spot and streak free drying.
Rinse aid is automatically added during
the last rinse.
1. Open the container by pressing the release button (A).
4. Replace the cap making sure that there
is no trace of salt on the screw thread or
on the gasket.
5. Replace the cap tightly turning it clockwise until it stops with a click.
Do not worry if water overflows from the
unit when filling with salt, this is quite
normal.
The salt indicator light on the control
panel can remain illuminated for 2-6
hours after the salt has been
replenished, assuming the
dishwasher remains switched on. If
you are using salt that takes longer
to dissolve then this can take longer.
The operation of the machine is not
affected.
2. Add the rinse aid in the container. The
maximum level for filling is indicated by
"max".
Page 8
8 electrolux
The dispenser holds about 110 ml of rinse
aid, which is sufficient for between 16 and
40 washing cycles, depending upon the
dosage setting.
3. Ensure that the lid is closed after every
refill.
Clean up any rinse aid spilt during filling
with an absorbent cloth to avoid excess
foaming during the next wash.
According to the finish and drying results obtained, adjust the dose of rinse aid by means
of the 6 position selector (position 1 minimum
dosage, position 6 maximum dosage).
The dose is factory set in position 4.
Increase the dose if there are drops of water
or lime spots on the dishes after washing.
Reduce it if there are sticky whitish streaks
on the dishes or a bluish film on glassware or
knife blades.
Daily use
• Check if it’s necessary to refill with
dishwasher salt or rinse aid.
• Load cutlery and dishes into the
dishwasher.
• Fill with dishwasher detergent.
• Select a wash programme suitable for the
cutlery and dishes.
• Start the wash programme.
Helpful hints and tips
Sponges, household cloths and any object
that can absorb water may not be washed in
the dishwasher.
• Before loading the dishes, you should:
– Remove all left over food and debris.
– Soften remnants of burnt food in pans
• When loading the dishes and cutlery,
please note:
– Dishes and cutlery must not impede the
rotation of the spray arms.
– Load hollow items such as cups,
glasses, pans, etc. with the opening
downwards so that water cannot collect
in the container or a deep base.
– Dishes and items of cutlery must not lie
inside one another, or cover each other.
– To avoid damage to glasses, they must
not touch.
– Lay small objects in the cutlery basket.
• Plastic items and pans with non stick coatings have a tendency to retain water
drops; these items will not dry as well as
porcelain and steel items.
• Light items (plastic bowls etc.) must be
loaded in the upper basket and arranged
so they do not move.
Page 9
For washing in the dishwasher the following cutlery and dishes
are not suitable: are of limited suitability:
• Cutlery with wooden, horn, china or mother-ofpearls handles.
• Plastic items that are not heat resistant.
• Older cutlery with glued parts that are not
temperature resistant.
• Bonded cutlery items or dishes.
• Pewter or copper items.
• Lead crystal glass.
• Steel items prone to rusting.
• Wooden platters.
• Items made from synthetics fibres.
Load cutlery and dishes
The lower basket
The lower basket is designed to take saucepan, lids, plates, salad bowls, cutlery etc.
Service dishes and large lids should be arranged around the edge of the basket, ensuring that the spray arms can turn freely.
electrolux 9
• Only wash stoneware in the dishwasher if it is
specially marked as being dishwasher-safe by
the manufacturer.
• Glazed patterns may fade if machine washed
frequently.
• Silver and aluminium parts have a tendency to
discolour during washing: Residues, e.g. egg
white, egg yolk and mustard often cause discolouring and staining on silver. Therefore always clean left-overs from silver immediately, if
it is not to be washed straight after use.
The rows of prongs in the lower basket can
lie flat to allow you to load pots, pans and
bowls.
The cutlery basket
Long bladed knives stored in an upright
position are a potential hazard. Long
and/or sharp items of cutlery such as
carving knives must be positioned
horizontally in the upper basket. Take
care when loading or unloading sharp
items such as knives.
Forks and spoons should be placed in the
removable cutlery basket with the handles
facing downwards and the knives with their
handles facing upwards.
Page 10
10 electrolux
If the handles protrude from the bottom of the
basket, obstructing the lower spray arm, load
the cutlery with the handles facing upwards.
Mix spoons with other cutlery to prevent
them from sticking together.
To make loading of the cutlery basket easier,
lower the cutlery basket handle.
For best results we recommend that you use
the cutlery grids.
If the size and dimensions of the cutlery do
not allow the use of the grids, they can be
easily hidden.
The cutlery basket is in two parts which can
be separated to give greater loading
flexibility. To separate the two parts, slide
them horizontally in opposite directions and
pull them apart.
To reassemble, reverse the procedure.
The upper basket
The upper basket is designed for saucers,
salad bowls, cups, glasses, pots and lids.
Arrange items on and underneath the cup
racks so that water can reach all surfaces.
Page 11
electrolux 11
Glasses with long stems can be placed upside down in the cup racks.
For taller items, the cup racks can be folded
upwards.
Before closing the door, ensured that
the spray arms can rotate freely.
Adjusting the height of the upper basket
If washing very large plates you can load
them in the lower basket after moving the
upper basket to the higher position.
Maximum height of the dishes in the lower
With upper basket
raised
basket
31 cm
Maximum height of the dishes in the lower
With upper basket
lowered
basket
27 cm
To move to the higher position proceed
as follows:
1. Pull out the basket until it stops.
2. Carefully lift both sides upwards until the
mechanism is engaged and the basket is
stable.
To lower the basket to the original position proceed as follows:
1. Pull out the basket until it stops.
2. Carefully lift both sides upwards and then
allow the mechanism to drop back down
slowly, keeping hold of it.
Never lift or lower the basket on one side
only
When the basket is in the higher position
you will not be able to use the cup racks.
After loading your machine always
close the door, as an open door can
be a hazard.
Use of detergent
Only use detergents specifically designed for use in dishwashers.
Please observe the manufacturer’s dosing and storage recommendations as
stated on the detergent packaging.
Using no more than the correct amount
of detergent contributes to reducing pollution.
Fill with detergent
1. Open the lid.
Page 12
12 electrolux
2. Fill the detergent dispenser (1) with detergent. The marking indicates the dosing
levels:
20 = approximately 20 g of detergent
30 = approximately 30 g of detergent.
1
2
3. All programmes with prewash need an
additional detergent dose (5/10 g) that
must be placed in the prewash detergent
chamber (2).
This detergent will be used during the
prewash phase.
When using detergent tablets; place the
tablet in compartment (1)
4. Close the lid and press until it locks in
place.
Detergent tablets from different manufacturers dissolve at different rates. For
this reason, some detergent tablets do
not attain their full cleaning power during
short washing programmes. Therefore,
please use long washing programmes
when using detergent tablets, to ensure
the complete removal of detergent
residuals.
Multi-tab function
This appliance is equipped with the "Multitab
function", that allows the use of the "Multitab"
combi detergent tablets.
These products are detergents with a combined cleaning, rinsing and salt functions.
They can also contain other different agents
depending on which kind of tablets you
choose ("3 in 1", "4 in 1", "5 in 1" etc...).
Check whether these detergents are suitable
for your water hardness. See the manufacturers instructions.
Once this function is selected it will remain
active for all following wash programmes.
With the selection of this function the inflow
of rinse aid and salt from each respective
supply container is automatically deactivated
and also the indicator lights for salt and rinse
aid are deactivated.
When using the "Multitab function", the cycle
durations may change.
Activate/deactivate the ''Multitab function'' before the start of a washing programme.
Once the programme is running, the
"Multitab function " can NO longer be
changed. If you want to cancel the
"Multitab function " you have to cancel
the programme setting and then deactivate the ''Multitab function''. In this case
you have to set a washing programme
(and desired options) again.
Activation/deactivation of the Multitab
function
Simultaneously press and hold the two Multitab buttons (function buttons D and E) until
the Multitab indicator light comes on. This
means that the function is active.
To deactivate the function press the same
buttons again until the indicator light corresponding to the Multitab function symbol
goes off.
Page 13
electrolux 13
If the drying results are not
satisfactory we suggest that you:
1. Fill up the rinse aid dispenser with
rinse aid.
2. Activate the rinse aid dispenser.
3. Set the rinse aid dosage to position
2.
• The activation/deactivation of the
rinse aid is only possible with the Multitab function active.
Activation/deactivation of the rinse aid
dispenser
1. Press the On/Off button. The dishwasher
must be in setting mode.
2. Simultaneously press and hold function
buttons B and C, until the lights of function buttons A , B, and C start flashing.
3. Press function button B, the lights of
function buttons A and C go off while the
light of function button B continues to
flash.
4. To activate the rinse aid dispenser, press
button B again, the End indicator light
5. To memorize the operation, switch off the
6. To deactivate the rinse aid dispenser
Select and start a washing programme
Select the washing programme and
delay start with the door slightly
opened. The start of the programme
or the countdown of the delay start
will occur only after the closure of
the door. Until then it is possible to
modify the settings
1. Check that the baskets have been loaded
correctly and that the spray arms are free
to rotate.
2. Check that the water tap is opened.
3. Press the On/Off button. The dishwasher
must be in setting mode.
4. Press the button corresponding to the required programme (refer to 'Washing
programmes' chart).
When a programme has been selected
the corresponding light comes on.
The digital display shows 3 horizontal
bars.
The programme in progress indicator
light comes on.
Close the dishwasher door, the programme starts automatically.
The programme in progress indicator
light remains on.
Setting and starting the programme with
delay start
1. After having selected the washing pro-
2. Close the dishwasher door, the count-
3. The countdown will decrease in steps of
4. Opening the door will interrupt the count-
5. Once the delay start has elapsed the pro-
comes on, indicating that the rinse aid
dispenser has been activated.
dishwasher by pressing the On/Off button.
again, follow the above instructions until
the End indicator light goes off.
If you decide to revert back to the
use of individual detergents we advise that you:
1. Deactivate the Multi-tab function.
2. Fill up the salt container and the rinse
aid dispenser again.
3. Adjust the water hardness setting to
the highest setting and perform 1
normal washing programme without
loading any dishes.
4. Adjust the water hardness setting
according to the hardness of the water in your area.
5. Adjust the rinse aid dosage.
The digital display shows only 1 horizontal bar and will remain on for all the duration of the washing programme.
gramme, press the delay start button until
the digital display shows the flashing
number of hours for the delay start. The
start of the selected washing programme
can be delayed for between 1 and 9
hours.
down starts automatically. The number in
the display is no longer flashing but fixed
with static light.
1 hour.
down. Close the door; the countdown will
continue from the point at which it was
interrupted.
gramme will start automatically.
Page 14
14 electrolux
With the delay start function set, the
programme in progress indicator light
is off. Once the countdown of the delay
start has elapsed, the washing programme will start automatically and the
programme in progress indicator light
will come on.
The selection of the washing programme and delay start can also occur
with the door closed. Keep in mind that
in this way, once a washing programme
button is pressed you have ONLY 3
seconds in which you can choose
another programme or select a delay
start, after which the selected programme will start automatically.
Warning! Interrupt or cancel a
washing programme in progress
ONLY if it's absolutely necessary.
Attention! Hot steam may escape
when the door is opened. Open the
door carefully.
Interrupt a washing programme in
progress
• Open the dishwasher door; the programme will stop. Close the door; the programme will start from the point at which
it was interrupted.
• Press the On/Off, all lights will go off. Press
the On/Off button again; the programme
will start from the point at which it was interrupted.
Cancel a delay start or a washing
programme in progress
• Simultaneously press and hold the two
function buttons B and C until all the programme lights come on and the digital
display shows 3 horizontal bars.
• Cancelling a delay start will also cancel a
washing programme. You have to select
the washing programme again.
• If a new washing programme is to be selected, check that there is detergent in the
detergent dispenser.
End of the washing programme
• The dishwasher will automatically stop and
the programme in progress indicator
light goes off.
•The End indicator light comes on.
• The light of the programme just ended will
remain on.
• The digital display goes off.
1. Switch off the dishwasher by pressing the
On/Off button.
2. Open the dishwasher door, leave it ajar
and wait a few minutes before removing
the dishes; this way they will be cooler
and the drying will be improved.
Unloading the dishwasher
• Hot dishes are sensitive to knocks. The
dishes should therefore be allowed to cool
down before removing from the appliance.
• Empty the lower basket first and then the
upper one; this will avoid water dripping
from the upper basket onto the dishes in
the lower one.
• Water may appear on the sides and the
door of the dishwasher as the stainless
steel will eventually become cooler than
the dishes.
When the washing programme has
finished, it is recommended that the
dishwasher is unplugged and the
water tap turned off.
Washing programmes
Washing programmes
Programme Degree of soil Type of load Programme description
Prewash
Main wash
2 intermediate rinses
Final rinse
Drying
Intensive
Heavy soil
Crockery, cutlery,
pots and pans
Page 15
electrolux 15
Programme Degree of soil Type of load Programme description
Prewash
1)
Auto
2)
Quick
3)
Eco
Rinse
1) During the 'Auto' washing programme the level of soiling on the dishes is determined by how cloudy
the water is. The programme duration, water and energy consumption levels can vary; this depends
upon whether the appliance is fully or partially loaded and if the dishes are lightly or heavily soiled. The
temperature of the water is automatically adjusted between 45° C and 70° C.
2) Ideal for washing a partially loaded dishwasher. This is the perfect daily programme, made to meet
the needs of a family of 4 persons who only wish to load breakfast and dinner crockery and cutlery.
3) Test programme for test institutes
Any
Normal or light
soil
Normal soil
Any
Crockery, cutlery,
pots and pans
Crockery and
cutlery
Crockery and
cutlery
Partial load (to be
completed later in
the day).
Main wash
1 or 2 intermediate rinses
Final rinse
Drying
Main wash
Final rinse
Prewash
Main wash
1 intermediate rinse
Final rinse
Drying
1 cold rinse (to avoid food scraps from
sticking).
This programme does not require the use
of detergent.
Consumption values
Programme Programme duration
Intensive 110 - 120 1,8 - 2,0 23 - 25
Auto 90 - 130 1,1 - 1,7 12 - 23
Quick 30 0,9 9
1)
Eco
Rinse 12 0,1 4
1) Test programme for test institutes
(in minutes)
150 - 160 1,0 - 1,1 12 - 13
Energy consumption
(in kWh)
Water consumption
(in litres)
The consumption values are intended as
a guide and depends on the pressure
and the temperature of the water and
also by the variations of the power supply and the amount of dishes.
Care and cleaning
Cleaning the filters
The filters must be checked and cleaned
from time to time. Dirty filters will degrade the
washing result.
Warning! Before cleaning the filters
ensure that the machine is switched off.
1. Open the door, remove the lower basket.
2. The dishwasher filter system comprises a
coarse filter (A), a microfilter (B) and a flat
filter. Unlock the filter system using the
handle on the microfilter.
Page 16
16 electrolux
3. Turn the handle about 1/4 a turn anti-
clockwise and remove the filter system
4. Take hold of the coarse filter (A) by the
handle with the hole and remove from the
microfilter (B).
5. Clean all filters thoroughly under running
water.
6. Remove the flat filter from the base of the
washing compartment and clean both
faces thoroughly.
7. Put the flat filter back in the base of the
washing compartment and ensure that it
fits perfectly.
8.
Place the coarse filter (A) in the microfilter
(B) and press together.
9. Put the filter combination in place and
lock by turning the handle clockwise to
the stop. During this process ensure that
the flat filter does not protrude above the
base of the washing compartment.
NEVER use the dishwasher without filters. Incorrect repositioning and fitting of
the filters will produce poor washing results and will result in damage to the
appliance
NEVER try to remove the spray
arms.
If residues of soil have clogged the holes
in the spray arms, remove the debris
with a cocktail stick.
External cleaning
Clean the external surfaces of the machine
and control panel with a damp soft cloth. If
necessary use only neutral detergents. Never
use abrasive products, scouring pads or solvent (acetone, trichloroethylene etc...).
Internal cleaning
Ensure that the seals around the door, the
detergent and rinse aid dispensers are
cleaned regularly with a damp cloth.
We recommend every 3 months you run the
wash programme for heavy soiled dishes using detergent but without dishes.
Prolonged periods of non-operation
If you are not using the machine for a prolonged period of time you are advised to:
1. Unplug the appliance and then turn off
the water.
2. Leave the door ajar to prevent the formation of any unpleasant smells.
3. Leave the inside of the machine clean.
Frost precautions
Avoid placing the machine in a location
where the temperature is below 0°C. If this is
unavoidable, empty the machine, close the
appliance door, disconnect the water inlet
pipe and empty it.
Moving the machine
If you have to move the machine (moving
house etc...):
1. Unplug it.
2. Turn the water tap off.
3. Remove the water inlet and discharge
hoses.
4. Pull the machine out together with the
hoses.
Page 17
electrolux 17
Avoid over tilting the machine during transportation.
What to do if…
The dishwasher will not start or stops during
operation.
Certain problems can be due to the lack of
simple maintenance or oversights, which can
be solved with the help of the hints described
in the chart, without calling out an engineer.
Fault codes and malfunction Possible cause and solution
• continuous flashing of the light of the running
programme
•
1 flash of the End indicator light
The dishwasher does not fill with water
• continuous flashing of the light of the running
programme
•
2 flashes of the End indicator light
The dishwasher will not drain
• continuous flashing of the light of the running
programme
• 3 flashes of the End indicator light
Anti-flood device is activated
Malfunction Possible cause and solution
The programme does not start • The dishwasher door has not been properly
Once these checks have been carried out
switch on the appliance.
The programme will continue from the point
at which it was interrupted.
If the malfunction or fault code reappears
contact your local Service Force Centre.
For other fault codes not described in the
above chart, please contact your local Service Force Centre.
Switch off the dishwasher, open the door
and carry out the following suggested corrective actions.
• The water tap is blocked or furred with limescale.
Clean the water tap.
• The water tap is turned off.
Turn the water tap on.
• The filter (where present) in the water inlet hose
is blocked.
Clean the filter.
• The water inlet hose has not been correctly laid
or it is kinked or squashed.
Check the water inlet hose connection.
• The sink spigot is blocked.
Clean out the sink spigot.
• The water drain hose has not been correctly laid
or it is kinked or squashed.
Check the water drain hose connection.
• Close the water tap and contact your local
Service Force Centre.
closed.
Close the door.
• The main plug is not plugged in.
Insert the main plug
• The fuse has blown out in the household fuse
box.
Replace the fuse.
• Delay start has been set.
If dishes are to be washed immediately, cancel
the delay start.
Contact your local Service Force Centre,
quoting the model (Mod.), product number
(PNC) and serial number (S.N.).
This information can be found on the rating
plate located on the side of the dishwasher
door.
So that you always have these numbers at
hand, we recommend you to make a note of
them here:
Mod. : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PNC : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 18
18 electrolux
S.N. : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The wash results are not satisfactory
The dishes are not
clean
The dishes are wet
and dull
There are streaks,
milky spots or a bluish coating on
glasses and dishes
Water drops have
dried onto glasses
and dishes
• The wrong programme has been selected.
• The dishes are arranged in such a way as to stop water reaching all parts
of a surface. The baskets must not be overloaded.
• The spray arms do not rotate freely due to incorrect arrangement of the
load.
• The filters in the base of the washing compartment are dirty or incorrectly
positioned.
• Too little or no detergent has been used.
• Where there are limescales deposits on the dishes; the salt container is
empty or incorrect level of the water softener has been set.
• The drain hose connection is not correct.
• The salt container cap is not properly closed.
• Rinse aid was not used.
• The rinse aid dispenser is empty.
• Decrease rinse aid dosage.
• Increase rinse aid dosage.
• The detergent may be the cause. Contact the detergent manufacturer
consumer care line.
If after all these checks, the problem persists,
contact your local Service Force Centre.
Technical data
Dimensions Width
Electrical connection - Voltage Overall power - Fuse
Water supply pressure Minimum
Capacity 12 place settings
Height
Depth
Information on the electrical connection is given on the rating plate
on the inner edge of the dishwasher door.
Maximum
0,05 MPa (0,5 bar)
0,8 MPa (8 bar)
60 cm
85 cm
63,5 cm
Hints for test institutes
Testing in accordance with EN 60704 must
be carried out with appliance fully loaded and
using the test programme (see "Consumption values").
Test in accordance with EN 50242 must be
carried out when the salt container and rinse
Full load: 12 standard place settings
Amount of detergent required: 5 g + 25 g (Type B)
Rinse aid setting position 4 (Type III)
aid dispenser have been filled with salt and
rinse aid respectively and using the test programme (see "Consumption values").
Page 19
electrolux 19
Arrangement upper basket
Arrangement lower basket
Arrangement cutlery basket
Installation
Warning! Any electrical and/or
plumbing work required to install
this appliance should be carried out
by a qualified electrician and/or
plumber or competent person.
Fitting under a counter (kitchen worktop
or sink)
Remove all packaging before positioning the
machine.
If possible, position the machine next to a
water tap and a drain.
By removing the machine's worktop, you can
install it under a close fitting sink unit or a preexisting top, providing the dimensions of the
recess correspond to those shown in the
picture.
Page 20
20 electrolux
Proceed as follows:
• Remove the machine’s worktop by unscrewing the two rear retaining screws (1),
pull the worktop from the back of the machine (2) and slide out the front slots, lifting
the worktop (3).
Water connection
Water inlet connection
This dishwasher may be fed with either hot
(max. 60°) or cold water. Nevertheless we
advise you use a cold water supply.
A hot water supply is not always efficient with
heavily soiled crockery as it shortens the
washing programmes a lot.
For making the connection itself, the coupling nut fitted to the machine’s inlet hose is
designed to screw onto a 3/4" gas thread
spout or to a purpose made quick-coupling
tap such as the Press-block.
The water pressure must be within the limits
given in the "Technical data". Your local Water Authority will advise you on the average
mains pressure in your area.
The water inlet hose must not be kinked,
crushed, or entangled when it is being connected.
The dishwasher features inlet and drain hoses which can be turned either to the left or
the right to suit the installation by means of
the locknut. The locknut must be
correctly fitted to avoid water leaks.
Insert the machine after adjusting the levelling with the adjustable feet. When inserting
the machine, ensure that the water inlet and
drain hoses are not kinked or squashed.
During all operations that involve accessibility
to internal components the dishwasher has
to be unplugged.
Be sure that once the appliance has been installed, it is easily accessible for the service
engineer in the event that a repair is required.
If the dishwasher is later used as a freestanding appliance, the original worktop
must be re-mounted.
The plinth on free-standing appliances is not
adjustable.
Levelling
Good levelling is essential for correct closure
and sealing of the door.
When the appliance is correctly levelled, the
door will not catch on either side of the cabinet .
If the door does not close correctly, loosen
or tighten the adjustable feet until the machine is perfectly level.
Attention! NOT all models of dishwashers have inlet and drain hoses provided
with a locknut. In this case, this facility is
not available.
If the machine is connected to new pipes or
pipes which have not been used for a long
time, you should run the water for a few minutes before connecting the inlet hose.
DO NOT use connection hoses which
have previously been used on an old appliance.
This appliance has been fitted with
safety features which will prevent the
water used in the appliance from returning back into the drinking water system.
This appliance complies with the applicable plumbing regulations.
Water inlet hose with safety valve
After connecting the double-walled water inlet hose, the safety valve is next to the tap.
Therefore the water inlet hose is only under
pressure while the water is running. If the water inlet hose starts to leak during this opera-
Page 21
electrolux 21
tion, the safety valve cuts off the running
water.
Please take care when installing the water
inlet hose:
• The electrical cable for the safety valve is
in the double-walled water inlet hose. Do
not immerse the water inlet hose or the
safety valve in water.
• If water inlet hose or the safety valve is
damaged, remove the mains plug
immediately.
• A water inlet hose with safety valve must
only be replaced by the Service Force
Centre.
Warning! Dangerous voltage
Water drain connection
The end of the drain hose can be connected
in the following ways:
1. To the sink outlet spigot, securing it to the
underside of the work surface. This will
prevent waste water from the sink running into the machine.
2. To a stand pipe provided with venthole,
minimum internal diameter 4 cm.
The waste connection must be at a height of
between 30 cm (minimum) and 100 cm
(maximum) from the bottom of the
dishwasher.
The drain hose can face either to the right or
left of the dishwasher
Ensure the drain hose is not bent or
squashed as this could prevent or slow down
the discharge of water.
The sink plug must not be in place when the
machine is draining as this could cause the
water to syphon back into the machine.
If you use a drain hose extension it must be
no longer than 2 metres and its internal
diameter must be no smaller than the diameter of the hose provided.
Likewise the internal diameter of the couplings used for connections to the waste
outlet must be no smaller than the diameter
of the hose provided.
When connecting the drain hose to an under
sink trap spigot, the entire plastic mem-
brane (A) must be removed. Failure to remove all the membrane will result in food
particles building up over time eventually
blocking the dishwasher drain hose spigot
Our appliances are supplied with a
security device to protect against the return of dirty water back into the machine.
If the spigot of your sink has a "no return
valve" incorporated this can prevent the
correct draining of your dishwasher. We
therefore advise you to remove it.
To avoid water leakage after installation
make sure that the water couplings are
tight.
Page 22
22 electrolux
Electrical connection
Warning! Safety standards require
the appliance to be earthed.
Prior to using the appliance for the
first time, ensure that the rated voltage and type of supply on the rating
plate match that of the supply where
the appliance is to be installed. The
fuse rat ing is also to be found on th e
rating plate.
Always plug the mains plug into a
correctly installed shockproof
socket.
Multi-way plugs, connectors and extension cables must not be used.
This could constitute a fire hazard
through overheating.
Environment concerns
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will help
prevent potential negative consequences for
the environment and human health, which
could otherwise be caused by inappropriate
waste handling of this product. For more
detailed information about recycling of this
product, please contact your local council,
your household waste disposal service or the
shop where you purchased the product.
Packaging material
The packaging materials are environmentally
friendly and can be recycled. The plastic
If necessary, have the domestic wiring system socket replaced. In case
that the electrical cable has to be
replaced, contact your local Service
Force centre.
The plug must be accessible after
the appliance has been installed.
Never unplug the appliance by pulling on the cable. Always pull the
plug.
The manufacturer accepts no
liability for failure to observe the
above safety precautions.
components are identified by markings, e.g.
>PE<, >PS<, etc. Please dispose of the
packaging materials in the appropriate
container at the community waste disposal
facilities.
Warning! When a unit is no longer being
used:
• Pull the plug out of the socket.
• Cut off the cable and plug and dispose
of them.
• Dispose of the door catch. This prevents children from trapping themselves inside and endangering their
lives.
Page 23
electrolux 23
Page 24
www.electrolux.com
117969840 - 00 - 032008
Loading...
