Page 1
INFO
INSTRUCTION BOOKLET
MANUAL DE INSTRUCCIONES
DISHWASHER ESF 632
LAVAVAJILLAS ESF 632
Page 2
CONTENTS
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 4
Positioning, levelling, adjusting the worktop, installing and securing the machine under a kitchen unit . .page 4
Fitting a decor panel on the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 4
Water supply connections, water outlet connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 5
The electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 5
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 6
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 6

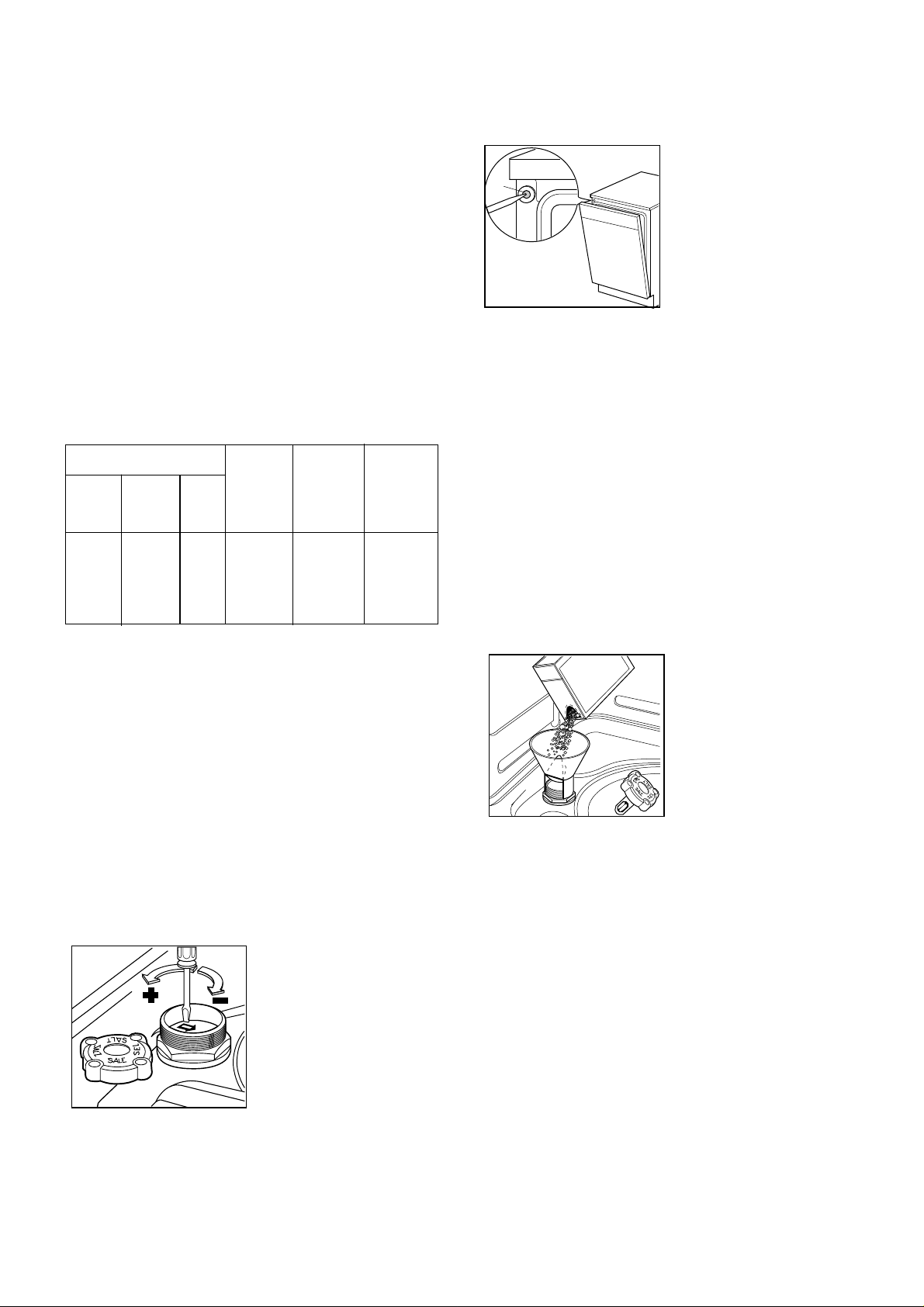

The water softener, filling with salt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 7
Use of rinse aid, use of detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 8

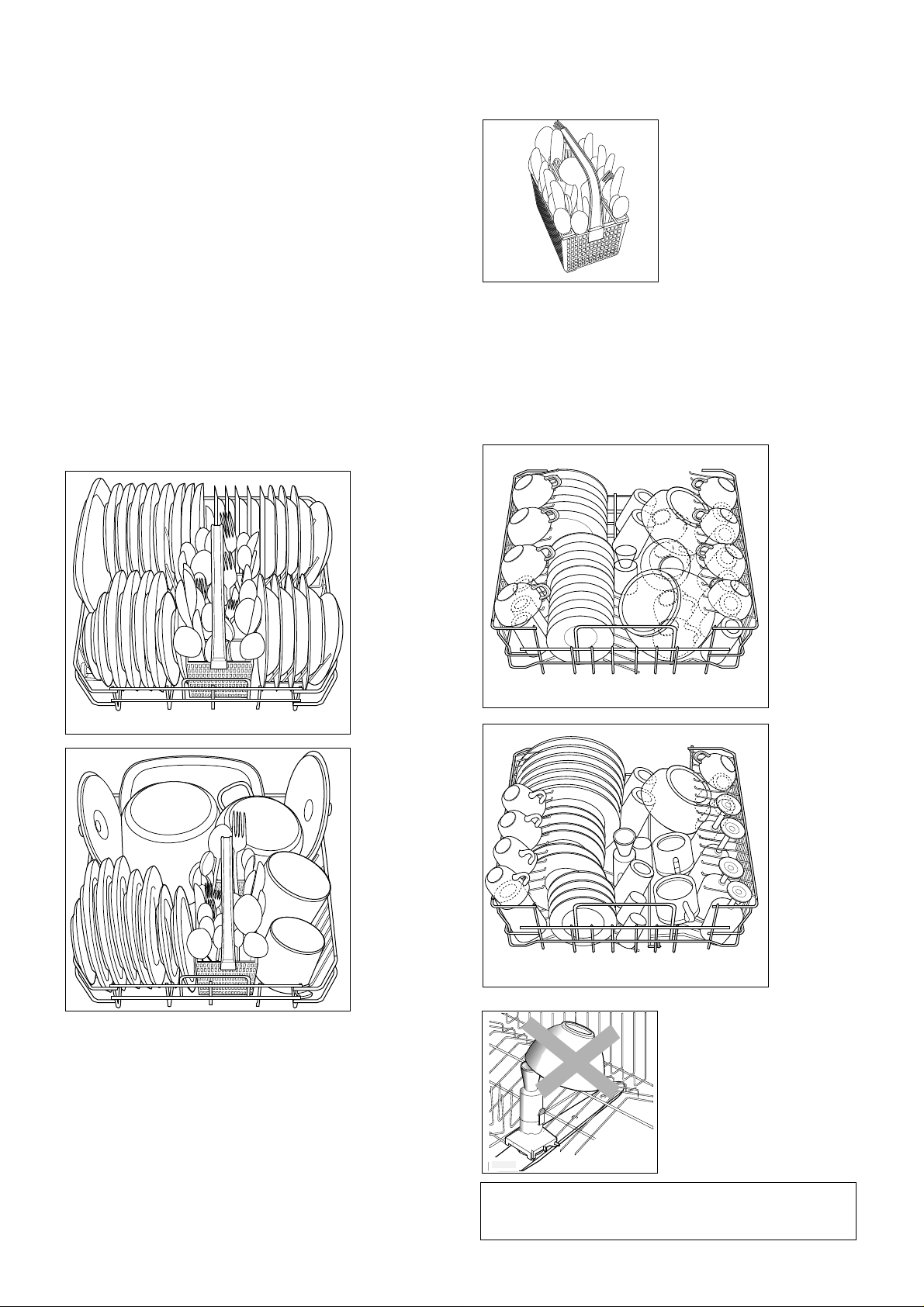

Loading the machine, use of the lower basket, use of the upper basket . . . . . . . . . . . . . . . . . . . . . . . . .page 9

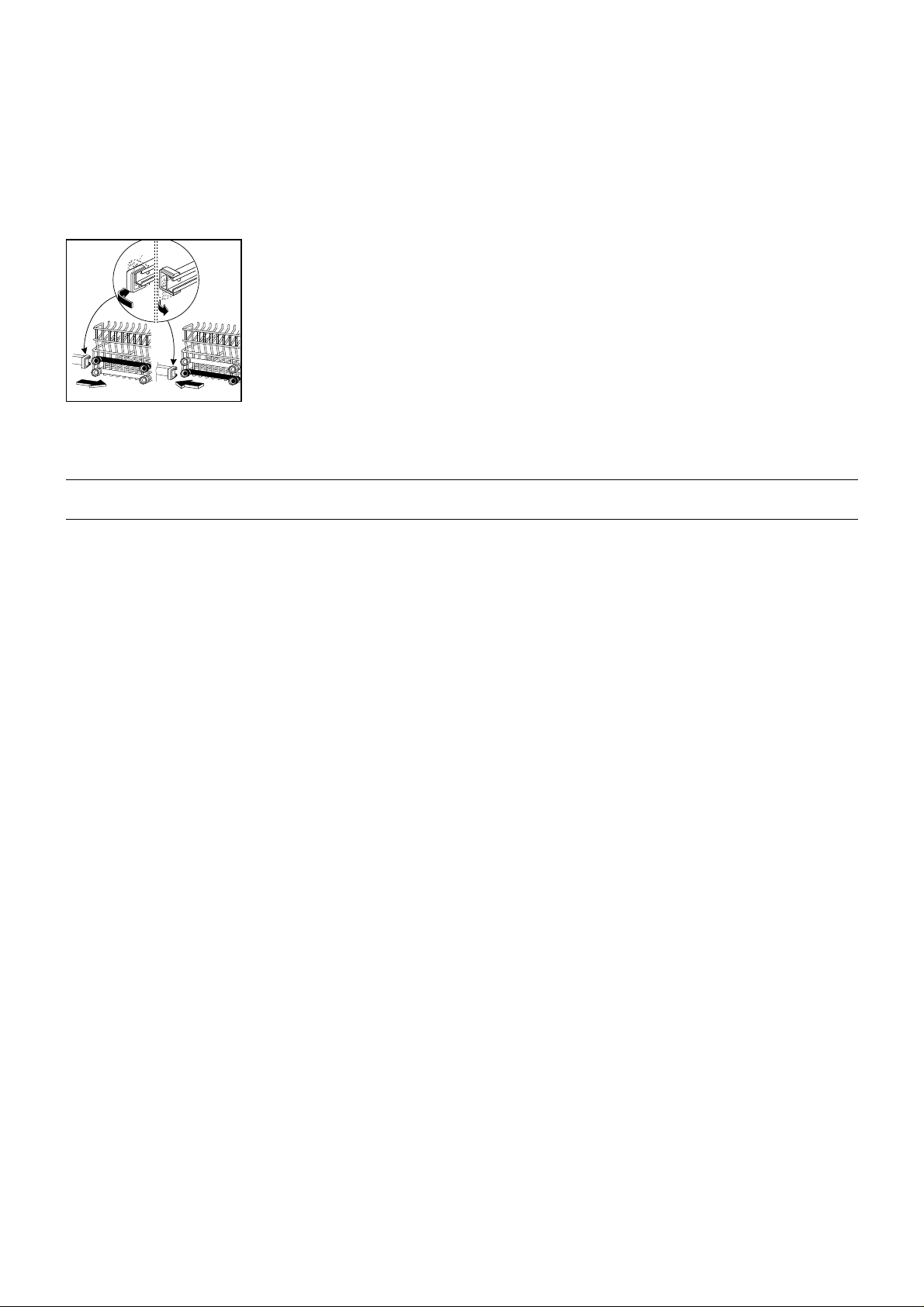

Adjusting the height of the upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 10
Helpful hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 10
Washing programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 11
Operating sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 12
Maintenance and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 13

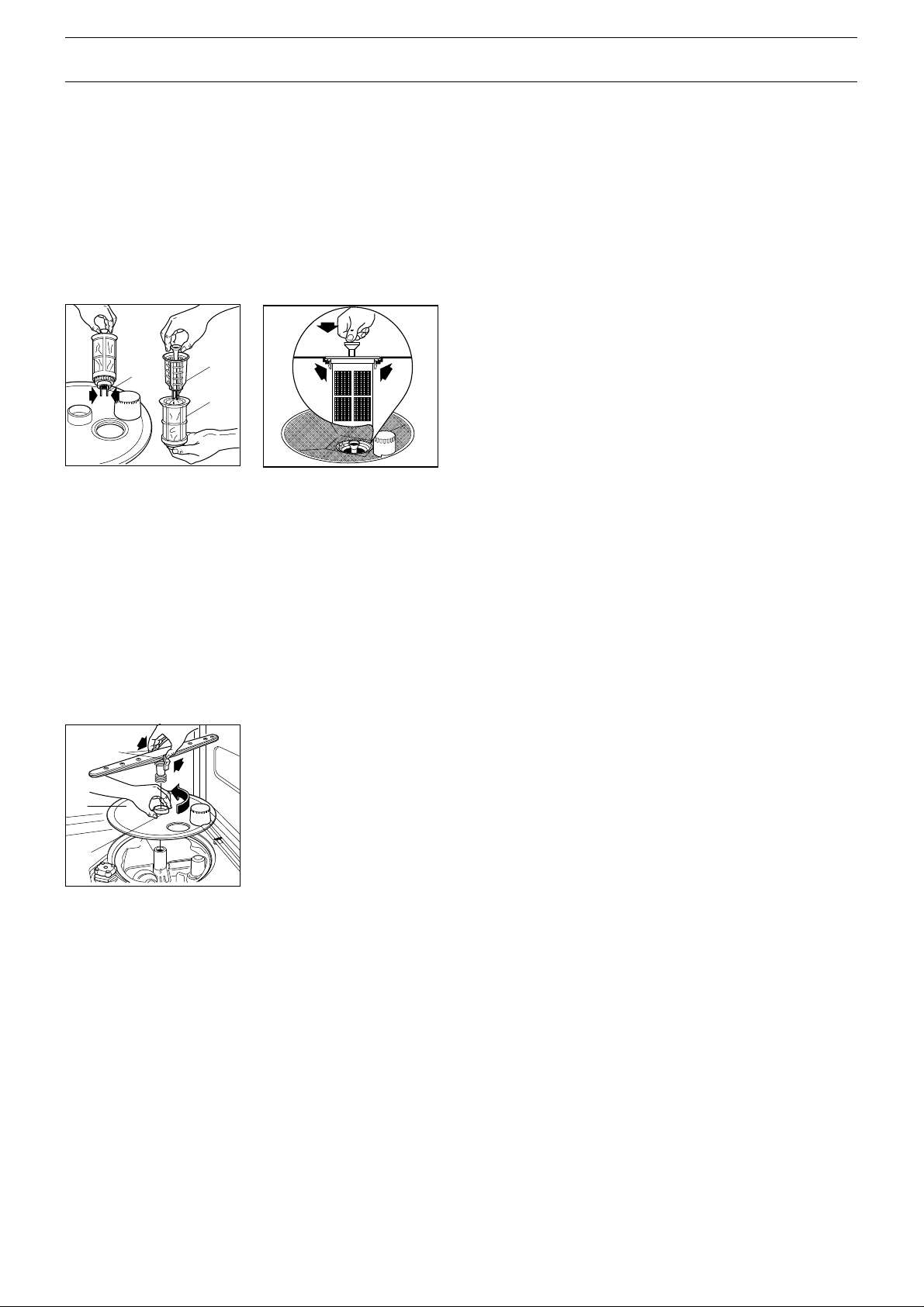

Cleaning the central filters, cleaning the large filter, internal and external cleaning . . . . . . . . . . . . . . . . .page 13
Prolonged periods of Non-Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 13
Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 14
TECHNICAL SPECIFICATIONS
DIMENSIONS Width cm 60
Height with worktop cm 85
Height without worktop cm 82
Max depth cm 60
Max depth with door open cm 120
ELECTRICAL CONNECTION Voltage 220V - 50Hz
MOTOR RATING DURING WASHING 200 W
POWER OF HEATING ELEMENT 1900 W
OVERALL POWER 2100 W
WATER SUPPLY PRESSURE minimum 5 N/cm
maximum 80N/cm
2
2
CAPACITY (STANDARD IEC PLACE SETTINGS) 12
CONSUMPTION: Water 22 lt
Electricity 1.5 kW/h
This appliance complies with the following E.E.C. Directives:
- 73/23 of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
PID18GB
2
Page 3
WARNINGS
It is most important that this instruction book
should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move
house and leave the appliance, always ensure that
the book is left with the appliance in order that the
new owner can get to know the functioning of the
appliance and the relevant warnings.
These warnings are provided in the interest of
safety. You MUST read them carefully before
installing or using the appliance.
■ If the appliance is supplied with obvious damage,
consult the supplier before installing it.
■ Any plumbing work required to install this appliance
should be carried out by a qualified plumber or
competent person.
■ Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
■ This appliance is designed to be operated by adults.
■ Care must be taken to ensure that the appliance
does not stand on the electrical supply cable or on
the water inlet and drain hoses.
■ Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning.
■ This appliance should be serviced only by an
authorised Service Centre.
■ Before disposing of the appliance, disconnect the
water hose, cut the electrical cable and ensure that
the door cannot close.
■ For proper disposal of the appliance, contact your
local waste collection service.
■ These dishwashers are designed to be used for
washing normal household utensils. Items that are
contaminated by petrol, paint, steel or iron debris,
corrosive, acidic or alkaline chemicals are not to be
washed in a dishwasher.
■ Under no circumstances should you open the door
whilst, the appliance is in operation. Always turn off
the appliance before opening the door.
However, the dishwasher features a special safety
device which cuts off the water inlet, should the door
be accidentally opened, thus avoiding water leaks.
■ Never touch the heating element during or
immediately after the end of the washing cycle.
■ When finishing loading or unloading close the door,
as an open door can be a hazard.
■ It is dangerous to lean or to sit on the dishwasher
door: the appliance could tip over.
■ Built-in dishwashers only: the appliance must be
secured to the underside of the worktop using the
brackets provided. Failure to do this could result in
an unstable appliance which may cause damage or
injury.
■ Unplug the appliance and turn off the water after
use.
PAV02GB
3
Page 4
INSTALLATION
Remove all packaging before positioning the
machine.
Positioning
If possible, position the machine next to a water tap
and a drain.
The sides and the back of the dishwasher can rest
against the adjacent furniture or the wall.
The dishwasher features fill and drain hoses which
can be turned either to the left or the right to suit the
installation.
Levelling
Good levelling is essential for correct closure and
sealing of the door.
If the door does not close correctly, loosen or tighten
the adjustable support feet, until the machine is
perfectly level.
Installing and Securing the Machine Under
a Kitchen Unit (Sink-Worktop Unit)
By removing the machine's worktop, you can install it
under a close fitting sink unit or a pre-existing top, if
the dimensions of the recess correspond to those
shown in the picture.
Then proceed as follows:
Remove the machine worktop by unscrewing the two
front retaining screws, pull from the front and slide out
the rear slots, lifting the worktop.
Insert the machine after adjusting the height and levelling with the adjustable feet. When inserting the machine, ensure that the water inlet and drain hoses are
not kinked or squashed.
570÷600
820
600
IN01
Adjusting the Worktop
You can move the worktop forward or backward by 25
mm in order to align the machine with other kitchen
units.
Simply unscrew the two front retaining screws, move
the top to the required position and then retighten the
screws.
IN03
IN05
Caution
Once the machine has been installed, ensure that it
can be accessed easily for servicing.
Fitting a decor panel on the door
The door of this machine has frames for fitting a plastic
laminate decor panel in the colour required to match the
dishwasher with the rest of the kitchen furniture. If you
wish to do this you must provide the panel yourself.
Width: 588 mm
Height: 586 mm
Max thickness: 4 mm
To fit the panel
Take the door frame off removing the retaining screws
around the edge.
Position the panel, refit the frame and tighten the retaining screws around the edge.
AP01
Note:
The panel should be fitted before positioning the machine.
PIN09GB
4
Page 5
Water Outlet Connection
The end of the drain hose can be connected as
follows:
to the sink outlet siphon, securing it if necessary with
a clip;
To make this easier, the
hose itself may be turned
to the left or the right. In either case, be sure that the
strainer supplied (A) is in-
A
corporated.
to a wall outlet provided with vent-hole, minimum
internal diameter 4 cm;
hooked over the edge of the sink using the special
curved plastic guide provided.
The waste connection must be at a height of between
30 cm (minimum) and 100 cm (maximum) from the
floor.
It makes no difference which way the drain hose
faces, either to the right or left of the dishwasher.
Avoid bending or kinking the hose as this could
prevent or slow down the discharge of water.
If you use a drain hose extension it must be no longer
than 2 metres and its internal diameter must be no
smaller than the diameter of the hose provided.
Likewise the internal diameter of the couplings used
for connection to the waste outlet must be no smaller
than the diameter of the drain hose.
CS12
Ø 21
Ø 18
Ø 18
Ø 21
min 4 cm
CA02
The water pressure must be within the limits given in
the technical specifications, as it will not function
correctly if pressure is outside these specifications.
Warning: the retaining ring must be properly fitted so
as to avoid water leaks.
CA06
Note: the end of the hose connected to the machine
can be positioned as required, by simply slackening
the retaining ring.
Re-tighten the ring securely to avoid water leaks.
Avoid bends or kinks in the hose, which could prevent
or slow down the flow of water.
+ 2 m max
max 100 cm
min 30 cm
max 100 cm
Water Supply Connections
This dishwasher may be fed with either hot (max.
60°C) or cold water.
Nevertheless we advise you a cold water supply.
A hot water supply is not always efficient with very
soiled crockery as it shortens the washing programmes a lot.
Feeding the appliance with a hot water supply (max.
60°C) will allow you to obtain considerably shorter
programmes.
For making the connection itself, the coupling nut fitted to the machine's supply hose is designed to screw
onto either a 3/4 inch gas thread spout, or to a purpose-made quick-coupling tap such as the PressBlock.
If the machine is connected to new pipes or pipes
which have not been used for a long time, you are
advised to run the water for a few minutes before
connecting the inlet hose. This will prevent deposits of
sand or rust clogging the inlet hose filter.
Electrical connection
Before plugging the appliance into the wall socket,
make sure that:
1. the mains voltage corresponds to the voltage given
in the technical specifications;
2. the meter, fuses, mains power supply and wall
socket can all take the maximum load required.
Make sure that the socket and plug are compatible
without having to use any type of adaptor. If necessary, have the domestic wiring system socket
replaced.
Safety standards require the appliance to be
earthed.
The Manufacturer accepts no liability for failure to
observe the above safety precautions.
PIN10GB
5
Page 6
USE

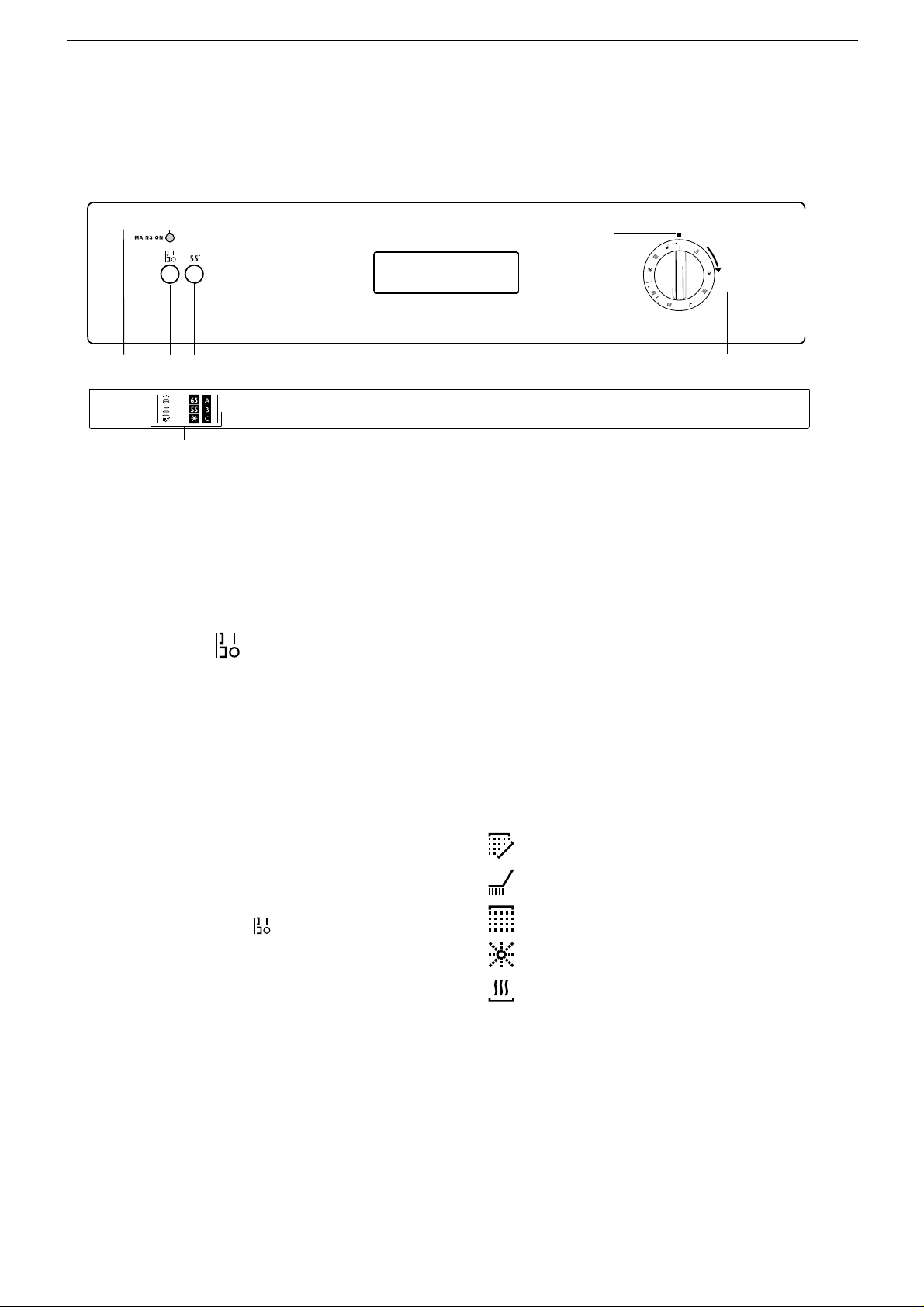

Control panel
B
C
A
1
2
3
8

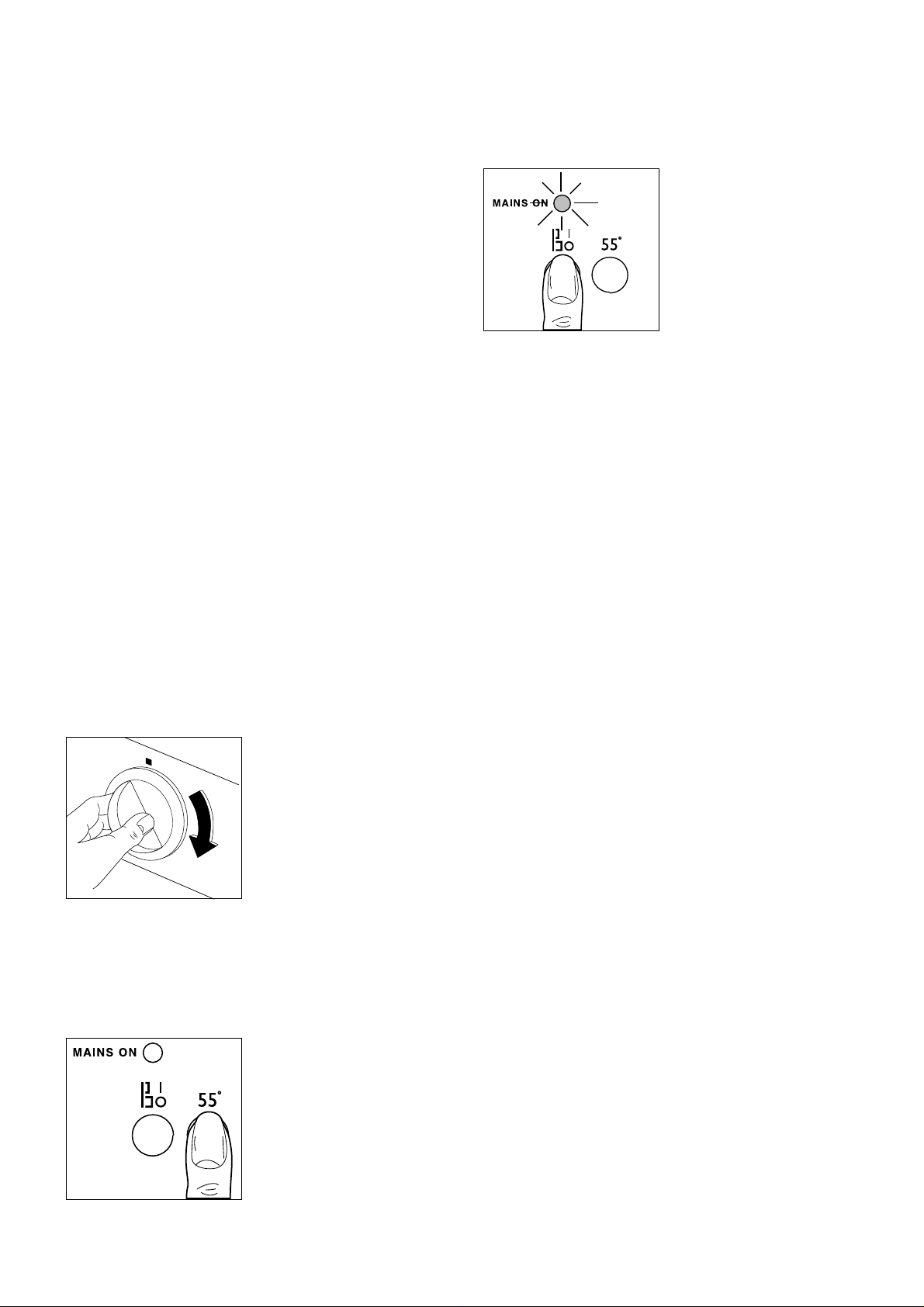

1. «MAINS ON» indicator light
This comes on when the ON/OFF button (2) is depressed, indicating that the appliance is switched on.
2. On/Off button
On
When this button is depressed, the machine starts
operating and, at the same time, the «MAINS ON» indicator light (1) comes on.
Off
When the washing programme has finished, the machine stops automatically and the «MAINS ON» indicator light (1) remains on. To switch the indicator light
off or to stop the machine at any time, press the same
button again.
Before selecting a washing programme or changing
an operating programme, switch off the machine
pressing the On/Off button .
4
5
6
7
5. Programme marker
6. Programme selector dial
To select a programme turn the programme selector
dial clockwise, making sure that the programme letter
you wish to select corresponds with the programme
marker (5) on the control panel.
7. Programme sequence indicator
This continuously indicates what phase in the washing programme the appliance has reached. Each
phase is represented by a symbol:
Prewash - Hold
Wash
Cold rinse
3. Washing temperature pushbutton «55°»
By depressing this button you will reduce the temperature of the main wash from 65°C to 55°C, with considerable save of energy.
If not depressed the water will heat up to 65°C.
See programme chart.
4. Door handle
To open the door, press the catch in the top of the recess and pull the door towards you at the same time.
To close the door, simply push it.
Hot rinse
Hot air drying
8. Programme guide
This is a summary of the «Washing programmes» chart
which will help you to select the correct programme.
PPC40GB
6
Page 7
The Water Softener
Water contains varying amounts of lime and mineral
salts depending on the area in which you live: these
are deposited on the dishes leaving white marks.
The higher the content of these salts, the harder your
water will be. The «hardness» level is measured on 2
equivalent scales: German degrees or French
degrees. Contact your local Water Authority to find the
exact water hardness level for your area.

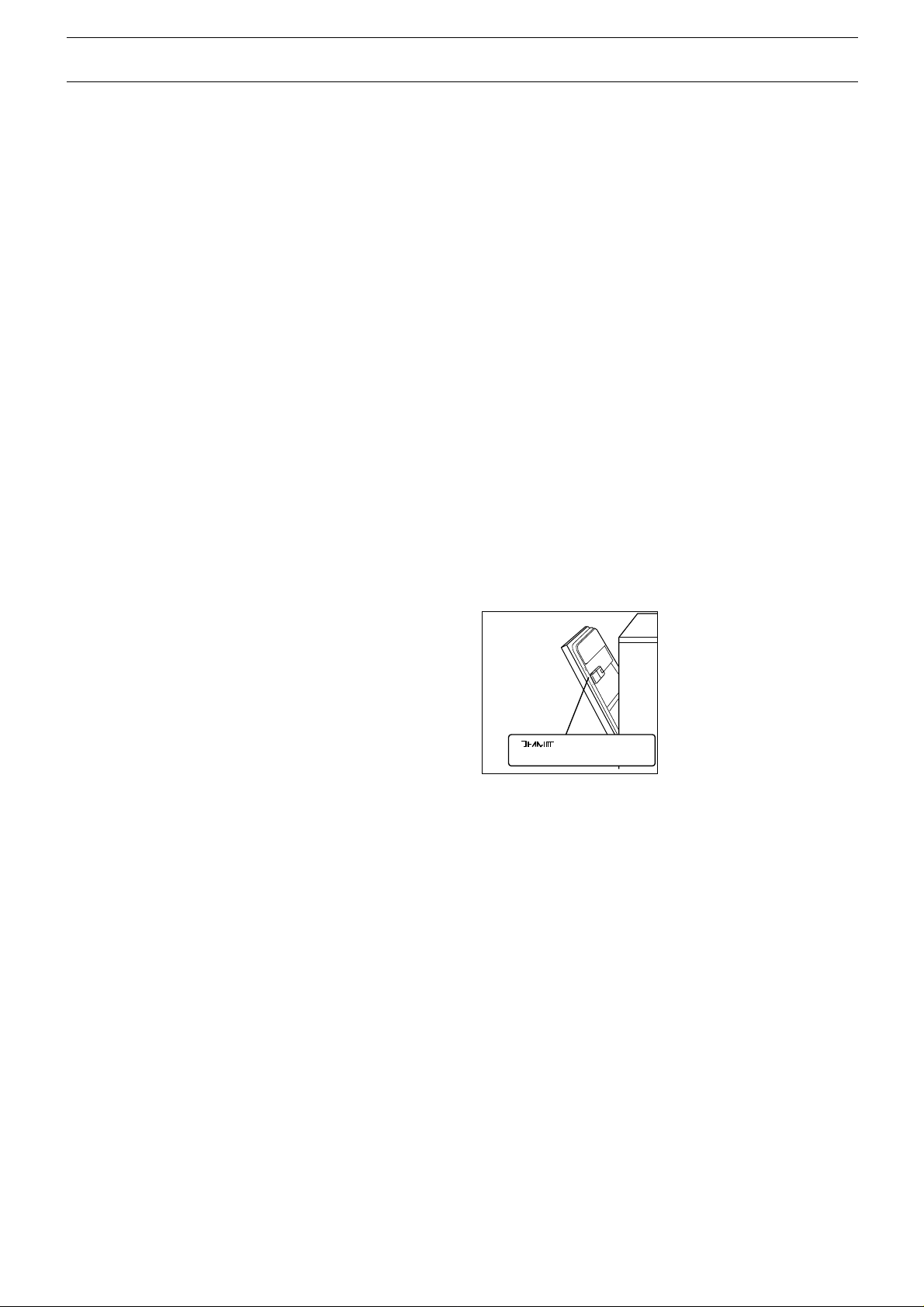

Levels 4 and 5 (adjustment on the machine)
If your water is level 4 or 5,
open the door and drill
A
membrane (A) on the
upper left-hand corner of
the machine.
AA04
The dishwasher is equipped with a softener which
uses special dishwasher salt to provide lime-free
(softened) water. The softener can treat water hardness up to 90 French degrees via 5 adjustment levels.
Find on the table below the level corresponding to the
hardness of your water and the required adjustments:
Water hardness
°dH
German
degrees
0- 7
8-21
22-28
29-39
40-50
The water softener is factory set at level 2 as this suits
*
most users.
If you use phosphate free detergents containing en-
**
zymes, use salt starting from 4°dH (7°TH).
°TH
French
degrees
0-14
15-39
40-50
51-70
71-90
Level
1
2
*
3
4
5
Use of
salt
**NO
YES
YES
YES
YES
Water
softener
adjustment
NO
NO
YES
NO
YES
Adjustment
on the
machine
NO
NO
NO
YES
YES
Level 1
If your water is «level 1» it is already soft and therefore there is no need to use salt.
With a water hardness of level 5 both adjustments
must be made.
Important
Salt MUST be used regularly from level 2 upward.

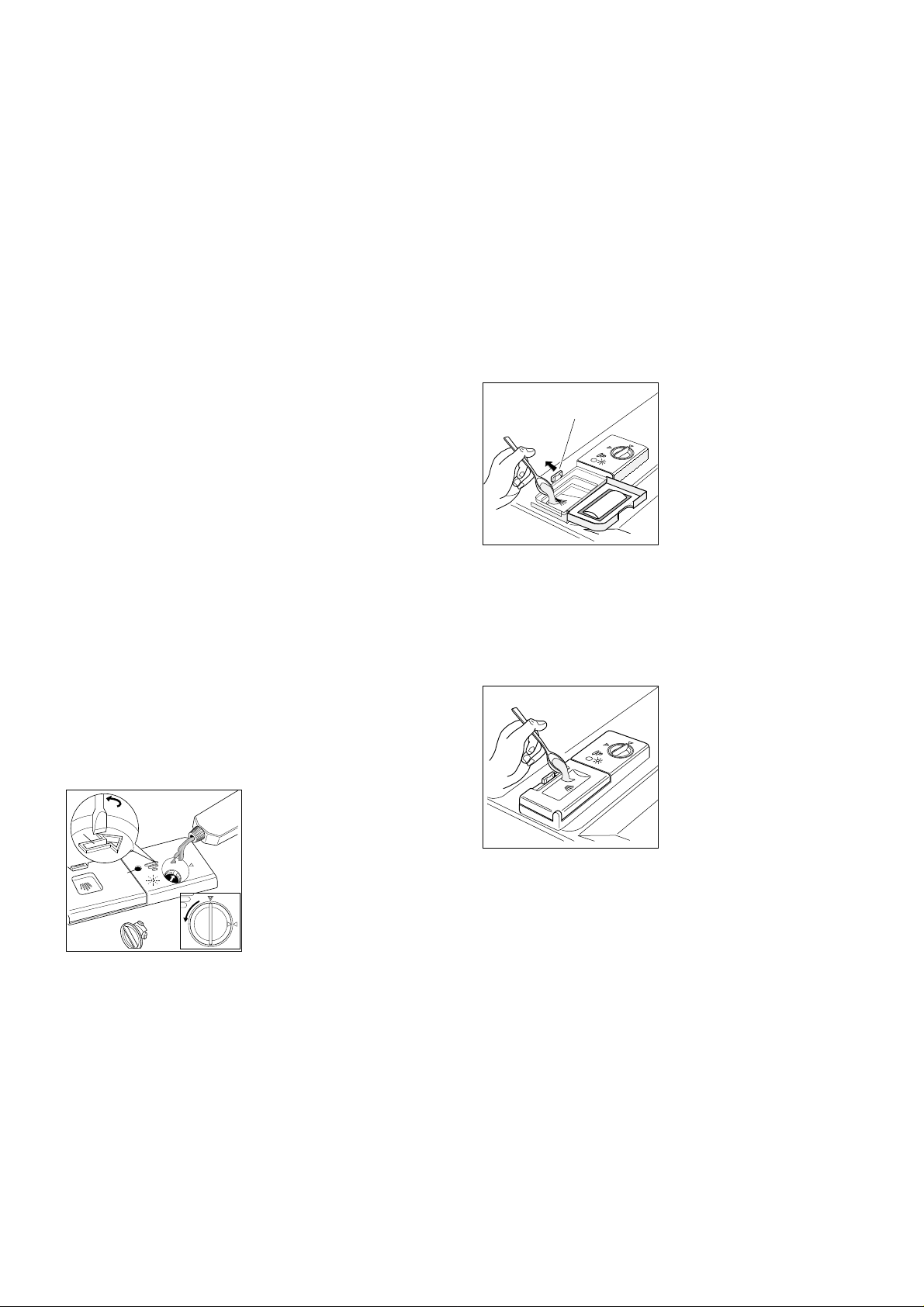

Filling with Salt
Only use salt designed specifically for use in dishwashers. Other types of salt contain high percentages
of other substances which may reduce the efficiency
of the softener.
Unscrew the cap of the salt container.
Fill the container with 1 litre of water (this operation is
necessary only the first time).
Place approximately 1,5 - 1,8 kg of dishwasher salt in-
side using the funnel provided (see figure).
SALE
SALT
SALZ
SEL
Levels 3 and 5 (water softener adjustment)
If your water is level 3 or 5, proceed as follows:
slide out the lower basket and unscrew the cap of the
salt container; turn the two-position selector anticlockwise from position - to position + with the aid of a
knife or a screwdriver.
AA02
R05
Replace the cap making sure that there is no trace of
salt on the screw thread or on the gasket.
Screw the cap on tightly.
When this has been done, all that is required is to pe-
riodically add salt to the container. You are reminded
of this by a green refill indicator on the cap of the salt
container. When the green indicator disappears, the
water softener needs refilling with salt.
The salt container has always some water inside
which will normally overflow when refilling with salt.
Caution
Only fill with salt just before starting one of the complete washing programmes (not Rinse and Hold programme). This will prevent any grains of salt or salty
water, which may have been spilled, remaining on the
bottom of the machine for any period of time. This
could cause corrosion.
PAA02GB
7
Page 8
Rinse Aid
Use of Detergent
The use of this liquid ensures thorough rinsing, spot
and streak free drying, making the water run quickly
off the dishes for sparkling results. It is automatically
added during the hot rinse. The dispenser, which is
positioned inside the door, holds about 110 ml of rinse
aid, which is sufficient for 16-40 dishwashing
programmes, depending upon the dosage setting.
Filling with Rinse Aid
Open the container by turning the lid (A) anticlockwise.
Add rinse aid until the container is completely full
(approx. 110 ml). The indicator (B) will be completely
dark.
Top up with rinse aid when the indicator (B) becomes
clear
Remember to CLOSE the lid after every refill.
Caution
Clean up any rinse aid spilt during filling with an absorbent cloth to avoid excess foaming during the next
wash.
Adjusting the Dose
According to the finish and drying results obtained, adjust
the dose of rinse aid by means of the 6 position selector
(C) (position 1 - minimum dose, position 6 - maximum
dose).
Gradually increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce
it if there are sticky whitish streaks on the dishes.
3
5
2
1
6
C
4
5
3
6
2
B
BR04
Caution: Do not put liquid detergent into the rinse aid
compartment.
1
A
Before starting any of the dishwashing programmes,
except for the rinse and hold programme, load the
detergent in the dispenser.
Use only tablets, powder or liquid detergents
specifically designed for domestic dishwashers.
Unsuitable detergents (such as those for washing by
hand) do not contain the right ingredients for machine
washing and hamper correct functioning of the
machine.
To open the dispenser lid, pull the catch (D). This will
open it.
To help you to correctly dose
D
the right amount of detergent, inside the container
there are two reference
MAX
MIN
marks:
- MIN = 15 ml
- MAX = 30 ml
DE07
The amount of detergent to be used varies depending
on how soiled the dishes are and the type of dishes
being washed. We recommend the amounts shown in
the programme chart on the next pages.
After filling the dispenser with detergent, close
the lid.
All the programmes with
prewash require a small
extra amount of detergent
of approximately 5g to be
poured over the lid of the
dispenser, as shown on the
picture.
DE02
At the end of any washing programme the lid is
always open, ready for the next wash.
Since not all detergents are the same, you should
also consult the instructions on the packet.
Remember that insufficient quantities of detergent will
produce poor washing results whereas an excessive
amount of detergent does not improve washing
results and is also wasteful.
Using no more than the correct amount of detergent
also contributes to reducing pollution.
Phosphate free detergents with enzymes
These new detergents, although welcome from an ecological point of view, react far more susceptibly to water
hardness than conventional products. Therefore, in
order to avoid white lime deposits on crockery and the
inner tub, you should add salt in the water softener even
if the hardness of your water is as low as 4 °dH (7 °TH),
when using these new detergents.
PBR01GB
8
Page 9
Loading your Machine
Before placing dishes in the machine, remove any
scraps of food from the plates (small bones,
toothpicks, fish bones, scraps of meat and vegetables,
fruit skins etc.) to avoid clogging the filters and
consequently reducing performance.
Arrange the spoons,
dessert spoons, knives and
other small items of cutlery
in the racks on both sides
of the cutlery basket.
Open the door and slide out the baskets to load the
dishes.
Use of the Lower Basket
The lower basket is designed to take saucepans, lids,
plates (up to 27 cm in diameter), salad bowls, cutlery
etc.
Serving dishes and large lids should be arranged
around the edge of the basket, ensuring that the upper spray arm can turn freely.
UI03
Use of the Upper Basket
The upper basket is designed for plates (dessert
plates, saucers, dinner plates up to 24 cm in diameter), salad bowls, cups and glasses; these should be
arranged as shown in the pictures. Glasses with
long stems can be placed upside-down in the raised
cup-racks.
US13
IEC 436 / DIN 44990
UI05
UI19
IEC 436 / DIN 44990
Cutlery should be placed in the removable cutlery
basket with the handles facing downwards. If the
handles protrude from the bottom of the basket,
obstructing the lower spray arm, load the cutlery with
the handles facing upward.
Mix spoons with the other cutlery to prevent them
sticking together.
US12
US16
Caution
When loading the dishes,
ensure that you do not
US16
cover the water inlet
funnel in the middle of the
upper basket.
PCE07GB
9
Before closing the door, ensure that the spray
arms can rotate freely.
Page 10
Adjusting the Height of the Upper Basket
If washing very large plates (over 27 cm and up to 31
cm in diameter) you can load them in the lower
basket after moving the upper basket to the higher
position as follows:
A
RC01
When the top basket is in the higher position it will
only take plates up to 15 cm in diameter and you will
not be able to use the raised cup racks.
Move the front runner stops
(A) of the upper basket
outward and slide the
basket out.
Refit the basket in the
higher position and replace
the stops (A) in their original
position.
HELPFUL HINTS
For Best Washing Results:
Before loading, remove all scraps of food and soak
very heavily soiled pots and pans.
Always arrange saucepans, cups and glasses etc. up
side-down.
Tilt items with convex or concave surfaces so that
the water drains off easily.
Long items of cutlery such as ladles, carving knives
etc. should be positioned horizontally in the upper
basket.
Avoid contact between the dishes as far as possible;
correct arrangement of the items will give better
washing results.
Light items (plastic bowls etc.) should be loaded in
the upper basket and arranged so that they do not
move during washing.
You will improve drying results by leaving the dishwasher door ajar for at least 15-30 minutes as soon
as the programme finishes.
To Save Energy
Items not Suitable for Dishwashers
The following should not be washed in the dishwasher:
Cutlery or dishes with wooden or horn handles or
glued parts.
Handmade items, wooden objects, antiques or handpainted china.
Certain types of decoration can discolour when
washed in a dishwasher.
Crystal-ware and plastic objects, if not guaranteed
dishwasher-proof, should be washed by hand. You
are advised to place them in the upper basket and to
select a delicate programme.
Certain types of glass can also become opaque after
being washed several times in a dishwasher.
Silver cutlery tends to go black if mixed with steel
cut- lery. Place it in the cutlery basket separated from
the others.
Iron and cast iron objects can rust and stain other
items.
Do not prewash dishes under running water.
Place dishes in the machine immediately after every
meal and wait until the dishwasher is full before
washing.
If necessary run the Rinse and Hold programme (see
Programme Chart on the following pages), so that
any food scraps do not become caked on the dishes
while you are waiting to run the complete wash programme.
Care must be taken when opening the door, as
steam will escape.
Aluminium tends to go black; copper, pewter and
brass tend to stain.
Caution: You are advised not to load very small or
plastic items which can fall through the baskets.
Note: When buying new dishes, ensure that they are
dishwasher-proof.
PCL03GB
10
Page 11
**
Water
in litres
consumption
22
18
14
in kWh
Energy
consumption
Approximate consumption values
duration
in minutes
Programme
Cycle description
on the
dispenser lid
of detergent
in the
Recommended quantity
dispenser
on the door
1,5
80
Cold prewash
Main wash up to 65°C
1 cold rinse
1 hot rinse up to 65°C
Hot air drying
5 g
30 g
1,4
70
Main wash up to 55°C
1 cold rinses
1 hot rinse up to 65°C
Hot air drying
/
30 g
0,1
10
1 cold rinse
(to avoid food scraps
from sticking to the
crockery).
/
/
Required
push-
buttons
Starting
position
of the
programmer
Degree of soil
Type
of load
55°
A
Normally or heavily soiled, also
dried up and/or containing starch
(i.e. pasta, rice, semolina,
potatoes, egg, sauces, roast).
Pots,
pans,
crockery ,
cutlery
B
Lightly soiled, not dried up and
starchless (i.e. drinks, cakes and
pastry , salad, sliced ham,
Crockery,
party
crockery,
Partial load to be completed
cheese).
cutlery
These specifications are indicative values and depend on the pressure and temperature of the water, and
also on voltage modification.
**
C
5 g over the dispenser lid
later.
This programme does not
Normal
*
Washing programmes
Programmes
65°C
no
Economy
prewash 55°
Rinse & Hold
PTP35GB
11
This programme is equivalent to IEC 436/DIN44990.
*
Recommended quantity of detergent: 30 g in the dispenser
Standard place settings: 12
Page 12
Operating Sequence
7 Start the programme
1 Check that the filters are clean
(see cleaning instructions)
2 Check that there is salt and rinse aid
3 Load the dishes
Remove larger scraps of food.
Pull the lower basket out and arrange the saucepans,
plates and cutlery in it.
Pull the upper basket out and arrange the plates,
saucers, glasses and cups etc. in it.
Slide the baskets back into the machine.
Ensure that the spray arms can rotate freely.
4 Measure out detergent
Pour the required amount of detergent into the
dispenser according to the indications in the Washing
Programmes chart and close the lid.
Close the dishwasher door.
Depress the ON/OFF pushbutton. The «MAINS ON»
light will come on and the
machine will start.
If you wish to interrupt the
wash at any time press button again.
SO185
To restart the machine, depress the same button
again and the programme will continue from the point
where it was interrupted.
8 At the end of the washing programme
The machine will stop and the pilot light remains on
until ON/OFF button is depressed.
Turn off the water tap.
Open the door and wait a few minutes before removing
the dishes; in this way you will avoid burning your
fingers and drying will be improved.
Empty the lower basket first and then the upper one;
this will avoid water dripping from the upper basket
onto the dishes in the lower one.
5 Set the programme
Turn the Programme Selector
Dial clockwise until the letter
A
of the programme you wish to
select corresponds with the
fixed marker on the control
panel.
SO162
6 Select the temperature
Select the temperature according to the instructions in
the Washing Programmes chart (see "Required pushbuttons").
When button «55°» is depressed, the prewash is
with cold water and the
main wash at 55°C.
Caution
In general it is not advisable to open the door while the
machine is working; if the door is opened however, a
safety device ensures that the machine stops.
If you have to open the door while the machine is
working, always switch off the appliance first by pressing the ON/OFF button.
Care must be taken if opening the door, as steam
will escape.
SO184
PSO30GB
12
Page 13
MAINTENANCE AND CLEANING
Cleaning the central filters
(After each wash)
Inspect the central filters (B) and (C) and remove any
scraps of food with a brush, under running water.
Filters (B) and (C) are both removed by lifting up the
outer one (B) (pulling the central funnel upwards); the
smaller filter (C) can then be removed by pressing the
two tongues (D).
D
C
B
MA13
MA08
Once cleaned, refit the filters by pressing them
down until they click into place.
Cleaning the large filter
(Once a month)
Clean the large filter (A) on both sides under running
water, using a brush.
To take it out, remove the spray arm by pressing the
two tongues (E), turn the ring (F) anticlockwise
(towards the left) and then slide the whole part out.
Refit the filter following the above instructions in
reverse order.
Internal and external cleaning
You must ensure that the seals around the door, the
detergent and rinse aid dispensers are cleaned
regularly with a damp cloth.
We recommend you carryout a maintenance wash
every 3 months, by running a 65° C wash programme
without dishes or using a specific dishwasher cleaner.
Check that the spray arm nozzles are not obstructed.
To remove the bottom spray arm, release it from its
securing catches and pull it out.
To clean the nozzles of the top spray arm, slide out
the top basket whereby the spray arm will become
accessible. To remove it, withdraw the central funnel
by pressing the two side tabs and unscrewing the
retaining ring.
Wash the spray arms under running water and refit
them in place.
Clean the external surfaces of the machine and
control panel with a soft damp cloth. If necessary use
only neutral detergents. Never use abrasive products,
scouring pads or solvents (acetone, trichloroethylene
etc...).
Prolonged periods of non-operation
If you are not using the machine for any period of time
you are advised to:
unplug the appliance and turn off the water;
fill the rinse aid dispenser;
E
A
F
MA01
Caution: the dishwasher must not be used
without filters.
Incorrect repositioning of the filters will produce
poor washing results.
Cleaning of the filters is vital to ensure correct
operation of the machine.
leave the door ajar to prevent the formation of
unpleasant smells;
leave the inside of the machine clean.
Frost precautions
Avoid placing the machine in a location where the
temperature is below 0°C.
If this is unavoidable, empty the machine, close the
water inlet tap, disconnect the water inlet pipe and
empty it.
Moving the machine
If you have to move the machine (you are moving
house etc...):
unplug it;
turn off the water tap;
remove the water inlet and discharge hoses;
pull the machine out together with the hoses.
Caution: avoid over tilting the machine during
transport.
PMA02GB
PMA02GB
13
Page 14
SERVICING
Certain problems are due to lack of simple maintenance or oversights and can be solved easily without
having to call out an engineer.
The machine will not start
■ The door has not been properly closed.
■ The plug is not properly inserted in the power socket.
■ There is no current at the socket. Check the fuse.
The machine will not fill with water
■ The water tap is shut.
■ The water supply has been cut off.
■ The inlet hose is kinked.
■ The water inlet hose filter is clogged.
The machine will not drain
■ The drain hose is kinked.
■ The sink drain is blocked.
■ The drain hose extension is not correct.
■ There is no air vent in the end of the drain hose.
Visible lime deposits or white film on the dishes
■ The rinse aid has run out or too little is being used.
The machine is noisy
■ The dishes are rattling against each other.
■ The spray arms are knocking against the dishes.
The dishes are not quite dry
■ The dishes have been left too long inside the
machine.
The door is difficult to close
■ The dishwasher is not level or is not properly built-in.
If, after the above checks, the fault persists, call your
nearest Service Centre, indicating the fault, the appliance model (Mod.), the product number (Prod. No.)
and the serial number (Ser. No.). This information can
be found on the rating plate located on the righthand side of the dishwasher door (see picture).
The dishes are not clean (poor wash)
■ The baskets are too full.
■ The dishes have not been arranged properly.
■ The spray arms do not rotate.
■ The spray arm holes are clogged.
■ The water inlet funnel in the centre of the upper
basket is covered by dishes.
■ The end of the drain hose is submerged in waste
water (in the sink).
■ The filters are clogged.
■ The filters are not in position.
■ Not enough detergent has been used or it is un-
suitable.
■ The detergent is old or has gone hard.
■ The washing programme selected is too gentle.
Prod.No.
........
Ser. No.
.........
RA01
Mod.
........
Original spare parts can be purchased from Electrolux
Service Centres.
Protection against flooding
In order to prevent water floods, the dishwasher has
been provided with a device in the bottom of the
machine.
The device comes into operation as a result of any
water leaks in the machine and it functions only with
the machine on.
To repair the machine, call the Service Centre.
PRA34GB
14
Page 15
Total Chlorine free
152991 09/0
GB E
0/0797
Loading...
