Page 1
Dishwasher
Instruction book
Model ESF 6121
GB
Page 2
2
Safety instructions 3
Description of the appliance 4
The control panel 4
Prior to using for the first time 5
Setting the water softener 5
Filling with salt 6

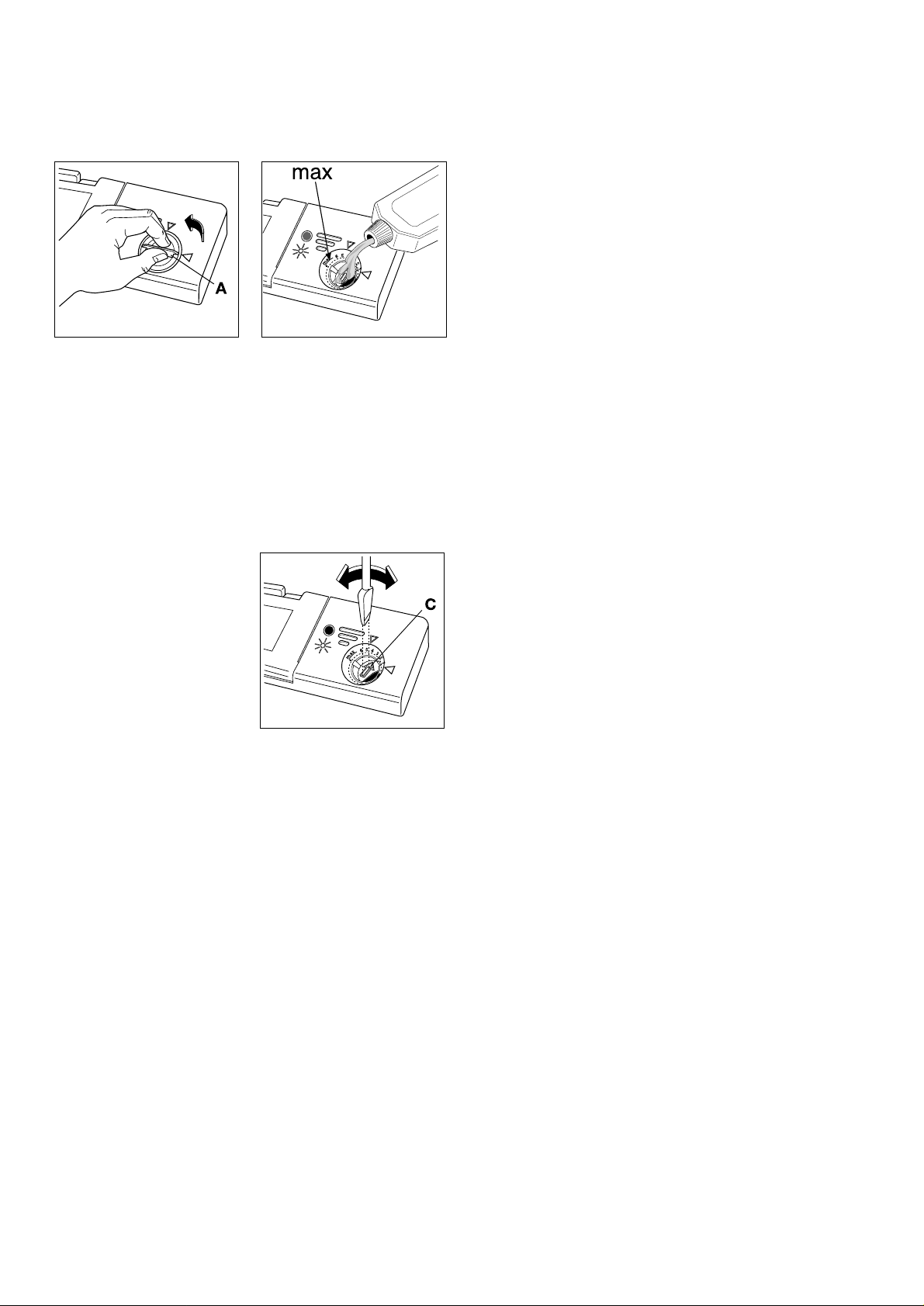

Rinse aid 6
In daily use 8

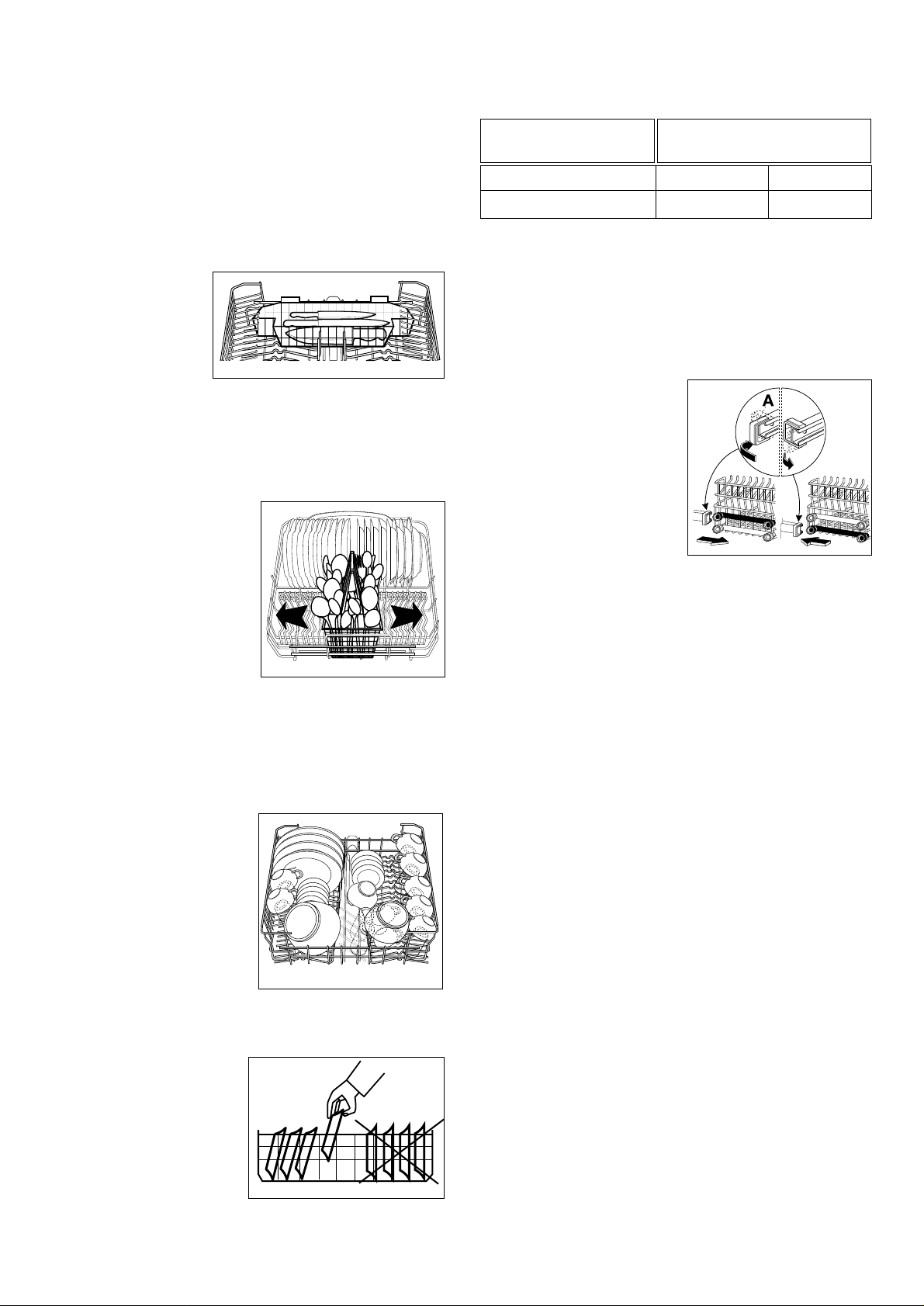

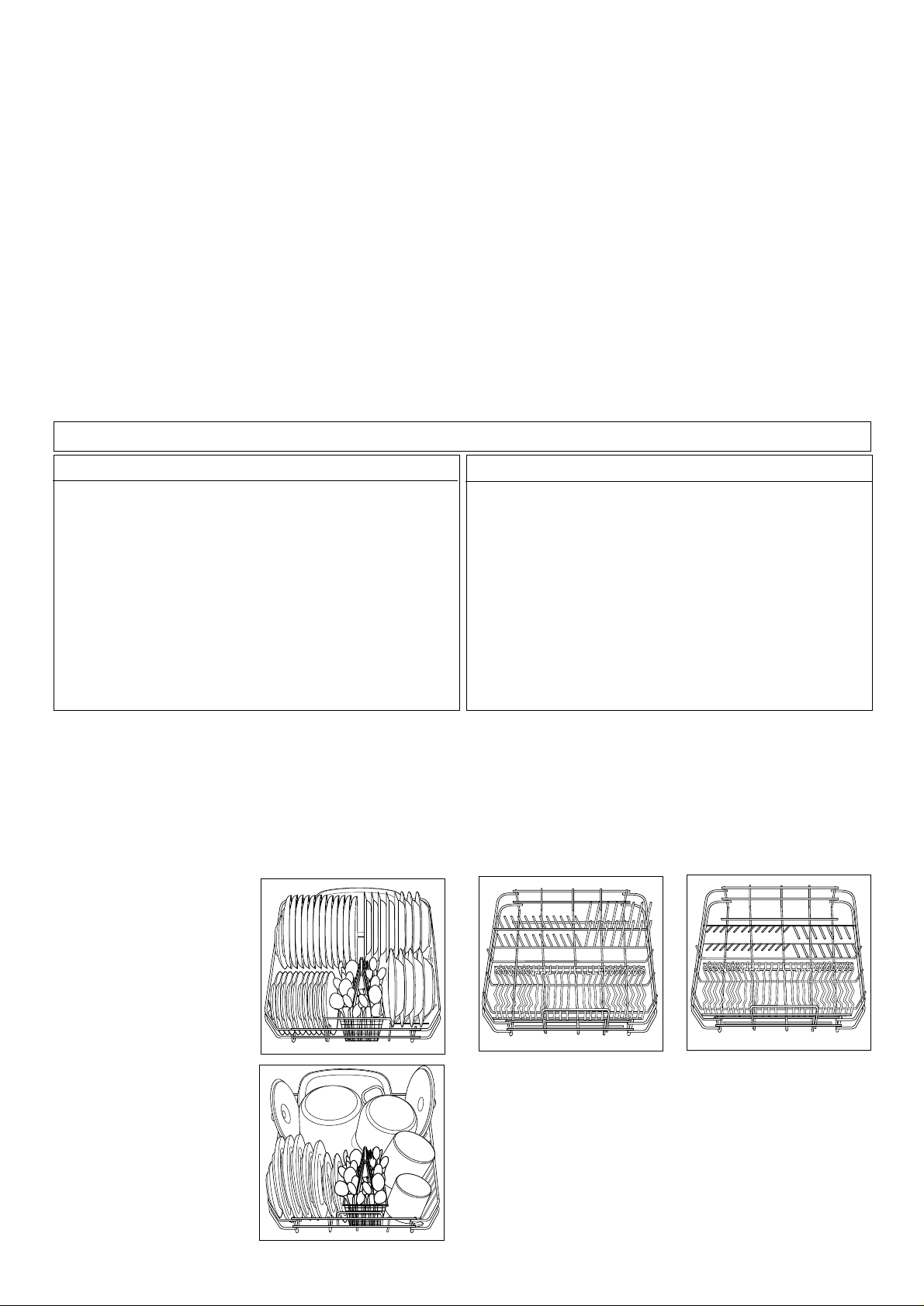

Loading cutlery and dishes 8
The lower basket 8
The cutlery basket 9
The upper basket 9
Adjusting the height of the upper basket 9
Use of detergent 10
Washing programmes 11
Starting a washing programme 12
Maintenance and cleaning 13

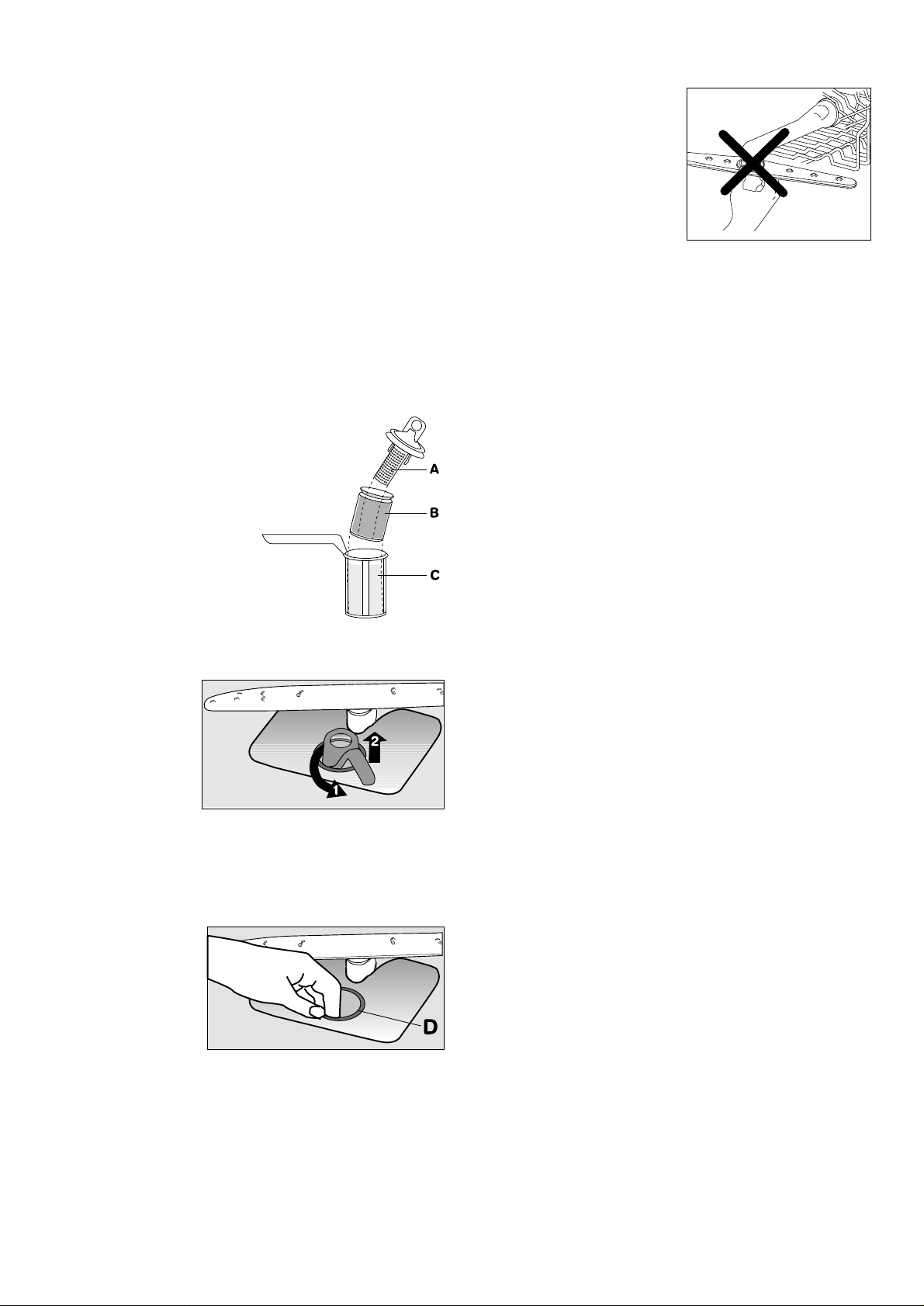

Cleaning the filters 13
Prolonged periods of non-operation 13
Frost precautions 13
Moving the machine 13
What to do, when... 14
Service and spare parts 15
Installation instructions 16

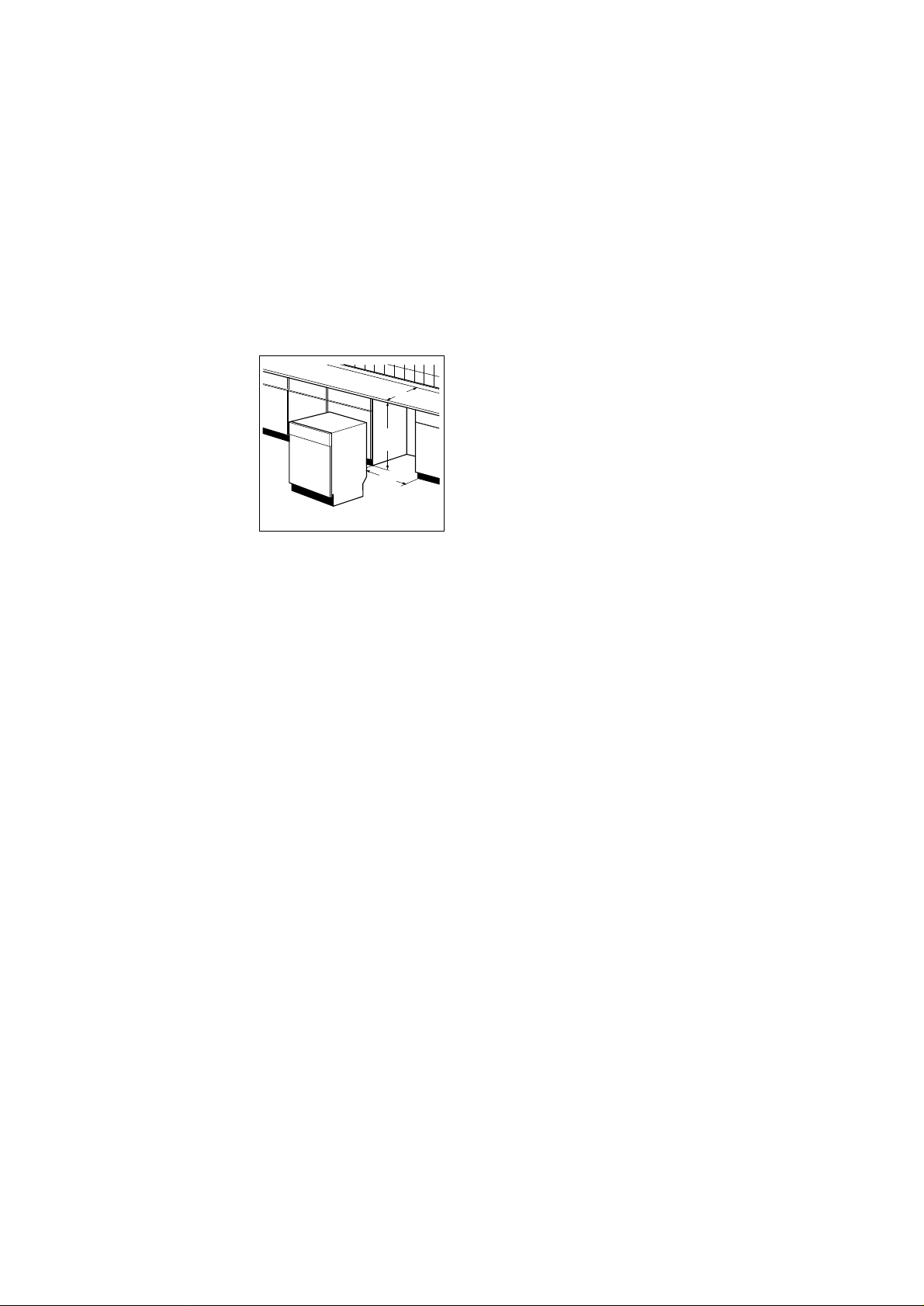

Fitting under a counter 16
Levelling 16
Water supply connections 16

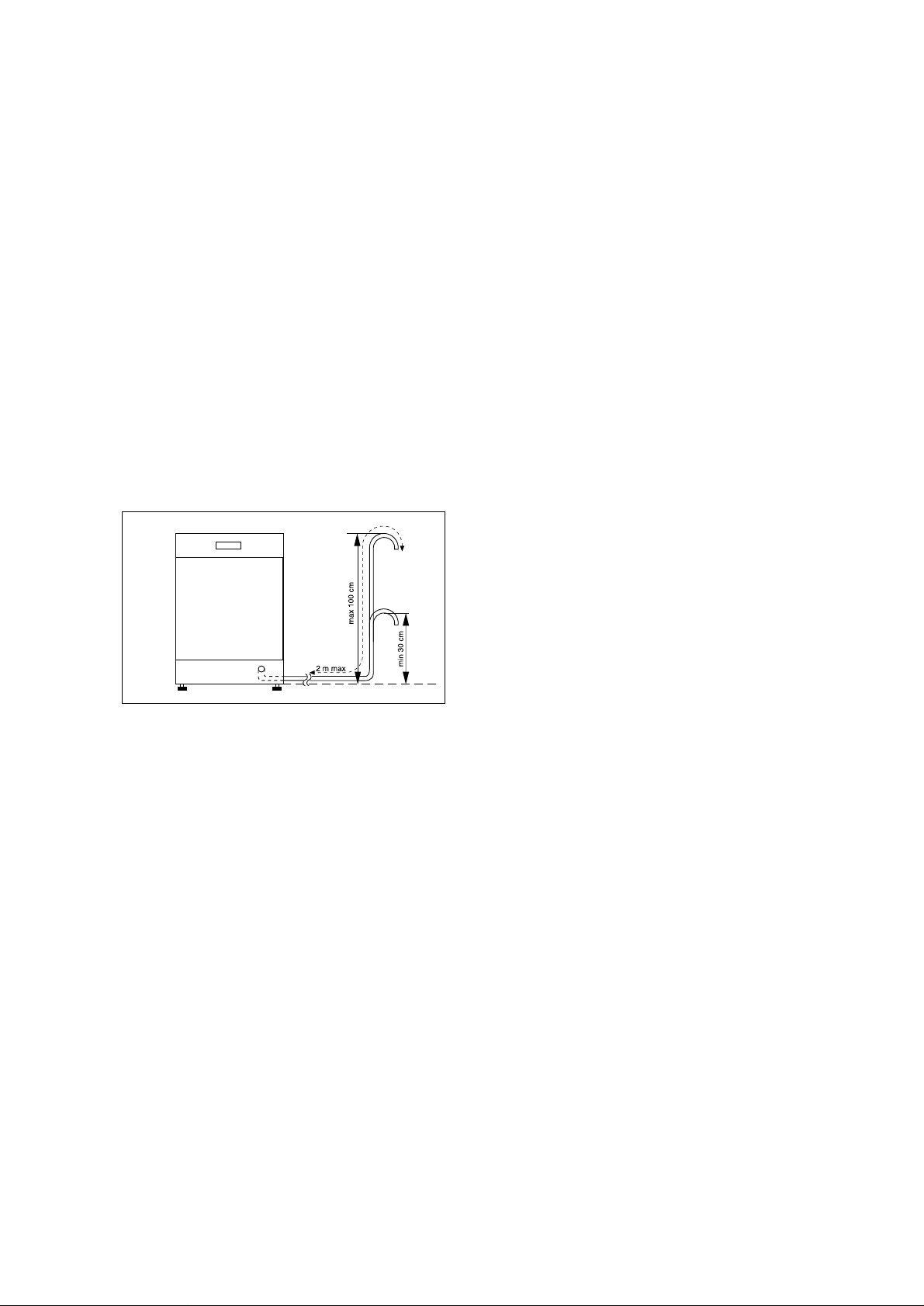

Water outlet hose connection 17
Electrical connection 17

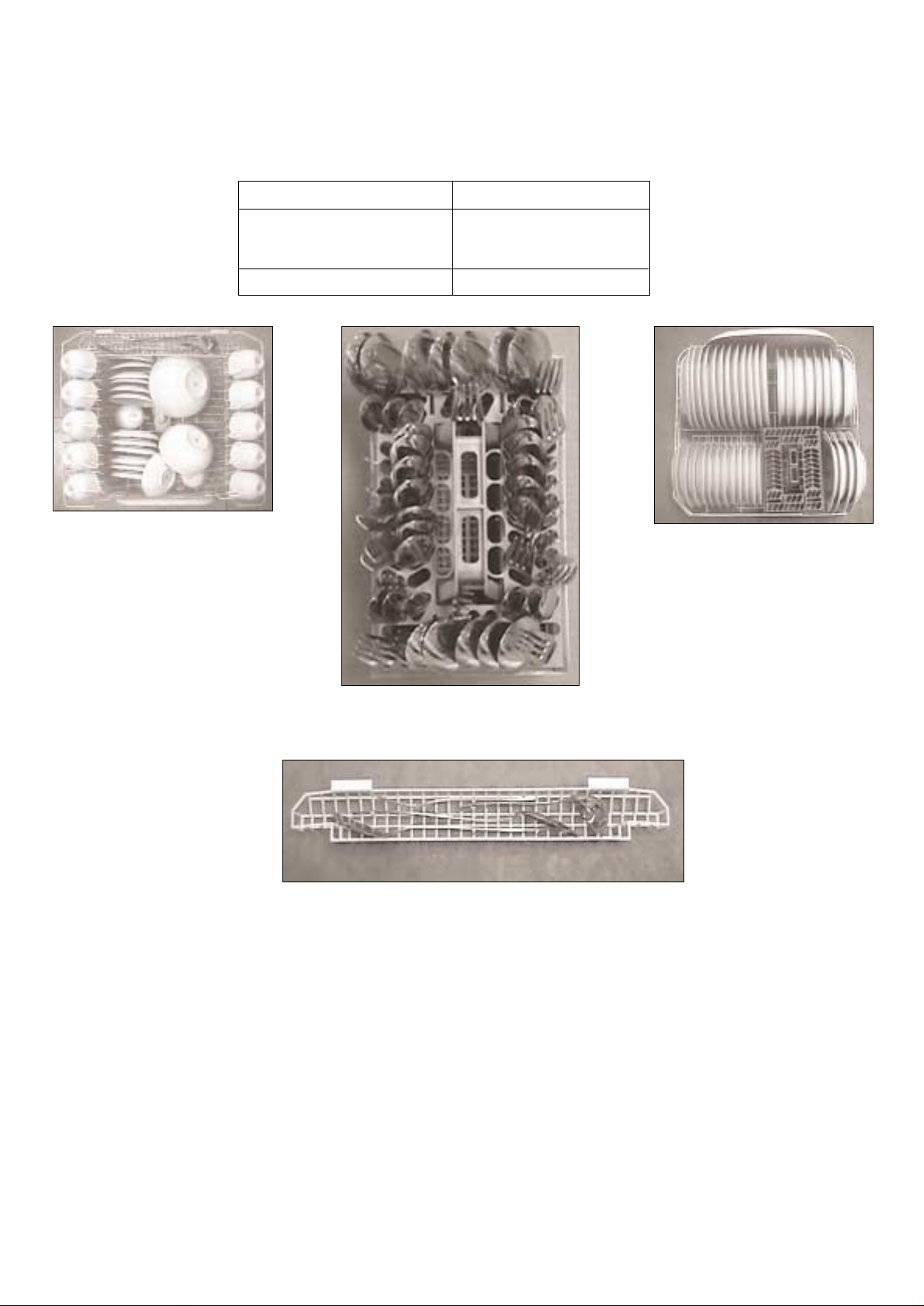

Hints for test centres 18
Contents
Dimensions Width 60 cm
Height with worktop 85 cm
Height without worktop 82 cm
Max depth 63.5 cm

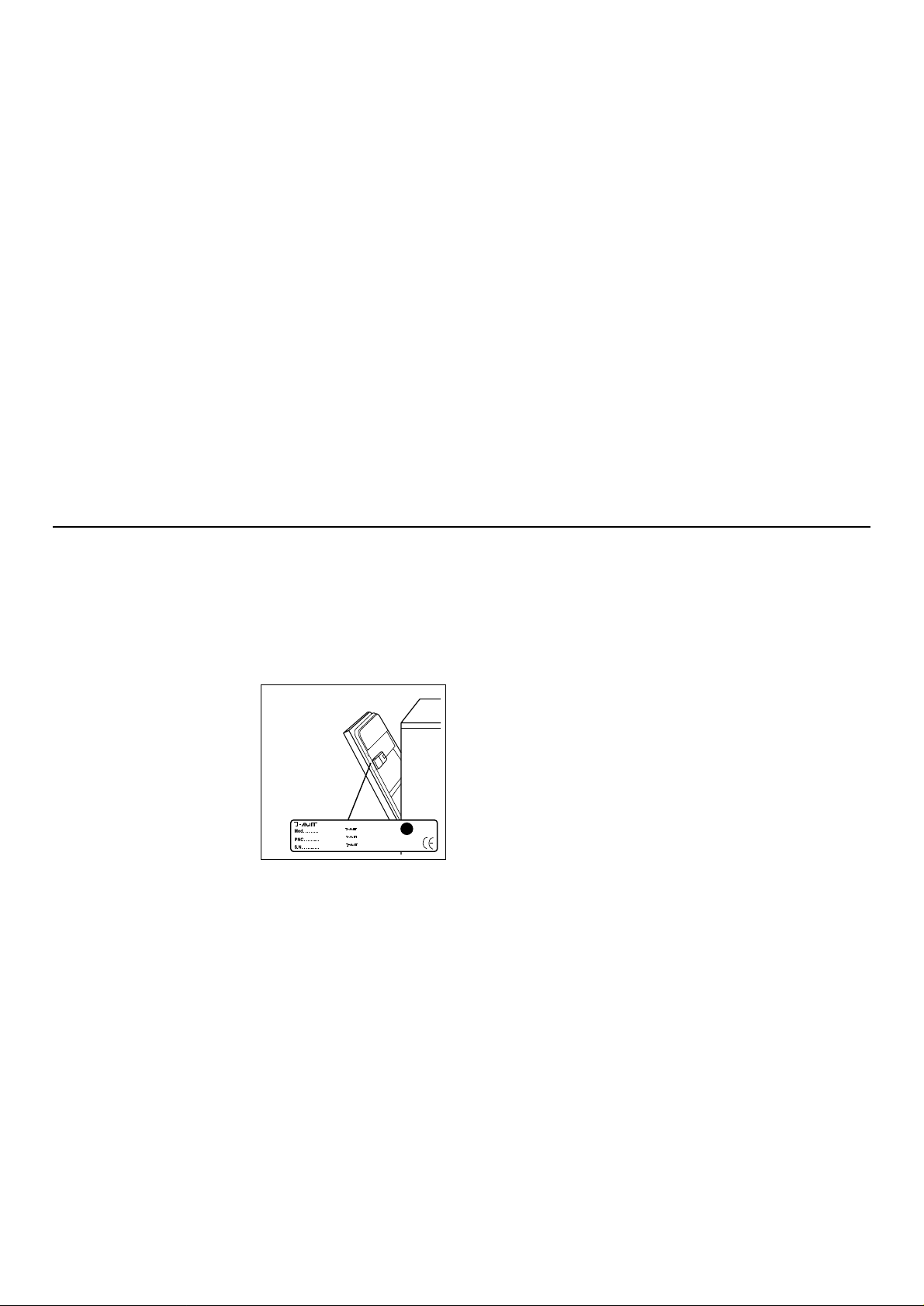

Electrical connection: Information on the electrical connection is given on the rating plate on the
Voltage inner edge of the dishwasher’s door on the right.
Overall power
Fuse
Water supply pressure Minimum 50 kPa (0.5 bar)
Maximum 800 kPa (8 bar)
Capacity 12 place settings
Technical specifications
This appliance complies with the following E.E.C. Directives:
- 73/23/CEE of 19/02/73 (Low Voltage Directive) and subsequent modifications;
- 89/336/CEE of 03/05/89 (Electromagnetic Compatibility Directive) and subsequent modifications.
Page 3
3
It is most important that this instruction book should be
retained with the appliance for future reference. Should
the appliance be sold or transferred to another owner, or
should you move house and leave the appliance, always
ensure that the book is left with the appliance in order that
the new owner can get to know the functioning of the
appliance and the relevant safety information.
This information has been provided in the interest of your
safety. You MUST read it carefully before installing or
using the appliance.
Installation
● Check your dishwasher for any transport damage. Never
connect a damaged machine. If your dishwasher is
damaged, you should contact your supplier.
● For safety reasons it is dangerous to alter the specifications
or attempt to modify this product in any way.
● Any electrical and plumbing work required to install this
appliance should be carried out by a qualified and
competent person.
● Care must be taken to ensure that the appliance does not
stand on the electrical supply cable.
● The sides of the dishwasher must never be drilled to
prevent damage to hydraulic components.
Child safety
● This appliance is designed to be operated by adults.
● Children should not be allowed to tamper with the controls
or play with the product.
● Packaging parts may be dangerous for children, who could
even be suffocated! You should therefore keep all
packaging well away from children.
● The water in your dishwasher is not for drinking. Detergent
residues may still be present in your machine. Keep
children well away from your dishwasher when the door is
open.
● Keep all detergents in a safe place out of children's reach.
Your dishwasher in day-to-day use
● Items that are contaminated by petrol, paint, steel or iron
debris, corrosive, acidic or alkaline chemicals must not be
washed in this dishwasher.
● Under no circumstances should you open the door whilst
the appliance is in operation, especially during the washing
phase, hot water may escape. However, if the door is
opened, a safety device ensures that the machine stops.
● Only use products (detergent, salt and rinse aid) specifically
designed for use in dishwashers.
● Long bladed knives stored in an upright position are a
potential hazard.
● Long and/or sharp items of cutlery such as carving knives
must be positioned horizontally in the upper basket.
● When finishing loading or unloading close the door, as an
open door can be a hazard.
● Do not sit or stand on the open door.
● Isolate the appliance from the power supply and turn off the
water supply after use.
● This product should be serviced by an authorised service
engineer, and only genuine spare parts should be used.
● Under no circumstances should you attempt to repair the
machine yourself. Repairs carried out by inexperienced
persons may cause injury or serious malfunctioning.
Contact your local consumer services department. Always
insist on genuine spare parts.
Disposal
Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with standard international
abbreviations:
>PE< for polyethylene, e.g. sheet wrapping material.
>PS< for polystyrene, e.g. padding material (always CFC-
free).
>POM< for polyoxymethylene, e.g. plastic clips.
Cardboard packaging is manufactured from recycled paper
and should be deposited in the waste paper collection for
recycling.
As and when you cease to use your dishwasher and withdraw
it from service, your should render it unserviceable before
having it disposed of.
Warning! Children at play could lock themselves in your
dishwasher or otherwise endanger their lives. Therefore cut off
the power supply cable and make the door closing device
unusable to prevent children from being trapped inside.
For the disposing of the appliance please take it to a recycling
centre or to your dealer who will, for a small contribution to the
costs, dispose it for you.
Economical and
ecological dishwashing
● Ensure that the water softener is correctly adjusted.
● Do not pre-wash under running water.
● Select the wash programme to suit the nature and degree of
the soiling on the dishes.
● Do not use more detergent, special salt and rinse aid than is
recommended in these operating instructions and by the
manufacturer of the respective product.
Safety instructions
Page 4
The control panel
4
1. Upper basket stop
2. Water hardness switch
3. Salt container
4. Detergent dispenser (type A/ type B)
5. Control panel
6. Rating plate
7. Rinse aid dispenser (type A/ type B)
8. Filters
9. Lower spray arm
10. Upper spray arm
11. Upper basket
12. Worktop
Description of the appliance
Function push buttons: in addition to the dishwashing
programme selected, the following functions can also be set
with the help of these buttons.
"Delay start" push button: this option allows the start
of the programme to be delayed by 3, 6 or 9 hours.
Indicator lights: have the following meanings:
The salt and rinse aid indicator lights are never illuminated
while a washing programme is running even if filling with salt
and rinse aid is necessary.
Phase indicator lights: have the following meanings:
As soon as you select a washing programme, the phase
indicator lights for that programme will start flashing.
As the programme starts, the phase indicator lights turn off
except for the indicator light of the phase in progress which will
remain lit with a static light.
Function push button 1 Set water softener
Function push button 2 Activate/deactivate rinse aid
indicator light
salt refilling indicator light, illuminates when the salt
has run out
rinse aid refilling indicator light, illuminates when
the rinse aid has run out
washing: illuminates when the washing phase is
running
drying: illuminates when the drying phase is
running
end of programme: illuminates when the washing
programme has ended
IN148
Page 5
5
Before using your dishwasher for the first time:
1. Ensure that the electrical and water connections comply
with the installation instructions
2. Remove all packaging from inside the appliance
3. Set the water softener
4. Pour 1 litre of water inside the salt container and then fill
with salt
5. Fill the rinse aid dispenser
Setting the water softener
The dishwasher is equipped with a water softener designed to
remove minerals and salts from the water supply, which would
have a detrimental or adverse effect on the operation of the
appliance.
The higher the content of these salts, the harder your water is.
Water hardness is measured in equivalent scales, German
degrees, French degrees and PPM (parts per Million).
The softener should be adjusted according to the hardness of
the water in your area. Your local Water Authority can advise
you on the hardness of the water in your area.
The water softener must be set in both ways: manually, using
the water hardness switch and electronically, using the function
push buttons on the control panel.
If your water is level 1 it is already soft and therefore there
is no need to use salt.
Setting manually
1. Open the dishwasher door.
2. Remove the lower basket from the dishwasher.
3. Turn the water hardness switch to position 1 or 2 (see
table).
4. Replace the lower basket.
The dishwasher is factory set at position 2.
Setting electronically
The dishwasher is factory set at level 3. If it’s necessary to set
a new level, proceed as follows.
1. With the dishwasher switched off press function push
buttons 1 and 2 simultaneously .
2. While keeping the push buttons 1 and 2 pressed switch on
the dishwasher by pressing the On/Off push button.
The On/Off indicator light comes on.
At the same time, the indicator lights of push buttons 1 and
2 start flashing.
3. Press push button 1, the indicator light of push button 2
turns off, while the indicator light of push button 1 remains
fixed for about 5 seconds, after this it starts flashing
indicating the current level of the water softener.
The current level is indicated by the number of flashes
made by the indicator light of push button 1, that alternates
5 seconds off with a number of flashes, this for about 60
seconds.
Example:
1 flash = level 1
2 flashes = level 2
3 flashes = level 3
4 flashes = level 4
5 flashes = level 5
4. To change the level, press push button 1. Each time the
push button is pressed the level changes.
Examples:
if the current level is 3, by pressing push button 1 once,
level 4 is selected.
if the current level is 5, by pressing push button 1 once,
level 1 is selected.
The indicator light of push button 1 remains off for about 5
seconds after which it starts flashing indicating the new
level selected.
5. To memorise the new level, switch off the dishwasher by
pressing the On/Off push button.
Prior to using for the first time
PPM
parts per million
°TH
french degrees
°dH
german degrees
manually
electronically
41 - 50
30 - 40
19 - 29
4 - 18
< 4
71 - 90
51 - 70
31 - 50
8 - 30
< 8
701 - 900
501 - 700
301 - 500
80 - 300
< 80
2
2
2
1
1
level 5
level 4
level 3
level 2
level 1
5
4
3
2
1
yes
yes
yes
yes
no
Water hardness
Adjusting the water hardness
setting
Number of
flashes
Use of
salt
AA07
Page 6
6

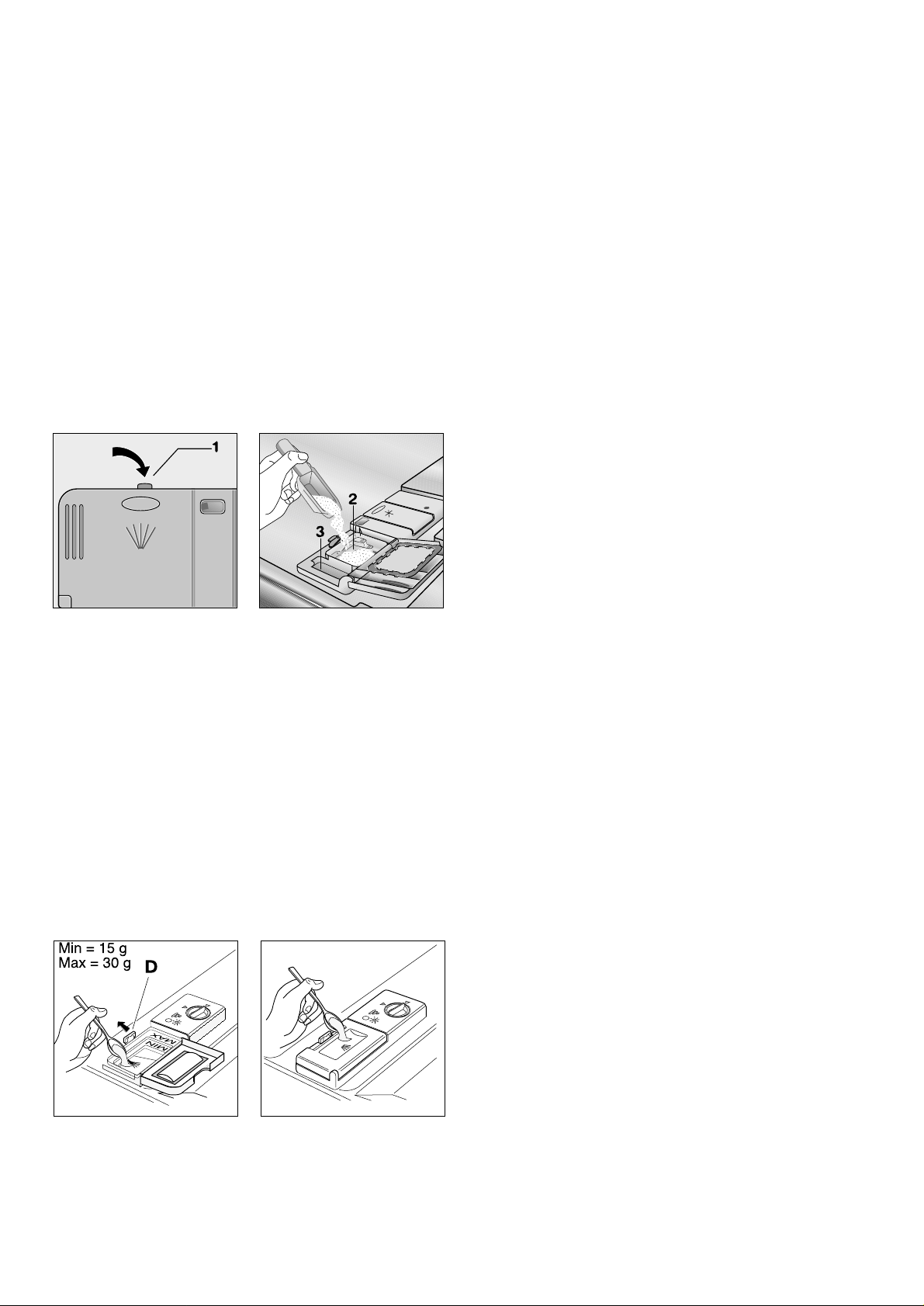

Filling with salt
Special salt can be added in one of two ways:
● If you are using dishwasher detergent that already contains
salt, the detergent including the salt is placed in the
detergent compartment.
- In this case the water softener must manually be set to 1
and electronically to 1 to ensure that the special salt is
taken from the detergent container only.
● If you are using dishwasher detergent and salt separately,
the special salt is to be put into the salt container.
- In this case the water softener must manually be set to 1
or 2 and electronically between 1 and 5 (depending on
the water hardness in your area) to ensure that the
special salt is taken from the detergent container only.
Only use salt specifically designed for use in
dishwashers.
All other types of salt not specifically designed for use in
a dishwasher, especially table salt, will damage the water
softener.
Only fill with salt just before starting one of the washing
programmes.
This will prevent any grains of salt or salty water, which
may have been spilt, remaining on the bottom of the
machine for any period of time, which may cause
corrosion.
To fill:
1. Open the door, remove the lower basket and unscrew the
cap of the salt container by turning it anticlockwise.
2. Pour 1 litre of water inside the container (this is necessary
only before filling with salt for the first time).
3. Using the funnel provided,
pour in the salt until the
container is full.
4. Replace the cap making
sure that there is no trace
of salt on the screw thread
or on the gasket.
5. Screw on the cap tightly
turning it clockwise until it
stops with a click.
The salt container will require topping up periodically. You are
reminded of this by the salt indicator light on the control panel
which comes on when the salt has finished.
Do not worry if water over flows from the unit when filling with
salt, this is quite normal.
The salt indicator light on the control panel can remain
illuminated for 2-6 hours after the salt has been
replenished, assuming the dishwasher remains switched
on. If you are using salts that take longer to dissolve then
this can take longer. The function of the machine is not
affected.
Rinse aid
Rinse aid is automatically added during the last rinse, ensuring
thorough rinsing, and spot and streak free drying. The
dispenser, which is positioned inside the door, holds about 110
ml of rinse aid, which is sufficient for 16 - 40 dishwashing
programmes, depending upon the dosage setting.
Rinse aid can be added in one of two ways:
● If you are using dishwasher detergent that already contains
rinse aid, the detergent including the rinse aid is placed in
the detergent compartment.
- In this case the rinse aid compartment must be empty
and the rinse aid indicator light deactivated.
If in the rinse aid dispenser there is still rinse aid you
must wait until it has finished before using detergent that
contains rinse aid.
● If you are using dishwasher detergent and rinse aid
separately, the rinse aid is to be put into the rinse aid
dispenser.
- In this case the rinse aid dosage must be set in position
from 1 to 6 (see "Adjusting the dose") and the rinse aid
indicator light activated.
Filling with rinse aid
(Rinse aid dispenser type A)
1. Open the container by pressing the release button (A).
2. Fill with rinse aid until the container is completely full,
exactly up to the level marked "max".
Ensure that the lid is closed after every refill.
Adjusting the dose
According to the finish and drying results obtained, adjust the
dose of rinse aid by means of the 6 position selector (position
1 minimum dosage, position 6 maximum dosage).
Increase the dose if there are drops of water or lime spots on
the dishes after washing.
The dose is factory set in
position 4.
Reduce it if there are sticky
whitish streaks on the dishes.
SR14
SALE
ZOUT
SALT
SALZ
SEL
BR07
BR14
BR09
Page 7
7
Filling with rinse aid
(Rinse aid dispenser type B)
1. Open the container by turning the lid (A) anticlockwise.
2. Fill with rinse aid until the container is completely full,
exactly up to the level marked "max".
Ensure that the lid is closed after every refill.
Adjusting the dose
According to the finish and drying results obtained, adjust the
dose of rinse aid by means of the 6 position selector (C)
(position 1 minimum dosage, position 6 maximum dosage).
Increase the dose if there are drops of water or lime spots on
the dishes after washing.
The dose is factory set in position 5.
Reduce it if there are sticky
whitish streaks on the
dishes.
Clean up any rinse aid spilt during filling with an absorbent
cloth to avoid excess foaming during the next wash.
Use only branded rinse aid for dishwashers. Never fill the rinse
aid dispenser with any other substances (e.g. dishwasher
cleaning agent, liquid detergent). This would damage the
appliance.
Top up the rinse aid when the rinse aid indicator light on the
control panel illuminates.
To deactivate the rinse aid indicator
light proceed as follows:
(the dishwasher must be switched off)
1. Press function push buttons 1 and 2 simultaneously.
2. While keeping the function push buttons 1 and 2 pressed
switch on the dishwasher by pressing the On/Off push
button.
The On/Off indicator light comes on.
At the same time, the indicator lights of push buttons
1 and 2 start flashing.
3. Press function push button 2, the corresponding indicator
light keeps flashing while the indicator light of push button
1 turns off. At the same time the rinse aid indicator light
starts to flash.
4. Press push button 2 again, the rinse aid indicator light turns
off, this means that the rinse aid indicator light has been
deactivated.
5. To memorise the operation, switch off the dishwasher by
pressing the On/Off push button.
To reactivate the rinse aid indicator light follow the same
process until the rinse aid indicator light starts to flash.
BR01
BR13
BR02
Page 8
8
● Check if it’s necessary to refill with special salt or rinse aid
● Load cutlery and dishes into the dishwasher.
● Fill with dishwasher detergent .
● Select a wash programme suitable for the cutlery and
dishes.
● Start the wash programme.
Loading cutlery and dishes
Sponges, household cloths and any object that can
absorb water may not be washed in the dishwasher.
● Before loading the dishes, you should:
- Remove large left-overs.
- Soften remnants of burnt food in pans
● When loading the dishes and cutlery, please note:
- Dishes and cutlery must not impede the rotation of the
spray arms .
- Load hollow items such as cups, glasses, pans, etc. with
the opening downwards so that water cannot collect in the
container or a deep base.
- Dishes and items of cutlery must not lie inside one
another, or cover each other.
- To avoid damage to glasses, they must not touch.
- Lay small objects in the cutlery basket.
Open the door and slide out the baskets to load the dishes.
The lower basket
The lower basket is designed to take saucepans, lids, plates,
salad bowls, cutlery etc.
Serving dishes and large lids should be arranged around the
edge of the basket, ensuring
that the upper spray arm can
turn freely.
The two rear rows of prongs on the lower basket can be easily
lowered to allow you to load pots, pans and bowls.
To lower the prongs:
- Slightly pull them upward and let them drop down
(see picture).
- To bring them back to the standing position, just pull them up
again.
In daily use
For washing in the dishwasher the following cutlery/dishes
are of limited suitability:
- Only wash stoneware in the dishwasher if it is specifically
marked as being dishwasher-safe by the manufacturer.
- Glazed patterns may fade if machine washed frequently
- Silver and aluminium parts have a tendency to discolour
during washing. Left-overs, e.g. egg white, egg yolk and
mustard often cause discolouring and staining on silver.
Therefore always clean left-overs from silver immediately, if
it is not to be washed straight after use.
- Some types of glass can become dull after a large number
of washes
are not suitable:
Cutlery with wooden, horn, china or
mother-of-pearl handles
- Plastic items that are not heat resistant
- Older cutlery with glued parts that is not
temperature resistant
- Bonded cutlery items or dishes
- Pewter or copper items
- Lead crystal glass
- Steel items subject to rusting
- Wooden platters
- Items made from synthetic fibres
UI50
UI43
UI44
UI47
Page 9
9
The cutlery basket
Long bladed knives stored in an upright position are a
potential hazard.
Long and/or sharp items of cutlery such as carving knives
must be positioned horizontally in the upper basket.
Take care when loading or unloading sharp items such as
knives.
Removable knife basket
Long and/or sharp items of cutlery such as carving knives must
be placed horizontally in the removable knife basket, which is
positioned at the rear of the upper basket.
Cutlery should be placed in the removable cutlery basket with
the handles facing downwards. If the handles protrude from
the bottom of the basket, obstructing the lower spray arm, load
the cutlery with the handles facing upwards.
Mix spoons with other cutlery to prevent them from sticking
together.
The cutlery basket can be
placed either to the left or to
the right of the lower basket.
The upper basket
The upper basket is designed for plates (dessert plates,
saucers, dinner plates of up to 25 cm in diameter), salad
bowls, cups and glasses.
Arrange items on and
underneath the cup racks so
that water can reach all
surfaces.
Glasses with long stems can
be placed upside down in
the cup racks.
Light items (plastic bowls
etc.) must be loaded in the
upper basket and arranged
so they do not move.
In case that plates are loaded in the upper
basket:
load them starting from the
rear positions of the
basket; tilting them slightly
forwards and avoiding the
front positions near the
door.
Before closing the door, ensure that the spray arms can
rotate freely.
Adjusting the height of the upper basket
If washing very large plates you can load them in the lower
basket after moving the upper basket to the higher position.
To move to the higher position proceed as
follows:
1. Move the front runner stops (A) of the upper basket
outwards and slide the basket out.
2. Refit the basket in the higher position and replace the stops
(A) in their original position.
After loading your machine always close the door, as an
open door can be a hazard.
With upper basket raised 20 cm 31 cm
With upper basket lowered 25 cm 27 cm
Maximum height of the dishes in
upper basket lower basket
UI53
RC01
UI42
US46
US71
Page 10
10
Use of detergent
Only use detergents specifically designed for use in
dishwashers.
Using no more then the correct amount of detergent
contributes to reducing pollution.
Prior to the start of a wash programme. The detergent is
released during the washing phase.
Please observe the manufacturer’s dosing and storage
recommendations as stated on the detergent packaging.
Fill with detergent
(Detergent dispenser type A)
1. If the lid is closed: press release button (1). The lid springs
open.
2. Fill the detergent dispenser (2) with detergent.
The marking indicates the dosing levels:
20 = approximately 20 ml of detergent
30 = approximately 30 ml of detergent
3. All programmes with prewash need a little amount of
detergent (5 g) to be added in the adjacent chamber (3).
4. Close the lid and press until it locks in place.
Fill with detergent
(Detergent dispenser type B)
1. If the lid is closed: open the dispenser by pulling the catch
(D). The lid springs open.
2. Fill the detergent dispenser with detergent.
The marking indicates the dosing levels:
Min = approximately 15 g of detergent
Max = approximately 30 g of detergent
3. Close the lid and press until it locks in place.
4. All programmes with prewash need a little amount of
detergent (5 g) to be added over the lid of the dispenser.
Use of "3 in 1" combi detergent tablets
General advice
These products are tablets with combined detergent/rinse-aid
and salt functions.
1. Before using these products you should first check that the
water hardness in your supply is compatible with the use of
these products as per the detergent manufacturers (on the
product packaging).
2. These products should be strictly used according to the
detergent manufacturers instructions.
Do not place the tablets in the tub or in the cutlery
basket as this will result in poorer wash results. The
tablets should be placed in the detergent dispenser.
3. If you encounter problems when using 3 in 1 products for
the first time then please contact the detergent
manufacturers care line (the telephone number is given on
the product packaging).
Special advice
When using combination products, the rinse-aid and salt
indicators are no longer useful. It may be helpful therefore to
switch the rinse aid off - please note that only some
dishwashers have this facility - and select the lowest possible
setting for water hardness.
For more information please refer to the instruction manual.
If you decide to turn back to the use of the standard detergent
system we advise that you:
● Refill both the salt container and rinse aid dispenser.
● Switch the water hardness setting to the highest possible
position and run a normal washing programme without a
load.
● Readjust the water hardness setting again according to the
hardness of the water in your area.
Concentrated detergent
Based on their chemical composition, dishwasher detergents
can be split into two basic types:
- conventional, alkaline detergents with caustic components.
- low alkaline concentrated detergents with natural enzymes.
The use of 50°C washing programmes in conjunction with
concentrated detergents reduces pollution and is good for your
dishes; these wash programmes are specially matched to the
dirt-dissolving properties of the enzymes in the concentrated
detergent. For this reason 50°C wash programmes in which
concentrated detergents are used can achieve the same
results that can otherwise only be achieved using 65°C
programmes.
Detergent tablets
Detergent tablets of different brands dissolve at different
speeds. For this reason some detergent tablets cannot
develop their full cleaning power during short programmes.
Therefore please use normal programmes with prewash when
using detergent tablets.
DE19
DE22
DE17
DE02
Page 11
11
Washing programmes
Programme Degree of soil
and
type of load
Heavy soil.
Crockery, cutlery,
pots and pans
Normal soil.
Crockery and cutlery
Normal soil.
Crockery and cutlery
Fresh soil.
Crockery and cutlery
Press the
programme
button
Cycle
description
(3) Consumption values
Hot prewash
Main wash up to 70°C
3 warm rinses
Drying
Main wash up to 60°C
1 hot rinse
Cold prewash
Main wash up to 65°C
1 cold rinse
1 hot rinse
Drying
Cold prewash
Main wash up to 50°C
1 cold rinse
1 hot rinse
Drying
(1) Ideal for washing crockery and cutlery of breakfast and dinner (fresh soil).
Characterised by a duration of about 30 minutes and a washing temperature of 60°C.
The time value is approximate and depends on the pressure and the temperature of the water and also by the variations
of the power supply.
This is the perfect daily programme, made to meet the needs of a family of 4 persons who only wish to load breakfast
and dinner crockery and cutlery.
(2) Testing programme for EN 50242 (see "Hints for Test Centres). This programme, developed for the use of detergents with
enzymes, allows to achieve, with reduced consumption of energy the same cleaning results that would otherwise be obtained
only with the 65°C programmes and conventional detergents. To compensate the lower temperature, the duration of the
programme has been extended.
(3) The consumption values are intended as a guide and depends on the pressure and the temperature of the water and also by
the variations of the power supply.
70°
65°
60°
50°
Intensive 70°
(1) Quick 60°
(2) Bio 50°
Normal 65°
Programme duration
(in minutes)
Energy
consumption
(in kWh)
Water
consumption
(in litres)
85 - 95 1,85 - 1,95 21 - 23
100 - 110 1,5 - 1,6 21 - 23
30 0,7 9
125 - 135
0,95 - 1,05
16 - 18
Page 12
12
1. Check that the baskets have been
loaded correctly and that the spray
arms can rotate freely
2. Turn on the water tap
3. Close the dishwasher door
4. Press the On/Off push button
The On/Off indicator light will come on.
5. Setting and starting the programme
Press the push button corresponding to the required
programme (see "Washing programmes" chart).
The indicator light corresponding to the programme
illuminates and the phase indicator lights foreseen for
that programme start flashing.
It is possible to change the programme selection simply
pressing the push button of another programme within 6
seconds.
Once the programme has started the phase indicator
lights will turn off except for the phase under way.
6. Interrupting/cancelling a washing
programme
Change or interrupt a washing programme in
progress ONLY if it’s absolutely necessary
To interrupt a washing programme
Attention! Hot steam may escape when the door is
opened. There is risk of scalding. Open the door
carefully.
● Open the dishwasher door; the programme will stop.
Close the door; the programme will start from the
point in which it was interrupted.
● pressing the On/Off (in this case all the indicator
lights turn off). Press the On/Off push button again;
the programme will start from the point in which it was
interrupted.
To cancel a washing programme
A programme in progress can be cancelled at any time.
Press for about 3 seconds the push button of the running
programme until all indicator lights are off.
Only the On/Off indicator light will remain illuminated.
It is now possible to select a new washing programme.
7. Setting/cancelling the "Delay start"
The setting of the delay start occurs before selecting
the programme.
Setting the "Delay start"
Press the "delay start" push button until the indicator light
corresponding to the chosen hours flashes (3, 6 or 9
hours).
Press the push button corresponding to the required
washing programme; the indicator light corresponding to
the programme illuminates and the phase indicator lights
for that programme start flashing.
From the moment that the washing programme has been
set, the delay start will begin with the countdown.
The countdown will decrease with step of 3 hours.
During the countdown, the indicator light of the selected
programme and the indicator light of the number of hours
to the start of the programme will remain illuminated.
Once the delay start has elapsed the programme will
start automatically, the indicator lights for delay start turn
off and the indicator light of the phase underway
illuminates.
Cancelling the "delay start"
It is possible to cancel a countdown in progress or before
it starts, simply pressing the delay start push button until
the indicator lights corresponding to the delay start hours
are off.
In this case the selected washing programme will start
automatically after 6 seconds.
8. End of the washing programme
The dishwasher will automatically stop and the end of
programme phase indicator light will illuminate.
The indicator light of the programme just ended will
remain on.
The dishwasher has finished the programme only when
the end of programme indicator light is illuminated.
If you do not wait for the end of the programme it will not
be possible to start a new programme until the previous
programme has been cancelled.
(For instructions on how to cancel a programme see the
corresponding instructions).
If during the drying phase (drying indicator light
illuminated) the dishwasher door is opened or the On/Off
push button is pressed, the running programme is
automatically cancelled and the machine returns to
setting mode (in this case it is possible to select a new
programme without cancelling the previous)
Switch off the dishwasher by pressing the On/Off push
button, the On/Off indicator light turns off.
Hot steam may escape from the appliance when opening
the door immediately after the end of the programme,
therefore, open the door carefully.
Unloading the dishwasher
Hot dishes are sensitive to knocks. The dishes should
therefore be allowed to cool down before removing from
the appliance.
Leave the dishes in the dishwasher for approx. 15
minutes, with the door ajar, after the end of programme
so that they dry better and will be cooler.
Empty the lower basket first and then the upper one; this
will avoid water dripping from the upper basket onto the
dishes in the lower one.
When the washing programme has finished, it is
recommended that the dishwasher is unplugged and the
water tap turned off.
Starting a washing programme
Page 13
13
Clean the external surfaces of the machine and control panel
with a damp soft cloth. If necessary use only neutral
detergents. Never use abrasive products, scouring pads or
solvent (acetone, trichloroethylene etc....).
Ensure that the seals around the door, the detergent and rinse
aid dispensers are cleaned regularly with a damp cloth.
We recommend every 3 months to run a 65°C wash
programme without dishes using detergent.
Cleaning the filters
The filters in the base of the washing compartment are to large
extent self-cleaning. Nevertheless the filters should be
checked and cleaned from time to time. Dirty filters will
degrade the washing result.
1. Open the door, remove the lower basket.
2. The dishwasher filter
system comprises a
coarse/fine filter (A/B), a
microfilter (C) and a flat
filter (D).
Unlock the filter system
using the handle on the
microfilter, and remove.
3. Turn the handle about
1
/4a turn anticlockwise
and remove.
4. Take hold of the
coarse/fine filter (A/B) by
the handle with the hole and
remove from the microfilter (C).
5. Clean all filters thoroughly under running water.
6. Remove the flat filter (D) from the base of the washing
compartment and clean both faces thoroughly.
7. Put the flat filter back in the base of the washing
compartment.
8. Place the coarse/fine filter in the microfilter and press
together.
9. Put the filter combination in place and lock by turning the
handle clockwise to the stop. During this process ensure
that the flat filter does not protrude above the base of the
washing compartment.
Under no circumstances may the dishwasher be used
without filters.
To ensure a correct
working of the dishwasher,
NEVER try to remove the
upper spray arm.
If residues of soil have
clogged the holes in the
upper spray arm, remove
them with a toothpick.
Prolonged periods of non-operation
If you are not using the machine for any period of time you are
advised to:
1. Unplug the appliance and then turn off the water.
2. Fill the rinse aid dispenser.
3. Leave the door ajar to prevent the formation of any
unpleasant smells.
4. Leave the inside of the machine clean.
Frost precautions
Avoid placing the machine in a location where the temperature
is below 0°C. If this is unavoidable, empty the machine, close
the appliance door, disconnect the water inlet pipe and empty
it.
Moving the machine
If you have to move the machine (moving house etc....):
1. Unplug it.
2. Turn the water tap off.
3. Remove the water inlet and discharge hoses.
4. Pull the machine out together with the hoses.
Avoid over tilting the machine during transportation.
Maintenance and cleaning
MA32
MA33
MA36
MA31
Page 14
14
What to do, when...
Certain problems are due to the lack of simple maintenance or oversights, which can be solved with the help of the instructions
given here, without calling out an engineer.
...a flashing fault code appears
The dishwasher will not start or stops during operation. All push buttons are inoperative except for the On/Off push button and a
combination of indicator lights, as indicated in the following chart, are flashing. Press the On/Off push button to switch the
dishwasher off and carry out the following suggested corrective actions.
Once the checks have been carried out, press the On/Off push button, the programme will continue from the point in which it was
interrupted. If the fault code reappears contact the consumer services department.
For other combinations of fault codes not described in the above chart will appear, please contact your consumer services
department.
Indicator lights of the
programme in progress and
"washing" phase are flashing.
The machine does not fill with
water.
Indicator lights of the
programme in progress and
"drying" phase are flashing.
The dishwasher will not drain.
Indicator lights of the
programme in progress and
"drying" and "washing" phases
are flashing.
Fault code / malfunction Possible cause Solutions
The water tap is blocked or furred with
limescale.
The water tap is turned off.
The filter (where present) in the threaded hose
fitting at the water inlet valve is blocked.
The water inlet hose has not been correctly laid
or it is bent or squashed.
Clean the water tap.
Turn the water tap on.
Clean the filter in the threaded hose
fitting.
Check the water inlet hose connection.
The siphon is blocked. Clean out the siphon.
The water drain hose has not been correctly laid
or it is bent or squashed.
Check the water drain hose connection.
Protection against flooding is active.
Close the water tap and contact the
consumer services department.
...there are problems when operating the dishwasher
The programme does not start
There is a whistling noise during
washing
Fault Possible cause Solutions
The dishwasher door has not been properly
closed.
The main plug is not plugged in.
The fuse has blown in the household fuse box.
For dishwasher models with delay start
option:
Delay start has been selected.
Close the door.
Insert the mains plug.
Replace the fuse.
If dishes are to be washed immediately,
for appliances
- with multi-display, set the delay start to 0
- without multi-display, cancel the delay
start.
Use a different brand of detergent.The whistling is not a cause for concern.
Page 15
15
...the wash results are not satisfactory
The dishes are not clean
● The wrong washing programme has been selected.
● The dishes were arranged in such a way as to stop water reaching all parts of the surface. The baskets must not be overloaded.
● The spray arms do not rotate freely due to wrong arrangement of the load.
● The filters in the base of the washing compartment are dirty or incorrectly positioned.
● Too little or no detergent has been used.
● Where there are limescales deposits on the dishes; the salt container is empty or the wrong level of the water softener has been
selected.
● The drain hose connection is not correct.
● The salt container cap is not properly closed.
The dishes are wet and dull
● Rinse aid was not used.
● The rinse aid dispenser is empty.
There are streaks, milky spots or a bluish coating on glasses and dishes
● Decrease rinse aid dosing.
Water drops have dried onto glasses and dishes
● Increase rinse aid dosing.
● The detergent may be the cause. Contact the detergent manufacturer’s consumer care line.
If after all these checks, the problem persists, contact your
local consumer services department, quoting the model
(Mod.), product number (PNC) and serial number (S.N.).
This information can be found on the rating plate located on
the right hand side of the dishwasher door (see picture).
So that you always have these numbers at hand, we
recommend you to make a note of them here:
Mod. : . . . . . . . . . . . . . . . . . .
PNC : . . . . . . . . . . . . . . . . . .
S.N. :. . . . . . . . . . . . . . . . . . .
Service and spare parts
This product should be serviced by an authorised service
engineer, and only genuine spare parts should be used.
Under no circumstances should you attempt to repair the
machine yourself.
Repairs carried out by inexperienced persons may cause injury
or serious malfunctioning. Contact your local consumer
services department.
Always insist on genuine spare parts.
RA08
Page 16
16
Any electrical and/or plumbing work required to install
this appliance should be carried out by a qualified
electrician and/or plumber or competent person.
Remove all packaging before positioning the machine.
If possible, position the machine next to a water tap and a
drain.
Fitting under a counter
(kitchen worktop or sink)
By removing the machine’s worktop, you can install it under a
close fitting sink unit or a pre-existing top, providing the
dimensions of the recess correspond to those shown in the
picture.
Proceed as follows:
Remove the machine’s worktop by unscrewing the two rear
retaining screws, pull from the front and slide out the rear
slots, lifting the worktop.
Insert the machine after adjusting height and levelling with the
adjustable feet. When inserting the machine, ensure that the
water inlet and drain hoses are not kinked or squashed.
If the dishwasher is later used as a free-standing appliance,
the original worktop must be re-mounted.
The plinth on free-standing appliances is not adjustable.
Levelling
Good levelling is essential for correct closure and sealing of
the door.
When the appliance is correctly levelled, the door will not catch
on either side of the cabinet.
If the door does not close correctly, loosen or tighten the
adjustable feet until the machine is perfectly level.
Water supply connections
This dishwasher may be fed with either hot (max. 50°) or cold
water. Nevertheless we advise you a cold water supply.
A hot water supply is not always efficient with very soiled
crockery as it shortens the washing programmes a lot.
The dishwasher must not be connected to open hot water
appliances or instantaneous water heaters.
The dishwasher is fitted with safety devices that prevent the
wash water returning into the drinking water system and
comply with the applicable plumbing regulations.
The water pressure must be within the limits given in the
technical specifications. Your local Water Authority will advise
you on the average mains pressure in your area.
The dishwasher features fill and drain hoses which can be
turned either to the left or the right to suit the installation.
The water inlet hose must not be kinked, crushed, or entangled
when it is being connected up.
Do not use, for connection, old hoses which have been
used in another appliance.
If the machine is connected to new pipes or pipes which have
not been used for a long time, you should run the water for a
few minutes before connecting the inlet hose.
Installation instructions
570 - 600
820
600
IN05
Page 17
17
Water outlet hose connection
The end of the drain hose can be connected in the following
ways:
1. To the sink outlet spigot, securing it if necessary with a clip.
2. Hooked over the edge of the sink using the special curved
plastic guide provided.
3. To a stand pipe provided with vent-hole, minimum internal
diameter 4 cm.
The waste connection must be at a height of between 30 cm
(minimum) and 100 cm (maximum) from the bottom of the
dishwasher.
The drain hose can face either to the right or left of the
dishwasher
Ensure the hose is not bent or squashed as this could prevent
or slow down the discharge of water.
The sink plug must not be in place when the machine is
draining as this could cause the water to siphon back into the
machine.
If you use a drain hose extension it must be no longer than 2
metres and its internal diameter must be no smaller than the
diameter of the hose provided.
Likewise the internal diameter of the couplings used for
connections to the waste outlet must be no smaller than the
diameter of the hose provided.
Attention!
Our appliances are supplied with a security device to protect
against the return of dirty water back into the machine.
If the spigot of your sink has a "no return valve" incorporated
this can prevent the correct draining of your dishwasher.
We advise you therefore to remove it.
Electrical connection
Information concerning the electrical connection is given on the
rating plate on the edge of the dishwasher’s door on the right.
Before plugging the appliance into the wall socket, make sure
that:
1. The mains voltage and current rating at the site of
installation match the nominal voltage and current rating
given on the rating plate.
2. The meter, fuses, mains power supply and wall socket can
all take the maximum load required. Make sure that the
socket and plug are compatible without having to use any
type of adaptor. If necessary, have the domestic wiring
system socket replaced.
To isolate the dishwasher from mains, remove the mains plug.
Important!
The plug must still be accessible after the appliance has
been installed.
In case that the electrical cable has to be replaced, please
contact your local consumer services department.
Safety standards require the appliance to be earthed.
The manufacture accepts no liability for failure to observe
the above safety precautions.
CS18
Page 18
18
Testing in accordance with EN 60704 must be carried out with appliance fully loaded and using the test programme (see "Washing
programmes" chart).
Test in accordance with EN 50242 must be carried out when the salt dispenser and rinse aid container have been filled with salt and
rinse aid respectively and using the test programme (see "Washing programmes" chart).
Hints for test centres
Load: 12 standard place settings
Rinse aid setting
Rinse aid dispenser (type A): position 4 (Type III)
Rinse aid dispenser (type B): position 5 (Type III)
Detergent dosage : 5 g + 25 g (Type B)
Arrangement lower basket
Arrangement upper basket
Arrangement cutlery basket
Arrangement cutlery basket
Page 19
Page 20
The Electrolux Group. The world’s No.1 choice.
The Electrolux Group is the world’s largest producer of powered appliances for kitchen,
cleaning and outdoor use. More than 55 million Electrolux Group products (such as
refrigerators, cookers, vacuum cleaners, chain saws and lawn mowers) are sold each year
to a value of approx. 14 billion USD in more than 150 countries around the world.
152971 32/0
0 01/03
Subject to change without notice
Loading...
