ESF2210DW
................................................ .............................................
EN DISHWASHER USER MANUAL
Page 2
www.electrolux.com
2
CONTENTS
1. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4. PROGRAMMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5. OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
6. BEFORE FIRST USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
7. DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
8.
HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
9. CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
10.
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
11. TECHNICAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
12.
ENVIRONMENT CONCERNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed
with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great
results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
Page 3
ENGLISH 3
1.
SAFETY INSTRUCTIONS
Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and
use causes injuries and damages. Always
keep the instructions with the appliance
for future reference.
1.1 Children and vulnerable
people safety
WARNING!
Risk of suffocation, injury or permanent disability.
• Do not let persons, children included,
with reduced physical sensory, reduced
mental functions or lack of experience
and knowledge use the appliance. They
must have supervision or instruction for
the operation of the appliance by a person who is responsible for their safety.
Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the
appliance door when it is open.
1.2 Installation
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C.
• Obey the installation instruction supplied with the appliance.
Water connection
• Make sure not to cause damage to the
water hoses.
• The appliance is to be connected to the
water mains using the new supplied
hose-sets. Old hose sets must not be
reused.
• Before you connect the appliance to
new pipes or pipes not used for a long
time, let the water flow until it is clean.
• The first time you use the appliance,
make sure that there is no leakage.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the power supply. If not, contact an electrician.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Contact the service or an electrician to
change a damaged mains cable.
• Connect the mains plug to the mains
socket only at the end of the installation. Make sure that there is access to
the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the
mains plug.
• Only for UK and Ireland. The appliance has a 13 amp mains plug. If it is
necessary to change the fuse in the
mains plug, use a 13 amp ASTA (BS
1362) fuse.
1.3 Use
• This appliance is intended to be used in
household and similar applications such
as:
– Staff kitchen areas in shops, offices
and other working environments
– Farm houses
– By clients in hotels, motels and other
residential type environments
– Bed and breakfast type environ-
ments.
WARNING!
Risk of injury.
• Do not change the specification of this
appliance.
Page 4
www.electrolux.com
4
• Put knives and cutlery with sharp points
in the cutlery basket with the points
down or in a horizontal position.
• Do not keep the appliance door open
without supervision to prevent to fall on
it.
• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous.
Obey the safety instructions on the detergent packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the appliance until the programme is completed. There can be detergent on the
dishes.
WARNING!
Risk of electrical shock, fire or
burns.
• Do not put flammable products or items
that are wet with flammable products
in, near or on the appliance.
2. PRODUCT DESCRIPTION
• Do not use water spray and steam to
clean the appliance.
• The appliance can release hot steam if
you open the door while a programme
operates.
1.4 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and dispose of
it.
• Remove the door catch to prevent children and pets to get closed in the appliance.
8
Salt container
1
Spray arm
2
Filters
3
Primary basket
4
1 2 4 53
7 6
Cutlery basket
5
Rinse aid dispenser
6
Detergent dispense
7
Rating plate
8
Page 5
3. CONTROL PANEL
The controls are on the top of the
appliance door. To operate with
the controls, keep the appliance
door ajar.
ENGLISH 5
1 32
45
On/off button
1
Programme indicators
2
Indicators
3
Indicators Description
Salt indicator. It is always off while the programme operates.
Rinse aid indicator. It is always off while the programme operates.
End indicator.
4. PROGRAMMES
Programme
1)
2)
Degree of
soil
Type of load
Normal soil
Crockery and
cutlery
Normal soil
Crockery and
cutlery
Heavy soil
Crockery, cutlery, pots and
pans
Normal or light
soil
Delicate crockery and glassware
4
5
Programme
phases
Prewash
Wash 55 °C
Rinses
Dry
Prewash
Wash 65 °C
Rinses
Dry
Prewash
Wash 70 °C
Rinses
Dry
Wash 40 °C
Rinse
Program button
Delay button
Duration
(min)
Energy
(kWh)
150 0.64 7.5
94 0.80 7
117 1.15 9
31 0.35 6
Water
(l)
Page 6
www.electrolux.com
6
Programme
3)
1)
The pressure and the temperature of the water, the variations of the mains supply, the
options and the quantity of dishes can change the programme duration and the
consumption values.
2)
With this programme you have the most efficient use of water and energy consumption for
crockery and cutlery with normal soil. (This is the standard programme for test institutes).
3)
With this programme you can wash a load with fresh soil. It gives good washing results in a
short time.
5. OPTIONS
1)
Degree of
soil
Type of load
Light soil
Crockery and
cutlery
Programme
phases
Wash 50 °C
Rinse
Duration
(min)
Energy
(kWh)
36 0.40 6
Water
(l)
Activate or deactivate the options
before the start of a programme.
You cannot activate or deactivate
the options while a programme
operates.
If one or more options are set,
make sure that the related indicators are on before the programme
starts.
5.1 Acoustic signals
The acoustic signals operate when the
appliance has a malfunction and it is not
possible to deactivate them.
There is also an acoustic signal that operates when the programme is completed.
By default, this acoustic signal is off, but it
is possible to activate it.
How to activate the acoustic signal
for the end of programme
1.
Press the on/off button to activate the
appliance.
2. If necessary, do the Reset function.
3.
Press and hold Program until the programme indicator
flash and the programme indicator
comes on with fixed light.
starts to
4.
Press immediately Program.
•
The programme indicator
comes on with fixed light.
•
The programme indicator
starts to flash.
5. Wait until the programme indicator
goes off. The programme indi-
cator
6.
Press Program. The end indicator
comes on. The acoustic signal for the
end of programme is activated.
7. Press the on/off button to deactivate
the appliance and to confirm the setting.
How to deactivate again the acoustic
signal for the end of programme
1.
Refer to “How to activate the acoustic
signal for the end of programme” and
follow the procedure from step (1) to
step (5). The end indicator is on.
2.
Press Program. The end indicator
goes off. The acoustic signal for the
end of programme is deactivated.
3.
Press the on/off button to deactivate
the appliance and to confirm the setting.
continues to flash.
Page 7
6. BEFORE FIRST USE
ENGLISH 7
1.
Make sure that the set level of the water softener agrees with the water
hardness in your area. If not, adjust
the water softener. Contact your local
water authority to know the water
hardness in your area.
2. Fill the salt container.
3.
Fill the rinse aid dispenser.
4.
Open the water tap.
5.
Processing residues can stay in the
appliance. Start a programme to remove them. Do not use detergent and
do not load the baskets.
6.1 Adjusting the water softener
Water hardness
German
degrees
(°dH)
> 24 > 40 > 4.2 > 29 10
22 - 24 39 - 40 3.9 - 4.2 27 - 29 9
20 - 22 35 - 39 3.5 - 3.9 25 - 27 8
18 - 20 32 - 35 3.2 - 3.5 23 - 25 7
16 - 18 28 - 32 2.8 - 3.2 20 - 23 6
13 - 16 23 - 28 2.3 - 2.8 17 - 20
10 - 13 18 - 23 1.8 - 2.3 13 - 17 4
7 - 10 12 - 18 1.2 - 1.8 9 - 13 3
4 - 7 7 - 12 0.7 - 1.2 5 - 9 2
< 4 < 7 < 0.7 < 5
1)
Factory position.
2)
Do not use salt at this level.
6.2 Electronic adjustment
1.
Press the on/off button to activate the
appliance.
2. If necessary, do the Reset function.
3. Press and hold Program until the pro-
gramme indicator
flash and the programme indicator
comes on with fixed light.
4.
Wait until the programme indicator
goes off and the end indicator
starts to flash. The programme indicator
continues to flash.
French
degrees
(°fH)
starts to
mmol/l Clarke
degrees
5.
Press Program. The end indicator
starts to flash. The intermittent flashing
of the end indicator refers to the current set level.
• E.g. 5 flashes + pause + 5 flashes =
level 5.
6.
Press Program again and again to
change the setting. Each time you
press Program the level number increases.
7.
Press the on/off button to deactivate
the appliance and to confirm the setting.
Elec-
tronic
adjust-
ment
1)
5
2)
1
Page 8
www.electrolux.com
8

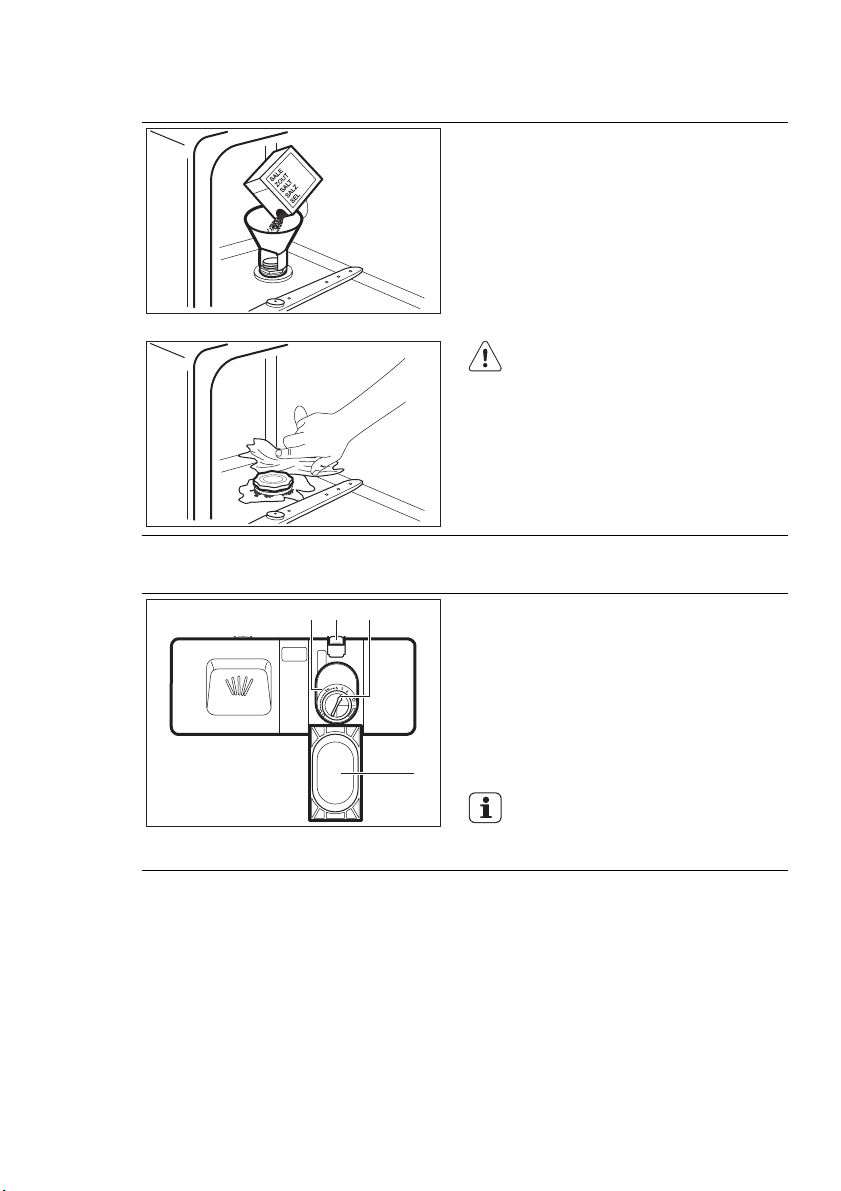

6.3 Filling the salt container
6.4 Filling the rinse aid dispenser
1.
Turn the cap counterclockwise and
open the salt container.
2.
Put 1 litre of water in the salt container (only for the first time).
3.
Fill the salt container with dishwasher
salt.
4.
Remove the salt around the opening
of the salt container.
5.
Turn the cap clockwise to close the
salt container.
CAUTION!
Water and salt can come out from
the salt container when you fill it.
Risk of corrosion. To prevent it,
after you fill the salt container,
start a programme.

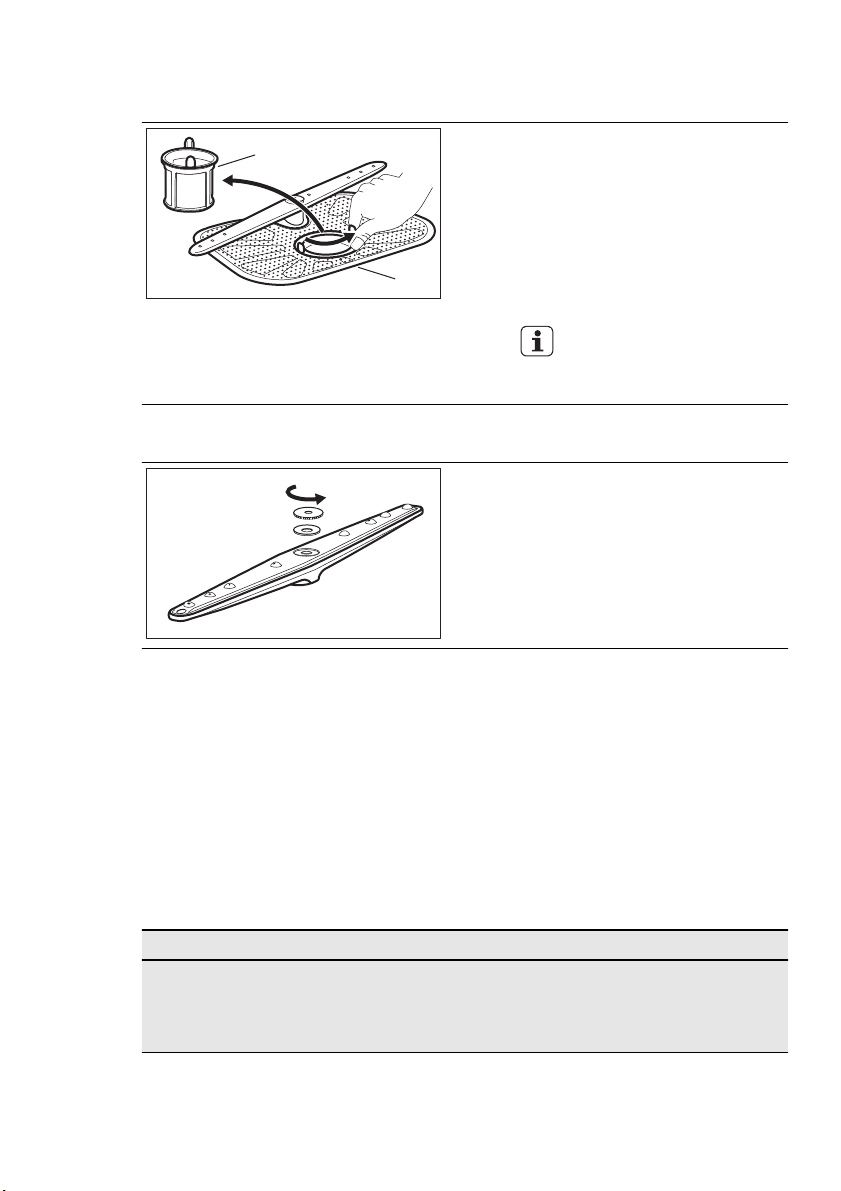

1.
A
B
D
C
Press the release button (D) to open
the lid (C).
2.
Fill the rinse aid dispenser (A), no
more than the mark 'max'.
3.
Remove the spilled rinse aid with an
absorbent cloth to prevent too much
foam.
4.
Close the lid. Make sure that the release button locks into position.
You can turn the selector of the
released quantity (B) between position 1 (lowest quantity) and position 6 (highest quantity).
7. DAILY USE
1.
Open the water tap.
2.
Press the on/off button to activate the
appliance.
• If the salt indicator is on, fill the salt
container.
• If the rinse aid indicator is on, fill the
rinse aid dispenser.
3.
Load the baskets.
4.
Add the detergent.
5. Set and start the correct programme
for the type of load and the degree of
soil.
Page 9
7.1 Using the detergent
B
A
D
C
ENGLISH 9
1.

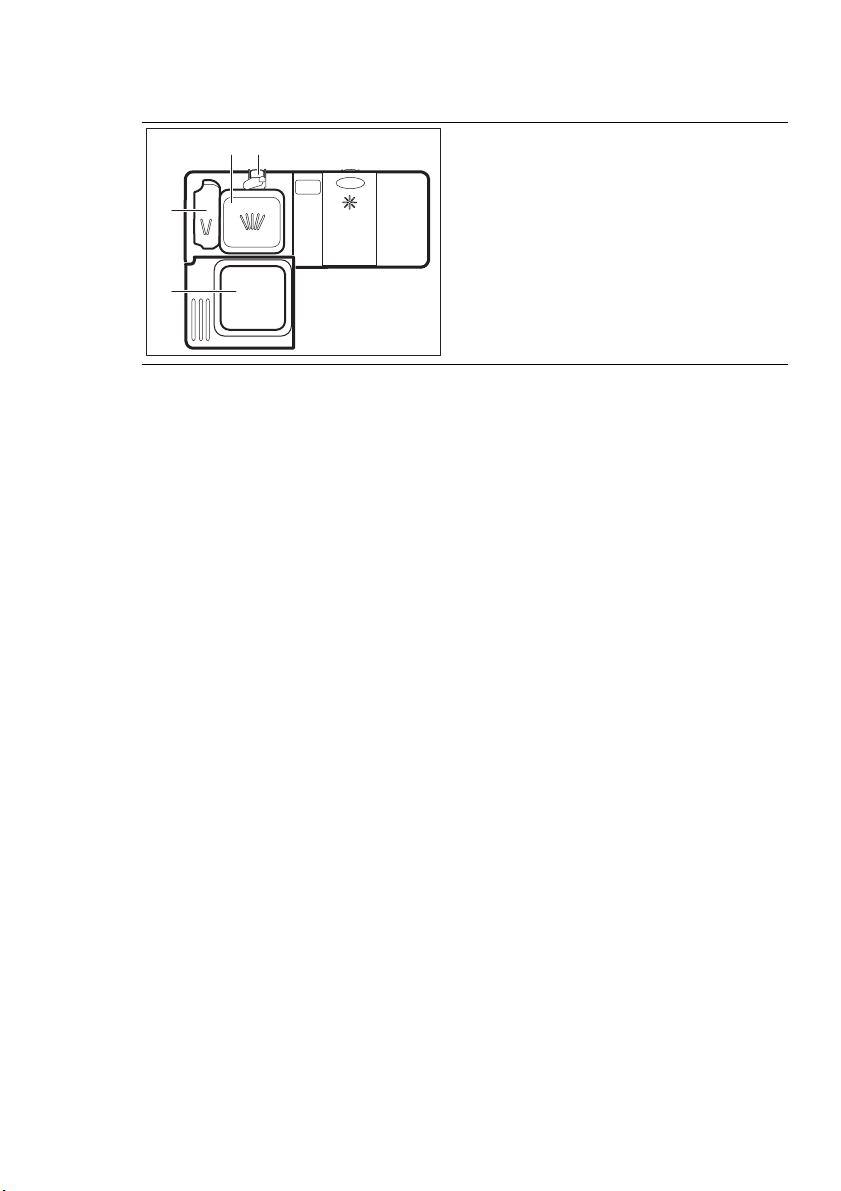

Press the release button (B) to open
the lid (C).
2.
Put the detergent in the compartment
(A) .
3.
If the programme has a prewash
phase, put a small quantity of detergent in the compartment (D).
4.
If you use detergent tablets, put the
tablet in the compartment (A).
5.
Close the lid. Make sure that the release button locks into position.
7.2 Using the combi detergent
tablets
When you use tablets, that contain salt
and rinse aid, do not fill the salt container
and the rinse aid dispenser.
1.
Adjust the water softener to the lowest
level.
2. Set the rinse aid dispenser to the low-
est position.
If you stop to use the combi
detergent tablets, before you
start to use separately
detergent, rinse aid and
dishwasher salt, do these steps:
1.
Press the on/off button to activate the
appliance.
2.
Set the water softener to the highest
level.
3.
Make sure that the salt container and
the rinse aid dispenser are full.
4.
Start the shortest programme with a
rinsing phase, without detergent and
without dishes.
5.
Adjust the water softener to the water
hardness in your area.
6. Adjust the released quantity of rinse
aid.
7.3 Setting and starting a
programme
Reset function
For some settings it is necessary that the
appliance is in user mode.
The appliance is in user mode when all
the programme indicators are on and the
end indicator is flashing.
To set the appliance in user mode, do the
Reset function.
1.
Press and hold Program until all the
programme indicators come on and
the end indicator flashes.
Starting a programme without
delay start
1.
Open the water tap.
2. Press the on/off button to activate the
appliance.
3. Press Program again and again until
only the indicator of the programme
you want to set is on.
4. Close the appliance door. The pro-
gramme starts.
Starting a programme with delay
start
1.
Set the programme.
2. Press Delay to delay the start of the
programme of 3 hours.
• The Delay indicator comes on.
3.
Close the appliance door. The countdown starts.
Page 10
www.electrolux.com
10
• When the countdown is completed,
the programme starts.
Opening the door while the
appliance operates
If you open the door, the appliance stops.
When you close the door, the appliance
continues from the point of interruption.
Cancelling the delay start while
the countdown operates
Do the Reset function.
When you cancel the delay start,
you have to set the programme
again.
Cancelling the programme
Do the Reset function.
8. HINTS AND TIPS
Make sure that there is detergent
in the detergent dispenser before
you start a new programme.
At the end of the programme
When the programme is completed, the
end indicator comes on. If you do not deactivate the appliance within 3 minutes,
only the programme indicator stays on.
This helps to decrease energy consumption.
1. Press the on/off button to deactivate
the appliance.
2.
Close the water tap.
Let the dishes become cold before you remove them from the
appliance. Hot dishes are easily
damaged.
8.1 The water softener
Hard water contains a high quantity of
minerals that can cause damage to the
appliance and bad washing results. The
water softener neutralises these minerals.
8.2 Loading the baskets
max 260 mm
230 mm
190 mm
The dishwasher salt keeps the water softener clean and in good conditions. It is
important to set the right level of the water
softener. This makes sure that the water
softener uses the correct quantity of dishwasher salt and water.
• Only use the appliance to wash items
that are dishwasher-safe.
• Do not put in the appliance items made
of wood, horn, aluminium, pewter and
copper.
• Do not put in the appliance items that
can absorb water (sponges, household
cloths).
• Remove remaining food from the items.
• Make soft the remaining burned food
on the items.
Page 11
8.3 Using salt, rinse aid and
detergent
• Only use salt, rinse aid and detergent
for dishwasher. Other products can
cause damage to the appliance.
• The rinse aid helps, during the last rinsing phase, to dry the dishes without
streaks and stains.
• Combi detergent tablets contain detergent, rinse aid and other added agents.
Be sure that these tablets are applicable to the water hardness in your area.
Refer to the instructions on the packaging of the products.
• Detergent tablets do not fully dissolve
with short programmes. To prevent detergent residues on the tableware, we
recommend that you use the tablets
with long programmes.
Do not use more than the correct
quantity of detergent. Refer to the
instructions on the detergent
ENGLISH 11

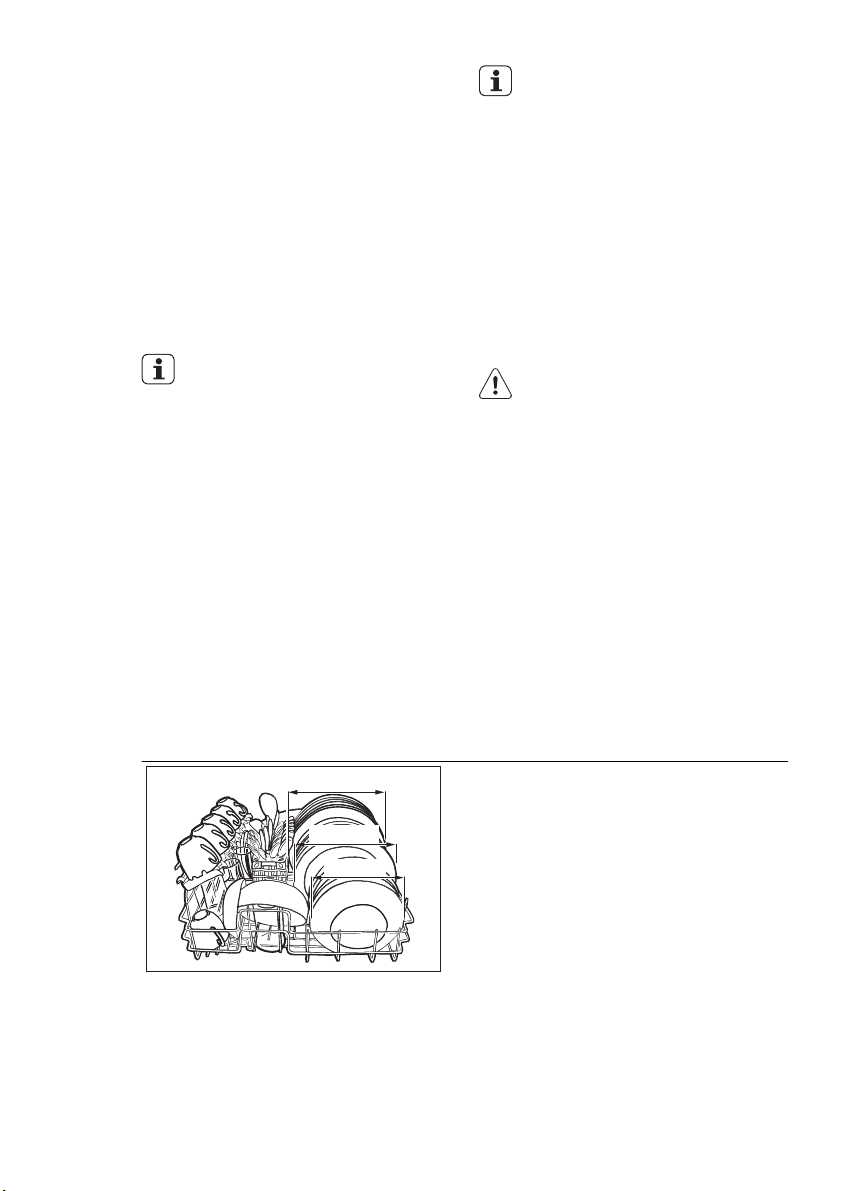

• Put hollow items (cups, glasses and
pans) with the opening down.
• Make sure that cutlery and dishes do
not bond together. Mix spoons with
other cutlery.
• Make sure that glasses do not touch
other glasses.

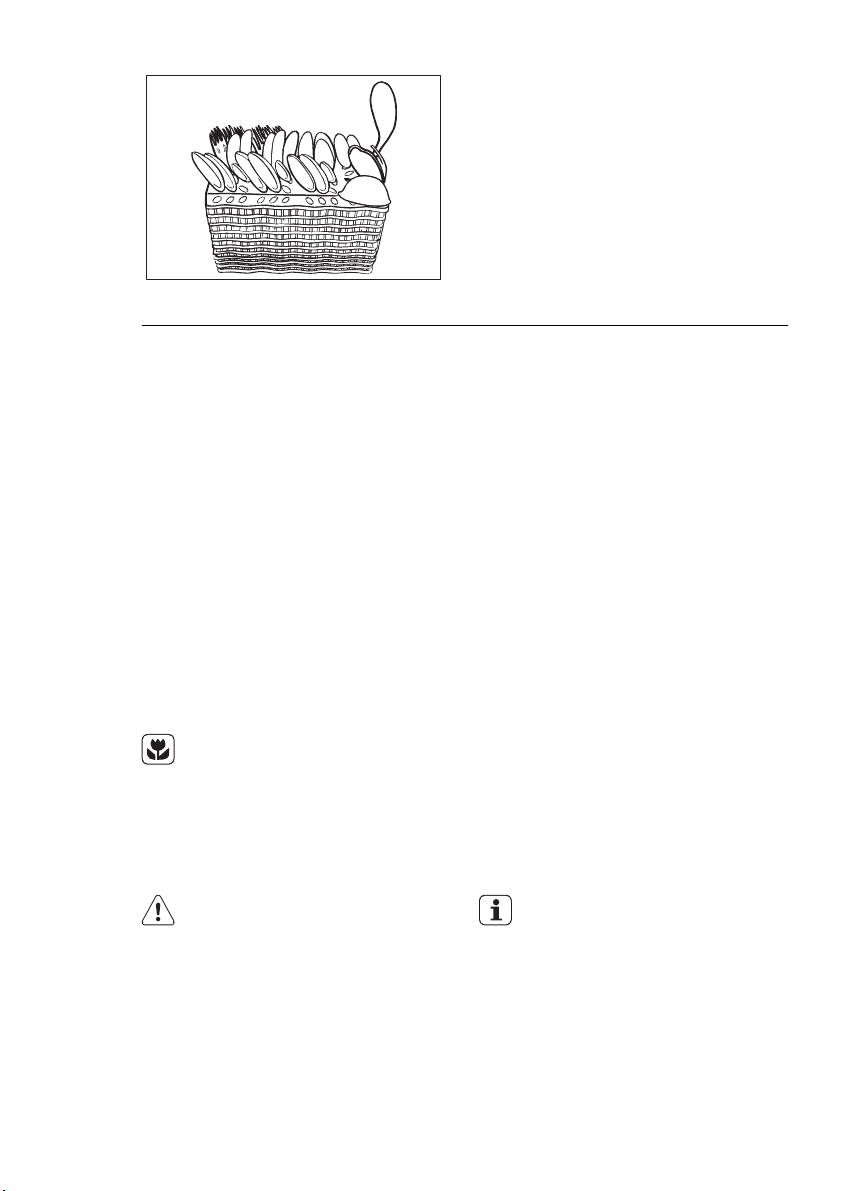

• Put small items in the cutlery basket.
• Put light items in the primary basket.
Make sure that the items do not move.
• Make sure that the spray arm can move
freely before you start a programme.
packaging. The instructions on the
packaging usually refer to large
dishwashers (12 settings).
8.4 Before starting a
programme
Make sure that:
• The filters are clean and correctly installed.
• The spray arm is not clogged.
• The position of the items in the baskets
is correct.
• The programme is applicable for the
type of load and for the degree of soil.
• The correct quantity of detergent is
used.
• There is dishwasher salt and rinse aid
(unless you use combi detergent tablets).
• The cap of the salt container is tight.
9. CARE AND CLEANING
WARNING!
Before maintenance, deactivate
the appliance and disconnect the
mains plug from the mains socket.
Dirty filters and clogged spray arm
decrease the washing results.
Make a check regularly and, if
necessary, clean them.
Page 12
www.electrolux.com
12
9.1 Cleaning the filters
9.2 Cleaning the spray arm
1.
A
B
1.
2.
3.
If the holes in the spray arm are clogged,
remove remaining parts of soil with a thin
pointed object.
Turn the filter (A) counterclockwise and remove it.
2.
Remove the filter (B).
3.
Wash the filters with water.
4.
Put the filter (B) to its initial position.
5.
Put the filter (A) into position in
filter (B). Turn it clockwise until
it locks.
An incorrect position of the
filters can cause bad
washing results and damage to the appliance.
Turn the nut counterclockwise.
Remove the spray arm.
Clean the holes.
9.3 External cleaning
Clean the appliance with a moist soft
cloth.
10. TROUBLESHOOTING
The appliance does not start or it stops
during operation.
Before you contact the Service, refer to
the information that follows for a solution
to the problem.
Alarm code Problem
• The indicator of the set programme
flashes continuously.
• The end indicator flashes 1 time intermittently.
Only use neutral detergents. Do not use
abrasive products, abrasive cleaning pads
or solvents.
With some problems, different indicators flash continuously or intermittently at the same time to show an
alarm code.
The appliance does not fill with water.
Page 13
ENGLISH 13
Alarm code Problem
• The indicator of the set programme
The appliance does not drain the water.
flashes continuously.
• The end indicator flashes 2 times intermittently.
• The indicator of the set programme
The anti-flood device is on.
flashes continuously.
• The end indicator flashes 3 times intermittently.
WARNING!
Deactivate the appliance before
you do the checks.
Problem Possible solution
You cannot activate the appliance.
Make sure that the mains plug is connected
to the mains socket.
Make sure that there is not a damaged fuse in
the fuse box.
The programme does not start. Make sure that the appliance door is closed.
If the delay start is set, cancel the setting or
wait for the end of the countdown.
The appliance does not fill with
Make sure that the water tap is open.
water.
Make sure that the pressure of the water sup-
ply is not too low. For this information, contact your local water authority.
Make sure that the water tap is not clogged.
Make sure that the filter in the inlet hose is not
clogged.
Make sure that the inlet hose has no kinks or
bends.
The appliance does not drain the
Make sure that the sink spigot is not clogged.
water.
Make sure that the drain hose has no kinks or
bends.
The anti-flood device is on. Close the water tap and contact the Service.
After the checks are completed, activate
the appliance. The programme continues
from the point of interruption.
If the problem occurs again, contact the
Service.
If other alarm codes appear, contact the
Service.
10.1 If the washing and drying
results are not satisfactory
Whitish streaks or bluish layers on
glasses and dishes
• The released quantity of rinse aid is too
much. Adjust the rinse aid selector to a
lower position.
• The quantity of detergent is too much.
Page 14
www.electrolux.com
14
Stains and dry water drops on
glasses and dishes
• The released quantity of rinse aid is not
sufficient. Adjust the rinse aid selector
to a higher position.
• The quality of the detergent can be the
cause.
Dishes are wet
• The programme is without a drying
phase or with a low temperature drying
phase.
11. TECHNICAL INFORMATION
Dimensions Width / Height / Depth (mm) 545 / 447 / 515
Electrical connection Refer to the rating plate.
Voltage 240 V
Frequency 50 Hz
Water supply pressure Min. / max. (bar / MPa) (0.8 / 0.08 ) / (10 / 1.0 )
Water supply
Capacity Place settings 6
Power consumption Left-on mode 0.99 W
1)
Connect the water inlet hose to a water tap with a 3/4'' thread.
2)
If the hot water comes from alternative sources of energy, (e.g. solar panels, aeolian
energy), use the hot water supply to decrease energy consumption.
1)
Cold water or hot water
Off-mode 0.10 W
• The rinse aid dispenser is empty.
• The quality of the rinse aid can be the
cause.
Refer to ‘HINTS AND TIPS’ for
other possible causes.
2)
max. 60 °C
12. ENVIRONMENT CONCERNS
Recycle the materials with the symbol
. Put the packaging in applicable
containers to recycle it.
Help protect the environment and human
health and to recycle waste of electrical
and electronic appliances. Do not dispose
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
Page 15
ENGLISH 15
Page 16
www.electrolux.com/shop
156961970-A-252012
Loading...
