Important Safety Instructions
t
General Safety
¥ This appliance is designed to be operated by
adults. Children should not be allowed to tamper
with the controls or play with the product.
¥ It is dangerous to alter the specifications or modify
this product in any way.
¥ Before any cleaning or maintenance work is carried
out, be sure to switch off and unplug the appliance.
¥ This appliance is heavy. Care should be taken
when moving it.
¥ Ice follies can cause frost burns if consumed
straight from the appliance.
¥
Take utmost care when handling your
appliance so as not to cause any damages to
the cooling unit with consequent possible fluid
leakages.
¥ The appliance must not be located close to
radiators or gas cookers.
¥ Avoid prolonged exposure of the appliance to
direct sunlight.
¥ There must be adequate ventilation round the
back of the appliance and any damage to the
refrigerant circuit must be avoided.
¥ For freezers only (except built-in models): an
ideal location is the cellar or basement.
¥ Do not use other electrical appliances (such as
ice cream makers) inside of refrigerating
appliances.
Service / Repair
¥ Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
¥ This appliance should be serviced by an authorised
Service Centre, and only genuine spare parts
should be used.
¥ Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or
more serious malfunctioning. Refer to your local
Service Centre, and always insist on genuine spare
parts.
¥ This appliance contains hydrocarbons in its cooling
unit; maintenance and recharging must therefore
only be carried out by authorised technicians.
Use
¥ The domestic refrigerators and freezers are
designed to be used specifically for the storage of
edible foodstuffs only.
¥ Warning: when the ambient temperature is not
included within the range indicated for the class of
this appliance, the following instructions must be
observed: when the ambient temperature drops
below the minimum level, the storage temperature
in the freezer compartment cannot be guaranteed;
therefore it is advisable to use the food stored as
soon as possible.
¥ Frozen food must not be re-frozen once it has been
thawed out.
¥ ManufacturersÕ storage recommendations should
be strictly adhered to. Refer to relevant
instructions.
¥ The inner lining of the appliance consists of
channels through which the refrigerant passes. If
these should be punctured this would damage the
appliance beyond repair and cause food loss. DO
NOT USE SHARP INSTRUMENTS to scrape off
frost or ice. Frost may be removed by using a
scraper. Under no circumstances should solid ice
be forced off the liner. Solid ice should be allowed
to thaw when defrosting the appliance. See defrost
instructions.
¥ Do not place carbonated or fizzy drinks in the
freezer as it creates pressure on the container,
which may cause it to explode, resulting in damage
to the appliance. Do not use a mechanical device
or any artificial means to speed up the thawing
process other than those recommended by the
manufacturer. Never use metal objects for cleaning
your appliance as it may get damaged.
Installation
¥ Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Important: if the supply cord is damaged, it must
be replaced by a special cord or assembly
available from the manufacturer or its service
agent.
¥ During normal operation, the condenser and
compressor at the back of the appliance heat up
considerably. For safety reasons, minimum
It is most important that this instruction book should be retained with the appliance for future
reference.
Should the appliance be sold or transferred to another owner, or should you move house and leave the
appliance, always ensure that the book is supplied with the appliance in order that the new owner can
be acquainted with the functioning of the appliance and the relevant warnings.
These warnings are provided in the interest of safety. You must read them carefully before installing or
using the appliance.
Page 3
3
ventilation must be as shown in the relevant
paragraph.
Attention: keep ventilation openings clear of
obstruction.
¥ If the appliance is transported horizontally, it is
possible that the oil contained in the
compressor flows in the refrigerant circuit. It is
advisable to wait at least two hours before
connecting the appliance to allow the oil to flow
back in the compressor.
¥ There are working parts in this product which heat
up. Always ensure that there is adequate
ventilation as a failure to do this will result in
component failure and possible food loss. See
installation instructions.
¥ Parts which heat up should not be exposed.
Wherever possible the back of the product should
be against a wall.
¥ If the appliance has been transported horizontally,
it is possible that the oil contained in the
compressor flows in the refrigerant circuit. It is
advisable to wait at least two hours before
connecting the appliance to allow the oil to flow
back in the compressor.
Environment Protection
¥ This appliance does not contain gasses which
could damage the ozone layer, in either its
refrigerant circuit or insulation materials. The
appliance shall not be discarded together with
the urban refuse and rubbish. Avoid damaging
the cooling unit, especially at the rear near the
heat exchanger. Information on your local
disposal sites may be obtained from your
municipal authorities.
The materials used on this appliance marked
with the symbol are recyclable.
Contents
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Use
Cleaning the interior / Starting-up / Temperatur control / Fresh food refrigeration . . . . . . . . . . . . . . . . . . .4
Freezing fresh food / Storage of frozen food / Thawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Ice-cube production / Movable shelves / Positioning the door shelves / Explanation of the cold zone signs . .5
Hints Hints for refrigeration / Hints for freezing / Hints for storage of frozen food . . . . . . . . . . . . . . . . . . . . . . .6
Maintenance Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Periodic cleaning / Periodic of non-operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Customer service and spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Door reversibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Inner door reversal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Installation Positioning / Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Grid preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Building in the appliance under a worktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Fitting the plinth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Disposal of old appliances
The symbol on the product or on its packaging indicates that this product may not be treated as
household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical
and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service or the shop where you purchased
the product.
Page 4
4
Use
Thawing
Deep-frozen or frozen food, prior to being used, can
be thawed in the refrigerator compartment or at room
temperature, depending on the time available for this
operation.
Small pieces may even be cooked still frozen,
directly from the freezer: in this case, cooking will
take longer.
Starting-up
Insert the plug into the wall socket.
Open the door and turn the thermostat control knob,
to be found on the upper right hand side of the inner
compartment, clockwise beyond position ÇOÈ (OFF)
to start the appliance.
Temperature control
Temperature adjustment is obtained by turning the
thermostat knob clockwise until its pointer coincides
with the required setting.
A medium setting is generally the most suitable.
The minimum setting (least cold) is represented by
the lowest number and the maximum setting
(coldest) by the highest number. In any case, bear in
mind that the temperature can be either increased
(warmer) by turning the thermostat knob
anticlockwise or decreased (colder) by turning it
clockwise.
The thermostat knob setting should be adjusted
depending on the inner temperature of the
refrigerator, which, in turn, depends on a number of
factors, such as:
¥ ambient temperature
¥ number of times the door is opened
¥ quantity of food stored
¥ location of the appliance
Warning
If the ambient temperature is high, the
thermostat knob is on the coldest setting
(higher numbers) and the appliance is fully
loaded, the compressor may run
continuously, causing frost or ice to form
on the evaporator. If this happens, turn the
knob to a warmer setting (lower numbers)
to allow automatic defrosting and so a
saving in electricity consumption.
Fresh food refrigeration
The refrigerator compartment is suitable for cooling
drinks and for normal food storing.
To obtain the best performance:
¥ do not store warm food or evaporating liquids in the
refrigerator
¥ cover or wrap up the food, particularly if it has a
strong smell.
Cleaning the interior
Before using the appliance for the first time, wash the
interior and all internal accessories with lukewarm
water and some neutral soap so as to remove the
typical smell of a brand-new product, then dry
thoroughly.
Do not use detergents or abrasive
powders, as these will damage the finish.
Freezing fresh food
The 4-star compartment ( ) is suitable for
long term storage of commercially frozen food and
for freezing fresh food.
To freeze fresh foods it is not necessary to change
the setting of the thermostat knob.
However, for a quicker freezing operation, turn the
thermostat knob to the coldest setting; but remember
that, in this condition, the refrigerator compartment
temperature might drop below 0¡C. If this occurs
reset thermostat knob to a warmer setting.
Storage of frozen food
When first starting-up or after a period out of use,
before putting the products in the compartment let
the appliance run for at least two hours on the
coldest setting, then turn the thermostat knob to the
normal operating position.
Important
If there is a power failure when food is in
the freezer, do not open the door of the
freezer compartment. The frozen food will
not be affected if the power cut is of short
duration (up to 12 hours) and the freezer
compartment is full, otherwise, it is
recommended that the food should be
used within a short time (a temperature
increase of the frozen food shortens its
safe storage period).
Page 5
5
Ice-cube production
This appliance is equipped with one or more trays for
the production of ice-cubes.
Fill these trays with water, then put them in the
freezer compartment.
Do not use metallic instruments to remove
the trays from the freezer.
Movable shelves
The walls of the refrigerator are equipped with a
series of runners so that the shelves can be
positioned as desired.
For better use of space, the front half-shelves can lie
over the rear ones.
The glass shelf above the vegetable drawers
and the bottle shelf should always remain in
position, to ensure correct air circulation.
Positioning the door shelves
This model is equipped with a variable storage box
which is fitted under a door shelf compartment and
can be slid sideways.
For more thorough cleaning, the top and bottom door
sheves can be easily removed and refitted in
position.
PR249
D338
Page 6
6
Hints
Hints for refrigeration
To help you use your refrigerator correctly, here are
some useful hints:
¥ Cooked food, cold cuts, jelly, etc.: these should
be well covered and can be stored on any of the
glass shelves.
¥ Fruit & vegetables: these should be thoroughly
cleaned and placed in the bottom drawer.
¥
Butter & cheese: these should be placed in
special airtight containers or wrapped in aluminium
foil or polythene bags to keep out as much air as
possible.
¥ Milk bottles: these should have a top and should
be stored in the bottle rack on the door.
¥ Raw meat (beef, pork, lamb & poultry): wrap in
polythene bags and place on top of the salad
compartment, this being the coldest spot in the
refrigerator.
Meat can only be stored safely in this way for
one or two days at the most.
Bananas, potatoes, onions and garlic, if not
packed, must not be kept in the refrigerator.
Hints for freezing
To help you make the most of the freezing process,
here are some important hints:
¥ the maximum quantity of food which can be
frozen in 24 hrs. is shown on the rating plate;
¥ the freezing process takes 24 hours. No further
food to be frozen should be added during this
period;
¥ only freeze top quality, fresh and thoroughly
cleaned, foodstuffs;
Unplug the appliance before carrying out
any maintenance operation.
Warning
This appliance contains hydrocarbons in its
cooling unit maintenance and recharging
must therefore only be carried out by
authorised technicians.
Defrosting
Frost is automatically eliminated from the evaporator
of the refrigerator compartment every time the motor
compressor stops, during normal use.
The defrost water drains out through a trough into a
special container at the back of the appliance, over
the motor compressor, where it evaporates.
Hints for storage of frozen food
To obtain the best performance from this appliance,
you should:
¥ make sure that the commercially frozen foodstuffs
were adequately stored by the retailer;
¥ be sure that frozen foodstuffs are transferred from
the foodstore to the freezer in the shortest possible
time;
¥ not open the door frequently or leave it open longer
than absolutely necessary.
¥ Once defrosted, food deteriorates rapidly and
cannot be refrozen.
¥ Do not exceed the storage period indicated by the
food manufacturer.
¥ prepare food in small portions to enable it to be
rapidly and completely frozen and to make it
possible subsequently to thaw only the quantity
required;
¥ wrap up the food in aluminium foil or polythene and
make sure that the packages are airtight;
¥ do not allow fresh, unfrozen food to touch food
which is already frozen, thus avoiding a rise in
temperature of the latter;
¥ lean foods store better and longer than fatty ones;
salt reduces the storage life of food;
¥ water ices, if consumed immediately after removal
from the freezer compartment, can possibly cause
the skin to be freeze burnt;
¥ it is advisable to show the freezing-in date on each
individual pack to enable you to keep tab of the
storage time;
¥
do not put carbonated liquids (fizzy drinks, etc.)
in the freezing compartment as they may burst.
Maintenance
Page 7
7

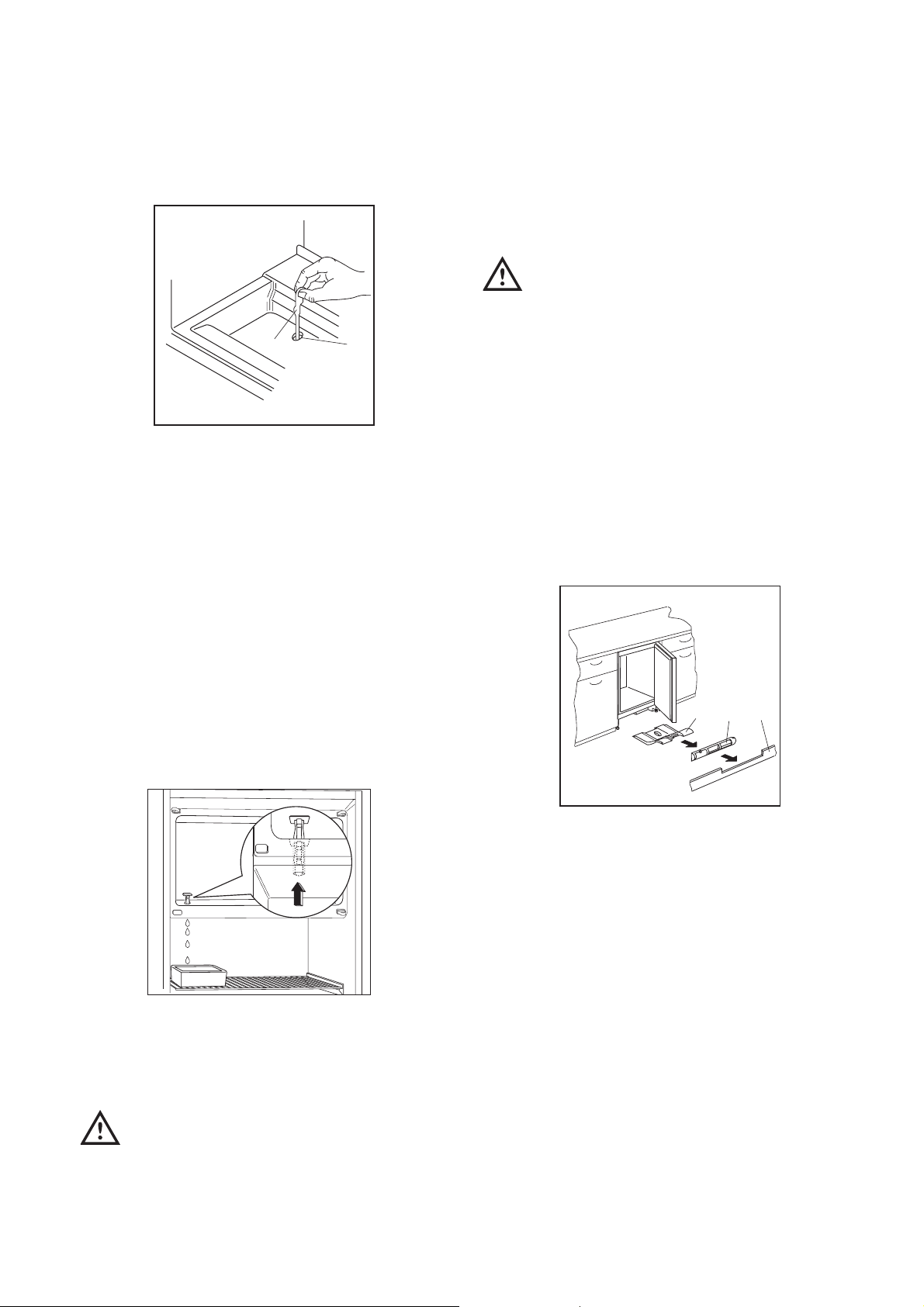

It is important to periodically clean the defrost
water drain hole (F) situated under the salad
drawers to prevent the water overflowing and
dripping onto the food inside. Use the special
cleaner provided (P), which you will find already
inserted into the drain hole.
4. when defrosting is completed, dry the interior
thoroughly and refit the plug.
5. Turn the thermostat knob back to the required
setting or replace the plug in the power socket.
Important
Never use sharp metal tools to scrape off
frost from the evaporator as you could
damage it.
Do not use a mechanical device or any
artificial means to speed up the thawing
process other than those recommended by
the manufacturer.
A temperature rise of the frozen food
packs, during defrosting, may shorten their
safe storage life.
Periods of non-operation
When the appliance is not in use for long periods,
take the following precautions:
¥ remove the plug from the wall socket;
¥ remove all food:
¥ defrost and clean the interior and all accessories;
¥ leave the door ajar to allow air to circulate to
prevent unpleasant smells.
The freezer compartment, however, will become
progressively covered with frost. This should be
removed with a plastic scraper, whenever the
thickness of the frost exceeds 4 mm. During this
operation it is not necessary to switch off the power
supply or to remove the foodstuffs.
However, when the ice becomes very thick on the
inner liner, complete defrosting should be carried out
as follows:
1. pull out the plug from the wall socket or turn the
thermostat knob to the ÇOÈ setting;
2. remove any stored food, wrap it in several layers
of newspaper and put it in a cool place;
3. leave the door open, place a basin on the top shelf
of the refrigerator compartment, under the drain
hole, remove the plug as shown in the figure;
Periodic cleaning
Never use metal objects for clearing your
appliance as it may get damaged.
Clean the inside with warm water and bicarbonate of
soda. Rinse and dry thoroughly.
The appliance is equipped with a ventilation grid.
Keep clean to guarantee good ventilation and good
working order of the appliance.
An accumulation of dust will affect the performance
of the appliance and cause excessive electricity
consumption.
The structure of the appliance permits cleaning of the
rear zone close to the wall, using a vacuum cleaner.
1. Remove the plinth (1), then the ventilation grid (2);
2. Carefully pull the air deflector out (3), checking
that there is no water left from the defrosting.
P
S.I.011
F
21
3
PR151
S.I.013
Page 8
Interior light
The light bulb inside the refrigerator compartment
can be reached as follows:
1. unscrew the light cover securing screws;
2. unhook the moving part by pressing it as shown in
the figure.
If the door is open and the light does not come on,
check that the bulb is properly screwed in; if it still
does not work, replace the bulb with one of the same
power.
The maximum rating is shown on the light cover.
Customer service and spare parts
If the appliance is not functioning properly, check
that:
¥ the plug is firmly in the wall socket and the mains
power switch is on;
¥ there is an electricity supply (find out by plugging in
another appliance);
¥ the thermostat knob is in the correct position.
¥ If there are water drops on the bottom of the
cabinet, check that the defrost water drain opening
is not obstructed (see "Defrosting" section).
If your appliance is still not working properly after
making the above checks, contact the nearest
service centre.
To obtain fast service, it is essential that when
you apply for it you specify the model and serial
number of your appliance which can be found on
the guarantee certificate or on the rating plate
located inside the appliance, on the bottom right-
hand side.
Technical specifications
The technical data is indicated in the rating plate on the right side inside the appliance.

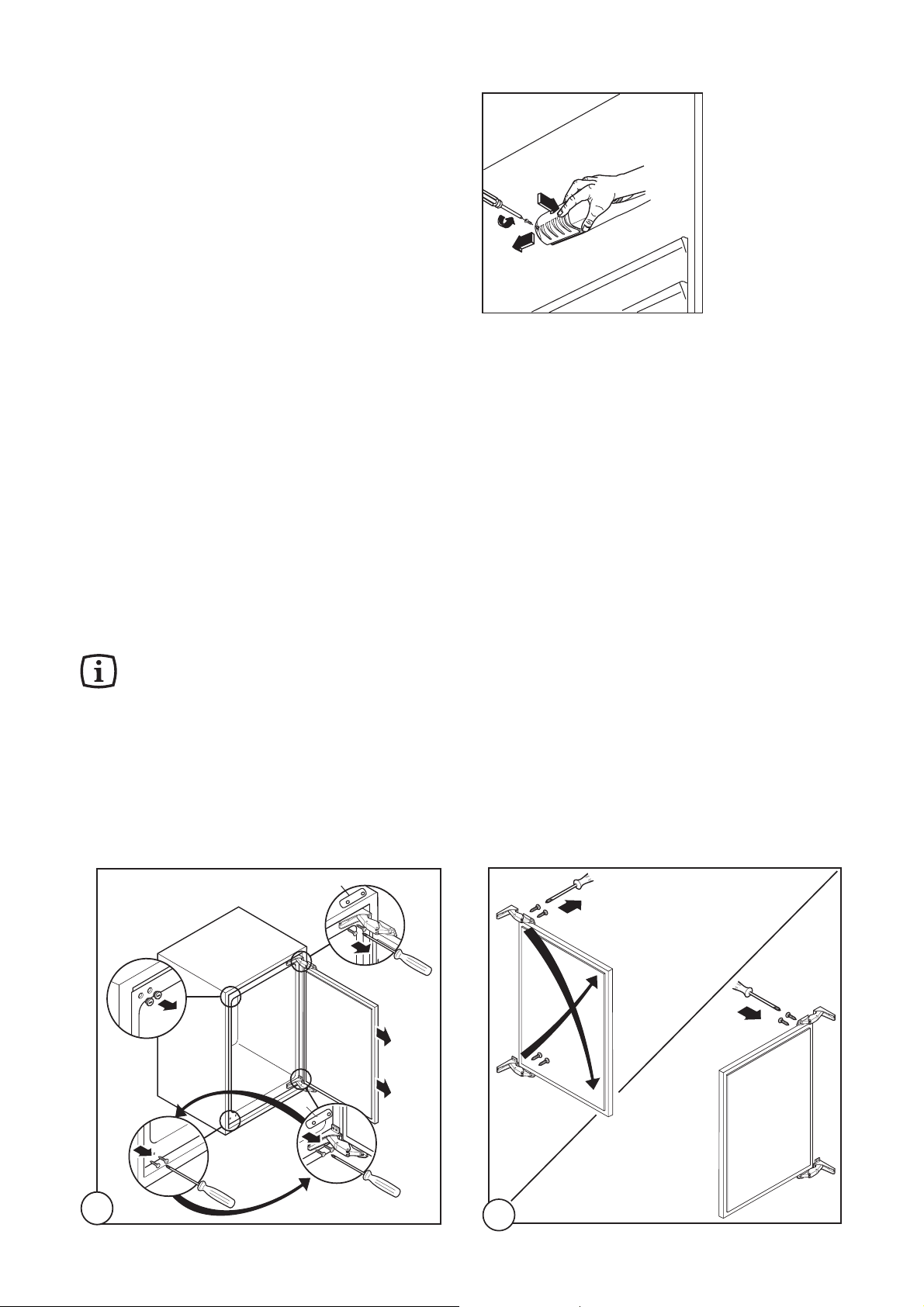

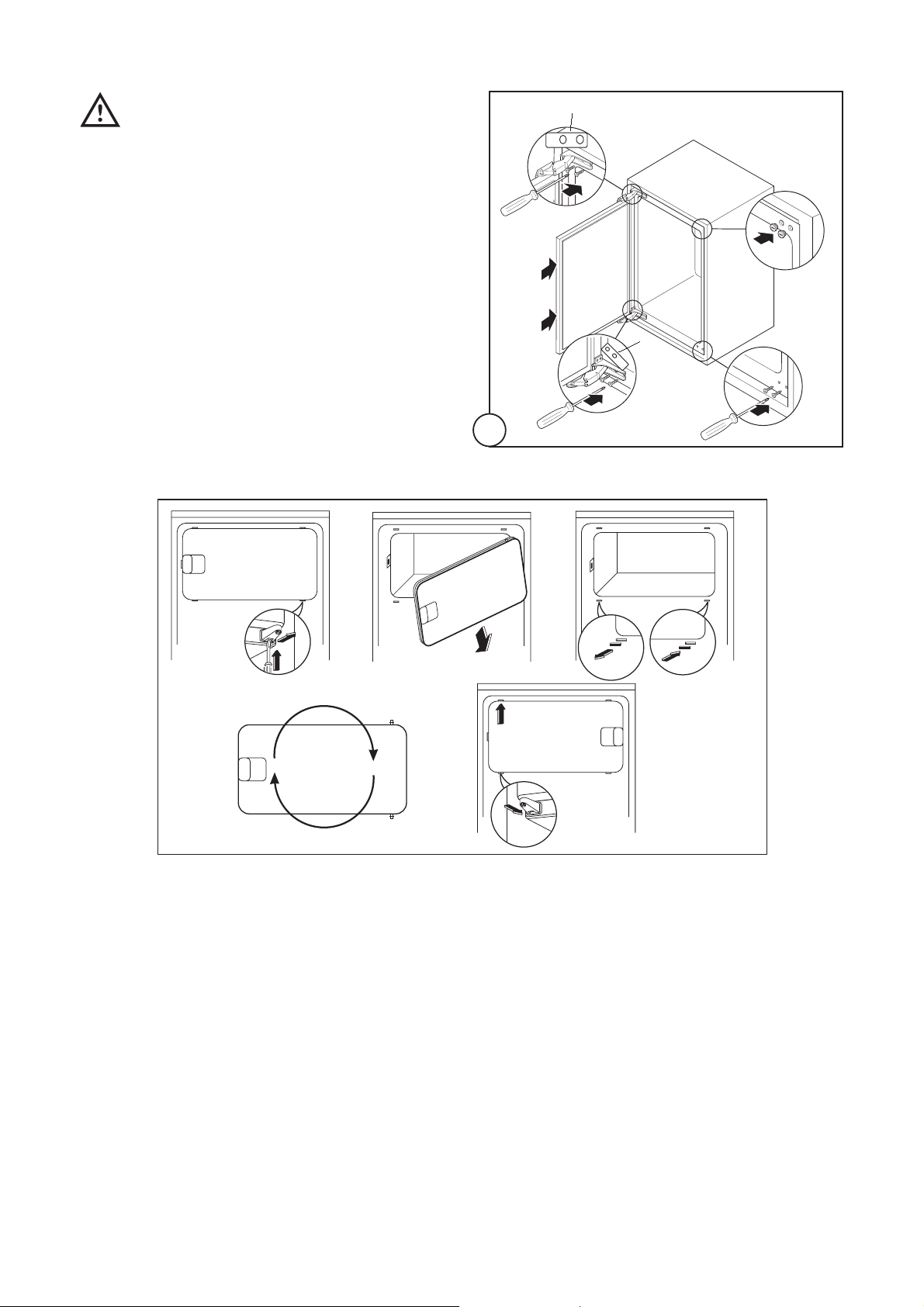

To reverse the opening direction of the door, proceed as follows:
Door reversibility
D411
1
6
6
4
1
7
8
5
2
6
3
2
Page 9
9
Inner door reversal
Electrical connection
Before plugging in, ensure that the voltage and
frequency shown on the serial number plate
correspond to your domestic power supply.
Voltage can vary by ±6% of the rated voltage.
For operation with different voltages, a suitably sized
auto-transformer must be used.
Warning!
If the ambient temperature is cold (i.e. in
Winter), the gasket may not fit perfectly to the
cabinet. In that case, wait for the natural fitting
of the gasket or accelerate this process by
heating up the part involved with a normal
hairdrier.
Installation
Positioning
The appliance should be installed well away from
sources of heat such as radiators, boilers, direct
sunlight etc.
Best performance is obtained with ambient
temperature between +18¡C and +43¡C (class T);
+18¡C and +38¡C (class ST); +16¡C and +32¡C
(class N); +10¡C and +32¡C (class SN).
The class of your appliance is shown on its
rating plate.
For building-in and door reversibility refer to the
relevant instructions.
6
10
13
9
12 3
180°
3
11
6
12
45
Page 10
10
Important
The appliance must be earthed.
The power supply cable plug is provided with a
contact for this purpose.
If the domestic power supply socket is not
earthed. connect the appliance to a separate
earth in compliance with current regulations,
consulting a specialist technician.
The Manufacturer declines all
responsibility if the above safety
precautions are not observed.
Attention!
It must be possible to disconnect the appliance
from the mains power supply; the plug must
therefore be easily accessible after installation.
This appliance complies with the following E.E.C.
Directives:
- 87/308 EEC of 2/6/87 relative to radio
interference suppression.
- 73/23 EEC of 19.2.73 (Low Voltage
Directive) and subsequent modifications.
- 89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
Grid preparation
Left door opening:
Remove the left side (A) of the grid cutting it from the
rear (see figure).
Right door opening:
Remove the right side (B) of the grid cutting it from
the rear (see figure).
To position the grid on the appliance proceed as
follows:
Apply the grid to the base of the appliance by
pushing on to the clasps (a) until they click.
Building in the appliance under a worktop

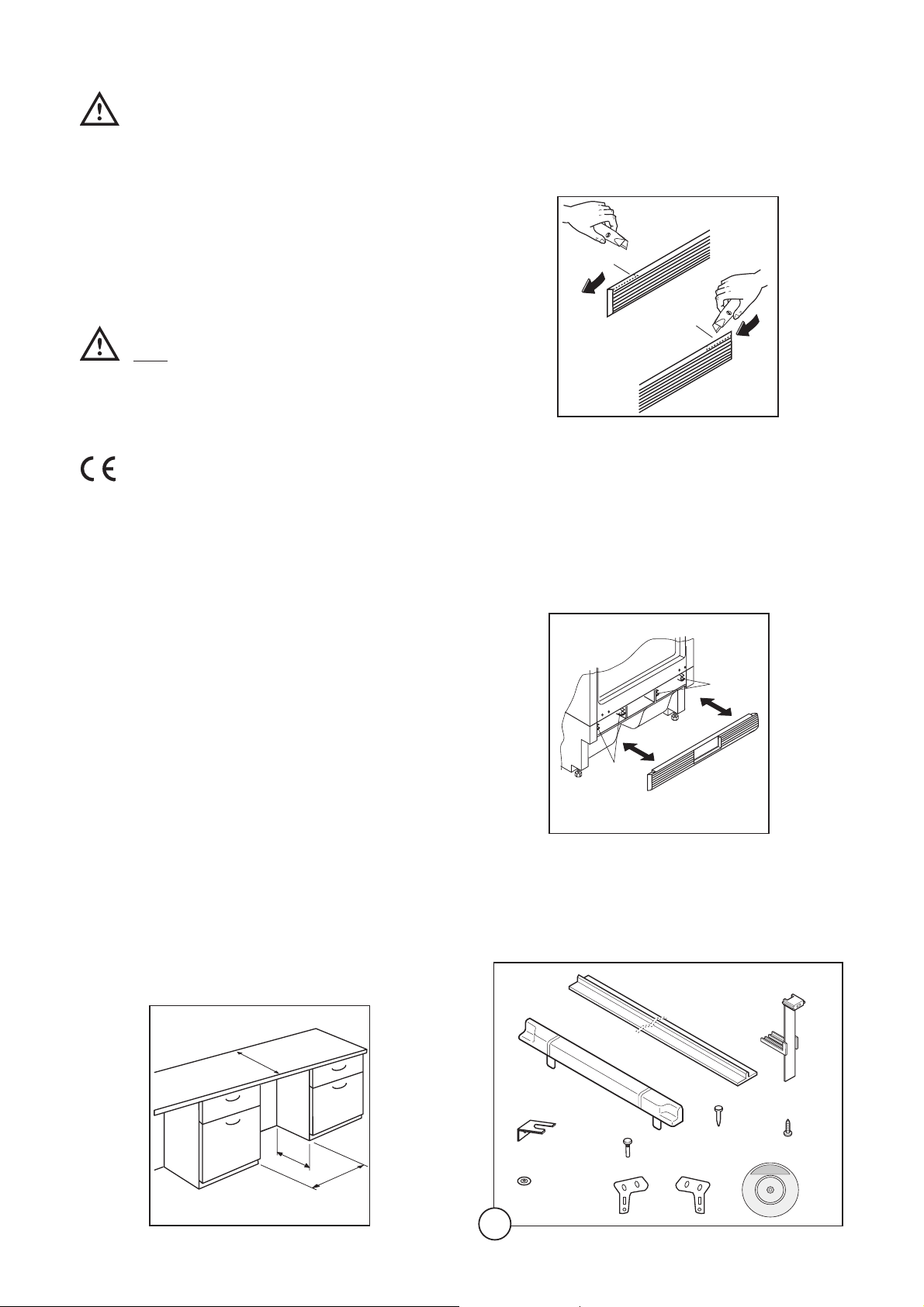

Dimensions of the recess
The dimensions of the recessed installation area
must correspond with those indicated in the figure.
1. Installation kit
A
B
DO002/2
a
DO001
600
550
min.
600
DO013
1xB
1xA
2xG
2xL
2xF
2xD
1
a
2xC
1xK
18xI
2xE
Page 11
11
3. Push the appliance into place. The plug socket
necessary for connection of the appliance to the
electricity supply should be positioned, so that the
plug is not placed in the recess.
To adjust the height proceed as follows:
- Loosen or tighten the two front feet.
- The rear feet are adjusted by turning the screw in
the front kick plate to the left or right.

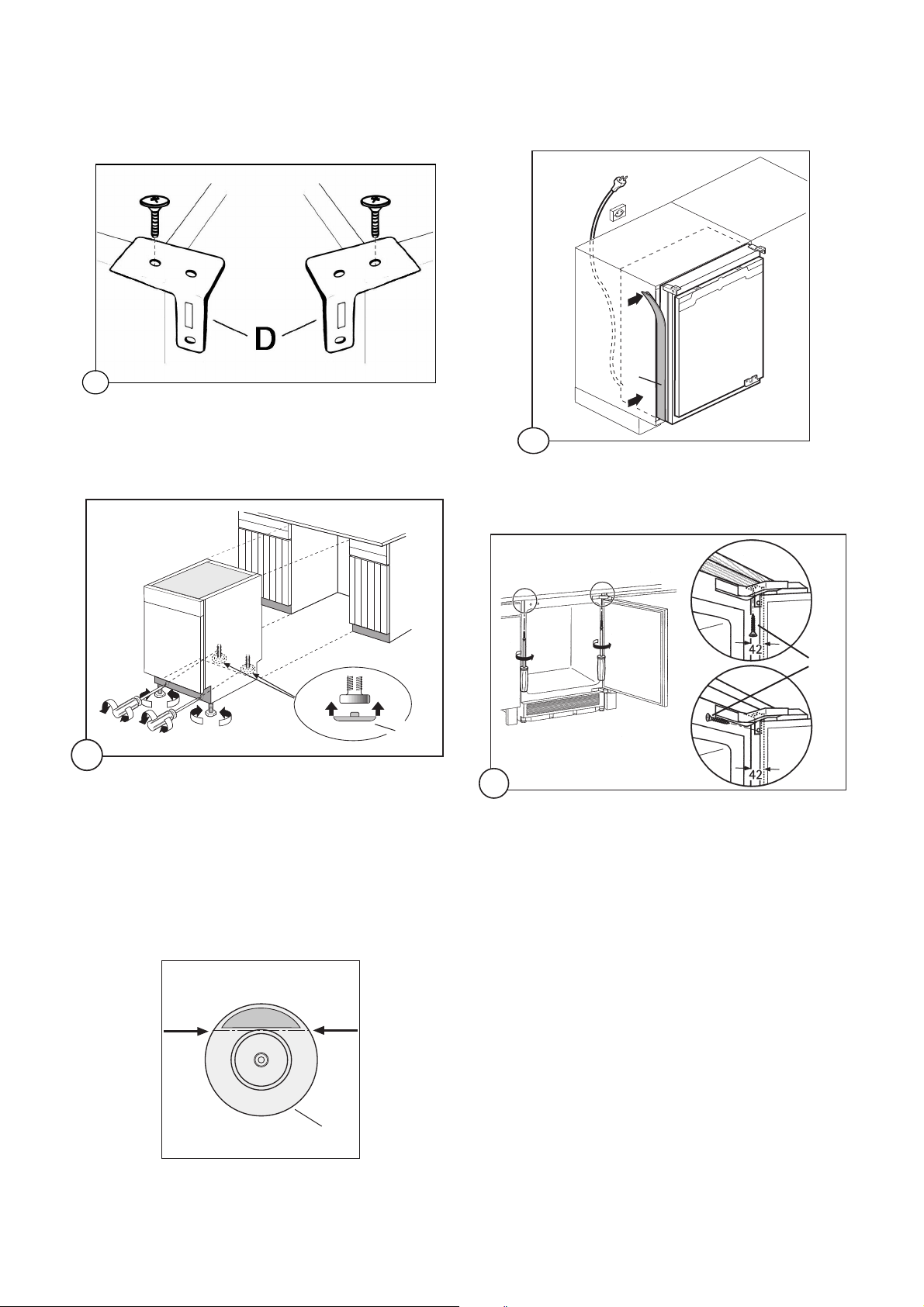

2. Two cabinet securing brackets (D) are supplied
with the installation pack. They need to be
assembled onto the cabinet prior to cabinet being
pushed into the Kitchen aperture.
- To fit these brackets remove the two screws at the
top left and right hand front corners of the cabinet.
- Position the two brackets as shown in the figure
and replace the two securing screws.
If necessary, pads (E) are supplied for the rear feet to
make sliding the appliance in and out of the recess
easier. To fit the pads, press them onto the rear feet.
4. The joint cover (B) is to be assembled after having
installed the appliance in the recess.
Left hand
bracket
Right hand
bracket
2
II52
E
If required, the dimensions of these pads can be
reduced by breaking them where marked.
5. Screw appliance into place and retain the cabinet
with screws (I) through the securing brackets into
the worktop or adjacent woodwork as necessary.
1
b)
596
555
max
+
3
-
-
+
E
B
4
I
5
Page 12
12

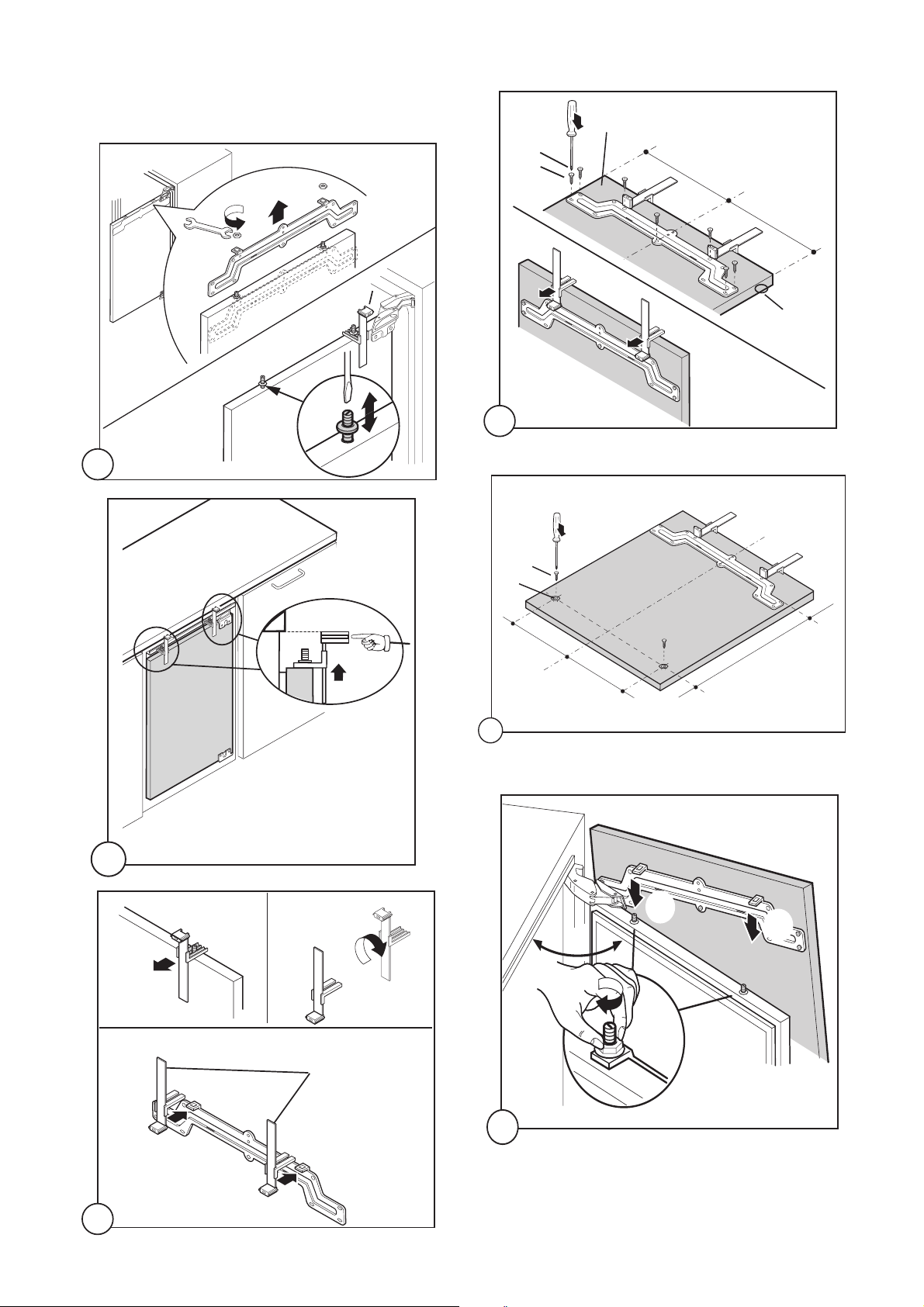

6. To mount the furniture door proceed as shown in
the figures:
Upper part of kitchen
furniture panel
Möbeltür Innenseite
a
I
=
2
1
10
a
=
C
4
c
3
b
b
9
6
I
F
27,5 cm
27,5 cm
10
7
1
45°
ab
3
C
click
55 cm
2
11
click
8
c
Page 13
13

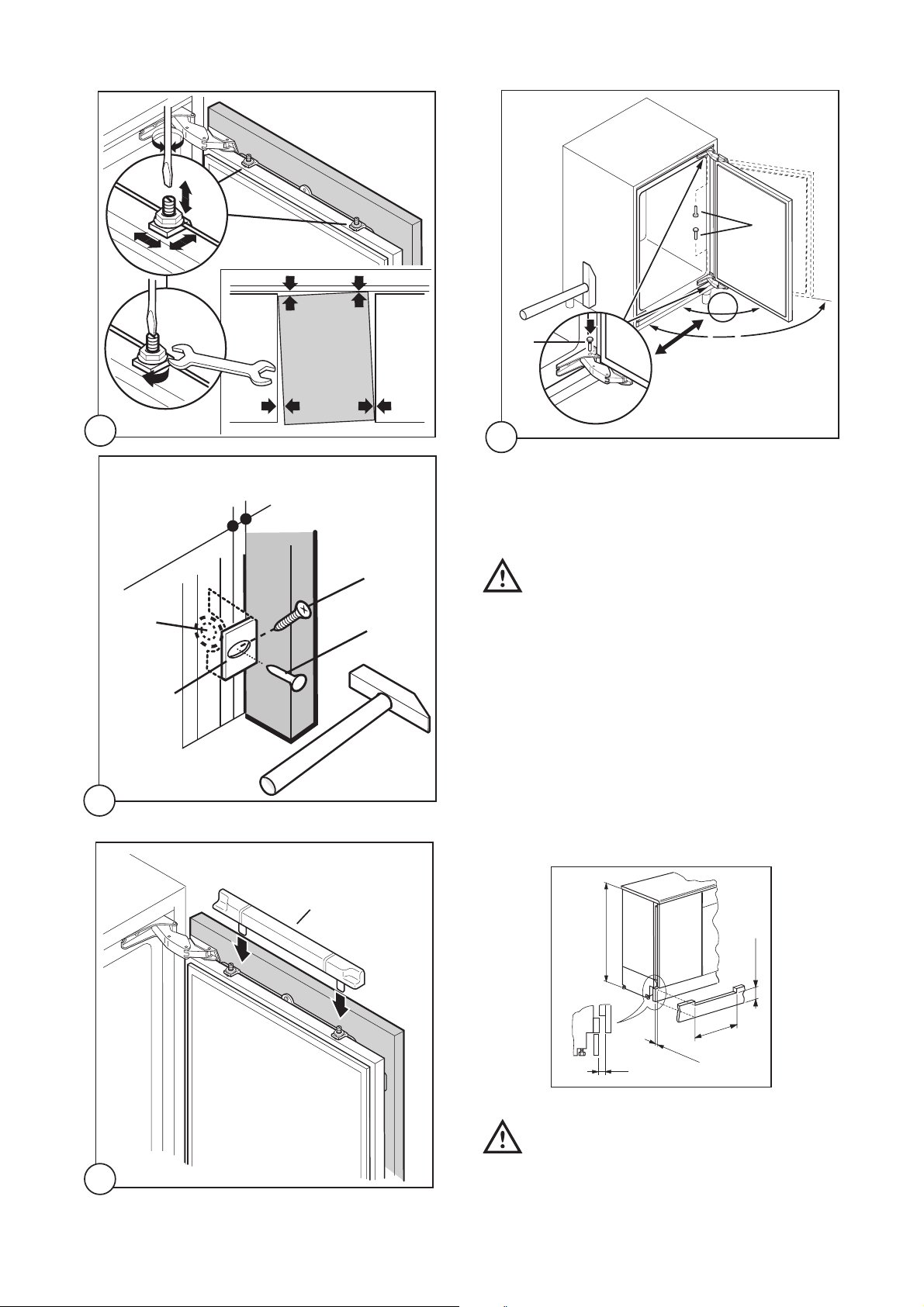

7. Refit the covering strip (A).
Fitting the plinth
Important
For the efficient operation of the appliance, it is
important that the original ventilation grid is
used.
¥ For an opening height dimension A=820 mm and a
plinth height dimension a=100 mm, the plinth may
be fitted without adjustments. The same applies to
an opening height dimension B=870 mm and a
plinth height dimension b=150 mm.
¥ For plinth heights greater than a=100 mm, b=150
mm, a cut should be made in the plinth, 580 mm
wide, in the centre of the appliance position,
leaving a remaining height of a=100 mm, b=150
mm.
¥ Attach plinth to the kitchen units.
Important
The plinth must be positioned at a minimun
distance of 25 mm from the door.
1
L
=
2
10
L
90°
115°
=
12
15
13
8 mm
F
G
I
K
14
A
A = 820
B = 870
a = 100
b = 150
580
25 - 80
DO008
25
Page 14
ELECTROLUX HOME PRODUCTS OPERATIONS EUROPE
Loading...
