AEG ERG29760 User Manual

user manual

manual de instruções

Fridge-Freezer

Combinado

ERG29760

2 electrolux

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

CONTENTS

Safety information 2
Control panel 4
First use 6
Daily use 6
Helpful hints and tips 8

SAFETY INFORMATION

In the interest of your safety and to ensure
the correct use, before installing and first us­ing the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and acci­dents, it is important to ensure that all peo­ple using the appliance are thoroughly famil­iar with its operation and safety features.
Save these instructions and make sure that
they remain with the appliance if it is moved
or sold, so that everyone using it through its
life will be properly informed on appliance
use and safety.
For the safety of life and property keep the
precautions of these user's instructions as
the manufacturer is not responsible for dam­ages caused by omission.

Children and vulnerable people safety

• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge, un­less they have been given supervision or
instruction concerning use of the appli­ance by a person responsible for their
safety.
Children should be supervised to ensure
that they do not play with the appliance.

• Keep all packaging well away from chil­dren. There is risk of suffocation.

• If you are discarding the appliance pull
the plug out of the socket, cut the con­nection cable (as close to the appliance
as you can) and remove the door to pre­vent playing children to suffer electric
shock or to close themselves into it.

• If this appliance featuring magnetic door
seals is to replace an older appliance hav­ing a spring lock (latch) on the door or lid,

Care and cleaning 9
What to do if… 11
Technical data 12
Installation 12
Environmental concerns 13

Subject to change without notice

be sure to make that spring lock unusa­ble before you discard the old appliance.
This will prevent it from becoming a
death trap for a child.

General safety

Caution! Keep ventilation openings

clear of obstruction.

• The appliance is intended for keeping
foodstuff and/or beverages in a normal
household as explained in this instruction
booklet.

• Do not use a mechanical device or any ar­tificial means to speed up the thawing
process.

• Do not use other electrical appliances
(such as ice cream makers) inside of re­frigerating appliances, unless they are ap­proved for this purpose by the manufac­turer.

• Do not damage the refrigerant circuit.

• The refrigerant isobutane (R600a) is con­tained within the refrigerant circuit of the
appliance, a natural gas with a high level
of environmental compatibility, which is
nevertheless flammable.
During transportation and installation of
the appliance, be certain that none of the
components of the refrigerant circuit be­come damaged.
If the refrigerant circuit should become
damaged:
– avoid open flames and sources of igni-

tion

– thoroughly ventilate the room in which

the appliance is situated

• It is dangerous to alter the specifications
or modify this product in any way. Any

electrolux 3

damage to the cord may cause a short­circuit, fire and/or electric shock.

Warning! Any electrical component
(power cord, plug, compressor) must
be replaced by a certified service agent
or qualified service personnel.

1. Power cord must not be lengthened.

2. Make sure that the power plug is not
squashed or damaged by the back of
the appliance. A squashed or dam­aged power plug may overheat and
cause a fire.

3. Make sure that you can come to the
mains plug of the appliance.

4. Do not pull the mains cable.

5. If the power plug socket is loose, do
not insert the power plug. There is a
risk of electric shock or fire.

6. You must not operate the appliance
without the lamp cover

1)

of interior

lighting.

• This appliance is heavy. Care should be
taken when moving it.

• Do not remove nor touch items from the
freezer compartment if your hands are
damp/wet, as this could cause skin abra­sions or frost/freezer burns.

• Avoid prolonged exposure of the appli­ance to direct sunlight.

•

Bulb lamps

2)

used in this appliance are
special purpose lamps selected for house­hold appliances use only. They are not
suitable for household room illumination.

Daily Use

• Do not put hot pot on the plastic parts in
the appliance.

• Do not store flammable gas and liquid in
the appliance, because they may explode.

• Do not place food products directly
against the air outlet on the rear wall.

3)

• Frozen food must not be re-frozen once
it has been thawed out.

• Store pre-packed frozen food in accord­ance with the frozen food manufacturer's
instructions.

• Appliance's manufacturers storage rec­ommendations should be strictly adhered
to. Refer to relevant instructions.

1) If the lamp cover is foreseen

2) If the lamp is foreseen

3) If the appliance is Frost Free

• Do not place carbonated or fizzy drinks in
the freezer compartment as it creates
pressure on the container, which may
cause it to explode, resulting in damage
to the appliance.

• Ice lollies can cause frost burns if con­sumed straight from the appliance.

Care and cleaning

• Before maintenance, switch off the appli­ance and disconnect the mains plug from
the mains socket.

• Do not clean the appliance with metal ob­jects.

• Do not use sharp objects to remove frost
from the appliance. Use a plastic scraper.

• Regularly examine the drain in the refriger­ator for defrosted water. If necessary,
clean the drain. If the drain is blocked, wa­ter will collect in the bottom of the appli­ance.

Installation
Important! For electrical connection

carefully follow the instructions given in
specific paragraphs.

• Unpack the appliance and check if there
are damages on it. Do not connect the ap­pliance if it is damaged. Report possible
damages immediately to the place you
bought it. In that case retain packing.

• It is advisable to wait at least four hours
before connecting the appliance to allow
the oil to flow back in the compressor.

• Adequate air circulation should be
around the appliance, lacking this leads
to overheating. To achieve sufficient ven­tilation follow the instructions relevant to
installation.

• Wherever possible the back of the prod­uct should be against a wall to avoid
touching or catching warm parts (com­pressor, condenser) to prevent possible
burn.

• The appliance must not be located close
to radiators or cookers.

• Make sure that the mains plug is accessi­ble after the installation of the appliance.

•

Connect to potable water supply only.

4)

4 electrolux

Service

• Any electrical work required to do the serv­icing of the appliance should be carried
out by a qualified electrician or compe­tent person.

• This product must be serviced by an au­thorized Service Centre, and only genu­ine spare parts must be used.

Environment Protection

This appliance does not contain gasses
which could damage the ozone layer,

CONTROL PANEL

Freezer Control panel

ON/OFF

1. Pilot light

2. ON/OFF switch

3. Temperature regulator (warmest)

4. Temperature indicator

5. Temperature regulator (coldest)

6. Action Freeze light

7. Action Freeze switch

8. Alarm light

9. Alarm reset switch

Switching on

Insert the plug into the wall socket.
Press the ON/OFF switch .
The Pilot Light will light up.

Switching off

The freezer is shut off by pressing the ON/
OFF switch until the Pilot light and the Tem­perature indicator switched off.

Temperature regulation

The temperature can be adjusted between

-15°C and -24°C.

By pressing the Temperature regulators ,
the current temperature setting flashes on
the Temperature indicator. It is possible to
modify the setting temperature only with
flashed indicator. To set a warmer tempera­ture, press warmest Temperature regula­tor . To set a colder temperature, press cold-

ACTION

COOL

in either its refrigerant circuit or insula­tion materials. The appliance shall not
be discarded together with the urban re­fuse and rubbish. The insulation foam
contains flammable gases: the appli­ance shall be disposed according to
the applicable regulations to obtain
from your local authorities. Avoid dam­aging the cooling unit, especially at the
rear near the heat exchanger. The ma­terials used on this appliance marked
by the symbol

1 2 3 4 5 6 7 8 9

are recyclable.

ACTION
FREEZE

est Temperature regulator. The Tempera­ture indicator displays the newly selected
temperature for a few seconds and then
shows again the inside compartment tem­perature.
The newly selected-temperature must be
reached after 24 hours.

Caution! During the stability period by
the first starting the temperature
displayed can not correspond to the
setting temperature.

Temperature indicator

During normal functioning the Temperature
indicator shows the temperature inside the
freezer.

Important! Difference between the
temperature displayed and temperature
setting is normal. Especially when:

• a new setting has recently been selected.

• the door has been left open for a long time.

• warm food has been placed in the com­partment.

Action Freeze function

You can activate the Action Freeze function
by pressing the Action Freeze switch.
The Action Freeze light will light up.

4) If a water connection is foreseen

electrolux 5

This function stops automatically after 52
hours.
It is possible to deactivate the function at
any time by pressingAction Freeze switch.
The Action Freeze light will switch off.

Excessive temperature alarm

In the event of an abnormal temperature
rise inside the freezer (e.g. power cut) Alarm
light will start to flash and a buzzer will sound.
After the temperature has returned to nor­mal, the Alarm light will continue to flash, al­though the buzzer has stopped.

Fridge Control panel

ON/OFF

1 2 3 4 5 6 7

ACTION

COOL

1. Pilot light

2. ON/OFF switch

3. Temperature regulator (warmest)

4. Temperature indicator

5. Temperature regulator (coldest)

6. Action Cool light

7. Action Cool switch

Switching on

Insert the plug into the wall socket.
Press the ON/OFF switch .
The Pilot Light will light up.

Switching off

The fridge is shut off by pressing the ON/
OFF switch until the Pilot light and the Tem­perature indicator switched off.

Temperature regulation

The temperature can be adjusted between
+2°C and +8°C.
By pressing the Temperature regulators,
the current temperature setting flashes on
the Temperature indicator. It is possible to
modify the setting temperature only with
flashed indicator. To set a warmer tempera­ture, press warmest Temperature regulator.
To set a colder temperature, press coldest
Temperature regulator. The Temperature in­dicator displays the newly selected temper­ature for a few seconds and then shows
again the inside compartment temperature.

When the Alarm reset switch is pressed,
the warmest temperature reached in the
compartment flashes on the Temperature in­dicator .
If the power has been off for a long time, fro­zen food should be consumed as quickly as
possible, or cooked and then re-frozen.

ACTION
FREEZE

The newly selected-temperature must be
reached after 24 hours.

Caution! During the stability period by
the first starting the temperature
displayed can not correspond to the
setting temperature. During this time it
is possible that the temperature
displayed is lower than the setting
temperature.

Temperature indicator

During normal functioning the Temperature
indicator shows the temperature inside the
fridge.

Important! Difference between the
temperature displayed and temperature
setting is normal. Especially when:

• a new setting has recently been selected.

• the door has been left open for a long time.

• warm food has been placed in the com­partment.

Action Cool function

The maximum performance is obtained by
setting the Action Coolfunction. It’s recom­mended when loading large quantities of
food.
You can activate the Action Cool function
by pressing the Action Cool switch.
The Action Cool light will light up.

6 electrolux

Important! The internal temperature goes

down to +2°C.

FIRST USE

Cleaning the interior

Before using the appliance for the first time,
wash the interior and all internal accesso­ries with lukewarm water and some neutral
soap so as to remove the typical smell of a
brand-new product, then dry thoroughly.

DAILY USE

Freezing fresh food

The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze fresh food activate the Auto
Freeze function at least 24 hours before plac­ing the food to be frozen in the freezer com­partment.
Place the fresh food to be frozen in the up­per part of the freezer, as this is the coldest
point.
The maximum amount of food that can be
frozen in 24 hours is specified on the rating
plate , a label located on the inside of the
appliance.
The freezing process lasts 24 hours: during
this period do not add other food to be fro­zen.

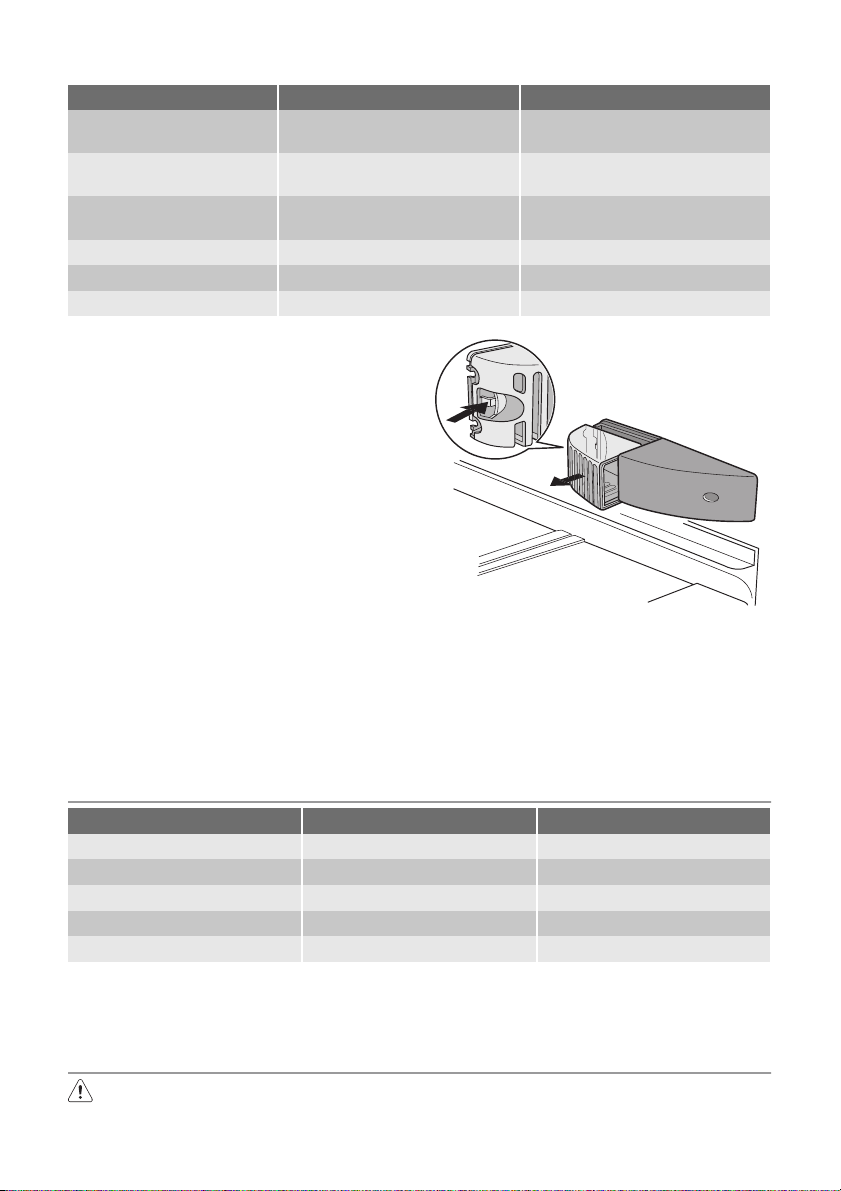

Important! When use the Auto Freeze
function:

about 6
hours be­fore

about 24
hours be­fore

not needed Introducing frozen food
not needed Introducing small quantities of

Storage of frozen food

When first starting-up or after a period out
of use, before putting the products in the
compartment let the appliance run at least
2 hours on the higher settings.

Important! In the event of accidental
defrosting, for example due to a power
failure, if the power has been off for longer

Introducing small quantities of
fresh food (about 5 kg)

Introducing the maximum quanti­ty of food (see rating plate)

fresh food daily 2 kg maximum

After about 6 hours the Action Cool func­tion switches off automatically.

Important! Do not use detergents or abra­sive powders, as these will damage the fin­ish.

than the value shown in the technical
characteristics chart under "rising time", the
defrosted food must be consumed quickly
or cooked immediately and then re-frozen
(after cooling).

Ice-cube production

This appliance is equipped with one or
more trays for the production of ice-cubes.
Fill these trays with water, then put them in
the freezer compartment.

Important! Do not use metallic instruments
to remove the trays from the freezer.

Cold accumulators

The freezer contains at least one cold accu­mulator which increases storage time in the
event of a power cut or breakdown.

Thawing

Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator com­partment or at room temperature, depend­ing on the time available for this operation.
Small pieces may even be cooked still fro­zen, directly from the freezer: in this case,
cooking will take longer.

Movable shelves

The walls of the refrigerator are equipped
with a series of runners so that the shelves
can be positioned as desired.
For better use of space, the front half­shelves can lie over the rear ones.

Positioning the door shelves

To permit storage of food packages of vari­ous sizes, the door shelves can be placed
at different heights.
To make these adjustments proceed as fol­lows:
gradually pull the shelf in the direction of the
arrows until it comes free, then reposition
as required.

electrolux 7

This bottle holder shelf can be tilted in order
to store previously opened bottles. To ob­tain this result, pull the shelf up so it can ro­tate upwards and be placed on the next
higher level.

Bottle rack

Place the bottles (with the opening facing
front) in the pre-positioned shelf.

Important! If the shelf is positioned
horizontally, place only closed bottles.

Air cooling

The Dynamic Air Cooling (DAC) fan let food
cool quickly and a more uniform tempera­ture in the compartment.

1. You can switch on the fan by pressing

the switch (1). The green light (2) comes
on.

8 electrolux

This device allows for rapid cooling of foods
and a more uniform temperature in the com­partment.

Important! Switch on the fan when the
ambient temperature exceeds 25°C.

2

1

HELPFUL HINTS AND TIPS

Hints for energy saving

• Do not open the door frequently or leave
it open longer than absolutely necessary.

• If the ambient temperature is high and
the Temperature Regulator is set to low
temperature and the appliance is fully loa­ded, the compressor may run continuous­ly, causing frost or ice on the evaporator.
If this happens, set the Temperature Reg­ulator toward warmer settings to allow au­tomatic defrosting and so a saving in elec­tricity consumption.

Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liq­uids in the refrigerator

• do cover or wrap the food, particularly if it
has a strong flavour

• position food so that air can circulate free­ly around it

Hints for refrigeration

Useful hints:
Meat (all types) : wrap in polythene bags
and place on the glass shelf above the veg­etable drawer.
For safety, store in this way only one or two
days at the most.

Cooked foods, cold dishes, etc..: these
should be covered and may be placed on
any shelf.
Fruit and vegetables: these should be thor­oughly cleaned and placed in the special
drawer(s) provided.
Butter and cheese: these should be placed
in special airtight containers or wrapped in
aluminium foil or polythene bags to exclude
as much air as possible.
Milk bottles: these should have a cap and
should be stored in the bottle rack on the
door.
Bananas, potatoes, onions and garlic, if not
packed, must not be kept in the refrigerator.

Hints for freezing

To help you make the most of the freezing
process, here are some important hints:

• the maximum quantity of food which can
be frozen in 24 hrs. is shown on the rat­ing plate;

• the freezing process takes 24 hours. No
further food to be frozen should be add­ed during this period;

• only freeze top quality, fresh and thorough­ly cleaned, foodstuffs;

• prepare food in small portions to enable it
to be rapidly and completely frozen and

electrolux 9

to make it possible subsequently to thaw
only the quantity required;

• wrap up the food in aluminium foil or pol­ythene and make sure that the packages
are airtight;

• do not allow fresh, unfrozen food to
touch food which is already frozen, thus
avoiding a rise in temperature of the latter;

• lean foods store better and longer than
fatty ones; salt reduces the storage life of
food;

• water ices, if consumed immediately after
removal from the freezer compartment,
can possibly cause the skin to be freeze
burnt;

• it is advisable to show the freezing in date
on each individual pack to enable you to
keep tab of the storage time.

CARE AND CLEANING

Caution! Unplug the appliance before
carrying out any maintenance operation.

This appliance contains hydrocarbons
in its cooling unit; maintenance and re­charging must therefore only be carried
out by authorized technicians.

Periodic cleaning

The equipment has to be cleaned regularly:

• clean the inside and accessories with luke­warm water and some neutral soap.

• regularly check the door seals and wipe
clean to ensure they are clean and free
from debris.

• rinse and dry thoroughly.

Important! Do not pull, move or damage
any pipes and/or cables inside the cabinet.
Never use detergents, abrasive powders,
highly perfumed cleaning products or wax
polishes to clean the interior as this will dam­age the surface and leave a strong odour.

Clean the condenser (black grill) and the
compressor at the back of the appliance
with a brush or a vacuum cleaner. This op­eration will improve the performance of the
appliance and save electricity consumption.

Important! Take care of not to damage the
cooling system.

Many proprietary kitchen surface cleaners
contain chemicals that can attack/damage

Hints for storage of frozen food

To obtain the best performance from this ap­pliance, you should:

• make sure that the commercially frozen
foodstuffs were adequately stored by the
retailer;

• be sure that frozen foodstuffs are transfer­red from the foodstore to the freezer in
the shortest possible time;

• not open the door frequently or leave it
open longer than absolutely necessary.

• Once defrosted, food deteriorates rapidly
and cannot be refrozen.

• Do not exceed the storage period indica­ted by the food manufacturer.

the plastics used in this appliance. For this
reason it is recommended that the outer cas­ing of this appliance is only cleaned with
warm water with a little washing-up liquid
added.
After cleaning, reconnect the equipment to
the mains supply.

Defrosting of the refrigerator

Frost is automatically eliminated from the
evaporator of the refrigerator compartment
every time the motor compressor stops, dur­ing normal use. The defrost water drains
out through a trough into a special contain­er at the back of the appliance, over the mo­tor compressor, where it evaporates.
It is important to periodically clean the de­frost water drain hole in the middle of the re­frigerator compartment channel to prevent
the water overflowing and dripping onto the
food inside. Use the special cleaner provi­ded, which you will find already inserted in­to the drain hole.
